◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ UCR ▶ 51027 - UCR/UCS(THAILAND) ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-25 - INLET MANIFOLD ▶
0-25 — INLET MANIFOLD (#73727) — 105 parça

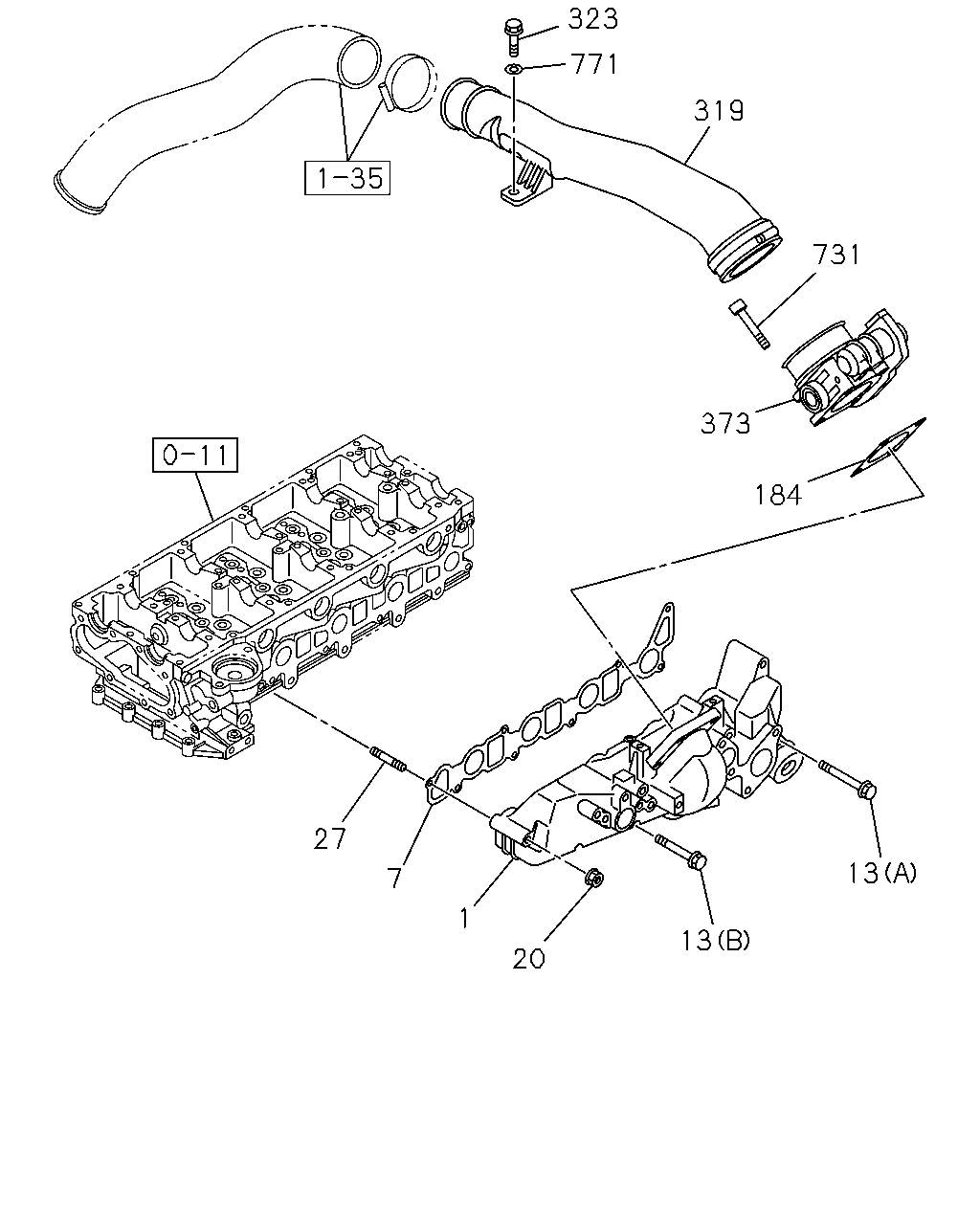

çizim 39792
1 20 7 27 13 13 184 373 731 319 771 323
BalonParca AdiParca NoAdetTipApplied Date A B
1 MANIFOLD; INL
THA 		8-97312-063-5 01 1 0411-0606 ●
1 MANIFOLD; INL
M/T MUA 5 SPEED 5H<MWQ> THA 		8-97312-063-5 01 1 0607-0808 ●
1 MANIFOLD; INL
THA 		8-97312-063-5 01 1 0809- ●
1 MANIFOLD; INL
THA 		8-98011-521-0 01 1 0610-0708 ●
1 MANIFOLD; INL
THA 		8-98011-521-0 01 1 0710- ●
7 GASKET; INL MANIF TO HD
THA 		8-97312-067-0 01 1 0411-0606 ●
7 GASKET; INL MANIF TO HD
M/T MUA 5 SPEED 5H<MWQ> THA 		8-97312-067-0 01 1 0607-0609 ●
7 GASKET; INL MANIF TO HD
THA 		8-97312-067-0 01 1 0610-0708 ● ●
7 GASKET; INL MANIF TO HD
THA 		8-97312-067-0 01 1 0709-0709 ●
7 GASKET; INL MANIF TO HD
THA 		8-97312-067-1 01 1 0710- ● ●
13 BOLT; INL MANIF
(A) M8X110 FLANGE THA 		0-28055-811-0 02 1 0411-0606 ●
13 BOLT; INL MANIF
M/T MUA 5 SPEED 5H<MWQ> (A) M8X110 FLANGE THA 		0-28055-811-0 02 1 0607-0609 ●
13 BOLT; INL MANIF
(A) M8X110 FLANGE THA 		0-28055-811-0 02 1 0610-0708 ● ●
13 BOLT; INL MANIF
(A) M8X110 FLANGE THA 		0-28055-811-0 02 1 0709-0709 ●
13 BOLT; INL MANIF
(A) M8X110 FLANGE THA 		0-28055-811-0 02 1 0710- ● ●
13 BOLT; INL MANIF
(B) M8X70 12-POINT HEAD THA 		8-97101-065-0 04 1 0411-0606 ●
13 BOLT; INL MANIF
M/T MUA 5 SPEED 5H<MWQ> (B) M8X70 12-POINT HEAD THA 		8-97101-065-0 04 1 0607-0609 ●
13 BOLT; INL MANIF
(B) M8X70 12-POINT HEAD THA 		8-97101-065-0 04 1 0610-0708 ● ●
13 BOLT; INL MANIF
(B) M8X70 12-POINT HEAD THA 		8-97101-065-0 04 1 0709-0709 ●
13 BOLT; INL MANIF
(B) M8X70 12-POINT HEAD THA 		8-97101-065-0 04 1 0710- ● ●
20 NUT; INL MANIF
M8 FLANGE THA 		0-91180-208-0 02 1 0411-0606 ●
20 NUT; INL MANIF
M/T MUA 5 SPEED 5H<MWQ> M8 FLANGE THA 		0-91180-208-0 02 1 0607-0609 ●
20 NUT; INL MANIF
M8 FLANGE THA 		0-91180-208-0 02 1 0610-0708 ● ●
20 NUT; INL MANIF
M8 FLANGE THA 		0-91180-208-0 02 1 0709-0709 ●
20 NUT; INL MANIF
M8 FLANGE THA 		0-91180-208-0 02 1 0710- ● ●
27 STUD; INL MANIF
M8X71 L=83 THA 		8-97367-083-0 02 1 0411-0606 ●
27 STUD; INL MANIF
M/T MUA 5 SPEED 5H<MWQ> M8X71 L=83 THA 		8-97367-083-0 02 1 0607-0609 ●
27 STUD; INL MANIF
M8X71 L=83 THA 		8-97367-083-0 02 1 0610-0708 ● ●
27 STUD; INL MANIF
M8X71 L=83 THA 		8-97367-083-0 02 1 0709-0709 ●
27 STUD; INL MANIF
M8X71 L=83 THA 		8-97367-083-0 02 1 0710- ● ●
184 GASKET; T/V
THA 		8-97366-784-1 01 1 0411-0606 ●
184 GASKET; T/V
M/T MUA 5 SPEED 5H<MWQ> THA 		8-97366-784-1 01 1 0607-0609 ●
184 GASKET; T/V
THA 		8-97366-784-1 01 1 0610-0708 ● ●
184 GASKET; T/V
THA 		8-97366-784-1 01 1 0709-0709 ●
184 GASKET; T/V
THA 		8-97366-784-1 01 1 0710- ● ●
319 DUCT; INL,TURBOCHARGER
THA 		8-97356-891-2 01 1 0411-0602 ●
319 DUCT; INL,TURBOCHARGER
THA 		8-97945-196-0 01 1 0603-0606 ●
319 DUCT; INL,TURBOCHARGER
M/T MUA 5 SPEED 5H<MWQ> THA 		8-97945-196-0 01 1 0607-0808 ●
319 DUCT; INL,TURBOCHARGER
THA 		8-97945-196-0 01 1 0809-1111 ●
319 DUCT; INL,TURBOCHARGER
THA 		8-98209-860-0 01 1 1112- ●
323 BOLT; DUCT
M8X20 FLANGE THA 		0-28050-820-0 02 1 0411-0606 ●
323 BOLT; DUCT
M/T MUA 5 SPEED 5H<MWQ> M8X20 FLANGE THA 		0-28050-820-0 02 1 0607-0808 ●
323 BOLT; DUCT
M8X20 FLANGE THA 		0-28050-820-0 02 1 0809- ●
373 THROTTLE ASM; INT
THA 		8-97370-833-2 01 1 0411-0509 ●
373 THROTTLE ASM; INT
THA 		8-97945-347-0 01 1 0510-0606 ●
373 THROTTLE ASM; INT
M/T MUA 5 SPEED 5H<MWQ> THA 		8-97945-522-0 01 1 0607-0609 ●
373 THROTTLE ASM; INT
THA 		8-97945-522-0 01 1 0610-0708 ● ●
373 THROTTLE ASM; INT
THA 		8-97945-522-0 01 1 0709-0709 ●
373 THROTTLE ASM; INT
THA 		8-97945-522-4 01 1 0710- ● ●
731 BOLT; THROTTLE ASM
M6X50 HEX SOCKET THA 		0-58330-650-0 04 1 0411-0606 ●
731 BOLT; THROTTLE ASM
M/T MUA 5 SPEED 5H<MWQ> M6X50 HEX SOCKET THA 		0-58330-650-0 04 1 0607-0609 ●
731 BOLT; THROTTLE ASM
M6X50 HEX SOCKET THA 		0-58330-650-0 04 1 0610-0708 ● ●
731 BOLT; THROTTLE ASM
M6X50 HEX SOCKET THA 		0-58330-650-0 04 1 0709-0709 ●
731 BOLT; THROTTLE ASM
M6X50 HEX SOCKET THA 		0-58330-650-0 04 1 0710- ● ●
771 WASHER; DUCT
ID=8.4 OD=16 THA 		0-91610-508-0 02 1 0411-0606 ●
771 WASHER; DUCT
M/T MUA 5 SPEED 5H<MWQ> ID=8.4 OD=16 THA 		0-91610-508-0 02 1 0607-0808 ●
771 WASHER; DUCT
ID=8.4 OD=16 THA 		0-91610-508-0 02 1 0809- ●

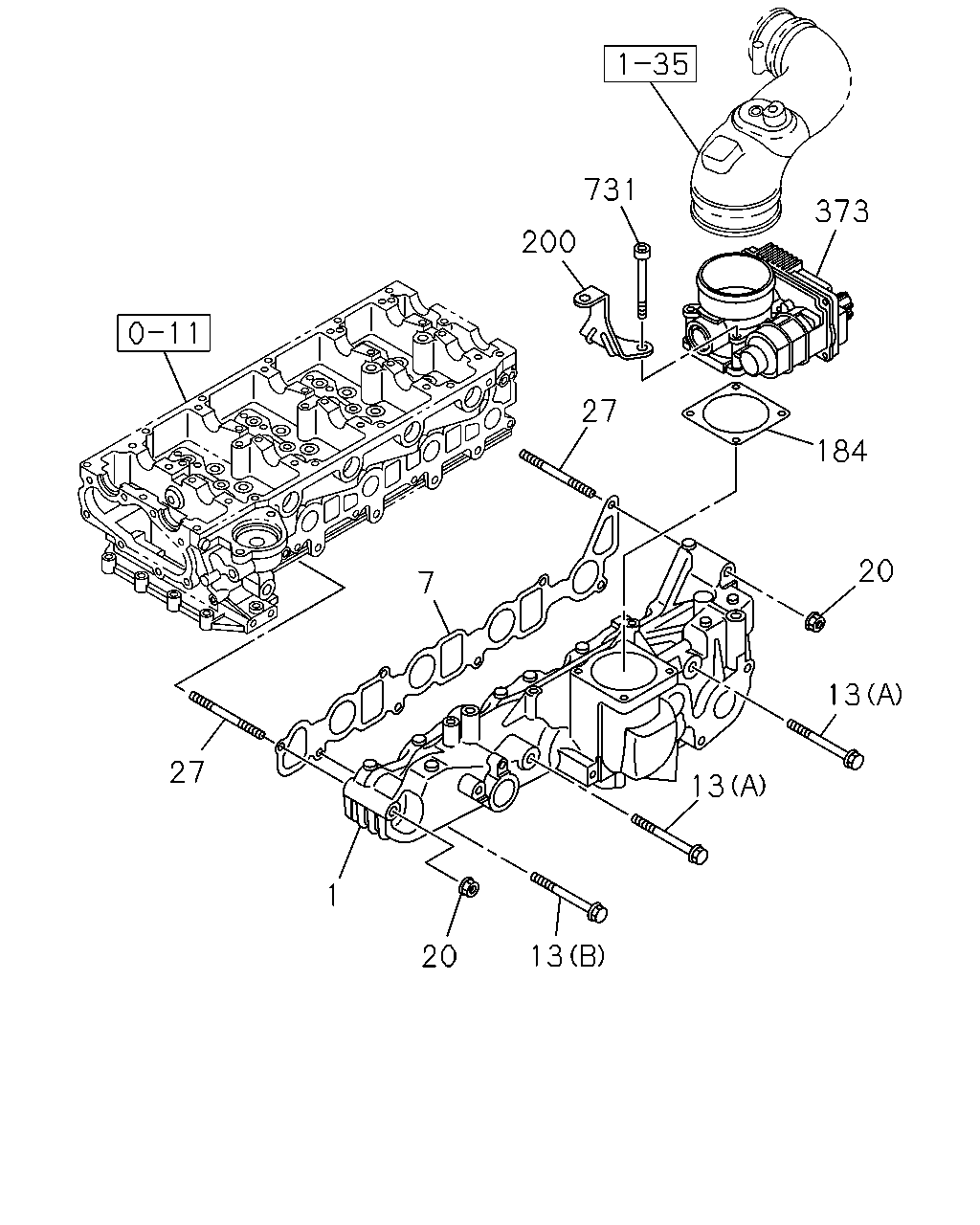

çizim 40088
731 373 200 27 184 20 7 13 27 13 1 13 20
BalonParca AdiParca NoAdetTipApplied Date A B
1 MANIFOLD; INL
THA 		8-97312-063-5 01 1 0411-0606 ●
1 MANIFOLD; INL
M/T MUA 5 SPEED 5H<MWQ> THA 		8-97312-063-5 01 1 0607-0808 ●
1 MANIFOLD; INL
THA 		8-97312-063-5 01 1 0809- ●
1 MANIFOLD; INL
THA 		8-98011-521-0 01 1 0610-0708 ●
1 MANIFOLD; INL
THA 		8-98011-521-0 01 1 0710- ●
7 GASKET; INL MANIF TO HD
THA 		8-97312-067-0 01 1 0411-0606 ●
7 GASKET; INL MANIF TO HD
M/T MUA 5 SPEED 5H<MWQ> THA 		8-97312-067-0 01 1 0607-0609 ●
7 GASKET; INL MANIF TO HD
THA 		8-97312-067-0 01 1 0610-0708 ● ●
7 GASKET; INL MANIF TO HD
THA 		8-97312-067-0 01 1 0709-0709 ●
7 GASKET; INL MANIF TO HD
THA 		8-97312-067-1 01 1 0710- ● ●
13 BOLT; INL MANIF
(A) M8X110 FLANGE THA 		0-28055-811-0 02 1 0411-0606 ●
13 BOLT; INL MANIF
M/T MUA 5 SPEED 5H<MWQ> (A) M8X110 FLANGE THA 		0-28055-811-0 02 1 0607-0609 ●
13 BOLT; INL MANIF
(A) M8X110 FLANGE THA 		0-28055-811-0 02 1 0610-0708 ● ●
13 BOLT; INL MANIF
(A) M8X110 FLANGE THA 		0-28055-811-0 02 1 0709-0709 ●
13 BOLT; INL MANIF
(A) M8X110 FLANGE THA 		0-28055-811-0 02 1 0710- ● ●
13 BOLT; INL MANIF
(B) M8X70 12-POINT HEAD THA 		8-97101-065-0 04 1 0411-0606 ●
13 BOLT; INL MANIF
M/T MUA 5 SPEED 5H<MWQ> (B) M8X70 12-POINT HEAD THA 		8-97101-065-0 04 1 0607-0609 ●
13 BOLT; INL MANIF
(B) M8X70 12-POINT HEAD THA 		8-97101-065-0 04 1 0610-0708 ● ●
13 BOLT; INL MANIF
(B) M8X70 12-POINT HEAD THA 		8-97101-065-0 04 1 0709-0709 ●
13 BOLT; INL MANIF
(B) M8X70 12-POINT HEAD THA 		8-97101-065-0 04 1 0710- ● ●
20 NUT; INL MANIF
M8 FLANGE THA 		0-91180-208-0 02 1 0411-0606 ●
20 NUT; INL MANIF
M/T MUA 5 SPEED 5H<MWQ> M8 FLANGE THA 		0-91180-208-0 02 1 0607-0609 ●
20 NUT; INL MANIF
M8 FLANGE THA 		0-91180-208-0 02 1 0610-0708 ● ●
20 NUT; INL MANIF
M8 FLANGE THA 		0-91180-208-0 02 1 0709-0709 ●
20 NUT; INL MANIF
M8 FLANGE THA 		0-91180-208-0 02 1 0710- ● ●
27 STUD; INL MANIF
M8X71 L=83 THA 		8-97367-083-0 02 1 0411-0606 ●
27 STUD; INL MANIF
M/T MUA 5 SPEED 5H<MWQ> M8X71 L=83 THA 		8-97367-083-0 02 1 0607-0609 ●
27 STUD; INL MANIF
M8X71 L=83 THA 		8-97367-083-0 02 1 0610-0708 ● ●
27 STUD; INL MANIF
M8X71 L=83 THA 		8-97367-083-0 02 1 0709-0709 ●
27 STUD; INL MANIF
M8X71 L=83 THA 		8-97367-083-0 02 1 0710- ● ●
184 GASKET; T/V
THA 		8-97366-784-1 01 1 0411-0606 ●
184 GASKET; T/V
M/T MUA 5 SPEED 5H<MWQ> THA 		8-97366-784-1 01 1 0607-0609 ●
184 GASKET; T/V
THA 		8-97366-784-1 01 1 0610-0708 ● ●
184 GASKET; T/V
THA 		8-97366-784-1 01 1 0709-0709 ●
184 GASKET; T/V
THA 		8-97366-784-1 01 1 0710- ● ●
200 BRACKET; AIR DUCT
THA 		8-98031-444-0 01 1 0610-0708 ●
200 BRACKET; AIR DUCT
THA 		8-98031-444-0 01 1 0710- ●
373 THROTTLE ASM; INT
THA 		8-97370-833-2 01 1 0411-0509 ●
373 THROTTLE ASM; INT
THA 		8-97945-347-0 01 1 0510-0606 ●
373 THROTTLE ASM; INT
M/T MUA 5 SPEED 5H<MWQ> THA 		8-97945-522-0 01 1 0607-0609 ●
373 THROTTLE ASM; INT
THA 		8-97945-522-0 01 1 0610-0708 ● ●
373 THROTTLE ASM; INT
THA 		8-97945-522-0 01 1 0709-0709 ●
373 THROTTLE ASM; INT
THA 		8-97945-522-4 01 1 0710- ● ●
731 BOLT; THROTTLE ASM
M6X50 HEX SOCKET THA 		0-58330-650-0 04 1 0411-0606 ●
731 BOLT; THROTTLE ASM
M/T MUA 5 SPEED 5H<MWQ> M6X50 HEX SOCKET THA 		0-58330-650-0 04 1 0607-0609 ●
731 BOLT; THROTTLE ASM
M6X50 HEX SOCKET THA 		0-58330-650-0 04 1 0610-0708 ● ●
731 BOLT; THROTTLE ASM
M6X50 HEX SOCKET THA 		0-58330-650-0 04 1 0709-0709 ●
731 BOLT; THROTTLE ASM
M6X50 HEX SOCKET THA 		0-58330-650-0 04 1 0710- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
