Sayfa 0-20 - Isuzu EPC

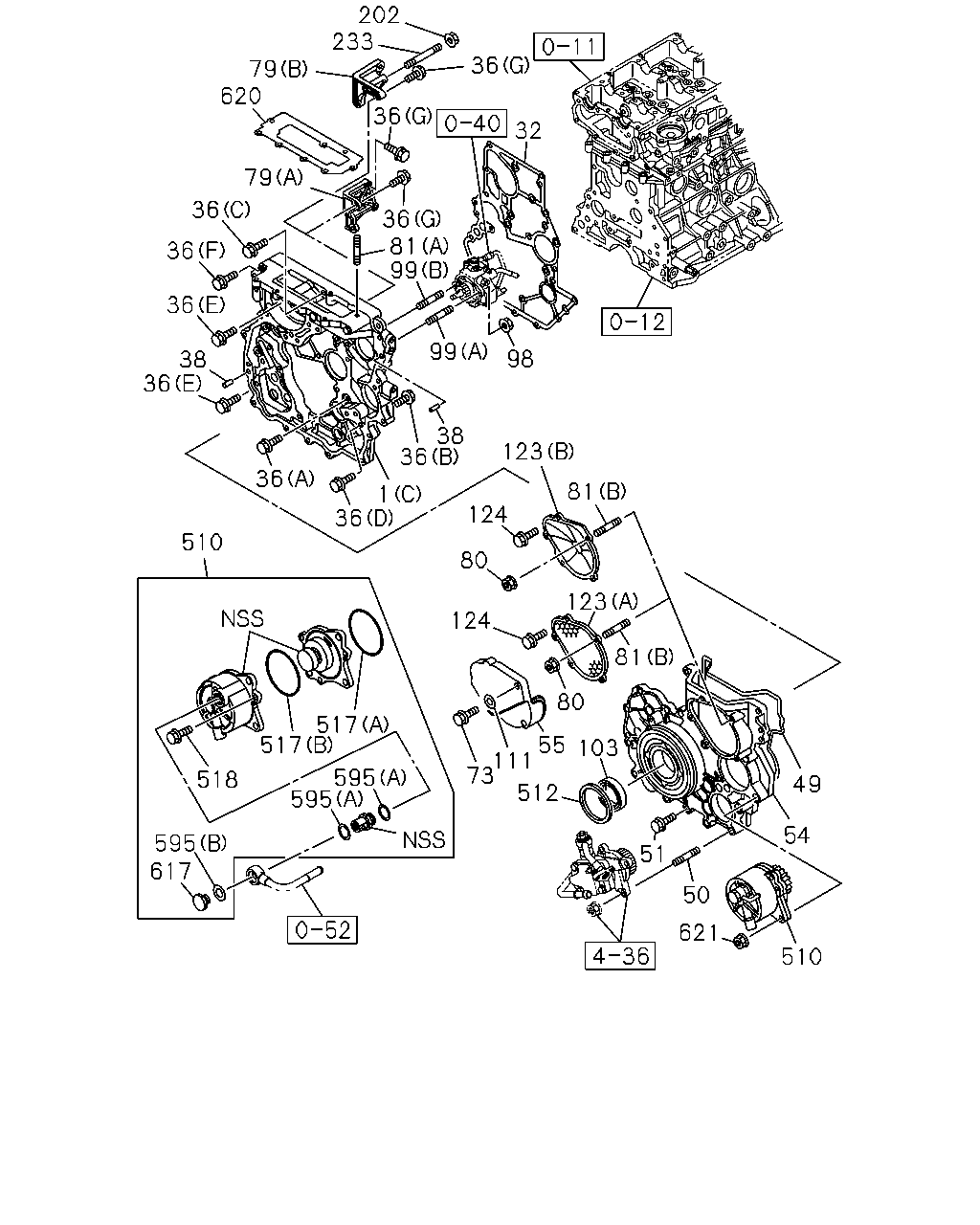

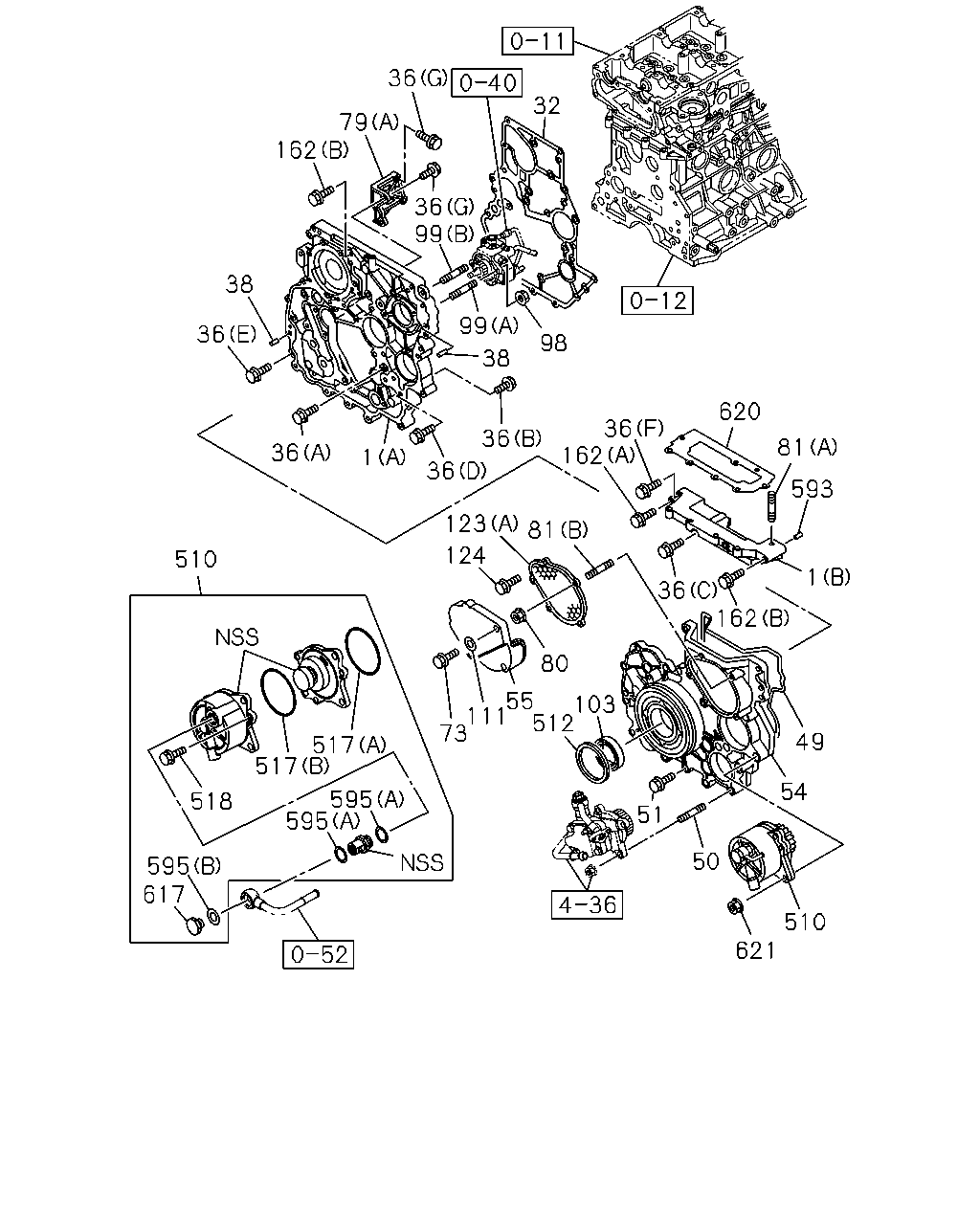

0-20 — TIMING GEAR CASE AND FLYWHEEL HOUSING (#73725) — 469 parça

36 32 79 162 36 99 38 36 36 1 99 38 98 36 36 36 162 620 81 593 1 162 36 81 123 124 80 55 111 73 512 103 51 54 49 510 50 621 595 595 517 517 518 595 617 510

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	CASE; TIMING GEAR (A) THA	8-97367-310-3	01	1	0411-0508	●
1	CASE; TIMING GEAR (B) THA	8-97367-311-1	01	1	0411-0508	●
1	CASE; TIMING GEAR (C) SW & SONS CO.,LTD. THA	8-97945-261-0	01	1	0509-0606	●
1	CASE; TIMING GEAR M/T MUA 5 SPEED 5H<MWQ> (C) SW & SONS CO.,LTD. THA	8-97945-261-0	01	1	0607-0609	●
1	CASE; TIMING GEAR (C) SW & SONS CO.,LTD. THA	8-97945-261-0	01	1	0610-0708	●	●
1	CASE; TIMING GEAR (C) SW & SONS CO.,LTD. THA	8-97945-261-0	01	1	0709-0709	●
1	CASE; TIMING GEAR (C) SW & SONS CO.,LTD. THA	8-97945-261-1	01	1	0710-1008	●	●
1	CASE; TIMING GEAR (C) THAI ENGINEERING PRO 15X5.50F STAMP, BLACK THA	8-97367-309-3	01	1	0603-0606	●
1	CASE; TIMING GEAR M/T MUA 5 SPEED 5H<MWQ> (C) THAI ENGINEERING PRO 15X5.50F STAMP, BLACK THA	8-97367-309-3	01	1	0607-0609	●
1	CASE; TIMING GEAR (C) THAI ENGINEERING PRO 15X5.50F STAMP, BLACK THA	8-97367-309-3	01	1	0610-0708	●	●
1	CASE; TIMING GEAR (C) THAI ENGINEERING PRO 15X5.50F STAMP, BLACK THA	8-97367-309-3	01	1	0709-0709	●
1	CASE; TIMING GEAR (C) THAI ENGINEERING PRO 15X5.50F STAMP, BLACK THA	8-97367-309-3	01	1	0710-1008	●	●
1	CASE; TIMING GEAR (C) THA	8-98074-747-1	01	1	1009-	●	●
32	GASKET; GEAR CASE TO C/BL THA	8-97312-221-2	01	1	0411-0606	●
32	GASKET; GEAR CASE TO C/BL M/T MUA 5 SPEED 5H<MWQ> THA	8-97312-221-2	01	1	0607-0609	●
32	GASKET; GEAR CASE TO C/BL THA	8-97312-221-2	01	1	0610-0708	●	●
32	GASKET; GEAR CASE TO C/BL THA	8-97312-221-2	01	1	0709-0709	●
32	GASKET; GEAR CASE TO C/BL THA	8-97312-221-2	01	1	0710-	●	●
36	BOLT; GEAR CASE (A) M8X16 FLANGE THA	0-28050-816-0	01	1	0411-0606	●
36	BOLT; GEAR CASE M/T MUA 5 SPEED 5H<MWQ> (A) M8X16 FLANGE THA	0-28050-816-0	01	1	0607-0609	●
36	BOLT; GEAR CASE (A) M8X16 FLANGE THA	0-28050-816-0	01	1	0610-0708	●	●
36	BOLT; GEAR CASE (A) M8X16 FLANGE THA	0-28050-816-0	01	1	0709-0709	●
36	BOLT; GEAR CASE (A) M8X16 FLANGE THA	0-28050-816-0	01	1	0710-	●	●
36	BOLT; GEAR CASE (B) M8X20 FLANGE THA	0-28050-820-0	01	1	0411-0606	●
36	BOLT; GEAR CASE M/T MUA 5 SPEED 5H<MWQ> (B) M8X20 FLANGE THA	0-28050-820-0	01	1	0607-0609	●
36	BOLT; GEAR CASE (B) M8X20 FLANGE THA	0-28050-820-0	01	1	0610-0708	●	●
36	BOLT; GEAR CASE (B) M8X20 FLANGE THA	0-28050-820-0	01	1	0709-0709	●
36	BOLT; GEAR CASE (B) M8X20 FLANGE THA	0-28050-820-0	01	1	0710-	●	●
36	BOLT; GEAR CASE (C) M8X35 FLANGE THA	0-28050-835-0	01	1	0411-0606	●
36	BOLT; GEAR CASE M/T MUA 5 SPEED 5H<MWQ> (C) M8X35 FLANGE THA	0-28050-835-0	01	1	0607-0609	●
36	BOLT; GEAR CASE (C) M8X35 FLANGE THA	0-28050-835-0	01	1	0610-0708	●	●
36	BOLT; GEAR CASE (C) M8X35 FLANGE THA	0-28050-835-0	01	1	0709-0709	●
36	BOLT; GEAR CASE (C) M8X35 FLANGE THA	0-28050-835-0	01	1	0710-	●	●
36	BOLT; GEAR CASE (D) M8X45 FLANGE THA	0-28050-845-0	02	1	0411-0606	●
36	BOLT; GEAR CASE M/T MUA 5 SPEED 5H<MWQ> (D) M8X45 FLANGE THA	0-28050-845-0	02	1	0607-0609	●
36	BOLT; GEAR CASE (D) M8X45 FLANGE THA	0-28050-845-0	02	1	0610-0708	●	●
36	BOLT; GEAR CASE (D) M8X45 FLANGE THA	0-28050-845-0	02	1	0709-0709	●
36	BOLT; GEAR CASE (D) M8X45 FLANGE THA	0-28050-845-0	02	1	0710-	●	●
36	BOLT; GEAR CASE (F) M8X60 FLANGE THA	0-28050-860-0	01	1	0411-0606	●
36	BOLT; GEAR CASE M/T MUA 5 SPEED 5H<MWQ> (F) M8X60 FLANGE THA	0-28050-860-0	01	1	0607-0609	●
36	BOLT; GEAR CASE (F) M8X60 FLANGE THA	0-28050-860-0	01	1	0610-0708	●	●
36	BOLT; GEAR CASE (F) M8X60 FLANGE THA	0-28050-860-0	01	1	0709-0709	●
36	BOLT; GEAR CASE (F) M8X60 FLANGE THA	0-28050-860-0	01	1	0710-	●	●
36	BOLT; GEAR CASE (E) M8X25 FLANGE THA	0-28650-825-0	15	1	0411-0606	●
36	BOLT; GEAR CASE M/T MUA 5 SPEED 5H<MWQ> (E) M8X25 FLANGE THA	0-28650-825-0	15	1	0607-0609	●
36	BOLT; GEAR CASE (E) M8X25 FLANGE THA	0-28650-825-0	15	1	0610-0708	●	●
36	BOLT; GEAR CASE (E) M8X25 FLANGE THA	0-28650-825-0	15	1	0709-0709	●
36	BOLT; GEAR CASE (E) M8X25 FLANGE THA	0-28650-825-0	15	1	0710-	●	●
36	BOLT; GEAR CASE (G) M8X30 FLANGE THA	0-28650-830-0	03	1	0411-0606	●
36	BOLT; GEAR CASE M/T MUA 5 SPEED 5H<MWQ> (G) M8X30 FLANGE THA	0-28650-830-0	03	1	0607-0609	●
36	BOLT; GEAR CASE (G) M8X30 FLANGE THA	0-28650-830-0	03	1	0610-0708	●	●
36	BOLT; GEAR CASE (G) M8X30 FLANGE THA	0-28650-830-0	03	1	0709-0709	●
36	BOLT; GEAR CASE (G) M8X30 FLANGE THA	0-28650-830-0	03	1	0710-	●	●
38	PIN; GEAR CASE COVER OD=10 L=20 THA	9-08151-020-0	02	1	0411-0606	●
38	PIN; GEAR CASE COVER M/T MUA 5 SPEED 5H<MWQ> OD=10 L=20 THA	9-08151-020-0	02	1	0607-0609	●
38	PIN; GEAR CASE COVER OD=10 L=20 THA	9-08151-020-0	02	1	0610-0708	●	●
38	PIN; GEAR CASE COVER OD=10 L=20 THA	9-08151-020-0	02	1	0709-0709	●
38	PIN; GEAR CASE COVER OD=10 L=20 THA	9-08151-020-0	02	1	0710-	●	●
49	GASKET; GEAR CASE TO COVER THA	8-97354-057-1	01	1	0411-0511	●
49	GASKET; GEAR CASE TO COVER THA	8-97945-298-0	01	1	0512-0606	●
49	GASKET; GEAR CASE TO COVER M/T MUA 5 SPEED 5H<MWQ> THA	8-97945-298-0	01	1	0607-0609	●
49	GASKET; GEAR CASE TO COVER THA	8-97945-298-0	01	1	0610-0708	●	●
49	GASKET; GEAR CASE TO COVER THA	8-97945-298-0	01	1	0709-0709	●
49	GASKET; GEAR CASE TO COVER THA	8-97945-298-0	01	1	0710-	●	●
50	STUD M8X27,M8X14 L=64.5 THA	8-97354-808-2	06	1	0411-0606	●
50	STUD M/T MUA 5 SPEED 5H<MWQ> M8X27,M8X14 L=64.5 THA	8-97354-808-2	06	1	0607-0609	●
50	STUD M8X27,M8X14 L=64.5 THA	8-97354-808-2	06	1	0610-0708	●	●
50	STUD M8X27,M8X14 L=64.5 THA	8-97354-808-2	06	1	0709-0709	●
50	STUD M8X27,M8X14 L=64.5 THA	8-97354-808-2	06	1	0710-	●	●
51	BOLT; GEAR CASE COVER THA	8-97354-697-0	14	1	0411-0606	●
51	BOLT; GEAR CASE COVER M/T MUA 5 SPEED 5H<MWQ> THA	8-97354-697-0	14	1	0607-0609	●
51	BOLT; GEAR CASE COVER THA	8-97354-697-1	14	1	0610-0708	●	●
51	BOLT; GEAR CASE COVER THA	8-97354-697-1	14	1	0709-0709	●
51	BOLT; GEAR CASE COVER THA	8-97354-697-1	14	1	0710-	●	●
54	COVER; GEAR CASE THA	8-97367-312-4	01	1	0411-0606	●
54	COVER; GEAR CASE M/T MUA 5 SPEED 5H<MWQ> THA	8-97367-312-4	01	1	0607-0609	●
54	COVER; GEAR CASE THA	8-97367-312-4	01	1	0610-0708	●	●
54	COVER; GEAR CASE THA	8-97367-312-4	01	1	0709-0709	●
54	COVER; GEAR CASE THA	8-97367-312-4	01	1	0710-1201	●	●
54	COVER; GEAR CASE THA	8-98170-215-0	01	1	1202-	●	●
55	COVER; NOISE SHIELD THA	8-97375-190-1	01	1	0411-0606	●
55	COVER; NOISE SHIELD M/T MUA 5 SPEED 5H<MWQ> THA	8-97375-190-1	01	1	0607-0609	●
55	COVER; NOISE SHIELD THA	8-97375-190-1	01	1	0610-0708	●	●
55	COVER; NOISE SHIELD THA	8-97375-190-1	01	1	0709-0709	●
55	COVER; NOISE SHIELD THA	8-97375-190-1	01	1	0710-1008	●	●
73	BOLT; COVER FIX M6X12 FLANGE THA	0-28050-612-0	02	1	0411-0606	●
73	BOLT; COVER FIX M/T MUA 5 SPEED 5H<MWQ> M6X12 FLANGE THA	0-28050-612-0	02	1	0607-0609	●
73	BOLT; COVER FIX M6X12 FLANGE THA	0-28050-612-0	02	1	0610-0708	●	●
73	BOLT; COVER FIX M6X12 FLANGE THA	0-28050-612-0	02	1	0709-0709	●
73	BOLT; COVER FIX M6X12 FLANGE THA	0-28050-612-0	02	1	0710-1008	●	●
79	BRACKET; GEAR CASE COVER (A) THA	8-97370-390-2	01	1	0411-0606	●
79	BRACKET; GEAR CASE COVER M/T MUA 5 SPEED 5H<MWQ> (A) THA	8-97370-390-2	01	1	0607-0609	●
79	BRACKET; GEAR CASE COVER (A) THA	8-97370-390-2	01	1	0610-0708	●	●
79	BRACKET; GEAR CASE COVER (A) THA	8-97370-390-2	01	1	0709-0709	●
79	BRACKET; GEAR CASE COVER (A) THA	8-97370-390-2	01	1	0710-1008	●	●
79	BRACKET; GEAR CASE COVER (B) THA	8-98107-106-0	01	1	1009-	●	●
80	NUT; COVER M6 FLANGE THA	0-91180-206-0	02	1	0411-0606	●
80	NUT; COVER M/T MUA 5 SPEED 5H<MWQ> M6 FLANGE THA	0-91180-206-0	02	1	0607-0609	●
80	NUT; COVER M6 FLANGE THA	0-91180-206-0	02	1	0610-0708	●	●
80	NUT; COVER M6 FLANGE THA	0-91180-206-0	02	1	0709-0709	●
80	NUT; COVER M6 FLANGE THA	0-91180-206-0	02	1	0710-	●	●
81	STUD; GEAR CASE COVER FIX (B) M6X16 L=25 THA	0-41010-616-0	02	1	0411-0606	●
81	STUD; GEAR CASE COVER FIX M/T MUA 5 SPEED 5H<MWQ> (B) M6X16 L=25 THA	0-41010-616-0	02	1	0607-0609	●
81	STUD; GEAR CASE COVER FIX (B) M6X16 L=25 THA	0-41010-616-0	02	1	0610-0708	●	●
81	STUD; GEAR CASE COVER FIX (B) M6X16 L=25 THA	0-41010-616-0	02	1	0709-0709	●
81	STUD; GEAR CASE COVER FIX (B) M6X16 L=25 THA	0-41010-616-0	02	1	0710-	●	●
81	STUD; GEAR CASE COVER FIX (A) M8X30 L=48 THA	0-49140-830-0	02	1	0411-0606	●
81	STUD; GEAR CASE COVER FIX M/T MUA 5 SPEED 5H<MWQ> (A) M8X30 L=48 THA	0-49140-830-0	02	1	0607-0609	●
81	STUD; GEAR CASE COVER FIX (A) M8X30 L=48 THA	0-49140-830-0	02	1	0610-0708	●	●
81	STUD; GEAR CASE COVER FIX (A) M8X30 L=48 THA	0-49140-830-0	02	1	0709-0709	●
81	STUD; GEAR CASE COVER FIX (A) M8X30 L=48 THA	0-49140-830-0	02	1	0710-	●	●
98	NUT; STUD,INJ PUMP M8 FLANGE THA	0-91180-208-0	02	1	0411-0606	●
98	NUT; STUD,INJ PUMP M/T MUA 5 SPEED 5H<MWQ> M8 FLANGE THA	0-91180-208-0	02	1	0607-0609	●
98	NUT; STUD,INJ PUMP M8 FLANGE THA	0-91180-208-0	02	1	0610-0708	●	●
98	NUT; STUD,INJ PUMP M8 FLANGE THA	0-91180-208-0	02	1	0709-0709	●
98	NUT; STUD,INJ PUMP M8 FLANGE THA	0-91180-208-0	02	1	0710-	●	●
99	STUD; INJ PUMP (A) M8X30 L=41 THA	8-97369-449-0	01	1	0411-0508	●
99	STUD; INJ PUMP (B) M8X45 L=56 THA	8-97369-450-0	01	1	0411-0508	●
99	STUD; INJ PUMP (A) M8X30 L=48 THA	0-49140-830-0	01	1	0509-0606	●
99	STUD; INJ PUMP M/T MUA 5 SPEED 5H<MWQ> (A) M8X30 L=48 THA	0-49140-830-0	01	1	0607-0609	●
99	STUD; INJ PUMP (A) M8X30 L=48 THA	0-49140-830-0	01	1	0610-0708	●	●
99	STUD; INJ PUMP (A) M8X30 L=48 THA	0-49140-830-0	01	1	0709-0709	●
99	STUD; INJ PUMP (A) M8X30 L=48 THA	0-49140-830-0	01	1	0710-1008	●	●
99	STUD; INJ PUMP (A) M8X30 L=48 THA	0-49140-830-0	02	1	1009-	●	●
99	STUD; INJ PUMP (B) M8X45 L=63 THA	0-49140-845-0	01	1	0509-0606	●
99	STUD; INJ PUMP M/T MUA 5 SPEED 5H<MWQ> (B) M8X45 L=63 THA	0-49140-845-0	01	1	0607-0609	●
99	STUD; INJ PUMP (B) M8X45 L=63 THA	0-49140-845-0	01	1	0610-0708	●	●
99	STUD; INJ PUMP (B) M8X45 L=63 THA	0-49140-845-0	01	1	0709-0709	●
99	STUD; INJ PUMP (B) M8X45 L=63 THA	0-49140-845-0	01	1	0710-1008	●	●
103	SEAL; OIL,CR/SHF,FRT THA	8-97943-951-0	01	1	0411-0606	●
103	SEAL; OIL,CR/SHF,FRT M/T MUA 5 SPEED 5H<MWQ> THA	8-97943-951-0	01	1	0607-0609	●
103	SEAL; OIL,CR/SHF,FRT THA	8-97943-951-0	01	1	0610-0708	●	●
103	SEAL; OIL,CR/SHF,FRT THA	8-97943-951-0	01	1	0709-0709	●
103	SEAL; OIL,CR/SHF,FRT THA	8-97943-951-0	01	1	0710-	●	●
111	WASHER; PL ID=6.4 OD=22 THA	0-91614-806-0	02	1	0909-1008	●	●
111	WASHER; PL ID=6.4 OD=22 THA	9-09164-806-0	02	1	0411-0606	●
111	WASHER; PL M/T MUA 5 SPEED 5H<MWQ> ID=6.4 OD=22 THA	9-09164-806-0	02	1	0607-0609	●
111	WASHER; PL ID=6.4 OD=22 THA	9-09164-806-0	02	1	0610-0705	●	●
111	WASHER; PL ID=6.4 OD=22 THA	0-91614-806-0	02	1	0706-0708	●	●
111	WASHER; PL ID=6.4 OD=22 THA	0-91614-806-0	02	1	0709-0709	●
111	WASHER; PL ID=6.4 OD=22 THA	0-91614-806-0	02	1	0710-0908	●	●
123	COVER; TIMING,LWR (A) THA	8-97371-720-1	01	1	0411-0606	●
123	COVER; TIMING,LWR M/T MUA 5 SPEED 5H<MWQ> (A) THA	8-97371-720-1	01	1	0607-0609	●
123	COVER; TIMING,LWR (A) THA	8-97371-720-1	01	1	0610-0708	●	●
123	COVER; TIMING,LWR (A) THA	8-97371-720-1	01	1	0709-0709	●
123	COVER; TIMING,LWR (A) THA	8-97371-720-1	01	1	0710-1008	●	●
123	COVER; TIMING,LWR (B) THA	8-98158-145-0	01	1	1009-	●	●
124	BOLT; TIMING COVER M6X16 FLANGE THA	0-28050-616-0	03	1	0411-0606	●
124	BOLT; TIMING COVER M/T MUA 5 SPEED 5H<MWQ> M6X16 FLANGE THA	0-28050-616-0	03	1	0607-0609	●
124	BOLT; TIMING COVER M6X16 FLANGE THA	0-28050-616-0	03	1	0610-0708	●	●
124	BOLT; TIMING COVER M6X16 FLANGE THA	0-28050-616-0	03	1	0709-0709	●
124	BOLT; TIMING COVER M6X16 FLANGE THA	0-28050-616-0	03	1	0710-	●	●
162	BOLT; FRT PLATE (A) M8X45 FLANGE THA	0-28050-845-0	01	1	0411-0508	●
162	BOLT; FRT PLATE (B) M8X70 FLANGE THA	0-28050-870-0	02	1	0411-0508	●
510	PUMP ASM; VACUUM THA	8-97312-081-3	01	1	0411-0606	●
510	PUMP ASM; VACUUM M/T MUA 5 SPEED 5H<MWQ> THA	8-97312-081-3	01	1	0607-0609	●
510	PUMP ASM; VACUUM THA	8-97312-081-4	01	1	0610-0708	●	●
510	PUMP ASM; VACUUM THA	8-97312-081-4	01	1	0709-0709	●
510	PUMP ASM; VACUUM THA	8-97312-081-5	01	1	0710-1004	●	●
510	PUMP ASM; VACUUM THA	8-98162-749-0	01	1	1005-1009	●	●
510	PUMP ASM; VACUUM THA	8-98178-027-2	01	1	1010-1302	●	●
510	PUMP ASM; VACUUM THA	8-98211-157-0	01	1	1303-1312	●	●
510	PUMP ASM; VACUUM THA	8-98251-765-0	01	1	1401-	●	●
512	RUBBER; SPACE THA	8-97373-716-0	01	1	0411-0606	●
512	RUBBER; SPACE M/T MUA 5 SPEED 5H<MWQ> THA	8-97373-716-0	01	1	0607-0609	●
512	RUBBER; SPACE THA	8-97373-716-0	01	1	0610-0708	●	●
512	RUBBER; SPACE THA	8-97373-716-0	01	1	0709-0709	●
512	RUBBER; SPACE THA	8-97373-716-0	01	1	0710-	●	●
517	GASKET; VAC PUMP (A) IMA	0-95690-271-0	01	1	0411-0606	●
517	GASKET; VAC PUMP M/T MUA 5 SPEED 5H<MWQ> (A) IMA	0-95690-271-0	01	1	0607-0609	●
517	GASKET; VAC PUMP (A) IMA	0-95690-271-0	01	1	0610-0708	●	●
517	GASKET; VAC PUMP (A) IMA	0-95690-271-0	01	1	0709-0709	●
517	GASKET; VAC PUMP (A) IMA	0-95690-271-0	01	1	0710-	●	●
517	GASKET; VAC PUMP (B) THA	8-97184-175-0	01	1	0411-0606	●
517	GASKET; VAC PUMP M/T MUA 5 SPEED 5H<MWQ> (B) THA	8-97184-175-0	01	1	0607-0609	●
517	GASKET; VAC PUMP (B) THA	8-97184-175-0	01	1	0610-0708	●	●
517	GASKET; VAC PUMP (B) THA	8-97184-175-0	01	1	0709-0709	●
517	GASKET; VAC PUMP (B) THA	8-97184-175-0	01	1	0710-1312	●	●
517	GASKET; VAC PUMP (B) THA	8-98251-768-0	01	1	1401-	●	●
518	BOLT; VAC PUMP THA	8-97184-180-0	03	1	0411-0606	●
518	BOLT; VAC PUMP M/T MUA 5 SPEED 5H<MWQ> THA	8-97184-180-0	03	1	0607-0609	●
518	BOLT; VAC PUMP THA	8-97184-180-0	03	1	0610-0708	●	●
518	BOLT; VAC PUMP THA	8-97184-180-0	03	1	0709-0709	●
518	BOLT; VAC PUMP THA	8-97184-180-0	03	1	0710-	●	●
593	PIN; STRAIGHT ID=6 L=12 THA	9-08160-612-0	02	1	0411-0508	●
595	GASKET; VLV (A) ID=18 OD=24 IMA	5-19679-002-0	02	1	0411-0606	●
595	GASKET; VLV M/T MUA 5 SPEED 5H<MWQ> (A) ID=18 OD=24 IMA	5-19679-002-0	02	1	0607-0609	●
595	GASKET; VLV (A) ID=18 OD=24 IMA	5-19679-002-0	02	1	0610-0708	●	●
595	GASKET; VLV (A) ID=18 OD=24 IMA	5-19679-002-0	02	1	0709-0709	●
595	GASKET; VLV (A) ID=18 OD=24 IMA	5-19679-002-0	02	1	0710-	●	●
595	GASKET; VLV (B) ID=12 OD=24 IMA	5-19679-003-0	01	1	0411-0606	●
595	GASKET; VLV M/T MUA 5 SPEED 5H<MWQ> (B) ID=12 OD=24 IMA	5-19679-003-0	01	1	0607-0609	●
595	GASKET; VLV (B) ID=12 OD=24 IMA	5-19679-003-0	01	1	0610-0708	●	●
595	GASKET; VLV (B) ID=12 OD=24 IMA	5-19679-003-0	01	1	0709-0709	●
595	GASKET; VLV (B) ID=12 OD=24 IMA	5-19679-003-0	01	1	0710-	●	●
617	BOLT; CHECK VLV THA	8-97376-402-0	01	1	0411-0606	●
617	BOLT; CHECK VLV M/T MUA 5 SPEED 5H<MWQ> THA	8-97376-402-0	01	1	0607-0609	●
617	BOLT; CHECK VLV THA	8-97376-402-0	01	1	0610-0708	●	●
617	BOLT; CHECK VLV THA	8-97376-402-0	01	1	0709-0709	●
617	BOLT; CHECK VLV THA	8-97376-402-0	01	1	0710-	●	●
620	GASKET; GEAR CASE T=1.40 1-NOTCH THA	8-97328-828-1	01	1	0411-0606	●
620	GASKET; GEAR CASE M/T MUA 5 SPEED 5H<MWQ> T=1.40 1-NOTCH THA	8-97328-828-1	01	1	0607-0609	●
620	GASKET; GEAR CASE T=1.40 1-NOTCH THA	8-97328-828-2	01	1	0610-0708	●	●
620	GASKET; GEAR CASE T=1.40 1-NOTCH THA	8-97328-828-2	01	1	0709-0709	●
620	GASKET; GEAR CASE T=1.40 1-NOTCH THA	8-97328-828-2	01	1	0710-	●	●
620	GASKET; GEAR CASE T=1.45 2-NOTCH THA	8-97331-631-1	01	1	0411-0606	●
620	GASKET; GEAR CASE M/T MUA 5 SPEED 5H<MWQ> T=1.45 2-NOTCH THA	8-97331-631-1	01	1	0607-0609	●
620	GASKET; GEAR CASE T=1.45 2-NOTCH THA	8-97331-631-2	01	1	0610-0708	●	●
620	GASKET; GEAR CASE T=1.45 2-NOTCH THA	8-97331-631-2	01	1	0709-0709	●
620	GASKET; GEAR CASE T=1.45 2-NOTCH THA	8-97331-631-2	01	1	0710-	●	●
620	GASKET; GEAR CASE T=1.50 3-NOTCH THA	8-97331-632-1	01	1	0411-0606	●
620	GASKET; GEAR CASE M/T MUA 5 SPEED 5H<MWQ> T=1.50 3-NOTCH THA	8-97331-632-1	01	1	0607-0609	●
620	GASKET; GEAR CASE T=1.50 3-NOTCH THA	8-97331-632-2	01	1	0610-0708	●	●
620	GASKET; GEAR CASE T=1.50 3-NOTCH THA	8-97331-632-2	01	1	0709-0709	●
620	GASKET; GEAR CASE T=1.50 3-NOTCH THA	8-97331-632-2	01	1	0710-	●	●
621	NUT; VAC PUMP M8 FLANGE THA	0-91180-208-0	03	1	0411-0606	●
621	NUT; VAC PUMP M/T MUA 5 SPEED 5H<MWQ> M8 FLANGE THA	0-91180-208-0	03	1	0607-0609	●
621	NUT; VAC PUMP M8 FLANGE THA	0-91180-208-0	03	1	0610-0708	●	●
621	NUT; VAC PUMP M8 FLANGE THA	0-91180-208-0	03	1	0709-0709	●
621	NUT; VAC PUMP M8 FLANGE THA	0-91180-208-0	03	1	0710-	●	●

202 233 36 36 36 36 36 36 36 38 36 36 36 38 79 620 81 99 99 98 32 1 510 123 81 124 80 124 123 81 80 55 103 49 54 510 50 621 51 512 111 73 595 595 595 617 518 517 517 79

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	CASE; TIMING GEAR (A) THA	8-97367-310-3	01	1	0411-0508	●
1	CASE; TIMING GEAR (B) THA	8-97367-311-1	01	1	0411-0508	●
1	CASE; TIMING GEAR (C) SW & SONS CO.,LTD. THA	8-97945-261-0	01	1	0509-0606	●
1	CASE; TIMING GEAR M/T MUA 5 SPEED 5H<MWQ> (C) SW & SONS CO.,LTD. THA	8-97945-261-0	01	1	0607-0609	●
1	CASE; TIMING GEAR (C) SW & SONS CO.,LTD. THA	8-97945-261-0	01	1	0610-0708	●	●
1	CASE; TIMING GEAR (C) SW & SONS CO.,LTD. THA	8-97945-261-0	01	1	0709-0709	●
1	CASE; TIMING GEAR (C) SW & SONS CO.,LTD. THA	8-97945-261-1	01	1	0710-1008	●	●
1	CASE; TIMING GEAR (C) THAI ENGINEERING PRO 15X5.50F STAMP, BLACK THA	8-97367-309-3	01	1	0603-0606	●
1	CASE; TIMING GEAR M/T MUA 5 SPEED 5H<MWQ> (C) THAI ENGINEERING PRO 15X5.50F STAMP, BLACK THA	8-97367-309-3	01	1	0607-0609	●
1	CASE; TIMING GEAR (C) THAI ENGINEERING PRO 15X5.50F STAMP, BLACK THA	8-97367-309-3	01	1	0610-0708	●	●
1	CASE; TIMING GEAR (C) THAI ENGINEERING PRO 15X5.50F STAMP, BLACK THA	8-97367-309-3	01	1	0709-0709	●
1	CASE; TIMING GEAR (C) THAI ENGINEERING PRO 15X5.50F STAMP, BLACK THA	8-97367-309-3	01	1	0710-1008	●	●
1	CASE; TIMING GEAR (C) THA	8-98074-747-1	01	1	1009-	●	●
32	GASKET; GEAR CASE TO C/BL THA	8-97312-221-2	01	1	0411-0606	●
32	GASKET; GEAR CASE TO C/BL M/T MUA 5 SPEED 5H<MWQ> THA	8-97312-221-2	01	1	0607-0609	●
32	GASKET; GEAR CASE TO C/BL THA	8-97312-221-2	01	1	0610-0708	●	●
32	GASKET; GEAR CASE TO C/BL THA	8-97312-221-2	01	1	0709-0709	●
32	GASKET; GEAR CASE TO C/BL THA	8-97312-221-2	01	1	0710-	●	●
36	BOLT; GEAR CASE (A) M8X16 FLANGE THA	0-28050-816-0	01	1	0411-0606	●
36	BOLT; GEAR CASE M/T MUA 5 SPEED 5H<MWQ> (A) M8X16 FLANGE THA	0-28050-816-0	01	1	0607-0609	●
36	BOLT; GEAR CASE (A) M8X16 FLANGE THA	0-28050-816-0	01	1	0610-0708	●	●
36	BOLT; GEAR CASE (A) M8X16 FLANGE THA	0-28050-816-0	01	1	0709-0709	●
36	BOLT; GEAR CASE (A) M8X16 FLANGE THA	0-28050-816-0	01	1	0710-	●	●
36	BOLT; GEAR CASE (B) M8X20 FLANGE THA	0-28050-820-0	01	1	0411-0606	●
36	BOLT; GEAR CASE M/T MUA 5 SPEED 5H<MWQ> (B) M8X20 FLANGE THA	0-28050-820-0	01	1	0607-0609	●
36	BOLT; GEAR CASE (B) M8X20 FLANGE THA	0-28050-820-0	01	1	0610-0708	●	●
36	BOLT; GEAR CASE (B) M8X20 FLANGE THA	0-28050-820-0	01	1	0709-0709	●
36	BOLT; GEAR CASE (B) M8X20 FLANGE THA	0-28050-820-0	01	1	0710-	●	●
36	BOLT; GEAR CASE (C) M8X35 FLANGE THA	0-28050-835-0	01	1	0411-0606	●
36	BOLT; GEAR CASE M/T MUA 5 SPEED 5H<MWQ> (C) M8X35 FLANGE THA	0-28050-835-0	01	1	0607-0609	●
36	BOLT; GEAR CASE (C) M8X35 FLANGE THA	0-28050-835-0	01	1	0610-0708	●	●
36	BOLT; GEAR CASE (C) M8X35 FLANGE THA	0-28050-835-0	01	1	0709-0709	●
36	BOLT; GEAR CASE (C) M8X35 FLANGE THA	0-28050-835-0	01	1	0710-	●	●
36	BOLT; GEAR CASE (D) M8X45 FLANGE THA	0-28050-845-0	02	1	0411-0606	●
36	BOLT; GEAR CASE M/T MUA 5 SPEED 5H<MWQ> (D) M8X45 FLANGE THA	0-28050-845-0	02	1	0607-0609	●
36	BOLT; GEAR CASE (D) M8X45 FLANGE THA	0-28050-845-0	02	1	0610-0708	●	●
36	BOLT; GEAR CASE (D) M8X45 FLANGE THA	0-28050-845-0	02	1	0709-0709	●
36	BOLT; GEAR CASE (D) M8X45 FLANGE THA	0-28050-845-0	02	1	0710-	●	●
36	BOLT; GEAR CASE (F) M8X60 FLANGE THA	0-28050-860-0	01	1	0411-0606	●
36	BOLT; GEAR CASE M/T MUA 5 SPEED 5H<MWQ> (F) M8X60 FLANGE THA	0-28050-860-0	01	1	0607-0609	●
36	BOLT; GEAR CASE (F) M8X60 FLANGE THA	0-28050-860-0	01	1	0610-0708	●	●
36	BOLT; GEAR CASE (F) M8X60 FLANGE THA	0-28050-860-0	01	1	0709-0709	●
36	BOLT; GEAR CASE (F) M8X60 FLANGE THA	0-28050-860-0	01	1	0710-	●	●
36	BOLT; GEAR CASE (E) M8X25 FLANGE THA	0-28650-825-0	15	1	0411-0606	●
36	BOLT; GEAR CASE M/T MUA 5 SPEED 5H<MWQ> (E) M8X25 FLANGE THA	0-28650-825-0	15	1	0607-0609	●
36	BOLT; GEAR CASE (E) M8X25 FLANGE THA	0-28650-825-0	15	1	0610-0708	●	●
36	BOLT; GEAR CASE (E) M8X25 FLANGE THA	0-28650-825-0	15	1	0709-0709	●
36	BOLT; GEAR CASE (E) M8X25 FLANGE THA	0-28650-825-0	15	1	0710-	●	●
36	BOLT; GEAR CASE (G) M8X30 FLANGE THA	0-28650-830-0	03	1	0411-0606	●
36	BOLT; GEAR CASE M/T MUA 5 SPEED 5H<MWQ> (G) M8X30 FLANGE THA	0-28650-830-0	03	1	0607-0609	●
36	BOLT; GEAR CASE (G) M8X30 FLANGE THA	0-28650-830-0	03	1	0610-0708	●	●
36	BOLT; GEAR CASE (G) M8X30 FLANGE THA	0-28650-830-0	03	1	0709-0709	●
36	BOLT; GEAR CASE (G) M8X30 FLANGE THA	0-28650-830-0	03	1	0710-	●	●
38	PIN; GEAR CASE COVER OD=10 L=20 THA	9-08151-020-0	02	1	0411-0606	●
38	PIN; GEAR CASE COVER M/T MUA 5 SPEED 5H<MWQ> OD=10 L=20 THA	9-08151-020-0	02	1	0607-0609	●
38	PIN; GEAR CASE COVER OD=10 L=20 THA	9-08151-020-0	02	1	0610-0708	●	●
38	PIN; GEAR CASE COVER OD=10 L=20 THA	9-08151-020-0	02	1	0709-0709	●
38	PIN; GEAR CASE COVER OD=10 L=20 THA	9-08151-020-0	02	1	0710-	●	●
49	GASKET; GEAR CASE TO COVER THA	8-97354-057-1	01	1	0411-0511	●
49	GASKET; GEAR CASE TO COVER THA	8-97945-298-0	01	1	0512-0606	●
49	GASKET; GEAR CASE TO COVER M/T MUA 5 SPEED 5H<MWQ> THA	8-97945-298-0	01	1	0607-0609	●
49	GASKET; GEAR CASE TO COVER THA	8-97945-298-0	01	1	0610-0708	●	●
49	GASKET; GEAR CASE TO COVER THA	8-97945-298-0	01	1	0709-0709	●
49	GASKET; GEAR CASE TO COVER THA	8-97945-298-0	01	1	0710-	●	●
50	STUD M8X27,M8X14 L=64.5 THA	8-97354-808-2	06	1	0411-0606	●
50	STUD M/T MUA 5 SPEED 5H<MWQ> M8X27,M8X14 L=64.5 THA	8-97354-808-2	06	1	0607-0609	●
50	STUD M8X27,M8X14 L=64.5 THA	8-97354-808-2	06	1	0610-0708	●	●
50	STUD M8X27,M8X14 L=64.5 THA	8-97354-808-2	06	1	0709-0709	●
50	STUD M8X27,M8X14 L=64.5 THA	8-97354-808-2	06	1	0710-	●	●
51	BOLT; GEAR CASE COVER THA	8-97354-697-0	14	1	0411-0606	●
51	BOLT; GEAR CASE COVER M/T MUA 5 SPEED 5H<MWQ> THA	8-97354-697-0	14	1	0607-0609	●
51	BOLT; GEAR CASE COVER THA	8-97354-697-1	14	1	0610-0708	●	●
51	BOLT; GEAR CASE COVER THA	8-97354-697-1	14	1	0709-0709	●
51	BOLT; GEAR CASE COVER THA	8-97354-697-1	14	1	0710-	●	●
54	COVER; GEAR CASE THA	8-97367-312-4	01	1	0411-0606	●
54	COVER; GEAR CASE M/T MUA 5 SPEED 5H<MWQ> THA	8-97367-312-4	01	1	0607-0609	●
54	COVER; GEAR CASE THA	8-97367-312-4	01	1	0610-0708	●	●
54	COVER; GEAR CASE THA	8-97367-312-4	01	1	0709-0709	●
54	COVER; GEAR CASE THA	8-97367-312-4	01	1	0710-1201	●	●
54	COVER; GEAR CASE THA	8-98170-215-0	01	1	1202-	●	●
55	COVER; NOISE SHIELD THA	8-97375-190-1	01	1	0411-0606	●
55	COVER; NOISE SHIELD M/T MUA 5 SPEED 5H<MWQ> THA	8-97375-190-1	01	1	0607-0609	●
55	COVER; NOISE SHIELD THA	8-97375-190-1	01	1	0610-0708	●	●
55	COVER; NOISE SHIELD THA	8-97375-190-1	01	1	0709-0709	●
55	COVER; NOISE SHIELD THA	8-97375-190-1	01	1	0710-1008	●	●
73	BOLT; COVER FIX M6X12 FLANGE THA	0-28050-612-0	02	1	0411-0606	●
73	BOLT; COVER FIX M/T MUA 5 SPEED 5H<MWQ> M6X12 FLANGE THA	0-28050-612-0	02	1	0607-0609	●
73	BOLT; COVER FIX M6X12 FLANGE THA	0-28050-612-0	02	1	0610-0708	●	●
73	BOLT; COVER FIX M6X12 FLANGE THA	0-28050-612-0	02	1	0709-0709	●
73	BOLT; COVER FIX M6X12 FLANGE THA	0-28050-612-0	02	1	0710-1008	●	●
79	BRACKET; GEAR CASE COVER (A) THA	8-97370-390-2	01	1	0411-0606	●
79	BRACKET; GEAR CASE COVER M/T MUA 5 SPEED 5H<MWQ> (A) THA	8-97370-390-2	01	1	0607-0609	●
79	BRACKET; GEAR CASE COVER (A) THA	8-97370-390-2	01	1	0610-0708	●	●
79	BRACKET; GEAR CASE COVER (A) THA	8-97370-390-2	01	1	0709-0709	●
79	BRACKET; GEAR CASE COVER (A) THA	8-97370-390-2	01	1	0710-1008	●	●
79	BRACKET; GEAR CASE COVER (B) THA	8-98107-106-0	01	1	1009-	●	●
80	NUT; COVER M6 FLANGE THA	0-91180-206-0	02	1	0411-0606	●
80	NUT; COVER M/T MUA 5 SPEED 5H<MWQ> M6 FLANGE THA	0-91180-206-0	02	1	0607-0609	●
80	NUT; COVER M6 FLANGE THA	0-91180-206-0	02	1	0610-0708	●	●
80	NUT; COVER M6 FLANGE THA	0-91180-206-0	02	1	0709-0709	●
80	NUT; COVER M6 FLANGE THA	0-91180-206-0	02	1	0710-	●	●
81	STUD; GEAR CASE COVER FIX (B) M6X16 L=25 THA	0-41010-616-0	02	1	0411-0606	●
81	STUD; GEAR CASE COVER FIX M/T MUA 5 SPEED 5H<MWQ> (B) M6X16 L=25 THA	0-41010-616-0	02	1	0607-0609	●
81	STUD; GEAR CASE COVER FIX (B) M6X16 L=25 THA	0-41010-616-0	02	1	0610-0708	●	●
81	STUD; GEAR CASE COVER FIX (B) M6X16 L=25 THA	0-41010-616-0	02	1	0709-0709	●
81	STUD; GEAR CASE COVER FIX (B) M6X16 L=25 THA	0-41010-616-0	02	1	0710-	●	●
81	STUD; GEAR CASE COVER FIX (A) M8X30 L=48 THA	0-49140-830-0	02	1	0411-0606	●
81	STUD; GEAR CASE COVER FIX M/T MUA 5 SPEED 5H<MWQ> (A) M8X30 L=48 THA	0-49140-830-0	02	1	0607-0609	●
81	STUD; GEAR CASE COVER FIX (A) M8X30 L=48 THA	0-49140-830-0	02	1	0610-0708	●	●
81	STUD; GEAR CASE COVER FIX (A) M8X30 L=48 THA	0-49140-830-0	02	1	0709-0709	●
81	STUD; GEAR CASE COVER FIX (A) M8X30 L=48 THA	0-49140-830-0	02	1	0710-	●	●
98	NUT; STUD,INJ PUMP M8 FLANGE THA	0-91180-208-0	02	1	0411-0606	●
98	NUT; STUD,INJ PUMP M/T MUA 5 SPEED 5H<MWQ> M8 FLANGE THA	0-91180-208-0	02	1	0607-0609	●
98	NUT; STUD,INJ PUMP M8 FLANGE THA	0-91180-208-0	02	1	0610-0708	●	●
98	NUT; STUD,INJ PUMP M8 FLANGE THA	0-91180-208-0	02	1	0709-0709	●
98	NUT; STUD,INJ PUMP M8 FLANGE THA	0-91180-208-0	02	1	0710-	●	●
99	STUD; INJ PUMP (A) M8X30 L=41 THA	8-97369-449-0	01	1	0411-0508	●
99	STUD; INJ PUMP (B) M8X45 L=56 THA	8-97369-450-0	01	1	0411-0508	●
99	STUD; INJ PUMP (A) M8X30 L=48 THA	0-49140-830-0	01	1	0509-0606	●
99	STUD; INJ PUMP M/T MUA 5 SPEED 5H<MWQ> (A) M8X30 L=48 THA	0-49140-830-0	01	1	0607-0609	●
99	STUD; INJ PUMP (A) M8X30 L=48 THA	0-49140-830-0	01	1	0610-0708	●	●
99	STUD; INJ PUMP (A) M8X30 L=48 THA	0-49140-830-0	01	1	0709-0709	●
99	STUD; INJ PUMP (A) M8X30 L=48 THA	0-49140-830-0	01	1	0710-1008	●	●
99	STUD; INJ PUMP (A) M8X30 L=48 THA	0-49140-830-0	02	1	1009-	●	●
99	STUD; INJ PUMP (B) M8X45 L=63 THA	0-49140-845-0	01	1	0509-0606	●
99	STUD; INJ PUMP M/T MUA 5 SPEED 5H<MWQ> (B) M8X45 L=63 THA	0-49140-845-0	01	1	0607-0609	●
99	STUD; INJ PUMP (B) M8X45 L=63 THA	0-49140-845-0	01	1	0610-0708	●	●
99	STUD; INJ PUMP (B) M8X45 L=63 THA	0-49140-845-0	01	1	0709-0709	●
99	STUD; INJ PUMP (B) M8X45 L=63 THA	0-49140-845-0	01	1	0710-1008	●	●
103	SEAL; OIL,CR/SHF,FRT THA	8-97943-951-0	01	1	0411-0606	●
103	SEAL; OIL,CR/SHF,FRT M/T MUA 5 SPEED 5H<MWQ> THA	8-97943-951-0	01	1	0607-0609	●
103	SEAL; OIL,CR/SHF,FRT THA	8-97943-951-0	01	1	0610-0708	●	●
103	SEAL; OIL,CR/SHF,FRT THA	8-97943-951-0	01	1	0709-0709	●
103	SEAL; OIL,CR/SHF,FRT THA	8-97943-951-0	01	1	0710-	●	●
111	WASHER; PL ID=6.4 OD=22 THA	0-91614-806-0	02	1	0909-1008	●	●
111	WASHER; PL ID=6.4 OD=22 THA	9-09164-806-0	02	1	0411-0606	●
111	WASHER; PL M/T MUA 5 SPEED 5H<MWQ> ID=6.4 OD=22 THA	9-09164-806-0	02	1	0607-0609	●
111	WASHER; PL ID=6.4 OD=22 THA	9-09164-806-0	02	1	0610-0705	●	●
111	WASHER; PL ID=6.4 OD=22 THA	0-91614-806-0	02	1	0706-0708	●	●
111	WASHER; PL ID=6.4 OD=22 THA	0-91614-806-0	02	1	0709-0709	●
111	WASHER; PL ID=6.4 OD=22 THA	0-91614-806-0	02	1	0710-0908	●	●
123	COVER; TIMING,LWR (A) THA	8-97371-720-1	01	1	0411-0606	●
123	COVER; TIMING,LWR M/T MUA 5 SPEED 5H<MWQ> (A) THA	8-97371-720-1	01	1	0607-0609	●
123	COVER; TIMING,LWR (A) THA	8-97371-720-1	01	1	0610-0708	●	●
123	COVER; TIMING,LWR (A) THA	8-97371-720-1	01	1	0709-0709	●
123	COVER; TIMING,LWR (A) THA	8-97371-720-1	01	1	0710-1008	●	●
123	COVER; TIMING,LWR (B) THA	8-98158-145-0	01	1	1009-	●	●
124	BOLT; TIMING COVER M6X16 FLANGE THA	0-28050-616-0	03	1	0411-0606	●
124	BOLT; TIMING COVER M/T MUA 5 SPEED 5H<MWQ> M6X16 FLANGE THA	0-28050-616-0	03	1	0607-0609	●
124	BOLT; TIMING COVER M6X16 FLANGE THA	0-28050-616-0	03	1	0610-0708	●	●
124	BOLT; TIMING COVER M6X16 FLANGE THA	0-28050-616-0	03	1	0709-0709	●
124	BOLT; TIMING COVER M6X16 FLANGE THA	0-28050-616-0	03	1	0710-	●	●
202	NUT; BRKT M8 FLANGE THA	0-91180-208-0	01	1	1009-	●	●
233	STUD; BRKT M8X71 L=83 THA	8-97367-083-0	01	1	1009-	●	●
510	PUMP ASM; VACUUM THA	8-97312-081-3	01	1	0411-0606	●
510	PUMP ASM; VACUUM M/T MUA 5 SPEED 5H<MWQ> THA	8-97312-081-3	01	1	0607-0609	●
510	PUMP ASM; VACUUM THA	8-97312-081-4	01	1	0610-0708	●	●
510	PUMP ASM; VACUUM THA	8-97312-081-4	01	1	0709-0709	●
510	PUMP ASM; VACUUM THA	8-97312-081-5	01	1	0710-1004	●	●
510	PUMP ASM; VACUUM THA	8-98162-749-0	01	1	1005-1009	●	●
510	PUMP ASM; VACUUM THA	8-98178-027-2	01	1	1010-1302	●	●
510	PUMP ASM; VACUUM THA	8-98211-157-0	01	1	1303-1312	●	●
510	PUMP ASM; VACUUM THA	8-98251-765-0	01	1	1401-	●	●
512	RUBBER; SPACE THA	8-97373-716-0	01	1	0411-0606	●
512	RUBBER; SPACE M/T MUA 5 SPEED 5H<MWQ> THA	8-97373-716-0	01	1	0607-0609	●
512	RUBBER; SPACE THA	8-97373-716-0	01	1	0610-0708	●	●
512	RUBBER; SPACE THA	8-97373-716-0	01	1	0709-0709	●
512	RUBBER; SPACE THA	8-97373-716-0	01	1	0710-	●	●
517	GASKET; VAC PUMP (A) IMA	0-95690-271-0	01	1	0411-0606	●
517	GASKET; VAC PUMP M/T MUA 5 SPEED 5H<MWQ> (A) IMA	0-95690-271-0	01	1	0607-0609	●
517	GASKET; VAC PUMP (A) IMA	0-95690-271-0	01	1	0610-0708	●	●
517	GASKET; VAC PUMP (A) IMA	0-95690-271-0	01	1	0709-0709	●
517	GASKET; VAC PUMP (A) IMA	0-95690-271-0	01	1	0710-	●	●
517	GASKET; VAC PUMP (B) THA	8-97184-175-0	01	1	0411-0606	●
517	GASKET; VAC PUMP M/T MUA 5 SPEED 5H<MWQ> (B) THA	8-97184-175-0	01	1	0607-0609	●
517	GASKET; VAC PUMP (B) THA	8-97184-175-0	01	1	0610-0708	●	●
517	GASKET; VAC PUMP (B) THA	8-97184-175-0	01	1	0709-0709	●
517	GASKET; VAC PUMP (B) THA	8-97184-175-0	01	1	0710-1312	●	●
517	GASKET; VAC PUMP (B) THA	8-98251-768-0	01	1	1401-	●	●
518	BOLT; VAC PUMP THA	8-97184-180-0	03	1	0411-0606	●
518	BOLT; VAC PUMP M/T MUA 5 SPEED 5H<MWQ> THA	8-97184-180-0	03	1	0607-0609	●
518	BOLT; VAC PUMP THA	8-97184-180-0	03	1	0610-0708	●	●
518	BOLT; VAC PUMP THA	8-97184-180-0	03	1	0709-0709	●
518	BOLT; VAC PUMP THA	8-97184-180-0	03	1	0710-	●	●
595	GASKET; VLV (A) ID=18 OD=24 IMA	5-19679-002-0	02	1	0411-0606	●
595	GASKET; VLV M/T MUA 5 SPEED 5H<MWQ> (A) ID=18 OD=24 IMA	5-19679-002-0	02	1	0607-0609	●
595	GASKET; VLV (A) ID=18 OD=24 IMA	5-19679-002-0	02	1	0610-0708	●	●
595	GASKET; VLV (A) ID=18 OD=24 IMA	5-19679-002-0	02	1	0709-0709	●
595	GASKET; VLV (A) ID=18 OD=24 IMA	5-19679-002-0	02	1	0710-	●	●
595	GASKET; VLV (B) ID=12 OD=24 IMA	5-19679-003-0	01	1	0411-0606	●
595	GASKET; VLV M/T MUA 5 SPEED 5H<MWQ> (B) ID=12 OD=24 IMA	5-19679-003-0	01	1	0607-0609	●
595	GASKET; VLV (B) ID=12 OD=24 IMA	5-19679-003-0	01	1	0610-0708	●	●
595	GASKET; VLV (B) ID=12 OD=24 IMA	5-19679-003-0	01	1	0709-0709	●
595	GASKET; VLV (B) ID=12 OD=24 IMA	5-19679-003-0	01	1	0710-	●	●
617	BOLT; CHECK VLV THA	8-97376-402-0	01	1	0411-0606	●
617	BOLT; CHECK VLV M/T MUA 5 SPEED 5H<MWQ> THA	8-97376-402-0	01	1	0607-0609	●
617	BOLT; CHECK VLV THA	8-97376-402-0	01	1	0610-0708	●	●
617	BOLT; CHECK VLV THA	8-97376-402-0	01	1	0709-0709	●
617	BOLT; CHECK VLV THA	8-97376-402-0	01	1	0710-	●	●
620	GASKET; GEAR CASE T=1.40 1-NOTCH THA	8-97328-828-1	01	1	0411-0606	●
620	GASKET; GEAR CASE M/T MUA 5 SPEED 5H<MWQ> T=1.40 1-NOTCH THA	8-97328-828-1	01	1	0607-0609	●
620	GASKET; GEAR CASE T=1.40 1-NOTCH THA	8-97328-828-2	01	1	0610-0708	●	●
620	GASKET; GEAR CASE T=1.40 1-NOTCH THA	8-97328-828-2	01	1	0709-0709	●
620	GASKET; GEAR CASE T=1.40 1-NOTCH THA	8-97328-828-2	01	1	0710-	●	●
620	GASKET; GEAR CASE T=1.45 2-NOTCH THA	8-97331-631-1	01	1	0411-0606	●
620	GASKET; GEAR CASE M/T MUA 5 SPEED 5H<MWQ> T=1.45 2-NOTCH THA	8-97331-631-1	01	1	0607-0609	●
620	GASKET; GEAR CASE T=1.45 2-NOTCH THA	8-97331-631-2	01	1	0610-0708	●	●
620	GASKET; GEAR CASE T=1.45 2-NOTCH THA	8-97331-631-2	01	1	0709-0709	●
620	GASKET; GEAR CASE T=1.45 2-NOTCH THA	8-97331-631-2	01	1	0710-	●	●
620	GASKET; GEAR CASE T=1.50 3-NOTCH THA	8-97331-632-1	01	1	0411-0606	●
620	GASKET; GEAR CASE M/T MUA 5 SPEED 5H<MWQ> T=1.50 3-NOTCH THA	8-97331-632-1	01	1	0607-0609	●
620	GASKET; GEAR CASE T=1.50 3-NOTCH THA	8-97331-632-2	01	1	0610-0708	●	●
620	GASKET; GEAR CASE T=1.50 3-NOTCH THA	8-97331-632-2	01	1	0709-0709	●
620	GASKET; GEAR CASE T=1.50 3-NOTCH THA	8-97331-632-2	01	1	0710-	●	●
621	NUT; VAC PUMP M8 FLANGE THA	0-91180-208-0	03	1	0411-0606	●
621	NUT; VAC PUMP M/T MUA 5 SPEED 5H<MWQ> M8 FLANGE THA	0-91180-208-0	03	1	0607-0609	●
621	NUT; VAC PUMP M8 FLANGE THA	0-91180-208-0	03	1	0610-0708	●	●
621	NUT; VAC PUMP M8 FLANGE THA	0-91180-208-0	03	1	0709-0709	●
621	NUT; VAC PUMP M8 FLANGE THA	0-91180-208-0	03	1	0710-	●	●

185 175 172 211 11

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
11	PLATE; RR,C/BL THA	8-97350-496-0	01	1	0411-0606	●
11	PLATE; RR,C/BL M/T MUA 5 SPEED 5H<MWQ> THA	8-98020-515-0	01	1	0607-0609	●
11	PLATE; RR,C/BL THA	8-98020-515-0	01	1	0610-0708	●
11	PLATE; RR,C/BL A/T AISIN<RMD> THA	8-98020-515-0	01	1	0610-0708		●
11	PLATE; RR,C/BL THA	8-98020-515-0	01	1	0709-0709	●
11	PLATE; RR,C/BL THA	8-98020-515-0	01	1	0710-0808	●
11	PLATE; RR,C/BL A/T AISIN<RMD> THA	8-98020-515-0	01	1	0710-0808		●
11	PLATE; RR,C/BL THA	8-98020-515-1	01	1	0809-	●	●
11	PLATE; RR,C/BL M/T MUX 5 SPEED 5S<MZJ> THA	8-98011-507-1	01	1	0610-0708		●
11	PLATE; RR,C/BL M/T MUX 5 SPEED 5S<MZJ> THA	8-98011-507-2	01	1	0710-		●
172	RETAINER; CR/SHF THA	8-97379-826-0	01	1	0411-0606	●
172	RETAINER; CR/SHF M/T MUA 5 SPEED 5H<MWQ> THA	8-97379-826-0	01	1	0607-0609	●
172	RETAINER; CR/SHF THA	8-97379-826-0	01	1	0610-0708	●	●
172	RETAINER; CR/SHF THA	8-97379-826-0	01	1	0709-0709	●
172	RETAINER; CR/SHF THA	8-97379-826-0	01	1	0710-	●	●
175	SEAL; OIL,CR/SHF,RR ID=95 OD=118 IMA	8-97071-561-1	01	1	0411-0606	●
175	SEAL; OIL,CR/SHF,RR M/T MUA 5 SPEED 5H<MWQ> ID=95 OD=118 IMA	8-97071-561-1	01	1	0607-0609	●
175	SEAL; OIL,CR/SHF,RR ID=95 OD=118 IMA	8-97071-561-1	01	1	0610-0708	●	●
175	SEAL; OIL,CR/SHF,RR ID=95 OD=118 IMA	8-97071-561-1	01	1	0709-0709	●
175	SEAL; OIL,CR/SHF,RR ID=95 OD=118 IMA	8-97071-561-1	01	1	0710-	●	●
185	BOLT; RET TO C/BL M8X25 FLANGE THA	0-28650-825-0	05	1	0411-0606	●
185	BOLT; RET TO C/BL M/T MUA 5 SPEED 5H<MWQ> M8X25 FLANGE THA	0-28650-825-0	05	1	0607-0609	●
185	BOLT; RET TO C/BL M8X25 FLANGE THA	0-28650-825-0	05	1	0610-0708	●	●
185	BOLT; RET TO C/BL M8X25 FLANGE THA	0-28650-825-0	05	1	0709-0709	●
185	BOLT; RET TO C/BL M8X25 FLANGE THA	0-28650-825-0	05	1	0710-	●	●
211	BOLT; HSG M12X25 THA	8-97916-324-0	03	1	0411-0606	●
211	BOLT; HSG M/T MUA 5 SPEED 5H<MWQ> M12X25 THA	8-97916-324-0	03	1	0607-0609	●
211	BOLT; HSG M12X25 THA	8-97916-324-1	03	1	0610-0708	●	●
211	BOLT; HSG M12X25 THA	8-97916-324-1	03	1	0709-0709	●
211	BOLT; HSG M12X25 THA	8-97916-324-1	03	1	0710-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
