0-14 — CAMSHAFT AND VALVE (#73723) — 217 parça

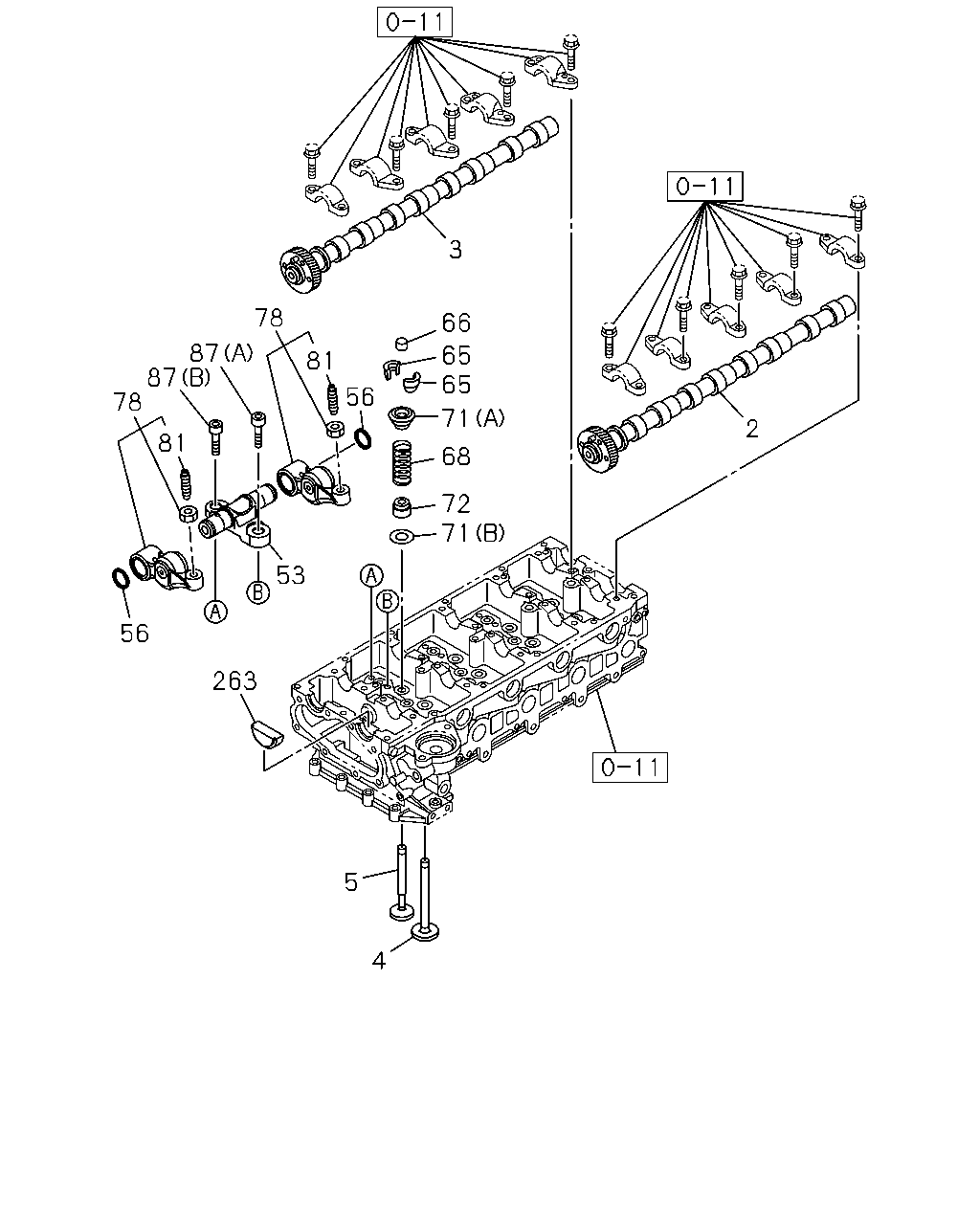

çizim 37348
3 78 66 87 87 78 65 65 81 56 71 2 81 68 72 71 53 56 263 5 4
BalonParca AdiParca NoAdetTipApplied Date A B
2 CAMSHAFT; INL
THA 		8-97328-642-6 01 1 0411-0606 ●
2 CAMSHAFT; INL
M/T MUA 5 SPEED 5H<MWQ> THA 		8-97328-642-6 01 1 0607-0609 ●
2 CAMSHAFT; INL
THA 		8-97328-642-6 01 1 0610-0708 ● ●
2 CAMSHAFT; INL
THA 		8-97328-642-6 01 1 0709-0709 ●
2 CAMSHAFT; INL
THA 		8-97328-642-8 01 1 0710- ● ●
3 CAMSHAFT; EXH
THA 		8-97328-644-6 01 1 0411-0606 ●
3 CAMSHAFT; EXH
M/T MUA 5 SPEED 5H<MWQ> THA 		8-97328-644-6 01 1 0607-0609 ●
3 CAMSHAFT; EXH
THA 		8-97328-644-6 01 1 0610-0708 ● ●
3 CAMSHAFT; EXH
THA 		8-97328-644-6 01 1 0709-0709 ●
3 CAMSHAFT; EXH
THA 		8-97328-644-8 01 1 0710- ● ●
4 VALVE; INL
THA 		8-97309-675-1 08 1 0411-0606 ●
4 VALVE; INL
M/T MUA 5 SPEED 5H<MWQ> THA 		8-97309-675-1 08 1 0607-0609 ●
4 VALVE; INL
THA 		8-97309-675-1 08 1 0610-0708 ● ●
4 VALVE; INL
THA 		8-97309-675-1 08 1 0709-0709 ●
4 VALVE; INL
THA 		8-97309-675-1 08 1 0710- ● ●
5 VALVE; EXH
THA 		8-97309-677-1 08 1 0411-0606 ●
5 VALVE; EXH
M/T MUA 5 SPEED 5H<MWQ> THA 		8-97309-677-1 08 1 0607-0609 ●
5 VALVE; EXH
THA 		8-97309-677-1 08 1 0610-0708 ● ●
5 VALVE; EXH
THA 		8-97309-677-1 08 1 0709-0709 ●
5 VALVE; EXH
THA 		8-97309-677-1 08 1 0710- ● ●
53 SHAFT; ROCKER ARM
INLET THA 		8-97364-809-1 04 1 0411-0606 ●
53 SHAFT; ROCKER ARM
M/T MUA 5 SPEED 5H<MWQ> INLET THA 		8-97364-809-1 04 1 0607-0609 ●
53 SHAFT; ROCKER ARM
INLET IMA 		8-97364-809-2 04 1 0610-0708 ● ●
53 SHAFT; ROCKER ARM
INLET IMA 		8-97364-809-2 04 1 0709-0709 ●
53 SHAFT; ROCKER ARM
INLET IMA 		8-97364-809-2 04 1 0710- ● ●
53 SHAFT; ROCKER ARM
EXHAUST THA 		8-97364-811-1 04 1 0411-0606 ●
53 SHAFT; ROCKER ARM
M/T MUA 5 SPEED 5H<MWQ> EXHAUST THA 		8-97364-811-1 04 1 0607-0609 ●
53 SHAFT; ROCKER ARM
EXHAUST IMA 		8-97364-811-2 04 1 0610-0708 ● ●
53 SHAFT; ROCKER ARM
EXHAUST IMA 		8-97364-811-2 04 1 0709-0709 ●
53 SHAFT; ROCKER ARM
EXHAUST IMA 		8-97364-811-2 04 1 0710- ● ●
56 RING; SNAP,ROCKER ARM
IMA 		8-98109-470-0 16 1 0803- ● ●
65 COLLAR; SPLIT
IMA 		8-94239-501-0 32 1 0411-0606 ●
65 COLLAR; SPLIT
M/T MUA 5 SPEED 5H<MWQ> IMA 		8-94239-501-0 32 1 0607-0609 ●
65 COLLAR; SPLIT
IMA 		8-94239-501-0 32 1 0610-0708 ● ●
65 COLLAR; SPLIT
IMA 		8-94239-501-0 32 1 0709-0709 ●
65 COLLAR; SPLIT
IMA 		8-94239-501-0 32 1 0710- ● ●
66 CAP; VLV STEM END
THA 		8-97310-693-0 16 1 0411-0606 ●
66 CAP; VLV STEM END
M/T MUA 5 SPEED 5H<MWQ> THA 		8-98029-870-1 16 1 0607-0609 ●
66 CAP; VLV STEM END
THA 		8-98029-870-1 16 1 0610-0708 ● ●
66 CAP; VLV STEM END
THA 		8-98029-870-1 16 1 0709-0709 ●
66 CAP; VLV STEM END
THA 		8-98029-870-1 16 1 0710-0910 ● ●
66 CAP; VLV STEM END
THA 		8-98147-945-0 16 1 0911- ● ●
68 SPRING; VLV
H=49 NATURAL THA 		8-97311-669-0 16 1 0411-0606 ●
68 SPRING; VLV
M/T MUA 5 SPEED 5H<MWQ> H=49 NATURAL THA 		8-97311-669-0 16 1 0607-0609 ●
68 SPRING; VLV
H=49 NATURAL THA 		8-97311-669-0 16 1 0610-0708 ● ●
68 SPRING; VLV
H=49 NATURAL THA 		8-97311-669-0 16 1 0709-0709 ●
68 SPRING; VLV
H=49 NATURAL THA 		8-97311-669-0 16 1 0710- ● ●
71 SEAT; SPR
(B) OD=31 THA 		8-97144-584-0 16 1 0411-0606 ●
71 SEAT; SPR
M/T MUA 5 SPEED 5H<MWQ> (B) OD=31 THA 		8-97144-584-0 16 1 0607-0609 ●
71 SEAT; SPR
(B) OD=31 THA 		8-97144-584-0 16 1 0610-0708 ● ●
71 SEAT; SPR
(B) OD=31 THA 		8-97144-584-0 16 1 0709-0709 ●
71 SEAT; SPR
(B) OD=31 THA 		8-97144-584-0 16 1 0710- ● ●
71 SEAT; SPR
(A) OD=29.5 THA 		8-97311-668-0 16 1 0411-0606 ●
71 SEAT; SPR
M/T MUA 5 SPEED 5H<MWQ> (A) OD=29.5 THA 		8-97311-668-0 16 1 0607-0609 ●
71 SEAT; SPR
(A) OD=29.5 THA 		8-97311-668-0 16 1 0610-0708 ● ●
71 SEAT; SPR
(A) OD=29.5 THA 		8-97311-668-0 16 1 0709-0709 ●
71 SEAT; SPR
(A) OD=29.5 THA 		8-97311-668-0 16 1 0710- ● ●
72 SEAL; VLV GUIDE
THA 		8-97328-647-0 16 1 0411-0606 ●
72 SEAL; VLV GUIDE
M/T MUA 5 SPEED 5H<MWQ> THA 		8-97328-647-0 16 1 0607-0609 ●
72 SEAL; VLV GUIDE
THA 		8-97328-647-0 16 1 0610-0708 ● ●
72 SEAL; VLV GUIDE
THA 		8-97328-647-0 16 1 0709-0709 ●
72 SEAL; VLV GUIDE
THA 		8-97328-647-0 16 1 0710- ● ●
78 ARM; ROCKER
THA 		8-97364-808-3 16 1 0411-0606 ●
78 ARM; ROCKER
M/T MUA 5 SPEED 5H<MWQ> THA 		8-98029-537-0 16 1 0607-0609 ●
78 ARM; ROCKER
THA 		8-98029-537-1 16 1 0610-0708 ● ●
78 ARM; ROCKER
THA 		8-98029-537-1 16 1 0709-0709 ●
78 ARM; ROCKER
IMA 		8-98029-537-6 16 1 0710- ● ●
81 SCREW; ADJ,ROCKER ARM
M8 L=22 IMA 		8-98029-893-0 16 1 1103- ● ●
87 BOLT; ROCKER SHAFT
(A) M8X25 HEX SOCKET THA 		0-58330-825-0 08 1 0411-0606 ●
87 BOLT; ROCKER SHAFT
M/T MUA 5 SPEED 5H<MWQ> (A) M8X25 HEX SOCKET THA 		0-58330-825-0 08 1 0607-0609 ●
87 BOLT; ROCKER SHAFT
(A) M8X25 HEX SOCKET THA 		0-58330-825-0 08 1 0610-0708 ● ●
87 BOLT; ROCKER SHAFT
(A) M8X25 HEX SOCKET THA 		0-58330-825-0 08 1 0709-0709 ●
87 BOLT; ROCKER SHAFT
(A) M8X25 HEX SOCKET THA 		0-58330-825-0 08 1 0710- ● ●
87 BOLT; ROCKER SHAFT
(B) M8X40 HEX SOCKET THA 		0-58330-840-0 08 1 0411-0606 ●
87 BOLT; ROCKER SHAFT
M/T MUA 5 SPEED 5H<MWQ> (B) M8X40 HEX SOCKET THA 		0-58330-840-0 08 1 0607-0609 ●
87 BOLT; ROCKER SHAFT
(B) M8X40 HEX SOCKET THA 		0-58330-840-0 08 1 0610-0708 ● ●
87 BOLT; ROCKER SHAFT
(B) M8X40 HEX SOCKET THA 		0-58330-840-0 08 1 0709-0709 ●
87 BOLT; ROCKER SHAFT
(B) M8X40 HEX SOCKET THA 		0-58330-840-0 08 1 0710- ● ●
263 GASKET; CAM END
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) THA 		8-97947-079-0 04 1 0411-0609 ●
263 GASKET; CAM END
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) THA 		8-97947-079-0 04 1 0610-0708 ● ●
263 GASKET; CAM END
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) THA 		8-97947-079-0 04 1 0709-0709 ●
263 GASKET; CAM END
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) THA 		8-97947-079-0 04 1 0710- ● ●

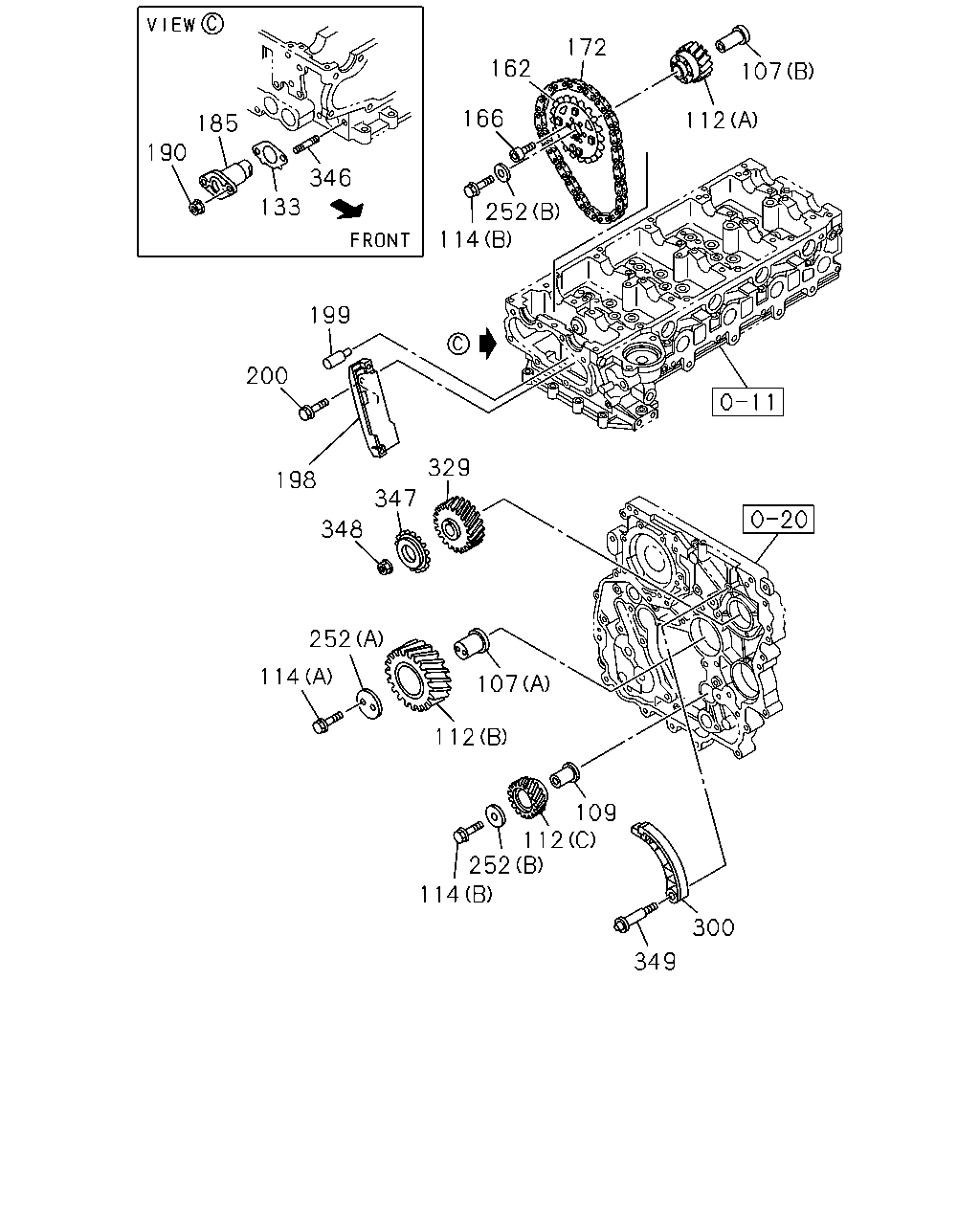

çizim 37777
347 348 252 198 200 199 114 252 166 162 172 112 107 185 346 190 133 114 112 107 109 112 252 114 349 300 329
BalonParca AdiParca NoAdetTipApplied Date A B
107 SHAFT; IDLE GEAR
(A) THA 		8-97312-315-2 01 1 0411-0606 ●
107 SHAFT; IDLE GEAR
M/T MUA 5 SPEED 5H<MWQ> (A) THA 		8-97312-315-2 01 1 0607-0609 ●
107 SHAFT; IDLE GEAR
(A) THA 		8-97312-315-2 01 1 0610-0708 ● ●
107 SHAFT; IDLE GEAR
(A) THA 		8-97312-315-2 01 1 0709-0709 ●
107 SHAFT; IDLE GEAR
(A) THA 		8-97312-315-2 01 1 0710- ● ●
107 SHAFT; IDLE GEAR
(B) THA 		8-97312-322-1 01 1 0411-0606 ●
107 SHAFT; IDLE GEAR
M/T MUA 5 SPEED 5H<MWQ> (B) THA 		8-97312-322-1 01 1 0607-0609 ●
107 SHAFT; IDLE GEAR
(B) THA 		8-97312-322-1 01 1 0610-0708 ● ●
107 SHAFT; IDLE GEAR
(B) THA 		8-97312-322-1 01 1 0709-0709 ●
107 SHAFT; IDLE GEAR
(B) THA 		8-97312-322-1 01 1 0710- ● ●
109 SHAFT; IDLE GEAR
THA 		8-97312-319-1 01 1 0411-0606 ●
109 SHAFT; IDLE GEAR
M/T MUA 5 SPEED 5H<MWQ> THA 		8-97312-319-1 01 1 0607-0609 ●
109 SHAFT; IDLE GEAR
THA 		8-97312-319-1 01 1 0610-0708 ● ●
109 SHAFT; IDLE GEAR
THA 		8-97312-319-1 01 1 0709-0709 ●
109 SHAFT; IDLE GEAR
THA 		8-97312-319-1 01 1 0710- ● ●
112 GEAR; IDLE
(B) Z=80 THA 		8-97312-200-1 01 1 0411-0606 ●
112 GEAR; IDLE
M/T MUA 5 SPEED 5H<MWQ> (B) Z=80 THA 		8-97312-200-1 01 1 0607-0609 ●
112 GEAR; IDLE
(B) Z=80 THA 		8-97312-200-1 01 1 0610-0611 ● ●
112 GEAR; IDLE
(B) Z=80 THA 		8-98021-050-1 01 1 0612-0708 ● ●
112 GEAR; IDLE
(B) Z=80 THA 		8-98021-050-1 01 1 0709-0709 ●
112 GEAR; IDLE
(B) Z=80 THA 		8-98021-050-2 01 1 0710- ● ●
112 GEAR; IDLE
(C) Z=34 THA 		8-97312-470-1 01 1 0411-0606 ●
112 GEAR; IDLE
M/T MUA 5 SPEED 5H<MWQ> (C) Z=34 THA 		8-97312-470-1 01 1 0607-0609 ●
112 GEAR; IDLE
(C) Z=34 THA 		8-97312-470-1 01 1 0610-0612 ● ●
112 GEAR; IDLE
(C) Z=34 THA 		8-98021-052-1 01 1 0701-0708 ● ●
112 GEAR; IDLE
(C) Z=34 THA 		8-98021-052-1 01 1 0709-0709 ●
112 GEAR; IDLE
(C) Z=34 THA 		8-98021-052-1 01 1 0710- ● ●
112 GEAR; IDLE
(A) Z=35 THA 		8-97312-306-2 01 1 0411-0606 ●
112 GEAR; IDLE
M/T MUA 5 SPEED 5H<MWQ> (A) Z=35 THA 		8-97312-306-2 01 1 0607-0609 ●
112 GEAR; IDLE
(A) Z=35 THA 		8-97312-306-2 01 1 0610-0610 ● ●
112 GEAR; IDLE
(A) Z=35 THA 		8-98021-053-1 01 1 0611-0708 ● ●
112 GEAR; IDLE
(A) Z=35 THA 		8-98021-053-1 01 1 0709-0709 ●
112 GEAR; IDLE
(A) Z=35 THA 		8-98021-053-3 01 1 0710- ● ●
114 BOLT; IDLE GEAR
(A) M10X60 FLANGE THA 		0-28061-060-0 02 1 0411-0606 ●
114 BOLT; IDLE GEAR
M/T MUA 5 SPEED 5H<MWQ> (A) M10X60 FLANGE THA 		0-28061-060-0 02 1 0607-0609 ●
114 BOLT; IDLE GEAR
(A) M10X60 FLANGE THA 		0-28061-060-0 02 1 0610-0708 ● ●
114 BOLT; IDLE GEAR
(A) M10X60 FLANGE THA 		0-28061-060-0 02 1 0709-0709 ●
114 BOLT; IDLE GEAR
(A) M10X60 FLANGE THA 		0-28061-060-0 02 1 0710- ● ●
114 BOLT; IDLE GEAR
(B) M12X60 FLANGE THA 		0-28161-260-0 02 1 0411-0606 ●
114 BOLT; IDLE GEAR
M/T MUA 5 SPEED 5H<MWQ> (B) M12X60 FLANGE THA 		0-28161-260-0 02 1 0607-0609 ●
114 BOLT; IDLE GEAR
(B) M12X60 FLANGE THA 		0-28161-260-0 02 1 0610-0708 ● ●
114 BOLT; IDLE GEAR
(B) M12X60 FLANGE THA 		0-28161-260-0 02 1 0709-0709 ●
114 BOLT; IDLE GEAR
(B) M12X60 FLANGE THA 		0-28161-260-0 02 1 0710- ● ●
133 GASKET; CHAIN TENSIONER
THA 		8-97312-336-0 01 1 0411-0606 ●
133 GASKET; CHAIN TENSIONER
M/T MUA 5 SPEED 5H<MWQ> THA 		8-97312-336-0 01 1 0607-0609 ●
133 GASKET; CHAIN TENSIONER
THA 		8-97312-336-0 01 1 0610-0708 ● ●
133 GASKET; CHAIN TENSIONER
THA 		8-97312-336-0 01 1 0709-0709 ●
133 GASKET; CHAIN TENSIONER
THA 		8-97312-336-0 01 1 0710- ● ●
162 SPROCKET; IDLE
THA 		8-97312-331-0 01 1 0411-0606 ●
162 SPROCKET; IDLE
M/T MUA 5 SPEED 5H<MWQ> THA 		8-97312-331-0 01 1 0607-0609 ●
162 SPROCKET; IDLE
THA 		8-97312-331-0 01 1 0610-0708 ● ●
162 SPROCKET; IDLE
THA 		8-97312-331-0 01 1 0709-0709 ●
162 SPROCKET; IDLE
THA 		8-97312-331-1 01 1 0710- ● ●
166 BOLT; SPROCKET TO LAYSHAFT
M6X16 HEX SOCKET THA 		0-58330-616-0 06 1 0411-0606 ●
166 BOLT; SPROCKET TO LAYSHAFT
M/T MUA 5 SPEED 5H<MWQ> M6X16 HEX SOCKET THA 		0-58330-616-0 06 1 0607-0609 ●
166 BOLT; SPROCKET TO LAYSHAFT
M6X16 HEX SOCKET THA 		0-58330-616-0 06 1 0610-0708 ● ●
166 BOLT; SPROCKET TO LAYSHAFT
M6X16 HEX SOCKET THA 		0-58330-616-0 06 1 0709-0709 ●
166 BOLT; SPROCKET TO LAYSHAFT
M6X16 HEX SOCKET THA 		0-58330-616-0 06 1 0710- ● ●
172 CHAIN; TIMING,CM/SHF
THA 		8-97312-325-0 01 1 0411-0508 ●
172 CHAIN; TIMING,CM/SHF
THA 		8-97945-067-0 01 1 0509-0606 ●
172 CHAIN; TIMING,CM/SHF
M/T MUA 5 SPEED 5H<MWQ> THA 		8-97945-067-0 01 1 0607-0609 ●
172 CHAIN; TIMING,CM/SHF
THA 		8-97945-067-0 01 1 0610-0708 ● ●
172 CHAIN; TIMING,CM/SHF
THA 		8-97945-067-0 01 1 0709-0709 ●
172 CHAIN; TIMING,CM/SHF
THA 		8-97945-067-0 01 1 0710-0908 ● ●
172 CHAIN; TIMING,CM/SHF
THA 		8-98119-279-1 01 1 0909- ● ●
185 TENSIONER; CHAIN
THA 		8-97312-329-1 01 1 0411-0508 ●
185 TENSIONER; CHAIN
THA 		8-97945-068-1 01 1 0509-0606 ●
185 TENSIONER; CHAIN
M/T MUA 5 SPEED 5H<MWQ> THA 		8-97945-068-1 01 1 0607-0609 ●
185 TENSIONER; CHAIN
THA 		8-97945-068-1 01 1 0610-0708 ● ●
185 TENSIONER; CHAIN
THA 		8-97945-068-1 01 1 0709-0709 ●
185 TENSIONER; CHAIN
THA 		8-97945-068-1 01 1 0710- ● ●
190 NUT; CHAIN TENSIONER
M6 FLANGE THA 		0-91180-206-0 02 1 0411-0606 ●
190 NUT; CHAIN TENSIONER
M/T MUA 5 SPEED 5H<MWQ> M6 FLANGE THA 		0-91180-206-0 02 1 0607-0609 ●
190 NUT; CHAIN TENSIONER
M6 FLANGE THA 		0-91180-206-0 02 1 0610-0708 ● ●
190 NUT; CHAIN TENSIONER
M6 FLANGE THA 		0-91180-206-0 02 1 0709-0709 ●
190 NUT; CHAIN TENSIONER
M6 FLANGE THA 		0-91180-206-0 02 1 0710- ● ●
198 GUIDE; TIMING CHAIN
THA 		8-97312-326-1 01 1 0411-0508 ●
198 GUIDE; TIMING CHAIN
THA 		8-97945-069-0 01 1 0509-0606 ●
198 GUIDE; TIMING CHAIN
M/T MUA 5 SPEED 5H<MWQ> THA 		8-97945-069-0 01 1 0607-0609 ●
198 GUIDE; TIMING CHAIN
THA 		8-97945-069-0 01 1 0610-0708 ● ●
198 GUIDE; TIMING CHAIN
THA 		8-97945-069-0 01 1 0709-0709 ●
198 GUIDE; TIMING CHAIN
THA 		8-97945-069-0 01 1 0710-1009 ● ●
198 GUIDE; TIMING CHAIN
THA 		8-98173-188-0 01 1 1010- ● ●
199 JET; OIL,TIMING CHAIN
THA 		8-97356-061-1 01 1 0411-0606 ●
199 JET; OIL,TIMING CHAIN
M/T MUA 5 SPEED 5H<MWQ> THA 		8-97356-061-1 01 1 0607-0609 ●
199 JET; OIL,TIMING CHAIN
THA 		8-97356-061-1 01 1 0610-0708 ● ●
199 JET; OIL,TIMING CHAIN
THA 		8-97356-061-1 01 1 0709-0709 ●
199 JET; OIL,TIMING CHAIN
THA 		8-97356-061-1 01 1 0710- ● ●
200 BOLT; CHAIN GUIDE,LWR
M8X20 THA 		1-09070-120-0 02 1 0411-0606 ●
200 BOLT; CHAIN GUIDE,LWR
M/T MUA 5 SPEED 5H<MWQ> M8X20 THA 		1-09070-120-0 02 1 0607-0609 ●
200 BOLT; CHAIN GUIDE,LWR
M8X20 THA 		1-09070-120-1 02 1 0610-0708 ● ●
200 BOLT; CHAIN GUIDE,LWR
M8X20 THA 		1-09070-120-1 02 1 0709-0709 ●
200 BOLT; CHAIN GUIDE,LWR
M8X20 THA 		1-09070-120-1 02 1 0710- ● ●
252 FLANGE; IDLE SHAFT
(A) THA 		8-97312-316-1 01 1 0411-0606 ●
252 FLANGE; IDLE SHAFT
M/T MUA 5 SPEED 5H<MWQ> (A) THA 		8-97312-316-1 01 1 0607-0609 ●
252 FLANGE; IDLE SHAFT
(A) THA 		8-97312-316-1 01 1 0610-0708 ● ●
252 FLANGE; IDLE SHAFT
(A) THA 		8-97312-316-1 01 1 0709-0709 ●
252 FLANGE; IDLE SHAFT
(A) THA 		8-97312-316-1 01 1 0710- ● ●
252 FLANGE; IDLE SHAFT
(B) THA 		8-97312-323-1 02 1 0411-0606 ●
252 FLANGE; IDLE SHAFT
M/T MUA 5 SPEED 5H<MWQ> (B) THA 		8-97312-323-1 02 1 0607-0609 ●
252 FLANGE; IDLE SHAFT
(B) THA 		8-97312-323-1 02 1 0610-0708 ● ●
252 FLANGE; IDLE SHAFT
(B) THA 		8-97312-323-1 02 1 0709-0709 ●
252 FLANGE; IDLE SHAFT
(B) THA 		8-97312-323-1 02 1 0710- ● ●
300 LEVER; TENSION,TIMING CHAIN
THA 		8-97312-327-1 01 1 0411-0508 ●
300 LEVER; TENSION,TIMING CHAIN
THA 		8-97945-070-0 01 1 0509-0606 ●
300 LEVER; TENSION,TIMING CHAIN
M/T MUA 5 SPEED 5H<MWQ> THA 		8-97945-070-0 01 1 0607-0609 ●
300 LEVER; TENSION,TIMING CHAIN
THA 		8-97945-070-0 01 1 0610-0708 ● ●
300 LEVER; TENSION,TIMING CHAIN
THA 		8-97945-070-0 01 1 0709-0709 ●
300 LEVER; TENSION,TIMING CHAIN
THA 		8-97945-070-0 01 1 0710-0809 ● ●
300 LEVER; TENSION,TIMING CHAIN
THA 		8-98119-278-1 01 1 0810- ● ●
329 GEAR; INJ PUMP
Z=44 THA 		8-97312-298-3 01 1 0411-0606 ●
329 GEAR; INJ PUMP
M/T MUA 5 SPEED 5H<MWQ> Z=44 THA 		8-97312-298-3 01 1 0607-0609 ●
329 GEAR; INJ PUMP
Z=44 THA 		8-97312-298-3 01 1 0610-0708 ● ●
329 GEAR; INJ PUMP
Z=44 THA 		8-97312-298-3 01 1 0709-0709 ●
329 GEAR; INJ PUMP
Z=44 THA 		8-97312-298-3 01 1 0710- ● ●
346 STUD; CHAIN
M6X18 L=27 THA 		0-41010-618-0 02 1 0411-0606 ●
346 STUD; CHAIN
M/T MUA 5 SPEED 5H<MWQ> M6X18 L=27 THA 		0-41010-618-0 02 1 0607-0609 ●
346 STUD; CHAIN
M6X18 L=27 THA 		0-41010-618-0 02 1 0610-0708 ● ●
346 STUD; CHAIN
M6X18 L=27 THA 		0-41010-618-0 02 1 0709-0709 ●
346 STUD; CHAIN
M6X18 L=27 THA 		0-41010-618-0 02 1 0710- ● ●
347 SPROCKET; I/PUMP
THA 		8-97312-330-1 01 1 0411-0606 ●
347 SPROCKET; I/PUMP
M/T MUA 5 SPEED 5H<MWQ> THA 		8-97312-330-1 01 1 0607-0609 ●
347 SPROCKET; I/PUMP
THA 		8-97312-330-1 01 1 0610-0708 ● ●
347 SPROCKET; I/PUMP
THA 		8-97312-330-1 01 1 0709-0709 ●
347 SPROCKET; I/PUMP
THA 		8-97312-330-1 01 1 0710- ● ●
348 NUT; SPROCKET
M14 FLANGE THA 		8-97312-423-2 01 1 0411-0606 ●
348 NUT; SPROCKET
M/T MUA 5 SPEED 5H<MWQ> M14 FLANGE THA 		8-97312-423-2 01 1 0607-0609 ●
348 NUT; SPROCKET
M14 FLANGE THA 		8-97312-423-2 01 1 0610-0708 ● ●
348 NUT; SPROCKET
M14 FLANGE THA 		8-97312-423-2 01 1 0709-0709 ●
348 NUT; SPROCKET
M14 FLANGE THA 		8-97312-423-2 01 1 0710- ● ●
349 PIVOT; CHAIN LEVER
THA 		8-97312-328-0 01 1 0411-0606 ●
349 PIVOT; CHAIN LEVER
M/T MUA 5 SPEED 5H<MWQ> THA 		8-97312-328-0 01 1 0607-0609 ●
349 PIVOT; CHAIN LEVER
THA 		8-97312-328-0 01 1 0610-0708 ● ●
349 PIVOT; CHAIN LEVER
THA 		8-97312-328-0 01 1 0709-0709 ●
349 PIVOT; CHAIN LEVER
THA 		8-97312-328-0 01 1 0710- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
