◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ UCR ▶ 51027 - UCR/UCS(THAILAND) ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-13 - OIL PAN AND LEVEL GAUGE ▶
0-13 — OIL PAN AND LEVEL GAUGE (#73722) — 92 parça

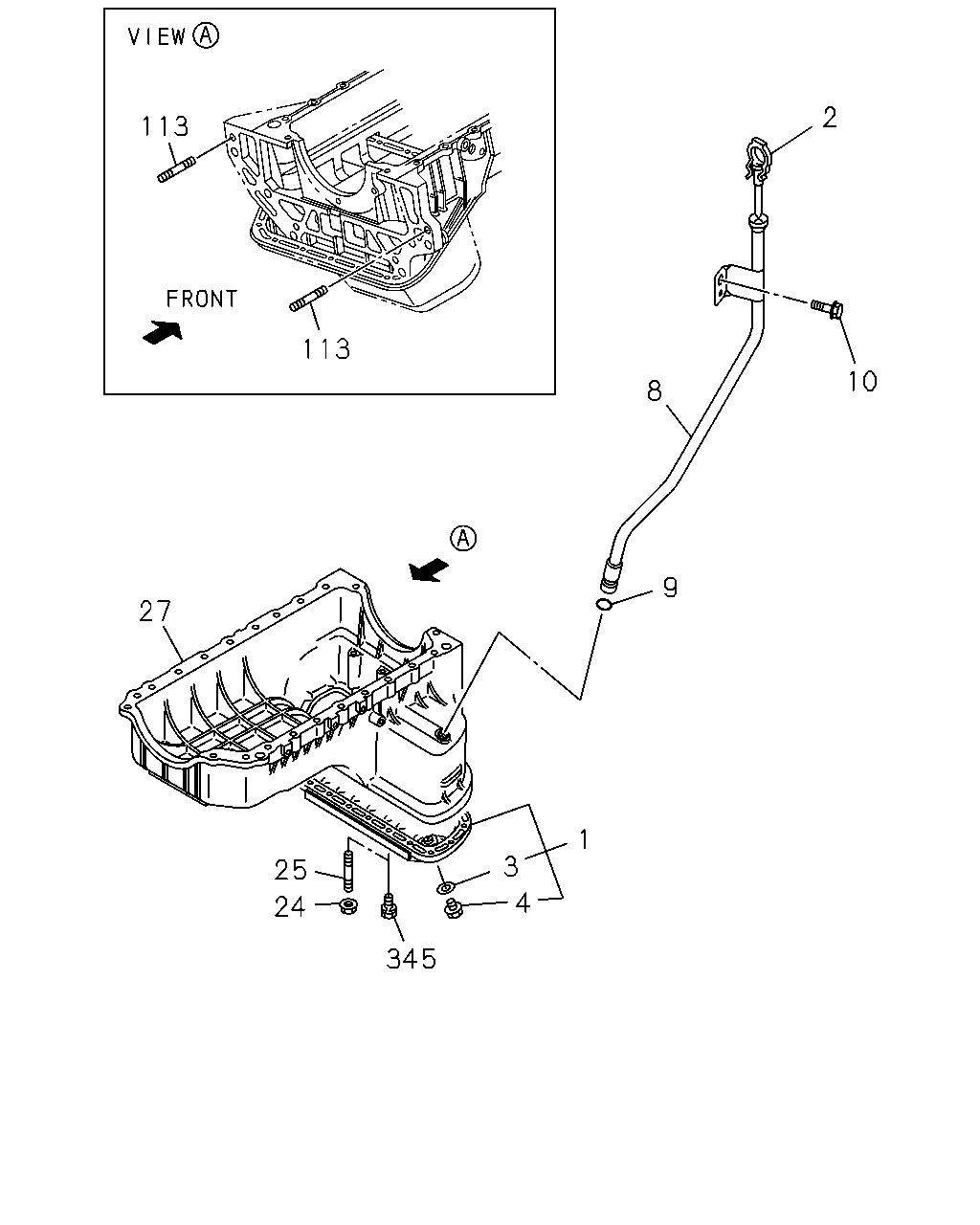

çizim 185368
113 113 2 10 8 9 1 3 4 345 24 27 25
BalonParca AdiParca NoAdetTipApplied Date A B
1 PAN ASM; OIL
4X2<UCB***> THA 		8-97354-749-2 01 1 0411-0508 ●
1 PAN ASM; OIL
4X2<UCB***> A/T 4 SPEED-JATCO<RMK>,M/T MUA 5 SPEED 5G<RSP> THA 		8-97354-749-2 01 1 0509-0606 ●
1 PAN ASM; OIL
4X2<UCB***> M/T MUA 5 SPEED 5H<MWQ> THA 		8-98011-499-0 01 1 0607-0609 ●
1 PAN ASM; OIL
4X2<UCB***> M/T MUA 5 SPEED 5H<MWQ>,A/T AISIN<RMD> THA 		8-98011-499-0 01 1 0610-0708 ● ●
1 PAN ASM; OIL
4X2<UCB***> M/T MUA 5 SPEED 5H<MWQ> THA 		8-98011-499-0 01 1 0709-0709 ●
1 PAN ASM; OIL
4X2<UCB***> THA 		8-98011-499-0 01 1 0710-1008 ● ●
1 PAN ASM; OIL
4X2<UCB***> THA 		8-98156-371-0 01 1 1009- ● ●
1 PAN ASM; OIL
4X4<UCS***> THA 		8-97354-747-2 01 1 0411-0508 ●
1 PAN ASM; OIL
4X4<UCS***> A/T 4 SPEED-JATCO<RMK>,M/T MUA 5 SPEED 5G<RSP> THA 		8-97354-747-2 01 1 0509-0606 ●
1 PAN ASM; OIL
4X4<UCS***> M/T MUA 5 SPEED 5H<MWQ> THA 		8-98013-383-0 01 1 0607-0609 ●
1 PAN ASM; OIL
4X4<UCS***> M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ>, A/T AISIN<RMD> THA 		8-98013-383-0 01 1 0610-0708 ● ●
1 PAN ASM; OIL
4X4<UCS***> M/T MUA 5 SPEED 5H<MWQ> THA 		8-98013-383-0 01 1 0709-0709 ●
1 PAN ASM; OIL
4X4<UCS***> M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ>, A/T AISIN<RMD> THA 		8-98013-383-1 01 1 0710-1008 ● ●
1 PAN ASM; OIL
4X4<UCS***> M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ>, A/T AISIN<RMD> THA 		8-98156-373-0 01 1 1009- ● ●
2 GAUGE; OIL LEVEL
4X2<UCB***> THA 		8-97374-978-0 01 1 0411-0508 ●
2 GAUGE; OIL LEVEL
4X2<UCB***> A/T 4 SPEED-JATCO<RMK>,M/T MUA 5 SPEED 5G<RSP> THA 		8-97374-978-0 01 1 0509-0606 ●
2 GAUGE; OIL LEVEL
4X2<UCB***> M/T MUA 5 SPEED 5H<MWQ> THA 		8-98053-833-0 01 1 0607-0609 ●
2 GAUGE; OIL LEVEL
4X2<UCB***> M/T MUA 5 SPEED 5H<MWQ>,A/T AISIN<RMD> THA 		8-98053-833-0 01 1 0610-0708 ● ●
2 GAUGE; OIL LEVEL
4X2<UCB***> M/T MUA 5 SPEED 5H<MWQ> THA 		8-98053-833-0 01 1 0709-0709 ●
2 GAUGE; OIL LEVEL
4X2<UCB***> THA 		8-98053-833-1 01 1 0710- ● ●
2 GAUGE; OIL LEVEL
4X4<UCS***> THA 		8-97374-979-0 01 1 0411-0508 ●
2 GAUGE; OIL LEVEL
4X4<UCS***> A/T 4 SPEED-JATCO<RMK>,M/T MUA 5 SPEED 5G<RSP> THA 		8-97374-979-0 01 1 0509-0606 ●
2 GAUGE; OIL LEVEL
4X4<UCS***> M/T MUA 5 SPEED 5H<MWQ> THA 		8-98053-834-0 01 1 0607-0609 ●
2 GAUGE; OIL LEVEL
4X4<UCS***> M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ>, A/T AISIN<RMD> THA 		8-98053-834-0 01 1 0610-0708 ● ●
2 GAUGE; OIL LEVEL
4X4<UCS***> M/T MUA 5 SPEED 5H<MWQ> THA 		8-98053-834-0 01 1 0709-0709 ●
2 GAUGE; OIL LEVEL
4X4<UCS***> M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ>, A/T AISIN<RMD> THA 		8-98053-834-1 01 1 0710- ● ●
3 GASKET; DRAIN PLUG
ID=14.2 OD=24 IMA 		8-94158-328-0 01 1 0411-0606 ●
3 GASKET; DRAIN PLUG
M/T MUA 5 SPEED 5H<MWQ> ID=14.2 OD=24 IMA 		8-94158-328-0 01 1 0607-0609 ●
3 GASKET; DRAIN PLUG
ID=14.2 OD=24 IMA 		8-94158-328-0 01 1 0610-0708 ● ●
3 GASKET; DRAIN PLUG
ID=14.2 OD=24 IMA 		8-94158-328-0 01 1 0709-0709 ●
3 GASKET; DRAIN PLUG
ID=14.2 OD=24 IMA 		8-94158-328-0 01 1 0710- ● ●
4 PLUG; DRAIN,OIL
M14X14 IMA 		8-94152-613-0 01 1 0411-0606 ●
4 PLUG; DRAIN,OIL
M/T MUA 5 SPEED 5H<MWQ> M14X14 IMA 		8-97329-621-0 01 1 0607-0609 ●
4 PLUG; DRAIN,OIL
M14X14 IMA 		8-97329-621-0 01 1 0610-0708 ● ●
4 PLUG; DRAIN,OIL
M14X14 IMA 		8-97329-621-0 01 1 0709-0709 ●
4 PLUG; DRAIN,OIL
M14X14 IMA 		8-97329-621-0 01 1 0710- ● ●
8 TUBE; GUIDE,OIL LEVEL GAUGE
THA 		8-97358-357-3 01 1 0411-0606 ●
8 TUBE; GUIDE,OIL LEVEL GAUGE
M/T MUA 5 SPEED 5H<MWQ> THA 		8-98011-973-1 01 1 0607-0609 ●
8 TUBE; GUIDE,OIL LEVEL GAUGE
THA 		8-98011-973-1 01 1 0610-0708 ● ●
8 TUBE; GUIDE,OIL LEVEL GAUGE
THA 		8-98011-973-1 01 1 0709-0709 ●
8 TUBE; GUIDE,OIL LEVEL GAUGE
THA 		8-98011-973-1 01 1 0710- ● ●
9 GASKET; GUIDE TUBE,OIL LEVEL GAUGE
THA 		8-97912-535-0 01 1 0411-0606 ●
9 GASKET; GUIDE TUBE,OIL LEVEL GAUGE
M/T MUA 5 SPEED 5H<MWQ> ID=11 OD=15.8 THA 		8-98034-629-0 01 1 0607-0609 ●
9 GASKET; GUIDE TUBE,OIL LEVEL GAUGE
ID=11 OD=15.8 THA 		8-98034-629-0 01 1 0610-0708 ● ●
9 GASKET; GUIDE TUBE,OIL LEVEL GAUGE
ID=11 OD=15.8 THA 		8-98034-629-0 01 1 0709-0709 ●
9 GASKET; GUIDE TUBE,OIL LEVEL GAUGE
ID=11 OD=15.8 THA 		8-98034-629-0 01 1 0710- ● ●
10 BOLT; GUIDE TUBE
M8X16 FLANGE THA 		0-28050-816-0 01 1 0411-0606 ●
10 BOLT; GUIDE TUBE
M/T MUA 5 SPEED 5H<MWQ> M8X16 FLANGE THA 		0-28050-816-0 01 1 0607-0609 ●
10 BOLT; GUIDE TUBE
M8X16 FLANGE THA 		0-28050-816-0 01 1 0610-0708 ● ●
10 BOLT; GUIDE TUBE
M8X16 FLANGE THA 		0-28050-816-0 01 1 0709-0709 ●
10 BOLT; GUIDE TUBE
M8X16 FLANGE THA 		0-28050-816-0 01 1 0710- ● ●
24 NUT; OIL PAN
M8 FLANGE THA 		0-91180-208-0 02 1 0411-0606 ●
24 NUT; OIL PAN
M/T MUA 5 SPEED 5H<MWQ> M8 FLANGE THA 		0-91180-208-0 02 1 0607-0609 ●
24 NUT; OIL PAN
M8 FLANGE THA 		0-91180-208-0 02 1 0610-0708 ● ●
24 NUT; OIL PAN
M8 FLANGE THA 		0-91180-208-0 02 1 0709-0709 ●
24 NUT; OIL PAN
M8 FLANGE THA 		0-91180-208-0 02 1 0710- ● ●
25 STUD; OIL PAN
M8X16 L=28 THA 		0-41010-816-0 02 1 0411-0606 ●
25 STUD; OIL PAN
M/T MUA 5 SPEED 5H<MWQ> M8X16 L=28 THA 		0-41010-816-0 02 1 0607-0609 ●
25 STUD; OIL PAN
M8X16 L=28 THA 		0-41010-816-0 02 1 0610-0708 ● ●
25 STUD; OIL PAN
M8X16 L=28 THA 		0-41010-816-0 02 1 0709-0709 ●
25 STUD; OIL PAN
M8X16 L=28 THA 		0-41010-816-0 02 1 0710- ● ●
27 CRANKCASE
4X2<UCB***> THA 		8-97370-513-4 01 1 0411-0508 ●
27 CRANKCASE
4X2<UCB***> A/T 4 SPEED-JATCO<RMK>,M/T MUA 5 SPEED 5G<RSP> THA 		8-97370-513-4 01 1 0509-0606 ●
27 CRANKCASE
4X2<UCB***> M/T MUA 5 SPEED 5H<MWQ> THA 		8-98013-794-1 01 1 0607-0609 ●
27 CRANKCASE
4X2<UCB***> M/T MUA 5 SPEED 5H<MWQ>,A/T AISIN<RMD> THA 		8-98013-794-1 01 1 0610-0708 ● ●
27 CRANKCASE
4X2<UCB***> M/T MUA 5 SPEED 5H<MWQ> THA 		8-98013-794-1 01 1 0709-0709 ●
27 CRANKCASE
4X2<UCB***> M/T MUA 5 SPEED 5H<MWQ>,A/T AISIN<RMD> THA 		8-98013-794-1 01 1 0710-0809 ● ●
27 CRANKCASE
4X2<UCB***> M/T MUA 5 SPEED 5H<MWQ>,A/T AISIN<RMD>,A/T 4 SPEED-JATCO<RMK> THA 		8-98013-794-1 01 1 0810- ● ●
27 CRANKCASE
4X4<UCS***> THA 		8-97370-514-3 01 1 0411-0508 ●
27 CRANKCASE
4X4<UCS***> A/T 4 SPEED-JATCO<RMK>,M/T MUA 5 SPEED 5G<RSP> THA 		8-97370-514-3 01 1 0509-0606 ●
27 CRANKCASE
4X4<UCS***> M/T MUA 5 SPEED 5H<MWQ> THA 		8-97370-514-3 01 1 0607-0609 ●
27 CRANKCASE
4X4<UCS***> M/T MUA 5 SPEED 5H<MWQ> THA 		8-97370-514-3 01 1 0610-0708 ●
27 CRANKCASE
4X4<UCS***> A/T AISIN<RMD> THA 		8-97370-514-3 01 1 0610-0708 ●
27 CRANKCASE
4X4<UCS***> M/T MUA 5 SPEED 5H<MWQ> THA 		8-97370-514-3 01 1 0709-0709 ●
27 CRANKCASE
4X4<UCS***> M/T MUA 5 SPEED 5H<MWQ>,A/T AISIN<RMD> THA 		8-97370-514-3 01 1 0710- ● ●
27 CRANKCASE
M/T MUX 5 SPEED 5S<MZJ> THA 		8-98011-498-2 01 1 0610-0708 ●
27 CRANKCASE
4X2<UCB***> M/T MUX 5 SPEED 5S<MZJ> THA 		8-98011-497-2 01 1 0710- ●
27 CRANKCASE
4X4<UCS***> M/T MUX 5 SPEED 5S<MZJ> THA 		8-98011-498-2 01 1 0710- ●
113 PIN; STRAIGHT
M/T MUX 5 SPEED 5S<MZJ> OD=10 L=32 THA 		9-08161-032-0 02 1 0610-0708 ●
113 PIN; STRAIGHT
M/T MUX 5 SPEED 5S<MZJ> OD=10 L=32 THA 		9-08161-032-0 02 1 0710- ●
345 BOLT; SENSOR,OIL LEVEL
4X2<UCB***> M8X12 FLANGE THA 		0-28050-812-0 21 1 0411-0508 ●
345 BOLT; SENSOR,OIL LEVEL
4X2<UCB***> A/T 4 SPEED-JATCO<RMK>,M/T MUA 5 SPEED 5G<RSP> M8X12 FLANGE THA 		0-28050-812-0 21 1 0509-0606 ●
345 BOLT; SENSOR,OIL LEVEL
4X2<UCB***> M/T MUA 5 SPEED 5H<MWQ> M8X12 FLANGE THA 		0-28050-812-0 21 1 0607-0609 ●
345 BOLT; SENSOR,OIL LEVEL
4X2<UCB***> M/T MUA 5 SPEED 5H<MWQ>,A/T AISIN<RMD> M8X12 FLANGE THA 		0-28050-812-0 21 1 0610-0708 ● ●
345 BOLT; SENSOR,OIL LEVEL
4X2<UCB***> M/T MUA 5 SPEED 5H<MWQ> M8X12 FLANGE THA 		0-28050-812-0 21 1 0709-0709 ●
345 BOLT; SENSOR,OIL LEVEL
4X2<UCB***> M8X12 FLANGE THA 		0-28050-812-0 21 1 0710- ● ●
345 BOLT; SENSOR,OIL LEVEL
4X4<UCS***> M8X12 FLANGE THA 		0-28050-812-0 17 1 0411-0508 ●
345 BOLT; SENSOR,OIL LEVEL
4X4<UCS***> A/T 4 SPEED-JATCO<RMK>,M/T MUA 5 SPEED 5G<RSP> M8X12 FLANGE THA 		0-28050-812-0 17 1 0509-0606 ●
345 BOLT; SENSOR,OIL LEVEL
4X4<UCS***> M/T MUA 5 SPEED 5H<MWQ> M8X12 FLANGE THA 		0-28050-812-0 17 1 0607-0609 ●
345 BOLT; SENSOR,OIL LEVEL
4X4<UCS***> M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ>, A/T AISIN<RMD> M8X12 FLANGE THA 		0-28050-812-0 17 1 0610-0708 ● ●
345 BOLT; SENSOR,OIL LEVEL
4X4<UCS***> M/T MUA 5 SPEED 5H<MWQ> M8X12 FLANGE THA 		0-28050-812-0 17 1 0709-0709 ●
345 BOLT; SENSOR,OIL LEVEL
4X4<UCS***> M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ>, A/T AISIN<RMD> M8X12 FLANGE THA 		0-28050-812-0 17 1 0710- ● ●
