0-11 — CYLINDER HEAD (#73720) — 154 parça

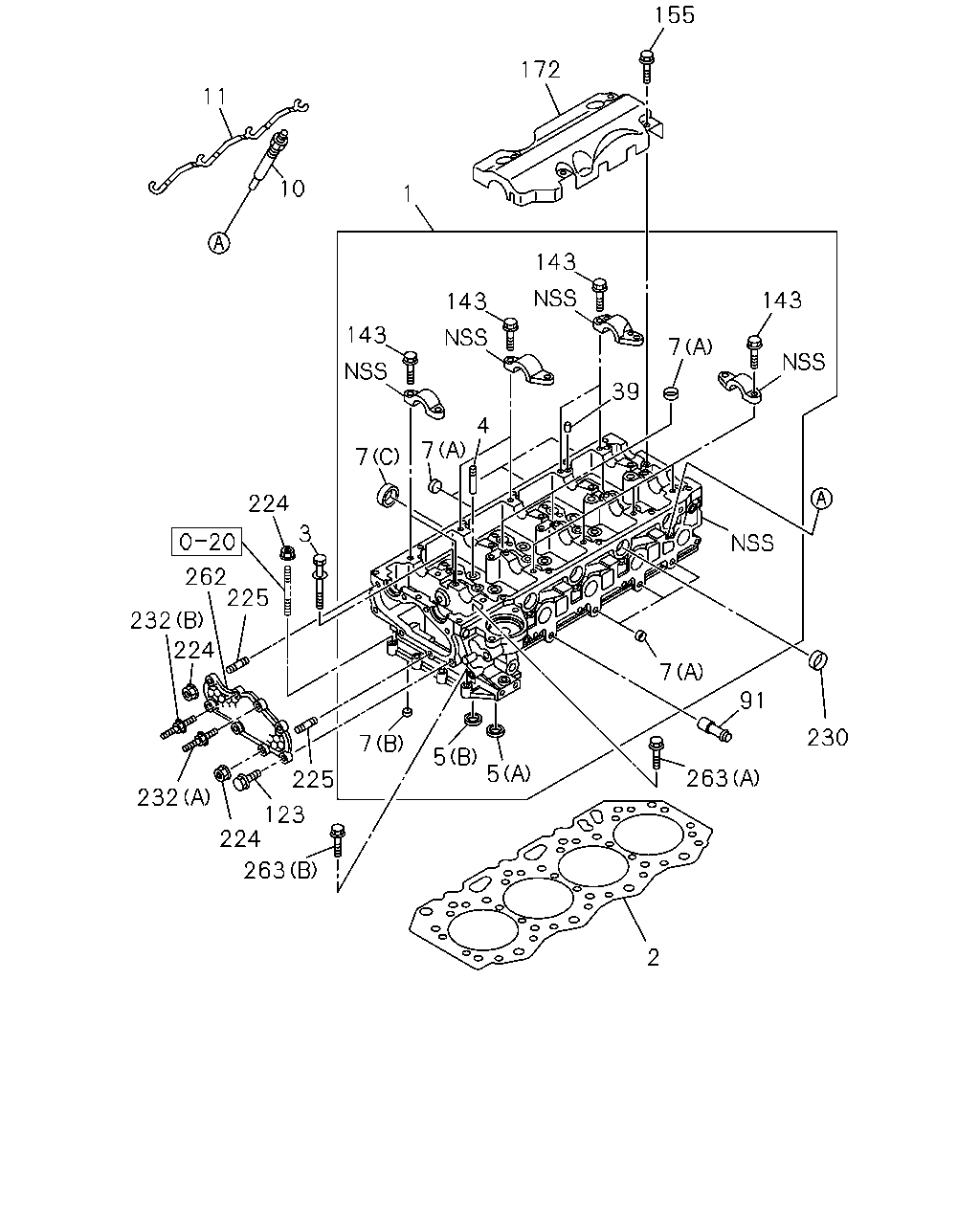

çizim 14701
155 172 11 10 1 143 143 143 143 7 39 4 7 7 224 3 262 225 232 224 7 91 7 230 225 5 5 263 232 123 224 263 2
BalonParca AdiParca NoAdetTipApplied Date A B
1 HEAD ASM; CYL
THA 		8-97355-970-8 01 1 0411-0606 ●
1 HEAD ASM; CYL
M/T MUA 5 SPEED 5H<MWQ> THA 		8-97355-970-8 01 1 0607-0609 ●
1 HEAD ASM; CYL
THA 		8-97355-970-8 01 1 0610-0708 ● ●
1 HEAD ASM; CYL
THA 		8-97355-970-8 01 1 0709-0709 ●
1 HEAD ASM; CYL
THA 		8-97355-970-9 01 1 0710-1009 ● ●
1 HEAD ASM; CYL
THA 		8-98175-606-1 01 1 1010-1210 ● ●
1 HEAD ASM; CYL
IMA 		8-98223-019-1 01 1 1211- ● ●
2 GASKET; CYL HD
STD T=1.05 1-NOTCH THA 		8-97328-866-1 01 1 0411-0606 ●
2 GASKET; CYL HD
M/T MUA 5 SPEED 5H<MWQ> STD T=1.05 1-NOTCH THA 		8-97328-866-1 01 1 0607-0609 ●
2 GASKET; CYL HD
STD T=1.05 1-NOTCH THA 		8-97328-866-1 01 1 0610-0708 ● ●
2 GASKET; CYL HD
STD T=1.05 1-NOTCH THA 		8-97328-866-1 01 1 0709-0709 ●
2 GASKET; CYL HD
STD T=1.05 1-NOTCH THA 		8-97328-866-2 01 1 0710-1307 ● ●
2 GASKET; CYL HD
STD T=1.05 1-NOTCH THA 		8-98241-037-0 01 1 1308- ● ●
2 GASKET; CYL HD
STD T=1.10 2-NOTCH THA 		8-97328-867-1 01 1 0411-0606 ●
2 GASKET; CYL HD
M/T MUA 5 SPEED 5H<MWQ> STD T=1.10 2-NOTCH THA 		8-97328-867-1 01 1 0607-0609 ●
2 GASKET; CYL HD
STD T=1.10 2-NOTCH THA 		8-97328-867-1 01 1 0610-0708 ● ●
2 GASKET; CYL HD
STD T=1.10 2-NOTCH THA 		8-97328-867-1 01 1 0709-0709 ●
2 GASKET; CYL HD
STD T=1.10 2-NOTCH THA 		8-97328-867-2 01 1 0710-1307 ● ●
2 GASKET; CYL HD
STD T=1.10 2-NOTCH THA 		8-98241-038-0 01 1 1308- ● ●
2 GASKET; CYL HD
STD T=1.15 3-NOTCH THA 		8-97328-868-1 01 1 0411-0606 ●
2 GASKET; CYL HD
M/T MUA 5 SPEED 5H<MWQ> STD T=1.15 3-NOTCH THA 		8-97328-868-1 01 1 0607-0609 ●
2 GASKET; CYL HD
STD T=1.15 3-NOTCH THA 		8-97328-868-1 01 1 0610-0708 ● ●
2 GASKET; CYL HD
STD T=1.15 3-NOTCH THA 		8-97328-868-1 01 1 0709-0709 ●
2 GASKET; CYL HD
STD T=1.15 3-NOTCH THA 		8-97328-868-2 01 1 0710-1307 ● ●
2 GASKET; CYL HD
STD T=1.15 3-NOTCH THA 		8-98241-039-0 01 1 1308- ● ●
2 GASKET; CYL HD
O/S=0.50 OVER SIZE IMA 		8-97388-314-0 01 1 0411-0606 ●
2 GASKET; CYL HD
M/T MUA 5 SPEED 5H<MWQ> O/S=0.50 OVER SIZE IMA 		8-97388-314-0 01 1 0607-0609 ●
2 GASKET; CYL HD
O/S=0.50 OVER SIZE IMA 		8-97388-314-0 01 1 0610-0708 ● ●
2 GASKET; CYL HD
O/S=0.50 OVER SIZE IMA 		8-97388-314-0 01 1 0709-0709 ●
2 GASKET; CYL HD
O/S=0.50 OVER SIZE IMA 		8-97388-314-0 01 1 0710- ● ●
3 BOLT; CYL HD TO BLOCK
M11X114 THA 		8-97144-583-1 18 1 0411-0606 ●
3 BOLT; CYL HD TO BLOCK
M/T MUA 5 SPEED 5H<MWQ> M11X114 THA 		8-97144-583-1 18 1 0607-0609 ●
3 BOLT; CYL HD TO BLOCK
M11X114 THA 		8-97144-583-1 18 1 0610-0708 ● ●
3 BOLT; CYL HD TO BLOCK
M11X114 THA 		8-97144-583-1 18 1 0709-0709 ●
3 BOLT; CYL HD TO BLOCK
M11X114 THA 		8-97144-583-2 18 1 0710-1201 ● ●
3 BOLT; CYL HD TO BLOCK
M11X114 W/WASHER IMA 		8-98201-019-0 18 1 1202- ● ●
4 GUIDE; VLV
L=42 IMA 		8-94239-423-0 16 1 0411-0606 ●
4 GUIDE; VLV
M/T MUA 5 SPEED 5H<MWQ> L=42 IMA 		8-94239-423-0 16 1 0607-0609 ●
4 GUIDE; VLV
L=42 IMA 		8-94239-423-0 16 1 0610-0708 ● ●
4 GUIDE; VLV
L=42 IMA 		8-94239-423-0 16 1 0709-0709 ●
4 GUIDE; VLV
L=42 IMA 		8-94239-423-0 16 1 0710- ● ●
5 SEAT; VLV INSERT
(A) ID=29 OD=35 IMA 		8-97311-378-0 08 1 0411-0606 ●
5 SEAT; VLV INSERT
M/T MUA 5 SPEED 5H<MWQ> (A) ID=29 OD=35 IMA 		8-97311-378-0 08 1 0607-0609 ●
5 SEAT; VLV INSERT
(A) ID=29 OD=35 IMA 		8-97311-378-0 08 1 0610-0708 ● ●
5 SEAT; VLV INSERT
(A) ID=29 OD=35 IMA 		8-97311-378-0 08 1 0709-0709 ●
5 SEAT; VLV INSERT
(A) ID=29 OD=35 IMA 		8-97311-378-0 08 1 0710- ● ●
5 SEAT; VLV INSERT
(B) ID=26 OD=32 IMA 		8-97311-379-0 08 1 0411-0606 ●
5 SEAT; VLV INSERT
M/T MUA 5 SPEED 5H<MWQ> (B) ID=26 OD=32 IMA 		8-97311-379-0 08 1 0607-0609 ●
5 SEAT; VLV INSERT
(B) ID=26 OD=32 IMA 		8-97311-379-0 08 1 0610-0708 ● ●
5 SEAT; VLV INSERT
(B) ID=26 OD=32 IMA 		8-97311-379-0 08 1 0709-0709 ●
5 SEAT; VLV INSERT
(B) ID=26 OD=32 IMA 		8-97311-379-0 08 1 0710- ● ●
7 CUP; SEALING,CYL HEAD
(C) OD=32 IMA 		1-09600-012-2 02 1 0411-0606 ●
7 CUP; SEALING,CYL HEAD
M/T MUA 5 SPEED 5H<MWQ> (C) OD=32 IMA 		1-09600-012-2 02 1 0607-0609 ●
7 CUP; SEALING,CYL HEAD
(C) OD=32 IMA 		1-09600-012-2 02 1 0610-0708 ● ●
7 CUP; SEALING,CYL HEAD
(C) OD=32 IMA 		1-09600-012-2 02 1 0709-0709 ●
7 CUP; SEALING,CYL HEAD
(C) OD=32 IMA 		1-09600-012-2 02 1 0710- ● ●
7 CUP; SEALING,CYL HEAD
(A) OD=18 IMA 		5-11219-008-0 13 1 0411-0606 ●
7 CUP; SEALING,CYL HEAD
M/T MUA 5 SPEED 5H<MWQ> (A) OD=18 IMA 		5-11219-008-0 13 1 0607-0609 ●
7 CUP; SEALING,CYL HEAD
(A) OD=18 IMA 		5-11219-008-0 13 1 0610-0708 ● ●
7 CUP; SEALING,CYL HEAD
(A) OD=18 IMA 		5-11219-008-0 13 1 0709-0709 ●
7 CUP; SEALING,CYL HEAD
(A) OD=18 IMA 		5-11219-008-0 13 1 0710- ● ●
7 CUP; SEALING,CYL HEAD
(B) OD=14 IMA 		5-11219-011-0 07 1 0411-0606 ●
7 CUP; SEALING,CYL HEAD
M/T MUA 5 SPEED 5H<MWQ> (B) OD=14 IMA 		5-11219-011-0 07 1 0607-0609 ●
7 CUP; SEALING,CYL HEAD
(B) OD=14 IMA 		5-11219-011-0 07 1 0610-0708 ● ●
7 CUP; SEALING,CYL HEAD
(B) OD=14 IMA 		5-11219-011-0 07 1 0709-0709 ●
7 CUP; SEALING,CYL HEAD
(B) OD=14 IMA 		5-11219-011-0 07 1 0710- ● ●
10 PLUG; GLOW
BOSCH THA 		8-97326-046-0 04 1 0411-0602 ●
10 PLUG; GLOW
BOSCH THA 		8-98013-392-0 04 1 0603-0606 ●
10 PLUG; GLOW
M/T MUA 5 SPEED 5H<MWQ> BOSCH THA 		8-98013-392-0 04 1 0607-0609 ●
10 PLUG; GLOW
BOSCH THA 		8-98013-392-0 04 1 0610-0708 ● ●
10 PLUG; GLOW
BOSCH THA 		8-98013-392-0 04 1 0709-0709 ●
10 PLUG; GLOW
BOSCH THA 		8-98013-392-0 04 1 0710-1009 ● ●
10 PLUG; GLOW
BOSCH THA 		8-98174-898-0 04 1 1010-1109 ● ●
10 PLUG; GLOW
BOSCH THA 		8-98200-051-0 04 1 1110- ● ●
11 CONNECTOR; GLOW PLUG
THA 		8-97326-045-2 01 1 0411-0606 ●
11 CONNECTOR; GLOW PLUG
M/T MUA 5 SPEED 5H<MWQ> THA 		8-97326-045-2 01 1 0607-0609 ●
11 CONNECTOR; GLOW PLUG
THA 		8-97326-045-3 01 1 0610-0708 ● ●
11 CONNECTOR; GLOW PLUG
THA 		8-97326-045-3 01 1 0709-0709 ●
11 CONNECTOR; GLOW PLUG
THA 		8-97326-045-3 01 1 0710-1303 ● ●
11 CONNECTOR; GLOW PLUG
THA 		8-98209-370-0 01 1 1304- ● ●
39 DOWEL; CAP,CM/SHF
IMA 		8-97329-129-1 20 1 0411-0606 ●
39 DOWEL; CAP,CM/SHF
M/T MUA 5 SPEED 5H<MWQ> IMA 		8-97329-129-1 20 1 0607-0609 ●
39 DOWEL; CAP,CM/SHF
IMA 		8-97329-129-1 20 1 0610-0708 ● ●
39 DOWEL; CAP,CM/SHF
IMA 		8-97329-129-1 20 1 0709-0709 ●
39 DOWEL; CAP,CM/SHF
IMA 		8-97329-129-1 20 1 0710- ● ●
91 PIPE; HTR
THA 		8-94343-211-1 01 1 0411-0606 ●
91 PIPE; HTR
M/T MUA 5 SPEED 5H<MWQ> THA 		8-94343-211-1 01 1 0607-0609 ●
91 PIPE; HTR
THA 		8-94343-211-1 01 1 0610-0708 ● ●
91 PIPE; HTR
THA 		8-94343-211-1 01 1 0709-0709 ●
91 PIPE; HTR
THA 		8-94343-211-1 01 1 0710- ● ●
123 BOLT; COVER
M8X20 FLANGE THA 		8-97366-632-0 04 1 0411-0508 ●
123 BOLT; COVER
M8X20 FLANGE THA 		0-28050-820-0 04 1 0509-0606 ●
123 BOLT; COVER
M/T MUA 5 SPEED 5H<MWQ> M8X20 FLANGE THA 		0-28050-820-0 04 1 0607-0609 ●
123 BOLT; COVER
M8X20 FLANGE THA 		0-28050-820-0 04 1 0610-0708 ● ●
123 BOLT; COVER
M8X20 FLANGE THA 		0-28050-820-0 04 1 0709-0709 ●
123 BOLT; COVER
M8X20 FLANGE THA 		0-28050-820-0 04 1 0710- ● ●
143 BOLT; FIX
M8X40 FLANGE THA 		0-28680-840-0 20 1 0411-0512 ●
143 BOLT; FIX
M8X40 FLANGE THA 		0-28650-840-0 20 1 0601-0606 ●
143 BOLT; FIX
M/T MUA 5 SPEED 5H<MWQ> M8X40 FLANGE THA 		0-28650-840-0 20 1 0607-0609 ●
143 BOLT; FIX
M8X40 FLANGE THA 		0-28650-840-0 20 1 0610-0708 ● ●
143 BOLT; FIX
M8X40 FLANGE THA 		0-28650-840-0 20 1 0709-0709 ●
143 BOLT; FIX
M8X40 FLANGE THA 		0-28650-840-0 20 1 0710- ● ●
155 BOLT; BAFFLE PLATE
M6X10 HEX SOCKET THA 		0-58330-610-0 04 1 0411-0606 ●
155 BOLT; BAFFLE PLATE
M/T MUA 5 SPEED 5H<MWQ> M6X10 HEX SOCKET THA 		0-58330-610-0 04 1 0607-0609 ●
155 BOLT; BAFFLE PLATE
M6X10 HEX SOCKET THA 		0-58330-610-0 04 1 0610-0708 ● ●
155 BOLT; BAFFLE PLATE
M6X10 HEX SOCKET THA 		0-58330-610-0 04 1 0709-0709 ●
155 BOLT; BAFFLE PLATE
M6X10 HEX SOCKET THA 		0-58330-610-0 04 1 0710- ● ●
172 PLATE; BAFFLE,CYL HD
THA 		8-97364-366-4 01 1 0411-0606 ●
172 PLATE; BAFFLE,CYL HD
M/T MUA 5 SPEED 5H<MWQ> THA 		8-98049-103-0 01 1 0607-0609 ●
172 PLATE; BAFFLE,CYL HD
THA 		8-98049-103-0 01 1 0610-0708 ● ●
172 PLATE; BAFFLE,CYL HD
THA 		8-98049-103-0 01 1 0709-0709 ●
172 PLATE; BAFFLE,CYL HD
THA 		8-98049-103-0 01 1 0710- ● ●
224 NUT; COVER
M8 FLANGE THA 		0-91180-208-0 04 1 0411-0606 ●
224 NUT; COVER
M/T MUA 5 SPEED 5H<MWQ> M8 FLANGE THA 		0-91180-208-0 04 1 0607-0609 ●
224 NUT; COVER
M8 FLANGE THA 		0-91180-208-0 04 1 0610-0708 ● ●
224 NUT; COVER
M8 FLANGE THA 		0-91180-208-0 04 1 0709-0709 ●
224 NUT; COVER
M8 FLANGE THA 		0-91180-208-0 04 1 0710- ● ●
225 STUD; COVER
M8X20 L=31 THA 		8-97366-634-1 02 1 0411-0508 ●
225 STUD; COVER
M8X20 L=31 THA 		8-97945-022-0 02 1 0509-0606 ●
225 STUD; COVER
M/T MUA 5 SPEED 5H<MWQ> M8X20 L=31 THA 		8-97945-022-0 02 1 0607-0609 ●
225 STUD; COVER
M8X20 L=31 THA 		8-97945-022-0 02 1 0610-0708 ● ●
225 STUD; COVER
M8X20 L=31 THA 		8-97945-022-0 02 1 0709-0709 ●
225 STUD; COVER
M8X20 L=31 THA 		8-97945-022-0 02 1 0710- ● ●
230 GASKET; SLEEVE,INJECTOR
THA 		8-97943-955-0 04 1 0411-0606 ●
230 GASKET; SLEEVE,INJECTOR
M/T MUA 5 SPEED 5H<MWQ> THA 		8-97943-955-0 04 1 0607-0609 ●
230 GASKET; SLEEVE,INJECTOR
THA 		8-97943-955-0 04 1 0610-0708 ● ●
230 GASKET; SLEEVE,INJECTOR
THA 		8-97943-955-0 04 1 0709-0709 ●
230 GASKET; SLEEVE,INJECTOR
THA 		8-97943-955-0 04 1 0710- ● ●
232 STUD; CAM,CARRIER
(A) M8X15 M8X17 L=40 THA 		8-97366-633-0 01 1 0411-0508 ●
232 STUD; CAM,CARRIER
(A) M8X15 M8X17 L=40 THA 		8-97945-023-0 01 1 0509-0606 ●
232 STUD; CAM,CARRIER
M/T MUA 5 SPEED 5H<MWQ> (A) M8X15 M8X17 L=40 THA 		8-97945-023-0 01 1 0607-0609 ●
232 STUD; CAM,CARRIER
(A) M8X15 M8X17 L=40 THA 		8-97945-023-0 01 1 0610-0708 ● ●
232 STUD; CAM,CARRIER
(A) M8X15 M8X17 L=40 THA 		8-97945-023-0 01 1 0709-0709 ●
232 STUD; CAM,CARRIER
(A) M8X15 M8X17 L=40 THA 		8-97945-023-0 01 1 0710- ● ●
232 STUD; CAM,CARRIER
(B) M6X12 M8X17 L=37 THA 		8-97375-460-0 01 1 0411-0606 ●
232 STUD; CAM,CARRIER
M/T MUA 5 SPEED 5H<MWQ> (B) M6X12 M8X17 L=37 THA 		8-97375-460-0 01 1 0607-0609 ●
232 STUD; CAM,CARRIER
(B) M6X12 M8X17 L=37 THA 		8-97375-460-0 01 1 0610-0708 ● ●
232 STUD; CAM,CARRIER
(B) M6X12 M8X17 L=37 THA 		8-97375-460-0 01 1 0709-0709 ●
232 STUD; CAM,CARRIER
(B) M6X12 M8X17 L=37 THA 		8-97375-460-0 01 1 0710- ● ●
262 COVER; CYL HEAD
THA 		8-97355-516-4 01 1 0411-0606 ●
262 COVER; CYL HEAD
M/T MUA 5 SPEED 5H<MWQ> THA 		8-97355-516-4 01 1 0607-0609 ●
262 COVER; CYL HEAD
THA 		8-97355-516-4 01 1 0610-0708 ● ●
262 COVER; CYL HEAD
THA 		8-97355-516-4 01 1 0709-0709 ●
262 COVER; CYL HEAD
THA 		8-97355-516-4 01 1 0710- ● ●
263 BOLT; CYL HD
(A) M8X60 FLANGE THA 		0-28050-860-0 01 1 0411-0606 ●
263 BOLT; CYL HD
M/T MUA 5 SPEED 5H<MWQ> (A) M8X60 FLANGE THA 		0-28050-860-0 01 1 0607-0609 ●
263 BOLT; CYL HD
(A) M8X60 FLANGE THA 		0-28050-860-0 01 1 0610-0708 ● ●
263 BOLT; CYL HD
(A) M8X60 FLANGE THA 		0-28050-860-0 01 1 0709-0709 ●
263 BOLT; CYL HD
(A) M8X60 FLANGE THA 		0-28050-860-0 01 1 0710- ● ●
263 BOLT; CYL HD
(B) M8X35 FLANGE THA 		0-28650-835-0 03 1 0411-0606 ●
263 BOLT; CYL HD
M/T MUA 5 SPEED 5H<MWQ> (B) M8X35 FLANGE THA 		0-28650-835-0 03 1 0607-0609 ●
263 BOLT; CYL HD
(B) M8X35 FLANGE THA 		0-28650-835-0 03 1 0610-0708 ● ●
263 BOLT; CYL HD
(B) M8X35 FLANGE THA 		0-28650-835-0 03 1 0709-0709 ●
263 BOLT; CYL HD
(B) M8X35 FLANGE THA 		0-28650-835-0 03 1 0710- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
