◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXZ ▶ 10796 - EXZ LHD FUEL TANK 400L ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-20A - MANUAL TRANSMISSION ASM AND CASE ▶
2-20A — MANUAL TRANSMISSION ASM AND CASE (#7372) — 491 parça

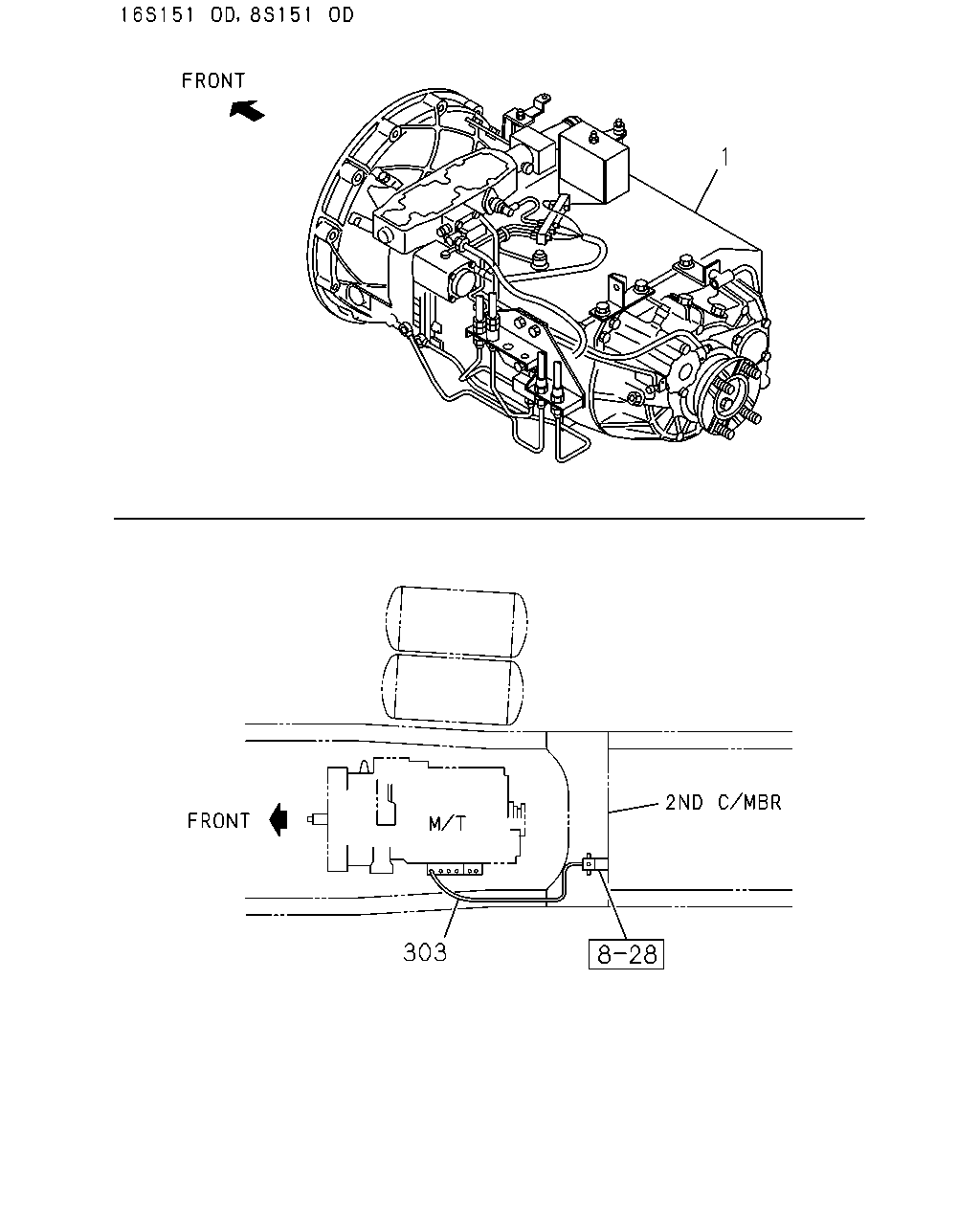

çizim 7225
1 303
BalonParca AdiParca NoAdetTipApplied Date A B C
1 TRANSMISSION ASM; MANUAL
CLUTCH-15.5" TWIN PLATE STRAP DRIVE PULL TYPE(TGE) EXC. PTO ZF TRANS RR(BDM) 		1-33042-018-0 01 1 9902-9909 ●
1 TRANSMISSION ASM; MANUAL
CLUTCH-15.5" TWIN PLATE STRAP DRIVE PULL TYPE(TGE) EXC. PTO ZF TRANS RR(BDM),TRANS SELECT DETENT HEAVY<BFU> 		1-33042-018-0 01 1 9910- ●
1 TRANSMISSION ASM; MANUAL
PTO ZF TRANS RR(BDM) 		1-33042-033-0 01 1 9812-9901 ●
1 TRANSMISSION ASM; MANUAL
PTO ZF TRANS RR(BDM) CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) 		1-33042-033-0 01 1 9902-9909 ●
1 TRANSMISSION ASM; MANUAL
PTO ZF TRANS RR(BDM) CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) EXC. TRANS SELECT DETENT HEAVY<BFU> 		1-33042-033-0 01 1 9910- ●
1 TRANSMISSION ASM; MANUAL
PTO ZF TRANS RR(BDM) 		1-33042-011-0 01 1 9902- ●
1 TRANSMISSION ASM; MANUAL
PTO ZF TRANS RR(BDM) TRANS SELECT DETENT HEAVY<BFU> 		1-33042-011-0 01 1 9902- ●
1 TRANSMISSION ASM; MANUAL
PTO ZF TRANS RR(BDM) CLUTCH-15.5" TWIN PLATE STRAP DRIVE PULL TYPE(TGE) 		1-33042-034-0 01 1 9902-9909 ●
1 TRANSMISSION ASM; MANUAL
PTO ZF TRANS RR(BDM) CLUTCH-15.5" TWIN PLATE STRAP DRIVE PULL TYPE(TGE) EXC. TRANS SELECT DETENT HEAVY<BFU> 		1-33042-034-0 01 1 9910- ●
1 TRANSMISSION ASM; MANUAL
PTO ZF TRANS RR(BDM) TRANS SELECT DETENT HEAVY<BFU> CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) 		1-33043-021-0 01 1 9910- ●
1 TRANSMISSION ASM; MANUAL
PTO ZF TRANS RR(BDM) TRANS SELECT DETENT HEAVY<BFU> CLUTCH-15.5" TWIN PLATE STRAP DRIVE PULL TYPE(TGE) 		1-33043-023-0 01 1 9910- ●
1 TRANSMISSION ASM; MANUAL
EXC. PTO ZF TRANS RR(BDM) 		1-33042-017-0 01 1 9812-9901 ●
1 TRANSMISSION ASM; MANUAL
CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) PTO ZF TRANS RR(BDM) 		1-33042-017-0 01 1 9902-9904 ●
1 TRANSMISSION ASM; MANUAL
CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) EXC. PTO ZF TRANS RR(BDM) 		1-33042-017-0 01 1 9905-9909 ●
1 TRANSMISSION ASM; MANUAL
CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) EXC. PTO ZF TRANS RR(BDM),TRANS SELECT DETENT HEAVY<BFU> 		1-33042-017-0 01 1 9910- ●
1 TRANSMISSION ASM; MANUAL
TRANS SELECT DETENT HEAVY<BFU> CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) EXC. PTO ZF TRANS RR(BDM) 		1-33043-020-0 01 1 9910- ●
1 TRANSMISSION ASM; MANUAL
TRANS SELECT DETENT HEAVY<BFU> CLUTCH-15.5" TWIN PLATE STRAP DRIVE PULL TYPE(TGE) EXC. PTO ZF TRANS RR(BDM) 		1-33043-022-0 01 1 9910- ●
1 TRANSMISSION ASM; MANUAL
CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) EXC. PTO ZF TRANS RR(BDM),TRANS SELECT DETENT HEAVY<BFU> 		1-33042-012-0 01 1 9902- ●
1 TRANSMISSION ASM; MANUAL
PTO ZF TRANS RR(BDM) TRANS SELECT DETENT HEAVY<BFU> CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) 		1-33042-165-0 01 1 9902- ●
1 TRANSMISSION ASM; MANUAL
TRANS SELECT DETENT HEAVY<BFU> CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) EXC. PTO ZF TRANS RR(BDM) 		1-33042-166-0 01 1 9902- ●
1 TRANSMISSION ASM; MANUAL
CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) EXC. PTO ZF TRANS RR(BDM),TRANS SELECT DETENT HEAVY<BFU> 		1-33042-020-0 01 1 9902- ●
1 TRANSMISSION ASM; MANUAL
PTO ZF TRANS RR(BDM) CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) EXC. TRANS SELECT DETENT HEAVY<BFU> 		1-33042-019-0 01 1 9902- ●
1 TRANSMISSION ASM; MANUAL
PTO ZF TRANS RR(BDM) TRANS SELECT DETENT HEAVY<BFU> CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) 		1-33042-163-0 01 1 9902- ●
1 TRANSMISSION ASM; MANUAL
TRANS SELECT DETENT HEAVY<BFU> CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) EXC. PTO ZF TRANS RR(BDM) 		1-33042-164-0 01 1 9902- ●
303 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87410-073-0 AR 1 9812-9901 ●
303 TUBE; NYLON
6WG1 TC-C(72L) SERVICED BY L=2000 OD=8 		1-87410-073-0 AR 1 9812-9901 ●
303 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87410-073-0 AR 1 9902-9904 ● ●
303 TUBE; NYLON
6WG1 TC-N(71L),6WG1 TC-C(72L) P130 PROP SHAFT<BEE>,P115 PROP SHAFT<C5X> CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV), CLUTCH-15.5" TWIN PLATE STRAP DRIVE PULL TYPE(TGE) SERVICED BY L=2000 OD=8 		1-87410-073-0 AR 1 9902-9904 ●
303 TUBE; NYLON
6WA1 TC-C(55L) P115 PROP SHAFT<C5X> CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) SERVICED BY L=2000 OD=8 		1-87410-073-0 AR 1 9902-9904 ● ●
303 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87410-073-0 AR 1 9905- ● ● ●

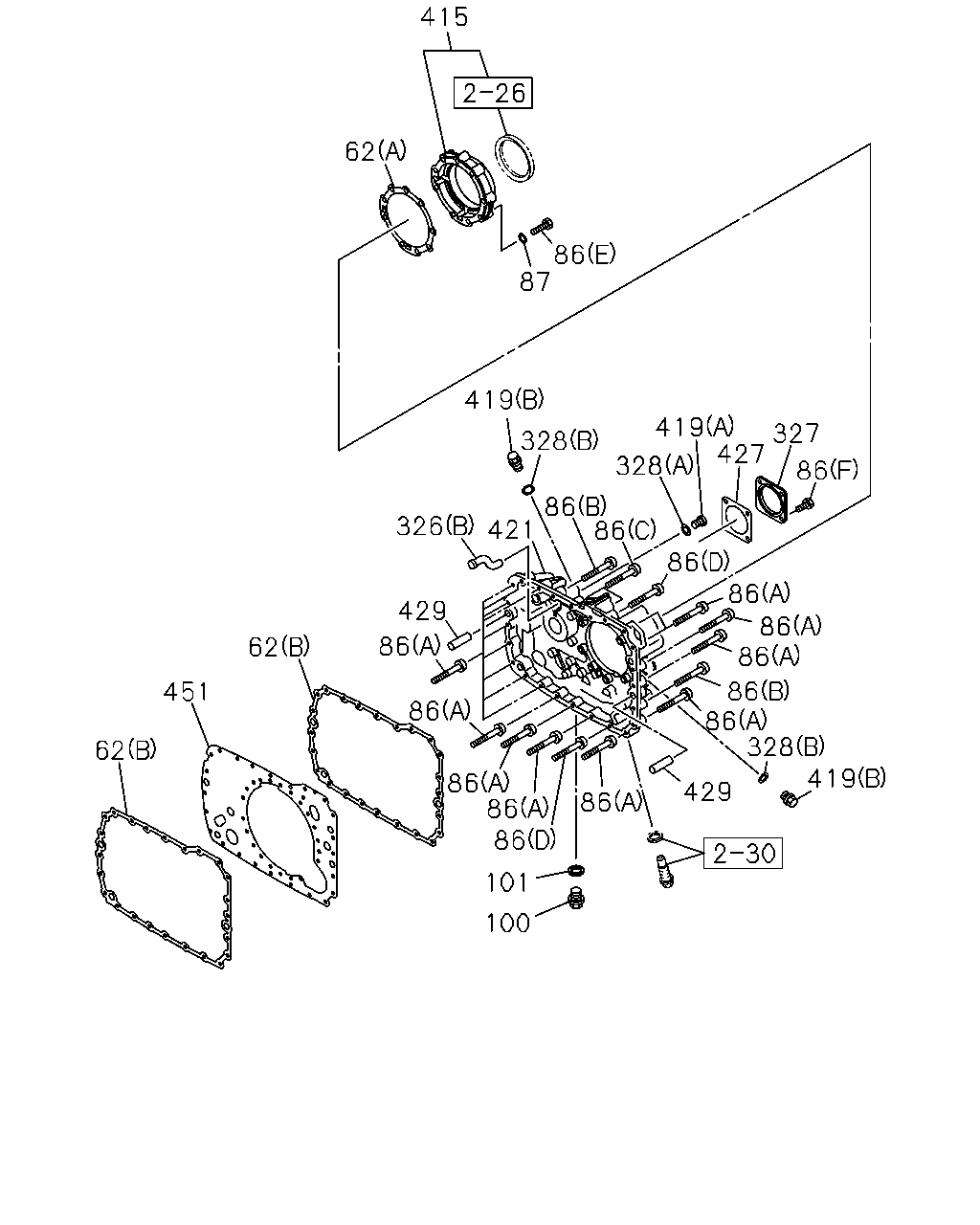

çizim 7313
415 62 86 87 419 419 327 427 328 328 86 86 86 86 86 326 421 429 86 86 86 62 86 86 328 419 451 86 62 86 86 86 429 86 101 100
BalonParca AdiParca NoAdetTipApplied Date A B C
62 GASKET; RR COVER
ALSO INCLUDED IN GASKET SET(M/T). (B) 		1-33119-399-0 02 1 9812-9901 ●
62 GASKET; RR COVER
ALSO INCLUDED IN GASKET SET(M/T). (B) 		1-33119-399-0 02 1 9902- ● ●
62 GASKET; RR COVER
ALSO INCLUDED IN GASKET SET(M/T). (A) 		1-33139-053-0 01 1 9812-9901 ●
62 GASKET; RR COVER
ALSO INCLUDED IN GASKET SET(M/T). (A) 		1-33139-053-0 01 1 9902- ● ●
86 BOLT; RR COVER
(A) 		1-33119-266-0 18 1 9812-9901 ●
86 BOLT; RR COVER
(A) 		1-33119-266-0 18 1 9902- ● ●
86 BOLT; RR COVER
(E) 		1-33139-054-0 09 1 9812-9901 ●
86 BOLT; RR COVER
(E) 		1-33139-054-0 09 1 9902- ● ●
86 BOLT; RR COVER
(B) 		1-33139-056-0 02 1 9812-9901 ●
86 BOLT; RR COVER
(B) 		1-33139-056-0 02 1 9902- ● ●
86 BOLT; RR COVER
(C) M10X110 		1-33139-057-0 02 1 9812-9901 ●
86 BOLT; RR COVER
(C) M10X110 		1-33139-057-0 02 1 9902- ● ●
86 BOLT; RR COVER
(D) M10X50 		1-33139-058-0 02 1 9812-9901 ●
86 BOLT; RR COVER
(D) M10X50 		1-33139-058-0 02 1 9902- ● ●
86 BOLT; RR COVER
EXC. PTO ZF TRANS RR(BDM) (F) M12X25 		1-33119-400-0 04 1 9812-9901 ●
86 BOLT; RR COVER
EXC. PTO ZF TRANS RR(BDM) (F) M12X25 		1-33119-400-0 04 1 9902- ● ●
87 WASHER; LK,RR COVER 1-09469-010-0 09 1 9812-9901 ●
87 WASHER; LK,RR COVER 1-09469-010-0 09 1 9902- ● ●
100 PLUG; DRAIN RR COVER 1-33119-268-0 01 1 9812-9901 ●
100 PLUG; DRAIN RR COVER 1-33119-268-0 01 1 9902- ● ●
101 GASKET; DRAIN RR COVER
ALSO INCLUDED IN GASKET SET(M/T). 		1-33119-264-0 01 1 9812-9901 ●
101 GASKET; DRAIN RR COVER
ALSO INCLUDED IN GASKET SET(M/T). 		1-33119-264-0 01 1 9902- ● ●
326 NOZZLE; OIL,OUTLET
(A) 		1-33119-272-0 01 1 9812- ●
326 NOZZLE; OIL,OUTLET
(B) 		1-33139-021-0 01 1 9812-9901 ●
326 NOZZLE; OIL,OUTLET
(B) 		1-33139-021-0 01 1 9902- ● ●
326 NOZZLE; OIL,OUTLET
(A) 		1-33119-282-0 01 1 9902- ●
327 COVER; RR,COUNTER
EXC. PTO ZF TRANS RR(BDM) 		1-33131-165-0 01 1 9812-9901 ●
327 COVER; RR,COUNTER
EXC. PTO ZF TRANS RR(BDM) 		1-33131-165-0 01 1 9902- ● ●
328 GASKET; PLUG
(B) 		1-33119-249-0 02 1 9812-9901 ●
328 GASKET; PLUG
(B) 		1-33119-249-0 02 1 9902- ● ●
328 GASKET; PLUG
(C) 		1-33119-264-0 01 1 9812-9901 ●
328 GASKET; PLUG
(C) 		1-33119-264-0 01 1 9902- ● ●
328 GASKET; PLUG
(A) 		1-33139-023-0 01 1 9812-9901 ●
328 GASKET; PLUG
(A) 		1-33139-023-0 01 1 9902- ● ●
415 COVER; BRG 1-33159-039-0 01 1 9812-9901 ●
415 COVER; BRG 1-33159-039-0 01 1 9902- ● ●
419 PLUG; RR COVER
(B) 		1-33119-171-0 02 1 9812-9901 ●
419 PLUG; RR COVER
(B) 		1-33119-171-0 02 1 9902- ● ●
419 PLUG; RR COVER
(A) 		1-34119-008-0 01 1 9812-9901 ●
419 PLUG; RR COVER
(A) 		1-34119-008-0 01 1 9902- ● ●
421 COVER; RR,TRANS 1-33131-219-0 01 1 9812-9901 ●
421 COVER; RR,TRANS 1-33131-244-0 01 1 9902- ● ●
427 GASKET; RR COVER
EXC. PTO ZF TRANS RR(BDM) 		1-33132-054-0 01 1 9812-9901 ●
427 GASKET; RR COVER
EXC. PTO ZF TRANS RR(BDM) 		1-33132-054-0 01 1 9902- ● ●
429 PIN; STRAIGHT 1-33119-265-0 07 1 9812-9901 ●
429 PIN; STRAIGHT 1-33119-265-0 07 1 9902- ● ●
451 PLATE; RR COVER 1-33139-055-0 01 1 9812-9901 ●
451 PLATE; RR COVER 1-33139-055-0 01 1 9902- ● ●

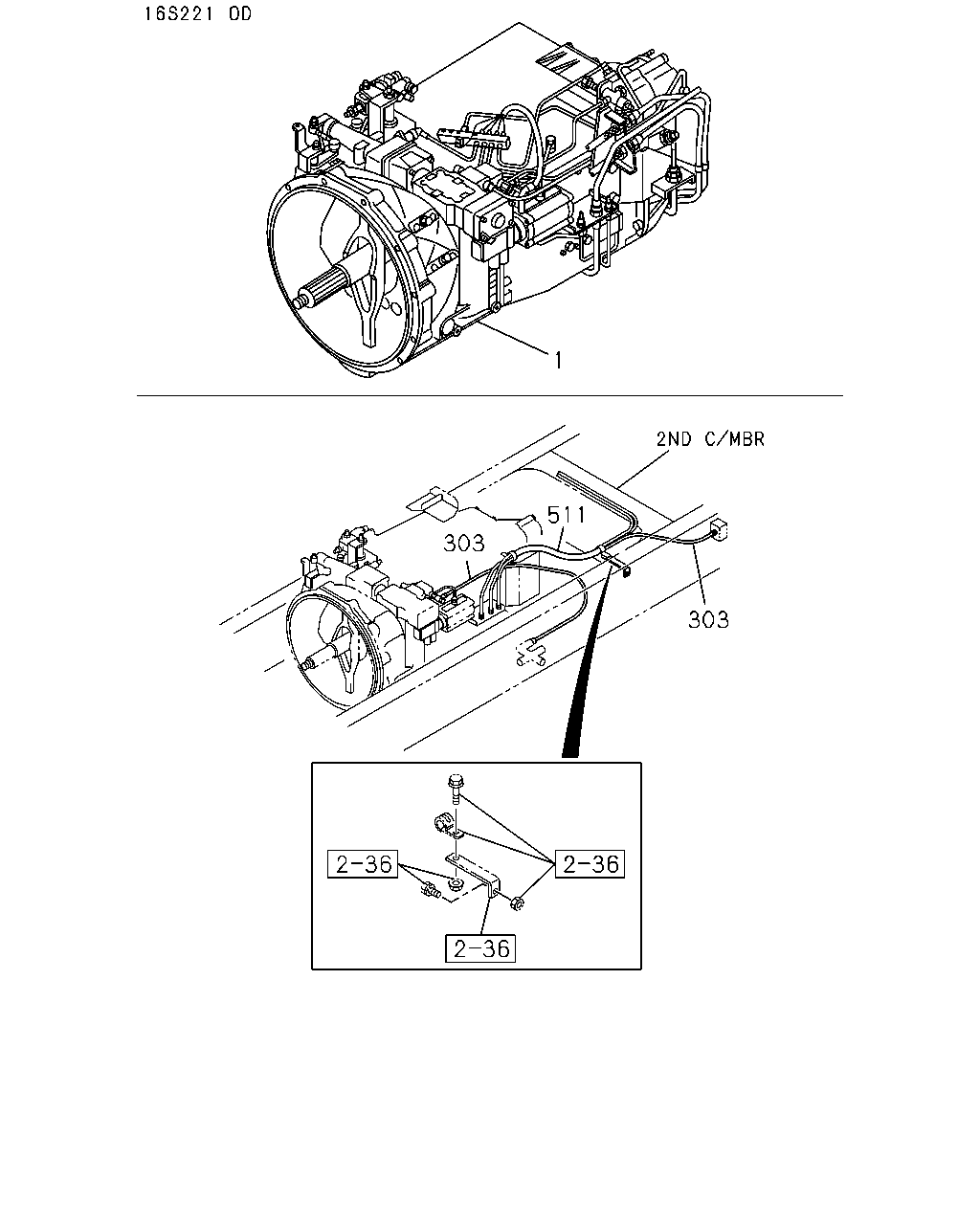

çizim 41347
1 511 303 303
BalonParca AdiParca NoAdetTipApplied Date A B C
1 TRANSMISSION ASM; MANUAL
CLUTCH-15.5" TWIN PLATE STRAP DRIVE PULL TYPE(TGE) EXC. PTO ZF TRANS RR(BDM) 		1-33042-018-0 01 1 9902-9909 ●
1 TRANSMISSION ASM; MANUAL
CLUTCH-15.5" TWIN PLATE STRAP DRIVE PULL TYPE(TGE) EXC. PTO ZF TRANS RR(BDM),TRANS SELECT DETENT HEAVY<BFU> 		1-33042-018-0 01 1 9910- ●
1 TRANSMISSION ASM; MANUAL
PTO ZF TRANS RR(BDM) 		1-33042-033-0 01 1 9812-9901 ●
1 TRANSMISSION ASM; MANUAL
PTO ZF TRANS RR(BDM) CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) 		1-33042-033-0 01 1 9902-9909 ●
1 TRANSMISSION ASM; MANUAL
PTO ZF TRANS RR(BDM) CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) EXC. TRANS SELECT DETENT HEAVY<BFU> 		1-33042-033-0 01 1 9910- ●
1 TRANSMISSION ASM; MANUAL
PTO ZF TRANS RR(BDM) 		1-33042-011-0 01 1 9902- ●
1 TRANSMISSION ASM; MANUAL
PTO ZF TRANS RR(BDM) TRANS SELECT DETENT HEAVY<BFU> 		1-33042-011-0 01 1 9902- ●
1 TRANSMISSION ASM; MANUAL
PTO ZF TRANS RR(BDM) CLUTCH-15.5" TWIN PLATE STRAP DRIVE PULL TYPE(TGE) 		1-33042-034-0 01 1 9902-9909 ●
1 TRANSMISSION ASM; MANUAL
PTO ZF TRANS RR(BDM) CLUTCH-15.5" TWIN PLATE STRAP DRIVE PULL TYPE(TGE) EXC. TRANS SELECT DETENT HEAVY<BFU> 		1-33042-034-0 01 1 9910- ●
1 TRANSMISSION ASM; MANUAL
PTO ZF TRANS RR(BDM) TRANS SELECT DETENT HEAVY<BFU> CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) 		1-33043-021-0 01 1 9910- ●
1 TRANSMISSION ASM; MANUAL
PTO ZF TRANS RR(BDM) TRANS SELECT DETENT HEAVY<BFU> CLUTCH-15.5" TWIN PLATE STRAP DRIVE PULL TYPE(TGE) 		1-33043-023-0 01 1 9910- ●
1 TRANSMISSION ASM; MANUAL
EXC. PTO ZF TRANS RR(BDM) 		1-33042-017-0 01 1 9812-9901 ●
1 TRANSMISSION ASM; MANUAL
CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) PTO ZF TRANS RR(BDM) 		1-33042-017-0 01 1 9902-9904 ●
1 TRANSMISSION ASM; MANUAL
CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) EXC. PTO ZF TRANS RR(BDM) 		1-33042-017-0 01 1 9905-9909 ●
1 TRANSMISSION ASM; MANUAL
CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) EXC. PTO ZF TRANS RR(BDM),TRANS SELECT DETENT HEAVY<BFU> 		1-33042-017-0 01 1 9910- ●
1 TRANSMISSION ASM; MANUAL
TRANS SELECT DETENT HEAVY<BFU> CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) EXC. PTO ZF TRANS RR(BDM) 		1-33043-020-0 01 1 9910- ●
1 TRANSMISSION ASM; MANUAL
TRANS SELECT DETENT HEAVY<BFU> CLUTCH-15.5" TWIN PLATE STRAP DRIVE PULL TYPE(TGE) EXC. PTO ZF TRANS RR(BDM) 		1-33043-022-0 01 1 9910- ●
1 TRANSMISSION ASM; MANUAL
CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) EXC. PTO ZF TRANS RR(BDM),TRANS SELECT DETENT HEAVY<BFU> 		1-33042-012-0 01 1 9902- ●
1 TRANSMISSION ASM; MANUAL
PTO ZF TRANS RR(BDM) TRANS SELECT DETENT HEAVY<BFU> CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) 		1-33042-165-0 01 1 9902- ●
1 TRANSMISSION ASM; MANUAL
TRANS SELECT DETENT HEAVY<BFU> CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) EXC. PTO ZF TRANS RR(BDM) 		1-33042-166-0 01 1 9902- ●
1 TRANSMISSION ASM; MANUAL
CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) EXC. PTO ZF TRANS RR(BDM),TRANS SELECT DETENT HEAVY<BFU> 		1-33042-020-0 01 1 9902- ●
1 TRANSMISSION ASM; MANUAL
PTO ZF TRANS RR(BDM) CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) EXC. TRANS SELECT DETENT HEAVY<BFU> 		1-33042-019-0 01 1 9902- ●
1 TRANSMISSION ASM; MANUAL
PTO ZF TRANS RR(BDM) TRANS SELECT DETENT HEAVY<BFU> CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) 		1-33042-163-0 01 1 9902- ●
1 TRANSMISSION ASM; MANUAL
TRANS SELECT DETENT HEAVY<BFU> CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) EXC. PTO ZF TRANS RR(BDM) 		1-33042-164-0 01 1 9902- ●
303 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87410-073-0 AR 1 9812-9901 ●
303 TUBE; NYLON
6WG1 TC-C(72L) SERVICED BY L=2000 OD=8 		1-87410-073-0 AR 1 9812-9901 ●
303 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87410-073-0 AR 1 9902-9904 ● ●
303 TUBE; NYLON
6WG1 TC-N(71L),6WG1 TC-C(72L) P130 PROP SHAFT<BEE>,P115 PROP SHAFT<C5X> CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV), CLUTCH-15.5" TWIN PLATE STRAP DRIVE PULL TYPE(TGE) SERVICED BY L=2000 OD=8 		1-87410-073-0 AR 1 9902-9904 ●
303 TUBE; NYLON
6WA1 TC-C(55L) P115 PROP SHAFT<C5X> CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) SERVICED BY L=2000 OD=8 		1-87410-073-0 AR 1 9902-9904 ● ●
303 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87410-073-0 AR 1 9905- ● ● ●
511 TUBE; CORRUGATE
SERVICED BY L=800 ID=7 		1-83129-031-1 01 1 9812-9901 ●
511 TUBE; CORRUGATE
SERVICED BY L=800 ID=7 		1-83129-031-1 01 1 9902- ● ● ●
511 TUBE; CORRUGATE
L=350 SERVICED BY L=2000 ID=10 		1-87411-019-0 03 1 9812-9901 ●
511 TUBE; CORRUGATE
L=350 SERVICED BY L=2000 ID=10 		1-87411-019-0 03 1 9902- ● ● ●

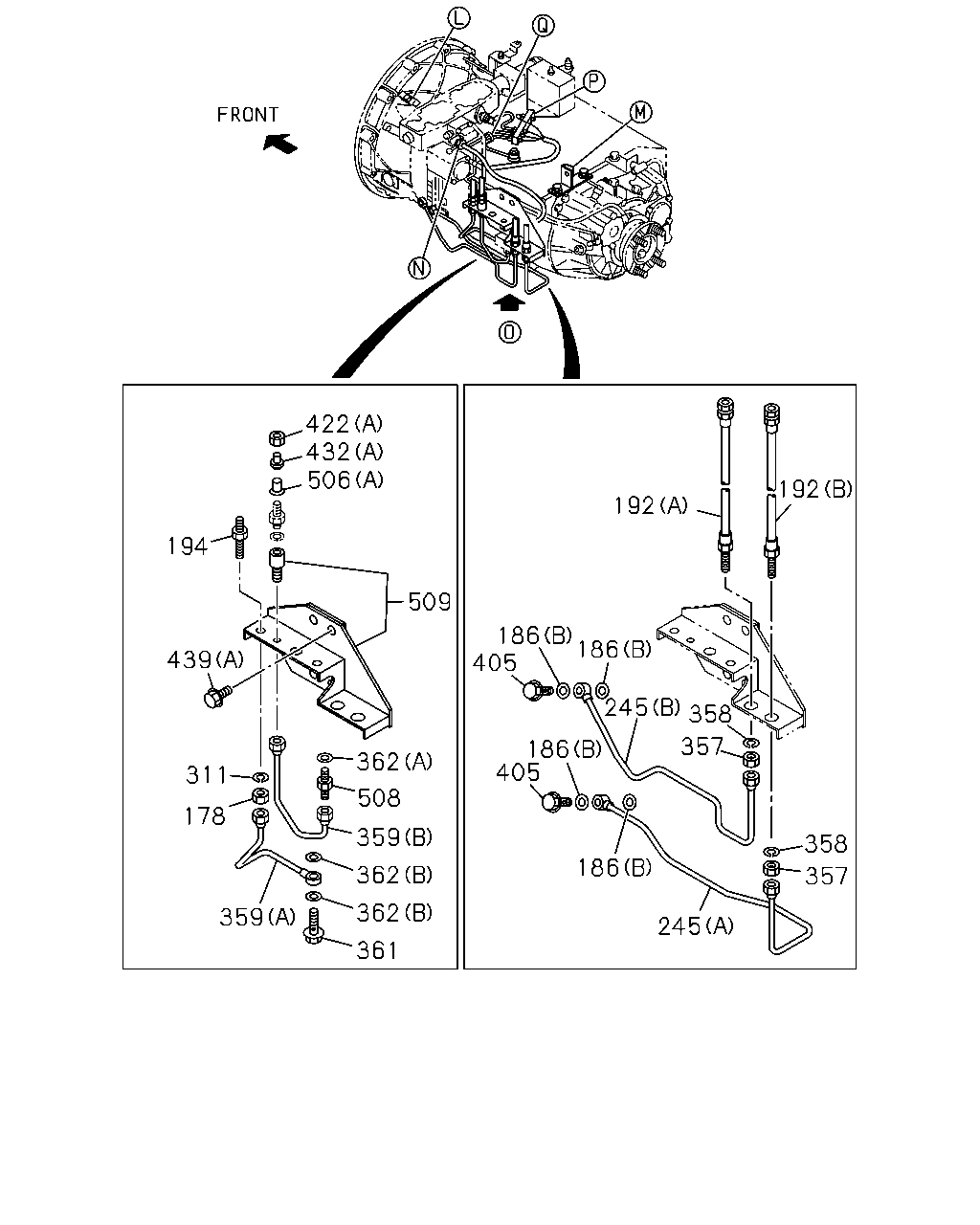

çizim 41830
422 432 506 192 192 194 509 186 186 405 439 245 358 357 186 405 362 311 508 178 359 358 186 362 357 362 359 245 361
BalonParca AdiParca NoAdetTipApplied Date A B C
178 NUT; UNION
M14 		9-99111-414-0 01 1 9812-9901 ●
178 NUT; UNION
M14 		9-99111-414-0 01 1 9902- ● ●
186 RING; SEAL
(B) ID=22 		1-32568-001-0 04 1 9812-9901 ●
186 RING; SEAL
(B) ID=22 		1-32568-001-0 04 1 9902- ● ● ●
186 RING; SEAL
(A) ID=22 		1-32568-002-0 02 1 9812-9901 ●
186 RING; SEAL
(A) ID=22 		1-32568-002-0 02 1 9902- ● ● ●
192 HOSE; FLEX,TRANS
(B) L=311 		1-09364-921-0 01 1 9812-9911 ●
192 HOSE; FLEX,TRANS
(B) L=400 		1-09364-913-0 01 1 9912-0003 ●
192 HOSE; FLEX,TRANS
(B) L=311 		1-09364-921-0 01 1 0004- ●
192 HOSE; FLEX,TRANS
(A) L=406 		1-09364-961-0 01 1 9812-9901 ●
192 HOSE; FLEX,TRANS
(A) L=406 		1-09364-961-0 01 1 9902-9911 ● ● ●
192 HOSE; FLEX,TRANS
(A) L=406 		1-09364-961-0 01 1 9912-0003 ● ●
192 HOSE; FLEX,TRANS
(A) L=406 		1-09364-961-0 01 1 0004- ● ● ●
192 HOSE; FLEX,TRANS
(A) L=500 		1-09364-914-0 01 1 9912-0003 ●
192 HOSE; FLEX,TRANS
(B) L=535 		1-09364-936-0 01 1 9902- ● ●
194 UNION; NYLON TUBE
M14 		1-09664-230-0 01 1 9812-9901 ●
194 UNION; NYLON TUBE
M14 		1-09664-230-0 01 1 9902- ● ●
245 PIPE; OIL
(A) 		1-49161-055-0 01 1 9812- ●
245 PIPE; OIL
(B) 		1-49161-061-0 01 1 9812- ●
245 PIPE; OIL
(A) 		1-49119-467-1 01 1 9902-9906 ● ●
245 PIPE; OIL
(A) 		1-49122-031-0 01 1 9907- ● ●
245 PIPE; OIL
(B) 		1-49119-468-1 01 1 9902- ● ●
311 WASHER; LK
ID=14.2 		9-09150-514-0 01 1 9812-9901 ●
311 WASHER; LK
ID=14.2 		9-09150-514-0 01 1 9902- ● ●
357 NUT; UNION,FLEX HOSE
M22 		9-09111-522-0 02 1 9812-9901 ●
357 NUT; UNION,FLEX HOSE
M22 		9-09111-522-0 02 1 9902- ● ● ●
358 WASHER; LK,UNION
ID=22.5 		9-09150-522-0 02 1 9812-9901 ●
358 WASHER; LK,UNION
ID=22.5 		9-09150-522-0 02 1 9902- ● ● ●
359 PIPE; AIR,TRANS TO UNION
(C) 		1-33119-395-0 01 1 9812-9901 ●
359 PIPE; AIR,TRANS TO UNION
(C) 		1-33119-395-0 01 1 9902- ● ●
359 PIPE; AIR,TRANS TO UNION
(A) 		1-49118-935-0 01 1 9812- ●
359 PIPE; AIR,TRANS TO UNION
(B) 		1-49118-937-0 01 1 9812- ●
359 PIPE; AIR,TRANS TO UNION
(B) 		1-49119-463-1 01 1 9902- ●
359 PIPE; AIR,TRANS TO UNION
(A) 		1-49119-464-1 01 1 9902- ●
361 BOLT; EYE,AIR PIPE
M12X24 EYE-BOLT 		1-09675-229-0 01 1 9812-9901 ●
361 BOLT; EYE,AIR PIPE
M12X24 EYE-BOLT 		1-09675-229-0 01 1 9902- ● ●
362 GASKET; AIR PIPE
(A) ID=10.2 OD=15.2 		1-09630-083-0 01 1 9812-9901 ●
362 GASKET; AIR PIPE
(A) ID=10.2 OD=15.2 		1-09630-083-0 01 1 9902- ● ●
362 GASKET; AIR PIPE
(B) ID=12.2 		1-09630-084-0 02 1 9812-9901 ●
362 GASKET; AIR PIPE
(B) ID=12.2 		1-09630-084-0 02 1 9902- ● ●
405 BOLT; EYE,OIL PIPE
M22X37 		1-09675-060-0 02 1 9812-9901 ●
405 BOLT; EYE,OIL PIPE
M22X37 		1-09675-060-0 02 1 9902- ● ● ●
422 NUT; SLEEVE
(B) M14 		1-09660-212-0 01 1 9812-9901 ●
422 NUT; SLEEVE
(B) M14 		1-09660-212-0 01 1 9902- ● ● ●
422 NUT; SLEEVE
(A) M14 		1-09660-767-0 01 1 9812-9910 ● ● ●
422 NUT; SLEEVE
(A) M14 		1-09660-767-0 01 1 9911- ● ●
432 SLEEVE; TUBE
(B) ID=8.15 OD=11 L=9.5 		1-09666-042-0 01 1 9812-9901 ●
432 SLEEVE; TUBE
(B) ID=8.15 OD=11 L=9.5 		1-09666-042-0 01 1 9902- ● ● ●
432 SLEEVE; TUBE
(A) ID=8.2 L=9.5 		1-09666-067-0 01 1 9812-9910 ● ● ●
432 SLEEVE; TUBE
(A) ID=8.2 L=9.5 		1-09666-067-0 01 1 9911- ● ●
439 BOLT; BRKT
(B) M10X40 FLANGE 		0-28781-040-0 04 1 9812-9901 ●
439 BOLT; BRKT
(B) M10X40 FLANGE 		0-28781-040-0 04 1 9902- ● ● ●
439 BOLT; BRKT
(C) M16X25 FLANGE 		0-28881-625-0 02 1 9812- ●
439 BOLT; BRKT
(D) M16X40 FLANGE 		0-28881-640-0 01 1 9812- ●
439 BOLT; BRKT
(A) M16X35 FLANGE 		0-28881-635-0 04 1 9902- ● ●
506 INSERT
(B) ID=4.5 OD=5.8 L=18 		1-09669-054-0 01 1 9812-9901 ●
506 INSERT
(B) ID=4.5 OD=5.8 L=18 		1-09669-054-0 01 1 9902- ● ● ●
506 INSERT
(A) ID=5 OD=5.9 L=16 		1-09669-122-0 01 1 9812-9910 ● ● ●
506 INSERT
(A) ID=5 OD=5.9 L=16 		1-09669-122-0 01 1 9911- ● ●
508 UNION; AIR
M10 & M12 STRAIGHT 		1-09664-235-0 01 1 9812-9901 ●
508 UNION; AIR
M10 & M12 STRAIGHT 		1-09664-235-0 01 1 9902- ● ●
509 BRACKET; PIPE 1-47477-447-2 01 1 9812- ●
509 BRACKET; PIPE 1-47478-215-2 01 1 9902- ● ●

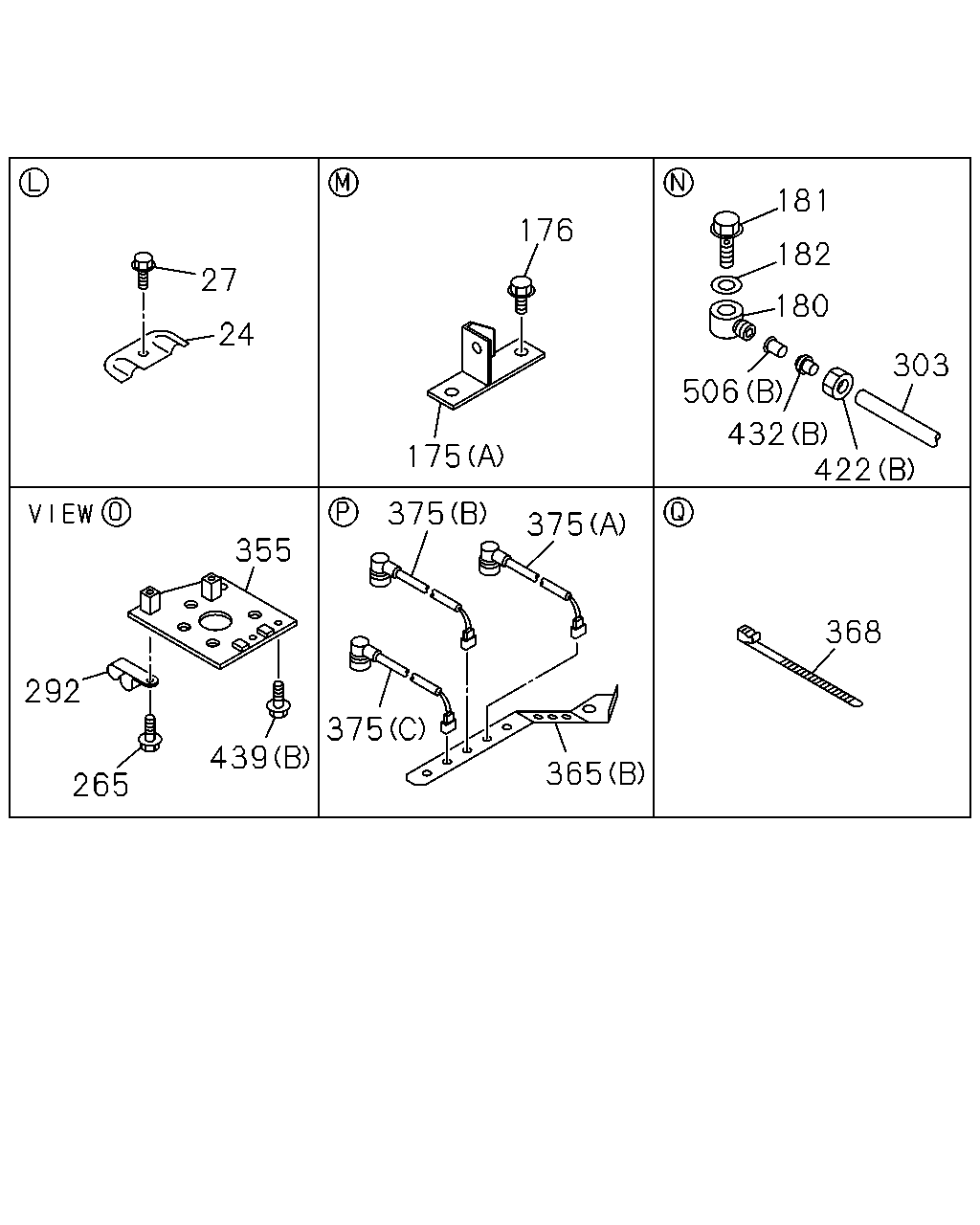

çizim 41831
181 176 182 27 180 24 303 506 432 422 175 375 375 355 368 292 375 439 365 265
BalonParca AdiParca NoAdetTipApplied Date A B C
24 COVER; CHECK HOLE,DUST 1-31131-038-0 03 1 9812-9901 ●
24 COVER; CHECK HOLE,DUST 1-31131-038-0 03 1 9902- ● ● ●
27 BOLT; COVER TO CLU HSG
M16X25 FLANGE 		0-28881-625-0 02 1 9812-9901 ●
27 BOLT; COVER TO CLU HSG
M16X25 FLANGE 		0-28881-625-0 02 1 9902- ● ● ●
175 BRACKET; UNION
(B) 		1-47478-002-0 01 1 9812-9905 ●
175 BRACKET; UNION
(B) 		1-47478-633-0 01 1 9906-9912 ●
175 BRACKET; UNION
(A) 		1-47477-545-0 01 1 9902-9912 ● ●
175 BRACKET; UNION
(A) 		1-47477-545-0 01 1 0001- ● ● ●
176 BOLT; UNION BRKT
M16X25 FLANGE 		0-28881-625-0 02 1 9812-9901 ●
176 BOLT; UNION BRKT
M16X25 FLANGE 		0-28881-625-0 02 1 9902- ● ● ●
180 CONNECTOR; NYLON TUBE 1-09660-239-0 01 1 9812-9901 ●
180 CONNECTOR; NYLON TUBE 1-09660-239-0 01 1 9902- ● ● ●
181 BOLT; EYE,NYLON TUBE
M12 L=35.5 		1-09675-169-0 01 1 9812-9901 ●
181 BOLT; EYE,NYLON TUBE
M12 L=35.5 		1-09675-169-0 01 1 9902- ● ● ●
182 GASKET; EYE BOLT,NYLON TUBE
ID=12.2 		9-09571-412-0 01 1 9812-9901 ●
182 GASKET; EYE BOLT,NYLON TUBE
ID=12.2 		9-09571-412-0 01 1 9902- ● ● ●
265 BOLT; CLIP
M8X20 FLANGE 		0-28680-820-0 01 1 9812-9904 ●
265 BOLT; CLIP
TRANSMISSION OIL COOLER<C2C> M8X20 FLANGE 		0-28680-820-0 01 1 9905-9906 ●
265 BOLT; CLIP
M8X20 FLANGE 		0-28680-820-0 01 1 9907-0002 ●
265 BOLT; CLIP
M8X20 FLANGE 		0-28680-820-0 01 1 0003- ●
265 BOLT; CLIP
M8X40 FLANGE 		0-28680-840-0 01 1 9902- ● ●
292 CLIP; OIL PIPE
ID=16 & 16 L=28 		1-09701-219-0 01 1 9812-9901 ●
292 CLIP; OIL PIPE
ID=16 & 16 L=28 		1-09701-219-0 01 1 9902- ● ● ●
303 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87410-073-0 AR 1 9812-9901 ●
303 TUBE; NYLON
6WG1 TC-C(72L) SERVICED BY L=2000 OD=8 		1-87410-073-0 AR 1 9812-9901 ●
303 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87410-073-0 AR 1 9902-9904 ● ●
303 TUBE; NYLON
6WG1 TC-N(71L),6WG1 TC-C(72L) P130 PROP SHAFT<BEE>,P115 PROP SHAFT<C5X> CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV), CLUTCH-15.5" TWIN PLATE STRAP DRIVE PULL TYPE(TGE) SERVICED BY L=2000 OD=8 		1-87410-073-0 AR 1 9902-9904 ●
303 TUBE; NYLON
6WA1 TC-C(55L) P115 PROP SHAFT<C5X> CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) SERVICED BY L=2000 OD=8 		1-87410-073-0 AR 1 9902-9904 ● ●
303 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87410-073-0 AR 1 9905- ● ● ●
355 BRACKET; OIL PIPE 1-47477-500-1 01 1 9812- ●
355 BRACKET; OIL PIPE 1-47478-217-1 01 1 9902- ● ●
365 BRACKET; HARNESS
(A) 		1-47478-012-0 01 1 9812-0008 ●
365 BRACKET; HARNESS
(A) 		1-47479-047-0 01 1 0009- ●
365 BRACKET; HARNESS
(B) 		1-82699-490-2 01 1 9812-9901 ●
365 BRACKET; HARNESS
(B) 		1-82699-490-2 01 1 9902- ● ● ●
368 CLIP; BAND,CABLE
L=140 		5-09707-031-0 02 1 9812-9901 ●
368 CLIP; BAND,CABLE
L=140 		5-09707-031-1 02 1 9902- ● ● ●
375 CABLE; TRANS
(A) L=250 		1-82659-134-1 01 1 9812-9901 ●
375 CABLE; TRANS
(A) L=250 		1-82659-134-1 01 1 9902- ● ● ●
375 CABLE; TRANS
(B) L=580 		1-82659-135-1 01 1 9812-9901 ●
375 CABLE; TRANS
(B) L=580 		1-82659-135-1 01 1 9902- ● ● ●
375 CABLE; TRANS
(C) L=880 		1-82659-137-1 01 1 9812-9901 ●
375 CABLE; TRANS
(C) L=880 		1-82659-137-1 01 1 9902- ● ●
422 NUT; SLEEVE
(B) M14 		1-09660-212-0 01 1 9812-9901 ●
422 NUT; SLEEVE
(B) M14 		1-09660-212-0 01 1 9902- ● ● ●
422 NUT; SLEEVE
(A) M14 		1-09660-767-0 01 1 9812-9910 ● ● ●
422 NUT; SLEEVE
(A) M14 		1-09660-767-0 01 1 9911- ● ●
432 SLEEVE; TUBE
(B) ID=8.15 OD=11 L=9.5 		1-09666-042-0 01 1 9812-9901 ●
432 SLEEVE; TUBE
(B) ID=8.15 OD=11 L=9.5 		1-09666-042-0 01 1 9902- ● ● ●
432 SLEEVE; TUBE
(A) ID=8.2 L=9.5 		1-09666-067-0 01 1 9812-9910 ● ● ●
432 SLEEVE; TUBE
(A) ID=8.2 L=9.5 		1-09666-067-0 01 1 9911- ● ●
439 BOLT; BRKT
(B) M10X40 FLANGE 		0-28781-040-0 04 1 9812-9901 ●
439 BOLT; BRKT
(B) M10X40 FLANGE 		0-28781-040-0 04 1 9902- ● ● ●
439 BOLT; BRKT
(C) M16X25 FLANGE 		0-28881-625-0 02 1 9812- ●
439 BOLT; BRKT
(D) M16X40 FLANGE 		0-28881-640-0 01 1 9812- ●
439 BOLT; BRKT
(A) M16X35 FLANGE 		0-28881-635-0 04 1 9902- ● ●
506 INSERT
(B) ID=4.5 OD=5.8 L=18 		1-09669-054-0 01 1 9812-9901 ●
506 INSERT
(B) ID=4.5 OD=5.8 L=18 		1-09669-054-0 01 1 9902- ● ● ●
506 INSERT
(A) ID=5 OD=5.9 L=16 		1-09669-122-0 01 1 9812-9910 ● ● ●
506 INSERT
(A) ID=5 OD=5.9 L=16 		1-09669-122-0 01 1 9911- ● ●

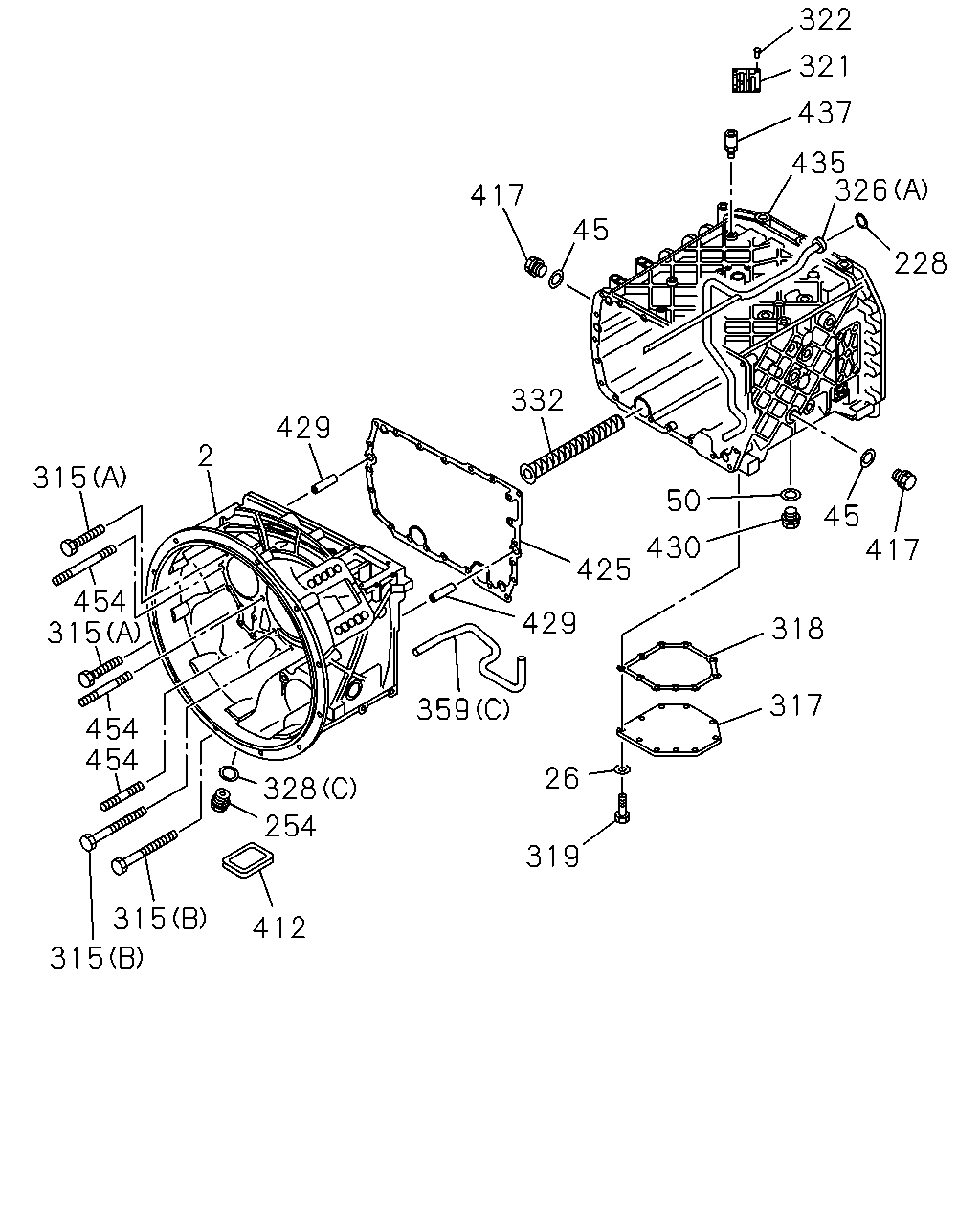

çizim 43043
322 321 437 435 326 417 45 228 332 429 2 315 50 45 417 430 425 429 454 315 318 317 359 454 454 26 328 254 319 315 412 315
BalonParca AdiParca NoAdetTipApplied Date A B C
2 HOUSING; CLU 1-31111-194-0 01 1 9812-9901 ●
2 HOUSING; CLU 1-31111-194-0 01 1 9902- ● ●
26 WASHER; PL,COVER 1-09469-010-0 10 1 9812-9901 ●
26 WASHER; PL,COVER 1-09469-010-0 10 1 9902- ● ●
45 GASKET; FILLER PLUG
ALSO INCLUDED IN GASKET SET(M/T). 		1-33119-264-0 02 1 9812-9901 ●
45 GASKET; FILLER PLUG
ALSO INCLUDED IN GASKET SET(M/T). 		1-33119-264-0 02 1 9902- ● ●
50 GASKET; DRAIN PLUG
ALSO INCLUDED IN GASKET SET(M/T). 		1-33119-264-0 01 1 9812-9901 ●
50 GASKET; DRAIN PLUG
ALSO INCLUDED IN GASKET SET(M/T). 		1-33119-264-0 01 1 9902- ● ●
228 GASKET; NOZZLE 1-33119-273-0 01 1 9812-9901 ●
228 GASKET; NOZZLE 1-33119-273-0 01 1 9902- ● ●
254 PLUG; DRAIN,OIL 1-33119-376-0 01 1 9812-9901 ●
254 PLUG; DRAIN,OIL 1-33119-376-0 01 1 9902- ● ●
315 BOLT; CASE
(A) 		1-33119-266-0 15 1 9812-9901 ●
315 BOLT; CASE
(A) 		1-33119-266-0 15 1 9902- ● ●
315 BOLT; CASE
(B) 		1-33119-267-0 07 1 9812-9901 ●
315 BOLT; CASE
(B) 		1-33119-267-0 07 1 9902- ● ●
317 COVER; CASE 1-33119-274-0 01 1 9812-9901 ●
317 COVER; CASE 1-33119-274-0 01 1 9902- ● ●
318 GASKET; COVER 1-33119-409-0 01 1 9812-9901 ●
318 GASKET; COVER 1-33119-409-0 01 1 9902- ● ●
319 BOLT; COVER 1-33119-276-0 10 1 9812-9901 ●
319 BOLT; COVER 1-33119-276-0 10 1 9902- ● ●
321 PLATE; NAME 1-33119-277-0 01 1 9812-9901 ●
321 PLATE; NAME 1-33119-277-0 01 1 9902- ● ●
322 RIVET; NAME PLATE 1-33119-398-0 04 1 9812-9901 ●
322 RIVET; NAME PLATE 1-33119-398-0 04 1 9902- ● ●
326 NOZZLE; OIL,OUTLET
(A) 		1-33119-272-0 01 1 9812- ●
326 NOZZLE; OIL,OUTLET
(B) 		1-33139-021-0 01 1 9812-9901 ●
326 NOZZLE; OIL,OUTLET
(B) 		1-33139-021-0 01 1 9902- ● ●
326 NOZZLE; OIL,OUTLET
(A) 		1-33119-282-0 01 1 9902- ●
328 GASKET; PLUG
(B) 		1-33119-249-0 02 1 9812-9901 ●
328 GASKET; PLUG
(B) 		1-33119-249-0 02 1 9902- ● ●
328 GASKET; PLUG
(C) 		1-33119-264-0 01 1 9812-9901 ●
328 GASKET; PLUG
(C) 		1-33119-264-0 01 1 9902- ● ●
328 GASKET; PLUG
(A) 		1-33139-023-0 01 1 9812-9901 ●
328 GASKET; PLUG
(A) 		1-33139-023-0 01 1 9902- ● ●
332 FILTER; OIL 1-33119-370-0 01 1 9812-9901 ●
332 FILTER; OIL 1-33119-370-0 01 1 9902- ● ●
359 PIPE; AIR,TRANS TO UNION
(C) 		1-33119-395-0 01 1 9812-9901 ●
359 PIPE; AIR,TRANS TO UNION
(C) 		1-33119-395-0 01 1 9902- ● ●
359 PIPE; AIR,TRANS TO UNION
(A) 		1-49118-935-0 01 1 9812- ●
359 PIPE; AIR,TRANS TO UNION
(B) 		1-49118-937-0 01 1 9812- ●
359 PIPE; AIR,TRANS TO UNION
(B) 		1-49119-463-1 01 1 9902- ●
359 PIPE; AIR,TRANS TO UNION
(A) 		1-49119-464-1 01 1 9902- ●
412 CAP; CLU HSG 1-31119-022-0 01 1 9812-9901 ●
412 CAP; CLU HSG 1-31119-022-0 01 1 9902- ● ●
417 PLUG; OIL FILLER,TRANS 1-33119-268-0 02 1 9812-9901 ●
417 PLUG; OIL FILLER,TRANS 1-33119-268-0 02 1 9902- ● ●
425 GASKET; CLU HSG TO TRANS CASE
ALSO INCLUDED IN GASKET SET(M/T). 		1-33119-262-0 01 1 9812-9901 ●
425 GASKET; CLU HSG TO TRANS CASE
ALSO INCLUDED IN GASKET SET(M/T). 		1-33119-262-0 01 1 9902- ● ●
429 PIN; STRAIGHT 1-33119-265-0 07 1 9812-9901 ●
429 PIN; STRAIGHT 1-33119-265-0 07 1 9902- ● ●
430 PLUG; OIL DRAIN 1-33119-268-0 01 1 9812-9901 ●
430 PLUG; OIL DRAIN 1-33119-268-0 01 1 9902- ● ●
435 CASE; TRANS 1-33111-290-0 01 1 9812- ●
435 CASE; TRANS 1-33111-286-0 01 1 9902- ●
437 BREATHER; TRANS 1-36122-004-0 01 1 9812-9901 ●
437 BREATHER; TRANS 1-36122-004-0 01 1 9902- ● ●
454 STUD; CLU HSG
M10 L=50 		1-33119-381-0 04 1 9812-9901 ●
454 STUD; CLU HSG
M10 L=50 		1-33119-381-0 04 1 9902- ● ●
454 STUD; CLU HSG
M10 L=80 		1-33119-393-0 08 1 9812-9901 ●
454 STUD; CLU HSG
M10 L=80 		1-33119-393-0 08 1 9902- ● ●
454 STUD; CLU HSG
M10 L=25 		1-33119-394-0 11 1 9812-9901 ●
454 STUD; CLU HSG
M10 L=25 		1-33119-394-0 11 1 9902- ● ●

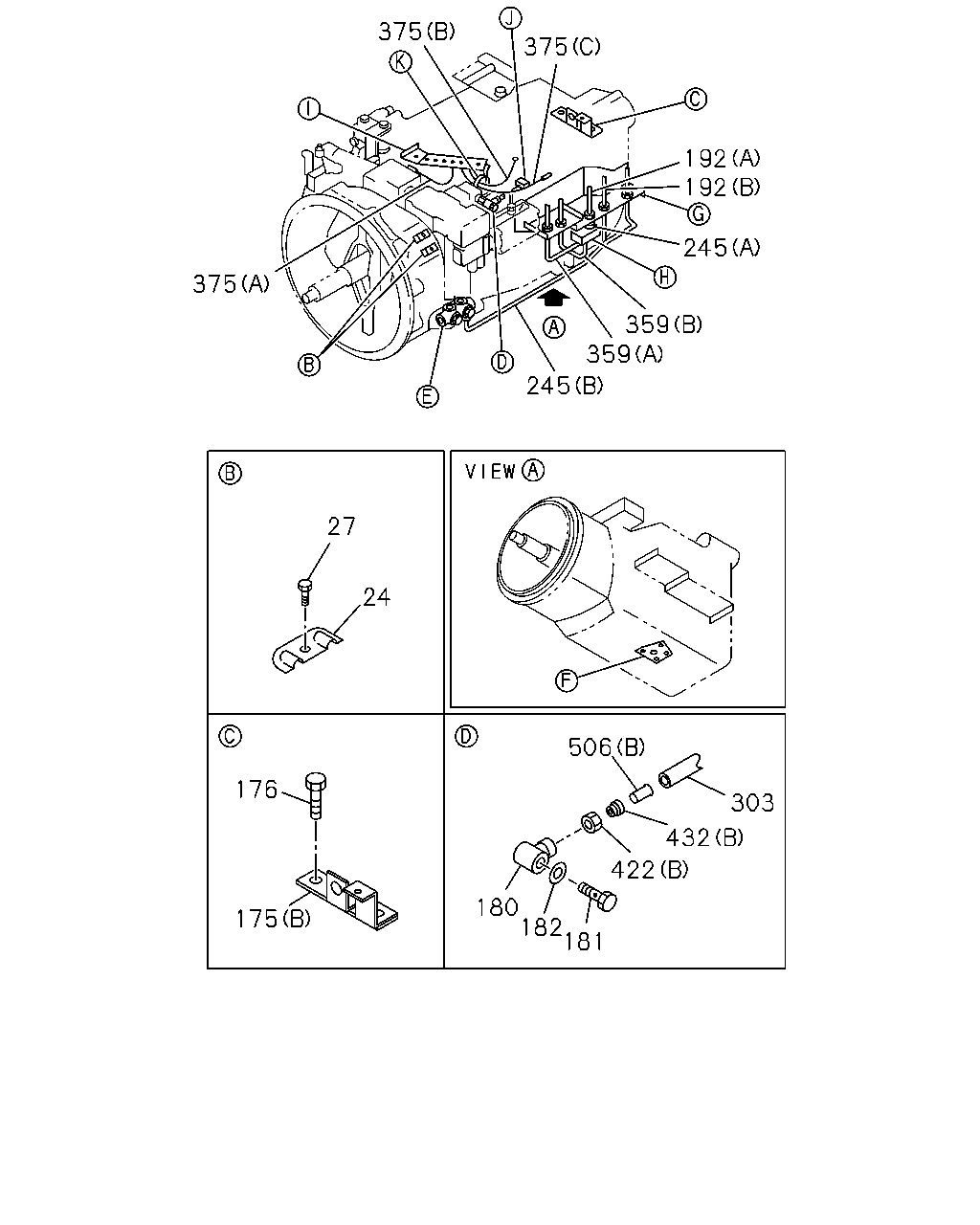

çizim 43912
375 375 192 192 245 375 359 359 245 27 24 506 176 303 432 422 180 182 181 175
BalonParca AdiParca NoAdetTipApplied Date A B C
24 COVER; CHECK HOLE,DUST 1-31131-038-0 03 1 9812-9901 ●
24 COVER; CHECK HOLE,DUST 1-31131-038-0 03 1 9902- ● ● ●
27 BOLT; COVER TO CLU HSG
M16X25 FLANGE 		0-28881-625-0 02 1 9812-9901 ●
27 BOLT; COVER TO CLU HSG
M16X25 FLANGE 		0-28881-625-0 02 1 9902- ● ● ●
175 BRACKET; UNION
(B) 		1-47478-002-0 01 1 9812-9905 ●
175 BRACKET; UNION
(B) 		1-47478-633-0 01 1 9906-9912 ●
175 BRACKET; UNION
(A) 		1-47477-545-0 01 1 9902-9912 ● ●
175 BRACKET; UNION
(A) 		1-47477-545-0 01 1 0001- ● ● ●
176 BOLT; UNION BRKT
M16X25 FLANGE 		0-28881-625-0 02 1 9812-9901 ●
176 BOLT; UNION BRKT
M16X25 FLANGE 		0-28881-625-0 02 1 9902- ● ● ●
180 CONNECTOR; NYLON TUBE 1-09660-239-0 01 1 9812-9901 ●
180 CONNECTOR; NYLON TUBE 1-09660-239-0 01 1 9902- ● ● ●
181 BOLT; EYE,NYLON TUBE
M12 L=35.5 		1-09675-169-0 01 1 9812-9901 ●
181 BOLT; EYE,NYLON TUBE
M12 L=35.5 		1-09675-169-0 01 1 9902- ● ● ●
182 GASKET; EYE BOLT,NYLON TUBE
ID=12.2 		9-09571-412-0 01 1 9812-9901 ●
182 GASKET; EYE BOLT,NYLON TUBE
ID=12.2 		9-09571-412-0 01 1 9902- ● ● ●
192 HOSE; FLEX,TRANS
(B) L=311 		1-09364-921-0 01 1 9812-9911 ●
192 HOSE; FLEX,TRANS
(B) L=400 		1-09364-913-0 01 1 9912-0003 ●
192 HOSE; FLEX,TRANS
(B) L=311 		1-09364-921-0 01 1 0004- ●
192 HOSE; FLEX,TRANS
(A) L=406 		1-09364-961-0 01 1 9812-9901 ●
192 HOSE; FLEX,TRANS
(A) L=406 		1-09364-961-0 01 1 9902-9911 ● ● ●
192 HOSE; FLEX,TRANS
(A) L=406 		1-09364-961-0 01 1 9912-0003 ● ●
192 HOSE; FLEX,TRANS
(A) L=406 		1-09364-961-0 01 1 0004- ● ● ●
192 HOSE; FLEX,TRANS
(A) L=500 		1-09364-914-0 01 1 9912-0003 ●
192 HOSE; FLEX,TRANS
(B) L=535 		1-09364-936-0 01 1 9902- ● ●
245 PIPE; OIL
(A) 		1-49161-055-0 01 1 9812- ●
245 PIPE; OIL
(B) 		1-49161-061-0 01 1 9812- ●
245 PIPE; OIL
(A) 		1-49119-467-1 01 1 9902-9906 ● ●
245 PIPE; OIL
(A) 		1-49122-031-0 01 1 9907- ● ●
245 PIPE; OIL
(B) 		1-49119-468-1 01 1 9902- ● ●
303 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87410-073-0 AR 1 9812-9901 ●
303 TUBE; NYLON
6WG1 TC-C(72L) SERVICED BY L=2000 OD=8 		1-87410-073-0 AR 1 9812-9901 ●
303 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87410-073-0 AR 1 9902-9904 ● ●
303 TUBE; NYLON
6WG1 TC-N(71L),6WG1 TC-C(72L) P130 PROP SHAFT<BEE>,P115 PROP SHAFT<C5X> CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV), CLUTCH-15.5" TWIN PLATE STRAP DRIVE PULL TYPE(TGE) SERVICED BY L=2000 OD=8 		1-87410-073-0 AR 1 9902-9904 ●
303 TUBE; NYLON
6WA1 TC-C(55L) P115 PROP SHAFT<C5X> CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) SERVICED BY L=2000 OD=8 		1-87410-073-0 AR 1 9902-9904 ● ●
303 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87410-073-0 AR 1 9905- ● ● ●
359 PIPE; AIR,TRANS TO UNION
(C) 		1-33119-395-0 01 1 9812-9901 ●
359 PIPE; AIR,TRANS TO UNION
(C) 		1-33119-395-0 01 1 9902- ● ●
359 PIPE; AIR,TRANS TO UNION
(A) 		1-49118-935-0 01 1 9812- ●
359 PIPE; AIR,TRANS TO UNION
(B) 		1-49118-937-0 01 1 9812- ●
359 PIPE; AIR,TRANS TO UNION
(B) 		1-49119-463-1 01 1 9902- ●
359 PIPE; AIR,TRANS TO UNION
(A) 		1-49119-464-1 01 1 9902- ●
375 CABLE; TRANS
(A) L=250 		1-82659-134-1 01 1 9812-9901 ●
375 CABLE; TRANS
(A) L=250 		1-82659-134-1 01 1 9902- ● ● ●
375 CABLE; TRANS
(B) L=580 		1-82659-135-1 01 1 9812-9901 ●
375 CABLE; TRANS
(B) L=580 		1-82659-135-1 01 1 9902- ● ● ●
375 CABLE; TRANS
(C) L=880 		1-82659-137-1 01 1 9812-9901 ●
375 CABLE; TRANS
(C) L=880 		1-82659-137-1 01 1 9902- ● ●
422 NUT; SLEEVE
(B) M14 		1-09660-212-0 01 1 9812-9901 ●
422 NUT; SLEEVE
(B) M14 		1-09660-212-0 01 1 9902- ● ● ●
422 NUT; SLEEVE
(A) M14 		1-09660-767-0 01 1 9812-9910 ● ● ●
422 NUT; SLEEVE
(A) M14 		1-09660-767-0 01 1 9911- ● ●
432 SLEEVE; TUBE
(B) ID=8.15 OD=11 L=9.5 		1-09666-042-0 01 1 9812-9901 ●
432 SLEEVE; TUBE
(B) ID=8.15 OD=11 L=9.5 		1-09666-042-0 01 1 9902- ● ● ●
432 SLEEVE; TUBE
(A) ID=8.2 L=9.5 		1-09666-067-0 01 1 9812-9910 ● ● ●
432 SLEEVE; TUBE
(A) ID=8.2 L=9.5 		1-09666-067-0 01 1 9911- ● ●
506 INSERT
(B) ID=4.5 OD=5.8 L=18 		1-09669-054-0 01 1 9812-9901 ●
506 INSERT
(B) ID=4.5 OD=5.8 L=18 		1-09669-054-0 01 1 9902- ● ● ●
506 INSERT
(A) ID=5 OD=5.9 L=16 		1-09669-122-0 01 1 9812-9910 ● ● ●
506 INSERT
(A) ID=5 OD=5.9 L=16 		1-09669-122-0 01 1 9911- ● ●

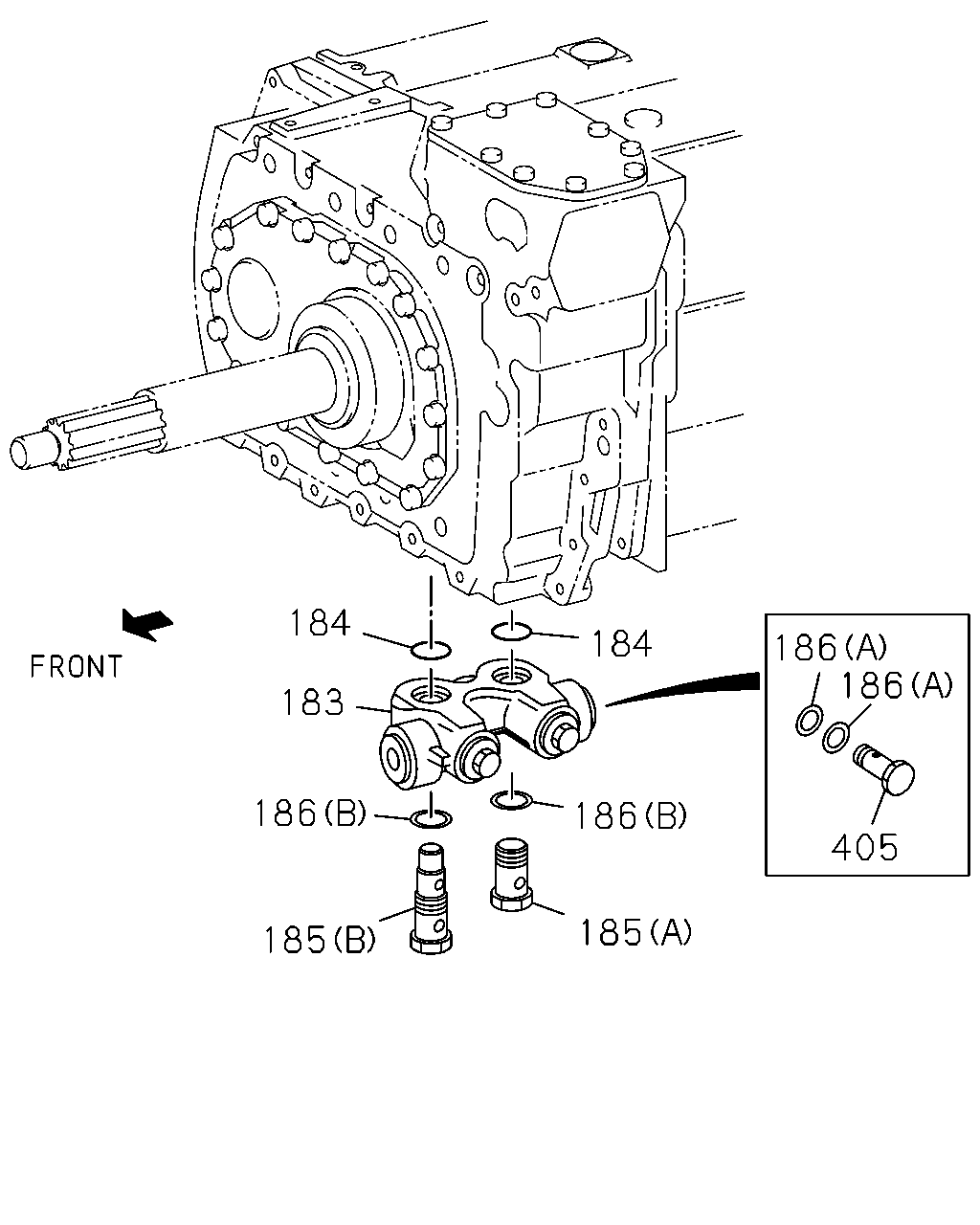

çizim 44030
184 184 186 186 183 186 186 405 185 185
BalonParca AdiParca NoAdetTipApplied Date A B C
183 VALVE; BYPASS,TRANS 1-32569-046-0 01 1 9812-9901 ●
183 VALVE; BYPASS,TRANS 1-32569-046-0 01 1 9902- ● ● ●
184 GASKET; BYPASS VLV 1-32568-003-0 02 1 9812-9901 ●
184 GASKET; BYPASS VLV 1-32568-003-0 02 1 9902- ● ● ●
185 UNION; SCREW,BYPASS VLV
(A) M22 		1-32567-011-0 01 1 9812-9901 ●
185 UNION; SCREW,BYPASS VLV
(A) M22 		1-32567-011-0 01 1 9902- ● ● ●
185 UNION; SCREW,BYPASS VLV
(B) 		1-32567-016-0 01 1 9812-9901 ●
185 UNION; SCREW,BYPASS VLV
(B) 		1-32567-016-0 01 1 9902- ● ● ●
186 RING; SEAL
(B) ID=22 		1-32568-001-0 04 1 9812-9901 ●
186 RING; SEAL
(B) ID=22 		1-32568-001-0 04 1 9902- ● ● ●
186 RING; SEAL
(A) ID=22 		1-32568-002-0 02 1 9812-9901 ●
186 RING; SEAL
(A) ID=22 		1-32568-002-0 02 1 9902- ● ● ●
405 BOLT; EYE,OIL PIPE
M22X37 		1-09675-060-0 02 1 9812-9901 ●
405 BOLT; EYE,OIL PIPE
M22X37 		1-09675-060-0 02 1 9902- ● ● ●

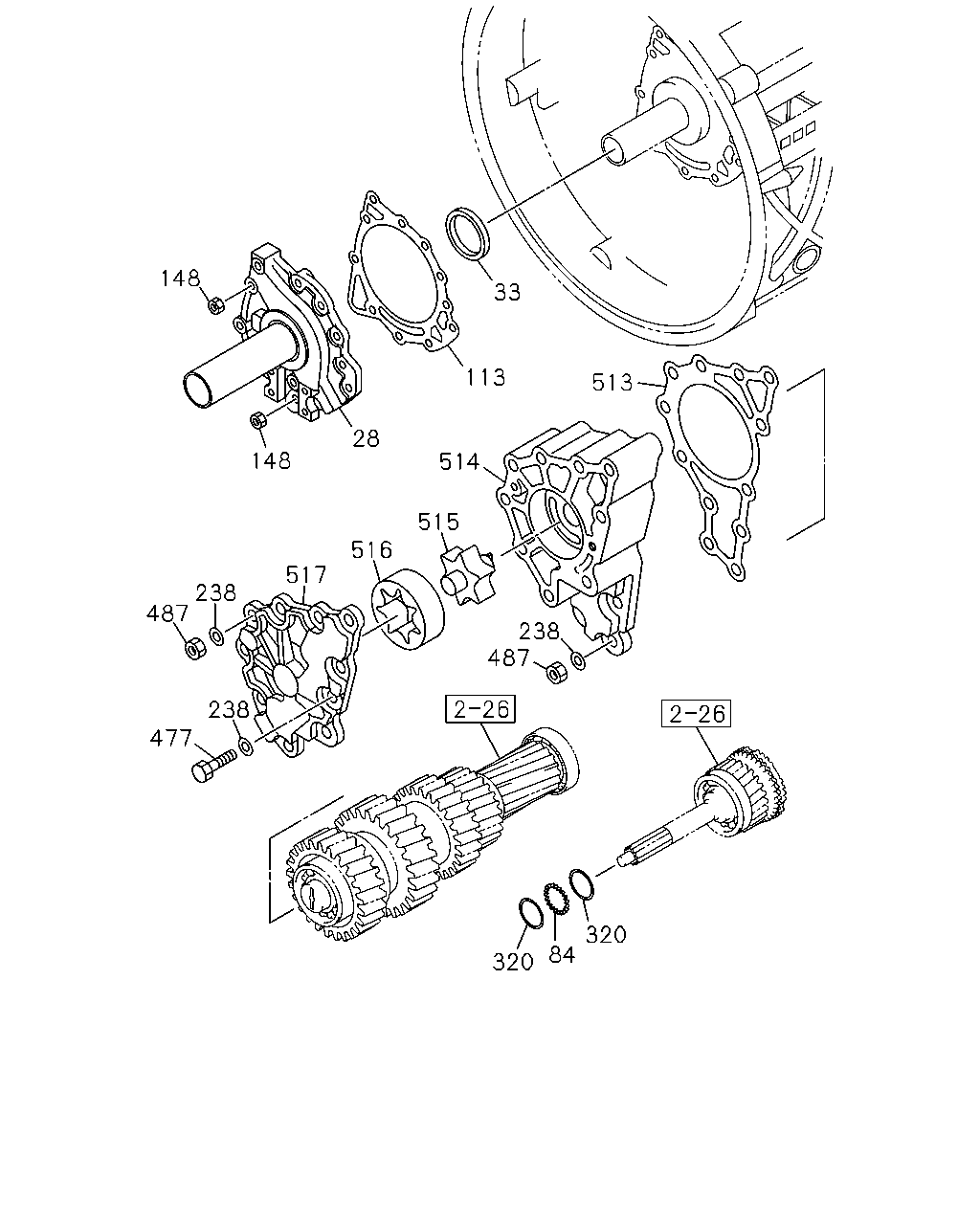

çizim 44702
148 33 113 513 28 148 514 515 516 517 238 487 238 487 238 477 320 84 320
BalonParca AdiParca NoAdetTipApplied Date A B C
28 COVER; FRT,TRANS CASE 1-33121-149-0 01 1 9812-9901 ●
28 COVER; FRT,TRANS CASE
CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) 		1-33121-149-0 01 1 9902- ● ●
28 COVER; FRT,TRANS CASE
CLUTCH-15.5" TWIN PLATE STRAP DRIVE PULL TYPE(TGE) 		1-33121-146-0 01 1 9902- ●
33 SEAL; OIL,FRT COVER,T/M
ALSO INCLUDED IN GASKET SET(M/T). 		1-33219-248-0 01 1 9812-9901 ●
33 SEAL; OIL,FRT COVER,T/M
ALSO INCLUDED IN GASKET SET(M/T). 		1-33219-248-0 01 1 9902- ● ●
84 SPACER; COVER,TRANS 1-33129-006-0 01 1 9812-9901 ●
84 SPACER; COVER,TRANS 1-33129-006-0 01 1 9902- ● ●
113 GASKET; FRT COVER TO TRANS CASE
ALSO INCLUDED IN GASKET SET(M/T). 		1-33122-018-0 01 1 9812-9901 ●
113 GASKET; FRT COVER TO TRANS CASE
ALSO INCLUDED IN GASKET SET(M/T). 		1-33122-018-0 01 1 9902- ● ●
148 NUT 1-33529-056-0 11 1 9812-9901 ●
148 NUT 1-33529-056-0 11 1 9902- ● ●
238 WASHER; PL 1-09469-010-0 14 1 9812-9901 ●
238 WASHER; PL 1-09469-010-0 14 1 9902- ● ●
320 WASHER; COVER 1-33129-007-0 02 1 9812-9901 ●
320 WASHER; COVER 1-33129-007-0 02 1 9902- ● ●
477 BOLT; OIL PUMP 1-33529-055-0 02 1 9812-9901 ●
477 BOLT; OIL PUMP 1-33529-055-0 02 1 9902- ● ●
487 NUT; COVER,OIL PUMP 1-33529-056-0 12 1 9812-9901 ●
487 NUT; COVER,OIL PUMP 1-33529-056-0 12 1 9902- ● ●
513 GASKET; HOUSING 1-34159-058-0 01 1 9812-9901 ●
513 GASKET; HOUSING 1-34159-058-0 01 1 9902- ● ●
514 HOUSING; OIL PUMP 1-34155-027-0 01 1 9812-9901 ●
514 HOUSING; OIL PUMP 1-34155-027-0 01 1 9902- ● ●
515 SHAFT; OIL PUMP 1-34159-070-0 01 1 9812-9901 ●
515 SHAFT; OIL PUMP 1-34159-070-0 01 1 9902- ● ●
516 ROTOR; OIL PUMP 1-34159-060-0 01 1 9812-9901 ●
516 ROTOR; OIL PUMP 1-34159-060-0 01 1 9902- ● ●
517 COVER; OIL PUMP 1-34159-071-0 01 1 9812-9901 ●
517 COVER; OIL PUMP 1-34159-071-0 01 1 9902- ● ●

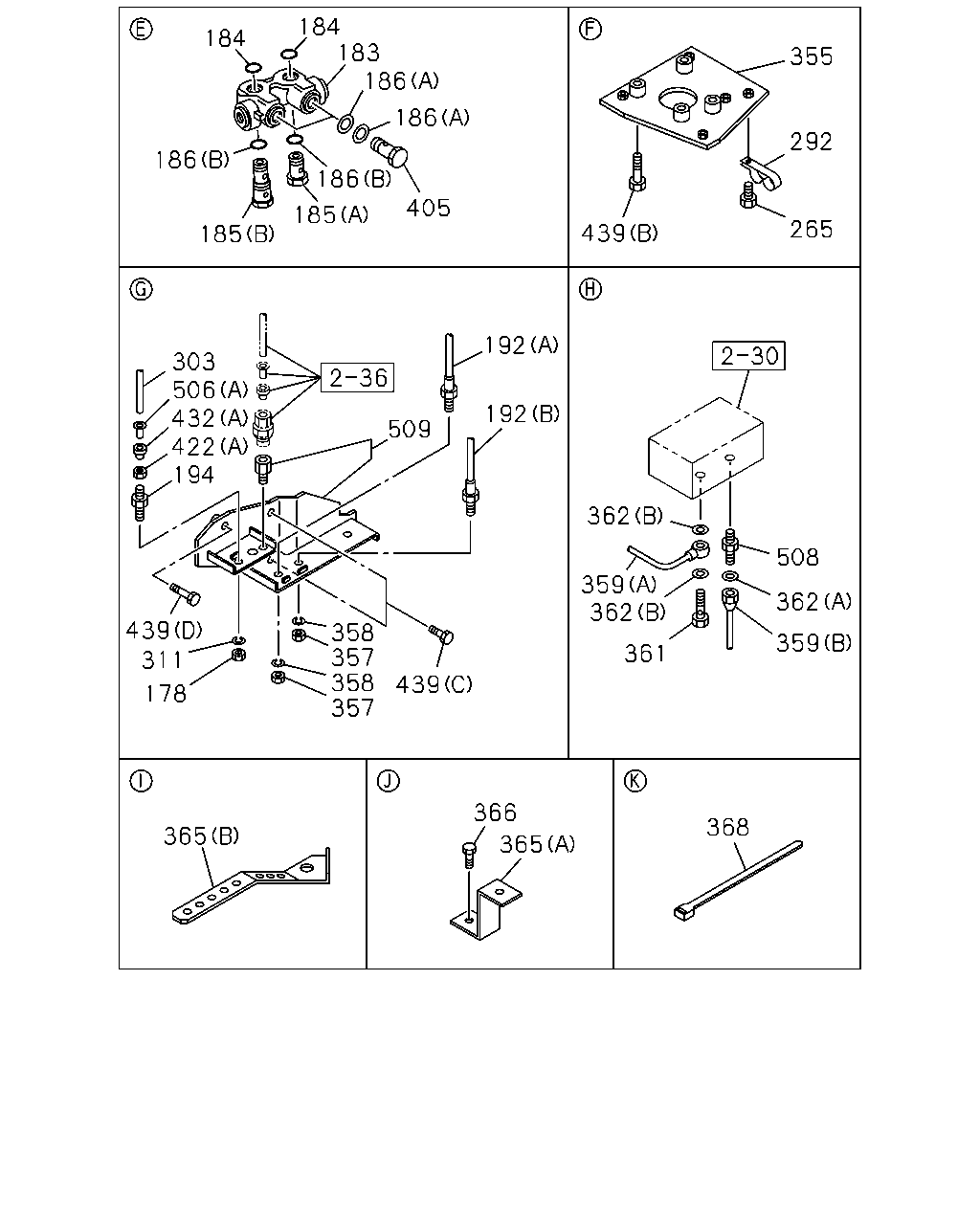

çizim 45964
184 183 186 184 355 186 292 186 186 405 185 265 439 185 192 303 506 432 422 194 192 509 362 508 359 362 362 439 311 358 357 358 357 359 361 439 178 366 368 365 365
BalonParca AdiParca NoAdetTipApplied Date A B C
178 NUT; UNION
M14 		9-99111-414-0 01 1 9812-9901 ●
178 NUT; UNION
M14 		9-99111-414-0 01 1 9902- ● ●
183 VALVE; BYPASS,TRANS 1-32569-046-0 01 1 9812-9901 ●
183 VALVE; BYPASS,TRANS 1-32569-046-0 01 1 9902- ● ● ●
184 GASKET; BYPASS VLV 1-32568-003-0 02 1 9812-9901 ●
184 GASKET; BYPASS VLV 1-32568-003-0 02 1 9902- ● ● ●
185 UNION; SCREW,BYPASS VLV
(A) M22 		1-32567-011-0 01 1 9812-9901 ●
185 UNION; SCREW,BYPASS VLV
(A) M22 		1-32567-011-0 01 1 9902- ● ● ●
185 UNION; SCREW,BYPASS VLV
(B) 		1-32567-016-0 01 1 9812-9901 ●
185 UNION; SCREW,BYPASS VLV
(B) 		1-32567-016-0 01 1 9902- ● ● ●
186 RING; SEAL
(B) ID=22 		1-32568-001-0 04 1 9812-9901 ●
186 RING; SEAL
(B) ID=22 		1-32568-001-0 04 1 9902- ● ● ●
186 RING; SEAL
(A) ID=22 		1-32568-002-0 02 1 9812-9901 ●
186 RING; SEAL
(A) ID=22 		1-32568-002-0 02 1 9902- ● ● ●
192 HOSE; FLEX,TRANS
(B) L=311 		1-09364-921-0 01 1 9812-9911 ●
192 HOSE; FLEX,TRANS
(B) L=400 		1-09364-913-0 01 1 9912-0003 ●
192 HOSE; FLEX,TRANS
(B) L=311 		1-09364-921-0 01 1 0004- ●
192 HOSE; FLEX,TRANS
(A) L=406 		1-09364-961-0 01 1 9812-9901 ●
192 HOSE; FLEX,TRANS
(A) L=406 		1-09364-961-0 01 1 9902-9911 ● ● ●
192 HOSE; FLEX,TRANS
(A) L=406 		1-09364-961-0 01 1 9912-0003 ● ●
192 HOSE; FLEX,TRANS
(A) L=406 		1-09364-961-0 01 1 0004- ● ● ●
192 HOSE; FLEX,TRANS
(A) L=500 		1-09364-914-0 01 1 9912-0003 ●
192 HOSE; FLEX,TRANS
(B) L=535 		1-09364-936-0 01 1 9902- ● ●
194 UNION; NYLON TUBE
M14 		1-09664-230-0 01 1 9812-9901 ●
194 UNION; NYLON TUBE
M14 		1-09664-230-0 01 1 9902- ● ●
265 BOLT; CLIP
M8X20 FLANGE 		0-28680-820-0 01 1 9812-9904 ●
265 BOLT; CLIP
TRANSMISSION OIL COOLER<C2C> M8X20 FLANGE 		0-28680-820-0 01 1 9905-9906 ●
265 BOLT; CLIP
M8X20 FLANGE 		0-28680-820-0 01 1 9907-0002 ●
265 BOLT; CLIP
M8X20 FLANGE 		0-28680-820-0 01 1 0003- ●
265 BOLT; CLIP
M8X40 FLANGE 		0-28680-840-0 01 1 9902- ● ●
292 CLIP; OIL PIPE
ID=16 & 16 L=28 		1-09701-219-0 01 1 9812-9901 ●
292 CLIP; OIL PIPE
ID=16 & 16 L=28 		1-09701-219-0 01 1 9902- ● ● ●
303 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87410-073-0 AR 1 9812-9901 ●
303 TUBE; NYLON
6WG1 TC-C(72L) SERVICED BY L=2000 OD=8 		1-87410-073-0 AR 1 9812-9901 ●
303 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87410-073-0 AR 1 9902-9904 ● ●
303 TUBE; NYLON
6WG1 TC-N(71L),6WG1 TC-C(72L) P130 PROP SHAFT<BEE>,P115 PROP SHAFT<C5X> CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV), CLUTCH-15.5" TWIN PLATE STRAP DRIVE PULL TYPE(TGE) SERVICED BY L=2000 OD=8 		1-87410-073-0 AR 1 9902-9904 ●
303 TUBE; NYLON
6WA1 TC-C(55L) P115 PROP SHAFT<C5X> CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) SERVICED BY L=2000 OD=8 		1-87410-073-0 AR 1 9902-9904 ● ●
303 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87410-073-0 AR 1 9905- ● ● ●
311 WASHER; LK
ID=14.2 		9-09150-514-0 01 1 9812-9901 ●
311 WASHER; LK
ID=14.2 		9-09150-514-0 01 1 9902- ● ●
355 BRACKET; OIL PIPE 1-47477-500-1 01 1 9812- ●
355 BRACKET; OIL PIPE 1-47478-217-1 01 1 9902- ● ●
357 NUT; UNION,FLEX HOSE
M22 		9-09111-522-0 02 1 9812-9901 ●
357 NUT; UNION,FLEX HOSE
M22 		9-09111-522-0 02 1 9902- ● ● ●
358 WASHER; LK,UNION
ID=22.5 		9-09150-522-0 02 1 9812-9901 ●
358 WASHER; LK,UNION
ID=22.5 		9-09150-522-0 02 1 9902- ● ● ●
359 PIPE; AIR,TRANS TO UNION
(C) 		1-33119-395-0 01 1 9812-9901 ●
359 PIPE; AIR,TRANS TO UNION
(C) 		1-33119-395-0 01 1 9902- ● ●
359 PIPE; AIR,TRANS TO UNION
(A) 		1-49118-935-0 01 1 9812- ●
359 PIPE; AIR,TRANS TO UNION
(B) 		1-49118-937-0 01 1 9812- ●
359 PIPE; AIR,TRANS TO UNION
(B) 		1-49119-463-1 01 1 9902- ●
359 PIPE; AIR,TRANS TO UNION
(A) 		1-49119-464-1 01 1 9902- ●
361 BOLT; EYE,AIR PIPE
M12X24 EYE-BOLT 		1-09675-229-0 01 1 9812-9901 ●
361 BOLT; EYE,AIR PIPE
M12X24 EYE-BOLT 		1-09675-229-0 01 1 9902- ● ●
362 GASKET; AIR PIPE
(A) ID=10.2 OD=15.2 		1-09630-083-0 01 1 9812-9901 ●
362 GASKET; AIR PIPE
(A) ID=10.2 OD=15.2 		1-09630-083-0 01 1 9902- ● ●
362 GASKET; AIR PIPE
(B) ID=12.2 		1-09630-084-0 02 1 9812-9901 ●
362 GASKET; AIR PIPE
(B) ID=12.2 		1-09630-084-0 02 1 9902- ● ●
365 BRACKET; HARNESS
(A) 		1-47478-012-0 01 1 9812-0008 ●
365 BRACKET; HARNESS
(A) 		1-47479-047-0 01 1 0009- ●
365 BRACKET; HARNESS
(B) 		1-82699-490-2 01 1 9812-9901 ●
365 BRACKET; HARNESS
(B) 		1-82699-490-2 01 1 9902- ● ● ●
366 BOLT; BRKT,HARNESS
M10X16 FLANGE 		0-28181-016-0 01 1 9812-0008 ●
366 BOLT; BRKT,HARNESS
M12X25 FLANGE 		0-28181-225-0 01 1 0009- ●
368 CLIP; BAND,CABLE
L=140 		5-09707-031-0 02 1 9812-9901 ●
368 CLIP; BAND,CABLE
L=140 		5-09707-031-1 02 1 9902- ● ● ●
405 BOLT; EYE,OIL PIPE
M22X37 		1-09675-060-0 02 1 9812-9901 ●
405 BOLT; EYE,OIL PIPE
M22X37 		1-09675-060-0 02 1 9902- ● ● ●
422 NUT; SLEEVE
(B) M14 		1-09660-212-0 01 1 9812-9901 ●
422 NUT; SLEEVE
(B) M14 		1-09660-212-0 01 1 9902- ● ● ●
422 NUT; SLEEVE
(A) M14 		1-09660-767-0 01 1 9812-9910 ● ● ●
422 NUT; SLEEVE
(A) M14 		1-09660-767-0 01 1 9911- ● ●
432 SLEEVE; TUBE
(B) ID=8.15 OD=11 L=9.5 		1-09666-042-0 01 1 9812-9901 ●
432 SLEEVE; TUBE
(B) ID=8.15 OD=11 L=9.5 		1-09666-042-0 01 1 9902- ● ● ●
432 SLEEVE; TUBE
(A) ID=8.2 L=9.5 		1-09666-067-0 01 1 9812-9910 ● ● ●
432 SLEEVE; TUBE
(A) ID=8.2 L=9.5 		1-09666-067-0 01 1 9911- ● ●
439 BOLT; BRKT
(B) M10X40 FLANGE 		0-28781-040-0 04 1 9812-9901 ●
439 BOLT; BRKT
(B) M10X40 FLANGE 		0-28781-040-0 04 1 9902- ● ● ●
439 BOLT; BRKT
(C) M16X25 FLANGE 		0-28881-625-0 02 1 9812- ●
439 BOLT; BRKT
(D) M16X40 FLANGE 		0-28881-640-0 01 1 9812- ●
439 BOLT; BRKT
(A) M16X35 FLANGE 		0-28881-635-0 04 1 9902- ● ●
506 INSERT
(B) ID=4.5 OD=5.8 L=18 		1-09669-054-0 01 1 9812-9901 ●
506 INSERT
(B) ID=4.5 OD=5.8 L=18 		1-09669-054-0 01 1 9902- ● ● ●
506 INSERT
(A) ID=5 OD=5.9 L=16 		1-09669-122-0 01 1 9812-9910 ● ● ●
506 INSERT
(A) ID=5 OD=5.9 L=16 		1-09669-122-0 01 1 9911- ● ●
508 UNION; AIR
M10 & M12 STRAIGHT 		1-09664-235-0 01 1 9812-9901 ●
508 UNION; AIR
M10 & M12 STRAIGHT 		1-09664-235-0 01 1 9902- ● ●
509 BRACKET; PIPE 1-47477-447-2 01 1 9812- ●
509 BRACKET; PIPE 1-47478-215-2 01 1 9902- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
