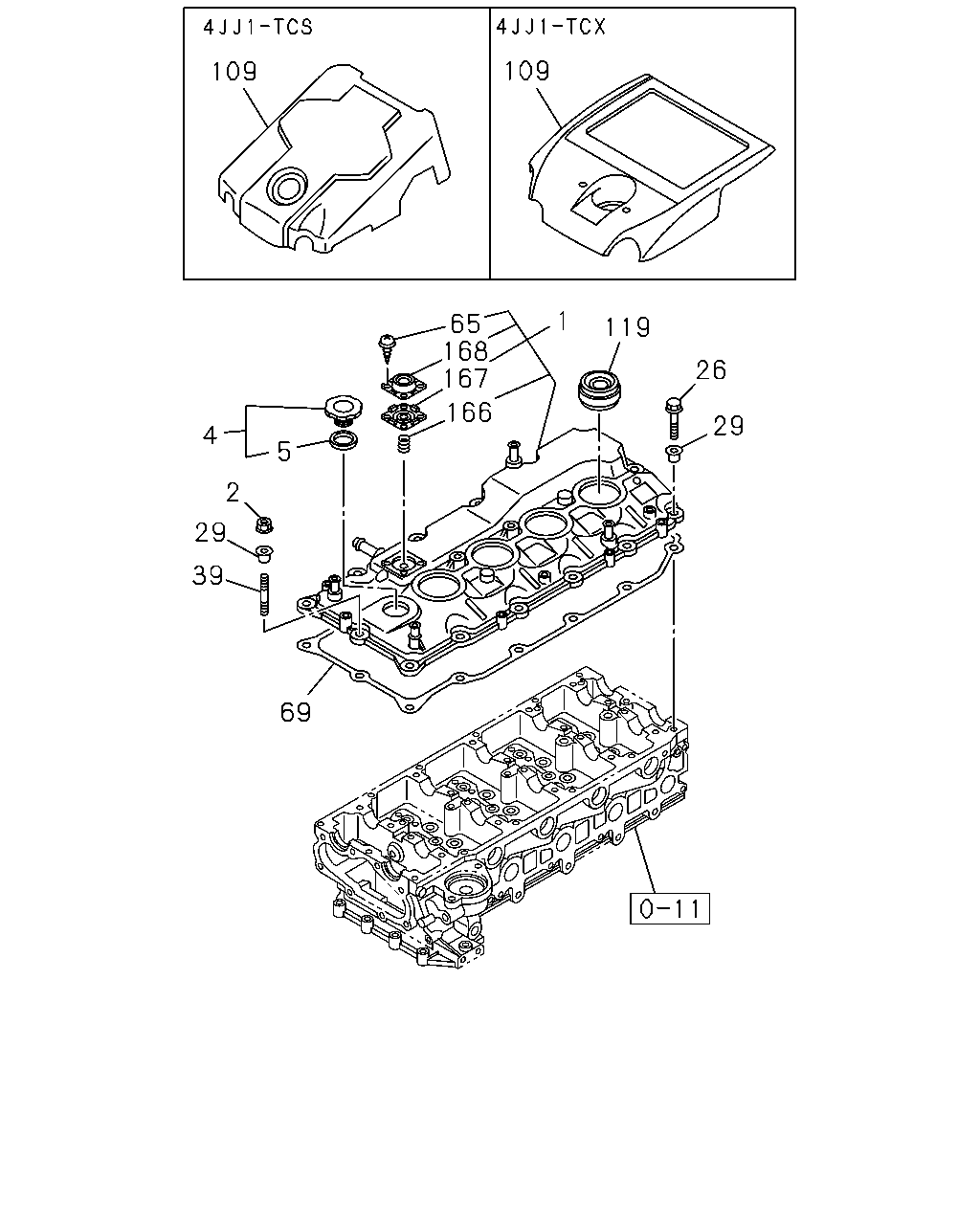

0-10 — CYLINDER HEAD COVER (#73719) — 81 parça

109 109 1 65 168 167 119 26 166 29 4 5 2 29 39 69

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	COVER; CYL HD THA	8-97366-527-4	01	1	0411-0606	●
1	COVER; CYL HD M/T MUA 5 SPEED 5H<MWQ> THA	8-98051-196-1	01	1	0607-0609	●
1	COVER; CYL HD THA	8-98051-196-1	01	1	0610-0708	●	●
1	COVER; CYL HD THA	8-98051-196-1	01	1	0709-0709	●
1	COVER; CYL HD THA	8-98051-196-2	01	1	0710-1008	●	●
1	COVER; CYL HD THA	8-98156-392-0	01	1	1009-	●	●
2	NUT; COVER,HD M6 FLANGE THA	0-91180-206-0	01	1	0411-0606	●
2	NUT; COVER,HD M/T MUA 5 SPEED 5H<MWQ> M6 FLANGE THA	0-91180-206-0	01	1	0607-0609	●
2	NUT; COVER,HD M6 FLANGE THA	0-91180-206-0	01	1	0610-0708	●	●
2	NUT; COVER,HD M6 FLANGE THA	0-91180-206-0	01	1	0709-0709	●
2	NUT; COVER,HD M6 FLANGE THA	0-91180-206-0	01	1	0710-	●	●
4	CAP; OIL FILLER THA	8-97912-543-0	01	1	0411-0606	●
4	CAP; OIL FILLER M/T MUA 5 SPEED 5H<MWQ> THA	8-98026-084-0	01	1	0607-0609	●
4	CAP; OIL FILLER THA	8-98026-084-0	01	1	0610-0708	●	●
4	CAP; OIL FILLER THA	8-98026-084-0	01	1	0709-0709	●
4	CAP; OIL FILLER THA	8-98026-084-0	01	1	0710-	●	●
5	GASKET; OIL FILLER ID=32 OD=40 THA	8-97918-298-0	01	1	0411-0606	●
5	GASKET; OIL FILLER M/T MUA 5 SPEED 5H<MWQ> ID=32 OD=40 THA	8-97918-298-0	01	1	0607-0609	●
5	GASKET; OIL FILLER ID=32 OD=40 THA	8-97918-298-0	01	1	0610-0708	●	●
5	GASKET; OIL FILLER ID=32 OD=40 THA	8-97918-298-0	01	1	0709-0709	●
5	GASKET; OIL FILLER ID=32 OD=40 THA	8-97918-298-0	01	1	0710-	●	●
26	BOLT; CYL HD COVER M6X30 FLANGE THA	0-28650-630-0	13	1	0411-0606	●
26	BOLT; CYL HD COVER M/T MUA 5 SPEED 5H<MWQ> M6X30 FLANGE THA	0-28650-630-0	13	1	0607-0609	●
26	BOLT; CYL HD COVER M6X30 FLANGE THA	0-28650-630-0	13	1	0610-0708	●	●
26	BOLT; CYL HD COVER M6X30 FLANGE THA	0-28650-630-0	13	1	0709-0709	●
26	BOLT; CYL HD COVER M6X30 FLANGE THA	0-28650-630-0	13	1	0710-1008	●	●
26	BOLT; CYL HD COVER M6X25 FLANGE THA	0-28650-625-0	13	1	1009-	●	●
29	RUBBER; MTG,HD COVER THA	8-97361-811-1	14	1	0411-0606	●
29	RUBBER; MTG,HD COVER M/T MUA 5 SPEED 5H<MWQ> THA	8-97361-811-1	14	1	0607-0609	●
29	RUBBER; MTG,HD COVER THA	8-97361-811-1	14	1	0610-0708	●	●
29	RUBBER; MTG,HD COVER THA	8-97361-811-1	14	1	0709-0709	●
29	RUBBER; MTG,HD COVER THA	8-97361-811-1	14	1	0710-1008	●	●
39	STUD; COVER,HD M6X30 L=38 THA	8-97372-795-0	01	1	0411-0508	●
39	STUD; COVER,HD M6X30 L=38 THA	0-41010-630-0	01	1	0509-0606	●
39	STUD; COVER,HD M/T MUA 5 SPEED 5H<MWQ> M6X30 L=38 THA	0-41010-630-0	01	1	0607-0609	●
39	STUD; COVER,HD M6X30 L=38 THA	0-41010-630-0	01	1	0610-0708	●	●
39	STUD; COVER,HD M6X30 L=38 THA	0-41010-630-0	01	1	0709-0709	●
39	STUD; COVER,HD M6X30 L=38 THA	0-41010-630-0	01	1	0710-1008	●	●
39	STUD; COVER,HD M6X25 L=34 THA	0-41010-625-0	01	1	1009-	●	●
65	SCREW; ADAPTER M5X10 W/LK WASHER THA	8-97366-592-0	04	1	0411-0606	●
65	SCREW; ADAPTER M/T MUA 5 SPEED 5H<MWQ> M5X10 W/LK WASHER THA	8-97366-592-0	04	1	0607-0609	●
65	SCREW; ADAPTER M5X10 W/LK WASHER THA	8-97366-592-0	04	1	0610-0708	●	●
65	SCREW; ADAPTER M5X10 W/LK WASHER THA	8-97366-592-0	04	1	0709-0709	●
65	SCREW; ADAPTER M5X10 W/LK WASHER THA	8-97366-592-0	04	1	0710-	●	●
69	GASKET; HD TO COVER THA	8-97312-088-0	01	1	0411-0511	●
69	GASKET; HD TO COVER THA	8-97945-338-0	01	1	0512-0606	●
69	GASKET; HD TO COVER M/T MUA 5 SPEED 5H<MWQ> THA	8-97945-338-0	01	1	0607-0609	●
69	GASKET; HD TO COVER THA	8-97945-338-0	01	1	0610-0708	●	●
69	GASKET; HD TO COVER THA	8-97945-338-0	01	1	0709-0709	●
69	GASKET; HD TO COVER THA	8-97945-338-0	01	1	0710-1008	●	●
69	GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD) THA	8-98156-394-0	01	1	1009-	●	●
109	COVER; ENG THA	8-97364-387-2	01	1	0411-0602	●
109	COVER; ENG THA	8-98031-429-0	01	1	0603-0606	●
109	COVER; ENG THA	8-98019-065-0	01	1	0607-0802	●
109	COVER; ENG THA	8-98097-019-0	01	1	0803-0808	●
109	COVER; ENG THA	8-98102-515-0	01	1	0809-	●
109	COVER; ENG THA	8-98061-175-0	01	1	0610-0708		●
109	COVER; ENG THA	8-98061-175-0	01	1	0709-0808		●
109	COVER; ENG THA	8-98102-513-0	01	1	0809-1006		●
109	COVER; ENG THA	8-98175-666-0	01	1	1007-		●
119	COVER; SEAL,NOZZLE THA	8-97317-168-1	04	1	0411-0606	●
119	COVER; SEAL,NOZZLE M/T MUA 5 SPEED 5H<MWQ> THA	8-98037-543-0	04	1	0607-0609	●
119	COVER; SEAL,NOZZLE THA	8-98037-543-0	04	1	0610-0708	●	●
119	COVER; SEAL,NOZZLE THA	8-98037-543-0	04	1	0709-0709	●
119	COVER; SEAL,NOZZLE THA	8-98037-543-0	04	1	0710-	●	●
166	SPRING; VENTILATOR THA	8-97365-998-0	01	1	0411-0606	●
166	SPRING; VENTILATOR M/T MUA 5 SPEED 5H<MWQ> THA	8-97365-998-0	01	1	0607-0609	●
166	SPRING; VENTILATOR THA	8-97365-998-0	01	1	0610-0708	●	●
166	SPRING; VENTILATOR THA	8-97365-998-0	01	1	0709-0709	●
166	SPRING; VENTILATOR THA	8-97365-998-0	01	1	0710-	●	●
167	DIAPHRAGM; VENTILATOR THA	8-97365-915-1	01	1	0411-0505	●
167	DIAPHRAGM; VENTILATOR THA	8-98003-164-0	01	1	0506-0606	●
167	DIAPHRAGM; VENTILATOR M/T MUA 5 SPEED 5H<MWQ> THA	8-98003-164-0	01	1	0607-0609	●
167	DIAPHRAGM; VENTILATOR THA	8-98003-164-0	01	1	0610-0708	●	●
167	DIAPHRAGM; VENTILATOR THA	8-98003-164-0	01	1	0709-0709	●
167	DIAPHRAGM; VENTILATOR THA	8-98003-164-0	01	1	0710-	●	●
168	COVER; VENTILATOR THA	8-97365-992-0	01	1	0411-0606	●
168	COVER; VENTILATOR M/T MUA 5 SPEED 5H<MWQ> THA	8-97365-992-0	01	1	0607-0609	●
168	COVER; VENTILATOR THA	8-97365-992-0	01	1	0610-0708	●	●
168	COVER; VENTILATOR THA	8-97365-992-0	01	1	0709-0709	●
168	COVER; VENTILATOR THA	8-97365-992-0	01	1	0710-	●	●
