9-33 — REAR BODY; GATE AND SIDE GUARD (#73716) — 1235 parça

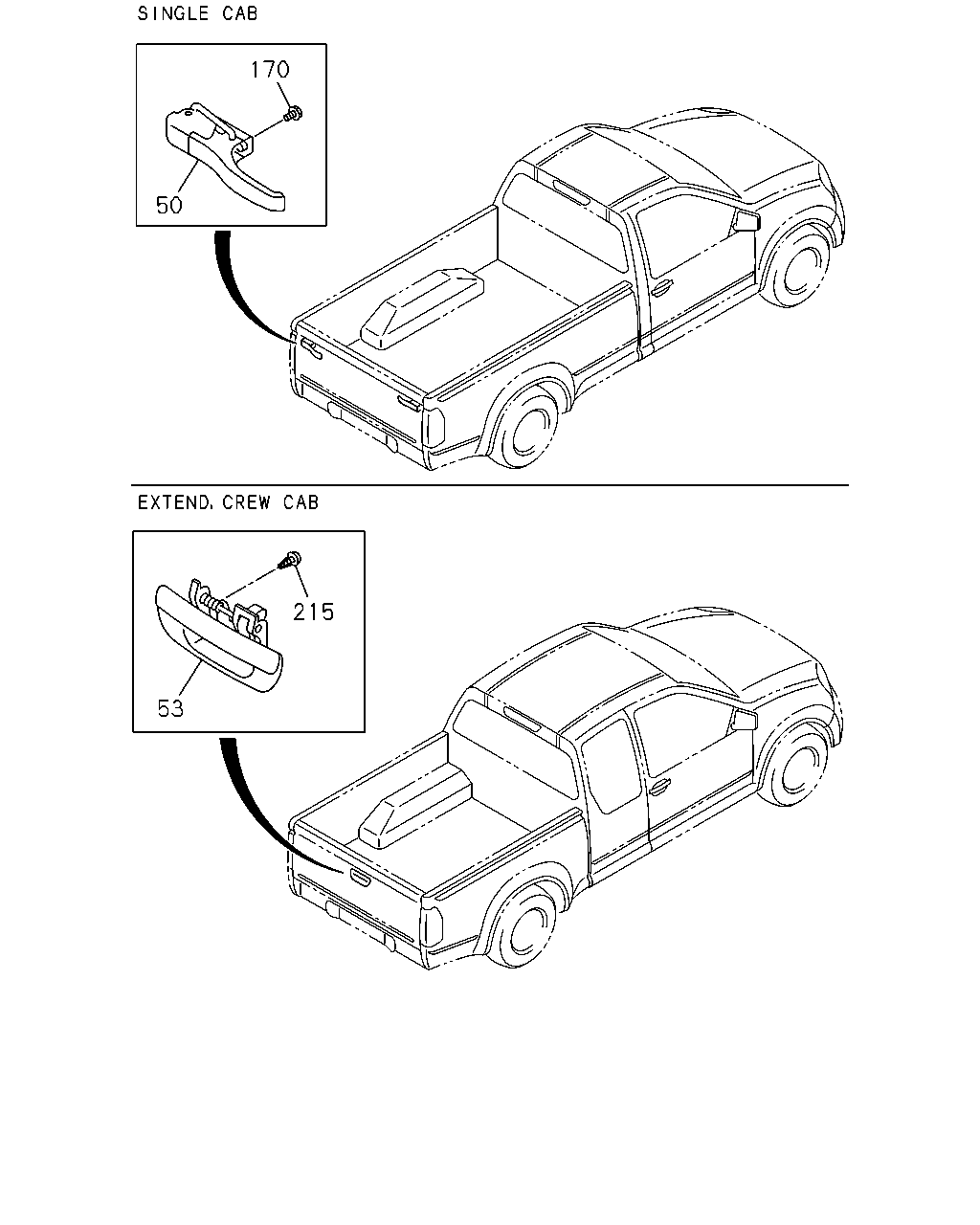

çizim 118194
170 50 215 53
BalonParca AdiParca NoAdetTipApplied Date A B C D E
50 17.204 LOCK ASM; TAIL GATE,RR BODY
THA 		8-97309-012-4 02 1 0404-0609 ●
50 17.204 LOCK ASM; TAIL GATE,RR BODY
THA 		8-98061-099-0 02 1 0610-0610 ●
50 17.204 LOCK ASM; TAIL GATE,RR BODY
REAR BODY DBL WALL CTR PULL<E63> OUTER ROPE HOOKS<7MZ> THA 		8-98061-099-0 02 1 0611-0809 ●
50 17.204 LOCK ASM; TAIL GATE,RR BODY
REAR BODY DBL WALL CTR PULL<E63> THA 		8-98061-099-0 02 1 0810- ●
53 17.204 HANDLE ASM; OUTSIDE,TAIL GATE
BODY COLOR ALPINE WHITE<877> HANDLE O/S DOOR BODY COLOR<D75> WHITE THA 		8-97293-765-2 01 1 0404-0609 ● ●
53 17.204 HANDLE ASM; OUTSIDE,TAIL GATE
BODY COLOR ALPINE WHITE<877> HANDLE O/S DOOR BODY COLOR<D75> WHITE THA 		8-97408-204-0 01 1 0610-0703 ● ●
53 17.204 HANDLE ASM; OUTSIDE,TAIL GATE
BODY COLOR ALPINE WHITE<877> HANDLE O/S DOOR BODY COLOR<D75> WHITE THA 		8-97412-446-0 01 1 0704- ● ●
53 17.204 HANDLE ASM; OUTSIDE,TAIL GATE
BODY COLOR BLACK SAPPHIRE MICA<685> HANDLE O/S DOOR BODY COLOR<D75> DARK GRAY THA 		8-97396-764-2 01 1 0404-0609 ● ●
53 17.204 HANDLE ASM; OUTSIDE,TAIL GATE
BODY COLOR BLACK SAPPHIRE MICA<685> HANDLE O/S DOOR BODY COLOR<D75> BLACK THA 		8-97408-208-0 01 1 0610-0703 ● ●
53 17.204 HANDLE ASM; OUTSIDE,TAIL GATE
BODY COLOR BLACK SAPPHIRE MICA<685> HANDLE O/S DOOR BODY COLOR<D75> BLACK THA 		8-97412-450-0 01 1 0704- ● ●
53 17.204 HANDLE ASM; OUTSIDE,TAIL GATE
BODY COLOR CAPE BLUE MET<612> HANDLE O/S DOOR BODY COLOR<D75> BLUE THA 		8-97396-762-2 01 1 0404-0508 ● ●
53 17.204 HANDLE ASM; OUTSIDE,TAIL GATE
ZENITH BLUE MICA<646> HANDLE O/S DOOR BODY COLOR<D75> BLUE THA 		8-97298-601-2 01 1 0509-0609 ● ●
53 17.204 HANDLE ASM; OUTSIDE,TAIL GATE
ZENITH BLUE MICA<646> HANDLE O/S DOOR BODY COLOR<D75> BLUE THA 		8-97408-205-0 01 1 0610-0703 ● ●
53 17.204 HANDLE ASM; OUTSIDE,TAIL GATE
ZENITH BLUE MICA<646> HANDLE O/S DOOR BODY COLOR<D75> BLUE THA 		8-97412-447-0 01 1 0704-0709 ● ●
53 17.204 HANDLE ASM; OUTSIDE,TAIL GATE
BODY COLOR IMPUL BLUE MET.<509> HANDLE O/S DOOR BODY COLOR<D75> BLUE THA 		8-97412-459-0 01 1 0710- ● ●
53 17.204 HANDLE ASM; OUTSIDE,TAIL GATE
BODY COLOR FOXFIRE RED MICA<658> HANDLE O/S DOOR BODY COLOR<D75> RED THA 		8-97298-603-2 01 1 0404-0609 ● ●
53 17.204 HANDLE ASM; OUTSIDE,TAIL GATE
BODY COLOR TORNADE RED MICA<504> HANDLE O/S DOOR BODY COLOR<D75> RED THA 		8-97408-216-0 01 1 0610-0703 ● ●
53 17.204 HANDLE ASM; OUTSIDE,TAIL GATE
BODY COLOR TORNADE RED MICA<504> HANDLE O/S DOOR BODY COLOR<D75> RED THA 		8-97412-458-0 01 1 0704- ● ●
53 17.204 HANDLE ASM; OUTSIDE,TAIL GATE
BODY COLOR LIGHT PEWTER MET<684> HANDLE O/S DOOR BODY COLOR<D75> GRAY THA 		8-97396-763-2 01 1 0404-0609 ● ●
53 17.204 HANDLE ASM; OUTSIDE,TAIL GATE
BODY COLOR ROYAL GRAY MET.<505> HANDLE O/S DOOR BODY COLOR<D75> DARK GRAY THA 		8-97408-213-0 01 1 0610-0703 ● ●
53 17.204 HANDLE ASM; OUTSIDE,TAIL GATE
BODY COLOR ROYAL GRAY MET.<505> HANDLE O/S DOOR BODY COLOR<D75> DARK GRAY THA 		8-97412-455-0 01 1 0704- ● ●
53 17.204 HANDLE ASM; OUTSIDE,TAIL GATE
BODY COLOR QUARTS GRAY MET<642> HANDLE O/S DOOR BODY COLOR<D75> LIGHT GRAY THA 		8-97298-597-2 01 1 0404-0508 ● ●
53 17.204 HANDLE ASM; OUTSIDE,TAIL GATE
BODY COLOR IMPERIAL BLOND MET<688> HANDLE O/S DOOR BODY COLOR<D75> GOLD THA 		8-97398-651-2 01 1 0509-0609 ● ●
53 17.204 HANDLE ASM; OUTSIDE,TAIL GATE
BODY COLOR IMPERIAL BLOND MET<688> HANDLE O/S DOOR BODY COLOR<D75> GOLD THA 		8-97408-209-0 01 1 0610-0703 ● ●
53 17.204 HANDLE ASM; OUTSIDE,TAIL GATE
BODY COLOR IMPERIAL BLOND MET<688> HANDLE O/S DOOR BODY COLOR<D75> GOLD THA 		8-97412-451-0 01 1 0704-1003 ● ●
53 17.204 HANDLE ASM; OUTSIDE,TAIL GATE
BODY COLOR MISTY ONYX MICA<518> HANDLE O/S DOOR BODY COLOR<D75> SILVER THA 		8-97412-963-0 01 1 1004- ● ●
53 17.204 HANDLE ASM; OUTSIDE,TAIL GATE
BODY COLOR SANDAL WOOD MET<643> HANDLE O/S DOOR BODY COLOR<D75> WHITE THA 		8-97298-598-2 01 1 0404-0508 ● ●
53 17.204 HANDLE ASM; OUTSIDE,TAIL GATE
BODY COLOR STERLING SILVER MET<936> HANDLE O/S DOOR BODY COLOR<D75> SILVER THA 		8-97401-056-2 01 1 0509-0609 ● ●
53 17.204 HANDLE ASM; OUTSIDE,TAIL GATE
BODY COLOR STERLING SILVER MET<936> HANDLE O/S DOOR BODY COLOR<D75> SILVER THA 		8-97408-211-0 01 1 0610-0703 ● ●
53 17.204 HANDLE ASM; OUTSIDE,TAIL GATE
BODY COLOR STERLING SILVER MET<936> HANDLE O/S DOOR BODY COLOR<D75> SILVER THA 		8-97412-453-0 01 1 0704- ● ●
53 17.204 HANDLE ASM; OUTSIDE,TAIL GATE
EXC. HANDLE O/S DOOR BODY COLOR<D75>, OUTSIDE HANDLE CHROME<E20> BLACK THA 		8-97235-385-2 01 1 0404-0510 ● ●
53 17.204 HANDLE ASM; OUTSIDE,TAIL GATE
EXC. HANDLE O/S DOOR BODY COLOR<D75>, OUTSIDE HANDLE CHROME<E20> BLACK THA 		8-97235-385-2 01 1 0511-0609 ● ●
53 17.204 HANDLE ASM; OUTSIDE,TAIL GATE
EXC. OUTSIDE HANDLE CHROME<E20> BLACK THA 		8-97235-385-2 01 1 0511-0609 ● ●
53 17.204 HANDLE ASM; OUTSIDE,TAIL GATE
EXC. HANDLE O/S DOOR BODY COLOR<D75>, OUTSIDE HANDLE CHROME<E20> BLACK THA 		8-98050-575-0 01 1 0610-0703 ● ●
53 17.204 HANDLE ASM; OUTSIDE,TAIL GATE
EXC. OUTSIDE HANDLE CHROME<E20> BLACK THA 		8-98050-575-0 01 1 0610-0703 ● ●
53 17.204 HANDLE ASM; OUTSIDE,TAIL GATE
EXC. HANDLE O/S DOOR BODY COLOR<D75>, OUTSIDE HANDLE CHROME<E20> BLACK THA 		8-98079-019-0 01 1 0704- ● ●
53 17.204 HANDLE ASM; OUTSIDE,TAIL GATE
EXC. OUTSIDE HANDLE CHROME<E20> BLACK THA 		8-98079-019-0 01 1 0704- ● ●
53 17.204 HANDLE ASM; OUTSIDE,TAIL GATE
OUTSIDE HANDLE CHROME<E20> THA 		8-97235-386-3 01 1 0404-0510 ● ●
53 17.204 HANDLE ASM; OUTSIDE,TAIL GATE
THA 		8-97235-386-3 01 1 0404-0510 ● ●
53 17.204 HANDLE ASM; OUTSIDE,TAIL GATE
OUTSIDE HANDLE CHROME<E20> THA 		8-97235-386-3 01 1 0511-0609 ● ● ● ●
53 17.204 HANDLE ASM; OUTSIDE,TAIL GATE
OUTSIDE HANDLE CHROME<E20> THA 		8-98050-576-0 01 1 0610-0703 ● ● ● ●
53 17.204 HANDLE ASM; OUTSIDE,TAIL GATE
OUTSIDE HANDLE CHROME<E20> THA 		8-98079-020-0 01 1 0704- ● ● ● ●
170 17.635 BOLT; TAIL GATE LOCK
08.015 M6X20 W/WASHER THA 		8-94112-987-1 04 1 0404-0610 ●
170 17.635 BOLT; TAIL GATE LOCK
REAR BODY DBL WALL CTR PULL<E63> OUTER ROPE HOOKS<7MZ> 08.015 M6X20 W/WASHER THA 		8-94112-987-1 04 1 0611-0611 ●
170 17.635 BOLT; TAIL GATE LOCK
REAR BODY DBL WALL CTR PULL<E63> OUTER ROPE HOOKS<7MZ> 09.744 M6X20 W/WASHER THA 		8-98056-282-0 04 1 0612-0809 ●
170 17.635 BOLT; TAIL GATE LOCK
REAR BODY DBL WALL CTR PULL<E63> 09.744 M6X20 W/WASHER THA 		8-98056-282-0 04 1 0810- ●
215 17.455 BOLT; HANDLE TO GUARD FRAME
M6X14 FLANGE THA 		8-97247-698-0 02 1 0404- ● ● ● ●

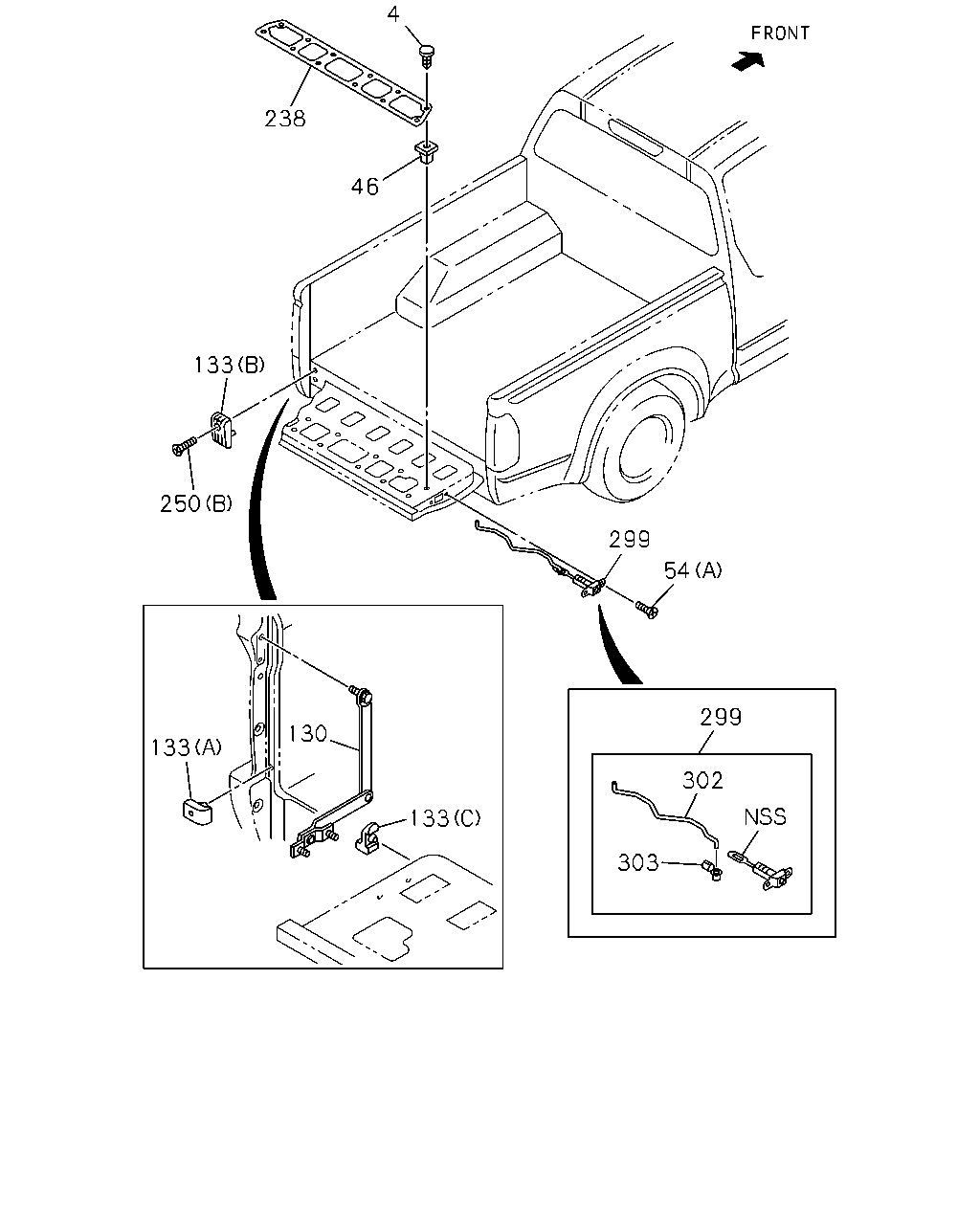

çizim 118196
4 238 46 133 250 299 54 299 130 133 302 133 303
BalonParca AdiParca NoAdetTipApplied Date A B C D E
4 17.185 SCREW; PANEL,RR GATE
M4X10 THA 		8-97043-528-0 12 1 0404- ● ● ● ●
46 17.507 GROMMET; SCREW,TAIL GATE HOLE CO
02.708 M4 THA 		5-09470-002-0 12 1 0404- ● ● ● ●
54 17.208 SCREW; TAIL GATE LOCK,RR BODY
04.104 (B) M8X22 THA 		8-94388-328-1 02 1 0404-0610 ● ● ● ● ●
54 17.208 SCREW; TAIL GATE LOCK,RR BODY
04.104 (B) M8X22 THA 		8-94388-328-1 02 1 0611-0611 ● ● ● ●
54 17.208 SCREW; TAIL GATE LOCK,RR BODY
REAR BODY DBL WALL CTR PULL<E63> 04.104 (B) M8X22 THA 		8-94388-328-1 02 1 0611-0611 ●
54 17.208 SCREW; TAIL GATE LOCK,RR BODY
(B) M8X22 THA 		8-98050-437-0 02 1 0612- ● ● ● ●
54 17.208 SCREW; TAIL GATE LOCK,RR BODY
REAR BODY DBL WALL CTR PULL<E63> (B) M8X22 THA 		8-98050-437-0 02 1 0612- ●
54 17.208 SCREW; TAIL GATE LOCK,RR BODY
(A) M8X20 		8-94446-355-1 04 1 0404-0709 ● ● ● ●
54 17.208 SCREW; TAIL GATE LOCK,RR BODY
(A) M8X20 THA 		8-97247-699-0 04 1 0710- ● ● ● ●
130 17.225 LINK ASM; TAIL GATE,RR BODY
THA 		8-97234-905-4 02 1 0404-0610 ● ● ● ● ●
130 17.225 LINK ASM; TAIL GATE,RR BODY
THA 		8-97234-905-4 02 1 0611-0611 ● ● ● ●
130 17.225 LINK ASM; TAIL GATE,RR BODY
REAR BODY DBL WALL CTR PULL<E63> THA 		8-97234-905-4 02 1 0611-0611 ●
130 17.225 LINK ASM; TAIL GATE,RR BODY
THA 		8-98050-467-0 02 1 0612-1005 ● ● ● ●
130 17.225 LINK ASM; TAIL GATE,RR BODY
REAR BODY DBL WALL CTR PULL<E63> THA 		8-98050-467-0 02 1 0612-1005 ●
130 17.225 LINK ASM; TAIL GATE,RR BODY
THA 		8-98174-086-0 02 1 1006- ● ● ● ●
130 17.225 LINK ASM; TAIL GATE,RR BODY
REAR BODY DBL WALL CTR PULL<E63> THA 		8-98174-086-0 02 1 1006- ●
133 17.225 STOPPER; TAIL GATE LINK,RR BODY
(C) THA 		8-97302-184-1 02 1 0404-0610 ● ● ● ● ●
133 17.225 STOPPER; TAIL GATE LINK,RR BODY
(C) THA 		8-97302-184-1 02 1 0611- ● ● ● ●
133 17.225 STOPPER; TAIL GATE LINK,RR BODY
REAR BODY DBL WALL CTR PULL<E63> (C) THA 		8-97302-184-1 02 1 0611- ●
133 17.225 STOPPER; TAIL GATE LINK,RR BODY
(A) THA 		8-97302-185-2 02 1 0404-0610 ● ● ● ● ●
133 17.225 STOPPER; TAIL GATE LINK,RR BODY
(A) THA 		8-97302-185-2 02 1 0611- ● ● ● ●
133 17.225 STOPPER; TAIL GATE LINK,RR BODY
REAR BODY DBL WALL CTR PULL<E63> (A) THA 		8-97302-185-2 02 1 0611- ●
133 17.225 STOPPER; TAIL GATE LINK,RR BODY
EXC. REAR STEP BUMPER<VF6>,REAR STEP BUMPER CHROME<V42> (B) THA 		8-97234-914-2 02 1 0404-0510 ● ●
133 17.225 STOPPER; TAIL GATE LINK,RR BODY
(B) THA 		8-97234-914-2 02 1 0404-0510 ●
133 17.225 STOPPER; TAIL GATE LINK,RR BODY
EXC. REAR STEP BUMPER<VF6>,REAR STEP BUMPER CHROME<V42> (B) THA 		8-97234-914-2 02 1 0511-0609 ● ● ● ●
133 17.225 STOPPER; TAIL GATE LINK,RR BODY
(B) THA 		8-97234-914-2 02 1 0511-0609 ●
133 17.225 STOPPER; TAIL GATE LINK,RR BODY
EXC. REAR STEP BUMPER<VF6>,REAR STEP BUMPER CHROME<V42> (B) THA 		8-97234-914-2 02 1 0610-0610 ● ●
133 17.225 STOPPER; TAIL GATE LINK,RR BODY
(B) THA 		8-97234-914-2 02 1 0610-0610 ●
133 17.225 STOPPER; TAIL GATE LINK,RR BODY
EXC. REAR STEP BUMPER<VF6>,REAR STEP BUMPER CHROME<V42> (B) THA 		8-97234-914-2 02 1 0611- ● ●
133 17.225 STOPPER; TAIL GATE LINK,RR BODY
REAR BODY DBL WALL CTR PULL<E63> (B) THA 		8-97234-914-2 02 1 0611- ●
238 17.185 COVER; RR GATE
THA 		8-97234-909-1 01 1 0404- ● ● ● ●
250 17.505 BOLT; STOPPER
04.104 (A) M8X22 THA 		8-94388-328-1 02 1 0404-0610 ● ● ● ● ●
250 17.505 BOLT; STOPPER
04.104 (A) M8X22 THA 		8-94388-328-1 02 1 0611-0611 ● ● ● ●
250 17.505 BOLT; STOPPER
REAR BODY DBL WALL CTR PULL<E63> OUTER ROPE HOOKS<7MZ> 04.104 (A) M8X22 THA 		8-94388-328-1 02 1 0611-0611 ●
250 17.505 BOLT; STOPPER
17.208 (A) M8X22 THA 		8-98050-437-0 02 1 0612-0709 ● ● ● ●
250 17.505 BOLT; STOPPER
REAR BODY DBL WALL CTR PULL<E63> OUTER ROPE HOOKS<7MZ> 17.208 (A) M8X22 THA 		8-98050-437-0 02 1 0612-0709 ●
250 17.505 BOLT; STOPPER
BASE VEHICLE GRILLE<VWX>,BRIGHT RAD GRILLE<V22> 17.208 (A) M8X22 THA 		8-98050-437-0 02 1 0710-0809 ● ●
250 17.505 BOLT; STOPPER
REAR BODY DBL WALL CTR PULL<E63> OUTER ROPE HOOKS<7MZ> 17.208 (A) M8X22 THA 		8-98050-437-0 02 1 0710-0809 ●
250 17.505 BOLT; STOPPER
17.208 (A) M8X22 THA 		8-98050-437-0 02 1 0710-0809 ● ●
250 17.505 BOLT; STOPPER
BASE VEHICLE GRILLE<VWX>,BRIGHT RAD GRILLE<V22> 17.208 (A) M8X22 THA 		8-98050-437-0 02 1 0810- ● ●
250 17.505 BOLT; STOPPER
REAR BODY DBL WALL CTR PULL<E63> 17.208 (A) M8X22 THA 		8-98050-437-0 02 1 0810- ●
250 17.505 BOLT; STOPPER
17.208 (A) M8X22 THA 		8-98050-437-0 02 1 0810- ● ●
250 17.505 BOLT; STOPPER
EXC. REAR STEP BUMPER<VF6>,REAR STEP BUMPER CHROME<V42> 08.077 (B) M6X18 		8-97071-681-0 02 1 0404-0510 ● ●
250 17.505 BOLT; STOPPER
08.077 (B) M6X18 		8-97071-681-0 02 1 0404-0510 ●
250 17.505 BOLT; STOPPER
EXC. REAR STEP BUMPER<VF6>,REAR STEP BUMPER CHROME<V42> 08.077 (B) M6X18 		8-97071-681-0 02 1 0511-0609 ● ● ● ●
250 17.505 BOLT; STOPPER
08.077 (B) M6X18 		8-97071-681-0 02 1 0511-0609 ●
250 17.505 BOLT; STOPPER
EXC. REAR STEP BUMPER<VF6>,REAR STEP BUMPER CHROME<V42> 08.077 (B) M6X18 		8-97071-681-0 02 1 0610-0610 ● ●
250 17.505 BOLT; STOPPER
08.077 (B) M6X18 		8-97071-681-0 02 1 0610-0610 ●
250 17.505 BOLT; STOPPER
EXC. REAR STEP BUMPER<VF6>,REAR STEP BUMPER CHROME<V42> 08.077 (B) M6X18 		8-97071-681-0 02 1 0611-0612 ● ●
250 17.505 BOLT; STOPPER
REAR BODY DBL WALL CTR PULL<E63> 08.077 (B) M6X18 		8-97071-681-0 02 1 0611-0612 ●
250 17.505 BOLT; STOPPER
EXC. REAR STEP BUMPER<VF6>,REAR STEP BUMPER CHROME<V42> (B) M6X18 THA 		8-98056-280-0 02 1 0701- ● ●
250 17.505 BOLT; STOPPER
REAR BODY DBL WALL CTR PULL<E63> (B) M6X18 THA 		8-98056-280-0 02 1 0701- ●
299 17.204 LATCH; END GATE
THA 		8-97235-914-3 01 1 0404-0411 ● ● ● ●
299 17.204 LATCH; END GATE
THA 		8-97381-273-0 01 1 0412-0709 ● ● ● ●
299 17.204 LATCH; END GATE
THA 		8-98050-281-0 01 1 0710- ● ● ● ●
299 17.204 LATCH; END GATE
THA 		8-97235-913-3 01 1 0404-0411 ● ● ● ●
299 17.204 LATCH; END GATE
THA 		8-97381-272-0 01 1 0412-0709 ● ● ● ●
299 17.204 LATCH; END GATE
THA 		8-98050-279-0 01 1 0710- ● ● ● ●
302 17.204 LINK; LATCH,END GATE
THA 		8-97349-999-0 01 1 0404-0411 ● ● ● ●
302 17.204 LINK; LATCH,END GATE
THA 		8-97381-275-0 01 1 0412-0709 ● ● ● ●
302 17.204 LINK; LATCH,END GATE
THA 		8-98056-778-0 01 1 0710- ● ● ● ●
302 17.204 LINK; LATCH,END GATE
THA 		8-97349-998-0 01 1 0404-0411 ● ● ● ●
302 17.204 LINK; LATCH,END GATE
THA 		8-97381-274-0 01 1 0412-0709 ● ● ● ●
302 17.204 LINK; LATCH,END GATE
THA 		8-98056-777-0 01 1 0710- ● ● ● ●
303 17.204 SNAP; LATCH,END GATE
THA 		8-97350-001-0 01 1 0404-0411 ● ● ● ●
303 17.204 SNAP; LATCH,END GATE
THA 		8-97381-277-0 01 1 0412- ● ● ● ●
303 17.204 SNAP; LATCH,END GATE
THA 		8-97350-000-0 01 1 0404-0411 ● ● ● ●
303 17.204 SNAP; LATCH,END GATE
THA 		8-97381-276-0 01 1 0412- ● ● ● ●

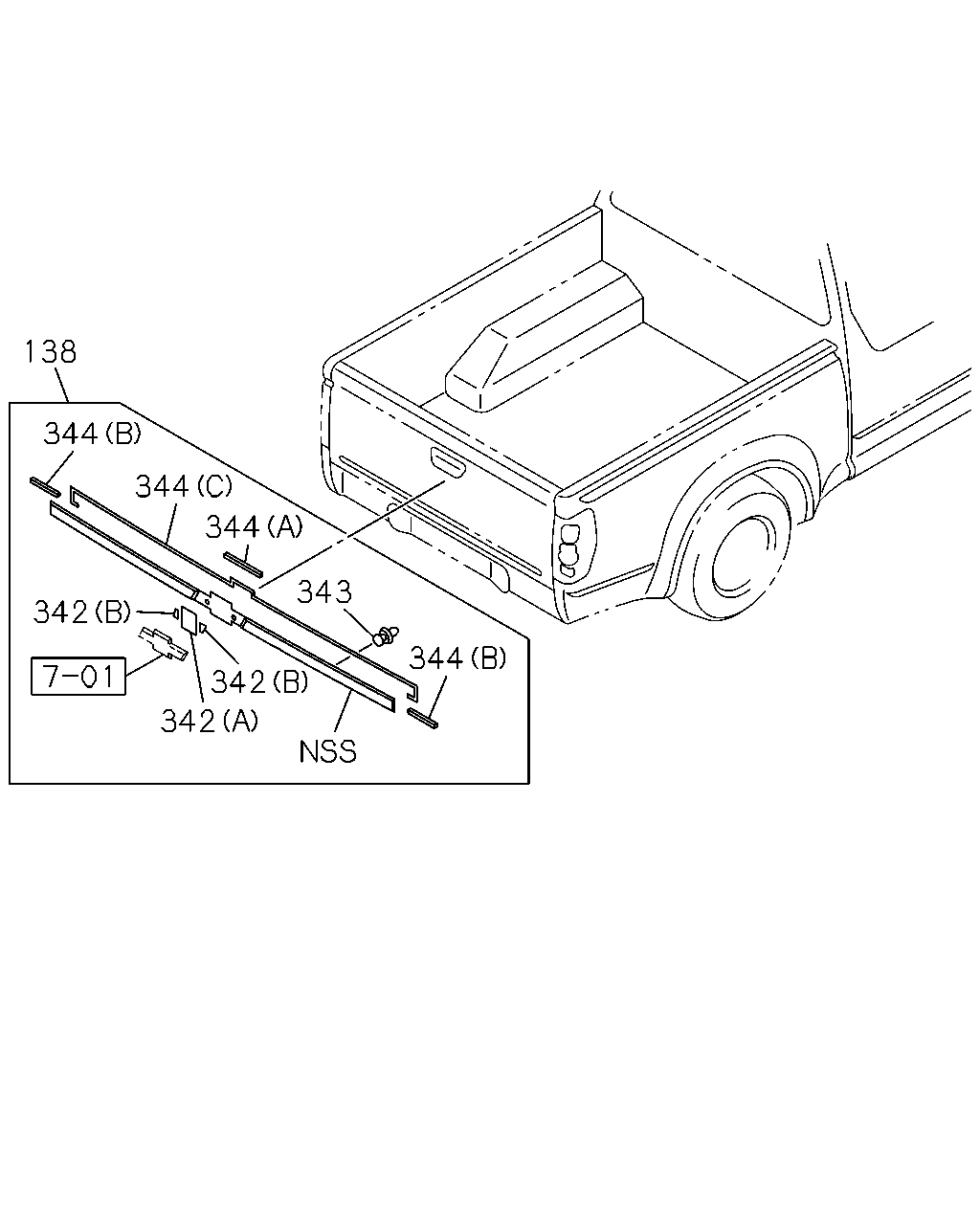

çizim 118197
138 344 344 344 343 342 344 342 342
BalonParca AdiParca NoAdetTipApplied Date A B C D E
138 12.182 GARNISH; TAIL GATE
BRIGHT RAD GRILLE<V22> 17.215 THA 		8-98044-056-2 01 1 0710- ● ●
138 12.182 GARNISH; TAIL GATE
17.215 THA 		8-98044-056-2 01 1 0710- ● ●
342 17.505 TAPE
BRIGHT RAD GRILLE<V22> (A) THA 		8-98090-942-0 01 1 0710- ● ●
342 17.505 TAPE
(A) THA 		8-98090-942-0 01 1 0710- ● ●
342 17.505 TAPE
BRIGHT RAD GRILLE<V22> (B) THA 		8-98090-943-0 02 1 0710- ● ●
342 17.505 TAPE
(B) THA 		8-98090-943-0 02 1 0710- ● ●
343 17.505 FASTENER; GARNISH
BRIGHT RAD GRILLE<V22> THA 		8-98090-945-1 08 1 0710- ● ●
343 17.505 FASTENER; GARNISH
THA 		8-98090-945-1 08 1 0710- ● ●
344 17.505 SPONGE
BRIGHT RAD GRILLE<V22> (A) THA 		8-98098-010-0 01 1 0710- ● ●
344 17.505 SPONGE
(A) THA 		8-98098-010-0 01 1 0710- ● ●
344 17.505 SPONGE
BRIGHT RAD GRILLE<V22> (B) THA 		8-98098-360-0 02 1 0710- ● ●
344 17.505 SPONGE
(B) THA 		8-98098-360-0 02 1 0710- ● ●
344 17.505 SPONGE
BRIGHT RAD GRILLE<V22> (C) THA 		8-98090-950-1 01 1 0710- ● ●
344 17.505 SPONGE
(C) THA 		8-98090-950-1 01 1 0710- ● ●

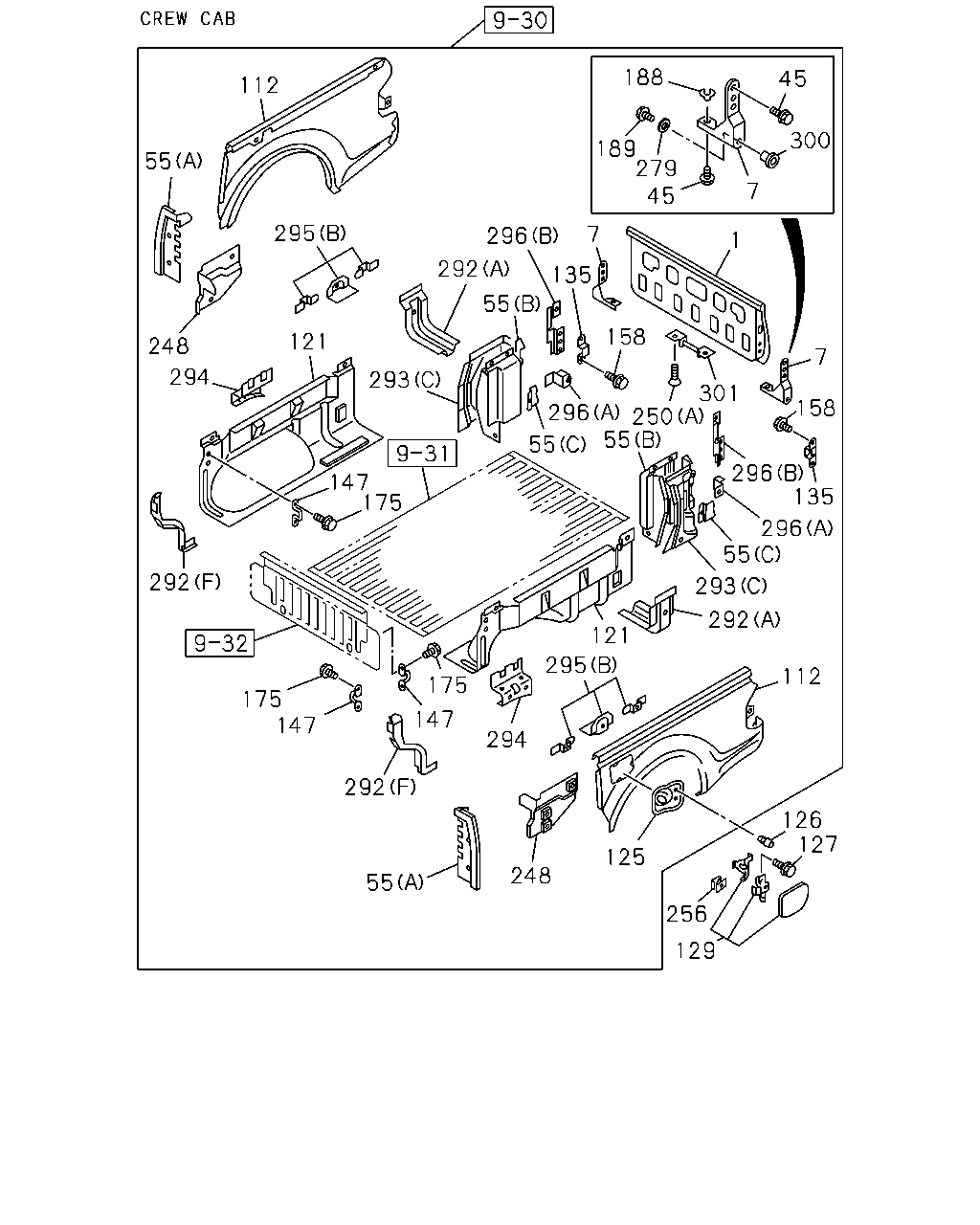

çizim 118199
188 45 112 300 189 279 45 55 7 295 7 296 1 292 135 55 158 121 248 7 294 293 301 158 296 250 55 55 296 135 147 175 296 55 292 293 292 121 295 112 175 175 147 147 294 292 126 127 125 248 55 256 129
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 17.185 GATE ASM; RR
BRIGHT RAD GRILLE<V22> THA 		8-98041-103-0 01 1 0710- ● ●
1 17.185 GATE ASM; RR
THA 		8-98041-103-0 01 1 0710- ● ●
1 17.185 GATE ASM; RR
THA 		8-97236-657-5 01 1 0404-0709 ● ● ● ●
1 17.185 GATE ASM; RR
BASE VEHICLE GRILLE<VWX> THA 		8-98041-101-0 01 1 0710- ● ●
1 17.185 GATE ASM; RR
THA 		8-97236-656-4 01 1 0404-0610 ●
1 17.185 GATE ASM; RR
REAR BODY DBL WALL CTR PULL<E63> OUTER ROPE HOOKS<7MZ> THA 		8-97236-656-4 01 1 0611-0809 ●
1 17.185 GATE ASM; RR
REAR BODY DBL WALL CTR PULL<E63> THA 		8-97236-656-4 01 1 0810- ●
7 17.208 HINGE ASM; RR GATE
THA 		8-97360-602-0 01 1 0404-0610 ● ● ● ● ●
7 17.208 HINGE ASM; RR GATE
THA 		8-97360-602-0 01 1 0611-0611 ● ● ● ●
7 17.208 HINGE ASM; RR GATE
REAR BODY DBL WALL CTR PULL<E63> OUTER ROPE HOOKS<7MZ> THA 		8-97360-602-0 01 1 0611-0611 ●
7 17.208 HINGE ASM; RR GATE
THA 		8-98057-098-0 01 1 0612-0709 ● ● ● ●
7 17.208 HINGE ASM; RR GATE
REAR BODY DBL WALL CTR PULL<E63> OUTER ROPE HOOKS<7MZ> THA 		8-98057-098-0 01 1 0612-0709 ●
7 17.208 HINGE ASM; RR GATE
BASE VEHICLE GRILLE<VWX>,BRIGHT RAD GRILLE<V22> THA 		8-98057-098-0 01 1 0710-0809 ● ●
7 17.208 HINGE ASM; RR GATE
REAR BODY DBL WALL CTR PULL<E63> OUTER ROPE HOOKS<7MZ> THA 		8-98057-098-0 01 1 0710-0809 ●
7 17.208 HINGE ASM; RR GATE
THA 		8-98057-098-0 01 1 0710-0809 ● ●
7 17.208 HINGE ASM; RR GATE
BASE VEHICLE GRILLE<VWX>,BRIGHT RAD GRILLE<V22> THA 		8-98057-098-0 01 1 0810- ● ●
7 17.208 HINGE ASM; RR GATE
REAR BODY DBL WALL CTR PULL<E63> THA 		8-98057-098-0 01 1 0810- ●
7 17.208 HINGE ASM; RR GATE
THA 		8-98057-098-0 01 1 0810- ● ●
7 17.208 HINGE ASM; RR GATE
THA 		8-97360-600-0 01 1 0404-0610 ● ● ● ● ●
7 17.208 HINGE ASM; RR GATE
THA 		8-97360-600-0 01 1 0611-0611 ● ● ● ●
7 17.208 HINGE ASM; RR GATE
REAR BODY DBL WALL CTR PULL<E63> OUTER ROPE HOOKS<7MZ> THA 		8-97360-600-0 01 1 0611-0611 ●
7 17.208 HINGE ASM; RR GATE
THA 		8-98057-097-0 01 1 0612-0709 ● ● ● ●
7 17.208 HINGE ASM; RR GATE
REAR BODY DBL WALL CTR PULL<E63> OUTER ROPE HOOKS<7MZ> THA 		8-98057-097-0 01 1 0612-0709 ●
7 17.208 HINGE ASM; RR GATE
BASE VEHICLE GRILLE<VWX>,BRIGHT RAD GRILLE<V22> THA 		8-98057-097-0 01 1 0710-0809 ● ●
7 17.208 HINGE ASM; RR GATE
REAR BODY DBL WALL CTR PULL<E63> OUTER ROPE HOOKS<7MZ> THA 		8-98057-097-0 01 1 0710-0809 ●
7 17.208 HINGE ASM; RR GATE
THA 		8-98057-097-0 01 1 0710-0809 ● ●
7 17.208 HINGE ASM; RR GATE
BASE VEHICLE GRILLE<VWX>,BRIGHT RAD GRILLE<V22> THA 		8-98057-097-0 01 1 0810- ● ●
7 17.208 HINGE ASM; RR GATE
REAR BODY DBL WALL CTR PULL<E63> THA 		8-98057-097-0 01 1 0810- ●
7 17.208 HINGE ASM; RR GATE
THA 		8-98057-097-0 01 1 0810- ● ●
45 17.208 BOLT; TAIL GATE TO RR BODY
01.269 M8X16.5 THA 		1-09104-027-1 06 1 0404-0610 ● ● ● ● ●
45 17.208 BOLT; TAIL GATE TO RR BODY
01.269 M8X16.5 THA 		1-09104-027-1 06 1 0611-0611 ● ● ● ●
45 17.208 BOLT; TAIL GATE TO RR BODY
REAR BODY DBL WALL CTR PULL<E63> OUTER ROPE HOOKS<7MZ> 01.269 M8X16.5 THA 		1-09104-027-1 06 1 0611-0611 ●
45 17.208 BOLT; TAIL GATE TO RR BODY
17.400 M8X16.5 THA 		8-98058-001-0 06 1 0612-0709 ● ● ● ●
45 17.208 BOLT; TAIL GATE TO RR BODY
REAR BODY DBL WALL CTR PULL<E63> OUTER ROPE HOOKS<7MZ> 17.400 M8X16.5 THA 		8-98058-001-0 06 1 0612-0709 ●
45 17.208 BOLT; TAIL GATE TO RR BODY
BASE VEHICLE GRILLE<VWX>,BRIGHT RAD GRILLE<V22> 17.400 M8X16.5 THA 		8-98058-001-0 06 1 0710-0809 ● ●
45 17.208 BOLT; TAIL GATE TO RR BODY
REAR BODY DBL WALL CTR PULL<E63> OUTER ROPE HOOKS<7MZ> 17.400 M8X16.5 THA 		8-98058-001-0 06 1 0710-0809 ●
45 17.208 BOLT; TAIL GATE TO RR BODY
17.400 M8X16.5 THA 		8-98058-001-0 06 1 0710-0809 ● ●
45 17.208 BOLT; TAIL GATE TO RR BODY
BASE VEHICLE GRILLE<VWX>,BRIGHT RAD GRILLE<V22> 17.400 M8X16.5 THA 		8-98058-001-0 06 1 0810- ● ●
45 17.208 BOLT; TAIL GATE TO RR BODY
REAR BODY DBL WALL CTR PULL<E63> 17.400 M8X16.5 THA 		8-98058-001-0 06 1 0810- ●
45 17.208 BOLT; TAIL GATE TO RR BODY
17.400 M8X16.5 THA 		8-98058-001-0 06 1 0810- ● ●
55 17.505 PANEL; RR CORNER
(C) THA 		8-97362-425-0 01 1 0404-0610 ● ● ● ● ●
55 17.505 PANEL; RR CORNER
(C) THA 		8-97362-425-0 01 1 0611- ● ● ● ●
55 17.505 PANEL; RR CORNER
REAR BODY DBL WALL CTR PULL<E63> (C) THA 		8-97362-425-0 01 1 0611- ●
55 17.505 PANEL; RR CORNER
(C) THA 		8-97362-424-0 01 1 0404-0610 ● ● ● ● ●
55 17.505 PANEL; RR CORNER
(C) THA 		8-97362-424-0 01 1 0611- ● ● ● ●
55 17.505 PANEL; RR CORNER
REAR BODY DBL WALL CTR PULL<E63> (C) THA 		8-97362-424-0 01 1 0611- ●
55 17.505 PANEL; RR CORNER
(B) THA 		8-97362-209-1 01 1 0404- ● ● ● ●
55 17.505 PANEL; RR CORNER
(B) THA 		8-97362-208-1 01 1 0404- ● ● ● ●
55 17.505 PANEL; RR CORNER
(A) THA 		8-97236-629-6 01 1 0404- ● ●
55 17.505 PANEL; RR CORNER
(A) THA 		8-97236-320-6 01 1 0404- ● ●
55 17.505 PANEL; RR CORNER
(A) THA 		8-97236-628-5 01 1 0404-0610 ●
55 17.505 PANEL; RR CORNER
REAR BODY DBL WALL CTR PULL<E63> OUTER ROPE HOOKS<7MZ> (A) THA 		8-97236-628-5 01 1 0611-0809 ●
55 17.505 PANEL; RR CORNER
REAR BODY DBL WALL CTR PULL<E63> (A) THA 		8-97236-628-5 01 1 0810- ●
55 17.505 PANEL; RR CORNER
(B) THA 		8-97362-211-1 01 1 0404-0610 ●
55 17.505 PANEL; RR CORNER
REAR BODY DBL WALL CTR PULL<E63> (B) THA 		8-97362-211-1 01 1 0611- ●
55 17.505 PANEL; RR CORNER
(A) THA 		8-97236-319-5 01 1 0404-0610 ●
55 17.505 PANEL; RR CORNER
REAR BODY DBL WALL CTR PULL<E63> OUTER ROPE HOOKS<7MZ> (A) THA 		8-97236-319-5 01 1 0611-0809 ●
55 17.505 PANEL; RR CORNER
REAR BODY DBL WALL CTR PULL<E63> (A) THA 		8-97236-319-5 01 1 0810- ●
55 17.505 PANEL; RR CORNER
(B) THA 		8-97362-210-1 01 1 0404-0610 ●
55 17.505 PANEL; RR CORNER
REAR BODY DBL WALL CTR PULL<E63> (B) THA 		8-97362-210-1 01 1 0611- ●
55 17.505 PANEL; RR CORNER
(A) THA 		8-93293-139-2 01 1 0404- ● ●
55 17.505 PANEL; RR CORNER
(A) THA 		8-93293-138-2 01 1 0404- ● ●
112 17.455 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL<E63> EXC. OUTER ROPE HOOKS<7MZ>,CHEVROLET EQUIPMENT<8JF> THA 		8-97356-542-0 01 1 0404-0609 ● ●
112 17.455 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL<E63> EXC. OUTER ROPE HOOKS<7MZ>,CHEVROLET EQUIPMENT<8JF> THA 		8-97356-541-0 01 1 0404-0609 ● ●
112 17.455 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL<E63> EXC. OVER FENDER<B74>,OUTER ROPE HOOKS<7MZ>,CHEVROLET EQUIPMENT<8JF> THA 		8-93299-792-3 01 1 0404-0609 ● ●
112 17.455 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL<E63> EXC. OVER FENDER<B74>,OUTER ROPE HOOKS<7MZ>,CHEVROLET EQUIPMENT<8JF> THA 		8-93299-793-5 01 1 0404-0609 ● ●
112 17.455 PANEL; SIDE GATE
OVER FENDER<B74> REAR BODY DBL WALL CTR PULL<E63> EXC. OUTER ROPE HOOKS<7MZ>,CHEVROLET EQUIPMENT<8JF> THA 		8-93327-642-3 01 1 0404-0609 ● ●
112 17.455 PANEL; SIDE GATE
OVER FENDER<B74> REAR BODY DBL WALL CTR PULL<E63> EXC. OUTER ROPE HOOKS<7MZ>,CHEVROLET EQUIPMENT<8JF> THA 		8-93333-734-3 01 1 0404-0609 ● ●
112 17.455 PANEL; SIDE GATE
OVER FENDER<B74> REAR BODY DBL WALL CTR PULL<E63> EXC. OUTER ROPE HOOKS<7MZ>,CHEVROLET EQUIPMENT<8JF> THA 		8-93333-744-5 01 1 0404-0609 ● ●
112 17.455 PANEL; SIDE GATE
OVER FENDER<B74> REAR BODY DBL WALL CTR PULL<E63> OUTER ROPE HOOKS<7MZ> EXC. CHEVROLET EQUIPMENT<8JF> THA 		8-97236-307-2 01 1 0404-0807 ●
112 17.455 PANEL; SIDE GATE
OVER FENDER<B74> REAR BODY DBL WALL CTR PULL<E63> EXC. CHEVROLET EQUIPMENT<8JF> THA 		8-97236-307-2 01 1 0808- ●
112 17.455 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL<E63> OUTER ROPE HOOKS<7MZ> EXC. CHEVROLET EQUIPMENT<8JF> THA 		8-97236-313-6 01 1 0404-0807 ●
112 17.455 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL<E63> EXC. CHEVROLET EQUIPMENT<8JF> THA 		8-97236-313-6 01 1 0808- ●
112 17.455 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL<E63> OUTER ROPE HOOKS<7MZ> EXC. CHEVROLET EQUIPMENT<8JF> THA 		8-97236-617-6 01 1 0404-0404 ●
112 17.455 PANEL; SIDE GATE
OVER FENDER<B74> REAR BODY DBL WALL CTR PULL<E63> EXC. OUTER ROPE HOOKS<7MZ>,CHEVROLET EQUIPMENT<8JF> THA 		8-97356-542-0 01 1 0404-0609 ● ●
112 17.455 PANEL; SIDE GATE
OVER FENDER<B74> REAR BODY DBL WALL CTR PULL<E63> EXC. OUTER ROPE HOOKS<7MZ>,CHEVROLET EQUIPMENT<8JF> THA 		8-97356-541-0 01 1 0404-0609 ● ●
112 17.455 PANEL; SIDE GATE
OVER FENDER<B74> REAR BODY DBL WALL CTR PULL<E63> EXC. OUTER ROPE HOOKS<7MZ>,CHEVROLET EQUIPMENT<8JF> THA 		8-97360-566-0 01 1 0404-0609 ● ●
112 17.455 PANEL; SIDE GATE
OVER FENDER<B74> REAR BODY DBL WALL CTR PULL<E63> EXC. OUTER ROPE HOOKS<7MZ>,CHEVROLET EQUIPMENT<8JF> THA 		8-97360-567-0 01 1 0404-0609 ● ●
112 17.455 PANEL; SIDE GATE
THAILAND EQUIPMENT<B03> REAR BODY DBL WALL CTR PULL<E63> EXC. OUTER ROPE HOOKS<7MZ>,CHEVROLET EQUIPMENT<8JF> THA 		8-97360-569-0 01 1 0404-0609 ● ●
112 17.455 PANEL; SIDE GATE
THAILAND EQUIPMENT<B03> REAR BODY DBL WALL CTR PULL<E63> EXC. OUTER ROPE HOOKS<7MZ>,CHEVROLET EQUIPMENT<8JF> THA 		8-97360-570-0 01 1 0404-0609 ● ●
112 17.455 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL<E63> OUTER ROPE HOOKS<7MZ> CHEVROLET EQUIPMENT<8JF> THA 		8-97362-417-2 01 1 0404-0502 ●
112 17.455 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL<E63> OUTER ROPE HOOKS<7MZ> CHEVROLET EQUIPMENT<8JF> THA 		8-97362-418-2 01 1 0404-0502 ●
112 17.455 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL<E63> CHEVROLET EQUIPMENT<8JF> EXC. OVER FENDER<B74>,OUTER ROPE HOOKS<7MZ> THA 		8-97362-419-2 01 1 0404-0502 ● ●
112 17.455 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL<E63> CHEVROLET EQUIPMENT<8JF> EXC. OVER FENDER<B74>,OUTER ROPE HOOKS<7MZ> THA 		8-97362-420-2 01 1 0404-0502 ● ●
112 17.455 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL<E63> CHEVROLET EQUIPMENT<8JF> EXC. OVER FENDER<B74>,OUTER ROPE HOOKS<7MZ> THA 		8-97362-421-3 01 1 0404-0807 ● ●
112 17.455 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL<E63> CHEVROLET EQUIPMENT<8JF> EXC. OVER FENDER<B74> THA 		8-97362-421-3 01 1 0808- ● ●
112 17.455 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL<E63> CHEVROLET EQUIPMENT<8JF> EXC. OVER FENDER<B74>,OUTER ROPE HOOKS<7MZ> THA 		8-97362-422-3 01 1 0404-0807 ● ●
112 17.455 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL<E63> CHEVROLET EQUIPMENT<8JF> EXC. OVER FENDER<B74> THA 		8-97362-422-3 01 1 0808- ● ●
112 17.455 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL<E63> OUTER ROPE HOOKS<7MZ> CHEVROLET EQUIPMENT<8JF> THA 		8-97362-417-2 01 1 0404-0807 ●
112 17.455 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL<E63> CHEVROLET EQUIPMENT<8JF> THA 		8-97362-417-2 01 1 0808- ●
112 17.455 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL<E63> OUTER ROPE HOOKS<7MZ> CHEVROLET EQUIPMENT<8JF> THA 		8-97362-418-2 01 1 0404-0807 ●
112 17.455 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL<E63> CHEVROLET EQUIPMENT<8JF> THA 		8-97362-418-2 01 1 0808- ●
112 17.455 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL<E63> CHEVROLET EQUIPMENT<8JF> EXC. OUTER ROPE HOOKS<7MZ> THA 		8-97362-419-2 01 1 0404-0405 ● ●
112 17.455 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL<E63> CHEVROLET EQUIPMENT<8JF> EXC. OVER FENDER<B74>,OUTER ROPE HOOKS<7MZ> THA 		8-97362-419-2 01 1 0406-0709 ● ●
112 17.455 PANEL; SIDE GATE
THAILAND EQUIPMENT<B03> REAR BODY DBL WALL CTR PULL<E63> CHEVROLET EQUIPMENT<8JF> EXC. OVER FENDER<B74>,OUTER ROPE HOOKS<7MZ> THA 		8-97362-419-2 01 1 0710-0807 ● ●
112 17.455 PANEL; SIDE GATE
THAILAND EQUIPMENT<B03> REAR BODY DBL WALL CTR PULL<E63> CHEVROLET EQUIPMENT<8JF> EXC. OVER FENDER<B74> THA 		8-97362-419-2 01 1 0808- ● ●
112 17.455 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL<E63> CHEVROLET EQUIPMENT<8JF> EXC. OUTER ROPE HOOKS<7MZ> THA 		8-97362-420-2 01 1 0404-0405 ● ●
112 17.455 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL<E63> CHEVROLET EQUIPMENT<8JF> EXC. OVER FENDER<B74>,OUTER ROPE HOOKS<7MZ> THA 		8-97362-420-2 01 1 0406-0709 ● ●
112 17.455 PANEL; SIDE GATE
THAILAND EQUIPMENT<B03> REAR BODY DBL WALL CTR PULL<E63> CHEVROLET EQUIPMENT<8JF> EXC. OVER FENDER<B74>,OUTER ROPE HOOKS<7MZ> THA 		8-97362-420-2 01 1 0710-0807 ● ●
112 17.455 PANEL; SIDE GATE
THAILAND EQUIPMENT<B03> REAR BODY DBL WALL CTR PULL<E63> CHEVROLET EQUIPMENT<8JF> EXC. OVER FENDER<B74> THA 		8-97362-420-2 01 1 0808- ● ●
112 17.455 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL<E63> CHEVROLET EQUIPMENT<8JF> EXC. OUTER ROPE HOOKS<7MZ> THA 		8-97362-421-3 01 1 0404-0405 ● ●
112 17.455 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL<E63> CHEVROLET EQUIPMENT<8JF> EXC. OVER FENDER<B74>,OUTER ROPE HOOKS<7MZ> THA 		8-97362-421-3 01 1 0406-0807 ● ●
112 17.455 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL<E63> CHEVROLET EQUIPMENT<8JF> EXC. OVER FENDER<B74> THA 		8-97362-421-3 01 1 0808- ● ●
112 17.455 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL<E63> CHEVROLET EQUIPMENT<8JF> EXC. OUTER ROPE HOOKS<7MZ> THA 		8-97362-422-3 01 1 0404-0405 ● ●
112 17.455 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL<E63> CHEVROLET EQUIPMENT<8JF> EXC. OVER FENDER<B74>,OUTER ROPE HOOKS<7MZ> THA 		8-97362-422-3 01 1 0406-0807 ● ●
112 17.455 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL<E63> CHEVROLET EQUIPMENT<8JF> EXC. OVER FENDER<B74> THA 		8-97362-422-3 01 1 0808- ● ●

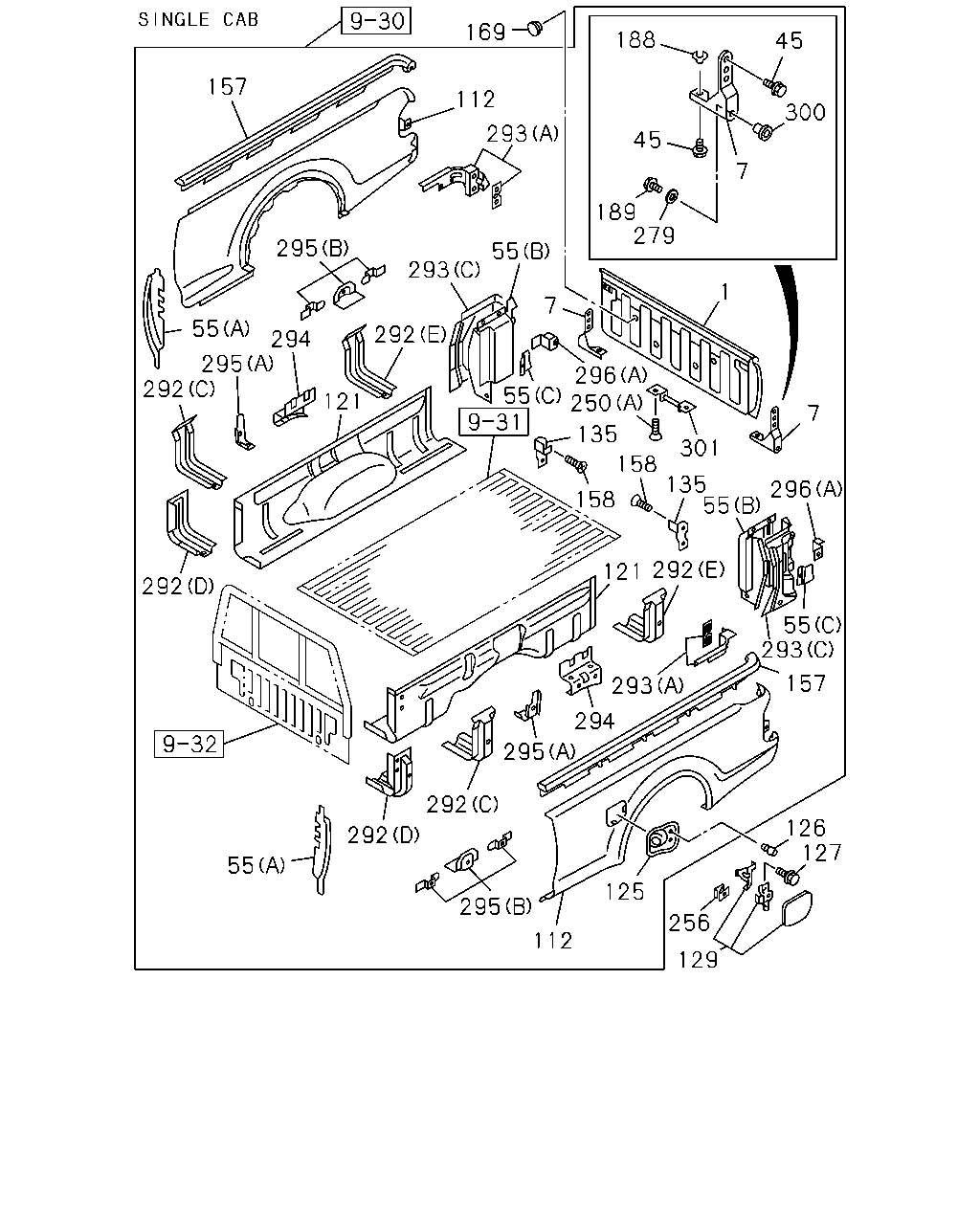

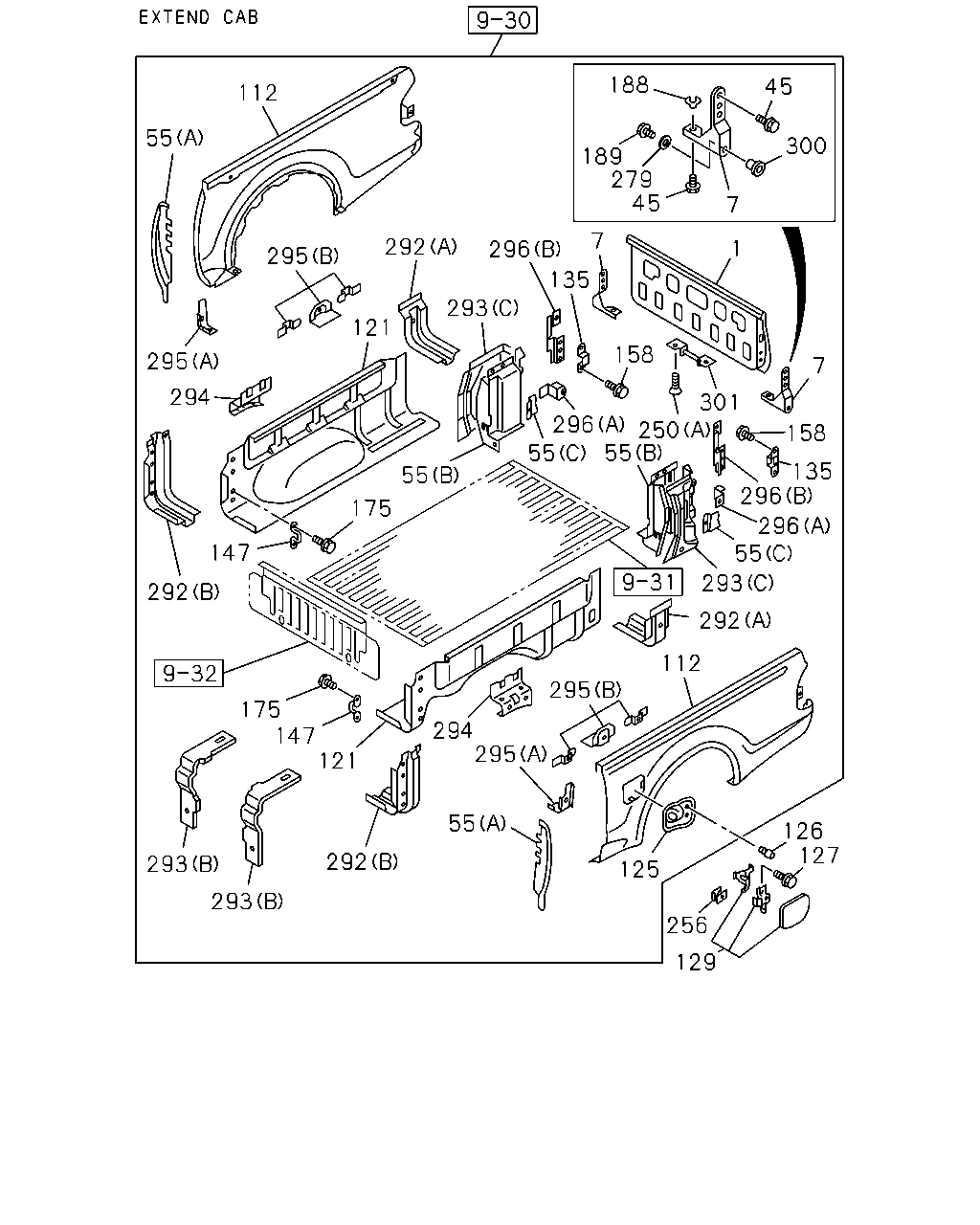

112 17.455 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL<E63> OUTER ROPE HOOKS<7MZ> CHEVROLET EQUIPMENT<8JF> THA 		8-97362-417-2 01 1 0406-0807 ●
112 17.455 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL<E63> CHEVROLET EQUIPMENT<8JF> THA 		8-97362-417-2 01 1 0808- ●
112 17.455 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL<E63> OUTER ROPE HOOKS<7MZ> CHEVROLET EQUIPMENT<8JF> THA 		8-97362-418-2 01 1 0406-0807 ●
112 17.455 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL<E63> CHEVROLET EQUIPMENT<8JF> THA 		8-97362-418-2 01 1 0808- ●
112 17.455 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL<E63> CHEVROLET EQUIPMENT<8JF> EXC. OUTER ROPE HOOKS<7MZ> THA 		8-97362-419-2 01 1 0406-0807 ● ●
112 17.455 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL<E63> CHEVROLET EQUIPMENT<8JF> THA 		8-97362-419-2 01 1 0808- ● ●
112 17.455 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL<E63> CHEVROLET EQUIPMENT<8JF> EXC. OUTER ROPE HOOKS<7MZ> THA 		8-97362-420-2 01 1 0406-0807 ● ●
112 17.455 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL<E63> CHEVROLET EQUIPMENT<8JF> THA 		8-97362-420-2 01 1 0808- ● ●
112 17.455 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL<E63> CHEVROLET EQUIPMENT<8JF> EXC. OUTER ROPE HOOKS<7MZ> THA 		8-97362-421-3 01 1 0406-0807 ● ●
112 17.455 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL<E63> CHEVROLET EQUIPMENT<8JF> THA 		8-97362-421-3 01 1 0808- ● ●
112 17.455 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL<E63> CHEVROLET EQUIPMENT<8JF> EXC. OUTER ROPE HOOKS<7MZ> THA 		8-97362-422-3 01 1 0406-0807 ● ●
112 17.455 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL<E63> CHEVROLET EQUIPMENT<8JF> THA 		8-97362-422-3 01 1 0808- ● ●
112 17.455 PANEL; SIDE GATE
OVER FENDER<B74> REAR BODY DBL WALL CTR PULL<E63> CHEVROLET EQUIPMENT<8JF> EXC. OUTER ROPE HOOKS<7MZ> THA 		8-97362-619-2 01 1 0404-0502 ● ●
112 17.455 PANEL; SIDE GATE
OVER FENDER<B74> REAR BODY DBL WALL CTR PULL<E63> CHEVROLET EQUIPMENT<8JF> EXC. OUTER ROPE HOOKS<7MZ> THA 		8-97362-620-2 01 1 0404-0502 ● ●
112 17.455 PANEL; SIDE GATE
OVER FENDER<B74> REAR BODY DBL WALL CTR PULL<E63> CHEVROLET EQUIPMENT<8JF> EXC. OUTER ROPE HOOKS<7MZ> THA 		8-97362-621-3 01 1 0404-0807 ● ●
112 17.455 PANEL; SIDE GATE
OVER FENDER<B74> REAR BODY DBL WALL CTR PULL<E63> CHEVROLET EQUIPMENT<8JF> THA 		8-97362-621-3 01 1 0808- ● ●
112 17.455 PANEL; SIDE GATE
OVER FENDER<B74> REAR BODY DBL WALL CTR PULL<E63> CHEVROLET EQUIPMENT<8JF> EXC. OUTER ROPE HOOKS<7MZ> THA 		8-97362-622-3 01 1 0404-0807 ● ●
112 17.455 PANEL; SIDE GATE
OVER FENDER<B74> REAR BODY DBL WALL CTR PULL<E63> CHEVROLET EQUIPMENT<8JF> THA 		8-97362-622-3 01 1 0808- ● ●
112 17.455 PANEL; SIDE GATE
OVER FENDER<B74> REAR BODY DBL WALL CTR PULL<E63> CHEVROLET EQUIPMENT<8JF> THA 		8-97362-619-2 01 1 0404-0709 ● ●
112 17.455 PANEL; SIDE GATE
THAILAND EQUIPMENT<B03> OVER FENDER<B74> REAR BODY DBL WALL CTR PULL<E63> CHEVROLET EQUIPMENT<8JF> EXC. OUTER ROPE HOOKS<7MZ> THA 		8-97362-619-2 01 1 0710-0807 ● ●
112 17.455 PANEL; SIDE GATE
THAILAND EQUIPMENT<B03> OVER FENDER<B74> REAR BODY DBL WALL CTR PULL<E63> CHEVROLET EQUIPMENT<8JF> THA 		8-97362-619-2 01 1 0808- ● ●
112 17.455 PANEL; SIDE GATE
OVER FENDER<B74> REAR BODY DBL WALL CTR PULL<E63> CHEVROLET EQUIPMENT<8JF> THA 		8-97362-620-2 01 1 0404-0709 ● ●
112 17.455 PANEL; SIDE GATE
THAILAND EQUIPMENT<B03> OVER FENDER<B74> REAR BODY DBL WALL CTR PULL<E63> CHEVROLET EQUIPMENT<8JF> EXC. OUTER ROPE HOOKS<7MZ> THA 		8-97362-620-2 01 1 0710-0807 ● ●
112 17.455 PANEL; SIDE GATE
THAILAND EQUIPMENT<B03> OVER FENDER<B74> REAR BODY DBL WALL CTR PULL<E63> CHEVROLET EQUIPMENT<8JF> THA 		8-97362-620-2 01 1 0808- ● ●
112 17.455 PANEL; SIDE GATE
OVER FENDER<B74> REAR BODY DBL WALL CTR PULL<E63> CHEVROLET EQUIPMENT<8JF> THA 		8-97362-621-3 01 1 0404- ● ●
112 17.455 PANEL; SIDE GATE
OVER FENDER<B74> REAR BODY DBL WALL CTR PULL<E63> CHEVROLET EQUIPMENT<8JF> THA 		8-97362-622-3 01 1 0404- ● ●
112 17.455 PANEL; SIDE GATE
OVER FENDER<B74> REAR BODY DBL WALL CTR PULL<E63> OUTER ROPE HOOKS<7MZ> EXC. CHEVROLET EQUIPMENT<8JF> THA 		8-97373-020-0 01 1 0404-0807 ●
112 17.455 PANEL; SIDE GATE
OVER FENDER<B74> REAR BODY DBL WALL CTR PULL<E63> EXC. CHEVROLET EQUIPMENT<8JF> THA 		8-97373-020-0 01 1 0808- ●
112 17.455 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL<E63> OUTER ROPE HOOKS<7MZ> EXC. CHEVROLET EQUIPMENT<8JF> THA 		8-97236-617-6 01 1 0405-0807 ●
112 17.455 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL<E63> EXC. CHEVROLET EQUIPMENT<8JF> THA 		8-97236-617-6 01 1 0808- ●
112 17.455 PANEL; SIDE GATE
THAILAND EQUIPMENT<B03> OVER FENDER<B74> REAR BODY DBL WALL CTR PULL<E63> EXC. OUTER ROPE HOOKS<7MZ>,CHEVROLET EQUIPMENT<8JF> THA 		8-97360-848-0 01 1 0404-0609 ● ●
112 17.455 PANEL; SIDE GATE
THAILAND EQUIPMENT<B03> OVER FENDER<B74> REAR BODY DBL WALL CTR PULL<E63> EXC. OUTER ROPE HOOKS<7MZ>,CHEVROLET EQUIPMENT<8JF> THA 		8-97360-853-0 01 1 0404-0609 ● ●
112 17.455 PANEL; SIDE GATE
THAILAND EQUIPMENT<B03> REAR BODY DBL WALL CTR PULL<E63> OUTER ROPE HOOKS<7MZ> EXC. OVER FENDER<B74>,CHEVROLET EQUIPMENT<8JF> THA 		8-97252-094-2 01 1 0404-0807 ●
112 17.455 PANEL; SIDE GATE
THAILAND EQUIPMENT<B03> REAR BODY DBL WALL CTR PULL<E63> EXC. OVER FENDER<B74>,CHEVROLET EQUIPMENT<8JF> THA 		8-97252-094-2 01 1 0808- ●
112 17.455 PANEL; SIDE GATE
THAILAND EQUIPMENT<B03> REAR BODY DBL WALL CTR PULL<E63> OUTER ROPE HOOKS<7MZ> EXC. OVER FENDER<B74>,CHEVROLET EQUIPMENT<8JF> THA 		8-97373-019-0 01 1 0404-0807 ●
112 17.455 PANEL; SIDE GATE
THAILAND EQUIPMENT<B03> REAR BODY DBL WALL CTR PULL<E63> EXC. OVER FENDER<B74>,CHEVROLET EQUIPMENT<8JF> THA 		8-97373-019-0 01 1 0808- ●
112 17.455 PANEL; SIDE GATE
THAILAND EQUIPMENT<B03> REAR BODY DBL WALL CTR PULL<E63> EXC. OVER FENDER<B74>,OUTER ROPE HOOKS<7MZ>,CHEVROLET EQUIPMENT<8JF> THA 		8-97360-849-0 01 1 0404-0609 ● ●
112 17.455 PANEL; SIDE GATE
THAILAND EQUIPMENT<B03> REAR BODY DBL WALL CTR PULL<E63> EXC. OVER FENDER<B74>,OUTER ROPE HOOKS<7MZ>,CHEVROLET EQUIPMENT<8JF> THA 		8-97360-854-0 01 1 0404-0609 ● ●
112 17.455 PANEL; SIDE GATE
THAILAND EQUIPMENT<B03> OVER FENDER<B74> REAR BODY DBL WALL CTR PULL<E63> EXC. OUTER ROPE HOOKS<7MZ>,CHEVROLET EQUIPMENT<8JF> THA 		8-97387-300-1 01 1 0610-0709 ● ●
112 17.455 PANEL; SIDE GATE
THAILAND EQUIPMENT<B03> OVER FENDER<B74> REAR BODY DBL WALL CTR PULL<E63> EXC. OUTER ROPE HOOKS<7MZ>,CHEVROLET EQUIPMENT<8JF> THA 		8-97387-301-1 01 1 0610-0709 ● ●
112 17.455 PANEL; SIDE GATE
THAILAND EQUIPMENT<B03> REAR BODY DBL WALL CTR PULL<E63> EXC. OVER FENDER<B74>,OUTER ROPE HOOKS<7MZ>,CHEVROLET EQUIPMENT<8JF> THA 		8-97387-302-1 01 1 0610-0709 ● ●
112 17.455 PANEL; SIDE GATE
THAILAND EQUIPMENT<B03> REAR BODY DBL WALL CTR PULL<E63> EXC. OVER FENDER<B74>,OUTER ROPE HOOKS<7MZ>,CHEVROLET EQUIPMENT<8JF> THA 		8-97387-303-1 01 1 0610-0709 ● ●
112 17.455 PANEL; SIDE GATE
OVER FENDER<B74> REAR BODY DBL WALL CTR PULL<E63> EXC. OUTER ROPE HOOKS<7MZ>,CHEVROLET EQUIPMENT<8JF> THA 		8-97387-304-0 01 1 0610-0807 ● ●
112 17.455 PANEL; SIDE GATE
OVER FENDER<B74> REAR BODY DBL WALL CTR PULL<E63> EXC. CHEVROLET EQUIPMENT<8JF> THA 		8-97387-304-0 01 1 0808- ● ●
112 17.455 PANEL; SIDE GATE
OVER FENDER<B74> REAR BODY DBL WALL CTR PULL<E63> EXC. OUTER ROPE HOOKS<7MZ>,CHEVROLET EQUIPMENT<8JF> THA 		8-97387-309-0 01 1 0610-0807 ● ●
112 17.455 PANEL; SIDE GATE
OVER FENDER<B74> REAR BODY DBL WALL CTR PULL<E63> EXC. CHEVROLET EQUIPMENT<8JF> THA 		8-97387-309-0 01 1 0808- ● ●
112 17.455 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL<E63> EXC. OVER FENDER<B74>,OUTER ROPE HOOKS<7MZ>,CHEVROLET EQUIPMENT<8JF> THA 		8-97387-310-0 01 1 0610-0807 ● ●
112 17.455 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL<E63> EXC. OVER FENDER<B74>,CHEVROLET EQUIPMENT<8JF> THA 		8-97387-310-0 01 1 0808- ● ●
112 17.455 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL<E63> EXC. OVER FENDER<B74>,OUTER ROPE HOOKS<7MZ>,CHEVROLET EQUIPMENT<8JF> THA 		8-97387-311-0 01 1 0610-0807 ● ●
112 17.455 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL<E63> EXC. OVER FENDER<B74>,CHEVROLET EQUIPMENT<8JF> THA 		8-97387-311-0 01 1 0808- ● ●
112 17.455 PANEL; SIDE GATE
THAILAND EQUIPMENT<B03> REAR BODY DBL WALL CTR PULL<E63> EXC. OUTER ROPE HOOKS<7MZ>,CHEVROLET EQUIPMENT<8JF> THA 		8-97387-327-0 01 1 0610-0803 ● ●
112 17.455 PANEL; SIDE GATE
THAILAND EQUIPMENT<B03> REAR BODY DBL WALL CTR PULL<E63> EXC. OUTER ROPE HOOKS<7MZ>,CHEVROLET EQUIPMENT<8JF> THA 		8-98098-358-0 01 1 0804-0807 ● ●
112 17.455 PANEL; SIDE GATE
THAILAND EQUIPMENT<B03> REAR BODY DBL WALL CTR PULL<E63> EXC. CHEVROLET EQUIPMENT<8JF> THA 		8-98098-358-0 01 1 0808- ● ●
112 17.455 PANEL; SIDE GATE
THAILAND EQUIPMENT<B03> REAR BODY DBL WALL CTR PULL<E63> EXC. OUTER ROPE HOOKS<7MZ>,CHEVROLET EQUIPMENT<8JF> THA 		8-97387-329-0 01 1 0610-0803 ● ●
112 17.455 PANEL; SIDE GATE
THAILAND EQUIPMENT<B03> REAR BODY DBL WALL CTR PULL<E63> EXC. OUTER ROPE HOOKS<7MZ>,CHEVROLET EQUIPMENT<8JF> THA 		8-98098-359-0 01 1 0804-0807 ● ●
112 17.455 PANEL; SIDE GATE
THAILAND EQUIPMENT<B03> REAR BODY DBL WALL CTR PULL<E63> EXC. CHEVROLET EQUIPMENT<8JF> THA 		8-98098-359-0 01 1 0808- ● ●
112 17.455 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL<E63> EXC. OUTER ROPE HOOKS<7MZ>,CHEVROLET EQUIPMENT<8JF> THA 		8-97387-332-0 01 1 0610-0807 ● ●
112 17.455 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL<E63> EXC. CHEVROLET EQUIPMENT<8JF> THA 		8-97387-332-0 01 1 0808- ● ●
112 17.455 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL<E63> EXC. OUTER ROPE HOOKS<7MZ>,CHEVROLET EQUIPMENT<8JF> THA 		8-97387-333-0 01 1 0610-0807 ● ●
112 17.455 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL<E63> EXC. CHEVROLET EQUIPMENT<8JF> THA 		8-97387-333-0 01 1 0808- ● ●
112 17.455 PANEL; SIDE GATE
OVER FENDER<B74> REAR BODY DBL WALL CTR PULL<E63> EXC. OUTER ROPE HOOKS<7MZ>,CHEVROLET EQUIPMENT<8JF> THA 		8-97387-325-0 01 1 0610-0803 ● ●
112 17.455 PANEL; SIDE GATE
OVER FENDER<B74> REAR BODY DBL WALL CTR PULL<E63> EXC. OUTER ROPE HOOKS<7MZ>,CHEVROLET EQUIPMENT<8JF> THA 		8-97387-326-0 01 1 0610-0803 ● ●
112 17.455 PANEL; SIDE GATE
OVER FENDER<B74> REAR BODY DBL WALL CTR PULL<E63> EXC. OUTER ROPE HOOKS<7MZ>,CHEVROLET EQUIPMENT<8JF> THA 		8-97387-332-0 01 1 0610-0807 ● ●
112 17.455 PANEL; SIDE GATE
OVER FENDER<B74> REAR BODY DBL WALL CTR PULL<E63> EXC. CHEVROLET EQUIPMENT<8JF> THA 		8-97387-332-0 01 1 0808- ● ●
112 17.455 PANEL; SIDE GATE
OVER FENDER<B74> REAR BODY DBL WALL CTR PULL<E63> EXC. OUTER ROPE HOOKS<7MZ>,CHEVROLET EQUIPMENT<8JF> THA 		8-97387-333-0 01 1 0610-0807 ● ●
112 17.455 PANEL; SIDE GATE
OVER FENDER<B74> REAR BODY DBL WALL CTR PULL<E63> EXC. CHEVROLET EQUIPMENT<8JF> THA 		8-97387-333-0 01 1 0808- ● ●
112 17.455 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL<E63> OUTER ROPE HOOKS<7MZ> CHEVROLET EQUIPMENT<8JF> THA 		8-97362-417-2 01 1 0503-0709 ●
112 17.455 PANEL; SIDE GATE
THAILAND EQUIPMENT<B03> REAR BODY DBL WALL CTR PULL<E63> OUTER ROPE HOOKS<7MZ> CHEVROLET EQUIPMENT<8JF> THA 		8-97362-417-2 01 1 0710-0807 ●
112 17.455 PANEL; SIDE GATE
THAILAND EQUIPMENT<B03> REAR BODY DBL WALL CTR PULL<E63> CHEVROLET EQUIPMENT<8JF> THA 		8-97362-417-2 01 1 0808- ●
112 17.455 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL<E63> OUTER ROPE HOOKS<7MZ> CHEVROLET EQUIPMENT<8JF> THA 		8-97362-418-2 01 1 0503-0709 ●
112 17.455 PANEL; SIDE GATE
THAILAND EQUIPMENT<B03> REAR BODY DBL WALL CTR PULL<E63> OUTER ROPE HOOKS<7MZ> CHEVROLET EQUIPMENT<8JF> THA 		8-97362-418-2 01 1 0710-0807 ●
112 17.455 PANEL; SIDE GATE
THAILAND EQUIPMENT<B03> REAR BODY DBL WALL CTR PULL<E63> CHEVROLET EQUIPMENT<8JF> THA 		8-97362-418-2 01 1 0808- ●
112 17.455 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL<E63> CHEVROLET EQUIPMENT<8JF> EXC. OVER FENDER<B74>,OUTER ROPE HOOKS<7MZ> THA 		8-97362-419-2 01 1 0503-0709 ● ●
112 17.455 PANEL; SIDE GATE
THAILAND EQUIPMENT<B03> REAR BODY DBL WALL CTR PULL<E63> CHEVROLET EQUIPMENT<8JF> EXC. OVER FENDER<B74>,OUTER ROPE HOOKS<7MZ> THA 		8-97362-419-2 01 1 0710-0807 ● ●
112 17.455 PANEL; SIDE GATE
THAILAND EQUIPMENT<B03> REAR BODY DBL WALL CTR PULL<E63> CHEVROLET EQUIPMENT<8JF> EXC. OVER FENDER<B74> THA 		8-97362-419-2 01 1 0808- ● ●
112 17.455 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL<E63> CHEVROLET EQUIPMENT<8JF> EXC. OVER FENDER<B74>,OUTER ROPE HOOKS<7MZ> THA 		8-97362-420-2 01 1 0503-0709 ● ●
112 17.455 PANEL; SIDE GATE
THAILAND EQUIPMENT<B03> REAR BODY DBL WALL CTR PULL<E63> CHEVROLET EQUIPMENT<8JF> EXC. OVER FENDER<B74>,OUTER ROPE HOOKS<7MZ> THA 		8-97362-420-2 01 1 0710-0807 ● ●
112 17.455 PANEL; SIDE GATE
THAILAND EQUIPMENT<B03> REAR BODY DBL WALL CTR PULL<E63> CHEVROLET EQUIPMENT<8JF> EXC. OVER FENDER<B74> THA 		8-97362-420-2 01 1 0808- ● ●
112 17.455 PANEL; SIDE GATE
OVER FENDER<B74> REAR BODY DBL WALL CTR PULL<E63> CHEVROLET EQUIPMENT<8JF> EXC. OUTER ROPE HOOKS<7MZ> THA 		8-97362-619-2 01 1 0503-0709 ● ●
112 17.455 PANEL; SIDE GATE
THAILAND EQUIPMENT<B03> OVER FENDER<B74> REAR BODY DBL WALL CTR PULL<E63> CHEVROLET EQUIPMENT<8JF> EXC. OUTER ROPE HOOKS<7MZ> THA 		8-97362-619-2 01 1 0710-0807 ● ●
112 17.455 PANEL; SIDE GATE
THAILAND EQUIPMENT<B03> OVER FENDER<B74> REAR BODY DBL WALL CTR PULL<E63> CHEVROLET EQUIPMENT<8JF> THA 		8-97362-619-2 01 1 0808- ● ●
112 17.455 PANEL; SIDE GATE
OVER FENDER<B74> REAR BODY DBL WALL CTR PULL<E63> CHEVROLET EQUIPMENT<8JF> EXC. OUTER ROPE HOOKS<7MZ> THA 		8-97362-620-2 01 1 0503-0709 ● ●
112 17.455 PANEL; SIDE GATE
THAILAND EQUIPMENT<B03> OVER FENDER<B74> REAR BODY DBL WALL CTR PULL<E63> CHEVROLET EQUIPMENT<8JF> EXC. OUTER ROPE HOOKS<7MZ> THA 		8-97362-620-2 01 1 0710-0807 ● ●
112 17.455 PANEL; SIDE GATE
THAILAND EQUIPMENT<B03> OVER FENDER<B74> REAR BODY DBL WALL CTR PULL<E63> CHEVROLET EQUIPMENT<8JF> THA 		8-97362-620-2 01 1 0808- ● ●
112 17.455 PANEL; SIDE GATE
THAILAND EQUIPMENT<B03> REAR BODY DBL WALL CTR PULL<E63> EXC. OVER FENDER<B74>,OUTER ROPE HOOKS<7MZ>,CHEVROLET EQUIPMENT<8JF> THA 		8-97387-302-1 01 1 0710-0807 ● ●
112 17.455 PANEL; SIDE GATE
THAILAND EQUIPMENT<B03> REAR BODY DBL WALL CTR PULL<E63> EXC. OVER FENDER<B74>,CHEVROLET EQUIPMENT<8JF> THA 		8-97387-302-1 01 1 0808- ● ●
112 17.455 PANEL; SIDE GATE
THAILAND EQUIPMENT<B03> REAR BODY DBL WALL CTR PULL<E63> EXC. OVER FENDER<B74>,OUTER ROPE HOOKS<7MZ>,CHEVROLET EQUIPMENT<8JF> THA 		8-97387-303-1 01 1 0710-0807 ● ●
112 17.455 PANEL; SIDE GATE
THAILAND EQUIPMENT<B03> REAR BODY DBL WALL CTR PULL<E63> EXC. OVER FENDER<B74>,CHEVROLET EQUIPMENT<8JF> THA 		8-97387-303-1 01 1 0808- ● ●
112 17.455 PANEL; SIDE GATE
THAILAND EQUIPMENT<B03> OVER FENDER<B74> REAR BODY DBL WALL CTR PULL<E63> EXC. OUTER ROPE HOOKS<7MZ>,CHEVROLET EQUIPMENT<8JF> THA 		8-97387-300-1 01 1 0710-0807 ● ●
112 17.455 PANEL; SIDE GATE
THAILAND EQUIPMENT<B03> OVER FENDER<B74> REAR BODY DBL WALL CTR PULL<E63> EXC. CHEVROLET EQUIPMENT<8JF> THA 		8-97387-300-1 01 1 0808- ● ●
112 17.455 PANEL; SIDE GATE
THAILAND EQUIPMENT<B03> OVER FENDER<B74> REAR BODY DBL WALL CTR PULL<E63> EXC. OUTER ROPE HOOKS<7MZ>,CHEVROLET EQUIPMENT<8JF> THA 		8-97387-301-1 01 1 0710-0807 ● ●
112 17.455 PANEL; SIDE GATE
THAILAND EQUIPMENT<B03> OVER FENDER<B74> REAR BODY DBL WALL CTR PULL<E63> EXC. CHEVROLET EQUIPMENT<8JF> THA 		8-97387-301-1 01 1 0808- ● ●
112 17.455 PANEL; SIDE GATE
OVER FENDER<B74> REAR BODY DBL WALL CTR PULL<E63> EXC. OUTER ROPE HOOKS<7MZ>,CHEVROLET EQUIPMENT<8JF> THA 		8-98098-356-0 01 1 0804-0807 ● ●
112 17.455 PANEL; SIDE GATE
OVER FENDER<B74> REAR BODY DBL WALL CTR PULL<E63> EXC. CHEVROLET EQUIPMENT<8JF> THA 		8-98098-356-0 01 1 0808- ● ●
112 17.455 PANEL; SIDE GATE
OVER FENDER<B74> REAR BODY DBL WALL CTR PULL<E63> EXC. OUTER ROPE HOOKS<7MZ>,CHEVROLET EQUIPMENT<8JF> THA 		8-98098-357-0 01 1 0804-0807 ● ●
112 17.455 PANEL; SIDE GATE
OVER FENDER<B74> REAR BODY DBL WALL CTR PULL<E63> EXC. CHEVROLET EQUIPMENT<8JF> THA 		8-98098-357-0 01 1 0808- ● ●
121 17.442 PANEL; SIDE INNER,RR BODY
THA 		8-97234-844-8 01 1 0404- ● ●
121 17.442 PANEL; SIDE INNER,RR BODY
THA 		8-97234-843-9 01 1 0404- ● ●
121 17.442 PANEL; SIDE INNER,RR BODY
THA 		8-97368-104-0 01 1 0404-0610 ●
121 17.442 PANEL; SIDE INNER,RR BODY
REAR BODY DBL WALL CTR PULL<E63> THA 		8-97368-104-0 01 1 0611- ●
121 17.442 PANEL; SIDE INNER,RR BODY
THA 		8-97236-324-4 01 1 0404-0610 ●
121 17.442 PANEL; SIDE INNER,RR BODY
REAR BODY DBL WALL CTR PULL<E63> THA 		8-97236-324-4 01 1 0611- ●
121 17.442 PANEL; SIDE INNER,RR BODY
THA 		8-93290-853-3 01 1 0404- ● ●
121 17.442 PANEL; SIDE INNER,RR BODY
THA 		8-93290-854-3 01 1 0404- ● ●
125 17.505 RECESS; FUEL FILLER NECK,RR BODY
THA 		8-97363-373-0 01 1 0404- ● ●
125 17.505 RECESS; FUEL FILLER NECK,RR BODY
THA 		8-97363-372-1 01 1 0404-0610 ●
125 17.505 RECESS; FUEL FILLER NECK,RR BODY
REAR BODY DBL WALL CTR PULL<E63> OUTER ROPE HOOKS<7MZ> THA 		8-97363-372-1 01 1 0611-0809 ●
125 17.505 RECESS; FUEL FILLER NECK,RR BODY
REAR BODY DBL WALL CTR PULL<E63> THA 		8-97363-372-1 01 1 0810- ●
125 17.505 RECESS; FUEL FILLER NECK,RR BODY
THA 		8-97363-374-1 01 1 0404- ● ●
126 17.507 RUBBER; STOPPER,FUEL FILLER LID
THA 		8-97166-112-0 02 1 0404-0610 ● ● ● ● ●
126 17.507 RUBBER; STOPPER,FUEL FILLER LID
THA 		8-97166-112-0 02 1 0611- ● ● ● ●
126 17.507 RUBBER; STOPPER,FUEL FILLER LID
REAR BODY DBL WALL CTR PULL<E63> THA 		8-97166-112-0 02 1 0611- ●
127 17.507 BOLT; FUEL FILLER LID
08.155 M6X16 		8-94479-534-0 02 1 0404-0610 ● ● ● ● ●
127 17.507 BOLT; FUEL FILLER LID
08.155 M6X16 		8-94479-534-0 02 1 0611-0612 ● ● ● ●
127 17.507 BOLT; FUEL FILLER LID
REAR BODY DBL WALL CTR PULL<E63> 08.155 M6X16 		8-94479-534-0 02 1 0611-0612 ●
127 17.507 BOLT; FUEL FILLER LID
M6X16 THA 		8-98056-287-0 02 1 0701- ● ● ● ●
127 17.507 BOLT; FUEL FILLER LID
REAR BODY DBL WALL CTR PULL<E63> M6X16 THA 		8-98056-287-0 02 1 0701- ●
129 17.505 LID ASM; FUEL FILLER,RR BODY
THA 		8-97364-059-0 01 1 0404- ● ●
129 17.505 LID ASM; FUEL FILLER,RR BODY
THA 		8-97364-058-0 01 1 0404-0610 ●
129 17.505 LID ASM; FUEL FILLER,RR BODY
REAR BODY DBL WALL CTR PULL<E63> THA 		8-97364-058-0 01 1 0611- ●
129 17.505 LID ASM; FUEL FILLER,RR BODY
THA 		8-97364-060-0 01 1 0404- ● ●
135 17.198 STRIKER; TAIL GATE,RR BODY
THA 		8-97235-401-4 01 1 0404-0709 ● ● ● ●
135 17.198 STRIKER; TAIL GATE,RR BODY
THA 		8-98050-334-0 01 1 0710- ● ● ● ●
135 17.198 STRIKER; TAIL GATE,RR BODY
THA 		8-97235-400-4 01 1 0404-0709 ● ● ● ●
135 17.198 STRIKER; TAIL GATE,RR BODY
THA 		8-98050-333-0 01 1 0710- ● ● ● ●
135 17.198 STRIKER; TAIL GATE,RR BODY
THA 		8-97249-565-3 01 1 0404-0610 ●
135 17.198 STRIKER; TAIL GATE,RR BODY
REAR BODY DBL WALL CTR PULL<E63> THA 		8-97249-565-3 01 1 0611-0611 ●
135 17.198 STRIKER; TAIL GATE,RR BODY
REAR BODY DBL WALL CTR PULL<E63> THA 		8-98050-673-0 01 1 0612- ●
135 17.198 STRIKER; TAIL GATE,RR BODY
THA 		8-97249-564-3 01 1 0404-0610 ●
135 17.198 STRIKER; TAIL GATE,RR BODY
REAR BODY DBL WALL CTR PULL<E63> THA 		8-97249-564-3 01 1 0611-0611 ●
135 17.198 STRIKER; TAIL GATE,RR BODY
REAR BODY DBL WALL CTR PULL<E63> THA 		8-98050-672-0 01 1 0612- ●
147 17.505 HOOK ASM; ROPE,FRT
THA 		8-97264-487-0 04 1 0404- ● ● ● ●
158 17.185 SCREW; STRIKER,TAIL GATE
02.664 M8X20 FLANGE 		0-28680-820-0 04 1 0404-0601 ● ● ● ●
158 17.185 SCREW; STRIKER,TAIL GATE
01.531 M8X20 FLANGE THA 		0-28650-820-0 04 1 0602- ● ● ● ●
158 17.185 SCREW; STRIKER,TAIL GATE
04.104 M8X22 THA 		8-94388-328-1 04 1 0404-0610 ●
158 17.185 SCREW; STRIKER,TAIL GATE
REAR BODY DBL WALL CTR PULL<E63> 04.104 M8X22 THA 		8-94388-328-1 04 1 0611-0611 ●
158 17.185 SCREW; STRIKER,TAIL GATE
REAR BODY DBL WALL CTR PULL<E63> 17.208 M8X22 THA 		8-98050-437-0 04 1 0612- ●
175 17.505 BOLT; SET,RR GATE HOOK
01.269 M8X16.5 THA 		1-09104-027-1 08 1 0404-0611 ● ● ● ●
175 17.505 BOLT; SET,RR GATE HOOK
17.400 M8X16.5 THA 		8-98058-001-0 08 1 0612- ● ● ● ●
188 17.208 PLATE; HINGE UPR,RR GATE
THA 		8-97329-277-1 AR 1 0404-0610 ● ● ● ● ●
188 17.208 PLATE; HINGE UPR,RR GATE
THA 		8-97329-277-1 AR 1 0611-0709 ● ● ● ●
188 17.208 PLATE; HINGE UPR,RR GATE
REAR BODY DBL WALL CTR PULL<E63> OUTER ROPE HOOKS<7MZ> THA 		8-97329-277-1 AR 1 0611-0709 ●
188 17.208 PLATE; HINGE UPR,RR GATE
BASE VEHICLE GRILLE<VWX>,BRIGHT RAD GRILLE<V22> THA 		8-97329-277-1 AR 1 0710-0809 ● ●
188 17.208 PLATE; HINGE UPR,RR GATE
REAR BODY DBL WALL CTR PULL<E63> OUTER ROPE HOOKS<7MZ> THA 		8-97329-277-1 AR 1 0710-0809 ●
188 17.208 PLATE; HINGE UPR,RR GATE
THA 		8-97329-277-1 AR 1 0710-0809 ● ●
188 17.208 PLATE; HINGE UPR,RR GATE
BASE VEHICLE GRILLE<VWX>,BRIGHT RAD GRILLE<V22> THA 		8-97329-277-1 AR 1 0810- ● ●
188 17.208 PLATE; HINGE UPR,RR GATE
REAR BODY DBL WALL CTR PULL<E63> THA 		8-97329-277-1 AR 1 0810- ●
188 17.208 PLATE; HINGE UPR,RR GATE
THA 		8-97329-277-1 AR 1 0810- ● ●
189 17.208 BOLT; HINGE,RR GATE
01.840 M10X35 W/LK&PL WASHER THA 		0-50141-035-0 02 1 0404-0601 ● ● ● ● ●
189 17.208 BOLT; HINGE,RR GATE
M10X35 W/LK&PL WASHER THA 		0-50641-035-0 02 1 0602-0610 ● ● ● ● ●
189 17.208 BOLT; HINGE,RR GATE
M10X35 W/LK&PL WASHER THA 		0-50641-035-0 02 1 0611- ● ● ● ●
189 17.208 BOLT; HINGE,RR GATE
REAR BODY DBL WALL CTR PULL<E63> M10X35 W/LK&PL WASHER THA 		0-50641-035-0 02 1 0611- ●
248 17.442 PATCH; CARGO RR
THA 		8-93332-582-3 01 1 0404- ● ●
248 17.442 PATCH; CARGO RR
THA 		8-93332-584-3 01 1 0404- ● ●
250 17.505 BOLT; STOPPER
04.104 (A) M8X22 THA 		8-94388-328-1 02 1 0404-0610 ● ● ● ● ●
250 17.505 BOLT; STOPPER
04.104 (A) M8X22 THA 		8-94388-328-1 02 1 0611-0611 ● ● ● ●
250 17.505 BOLT; STOPPER
REAR BODY DBL WALL CTR PULL<E63> OUTER ROPE HOOKS<7MZ> 04.104 (A) M8X22 THA 		8-94388-328-1 02 1 0611-0611 ●
250 17.505 BOLT; STOPPER
17.208 (A) M8X22 THA 		8-98050-437-0 02 1 0612-0709 ● ● ● ●
250 17.505 BOLT; STOPPER
REAR BODY DBL WALL CTR PULL<E63> OUTER ROPE HOOKS<7MZ> 17.208 (A) M8X22 THA 		8-98050-437-0 02 1 0612-0709 ●
250 17.505 BOLT; STOPPER
BASE VEHICLE GRILLE<VWX>,BRIGHT RAD GRILLE<V22> 17.208 (A) M8X22 THA 		8-98050-437-0 02 1 0710-0809 ● ●
250 17.505 BOLT; STOPPER
REAR BODY DBL WALL CTR PULL<E63> OUTER ROPE HOOKS<7MZ> 17.208 (A) M8X22 THA 		8-98050-437-0 02 1 0710-0809 ●
250 17.505 BOLT; STOPPER
17.208 (A) M8X22 THA 		8-98050-437-0 02 1 0710-0809 ● ●
250 17.505 BOLT; STOPPER
BASE VEHICLE GRILLE<VWX>,BRIGHT RAD GRILLE<V22> 17.208 (A) M8X22 THA 		8-98050-437-0 02 1 0810- ● ●
250 17.505 BOLT; STOPPER
REAR BODY DBL WALL CTR PULL<E63> 17.208 (A) M8X22 THA 		8-98050-437-0 02 1 0810- ●
250 17.505 BOLT; STOPPER
17.208 (A) M8X22 THA 		8-98050-437-0 02 1 0810- ● ●
250 17.505 BOLT; STOPPER
EXC. REAR STEP BUMPER<VF6>,REAR STEP BUMPER CHROME<V42> 08.077 (B) M6X18 		8-97071-681-0 02 1 0404-0510 ● ●
250 17.505 BOLT; STOPPER
08.077 (B) M6X18 		8-97071-681-0 02 1 0404-0510 ●
250 17.505 BOLT; STOPPER
EXC. REAR STEP BUMPER<VF6>,REAR STEP BUMPER CHROME<V42> 08.077 (B) M6X18 		8-97071-681-0 02 1 0511-0609 ● ● ● ●
250 17.505 BOLT; STOPPER
08.077 (B) M6X18 		8-97071-681-0 02 1 0511-0609 ●
250 17.505 BOLT; STOPPER
EXC. REAR STEP BUMPER<VF6>,REAR STEP BUMPER CHROME<V42> 08.077 (B) M6X18 		8-97071-681-0 02 1 0610-0610 ● ●
250 17.505 BOLT; STOPPER
08.077 (B) M6X18 		8-97071-681-0 02 1 0610-0610 ●
250 17.505 BOLT; STOPPER
EXC. REAR STEP BUMPER<VF6>,REAR STEP BUMPER CHROME<V42> 08.077 (B) M6X18 		8-97071-681-0 02 1 0611-0612 ● ●
250 17.505 BOLT; STOPPER
REAR BODY DBL WALL CTR PULL<E63> 08.077 (B) M6X18 		8-97071-681-0 02 1 0611-0612 ●
250 17.505 BOLT; STOPPER
EXC. REAR STEP BUMPER<VF6>,REAR STEP BUMPER CHROME<V42> (B) M6X18 THA 		8-98056-280-0 02 1 0701- ● ●
250 17.505 BOLT; STOPPER
REAR BODY DBL WALL CTR PULL<E63> (B) M6X18 THA 		8-98056-280-0 02 1 0701- ●
256 17.505 SPRING; LID,FUEL FILLER 8-97251-180-1 01 1 0404-0610 ● ● ● ● ●
256 17.505 SPRING; LID,FUEL FILLER 8-97251-180-1 01 1 0611- ● ● ● ●
256 17.505 SPRING; LID,FUEL FILLER
REAR BODY DBL WALL CTR PULL<E63> 		8-97251-180-1 01 1 0611- ●
279 17.505 SPACER
THA 		8-97357-403-0 02 1 0404-0610 ● ● ● ● ●
279 17.505 SPACER
THA 		8-97357-403-0 02 1 0611- ● ● ● ●
279 17.505 SPACER
REAR BODY DBL WALL CTR PULL<E63> THA 		8-97357-403-0 02 1 0611- ●
292 17.442 EXTENSION; RR BODY
(A) THA 		8-97236-383-7 02 1 0404- ● ● ● ●
292 17.442 EXTENSION; RR BODY
(B) THA 		8-97236-371-9 01 1 0404-0504 ● ●
292 17.442 EXTENSION; RR BODY
(B) THA 		8-97375-759-0 01 1 0505- ● ●
292 17.442 EXTENSION; RR BODY
(B) THA 		8-97236-368-9 01 1 0404-0504 ● ●
292 17.442 EXTENSION; RR BODY
(B) THA 		8-97375-758-0 01 1 0505- ● ●
292 17.442 EXTENSION; RR BODY
(C) THA 		8-97236-680-6 02 1 0404-0504 ●
292 17.442 EXTENSION; RR BODY
(C) THA 		8-97375-757-0 02 1 0505-0610 ●
292 17.442 EXTENSION; RR BODY
REAR BODY DBL WALL CTR PULL<E63> (C) THA 		8-97375-757-0 02 1 0611- ●
292 17.442 EXTENSION; RR BODY
(D) THA 		8-97236-370-6 01 1 0404-0504 ●
292 17.442 EXTENSION; RR BODY
(D) THA 		8-97375-756-0 01 1 0505-0610 ●
292 17.442 EXTENSION; RR BODY
REAR BODY DBL WALL CTR PULL<E63> (D) THA 		8-97375-756-0 01 1 0611- ●
292 17.442 EXTENSION; RR BODY
(E) THA 		8-97236-382-5 01 1 0404-0610 ●
292 17.442 EXTENSION; RR BODY
REAR BODY DBL WALL CTR PULL<E63> (E) THA 		8-97236-382-5 01 1 0611- ●
292 17.442 EXTENSION; RR BODY
(D) THA 		8-97236-367-6 01 1 0404-0504 ●
292 17.442 EXTENSION; RR BODY
(D) THA 		8-97375-755-0 01 1 0505-0610 ●
292 17.442 EXTENSION; RR BODY
REAR BODY DBL WALL CTR PULL<E63> (D) THA 		8-97375-755-0 01 1 0611- ●
292 17.442 EXTENSION; RR BODY
(E) THA 		8-97308-978-4 01 1 0404-0610 ●
292 17.442 EXTENSION; RR BODY
REAR BODY DBL WALL CTR PULL<E63> (E) THA 		8-97308-978-4 01 1 0611- ●
292 17.442 EXTENSION; RR BODY
(F) THA 		8-93291-076-3 01 1 0404- ● ●
292 17.442 EXTENSION; RR BODY
(F) THA 		8-93291-077-3 01 1 0404- ● ●
293 17.442 REINFORCEMENT; RR BODY
EXC. OVER FENDER<B74> (B) THA 		8-97349-439-0 AR 1 0810- ●
293 17.442 REINFORCEMENT; RR BODY
(C) THA 		8-97236-750-6 01 1 0404- ● ● ● ●
293 17.442 REINFORCEMENT; RR BODY
EXC. OVER FENDER<B74> (B) THA 		8-97349-440-0 AR 1 0810- ●
293 17.442 REINFORCEMENT; RR BODY
(C) THA 		8-97236-748-6 01 1 0404- ● ● ● ●
293 17.442 REINFORCEMENT; RR BODY
(B) THA 		8-97349-440-0 01 1 0404- ● ●
293 17.442 REINFORCEMENT; RR BODY
(B) THA 		8-97349-439-0 01 1 0404- ● ●
293 17.442 REINFORCEMENT; RR BODY
(C) THA 		8-97236-527-5 01 1 0404-0610 ●
293 17.442 REINFORCEMENT; RR BODY
REAR BODY DBL WALL CTR PULL<E63> (C) THA 		8-97236-527-5 01 1 0611- ●
293 17.442 REINFORCEMENT; RR BODY
(A) THA 		8-97260-383-2 01 1 0404-0610 ●
293 17.442 REINFORCEMENT; RR BODY
REAR BODY DBL WALL CTR PULL<E63> OUTER ROPE HOOKS<7MZ> (A) THA 		8-97260-383-2 01 1 0611-0809 ●
293 17.442 REINFORCEMENT; RR BODY
REAR BODY DBL WALL CTR PULL<E63> (A) THA 		8-97260-383-2 01 1 0810- ●
293 17.442 REINFORCEMENT; RR BODY
(C) THA 		8-97236-525-5 01 1 0404-0610 ●
293 17.442 REINFORCEMENT; RR BODY
REAR BODY DBL WALL CTR PULL<E63> (C) THA 		8-97236-525-5 01 1 0611- ●
293 17.442 REINFORCEMENT; RR BODY
(A) THA 		8-97251-646-2 01 1 0404-0610 ●
293 17.442 REINFORCEMENT; RR BODY
REAR BODY DBL WALL CTR PULL<E63> OUTER ROPE HOOKS<7MZ> (A) THA 		8-97251-646-2 01 1 0611-0809 ●
293 17.442 REINFORCEMENT; RR BODY
REAR BODY DBL WALL CTR PULL<E63> (A) THA 		8-97251-646-2 01 1 0810- ●
294 17.445 PANEL; OUTER,RR BODY
THA 		8-97362-428-0 01 1 0404-0610 ● ● ● ● ●
294 17.445 PANEL; OUTER,RR BODY
THA 		8-97362-428-0 01 1 0611- ● ● ● ●
294 17.445 PANEL; OUTER,RR BODY
REAR BODY DBL WALL CTR PULL<E63> THA 		8-97362-428-0 01 1 0611- ●
294 17.445 PANEL; OUTER,RR BODY
THA 		8-97362-427-0 01 1 0404-0610 ● ● ● ● ●
294 17.445 PANEL; OUTER,RR BODY
THA 		8-97362-427-0 01 1 0611- ● ● ● ●
294 17.445 PANEL; OUTER,RR BODY
REAR BODY DBL WALL CTR PULL<E63> THA 		8-97362-427-0 01 1 0611- ●
295 17.505 BRACKET; FILLER
17.442 (B) THA 		8-97305-529-1 02 1 0404-0610 ● ● ● ● ●
295 17.505 BRACKET; FILLER
17.442 (B) THA 		8-97305-529-1 02 1 0611- ● ● ● ●
295 17.505 BRACKET; FILLER
REAR BODY DBL WALL CTR PULL<E63> 17.442 (B) THA 		8-97305-529-1 02 1 0611- ●
295 17.505 BRACKET; FILLER
(A) THA 		8-97236-732-3 02 1 0404-0610 ● ● ●
295 17.505 BRACKET; FILLER
(A) THA 		8-97236-732-3 02 1 0611- ● ●
295 17.505 BRACKET; FILLER
REAR BODY DBL WALL CTR PULL<E63> (A) THA 		8-97236-732-3 02 1 0611- ●
296 17.442 BRACKET; RR BODY
(A) THA 		8-97251-631-4 01 1 0404-0610 ● ● ● ● ●
296 17.442 BRACKET; RR BODY
(A) THA 		8-97251-631-4 01 1 0611- ● ● ● ●
296 17.442 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL<E63> (A) THA 		8-97251-631-4 01 1 0611- ●
296 17.442 BRACKET; RR BODY
(A) THA 		8-97251-626-4 01 1 0404-0610 ● ● ● ● ●
296 17.442 BRACKET; RR BODY
(A) THA 		8-97251-626-4 01 1 0611- ● ● ● ●
296 17.442 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL<E63> (A) THA 		8-97251-626-4 01 1 0611- ●
296 17.442 BRACKET; RR BODY
(B) THA 		8-97263-908-2 01 1 0404- ● ● ● ●
296 17.442 BRACKET; RR BODY
(B) THA 		8-97263-907-2 01 1 0404- ● ● ● ●
300 17.204 COLLAR; GATE HINGE
THA 		8-97324-512-3 02 1 0404-0610 ● ● ● ● ●
300 17.204 COLLAR; GATE HINGE
THA 		8-97324-512-3 02 1 0611-0611 ● ● ● ●
300 17.204 COLLAR; GATE HINGE
REAR BODY DBL WALL CTR PULL<E63> THA 		8-97324-512-3 02 1 0611-0611 ●
300 17.204 COLLAR; GATE HINGE
THA 		8-98057-114-0 02 1 0612- ● ● ● ●
300 17.204 COLLAR; GATE HINGE
REAR BODY DBL WALL CTR PULL<E63> THA 		8-98057-114-0 02 1 0612- ●
301 17.204 SUPPORT; TAIL GATE
THA 		8-97289-536-0 01 1 0404-0610 ● ● ● ● ●
301 17.204 SUPPORT; TAIL GATE
THA 		8-97289-536-0 01 1 0611-0611 ● ● ● ●
301 17.204 SUPPORT; TAIL GATE
REAR BODY DBL WALL CTR PULL<E63> OUTER ROPE HOOKS<7MZ> THA 		8-97289-536-0 01 1 0611-0611 ●
301 17.204 SUPPORT; TAIL GATE
THA 		8-98053-899-0 01 1 0612-0709 ● ● ● ●
301 17.204 SUPPORT; TAIL GATE
REAR BODY DBL WALL CTR PULL<E63> OUTER ROPE HOOKS<7MZ> THA 		8-98053-899-0 01 1 0612-0709 ●
301 17.204 SUPPORT; TAIL GATE
BASE VEHICLE GRILLE<VWX>,BRIGHT RAD GRILLE<V22> THA 		8-98053-899-0 01 1 0710-0809 ● ●
301 17.204 SUPPORT; TAIL GATE
REAR BODY DBL WALL CTR PULL<E63> OUTER ROPE HOOKS<7MZ> THA 		8-98053-899-0 01 1 0710-0809 ●
301 17.204 SUPPORT; TAIL GATE
THA 		8-98053-899-0 01 1 0710-0809 ● ●
301 17.204 SUPPORT; TAIL GATE
BASE VEHICLE GRILLE<VWX>,BRIGHT RAD GRILLE<V22> THA 		8-98053-899-0 01 1 0810- ● ●
301 17.204 SUPPORT; TAIL GATE
REAR BODY DBL WALL CTR PULL<E63> THA 		8-98053-899-0 01 1 0810- ●
301 17.204 SUPPORT; TAIL GATE
THA 		8-98053-899-0 01 1 0810- ● ●
çizim 118201
291 291 290 290 54 72
BalonParca AdiParca NoAdetTipApplied Date A B C D E
54 17.208 SCREW; TAIL GATE LOCK,RR BODY
04.104 (B) M8X22 THA 		8-94388-328-1 02 1 0404-0610 ● ● ● ● ●
54 17.208 SCREW; TAIL GATE LOCK,RR BODY
04.104 (B) M8X22 THA 		8-94388-328-1 02 1 0611-0611 ● ● ● ●
54 17.208 SCREW; TAIL GATE LOCK,RR BODY
REAR BODY DBL WALL CTR PULL<E63> 04.104 (B) M8X22 THA 		8-94388-328-1 02 1 0611-0611 ●
54 17.208 SCREW; TAIL GATE LOCK,RR BODY
(B) M8X22 THA 		8-98050-437-0 02 1 0612- ● ● ● ●
54 17.208 SCREW; TAIL GATE LOCK,RR BODY
REAR BODY DBL WALL CTR PULL<E63> (B) M8X22 THA 		8-98050-437-0 02 1 0612- ●
54 17.208 SCREW; TAIL GATE LOCK,RR BODY
(A) M8X20 		8-94446-355-1 04 1 0404-0709 ● ● ● ●
54 17.208 SCREW; TAIL GATE LOCK,RR BODY
(A) M8X20 THA 		8-97247-699-0 04 1 0710- ● ● ● ●
72 17.490 PIN; HINGE,CENTER POST 8-97319-308-0 04 1 0404-0701 ● ● ● ●
72 17.490 PIN; HINGE,CENTER POST
THA 		8-98057-864-0 04 1 0702- ● ● ● ●
290 17.400 BRACE; RR BODY
(B) THA 		8-97357-449-0 01 1 0404-0610 ● ● ● ● ●
290 17.400 BRACE; RR BODY
(B) THA 		8-97357-449-0 01 1 0611- ● ● ● ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL<E63> (B) THA 		8-97357-449-0 01 1 0611- ●
290 17.400 BRACE; RR BODY
(B) THA 		8-97357-450-0 01 1 0404-0610 ● ● ● ● ●
290 17.400 BRACE; RR BODY
(B) THA 		8-97357-450-0 01 1 0611- ● ● ● ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL<E63> (B) THA 		8-97357-450-0 01 1 0611- ●
290 17.400 BRACE; RR BODY
(A) THA 		8-97357-446-0 01 1 0404-0609 ● ● ●
290 17.400 BRACE; RR BODY
(A) THA 		8-98027-495-0 01 1 0610-0610 ● ● ●
290 17.400 BRACE; RR BODY
(A) THA 		8-98027-495-0 01 1 0611- ● ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL<E63> (A) THA 		8-98027-495-0 01 1 0611- ●
290 17.400 BRACE; RR BODY
(A) THA 		8-97357-445-0 01 1 0404-0609 ● ● ●
290 17.400 BRACE; RR BODY
(A) THA 		8-98027-494-0 01 1 0610-0610 ● ● ●
290 17.400 BRACE; RR BODY
(A) THA 		8-98027-494-0 01 1 0611- ● ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL<E63> (A) THA 		8-98027-494-0 01 1 0611- ●
291 17.400 BOLT; RR BODY
02.559 M8X25 FLANGE 		0-28680-825-0 04 1 0404-0508 ● ● ●
291 17.400 BOLT; RR BODY
06.216 M8X25 FLANGE THA 		0-28650-825-0 04 1 0509-0610 ● ● ●
291 17.400 BOLT; RR BODY
06.216 M8X25 FLANGE THA 		0-28650-825-0 04 1 0611- ● ●
291 17.400 BOLT; RR BODY
REAR BODY DBL WALL CTR PULL<E63> 06.216 M8X25 FLANGE THA 		0-28650-825-0 04 1 0611- ●
291 17.400 BOLT; RR BODY
02.559 M8X25 FLANGE 		0-28680-825-0 02 1 0404-0508 ● ●
291 17.400 BOLT; RR BODY
06.216 M8X25 FLANGE THA 		0-28650-825-0 02 1 0509- ● ●
çizim 118205
169 188 45 157 112 300 293 45 7 189 279 295 55 293 1 7 55 292 294 295 292 296 55 250 121 7 135 301 158 135 296 55 158 292 121 292 55 293 157 293 294 295 292 126 127 292 55 125 295 256 112 129
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 17.185 GATE ASM; RR
BRIGHT RAD GRILLE<V22> THA 		8-98041-103-0 01 1 0710- ● ●
1 17.185 GATE ASM; RR
THA 		8-98041-103-0 01 1 0710- ● ●
1 17.185 GATE ASM; RR
THA 		8-97236-657-5 01 1 0404-0709 ● ● ● ●
1 17.185 GATE ASM; RR
BASE VEHICLE GRILLE<VWX> THA 		8-98041-101-0 01 1 0710- ● ●
1 17.185 GATE ASM; RR
THA 		8-97236-656-4 01 1 0404-0610 ●
1 17.185 GATE ASM; RR
REAR BODY DBL WALL CTR PULL<E63> OUTER ROPE HOOKS<7MZ> THA 		8-97236-656-4 01 1 0611-0809 ●
1 17.185 GATE ASM; RR
REAR BODY DBL WALL CTR PULL<E63> THA 		8-97236-656-4 01 1 0810- ●
7 17.208 HINGE ASM; RR GATE
THA 		8-97360-602-0 01 1 0404-0610 ● ● ● ● ●
7 17.208 HINGE ASM; RR GATE
THA 		8-97360-602-0 01 1 0611-0611 ● ● ● ●
7 17.208 HINGE ASM; RR GATE
REAR BODY DBL WALL CTR PULL<E63> OUTER ROPE HOOKS<7MZ> THA 		8-97360-602-0 01 1 0611-0611 ●
7 17.208 HINGE ASM; RR GATE
THA 		8-98057-098-0 01 1 0612-0709 ● ● ● ●
7 17.208 HINGE ASM; RR GATE
REAR BODY DBL WALL CTR PULL<E63> OUTER ROPE HOOKS<7MZ> THA 		8-98057-098-0 01 1 0612-0709 ●
7 17.208 HINGE ASM; RR GATE
BASE VEHICLE GRILLE<VWX>,BRIGHT RAD GRILLE<V22> THA 		8-98057-098-0 01 1 0710-0809 ● ●
7 17.208 HINGE ASM; RR GATE
REAR BODY DBL WALL CTR PULL<E63> OUTER ROPE HOOKS<7MZ> THA 		8-98057-098-0 01 1 0710-0809 ●
7 17.208 HINGE ASM; RR GATE
THA 		8-98057-098-0 01 1 0710-0809 ● ●
7 17.208 HINGE ASM; RR GATE
BASE VEHICLE GRILLE<VWX>,BRIGHT RAD GRILLE<V22> THA 		8-98057-098-0 01 1 0810- ● ●
7 17.208 HINGE ASM; RR GATE
REAR BODY DBL WALL CTR PULL<E63> THA 		8-98057-098-0 01 1 0810- ●
7 17.208 HINGE ASM; RR GATE
THA 		8-98057-098-0 01 1 0810- ● ●
7 17.208 HINGE ASM; RR GATE
THA 		8-97360-600-0 01 1 0404-0610 ● ● ● ● ●
7 17.208 HINGE ASM; RR GATE
THA 		8-97360-600-0 01 1 0611-0611 ● ● ● ●
7 17.208 HINGE ASM; RR GATE
REAR BODY DBL WALL CTR PULL<E63> OUTER ROPE HOOKS<7MZ> THA 		8-97360-600-0 01 1 0611-0611 ●
7 17.208 HINGE ASM; RR GATE
THA 		8-98057-097-0 01 1 0612-0709 ● ● ● ●
7 17.208 HINGE ASM; RR GATE
REAR BODY DBL WALL CTR PULL<E63> OUTER ROPE HOOKS<7MZ> THA 		8-98057-097-0 01 1 0612-0709 ●
7 17.208 HINGE ASM; RR GATE
BASE VEHICLE GRILLE<VWX>,BRIGHT RAD GRILLE<V22> THA 		8-98057-097-0 01 1 0710-0809 ● ●
7 17.208 HINGE ASM; RR GATE
REAR BODY DBL WALL CTR PULL<E63> OUTER ROPE HOOKS<7MZ> THA 		8-98057-097-0 01 1 0710-0809 ●
7 17.208 HINGE ASM; RR GATE
THA 		8-98057-097-0 01 1 0710-0809 ● ●
7 17.208 HINGE ASM; RR GATE
BASE VEHICLE GRILLE<VWX>,BRIGHT RAD GRILLE<V22> THA 		8-98057-097-0 01 1 0810- ● ●
7 17.208 HINGE ASM; RR GATE
REAR BODY DBL WALL CTR PULL<E63> THA 		8-98057-097-0 01 1 0810- ●
7 17.208 HINGE ASM; RR GATE
THA 		8-98057-097-0 01 1 0810- ● ●
45 17.208 BOLT; TAIL GATE TO RR BODY
01.269 M8X16.5 THA 		1-09104-027-1 06 1 0404-0610 ● ● ● ● ●
45 17.208 BOLT; TAIL GATE TO RR BODY
01.269 M8X16.5 THA 		1-09104-027-1 06 1 0611-0611 ● ● ● ●
45 17.208 BOLT; TAIL GATE TO RR BODY
REAR BODY DBL WALL CTR PULL<E63> OUTER ROPE HOOKS<7MZ> 01.269 M8X16.5 THA 		1-09104-027-1 06 1 0611-0611 ●
45 17.208 BOLT; TAIL GATE TO RR BODY
17.400 M8X16.5 THA 		8-98058-001-0 06 1 0612-0709 ● ● ● ●
45 17.208 BOLT; TAIL GATE TO RR BODY
REAR BODY DBL WALL CTR PULL<E63> OUTER ROPE HOOKS<7MZ> 17.400 M8X16.5 THA 		8-98058-001-0 06 1 0612-0709 ●
45 17.208 BOLT; TAIL GATE TO RR BODY
BASE VEHICLE GRILLE<VWX>,BRIGHT RAD GRILLE<V22> 17.400 M8X16.5 THA 		8-98058-001-0 06 1 0710-0809 ● ●
45 17.208 BOLT; TAIL GATE TO RR BODY
REAR BODY DBL WALL CTR PULL<E63> OUTER ROPE HOOKS<7MZ> 17.400 M8X16.5 THA 		8-98058-001-0 06 1 0710-0809 ●
45 17.208 BOLT; TAIL GATE TO RR BODY
17.400 M8X16.5 THA 		8-98058-001-0 06 1 0710-0809 ● ●
45 17.208 BOLT; TAIL GATE TO RR BODY
BASE VEHICLE GRILLE<VWX>,BRIGHT RAD GRILLE<V22> 17.400 M8X16.5 THA 		8-98058-001-0 06 1 0810- ● ●
45 17.208 BOLT; TAIL GATE TO RR BODY
REAR BODY DBL WALL CTR PULL<E63> 17.400 M8X16.5 THA 		8-98058-001-0 06 1 0810- ●
45 17.208 BOLT; TAIL GATE TO RR BODY
17.400 M8X16.5 THA 		8-98058-001-0 06 1 0810- ● ●
55 17.505 PANEL; RR CORNER
(C) THA 		8-97362-425-0 01 1 0404-0610 ● ● ● ● ●
55 17.505 PANEL; RR CORNER
(C) THA 		8-97362-425-0 01 1 0611- ● ● ● ●
55 17.505 PANEL; RR CORNER
REAR BODY DBL WALL CTR PULL<E63> (C) THA 		8-97362-425-0 01 1 0611- ●
55 17.505 PANEL; RR CORNER
(C) THA 		8-97362-424-0 01 1 0404-0610 ● ● ● ● ●
55 17.505 PANEL; RR CORNER
(C) THA 		8-97362-424-0 01 1 0611- ● ● ● ●
55 17.505 PANEL; RR CORNER
REAR BODY DBL WALL CTR PULL<E63> (C) THA 		8-97362-424-0 01 1 0611- ●
55 17.505 PANEL; RR CORNER
(B) THA 		8-97362-209-1 01 1 0404- ● ● ● ●
55 17.505 PANEL; RR CORNER
(B) THA 		8-97362-208-1 01 1 0404- ● ● ● ●
55 17.505 PANEL; RR CORNER
(A) THA 		8-97236-629-6 01 1 0404- ● ●
55 17.505 PANEL; RR CORNER
(A) THA 		8-97236-320-6 01 1 0404- ● ●
55 17.505 PANEL; RR CORNER
(A) THA 		8-97236-628-5 01 1 0404-0610 ●
55 17.505 PANEL; RR CORNER
REAR BODY DBL WALL CTR PULL<E63> OUTER ROPE HOOKS<7MZ> (A) THA 		8-97236-628-5 01 1 0611-0809 ●
55 17.505 PANEL; RR CORNER
REAR BODY DBL WALL CTR PULL<E63> (A) THA 		8-97236-628-5 01 1 0810- ●
55 17.505 PANEL; RR CORNER
(B) THA 		8-97362-211-1 01 1 0404-0610 ●
55 17.505 PANEL; RR CORNER
REAR BODY DBL WALL CTR PULL<E63> (B) THA 		8-97362-211-1 01 1 0611- ●
55 17.505 PANEL; RR CORNER
(A) THA 		8-97236-319-5 01 1 0404-0610 ●
55 17.505 PANEL; RR CORNER
REAR BODY DBL WALL CTR PULL<E63> OUTER ROPE HOOKS<7MZ> (A) THA 		8-97236-319-5 01 1 0611-0809 ●
55 17.505 PANEL; RR CORNER
REAR BODY DBL WALL CTR PULL<E63> (A) THA 		8-97236-319-5 01 1 0810- ●
55 17.505 PANEL; RR CORNER
(B) THA 		8-97362-210-1 01 1 0404-0610 ●
55 17.505 PANEL; RR CORNER
REAR BODY DBL WALL CTR PULL<E63> (B) THA 		8-97362-210-1 01 1 0611- ●
55 17.505 PANEL; RR CORNER
(A) THA 		8-93293-139-2 01 1 0404- ● ●
55 17.505 PANEL; RR CORNER
(A) THA 		8-93293-138-2 01 1 0404- ● ●
112 17.455 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL<E63> EXC. OUTER ROPE HOOKS<7MZ>,CHEVROLET EQUIPMENT<8JF> THA 		8-97356-542-0 01 1 0404-0609 ● ●
112 17.455 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL<E63> EXC. OUTER ROPE HOOKS<7MZ>,CHEVROLET EQUIPMENT<8JF> THA 		8-97356-541-0 01 1 0404-0609 ● ●
112 17.455 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL<E63> EXC. OVER FENDER<B74>,OUTER ROPE HOOKS<7MZ>,CHEVROLET EQUIPMENT<8JF> THA 		8-93299-792-3 01 1 0404-0609 ● ●
112 17.455 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL<E63> EXC. OVER FENDER<B74>,OUTER ROPE HOOKS<7MZ>,CHEVROLET EQUIPMENT<8JF> THA 		8-93299-793-5 01 1 0404-0609 ● ●
112 17.455 PANEL; SIDE GATE
OVER FENDER<B74> REAR BODY DBL WALL CTR PULL<E63> EXC. OUTER ROPE HOOKS<7MZ>,CHEVROLET EQUIPMENT<8JF> THA 		8-93327-642-3 01 1 0404-0609 ● ●
112 17.455 PANEL; SIDE GATE
OVER FENDER<B74> REAR BODY DBL WALL CTR PULL<E63> EXC. OUTER ROPE HOOKS<7MZ>,CHEVROLET EQUIPMENT<8JF> THA 		8-93333-734-3 01 1 0404-0609 ● ●
112 17.455 PANEL; SIDE GATE
OVER FENDER<B74> REAR BODY DBL WALL CTR PULL<E63> EXC. OUTER ROPE HOOKS<7MZ>,CHEVROLET EQUIPMENT<8JF> THA 		8-93333-744-5 01 1 0404-0609 ● ●
112 17.455 PANEL; SIDE GATE
OVER FENDER<B74> REAR BODY DBL WALL CTR PULL<E63> OUTER ROPE HOOKS<7MZ> EXC. CHEVROLET EQUIPMENT<8JF> THA 		8-97236-307-2 01 1 0404-0807 ●
112 17.455 PANEL; SIDE GATE
OVER FENDER<B74> REAR BODY DBL WALL CTR PULL<E63> EXC. CHEVROLET EQUIPMENT<8JF> THA 		8-97236-307-2 01 1 0808- ●
112 17.455 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL<E63> OUTER ROPE HOOKS<7MZ> EXC. CHEVROLET EQUIPMENT<8JF> THA 		8-97236-313-6 01 1 0404-0807 ●
112 17.455 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL<E63> EXC. CHEVROLET EQUIPMENT<8JF> THA 		8-97236-313-6 01 1 0808- ●
112 17.455 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL<E63> OUTER ROPE HOOKS<7MZ> EXC. CHEVROLET EQUIPMENT<8JF> THA 		8-97236-617-6 01 1 0404-0404 ●
112 17.455 PANEL; SIDE GATE
OVER FENDER<B74> REAR BODY DBL WALL CTR PULL<E63> EXC. OUTER ROPE HOOKS<7MZ>,CHEVROLET EQUIPMENT<8JF> THA 		8-97356-542-0 01 1 0404-0609 ● ●
112 17.455 PANEL; SIDE GATE
OVER FENDER<B74> REAR BODY DBL WALL CTR PULL<E63> EXC. OUTER ROPE HOOKS<7MZ>,CHEVROLET EQUIPMENT<8JF> THA 		8-97356-541-0 01 1 0404-0609 ● ●
112 17.455 PANEL; SIDE GATE
OVER FENDER<B74> REAR BODY DBL WALL CTR PULL<E63> EXC. OUTER ROPE HOOKS<7MZ>,CHEVROLET EQUIPMENT<8JF> THA 		8-97360-566-0 01 1 0404-0609 ● ●
112 17.455 PANEL; SIDE GATE
OVER FENDER<B74> REAR BODY DBL WALL CTR PULL<E63> EXC. OUTER ROPE HOOKS<7MZ>,CHEVROLET EQUIPMENT<8JF> THA 		8-97360-567-0 01 1 0404-0609 ● ●
112 17.455 PANEL; SIDE GATE
THAILAND EQUIPMENT<B03> REAR BODY DBL WALL CTR PULL<E63> EXC. OUTER ROPE HOOKS<7MZ>,CHEVROLET EQUIPMENT<8JF> THA 		8-97360-569-0 01 1 0404-0609 ● ●
112 17.455 PANEL; SIDE GATE
THAILAND EQUIPMENT<B03> REAR BODY DBL WALL CTR PULL<E63> EXC. OUTER ROPE HOOKS<7MZ>,CHEVROLET EQUIPMENT<8JF> THA 		8-97360-570-0 01 1 0404-0609 ● ●
112 17.455 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL<E63> OUTER ROPE HOOKS<7MZ> CHEVROLET EQUIPMENT<8JF> THA 		8-97362-417-2 01 1 0404-0502 ●
112 17.455 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL<E63> OUTER ROPE HOOKS<7MZ> CHEVROLET EQUIPMENT<8JF> THA 		8-97362-418-2 01 1 0404-0502 ●
112 17.455 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL<E63> CHEVROLET EQUIPMENT<8JF> EXC. OVER FENDER<B74>,OUTER ROPE HOOKS<7MZ> THA 		8-97362-419-2 01 1 0404-0502 ● ●
112 17.455 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL<E63> CHEVROLET EQUIPMENT<8JF> EXC. OVER FENDER<B74>,OUTER ROPE HOOKS<7MZ> THA 		8-97362-420-2 01 1 0404-0502 ● ●
112 17.455 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL<E63> CHEVROLET EQUIPMENT<8JF> EXC. OVER FENDER<B74>,OUTER ROPE HOOKS<7MZ> THA 		8-97362-421-3 01 1 0404-0807 ● ●
112 17.455 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL<E63> CHEVROLET EQUIPMENT<8JF> EXC. OVER FENDER<B74> THA 		8-97362-421-3 01 1 0808- ● ●
112 17.455 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL<E63> CHEVROLET EQUIPMENT<8JF> EXC. OVER FENDER<B74>,OUTER ROPE HOOKS<7MZ> THA 		8-97362-422-3 01 1 0404-0807 ● ●
112 17.455 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL<E63> CHEVROLET EQUIPMENT<8JF> EXC. OVER FENDER<B74> THA 		8-97362-422-3 01 1 0808- ● ●
112 17.455 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL<E63> OUTER ROPE HOOKS<7MZ> CHEVROLET EQUIPMENT<8JF> THA 		8-97362-417-2 01 1 0404-0807 ●
112 17.455 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL<E63> CHEVROLET EQUIPMENT<8JF> THA 		8-97362-417-2 01 1 0808- ●
112 17.455 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL<E63> OUTER ROPE HOOKS<7MZ> CHEVROLET EQUIPMENT<8JF> THA 		8-97362-418-2 01 1 0404-0807 ●
112 17.455 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL<E63> CHEVROLET EQUIPMENT<8JF> THA 		8-97362-418-2 01 1 0808- ●
112 17.455 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL<E63> CHEVROLET EQUIPMENT<8JF> EXC. OUTER ROPE HOOKS<7MZ> THA 		8-97362-419-2 01 1 0404-0405 ● ●
112 17.455 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL<E63> CHEVROLET EQUIPMENT<8JF> EXC. OVER FENDER<B74>,OUTER ROPE HOOKS<7MZ> THA 		8-97362-419-2 01 1 0406-0709 ● ●
112 17.455 PANEL; SIDE GATE
THAILAND EQUIPMENT<B03> REAR BODY DBL WALL CTR PULL<E63> CHEVROLET EQUIPMENT<8JF> EXC. OVER FENDER<B74>,OUTER ROPE HOOKS<7MZ> THA 		8-97362-419-2 01 1 0710-0807 ● ●
112 17.455 PANEL; SIDE GATE
THAILAND EQUIPMENT<B03> REAR BODY DBL WALL CTR PULL<E63> CHEVROLET EQUIPMENT<8JF> EXC. OVER FENDER<B74> THA 		8-97362-419-2 01 1 0808- ● ●
112 17.455 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL<E63> CHEVROLET EQUIPMENT<8JF> EXC. OUTER ROPE HOOKS<7MZ> THA 		8-97362-420-2 01 1 0404-0405 ● ●
112 17.455 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL<E63> CHEVROLET EQUIPMENT<8JF> EXC. OVER FENDER<B74>,OUTER ROPE HOOKS<7MZ> THA 		8-97362-420-2 01 1 0406-0709 ● ●
112 17.455 PANEL; SIDE GATE
THAILAND EQUIPMENT<B03> REAR BODY DBL WALL CTR PULL<E63> CHEVROLET EQUIPMENT<8JF> EXC. OVER FENDER<B74>,OUTER ROPE HOOKS<7MZ> THA 		8-97362-420-2 01 1 0710-0807 ● ●
112 17.455 PANEL; SIDE GATE
THAILAND EQUIPMENT<B03> REAR BODY DBL WALL CTR PULL<E63> CHEVROLET EQUIPMENT<8JF> EXC. OVER FENDER<B74> THA 		8-97362-420-2 01 1 0808- ● ●
112 17.455 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL<E63> CHEVROLET EQUIPMENT<8JF> EXC. OUTER ROPE HOOKS<7MZ> THA 		8-97362-421-3 01 1 0404-0405 ● ●
112 17.455 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL<E63> CHEVROLET EQUIPMENT<8JF> EXC. OVER FENDER<B74>,OUTER ROPE HOOKS<7MZ> THA 		8-97362-421-3 01 1 0406-0807 ● ●
112 17.455 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL<E63> CHEVROLET EQUIPMENT<8JF> EXC. OVER FENDER<B74> THA 		8-97362-421-3 01 1 0808- ● ●
112 17.455 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL<E63> CHEVROLET EQUIPMENT<8JF> EXC. OUTER ROPE HOOKS<7MZ> THA 		8-97362-422-3 01 1 0404-0405 ● ●
112 17.455 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL<E63> CHEVROLET EQUIPMENT<8JF> EXC. OVER FENDER<B74>,OUTER ROPE HOOKS<7MZ> THA 		8-97362-422-3 01 1 0406-0807 ● ●
112 17.455 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL<E63> CHEVROLET EQUIPMENT<8JF> EXC. OVER FENDER<B74> THA 		8-97362-422-3 01 1 0808- ● ●
112 17.455 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL<E63> OUTER ROPE HOOKS<7MZ> CHEVROLET EQUIPMENT<8JF> THA 		8-97362-417-2 01 1 0406-0807 ●
112 17.455 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL<E63> CHEVROLET EQUIPMENT<8JF> THA 		8-97362-417-2 01 1 0808- ●
112 17.455 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL<E63> OUTER ROPE HOOKS<7MZ> CHEVROLET EQUIPMENT<8JF> THA 		8-97362-418-2 01 1 0406-0807 ●
112 17.455 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL<E63> CHEVROLET EQUIPMENT<8JF> THA 		8-97362-418-2 01 1 0808- ●
112 17.455 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL<E63> CHEVROLET EQUIPMENT<8JF> EXC. OUTER ROPE HOOKS<7MZ> THA 		8-97362-419-2 01 1 0406-0807 ● ●
112 17.455 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL<E63> CHEVROLET EQUIPMENT<8JF> THA 		8-97362-419-2 01 1 0808- ● ●
112 17.455 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL<E63> CHEVROLET EQUIPMENT<8JF> EXC. OUTER ROPE HOOKS<7MZ> THA 		8-97362-420-2 01 1 0406-0807 ● ●
112 17.455 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL<E63> CHEVROLET EQUIPMENT<8JF> THA 		8-97362-420-2 01 1 0808- ● ●
112 17.455 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL<E63> CHEVROLET EQUIPMENT<8JF> EXC. OUTER ROPE HOOKS<7MZ> THA 		8-97362-421-3 01 1 0406-0807 ● ●
112 17.455 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL<E63> CHEVROLET EQUIPMENT<8JF> THA 		8-97362-421-3 01 1 0808- ● ●
112 17.455 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL<E63> CHEVROLET EQUIPMENT<8JF> EXC. OUTER ROPE HOOKS<7MZ> THA 		8-97362-422-3 01 1 0406-0807 ● ●
112 17.455 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL<E63> CHEVROLET EQUIPMENT<8JF> THA 		8-97362-422-3 01 1 0808- ● ●
112 17.455 PANEL; SIDE GATE
OVER FENDER<B74> REAR BODY DBL WALL CTR PULL<E63> CHEVROLET EQUIPMENT<8JF> EXC. OUTER ROPE HOOKS<7MZ> THA 		8-97362-619-2 01 1 0404-0502 ● ●
112 17.455 PANEL; SIDE GATE
OVER FENDER<B74> REAR BODY DBL WALL CTR PULL<E63> CHEVROLET EQUIPMENT<8JF> EXC. OUTER ROPE HOOKS<7MZ> THA 		8-97362-620-2 01 1 0404-0502 ● ●
112 17.455 PANEL; SIDE GATE
OVER FENDER<B74> REAR BODY DBL WALL CTR PULL<E63> CHEVROLET EQUIPMENT<8JF> EXC. OUTER ROPE HOOKS<7MZ> THA 		8-97362-621-3 01 1 0404-0807 ● ●
112 17.455 PANEL; SIDE GATE
OVER FENDER<B74> REAR BODY DBL WALL CTR PULL<E63> CHEVROLET EQUIPMENT<8JF> THA 		8-97362-621-3 01 1 0808- ● ●
112 17.455 PANEL; SIDE GATE
OVER FENDER<B74> REAR BODY DBL WALL CTR PULL<E63> CHEVROLET EQUIPMENT<8JF> EXC. OUTER ROPE HOOKS<7MZ> THA 		8-97362-622-3 01 1 0404-0807 ● ●
112 17.455 PANEL; SIDE GATE
OVER FENDER<B74> REAR BODY DBL WALL CTR PULL<E63> CHEVROLET EQUIPMENT<8JF> THA 		8-97362-622-3 01 1 0808- ● ●
112 17.455 PANEL; SIDE GATE
OVER FENDER<B74> REAR BODY DBL WALL CTR PULL<E63> CHEVROLET EQUIPMENT<8JF> THA 		8-97362-619-2 01 1 0404-0709 ● ●
112 17.455 PANEL; SIDE GATE
THAILAND EQUIPMENT<B03> OVER FENDER<B74> REAR BODY DBL WALL CTR PULL<E63> CHEVROLET EQUIPMENT<8JF> EXC. OUTER ROPE HOOKS<7MZ> THA 		8-97362-619-2 01 1 0710-0807 ● ●
112 17.455 PANEL; SIDE GATE
THAILAND EQUIPMENT<B03> OVER FENDER<B74> REAR BODY DBL WALL CTR PULL<E63> CHEVROLET EQUIPMENT<8JF> THA 		8-97362-619-2 01 1 0808- ● ●
112 17.455 PANEL; SIDE GATE
OVER FENDER<B74> REAR BODY DBL WALL CTR PULL<E63> CHEVROLET EQUIPMENT<8JF> THA 		8-97362-620-2 01 1 0404-0709 ● ●
112 17.455 PANEL; SIDE GATE
THAILAND EQUIPMENT<B03> OVER FENDER<B74> REAR BODY DBL WALL CTR PULL<E63> CHEVROLET EQUIPMENT<8JF> EXC. OUTER ROPE HOOKS<7MZ> THA 		8-97362-620-2 01 1 0710-0807 ● ●
112 17.455 PANEL; SIDE GATE
THAILAND EQUIPMENT<B03> OVER FENDER<B74> REAR BODY DBL WALL CTR PULL<E63> CHEVROLET EQUIPMENT<8JF> THA 		8-97362-620-2 01 1 0808- ● ●
112 17.455 PANEL; SIDE GATE
OVER FENDER<B74> REAR BODY DBL WALL CTR PULL<E63> CHEVROLET EQUIPMENT<8JF> THA 		8-97362-621-3 01 1 0404- ● ●
112 17.455 PANEL; SIDE GATE
OVER FENDER<B74> REAR BODY DBL WALL CTR PULL<E63> CHEVROLET EQUIPMENT<8JF> THA 		8-97362-622-3 01 1 0404- ● ●
112 17.455 PANEL; SIDE GATE
OVER FENDER<B74> REAR BODY DBL WALL CTR PULL<E63> OUTER ROPE HOOKS<7MZ> EXC. CHEVROLET EQUIPMENT<8JF> THA 		8-97373-020-0 01 1 0404-0807 ●
112 17.455 PANEL; SIDE GATE
OVER FENDER<B74> REAR BODY DBL WALL CTR PULL<E63> EXC. CHEVROLET EQUIPMENT<8JF> THA 		8-97373-020-0 01 1 0808- ●
112 17.455 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL<E63> OUTER ROPE HOOKS<7MZ> EXC. CHEVROLET EQUIPMENT<8JF> THA 		8-97236-617-6 01 1 0405-0807 ●
112 17.455 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL<E63> EXC. CHEVROLET EQUIPMENT<8JF> THA 		8-97236-617-6 01 1 0808- ●
112 17.455 PANEL; SIDE GATE
THAILAND EQUIPMENT<B03> OVER FENDER<B74> REAR BODY DBL WALL CTR PULL<E63> EXC. OUTER ROPE HOOKS<7MZ>,CHEVROLET EQUIPMENT<8JF> THA 		8-97360-848-0 01 1 0404-0609 ● ●
112 17.455 PANEL; SIDE GATE
THAILAND EQUIPMENT<B03> OVER FENDER<B74> REAR BODY DBL WALL CTR PULL<E63> EXC. OUTER ROPE HOOKS<7MZ>,CHEVROLET EQUIPMENT<8JF> THA 		8-97360-853-0 01 1 0404-0609 ● ●
112 17.455 PANEL; SIDE GATE
THAILAND EQUIPMENT<B03> REAR BODY DBL WALL CTR PULL<E63> OUTER ROPE HOOKS<7MZ> EXC. OVER FENDER<B74>,CHEVROLET EQUIPMENT<8JF> THA 		8-97252-094-2 01 1 0404-0807 ●
112 17.455 PANEL; SIDE GATE
THAILAND EQUIPMENT<B03> REAR BODY DBL WALL CTR PULL<E63> EXC. OVER FENDER<B74>,CHEVROLET EQUIPMENT<8JF> THA 		8-97252-094-2 01 1 0808- ●
112 17.455 PANEL; SIDE GATE
THAILAND EQUIPMENT<B03> REAR BODY DBL WALL CTR PULL<E63> OUTER ROPE HOOKS<7MZ> EXC. OVER FENDER<B74>,CHEVROLET EQUIPMENT<8JF> THA 		8-97373-019-0 01 1 0404-0807 ●
112 17.455 PANEL; SIDE GATE
THAILAND EQUIPMENT<B03> REAR BODY DBL WALL CTR PULL<E63> EXC. OVER FENDER<B74>,CHEVROLET EQUIPMENT<8JF> THA 		8-97373-019-0 01 1 0808- ●
112 17.455 PANEL; SIDE GATE
THAILAND EQUIPMENT<B03> REAR BODY DBL WALL CTR PULL<E63> EXC. OVER FENDER<B74>,OUTER ROPE HOOKS<7MZ>,CHEVROLET EQUIPMENT<8JF> THA 		8-97360-849-0 01 1 0404-0609 ● ●
112 17.455 PANEL; SIDE GATE
THAILAND EQUIPMENT<B03> REAR BODY DBL WALL CTR PULL<E63> EXC. OVER FENDER<B74>,OUTER ROPE HOOKS<7MZ>,CHEVROLET EQUIPMENT<8JF> THA 		8-97360-854-0 01 1 0404-0609 ● ●
112 17.455 PANEL; SIDE GATE
THAILAND EQUIPMENT<B03> OVER FENDER<B74> REAR BODY DBL WALL CTR PULL<E63> EXC. OUTER ROPE HOOKS<7MZ>,CHEVROLET EQUIPMENT<8JF> THA 		8-97387-300-1 01 1 0610-0709 ● ●
112 17.455 PANEL; SIDE GATE
THAILAND EQUIPMENT<B03> OVER FENDER<B74> REAR BODY DBL WALL CTR PULL<E63> EXC. OUTER ROPE HOOKS<7MZ>,CHEVROLET EQUIPMENT<8JF> THA 		8-97387-301-1 01 1 0610-0709 ● ●
112 17.455 PANEL; SIDE GATE
THAILAND EQUIPMENT<B03> REAR BODY DBL WALL CTR PULL<E63> EXC. OVER FENDER<B74>,OUTER ROPE HOOKS<7MZ>,CHEVROLET EQUIPMENT<8JF> THA 		8-97387-302-1 01 1 0610-0709 ● ●
112 17.455 PANEL; SIDE GATE
THAILAND EQUIPMENT<B03> REAR BODY DBL WALL CTR PULL<E63> EXC. OVER FENDER<B74>,OUTER ROPE HOOKS<7MZ>,CHEVROLET EQUIPMENT<8JF> THA 		8-97387-303-1 01 1 0610-0709 ● ●
112 17.455 PANEL; SIDE GATE
OVER FENDER<B74> REAR BODY DBL WALL CTR PULL<E63> EXC. OUTER ROPE HOOKS<7MZ>,CHEVROLET EQUIPMENT<8JF> THA 		8-97387-304-0 01 1 0610-0807 ● ●
112 17.455 PANEL; SIDE GATE
OVER FENDER<B74> REAR BODY DBL WALL CTR PULL<E63> EXC. CHEVROLET EQUIPMENT<8JF> THA 		8-97387-304-0 01 1 0808- ● ●
112 17.455 PANEL; SIDE GATE
OVER FENDER<B74> REAR BODY DBL WALL CTR PULL<E63> EXC. OUTER ROPE HOOKS<7MZ>,CHEVROLET EQUIPMENT<8JF> THA 		8-97387-309-0 01 1 0610-0807 ● ●
112 17.455 PANEL; SIDE GATE
OVER FENDER<B74> REAR BODY DBL WALL CTR PULL<E63> EXC. CHEVROLET EQUIPMENT<8JF> THA 		8-97387-309-0 01 1 0808- ● ●
112 17.455 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL<E63> EXC. OVER FENDER<B74>,OUTER ROPE HOOKS<7MZ>,CHEVROLET EQUIPMENT<8JF> THA 		8-97387-310-0 01 1 0610-0807 ● ●
112 17.455 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL<E63> EXC. OVER FENDER<B74>,CHEVROLET EQUIPMENT<8JF> THA 		8-97387-310-0 01 1 0808- ● ●
112 17.455 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL<E63> EXC. OVER FENDER<B74>,OUTER ROPE HOOKS<7MZ>,CHEVROLET EQUIPMENT<8JF> THA 		8-97387-311-0 01 1 0610-0807 ● ●
112 17.455 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL<E63> EXC. OVER FENDER<B74>,CHEVROLET EQUIPMENT<8JF> THA 		8-97387-311-0 01 1 0808- ● ●
112 17.455 PANEL; SIDE GATE
THAILAND EQUIPMENT<B03> REAR BODY DBL WALL CTR PULL<E63> EXC. OUTER ROPE HOOKS<7MZ>,CHEVROLET EQUIPMENT<8JF> THA 		8-97387-327-0 01 1 0610-0803 ● ●
112 17.455 PANEL; SIDE GATE
THAILAND EQUIPMENT<B03> REAR BODY DBL WALL CTR PULL<E63> EXC. OUTER ROPE HOOKS<7MZ>,CHEVROLET EQUIPMENT<8JF> THA 		8-98098-358-0 01 1 0804-0807 ● ●
112 17.455 PANEL; SIDE GATE
THAILAND EQUIPMENT<B03> REAR BODY DBL WALL CTR PULL<E63> EXC. CHEVROLET EQUIPMENT<8JF> THA 		8-98098-358-0 01 1 0808- ● ●
112 17.455 PANEL; SIDE GATE
THAILAND EQUIPMENT<B03> REAR BODY DBL WALL CTR PULL<E63> EXC. OUTER ROPE HOOKS<7MZ>,CHEVROLET EQUIPMENT<8JF> THA 		8-97387-329-0 01 1 0610-0803 ● ●
112 17.455 PANEL; SIDE GATE
THAILAND EQUIPMENT<B03> REAR BODY DBL WALL CTR PULL<E63> EXC. OUTER ROPE HOOKS<7MZ>,CHEVROLET EQUIPMENT<8JF> THA 		8-98098-359-0 01 1 0804-0807 ● ●
112 17.455 PANEL; SIDE GATE
THAILAND EQUIPMENT<B03> REAR BODY DBL WALL CTR PULL<E63> EXC. CHEVROLET EQUIPMENT<8JF> THA 		8-98098-359-0 01 1 0808- ● ●
112 17.455 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL<E63> EXC. OUTER ROPE HOOKS<7MZ>,CHEVROLET EQUIPMENT<8JF> THA 		8-97387-332-0 01 1 0610-0807 ● ●
112 17.455 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL<E63> EXC. CHEVROLET EQUIPMENT<8JF> THA 		8-97387-332-0 01 1 0808- ● ●
112 17.455 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL<E63> EXC. OUTER ROPE HOOKS<7MZ>,CHEVROLET EQUIPMENT<8JF> THA 		8-97387-333-0 01 1 0610-0807 ● ●
112 17.455 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL<E63> EXC. CHEVROLET EQUIPMENT<8JF> THA 		8-97387-333-0 01 1 0808- ● ●
112 17.455 PANEL; SIDE GATE
OVER FENDER<B74> REAR BODY DBL WALL CTR PULL<E63> EXC. OUTER ROPE HOOKS<7MZ>,CHEVROLET EQUIPMENT<8JF> THA 		8-97387-325-0 01 1 0610-0803 ● ●
112 17.455 PANEL; SIDE GATE
OVER FENDER<B74> REAR BODY DBL WALL CTR PULL<E63> EXC. OUTER ROPE HOOKS<7MZ>,CHEVROLET EQUIPMENT<8JF> THA 		8-97387-326-0 01 1 0610-0803 ● ●
112 17.455 PANEL; SIDE GATE
OVER FENDER<B74> REAR BODY DBL WALL CTR PULL<E63> EXC. OUTER ROPE HOOKS<7MZ>,CHEVROLET EQUIPMENT<8JF> THA 		8-97387-332-0 01 1 0610-0807 ● ●
112 17.455 PANEL; SIDE GATE
OVER FENDER<B74> REAR BODY DBL WALL CTR PULL<E63> EXC. CHEVROLET EQUIPMENT<8JF> THA 		8-97387-332-0 01 1 0808- ● ●
112 17.455 PANEL; SIDE GATE
OVER FENDER<B74> REAR BODY DBL WALL CTR PULL<E63> EXC. OUTER ROPE HOOKS<7MZ>,CHEVROLET EQUIPMENT<8JF> THA 		8-97387-333-0 01 1 0610-0807 ● ●
112 17.455 PANEL; SIDE GATE
OVER FENDER<B74> REAR BODY DBL WALL CTR PULL<E63> EXC. CHEVROLET EQUIPMENT<8JF> THA 		8-97387-333-0 01 1 0808- ● ●
112 17.455 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL<E63> OUTER ROPE HOOKS<7MZ> CHEVROLET EQUIPMENT<8JF> THA 		8-97362-417-2 01 1 0503-0709 ●
112 17.455 PANEL; SIDE GATE
THAILAND EQUIPMENT<B03> REAR BODY DBL WALL CTR PULL<E63> OUTER ROPE HOOKS<7MZ> CHEVROLET EQUIPMENT<8JF> THA 		8-97362-417-2 01 1 0710-0807 ●
112 17.455 PANEL; SIDE GATE
THAILAND EQUIPMENT<B03> REAR BODY DBL WALL CTR PULL<E63> CHEVROLET EQUIPMENT<8JF> THA 		8-97362-417-2 01 1 0808- ●
112 17.455 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL<E63> OUTER ROPE HOOKS<7MZ> CHEVROLET EQUIPMENT<8JF> THA 		8-97362-418-2 01 1 0503-0709 ●
112 17.455 PANEL; SIDE GATE
THAILAND EQUIPMENT<B03> REAR BODY DBL WALL CTR PULL<E63> OUTER ROPE HOOKS<7MZ> CHEVROLET EQUIPMENT<8JF> THA 		8-97362-418-2 01 1 0710-0807 ●
112 17.455 PANEL; SIDE GATE
THAILAND EQUIPMENT<B03> REAR BODY DBL WALL CTR PULL<E63> CHEVROLET EQUIPMENT<8JF> THA 		8-97362-418-2 01 1 0808- ●
112 17.455 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL<E63> CHEVROLET EQUIPMENT<8JF> EXC. OVER FENDER<B74>,OUTER ROPE HOOKS<7MZ> THA 		8-97362-419-2 01 1 0503-0709 ● ●
112 17.455 PANEL; SIDE GATE
THAILAND EQUIPMENT<B03> REAR BODY DBL WALL CTR PULL<E63> CHEVROLET EQUIPMENT<8JF> EXC. OVER FENDER<B74>,OUTER ROPE HOOKS<7MZ> THA 		8-97362-419-2 01 1 0710-0807 ● ●
112 17.455 PANEL; SIDE GATE
THAILAND EQUIPMENT<B03> REAR BODY DBL WALL CTR PULL<E63> CHEVROLET EQUIPMENT<8JF> EXC. OVER FENDER<B74> THA 		8-97362-419-2 01 1 0808- ● ●
112 17.455 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL<E63> CHEVROLET EQUIPMENT<8JF> EXC. OVER FENDER<B74>,OUTER ROPE HOOKS<7MZ> THA 		8-97362-420-2 01 1 0503-0709 ● ●
112 17.455 PANEL; SIDE GATE
THAILAND EQUIPMENT<B03> REAR BODY DBL WALL CTR PULL<E63> CHEVROLET EQUIPMENT<8JF> EXC. OVER FENDER<B74>,OUTER ROPE HOOKS<7MZ> THA 		8-97362-420-2 01 1 0710-0807 ● ●
112 17.455 PANEL; SIDE GATE
THAILAND EQUIPMENT<B03> REAR BODY DBL WALL CTR PULL<E63> CHEVROLET EQUIPMENT<8JF> EXC. OVER FENDER<B74> THA 		8-97362-420-2 01 1 0808- ● ●
112 17.455 PANEL; SIDE GATE
OVER FENDER<B74> REAR BODY DBL WALL CTR PULL<E63> CHEVROLET EQUIPMENT<8JF> EXC. OUTER ROPE HOOKS<7MZ> THA 		8-97362-619-2 01 1 0503-0709 ● ●
112 17.455 PANEL; SIDE GATE
THAILAND EQUIPMENT<B03> OVER FENDER<B74> REAR BODY DBL WALL CTR PULL<E63> CHEVROLET EQUIPMENT<8JF> EXC. OUTER ROPE HOOKS<7MZ> THA 		8-97362-619-2 01 1 0710-0807 ● ●
112 17.455 PANEL; SIDE GATE
THAILAND EQUIPMENT<B03> OVER FENDER<B74> REAR BODY DBL WALL CTR PULL<E63> CHEVROLET EQUIPMENT<8JF> THA 		8-97362-619-2 01 1 0808- ● ●
112 17.455 PANEL; SIDE GATE
OVER FENDER<B74> REAR BODY DBL WALL CTR PULL<E63> CHEVROLET EQUIPMENT<8JF> EXC. OUTER ROPE HOOKS<7MZ> THA 		8-97362-620-2 01 1 0503-0709 ● ●
112 17.455 PANEL; SIDE GATE
THAILAND EQUIPMENT<B03> OVER FENDER<B74> REAR BODY DBL WALL CTR PULL<E63> CHEVROLET EQUIPMENT<8JF> EXC. OUTER ROPE HOOKS<7MZ> THA 		8-97362-620-2 01 1 0710-0807 ● ●
112 17.455 PANEL; SIDE GATE
THAILAND EQUIPMENT<B03> OVER FENDER<B74> REAR BODY DBL WALL CTR PULL<E63> CHEVROLET EQUIPMENT<8JF> THA 		8-97362-620-2 01 1 0808- ● ●
112 17.455 PANEL; SIDE GATE
THAILAND EQUIPMENT<B03> REAR BODY DBL WALL CTR PULL<E63> EXC. OVER FENDER<B74>,OUTER ROPE HOOKS<7MZ>,CHEVROLET EQUIPMENT<8JF> THA 		8-97387-302-1 01 1 0710-0807 ● ●
112 17.455 PANEL; SIDE GATE
THAILAND EQUIPMENT<B03> REAR BODY DBL WALL CTR PULL<E63> EXC. OVER FENDER<B74>,CHEVROLET EQUIPMENT<8JF> THA 		8-97387-302-1 01 1 0808- ● ●
112 17.455 PANEL; SIDE GATE
THAILAND EQUIPMENT<B03> REAR BODY DBL WALL CTR PULL<E63> EXC. OVER FENDER<B74>,OUTER ROPE HOOKS<7MZ>,CHEVROLET EQUIPMENT<8JF> THA 		8-97387-303-1 01 1 0710-0807 ● ●
112 17.455 PANEL; SIDE GATE
THAILAND EQUIPMENT<B03> REAR BODY DBL WALL CTR PULL<E63> EXC. OVER FENDER<B74>,CHEVROLET EQUIPMENT<8JF> THA 		8-97387-303-1 01 1 0808- ● ●
112 17.455 PANEL; SIDE GATE
THAILAND EQUIPMENT<B03> OVER FENDER<B74> REAR BODY DBL WALL CTR PULL<E63> EXC. OUTER ROPE HOOKS<7MZ>,CHEVROLET EQUIPMENT<8JF> THA 		8-97387-300-1 01 1 0710-0807 ● ●
112 17.455 PANEL; SIDE GATE
THAILAND EQUIPMENT<B03> OVER FENDER<B74> REAR BODY DBL WALL CTR PULL<E63> EXC. CHEVROLET EQUIPMENT<8JF> THA 		8-97387-300-1 01 1 0808- ● ●
112 17.455 PANEL; SIDE GATE
THAILAND EQUIPMENT<B03> OVER FENDER<B74> REAR BODY DBL WALL CTR PULL<E63> EXC. OUTER ROPE HOOKS<7MZ>,CHEVROLET EQUIPMENT<8JF> THA 		8-97387-301-1 01 1 0710-0807 ● ●
112 17.455 PANEL; SIDE GATE
THAILAND EQUIPMENT<B03> OVER FENDER<B74> REAR BODY DBL WALL CTR PULL<E63> EXC. CHEVROLET EQUIPMENT<8JF> THA 		8-97387-301-1 01 1 0808- ● ●
112 17.455 PANEL; SIDE GATE
OVER FENDER<B74> REAR BODY DBL WALL CTR PULL<E63> EXC. OUTER ROPE HOOKS<7MZ>,CHEVROLET EQUIPMENT<8JF> THA 		8-98098-356-0 01 1 0804-0807 ● ●
112 17.455 PANEL; SIDE GATE
OVER FENDER<B74> REAR BODY DBL WALL CTR PULL<E63> EXC. CHEVROLET EQUIPMENT<8JF> THA 		8-98098-356-0 01 1 0808- ● ●
112 17.455 PANEL; SIDE GATE
OVER FENDER<B74> REAR BODY DBL WALL CTR PULL<E63> EXC. OUTER ROPE HOOKS<7MZ>,CHEVROLET EQUIPMENT<8JF> THA 		8-98098-357-0 01 1 0804-0807 ● ●
112 17.455 PANEL; SIDE GATE
OVER FENDER<B74> REAR BODY DBL WALL CTR PULL<E63> EXC. CHEVROLET EQUIPMENT<8JF> THA 		8-98098-357-0 01 1 0808- ● ●
121 17.442 PANEL; SIDE INNER,RR BODY
THA 		8-97234-844-8 01 1 0404- ● ●
121 17.442 PANEL; SIDE INNER,RR BODY
THA 		8-97234-843-9 01 1 0404- ● ●
121 17.442 PANEL; SIDE INNER,RR BODY
THA 		8-97368-104-0 01 1 0404-0610 ●
121 17.442 PANEL; SIDE INNER,RR BODY
REAR BODY DBL WALL CTR PULL<E63> THA 		8-97368-104-0 01 1 0611- ●
121 17.442 PANEL; SIDE INNER,RR BODY
THA 		8-97236-324-4 01 1 0404-0610 ●
121 17.442 PANEL; SIDE INNER,RR BODY
REAR BODY DBL WALL CTR PULL<E63> THA 		8-97236-324-4 01 1 0611- ●
121 17.442 PANEL; SIDE INNER,RR BODY
THA 		8-93290-853-3 01 1 0404- ● ●
121 17.442 PANEL; SIDE INNER,RR BODY
THA 		8-93290-854-3 01 1 0404- ● ●
125 17.505 RECESS; FUEL FILLER NECK,RR BODY
THA 		8-97363-373-0 01 1 0404- ● ●
125 17.505 RECESS; FUEL FILLER NECK,RR BODY
THA 		8-97363-372-1 01 1 0404-0610 ●
125 17.505 RECESS; FUEL FILLER NECK,RR BODY
REAR BODY DBL WALL CTR PULL<E63> OUTER ROPE HOOKS<7MZ> THA 		8-97363-372-1 01 1 0611-0809 ●
125 17.505 RECESS; FUEL FILLER NECK,RR BODY
REAR BODY DBL WALL CTR PULL<E63> THA 		8-97363-372-1 01 1 0810- ●
125 17.505 RECESS; FUEL FILLER NECK,RR BODY
THA 		8-97363-374-1 01 1 0404- ● ●
126 17.507 RUBBER; STOPPER,FUEL FILLER LID
THA 		8-97166-112-0 02 1 0404-0610 ● ● ● ● ●
126 17.507 RUBBER; STOPPER,FUEL FILLER LID
THA 		8-97166-112-0 02 1 0611- ● ● ● ●
126 17.507 RUBBER; STOPPER,FUEL FILLER LID
REAR BODY DBL WALL CTR PULL<E63> THA 		8-97166-112-0 02 1 0611- ●
127 17.507 BOLT; FUEL FILLER LID
08.155 M6X16 		8-94479-534-0 02 1 0404-0610 ● ● ● ● ●
127 17.507 BOLT; FUEL FILLER LID
08.155 M6X16 		8-94479-534-0 02 1 0611-0612 ● ● ● ●
127 17.507 BOLT; FUEL FILLER LID
REAR BODY DBL WALL CTR PULL<E63> 08.155 M6X16 		8-94479-534-0 02 1 0611-0612 ●
127 17.507 BOLT; FUEL FILLER LID
M6X16 THA 		8-98056-287-0 02 1 0701- ● ● ● ●
127 17.507 BOLT; FUEL FILLER LID
REAR BODY DBL WALL CTR PULL<E63> M6X16 THA 		8-98056-287-0 02 1 0701- ●
129 17.505 LID ASM; FUEL FILLER,RR BODY
THA 		8-97364-059-0 01 1 0404- ● ●
129 17.505 LID ASM; FUEL FILLER,RR BODY
THA 		8-97364-058-0 01 1 0404-0610 ●
129 17.505 LID ASM; FUEL FILLER,RR BODY
REAR BODY DBL WALL CTR PULL<E63> THA 		8-97364-058-0 01 1 0611- ●
129 17.505 LID ASM; FUEL FILLER,RR BODY
THA 		8-97364-060-0 01 1 0404- ● ●
135 17.198 STRIKER; TAIL GATE,RR BODY
THA 		8-97235-401-4 01 1 0404-0709 ● ● ● ●
135 17.198 STRIKER; TAIL GATE,RR BODY
THA 		8-98050-334-0 01 1 0710- ● ● ● ●
135 17.198 STRIKER; TAIL GATE,RR BODY
THA 		8-97235-400-4 01 1 0404-0709 ● ● ● ●
135 17.198 STRIKER; TAIL GATE,RR BODY
THA 		8-98050-333-0 01 1 0710- ● ● ● ●
135 17.198 STRIKER; TAIL GATE,RR BODY
THA 		8-97249-565-3 01 1 0404-0610 ●
135 17.198 STRIKER; TAIL GATE,RR BODY
REAR BODY DBL WALL CTR PULL<E63> THA 		8-97249-565-3 01 1 0611-0611 ●
135 17.198 STRIKER; TAIL GATE,RR BODY
REAR BODY DBL WALL CTR PULL<E63> THA 		8-98050-673-0 01 1 0612- ●
135 17.198 STRIKER; TAIL GATE,RR BODY
THA 		8-97249-564-3 01 1 0404-0610 ●
135 17.198 STRIKER; TAIL GATE,RR BODY
REAR BODY DBL WALL CTR PULL<E63> THA 		8-97249-564-3 01 1 0611-0611 ●
135 17.198 STRIKER; TAIL GATE,RR BODY
REAR BODY DBL WALL CTR PULL<E63> THA 		8-98050-672-0 01 1 0612- ●
157 17.505 RAIL ASM; SIDE PANEL UPR,RR BODY
THA 		8-97236-440-2 01 1 0404-0610 ●
157 17.505 RAIL ASM; SIDE PANEL UPR,RR BODY
REAR BODY DBL WALL CTR PULL<E63> THA 		8-97236-440-2 01 1 0611- ●
157 17.505 RAIL ASM; SIDE PANEL UPR,RR BODY
THA 		8-97236-438-2 01 1 0404-0610 ●
157 17.505 RAIL ASM; SIDE PANEL UPR,RR BODY
REAR BODY DBL WALL CTR PULL<E63> THA 		8-97236-438-2 01 1 0611- ●
158 17.185 SCREW; STRIKER,TAIL GATE
02.664 M8X20 FLANGE 		0-28680-820-0 04 1 0404-0601 ● ● ● ●
158 17.185 SCREW; STRIKER,TAIL GATE
01.531 M8X20 FLANGE THA 		0-28650-820-0 04 1 0602- ● ● ● ●
158 17.185 SCREW; STRIKER,TAIL GATE
04.104 M8X22 THA 		8-94388-328-1 04 1 0404-0610 ●
158 17.185 SCREW; STRIKER,TAIL GATE
REAR BODY DBL WALL CTR PULL<E63> 04.104 M8X22 THA 		8-94388-328-1 04 1 0611-0611 ●
158 17.185 SCREW; STRIKER,TAIL GATE
REAR BODY DBL WALL CTR PULL<E63> 17.208 M8X22 THA 		8-98050-437-0 04 1 0612- ●
169 17.185 GROMMET; TAIL GATE INNER,RR BODY
THA 		8-97166-110-0 04 1 0404-0610 ●
169 17.185 GROMMET; TAIL GATE INNER,RR BODY
REAR BODY DBL WALL CTR PULL<E63> OUTER ROPE HOOKS<7MZ> THA 		8-97166-110-0 04 1 0611-0809 ●
169 17.185 GROMMET; TAIL GATE INNER,RR BODY
REAR BODY DBL WALL CTR PULL<E63> THA 		8-97166-110-0 04 1 0810- ●
188 17.208 PLATE; HINGE UPR,RR GATE
THA 		8-97329-277-1 AR 1 0404-0610 ● ● ● ● ●
188 17.208 PLATE; HINGE UPR,RR GATE
THA 		8-97329-277-1 AR 1 0611-0709 ● ● ● ●
188 17.208 PLATE; HINGE UPR,RR GATE
REAR BODY DBL WALL CTR PULL<E63> OUTER ROPE HOOKS<7MZ> THA 		8-97329-277-1 AR 1 0611-0709 ●
188 17.208 PLATE; HINGE UPR,RR GATE
BASE VEHICLE GRILLE<VWX>,BRIGHT RAD GRILLE<V22> THA 		8-97329-277-1 AR 1 0710-0809 ● ●
188 17.208 PLATE; HINGE UPR,RR GATE
REAR BODY DBL WALL CTR PULL<E63> OUTER ROPE HOOKS<7MZ> THA 		8-97329-277-1 AR 1 0710-0809 ●
188 17.208 PLATE; HINGE UPR,RR GATE
THA 		8-97329-277-1 AR 1 0710-0809 ● ●
188 17.208 PLATE; HINGE UPR,RR GATE
BASE VEHICLE GRILLE<VWX>,BRIGHT RAD GRILLE<V22> THA 		8-97329-277-1 AR 1 0810- ● ●
188 17.208 PLATE; HINGE UPR,RR GATE
REAR BODY DBL WALL CTR PULL<E63> THA 		8-97329-277-1 AR 1 0810- ●
188 17.208 PLATE; HINGE UPR,RR GATE
THA 		8-97329-277-1 AR 1 0810- ● ●
189 17.208 BOLT; HINGE,RR GATE
01.840 M10X35 W/LK&PL WASHER THA 		0-50141-035-0 02 1 0404-0601 ● ● ● ● ●
189 17.208 BOLT; HINGE,RR GATE
M10X35 W/LK&PL WASHER THA 		0-50641-035-0 02 1 0602-0610 ● ● ● ● ●
189 17.208 BOLT; HINGE,RR GATE
M10X35 W/LK&PL WASHER THA 		0-50641-035-0 02 1 0611- ● ● ● ●
189 17.208 BOLT; HINGE,RR GATE
REAR BODY DBL WALL CTR PULL<E63> M10X35 W/LK&PL WASHER THA 		0-50641-035-0 02 1 0611- ●
250 17.505 BOLT; STOPPER
04.104 (A) M8X22 THA 		8-94388-328-1 02 1 0404-0610 ● ● ● ● ●
250 17.505 BOLT; STOPPER
04.104 (A) M8X22 THA 		8-94388-328-1 02 1 0611-0611 ● ● ● ●
250 17.505 BOLT; STOPPER
REAR BODY DBL WALL CTR PULL<E63> OUTER ROPE HOOKS<7MZ> 04.104 (A) M8X22 THA 		8-94388-328-1 02 1 0611-0611 ●
250 17.505 BOLT; STOPPER
17.208 (A) M8X22 THA 		8-98050-437-0 02 1 0612-0709 ● ● ● ●
250 17.505 BOLT; STOPPER
REAR BODY DBL WALL CTR PULL<E63> OUTER ROPE HOOKS<7MZ> 17.208 (A) M8X22 THA 		8-98050-437-0 02 1 0612-0709 ●
250 17.505 BOLT; STOPPER
BASE VEHICLE GRILLE<VWX>,BRIGHT RAD GRILLE<V22> 17.208 (A) M8X22 THA 		8-98050-437-0 02 1 0710-0809 ● ●
250 17.505 BOLT; STOPPER
REAR BODY DBL WALL CTR PULL<E63> OUTER ROPE HOOKS<7MZ> 17.208 (A) M8X22 THA 		8-98050-437-0 02 1 0710-0809 ●
250 17.505 BOLT; STOPPER
17.208 (A) M8X22 THA 		8-98050-437-0 02 1 0710-0809 ● ●
250 17.505 BOLT; STOPPER
BASE VEHICLE GRILLE<VWX>,BRIGHT RAD GRILLE<V22> 17.208 (A) M8X22 THA 		8-98050-437-0 02 1 0810- ● ●
250 17.505 BOLT; STOPPER
REAR BODY DBL WALL CTR PULL<E63> 17.208 (A) M8X22 THA 		8-98050-437-0 02 1 0810- ●
250 17.505 BOLT; STOPPER
17.208 (A) M8X22 THA 		8-98050-437-0 02 1 0810- ● ●
250 17.505 BOLT; STOPPER
EXC. REAR STEP BUMPER<VF6>,REAR STEP BUMPER CHROME<V42> 08.077 (B) M6X18 		8-97071-681-0 02 1 0404-0510 ● ●
250 17.505 BOLT; STOPPER
08.077 (B) M6X18 		8-97071-681-0 02 1 0404-0510 ●
250 17.505 BOLT; STOPPER
EXC. REAR STEP BUMPER<VF6>,REAR STEP BUMPER CHROME<V42> 08.077 (B) M6X18 		8-97071-681-0 02 1 0511-0609 ● ● ● ●
250 17.505 BOLT; STOPPER
08.077 (B) M6X18 		8-97071-681-0 02 1 0511-0609 ●
250 17.505 BOLT; STOPPER
EXC. REAR STEP BUMPER<VF6>,REAR STEP BUMPER CHROME<V42> 08.077 (B) M6X18 		8-97071-681-0 02 1 0610-0610 ● ●
250 17.505 BOLT; STOPPER
08.077 (B) M6X18 		8-97071-681-0 02 1 0610-0610 ●
250 17.505 BOLT; STOPPER
EXC. REAR STEP BUMPER<VF6>,REAR STEP BUMPER CHROME<V42> 08.077 (B) M6X18 		8-97071-681-0 02 1 0611-0612 ● ●
250 17.505 BOLT; STOPPER
REAR BODY DBL WALL CTR PULL<E63> 08.077 (B) M6X18 		8-97071-681-0 02 1 0611-0612 ●
250 17.505 BOLT; STOPPER
EXC. REAR STEP BUMPER<VF6>,REAR STEP BUMPER CHROME<V42> (B) M6X18 THA 		8-98056-280-0 02 1 0701- ● ●
250 17.505 BOLT; STOPPER
REAR BODY DBL WALL CTR PULL<E63> (B) M6X18 THA 		8-98056-280-0 02 1 0701- ●
256 17.505 SPRING; LID,FUEL FILLER 8-97251-180-1 01 1 0404-0610 ● ● ● ● ●
256 17.505 SPRING; LID,FUEL FILLER 8-97251-180-1 01 1 0611- ● ● ● ●
256 17.505 SPRING; LID,FUEL FILLER
REAR BODY DBL WALL CTR PULL<E63> 		8-97251-180-1 01 1 0611- ●
279 17.505 SPACER
THA 		8-97357-403-0 02 1 0404-0610 ● ● ● ● ●
279 17.505 SPACER
THA 		8-97357-403-0 02 1 0611- ● ● ● ●
279 17.505 SPACER
REAR BODY DBL WALL CTR PULL<E63> THA 		8-97357-403-0 02 1 0611- ●
292 17.442 EXTENSION; RR BODY
(A) THA 		8-97236-383-7 02 1 0404- ● ● ● ●
292 17.442 EXTENSION; RR BODY
(B) THA 		8-97236-371-9 01 1 0404-0504 ● ●
292 17.442 EXTENSION; RR BODY
(B) THA 		8-97375-759-0 01 1 0505- ● ●
292 17.442 EXTENSION; RR BODY
(B) THA 		8-97236-368-9 01 1 0404-0504 ● ●
292 17.442 EXTENSION; RR BODY
(B) THA 		8-97375-758-0 01 1 0505- ● ●
292 17.442 EXTENSION; RR BODY
(C) THA 		8-97236-680-6 02 1 0404-0504 ●
292 17.442 EXTENSION; RR BODY
(C) THA 		8-97375-757-0 02 1 0505-0610 ●
292 17.442 EXTENSION; RR BODY
REAR BODY DBL WALL CTR PULL<E63> (C) THA 		8-97375-757-0 02 1 0611- ●
292 17.442 EXTENSION; RR BODY
(D) THA 		8-97236-370-6 01 1 0404-0504 ●
292 17.442 EXTENSION; RR BODY
(D) THA 		8-97375-756-0 01 1 0505-0610 ●
292 17.442 EXTENSION; RR BODY
REAR BODY DBL WALL CTR PULL<E63> (D) THA 		8-97375-756-0 01 1 0611- ●
292 17.442 EXTENSION; RR BODY
(E) THA 		8-97236-382-5 01 1 0404-0610 ●
292 17.442 EXTENSION; RR BODY
REAR BODY DBL WALL CTR PULL<E63> (E) THA 		8-97236-382-5 01 1 0611- ●
292 17.442 EXTENSION; RR BODY
(D) THA 		8-97236-367-6 01 1 0404-0504 ●
292 17.442 EXTENSION; RR BODY
(D) THA 		8-97375-755-0 01 1 0505-0610 ●
292 17.442 EXTENSION; RR BODY
REAR BODY DBL WALL CTR PULL<E63> (D) THA 		8-97375-755-0 01 1 0611- ●
292 17.442 EXTENSION; RR BODY
(E) THA 		8-97308-978-4 01 1 0404-0610 ●
292 17.442 EXTENSION; RR BODY
REAR BODY DBL WALL CTR PULL<E63> (E) THA 		8-97308-978-4 01 1 0611- ●
292 17.442 EXTENSION; RR BODY
(F) THA 		8-93291-076-3 01 1 0404- ● ●
292 17.442 EXTENSION; RR BODY
(F) THA 		8-93291-077-3 01 1 0404- ● ●
293 17.442 REINFORCEMENT; RR BODY
EXC. OVER FENDER<B74> (B) THA 		8-97349-439-0 AR 1 0810- ●
293 17.442 REINFORCEMENT; RR BODY
(C) THA 		8-97236-750-6 01 1 0404- ● ● ● ●
293 17.442 REINFORCEMENT; RR BODY
EXC. OVER FENDER<B74> (B) THA 		8-97349-440-0 AR 1 0810- ●
293 17.442 REINFORCEMENT; RR BODY
(C) THA 		8-97236-748-6 01 1 0404- ● ● ● ●
293 17.442 REINFORCEMENT; RR BODY
(B) THA 		8-97349-440-0 01 1 0404- ● ●
293 17.442 REINFORCEMENT; RR BODY
(B) THA 		8-97349-439-0 01 1 0404- ● ●
293 17.442 REINFORCEMENT; RR BODY
(C) THA 		8-97236-527-5 01 1 0404-0610 ●
293 17.442 REINFORCEMENT; RR BODY
REAR BODY DBL WALL CTR PULL<E63> (C) THA 		8-97236-527-5 01 1 0611- ●
293 17.442 REINFORCEMENT; RR BODY
(A) THA 		8-97260-383-2 01 1 0404-0610 ●
293 17.442 REINFORCEMENT; RR BODY
REAR BODY DBL WALL CTR PULL<E63> OUTER ROPE HOOKS<7MZ> (A) THA 		8-97260-383-2 01 1 0611-0809 ●
293 17.442 REINFORCEMENT; RR BODY
REAR BODY DBL WALL CTR PULL<E63> (A) THA 		8-97260-383-2 01 1 0810- ●
293 17.442 REINFORCEMENT; RR BODY
(C) THA 		8-97236-525-5 01 1 0404-0610 ●
293 17.442 REINFORCEMENT; RR BODY
REAR BODY DBL WALL CTR PULL<E63> (C) THA 		8-97236-525-5 01 1 0611- ●
293 17.442 REINFORCEMENT; RR BODY
(A) THA 		8-97251-646-2 01 1 0404-0610 ●
293 17.442 REINFORCEMENT; RR BODY
REAR BODY DBL WALL CTR PULL<E63> OUTER ROPE HOOKS<7MZ> (A) THA 		8-97251-646-2 01 1 0611-0809 ●
293 17.442 REINFORCEMENT; RR BODY
REAR BODY DBL WALL CTR PULL<E63> (A) THA 		8-97251-646-2 01 1 0810- ●
294 17.445 PANEL; OUTER,RR BODY
THA 		8-97362-428-0 01 1 0404-0610 ● ● ● ● ●
294 17.445 PANEL; OUTER,RR BODY
THA 		8-97362-428-0 01 1 0611- ● ● ● ●
294 17.445 PANEL; OUTER,RR BODY
REAR BODY DBL WALL CTR PULL<E63> THA 		8-97362-428-0 01 1 0611- ●
294 17.445 PANEL; OUTER,RR BODY
THA 		8-97362-427-0 01 1 0404-0610 ● ● ● ● ●
294 17.445 PANEL; OUTER,RR BODY
THA 		8-97362-427-0 01 1 0611- ● ● ● ●
294 17.445 PANEL; OUTER,RR BODY
REAR BODY DBL WALL CTR PULL<E63> THA 		8-97362-427-0 01 1 0611- ●
295 17.505 BRACKET; FILLER
17.442 (B) THA 		8-97305-529-1 02 1 0404-0610 ● ● ● ● ●
295 17.505 BRACKET; FILLER
17.442 (B) THA 		8-97305-529-1 02 1 0611- ● ● ● ●
295 17.505 BRACKET; FILLER
REAR BODY DBL WALL CTR PULL<E63> 17.442 (B) THA 		8-97305-529-1 02 1 0611- ●
295 17.505 BRACKET; FILLER
(A) THA 		8-97236-732-3 02 1 0404-0610 ● ● ●
295 17.505 BRACKET; FILLER
(A) THA 		8-97236-732-3 02 1 0611- ● ●
295 17.505 BRACKET; FILLER
REAR BODY DBL WALL CTR PULL<E63> (A) THA 		8-97236-732-3 02 1 0611- ●
296 17.442 BRACKET; RR BODY
(A) THA 		8-97251-631-4 01 1 0404-0610 ● ● ● ● ●
296 17.442 BRACKET; RR BODY
(A) THA 		8-97251-631-4 01 1 0611- ● ● ● ●
296 17.442 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL<E63> (A) THA 		8-97251-631-4 01 1 0611- ●
296 17.442 BRACKET; RR BODY
(A) THA 		8-97251-626-4 01 1 0404-0610 ● ● ● ● ●
296 17.442 BRACKET; RR BODY
(A) THA 		8-97251-626-4 01 1 0611- ● ● ● ●
296 17.442 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL<E63> (A) THA 		8-97251-626-4 01 1 0611- ●
296 17.442 BRACKET; RR BODY
(B) THA 		8-97263-908-2 01 1 0404- ● ● ● ●
296 17.442 BRACKET; RR BODY
(B) THA 		8-97263-907-2 01 1 0404- ● ● ● ●
300 17.204 COLLAR; GATE HINGE
THA 		8-97324-512-3 02 1 0404-0610 ● ● ● ● ●
300 17.204 COLLAR; GATE HINGE
THA 		8-97324-512-3 02 1 0611-0611 ● ● ● ●
300 17.204 COLLAR; GATE HINGE
REAR BODY DBL WALL CTR PULL<E63> THA 		8-97324-512-3 02 1 0611-0611 ●
300 17.204 COLLAR; GATE HINGE
THA 		8-98057-114-0 02 1 0612- ● ● ● ●
300 17.204 COLLAR; GATE HINGE
REAR BODY DBL WALL CTR PULL<E63> THA 		8-98057-114-0 02 1 0612- ●
301 17.204 SUPPORT; TAIL GATE
THA 		8-97289-536-0 01 1 0404-0610 ● ● ● ● ●
301 17.204 SUPPORT; TAIL GATE
THA 		8-97289-536-0 01 1 0611-0611 ● ● ● ●
301 17.204 SUPPORT; TAIL GATE
REAR BODY DBL WALL CTR PULL<E63> OUTER ROPE HOOKS<7MZ> THA 		8-97289-536-0 01 1 0611-0611 ●
301 17.204 SUPPORT; TAIL GATE
THA 		8-98053-899-0 01 1 0612-0709 ● ● ● ●
301 17.204 SUPPORT; TAIL GATE
REAR BODY DBL WALL CTR PULL<E63> OUTER ROPE HOOKS<7MZ> THA 		8-98053-899-0 01 1 0612-0709 ●
301 17.204 SUPPORT; TAIL GATE
BASE VEHICLE GRILLE<VWX>,BRIGHT RAD GRILLE<V22> THA 		8-98053-899-0 01 1 0710-0809 ● ●
301 17.204 SUPPORT; TAIL GATE
REAR BODY DBL WALL CTR PULL<E63> OUTER ROPE HOOKS<7MZ> THA 		8-98053-899-0 01 1 0710-0809 ●
301 17.204 SUPPORT; TAIL GATE
THA 		8-98053-899-0 01 1 0710-0809 ● ●
301 17.204 SUPPORT; TAIL GATE
BASE VEHICLE GRILLE<VWX>,BRIGHT RAD GRILLE<V22> THA 		8-98053-899-0 01 1 0810- ● ●
301 17.204 SUPPORT; TAIL GATE
REAR BODY DBL WALL CTR PULL<E63> THA 		8-98053-899-0 01 1 0810- ●
301 17.204 SUPPORT; TAIL GATE
THA 		8-98053-899-0 01 1 0810- ● ●
çizim 118210
188 45 112 55 300 189 279 45 7 7 292 1 296 295 135 293 121 158 295 7 294 301 250 55 296 158 55 135 296 55 175 296 55 147 293 292 292 112 295 175 147 121 294 295 55 126 127 292 293 125 293 256 129
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 17.185 GATE ASM; RR
BRIGHT RAD GRILLE<V22> THA 		8-98041-103-0 01 1 0710- ● ●
1 17.185 GATE ASM; RR
THA 		8-98041-103-0 01 1 0710- ● ●
1 17.185 GATE ASM; RR
THA 		8-97236-657-5 01 1 0404-0709 ● ● ● ●
1 17.185 GATE ASM; RR
BASE VEHICLE GRILLE<VWX> THA 		8-98041-101-0 01 1 0710- ● ●
1 17.185 GATE ASM; RR
THA 		8-97236-656-4 01 1 0404-0610 ●
1 17.185 GATE ASM; RR
REAR BODY DBL WALL CTR PULL<E63> OUTER ROPE HOOKS<7MZ> THA 		8-97236-656-4 01 1 0611-0809 ●
1 17.185 GATE ASM; RR
REAR BODY DBL WALL CTR PULL<E63> THA 		8-97236-656-4 01 1 0810- ●
7 17.208 HINGE ASM; RR GATE
THA 		8-97360-602-0 01 1 0404-0610 ● ● ● ● ●
7 17.208 HINGE ASM; RR GATE
THA 		8-97360-602-0 01 1 0611-0611 ● ● ● ●
7 17.208 HINGE ASM; RR GATE
REAR BODY DBL WALL CTR PULL<E63> OUTER ROPE HOOKS<7MZ> THA 		8-97360-602-0 01 1 0611-0611 ●
7 17.208 HINGE ASM; RR GATE
THA 		8-98057-098-0 01 1 0612-0709 ● ● ● ●
7 17.208 HINGE ASM; RR GATE
REAR BODY DBL WALL CTR PULL<E63> OUTER ROPE HOOKS<7MZ> THA 		8-98057-098-0 01 1 0612-0709 ●
7 17.208 HINGE ASM; RR GATE
BASE VEHICLE GRILLE<VWX>,BRIGHT RAD GRILLE<V22> THA 		8-98057-098-0 01 1 0710-0809 ● ●
7 17.208 HINGE ASM; RR GATE
REAR BODY DBL WALL CTR PULL<E63> OUTER ROPE HOOKS<7MZ> THA 		8-98057-098-0 01 1 0710-0809 ●
7 17.208 HINGE ASM; RR GATE
THA 		8-98057-098-0 01 1 0710-0809 ● ●
7 17.208 HINGE ASM; RR GATE
BASE VEHICLE GRILLE<VWX>,BRIGHT RAD GRILLE<V22> THA 		8-98057-098-0 01 1 0810- ● ●
7 17.208 HINGE ASM; RR GATE
REAR BODY DBL WALL CTR PULL<E63> THA 		8-98057-098-0 01 1 0810- ●
7 17.208 HINGE ASM; RR GATE
THA 		8-98057-098-0 01 1 0810- ● ●
7 17.208 HINGE ASM; RR GATE
THA 		8-97360-600-0 01 1 0404-0610 ● ● ● ● ●
7 17.208 HINGE ASM; RR GATE
THA 		8-97360-600-0 01 1 0611-0611 ● ● ● ●
7 17.208 HINGE ASM; RR GATE
REAR BODY DBL WALL CTR PULL<E63> OUTER ROPE HOOKS<7MZ> THA 		8-97360-600-0 01 1 0611-0611 ●
7 17.208 HINGE ASM; RR GATE
THA 		8-98057-097-0 01 1 0612-0709 ● ● ● ●
7 17.208 HINGE ASM; RR GATE
REAR BODY DBL WALL CTR PULL<E63> OUTER ROPE HOOKS<7MZ> THA 		8-98057-097-0 01 1 0612-0709 ●
7 17.208 HINGE ASM; RR GATE
BASE VEHICLE GRILLE<VWX>,BRIGHT RAD GRILLE<V22> THA 		8-98057-097-0 01 1 0710-0809 ● ●
7 17.208 HINGE ASM; RR GATE
REAR BODY DBL WALL CTR PULL<E63> OUTER ROPE HOOKS<7MZ> THA 		8-98057-097-0 01 1 0710-0809 ●
7 17.208 HINGE ASM; RR GATE
THA 		8-98057-097-0 01 1 0710-0809 ● ●
7 17.208 HINGE ASM; RR GATE
BASE VEHICLE GRILLE<VWX>,BRIGHT RAD GRILLE<V22> THA 		8-98057-097-0 01 1 0810- ● ●
7 17.208 HINGE ASM; RR GATE
REAR BODY DBL WALL CTR PULL<E63> THA 		8-98057-097-0 01 1 0810- ●
7 17.208 HINGE ASM; RR GATE
THA 		8-98057-097-0 01 1 0810- ● ●
45 17.208 BOLT; TAIL GATE TO RR BODY
01.269 M8X16.5 THA 		1-09104-027-1 06 1 0404-0610 ● ● ● ● ●
45 17.208 BOLT; TAIL GATE TO RR BODY
01.269 M8X16.5 THA 		1-09104-027-1 06 1 0611-0611 ● ● ● ●
45 17.208 BOLT; TAIL GATE TO RR BODY
REAR BODY DBL WALL CTR PULL<E63> OUTER ROPE HOOKS<7MZ> 01.269 M8X16.5 THA 		1-09104-027-1 06 1 0611-0611 ●
45 17.208 BOLT; TAIL GATE TO RR BODY
17.400 M8X16.5 THA 		8-98058-001-0 06 1 0612-0709 ● ● ● ●
45 17.208 BOLT; TAIL GATE TO RR BODY
REAR BODY DBL WALL CTR PULL<E63> OUTER ROPE HOOKS<7MZ> 17.400 M8X16.5 THA 		8-98058-001-0 06 1 0612-0709 ●
45 17.208 BOLT; TAIL GATE TO RR BODY
BASE VEHICLE GRILLE<VWX>,BRIGHT RAD GRILLE<V22> 17.400 M8X16.5 THA 		8-98058-001-0 06 1 0710-0809 ● ●
45 17.208 BOLT; TAIL GATE TO RR BODY
REAR BODY DBL WALL CTR PULL<E63> OUTER ROPE HOOKS<7MZ> 17.400 M8X16.5 THA 		8-98058-001-0 06 1 0710-0809 ●
45 17.208 BOLT; TAIL GATE TO RR BODY
17.400 M8X16.5 THA 		8-98058-001-0 06 1 0710-0809 ● ●
45 17.208 BOLT; TAIL GATE TO RR BODY
BASE VEHICLE GRILLE<VWX>,BRIGHT RAD GRILLE<V22> 17.400 M8X16.5 THA 		8-98058-001-0 06 1 0810- ● ●
45 17.208 BOLT; TAIL GATE TO RR BODY
REAR BODY DBL WALL CTR PULL<E63> 17.400 M8X16.5 THA 		8-98058-001-0 06 1 0810- ●
45 17.208 BOLT; TAIL GATE TO RR BODY
17.400 M8X16.5 THA 		8-98058-001-0 06 1 0810- ● ●
55 17.505 PANEL; RR CORNER
(C) THA 		8-97362-425-0 01 1 0404-0610 ● ● ● ● ●
55 17.505 PANEL; RR CORNER
(C) THA 		8-97362-425-0 01 1 0611- ● ● ● ●
55 17.505 PANEL; RR CORNER
REAR BODY DBL WALL CTR PULL<E63> (C) THA 		8-97362-425-0 01 1 0611- ●
55 17.505 PANEL; RR CORNER
(C) THA 		8-97362-424-0 01 1 0404-0610 ● ● ● ● ●
55 17.505 PANEL; RR CORNER
(C) THA 		8-97362-424-0 01 1 0611- ● ● ● ●
55 17.505 PANEL; RR CORNER
REAR BODY DBL WALL CTR PULL<E63> (C) THA 		8-97362-424-0 01 1 0611- ●
55 17.505 PANEL; RR CORNER
(B) THA 		8-97362-209-1 01 1 0404- ● ● ● ●
55 17.505 PANEL; RR CORNER
(B) THA 		8-97362-208-1 01 1 0404- ● ● ● ●
55 17.505 PANEL; RR CORNER
(A) THA 		8-97236-629-6 01 1 0404- ● ●
55 17.505 PANEL; RR CORNER
(A) THA 		8-97236-320-6 01 1 0404- ● ●
55 17.505 PANEL; RR CORNER
(A) THA 		8-97236-628-5 01 1 0404-0610 ●
55 17.505 PANEL; RR CORNER
REAR BODY DBL WALL CTR PULL<E63> OUTER ROPE HOOKS<7MZ> (A) THA 		8-97236-628-5 01 1 0611-0809 ●
55 17.505 PANEL; RR CORNER
REAR BODY DBL WALL CTR PULL<E63> (A) THA 		8-97236-628-5 01 1 0810- ●
55 17.505 PANEL; RR CORNER
(B) THA 		8-97362-211-1 01 1 0404-0610 ●
55 17.505 PANEL; RR CORNER
REAR BODY DBL WALL CTR PULL<E63> (B) THA 		8-97362-211-1 01 1 0611- ●
55 17.505 PANEL; RR CORNER
(A) THA 		8-97236-319-5 01 1 0404-0610 ●
55 17.505 PANEL; RR CORNER
REAR BODY DBL WALL CTR PULL<E63> OUTER ROPE HOOKS<7MZ> (A) THA 		8-97236-319-5 01 1 0611-0809 ●
55 17.505 PANEL; RR CORNER
REAR BODY DBL WALL CTR PULL<E63> (A) THA 		8-97236-319-5 01 1 0810- ●
55 17.505 PANEL; RR CORNER
(B) THA 		8-97362-210-1 01 1 0404-0610 ●
55 17.505 PANEL; RR CORNER
REAR BODY DBL WALL CTR PULL<E63> (B) THA 		8-97362-210-1 01 1 0611- ●
55 17.505 PANEL; RR CORNER
(A) THA 		8-93293-139-2 01 1 0404- ● ●
55 17.505 PANEL; RR CORNER
(A) THA 		8-93293-138-2 01 1 0404- ● ●
112 17.455 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL<E63> EXC. OUTER ROPE HOOKS<7MZ>,CHEVROLET EQUIPMENT<8JF> THA 		8-97356-542-0 01 1 0404-0609 ● ●
112 17.455 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL<E63> EXC. OUTER ROPE HOOKS<7MZ>,CHEVROLET EQUIPMENT<8JF> THA 		8-97356-541-0 01 1 0404-0609 ● ●
112 17.455 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL<E63> EXC. OVER FENDER<B74>,OUTER ROPE HOOKS<7MZ>,CHEVROLET EQUIPMENT<8JF> THA 		8-93299-792-3 01 1 0404-0609 ● ●
112 17.455 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL<E63> EXC. OVER FENDER<B74>,OUTER ROPE HOOKS<7MZ>,CHEVROLET EQUIPMENT<8JF> THA 		8-93299-793-5 01 1 0404-0609 ● ●
112 17.455 PANEL; SIDE GATE
OVER FENDER<B74> REAR BODY DBL WALL CTR PULL<E63> EXC. OUTER ROPE HOOKS<7MZ>,CHEVROLET EQUIPMENT<8JF> THA 		8-93327-642-3 01 1 0404-0609 ● ●
112 17.455 PANEL; SIDE GATE
OVER FENDER<B74> REAR BODY DBL WALL CTR PULL<E63> EXC. OUTER ROPE HOOKS<7MZ>,CHEVROLET EQUIPMENT<8JF> THA 		8-93333-734-3 01 1 0404-0609 ● ●
112 17.455 PANEL; SIDE GATE
OVER FENDER<B74> REAR BODY DBL WALL CTR PULL<E63> EXC. OUTER ROPE HOOKS<7MZ>,CHEVROLET EQUIPMENT<8JF> THA 		8-93333-744-5 01 1 0404-0609 ● ●
112 17.455 PANEL; SIDE GATE
OVER FENDER<B74> REAR BODY DBL WALL CTR PULL<E63> OUTER ROPE HOOKS<7MZ> EXC. CHEVROLET EQUIPMENT<8JF> THA 		8-97236-307-2 01 1 0404-0807 ●
112 17.455 PANEL; SIDE GATE
OVER FENDER<B74> REAR BODY DBL WALL CTR PULL<E63> EXC. CHEVROLET EQUIPMENT<8JF> THA 		8-97236-307-2 01 1 0808- ●
112 17.455 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL<E63> OUTER ROPE HOOKS<7MZ> EXC. CHEVROLET EQUIPMENT<8JF> THA 		8-97236-313-6 01 1 0404-0807 ●
112 17.455 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL<E63> EXC. CHEVROLET EQUIPMENT<8JF> THA 		8-97236-313-6 01 1 0808- ●
112 17.455 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL<E63> OUTER ROPE HOOKS<7MZ> EXC. CHEVROLET EQUIPMENT<8JF> THA 		8-97236-617-6 01 1 0404-0404 ●
112 17.455 PANEL; SIDE GATE
OVER FENDER<B74> REAR BODY DBL WALL CTR PULL<E63> EXC. OUTER ROPE HOOKS<7MZ>,CHEVROLET EQUIPMENT<8JF> THA 		8-97356-542-0 01 1 0404-0609 ● ●
112 17.455 PANEL; SIDE GATE
OVER FENDER<B74> REAR BODY DBL WALL CTR PULL<E63> EXC. OUTER ROPE HOOKS<7MZ>,CHEVROLET EQUIPMENT<8JF> THA 		8-97356-541-0 01 1 0404-0609 ● ●
112 17.455 PANEL; SIDE GATE
OVER FENDER<B74> REAR BODY DBL WALL CTR PULL<E63> EXC. OUTER ROPE HOOKS<7MZ>,CHEVROLET EQUIPMENT<8JF> THA 		8-97360-566-0 01 1 0404-0609 ● ●
112 17.455 PANEL; SIDE GATE
OVER FENDER<B74> REAR BODY DBL WALL CTR PULL<E63> EXC. OUTER ROPE HOOKS<7MZ>,CHEVROLET EQUIPMENT<8JF> THA 		8-97360-567-0 01 1 0404-0609 ● ●
112 17.455 PANEL; SIDE GATE
THAILAND EQUIPMENT<B03> REAR BODY DBL WALL CTR PULL<E63> EXC. OUTER ROPE HOOKS<7MZ>,CHEVROLET EQUIPMENT<8JF> THA 		8-97360-569-0 01 1 0404-0609 ● ●
112 17.455 PANEL; SIDE GATE
THAILAND EQUIPMENT<B03> REAR BODY DBL WALL CTR PULL<E63> EXC. OUTER ROPE HOOKS<7MZ>,CHEVROLET EQUIPMENT<8JF> THA 		8-97360-570-0 01 1 0404-0609 ● ●
112 17.455 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL<E63> OUTER ROPE HOOKS<7MZ> CHEVROLET EQUIPMENT<8JF> THA 		8-97362-417-2 01 1 0404-0502 ●
112 17.455 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL<E63> OUTER ROPE HOOKS<7MZ> CHEVROLET EQUIPMENT<8JF> THA 		8-97362-418-2 01 1 0404-0502 ●
112 17.455 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL<E63> CHEVROLET EQUIPMENT<8JF> EXC. OVER FENDER<B74>,OUTER ROPE HOOKS<7MZ> THA 		8-97362-419-2 01 1 0404-0502 ● ●
112 17.455 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL<E63> CHEVROLET EQUIPMENT<8JF> EXC. OVER FENDER<B74>,OUTER ROPE HOOKS<7MZ> THA 		8-97362-420-2 01 1 0404-0502 ● ●
112 17.455 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL<E63> CHEVROLET EQUIPMENT<8JF> EXC. OVER FENDER<B74>,OUTER ROPE HOOKS<7MZ> THA 		8-97362-421-3 01 1 0404-0807 ● ●
112 17.455 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL<E63> CHEVROLET EQUIPMENT<8JF> EXC. OVER FENDER<B74> THA 		8-97362-421-3 01 1 0808- ● ●
112 17.455 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL<E63> CHEVROLET EQUIPMENT<8JF> EXC. OVER FENDER<B74>,OUTER ROPE HOOKS<7MZ> THA 		8-97362-422-3 01 1 0404-0807 ● ●
112 17.455 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL<E63> CHEVROLET EQUIPMENT<8JF> EXC. OVER FENDER<B74> THA 		8-97362-422-3 01 1 0808- ● ●
112 17.455 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL<E63> OUTER ROPE HOOKS<7MZ> CHEVROLET EQUIPMENT<8JF> THA 		8-97362-417-2 01 1 0404-0807 ●
112 17.455 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL<E63> CHEVROLET EQUIPMENT<8JF> THA 		8-97362-417-2 01 1 0808- ●
112 17.455 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL<E63> OUTER ROPE HOOKS<7MZ> CHEVROLET EQUIPMENT<8JF> THA 		8-97362-418-2 01 1 0404-0807 ●
112 17.455 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL<E63> CHEVROLET EQUIPMENT<8JF> THA 		8-97362-418-2 01 1 0808- ●
112 17.455 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL<E63> CHEVROLET EQUIPMENT<8JF> EXC. OUTER ROPE HOOKS<7MZ> THA 		8-97362-419-2 01 1 0404-0405 ● ●
112 17.455 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL<E63> CHEVROLET EQUIPMENT<8JF> EXC. OVER FENDER<B74>,OUTER ROPE HOOKS<7MZ> THA 		8-97362-419-2 01 1 0406-0709 ● ●
112 17.455 PANEL; SIDE GATE
THAILAND EQUIPMENT<B03> REAR BODY DBL WALL CTR PULL<E63> CHEVROLET EQUIPMENT<8JF> EXC. OVER FENDER<B74>,OUTER ROPE HOOKS<7MZ> THA 		8-97362-419-2 01 1 0710-0807 ● ●
112 17.455 PANEL; SIDE GATE
THAILAND EQUIPMENT<B03> REAR BODY DBL WALL CTR PULL<E63> CHEVROLET EQUIPMENT<8JF> EXC. OVER FENDER<B74> THA 		8-97362-419-2 01 1 0808- ● ●
112 17.455 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL<E63> CHEVROLET EQUIPMENT<8JF> EXC. OUTER ROPE HOOKS<7MZ> THA 		8-97362-420-2 01 1 0404-0405 ● ●
112 17.455 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL<E63> CHEVROLET EQUIPMENT<8JF> EXC. OVER FENDER<B74>,OUTER ROPE HOOKS<7MZ> THA 		8-97362-420-2 01 1 0406-0709 ● ●
112 17.455 PANEL; SIDE GATE
THAILAND EQUIPMENT<B03> REAR BODY DBL WALL CTR PULL<E63> CHEVROLET EQUIPMENT<8JF> EXC. OVER FENDER<B74>,OUTER ROPE HOOKS<7MZ> THA 		8-97362-420-2 01 1 0710-0807 ● ●
112 17.455 PANEL; SIDE GATE
THAILAND EQUIPMENT<B03> REAR BODY DBL WALL CTR PULL<E63> CHEVROLET EQUIPMENT<8JF> EXC. OVER FENDER<B74> THA 		8-97362-420-2 01 1 0808- ● ●
112 17.455 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL<E63> CHEVROLET EQUIPMENT<8JF> EXC. OUTER ROPE HOOKS<7MZ> THA 		8-97362-421-3 01 1 0404-0405 ● ●
112 17.455 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL<E63> CHEVROLET EQUIPMENT<8JF> EXC. OVER FENDER<B74>,OUTER ROPE HOOKS<7MZ> THA 		8-97362-421-3 01 1 0406-0807 ● ●
112 17.455 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL<E63> CHEVROLET EQUIPMENT<8JF> EXC. OVER FENDER<B74> THA 		8-97362-421-3 01 1 0808- ● ●
112 17.455 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL<E63> CHEVROLET EQUIPMENT<8JF> EXC. OUTER ROPE HOOKS<7MZ> THA 		8-97362-422-3 01 1 0404-0405 ● ●
112 17.455 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL<E63> CHEVROLET EQUIPMENT<8JF> EXC. OVER FENDER<B74>,OUTER ROPE HOOKS<7MZ> THA 		8-97362-422-3 01 1 0406-0807 ● ●
112 17.455 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL<E63> CHEVROLET EQUIPMENT<8JF> EXC. OVER FENDER<B74> THA 		8-97362-422-3 01 1 0808- ● ●
112 17.455 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL<E63> OUTER ROPE HOOKS<7MZ> CHEVROLET EQUIPMENT<8JF> THA 		8-97362-417-2 01 1 0406-0807 ●
112 17.455 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL<E63> CHEVROLET EQUIPMENT<8JF> THA 		8-97362-417-2 01 1 0808- ●
112 17.455 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL<E63> OUTER ROPE HOOKS<7MZ> CHEVROLET EQUIPMENT<8JF> THA 		8-97362-418-2 01 1 0406-0807 ●
112 17.455 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL<E63> CHEVROLET EQUIPMENT<8JF> THA 		8-97362-418-2 01 1 0808- ●
112 17.455 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL<E63> CHEVROLET EQUIPMENT<8JF> EXC. OUTER ROPE HOOKS<7MZ> THA 		8-97362-419-2 01 1 0406-0807 ● ●
112 17.455 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL<E63> CHEVROLET EQUIPMENT<8JF> THA 		8-97362-419-2 01 1 0808- ● ●
112 17.455 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL<E63> CHEVROLET EQUIPMENT<8JF> EXC. OUTER ROPE HOOKS<7MZ> THA 		8-97362-420-2 01 1 0406-0807 ● ●
112 17.455 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL<E63> CHEVROLET EQUIPMENT<8JF> THA 		8-97362-420-2 01 1 0808- ● ●
112 17.455 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL<E63> CHEVROLET EQUIPMENT<8JF> EXC. OUTER ROPE HOOKS<7MZ> THA 		8-97362-421-3 01 1 0406-0807 ● ●
112 17.455 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL<E63> CHEVROLET EQUIPMENT<8JF> THA 		8-97362-421-3 01 1 0808- ● ●
112 17.455 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL<E63> CHEVROLET EQUIPMENT<8JF> EXC. OUTER ROPE HOOKS<7MZ> THA 		8-97362-422-3 01 1 0406-0807 ● ●
112 17.455 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL<E63> CHEVROLET EQUIPMENT<8JF> THA 		8-97362-422-3 01 1 0808- ● ●
112 17.455 PANEL; SIDE GATE
OVER FENDER<B74> REAR BODY DBL WALL CTR PULL<E63> CHEVROLET EQUIPMENT<8JF> EXC. OUTER ROPE HOOKS<7MZ> THA 		8-97362-619-2 01 1 0404-0502 ● ●
112 17.455 PANEL; SIDE GATE
OVER FENDER<B74> REAR BODY DBL WALL CTR PULL<E63> CHEVROLET EQUIPMENT<8JF> EXC. OUTER ROPE HOOKS<7MZ> THA 		8-97362-620-2 01 1 0404-0502 ● ●
112 17.455 PANEL; SIDE GATE
OVER FENDER<B74> REAR BODY DBL WALL CTR PULL<E63> CHEVROLET EQUIPMENT<8JF> EXC. OUTER ROPE HOOKS<7MZ> THA 		8-97362-621-3 01 1 0404-0807 ● ●
112 17.455 PANEL; SIDE GATE
OVER FENDER<B74> REAR BODY DBL WALL CTR PULL<E63> CHEVROLET EQUIPMENT<8JF> THA 		8-97362-621-3 01 1 0808- ● ●
112 17.455 PANEL; SIDE GATE
OVER FENDER<B74> REAR BODY DBL WALL CTR PULL<E63> CHEVROLET EQUIPMENT<8JF> EXC. OUTER ROPE HOOKS<7MZ> THA 		8-97362-622-3 01 1 0404-0807 ● ●
112 17.455 PANEL; SIDE GATE
OVER FENDER<B74> REAR BODY DBL WALL CTR PULL<E63> CHEVROLET EQUIPMENT<8JF> THA 		8-97362-622-3 01 1 0808- ● ●
112 17.455 PANEL; SIDE GATE
OVER FENDER<B74> REAR BODY DBL WALL CTR PULL<E63> CHEVROLET EQUIPMENT<8JF> THA 		8-97362-619-2 01 1 0404-0709 ● ●
112 17.455 PANEL; SIDE GATE
THAILAND EQUIPMENT<B03> OVER FENDER<B74> REAR BODY DBL WALL CTR PULL<E63> CHEVROLET EQUIPMENT<8JF> EXC. OUTER ROPE HOOKS<7MZ> THA 		8-97362-619-2 01 1 0710-0807 ● ●
112 17.455 PANEL; SIDE GATE
THAILAND EQUIPMENT<B03> OVER FENDER<B74> REAR BODY DBL WALL CTR PULL<E63> CHEVROLET EQUIPMENT<8JF> THA 		8-97362-619-2 01 1 0808- ● ●
112 17.455 PANEL; SIDE GATE
OVER FENDER<B74> REAR BODY DBL WALL CTR PULL<E63> CHEVROLET EQUIPMENT<8JF> THA 		8-97362-620-2 01 1 0404-0709 ● ●
112 17.455 PANEL; SIDE GATE
THAILAND EQUIPMENT<B03> OVER FENDER<B74> REAR BODY DBL WALL CTR PULL<E63> CHEVROLET EQUIPMENT<8JF> EXC. OUTER ROPE HOOKS<7MZ> THA 		8-97362-620-2 01 1 0710-0807 ● ●
112 17.455 PANEL; SIDE GATE
THAILAND EQUIPMENT<B03> OVER FENDER<B74> REAR BODY DBL WALL CTR PULL<E63> CHEVROLET EQUIPMENT<8JF> THA 		8-97362-620-2 01 1 0808- ● ●
112 17.455 PANEL; SIDE GATE
OVER FENDER<B74> REAR BODY DBL WALL CTR PULL<E63> CHEVROLET EQUIPMENT<8JF> THA 		8-97362-621-3 01 1 0404- ● ●
112 17.455 PANEL; SIDE GATE
OVER FENDER<B74> REAR BODY DBL WALL CTR PULL<E63> CHEVROLET EQUIPMENT<8JF> THA 		8-97362-622-3 01 1 0404- ● ●
112 17.455 PANEL; SIDE GATE
OVER FENDER<B74> REAR BODY DBL WALL CTR PULL<E63> OUTER ROPE HOOKS<7MZ> EXC. CHEVROLET EQUIPMENT<8JF> THA 		8-97373-020-0 01 1 0404-0807 ●
112 17.455 PANEL; SIDE GATE
OVER FENDER<B74> REAR BODY DBL WALL CTR PULL<E63> EXC. CHEVROLET EQUIPMENT<8JF> THA 		8-97373-020-0 01 1 0808- ●
112 17.455 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL<E63> OUTER ROPE HOOKS<7MZ> EXC. CHEVROLET EQUIPMENT<8JF> THA 		8-97236-617-6 01 1 0405-0807 ●
112 17.455 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL<E63> EXC. CHEVROLET EQUIPMENT<8JF> THA 		8-97236-617-6 01 1 0808- ●
112 17.455 PANEL; SIDE GATE
THAILAND EQUIPMENT<B03> OVER FENDER<B74> REAR BODY DBL WALL CTR PULL<E63> EXC. OUTER ROPE HOOKS<7MZ>,CHEVROLET EQUIPMENT<8JF> THA 		8-97360-848-0 01 1 0404-0609 ● ●
112 17.455 PANEL; SIDE GATE
THAILAND EQUIPMENT<B03> OVER FENDER<B74> REAR BODY DBL WALL CTR PULL<E63> EXC. OUTER ROPE HOOKS<7MZ>,CHEVROLET EQUIPMENT<8JF> THA 		8-97360-853-0 01 1 0404-0609 ● ●
112 17.455 PANEL; SIDE GATE
THAILAND EQUIPMENT<B03> REAR BODY DBL WALL CTR PULL<E63> OUTER ROPE HOOKS<7MZ> EXC. OVER FENDER<B74>,CHEVROLET EQUIPMENT<8JF> THA 		8-97252-094-2 01 1 0404-0807 ●
112 17.455 PANEL; SIDE GATE
THAILAND EQUIPMENT<B03> REAR BODY DBL WALL CTR PULL<E63> EXC. OVER FENDER<B74>,CHEVROLET EQUIPMENT<8JF> THA 		8-97252-094-2 01 1 0808- ●
112 17.455 PANEL; SIDE GATE
THAILAND EQUIPMENT<B03> REAR BODY DBL WALL CTR PULL<E63> OUTER ROPE HOOKS<7MZ> EXC. OVER FENDER<B74>,CHEVROLET EQUIPMENT<8JF> THA 		8-97373-019-0 01 1 0404-0807 ●
112 17.455 PANEL; SIDE GATE
THAILAND EQUIPMENT<B03> REAR BODY DBL WALL CTR PULL<E63> EXC. OVER FENDER<B74>,CHEVROLET EQUIPMENT<8JF> THA 		8-97373-019-0 01 1 0808- ●
112 17.455 PANEL; SIDE GATE
THAILAND EQUIPMENT<B03> REAR BODY DBL WALL CTR PULL<E63> EXC. OVER FENDER<B74>,OUTER ROPE HOOKS<7MZ>,CHEVROLET EQUIPMENT<8JF> THA 		8-97360-849-0 01 1 0404-0609 ● ●
112 17.455 PANEL; SIDE GATE
THAILAND EQUIPMENT<B03> REAR BODY DBL WALL CTR PULL<E63> EXC. OVER FENDER<B74>,OUTER ROPE HOOKS<7MZ>,CHEVROLET EQUIPMENT<8JF> THA 		8-97360-854-0 01 1 0404-0609 ● ●
112 17.455 PANEL; SIDE GATE
THAILAND EQUIPMENT<B03> OVER FENDER<B74> REAR BODY DBL WALL CTR PULL<E63> EXC. OUTER ROPE HOOKS<7MZ>,CHEVROLET EQUIPMENT<8JF> THA 		8-97387-300-1 01 1 0610-0709 ● ●
112 17.455 PANEL; SIDE GATE
THAILAND EQUIPMENT<B03> OVER FENDER<B74> REAR BODY DBL WALL CTR PULL<E63> EXC. OUTER ROPE HOOKS<7MZ>,CHEVROLET EQUIPMENT<8JF> THA 		8-97387-301-1 01 1 0610-0709 ● ●
112 17.455 PANEL; SIDE GATE
THAILAND EQUIPMENT<B03> REAR BODY DBL WALL CTR PULL<E63> EXC. OVER FENDER<B74>,OUTER ROPE HOOKS<7MZ>,CHEVROLET EQUIPMENT<8JF> THA 		8-97387-302-1 01 1 0610-0709 ● ●
112 17.455 PANEL; SIDE GATE
THAILAND EQUIPMENT<B03> REAR BODY DBL WALL CTR PULL<E63> EXC. OVER FENDER<B74>,OUTER ROPE HOOKS<7MZ>,CHEVROLET EQUIPMENT<8JF> THA 		8-97387-303-1 01 1 0610-0709 ● ●
112 17.455 PANEL; SIDE GATE
OVER FENDER<B74> REAR BODY DBL WALL CTR PULL<E63> EXC. OUTER ROPE HOOKS<7MZ>,CHEVROLET EQUIPMENT<8JF> THA 		8-97387-304-0 01 1 0610-0807 ● ●
112 17.455 PANEL; SIDE GATE
OVER FENDER<B74> REAR BODY DBL WALL CTR PULL<E63> EXC. CHEVROLET EQUIPMENT<8JF> THA 		8-97387-304-0 01 1 0808- ● ●
112 17.455 PANEL; SIDE GATE
OVER FENDER<B74> REAR BODY DBL WALL CTR PULL<E63> EXC. OUTER ROPE HOOKS<7MZ>,CHEVROLET EQUIPMENT<8JF> THA 		8-97387-309-0 01 1 0610-0807 ● ●
112 17.455 PANEL; SIDE GATE
OVER FENDER<B74> REAR BODY DBL WALL CTR PULL<E63> EXC. CHEVROLET EQUIPMENT<8JF> THA 		8-97387-309-0 01 1 0808- ● ●
112 17.455 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL<E63> EXC. OVER FENDER<B74>,OUTER ROPE HOOKS<7MZ>,CHEVROLET EQUIPMENT<8JF> THA 		8-97387-310-0 01 1 0610-0807 ● ●
112 17.455 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL<E63> EXC. OVER FENDER<B74>,CHEVROLET EQUIPMENT<8JF> THA 		8-97387-310-0 01 1 0808- ● ●
112 17.455 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL<E63> EXC. OVER FENDER<B74>,OUTER ROPE HOOKS<7MZ>,CHEVROLET EQUIPMENT<8JF> THA 		8-97387-311-0 01 1 0610-0807 ● ●
112 17.455 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL<E63> EXC. OVER FENDER<B74>,CHEVROLET EQUIPMENT<8JF> THA 		8-97387-311-0 01 1 0808- ● ●
112 17.455 PANEL; SIDE GATE
THAILAND EQUIPMENT<B03> REAR BODY DBL WALL CTR PULL<E63> EXC. OUTER ROPE HOOKS<7MZ>,CHEVROLET EQUIPMENT<8JF> THA 		8-97387-327-0 01 1 0610-0803 ● ●
112 17.455 PANEL; SIDE GATE
THAILAND EQUIPMENT<B03> REAR BODY DBL WALL CTR PULL<E63> EXC. OUTER ROPE HOOKS<7MZ>,CHEVROLET EQUIPMENT<8JF> THA 		8-98098-358-0 01 1 0804-0807 ● ●
112 17.455 PANEL; SIDE GATE
THAILAND EQUIPMENT<B03> REAR BODY DBL WALL CTR PULL<E63> EXC. CHEVROLET EQUIPMENT<8JF> THA 		8-98098-358-0 01 1 0808- ● ●
112 17.455 PANEL; SIDE GATE
THAILAND EQUIPMENT<B03> REAR BODY DBL WALL CTR PULL<E63> EXC. OUTER ROPE HOOKS<7MZ>,CHEVROLET EQUIPMENT<8JF> THA 		8-97387-329-0 01 1 0610-0803 ● ●
112 17.455 PANEL; SIDE GATE
THAILAND EQUIPMENT<B03> REAR BODY DBL WALL CTR PULL<E63> EXC. OUTER ROPE HOOKS<7MZ>,CHEVROLET EQUIPMENT<8JF> THA 		8-98098-359-0 01 1 0804-0807 ● ●
112 17.455 PANEL; SIDE GATE
THAILAND EQUIPMENT<B03> REAR BODY DBL WALL CTR PULL<E63> EXC. CHEVROLET EQUIPMENT<8JF> THA 		8-98098-359-0 01 1 0808- ● ●
112 17.455 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL<E63> EXC. OUTER ROPE HOOKS<7MZ>,CHEVROLET EQUIPMENT<8JF> THA 		8-97387-332-0 01 1 0610-0807 ● ●
112 17.455 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL<E63> EXC. CHEVROLET EQUIPMENT<8JF> THA 		8-97387-332-0 01 1 0808- ● ●
112 17.455 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL<E63> EXC. OUTER ROPE HOOKS<7MZ>,CHEVROLET EQUIPMENT<8JF> THA 		8-97387-333-0 01 1 0610-0807 ● ●
112 17.455 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL<E63> EXC. CHEVROLET EQUIPMENT<8JF> THA 		8-97387-333-0 01 1 0808- ● ●
112 17.455 PANEL; SIDE GATE
OVER FENDER<B74> REAR BODY DBL WALL CTR PULL<E63> EXC. OUTER ROPE HOOKS<7MZ>,CHEVROLET EQUIPMENT<8JF> THA 		8-97387-325-0 01 1 0610-0803 ● ●
112 17.455 PANEL; SIDE GATE
OVER FENDER<B74> REAR BODY DBL WALL CTR PULL<E63> EXC. OUTER ROPE HOOKS<7MZ>,CHEVROLET EQUIPMENT<8JF> THA 		8-97387-326-0 01 1 0610-0803 ● ●
112 17.455 PANEL; SIDE GATE
OVER FENDER<B74> REAR BODY DBL WALL CTR PULL<E63> EXC. OUTER ROPE HOOKS<7MZ>,CHEVROLET EQUIPMENT<8JF> THA 		8-97387-332-0 01 1 0610-0807 ● ●
112 17.455 PANEL; SIDE GATE
OVER FENDER<B74> REAR BODY DBL WALL CTR PULL<E63> EXC. CHEVROLET EQUIPMENT<8JF> THA 		8-97387-332-0 01 1 0808- ● ●
112 17.455 PANEL; SIDE GATE
OVER FENDER<B74> REAR BODY DBL WALL CTR PULL<E63> EXC. OUTER ROPE HOOKS<7MZ>,CHEVROLET EQUIPMENT<8JF> THA 		8-97387-333-0 01 1 0610-0807 ● ●
112 17.455 PANEL; SIDE GATE
OVER FENDER<B74> REAR BODY DBL WALL CTR PULL<E63> EXC. CHEVROLET EQUIPMENT<8JF> THA 		8-97387-333-0 01 1 0808- ● ●
112 17.455 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL<E63> OUTER ROPE HOOKS<7MZ> CHEVROLET EQUIPMENT<8JF> THA 		8-97362-417-2 01 1 0503-0709 ●
112 17.455 PANEL; SIDE GATE
THAILAND EQUIPMENT<B03> REAR BODY DBL WALL CTR PULL<E63> OUTER ROPE HOOKS<7MZ> CHEVROLET EQUIPMENT<8JF> THA 		8-97362-417-2 01 1 0710-0807 ●
112 17.455 PANEL; SIDE GATE
THAILAND EQUIPMENT<B03> REAR BODY DBL WALL CTR PULL<E63> CHEVROLET EQUIPMENT<8JF> THA 		8-97362-417-2 01 1 0808- ●
112 17.455 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL<E63> OUTER ROPE HOOKS<7MZ> CHEVROLET EQUIPMENT<8JF> THA 		8-97362-418-2 01 1 0503-0709 ●
112 17.455 PANEL; SIDE GATE
THAILAND EQUIPMENT<B03> REAR BODY DBL WALL CTR PULL<E63> OUTER ROPE HOOKS<7MZ> CHEVROLET EQUIPMENT<8JF> THA 		8-97362-418-2 01 1 0710-0807 ●
112 17.455 PANEL; SIDE GATE
THAILAND EQUIPMENT<B03> REAR BODY DBL WALL CTR PULL<E63> CHEVROLET EQUIPMENT<8JF> THA 		8-97362-418-2 01 1 0808- ●
112 17.455 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL<E63> CHEVROLET EQUIPMENT<8JF> EXC. OVER FENDER<B74>,OUTER ROPE HOOKS<7MZ> THA 		8-97362-419-2 01 1 0503-0709 ● ●
112 17.455 PANEL; SIDE GATE
THAILAND EQUIPMENT<B03> REAR BODY DBL WALL CTR PULL<E63> CHEVROLET EQUIPMENT<8JF> EXC. OVER FENDER<B74>,OUTER ROPE HOOKS<7MZ> THA 		8-97362-419-2 01 1 0710-0807 ● ●
112 17.455 PANEL; SIDE GATE
THAILAND EQUIPMENT<B03> REAR BODY DBL WALL CTR PULL<E63> CHEVROLET EQUIPMENT<8JF> EXC. OVER FENDER<B74> THA 		8-97362-419-2 01 1 0808- ● ●
112 17.455 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL<E63> CHEVROLET EQUIPMENT<8JF> EXC. OVER FENDER<B74>,OUTER ROPE HOOKS<7MZ> THA 		8-97362-420-2 01 1 0503-0709 ● ●
112 17.455 PANEL; SIDE GATE
THAILAND EQUIPMENT<B03> REAR BODY DBL WALL CTR PULL<E63> CHEVROLET EQUIPMENT<8JF> EXC. OVER FENDER<B74>,OUTER ROPE HOOKS<7MZ> THA 		8-97362-420-2 01 1 0710-0807 ● ●
112 17.455 PANEL; SIDE GATE
THAILAND EQUIPMENT<B03> REAR BODY DBL WALL CTR PULL<E63> CHEVROLET EQUIPMENT<8JF> EXC. OVER FENDER<B74> THA 		8-97362-420-2 01 1 0808- ● ●
112 17.455 PANEL; SIDE GATE
OVER FENDER<B74> REAR BODY DBL WALL CTR PULL<E63> CHEVROLET EQUIPMENT<8JF> EXC. OUTER ROPE HOOKS<7MZ> THA 		8-97362-619-2 01 1 0503-0709 ● ●
112 17.455 PANEL; SIDE GATE
THAILAND EQUIPMENT<B03> OVER FENDER<B74> REAR BODY DBL WALL CTR PULL<E63> CHEVROLET EQUIPMENT<8JF> EXC. OUTER ROPE HOOKS<7MZ> THA 		8-97362-619-2 01 1 0710-0807 ● ●
112 17.455 PANEL; SIDE GATE
THAILAND EQUIPMENT<B03> OVER FENDER<B74> REAR BODY DBL WALL CTR PULL<E63> CHEVROLET EQUIPMENT<8JF> THA 		8-97362-619-2 01 1 0808- ● ●
112 17.455 PANEL; SIDE GATE
OVER FENDER<B74> REAR BODY DBL WALL CTR PULL<E63> CHEVROLET EQUIPMENT<8JF> EXC. OUTER ROPE HOOKS<7MZ> THA 		8-97362-620-2 01 1 0503-0709 ● ●
112 17.455 PANEL; SIDE GATE
THAILAND EQUIPMENT<B03> OVER FENDER<B74> REAR BODY DBL WALL CTR PULL<E63> CHEVROLET EQUIPMENT<8JF> EXC. OUTER ROPE HOOKS<7MZ> THA 		8-97362-620-2 01 1 0710-0807 ● ●
112 17.455 PANEL; SIDE GATE
THAILAND EQUIPMENT<B03> OVER FENDER<B74> REAR BODY DBL WALL CTR PULL<E63> CHEVROLET EQUIPMENT<8JF> THA 		8-97362-620-2 01 1 0808- ● ●
112 17.455 PANEL; SIDE GATE
THAILAND EQUIPMENT<B03> REAR BODY DBL WALL CTR PULL<E63> EXC. OVER FENDER<B74>,OUTER ROPE HOOKS<7MZ>,CHEVROLET EQUIPMENT<8JF> THA 		8-97387-302-1 01 1 0710-0807 ● ●
112 17.455 PANEL; SIDE GATE
THAILAND EQUIPMENT<B03> REAR BODY DBL WALL CTR PULL<E63> EXC. OVER FENDER<B74>,CHEVROLET EQUIPMENT<8JF> THA 		8-97387-302-1 01 1 0808- ● ●
112 17.455 PANEL; SIDE GATE
THAILAND EQUIPMENT<B03> REAR BODY DBL WALL CTR PULL<E63> EXC. OVER FENDER<B74>,OUTER ROPE HOOKS<7MZ>,CHEVROLET EQUIPMENT<8JF> THA 		8-97387-303-1 01 1 0710-0807 ● ●
112 17.455 PANEL; SIDE GATE
THAILAND EQUIPMENT<B03> REAR BODY DBL WALL CTR PULL<E63> EXC. OVER FENDER<B74>,CHEVROLET EQUIPMENT<8JF> THA 		8-97387-303-1 01 1 0808- ● ●
112 17.455 PANEL; SIDE GATE
THAILAND EQUIPMENT<B03> OVER FENDER<B74> REAR BODY DBL WALL CTR PULL<E63> EXC. OUTER ROPE HOOKS<7MZ>,CHEVROLET EQUIPMENT<8JF> THA 		8-97387-300-1 01 1 0710-0807 ● ●
112 17.455 PANEL; SIDE GATE
THAILAND EQUIPMENT<B03> OVER FENDER<B74> REAR BODY DBL WALL CTR PULL<E63> EXC. CHEVROLET EQUIPMENT<8JF> THA 		8-97387-300-1 01 1 0808- ● ●
112 17.455 PANEL; SIDE GATE
THAILAND EQUIPMENT<B03> OVER FENDER<B74> REAR BODY DBL WALL CTR PULL<E63> EXC. OUTER ROPE HOOKS<7MZ>,CHEVROLET EQUIPMENT<8JF> THA 		8-97387-301-1 01 1 0710-0807 ● ●
112 17.455 PANEL; SIDE GATE
THAILAND EQUIPMENT<B03> OVER FENDER<B74> REAR BODY DBL WALL CTR PULL<E63> EXC. CHEVROLET EQUIPMENT<8JF> THA 		8-97387-301-1 01 1 0808- ● ●
112 17.455 PANEL; SIDE GATE
OVER FENDER<B74> REAR BODY DBL WALL CTR PULL<E63> EXC. OUTER ROPE HOOKS<7MZ>,CHEVROLET EQUIPMENT<8JF> THA 		8-98098-356-0 01 1 0804-0807 ● ●
112 17.455 PANEL; SIDE GATE
OVER FENDER<B74> REAR BODY DBL WALL CTR PULL<E63> EXC. CHEVROLET EQUIPMENT<8JF> THA 		8-98098-356-0 01 1 0808- ● ●
112 17.455 PANEL; SIDE GATE
OVER FENDER<B74> REAR BODY DBL WALL CTR PULL<E63> EXC. OUTER ROPE HOOKS<7MZ>,CHEVROLET EQUIPMENT<8JF> THA 		8-98098-357-0 01 1 0804-0807 ● ●
112 17.455 PANEL; SIDE GATE
OVER FENDER<B74> REAR BODY DBL WALL CTR PULL<E63> EXC. CHEVROLET EQUIPMENT<8JF> THA 		8-98098-357-0 01 1 0808- ● ●
121 17.442 PANEL; SIDE INNER,RR BODY
THA 		8-97234-844-8 01 1 0404- ● ●
121 17.442 PANEL; SIDE INNER,RR BODY
THA 		8-97234-843-9 01 1 0404- ● ●
121 17.442 PANEL; SIDE INNER,RR BODY
THA 		8-97368-104-0 01 1 0404-0610 ●
121 17.442 PANEL; SIDE INNER,RR BODY
REAR BODY DBL WALL CTR PULL<E63> THA 		8-97368-104-0 01 1 0611- ●
121 17.442 PANEL; SIDE INNER,RR BODY
THA 		8-97236-324-4 01 1 0404-0610 ●
121 17.442 PANEL; SIDE INNER,RR BODY
REAR BODY DBL WALL CTR PULL<E63> THA 		8-97236-324-4 01 1 0611- ●
121 17.442 PANEL; SIDE INNER,RR BODY
THA 		8-93290-853-3 01 1 0404- ● ●
121 17.442 PANEL; SIDE INNER,RR BODY
THA 		8-93290-854-3 01 1 0404- ● ●
125 17.505 RECESS; FUEL FILLER NECK,RR BODY
THA 		8-97363-373-0 01 1 0404- ● ●
125 17.505 RECESS; FUEL FILLER NECK,RR BODY
THA 		8-97363-372-1 01 1 0404-0610 ●
125 17.505 RECESS; FUEL FILLER NECK,RR BODY
REAR BODY DBL WALL CTR PULL<E63> OUTER ROPE HOOKS<7MZ> THA 		8-97363-372-1 01 1 0611-0809 ●
125 17.505 RECESS; FUEL FILLER NECK,RR BODY
REAR BODY DBL WALL CTR PULL<E63> THA 		8-97363-372-1 01 1 0810- ●
125 17.505 RECESS; FUEL FILLER NECK,RR BODY
THA 		8-97363-374-1 01 1 0404- ● ●
126 17.507 RUBBER; STOPPER,FUEL FILLER LID
THA 		8-97166-112-0 02 1 0404-0610 ● ● ● ● ●
126 17.507 RUBBER; STOPPER,FUEL FILLER LID
THA 		8-97166-112-0 02 1 0611- ● ● ● ●
126 17.507 RUBBER; STOPPER,FUEL FILLER LID
REAR BODY DBL WALL CTR PULL<E63> THA 		8-97166-112-0 02 1 0611- ●
127 17.507 BOLT; FUEL FILLER LID
08.155 M6X16 		8-94479-534-0 02 1 0404-0610 ● ● ● ● ●
127 17.507 BOLT; FUEL FILLER LID
08.155 M6X16 		8-94479-534-0 02 1 0611-0612 ● ● ● ●
127 17.507 BOLT; FUEL FILLER LID
REAR BODY DBL WALL CTR PULL<E63> 08.155 M6X16 		8-94479-534-0 02 1 0611-0612 ●
127 17.507 BOLT; FUEL FILLER LID
M6X16 THA 		8-98056-287-0 02 1 0701- ● ● ● ●
127 17.507 BOLT; FUEL FILLER LID
REAR BODY DBL WALL CTR PULL<E63> M6X16 THA 		8-98056-287-0 02 1 0701- ●
129 17.505 LID ASM; FUEL FILLER,RR BODY
THA 		8-97364-059-0 01 1 0404- ● ●
129 17.505 LID ASM; FUEL FILLER,RR BODY
THA 		8-97364-058-0 01 1 0404-0610 ●
129 17.505 LID ASM; FUEL FILLER,RR BODY
REAR BODY DBL WALL CTR PULL<E63> THA 		8-97364-058-0 01 1 0611- ●
129 17.505 LID ASM; FUEL FILLER,RR BODY
THA 		8-97364-060-0 01 1 0404- ● ●
135 17.198 STRIKER; TAIL GATE,RR BODY
THA 		8-97235-401-4 01 1 0404-0709 ● ● ● ●
135 17.198 STRIKER; TAIL GATE,RR BODY
THA 		8-98050-334-0 01 1 0710- ● ● ● ●
135 17.198 STRIKER; TAIL GATE,RR BODY
THA 		8-97235-400-4 01 1 0404-0709 ● ● ● ●
135 17.198 STRIKER; TAIL GATE,RR BODY
THA 		8-98050-333-0 01 1 0710- ● ● ● ●
135 17.198 STRIKER; TAIL GATE,RR BODY
THA 		8-97249-565-3 01 1 0404-0610 ●
135 17.198 STRIKER; TAIL GATE,RR BODY
REAR BODY DBL WALL CTR PULL<E63> THA 		8-97249-565-3 01 1 0611-0611 ●
135 17.198 STRIKER; TAIL GATE,RR BODY
REAR BODY DBL WALL CTR PULL<E63> THA 		8-98050-673-0 01 1 0612- ●
135 17.198 STRIKER; TAIL GATE,RR BODY
THA 		8-97249-564-3 01 1 0404-0610 ●
135 17.198 STRIKER; TAIL GATE,RR BODY
REAR BODY DBL WALL CTR PULL<E63> THA 		8-97249-564-3 01 1 0611-0611 ●
135 17.198 STRIKER; TAIL GATE,RR BODY
REAR BODY DBL WALL CTR PULL<E63> THA 		8-98050-672-0 01 1 0612- ●
147 17.505 HOOK ASM; ROPE,FRT
THA 		8-97264-487-0 04 1 0404- ● ● ● ●
158 17.185 SCREW; STRIKER,TAIL GATE
02.664 M8X20 FLANGE 		0-28680-820-0 04 1 0404-0601 ● ● ● ●
158 17.185 SCREW; STRIKER,TAIL GATE
01.531 M8X20 FLANGE THA 		0-28650-820-0 04 1 0602- ● ● ● ●
158 17.185 SCREW; STRIKER,TAIL GATE
04.104 M8X22 THA 		8-94388-328-1 04 1 0404-0610 ●
158 17.185 SCREW; STRIKER,TAIL GATE
REAR BODY DBL WALL CTR PULL<E63> 04.104 M8X22 THA 		8-94388-328-1 04 1 0611-0611 ●
158 17.185 SCREW; STRIKER,TAIL GATE
REAR BODY DBL WALL CTR PULL<E63> 17.208 M8X22 THA 		8-98050-437-0 04 1 0612- ●
175 17.505 BOLT; SET,RR GATE HOOK
01.269 M8X16.5 THA 		1-09104-027-1 08 1 0404-0611 ● ● ● ●
175 17.505 BOLT; SET,RR GATE HOOK
17.400 M8X16.5 THA 		8-98058-001-0 08 1 0612- ● ● ● ●
188 17.208 PLATE; HINGE UPR,RR GATE
THA 		8-97329-277-1 AR 1 0404-0610 ● ● ● ● ●
188 17.208 PLATE; HINGE UPR,RR GATE
THA 		8-97329-277-1 AR 1 0611-0709 ● ● ● ●
188 17.208 PLATE; HINGE UPR,RR GATE
REAR BODY DBL WALL CTR PULL<E63> OUTER ROPE HOOKS<7MZ> THA 		8-97329-277-1 AR 1 0611-0709 ●
188 17.208 PLATE; HINGE UPR,RR GATE
BASE VEHICLE GRILLE<VWX>,BRIGHT RAD GRILLE<V22> THA 		8-97329-277-1 AR 1 0710-0809 ● ●
188 17.208 PLATE; HINGE UPR,RR GATE
REAR BODY DBL WALL CTR PULL<E63> OUTER ROPE HOOKS<7MZ> THA 		8-97329-277-1 AR 1 0710-0809 ●
188 17.208 PLATE; HINGE UPR,RR GATE
THA 		8-97329-277-1 AR 1 0710-0809 ● ●
188 17.208 PLATE; HINGE UPR,RR GATE
BASE VEHICLE GRILLE<VWX>,BRIGHT RAD GRILLE<V22> THA 		8-97329-277-1 AR 1 0810- ● ●
188 17.208 PLATE; HINGE UPR,RR GATE
REAR BODY DBL WALL CTR PULL<E63> THA 		8-97329-277-1 AR 1 0810- ●
188 17.208 PLATE; HINGE UPR,RR GATE
THA 		8-97329-277-1 AR 1 0810- ● ●
189 17.208 BOLT; HINGE,RR GATE
01.840 M10X35 W/LK&PL WASHER THA 		0-50141-035-0 02 1 0404-0601 ● ● ● ● ●
189 17.208 BOLT; HINGE,RR GATE
M10X35 W/LK&PL WASHER THA 		0-50641-035-0 02 1 0602-0610 ● ● ● ● ●
189 17.208 BOLT; HINGE,RR GATE
M10X35 W/LK&PL WASHER THA 		0-50641-035-0 02 1 0611- ● ● ● ●
189 17.208 BOLT; HINGE,RR GATE
REAR BODY DBL WALL CTR PULL<E63> M10X35 W/LK&PL WASHER THA 		0-50641-035-0 02 1 0611- ●
250 17.505 BOLT; STOPPER
04.104 (A) M8X22 THA 		8-94388-328-1 02 1 0404-0610 ● ● ● ● ●
250 17.505 BOLT; STOPPER
04.104 (A) M8X22 THA 		8-94388-328-1 02 1 0611-0611 ● ● ● ●
250 17.505 BOLT; STOPPER
REAR BODY DBL WALL CTR PULL<E63> OUTER ROPE HOOKS<7MZ> 04.104 (A) M8X22 THA 		8-94388-328-1 02 1 0611-0611 ●
250 17.505 BOLT; STOPPER
17.208 (A) M8X22 THA 		8-98050-437-0 02 1 0612-0709 ● ● ● ●
250 17.505 BOLT; STOPPER
REAR BODY DBL WALL CTR PULL<E63> OUTER ROPE HOOKS<7MZ> 17.208 (A) M8X22 THA 		8-98050-437-0 02 1 0612-0709 ●
250 17.505 BOLT; STOPPER
BASE VEHICLE GRILLE<VWX>,BRIGHT RAD GRILLE<V22> 17.208 (A) M8X22 THA 		8-98050-437-0 02 1 0710-0809 ● ●
250 17.505 BOLT; STOPPER
REAR BODY DBL WALL CTR PULL<E63> OUTER ROPE HOOKS<7MZ> 17.208 (A) M8X22 THA 		8-98050-437-0 02 1 0710-0809 ●
250 17.505 BOLT; STOPPER
17.208 (A) M8X22 THA 		8-98050-437-0 02 1 0710-0809 ● ●
250 17.505 BOLT; STOPPER
BASE VEHICLE GRILLE<VWX>,BRIGHT RAD GRILLE<V22> 17.208 (A) M8X22 THA 		8-98050-437-0 02 1 0810- ● ●
250 17.505 BOLT; STOPPER
REAR BODY DBL WALL CTR PULL<E63> 17.208 (A) M8X22 THA 		8-98050-437-0 02 1 0810- ●
250 17.505 BOLT; STOPPER
17.208 (A) M8X22 THA 		8-98050-437-0 02 1 0810- ● ●
250 17.505 BOLT; STOPPER
EXC. REAR STEP BUMPER<VF6>,REAR STEP BUMPER CHROME<V42> 08.077 (B) M6X18 		8-97071-681-0 02 1 0404-0510 ● ●
250 17.505 BOLT; STOPPER
08.077 (B) M6X18 		8-97071-681-0 02 1 0404-0510 ●
250 17.505 BOLT; STOPPER
EXC. REAR STEP BUMPER<VF6>,REAR STEP BUMPER CHROME<V42> 08.077 (B) M6X18 		8-97071-681-0 02 1 0511-0609 ● ● ● ●
250 17.505 BOLT; STOPPER
08.077 (B) M6X18 		8-97071-681-0 02 1 0511-0609 ●
250 17.505 BOLT; STOPPER
EXC. REAR STEP BUMPER<VF6>,REAR STEP BUMPER CHROME<V42> 08.077 (B) M6X18 		8-97071-681-0 02 1 0610-0610 ● ●
250 17.505 BOLT; STOPPER
08.077 (B) M6X18 		8-97071-681-0 02 1 0610-0610 ●
250 17.505 BOLT; STOPPER
EXC. REAR STEP BUMPER<VF6>,REAR STEP BUMPER CHROME<V42> 08.077 (B) M6X18 		8-97071-681-0 02 1 0611-0612 ● ●
250 17.505 BOLT; STOPPER
REAR BODY DBL WALL CTR PULL<E63> 08.077 (B) M6X18 		8-97071-681-0 02 1 0611-0612 ●
250 17.505 BOLT; STOPPER
EXC. REAR STEP BUMPER<VF6>,REAR STEP BUMPER CHROME<V42> (B) M6X18 THA 		8-98056-280-0 02 1 0701- ● ●
250 17.505 BOLT; STOPPER
REAR BODY DBL WALL CTR PULL<E63> (B) M6X18 THA 		8-98056-280-0 02 1 0701- ●
256 17.505 SPRING; LID,FUEL FILLER 8-97251-180-1 01 1 0404-0610 ● ● ● ● ●
256 17.505 SPRING; LID,FUEL FILLER 8-97251-180-1 01 1 0611- ● ● ● ●
256 17.505 SPRING; LID,FUEL FILLER
REAR BODY DBL WALL CTR PULL<E63> 		8-97251-180-1 01 1 0611- ●
279 17.505 SPACER
THA 		8-97357-403-0 02 1 0404-0610 ● ● ● ● ●
279 17.505 SPACER
THA 		8-97357-403-0 02 1 0611- ● ● ● ●
279 17.505 SPACER
REAR BODY DBL WALL CTR PULL<E63> THA 		8-97357-403-0 02 1 0611- ●
292 17.442 EXTENSION; RR BODY
(A) THA 		8-97236-383-7 02 1 0404- ● ● ● ●
292 17.442 EXTENSION; RR BODY
(B) THA 		8-97236-371-9 01 1 0404-0504 ● ●
292 17.442 EXTENSION; RR BODY
(B) THA 		8-97375-759-0 01 1 0505- ● ●
292 17.442 EXTENSION; RR BODY
(B) THA 		8-97236-368-9 01 1 0404-0504 ● ●
292 17.442 EXTENSION; RR BODY
(B) THA 		8-97375-758-0 01 1 0505- ● ●
292 17.442 EXTENSION; RR BODY
(C) THA 		8-97236-680-6 02 1 0404-0504 ●
292 17.442 EXTENSION; RR BODY
(C) THA 		8-97375-757-0 02 1 0505-0610 ●
292 17.442 EXTENSION; RR BODY
REAR BODY DBL WALL CTR PULL<E63> (C) THA 		8-97375-757-0 02 1 0611- ●
292 17.442 EXTENSION; RR BODY
(D) THA 		8-97236-370-6 01 1 0404-0504 ●
292 17.442 EXTENSION; RR BODY
(D) THA 		8-97375-756-0 01 1 0505-0610 ●
292 17.442 EXTENSION; RR BODY
REAR BODY DBL WALL CTR PULL<E63> (D) THA 		8-97375-756-0 01 1 0611- ●
292 17.442 EXTENSION; RR BODY
(E) THA 		8-97236-382-5 01 1 0404-0610 ●
292 17.442 EXTENSION; RR BODY
REAR BODY DBL WALL CTR PULL<E63> (E) THA 		8-97236-382-5 01 1 0611- ●
292 17.442 EXTENSION; RR BODY
(D) THA 		8-97236-367-6 01 1 0404-0504 ●
292 17.442 EXTENSION; RR BODY
(D) THA 		8-97375-755-0 01 1 0505-0610 ●
292 17.442 EXTENSION; RR BODY
REAR BODY DBL WALL CTR PULL<E63> (D) THA 		8-97375-755-0 01 1 0611- ●
292 17.442 EXTENSION; RR BODY
(E) THA 		8-97308-978-4 01 1 0404-0610 ●
292 17.442 EXTENSION; RR BODY
REAR BODY DBL WALL CTR PULL<E63> (E) THA 		8-97308-978-4 01 1 0611- ●
292 17.442 EXTENSION; RR BODY
(F) THA 		8-93291-076-3 01 1 0404- ● ●
292 17.442 EXTENSION; RR BODY
(F) THA 		8-93291-077-3 01 1 0404- ● ●
293 17.442 REINFORCEMENT; RR BODY
EXC. OVER FENDER<B74> (B) THA 		8-97349-439-0 AR 1 0810- ●
293 17.442 REINFORCEMENT; RR BODY
(C) THA 		8-97236-750-6 01 1 0404- ● ● ● ●
293 17.442 REINFORCEMENT; RR BODY
EXC. OVER FENDER<B74> (B) THA 		8-97349-440-0 AR 1 0810- ●
293 17.442 REINFORCEMENT; RR BODY
(C) THA 		8-97236-748-6 01 1 0404- ● ● ● ●
293 17.442 REINFORCEMENT; RR BODY
(B) THA 		8-97349-440-0 01 1 0404- ● ●
293 17.442 REINFORCEMENT; RR BODY
(B) THA 		8-97349-439-0 01 1 0404- ● ●
293 17.442 REINFORCEMENT; RR BODY
(C) THA 		8-97236-527-5 01 1 0404-0610 ●
293 17.442 REINFORCEMENT; RR BODY
REAR BODY DBL WALL CTR PULL<E63> (C) THA 		8-97236-527-5 01 1 0611- ●
293 17.442 REINFORCEMENT; RR BODY
(A) THA 		8-97260-383-2 01 1 0404-0610 ●
293 17.442 REINFORCEMENT; RR BODY
REAR BODY DBL WALL CTR PULL<E63> OUTER ROPE HOOKS<7MZ> (A) THA 		8-97260-383-2 01 1 0611-0809 ●
293 17.442 REINFORCEMENT; RR BODY
REAR BODY DBL WALL CTR PULL<E63> (A) THA 		8-97260-383-2 01 1 0810- ●
293 17.442 REINFORCEMENT; RR BODY
(C) THA 		8-97236-525-5 01 1 0404-0610 ●
293 17.442 REINFORCEMENT; RR BODY
REAR BODY DBL WALL CTR PULL<E63> (C) THA 		8-97236-525-5 01 1 0611- ●
293 17.442 REINFORCEMENT; RR BODY
(A) THA 		8-97251-646-2 01 1 0404-0610 ●
293 17.442 REINFORCEMENT; RR BODY
REAR BODY DBL WALL CTR PULL<E63> OUTER ROPE HOOKS<7MZ> (A) THA 		8-97251-646-2 01 1 0611-0809 ●
293 17.442 REINFORCEMENT; RR BODY
REAR BODY DBL WALL CTR PULL<E63> (A) THA 		8-97251-646-2 01 1 0810- ●
294 17.445 PANEL; OUTER,RR BODY
THA 		8-97362-428-0 01 1 0404-0610 ● ● ● ● ●
294 17.445 PANEL; OUTER,RR BODY
THA 		8-97362-428-0 01 1 0611- ● ● ● ●
294 17.445 PANEL; OUTER,RR BODY
REAR BODY DBL WALL CTR PULL<E63> THA 		8-97362-428-0 01 1 0611- ●
294 17.445 PANEL; OUTER,RR BODY
THA 		8-97362-427-0 01 1 0404-0610 ● ● ● ● ●
294 17.445 PANEL; OUTER,RR BODY
THA 		8-97362-427-0 01 1 0611- ● ● ● ●
294 17.445 PANEL; OUTER,RR BODY
REAR BODY DBL WALL CTR PULL<E63> THA 		8-97362-427-0 01 1 0611- ●
295 17.505 BRACKET; FILLER
17.442 (B) THA 		8-97305-529-1 02 1 0404-0610 ● ● ● ● ●
295 17.505 BRACKET; FILLER
17.442 (B) THA 		8-97305-529-1 02 1 0611- ● ● ● ●
295 17.505 BRACKET; FILLER
REAR BODY DBL WALL CTR PULL<E63> 17.442 (B) THA 		8-97305-529-1 02 1 0611- ●
295 17.505 BRACKET; FILLER
(A) THA 		8-97236-732-3 02 1 0404-0610 ● ● ●
295 17.505 BRACKET; FILLER
(A) THA 		8-97236-732-3 02 1 0611- ● ●
295 17.505 BRACKET; FILLER
REAR BODY DBL WALL CTR PULL<E63> (A) THA 		8-97236-732-3 02 1 0611- ●
296 17.442 BRACKET; RR BODY
(A) THA 		8-97251-631-4 01 1 0404-0610 ● ● ● ● ●
296 17.442 BRACKET; RR BODY
(A) THA 		8-97251-631-4 01 1 0611- ● ● ● ●
296 17.442 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL<E63> (A) THA 		8-97251-631-4 01 1 0611- ●
296 17.442 BRACKET; RR BODY
(A) THA 		8-97251-626-4 01 1 0404-0610 ● ● ● ● ●
296 17.442 BRACKET; RR BODY
(A) THA 		8-97251-626-4 01 1 0611- ● ● ● ●
296 17.442 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL<E63> (A) THA 		8-97251-626-4 01 1 0611- ●
296 17.442 BRACKET; RR BODY
(B) THA 		8-97263-908-2 01 1 0404- ● ● ● ●
296 17.442 BRACKET; RR BODY
(B) THA 		8-97263-907-2 01 1 0404- ● ● ● ●
300 17.204 COLLAR; GATE HINGE
THA 		8-97324-512-3 02 1 0404-0610 ● ● ● ● ●
300 17.204 COLLAR; GATE HINGE
THA 		8-97324-512-3 02 1 0611-0611 ● ● ● ●
300 17.204 COLLAR; GATE HINGE
REAR BODY DBL WALL CTR PULL<E63> THA 		8-97324-512-3 02 1 0611-0611 ●
300 17.204 COLLAR; GATE HINGE
THA 		8-98057-114-0 02 1 0612- ● ● ● ●
300 17.204 COLLAR; GATE HINGE
REAR BODY DBL WALL CTR PULL<E63> THA 		8-98057-114-0 02 1 0612- ●
301 17.204 SUPPORT; TAIL GATE
THA 		8-97289-536-0 01 1 0404-0610 ● ● ● ● ●
301 17.204 SUPPORT; TAIL GATE
THA 		8-97289-536-0 01 1 0611-0611 ● ● ● ●
301 17.204 SUPPORT; TAIL GATE
REAR BODY DBL WALL CTR PULL<E63> OUTER ROPE HOOKS<7MZ> THA 		8-97289-536-0 01 1 0611-0611 ●
301 17.204 SUPPORT; TAIL GATE
THA 		8-98053-899-0 01 1 0612-0709 ● ● ● ●
301 17.204 SUPPORT; TAIL GATE
REAR BODY DBL WALL CTR PULL<E63> OUTER ROPE HOOKS<7MZ> THA 		8-98053-899-0 01 1 0612-0709 ●
301 17.204 SUPPORT; TAIL GATE
BASE VEHICLE GRILLE<VWX>,BRIGHT RAD GRILLE<V22> THA 		8-98053-899-0 01 1 0710-0809 ● ●
301 17.204 SUPPORT; TAIL GATE
REAR BODY DBL WALL CTR PULL<E63> OUTER ROPE HOOKS<7MZ> THA 		8-98053-899-0 01 1 0710-0809 ●
301 17.204 SUPPORT; TAIL GATE
THA 		8-98053-899-0 01 1 0710-0809 ● ●
301 17.204 SUPPORT; TAIL GATE
BASE VEHICLE GRILLE<VWX>,BRIGHT RAD GRILLE<V22> THA 		8-98053-899-0 01 1 0810- ● ●
301 17.204 SUPPORT; TAIL GATE
REAR BODY DBL WALL CTR PULL<E63> THA 		8-98053-899-0 01 1 0810- ●
301 17.204 SUPPORT; TAIL GATE
THA 		8-98053-899-0 01 1 0810- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
