9-30 — REAR BODY ASM AND MOUNTING (#73713) — 51 parça

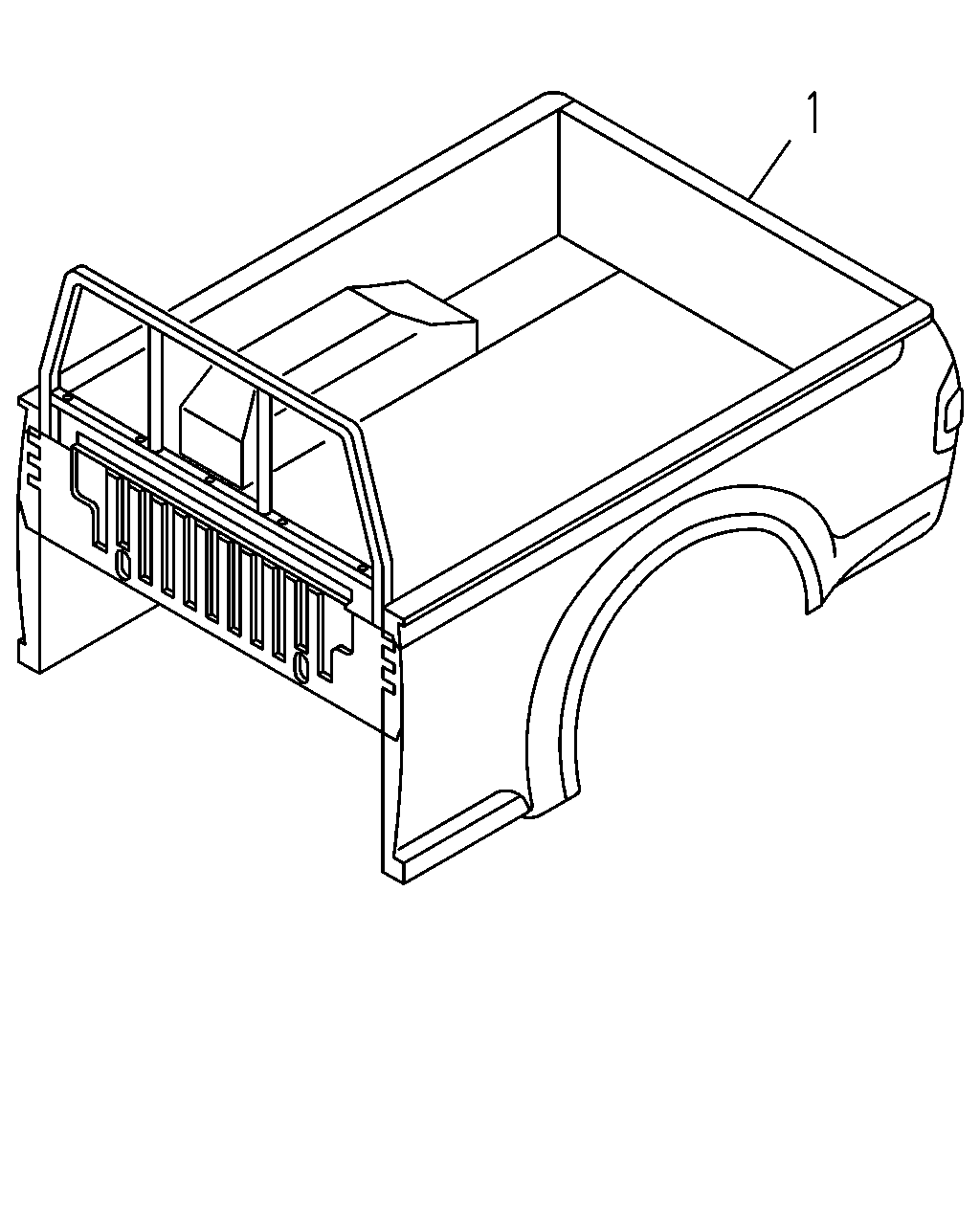

çizim 118192
1
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 17.090 BODY ASM; REAR
THA 		8-98090-615-0 01 1 0404-0610 ●
1 17.090 BODY ASM; REAR
REAR BODY DBL WALL CTR PULL<E63> GUARD FRAME BAR CARGO TIE DOWN<V89> OUTER ROPE HOOKS<7MZ> THA 		8-98090-615-0 01 1 0611-0709 ●
1 17.090 BODY ASM; REAR
REAR BODY DBL WALL CTR PULL<E63> GUARD FRAME BAR CARGO TIE DOWN<V89> OUTER ROPE HOOKS<7MZ> THA 		8-98090-593-0 01 1 0710-0710 ●
1 17.090 BODY ASM; REAR
REAR BODY DBL WALL CTR PULL<E63> GUARD FRAME BAR CARGO TIE DOWN<V89> OUTER ROPE HOOKS<7MZ> THA 		8-98090-615-0 01 1 0710-0809 ●
1 17.090 BODY ASM; REAR
REAR BODY DBL WALL CTR PULL<E63> GUARD FRAME BAR CARGO TIE DOWN<V89> THA 		8-98090-615-0 01 1 0810- ●
1 17.090 BODY ASM; REAR
OVER FENDER<B74> THA 		8-98090-618-0 01 1 0404-0709 ●
1 17.090 BODY ASM; REAR
THA 		8-98090-618-0 01 1 0404-0709 ●
1 17.090 BODY ASM; REAR
OVER FENDER<B74> THA 		8-98090-616-0 01 1 0710- ●
1 17.090 BODY ASM; REAR
THA 		8-98090-616-0 01 1 0710- ●
1 17.090 BODY ASM; REAR
EXC. OVER FENDER<B74> THA 		8-98090-619-0 01 1 0404-0709 ●
1 17.090 BODY ASM; REAR
EXC. OVER FENDER<B74> THA 		8-98090-617-0 01 1 0710- ●
1 17.090 BODY ASM; REAR
OVER FENDER<B74> THA 		8-98090-622-0 01 1 0404-0709 ●
1 17.090 BODY ASM; REAR
THA 		8-98090-622-0 01 1 0404-0709 ●
1 17.090 BODY ASM; REAR
OVER FENDER<B74> THA 		8-98090-609-0 01 1 0710- ●
1 17.090 BODY ASM; REAR
THA 		8-98090-609-0 01 1 0710- ●
1 17.090 BODY ASM; REAR
EXC. OVER FENDER<B74> THA 		8-98090-623-0 01 1 0404-0709 ●
1 17.090 BODY ASM; REAR
EXC. OVER FENDER<B74> THA 		8-98090-612-0 01 1 0710- ●

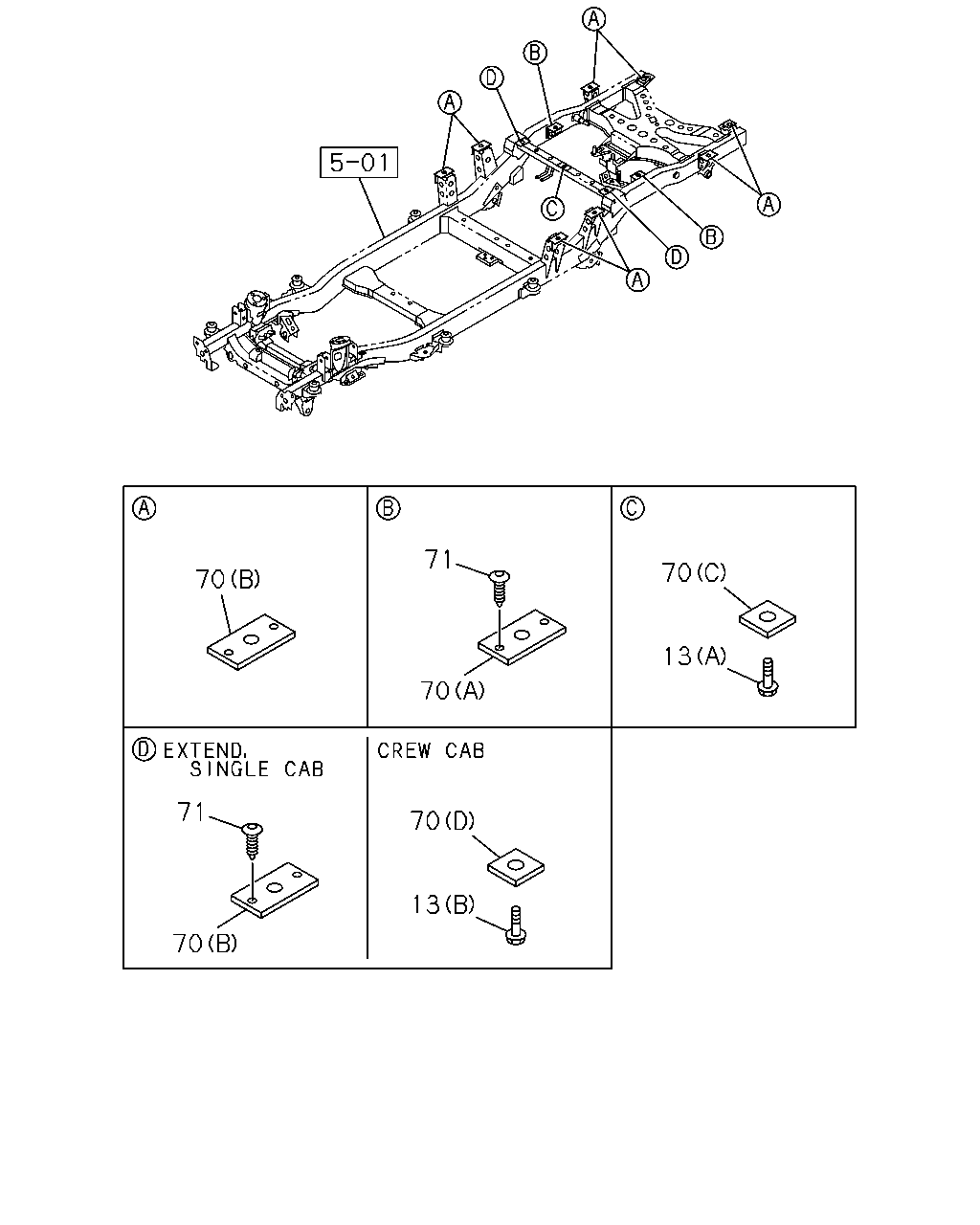

çizim 118208
71 70 70 13 70 71 70 13 70
BalonParca AdiParca NoAdetTipApplied Date A B C D E
13 09.008 BOLT; RR BODY MTG
(A) M12X50 FLANGE 		8-97310-611-2 06 1 0404-0512 ● ●
13 09.008 BOLT; RR BODY MTG
(A) M12X50 FLANGE 		8-98030-678-0 06 1 0601- ● ●
13 09.008 BOLT; RR BODY MTG
(A) M12X50 FLANGE 		8-97310-611-2 08 1 0404-0512 ●
13 09.008 BOLT; RR BODY MTG
(A) M12X50 FLANGE 		8-98030-678-0 08 1 0601-0610 ●
13 09.008 BOLT; RR BODY MTG
REAR BODY DBL WALL CTR PULL<E63> (A) M12X50 FLANGE 		8-98030-678-0 08 1 0611- ●
13 09.008 BOLT; RR BODY MTG
(A) M12X50 FLANGE 		8-97310-611-2 04 1 0404-0512 ● ●
13 09.008 BOLT; RR BODY MTG
(A) M12X50 FLANGE 		8-98030-678-0 04 1 0601- ● ●
13 09.008 BOLT; RR BODY MTG
(B) M12X50 FLANGE THA 		8-97354-201-0 02 1 0404-0611 ● ●
13 09.008 BOLT; RR BODY MTG
(B) M12X35 FLANGE THA 		8-98056-126-0 02 1 0612- ● ●
70 08.214 CUSHION; RR BODY MTG
(A) THA 		8-97367-344-0 02 1 0404-0610 ● ● ● ● ●
70 08.214 CUSHION; RR BODY MTG
(A) THA 		8-97367-344-0 02 1 0611-0709 ● ● ● ●
70 08.214 CUSHION; RR BODY MTG
REAR BODY DBL WALL CTR PULL<E63> (A) THA 		8-97367-344-0 02 1 0611-0709 ●
70 08.214 CUSHION; RR BODY MTG
(A) THA 		8-98090-513-0 02 1 0710- ● ● ● ●
70 08.214 CUSHION; RR BODY MTG
REAR BODY DBL WALL CTR PULL<E63> (A) THA 		8-98090-513-0 02 1 0710- ●
70 08.214 CUSHION; RR BODY MTG
(C) THA 		8-97367-343-0 03 1 0404-0610 ● ● ●
70 08.214 CUSHION; RR BODY MTG
(C) THA 		8-97367-343-0 03 1 0611-0709 ● ●
70 08.214 CUSHION; RR BODY MTG
REAR BODY DBL WALL CTR PULL<E63> (C) THA 		8-97367-343-0 03 1 0611-0709 ●
70 08.214 CUSHION; RR BODY MTG
(C) THA 		8-98090-512-0 03 1 0710- ● ●
70 08.214 CUSHION; RR BODY MTG
REAR BODY DBL WALL CTR PULL<E63> (C) THA 		8-98090-512-0 03 1 0710- ●
70 08.214 CUSHION; RR BODY MTG
(B) THA 		8-97367-342-0 06 1 0404-0709 ● ●
70 08.214 CUSHION; RR BODY MTG
(B) THA 		8-98090-511-0 06 1 0710- ● ●
70 08.214 CUSHION; RR BODY MTG
(B) THA 		8-97367-342-0 08 1 0404-0610 ●
70 08.214 CUSHION; RR BODY MTG
REAR BODY DBL WALL CTR PULL<E63> (B) THA 		8-97367-342-0 08 1 0611-0709 ●
70 08.214 CUSHION; RR BODY MTG
REAR BODY DBL WALL CTR PULL<E63> (B) THA 		8-98090-511-0 08 1 0710- ●
70 08.214 CUSHION; RR BODY MTG
(D) THA 		8-97367-341-0 02 1 0404-0709 ● ●
70 08.214 CUSHION; RR BODY MTG
(D) THA 		8-98090-510-0 02 1 0710- ● ●
70 08.214 CUSHION; RR BODY MTG
(B) THA 		8-97367-342-0 04 1 0404-0709 ● ●
70 08.214 CUSHION; RR BODY MTG
(B) THA 		8-98090-511-0 04 1 0710- ● ●
70 08.214 CUSHION; RR BODY MTG
(C) THA 		8-97367-343-0 01 1 0404-0709 ● ●
70 08.214 CUSHION; RR BODY MTG
(C) THA 		8-98090-512-0 01 1 0710- ● ●
71 08.214 CLIP; CUSHION
03.023 ID=6 OD=16 L=18 		8-94178-705-0 06 1 0404-0610 ● ● ●
71 08.214 CLIP; CUSHION
03.023 ID=6 OD=16 L=18 		8-94178-705-0 06 1 0611- ● ●
71 08.214 CLIP; CUSHION
REAR BODY DBL WALL CTR PULL<E63> 03.023 ID=6 OD=16 L=18 		8-94178-705-0 06 1 0611- ●
71 08.214 CLIP; CUSHION
03.023 ID=6 OD=16 L=18 		8-94178-705-0 04 1 0404- ● ●
