Sayfa 9-01 - Isuzu EPC

◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 50982 - TFR/S(CHEVROLET)THAI ▶ 9 - Tools ▶ 9-01 - TOOLS ▶

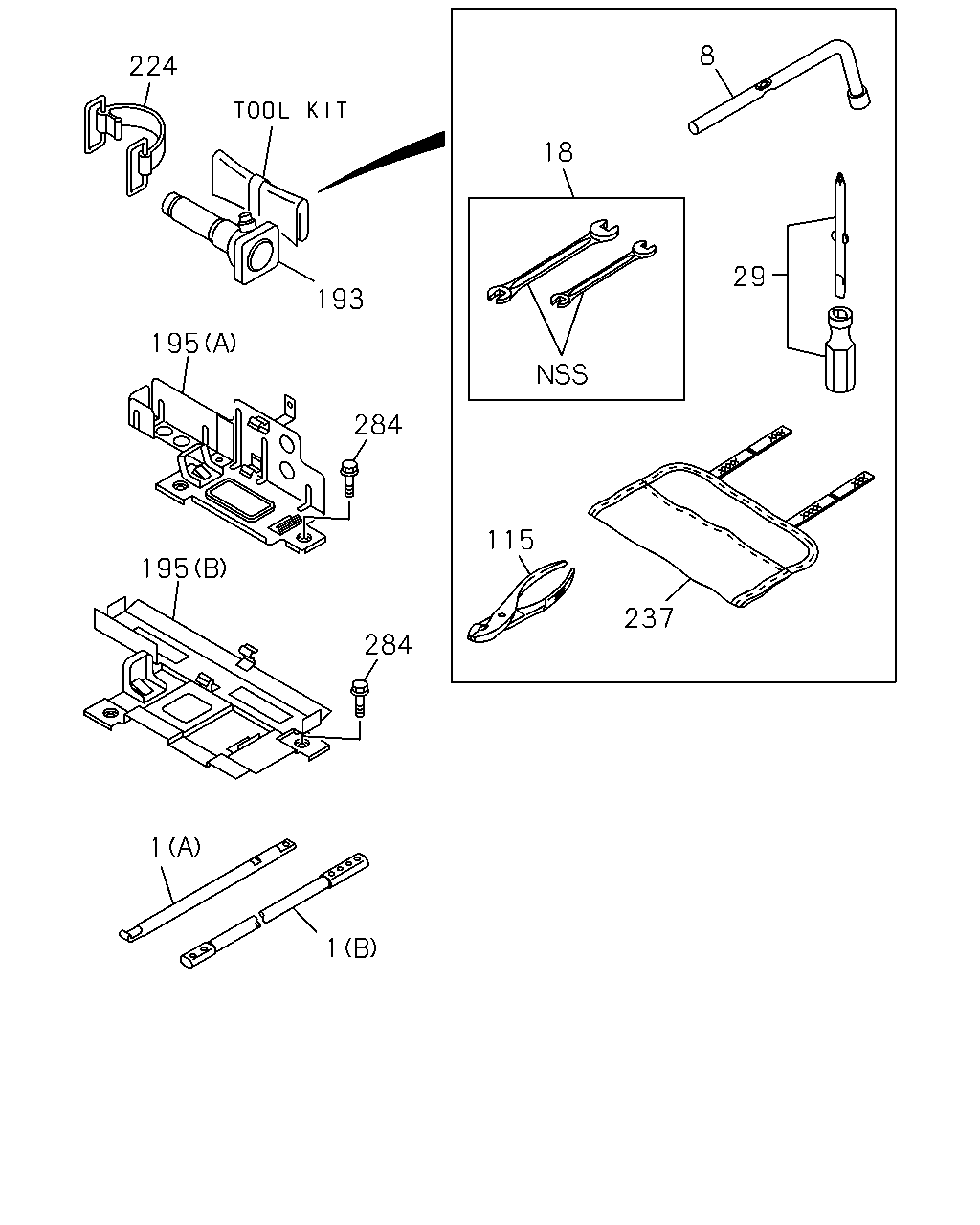

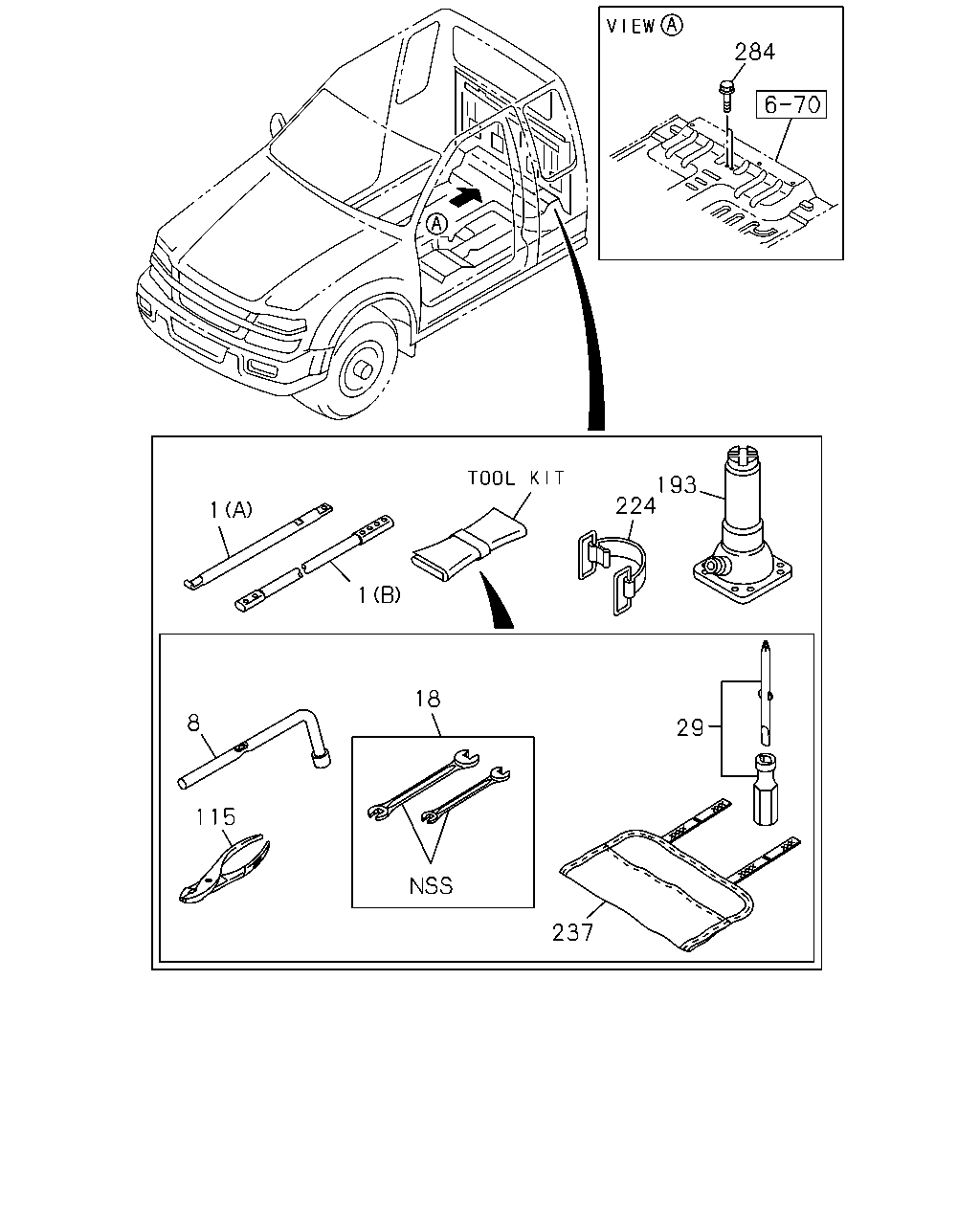

9-01 — TOOLS (#73712) — 143 parça

8 224 18 29 193 195 284 115 195 237 284 1 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	07.629 HANDLE; SPARE TIRE CARRIER 4JA1-T ENG<LP0>,4JH1-T ENG<L23> (A) THA	8-97215-330-0	01	1	0404-0409	●	●	●
1	07.629 HANDLE; SPARE TIRE CARRIER (A) THA	8-97215-330-0	01	1	0404-0409				●	●
1	07.629 HANDLE; SPARE TIRE CARRIER 4JJ1-TCS ENG<LFB>,4JA1-T ENG<LP0> (A) THA	8-97215-330-0	01	1	0410-0501	●	●	●	●	●
1	07.629 HANDLE; SPARE TIRE CARRIER 4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ> (A) THA	8-97215-330-0	01	1	0502-0609	●	●	●	●	●
1	07.629 HANDLE; SPARE TIRE CARRIER 4JA1-T ENG<LP0>,4JH1-T ENG<L23> (B) THA	8-97215-332-0	03	1	0404-0409	●	●	●
1	07.629 HANDLE; SPARE TIRE CARRIER (B) THA	8-97215-332-0	03	1	0404-0409				●	●
1	07.629 HANDLE; SPARE TIRE CARRIER 4JJ1-TCS ENG<LFB>,4JA1-T ENG<LP0> (B) THA	8-97215-332-0	03	1	0410-0501	●	●	●	●	●
1	07.629 HANDLE; SPARE TIRE CARRIER 4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ> (B) THA	8-97215-332-0	03	1	0502-0609	●	●	●	●	●
1	07.629 HANDLE; SPARE TIRE CARRIER 4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ>, 4JJ1-TCX ENG<LS0> (A) THA	8-97215-330-0	01	1	0610-	●	●	●	●	●
1	07.629 HANDLE; SPARE TIRE CARRIER 4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ>, 4JJ1-TCX ENG<LS0> (B) THA	8-97215-332-0	03	1	0610-	●	●	●	●	●
8	08.821 WRENCH; WHEEL 4JA1-T ENG<LP0>,4JH1-T ENG<L23> THA	8-97217-790-0	01	1	0404-0409	●	●	●
8	08.821 WRENCH; WHEEL THA	8-97217-790-0	01	1	0404-0409				●	●
8	08.821 WRENCH; WHEEL 4JJ1-TCS ENG<LFB>,4JA1-T ENG<LP0> THA	8-97217-790-0	01	1	0410-0501	●	●	●	●	●
8	08.821 WRENCH; WHEEL 4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ> THA	8-97217-790-0	01	1	0502-0609	●	●	●	●	●
8	08.821 WRENCH; WHEEL 4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ>, 4JJ1-TCX ENG<LS0> L=19 THA	8-98027-834-0	01	1	0610-	●	●	●	●	●
18	08.821 WRENCH KIT 4JA1-T ENG<LP0>,4JH1-T ENG<L23> THA	8-97248-884-0	01	1	0404-0409	●	●	●
18	08.821 WRENCH KIT THA	8-97248-884-0	01	1	0404-0409				●	●
18	08.821 WRENCH KIT 4JJ1-TCS ENG<LFB>,4JA1-T ENG<LP0> THA	8-97248-884-0	01	1	0410-0501	●	●	●	●	●
18	08.821 WRENCH KIT 4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ> THA	8-97248-884-0	01	1	0502-0609	●	●	●	●	●
18	08.821 WRENCH KIT 4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ>, 4JJ1-TCX ENG<LS0> 8X10,12X14 THA	8-97945-273-0	01	1	0610-	●	●	●	●	●
29	08.821 DRIVER; SCREW 4JA1-T ENG<LP0>,4JH1-T ENG<L23> THA	8-97248-870-0	01	1	0404-0409	●	●	●
29	08.821 DRIVER; SCREW THA	8-97248-870-0	01	1	0404-0409				●	●
29	08.821 DRIVER; SCREW 4JJ1-TCS ENG<LFB>,4JA1-T ENG<LP0> THA	8-97248-870-0	01	1	0410-0501	●	●	●	●	●
29	08.821 DRIVER; SCREW 4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ> THA	8-97248-870-0	01	1	0502-0609	●	●	●	●	●
29	08.821 DRIVER; SCREW 4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ>, 4JJ1-TCX ENG<LS0> THA	8-98027-833-0	01	1	0610-	●	●	●	●	●
115	08.821 PLIER 4JA1-T ENG<LP0>,4JH1-T ENG<L23> THA	8-97248-869-0	01	1	0404-0409	●	●	●
115	08.821 PLIER THA	8-97248-869-0	01	1	0404-0409				●	●
115	08.821 PLIER 4JJ1-TCS ENG<LFB>,4JA1-T ENG<LP0> THA	8-97248-869-0	01	1	0410-0501	●	●	●	●	●
115	08.821 PLIER 4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ> THA	8-97248-869-0	01	1	0502-0609	●	●	●	●	●
115	08.821 PLIER 4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ>, 4JJ1-TCX ENG<LS0> THA	8-98027-832-0	01	1	0610-1003	●	●	●	●	●
115	08.821 PLIER 4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ>, 4JJ1-TCX ENG<LS0> THA	8-98099-659-0	01	1	1004-	●	●	●	●	●
193	08.820 JACK ASM THA	8-97217-789-1	01	1	0404-0409	●
193	08.820 JACK ASM 4JA1-T ENG<LP0>,4JH1-T ENG<L23> THA	8-97217-789-1	01	1	0404-0409		●	●
193	08.820 JACK ASM EXC. HIGH RIDE SUSPENSION<7YC> THA	8-97217-789-1	01	1	0410-0501	●		●
193	08.820 JACK ASM THA	8-97217-789-1	01	1	0410-0501		●
193	08.820 JACK ASM EXC. HIGH RIDE SUSPENSION<7YC> THA	8-97217-789-1	01	1	0502-0609	●
193	08.820 JACK ASM 4JK1-TCS ENG<LKZ> THA	8-97217-789-1	01	1	0502-0609		●
193	08.820 JACK ASM 4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ> EXC. HIGH RIDE SUSPENSION<7YC> THA	8-97217-789-1	01	1	0502-0609			●
193	08.820 JACK ASM EXC. HIGH RIDE SUSPENSION<7YC> THA	8-97217-789-1	01	1	0610-	●
193	08.820 JACK ASM 4JK1-TCS ENG<LKZ> THA	8-97217-789-1	01	1	0610-		●
193	08.820 JACK ASM 4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ> EXC. HIGH RIDE SUSPENSION<7YC> THA	8-97217-789-1	01	1	0610-			●
193	08.820 JACK ASM THA	8-97217-788-1	01	1	0404-0409				●	●
193	08.820 JACK ASM HIGH RIDE SUSPENSION<7YC> THA	8-97217-788-1	01	1	0410-0501	●		●
193	08.820 JACK ASM THA	8-97217-788-1	01	1	0410-0501				●	●
193	08.820 JACK ASM HIGH RIDE SUSPENSION<7YC> THA	8-97217-788-1	01	1	0502-0609	●
193	08.820 JACK ASM 4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ> HIGH RIDE SUSPENSION<7YC> THA	8-97217-788-1	01	1	0502-0609			●
193	08.820 JACK ASM THA	8-97217-788-1	01	1	0502-0609				●
193	08.820 JACK ASM 4JJ1-TCS ENG<LFB> THA	8-97217-788-1	01	1	0502-0609					●
193	08.820 JACK ASM HIGH RIDE SUSPENSION<7YC> THA	8-97217-788-1	01	1	0610-	●
193	08.820 JACK ASM 4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ> HIGH RIDE SUSPENSION<7YC> THA	8-97217-788-1	01	1	0610-			●
193	08.820 JACK ASM THA	8-97217-788-1	01	1	0610-				●
193	08.820 JACK ASM 4JJ1-TCS ENG<LFB>,4JJ1-TCX ENG<LS0> THA	8-97217-788-1	01	1	0610-					●
195	08.820 BRACKET; JACK 4JA1-T ENG<LP0>,4JH1-T ENG<L23> (A) THA	8-97249-692-2	01	1	0404-0409		●
195	08.820 BRACKET; JACK 4JA1-T ENG<LP0> (A) THA	8-97249-692-2	01	1	0410-0501		●
195	08.820 BRACKET; JACK 4JK1-TCS ENG<LKZ> (A) THA	8-97249-692-2	01	1	0502-		●
195	08.820 BRACKET; JACK 4JA1-T ENG<LP0>,4JH1-T ENG<L23> (B) THA	8-97249-698-2	01	1	0404-0409			●
195	08.820 BRACKET; JACK (B) THA	8-97249-698-2	01	1	0404-0409					●
195	08.820 BRACKET; JACK 4JJ1-TCS ENG<LFB>,4JA1-T ENG<LP0> (B) THA	8-97249-698-2	01	1	0410-0501			●
195	08.820 BRACKET; JACK 4JJ1-TCS ENG<LFB> (B) THA	8-97249-698-2	01	1	0410-0501					●
195	08.820 BRACKET; JACK 4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ> (B) THA	8-97249-698-2	01	1	0502-0609			●
195	08.820 BRACKET; JACK 4JJ1-TCS ENG<LFB> (B) THA	8-97249-698-2	01	1	0502-0609					●
195	08.820 BRACKET; JACK 4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ> (B) THA	8-97249-698-2	01	1	0610-			●
195	08.820 BRACKET; JACK 4JJ1-TCS ENG<LFB>,4JJ1-TCX ENG<LS0> (B) THA	8-97249-698-2	01	1	0610-					●
224	08.821 BAND; RUBBER,JACK 4JA1-T ENG<LP0>,4JH1-T ENG<L23> THA	8-97248-864-0	01	1	0404-0409	●	●	●
224	08.821 BAND; RUBBER,JACK THA	8-97248-864-0	01	1	0404-0409				●	●
224	08.821 BAND; RUBBER,JACK 4JJ1-TCS ENG<LFB>,4JA1-T ENG<LP0> THA	8-97248-864-0	01	1	0410-0501	●	●	●	●	●
224	08.821 BAND; RUBBER,JACK 4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ> THA	8-97248-864-0	01	1	0502-0609	●	●	●	●	●
224	08.821 BAND; RUBBER,JACK 4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ>, 4JJ1-TCX ENG<LS0> THA	8-98027-837-0	01	1	0610-	●	●	●	●	●
237	08.821 BAG; TOOL 4JA1-T ENG<LP0>,4JH1-T ENG<L23> THA	8-97248-885-1	01	1	0404-0409	●	●	●
237	08.821 BAG; TOOL THA	8-97248-885-1	01	1	0404-0409				●	●
237	08.821 BAG; TOOL 4JJ1-TCS ENG<LFB>,4JA1-T ENG<LP0> THA	8-97248-885-1	01	1	0410-0501	●	●	●	●	●
237	08.821 BAG; TOOL 4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ> THA	8-97248-885-1	01	1	0502-0609	●	●	●	●	●
237	08.821 BAG; TOOL 4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ>, 4JJ1-TCX ENG<LS0> THA	8-97945-395-0	01	1	0610-	●	●	●	●	●
284	08.821 BOLT; TOOL BOX 16.550 M6X16 W/PL WASHER THA	1-09981-438-0	02	1	0404-0609	●		●	●	●
284	08.821 BOLT; TOOL BOX M6X16 W/PL WASHER THA	8-98049-085-0	02	1	0610-	●		●	●	●
284	08.821 BOLT; TOOL BOX 16.550 M6X16 W/PL WASHER THA	1-09981-438-0	03	1	0404-0609		●
284	08.821 BOLT; TOOL BOX M6X16 W/PL WASHER THA	8-98049-085-0	03	1	0610-		●

284 193 224 1 1 18 8 29 115 237

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	07.629 HANDLE; SPARE TIRE CARRIER 4JA1-T ENG<LP0>,4JH1-T ENG<L23> (A) THA	8-97215-330-0	01	1	0404-0409	●	●	●
1	07.629 HANDLE; SPARE TIRE CARRIER (A) THA	8-97215-330-0	01	1	0404-0409				●	●
1	07.629 HANDLE; SPARE TIRE CARRIER 4JJ1-TCS ENG<LFB>,4JA1-T ENG<LP0> (A) THA	8-97215-330-0	01	1	0410-0501	●	●	●	●	●
1	07.629 HANDLE; SPARE TIRE CARRIER 4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ> (A) THA	8-97215-330-0	01	1	0502-0609	●	●	●	●	●
1	07.629 HANDLE; SPARE TIRE CARRIER 4JA1-T ENG<LP0>,4JH1-T ENG<L23> (B) THA	8-97215-332-0	03	1	0404-0409	●	●	●
1	07.629 HANDLE; SPARE TIRE CARRIER (B) THA	8-97215-332-0	03	1	0404-0409				●	●
1	07.629 HANDLE; SPARE TIRE CARRIER 4JJ1-TCS ENG<LFB>,4JA1-T ENG<LP0> (B) THA	8-97215-332-0	03	1	0410-0501	●	●	●	●	●
1	07.629 HANDLE; SPARE TIRE CARRIER 4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ> (B) THA	8-97215-332-0	03	1	0502-0609	●	●	●	●	●
1	07.629 HANDLE; SPARE TIRE CARRIER 4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ>, 4JJ1-TCX ENG<LS0> (A) THA	8-97215-330-0	01	1	0610-	●	●	●	●	●
1	07.629 HANDLE; SPARE TIRE CARRIER 4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ>, 4JJ1-TCX ENG<LS0> (B) THA	8-97215-332-0	03	1	0610-	●	●	●	●	●
8	08.821 WRENCH; WHEEL 4JA1-T ENG<LP0>,4JH1-T ENG<L23> THA	8-97217-790-0	01	1	0404-0409	●	●	●
8	08.821 WRENCH; WHEEL THA	8-97217-790-0	01	1	0404-0409				●	●
8	08.821 WRENCH; WHEEL 4JJ1-TCS ENG<LFB>,4JA1-T ENG<LP0> THA	8-97217-790-0	01	1	0410-0501	●	●	●	●	●
8	08.821 WRENCH; WHEEL 4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ> THA	8-97217-790-0	01	1	0502-0609	●	●	●	●	●
8	08.821 WRENCH; WHEEL 4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ>, 4JJ1-TCX ENG<LS0> L=19 THA	8-98027-834-0	01	1	0610-	●	●	●	●	●
18	08.821 WRENCH KIT 4JA1-T ENG<LP0>,4JH1-T ENG<L23> THA	8-97248-884-0	01	1	0404-0409	●	●	●
18	08.821 WRENCH KIT THA	8-97248-884-0	01	1	0404-0409				●	●
18	08.821 WRENCH KIT 4JJ1-TCS ENG<LFB>,4JA1-T ENG<LP0> THA	8-97248-884-0	01	1	0410-0501	●	●	●	●	●
18	08.821 WRENCH KIT 4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ> THA	8-97248-884-0	01	1	0502-0609	●	●	●	●	●
18	08.821 WRENCH KIT 4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ>, 4JJ1-TCX ENG<LS0> 8X10,12X14 THA	8-97945-273-0	01	1	0610-	●	●	●	●	●
29	08.821 DRIVER; SCREW 4JA1-T ENG<LP0>,4JH1-T ENG<L23> THA	8-97248-870-0	01	1	0404-0409	●	●	●
29	08.821 DRIVER; SCREW THA	8-97248-870-0	01	1	0404-0409				●	●
29	08.821 DRIVER; SCREW 4JJ1-TCS ENG<LFB>,4JA1-T ENG<LP0> THA	8-97248-870-0	01	1	0410-0501	●	●	●	●	●
29	08.821 DRIVER; SCREW 4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ> THA	8-97248-870-0	01	1	0502-0609	●	●	●	●	●
29	08.821 DRIVER; SCREW 4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ>, 4JJ1-TCX ENG<LS0> THA	8-98027-833-0	01	1	0610-	●	●	●	●	●
115	08.821 PLIER 4JA1-T ENG<LP0>,4JH1-T ENG<L23> THA	8-97248-869-0	01	1	0404-0409	●	●	●
115	08.821 PLIER THA	8-97248-869-0	01	1	0404-0409				●	●
115	08.821 PLIER 4JJ1-TCS ENG<LFB>,4JA1-T ENG<LP0> THA	8-97248-869-0	01	1	0410-0501	●	●	●	●	●
115	08.821 PLIER 4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ> THA	8-97248-869-0	01	1	0502-0609	●	●	●	●	●
115	08.821 PLIER 4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ>, 4JJ1-TCX ENG<LS0> THA	8-98027-832-0	01	1	0610-1003	●	●	●	●	●
115	08.821 PLIER 4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ>, 4JJ1-TCX ENG<LS0> THA	8-98099-659-0	01	1	1004-	●	●	●	●	●
193	08.820 JACK ASM THA	8-97217-789-1	01	1	0404-0409	●
193	08.820 JACK ASM 4JA1-T ENG<LP0>,4JH1-T ENG<L23> THA	8-97217-789-1	01	1	0404-0409		●	●
193	08.820 JACK ASM EXC. HIGH RIDE SUSPENSION<7YC> THA	8-97217-789-1	01	1	0410-0501	●		●
193	08.820 JACK ASM THA	8-97217-789-1	01	1	0410-0501		●
193	08.820 JACK ASM EXC. HIGH RIDE SUSPENSION<7YC> THA	8-97217-789-1	01	1	0502-0609	●
193	08.820 JACK ASM 4JK1-TCS ENG<LKZ> THA	8-97217-789-1	01	1	0502-0609		●
193	08.820 JACK ASM 4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ> EXC. HIGH RIDE SUSPENSION<7YC> THA	8-97217-789-1	01	1	0502-0609			●
193	08.820 JACK ASM EXC. HIGH RIDE SUSPENSION<7YC> THA	8-97217-789-1	01	1	0610-	●
193	08.820 JACK ASM 4JK1-TCS ENG<LKZ> THA	8-97217-789-1	01	1	0610-		●
193	08.820 JACK ASM 4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ> EXC. HIGH RIDE SUSPENSION<7YC> THA	8-97217-789-1	01	1	0610-			●
193	08.820 JACK ASM THA	8-97217-788-1	01	1	0404-0409				●	●
193	08.820 JACK ASM HIGH RIDE SUSPENSION<7YC> THA	8-97217-788-1	01	1	0410-0501	●		●
193	08.820 JACK ASM THA	8-97217-788-1	01	1	0410-0501				●	●
193	08.820 JACK ASM HIGH RIDE SUSPENSION<7YC> THA	8-97217-788-1	01	1	0502-0609	●
193	08.820 JACK ASM 4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ> HIGH RIDE SUSPENSION<7YC> THA	8-97217-788-1	01	1	0502-0609			●
193	08.820 JACK ASM THA	8-97217-788-1	01	1	0502-0609				●
193	08.820 JACK ASM 4JJ1-TCS ENG<LFB> THA	8-97217-788-1	01	1	0502-0609					●
193	08.820 JACK ASM HIGH RIDE SUSPENSION<7YC> THA	8-97217-788-1	01	1	0610-	●
193	08.820 JACK ASM 4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ> HIGH RIDE SUSPENSION<7YC> THA	8-97217-788-1	01	1	0610-			●
193	08.820 JACK ASM THA	8-97217-788-1	01	1	0610-				●
193	08.820 JACK ASM 4JJ1-TCS ENG<LFB>,4JJ1-TCX ENG<LS0> THA	8-97217-788-1	01	1	0610-					●
224	08.821 BAND; RUBBER,JACK 4JA1-T ENG<LP0>,4JH1-T ENG<L23> THA	8-97248-864-0	01	1	0404-0409	●	●	●
224	08.821 BAND; RUBBER,JACK THA	8-97248-864-0	01	1	0404-0409				●	●
224	08.821 BAND; RUBBER,JACK 4JJ1-TCS ENG<LFB>,4JA1-T ENG<LP0> THA	8-97248-864-0	01	1	0410-0501	●	●	●	●	●
224	08.821 BAND; RUBBER,JACK 4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ> THA	8-97248-864-0	01	1	0502-0609	●	●	●	●	●
224	08.821 BAND; RUBBER,JACK 4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ>, 4JJ1-TCX ENG<LS0> THA	8-98027-837-0	01	1	0610-	●	●	●	●	●
237	08.821 BAG; TOOL 4JA1-T ENG<LP0>,4JH1-T ENG<L23> THA	8-97248-885-1	01	1	0404-0409	●	●	●
237	08.821 BAG; TOOL THA	8-97248-885-1	01	1	0404-0409				●	●
237	08.821 BAG; TOOL 4JJ1-TCS ENG<LFB>,4JA1-T ENG<LP0> THA	8-97248-885-1	01	1	0410-0501	●	●	●	●	●
237	08.821 BAG; TOOL 4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ> THA	8-97248-885-1	01	1	0502-0609	●	●	●	●	●
237	08.821 BAG; TOOL 4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ>, 4JJ1-TCX ENG<LS0> THA	8-97945-395-0	01	1	0610-	●	●	●	●	●
284	08.821 BOLT; TOOL BOX 16.550 M6X16 W/PL WASHER THA	1-09981-438-0	02	1	0404-0609	●		●	●	●
284	08.821 BOLT; TOOL BOX M6X16 W/PL WASHER THA	8-98049-085-0	02	1	0610-	●		●	●	●
284	08.821 BOLT; TOOL BOX 16.550 M6X16 W/PL WASHER THA	1-09981-438-0	03	1	0404-0609		●
284	08.821 BOLT; TOOL BOX M6X16 W/PL WASHER THA	8-98049-085-0	03	1	0610-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
