Sayfa 8-90 - Isuzu EPC

8-90 — RADIO AND TV (#73711) — 232 parça

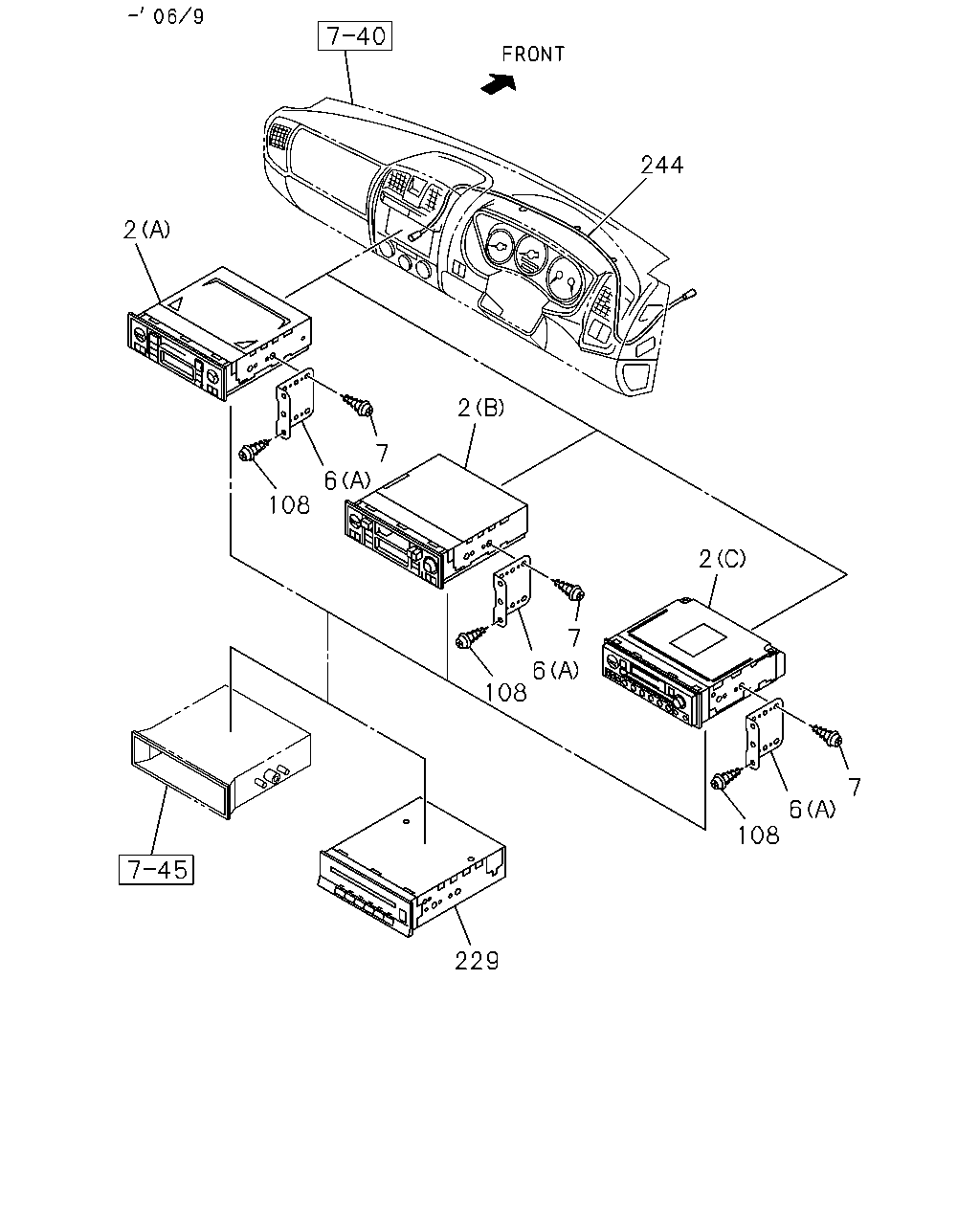

244 2 2 7 6 108 2 7 6 108 7 6 108 229

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
2	09.645 RADIO & CASSETTE DECK ASM AM/FM ASIA/OCEANIA BAND W/CASSETTE FUL L LOGIC<UX5> (A) THA	8-97238-478-2	01	1	0404-0409	●	●	●
2	09.645 RADIO & CASSETTE DECK ASM (A) THA	8-97238-478-2	01	1	0404-0409				●	●
2	09.645 RADIO & CASSETTE DECK ASM GRADE LT<RBD> AM/FM W/CASSETTE AUTO LOUDNESS 4 SPEAK ERS<UU1> (C) THA	8-97369-700-0	01	1	0410-0508	●		●
2	09.645 RADIO & CASSETTE DECK ASM (C) THA	8-97369-700-0	01	1	0410-0508				●	●
2	09.645 RADIO & CASSETTE DECK ASM GRADE LT<RBD> (C) THA	8-97369-700-0	01	1	0509-0609	●
2	09.645 RADIO & CASSETTE DECK ASM GRADE LT<RBD> AM/FM W/CASSETTE AUTO LOUDNESS 4 SPEAK ERS<UU1> (C) THA	8-97369-700-0	01	1	0509-0609			●	●	●
2	09.645 RADIO & CASSETTE DECK ASM AM/FM ASIA/OCEANIA BAND W/CASSETTE SEM I LOGIC<7AU> (B) THA	8-97363-294-0	01	1	0404-0409	●	●	●
2	09.645 RADIO & CASSETTE DECK ASM AM/FM W/CASSETTE 4 SPEAKERS<UM6> (B) THA	8-97363-295-0	01	1	0404-0409	●	●	●
2	09.645 RADIO & CASSETTE DECK ASM GRADE BASE<RBA>,GRADE LS<RBB> AM/FM W/CASSETTE AUTO LOUDNESS 4 SPEAK ERS<UU1> (C) THA	8-97370-359-0	01	1	0410-0609	●	●	●
6	09.645 BRACKET; RADIO TO PANEL RADIO DELETE<UL5>,AM/FM W/CASSETTE 4 SPEAKERS<UM6>,AM/FM ASIA/OCEANIA BAND W/CASSETTE FULL LOGIC<UX5>,AM/FM ASIA/O CEANIA BAND W/CASSETTE SEMI LOGIC<7AU> (A) THA	8-97238-471-0	02	1	0404-0409	●	●	●
6	09.645 BRACKET; RADIO TO PANEL (A) THA	8-97238-471-0	02	1	0404-0409				●	●
6	09.645 BRACKET; RADIO TO PANEL RADIO DELETE<UL5>,AM/FM W/CASSETTE AUTO LOUDNESS 4 SPEAKERS<UU1> (A) THA	8-97238-471-0	02	1	0410-0412	●	●	●
6	09.645 BRACKET; RADIO TO PANEL (A) THA	8-97238-471-0	02	1	0410-0412				●	●
6	09.645 BRACKET; RADIO TO PANEL RADIO DELETE<UL5> (A) THA	8-97238-471-0	02	1	0501-0508	●		●
6	09.645 BRACKET; RADIO TO PANEL AM/FM W/CASSETTE AUTO LOUDNESS 4 SPEAK ERS<UU1> EXC. MULTI CD PLAYER<U1S> (A) THA	8-97238-471-0	02	1	0501-0508	●		●
6	09.645 BRACKET; RADIO TO PANEL RADIO DELETE<UL5>,AM/FM W/CASSETTE AUTO LOUDNESS 4 SPEAKERS<UU1> (A) THA	8-97238-471-0	02	1	0501-0508		●
6	09.645 BRACKET; RADIO TO PANEL EXC. MULTI CD PLAYER<U1S> (A) THA	8-97238-471-0	02	1	0501-0508				●	●
6	09.645 BRACKET; RADIO TO PANEL (A) THA	8-97238-471-0	02	1	0509-0609	●
6	09.645 BRACKET; RADIO TO PANEL RADIO DELETE<UL5>,AM/FM W/CASSETTE AUTO LOUDNESS 4 SPEAKERS<UU1> (A) THA	8-97238-471-0	02	1	0509-0609		●	●	●	●
6	09.645 BRACKET; RADIO TO PANEL RADIO DELETE<UL5>,AM/FM W/CASSETTE 2 SPEAKERS<UN6>,RADIO AM/FM STEREO, SEEK/SCAN,CD<UT3> (A) THA	8-98007-736-0	02	1	0610-0910	●		●	●	●
6	09.645 BRACKET; RADIO TO PANEL RADIO DELETE<UL5>,RADIO AM/FM STEREO, SEEK/SCAN,CD<UT3> (A) THA	8-98007-736-0	02	1	0610-0910		●
6	09.645 BRACKET; RADIO TO PANEL RADIO DELETE<UL5>,RADIO AM/FM STEREO, SEEK/SCAN,CD<UT3> (A) THA	8-98007-736-0	02	1	0911-	●	●	●	●	●
6	09.645 BRACKET; RADIO TO PANEL RADIO AM/FM W/CD,W/MP3<ULA> (B) THA	8-98004-773-0	01	1	0610-	●		●	●	●
7	09.650 SCREW; RADIO AM/FM W/CASSETTE 4 SPEAKERS<UM6>, AM/FMASIA/OCEANIA BAND W/CASSETTE FULL LOG IC<UX5>,AM/FM ASIA/OCEANIA BAND W/CASSETTE SEMI LOGIC<7AU> 04.054 M5X10 W/LK+PL WASHER	9-03920-510-0	04	1	0404-0409	●	●	●	●	●
7	09.650 SCREW; RADIO AM/FM ASIA/OCEANIA BAND W/CASSETTE FUL L LOGIC<UX5> MULTI CD PLAYER<U1S> 04.054 M5X10 W/LK+PL WASHER	9-03920-510-0	04	1	0404-0409	●	●	●	●	●
7	09.650 SCREW; RADIO AM/FM W/CASSETTE AUTO LOUDNESS 4 SPEAK ERS<UU1> 04.054 M5X10 W/LK+PL WASHER	9-03920-510-0	04	1	0410-0412	●	●	●
7	09.650 SCREW; RADIO 04.054 M5X10 W/LK+PL WASHER	9-03920-510-0	04	1	0410-0412				●	●
7	09.650 SCREW; RADIO AM/FM W/CASSETTE AUTO LOUDNESS 4 SPEAK ERS<UU1> 04.054 M5X10 W/LK+PL WASHER	9-03920-510-0	04	1	0501-0508	●	●	●
7	09.650 SCREW; RADIO GRADE LT<RBD> AM/FM W/CASSETTE AUTO LOUDNESS 4 SPEAK ERS<UU1> MULTI CD PLAYER<U1S> 04.054 M5X10 W/LK+PL WASHER	9-03920-510-0	04	1	0501-0508	●		●
7	09.650 SCREW; RADIO 04.054 M5X10 W/LK+PL WASHER	9-03920-510-0	04	1	0501-0508				●	●
7	09.650 SCREW; RADIO MULTI CD PLAYER<U1S> 04.054 M5X10 W/LK+PL WASHER	9-03920-510-0	04	1	0501-0508				●	●
7	09.650 SCREW; RADIO 04.054 M5X10 W/LK+PL WASHER	9-03920-510-0	04	1	0509-0605	●
7	09.650 SCREW; RADIO AM/FM W/CASSETTE AUTO LOUDNESS 4 SPEAK ERS<UU1> 04.054 M5X10 W/LK+PL WASHER	9-03920-510-0	04	1	0509-0605		●	●	●	●
7	09.650 SCREW; RADIO 03.680 M5X10 W/LK+PL WASHER	0-36230-510-0	04	1	0606-0609	●
7	09.650 SCREW; RADIO AM/FM W/CASSETTE AUTO LOUDNESS 4 SPEAK ERS<UU1> 03.680 M5X10 W/LK+PL WASHER	0-36230-510-0	04	1	0606-0609		●	●	●	●
7	09.650 SCREW; RADIO AM/FM W/CASSETTE 2 SPEAKERS<UN6>, RADIOAM/FM STEREO,SEEK/SCAN,CD<UT3> 03.680 M5X10 W/LK+PL WASHER	0-36230-510-0	04	1	0610-0910	●		●	●	●
7	09.650 SCREW; RADIO RADIO AM/FM STEREO,SEEK/SCAN,CD<UT3> 03.680 M5X10 W/LK+PL WASHER	0-36230-510-0	04	1	0610-0910		●
7	09.650 SCREW; RADIO RADIO AM/FM STEREO,SEEK/SCAN,CD<UT3> 03.680 M5X10 W/LK+PL WASHER	0-36230-510-0	04	1	0911-	●	●	●	●	●
108	09.645 SCREW; BRKT RADIO DELETE<UL5>,AM/FM W/CASSETTE 4 SPEAKERS<UM6>,AM/FM ASIA/OCEANIA BAND W/CASSETTE FULL LOGIC<UX5>,AM/FM ASIA/O CEANIA BAND W/CASSETTE SEMI LOGIC<7AU> 16.085 M5X16 TAPPING	9-09829-323-1	04	1	0404-0409	●	●	●
108	09.645 SCREW; BRKT 16.085 M5X16 TAPPING	9-09829-323-1	04	1	0404-0409				●	●
108	09.645 SCREW; BRKT RADIO DELETE<UL5>,AM/FM W/CASSETTE AUTO LOUDNESS 4 SPEAKERS<UU1> 16.085 M5X16 TAPPING	9-09829-323-1	04	1	0410-0508	●	●	●
108	09.645 SCREW; BRKT 16.085 M5X16 TAPPING	9-09829-323-1	04	1	0410-0508				●	●
108	09.645 SCREW; BRKT 16.085 M5X16 TAPPING	9-09829-323-1	04	1	0509-0609	●
108	09.645 SCREW; BRKT RADIO DELETE<UL5>,AM/FM W/CASSETTE AUTO LOUDNESS 4 SPEAKERS<UU1> 16.085 M5X16 TAPPING	9-09829-323-1	04	1	0509-0609		●	●	●	●
108	09.645 SCREW; BRKT RADIO DELETE<UL5>,AM/FM W/CASSETTE 2 SPEAKERS<UN6>,RADIO AM/FM STEREO, SEEK/SCAN,CD<UT3> 16.085 M5X16 TAPPING	9-09829-323-1	04	1	0610-0612	●		●	●	●
108	09.645 SCREW; BRKT RADIO DELETE<UL5>,RADIO AM/FM STEREO, SEEK/SCAN,CD<UT3> 16.085 M5X16 TAPPING	9-09829-323-1	04	1	0610-0612		●
108	09.645 SCREW; BRKT RADIO DELETE<UL5>,AM/FM W/CASSETTE 2 SPEAKERS<UN6>,RADIO AM/FM STEREO, SEEK/SCAN,CD<UT3> 08.083 M5X16 TAPPING	8-98061-685-0	04	1	0701-0910	●		●	●	●
108	09.645 SCREW; BRKT RADIO DELETE<UL5>,RADIO AM/FM STEREO, SEEK/SCAN,CD<UT3> 08.083 M5X16 TAPPING	8-98061-685-0	04	1	0701-0910		●
108	09.645 SCREW; BRKT RADIO DELETE<UL5>,RADIO AM/FM STEREO, SEEK/SCAN,CD<UT3> 08.083 M5X16 TAPPING	8-98061-685-0	04	1	0911-1004	●	●	●	●	●
108	09.645 SCREW; BRKT RADIO DELETE<UL5>,RADIO AM/FM STEREO, SEEK/SCAN,CD<UT3> 08.083 M5X16 TAPPING THA	8-98167-449-0	04	1	1005-	●	●	●	●	●
108	09.645 SCREW; BRKT RADIO AM/FM W/CD,W/MP3<ULA> 16.085 M5X16 TAPPING	9-09829-323-1	08	1	0610-0612	●		●	●	●
108	09.645 SCREW; BRKT RADIO AM/FM W/CD,W/MP3<ULA> 08.083 M5X16 TAPPING	8-98061-685-0	08	1	0701-1004	●		●	●	●
108	09.645 SCREW; BRKT RADIO AM/FM W/CD,W/MP3<ULA> 08.083 M5X16 TAPPING THA	8-98167-449-0	08	1	1005-	●		●	●	●
229	09.647 PLAYER; CD AM/FM ASIA/OCEANIA BAND W/CASSETTE FUL L LOGIC<UX5> MULTI CD PLAYER<U1S> THA	8-97238-480-0	01	1	0404-0409	●	●	●
229	09.647 PLAYER; CD MULTI CD PLAYER<U1S> THA	8-97238-480-0	01	1	0404-0409				●	●
244	09.647 CABLE; FEEDER THA	8-97238-487-1	01	1	0404-	●	●	●	●	●

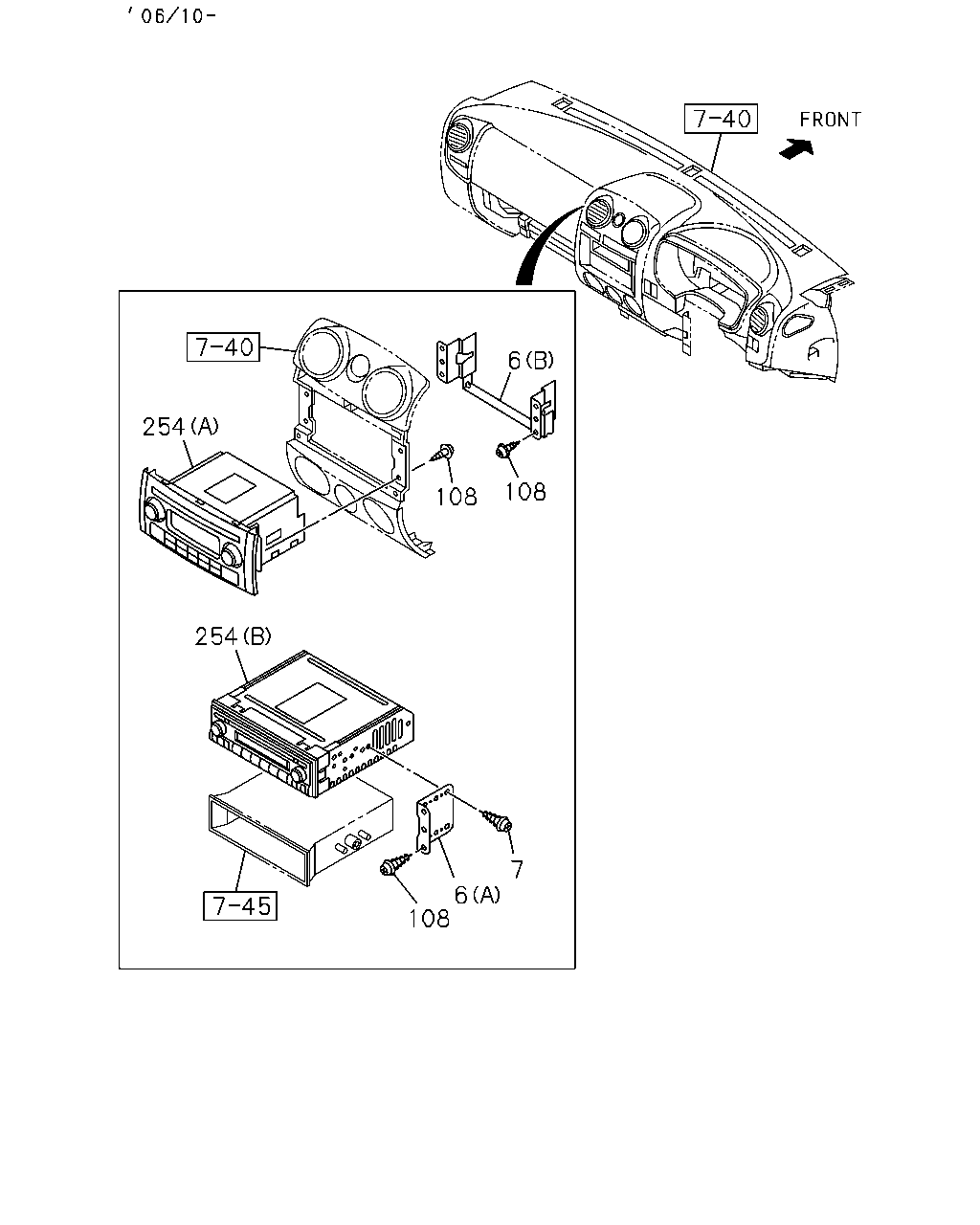

6 254 108 108 254 7 6 108

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
6	09.645 BRACKET; RADIO TO PANEL RADIO DELETE<UL5>,AM/FM W/CASSETTE 4 SPEAKERS<UM6>,AM/FM ASIA/OCEANIA BAND W/CASSETTE FULL LOGIC<UX5>,AM/FM ASIA/O CEANIA BAND W/CASSETTE SEMI LOGIC<7AU> (A) THA	8-97238-471-0	02	1	0404-0409	●	●	●
6	09.645 BRACKET; RADIO TO PANEL (A) THA	8-97238-471-0	02	1	0404-0409				●	●
6	09.645 BRACKET; RADIO TO PANEL RADIO DELETE<UL5>,AM/FM W/CASSETTE AUTO LOUDNESS 4 SPEAKERS<UU1> (A) THA	8-97238-471-0	02	1	0410-0412	●	●	●
6	09.645 BRACKET; RADIO TO PANEL (A) THA	8-97238-471-0	02	1	0410-0412				●	●
6	09.645 BRACKET; RADIO TO PANEL RADIO DELETE<UL5> (A) THA	8-97238-471-0	02	1	0501-0508	●		●
6	09.645 BRACKET; RADIO TO PANEL AM/FM W/CASSETTE AUTO LOUDNESS 4 SPEAK ERS<UU1> EXC. MULTI CD PLAYER<U1S> (A) THA	8-97238-471-0	02	1	0501-0508	●		●
6	09.645 BRACKET; RADIO TO PANEL RADIO DELETE<UL5>,AM/FM W/CASSETTE AUTO LOUDNESS 4 SPEAKERS<UU1> (A) THA	8-97238-471-0	02	1	0501-0508		●
6	09.645 BRACKET; RADIO TO PANEL EXC. MULTI CD PLAYER<U1S> (A) THA	8-97238-471-0	02	1	0501-0508				●	●
6	09.645 BRACKET; RADIO TO PANEL (A) THA	8-97238-471-0	02	1	0509-0609	●
6	09.645 BRACKET; RADIO TO PANEL RADIO DELETE<UL5>,AM/FM W/CASSETTE AUTO LOUDNESS 4 SPEAKERS<UU1> (A) THA	8-97238-471-0	02	1	0509-0609		●	●	●	●
6	09.645 BRACKET; RADIO TO PANEL RADIO DELETE<UL5>,AM/FM W/CASSETTE 2 SPEAKERS<UN6>,RADIO AM/FM STEREO, SEEK/SCAN,CD<UT3> (A) THA	8-98007-736-0	02	1	0610-0910	●		●	●	●
6	09.645 BRACKET; RADIO TO PANEL RADIO DELETE<UL5>,RADIO AM/FM STEREO, SEEK/SCAN,CD<UT3> (A) THA	8-98007-736-0	02	1	0610-0910		●
6	09.645 BRACKET; RADIO TO PANEL RADIO DELETE<UL5>,RADIO AM/FM STEREO, SEEK/SCAN,CD<UT3> (A) THA	8-98007-736-0	02	1	0911-	●	●	●	●	●
6	09.645 BRACKET; RADIO TO PANEL RADIO AM/FM W/CD,W/MP3<ULA> (B) THA	8-98004-773-0	01	1	0610-	●		●	●	●
7	09.650 SCREW; RADIO AM/FM W/CASSETTE 4 SPEAKERS<UM6>, AM/FMASIA/OCEANIA BAND W/CASSETTE FULL LOG IC<UX5>,AM/FM ASIA/OCEANIA BAND W/CASSETTE SEMI LOGIC<7AU> 04.054 M5X10 W/LK+PL WASHER	9-03920-510-0	04	1	0404-0409	●	●	●	●	●
7	09.650 SCREW; RADIO AM/FM ASIA/OCEANIA BAND W/CASSETTE FUL L LOGIC<UX5> MULTI CD PLAYER<U1S> 04.054 M5X10 W/LK+PL WASHER	9-03920-510-0	04	1	0404-0409	●	●	●	●	●
7	09.650 SCREW; RADIO AM/FM W/CASSETTE AUTO LOUDNESS 4 SPEAK ERS<UU1> 04.054 M5X10 W/LK+PL WASHER	9-03920-510-0	04	1	0410-0412	●	●	●
7	09.650 SCREW; RADIO 04.054 M5X10 W/LK+PL WASHER	9-03920-510-0	04	1	0410-0412				●	●
7	09.650 SCREW; RADIO AM/FM W/CASSETTE AUTO LOUDNESS 4 SPEAK ERS<UU1> 04.054 M5X10 W/LK+PL WASHER	9-03920-510-0	04	1	0501-0508	●	●	●
7	09.650 SCREW; RADIO GRADE LT<RBD> AM/FM W/CASSETTE AUTO LOUDNESS 4 SPEAK ERS<UU1> MULTI CD PLAYER<U1S> 04.054 M5X10 W/LK+PL WASHER	9-03920-510-0	04	1	0501-0508	●		●
7	09.650 SCREW; RADIO 04.054 M5X10 W/LK+PL WASHER	9-03920-510-0	04	1	0501-0508				●	●
7	09.650 SCREW; RADIO MULTI CD PLAYER<U1S> 04.054 M5X10 W/LK+PL WASHER	9-03920-510-0	04	1	0501-0508				●	●
7	09.650 SCREW; RADIO 04.054 M5X10 W/LK+PL WASHER	9-03920-510-0	04	1	0509-0605	●
7	09.650 SCREW; RADIO AM/FM W/CASSETTE AUTO LOUDNESS 4 SPEAK ERS<UU1> 04.054 M5X10 W/LK+PL WASHER	9-03920-510-0	04	1	0509-0605		●	●	●	●
7	09.650 SCREW; RADIO 03.680 M5X10 W/LK+PL WASHER	0-36230-510-0	04	1	0606-0609	●
7	09.650 SCREW; RADIO AM/FM W/CASSETTE AUTO LOUDNESS 4 SPEAK ERS<UU1> 03.680 M5X10 W/LK+PL WASHER	0-36230-510-0	04	1	0606-0609		●	●	●	●
7	09.650 SCREW; RADIO AM/FM W/CASSETTE 2 SPEAKERS<UN6>, RADIOAM/FM STEREO,SEEK/SCAN,CD<UT3> 03.680 M5X10 W/LK+PL WASHER	0-36230-510-0	04	1	0610-0910	●		●	●	●
7	09.650 SCREW; RADIO RADIO AM/FM STEREO,SEEK/SCAN,CD<UT3> 03.680 M5X10 W/LK+PL WASHER	0-36230-510-0	04	1	0610-0910		●
7	09.650 SCREW; RADIO RADIO AM/FM STEREO,SEEK/SCAN,CD<UT3> 03.680 M5X10 W/LK+PL WASHER	0-36230-510-0	04	1	0911-	●	●	●	●	●
108	09.645 SCREW; BRKT RADIO DELETE<UL5>,AM/FM W/CASSETTE 4 SPEAKERS<UM6>,AM/FM ASIA/OCEANIA BAND W/CASSETTE FULL LOGIC<UX5>,AM/FM ASIA/O CEANIA BAND W/CASSETTE SEMI LOGIC<7AU> 16.085 M5X16 TAPPING	9-09829-323-1	04	1	0404-0409	●	●	●
108	09.645 SCREW; BRKT 16.085 M5X16 TAPPING	9-09829-323-1	04	1	0404-0409				●	●
108	09.645 SCREW; BRKT RADIO DELETE<UL5>,AM/FM W/CASSETTE AUTO LOUDNESS 4 SPEAKERS<UU1> 16.085 M5X16 TAPPING	9-09829-323-1	04	1	0410-0508	●	●	●
108	09.645 SCREW; BRKT 16.085 M5X16 TAPPING	9-09829-323-1	04	1	0410-0508				●	●
108	09.645 SCREW; BRKT 16.085 M5X16 TAPPING	9-09829-323-1	04	1	0509-0609	●
108	09.645 SCREW; BRKT RADIO DELETE<UL5>,AM/FM W/CASSETTE AUTO LOUDNESS 4 SPEAKERS<UU1> 16.085 M5X16 TAPPING	9-09829-323-1	04	1	0509-0609		●	●	●	●
108	09.645 SCREW; BRKT RADIO DELETE<UL5>,AM/FM W/CASSETTE 2 SPEAKERS<UN6>,RADIO AM/FM STEREO, SEEK/SCAN,CD<UT3> 16.085 M5X16 TAPPING	9-09829-323-1	04	1	0610-0612	●		●	●	●
108	09.645 SCREW; BRKT RADIO DELETE<UL5>,RADIO AM/FM STEREO, SEEK/SCAN,CD<UT3> 16.085 M5X16 TAPPING	9-09829-323-1	04	1	0610-0612		●
108	09.645 SCREW; BRKT RADIO DELETE<UL5>,AM/FM W/CASSETTE 2 SPEAKERS<UN6>,RADIO AM/FM STEREO, SEEK/SCAN,CD<UT3> 08.083 M5X16 TAPPING	8-98061-685-0	04	1	0701-0910	●		●	●	●
108	09.645 SCREW; BRKT RADIO DELETE<UL5>,RADIO AM/FM STEREO, SEEK/SCAN,CD<UT3> 08.083 M5X16 TAPPING	8-98061-685-0	04	1	0701-0910		●
108	09.645 SCREW; BRKT RADIO DELETE<UL5>,RADIO AM/FM STEREO, SEEK/SCAN,CD<UT3> 08.083 M5X16 TAPPING	8-98061-685-0	04	1	0911-1004	●	●	●	●	●
108	09.645 SCREW; BRKT RADIO DELETE<UL5>,RADIO AM/FM STEREO, SEEK/SCAN,CD<UT3> 08.083 M5X16 TAPPING THA	8-98167-449-0	04	1	1005-	●	●	●	●	●
108	09.645 SCREW; BRKT RADIO AM/FM W/CD,W/MP3<ULA> 16.085 M5X16 TAPPING	9-09829-323-1	08	1	0610-0612	●		●	●	●
108	09.645 SCREW; BRKT RADIO AM/FM W/CD,W/MP3<ULA> 08.083 M5X16 TAPPING	8-98061-685-0	08	1	0701-1004	●		●	●	●
108	09.645 SCREW; BRKT RADIO AM/FM W/CD,W/MP3<ULA> 08.083 M5X16 TAPPING THA	8-98167-449-0	08	1	1005-	●		●	●	●
254	09.645 RADIO CONTROL ASM; STEREO,AM-FM RADIO AM/FM STEREO,SEEK/SCAN,CD<UT3> (B) THA	8-98007-738-0	01	1	0610-	●	●	●	●	●
254	09.645 RADIO CONTROL ASM; STEREO,AM-FM RADIO AM/FM W/CD,W/MP3<ULA> (A) GRAY THA	8-97409-207-0	01	1	0610-	●		●	●	●

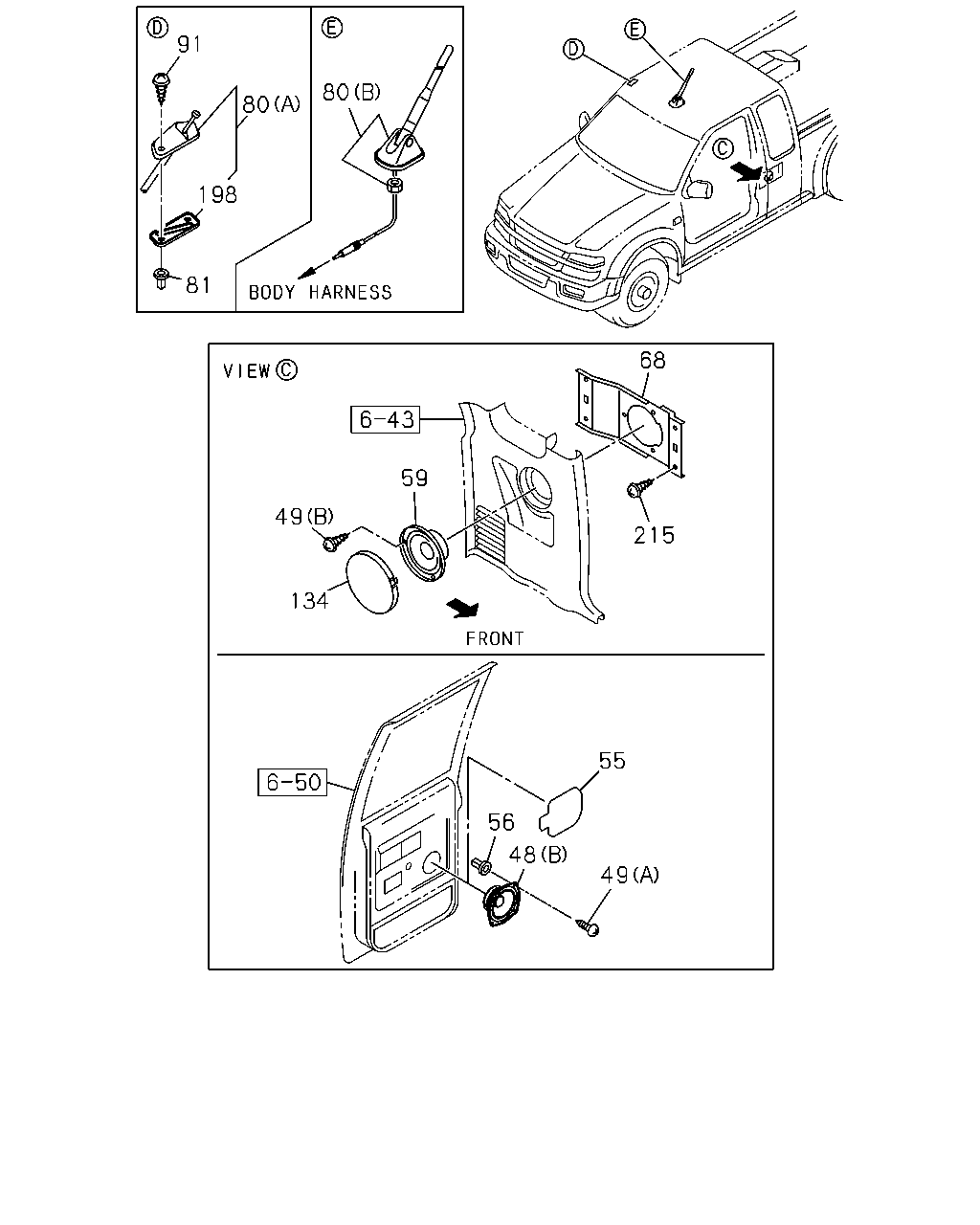

91 80 80 198 81 68 59 49 215 134 55 56 48 49

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E

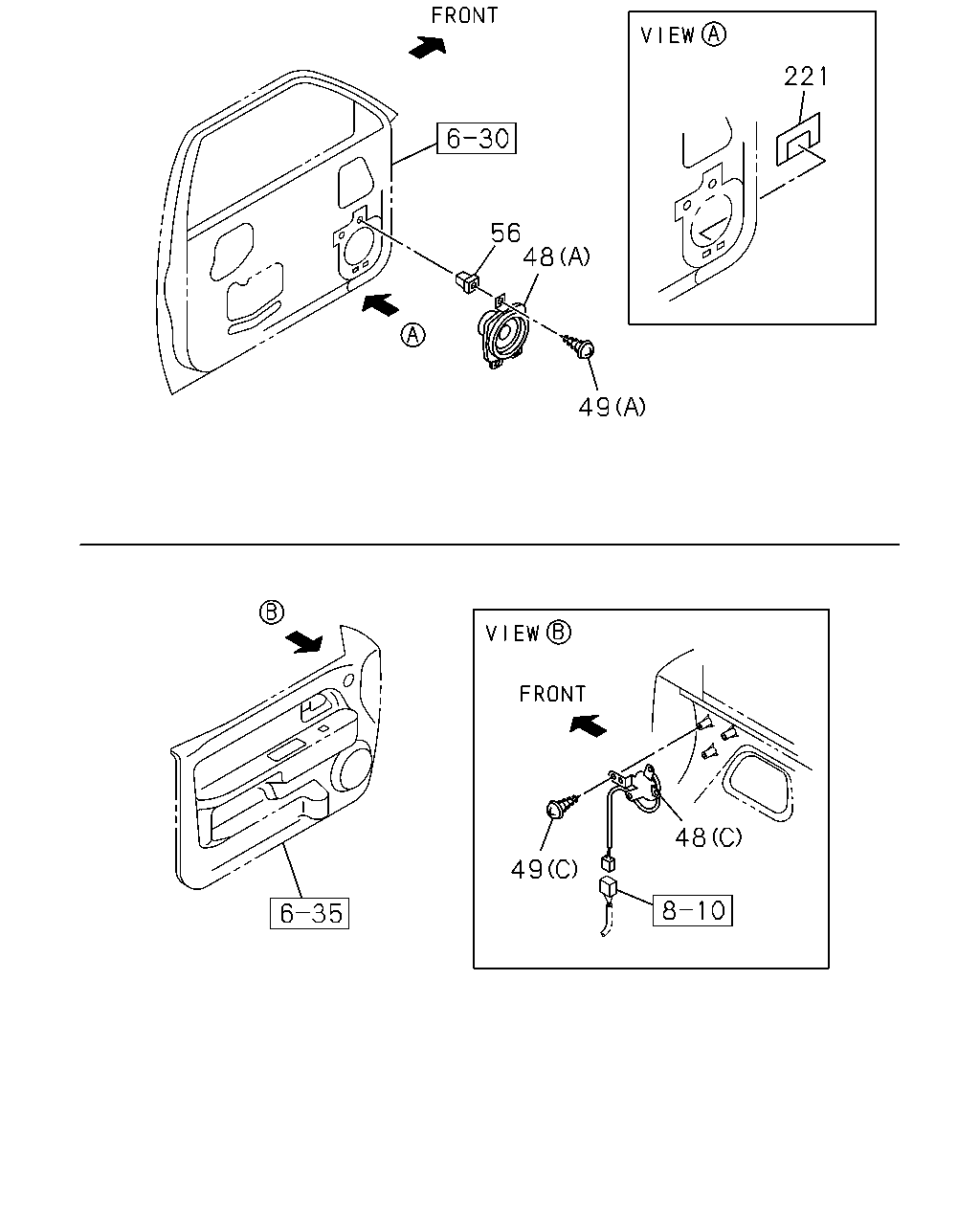

48	09.650 SPEAKER; AUDIO 4-SPEAKER SYSTEM BASE<UQ4>,6-SPEAKER SYSTEM BASE<UW5>,2-SPEAKER SYSTEM BASE<U95> (A) THA	8-97357-982-0	02	1	0404-0409	●	●	●
48	09.650 SPEAKER; AUDIO (A) THA	8-97357-982-0	02	1	0404-0409				●	●
48	09.650 SPEAKER; AUDIO 4-SPEAKER SYSTEM BASE<UQ4>,6-SPEAKER SYSTEM BASE<UW5>,2-SPEAKER SYSTEM BASE<U95> (A) THA	8-97373-521-0	02	1	0410-0508	●		●
48	09.650 SPEAKER; AUDIO 2-SPEAKER SYSTEM BASE<U95> (A) THA	8-97373-521-0	02	1	0410-0508		●
48	09.650 SPEAKER; AUDIO (A) THA	8-97373-521-0	02	1	0410-0508				●	●
48	09.650 SPEAKER; AUDIO 4-SPEAKER SYSTEM BASE<UQ4>,6-SPEAKER SYSTEM BASE<UW5>,2-SPEAKER SYSTEM BASE<U95> (A) THA	8-97373-521-0	02	1	0509-0612	●	●	●
48	09.650 SPEAKER; AUDIO (A) THA	8-97373-521-0	02	1	0509-0612				●	●
48	09.650 SPEAKER; AUDIO 4-SPEAKER SYSTEM BASE<UQ4>,6-SPEAKER SYSTEM BASE<UW5>,2-SPEAKER SYSTEM BASE<U95> (A) THA	8-98073-396-0	02	1	0701-0709	●	●	●
48	09.650 SPEAKER; AUDIO (A) THA	8-98073-396-0	02	1	0701-0709				●	●
48	09.650 SPEAKER; AUDIO 4-SPEAKER SYSTEM BASE<UQ4>,6-SPEAKER SYSTEM BASE<UW5>,2-SPEAKER SYSTEM BASE<U95> (A) THA	8-98061-046-0	02	1	0710-	●	●	●
48	09.650 SPEAKER; AUDIO (A) THA	8-98061-046-0	02	1	0710-				●	●
48	09.650 SPEAKER; AUDIO 6-SPEAKER SYSTEM BASE<UW5> (C) THA	8-97238-543-0	01	1	0404-0612	●		●
48	09.650 SPEAKER; AUDIO (C) THA	8-97238-543-0	01	1	0404-0612				●	●
48	09.650 SPEAKER; AUDIO 6-SPEAKER SYSTEM BASE<UW5> (C) THA	8-98073-394-0	01	1	0701-0709	●		●
48	09.650 SPEAKER; AUDIO (C) THA	8-98073-394-0	01	1	0701-0709				●	●
48	09.650 SPEAKER; AUDIO 6-SPEAKER SYSTEM BASE<UW5> (C) THA	8-98061-044-0	01	1	0710-	●		●
48	09.650 SPEAKER; AUDIO (C) THA	8-98061-044-0	01	1	0710-				●	●
48	09.650 SPEAKER; AUDIO 6-SPEAKER SYSTEM BASE<UW5> (C) THA	8-97259-628-0	01	1	0404-0612	●		●
48	09.650 SPEAKER; AUDIO (C) THA	8-97259-628-0	01	1	0404-0612				●	●
48	09.650 SPEAKER; AUDIO 6-SPEAKER SYSTEM BASE<UW5> (C) THA	8-98073-395-0	01	1	0701-0709	●		●
48	09.650 SPEAKER; AUDIO (C) THA	8-98073-395-0	01	1	0701-0709				●	●
48	09.650 SPEAKER; AUDIO 6-SPEAKER SYSTEM BASE<UW5> (C) THA	8-98061-045-0	01	1	0710-	●		●
48	09.650 SPEAKER; AUDIO (C) THA	8-98061-045-0	01	1	0710-				●	●
48	09.650 SPEAKER; AUDIO 4-SPEAKER SYSTEM BASE<UQ4>,6-SPEAKER SYSTEM BASE<UW5> (B) THA	8-97315-216-0	02	1	0404-0612			●
48	09.650 SPEAKER; AUDIO (B) THA	8-97315-216-0	02	1	0404-0612					●
48	09.650 SPEAKER; AUDIO 4-SPEAKER SYSTEM BASE<UQ4>,6-SPEAKER SYSTEM BASE<UW5> (B) THA	8-98073-397-0	02	1	0701-0709			●
48	09.650 SPEAKER; AUDIO (B) THA	8-98073-397-0	02	1	0701-0709					●
48	09.650 SPEAKER; AUDIO 4-SPEAKER SYSTEM BASE<UQ4>,6-SPEAKER SYSTEM BASE<UW5> (B) THA	8-98061-047-0	02	1	0710-			●
48	09.650 SPEAKER; AUDIO (B) THA	8-98061-047-0	02	1	0710-					●
49	09.655 SCREW; SPEAKER 4-SPEAKER SYSTEM BASE<UQ4>,6-SPEAKER SYSTEM BASE<UW5> 16.085 (B) M5X16 TAPPING	9-09829-323-1	06	1	0404-0612	●
49	09.655 SCREW; SPEAKER 16.085 (B) M5X16 TAPPING	9-09829-323-1	06	1	0404-0612				●
49	09.655 SCREW; SPEAKER 4-SPEAKER SYSTEM BASE<UQ4>,6-SPEAKER SYSTEM BASE<UW5> 08.083 (B) M5X16 TAPPING	8-98061-685-0	06	1	0701-1004	●
49	09.655 SCREW; SPEAKER 08.083 (B) M5X16 TAPPING	8-98061-685-0	06	1	0701-1004				●
49	09.655 SCREW; SPEAKER 4-SPEAKER SYSTEM BASE<UQ4>,6-SPEAKER SYSTEM BASE<UW5> 08.083 (B) M5X16 TAPPING THA	8-98167-449-0	06	1	1005-	●
49	09.655 SCREW; SPEAKER 08.083 (B) M5X16 TAPPING THA	8-98167-449-0	06	1	1005-				●
49	09.655 SCREW; SPEAKER 4-SPEAKER SYSTEM BASE<UQ4>,6-SPEAKER SYSTEM BASE<UW5>,2-SPEAKER SYSTEM BASE<U95> 12.182 (A) M5X14	8-94152-495-0	02	1	0404-	●		●
49	09.655 SCREW; SPEAKER 2-SPEAKER SYSTEM BASE<U95> 12.182 (A) M5X14	8-94152-495-0	02	1	0404-		●
49	09.655 SCREW; SPEAKER 4-SPEAKER SYSTEM BASE<UQ4>,6-SPEAKER SYSTEM BASE<UW5> 12.182 (A) M5X14	8-94152-495-0	02	1	0404-			●
49	09.655 SCREW; SPEAKER 12.182 (A) M5X14	8-94152-495-0	02	1	0404-				●	●
49	09.655 SCREW; SPEAKER 12.182 (A) M5X14	8-94152-495-0	02	1	0404-					●
49	09.655 SCREW; SPEAKER 6-SPEAKER SYSTEM BASE<UW5> 16.115 (C) M4X10 THA	9-93497-410-0	06	1	0404-0606	●		●
49	09.655 SCREW; SPEAKER 16.115 (C) M4X10 THA	9-93497-410-0	06	1	0404-0606				●	●
49	09.655 SCREW; SPEAKER 6-SPEAKER SYSTEM BASE<UW5> (C) M4X10 THA	0-34218-410-0	06	1	0607-	●		●
49	09.655 SCREW; SPEAKER (C) M4X10 THA	0-34218-410-0	06	1	0607-				●	●
55	09.650 COVER; SPEAKER HOLE EXC. 4-SPEAKER SYSTEM BASE<UQ4>, 6-SPEAKER SYSTEM BASE<UW5>,2-SPEAKER SYSTEM BASE<U95> THA	8-97238-485-1	02	1	0404-	●	●	●
55	09.650 COVER; SPEAKER HOLE EXC. 4-SPEAKER SYSTEM BASE<UQ4>, 6-SPEAKER SYSTEM BASE<UW5> THA	8-97238-485-1	02	1	0404-			●
56	09.655 NUT; SPEAKER,RADIO OR STEREO 4-SPEAKER SYSTEM BASE<UQ4>,6-SPEAKER SYSTEM BASE<UW5>,2-SPEAKER SYSTEM BASE<U95> 10.565 THA	8-94152-494-0	02	1	0404-	●		●
56	09.655 NUT; SPEAKER,RADIO OR STEREO 2-SPEAKER SYSTEM BASE<U95> 10.565 THA	8-94152-494-0	02	1	0404-		●
56	09.655 NUT; SPEAKER,RADIO OR STEREO 4-SPEAKER SYSTEM BASE<UQ4>,6-SPEAKER SYSTEM BASE<UW5> 10.565 THA	8-94152-494-0	02	1	0404-			●
56	09.655 NUT; SPEAKER,RADIO OR STEREO 10.565 THA	8-94152-494-0	02	1	0404-				●	●
56	09.655 NUT; SPEAKER,RADIO OR STEREO 10.565 THA	8-94152-494-0	02	1	0404-					●
59	09.665 SPEAKER; AUDIO 4-SPEAKER SYSTEM BASE<UQ4>,6-SPEAKER SYSTEM BASE<UW5> THA	8-97238-483-1	02	1	0404-0612	●
59	09.665 SPEAKER; AUDIO THA	8-97238-483-1	02	1	0404-0612				●
59	09.665 SPEAKER; AUDIO 4-SPEAKER SYSTEM BASE<UQ4>,6-SPEAKER SYSTEM BASE<UW5> THA	8-98073-393-0	02	1	0701-0709	●
59	09.665 SPEAKER; AUDIO THA	8-98073-393-0	02	1	0701-0709				●
59	09.665 SPEAKER; AUDIO 4-SPEAKER SYSTEM BASE<UQ4>,6-SPEAKER SYSTEM BASE<UW5> THA	8-98061-043-0	02	1	0710-	●
59	09.665 SPEAKER; AUDIO THA	8-98061-043-0	02	1	0710-				●
68	09.667 BRACKET; RR SPEAKER 4-SPEAKER SYSTEM BASE<UQ4>,6-SPEAKER SYSTEM BASE<UW5> THA	8-97238-486-1	02	1	0404-	●
68	09.667 BRACKET; RR SPEAKER THA	8-97238-486-1	02	1	0404-				●
80	09.645 ANTENNA (A) THA	8-97357-027-0	01	1	0404-0608	●	●	●	●	●
80	09.645 ANTENNA (A) THA	8-98044-180-0	01	1	0609-0709	●	●	●	●	●
80	09.645 ANTENNA EXC. ROOF RADIO ANTENNA<U71> (A) THA	8-98044-180-0	01	1	0710-	●		●
80	09.645 ANTENNA (A) THA	8-98044-180-0	01	1	0710-		●
80	09.645 ANTENNA ROOF RADIO ANTENNA<U71> (B) THA	8-98053-513-0	01	1	0710-	●		●
80	09.645 ANTENNA (B) THA	8-98053-513-0	01	1	0710-				●	●
81	09.647 NUT; ANTENNA POLE M5 POP NUT THA	8-97249-574-0	02	1	0404-0709	●	●	●	●	●
81	09.647 NUT; ANTENNA POLE EXC. ROOF RADIO ANTENNA<U71> M5 POP NUT THA	8-97249-574-0	02	1	0710-	●		●
81	09.647 NUT; ANTENNA POLE M5 POP NUT THA	8-97249-574-0	02	1	0710-		●
91	09.663 BOLT; ANTENNA M5X19	8-97310-469-0	02	1	0404-0404	●	●	●	●	●
91	09.663 BOLT; ANTENNA M5X16	8-97375-569-0	02	1	0404-0709	●	●	●	●	●
91	09.663 BOLT; ANTENNA EXC. ROOF RADIO ANTENNA<U71> M5X16	8-97375-569-0	02	1	0710-	●		●
91	09.663 BOLT; ANTENNA M5X16	8-97375-569-0	02	1	0710-		●
134	09.665 GRILLE; SPEAKER,RR GRAY THA	8-97396-701-1	02	1	0404-0609	●			●
134	09.665 GRILLE; SPEAKER,RR BEIGE THA	8-97403-887-1	02	1	0610-	●			●
198	09.647 SHEET; ANTENNA THA	8-97354-772-0	01	1	0404-0709	●	●	●	●	●
198	09.647 SHEET; ANTENNA EXC. ROOF RADIO ANTENNA<U71> THA	8-97354-772-0	01	1	0710-	●		●
198	09.647 SHEET; ANTENNA THA	8-97354-772-0	01	1	0710-		●
215	09.645 SCREW; BRKT,SPEAKER 4-SPEAKER SYSTEM BASE<UQ4>,6-SPEAKER SYSTEM BASE<UW5> 09.242 M6X12	9-09829-330-1	08	1	0404-	●
215	09.645 SCREW; BRKT,SPEAKER 09.242 M6X12	9-09829-330-1	08	1	0404-				●

221 56 48 49 48 49

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
48	09.650 SPEAKER; AUDIO 4-SPEAKER SYSTEM BASE<UQ4>,6-SPEAKER SYSTEM BASE<UW5>,2-SPEAKER SYSTEM BASE<U95> (A) THA	8-97357-982-0	02	1	0404-0409	●	●	●
48	09.650 SPEAKER; AUDIO (A) THA	8-97357-982-0	02	1	0404-0409				●	●
48	09.650 SPEAKER; AUDIO 4-SPEAKER SYSTEM BASE<UQ4>,6-SPEAKER SYSTEM BASE<UW5>,2-SPEAKER SYSTEM BASE<U95> (A) THA	8-97373-521-0	02	1	0410-0508	●		●
48	09.650 SPEAKER; AUDIO 2-SPEAKER SYSTEM BASE<U95> (A) THA	8-97373-521-0	02	1	0410-0508		●
48	09.650 SPEAKER; AUDIO (A) THA	8-97373-521-0	02	1	0410-0508				●	●
48	09.650 SPEAKER; AUDIO 4-SPEAKER SYSTEM BASE<UQ4>,6-SPEAKER SYSTEM BASE<UW5>,2-SPEAKER SYSTEM BASE<U95> (A) THA	8-97373-521-0	02	1	0509-0612	●	●	●
48	09.650 SPEAKER; AUDIO (A) THA	8-97373-521-0	02	1	0509-0612				●	●
48	09.650 SPEAKER; AUDIO 4-SPEAKER SYSTEM BASE<UQ4>,6-SPEAKER SYSTEM BASE<UW5>,2-SPEAKER SYSTEM BASE<U95> (A) THA	8-98073-396-0	02	1	0701-0709	●	●	●
48	09.650 SPEAKER; AUDIO (A) THA	8-98073-396-0	02	1	0701-0709				●	●
48	09.650 SPEAKER; AUDIO 4-SPEAKER SYSTEM BASE<UQ4>,6-SPEAKER SYSTEM BASE<UW5>,2-SPEAKER SYSTEM BASE<U95> (A) THA	8-98061-046-0	02	1	0710-	●	●	●
48	09.650 SPEAKER; AUDIO (A) THA	8-98061-046-0	02	1	0710-				●	●
48	09.650 SPEAKER; AUDIO 6-SPEAKER SYSTEM BASE<UW5> (C) THA	8-97238-543-0	01	1	0404-0612	●		●
48	09.650 SPEAKER; AUDIO (C) THA	8-97238-543-0	01	1	0404-0612				●	●
48	09.650 SPEAKER; AUDIO 6-SPEAKER SYSTEM BASE<UW5> (C) THA	8-98073-394-0	01	1	0701-0709	●		●
48	09.650 SPEAKER; AUDIO (C) THA	8-98073-394-0	01	1	0701-0709				●	●
48	09.650 SPEAKER; AUDIO 6-SPEAKER SYSTEM BASE<UW5> (C) THA	8-98061-044-0	01	1	0710-	●		●
48	09.650 SPEAKER; AUDIO (C) THA	8-98061-044-0	01	1	0710-				●	●
48	09.650 SPEAKER; AUDIO 6-SPEAKER SYSTEM BASE<UW5> (C) THA	8-97259-628-0	01	1	0404-0612	●		●
48	09.650 SPEAKER; AUDIO (C) THA	8-97259-628-0	01	1	0404-0612				●	●
48	09.650 SPEAKER; AUDIO 6-SPEAKER SYSTEM BASE<UW5> (C) THA	8-98073-395-0	01	1	0701-0709	●		●
48	09.650 SPEAKER; AUDIO (C) THA	8-98073-395-0	01	1	0701-0709				●	●
48	09.650 SPEAKER; AUDIO 6-SPEAKER SYSTEM BASE<UW5> (C) THA	8-98061-045-0	01	1	0710-	●		●
48	09.650 SPEAKER; AUDIO (C) THA	8-98061-045-0	01	1	0710-				●	●
48	09.650 SPEAKER; AUDIO 4-SPEAKER SYSTEM BASE<UQ4>,6-SPEAKER SYSTEM BASE<UW5> (B) THA	8-97315-216-0	02	1	0404-0612			●
48	09.650 SPEAKER; AUDIO (B) THA	8-97315-216-0	02	1	0404-0612					●
48	09.650 SPEAKER; AUDIO 4-SPEAKER SYSTEM BASE<UQ4>,6-SPEAKER SYSTEM BASE<UW5> (B) THA	8-98073-397-0	02	1	0701-0709			●
48	09.650 SPEAKER; AUDIO (B) THA	8-98073-397-0	02	1	0701-0709					●
48	09.650 SPEAKER; AUDIO 4-SPEAKER SYSTEM BASE<UQ4>,6-SPEAKER SYSTEM BASE<UW5> (B) THA	8-98061-047-0	02	1	0710-			●
48	09.650 SPEAKER; AUDIO (B) THA	8-98061-047-0	02	1	0710-					●
49	09.655 SCREW; SPEAKER 4-SPEAKER SYSTEM BASE<UQ4>,6-SPEAKER SYSTEM BASE<UW5> 16.085 (B) M5X16 TAPPING	9-09829-323-1	06	1	0404-0612	●
49	09.655 SCREW; SPEAKER 16.085 (B) M5X16 TAPPING	9-09829-323-1	06	1	0404-0612				●
49	09.655 SCREW; SPEAKER 4-SPEAKER SYSTEM BASE<UQ4>,6-SPEAKER SYSTEM BASE<UW5> 08.083 (B) M5X16 TAPPING	8-98061-685-0	06	1	0701-1004	●
49	09.655 SCREW; SPEAKER 08.083 (B) M5X16 TAPPING	8-98061-685-0	06	1	0701-1004				●
49	09.655 SCREW; SPEAKER 4-SPEAKER SYSTEM BASE<UQ4>,6-SPEAKER SYSTEM BASE<UW5> 08.083 (B) M5X16 TAPPING THA	8-98167-449-0	06	1	1005-	●
49	09.655 SCREW; SPEAKER 08.083 (B) M5X16 TAPPING THA	8-98167-449-0	06	1	1005-				●
49	09.655 SCREW; SPEAKER 4-SPEAKER SYSTEM BASE<UQ4>,6-SPEAKER SYSTEM BASE<UW5>,2-SPEAKER SYSTEM BASE<U95> 12.182 (A) M5X14	8-94152-495-0	02	1	0404-	●		●
49	09.655 SCREW; SPEAKER 2-SPEAKER SYSTEM BASE<U95> 12.182 (A) M5X14	8-94152-495-0	02	1	0404-		●
49	09.655 SCREW; SPEAKER 4-SPEAKER SYSTEM BASE<UQ4>,6-SPEAKER SYSTEM BASE<UW5> 12.182 (A) M5X14	8-94152-495-0	02	1	0404-			●
49	09.655 SCREW; SPEAKER 12.182 (A) M5X14	8-94152-495-0	02	1	0404-				●	●
49	09.655 SCREW; SPEAKER 12.182 (A) M5X14	8-94152-495-0	02	1	0404-					●
49	09.655 SCREW; SPEAKER 6-SPEAKER SYSTEM BASE<UW5> 16.115 (C) M4X10 THA	9-93497-410-0	06	1	0404-0606	●		●
49	09.655 SCREW; SPEAKER 16.115 (C) M4X10 THA	9-93497-410-0	06	1	0404-0606				●	●
49	09.655 SCREW; SPEAKER 6-SPEAKER SYSTEM BASE<UW5> (C) M4X10 THA	0-34218-410-0	06	1	0607-	●		●
49	09.655 SCREW; SPEAKER (C) M4X10 THA	0-34218-410-0	06	1	0607-				●	●
56	09.655 NUT; SPEAKER,RADIO OR STEREO 4-SPEAKER SYSTEM BASE<UQ4>,6-SPEAKER SYSTEM BASE<UW5>,2-SPEAKER SYSTEM BASE<U95> 10.565 THA	8-94152-494-0	02	1	0404-	●		●
56	09.655 NUT; SPEAKER,RADIO OR STEREO 2-SPEAKER SYSTEM BASE<U95> 10.565 THA	8-94152-494-0	02	1	0404-		●
56	09.655 NUT; SPEAKER,RADIO OR STEREO 4-SPEAKER SYSTEM BASE<UQ4>,6-SPEAKER SYSTEM BASE<UW5> 10.565 THA	8-94152-494-0	02	1	0404-			●
56	09.655 NUT; SPEAKER,RADIO OR STEREO 10.565 THA	8-94152-494-0	02	1	0404-				●	●
56	09.655 NUT; SPEAKER,RADIO OR STEREO 10.565 THA	8-94152-494-0	02	1	0404-					●
221	16.165 SEAL; SPEAKER PANEL 4-SPEAKER SYSTEM BASE<UQ4>,6-SPEAKER SYSTEM BASE<UW5>,2-SPEAKER SYSTEM BASE<U95> THA	8-97328-113-0	02	1	0404-	●	●	●
221	16.165 SEAL; SPEAKER PANEL THA	8-97328-113-0	02	1	0404-				●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
