8-73 — BLOWER UNIT (#73707) — 83 parça

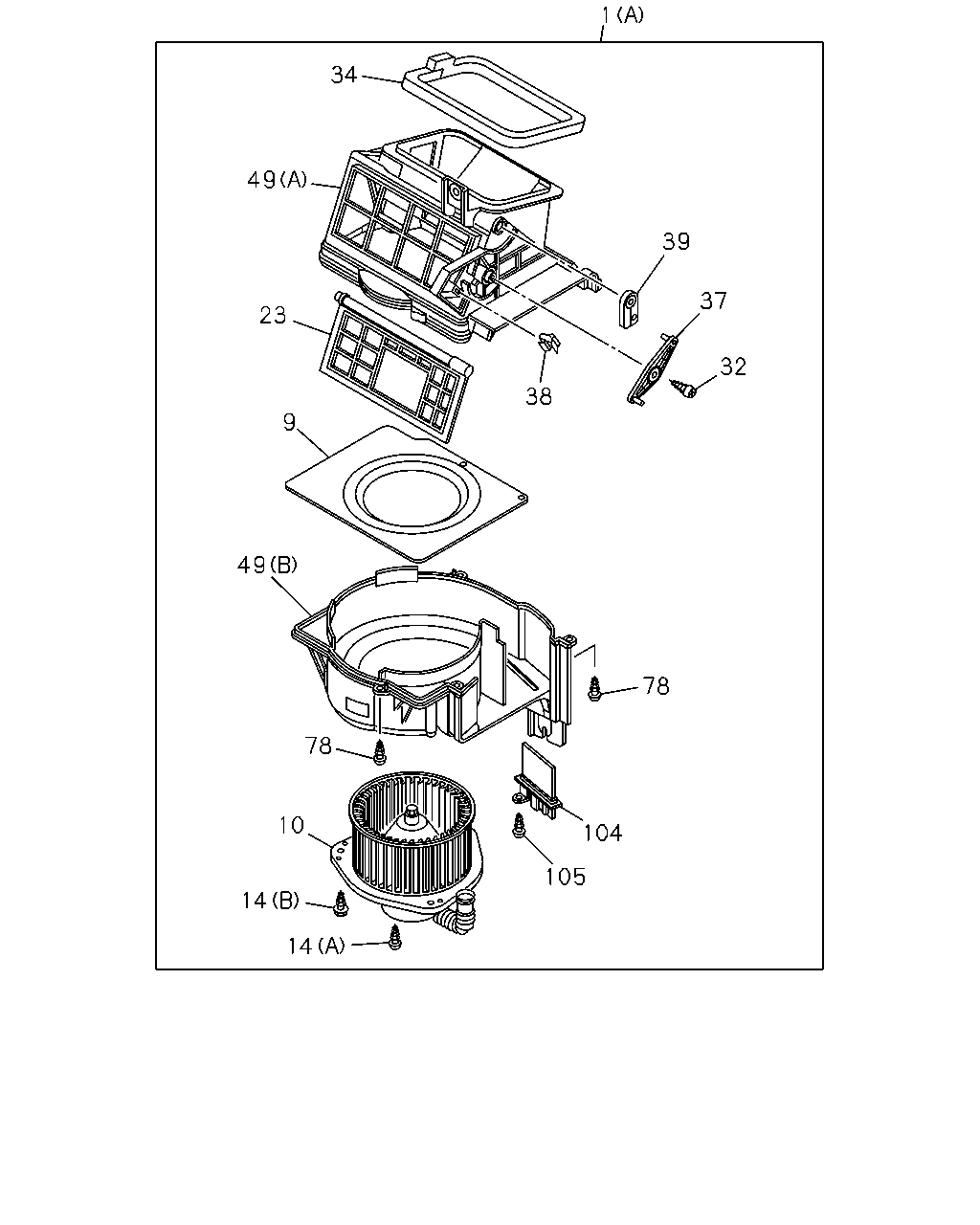

çizim 118165
1 34 49 39 37 23 32 38 9 49 78 78 10 104 105 14 14
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 08.855 BLOWER ASM
(A) THA 		8-97369-321-1 01 1 0404-0412 ● ● ● ● ●
1 08.855 BLOWER ASM
(A) THA 		8-98000-785-0 01 1 0501-0609 ● ● ● ● ●
1 08.855 BLOWER ASM
(A) THA 		8-98034-543-0 01 1 0610-0703 ● ● ● ● ●
1 08.855 BLOWER ASM
(A) THA 		8-98070-131-0 01 1 0704-0709 ● ● ● ● ●
1 08.855 BLOWER ASM
(A) THA 		8-98070-131-0 01 1 0710- ● ● ● ●
1 08.855 BLOWER ASM
COOLER WO/HEATER<C65> (A) THA 		8-98070-131-0 01 1 0710- ●
1 08.855 BLOWER ASM
VENTILATION RAM AIR<6TN> (B) THA 		8-97301-798-2 01 1 0710- ●
9 08.856 GUIDE; BELL MOUTH HTR
THA 		8-97321-265-0 01 1 0404-0703 ● ● ● ● ●
9 08.856 GUIDE; BELL MOUTH HTR
THA 		8-98072-803-0 01 1 0704-0709 ● ● ● ● ●
9 08.856 GUIDE; BELL MOUTH HTR
THA 		8-98072-803-0 01 1 0710- ● ● ● ●
9 08.856 GUIDE; BELL MOUTH HTR
COOLER WO/HEATER<C65> THA 		8-98072-803-0 01 1 0710- ●
10 08.855 MOTOR ASM; FAN,BLOWER UNIT
THA 		8-97321-270-0 01 1 0404-0412 ● ● ● ● ●
10 08.855 MOTOR ASM; FAN,BLOWER UNIT
THA 		8-98008-893-0 01 1 0501-0709 ● ● ● ● ●
10 08.855 MOTOR ASM; FAN,BLOWER UNIT
THA 		8-98008-893-0 01 1 0710- ● ● ● ●
10 08.855 MOTOR ASM; FAN,BLOWER UNIT
COOLER WO/HEATER<C65> THA 		8-98008-893-0 01 1 0710- ●
14 08.857 SCREW; COVER TO CASE
09.211 (A) THA 		8-97321-165-0 01 1 0404-0703 ● ● ● ● ●
14 08.857 SCREW; COVER TO CASE
(B) THA 		8-98070-134-0 03 1 0704-0709 ● ● ● ● ●
14 08.857 SCREW; COVER TO CASE
(B) THA 		8-98070-134-0 03 1 0710- ● ● ● ●
14 08.857 SCREW; COVER TO CASE
COOLER WO/HEATER<C65> (B) THA 		8-98070-134-0 03 1 0710- ●
14 08.857 SCREW; COVER TO CASE
(B) THA 		8-97321-275-0 03 1 0404-0703 ● ● ● ● ●
14 08.857 SCREW; COVER TO CASE
(A) THA 		8-98070-135-0 01 1 0704-0709 ● ● ● ● ●
14 08.857 SCREW; COVER TO CASE
(A) THA 		8-98070-135-0 01 1 0710- ● ● ● ●
14 08.857 SCREW; COVER TO CASE
COOLER WO/HEATER<C65> (A) THA 		8-98070-135-0 01 1 0710- ●
14 08.857 SCREW; COVER TO CASE
VENTILATION RAM AIR<6TN> 09.211 (A) THA 		8-97321-165-0 03 1 0710- ●
23 08.857 SHUTTER; BLOWER UNIT
THA 		8-97321-266-1 01 1 0404- ● ● ● ● ●
32 08.856 SCREW; LEVER
THA 		8-97321-276-0 01 1 0404-0703 ● ● ● ● ●
32 08.856 SCREW; LEVER
THA 		8-98070-136-0 01 1 0704-0709 ● ● ● ● ●
32 08.856 SCREW; LEVER
THA 		8-98070-136-0 01 1 0710- ● ● ● ●
32 08.856 SCREW; LEVER
COOLER WO/HEATER<C65> THA 		8-98070-136-0 01 1 0710- ●
32 08.856 SCREW; LEVER
VENTILATION RAM AIR<6TN> THA 		8-97321-276-0 01 1 0710- ●
34 08.856 LINING; BLOWER UNIT
THA 		8-97321-269-0 01 1 0404- ● ● ● ● ●
37 09.786 LEVER; MODE LEVER
THA 		8-97321-268-0 01 1 0404- ● ● ● ● ●
38 09.787 CLIP; BLOWER UNIT
THA 		8-97321-274-0 01 1 0404- ● ● ● ● ●
39 09.786 LEVER; SHUTTER,BLOWER UNIT
THA 		8-97321-267-0 01 1 0404- ● ● ● ● ●
49 08.857 CASE; BLOWER UNIT
(A) THA 		8-97321-263-0 01 1 0404- ● ● ● ● ●
49 08.857 CASE; BLOWER UNIT
(B) THA 		8-97321-264-0 01 1 0404- ● ● ● ● ●
78 08.857 SCREW; CASE TO CASE
09.211 THA 		8-97321-165-0 05 1 0404-0703 ● ● ● ● ●
78 08.857 SCREW; CASE TO CASE
THA 		8-98070-135-0 05 1 0704-0709 ● ● ● ● ●
78 08.857 SCREW; CASE TO CASE
THA 		8-98070-135-0 05 1 0710- ● ● ● ●
78 08.857 SCREW; CASE TO CASE
COOLER WO/HEATER<C65> THA 		8-98070-135-0 05 1 0710- ●
78 08.857 SCREW; CASE TO CASE
VENTILATION RAM AIR<6TN> 09.211 THA 		8-97321-165-0 05 1 0710- ●
104 08.855 RESISTOR; BLOWER UNIT
THA 		8-97321-273-0 01 1 0404-0609 ● ● ● ● ●
104 08.855 RESISTOR; BLOWER UNIT
THA 		8-98049-394-0 01 1 0610-0709 ● ● ● ● ●
104 08.855 RESISTOR; BLOWER UNIT
THA 		8-98049-394-0 01 1 0710- ● ● ● ●
104 08.855 RESISTOR; BLOWER UNIT
COOLER WO/HEATER<C65> THA 		8-98049-394-0 01 1 0710- ●
105 08.855 SCREW; RESISTOR
09.211 THA 		8-97321-165-0 02 1 0404-0703 ● ● ● ● ●
105 08.855 SCREW; RESISTOR
08.857 THA 		8-98070-135-0 02 1 0704-0709 ● ● ● ● ●
105 08.855 SCREW; RESISTOR
08.857 THA 		8-98070-135-0 02 1 0710- ● ● ● ●
105 08.855 SCREW; RESISTOR
COOLER WO/HEATER<C65> 08.857 THA 		8-98070-135-0 02 1 0710- ●

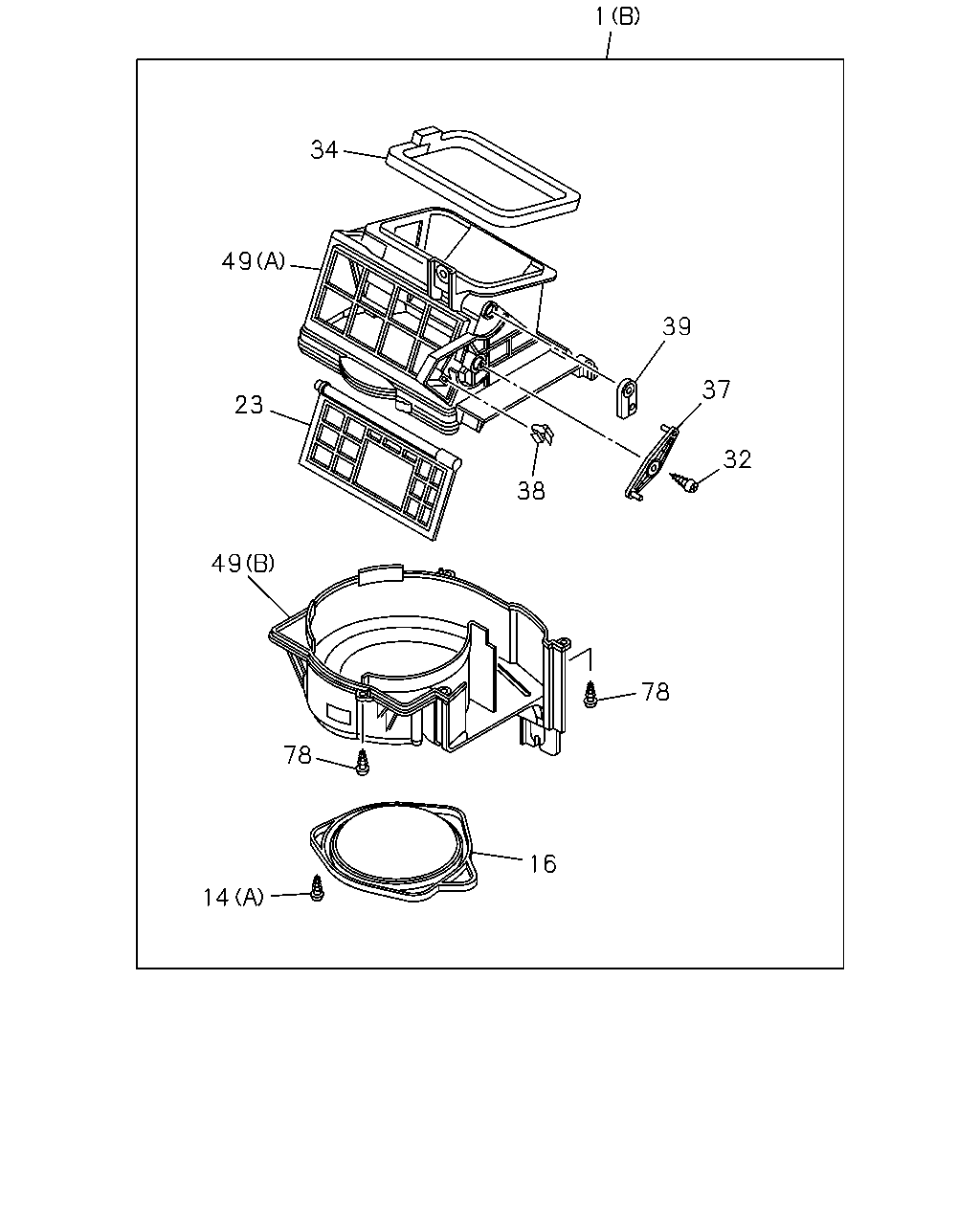

çizim 118189
1 34 49 39 37 23 32 38 49 78 78 16 14
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 08.855 BLOWER ASM
(A) THA 		8-97369-321-1 01 1 0404-0412 ● ● ● ● ●
1 08.855 BLOWER ASM
(A) THA 		8-98000-785-0 01 1 0501-0609 ● ● ● ● ●
1 08.855 BLOWER ASM
(A) THA 		8-98034-543-0 01 1 0610-0703 ● ● ● ● ●
1 08.855 BLOWER ASM
(A) THA 		8-98070-131-0 01 1 0704-0709 ● ● ● ● ●
1 08.855 BLOWER ASM
(A) THA 		8-98070-131-0 01 1 0710- ● ● ● ●
1 08.855 BLOWER ASM
COOLER WO/HEATER<C65> (A) THA 		8-98070-131-0 01 1 0710- ●
1 08.855 BLOWER ASM
VENTILATION RAM AIR<6TN> (B) THA 		8-97301-798-2 01 1 0710- ●
14 08.857 SCREW; COVER TO CASE
09.211 (A) THA 		8-97321-165-0 01 1 0404-0703 ● ● ● ● ●
14 08.857 SCREW; COVER TO CASE
(B) THA 		8-98070-134-0 03 1 0704-0709 ● ● ● ● ●
14 08.857 SCREW; COVER TO CASE
(B) THA 		8-98070-134-0 03 1 0710- ● ● ● ●
14 08.857 SCREW; COVER TO CASE
COOLER WO/HEATER<C65> (B) THA 		8-98070-134-0 03 1 0710- ●
14 08.857 SCREW; COVER TO CASE
(B) THA 		8-97321-275-0 03 1 0404-0703 ● ● ● ● ●
14 08.857 SCREW; COVER TO CASE
(A) THA 		8-98070-135-0 01 1 0704-0709 ● ● ● ● ●
14 08.857 SCREW; COVER TO CASE
(A) THA 		8-98070-135-0 01 1 0710- ● ● ● ●
14 08.857 SCREW; COVER TO CASE
COOLER WO/HEATER<C65> (A) THA 		8-98070-135-0 01 1 0710- ●
14 08.857 SCREW; COVER TO CASE
VENTILATION RAM AIR<6TN> 09.211 (A) THA 		8-97321-165-0 03 1 0710- ●
16 08.857 COVER; BLOWER UNIT
VENTILATION RAM AIR<6TN> THA 		8-97321-271-0 01 1 0710- ●
23 08.857 SHUTTER; BLOWER UNIT
THA 		8-97321-266-1 01 1 0404- ● ● ● ● ●
32 08.856 SCREW; LEVER
THA 		8-97321-276-0 01 1 0404-0703 ● ● ● ● ●
32 08.856 SCREW; LEVER
THA 		8-98070-136-0 01 1 0704-0709 ● ● ● ● ●
32 08.856 SCREW; LEVER
THA 		8-98070-136-0 01 1 0710- ● ● ● ●
32 08.856 SCREW; LEVER
COOLER WO/HEATER<C65> THA 		8-98070-136-0 01 1 0710- ●
32 08.856 SCREW; LEVER
VENTILATION RAM AIR<6TN> THA 		8-97321-276-0 01 1 0710- ●
34 08.856 LINING; BLOWER UNIT
THA 		8-97321-269-0 01 1 0404- ● ● ● ● ●
37 09.786 LEVER; MODE LEVER
THA 		8-97321-268-0 01 1 0404- ● ● ● ● ●
38 09.787 CLIP; BLOWER UNIT
THA 		8-97321-274-0 01 1 0404- ● ● ● ● ●
39 09.786 LEVER; SHUTTER,BLOWER UNIT
THA 		8-97321-267-0 01 1 0404- ● ● ● ● ●
49 08.857 CASE; BLOWER UNIT
(A) THA 		8-97321-263-0 01 1 0404- ● ● ● ● ●
49 08.857 CASE; BLOWER UNIT
(B) THA 		8-97321-264-0 01 1 0404- ● ● ● ● ●
78 08.857 SCREW; CASE TO CASE
09.211 THA 		8-97321-165-0 05 1 0404-0703 ● ● ● ● ●
78 08.857 SCREW; CASE TO CASE
THA 		8-98070-135-0 05 1 0704-0709 ● ● ● ● ●
78 08.857 SCREW; CASE TO CASE
THA 		8-98070-135-0 05 1 0710- ● ● ● ●
78 08.857 SCREW; CASE TO CASE
COOLER WO/HEATER<C65> THA 		8-98070-135-0 05 1 0710- ●
78 08.857 SCREW; CASE TO CASE
VENTILATION RAM AIR<6TN> 09.211 THA 		8-97321-165-0 05 1 0710- ●
