◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 50982 - TFR/S(CHEVROLET)THAI ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-71 - COMPRESSOR; AIR CONDITIONING ▶
8-71 — COMPRESSOR; AIR CONDITIONING (#73706) — 25 parça

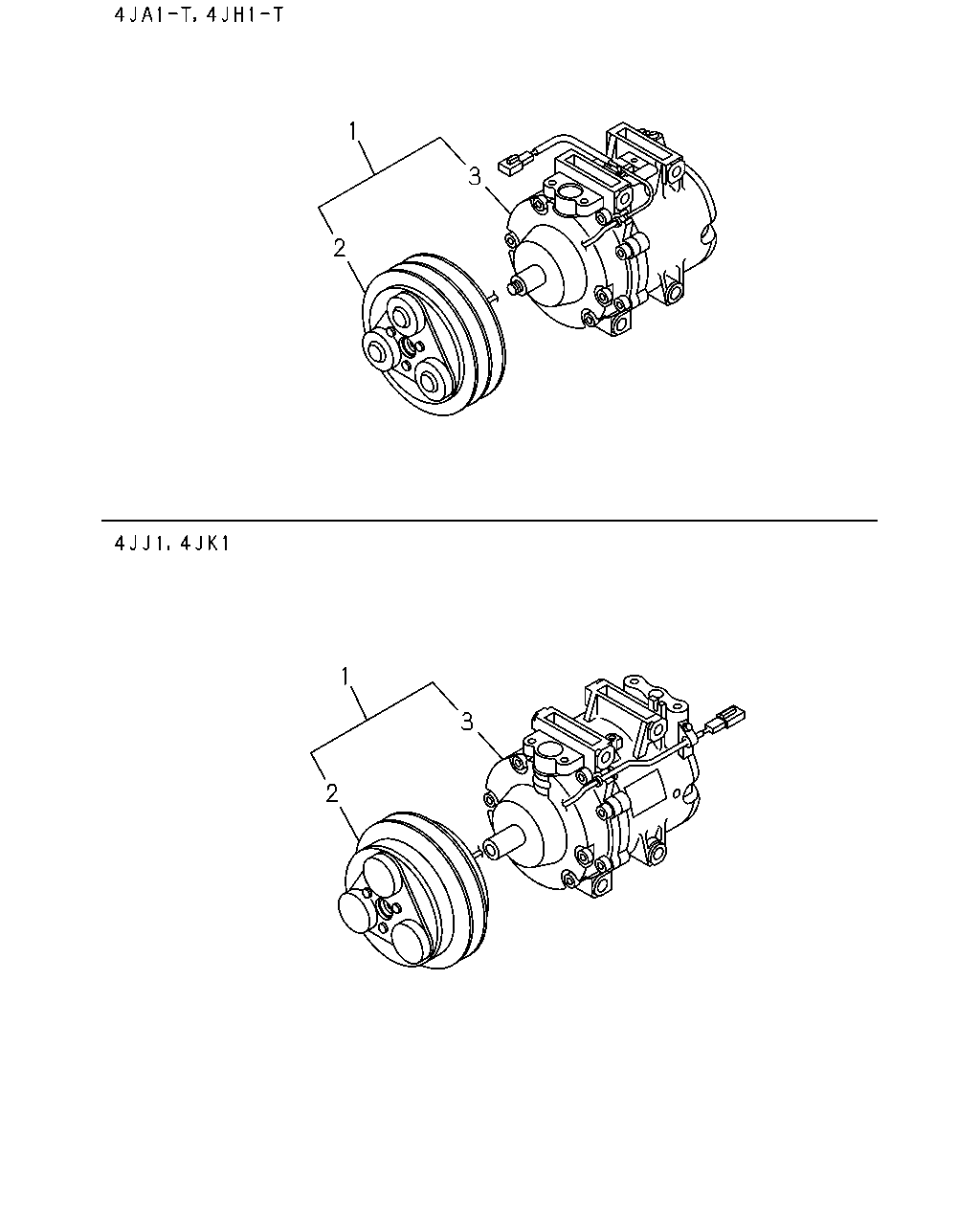

çizim 118171
1 3 2 1 3 2
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 09.170 COMPRESSOR ASM; A/C
4JA1-T ENG<LP0>,4JH1-T ENG<L23> THA 		8-97369-415-0 01 1 0404-0409 ● ● ●
1 09.170 COMPRESSOR ASM; A/C
THA 		8-97369-415-0 01 1 0404-0409 ● ●
1 09.170 COMPRESSOR ASM; A/C
4JA1-T ENG<LP0> THA 		8-97369-415-0 01 1 0410-0501 ● ● ●
1 09.170 COMPRESSOR ASM; A/C
4JJ1-TCS ENG<LFB> THA 		8-97370-661-3 01 1 0410-0501 ● ● ● ●
1 09.170 COMPRESSOR ASM; A/C
4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ> THA 		8-97370-661-3 01 1 0502-0609 ● ● ● ● ●
1 09.170 COMPRESSOR ASM; A/C
4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ>, 4JJ1-TCX ENG<LS0> THA 		8-97370-661-3 01 1 0610-0709 ● ● ● ● ●
1 09.170 COMPRESSOR ASM; A/C
4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ>, 4JJ1-TCX ENG<LS0> COOLER WO/HEATER<C65> THA 		8-97370-661-3 01 1 0710-1109 ● ● ● ● ●
1 09.170 COMPRESSOR ASM; A/C
4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ>, 4JJ1-TCX ENG<LS0> COOLER WO/HEATER<C65> THA 		8-98199-292-1 01 1 1110- ● ● ● ● ●
2 09.188 CLUTCH; MAGNET,A/C
4JA1-T ENG<LP0>,4JH1-T ENG<L23> THA 		8-97371-580-0 01 1 0404-0409 ● ● ●
2 09.188 CLUTCH; MAGNET,A/C
THA 		8-97371-580-0 01 1 0404-0409 ● ●
2 09.188 CLUTCH; MAGNET,A/C
4JA1-T ENG<LP0> THA 		8-97371-580-0 01 1 0410-0501 ● ● ●
2 09.188 CLUTCH; MAGNET,A/C
4JJ1-TCS ENG<LFB> THA 		8-97372-920-0 01 1 0410-0501 ● ● ● ●
2 09.188 CLUTCH; MAGNET,A/C
4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ> THA 		8-97372-920-0 01 1 0502-0609 ● ● ● ● ●
2 09.188 CLUTCH; MAGNET,A/C
4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ>, 4JJ1-TCX ENG<LS0> THA 		8-97372-920-0 01 1 0610-0709 ● ● ● ● ●
2 09.188 CLUTCH; MAGNET,A/C
4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ>, 4JJ1-TCX ENG<LS0> COOLER WO/HEATER<C65> THA 		8-97372-920-0 01 1 0710-1402 ● ● ● ● ●
2 09.188 CLUTCH; MAGNET,A/C
4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ>, 4JJ1-TCX ENG<LS0> COOLER WO/HEATER<C65> THA 		8-98252-777-0 01 1 1403- ● ● ● ● ●
3 09.170 COMPRESSOR ASM; A/C
4JA1-T ENG<LP0>,4JH1-T ENG<L23> THA 		8-97371-576-0 01 1 0404-0409 ● ● ●
3 09.170 COMPRESSOR ASM; A/C
THA 		8-97371-576-0 01 1 0404-0409 ● ●
3 09.170 COMPRESSOR ASM; A/C
4JA1-T ENG<LP0> THA 		8-97371-576-0 01 1 0410-0501 ● ● ●
3 09.170 COMPRESSOR ASM; A/C
4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ>, 4JJ1-TCX ENG<LS0> THA 		8-98070-188-0 01 1 0610-0709 ● ● ● ● ●
3 09.170 COMPRESSOR ASM; A/C
4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ>, 4JJ1-TCX ENG<LS0> COOLER WO/HEATER<C65> THA 		8-98070-188-0 01 1 0710-1109 ● ● ● ● ●
3 09.170 COMPRESSOR ASM; A/C
4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ>, 4JJ1-TCX ENG<LS0> COOLER WO/HEATER<C65> THA 		8-98204-874-0 01 1 1110-1402 ● ● ● ● ●
3 09.170 COMPRESSOR ASM; A/C
4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ>, 4JJ1-TCX ENG<LS0> COOLER WO/HEATER<C65> THA 		8-98258-533-0 01 1 1403- ● ● ● ● ●
3 09.170 COMPRESSOR ASM; A/C
4JJ1-TCS ENG<LFB> THA 		8-97372-919-0 01 1 0410-0501 ● ● ● ●
3 09.170 COMPRESSOR ASM; A/C
4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ> THA 		8-97372-919-0 01 1 0502-0609 ● ● ● ● ●
