◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 50982 - TFR/S(CHEVROLET)THAI ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-60 - HEATER UNIT; FRONT ▶
8-60 — HEATER UNIT; FRONT (#73704) — 133 parça

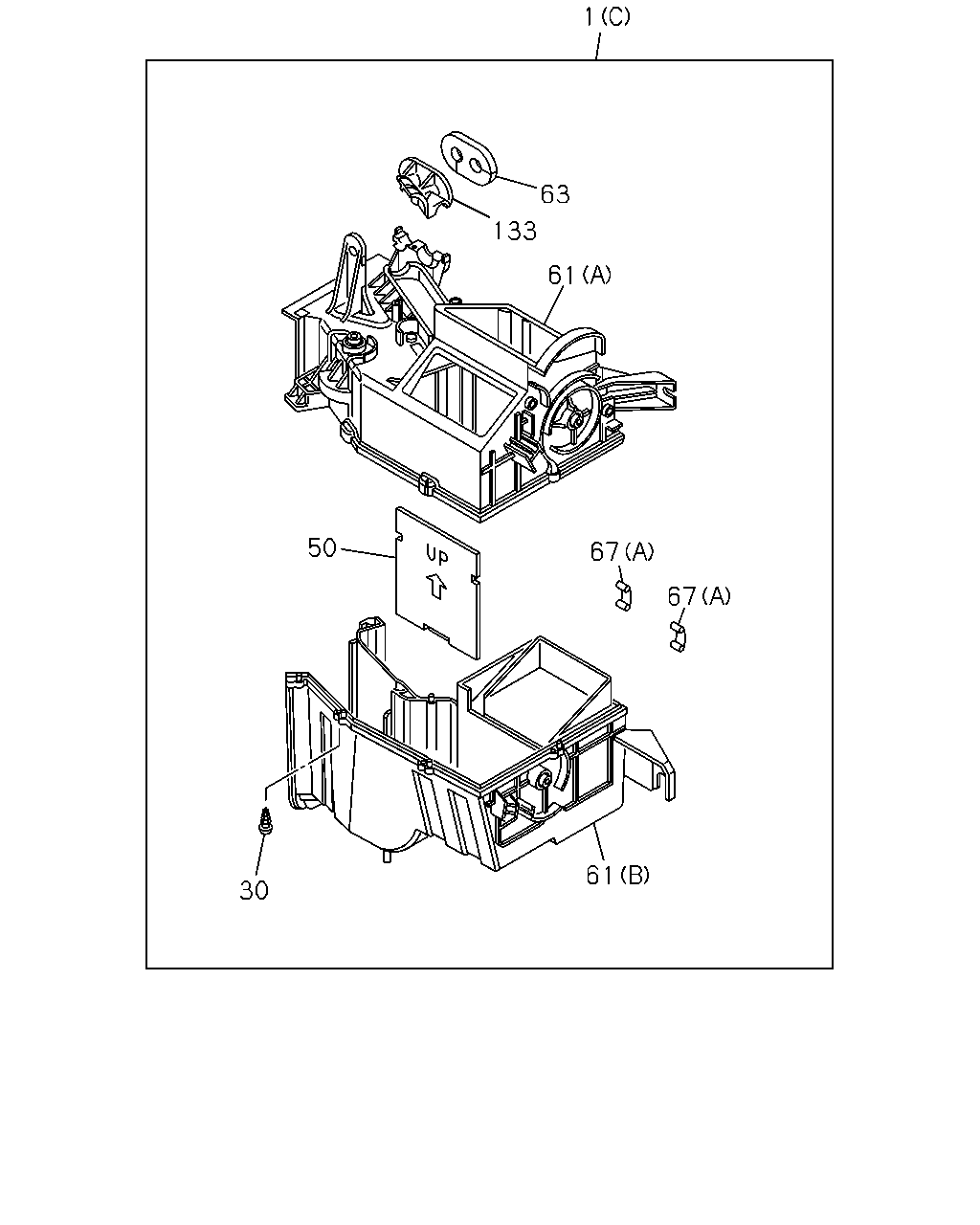

çizim 118178
1 63 133 61 50 67 67 61 30
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 08.845 HEATER UNIT
VENTILATION RAM AIR<6TN> (C) THA 		8-98086-149-0 01 1 0710- ●
1 08.845 HEATER UNIT
PARKING BRAKE FLOOR<7XW> (A) THA 		8-97369-312-0 01 1 0404-0409 ● ● ●
1 08.845 HEATER UNIT
(A) THA 		8-97369-312-0 01 1 0404-0409 ● ●
1 08.845 HEATER UNIT
PARKING BRAKE FLOOR<7XW> (A) THA 		8-97369-312-0 01 1 0410-0508 ● ●
1 08.845 HEATER UNIT
(A) THA 		8-97369-312-0 01 1 0410-0508 ● ● ●
1 08.845 HEATER UNIT
EXC. PARKING BRAKE FLOOR<7XW> (B) THA 		8-97369-313-0 01 1 0404-0409 ● ● ●
1 08.845 HEATER UNIT
(A) THA 		8-98021-930-0 01 1 0509-0703 ● ● ● ● ●
1 08.845 HEATER UNIT
(A) THA 		8-98071-335-0 01 1 0704-0709 ● ● ● ● ●
1 08.845 HEATER UNIT
(A) THA 		8-98086-154-0 01 1 0710- ● ● ● ●
1 08.845 HEATER UNIT
COOLER WO/HEATER<C65> (A) THA 		8-98086-154-0 01 1 0710- ●
1 08.845 HEATER UNIT
EXC. PARKING BRAKE FLOOR<7XW> (B) THA 		8-97369-313-0 01 1 0410-0508 ● ●
30 08.845 SCREW; HTR UNIT
09.211 THA 		8-97321-165-0 08 1 0404-0703 ● ● ● ● ●
30 08.845 SCREW; HTR UNIT
09.786 THA 		8-98071-323-0 08 1 0704- ● ● ● ● ●
50 08.854 PLATE; HTR CORE
VENTILATION RAM AIR<6TN> THA 		8-97321-339-0 01 1 0710- ●
61 08.854 CASE; HTR UNIT
(A) THA 		8-97321-336-0 01 1 0404- ● ● ● ● ●
61 08.854 CASE; HTR UNIT
(B) THA 		8-97321-337-0 01 1 0404- ● ● ● ● ●
63 08.856 LINING; HTR UNIT
THA 		8-97321-370-0 01 1 0404- ● ● ● ● ●
67 08.854 CLIP; HTR UNIT
09.211 (A) THA 		8-97321-166-0 01 1 0404-0709 ● ● ● ● ●
67 08.854 CLIP; HTR UNIT
09.262 (A) THA 		8-98088-089-0 01 1 0710- ● ● ● ● ●
67 08.854 CLIP; HTR UNIT
09.787 (B) THA 		8-97321-274-0 01 1 0404-0709 ● ● ● ● ●
67 08.854 CLIP; HTR UNIT
09.787 (B) THA 		8-97321-274-0 01 1 0710- ● ● ● ●
67 08.854 CLIP; HTR UNIT
COOLER WO/HEATER<C65> 09.787 (B) THA 		8-97321-274-0 01 1 0710- ●
133 08.845 CLIP; PIPE
THA 		8-97321-366-0 01 1 0404- ● ● ● ● ●

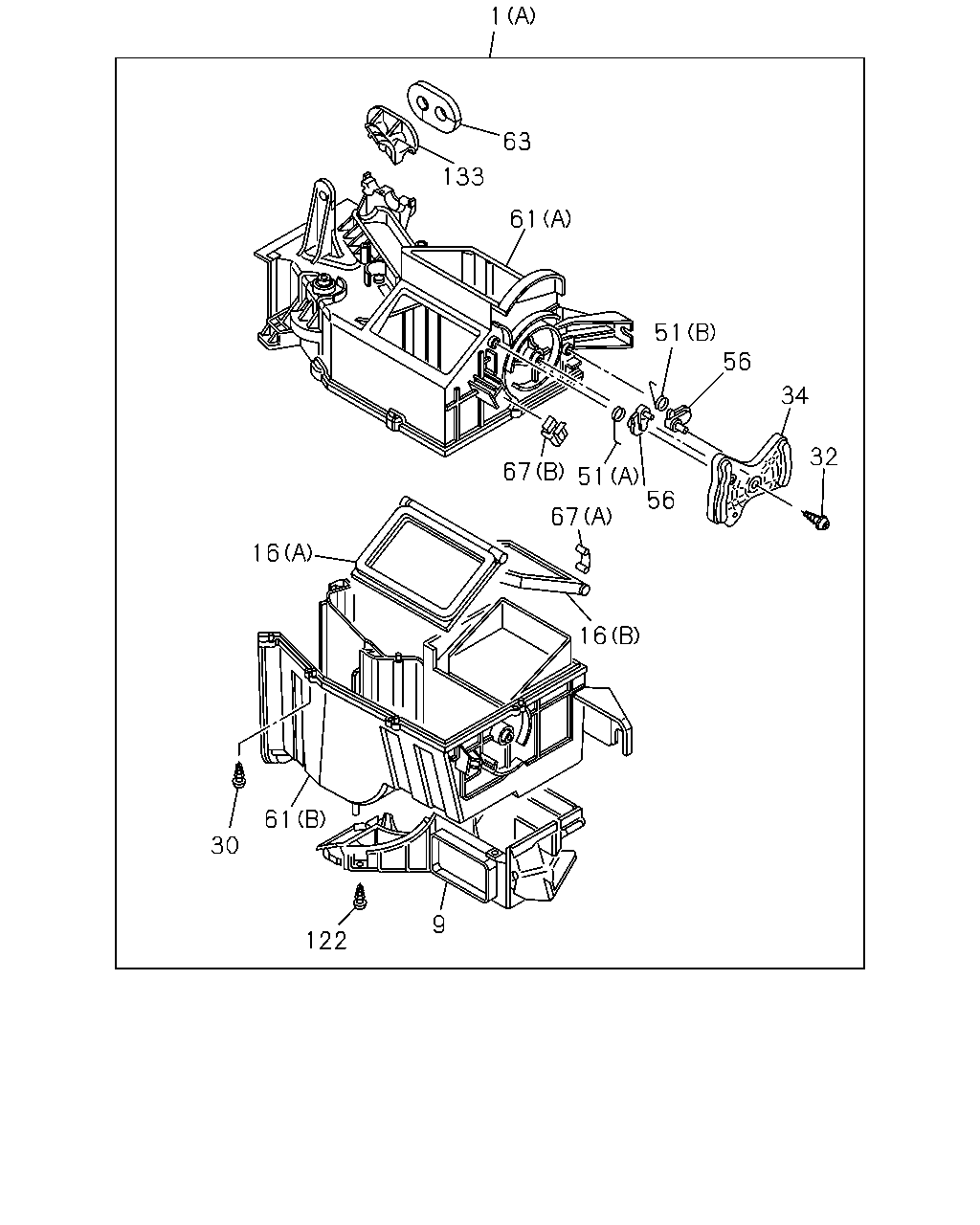

çizim 118185
1 63 133 61 51 56 34 32 67 51 56 67 16 16 61 30 9 122
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 08.845 HEATER UNIT
VENTILATION RAM AIR<6TN> (C) THA 		8-98086-149-0 01 1 0710- ●
1 08.845 HEATER UNIT
PARKING BRAKE FLOOR<7XW> (A) THA 		8-97369-312-0 01 1 0404-0409 ● ● ●
1 08.845 HEATER UNIT
(A) THA 		8-97369-312-0 01 1 0404-0409 ● ●
1 08.845 HEATER UNIT
PARKING BRAKE FLOOR<7XW> (A) THA 		8-97369-312-0 01 1 0410-0508 ● ●
1 08.845 HEATER UNIT
(A) THA 		8-97369-312-0 01 1 0410-0508 ● ● ●
1 08.845 HEATER UNIT
EXC. PARKING BRAKE FLOOR<7XW> (B) THA 		8-97369-313-0 01 1 0404-0409 ● ● ●
1 08.845 HEATER UNIT
(A) THA 		8-98021-930-0 01 1 0509-0703 ● ● ● ● ●
1 08.845 HEATER UNIT
(A) THA 		8-98071-335-0 01 1 0704-0709 ● ● ● ● ●
1 08.845 HEATER UNIT
(A) THA 		8-98086-154-0 01 1 0710- ● ● ● ●
1 08.845 HEATER UNIT
COOLER WO/HEATER<C65> (A) THA 		8-98086-154-0 01 1 0710- ●
1 08.845 HEATER UNIT
EXC. PARKING BRAKE FLOOR<7XW> (B) THA 		8-97369-313-0 01 1 0410-0508 ● ●
9 08.854 DUCT; HTR UNIT
THA 		8-97321-338-0 01 1 0404-0508 ● ● ● ● ●
16 09.786 SHUTTER; HTR UNIT,CENTER UPR
08.845 (A) THA 		8-97321-340-0 01 1 0404-0709 ● ● ● ● ●
16 09.786 SHUTTER; HTR UNIT,CENTER UPR
08.845 (A) THA 		8-97321-340-0 01 1 0710- ● ● ● ●
16 09.786 SHUTTER; HTR UNIT,CENTER UPR
COOLER WO/HEATER<C65> 08.845 (A) THA 		8-97321-340-0 01 1 0710- ●
16 09.786 SHUTTER; HTR UNIT,CENTER UPR
(B) THA 		8-97321-342-0 01 1 0404-0709 ● ● ● ● ●
16 09.786 SHUTTER; HTR UNIT,CENTER UPR
(B) THA 		8-97321-342-0 01 1 0710- ● ● ● ●
16 09.786 SHUTTER; HTR UNIT,CENTER UPR
COOLER WO/HEATER<C65> (B) THA 		8-97321-342-0 01 1 0710- ●
30 08.845 SCREW; HTR UNIT
09.211 THA 		8-97321-165-0 08 1 0404-0703 ● ● ● ● ●
30 08.845 SCREW; HTR UNIT
09.786 THA 		8-98071-323-0 08 1 0704- ● ● ● ● ●
32 08.852 SCREW; HTR UNIT
PARKING BRAKE FLOOR<7XW> 08.856 THA 		8-97321-276-0 01 1 0404-0409 ● ● ●
32 08.852 SCREW; HTR UNIT
08.856 THA 		8-97321-276-0 01 1 0404-0409 ● ●
32 08.852 SCREW; HTR UNIT
PARKING BRAKE FLOOR<7XW> 08.856 THA 		8-97321-276-0 01 1 0410-0508 ● ●
32 08.852 SCREW; HTR UNIT
08.856 THA 		8-97321-276-0 01 1 0410-0508 ● ● ●
32 08.852 SCREW; HTR UNIT
08.856 THA 		8-97321-276-0 01 1 0509-0703 ● ● ● ● ●
32 08.852 SCREW; HTR UNIT
08.845 THA 		8-98071-324-0 01 1 0704-0709 ● ● ● ● ●
32 08.852 SCREW; HTR UNIT
08.845 THA 		8-98071-324-0 01 1 0710- ● ● ● ●
32 08.852 SCREW; HTR UNIT
COOLER WO/HEATER<C65> 08.845 THA 		8-98071-324-0 01 1 0710- ●
32 08.852 SCREW; HTR UNIT
EXC. PARKING BRAKE FLOOR<7XW> 08.856 THA 		8-97321-276-0 02 1 0404-0409 ● ● ●
32 08.852 SCREW; HTR UNIT
EXC. PARKING BRAKE FLOOR<7XW> 08.856 THA 		8-97321-276-0 02 1 0410-0508 ● ●
34 09.786 LEVER; SHUTTER,HTR UNIT
THA 		8-97321-343-0 01 1 0404-0709 ● ● ● ● ●
34 09.786 LEVER; SHUTTER,HTR UNIT
THA 		8-97321-343-0 01 1 0710- ● ● ● ●
34 09.786 LEVER; SHUTTER,HTR UNIT
COOLER WO/HEATER<C65> THA 		8-97321-343-0 01 1 0710- ●
51 08.846 SPRING; HTR UNIT
(A) THA 		8-97321-368-0 01 1 0404-0709 ● ● ● ● ●
51 08.846 SPRING; HTR UNIT
(A) THA 		8-97321-368-0 01 1 0710- ● ● ● ●
51 08.846 SPRING; HTR UNIT
COOLER WO/HEATER<C65> (A) THA 		8-97321-368-0 01 1 0710- ●
51 08.846 SPRING; HTR UNIT
(B) THA 		8-97321-369-0 01 1 0404-0709 ● ● ● ● ●
51 08.846 SPRING; HTR UNIT
(B) THA 		8-97321-369-0 01 1 0710- ● ● ● ●
51 08.846 SPRING; HTR UNIT
COOLER WO/HEATER<C65> (B) THA 		8-97321-369-0 01 1 0710- ●
56 09.786 LEVER; SHUTTER,HTR UNIT
THA 		8-97321-341-0 02 1 0404-0709 ● ● ● ● ●
56 09.786 LEVER; SHUTTER,HTR UNIT
THA 		8-97321-341-0 02 1 0710- ● ● ● ●
56 09.786 LEVER; SHUTTER,HTR UNIT
COOLER WO/HEATER<C65> THA 		8-97321-341-0 02 1 0710- ●
61 08.854 CASE; HTR UNIT
(A) THA 		8-97321-336-0 01 1 0404- ● ● ● ● ●
61 08.854 CASE; HTR UNIT
(B) THA 		8-97321-337-0 01 1 0404- ● ● ● ● ●
63 08.856 LINING; HTR UNIT
THA 		8-97321-370-0 01 1 0404- ● ● ● ● ●
67 08.854 CLIP; HTR UNIT
09.211 (A) THA 		8-97321-166-0 01 1 0404-0709 ● ● ● ● ●
67 08.854 CLIP; HTR UNIT
09.262 (A) THA 		8-98088-089-0 01 1 0710- ● ● ● ● ●
67 08.854 CLIP; HTR UNIT
09.787 (B) THA 		8-97321-274-0 01 1 0404-0709 ● ● ● ● ●
67 08.854 CLIP; HTR UNIT
09.787 (B) THA 		8-97321-274-0 01 1 0710- ● ● ● ●
67 08.854 CLIP; HTR UNIT
COOLER WO/HEATER<C65> 09.787 (B) THA 		8-97321-274-0 01 1 0710- ●
122 08.845 SCREW; DUCT
09.211 THA 		8-97321-165-0 02 1 0404-0508 ● ● ● ● ●
133 08.845 CLIP; PIPE
THA 		8-97321-366-0 01 1 0404- ● ● ● ● ●

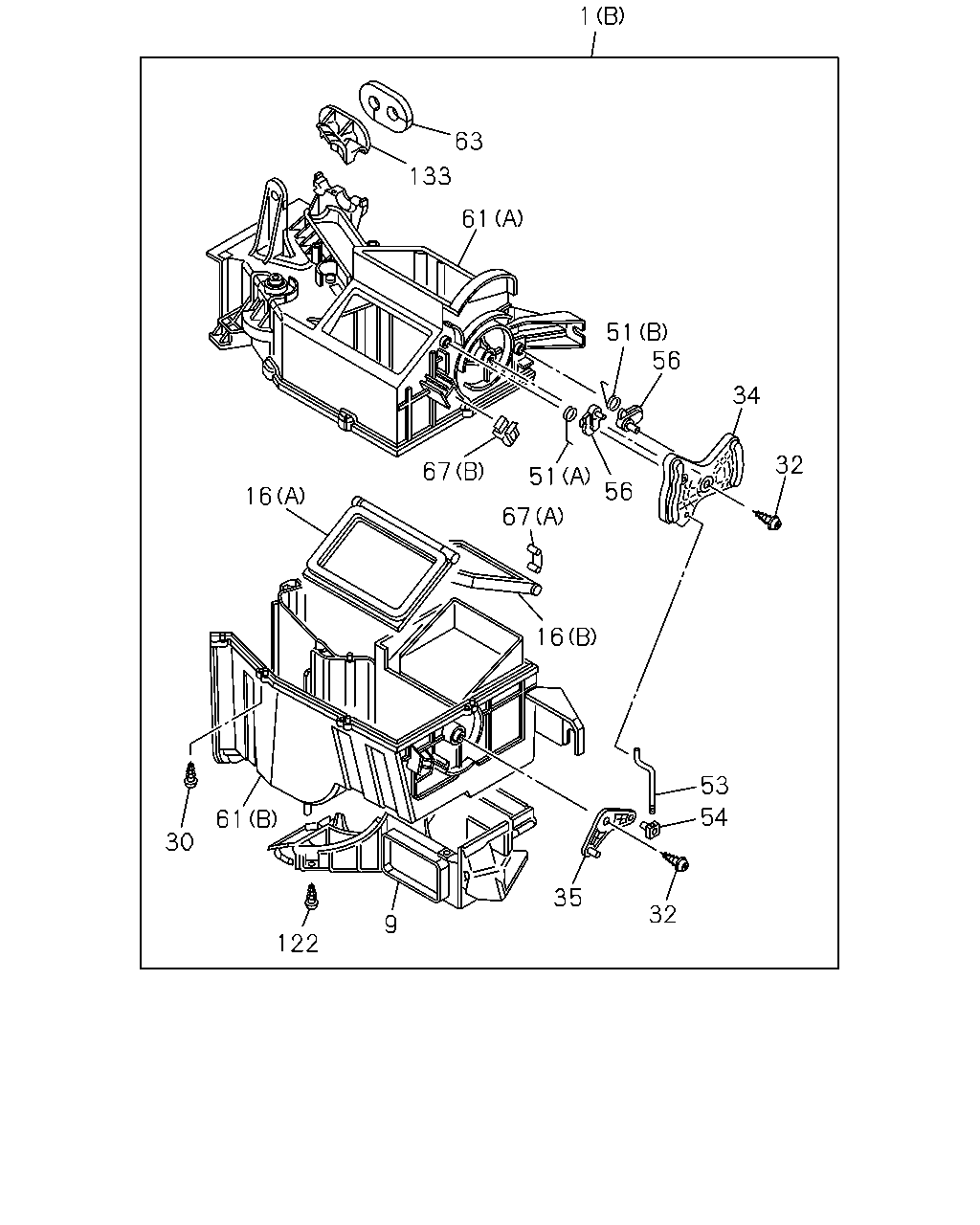

çizim 118186
1 63 133 61 51 56 34 32 67 51 56 16 67 16 53 54 61 30 35 32 9 122
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 08.845 HEATER UNIT
VENTILATION RAM AIR<6TN> (C) THA 		8-98086-149-0 01 1 0710- ●
1 08.845 HEATER UNIT
PARKING BRAKE FLOOR<7XW> (A) THA 		8-97369-312-0 01 1 0404-0409 ● ● ●
1 08.845 HEATER UNIT
(A) THA 		8-97369-312-0 01 1 0404-0409 ● ●
1 08.845 HEATER UNIT
PARKING BRAKE FLOOR<7XW> (A) THA 		8-97369-312-0 01 1 0410-0508 ● ●
1 08.845 HEATER UNIT
(A) THA 		8-97369-312-0 01 1 0410-0508 ● ● ●
1 08.845 HEATER UNIT
EXC. PARKING BRAKE FLOOR<7XW> (B) THA 		8-97369-313-0 01 1 0404-0409 ● ● ●
1 08.845 HEATER UNIT
(A) THA 		8-98021-930-0 01 1 0509-0703 ● ● ● ● ●
1 08.845 HEATER UNIT
(A) THA 		8-98071-335-0 01 1 0704-0709 ● ● ● ● ●
1 08.845 HEATER UNIT
(A) THA 		8-98086-154-0 01 1 0710- ● ● ● ●
1 08.845 HEATER UNIT
COOLER WO/HEATER<C65> (A) THA 		8-98086-154-0 01 1 0710- ●
1 08.845 HEATER UNIT
EXC. PARKING BRAKE FLOOR<7XW> (B) THA 		8-97369-313-0 01 1 0410-0508 ● ●
9 08.854 DUCT; HTR UNIT
THA 		8-97321-338-0 01 1 0404-0508 ● ● ● ● ●
16 09.786 SHUTTER; HTR UNIT,CENTER UPR
08.845 (A) THA 		8-97321-340-0 01 1 0404-0709 ● ● ● ● ●
16 09.786 SHUTTER; HTR UNIT,CENTER UPR
08.845 (A) THA 		8-97321-340-0 01 1 0710- ● ● ● ●
16 09.786 SHUTTER; HTR UNIT,CENTER UPR
COOLER WO/HEATER<C65> 08.845 (A) THA 		8-97321-340-0 01 1 0710- ●
16 09.786 SHUTTER; HTR UNIT,CENTER UPR
(B) THA 		8-97321-342-0 01 1 0404-0709 ● ● ● ● ●
16 09.786 SHUTTER; HTR UNIT,CENTER UPR
(B) THA 		8-97321-342-0 01 1 0710- ● ● ● ●
16 09.786 SHUTTER; HTR UNIT,CENTER UPR
COOLER WO/HEATER<C65> (B) THA 		8-97321-342-0 01 1 0710- ●
30 08.845 SCREW; HTR UNIT
09.211 THA 		8-97321-165-0 08 1 0404-0703 ● ● ● ● ●
30 08.845 SCREW; HTR UNIT
09.786 THA 		8-98071-323-0 08 1 0704- ● ● ● ● ●
32 08.852 SCREW; HTR UNIT
PARKING BRAKE FLOOR<7XW> 08.856 THA 		8-97321-276-0 01 1 0404-0409 ● ● ●
32 08.852 SCREW; HTR UNIT
08.856 THA 		8-97321-276-0 01 1 0404-0409 ● ●
32 08.852 SCREW; HTR UNIT
PARKING BRAKE FLOOR<7XW> 08.856 THA 		8-97321-276-0 01 1 0410-0508 ● ●
32 08.852 SCREW; HTR UNIT
08.856 THA 		8-97321-276-0 01 1 0410-0508 ● ● ●
32 08.852 SCREW; HTR UNIT
08.856 THA 		8-97321-276-0 01 1 0509-0703 ● ● ● ● ●
32 08.852 SCREW; HTR UNIT
08.845 THA 		8-98071-324-0 01 1 0704-0709 ● ● ● ● ●
32 08.852 SCREW; HTR UNIT
08.845 THA 		8-98071-324-0 01 1 0710- ● ● ● ●
32 08.852 SCREW; HTR UNIT
COOLER WO/HEATER<C65> 08.845 THA 		8-98071-324-0 01 1 0710- ●
32 08.852 SCREW; HTR UNIT
EXC. PARKING BRAKE FLOOR<7XW> 08.856 THA 		8-97321-276-0 02 1 0404-0409 ● ● ●
32 08.852 SCREW; HTR UNIT
EXC. PARKING BRAKE FLOOR<7XW> 08.856 THA 		8-97321-276-0 02 1 0410-0508 ● ●
34 09.786 LEVER; SHUTTER,HTR UNIT
THA 		8-97321-343-0 01 1 0404-0709 ● ● ● ● ●
34 09.786 LEVER; SHUTTER,HTR UNIT
THA 		8-97321-343-0 01 1 0710- ● ● ● ●
34 09.786 LEVER; SHUTTER,HTR UNIT
COOLER WO/HEATER<C65> THA 		8-97321-343-0 01 1 0710- ●
35 08.852 LEVER; SHUTTER,HTR UNIT
EXC. PARKING BRAKE FLOOR<7XW> THA 		8-97321-344-0 01 1 0404-0409 ● ● ●
35 08.852 LEVER; SHUTTER,HTR UNIT
EXC. PARKING BRAKE FLOOR<7XW> THA 		8-97321-344-0 01 1 0410-0508 ● ●
51 08.846 SPRING; HTR UNIT
(A) THA 		8-97321-368-0 01 1 0404-0709 ● ● ● ● ●
51 08.846 SPRING; HTR UNIT
(A) THA 		8-97321-368-0 01 1 0710- ● ● ● ●
51 08.846 SPRING; HTR UNIT
COOLER WO/HEATER<C65> (A) THA 		8-97321-368-0 01 1 0710- ●
51 08.846 SPRING; HTR UNIT
(B) THA 		8-97321-369-0 01 1 0404-0709 ● ● ● ● ●
51 08.846 SPRING; HTR UNIT
(B) THA 		8-97321-369-0 01 1 0710- ● ● ● ●
51 08.846 SPRING; HTR UNIT
COOLER WO/HEATER<C65> (B) THA 		8-97321-369-0 01 1 0710- ●
53 08.866 ROD; SHUTTER LEVER
EXC. PARKING BRAKE FLOOR<7XW> THA 		8-97321-345-0 01 1 0404-0409 ● ● ●
53 08.866 ROD; SHUTTER LEVER
EXC. PARKING BRAKE FLOOR<7XW> THA 		8-97321-345-0 01 1 0410-0508 ● ●
54 08.854 CLIP; SHUTTER LEVER
EXC. PARKING BRAKE FLOOR<7XW> THA 		8-97321-371-0 01 1 0404-0409 ● ● ●
54 08.854 CLIP; SHUTTER LEVER
EXC. PARKING BRAKE FLOOR<7XW> THA 		8-97321-371-0 01 1 0410-0508 ● ●
56 09.786 LEVER; SHUTTER,HTR UNIT
THA 		8-97321-341-0 02 1 0404-0709 ● ● ● ● ●
56 09.786 LEVER; SHUTTER,HTR UNIT
THA 		8-97321-341-0 02 1 0710- ● ● ● ●
56 09.786 LEVER; SHUTTER,HTR UNIT
COOLER WO/HEATER<C65> THA 		8-97321-341-0 02 1 0710- ●
61 08.854 CASE; HTR UNIT
(A) THA 		8-97321-336-0 01 1 0404- ● ● ● ● ●
61 08.854 CASE; HTR UNIT
(B) THA 		8-97321-337-0 01 1 0404- ● ● ● ● ●
63 08.856 LINING; HTR UNIT
THA 		8-97321-370-0 01 1 0404- ● ● ● ● ●
67 08.854 CLIP; HTR UNIT
09.211 (A) THA 		8-97321-166-0 01 1 0404-0709 ● ● ● ● ●
67 08.854 CLIP; HTR UNIT
09.262 (A) THA 		8-98088-089-0 01 1 0710- ● ● ● ● ●
67 08.854 CLIP; HTR UNIT
09.787 (B) THA 		8-97321-274-0 01 1 0404-0709 ● ● ● ● ●
67 08.854 CLIP; HTR UNIT
09.787 (B) THA 		8-97321-274-0 01 1 0710- ● ● ● ●
67 08.854 CLIP; HTR UNIT
COOLER WO/HEATER<C65> 09.787 (B) THA 		8-97321-274-0 01 1 0710- ●
122 08.845 SCREW; DUCT
09.211 THA 		8-97321-165-0 02 1 0404-0508 ● ● ● ● ●
133 08.845 CLIP; PIPE
THA 		8-97321-366-0 01 1 0404- ● ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
