Sayfa 8-52 - Isuzu EPC

8-52 — PIPING; AIR CONDITIONING (#73703) — 186 parça

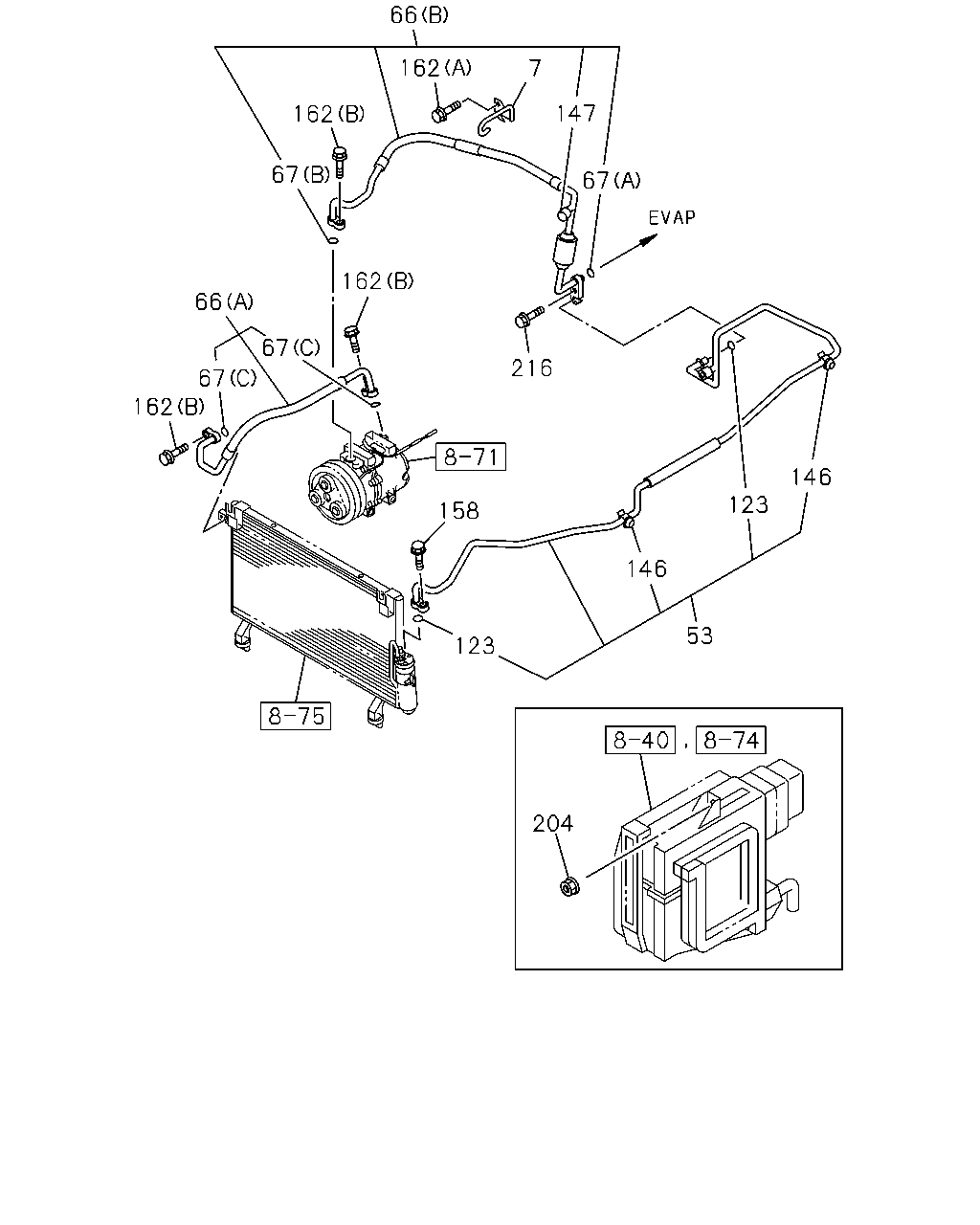

66 162 7 147 162 67 67 162 66 67 216 67 162 146 123 158 146 53 123 204

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
7	09.242 BRACKET; FLEX HOSE,A/C 4JA1-T ENG<LP0>,4JH1-T ENG<L23> THA	8-97327-938-2	01	1	0404-0409	●	●	●
7	09.242 BRACKET; FLEX HOSE,A/C THA	8-97327-938-2	01	1	0404-0409				●	●
7	09.242 BRACKET; FLEX HOSE,A/C 4JA1-T ENG<LP0> EURO2 SPECIFICATION<NT2> THA	8-97327-938-2	01	1	0410-0501	●		●
7	09.242 BRACKET; FLEX HOSE,A/C 4JA1-T ENG<LP0> THA	8-97327-938-2	01	1	0410-0501		●
53	09.220 PIPE; RECEIVER TANK TO EVAP 4JA1-T ENG<LP0>,4JH1-T ENG<L23> THA	8-97361-332-0	01	1	0404-0409	●	●	●
53	09.220 PIPE; RECEIVER TANK TO EVAP THA	8-97361-332-0	01	1	0404-0409				●	●
53	09.220 PIPE; RECEIVER TANK TO EVAP 4JA1-T ENG<LP0> THA	8-97361-332-0	01	1	0410-0501	●	●	●
53	09.220 PIPE; RECEIVER TANK TO EVAP 4JK1-TCS ENG<LKZ> THA	8-98020-687-0	01	1	0509-0609	●	●	●
53	09.220 PIPE; RECEIVER TANK TO EVAP 4JJ1-TCS ENG<LFB> THA	8-97370-700-1	01	1	0410-0501	●		●	●	●
53	09.220 PIPE; RECEIVER TANK TO EVAP 4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ> THA	8-97370-700-1	01	1	0502-0508	●	●	●	●	●
53	09.220 PIPE; RECEIVER TANK TO EVAP 4JJ1-TCS ENG<LFB> THA	8-97370-700-1	01	1	0509-0609	●		●	●	●
53	09.220 PIPE; RECEIVER TANK TO EVAP 4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ>, 4JJ1-TCX ENG<LS0> THA	8-98049-891-0	01	1	0610-0709	●	●	●	●	●
53	09.220 PIPE; RECEIVER TANK TO EVAP 4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ>, 4JJ1-TCX ENG<LS0> COOLER WO/HEATER<C65> THA	8-98088-792-0	01	1	0710-	●	●	●	●	●
66	09.225 HOSE; FLEX,A/C 4JA1-T ENG<LP0>,4JH1-T ENG<L23> (A) THA	8-97234-781-0	01	1	0404-0409	●	●	●
66	09.225 HOSE; FLEX,A/C (A) THA	8-97234-781-0	01	1	0404-0409				●	●
66	09.225 HOSE; FLEX,A/C 4JA1-T ENG<LP0> (A) THA	8-97234-781-0	01	1	0410-0412	●	●	●
66	09.225 HOSE; FLEX,A/C 4JA1-T ENG<LP0> (B) THA	8-98002-521-0	01	1	0501-0501	●	●	●
66	09.225 HOSE; FLEX,A/C 4JA1-T ENG<LP0>,4JH1-T ENG<L23> (B) THA	8-97234-785-4	01	1	0404-0409	●	●	●
66	09.225 HOSE; FLEX,A/C (B) THA	8-97234-785-4	01	1	0404-0409				●	●
66	09.225 HOSE; FLEX,A/C 4JA1-T ENG<LP0> (B) THA	8-97234-785-4	01	1	0410-0412	●	●	●
66	09.225 HOSE; FLEX,A/C 4JA1-T ENG<LP0> (A) THA	8-98002-536-0	01	1	0501-0501	●	●	●
66	09.225 HOSE; FLEX,A/C 4JK1-TCS ENG<LKZ> (D) THA	8-98020-685-0	01	1	0509-0609	●	●	●
66	09.225 HOSE; FLEX,A/C 4JJ1-TCX ENG<LS0> (D) THA	8-98007-108-1	01	1	0610-					●
66	09.225 HOSE; FLEX,A/C 4JK1-TCS ENG<LKZ> (C) THA	8-98020-686-0	01	1	0509-0609	●	●	●
66	09.225 HOSE; FLEX,A/C 4JJ1-TCS ENG<LFB> (C) THA	8-97363-903-0	01	1	0410-0501	●		●	●	●
66	09.225 HOSE; FLEX,A/C 4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ> (C) THA	8-97363-903-0	01	1	0502-0508	●	●	●	●	●
66	09.225 HOSE; FLEX,A/C 4JJ1-TCS ENG<LFB> (C) THA	8-97363-903-0	01	1	0509-0609	●		●	●	●
66	09.225 HOSE; FLEX,A/C 4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ>, 4JJ1-TCX ENG<LS0> (C) THA	8-97363-903-0	01	1	0610-0709	●	●	●	●	●
66	09.225 HOSE; FLEX,A/C 4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ>, 4JJ1-TCX ENG<LS0> COOLER WO/HEATER<C65> (C) THA	8-97363-903-0	01	1	0710-	●	●	●	●	●
66	09.225 HOSE; FLEX,A/C 4JJ1-TCS ENG<LFB> (D) THA	8-97363-904-1	01	1	0410-0501	●		●	●	●
66	09.225 HOSE; FLEX,A/C 4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ> (D) THA	8-97363-904-1	01	1	0502-0508	●	●	●	●	●
66	09.225 HOSE; FLEX,A/C 4JJ1-TCS ENG<LFB> (D) THA	8-97363-904-1	01	1	0509-0609	●		●	●	●
66	09.225 HOSE; FLEX,A/C 4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ> (D) THA	8-97363-904-1	01	1	0610-0709	●		●	●
66	09.225 HOSE; FLEX,A/C 4JK1-TCS ENG<LKZ> (D) THA	8-97363-904-1	01	1	0610-0709		●
66	09.225 HOSE; FLEX,A/C 4JJ1-TCS ENG<LFB> (D) THA	8-97363-904-1	01	1	0610-0709					●
66	09.225 HOSE; FLEX,A/C 4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ> (D) THA	8-97363-904-1	01	1	0710-	●		●	●
66	09.225 HOSE; FLEX,A/C 4JK1-TCS ENG<LKZ> COOLER WO/HEATER<C65> (D) THA	8-97363-904-1	01	1	0710-		●
66	09.225 HOSE; FLEX,A/C 4JJ1-TCS ENG<LFB> (D) THA	8-97363-904-1	01	1	0710-					●
67	09.260 GASKET; FLEX HOSE 4JA1-T ENG<LP0>,4JH1-T ENG<L23> (A) THA	8-97321-351-0	01	1	0404-0409	●	●	●
67	09.260 GASKET; FLEX HOSE (A) THA	8-97321-351-0	01	1	0404-0409				●	●
67	09.260 GASKET; FLEX HOSE 4JJ1-TCS ENG<LFB>,4JA1-T ENG<LP0> (A) THA	8-97321-351-0	01	1	0410-0501	●		●
67	09.260 GASKET; FLEX HOSE 4JA1-T ENG<LP0> (A) THA	8-97321-351-0	01	1	0410-0501		●
67	09.260 GASKET; FLEX HOSE 4JJ1-TCS ENG<LFB> (A) THA	8-97321-351-0	01	1	0410-0501				●	●
67	09.260 GASKET; FLEX HOSE 4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ> (A) THA	8-97321-351-0	01	1	0502-0609	●	●	●	●	●
67	09.260 GASKET; FLEX HOSE 4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ>, 4JJ1-TCX ENG<LS0> (A) THA	8-97321-351-0	01	1	0610-0709	●	●	●	●	●
67	09.260 GASKET; FLEX HOSE 4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ>, 4JJ1-TCX ENG<LS0> COOLER WO/HEATER<C65> (A) THA	8-97321-351-0	01	1	0710-	●	●	●	●	●
67	09.260 GASKET; FLEX HOSE 4JA1-T ENG<LP0>,4JH1-T ENG<L23> (B) THA	8-97321-352-0	01	1	0404-0409	●	●	●
67	09.260 GASKET; FLEX HOSE (B) THA	8-97321-352-0	01	1	0404-0409				●	●
67	09.260 GASKET; FLEX HOSE 4JJ1-TCS ENG<LFB>,4JA1-T ENG<LP0> (B) THA	8-97321-352-0	01	1	0410-0501	●		●
67	09.260 GASKET; FLEX HOSE 4JA1-T ENG<LP0> (B) THA	8-97321-352-0	01	1	0410-0501		●
67	09.260 GASKET; FLEX HOSE 4JJ1-TCS ENG<LFB> (B) THA	8-97321-352-0	01	1	0410-0501				●	●
67	09.260 GASKET; FLEX HOSE 4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ> (B) THA	8-97321-352-0	01	1	0502-0609	●	●	●	●	●
67	09.260 GASKET; FLEX HOSE 4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ>, 4JJ1-TCX ENG<LS0> (B) THA	8-97321-352-0	01	1	0610-0709	●	●	●	●	●
67	09.260 GASKET; FLEX HOSE 4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ>, 4JJ1-TCX ENG<LS0> COOLER WO/HEATER<C65> (B) THA	8-97321-352-0	01	1	0710-	●	●	●	●	●
67	09.260 GASKET; FLEX HOSE 4JA1-T ENG<LP0>,4JH1-T ENG<L23> (C) THA	8-97321-353-0	02	1	0404-0409	●	●	●
67	09.260 GASKET; FLEX HOSE (C) THA	8-97321-353-0	02	1	0404-0409				●	●
67	09.260 GASKET; FLEX HOSE 4JJ1-TCS ENG<LFB>,4JA1-T ENG<LP0> (C) THA	8-97321-353-0	02	1	0410-0501	●		●
67	09.260 GASKET; FLEX HOSE 4JA1-T ENG<LP0> (C) THA	8-97321-353-0	02	1	0410-0501		●
67	09.260 GASKET; FLEX HOSE 4JJ1-TCS ENG<LFB> (C) THA	8-97321-353-0	02	1	0410-0501				●	●
67	09.260 GASKET; FLEX HOSE 4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ> (C) THA	8-97321-353-0	02	1	0502-0609	●	●	●	●	●
67	09.260 GASKET; FLEX HOSE 4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ>, 4JJ1-TCX ENG<LS0> (C) THA	8-97321-353-0	02	1	0610-0709	●	●	●	●	●
67	09.260 GASKET; FLEX HOSE 4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ>, 4JJ1-TCX ENG<LS0> COOLER WO/HEATER<C65> (C) THA	8-97321-353-0	02	1	0710-	●	●	●	●	●
123	09.195 GASKET; RECEIVER PIPE 4JA1-T ENG<LP0>,4JH1-T ENG<L23> SCAL THA	8-97919-270-0	02	1	0404-0409	●	●	●
123	09.195 GASKET; RECEIVER PIPE SCAL THA	8-97919-270-0	02	1	0404-0409				●	●
123	09.195 GASKET; RECEIVER PIPE 4JJ1-TCS ENG<LFB>,4JA1-T ENG<LP0> SCAL THA	8-97919-270-0	02	1	0410-0501	●		●
123	09.195 GASKET; RECEIVER PIPE 4JA1-T ENG<LP0> SCAL THA	8-97919-270-0	02	1	0410-0501		●
123	09.195 GASKET; RECEIVER PIPE 4JJ1-TCS ENG<LFB> SCAL THA	8-97919-270-0	02	1	0410-0501				●	●
123	09.195 GASKET; RECEIVER PIPE 4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ> SCAL THA	8-97919-270-0	02	1	0502-0609	●	●	●	●	●
123	09.195 GASKET; RECEIVER PIPE 4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ>, 4JJ1-TCX ENG<LS0> SCAL THA	8-97919-270-0	02	1	0610-0709	●	●	●	●	●
123	09.195 GASKET; RECEIVER PIPE 4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ>, 4JJ1-TCX ENG<LS0> COOLER WO/HEATER<C65> SCAL THA	8-97919-270-0	02	1	0710-	●	●	●	●	●
146	09.196 CLIP; RECEIVER PIPE 4JA1-T ENG<LP0>,4JH1-T ENG<L23> THA	8-97355-792-0	02	1	0404-0409	●	●	●
146	09.196 CLIP; RECEIVER PIPE THA	8-97355-792-0	02	1	0404-0409				●	●
146	09.196 CLIP; RECEIVER PIPE 4JA1-T ENG<LP0> THA	8-97355-792-0	02	1	0410-0501	●	●	●
146	09.196 CLIP; RECEIVER PIPE 4JJ1-TCS ENG<LFB> THA	8-97354-058-0	02	1	0410-0501	●		●	●	●
146	09.196 CLIP; RECEIVER PIPE 4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ> THA	8-97354-058-0	02	1	0502-0609	●	●	●	●	●
146	09.196 CLIP; RECEIVER PIPE 4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ>, 4JJ1-TCX ENG<LS0> THA	8-97354-058-0	02	1	0610-0709	●	●	●	●	●
146	09.196 CLIP; RECEIVER PIPE 4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ>, 4JJ1-TCX ENG<LS0> COOLER WO/HEATER<C65> THA	8-97354-058-0	02	1	0710-	●	●	●	●	●
147	09.242 CAP; FLEX HOSE 4JA1-T ENG<LP0> THA	8-97386-623-0	01	1	0501-0501	●	●	●
147	09.242 CAP; FLEX HOSE 4JJ1-TCX ENG<LS0> THA	8-97386-623-0	01	1	0610-					●
158	09.220 BOLT; PIPE FIX 00.685 M6X25 FLANGE THA	0-28650-625-0	01	1	0404-0709	●	●	●	●	●
158	09.220 BOLT; PIPE FIX 00.685 M6X25 FLANGE THA	0-28650-625-0	01	1	0710-	●		●	●	●
158	09.220 BOLT; PIPE FIX COOLER WO/HEATER<C65> 00.685 M6X25 FLANGE THA	0-28650-625-0	01	1	0710-		●
162	09.173 BOLT; FLEX HOSE 4JA1-T ENG<LP0>,4JH1-T ENG<L23> 02.343 (A) M6X16 FLANGE THA	0-28650-616-0	01	1	0404-0409	●	●	●
162	09.173 BOLT; FLEX HOSE 02.343 (A) M6X16 FLANGE THA	0-28650-616-0	01	1	0404-0409				●	●
162	09.173 BOLT; FLEX HOSE 4JA1-T ENG<LP0> EURO2 SPECIFICATION<NT2> 02.343 (A) M6X16 FLANGE THA	0-28650-616-0	01	1	0410-0501	●		●
162	09.173 BOLT; FLEX HOSE 4JA1-T ENG<LP0> 02.343 (A) M6X16 FLANGE THA	0-28650-616-0	01	1	0410-0501		●
162	09.173 BOLT; FLEX HOSE 06.216 (B) M8X25 FLANGE THA	0-28650-825-0	03	1	0404-0709	●	●	●	●	●
162	09.173 BOLT; FLEX HOSE 06.216 (B) M8X25 FLANGE THA	0-28650-825-0	03	1	0710-	●		●	●	●
162	09.173 BOLT; FLEX HOSE COOLER WO/HEATER<C65> 06.216 (B) M8X25 FLANGE THA	0-28650-825-0	03	1	0710-		●
204	09.216 NUT 08.915 M6 FLANGE	8-98055-704-0	02	1	0911-	●	●	●	●	●
216	09.173 BOLT; HOSE FIX 03.162 M6X20 FLANGE THA	0-28650-620-0	01	1	0404-0709	●	●	●	●	●
216	09.173 BOLT; HOSE FIX 03.162 M6X20 FLANGE THA	0-28650-620-0	01	1	0710-	●		●	●	●
216	09.173 BOLT; HOSE FIX COOLER WO/HEATER<C65> 03.162 M6X20 FLANGE THA	0-28650-620-0	01	1	0710-		●

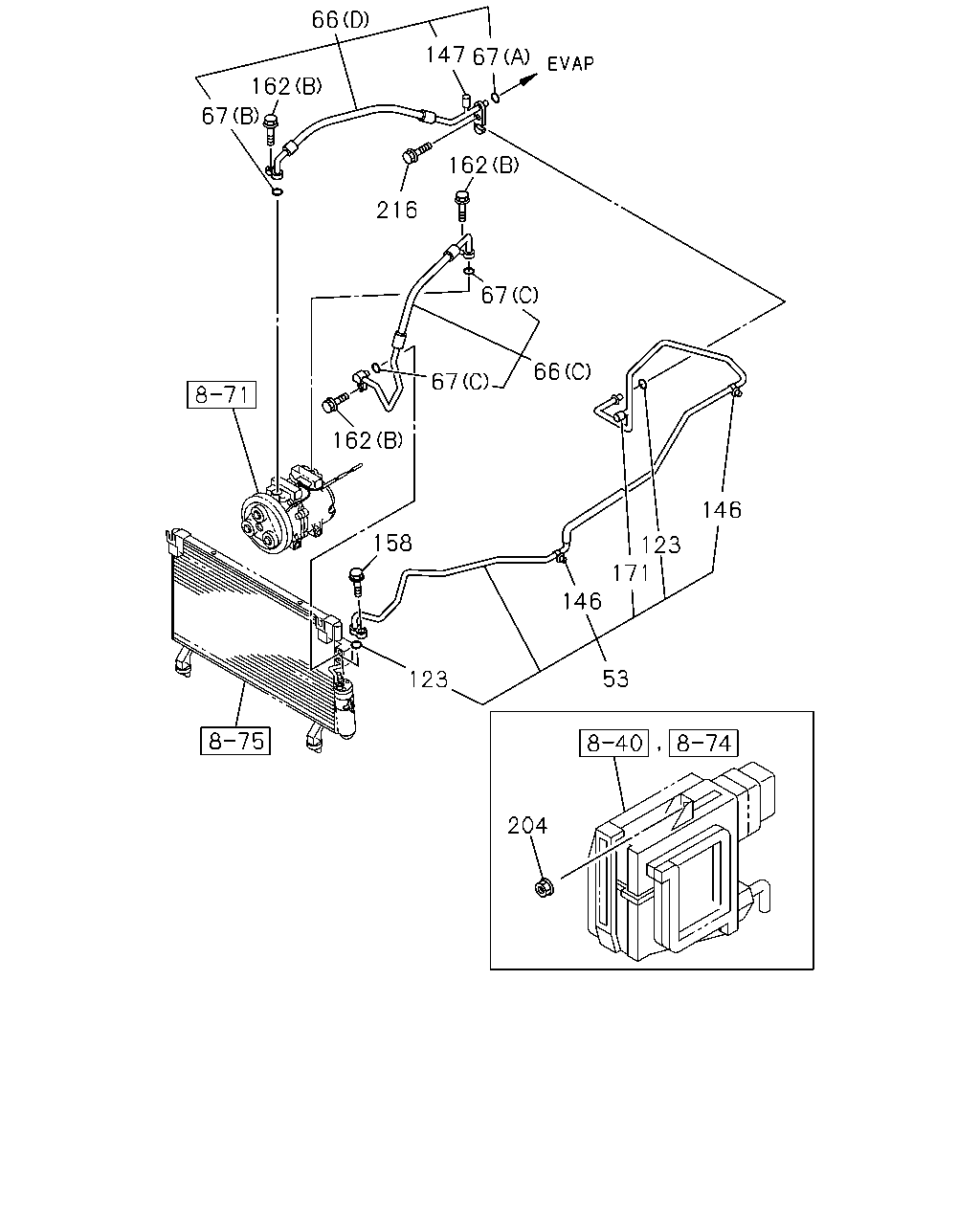

66 147 67 162 67 162 216 67 66 67 162 146 158 123 171 146 53 123 204

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
53	09.220 PIPE; RECEIVER TANK TO EVAP 4JA1-T ENG<LP0>,4JH1-T ENG<L23> THA	8-97361-332-0	01	1	0404-0409	●	●	●
53	09.220 PIPE; RECEIVER TANK TO EVAP THA	8-97361-332-0	01	1	0404-0409				●	●
53	09.220 PIPE; RECEIVER TANK TO EVAP 4JA1-T ENG<LP0> THA	8-97361-332-0	01	1	0410-0501	●	●	●
53	09.220 PIPE; RECEIVER TANK TO EVAP 4JK1-TCS ENG<LKZ> THA	8-98020-687-0	01	1	0509-0609	●	●	●
53	09.220 PIPE; RECEIVER TANK TO EVAP 4JJ1-TCS ENG<LFB> THA	8-97370-700-1	01	1	0410-0501	●		●	●	●
53	09.220 PIPE; RECEIVER TANK TO EVAP 4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ> THA	8-97370-700-1	01	1	0502-0508	●	●	●	●	●
53	09.220 PIPE; RECEIVER TANK TO EVAP 4JJ1-TCS ENG<LFB> THA	8-97370-700-1	01	1	0509-0609	●		●	●	●
53	09.220 PIPE; RECEIVER TANK TO EVAP 4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ>, 4JJ1-TCX ENG<LS0> THA	8-98049-891-0	01	1	0610-0709	●	●	●	●	●
53	09.220 PIPE; RECEIVER TANK TO EVAP 4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ>, 4JJ1-TCX ENG<LS0> COOLER WO/HEATER<C65> THA	8-98088-792-0	01	1	0710-	●	●	●	●	●
66	09.225 HOSE; FLEX,A/C 4JA1-T ENG<LP0>,4JH1-T ENG<L23> (A) THA	8-97234-781-0	01	1	0404-0409	●	●	●
66	09.225 HOSE; FLEX,A/C (A) THA	8-97234-781-0	01	1	0404-0409				●	●
66	09.225 HOSE; FLEX,A/C 4JA1-T ENG<LP0> (A) THA	8-97234-781-0	01	1	0410-0412	●	●	●
66	09.225 HOSE; FLEX,A/C 4JA1-T ENG<LP0> (B) THA	8-98002-521-0	01	1	0501-0501	●	●	●
66	09.225 HOSE; FLEX,A/C 4JA1-T ENG<LP0>,4JH1-T ENG<L23> (B) THA	8-97234-785-4	01	1	0404-0409	●	●	●
66	09.225 HOSE; FLEX,A/C (B) THA	8-97234-785-4	01	1	0404-0409				●	●
66	09.225 HOSE; FLEX,A/C 4JA1-T ENG<LP0> (B) THA	8-97234-785-4	01	1	0410-0412	●	●	●
66	09.225 HOSE; FLEX,A/C 4JA1-T ENG<LP0> (A) THA	8-98002-536-0	01	1	0501-0501	●	●	●
66	09.225 HOSE; FLEX,A/C 4JK1-TCS ENG<LKZ> (D) THA	8-98020-685-0	01	1	0509-0609	●	●	●
66	09.225 HOSE; FLEX,A/C 4JJ1-TCX ENG<LS0> (D) THA	8-98007-108-1	01	1	0610-					●
66	09.225 HOSE; FLEX,A/C 4JK1-TCS ENG<LKZ> (C) THA	8-98020-686-0	01	1	0509-0609	●	●	●
66	09.225 HOSE; FLEX,A/C 4JJ1-TCS ENG<LFB> (C) THA	8-97363-903-0	01	1	0410-0501	●		●	●	●
66	09.225 HOSE; FLEX,A/C 4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ> (C) THA	8-97363-903-0	01	1	0502-0508	●	●	●	●	●
66	09.225 HOSE; FLEX,A/C 4JJ1-TCS ENG<LFB> (C) THA	8-97363-903-0	01	1	0509-0609	●		●	●	●
66	09.225 HOSE; FLEX,A/C 4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ>, 4JJ1-TCX ENG<LS0> (C) THA	8-97363-903-0	01	1	0610-0709	●	●	●	●	●
66	09.225 HOSE; FLEX,A/C 4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ>, 4JJ1-TCX ENG<LS0> COOLER WO/HEATER<C65> (C) THA	8-97363-903-0	01	1	0710-	●	●	●	●	●
66	09.225 HOSE; FLEX,A/C 4JJ1-TCS ENG<LFB> (D) THA	8-97363-904-1	01	1	0410-0501	●		●	●	●
66	09.225 HOSE; FLEX,A/C 4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ> (D) THA	8-97363-904-1	01	1	0502-0508	●	●	●	●	●
66	09.225 HOSE; FLEX,A/C 4JJ1-TCS ENG<LFB> (D) THA	8-97363-904-1	01	1	0509-0609	●		●	●	●
66	09.225 HOSE; FLEX,A/C 4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ> (D) THA	8-97363-904-1	01	1	0610-0709	●		●	●
66	09.225 HOSE; FLEX,A/C 4JK1-TCS ENG<LKZ> (D) THA	8-97363-904-1	01	1	0610-0709		●
66	09.225 HOSE; FLEX,A/C 4JJ1-TCS ENG<LFB> (D) THA	8-97363-904-1	01	1	0610-0709					●
66	09.225 HOSE; FLEX,A/C 4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ> (D) THA	8-97363-904-1	01	1	0710-	●		●	●
66	09.225 HOSE; FLEX,A/C 4JK1-TCS ENG<LKZ> COOLER WO/HEATER<C65> (D) THA	8-97363-904-1	01	1	0710-		●
66	09.225 HOSE; FLEX,A/C 4JJ1-TCS ENG<LFB> (D) THA	8-97363-904-1	01	1	0710-					●
67	09.260 GASKET; FLEX HOSE 4JA1-T ENG<LP0>,4JH1-T ENG<L23> (A) THA	8-97321-351-0	01	1	0404-0409	●	●	●
67	09.260 GASKET; FLEX HOSE (A) THA	8-97321-351-0	01	1	0404-0409				●	●
67	09.260 GASKET; FLEX HOSE 4JJ1-TCS ENG<LFB>,4JA1-T ENG<LP0> (A) THA	8-97321-351-0	01	1	0410-0501	●		●
67	09.260 GASKET; FLEX HOSE 4JA1-T ENG<LP0> (A) THA	8-97321-351-0	01	1	0410-0501		●
67	09.260 GASKET; FLEX HOSE 4JJ1-TCS ENG<LFB> (A) THA	8-97321-351-0	01	1	0410-0501				●	●
67	09.260 GASKET; FLEX HOSE 4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ> (A) THA	8-97321-351-0	01	1	0502-0609	●	●	●	●	●
67	09.260 GASKET; FLEX HOSE 4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ>, 4JJ1-TCX ENG<LS0> (A) THA	8-97321-351-0	01	1	0610-0709	●	●	●	●	●
67	09.260 GASKET; FLEX HOSE 4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ>, 4JJ1-TCX ENG<LS0> COOLER WO/HEATER<C65> (A) THA	8-97321-351-0	01	1	0710-	●	●	●	●	●
67	09.260 GASKET; FLEX HOSE 4JA1-T ENG<LP0>,4JH1-T ENG<L23> (B) THA	8-97321-352-0	01	1	0404-0409	●	●	●
67	09.260 GASKET; FLEX HOSE (B) THA	8-97321-352-0	01	1	0404-0409				●	●
67	09.260 GASKET; FLEX HOSE 4JJ1-TCS ENG<LFB>,4JA1-T ENG<LP0> (B) THA	8-97321-352-0	01	1	0410-0501	●		●
67	09.260 GASKET; FLEX HOSE 4JA1-T ENG<LP0> (B) THA	8-97321-352-0	01	1	0410-0501		●
67	09.260 GASKET; FLEX HOSE 4JJ1-TCS ENG<LFB> (B) THA	8-97321-352-0	01	1	0410-0501				●	●
67	09.260 GASKET; FLEX HOSE 4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ> (B) THA	8-97321-352-0	01	1	0502-0609	●	●	●	●	●
67	09.260 GASKET; FLEX HOSE 4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ>, 4JJ1-TCX ENG<LS0> (B) THA	8-97321-352-0	01	1	0610-0709	●	●	●	●	●
67	09.260 GASKET; FLEX HOSE 4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ>, 4JJ1-TCX ENG<LS0> COOLER WO/HEATER<C65> (B) THA	8-97321-352-0	01	1	0710-	●	●	●	●	●
67	09.260 GASKET; FLEX HOSE 4JA1-T ENG<LP0>,4JH1-T ENG<L23> (C) THA	8-97321-353-0	02	1	0404-0409	●	●	●
67	09.260 GASKET; FLEX HOSE (C) THA	8-97321-353-0	02	1	0404-0409				●	●
67	09.260 GASKET; FLEX HOSE 4JJ1-TCS ENG<LFB>,4JA1-T ENG<LP0> (C) THA	8-97321-353-0	02	1	0410-0501	●		●
67	09.260 GASKET; FLEX HOSE 4JA1-T ENG<LP0> (C) THA	8-97321-353-0	02	1	0410-0501		●
67	09.260 GASKET; FLEX HOSE 4JJ1-TCS ENG<LFB> (C) THA	8-97321-353-0	02	1	0410-0501				●	●
67	09.260 GASKET; FLEX HOSE 4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ> (C) THA	8-97321-353-0	02	1	0502-0609	●	●	●	●	●
67	09.260 GASKET; FLEX HOSE 4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ>, 4JJ1-TCX ENG<LS0> (C) THA	8-97321-353-0	02	1	0610-0709	●	●	●	●	●
67	09.260 GASKET; FLEX HOSE 4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ>, 4JJ1-TCX ENG<LS0> COOLER WO/HEATER<C65> (C) THA	8-97321-353-0	02	1	0710-	●	●	●	●	●
123	09.195 GASKET; RECEIVER PIPE 4JA1-T ENG<LP0>,4JH1-T ENG<L23> SCAL THA	8-97919-270-0	02	1	0404-0409	●	●	●
123	09.195 GASKET; RECEIVER PIPE SCAL THA	8-97919-270-0	02	1	0404-0409				●	●
123	09.195 GASKET; RECEIVER PIPE 4JJ1-TCS ENG<LFB>,4JA1-T ENG<LP0> SCAL THA	8-97919-270-0	02	1	0410-0501	●		●
123	09.195 GASKET; RECEIVER PIPE 4JA1-T ENG<LP0> SCAL THA	8-97919-270-0	02	1	0410-0501		●
123	09.195 GASKET; RECEIVER PIPE 4JJ1-TCS ENG<LFB> SCAL THA	8-97919-270-0	02	1	0410-0501				●	●
123	09.195 GASKET; RECEIVER PIPE 4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ> SCAL THA	8-97919-270-0	02	1	0502-0609	●	●	●	●	●
123	09.195 GASKET; RECEIVER PIPE 4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ>, 4JJ1-TCX ENG<LS0> SCAL THA	8-97919-270-0	02	1	0610-0709	●	●	●	●	●
123	09.195 GASKET; RECEIVER PIPE 4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ>, 4JJ1-TCX ENG<LS0> COOLER WO/HEATER<C65> SCAL THA	8-97919-270-0	02	1	0710-	●	●	●	●	●
146	09.196 CLIP; RECEIVER PIPE 4JA1-T ENG<LP0>,4JH1-T ENG<L23> THA	8-97355-792-0	02	1	0404-0409	●	●	●
146	09.196 CLIP; RECEIVER PIPE THA	8-97355-792-0	02	1	0404-0409				●	●
146	09.196 CLIP; RECEIVER PIPE 4JA1-T ENG<LP0> THA	8-97355-792-0	02	1	0410-0501	●	●	●
146	09.196 CLIP; RECEIVER PIPE 4JJ1-TCS ENG<LFB> THA	8-97354-058-0	02	1	0410-0501	●		●	●	●
146	09.196 CLIP; RECEIVER PIPE 4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ> THA	8-97354-058-0	02	1	0502-0609	●	●	●	●	●
146	09.196 CLIP; RECEIVER PIPE 4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ>, 4JJ1-TCX ENG<LS0> THA	8-97354-058-0	02	1	0610-0709	●	●	●	●	●
146	09.196 CLIP; RECEIVER PIPE 4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ>, 4JJ1-TCX ENG<LS0> COOLER WO/HEATER<C65> THA	8-97354-058-0	02	1	0710-	●	●	●	●	●
147	09.242 CAP; FLEX HOSE 4JA1-T ENG<LP0> THA	8-97386-623-0	01	1	0501-0501	●	●	●
147	09.242 CAP; FLEX HOSE 4JJ1-TCX ENG<LS0> THA	8-97386-623-0	01	1	0610-					●
158	09.220 BOLT; PIPE FIX 00.685 M6X25 FLANGE THA	0-28650-625-0	01	1	0404-0709	●	●	●	●	●
158	09.220 BOLT; PIPE FIX 00.685 M6X25 FLANGE THA	0-28650-625-0	01	1	0710-	●		●	●	●
158	09.220 BOLT; PIPE FIX COOLER WO/HEATER<C65> 00.685 M6X25 FLANGE THA	0-28650-625-0	01	1	0710-		●
162	09.173 BOLT; FLEX HOSE 4JA1-T ENG<LP0>,4JH1-T ENG<L23> 02.343 (A) M6X16 FLANGE THA	0-28650-616-0	01	1	0404-0409	●	●	●
162	09.173 BOLT; FLEX HOSE 02.343 (A) M6X16 FLANGE THA	0-28650-616-0	01	1	0404-0409				●	●
162	09.173 BOLT; FLEX HOSE 4JA1-T ENG<LP0> EURO2 SPECIFICATION<NT2> 02.343 (A) M6X16 FLANGE THA	0-28650-616-0	01	1	0410-0501	●		●
162	09.173 BOLT; FLEX HOSE 4JA1-T ENG<LP0> 02.343 (A) M6X16 FLANGE THA	0-28650-616-0	01	1	0410-0501		●
162	09.173 BOLT; FLEX HOSE 06.216 (B) M8X25 FLANGE THA	0-28650-825-0	03	1	0404-0709	●	●	●	●	●
162	09.173 BOLT; FLEX HOSE 06.216 (B) M8X25 FLANGE THA	0-28650-825-0	03	1	0710-	●		●	●	●
162	09.173 BOLT; FLEX HOSE COOLER WO/HEATER<C65> 06.216 (B) M8X25 FLANGE THA	0-28650-825-0	03	1	0710-		●
171	09.242 CAP; PIPE 4JJ1-TCS ENG<LFB> THA	8-97376-622-0	01	1	0410-0501	●		●	●	●
171	09.242 CAP; PIPE 4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ> THA	8-97376-622-0	01	1	0502-0609	●	●	●	●	●
171	09.242 CAP; PIPE 4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ>, 4JJ1-TCX ENG<LS0> THA	8-97376-622-0	01	1	0610-0709	●	●	●	●	●
171	09.242 CAP; PIPE 4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ>, 4JJ1-TCX ENG<LS0> COOLER WO/HEATER<C65> THA	8-97376-622-0	01	1	0710-	●	●	●	●	●
204	09.216 NUT 08.915 M6 FLANGE	8-98055-704-0	02	1	0911-	●	●	●	●	●
216	09.173 BOLT; HOSE FIX 03.162 M6X20 FLANGE THA	0-28650-620-0	01	1	0404-0709	●	●	●	●	●
216	09.173 BOLT; HOSE FIX 03.162 M6X20 FLANGE THA	0-28650-620-0	01	1	0710-	●		●	●	●
216	09.173 BOLT; HOSE FIX COOLER WO/HEATER<C65> 03.162 M6X20 FLANGE THA	0-28650-620-0	01	1	0710-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
