8-50 — AIR CONDITIONING SYSTEM; FRONT (#73702) — 154 parça

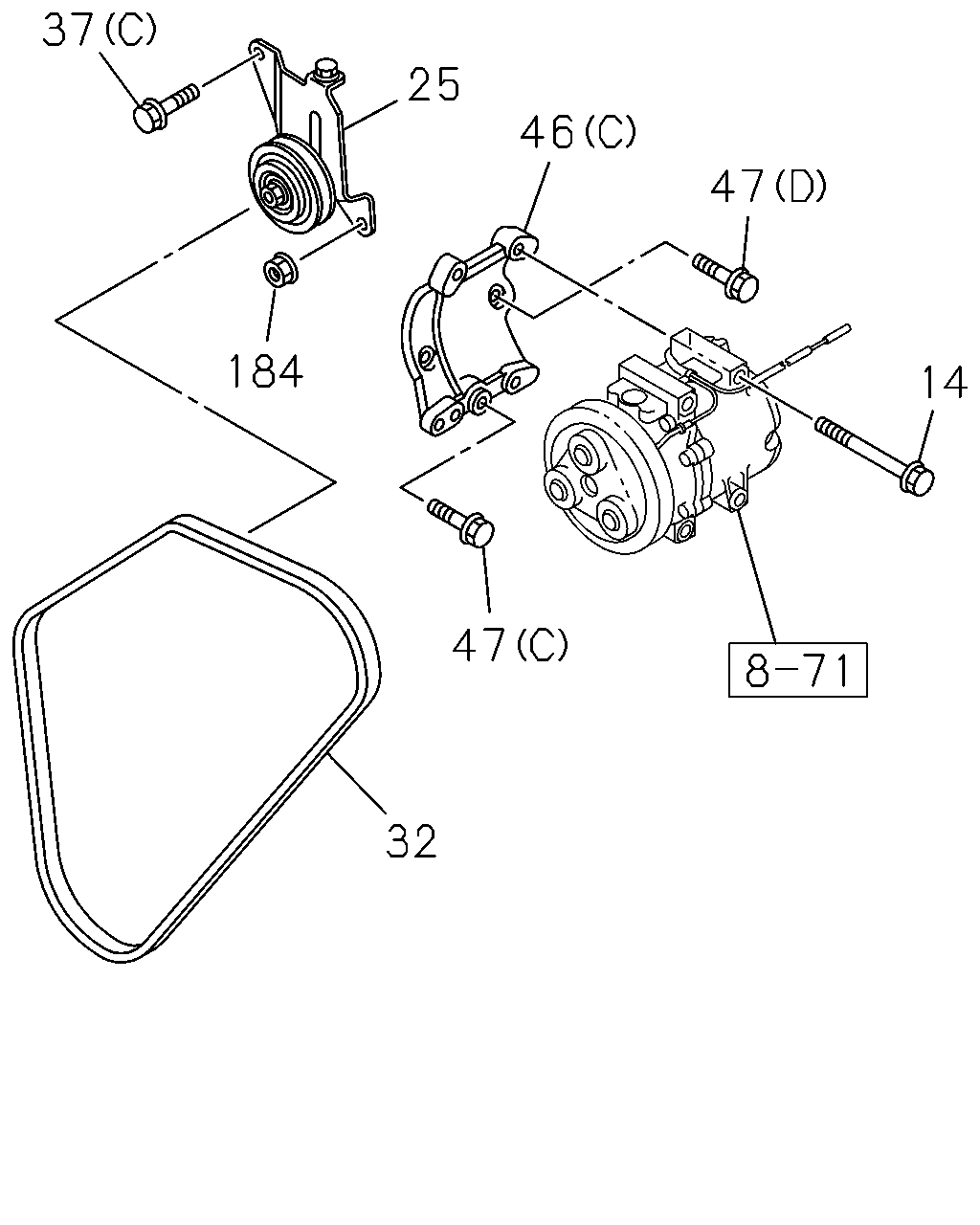

çizim 118150
37 25 46 47 184 14 47 32
BalonParca AdiParca NoAdetTipApplied Date A B C D E
14 09.171 BOLT; CMPR
4JA1-T ENG<LP0>,4JH1-T ENG<L23> M10X100 FLANGE THA 		0-28151-000-0 04 1 0404-0409 ● ● ●
14 09.171 BOLT; CMPR
M10X100 FLANGE THA 		0-28151-000-0 04 1 0404-0409 ● ●
14 09.171 BOLT; CMPR
4JJ1-TCS ENG<LFB>,4JA1-T ENG<LP0> M10X100 FLANGE THA 		0-28151-000-0 04 1 0410-0501 ● ●
14 09.171 BOLT; CMPR
4JA1-T ENG<LP0> M10X100 FLANGE THA 		0-28151-000-0 04 1 0410-0501 ●
14 09.171 BOLT; CMPR
4JJ1-TCS ENG<LFB> M10X100 FLANGE THA 		0-28151-000-0 04 1 0410-0501 ● ●
14 09.171 BOLT; CMPR
4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ> M10X100 FLANGE THA 		0-28151-000-0 04 1 0502-0609 ● ● ● ● ●
14 09.171 BOLT; CMPR
4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ>, 4JJ1-TCX ENG<LS0> M10X100 FLANGE THA 		0-28151-000-0 04 1 0610-0709 ● ● ● ● ●
14 09.171 BOLT; CMPR
4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ>, 4JJ1-TCX ENG<LS0> COOLER WO/HEATER<C65> M10X100 FLANGE THA 		0-28151-000-0 04 1 0710- ● ● ● ● ●
25 09.180 PULLEY ASM; IDLER,CMPR
4JA1-T ENG<LP0>,4JH1-T ENG<L23> EXC. POWER STEERING<N40> THA 		8-97943-806-0 01 1 0404-0409 ● ● ●
25 09.180 PULLEY ASM; IDLER,CMPR
4JA1-T ENG<LP0> EXC. POWER STEERING<N40> THA 		8-97943-806-0 01 1 0410-0501 ● ●
25 09.180 PULLEY ASM; IDLER,CMPR
4JJ1-TCS ENG<LFB> THA 		8-97363-476-3 01 1 0410-0501 ● ● ● ●
25 09.180 PULLEY ASM; IDLER,CMPR
4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ> THA 		8-97363-476-3 01 1 0502-0508 ● ● ● ● ●
25 09.180 PULLEY ASM; IDLER,CMPR
4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ> THA 		8-97945-065-0 01 1 0509-0609 ● ● ● ● ●
25 09.180 PULLEY ASM; IDLER,CMPR
4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ> 1-GROOVE THA 		8-98051-011-0 01 1 0610-0610 ● ● ● ● ●
25 09.180 PULLEY ASM; IDLER,CMPR
4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ>, 4JJ1-TCX ENG<LS0> 1-GROOVE THA 		8-98051-011-0 01 1 0610-0709 ● ● ● ● ●
25 09.180 PULLEY ASM; IDLER,CMPR
4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ>, 4JJ1-TCX ENG<LS0> COOLER WO/HEATER<C65> 1-GROOVE THA 		8-98051-011-0 01 1 0710- ● ● ● ● ●
32 01.066 BELT; A/C CMPR
4JA1-T ENG<LP0> POWER STEERING<N40> B=12.5 L=1510 1 SET=2 PIECE BANDO THA 		8-97942-726-0 01 1 0404-0409 ● ● ●
32 01.066 BELT; A/C CMPR
4JA1-T ENG<LP0> POWER STEERING<N40> B=12.5 L=1510 1 SET=2 PIECE BANDO THA 		8-97942-726-0 01 1 0410-0501 ● ●
32 01.066 BELT; A/C CMPR
4JA1-T ENG<LP0> B=12.5 L=1510 1 SET=2 PIECE BANDO THA 		8-97942-726-0 01 1 0410-0501 ●
32 01.066 BELT; A/C CMPR
4JA1-T ENG<LP0> POWER STEERING<N40> L=1510 B=13.3 1 SET=2 PIECE(8979427270) MITSUBOSHI THA 		8-97942-728-0 01 1 0404-0409 ● ● ●
32 01.066 BELT; A/C CMPR
4JA1-T ENG<LP0> POWER STEERING<N40> L=1510 B=13.3 1 SET=2 PIECE(8979427270) MITSUBOSHI THA 		8-97942-728-0 01 1 0410-0501 ● ●
32 01.066 BELT; A/C CMPR
4JA1-T ENG<LP0> L=1510 B=13.3 1 SET=2 PIECE(8979427270) MITSUBOSHI THA 		8-97942-728-0 01 1 0410-0501 ●
32 01.066 BELT; A/C CMPR
4JA1-T ENG<LP0> EXC. POWER STEERING<N40> L=1394 B=13.3 MITSUBOSHI THA 		8-97942-722-0 01 1 0404-0409 ● ● ●
32 01.066 BELT; A/C CMPR
4JA1-T ENG<LP0> EXC. POWER STEERING<N40> L=1394 B=13.3 MITSUBOSHI THA 		8-97942-722-0 01 1 0410-0501 ● ●
32 01.066 BELT; A/C CMPR
4JA1-T ENG<LP0> EXC. POWER STEERING<N40> L=1394 B=13.3 BANDO THA 		8-97942-723-0 01 1 0404-0409 ● ● ●
32 01.066 BELT; A/C CMPR
4JA1-T ENG<LP0> EXC. POWER STEERING<N40> L=1394 B=13.3 BANDO THA 		8-97942-723-0 01 1 0410-0501 ● ●
32 01.066 BELT; A/C CMPR
4JH1-T ENG<L23> POWER STEERING<N40> B=12.5 L=1537 1 SET=2 PIECE BANDO THA 		8-97942-725-0 01 1 0404-0409 ● ● ●
32 01.066 BELT; A/C CMPR
B=12.5 L=1537 1 SET=2 PIECE BANDO THA 		8-97942-725-0 01 1 0404-0409 ● ●
32 01.066 BELT; A/C CMPR
4JJ1-TCS ENG<LFB> L=1369 B=13.3 MITSUBOSHI THA 		8-97944-104-0 01 1 0410-0501 ● ● ● ●
32 01.066 BELT; A/C CMPR
4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ> L=1369 B=13.3 MITSUBOSHI THA 		8-97944-104-0 01 1 0502-0609 ● ● ● ● ●
32 01.066 BELT; A/C CMPR
4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ>, 4JJ1-TCX ENG<LS0> L=1369 B=13.3 MITSUBOSHI THA 		8-97944-104-0 01 1 0610-0709 ● ● ● ● ●
32 01.066 BELT; A/C CMPR
4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ>, 4JJ1-TCX ENG<LS0> COOLER WO/HEATER<C65> L=1369 B=13.3 MITSUBOSHI THA 		8-97944-104-0 01 1 0710-0711 ● ● ● ● ●
32 01.066 BELT; A/C CMPR
4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ>, 4JJ1-TCX ENG<LS0> COOLER WO/HEATER<C65> L=1369 B=13.2 L=1355 MITSUBOSHI THA 		8-98088-385-0 01 1 0712- ● ● ● ● ●
32 01.066 BELT; A/C CMPR
4JH1-T ENG<L23> POWER STEERING<N40> L=1537 B=13.3 1 SET=2 PIECE(8979427240) MITSUBOSHI THA 		8-97942-729-0 01 1 0404-0409 ● ● ●
32 01.066 BELT; A/C CMPR
L=1537 B=13.3 1 SET=2 PIECE(8979427240) MITSUBOSHI THA 		8-97942-729-0 01 1 0404-0409 ● ●
32 01.066 BELT; A/C CMPR
4JJ1-TCS ENG<LFB> L=1355 B=12.5 BANDO THA 		8-97944-138-0 01 1 0410-0501 ● ● ● ●
32 01.066 BELT; A/C CMPR
4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ> L=1355 B=12.5 BANDO THA 		8-97944-138-0 01 1 0502-0609 ● ● ● ● ●
32 01.066 BELT; A/C CMPR
4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ>, 4JJ1-TCX ENG<LS0> L=1355 B=12.5 BANDO THA 		8-97944-138-0 01 1 0610-0709 ● ● ● ● ●
32 01.066 BELT; A/C CMPR
4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ>, 4JJ1-TCX ENG<LS0> COOLER WO/HEATER<C65> L=1355 B=12.5 BANDO THA 		8-97944-138-0 01 1 0710- ● ● ● ● ●
32 01.066 BELT; A/C CMPR
4JH1-T ENG<L23> EXC. POWER STEERING<N40> B=13.3 L=1451 MITSUBOSHI THA 		1-13671-301-0 01 1 0404-0409 ● ● ●
37 09.173 BOLT; PULLEY BRKT
4JA1-T ENG<LP0>,4JH1-T ENG<L23> EXC. POWER STEERING<N40> (A) M10X80 FLANGE 		0-28051-080-0 01 1 0404-0409 ● ● ●
37 09.173 BOLT; PULLEY BRKT
4JA1-T ENG<LP0> EXC. POWER STEERING<N40> (A) M10X80 FLANGE 		0-28051-080-0 01 1 0410-0501 ● ●
37 09.173 BOLT; PULLEY BRKT
4JA1-T ENG<LP0>,4JH1-T ENG<L23> EXC. POWER STEERING<N40> (B) M8X70 W/WASHER THA 		8-97919-730-1 01 1 0404-0409 ● ● ●
37 09.173 BOLT; PULLEY BRKT
4JA1-T ENG<LP0> EXC. POWER STEERING<N40> (B) M8X70 W/WASHER THA 		8-97919-730-1 01 1 0410-0501 ● ●
37 09.173 BOLT; PULLEY BRKT
4JJ1-TCS ENG<LFB> 01.531 (C) M8X20 FLANGE THA 		0-28650-820-0 01 1 0410-0501 ● ● ● ●
37 09.173 BOLT; PULLEY BRKT
4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ> 01.531 (C) M8X20 FLANGE THA 		0-28650-820-0 01 1 0502-0609 ● ● ● ● ●
37 09.173 BOLT; PULLEY BRKT
4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ>, 4JJ1-TCX ENG<LS0> 01.531 (C) M8X20 FLANGE THA 		0-28650-820-0 01 1 0610-0709 ● ● ● ● ●
37 09.173 BOLT; PULLEY BRKT
4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ>, 4JJ1-TCX ENG<LS0> COOLER WO/HEATER<C65> 01.531 (C) M8X20 FLANGE THA 		0-28650-820-0 01 1 0710- ● ● ● ● ●
46 09.171 BRACKET; CMPR
4JA1-T ENG<LP0> (A) SCAL THA 		8-97919-250-1 01 1 0404-0501 ● ● ●
46 09.171 BRACKET; CMPR
4JH1-T ENG<L23> (B) SCAL THA 		8-97920-583-1 01 1 0404-0409 ● ● ●
46 09.171 BRACKET; CMPR
(B) SCAL THA 		8-97920-583-1 01 1 0404-0409 ● ●
46 09.171 BRACKET; CMPR
4JJ1-TCS ENG<LFB> (C) THA 		8-97371-258-0 01 1 0410-0501 ● ● ● ●
46 09.171 BRACKET; CMPR
4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ> (C) THA 		8-97371-258-0 01 1 0502-0609 ● ● ● ● ●
46 09.171 BRACKET; CMPR
4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ> (C) THA 		8-97371-258-0 01 1 0610-0709 ● ● ●
46 09.171 BRACKET; CMPR
4JK1-TCS ENG<LKZ> (C) THA 		8-97371-258-0 01 1 0610-0709 ●
46 09.171 BRACKET; CMPR
4JJ1-TCS ENG<LFB> (C) THA 		8-97371-258-0 01 1 0610-0709 ●
46 09.171 BRACKET; CMPR
4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ> (C) THA 		8-97371-258-0 01 1 0710- ● ● ●
46 09.171 BRACKET; CMPR
4JK1-TCS ENG<LKZ> COOLER WO/HEATER<C65> (C) THA 		8-97371-258-0 01 1 0710- ●
46 09.171 BRACKET; CMPR
4JJ1-TCS ENG<LFB> (C) THA 		8-97371-258-0 01 1 0710- ●
46 09.171 BRACKET; CMPR
4JJ1-TCX ENG<LS0> (C) THA 		8-98039-618-0 01 1 0610- ●
47 09.173 BOLT; BRKT TO BODY
4JA1-T ENG<LP0> 02.277 (B) M8X40 FLANGE THA 		0-28050-840-0 02 1 0404-0501 ● ● ●
47 09.173 BOLT; BRKT TO BODY
4JA1-T ENG<LP0> 00.685 (A) M10X45 FLANGE THA 		0-28051-045-0 02 1 0404-0501 ● ● ●
47 09.173 BOLT; BRKT TO BODY
4JH1-T ENG<L23> (B) M8X45 FLANGE THA 		0-28050-845-0 02 1 0404-0409 ● ● ●
47 09.173 BOLT; BRKT TO BODY
(B) M8X45 FLANGE THA 		0-28050-845-0 02 1 0404-0409 ● ●
47 09.173 BOLT; BRKT TO BODY
4JJ1-TCS ENG<LFB> 01.060 (C) M8X35 FLANGE THA 		0-28650-835-0 01 1 0410-0501 ● ● ● ●
47 09.173 BOLT; BRKT TO BODY
4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ> 01.060 (C) M8X35 FLANGE THA 		0-28650-835-0 01 1 0502-0609 ● ● ● ● ●
47 09.173 BOLT; BRKT TO BODY
4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ>, 4JJ1-TCX ENG<LS0> (C) M8X35 FLANGE THA 		8-98049-562-0 01 1 0610-0709 ● ● ● ● ●
47 09.173 BOLT; BRKT TO BODY
4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ>, 4JJ1-TCX ENG<LS0> COOLER WO/HEATER<C65> (C) M8X35 FLANGE THA 		8-98049-562-0 01 1 0710- ● ● ● ● ●
47 09.173 BOLT; BRKT TO BODY
4JH1-T ENG<L23> (A) M10X50 FLANGE THA 		0-28051-050-0 02 1 0404-0409 ● ● ●
47 09.173 BOLT; BRKT TO BODY
(A) M10X50 FLANGE THA 		0-28051-050-0 02 1 0404-0409 ● ●
47 09.173 BOLT; BRKT TO BODY
4JJ1-TCS ENG<LFB> 02.559 (D) M8X25 FLANGE 		0-28680-825-0 03 1 0410-0501 ● ● ● ●
47 09.173 BOLT; BRKT TO BODY
4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ> 02.559 (D) M8X25 FLANGE 		0-28680-825-0 03 1 0502-0601 ● ● ● ● ●
47 09.173 BOLT; BRKT TO BODY
4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ> 06.216 (D) M8X25 FLANGE THA 		0-28650-825-0 03 1 0602-0609 ● ● ● ● ●
47 09.173 BOLT; BRKT TO BODY
4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ>, 4JJ1-TCX ENG<LS0> 06.216 (D) M8X25 FLANGE THA 		0-28650-825-0 03 1 0610-0709 ● ● ● ● ●
47 09.173 BOLT; BRKT TO BODY
4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ>, 4JJ1-TCX ENG<LS0> COOLER WO/HEATER<C65> 06.216 (D) M8X25 FLANGE THA 		0-28650-825-0 03 1 0710- ● ● ● ● ●
184 09.242 NUT; A/C PIPE BRKT
4JJ1-TCS ENG<LFB> 01.540 M8 FLANGE THA 		0-91180-208-0 01 1 0410-0501 ● ● ● ●
184 09.242 NUT; A/C PIPE BRKT
4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ> 01.540 M8 FLANGE THA 		0-91180-208-0 01 1 0502-0609 ● ● ● ● ●
184 09.242 NUT; A/C PIPE BRKT
4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ>, 4JJ1-TCX ENG<LS0> 01.540 M8 FLANGE THA 		0-91180-208-0 01 1 0610-0709 ● ● ● ● ●
184 09.242 NUT; A/C PIPE BRKT
4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ>, 4JJ1-TCX ENG<LS0> COOLER WO/HEATER<C65> 01.540 M8 FLANGE THA 		0-91180-208-0 01 1 0710- ● ● ● ● ●

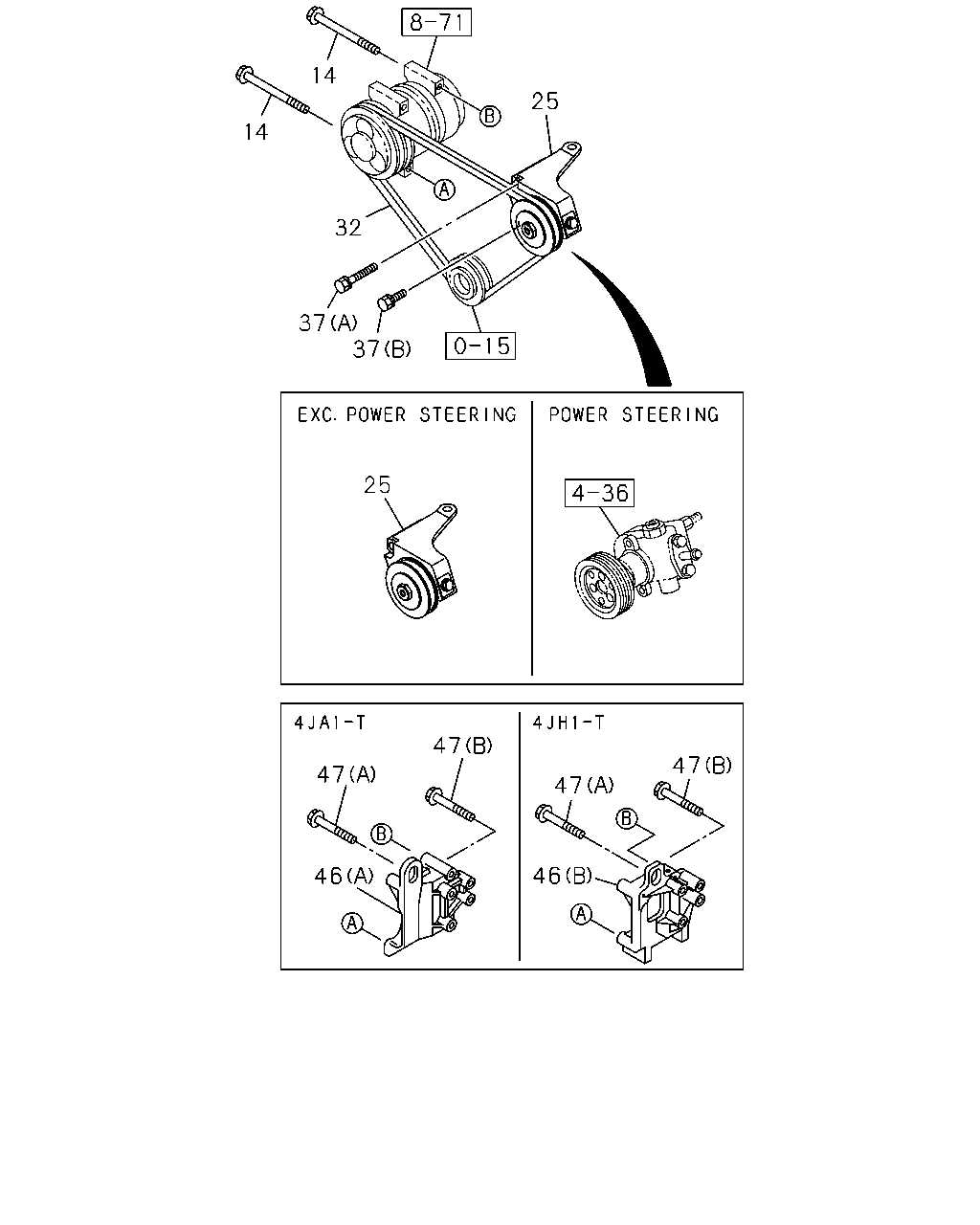

çizim 118177
14 25 14 32 37 37 25 47 47 47 47 46 46
BalonParca AdiParca NoAdetTipApplied Date A B C D E
14 09.171 BOLT; CMPR
4JA1-T ENG<LP0>,4JH1-T ENG<L23> M10X100 FLANGE THA 		0-28151-000-0 04 1 0404-0409 ● ● ●
14 09.171 BOLT; CMPR
M10X100 FLANGE THA 		0-28151-000-0 04 1 0404-0409 ● ●
14 09.171 BOLT; CMPR
4JJ1-TCS ENG<LFB>,4JA1-T ENG<LP0> M10X100 FLANGE THA 		0-28151-000-0 04 1 0410-0501 ● ●
14 09.171 BOLT; CMPR
4JA1-T ENG<LP0> M10X100 FLANGE THA 		0-28151-000-0 04 1 0410-0501 ●
14 09.171 BOLT; CMPR
4JJ1-TCS ENG<LFB> M10X100 FLANGE THA 		0-28151-000-0 04 1 0410-0501 ● ●
14 09.171 BOLT; CMPR
4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ> M10X100 FLANGE THA 		0-28151-000-0 04 1 0502-0609 ● ● ● ● ●
14 09.171 BOLT; CMPR
4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ>, 4JJ1-TCX ENG<LS0> M10X100 FLANGE THA 		0-28151-000-0 04 1 0610-0709 ● ● ● ● ●
14 09.171 BOLT; CMPR
4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ>, 4JJ1-TCX ENG<LS0> COOLER WO/HEATER<C65> M10X100 FLANGE THA 		0-28151-000-0 04 1 0710- ● ● ● ● ●
25 09.180 PULLEY ASM; IDLER,CMPR
4JA1-T ENG<LP0>,4JH1-T ENG<L23> EXC. POWER STEERING<N40> THA 		8-97943-806-0 01 1 0404-0409 ● ● ●
25 09.180 PULLEY ASM; IDLER,CMPR
4JA1-T ENG<LP0> EXC. POWER STEERING<N40> THA 		8-97943-806-0 01 1 0410-0501 ● ●
25 09.180 PULLEY ASM; IDLER,CMPR
4JJ1-TCS ENG<LFB> THA 		8-97363-476-3 01 1 0410-0501 ● ● ● ●
25 09.180 PULLEY ASM; IDLER,CMPR
4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ> THA 		8-97363-476-3 01 1 0502-0508 ● ● ● ● ●
25 09.180 PULLEY ASM; IDLER,CMPR
4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ> THA 		8-97945-065-0 01 1 0509-0609 ● ● ● ● ●
25 09.180 PULLEY ASM; IDLER,CMPR
4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ> 1-GROOVE THA 		8-98051-011-0 01 1 0610-0610 ● ● ● ● ●
25 09.180 PULLEY ASM; IDLER,CMPR
4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ>, 4JJ1-TCX ENG<LS0> 1-GROOVE THA 		8-98051-011-0 01 1 0610-0709 ● ● ● ● ●
25 09.180 PULLEY ASM; IDLER,CMPR
4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ>, 4JJ1-TCX ENG<LS0> COOLER WO/HEATER<C65> 1-GROOVE THA 		8-98051-011-0 01 1 0710- ● ● ● ● ●
32 01.066 BELT; A/C CMPR
4JA1-T ENG<LP0> POWER STEERING<N40> B=12.5 L=1510 1 SET=2 PIECE BANDO THA 		8-97942-726-0 01 1 0404-0409 ● ● ●
32 01.066 BELT; A/C CMPR
4JA1-T ENG<LP0> POWER STEERING<N40> B=12.5 L=1510 1 SET=2 PIECE BANDO THA 		8-97942-726-0 01 1 0410-0501 ● ●
32 01.066 BELT; A/C CMPR
4JA1-T ENG<LP0> B=12.5 L=1510 1 SET=2 PIECE BANDO THA 		8-97942-726-0 01 1 0410-0501 ●
32 01.066 BELT; A/C CMPR
4JA1-T ENG<LP0> POWER STEERING<N40> L=1510 B=13.3 1 SET=2 PIECE(8979427270) MITSUBOSHI THA 		8-97942-728-0 01 1 0404-0409 ● ● ●
32 01.066 BELT; A/C CMPR
4JA1-T ENG<LP0> POWER STEERING<N40> L=1510 B=13.3 1 SET=2 PIECE(8979427270) MITSUBOSHI THA 		8-97942-728-0 01 1 0410-0501 ● ●
32 01.066 BELT; A/C CMPR
4JA1-T ENG<LP0> L=1510 B=13.3 1 SET=2 PIECE(8979427270) MITSUBOSHI THA 		8-97942-728-0 01 1 0410-0501 ●
32 01.066 BELT; A/C CMPR
4JA1-T ENG<LP0> EXC. POWER STEERING<N40> L=1394 B=13.3 MITSUBOSHI THA 		8-97942-722-0 01 1 0404-0409 ● ● ●
32 01.066 BELT; A/C CMPR
4JA1-T ENG<LP0> EXC. POWER STEERING<N40> L=1394 B=13.3 MITSUBOSHI THA 		8-97942-722-0 01 1 0410-0501 ● ●
32 01.066 BELT; A/C CMPR
4JA1-T ENG<LP0> EXC. POWER STEERING<N40> L=1394 B=13.3 BANDO THA 		8-97942-723-0 01 1 0404-0409 ● ● ●
32 01.066 BELT; A/C CMPR
4JA1-T ENG<LP0> EXC. POWER STEERING<N40> L=1394 B=13.3 BANDO THA 		8-97942-723-0 01 1 0410-0501 ● ●
32 01.066 BELT; A/C CMPR
4JH1-T ENG<L23> POWER STEERING<N40> B=12.5 L=1537 1 SET=2 PIECE BANDO THA 		8-97942-725-0 01 1 0404-0409 ● ● ●
32 01.066 BELT; A/C CMPR
B=12.5 L=1537 1 SET=2 PIECE BANDO THA 		8-97942-725-0 01 1 0404-0409 ● ●
32 01.066 BELT; A/C CMPR
4JJ1-TCS ENG<LFB> L=1369 B=13.3 MITSUBOSHI THA 		8-97944-104-0 01 1 0410-0501 ● ● ● ●
32 01.066 BELT; A/C CMPR
4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ> L=1369 B=13.3 MITSUBOSHI THA 		8-97944-104-0 01 1 0502-0609 ● ● ● ● ●
32 01.066 BELT; A/C CMPR
4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ>, 4JJ1-TCX ENG<LS0> L=1369 B=13.3 MITSUBOSHI THA 		8-97944-104-0 01 1 0610-0709 ● ● ● ● ●
32 01.066 BELT; A/C CMPR
4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ>, 4JJ1-TCX ENG<LS0> COOLER WO/HEATER<C65> L=1369 B=13.3 MITSUBOSHI THA 		8-97944-104-0 01 1 0710-0711 ● ● ● ● ●
32 01.066 BELT; A/C CMPR
4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ>, 4JJ1-TCX ENG<LS0> COOLER WO/HEATER<C65> L=1369 B=13.2 L=1355 MITSUBOSHI THA 		8-98088-385-0 01 1 0712- ● ● ● ● ●
32 01.066 BELT; A/C CMPR
4JH1-T ENG<L23> POWER STEERING<N40> L=1537 B=13.3 1 SET=2 PIECE(8979427240) MITSUBOSHI THA 		8-97942-729-0 01 1 0404-0409 ● ● ●
32 01.066 BELT; A/C CMPR
L=1537 B=13.3 1 SET=2 PIECE(8979427240) MITSUBOSHI THA 		8-97942-729-0 01 1 0404-0409 ● ●
32 01.066 BELT; A/C CMPR
4JJ1-TCS ENG<LFB> L=1355 B=12.5 BANDO THA 		8-97944-138-0 01 1 0410-0501 ● ● ● ●
32 01.066 BELT; A/C CMPR
4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ> L=1355 B=12.5 BANDO THA 		8-97944-138-0 01 1 0502-0609 ● ● ● ● ●
32 01.066 BELT; A/C CMPR
4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ>, 4JJ1-TCX ENG<LS0> L=1355 B=12.5 BANDO THA 		8-97944-138-0 01 1 0610-0709 ● ● ● ● ●
32 01.066 BELT; A/C CMPR
4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ>, 4JJ1-TCX ENG<LS0> COOLER WO/HEATER<C65> L=1355 B=12.5 BANDO THA 		8-97944-138-0 01 1 0710- ● ● ● ● ●
32 01.066 BELT; A/C CMPR
4JH1-T ENG<L23> EXC. POWER STEERING<N40> B=13.3 L=1451 MITSUBOSHI THA 		1-13671-301-0 01 1 0404-0409 ● ● ●
37 09.173 BOLT; PULLEY BRKT
4JA1-T ENG<LP0>,4JH1-T ENG<L23> EXC. POWER STEERING<N40> (A) M10X80 FLANGE 		0-28051-080-0 01 1 0404-0409 ● ● ●
37 09.173 BOLT; PULLEY BRKT
4JA1-T ENG<LP0> EXC. POWER STEERING<N40> (A) M10X80 FLANGE 		0-28051-080-0 01 1 0410-0501 ● ●
37 09.173 BOLT; PULLEY BRKT
4JA1-T ENG<LP0>,4JH1-T ENG<L23> EXC. POWER STEERING<N40> (B) M8X70 W/WASHER THA 		8-97919-730-1 01 1 0404-0409 ● ● ●
37 09.173 BOLT; PULLEY BRKT
4JA1-T ENG<LP0> EXC. POWER STEERING<N40> (B) M8X70 W/WASHER THA 		8-97919-730-1 01 1 0410-0501 ● ●
37 09.173 BOLT; PULLEY BRKT
4JJ1-TCS ENG<LFB> 01.531 (C) M8X20 FLANGE THA 		0-28650-820-0 01 1 0410-0501 ● ● ● ●
37 09.173 BOLT; PULLEY BRKT
4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ> 01.531 (C) M8X20 FLANGE THA 		0-28650-820-0 01 1 0502-0609 ● ● ● ● ●
37 09.173 BOLT; PULLEY BRKT
4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ>, 4JJ1-TCX ENG<LS0> 01.531 (C) M8X20 FLANGE THA 		0-28650-820-0 01 1 0610-0709 ● ● ● ● ●
37 09.173 BOLT; PULLEY BRKT
4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ>, 4JJ1-TCX ENG<LS0> COOLER WO/HEATER<C65> 01.531 (C) M8X20 FLANGE THA 		0-28650-820-0 01 1 0710- ● ● ● ● ●
46 09.171 BRACKET; CMPR
4JA1-T ENG<LP0> (A) SCAL THA 		8-97919-250-1 01 1 0404-0501 ● ● ●
46 09.171 BRACKET; CMPR
4JH1-T ENG<L23> (B) SCAL THA 		8-97920-583-1 01 1 0404-0409 ● ● ●
46 09.171 BRACKET; CMPR
(B) SCAL THA 		8-97920-583-1 01 1 0404-0409 ● ●
46 09.171 BRACKET; CMPR
4JJ1-TCS ENG<LFB> (C) THA 		8-97371-258-0 01 1 0410-0501 ● ● ● ●
46 09.171 BRACKET; CMPR
4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ> (C) THA 		8-97371-258-0 01 1 0502-0609 ● ● ● ● ●
46 09.171 BRACKET; CMPR
4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ> (C) THA 		8-97371-258-0 01 1 0610-0709 ● ● ●
46 09.171 BRACKET; CMPR
4JK1-TCS ENG<LKZ> (C) THA 		8-97371-258-0 01 1 0610-0709 ●
46 09.171 BRACKET; CMPR
4JJ1-TCS ENG<LFB> (C) THA 		8-97371-258-0 01 1 0610-0709 ●
46 09.171 BRACKET; CMPR
4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ> (C) THA 		8-97371-258-0 01 1 0710- ● ● ●
46 09.171 BRACKET; CMPR
4JK1-TCS ENG<LKZ> COOLER WO/HEATER<C65> (C) THA 		8-97371-258-0 01 1 0710- ●
46 09.171 BRACKET; CMPR
4JJ1-TCS ENG<LFB> (C) THA 		8-97371-258-0 01 1 0710- ●
46 09.171 BRACKET; CMPR
4JJ1-TCX ENG<LS0> (C) THA 		8-98039-618-0 01 1 0610- ●
47 09.173 BOLT; BRKT TO BODY
4JA1-T ENG<LP0> 02.277 (B) M8X40 FLANGE THA 		0-28050-840-0 02 1 0404-0501 ● ● ●
47 09.173 BOLT; BRKT TO BODY
4JA1-T ENG<LP0> 00.685 (A) M10X45 FLANGE THA 		0-28051-045-0 02 1 0404-0501 ● ● ●
47 09.173 BOLT; BRKT TO BODY
4JH1-T ENG<L23> (B) M8X45 FLANGE THA 		0-28050-845-0 02 1 0404-0409 ● ● ●
47 09.173 BOLT; BRKT TO BODY
(B) M8X45 FLANGE THA 		0-28050-845-0 02 1 0404-0409 ● ●
47 09.173 BOLT; BRKT TO BODY
4JJ1-TCS ENG<LFB> 01.060 (C) M8X35 FLANGE THA 		0-28650-835-0 01 1 0410-0501 ● ● ● ●
47 09.173 BOLT; BRKT TO BODY
4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ> 01.060 (C) M8X35 FLANGE THA 		0-28650-835-0 01 1 0502-0609 ● ● ● ● ●
47 09.173 BOLT; BRKT TO BODY
4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ>, 4JJ1-TCX ENG<LS0> (C) M8X35 FLANGE THA 		8-98049-562-0 01 1 0610-0709 ● ● ● ● ●
47 09.173 BOLT; BRKT TO BODY
4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ>, 4JJ1-TCX ENG<LS0> COOLER WO/HEATER<C65> (C) M8X35 FLANGE THA 		8-98049-562-0 01 1 0710- ● ● ● ● ●
47 09.173 BOLT; BRKT TO BODY
4JH1-T ENG<L23> (A) M10X50 FLANGE THA 		0-28051-050-0 02 1 0404-0409 ● ● ●
47 09.173 BOLT; BRKT TO BODY
(A) M10X50 FLANGE THA 		0-28051-050-0 02 1 0404-0409 ● ●
47 09.173 BOLT; BRKT TO BODY
4JJ1-TCS ENG<LFB> 02.559 (D) M8X25 FLANGE 		0-28680-825-0 03 1 0410-0501 ● ● ● ●
47 09.173 BOLT; BRKT TO BODY
4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ> 02.559 (D) M8X25 FLANGE 		0-28680-825-0 03 1 0502-0601 ● ● ● ● ●
47 09.173 BOLT; BRKT TO BODY
4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ> 06.216 (D) M8X25 FLANGE THA 		0-28650-825-0 03 1 0602-0609 ● ● ● ● ●
47 09.173 BOLT; BRKT TO BODY
4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ>, 4JJ1-TCX ENG<LS0> 06.216 (D) M8X25 FLANGE THA 		0-28650-825-0 03 1 0610-0709 ● ● ● ● ●
47 09.173 BOLT; BRKT TO BODY
4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ>, 4JJ1-TCX ENG<LS0> COOLER WO/HEATER<C65> 06.216 (D) M8X25 FLANGE THA 		0-28650-825-0 03 1 0710- ● ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
