◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 50982 - TFR/S(CHEVROLET)THAI ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-45 - HEATER PIPING ▶
8-45 — HEATER PIPING (#73701) — 39 parça

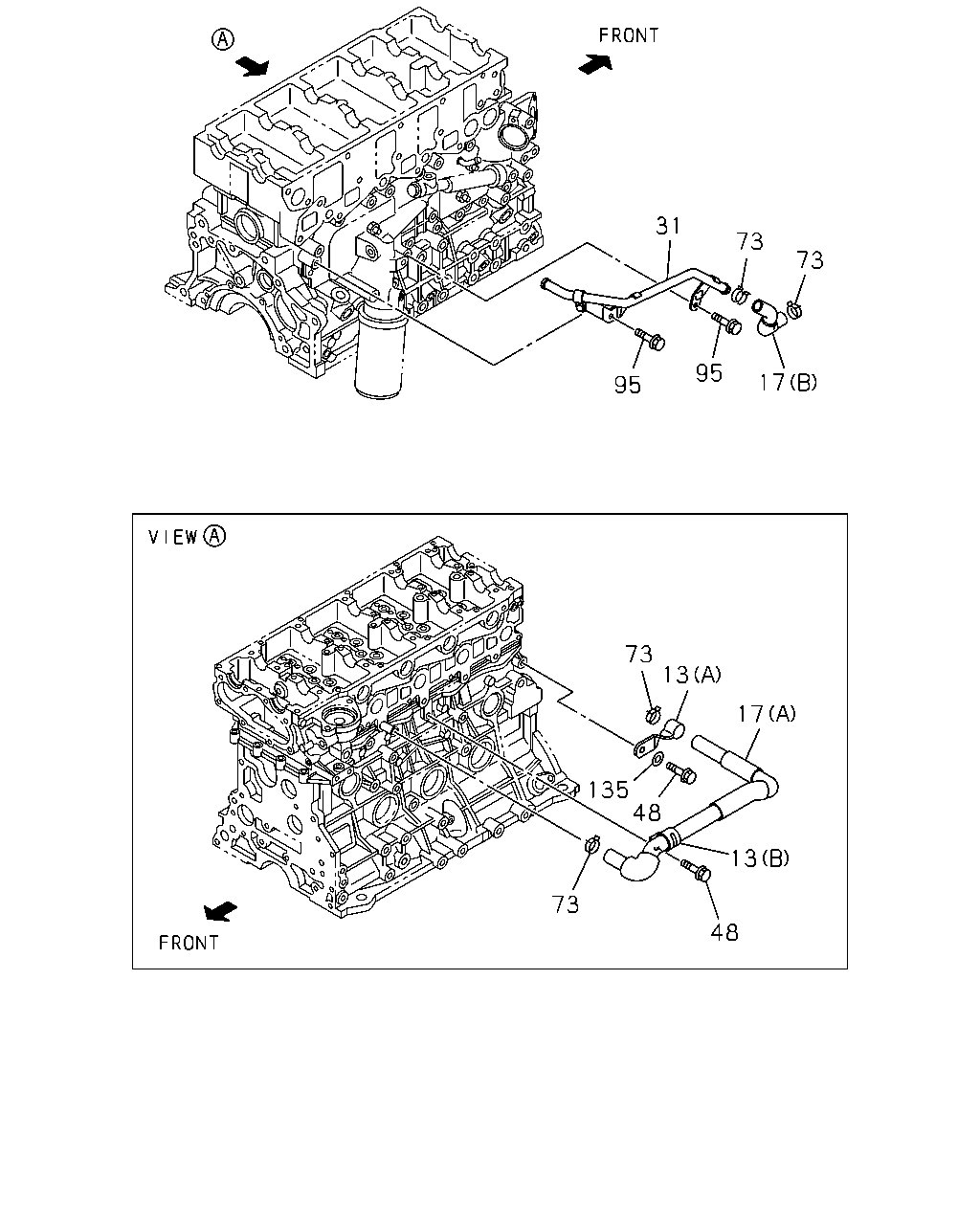

çizim 118167
31 73 73 95 17 95 73 13 17 135 48 13 73 48
BalonParca AdiParca NoAdetTipApplied Date A B C D E
13 08.846 CLIP; HTR HOSE
4JJ1-TCS ENG<LFB> POWER STEERING<N40> 02.559 (A) ID=25 L=54 		1-09700-392-0 01 1 0410-0501 ● ● ● ●
13 08.846 CLIP; HTR HOSE
4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ> 02.559 (A) ID=25 L=54 		1-09700-392-0 01 1 0502-0609 ● ● ● ● ●
13 08.846 CLIP; HTR HOSE
4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ>, 4JJ1-TCX ENG<LS0> 02.559 (A) ID=25 L=54 		1-09700-392-1 01 1 0610- ● ● ● ● ●
13 08.846 CLIP; HTR HOSE
4JJ1-TCS ENG<LFB> POWER STEERING<N40> 02.559 (B) ID=24 H=40 L=24 		1-09701-243-0 01 1 0410-0501 ● ● ● ●
13 08.846 CLIP; HTR HOSE
4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ> 02.559 (B) ID=24 H=40 L=24 		1-09701-243-0 01 1 0502-0609 ● ● ● ● ●
13 08.846 CLIP; HTR HOSE
4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ>, 4JJ1-TCX ENG<LS0> 02.559 (B) ID=24 H=40 L=24 THA 		1-09701-243-1 01 1 0610- ● ● ● ● ●
17 08.846 HOSE; WATER,BYPASS
4JJ1-TCS ENG<LFB> A/T 4 SPEED-JATCO<RMK> (A) THA 		8-97383-552-0 01 1 0410-0501 ● ● ● ●
17 08.846 HOSE; WATER,BYPASS
4JJ1-TCS ENG<LFB> A/T 4 SPEED-JATCO<RMK> POWER STEERING<N40> (A) THA 		8-97383-552-0 01 1 0502-0609 ● ●
17 08.846 HOSE; WATER,BYPASS
4JJ1-TCS ENG<LFB> A/T 4 SPEED-JATCO<RMK> (A) THA 		8-97383-552-0 01 1 0502-0609 ● ●
17 08.846 HOSE; WATER,BYPASS
4JJ1-TCS ENG<LFB> A/T 4 SPEED-JATCO<RMK> POWER STEERING<N40> (A) THA 		8-98036-953-0 01 1 0610- ● ●
17 08.846 HOSE; WATER,BYPASS
4JJ1-TCS ENG<LFB> A/T 4 SPEED-JATCO<RMK> (A) THA 		8-98036-953-0 01 1 0610- ● ●
17 08.846 HOSE; WATER,BYPASS
4JJ1-TCS ENG<LFB> M/T MUA 5 SPEED 5G<RSP> (A) THA 		8-97375-188-1 01 1 0410-0501 ● ● ● ●
17 08.846 HOSE; WATER,BYPASS
4JJ1-TCS ENG<LFB> M/T MUA 5 SPEED 5G<RSP> (A) THA 		8-97375-188-1 01 1 0502-0508 ● ● ● ●
17 08.846 HOSE; WATER,BYPASS
4JK1-TCS ENG<LKZ> M/T MUA 5 SPEED 5H<MWQ> (A) THA 		8-97375-188-1 01 1 0502-0508 ● ●
17 08.846 HOSE; WATER,BYPASS
4JK1-TCS ENG<LKZ> (A) THA 		8-97375-188-1 01 1 0502-0508 ●
17 08.846 HOSE; WATER,BYPASS
4JK1-TCS ENG<LKZ> M/T MUA 5 SPEED 5H<MWQ> (A) THA 		8-97375-188-1 01 1 0509-0609 ● ● ●
17 08.846 HOSE; WATER,BYPASS
4JJ1-TCS ENG<LFB> M/T MUA 5 SPEED 5G<RSP> (A) THA 		8-97375-188-1 01 1 0509-0609 ● ● ● ●
17 08.846 HOSE; WATER,BYPASS
4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ>, 4JJ1-TCX ENG<LS0> 03.163 (B) THA 		8-98031-860-0 01 1 0610- ● ● ● ● ●
17 08.846 HOSE; WATER,BYPASS
4JJ1-TCS ENG<LFB> POWER STEERING<N40> (B) THA 		8-97375-189-1 01 1 0410-0501 ● ● ● ●
17 08.846 HOSE; WATER,BYPASS
4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ> (B) THA 		8-97375-189-1 01 1 0502-0609 ● ● ● ● ●
17 08.846 HOSE; WATER,BYPASS
4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ> M/T MUA 5 SPEED 5H<MWQ> (A) THA 		8-98036-848-0 01 1 0610-1109 ● ● ● ● ●
17 08.846 HOSE; WATER,BYPASS
4JJ1-TCX ENG<LS0> (A) THA 		8-98036-848-0 01 1 0610-1109 ●
17 08.846 HOSE; WATER,BYPASS
4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ> (A) THA 		8-98036-848-0 01 1 1110- ● ● ● ● ●
31 08.846 PIPE; BYPASS,HTR
4JJ1-TCS ENG<LFB> POWER STEERING<N40> THA 		8-97375-042-0 01 1 0410-0501 ● ● ● ●
31 08.846 PIPE; BYPASS,HTR
4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ> THA 		8-97375-042-0 01 1 0502-0609 ● ● ● ● ●
31 08.846 PIPE; BYPASS,HTR
4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ> THA 		8-98025-351-0 01 1 0610-1007 ● ● ● ● ●
31 08.846 PIPE; BYPASS,HTR
4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ>, 4JJ1-TCX ENG<LS0> THA 		8-98025-351-0 01 1 1008- ● ● ● ● ●
48 09.262 BOLT; CLIP FIX
4JJ1-TCS ENG<LFB> POWER STEERING<N40> 02.343 M8X12 FLANGE THA 		0-28050-812-0 02 1 0410-0501 ● ● ● ●
48 09.262 BOLT; CLIP FIX
4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ> 02.343 M8X12 FLANGE THA 		0-28050-812-0 02 1 0502-0609 ● ● ● ● ●
48 09.262 BOLT; CLIP FIX
4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ>, 4JJ1-TCX ENG<LS0> 02.343 M8X12 FLANGE THA 		0-28050-812-0 02 1 0610- ● ● ● ● ●
73 08.846 CLIP; HTR HOSE
4JJ1-TCS ENG<LFB> POWER STEERING<N40> ID=20.8 THA 		8-97944-127-0 04 1 0410-0501 ● ● ● ●
73 08.846 CLIP; HTR HOSE
4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ> ID=20.8 THA 		8-97944-127-0 04 1 0502-0609 ● ● ● ● ●
73 08.846 CLIP; HTR HOSE
4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ>, 4JJ1-TCX ENG<LS0> ID=20.8 THA 		8-97944-127-0 04 1 0610- ● ● ● ● ●
95 08.866 BOLT; BYPASS PIPE
4JJ1-TCS ENG<LFB> POWER STEERING<N40> 02.343 M8X16 FLANGE THA 		0-28050-816-0 02 1 0410-0501 ● ● ● ●
95 08.866 BOLT; BYPASS PIPE
4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ> 02.343 M8X16 FLANGE THA 		0-28050-816-0 02 1 0502-1007 ● ● ● ● ●
95 08.866 BOLT; BYPASS PIPE
4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ>, 4JJ1-TCX ENG<LS0> 02.343 M8X16 FLANGE THA 		0-28050-816-0 02 1 1008- ● ● ● ● ●
135 08.846 WASHER; PL
4JJ1-TCS ENG<LFB> POWER STEERING<N40> 03.417 ID=8.4 OD=16 THA 		0-91610-508-0 01 1 0410-0501 ● ● ● ●
135 08.846 WASHER; PL
4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ> 03.417 ID=8.4 OD=16 THA 		0-91610-508-0 01 1 0502-0609 ● ● ● ● ●
135 08.846 WASHER; PL
4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ>, 4JJ1-TCX ENG<LS0> 03.417 ID=8.4 OD=16 THA 		0-91610-508-0 01 1 0610- ● ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
