◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXZ ▶ 10796 - EXZ LHD FUEL TANK 400L ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-08 - CLUTCH MASTER CYLINDER ▶
2-08 — CLUTCH MASTER CYLINDER (#7370) — 22 parça

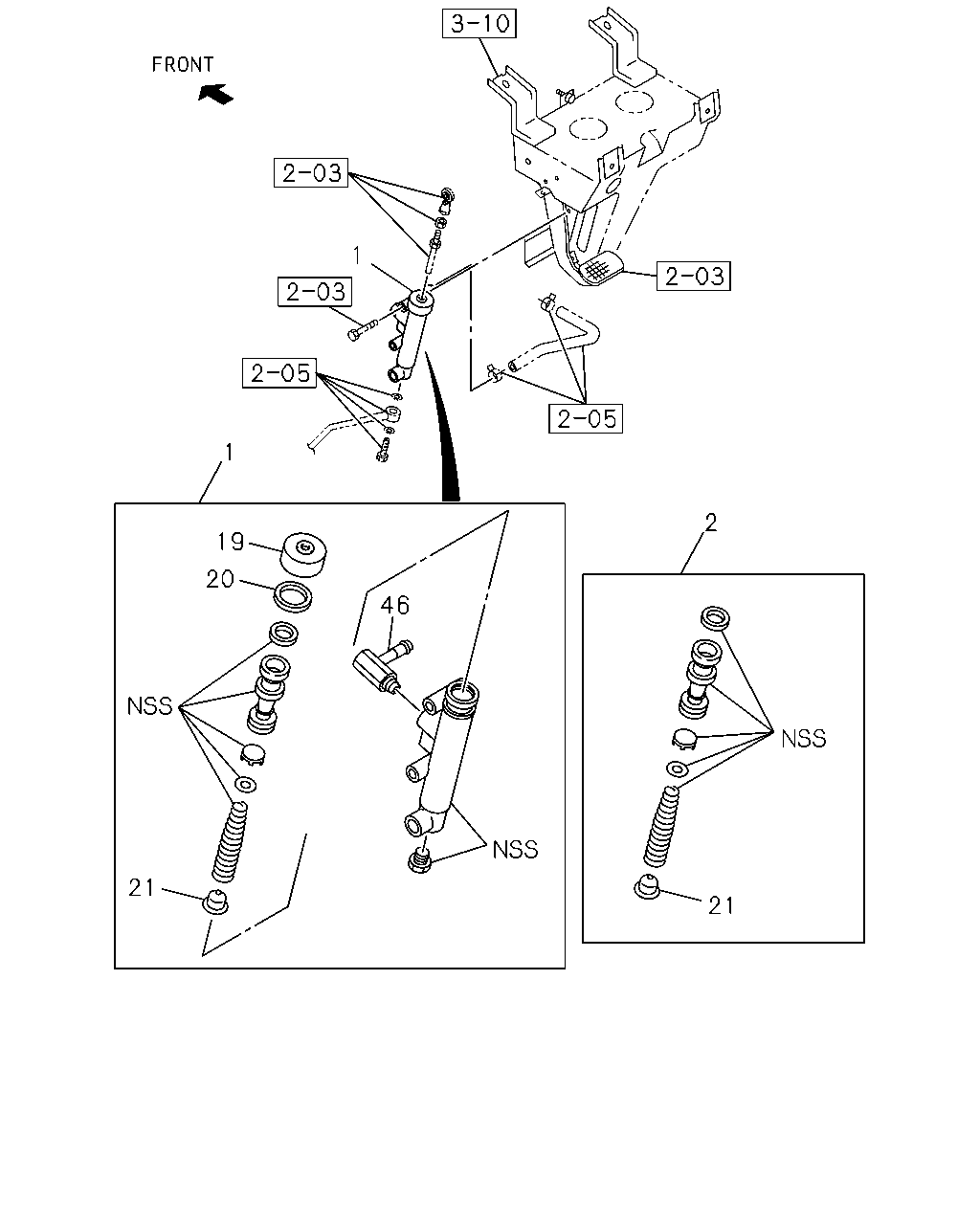

çizim 41030
1 1 2 19 20 46 21 21
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 CYLINDER ASM; CLUTCH MASTER
TRANSMISSION-ZF 16S221 OD(Y1U) 		1-47500-241-3 01 1 9812-9901 ●
1 CYLINDER ASM; CLUTCH MASTER
TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N),TRANSMISSION-ZF 8S151 OD(Y3N) CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) 		1-47500-241-3 01 1 9902-9904 ● ●
1 CYLINDER ASM; CLUTCH MASTER
MJA7U M/T(X6G),TRANSMISSION-ZF 16S221 OD(Y1U), TRANSMISSION-ZF 16S151 OD(Y2N),TRANSMISSION-ZF 8S151 OD(Y3N) CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) 		1-47500-241-3 01 1 9905- ● ●
1 CYLINDER ASM; CLUTCH MASTER
MJA7U M/T(X6G),TRANSMISSION-FULLER RTLO149 13(Y3Q),TRANSMISSION-FULLER RTLO169 13(Y3R) 		1-47500-239-2 01 1 9905- ● ● ● ●
1 CYLINDER ASM; CLUTCH MASTER
TRANSMISSION-ZF 16S221 OD(Y1U) CLUTCH-15.5" TWIN PLATE STRAP DRIVE PULL TYPE(TGE) 		1-47500-247-1 01 1 9902- ●
2 REPAIR KIT; CLU M/CYL
TRANSMISSION-ZF 16S221 OD(Y1U) 		1-47550-046-0 01 1 9812-9901 ●
2 REPAIR KIT; CLU M/CYL
TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N),TRANSMISSION-ZF 8S151 OD(Y3N) CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) 		1-47550-046-0 01 1 9902-9904 ● ●
2 REPAIR KIT; CLU M/CYL
MJA7U M/T(X6G),TRANSMISSION-ZF 16S221 OD(Y1U), TRANSMISSION-ZF 16S151 OD(Y2N),TRANSMISSION-ZF 8S151 OD(Y3N) CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) 		1-47550-046-0 01 1 9905- ● ●
2 REPAIR KIT; CLU M/CYL
MJA7U M/T(X6G),TRANSMISSION-FULLER RTLO149 13(Y3Q),TRANSMISSION-FULLER RTLO169 13(Y3R) 		1-85572-010-0 01 1 9905- ● ● ● ●
2 REPAIR KIT; CLU M/CYL
TRANSMISSION-ZF 16S221 OD(Y1U) CLUTCH-15.5" TWIN PLATE STRAP DRIVE PULL TYPE(TGE) 		1-47550-048-0 01 1 9902- ●
19 BOOT; CLU M/CYL
TRANSMISSION-ZF 16S221 OD(Y1U) 		1-47545-011-0 01 1 9812-9901 ●
19 BOOT; CLU M/CYL
TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N),TRANSMISSION-ZF 8S151 OD(Y3N) 		1-47545-011-0 01 1 9902- ● ●
19 BOOT; CLU M/CYL
MJA7U M/T(X6G),TRANSMISSION-FULLER RTLO149 13(Y3Q),TRANSMISSION-FULLER RTLO169 13(Y3R) 		9-47545-032-0 01 1 9905- ● ● ● ●
20 RING; SNAP,BODY
TRANSMISSION-ZF 16S221 OD(Y1U) 		1-47515-009-0 01 1 9812-9901 ●
20 RING; SNAP,BODY
TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N),TRANSMISSION-ZF 8S151 OD(Y3N) 		1-47515-009-0 01 1 9902- ● ●
20 RING; SNAP,BODY
MJA7U M/T(X6G),TRANSMISSION-FULLER RTLO149 13(Y3Q),TRANSMISSION-FULLER RTLO169 13(Y3R) OD=26.9 		9-09180-125-0 01 1 9905- ● ● ● ●
21 VALVE; CHECK
TRANSMISSION-ZF 16S221 OD(Y1U) 		1-47565-004-0 01 1 9812-9901 ●
21 VALVE; CHECK
TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N),TRANSMISSION-ZF 8S151 OD(Y3N) 		1-47565-004-0 01 1 9902-9904 ● ●
21 VALVE; CHECK 1-47565-004-0 01 1 9905- ● ● ● ●
46 CONNECTOR; PIPE
TRANSMISSION-ZF 16S221 OD(Y1U) 		1-47517-003-0 01 1 9812-9901 ●
46 CONNECTOR; PIPE
TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N),TRANSMISSION-ZF 8S151 OD(Y3N) 		1-47517-003-0 01 1 9902- ● ●
46 CONNECTOR; PIPE
MJA7U M/T(X6G),TRANSMISSION-FULLER RTLO149 13(Y3Q),TRANSMISSION-FULLER RTLO169 13(Y3R) 		1-47559-016-0 01 1 9905- ● ● ● ●
