2-36 — MANUAL TRANSMISSION CONT LINK AND CABLE (#737) — 104 parça

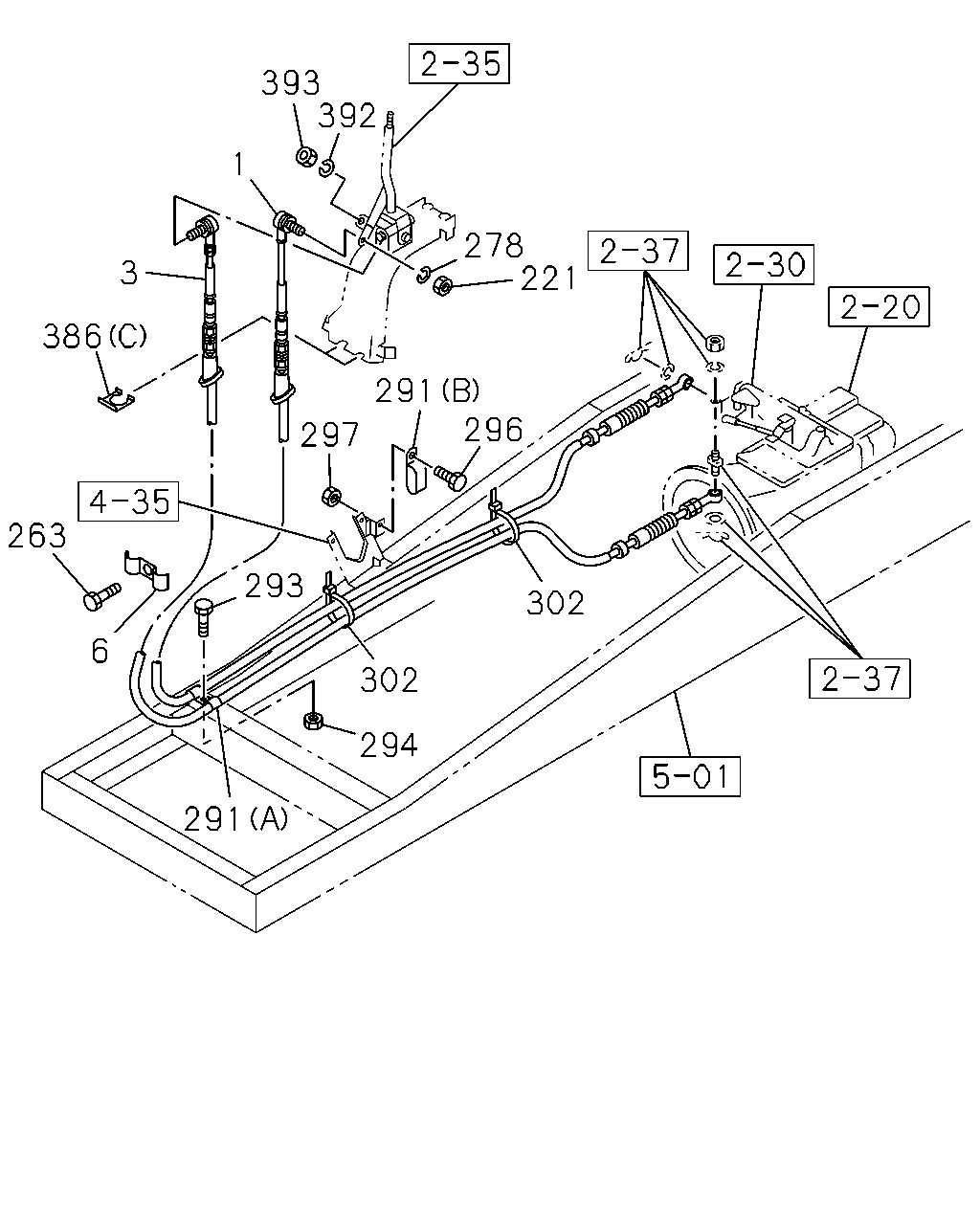

çizim 94855
393 392 1 278 221 3 386 291 296 297 263 293 302 6 302 294 291
BalonParca AdiParca NoAdetTipApplied Date A B C
1 CABLE; SHIFT,TRANS CONT
6SA1 STD ENG(06L) L=3425 		1-33660-536-3 01 1 9204- ●
1 CABLE; SHIFT,TRANS CONT
6SA1TC ENG(28L) L=3418 		1-33670-126-0 01 1 9204- ●
1 CABLE; SHIFT,TRANS CONT
L=3418 		1-33670-126-0 01 1 9204- ●
1 CABLE; SHIFT,TRANS CONT
L=3302 		1-33670-757-0 01 1 9505- ●
3 CABLE; SELECT,TRANS CONT
6SA1 STD ENG(06L) L=3355 		1-33660-537-3 01 1 9204- ●
3 CABLE; SELECT,TRANS CONT
6SA1TC ENG(28L) L=3355 		1-33670-127-1 01 1 9204- ●
3 CABLE; SELECT,TRANS CONT
L=3355 		1-33670-127-1 01 1 9204- ●
3 CABLE; SELECT,TRANS CONT
L=3254 		1-33670-495-0 01 1 9505- ●
6 CLIP; CABLE
ID=11 & 11 L=17.5 & 17.5 		1-09700-739-0 01 1 9204- ● ● ●
221 NUT; SHIFT WIRE TO LEVER
M10 		9-09110-410-0 01 1 9204- ● ●
221 NUT; SHIFT WIRE TO LEVER
M8 		9-09110-408-0 01 1 9505- ●
263 BOLT; CLIP,TRANS CONT WIRE
M8X16 W/LK&PL WASHER 		1-09980-498-0 01 1 9204- ● ● ●
278 WASHER; LK,SHIFT WIRE
ID=10.2 		9-09150-510-0 01 1 9204- ● ●
278 WASHER; LK,SHIFT WIRE
ID=8.2 		9-09150-508-0 01 1 9505- ●
291 CLIP; SHIFT TO SELECT,FRAME
(A) ID=11 & 11 L=17.5 & 17.5 		1-09700-739-0 01 1 9405- ● ● ●
291 CLIP; SHIFT TO SELECT,FRAME
(B) 		1-09701-100-3 01 1 9505- ●
293 BOLT; CLIP,SHIFT TO SELECT
M8X18 FLANGE 		0-28080-818-0 01 1 9204-9204 ●
293 BOLT; CLIP,SHIFT TO SELECT
M8X20 FLANGE 		0-28080-820-0 01 1 9205- ● ● ●
294 NUT; CLIP
M8 		9-09110-408-0 01 1 9405- ● ● ●
296 BOLT; CLIP,SHIFT & SELECT
M8X20 FLANGE 		0-28080-820-0 01 1 9505- ●
297 NUT; CLIP
M8 		9-09110-408-0 01 1 9505- ●
302 CLIP; BAND
L=140 		5-09707-031-0 02 1 9405- ● ● ●
386 CLIP; CONT CABLE & TUBE
(A) L=140 		5-09707-031-0 04 1 9204- ●
386 CLIP; CONT CABLE & TUBE
(B) ID=11 L=20 		9-09525-032-0 02 1 9204- ● ●
386 CLIP; CONT CABLE & TUBE
(B) ID=13 L=20 		9-09525-232-0 02 1 9204- ● ●
386 CLIP; CONT CABLE & TUBE
(C) 		1-09700-966-0 02 1 9204- ● ● ●
386 CLIP; CONT CABLE & TUBE
(A) L=140 		5-09707-031-0 08 1 9209- ●
392 WASHER; LK,SELECT CABLE,CAB
ID=6.1 		9-09150-506-0 01 1 9204- ● ●
392 WASHER; LK,SELECT CABLE,CAB
ID=8.2 		9-09150-508-0 01 1 9505- ●
393 NUT; SELECT CABLE,CAB
M6 		9-09111-406-0 01 1 9204- ● ●
393 NUT; SELECT CABLE,CAB
M8 		9-09110-408-0 01 1 9505- ●

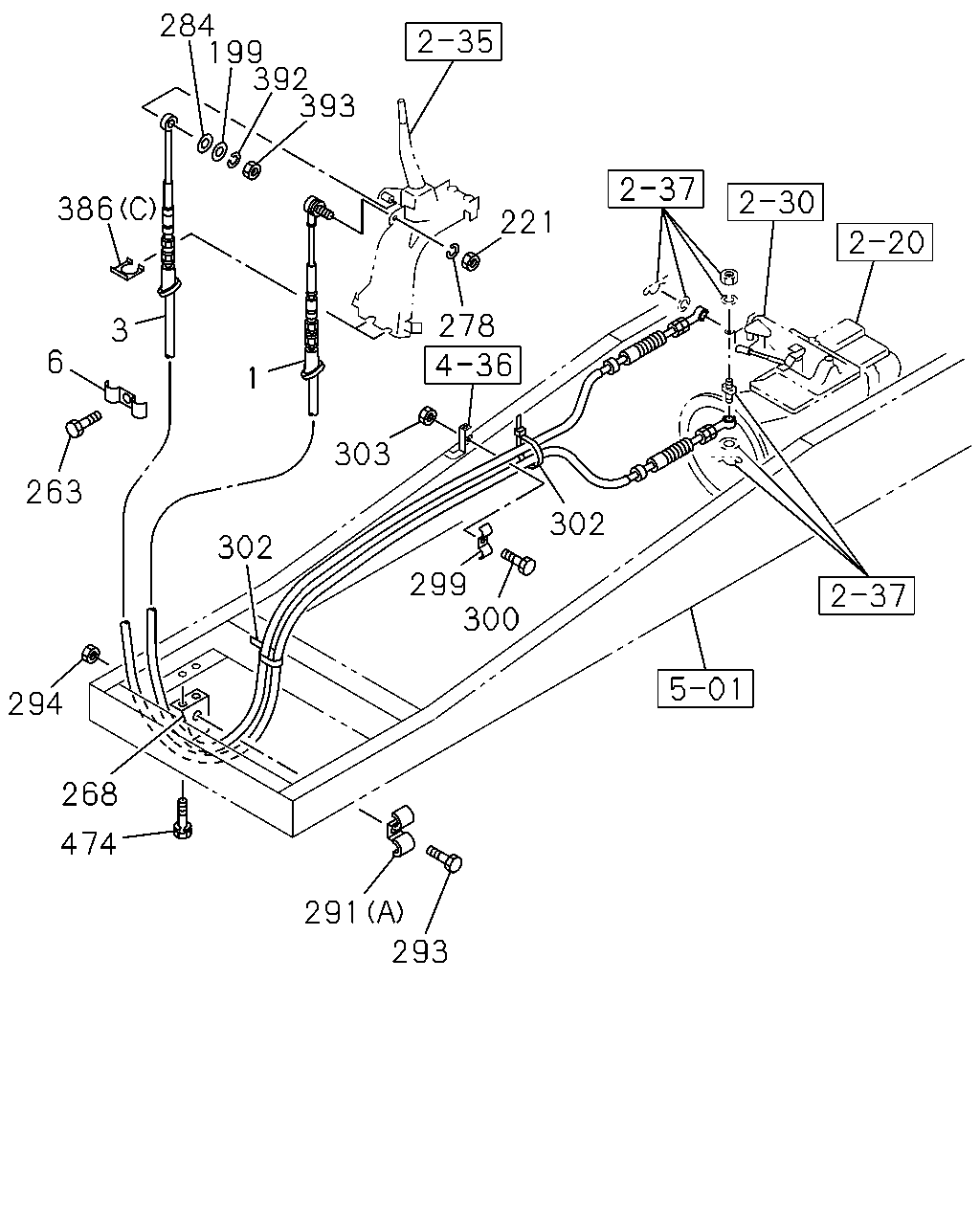

çizim 95436
284 199 392 393 386 221 278 3 6 1 303 263 302 302 299 300 294 268 474 291 293
BalonParca AdiParca NoAdetTipApplied Date A B C
1 CABLE; SHIFT,TRANS CONT
6SA1 STD ENG(06L) L=3425 		1-33660-536-3 01 1 9204- ●
1 CABLE; SHIFT,TRANS CONT
6SA1TC ENG(28L) L=3418 		1-33670-126-0 01 1 9204- ●
1 CABLE; SHIFT,TRANS CONT
L=3418 		1-33670-126-0 01 1 9204- ●
1 CABLE; SHIFT,TRANS CONT
L=3302 		1-33670-757-0 01 1 9505- ●
3 CABLE; SELECT,TRANS CONT
6SA1 STD ENG(06L) L=3355 		1-33660-537-3 01 1 9204- ●
3 CABLE; SELECT,TRANS CONT
6SA1TC ENG(28L) L=3355 		1-33670-127-1 01 1 9204- ●
3 CABLE; SELECT,TRANS CONT
L=3355 		1-33670-127-1 01 1 9204- ●
3 CABLE; SELECT,TRANS CONT
L=3254 		1-33670-495-0 01 1 9505- ●
6 CLIP; CABLE
ID=11 & 11 L=17.5 & 17.5 		1-09700-739-0 01 1 9204- ● ● ●
199 WASHER; PL,SELECT
ID=6.4 OD=14 		9-09164-606-0 01 1 9204- ● ●
221 NUT; SHIFT WIRE TO LEVER
M10 		9-09110-410-0 01 1 9204- ● ●
221 NUT; SHIFT WIRE TO LEVER
M8 		9-09110-408-0 01 1 9505- ●
263 BOLT; CLIP,TRANS CONT WIRE
M8X16 W/LK&PL WASHER 		1-09980-498-0 01 1 9204- ● ● ●
268 BRACKET; LINK ROD 1-46147-049-1 01 1 9204-9206 ●
268 BRACKET; LINK ROD 1-46147-135-1 01 1 9207- ● ●
278 WASHER; LK,SHIFT WIRE
ID=10.2 		9-09150-510-0 01 1 9204- ● ●
278 WASHER; LK,SHIFT WIRE
ID=8.2 		9-09150-508-0 01 1 9505- ●
284 WASHER; WAVE,SELECT CABLE,CAB 8-94242-854-0 01 1 9204- ● ●
291 CLIP; SHIFT TO SELECT,FRAME
(A) ID=11 & 11 L=17.5 & 17.5 		1-09700-739-0 01 1 9405- ● ● ●
291 CLIP; SHIFT TO SELECT,FRAME
(B) 		1-09701-100-3 01 1 9505- ●
293 BOLT; CLIP,SHIFT TO SELECT
M8X18 FLANGE 		0-28080-818-0 01 1 9204-9204 ●
293 BOLT; CLIP,SHIFT TO SELECT
M8X20 FLANGE 		0-28080-820-0 01 1 9205- ● ● ●
294 NUT; CLIP
M8 		9-09110-408-0 01 1 9405- ● ● ●
299 CLIP; WIRE,POWER ASSISTOR BRKT
ID=11 & 11 L=17.5 & 17.5 		1-09700-739-0 01 1 9204- ● ●
300 BOLT; CLIP
M8X18 		0-28010-818-0 01 1 9204-9204 ●
300 BOLT; CLIP
M8X20 FLANGE 		0-28080-820-0 01 1 9205- ● ●
302 CLIP; BAND
L=140 		5-09707-031-0 02 1 9405- ● ● ●
303 NUT; CLIP
M8 		9-09110-408-0 01 1 9204- ● ●
386 CLIP; CONT CABLE & TUBE
(A) L=140 		5-09707-031-0 04 1 9204- ●
386 CLIP; CONT CABLE & TUBE
(B) ID=11 L=20 		9-09525-032-0 02 1 9204- ● ●
386 CLIP; CONT CABLE & TUBE
(B) ID=13 L=20 		9-09525-232-0 02 1 9204- ● ●
386 CLIP; CONT CABLE & TUBE
(C) 		1-09700-966-0 02 1 9204- ● ● ●
386 CLIP; CONT CABLE & TUBE
(A) L=140 		5-09707-031-0 08 1 9209- ●
392 WASHER; LK,SELECT CABLE,CAB
ID=6.1 		9-09150-506-0 01 1 9204- ● ●
392 WASHER; LK,SELECT CABLE,CAB
ID=8.2 		9-09150-508-0 01 1 9505- ●
393 NUT; SELECT CABLE,CAB
M6 		9-09111-406-0 01 1 9204- ● ●
393 NUT; SELECT CABLE,CAB
M8 		9-09110-408-0 01 1 9505- ●
474 BOLT; BRKT
M8X25 FLANGE 		0-28010-825-0 02 1 9204-9204 ●
474 BOLT; BRKT
M8X25 FLANGE 		0-28080-825-0 02 1 9205- ● ●

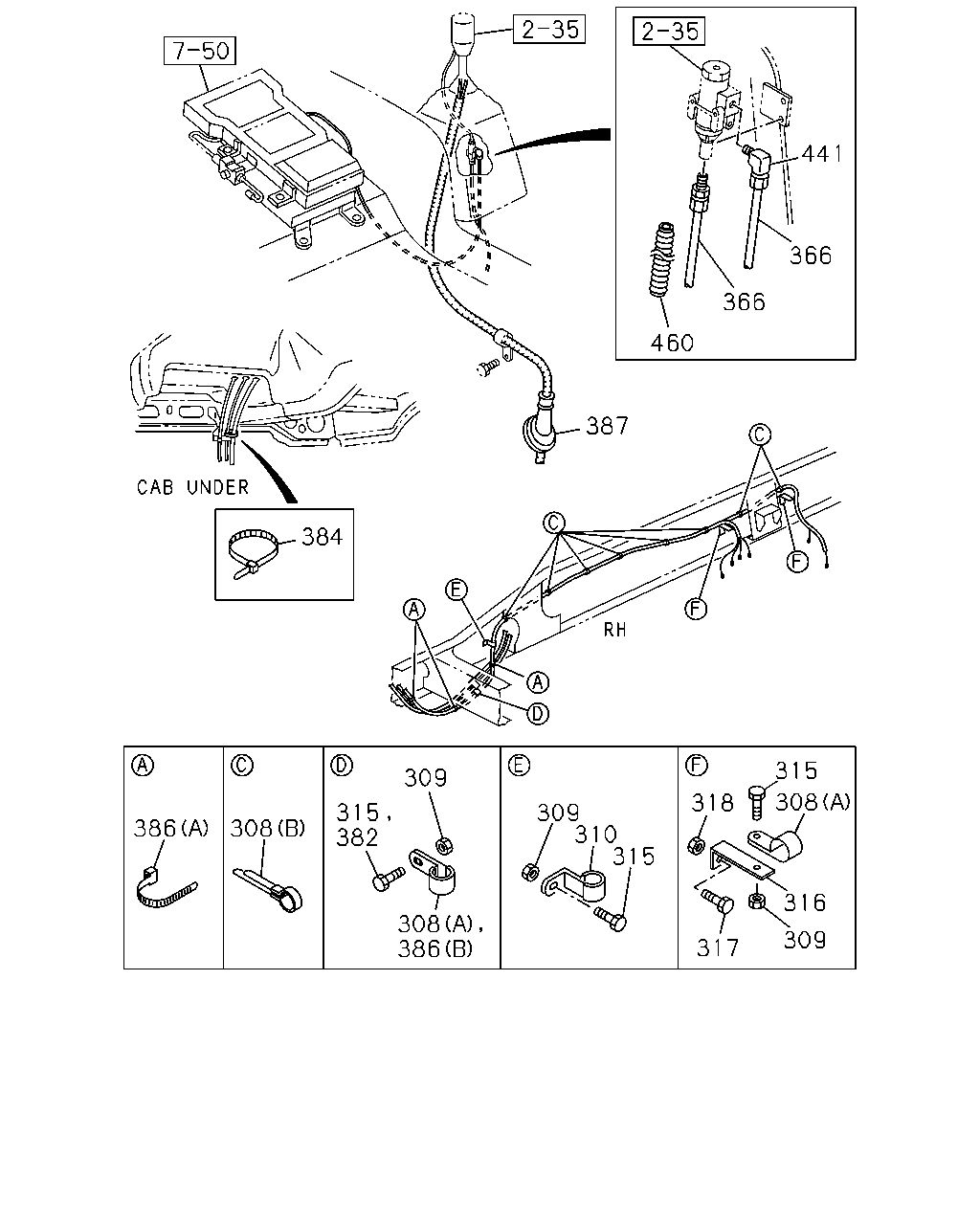

çizim 95645
441 366 366 460 387 384 315 309 308 318 315 382 309 310 315 386 308 316 308 386 309 317
BalonParca AdiParca NoAdetTipApplied Date A B C
308 CLIP; PIPE
(A) ID=11 L=20 		9-09525-035-0 02 1 9204- ● ●
308 CLIP; PIPE
(B) ID=14 L=44 		9-09917-427-0 06 1 9204- ● ●
308 CLIP; PIPE
(B) ID=11 L=41 		1-09700-403-0 02 1 9209- ●
308 CLIP; PIPE
(A) ID=16 L=20 		9-09525-535-0 01 1 9209- ●
309 NUT; PIPE CLIP
M8 		9-09110-408-0 01 1 9204- ●
309 NUT; PIPE CLIP
M8 		9-09110-408-0 02 1 9204- ● ●
309 NUT; PIPE CLIP
M8 		9-09110-408-0 02 1 9204- ●
310 CLIP; TUBE
ID=11 H=20 L=20 		5-09700-351-0 01 1 9204- ●
310 CLIP; TUBE
ID=15 H=24 L=20 		1-09700-606-0 01 1 9209- ●
315 BOLT; PIPE CLIP
M8X20 W/LK WASHER 		9-01900-820-0 01 1 9204-9204 ●
315 BOLT; PIPE CLIP
M8X20 FLANGE 		0-28080-820-0 01 1 9205- ● ●
315 BOLT; PIPE CLIP
M8X25 W/LK WASHER 		9-01900-825-0 02 1 9204-9204 ●
315 BOLT; PIPE CLIP
M8X25 FLANGE 		0-28080-825-0 01 1 9205-9208 ●
315 BOLT; PIPE CLIP
M8X25 FLANGE 		0-28080-825-0 01 1 9209- ● ●
315 BOLT; PIPE CLIP
M8X25 FLANGE 		0-28080-825-0 01 1 9209- ●
315 BOLT; PIPE CLIP
M8X25 FLANGE 		0-28080-825-0 02 1 9209- ●
316 BRACKET; CLIP 1-34656-009-0 01 1 9204- ●
316 BRACKET; CLIP 1-34656-009-0 02 1 9209- ●
317 BOLT; BRKT,SIDE MBR
M8X25 W/LK WASHER 		9-01900-825-0 01 1 9204-9204 ●
317 BOLT; BRKT,SIDE MBR
M8X25 FLANGE 		0-28080-825-0 01 1 9205- ●
317 BOLT; BRKT,SIDE MBR
M8X25 FLANGE 		0-28080-825-0 02 1 9209- ●
318 NUT; BRKT,SIDE MBR
M8 		9-09110-408-0 01 1 9204- ●
318 NUT; BRKT,SIDE MBR
M8 		9-09110-408-0 02 1 9209- ●
366 TUBE; NYLON,FULLER CONT
BLACK OD=1/8" L=30000 		1-09368-256-0 AR 1 9204- ● ●
382 SCREW; CLIP,FULLER
M5X10 W/LK+PL WASHER 		9-03920-510-0 02 1 9204- ● ●
384 CLIP; BAND,CONT TUBE
L=100 		5-09707-036-0 01 1 9204- ● ●
386 CLIP; CONT CABLE & TUBE
(A) L=140 		5-09707-031-0 04 1 9204- ●
386 CLIP; CONT CABLE & TUBE
(B) ID=11 L=20 		9-09525-032-0 02 1 9204- ● ●
386 CLIP; CONT CABLE & TUBE
(B) ID=13 L=20 		9-09525-232-0 02 1 9204- ● ●
386 CLIP; CONT CABLE & TUBE
(C) 		1-09700-966-0 02 1 9204- ● ● ●
386 CLIP; CONT CABLE & TUBE
(A) L=140 		5-09707-031-0 08 1 9209- ●
387 GROMMET; CONT TUBE,FULLER 1-09333-126-0 01 1 9204- ● ●
441 CONNECTOR; NYLON TUBE 1-09660-563-0 01 1 9204- ● ●
460 TUBE; CORRUGATE
ID=7.4 L=2000 		1-83129-335-0 01 1 9209- ●
