Sayfa 8-28 - Isuzu EPC

8-28 — CHASSIS ELECTRICAL (#73699) — 136 parça

25 606 231 231 123

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
25	02.100 RELAY; TAIL LAMP 09.778 12V YAZAKI THA	8-97309-293-0	01	1	0404-0609	●	●	●	●	●
25	02.100 RELAY; TAIL LAMP 02.575 12V OMRON THA	8-98005-407-0	01	1	0509-	●	●	●	●	●
25	02.100 RELAY; TAIL LAMP 09.778 12V YAZAKI THA	8-97309-293-0	01	1	0710-	●	●	●	●	●
123	02.270 RELAY; HTR 03.670 12V YAZAKI THA	8-98146-834-0	01	1	0810-	●	●	●	●	●
123	02.270 RELAY; HTR 02.485 12V YAZAKI THA	8-97309-294-0	01	1	0404-0609	●	●	●	●	●
123	02.270 RELAY; HTR 02.510 12V OMRON THA	8-97125-441-1	01	1	0509-0809	●	●	●	●	●
123	02.270 RELAY; HTR 02.485 12V YAZAKI THA	8-97309-294-0	01	1	0710-0809	●	●	●	●	●
231	02.270 RELAY; HAZARD 4JH1-T ENG<L23> M/T MUA 5 SPEED 5G<RSP> 09.778 12V YAZAKI THA	8-97309-293-0	02	1	0404-0406	●	●	●
231	02.270 RELAY; HAZARD 4JH1-T ENG<L23> A/T 4 SPEED-JATCO<RMK> 4 WHEEL ANTI LOCK BRAKE<JE5> 09.778 12V YAZAKI THA	8-97309-293-0	02	1	0404-0406	●		●
231	02.270 RELAY; HAZARD 09.778 12V YAZAKI THA	8-97309-293-0	02	1	0404-0406				●	●
231	02.270 RELAY; HAZARD 4JH1-T ENG<L23> 09.778 12V YAZAKI THA	8-97309-293-0	02	1	0407-0409	●	●	●	●	●
606	02.510 RELAY; SPILL VLV 4JH1-T ENG<L23> M/T MUA 5 SPEED 5G<RSP> 09.778 12V YAZAKI THA	8-97309-293-0	01	1	0404-0406	●	●	●
606	02.510 RELAY; SPILL VLV 4JH1-T ENG<L23> A/T 4 SPEED-JATCO<RMK> 4 WHEEL ANTI LOCK BRAKE<JE5> 09.778 12V YAZAKI THA	8-97309-293-0	01	1	0404-0406	●		●
606	02.510 RELAY; SPILL VLV 09.778 12V YAZAKI THA	8-97309-293-0	01	1	0404-0406				●	●
606	02.510 RELAY; SPILL VLV 4JH1-T ENG<L23> 09.778 12V YAZAKI THA	8-97309-293-0	01	1	0407-0409	●	●	●	●	●

25 25 551 123 123

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
25	02.100 RELAY; TAIL LAMP 09.778 12V YAZAKI THA	8-97309-293-0	01	1	0404-0609	●	●	●	●	●
25	02.100 RELAY; TAIL LAMP 02.575 12V OMRON THA	8-98005-407-0	01	1	0509-	●	●	●	●	●
25	02.100 RELAY; TAIL LAMP 09.778 12V YAZAKI THA	8-97309-293-0	01	1	0710-	●	●	●	●	●
123	02.270 RELAY; HTR 03.670 12V YAZAKI THA	8-98146-834-0	01	1	0810-	●	●	●	●	●
123	02.270 RELAY; HTR 02.485 12V YAZAKI THA	8-97309-294-0	01	1	0404-0609	●	●	●	●	●
123	02.270 RELAY; HTR 02.510 12V OMRON THA	8-97125-441-1	01	1	0509-0809	●	●	●	●	●
123	02.270 RELAY; HTR 02.485 12V YAZAKI THA	8-97309-294-0	01	1	0710-0809	●	●	●	●	●
551	02.510 RELAY; TRANSMISSION 02.575 12V OMRON THA	8-98005-407-0	01	1	0610-	●	●	●	●	●
551	02.510 RELAY; TRANSMISSION 09.778 12V YAZAKI THA	8-97309-293-0	01	1	0710-	●	●	●	●	●

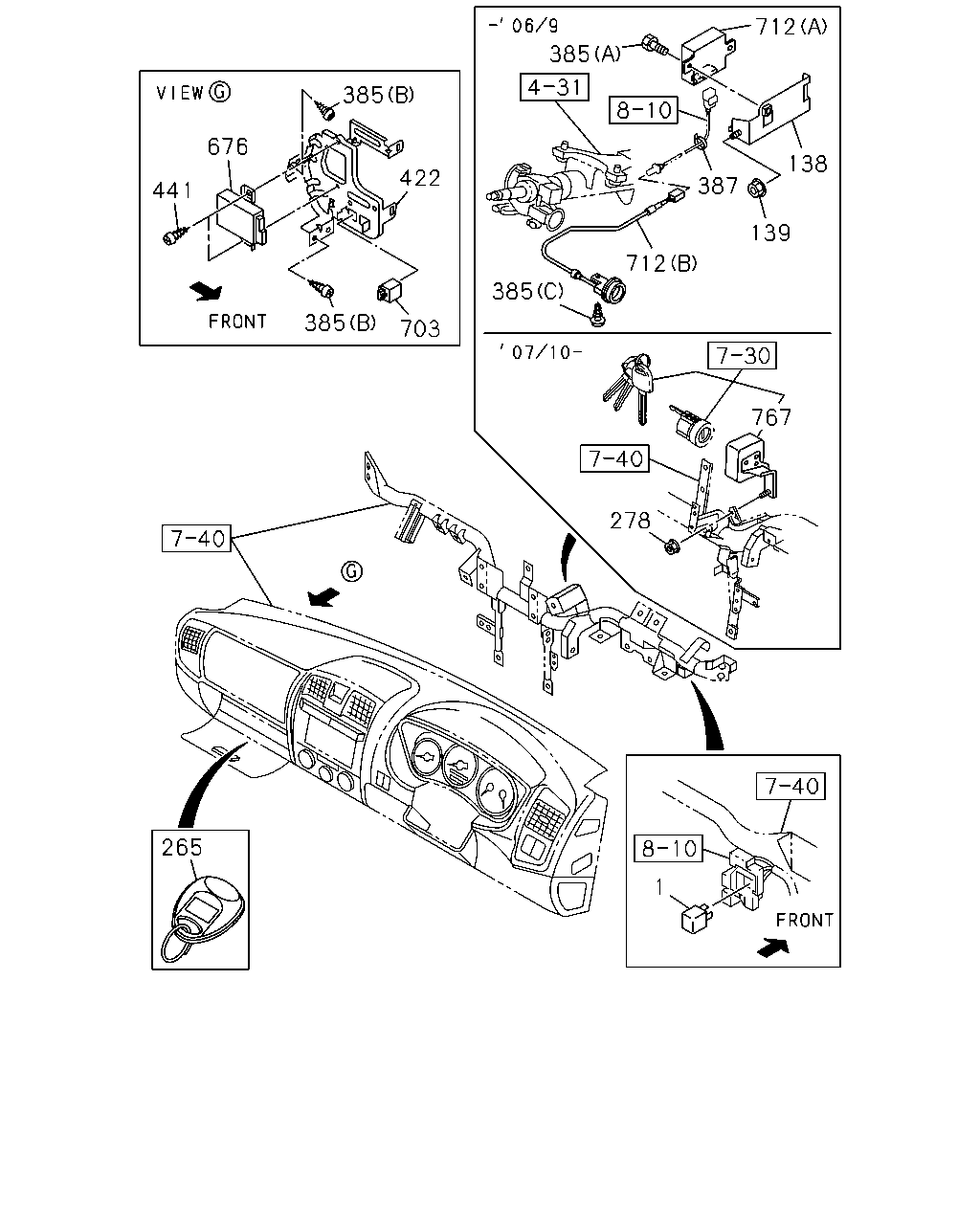

712 385 385 676 138 422 387 441 139 712 385 385 703 767 278 265 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	02.575 UNIT; FLASHER 12V DENSO THA	8-97912-779-0	01	1	0404-0510	●	●	●	●	●
1	02.575 UNIT; FLASHER 12V DENSO THA	8-98032-675-0	01	1	0511-1404	●	●	●	●	●
1	02.575 UNIT; FLASHER DENSO THA	8-97202-225-1	01	1	1405-	●	●	●	●	●
1	02.575 UNIT; FLASHER 4JJ1-TCS ENG<LFB> REMOTE CONT DOOR LOCK<AP5> 09.778 12V YAZAKI THA	8-97309-293-0	02	1	0410-0502	●		●
1	02.575 UNIT; FLASHER 09.778 12V YAZAKI THA	8-97309-293-0	02	1	0410-0502				●	●
1	02.575 UNIT; FLASHER 4JJ1-TCS ENG<LFB> REMOTE CONT DOOR LOCK<AP5> 12V OMRON THA	8-98005-407-0	02	1	0503-0508	●		●
1	02.575 UNIT; FLASHER 12V OMRON THA	8-98005-407-0	02	1	0503-0508				●	●
1	02.575 UNIT; FLASHER REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> 12V OMRON THA	8-98005-407-0	02	1	0509-0709	●		●
1	02.575 UNIT; FLASHER 12V OMRON THA	8-98005-407-0	02	1	0509-0709				●	●
138	02.810 BRACKET; ANTI THEFT CONT 4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ> IMMOBILIZER SYSTEM<7KC> THA	8-97357-768-0	01	1	0509-0609			●
138	02.810 BRACKET; ANTI THEFT CONT 4JJ1-TCS ENG<LFB> THA	8-97357-768-0	01	1	0509-0609					●
139	02.810 NUT; ANTI THEFT BRKT IMMOBILIZER SYSTEM<7KC> 01.062 M6 FLANGE THA	0-91180-106-0	01	1	0509-0609			●
139	02.810 NUT; ANTI THEFT BRKT 01.062 M6 FLANGE THA	0-91180-106-0	01	1	0509-0609					●
265	02.440 TRANSMITTER ASM; AUTO DOOR LOCK REMOTE CONT DOOR LOCK<AP5> THA	8-97378-442-0	01	1	0404-0709	●		●
265	02.440 TRANSMITTER ASM; AUTO DOOR LOCK THA	8-97378-442-0	01	1	0404-0709				●	●
278	03.415 NUT; CONT UNIT 4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ>, 4JJ1-TCX ENG<LS0> REMOTE CONT DOOR LOCK<AP5> 01.062 M6 FLANGE THA	0-91180-106-0	01	1	0710-	●		●	●	●
385	03.670 BOLT; CONT UNIT 16.085 (B) M5X16 TAPPING	9-09829-323-1	02	1	0404-0612	●	●	●	●	●
385	03.670 BOLT; CONT UNIT 08.083 (B) M5X16 TAPPING	8-98061-685-0	02	1	0701-1004	●	●	●	●	●
385	03.670 BOLT; CONT UNIT 08.083 (B) M5X16 TAPPING THA	8-98167-449-0	02	1	1005-	●	●	●	●	●
385	03.670 BOLT; CONT UNIT 4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ> IMMOBILIZER SYSTEM<7KC> 03.162 (A) M6X12 FLANGE THA	0-28050-612-0	01	1	0509-0609			●
385	03.670 BOLT; CONT UNIT 4JJ1-TCS ENG<LFB> 03.162 (A) M6X12 FLANGE THA	0-28050-612-0	01	1	0509-0609					●
385	03.670 BOLT; CONT UNIT 4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ> IMMOBILIZER SYSTEM<7KC> 02.819 (C) M4X12 W/LK&PL WASHER	9-03920-412-0	01	1	0509-0606			●
385	03.670 BOLT; CONT UNIT 4JJ1-TCS ENG<LFB> 02.819 (C) M4X12 W/LK&PL WASHER	9-03920-412-0	01	1	0509-0606					●
385	03.670 BOLT; CONT UNIT 4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ> IMMOBILIZER SYSTEM<7KC> 02.510 (C) M4X12 W/LK&PL WASHER THA	0-36230-412-0	01	1	0607-0609			●
385	03.670 BOLT; CONT UNIT 4JJ1-TCS ENG<LFB> 02.510 (C) M4X12 W/LK&PL WASHER THA	0-36230-412-0	01	1	0607-0609					●
385	03.670 BOLT; CONT UNIT 4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ> IMMOBILIZER SYSTEM<7KC> 02.510 (C) M4X12 W/LK&PL WASHER THA	0-36230-412-0	02	1	0610-			●
385	03.670 BOLT; CONT UNIT 4JJ1-TCS ENG<LFB>,4JJ1-TCX ENG<LS0> 02.510 (C) M4X12 W/LK&PL WASHER THA	0-36230-412-0	02	1	0610-					●
387	02.363 CLIP; BAND IMMOBILIZER SYSTEM<7KC> L=140 THA	8-97920-656-0	01	1	0509-			●
387	02.363 CLIP; BAND L=140 THA	8-97920-656-0	01	1	0509-					●
422	03.415 BRACKET; CONT UNIT THA	8-97316-473-1	01	1	0404-0404	●	●	●	●	●
422	03.415 BRACKET; CONT UNIT THA	8-97381-410-0	01	1	0405-	●	●	●	●	●
441	02.575 SCREW; CONT UNIT REMOTE CONT DOOR LOCK<AP5> 16.085 M5X16 TAPPING	9-09829-323-1	02	1	0404-0702	●		●
441	02.575 SCREW; CONT UNIT 16.085 M5X16 TAPPING	9-09829-323-1	02	1	0404-0702				●	●
441	02.575 SCREW; CONT UNIT REMOTE CONT DOOR LOCK<AP5> 08.083 M5X16 TAPPING	8-98061-685-0	02	1	0703-1003	●		●
441	02.575 SCREW; CONT UNIT 08.083 M5X16 TAPPING	8-98061-685-0	02	1	0703-1003				●	●
441	02.575 SCREW; CONT UNIT REMOTE CONT DOOR LOCK<AP5> 08.083 M5X16 TAPPING THA	8-98167-449-0	02	1	1004-	●		●
441	02.575 SCREW; CONT UNIT 08.083 M5X16 TAPPING THA	8-98167-449-0	02	1	1004-				●	●
676	07.450 CONTROL UNIT; KEYLESS ENTRY REMOTE CONT DOOR LOCK<AP5> THA	8-97361-705-0	01	1	0404-0709	●		●
676	07.450 CONTROL UNIT; KEYLESS ENTRY THA	8-97361-705-0	01	1	0404-0709				●	●
676	07.450 CONTROL UNIT; KEYLESS ENTRY 4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ> REMOTE CONT DOOR LOCK<AP5> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> THA	8-98053-168-0	01	1	0710-	●		●
676	07.450 CONTROL UNIT; KEYLESS ENTRY THA	8-98053-168-0	01	1	0710-				●	●
676	07.450 CONTROL UNIT; KEYLESS ENTRY 4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ> REMOTE CONT DOOR LOCK<AP5> EXC. REMOTE CONT DOOR LOCK W/ANTI THEF T<7KY> THA	8-98053-167-0	01	1	0710-	●		●
703	09.778 TIMER; DEFOGGER REAR DEFOGGER<C49> 12V	8-97301-600-0	01	1	0404-	●		●
703	09.778 TIMER; DEFOGGER 12V	8-97301-600-0	01	1	0404-				●	●
712	03.670 CONTROL UNIT; ANTI THEFT 4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ> IMMOBILIZER SYSTEM<7KC> 06.500 (B) THA	8-97251-755-0	01	1	0509-0609			●
712	03.670 CONTROL UNIT; ANTI THEFT 4JJ1-TCS ENG<LFB> 06.500 (B) THA	8-97251-755-0	01	1	0509-0609					●
712	03.670 CONTROL UNIT; ANTI THEFT 4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ> IMMOBILIZER SYSTEM<7KC> (C)	8-98008-412-0	01	1	0610-			●
712	03.670 CONTROL UNIT; ANTI THEFT 4JJ1-TCS ENG<LFB>,4JJ1-TCX ENG<LS0> (C)	8-98008-412-0	01	1	0610-					●
712	03.670 CONTROL UNIT; ANTI THEFT 4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ> IMMOBILIZER SYSTEM<7KC> (A) THA	8-97377-323-0	01	1	0509-0609			●
712	03.670 CONTROL UNIT; ANTI THEFT 4JJ1-TCS ENG<LFB> (A) THA	8-97377-323-0	01	1	0509-0609					●
767	07.450 RECEIVER ASM; KEYLESS ENTRY 4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ> REMOTE CONT DOOR LOCK<AP5> AUTO DOOR LOCK<AU4> THA	8-98053-170-2	01	1	0710-0809	●		●
767	07.450 RECEIVER ASM; KEYLESS ENTRY 4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ> THA	8-98053-170-2	01	1	0710-0809				●
767	07.450 RECEIVER ASM; KEYLESS ENTRY 4JJ1-TCS ENG<LFB>,4JJ1-TCX ENG<LS0> THA	8-98053-170-2	01	1	0710-0809					●
767	07.450 RECEIVER ASM; KEYLESS ENTRY 4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ> REMOTE CONT DOOR LOCK<AP5> AUTO DOOR LOCK<AU4> LOCK GLOVE BOX<A99> ANTI THEFT SYSTEM SPARE TIRE<8CF> THA	8-98053-170-2	01	1	0810-0910	●		●
767	07.450 RECEIVER ASM; KEYLESS ENTRY 4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ> REMOTE CONT DOOR LOCK<AP5> AUTO DOOR LOCK<AU4> LOCK GLOVE BOX<A99> IMMOBILIZER SYSTEM<7KC> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> EXC. ANTI THEFT SYSTEM SPARE TIRE<8CF> THA	8-98053-170-2	01	1	0810-0910			●
767	07.450 RECEIVER ASM; KEYLESS ENTRY 4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ> THA	8-98053-170-2	01	1	0810-0910				●
767	07.450 RECEIVER ASM; KEYLESS ENTRY 4JJ1-TCS ENG<LFB>,4JJ1-TCX ENG<LS0> THA	8-98053-170-2	01	1	0810-0910					●
767	07.450 RECEIVER ASM; KEYLESS ENTRY 4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ> REMOTE CONT DOOR LOCK<AP5> AUTO DOOR LOCK<AU4> THA	8-98053-170-2	01	1	0911-	●		●
767	07.450 RECEIVER ASM; KEYLESS ENTRY 4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ> THA	8-98053-170-2	01	1	0911-				●
767	07.450 RECEIVER ASM; KEYLESS ENTRY 4JJ1-TCS ENG<LFB>,4JJ1-TCX ENG<LS0> THA	8-98053-170-2	01	1	0911-					●

189 189 45 44 141 8 142 729 387 141 712 385

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
8	16.067 RELAY; WIPER INTERMITTENT WIPER<C13> 12V	8-97302-100-0	01	1	0404-	●		●
8	16.067 RELAY; WIPER 12V	8-97302-100-0	01	1	0404-		●
8	16.067 RELAY; WIPER VARIABLE INTERMITTENT WIPER<CD4> 12V	8-97302-101-0	01	1	0404-	●		●
8	16.067 RELAY; WIPER 12V	8-97302-101-0	01	1	0404-				●	●
44	02.810 HORN; HIGH NOTE 07.505 THA	8-97363-624-0	01	1	0404-1010	●	●	●	●	●
44	02.810 HORN; HIGH NOTE THA	8-98154-696-0	01	1	1011-	●	●	●	●	●
45	02.810 HORN; LOW NOTE THA	8-97374-040-0	01	1	0404-	●	●	●	●	●
141	02.810 HORN; ANTI THEFT REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> THA	8-97237-044-0	01	1	0404-0409	●		●
141	02.810 HORN; ANTI THEFT THA	8-97237-044-0	01	1	0404-0409				●	●
141	02.810 HORN; ANTI THEFT 4JA1-T ENG<LP0>,4JH1-T ENG<L23> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> THA	8-97237-044-0	01	1	0410-0410	●		●
141	02.810 HORN; ANTI THEFT THA	8-97237-044-0	01	1	0410-0410				●	●
141	02.810 HORN; ANTI THEFT 4JA1-T ENG<LP0> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> THA	8-97237-044-0	01	1	0410-0501	●		●
141	02.810 HORN; ANTI THEFT 4JJ1-TCS ENG<LFB> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> THA	8-97375-253-0	01	1	0410-0501	●		●
141	02.810 HORN; ANTI THEFT 4JJ1-TCS ENG<LFB> THA	8-97375-253-0	01	1	0410-0501				●	●
141	02.810 HORN; ANTI THEFT 4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> THA	8-97375-253-0	01	1	0502-0609	●		●
141	02.810 HORN; ANTI THEFT 4JJ1-TCS ENG<LFB> THA	8-97375-253-0	01	1	0502-0609				●	●
141	02.810 HORN; ANTI THEFT 4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> THA	8-97375-253-0	01	1	0610-	●		●
141	02.810 HORN; ANTI THEFT 4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ> THA	8-97375-253-0	01	1	0610-				●
141	02.810 HORN; ANTI THEFT 4JJ1-TCS ENG<LFB>,4JJ1-TCX ENG<LS0> THA	8-97375-253-0	01	1	0610-					●
142	02.810 BOLT; HORN,ANTI THEFT REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> 02.343 M6X16 FLANGE THA	0-28650-616-0	01	1	0404-0409	●		●
142	02.810 BOLT; HORN,ANTI THEFT 02.343 M6X16 FLANGE THA	0-28650-616-0	01	1	0404-0409				●	●
142	02.810 BOLT; HORN,ANTI THEFT 4JA1-T ENG<LP0>,4JH1-T ENG<L23> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> 02.343 M6X16 FLANGE THA	0-28650-616-0	01	1	0410-0410	●		●
142	02.810 BOLT; HORN,ANTI THEFT 02.343 M6X16 FLANGE THA	0-28650-616-0	01	1	0410-0410				●	●
142	02.810 BOLT; HORN,ANTI THEFT 4JA1-T ENG<LP0> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> 02.343 M6X16 FLANGE THA	0-28650-616-0	01	1	0410-0501	●		●
189	02.812 BOLT; HORN 02.343 M6X16 FLANGE THA	0-28650-616-0	02	1	0404-	●	●	●	●	●
385	03.670 BOLT; CONT UNIT 16.085 (B) M5X16 TAPPING	9-09829-323-1	02	1	0404-0612	●	●	●	●	●
385	03.670 BOLT; CONT UNIT 08.083 (B) M5X16 TAPPING	8-98061-685-0	02	1	0701-1004	●	●	●	●	●
385	03.670 BOLT; CONT UNIT 08.083 (B) M5X16 TAPPING THA	8-98167-449-0	02	1	1005-	●	●	●	●	●
385	03.670 BOLT; CONT UNIT 4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ> IMMOBILIZER SYSTEM<7KC> 03.162 (A) M6X12 FLANGE THA	0-28050-612-0	01	1	0509-0609			●
385	03.670 BOLT; CONT UNIT 4JJ1-TCS ENG<LFB> 03.162 (A) M6X12 FLANGE THA	0-28050-612-0	01	1	0509-0609					●
385	03.670 BOLT; CONT UNIT 4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ> IMMOBILIZER SYSTEM<7KC> 02.819 (C) M4X12 W/LK&PL WASHER	9-03920-412-0	01	1	0509-0606			●
385	03.670 BOLT; CONT UNIT 4JJ1-TCS ENG<LFB> 02.819 (C) M4X12 W/LK&PL WASHER	9-03920-412-0	01	1	0509-0606					●
385	03.670 BOLT; CONT UNIT 4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ> IMMOBILIZER SYSTEM<7KC> 02.510 (C) M4X12 W/LK&PL WASHER THA	0-36230-412-0	01	1	0607-0609			●
385	03.670 BOLT; CONT UNIT 4JJ1-TCS ENG<LFB> 02.510 (C) M4X12 W/LK&PL WASHER THA	0-36230-412-0	01	1	0607-0609					●
385	03.670 BOLT; CONT UNIT 4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ> IMMOBILIZER SYSTEM<7KC> 02.510 (C) M4X12 W/LK&PL WASHER THA	0-36230-412-0	02	1	0610-			●
385	03.670 BOLT; CONT UNIT 4JJ1-TCS ENG<LFB>,4JJ1-TCX ENG<LS0> 02.510 (C) M4X12 W/LK&PL WASHER THA	0-36230-412-0	02	1	0610-					●
387	02.363 CLIP; BAND IMMOBILIZER SYSTEM<7KC> L=140 THA	8-97920-656-0	01	1	0509-			●
387	02.363 CLIP; BAND L=140 THA	8-97920-656-0	01	1	0509-					●
712	03.670 CONTROL UNIT; ANTI THEFT 4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ> IMMOBILIZER SYSTEM<7KC> 06.500 (B) THA	8-97251-755-0	01	1	0509-0609			●
712	03.670 CONTROL UNIT; ANTI THEFT 4JJ1-TCS ENG<LFB> 06.500 (B) THA	8-97251-755-0	01	1	0509-0609					●
712	03.670 CONTROL UNIT; ANTI THEFT 4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ> IMMOBILIZER SYSTEM<7KC> (C)	8-98008-412-0	01	1	0610-			●
712	03.670 CONTROL UNIT; ANTI THEFT 4JJ1-TCS ENG<LFB>,4JJ1-TCX ENG<LS0> (C)	8-98008-412-0	01	1	0610-					●
712	03.670 CONTROL UNIT; ANTI THEFT 4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ> IMMOBILIZER SYSTEM<7KC> (A) THA	8-97377-323-0	01	1	0509-0609			●
712	03.670 CONTROL UNIT; ANTI THEFT 4JJ1-TCS ENG<LFB> (A) THA	8-97377-323-0	01	1	0509-0609					●
729	07.450 NUT; HORN,ANTI THEFT 4JJ1-TCS ENG<LFB> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> 01.062 M6 FLANGE THA	0-91180-106-0	01	1	0410-0501	●		●
729	07.450 NUT; HORN,ANTI THEFT 4JJ1-TCS ENG<LFB> 01.062 M6 FLANGE THA	0-91180-106-0	01	1	0410-0501				●	●
729	07.450 NUT; HORN,ANTI THEFT 4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> 01.062 M6 FLANGE THA	0-91180-106-0	01	1	0502-0609	●		●
729	07.450 NUT; HORN,ANTI THEFT 4JJ1-TCS ENG<LFB> 01.062 M6 FLANGE THA	0-91180-106-0	01	1	0502-0609				●	●
729	07.450 NUT; HORN,ANTI THEFT 4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> 01.062 M6 FLANGE THA	0-91180-106-0	01	1	0610-	●		●
729	07.450 NUT; HORN,ANTI THEFT 4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ> 01.062 M6 FLANGE THA	0-91180-106-0	01	1	0610-				●
729	07.450 NUT; HORN,ANTI THEFT 4JJ1-TCS ENG<LFB>,4JJ1-TCX ENG<LS0> 01.062 M6 FLANGE THA	0-91180-106-0	01	1	0610-					●

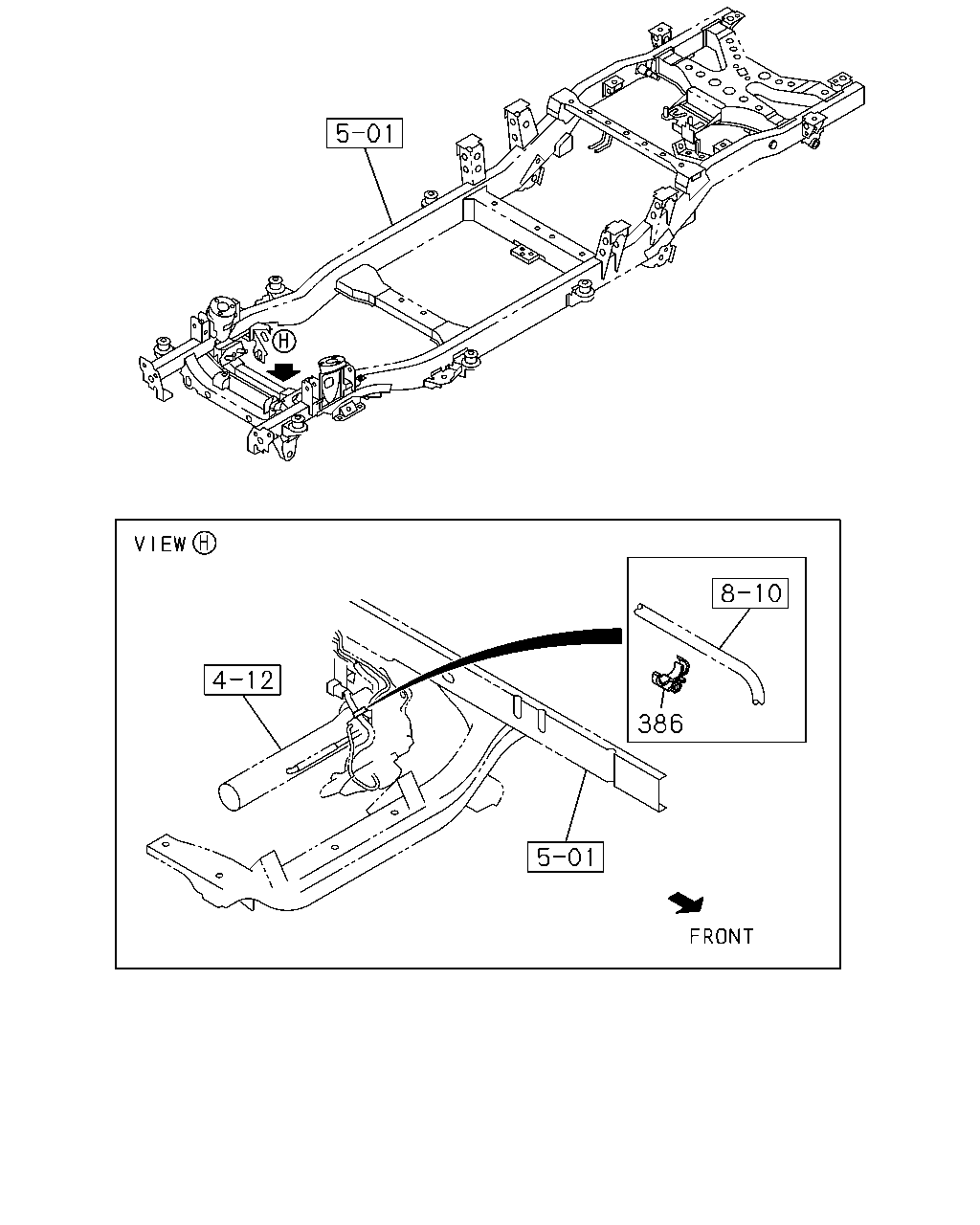

386

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
	386	02.559 CLIP; HARNESS ID=7-10 THA	8-94472-578-0	01	1	0404-				●	●
