Sayfa 8-27 - Isuzu EPC

◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 50982 - TFR/S(CHEVROLET)THAI ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-27 - SUPPLEMENTAL INFLATABLE RESTRAINT SYSTEM ▶

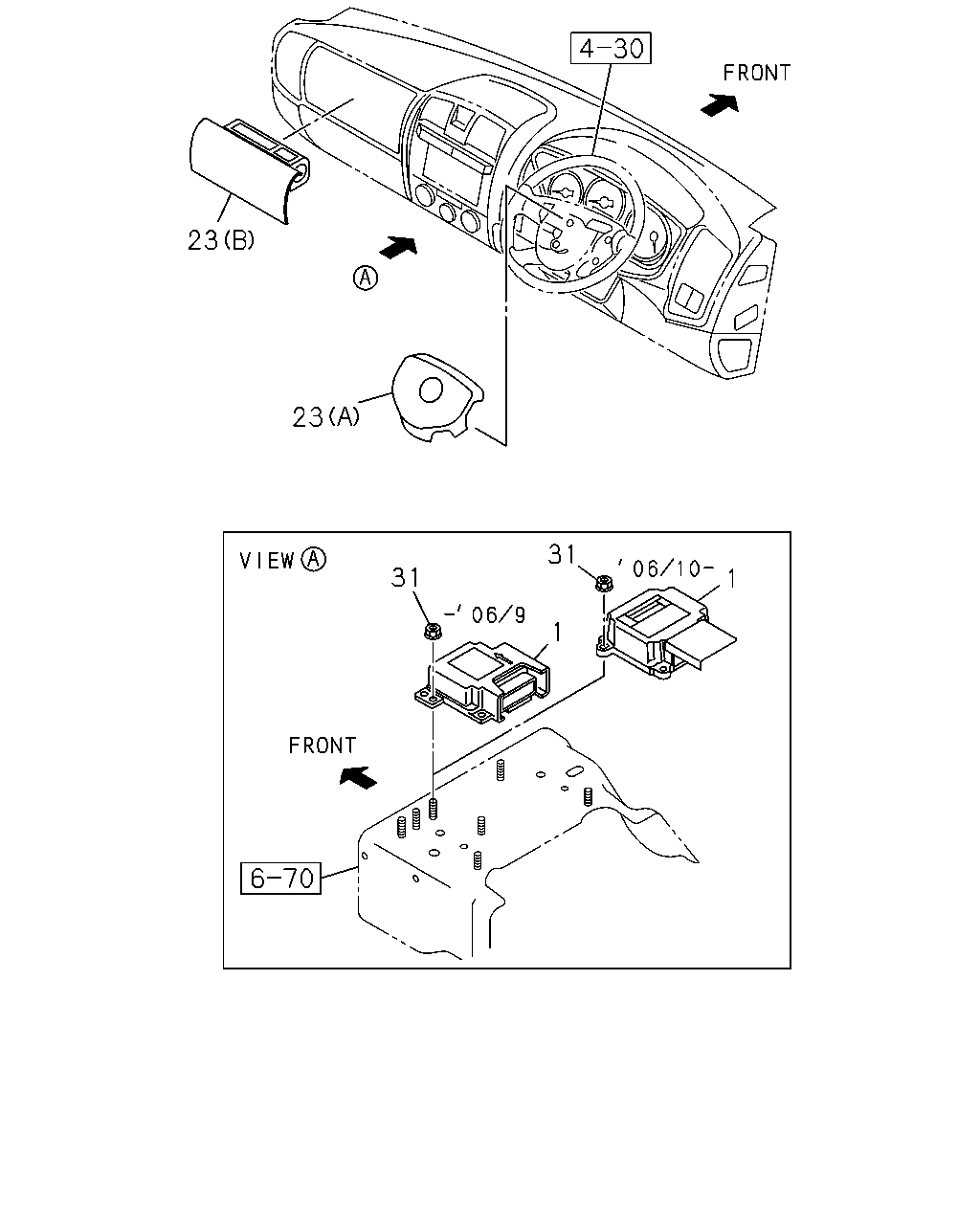

8-27 — SUPPLEMENTAL INFLATABLE RESTRAINT SYSTEM (#73698) — 26 parça

23 23 31 31 1 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	02.559 CONTROL UNIT; SIR AIR BAG DRIVER & PASSENGER<AK5> THA	8-97360-407-0	01	1	0404-0510	●	●
1	02.559 CONTROL UNIT; SIR THA	8-97360-407-0	01	1	0404-0510			●	●
1	02.559 CONTROL UNIT; SIR AIR BAG DRIVER & PASSENGER<AK5> THA	8-98032-626-0	01	1	0511-0609	●	●
1	02.559 CONTROL UNIT; SIR THA	8-98032-626-0	01	1	0511-0609			●	●
1	02.559 CONTROL UNIT; SIR AIR BAG DRIVER & PASSENGER<AK5>	8-98039-722-0	01	1	0610-	●	●
1	02.559 CONTROL UNIT; SIR	8-98039-722-0	01	1	0610-			●	●
23	02.559 AIR BAG UNIT AIR BAG DRIVER & PASSENGER<AK5> (B) GRAY	8-97397-431-1	01	1	0404-0609	●	●
23	02.559 AIR BAG UNIT (B) GRAY	8-97397-431-1	01	1	0404-0609			●	●
23	02.559 AIR BAG UNIT AIR BAG DRIVER & PASSENGER<AK5> (B) GRAY	8-97408-904-0	01	1	0610-0610	●	●
23	02.559 AIR BAG UNIT (B) GRAY	8-97408-904-0	01	1	0610-0610			●	●
23	02.559 AIR BAG UNIT AIR BAG DRIVER & PASSENGER<AK5> (B) BEIGE THA	8-97408-902-1	01	1	0610-1103	●	●
23	02.559 AIR BAG UNIT (B) BEIGE THA	8-97408-902-1	01	1	0610-1103			●	●
23	02.559 AIR BAG UNIT AIR BAG DRIVER & PASSENGER<AK5> (B) THA	8-97422-063-0	01	1	1104-	●	●
23	02.559 AIR BAG UNIT (B) THA	8-97422-063-0	01	1	1104-			●	●
23	02.559 AIR BAG UNIT AIR BAG DRIVER & PASSENGER<AK5> DELUXE STEERING WHEEL URETHANE<N30> (A) DARK GRAY THA	8-97397-927-0	01	1	0404-0409	●	●
23	02.559 AIR BAG UNIT (A) DARK GRAY THA	8-97397-927-0	01	1	0404-0409			●	●
23	02.559 AIR BAG UNIT AIR BAG DRIVER & PASSENGER<AK5> STEERING WHEEL LEATHER<NP5>,DELUXE STEERING WHEEL URETHANE<N30> (A) DARK GRAY THA	8-97397-927-0	01	1	0410-0609	●	●
23	02.559 AIR BAG UNIT (A) DARK GRAY THA	8-97397-927-0	01	1	0410-0609			●	●
23	02.559 AIR BAG UNIT AIR BAG DRIVER & PASSENGER<AK5> STEERING WHEEL LEATHER<NP5>,DELUXE STEERING WHEEL URETHANE<N30> INTERIOR STEERING CENTER PAD BADGE<8MB> (A) DARK GRAY THA	8-97408-900-0	01	1	0610-0904	●	●
23	02.559 AIR BAG UNIT (A) DARK GRAY THA	8-97408-900-0	01	1	0610-0904			●	●
23	02.559 AIR BAG UNIT AIR BAG DRIVER & PASSENGER<AK5> STEERING WHEEL LEATHER<NP5>,DELUXE STEERING WHEEL URETHANE<N30> INTERIOR STEERING CENTER PAD BADGE<8MB> (A) DARK GRAY THA	8-97417-276-0	01	1	0905-0906	●	●
23	02.559 AIR BAG UNIT (A) DARK GRAY THA	8-97417-276-0	01	1	0905-0906			●	●
23	02.559 AIR BAG UNIT AIR BAG DRIVER & PASSENGER<AK5> STEERING WHEEL LEATHER<NP5>,DELUXE STEERING WHEEL URETHANE<N30> INTERIOR STEERING CENTER PAD BADGE<8MB> (A) DARK GRAY THA	8-97418-296-0	01	1	0907-	●	●
23	02.559 AIR BAG UNIT (A) DARK GRAY THA	8-97418-296-0	01	1	0907-			●	●
31	14.865 NUT AIR BAG DRIVER & PASSENGER<AK5> 01.540 M6 FLANGE THA	0-91180-206-0	03	1	0404-	●	●
31	14.865 NUT 01.540 M6 FLANGE THA	0-91180-206-0	03	1	0404-			●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
