8-26 — ELECTRICAL CONTROL AND OTHER PARTS (#73697) — 109 parça

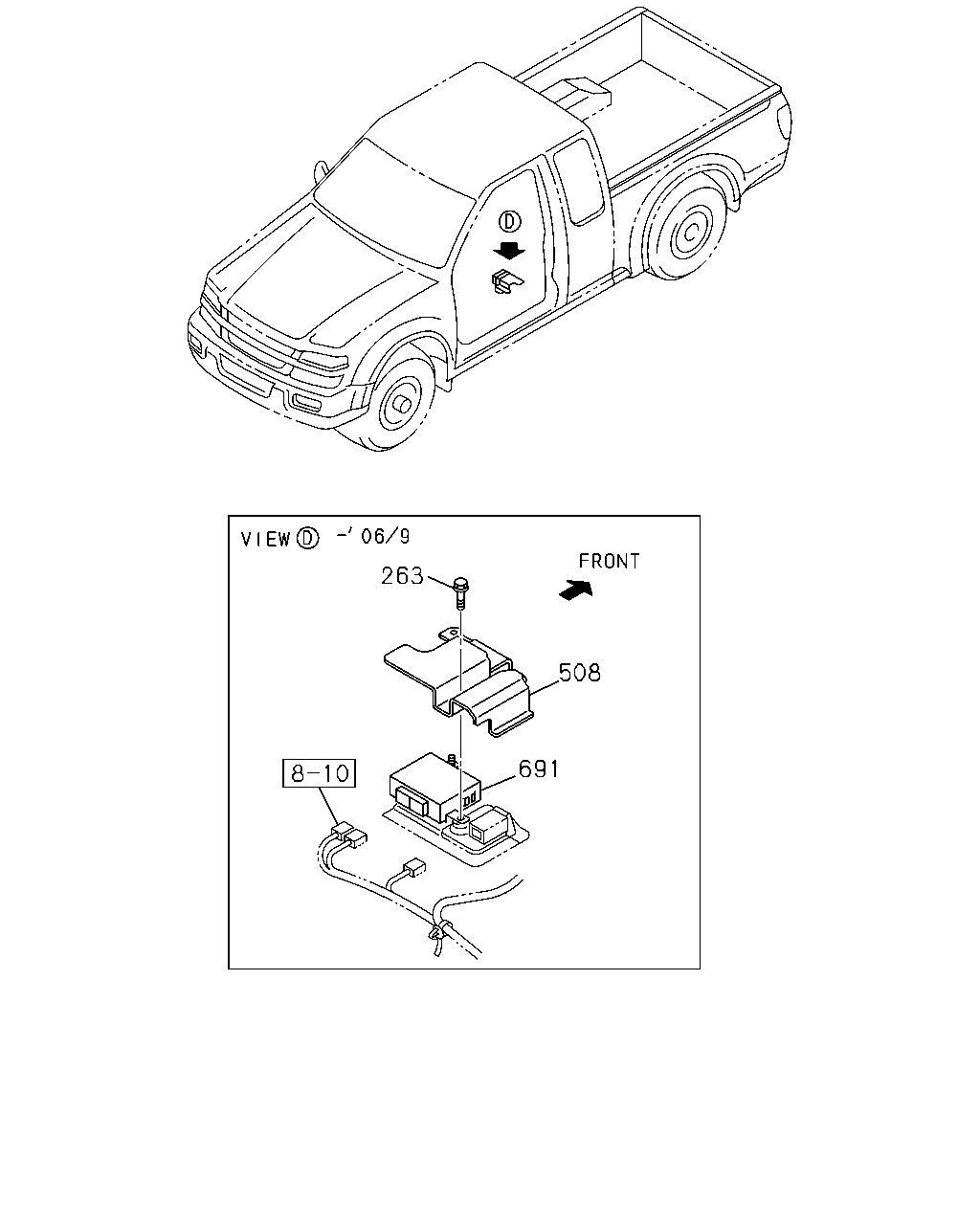

çizim 118145
263 508 691
BalonParca AdiParca NoAdetTipApplied Date A B C D E
263 04.115 BOLT; CONT UNIT
04.439 M6X16 FLANGE 		0-28680-616-0 02 1 0404-0601 ● ●
263 04.115 BOLT; CONT UNIT
02.343 M6X16 FLANGE THA 		0-28650-616-0 02 1 0602-0609 ● ●
508 03.682 PROTECTOR
THA 		8-97324-594-1 01 1 0404-0609 ● ●
691 04.115 CONTROLLER; TRANSFER 8-97368-449-0 01 1 0404-0408 ● ●
691 04.115 CONTROLLER; TRANSFER 8-97374-038-0 01 1 0409-0508 ● ●
691 04.115 CONTROLLER; TRANSFER 8-97386-320-0 01 1 0509-0512 ● ●
691 04.115 CONTROLLER; TRANSFER 8-98021-885-0 01 1 0601-0609 ● ●
691 04.115 CONTROLLER; TRANSFER 8-98024-663-0 01 1 0610- ● ●

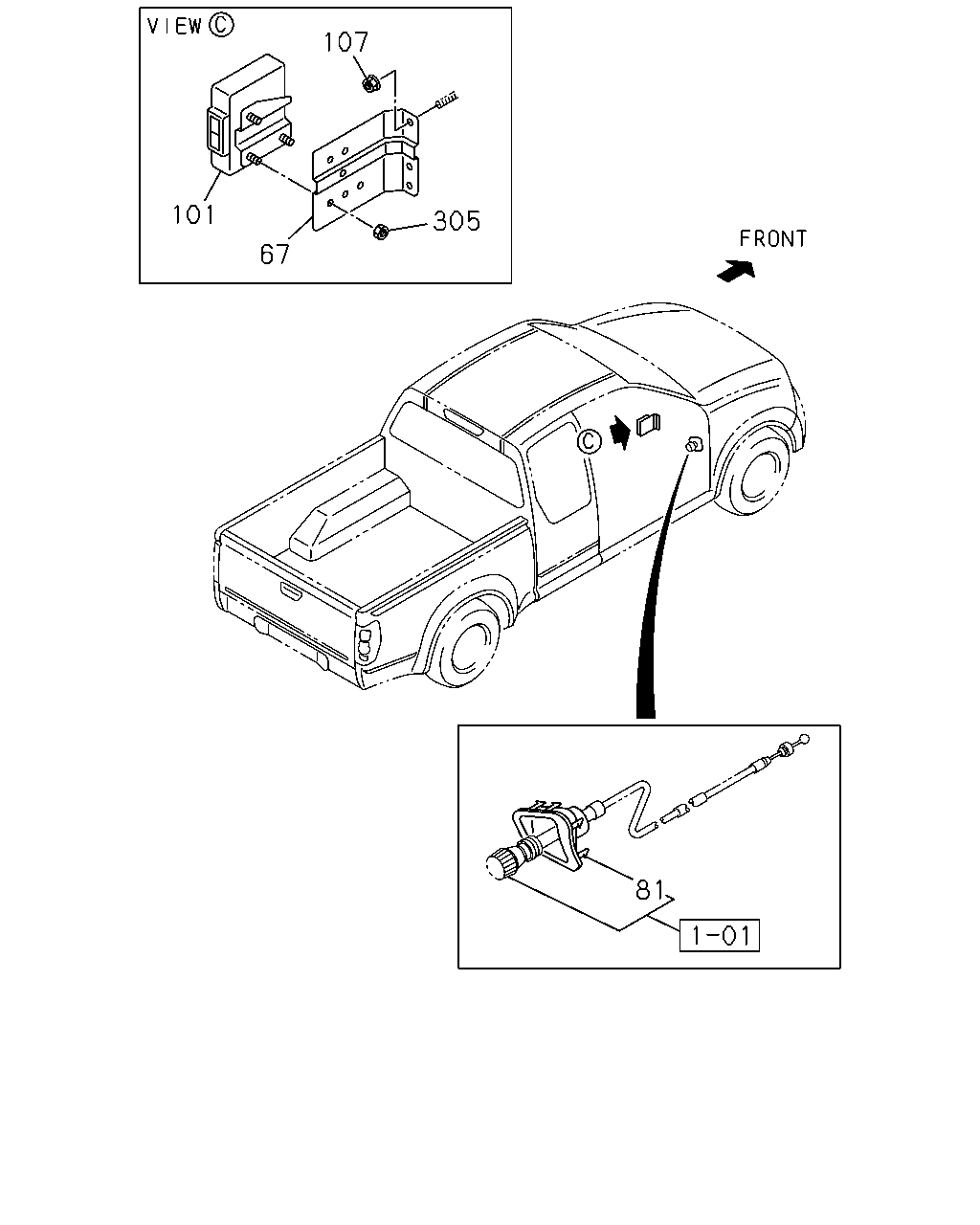

çizim 118147
107 101 305 67 81
BalonParca AdiParca NoAdetTipApplied Date A B C D E
67 03.887 BRACKET; CONT UNIT
A/T 4 SPEED-JATCO<RMK> THA 		8-97306-829-0 01 1 0404-0609 ● ● ● ●
67 03.887 BRACKET; CONT UNIT
A/T AISIN<RMD>,A/T 4 SPEED-JATCO<RMK> THA 		8-97306-829-0 01 1 0610- ● ● ● ●
81 03.451 BEZEL; IDLE CONT
4JA1-T ENG<LP0> GRAY THA 		8-97396-833-0 01 1 0404-0501 ● ● ●
101 04.115 CONTROL UNIT; ELEC,A/T
4JJ1-TCS ENG<LFB> A/T 4 SPEED-JATCO<RMK> FINAL GEAR RATIO 41/11<GT4> FRT&RR 215/70R15C GOODYEAR TIRE<QFT> 		8-98049-042-0 01 1 0610-0809 ● ●
101 04.115 CONTROL UNIT; ELEC,A/T
4JJ1-TCS ENG<LFB> A/T 4 SPEED-JATCO<RMK> FINAL GEAR RATIO 41/11<GT4> FRT&RR 215/70R15C<QBQ>,FRT&RR 215/70R15C GOODYEAR TIRE<QFT> 		8-98049-042-0 01 1 0810-0910 ● ●
101 04.115 CONTROL UNIT; ELEC,A/T
4JJ1-TCS ENG<LFB> A/T 4 SPEED-JATCO<RMK> FINAL GEAR RATIO 41/11<GT4> FRT&RR 215/70R15C GOODYEAR TIRE<QFT> 		8-98049-042-0 01 1 0911-1101 ● ●
101 04.115 CONTROL UNIT; ELEC,A/T
4JJ1-TCS ENG<LFB> A/T 4 SPEED-JATCO<RMK> FINAL GEAR RATIO 41/11<GT4> FRT&RR 215/70R15C DUNLOP TIRE(CWP), FRT&RR 215/70R15C GOODYEAR TIRE<QFT> 		8-98049-042-0 01 1 1102- ● ●
101 04.115 CONTROL UNIT; ELEC,A/T
A/T 4 SPEED-JATCO<RMK> 		8-97350-029-0 01 1 0404-0409 ● ● ● ●
101 04.115 CONTROL UNIT; ELEC,A/T
4JJ1-TCS ENG<LFB> A/T 4 SPEED-JATCO<RMK> 		8-97374-474-0 01 1 0410-0504 ● ● ● ●
101 04.115 CONTROL UNIT; ELEC,A/T
4JJ1-TCS ENG<LFB> A/T 4 SPEED-JATCO<RMK> 		8-98012-395-0 01 1 0505-0609 ● ● ● ●
101 04.115 CONTROL UNIT; ELEC,A/T
4JJ1-TCS ENG<LFB> A/T 4 SPEED-JATCO<RMK> FINAL GEAR RATIO 43/10<GY2> FRT&RR 245/70R16<QCQ> 		8-98041-750-0 01 1 0610- ● ● ● ●
101 04.115 CONTROL UNIT; ELEC,A/T
4JJ1-TCX ENG<LS0> A/T AISIN<RMD> 		8-98043-641-0 01 1 0610- ●
107 04.115 NUT; BRKT,ELEC CONT UNIT
A/T 4 SPEED-JATCO<RMK> 01.062 M8 FLANGE THA 		0-91180-108-0 02 1 0404-0609 ● ● ● ●
107 04.115 NUT; BRKT,ELEC CONT UNIT
A/T 4 SPEED-JATCO<RMK> 01.062 M8 FLANGE THA 		0-91180-108-0 02 1 0610-0709 ● ● ●
107 04.115 NUT; BRKT,ELEC CONT UNIT
A/T AISIN<RMD>,A/T 4 SPEED-JATCO<RMK> 01.062 M8 FLANGE THA 		0-91180-108-0 02 1 0610-0709 ●
107 04.115 NUT; BRKT,ELEC CONT UNIT
A/T AISIN<RMD>,A/T 4 SPEED-JATCO<RMK> 01.062 M8 FLANGE THA 		0-91180-108-0 02 1 0710- ● ● ● ●
107 04.115 NUT; BRKT,ELEC CONT UNIT
01.062 M6 FLANGE THA 		0-91180-106-0 02 1 0610- ● ●
305 08.915 NUT; CONT UNIT
A/T 4 SPEED-JATCO<RMK> 01.062 M6 FLANGE THA 		0-91180-106-0 03 1 0404- ● ● ● ●
305 08.915 NUT; CONT UNIT
A/T AISIN<RMD> 01.062 M6 FLANGE THA 		0-91180-106-0 02 1 0610- ●

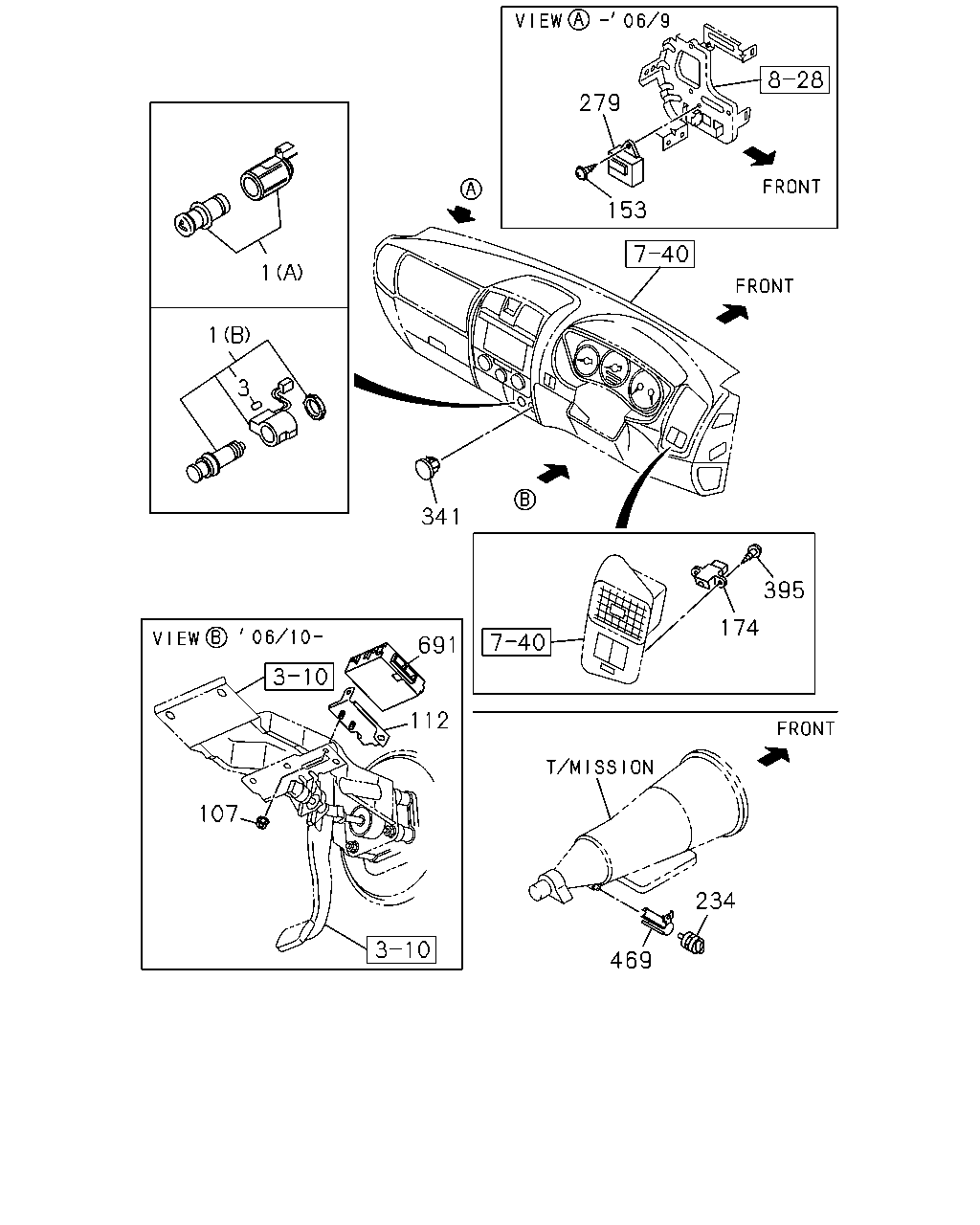

çizim 118160
279 153 1 1 3 341 395 174 691 112 107 234 469
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 09.709 LIGHTER; CIGAR
GRADE BASE<RBA> (A) 		8-97314-003-0 01 1 0404-0409 ● ● ●
1 09.709 LIGHTER; CIGAR
GRADE BASE<RBA> (A) 		8-97314-003-0 01 1 0410-0508 ● ●
1 09.709 LIGHTER; CIGAR
(A) 		8-97314-003-0 01 1 0410-0508 ●
1 09.709 LIGHTER; CIGAR
GRADE BASE<RBA> (A) 		8-97314-003-0 01 1 0509-0609 ● ● ●
1 09.709 LIGHTER; CIGAR
GRADE BASE<RBA> (A) 		8-97314-003-0 01 1 0610-0709 ● ●
1 09.709 LIGHTER; CIGAR
GRADE BASE<RBA> (A) 		8-97314-003-0 01 1 0710-0809 ●
1 09.709 LIGHTER; CIGAR
GRADE BASE<RBA> (A) 		8-97314-003-0 01 1 0810-0910 ● ●
1 09.709 LIGHTER; CIGAR
(A) 		8-97314-003-0 01 1 0810-0910 ●
1 09.709 LIGHTER; CIGAR
(A) 		8-97314-003-0 01 1 0911- ●
1 09.709 LIGHTER; CIGAR
GRADE LS<RBB>,GRADE LT<RBD> (B) 		8-97329-641-0 01 1 0404-0409 ● ● ●
1 09.709 LIGHTER; CIGAR
(B) 		8-97329-641-0 01 1 0404-0409 ● ●
1 09.709 LIGHTER; CIGAR
GRADE LS<RBB>,GRADE LT<RBD> (B) 		8-97329-641-0 01 1 0410-0508 ● ●
1 09.709 LIGHTER; CIGAR
(B) 		8-97329-641-0 01 1 0410-0508 ● ●
1 09.709 LIGHTER; CIGAR
GRADE LS<RBB>,GRADE LT<RBD> (B) 		8-97329-641-0 01 1 0509-0809 ● ●
1 09.709 LIGHTER; CIGAR
GRADE LT<RBD> (B) 		8-97329-641-0 01 1 0509-0809 ● ●
1 09.709 LIGHTER; CIGAR
GRADE LS<RBB>,GRADE LT<RBD> (B) 		8-97329-641-0 01 1 0810- ● ●
1 09.709 LIGHTER; CIGAR
(B) 		8-97329-641-0 01 1 0810- ● ●
3 08.991 BULB; CIGAR LIGHTER
GRADE LS<RBB>,GRADE LT<RBD> 14V 1.4W 		8-97173-160-0 01 1 0404-0409 ● ● ●
3 08.991 BULB; CIGAR LIGHTER
14V 1.4W 		8-97173-160-0 01 1 0404-0409 ● ●
3 08.991 BULB; CIGAR LIGHTER
GRADE LS<RBB>,GRADE LT<RBD> 14V 1.4W 		8-97173-160-0 01 1 0410-0508 ● ●
3 08.991 BULB; CIGAR LIGHTER
14V 1.4W 		8-97173-160-0 01 1 0410-0508 ● ●
3 08.991 BULB; CIGAR LIGHTER
GRADE LS<RBB>,GRADE LT<RBD> 14V 1.4W 		8-97173-160-0 01 1 0509-0809 ● ●
3 08.991 BULB; CIGAR LIGHTER
GRADE LT<RBD> 14V 1.4W 		8-97173-160-0 01 1 0509-0809 ● ●
3 08.991 BULB; CIGAR LIGHTER
GRADE LS<RBB>,GRADE LT<RBD> 14V 1.4W 		8-97173-160-0 01 1 0810- ● ●
3 08.991 BULB; CIGAR LIGHTER
14V 1.4W 		8-97173-160-0 01 1 0810- ● ●
107 04.115 NUT; BRKT,ELEC CONT UNIT
A/T 4 SPEED-JATCO<RMK> 01.062 M8 FLANGE THA 		0-91180-108-0 02 1 0404-0609 ● ● ● ●
107 04.115 NUT; BRKT,ELEC CONT UNIT
A/T 4 SPEED-JATCO<RMK> 01.062 M8 FLANGE THA 		0-91180-108-0 02 1 0610-0709 ● ● ●
107 04.115 NUT; BRKT,ELEC CONT UNIT
A/T AISIN<RMD>,A/T 4 SPEED-JATCO<RMK> 01.062 M8 FLANGE THA 		0-91180-108-0 02 1 0610-0709 ●
107 04.115 NUT; BRKT,ELEC CONT UNIT
A/T AISIN<RMD>,A/T 4 SPEED-JATCO<RMK> 01.062 M8 FLANGE THA 		0-91180-108-0 02 1 0710- ● ● ● ●
107 04.115 NUT; BRKT,ELEC CONT UNIT
01.062 M6 FLANGE THA 		0-91180-106-0 02 1 0610- ● ●
112 02.500 BRACKET; CONT UNIT
THA 		8-97945-256-0 01 1 0610-0910 ● ●
112 02.500 BRACKET; CONT UNIT
THA 		8-97945-256-0 01 1 0911- ● ●
153 16.085 BOLT; BUZZER FIX
KEY REMINDER BUZZER<T48> EXC. HEAD LAMP REMINDER<T63> M5X16 TAPPING 		9-09829-323-1 01 1 0404-0409 ● ● ●
153 16.085 BOLT; BUZZER FIX
HEAD LAMP REMINDER<T63> M5X16 TAPPING 		9-09829-323-1 01 1 0404-0409 ● ● ●
153 16.085 BOLT; BUZZER FIX
M5X16 TAPPING 		9-09829-323-1 01 1 0404-0409 ● ●
153 16.085 BOLT; BUZZER FIX
KEY REMINDER BUZZER<T48> EXC. HEAD LAMP REMINDER<T63> M5X16 TAPPING 		9-09829-323-1 01 1 0410-0609 ● ●
153 16.085 BOLT; BUZZER FIX
HEAD LAMP REMINDER<T63> M5X16 TAPPING 		9-09829-323-1 01 1 0410-0609 ● ●
153 16.085 BOLT; BUZZER FIX
M5X16 TAPPING 		9-09829-323-1 01 1 0410-0609 ● ●
174 10.485 INDICATOR; ANTI THEFT
REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> 		8-97248-972-0 01 1 0404- ● ●
174 10.485 INDICATOR; ANTI THEFT 8-97248-972-0 01 1 0404- ● ●
234 03.682 SENSOR; VEHICLE SPD
M/T MSG 5 SPEED<M75>,M/T MUA 5 SPEED 5G<RSP> 4 PULSE PPS RESIN BLACK 		8-97129-704-0 01 1 0404-0406 ● ● ●
234 03.682 SENSOR; VEHICLE SPD
A/T 4 SPEED-JATCO<RMK>,M/T MUA 5 SPEED5G<RSP> 4 PULSE PPS RESIN BLACK 		8-97129-704-0 01 1 0404-0406 ● ●
234 03.682 SENSOR; VEHICLE SPD
M/T MSG 5 SPEED<M75>,M/T MUA 5 SPEED 5G<RSP> 4 PULSE PPS RESIN WHITE 		8-97377-920-0 01 1 0407-0501 ● ● ●
234 03.682 SENSOR; VEHICLE SPD
A/T 4 SPEED-JATCO<RMK>,M/T MUA 5 SPEED5G<RSP> 4 PULSE PPS RESIN WHITE 		8-97377-920-0 01 1 0407-0501 ● ●
234 03.682 SENSOR; VEHICLE SPD
M/T MUA 5 SPEED 5H<MWQ>,M/T MUA 5 SPEED 5G<RSP> 4 PULSE PPS RESIN WHITE 		8-97377-920-0 01 1 0502-0609 ● ● ●
234 03.682 SENSOR; VEHICLE SPD
A/T 4 SPEED-JATCO<RMK>,M/T MUA 5 SPEED5G<RSP> 4 PULSE PPS RESIN WHITE 		8-97377-920-0 01 1 0502-0609 ● ●
234 03.682 SENSOR; VEHICLE SPD
M/T MUA 5 SPEED 5H<MWQ> 4 PULSE PPS RESIN WHITE 		8-97377-920-0 01 1 0610-1309 ● ● ●
234 03.682 SENSOR; VEHICLE SPD
M/T MUA 5 SPEED 5H<MWQ>,A/T 4 SPEED-JATCO<RMK> 4 PULSE PPS RESIN WHITE 		8-97377-920-0 01 1 0610-1309 ●
234 03.682 SENSOR; VEHICLE SPD
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ>,A/T AISIN<RMD>,A/T 4 SPEED-JATCO<RMK> 4 PULSE PPS RESIN WHITE 		8-97377-920-0 01 1 0610-1309 ●
234 03.682 SENSOR; VEHICLE SPD
4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ> M/T MUA 5 SPEED 5H<MWQ> 4 PULSE PPS RESIN WHITE 		8-97377-920-0 01 1 1310- ● ●
234 03.682 SENSOR; VEHICLE SPD
4JK1-TCS ENG<LKZ> M/T MUA 5 SPEED 5H<MWQ> 4 PULSE PPS RESIN WHITE 		8-97377-920-0 01 1 1310- ●
234 03.682 SENSOR; VEHICLE SPD
M/T MUA 5 SPEED 5H<MWQ>,A/T 4 SPEED-JATCO<RMK> 4 PULSE PPS RESIN WHITE 		8-97377-920-0 01 1 1310- ●
234 03.682 SENSOR; VEHICLE SPD
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ>,A/T AISIN<RMD>,A/T 4 SPEED-JATCO<RMK> 4 PULSE PPS RESIN WHITE 		8-97377-920-0 01 1 1310- ●
279 16.081 BUZZER ASM; SEAT BELT WARNING
KEY REMINDER BUZZER<T48> EXC. HEAD LAMP REMINDER<T63> 		8-97135-562-0 01 1 0404-0409 ● ● ●
279 16.081 BUZZER ASM; SEAT BELT WARNING
HEAD LAMP REMINDER<T63> 		8-97135-562-0 01 1 0404-0409 ● ● ●
279 16.081 BUZZER ASM; SEAT BELT WARNING 8-97135-562-0 01 1 0404-0409 ● ●
279 16.081 BUZZER ASM; SEAT BELT WARNING
KEY REMINDER BUZZER<T48> EXC. HEAD LAMP REMINDER<T63> 		8-97135-562-0 01 1 0410-0609 ● ●
279 16.081 BUZZER ASM; SEAT BELT WARNING
HEAD LAMP REMINDER<T63> 		8-97135-562-0 01 1 0410-0609 ● ●
279 16.081 BUZZER ASM; SEAT BELT WARNING 8-97135-562-0 01 1 0410-0609 ● ●
341 04.115 COVER ASM
EXC. ACCESSORY SOCKET FRT CONSOLE<KC5> DARK GRAY THA 		8-97396-703-0 01 1 0404-0609 ● ●
341 04.115 COVER ASM
DARK GRAY THA 		8-97396-703-0 01 1 0404-0609 ●
341 04.115 COVER ASM
DARK GRAY THA 		8-97396-703-0 01 1 0610-0709 ●
341 04.115 COVER ASM
EXC. ACCESSORY SOCKET FRT CONSOLE<KC5> DARK GRAY THA 		8-97396-703-0 01 1 0610-0709 ●
341 04.115 COVER ASM
DARK GRAY THA 		8-97396-703-0 01 1 0710-0809 ●
341 04.115 COVER ASM
EXC. ACCESSORY SOCKET FRT CONSOLE<KC5> DARK GRAY THA 		8-97396-703-0 01 1 0810-0910 ● ●
341 04.115 COVER ASM
DARK GRAY THA 		8-97396-703-0 01 1 0810-0910 ●
341 04.115 COVER ASM
DARK GRAY THA 		8-97396-703-0 01 1 0911- ●
395 02.440 SCREW; INDICATOR
REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> 16.085 M5X16 TAPPING 		9-09829-323-1 02 1 0404-0612 ● ●
395 02.440 SCREW; INDICATOR
16.085 M5X16 TAPPING 		9-09829-323-1 02 1 0404-0612 ● ●
395 02.440 SCREW; INDICATOR
REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> 08.083 M5X16 TAPPING 		8-98061-685-0 02 1 0701-1004 ● ●
395 02.440 SCREW; INDICATOR
08.083 M5X16 TAPPING 		8-98061-685-0 02 1 0701-1004 ● ●
395 02.440 SCREW; INDICATOR
REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> 08.083 M5X16 TAPPING THA 		8-98167-449-0 02 1 1005- ● ●
395 02.440 SCREW; INDICATOR
08.083 M5X16 TAPPING THA 		8-98167-449-0 02 1 1005- ● ●
469 03.682 PROTECTOR; SPEED SENSOR
M/T MSG 5 SPEED<M75>,M/T MUA 5 SPEED 5G<RSP> 		8-97168-308-0 01 1 0404-0501 ● ● ●
469 03.682 PROTECTOR; SPEED SENSOR
M/T MUA 5 SPEED 5H<MWQ>,M/T MUA 5 SPEED 5G<RSP> 		8-97168-308-0 01 1 0502-0609 ● ● ●
469 03.682 PROTECTOR; SPEED SENSOR
M/T MUA 5 SPEED 5H<MWQ> 		8-97168-308-0 01 1 0610-0809 ● ● ●
469 03.682 PROTECTOR; SPEED SENSOR
M/T MUA 5 SPEED 5H<MWQ> 		8-98119-901-0 01 1 0810- ● ● ●
691 04.115 CONTROLLER; TRANSFER 8-97368-449-0 01 1 0404-0408 ● ●
691 04.115 CONTROLLER; TRANSFER 8-97374-038-0 01 1 0409-0508 ● ●
691 04.115 CONTROLLER; TRANSFER 8-97386-320-0 01 1 0509-0512 ● ●
691 04.115 CONTROLLER; TRANSFER 8-98021-885-0 01 1 0601-0609 ● ●
691 04.115 CONTROLLER; TRANSFER 8-98024-663-0 01 1 0610- ● ●
