Sayfa 8-25 - Isuzu EPC

8-25 — SWITCH AND RELAY; INSTRUMENT PANEL (#73696) — 279 parça

99 99 45 45 208 208 85 85 277 277 164 164 490 490

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
45	02.252 RELAY; HORN 09.778 12V YAZAKI THA	8-97309-293-0	01	1	0404-0609	●	●	●	●	●
45	02.252 RELAY; HORN 02.575 12V OMRON THA	8-98005-407-0	01	1	0509-	●	●	●	●	●
45	02.252 RELAY; HORN 09.778 12V YAZAKI THA	8-97309-293-0	01	1	0710-	●	●	●	●	●
85	02.485 RELAY; HEADLAMP 12V YAZAKI THA	8-97309-294-0	01	1	0404-0609	●	●	●	●	●
85	02.485 RELAY; HEADLAMP 02.510 12V OMRON	8-97125-441-0	01	1	0509-0609	●	●	●	●	●
85	02.485 RELAY; HEADLAMP 02.575 12V OMRON THA	8-98005-407-0	01	1	0610-	●	●	●	●	●
85	02.485 RELAY; HEADLAMP 09.778 12V YAZAKI THA	8-97309-293-0	01	1	0710-	●	●	●	●	●
99	02.485 RELAY; FOG LAMP 09.778 12V YAZAKI THA	8-97309-293-0	01	1	0404-0609	●	●	●	●	●
99	02.485 RELAY; FOG LAMP 02.575 12V OMRON THA	8-98005-407-0	01	1	0509-	●	●	●	●	●
99	02.485 RELAY; FOG LAMP 09.778 12V YAZAKI THA	8-97309-293-0	01	1	0710-	●	●	●	●	●
164	02.510 RELAY; A/C COMPRESSOR 02.575 12V OMRON THA	8-98005-407-0	01	1	0509-	●	●	●	●	●
164	02.510 RELAY; A/C COMPRESSOR 09.778 12V YAZAKI THA	8-97309-293-0	01	1	0710-	●	●	●	●	●
164	02.510 RELAY; A/C COMPRESSOR 4JH1-T ENG<L23> A/T 4 SPEED-JATCO<RMK> 4 WHEEL ANTI LOCK BRAKE<JE5> 09.778 12V YAZAKI THA	8-97309-293-0	01	1	0404-0409	●		●
164	02.510 RELAY; A/C COMPRESSOR A/T 4 SPEED-JATCO<RMK> 09.778 12V YAZAKI THA	8-97309-293-0	01	1	0404-0409				●	●
164	02.510 RELAY; A/C COMPRESSOR 4JJ1-TCS ENG<LFB> 09.778 12V YAZAKI THA	8-97309-293-0	01	1	0410-0501	●		●	●	●
164	02.510 RELAY; A/C COMPRESSOR 09.778 12V YAZAKI THA	8-97309-293-0	01	1	0502-0609	●	●	●	●	●
208	02.485 RELAY; DIMMER & PASSING 12V YAZAKI THA	8-97309-292-0	01	1	0404-	●	●	●	●	●
277	03.900 RELAY; FUEL PUMP 02.575 12V OMRON THA	8-98005-407-0	01	1	0509-	●	●	●	●	●
277	03.900 RELAY; FUEL PUMP 09.778 12V YAZAKI THA	8-97309-293-0	01	1	0710-	●	●	●	●	●
277	03.900 RELAY; FUEL PUMP 4JJ1-TCS ENG<LFB> 09.778 12V YAZAKI THA	8-97309-293-0	01	1	0410-0501	●		●	●	●
277	03.900 RELAY; FUEL PUMP 09.778 12V YAZAKI THA	8-97309-293-0	01	1	0502-0609	●	●	●	●	●
490	09.277 RELAY; THERMO 09.778 12V YAZAKI THA	8-97309-293-0	01	1	0404-0609	●	●	●	●	●
490	09.277 RELAY; THERMO 02.575 12V OMRON THA	8-98005-407-0	01	1	0509-	●	●	●	●	●
490	09.277 RELAY; THERMO 09.778 12V YAZAKI THA	8-97309-293-0	01	1	0710-	●	●	●	●	●

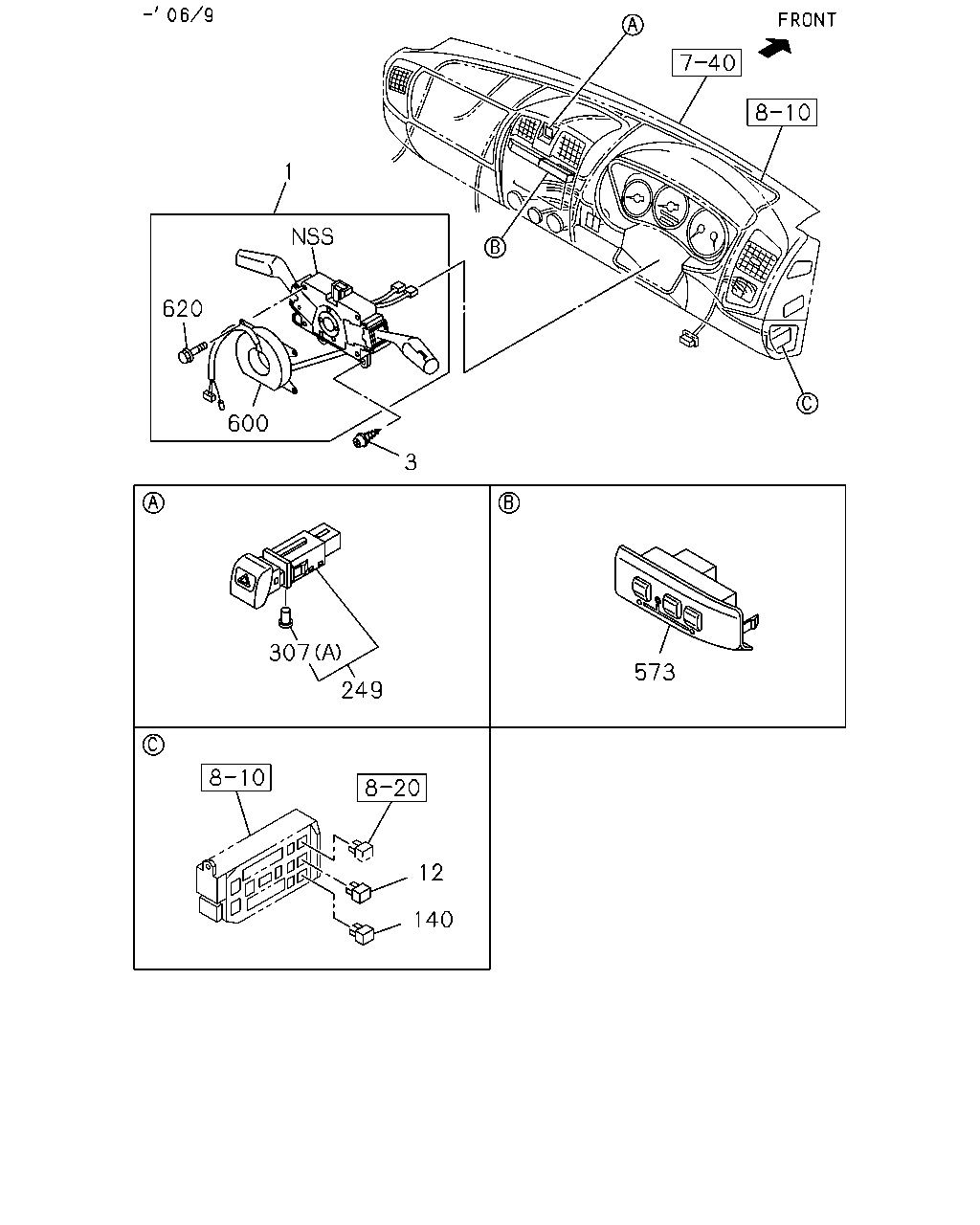

1 620 600 3 307 573 249 12 140

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	02.895 SWITCH; COMB AIR BAG DRIVER & PASSENGER<AK5> INTERMITTENT WIPER<C13> EXC. FOG LAMP<T96> THA	8-98007-706-0	01	1	0802-	●		●
1	02.895 SWITCH; COMB AIR BAG DRIVER & PASSENGER DELETE<AK6> VARIABLE INTERMITTENT WIPER<CD4> THA	8-97363-412-0	01	1	0404-0409	●
1	02.895 SWITCH; COMB AIR BAG DRIVER & PASSENGER DELETE<AK6> VARIABLE INTERMITTENT WIPER<CD4> EXC. FOG LAMP<T96> THA	8-97363-412-0	01	1	0404-0409			●
1	02.895 SWITCH; COMB AIR BAG DRIVER & PASSENGER DELETE<AK6> VARIABLE INTERMITTENT WIPER<CD4> EXC. FOG LAMP<T96> THA	8-97363-412-0	01	1	0410-	●		●
1	02.895 SWITCH; COMB AIR BAG DRIVER & PASSENGER<AK5> VARIABLE INTERMITTENT WIPER<CD4> THA	8-97363-413-0	01	1	0404-0409	●
1	02.895 SWITCH; COMB AIR BAG DRIVER & PASSENGER<AK5> VARIABLE INTERMITTENT WIPER<CD4> EXC. FOG LAMP<T96> THA	8-97363-413-0	01	1	0404-0409			●
1	02.895 SWITCH; COMB THA	8-97363-413-0	01	1	0404-0409				●
1	02.895 SWITCH; COMB AIR BAG DRIVER & PASSENGER<AK5> VARIABLE INTERMITTENT WIPER<CD4> EXC. FOG LAMP<T96> THA	8-97363-413-0	01	1	0410-0609	●		●
1	02.895 SWITCH; COMB AIR BAG DRIVER & PASSENGER<AK5> VARIABLE INTERMITTENT WIPER<CD4> EXC. FOG LAMP<T96> THA	8-98007-707-0	01	1	0610-	●		●
1	02.895 SWITCH; COMB INTERMITTENT WIPER<C13> THA	8-97363-411-0	01	1	0404-0609	●		●
1	02.895 SWITCH; COMB THA	8-97363-411-0	01	1	0404-0609		●
1	02.895 SWITCH; COMB AIR BAG DRIVER & PASSENGER DELETE<AK6> INTERMITTENT WIPER<C13> EXC. FOG LAMP<T96> THA	8-97363-411-0	01	1	0610-	●		●
1	02.895 SWITCH; COMB EXC. FOG LAMP<T96> THA	8-97363-411-0	01	1	0610-		●
1	02.895 SWITCH; COMB AIR BAG DRIVER & PASSENGER DELETE<AK6> VARIABLE INTERMITTENT WIPER<CD4> FOG LAMP<T96> THA	8-97363-414-0	01	1	0404-0409			●
1	02.895 SWITCH; COMB AIR BAG DRIVER & PASSENGER DELETE<AK6> VARIABLE INTERMITTENT WIPER<CD4> FOG LAMP<T96> THA	8-97363-414-0	01	1	0410-	●		●
1	02.895 SWITCH; COMB AIR BAG DRIVER & PASSENGER<AK5> VARIABLE INTERMITTENT WIPER<CD4> FOG LAMP<T96> THA	8-97363-415-0	01	1	0404-0409			●
1	02.895 SWITCH; COMB THA	8-97363-415-0	01	1	0404-0409					●
1	02.895 SWITCH; COMB AIR BAG DRIVER & PASSENGER<AK5> VARIABLE INTERMITTENT WIPER<CD4> FOG LAMP<T96> THA	8-97363-415-0	01	1	0410-0609	●		●
1	02.895 SWITCH; COMB THA	8-97363-415-0	01	1	0410-0609				●	●
1	02.895 SWITCH; COMB AIR BAG DRIVER & PASSENGER<AK5> VARIABLE INTERMITTENT WIPER<CD4> FOG LAMP<T96> THA	8-98007-711-0	01	1	0610-	●		●
1	02.895 SWITCH; COMB THA	8-98007-711-0	01	1	0610-				●
1	02.895 SWITCH; COMB EXC. AUTO CRUISE CONT<K30> THA	8-98007-711-0	01	1	0610-					●
1	02.895 SWITCH; COMB AUTO CRUISE CONT<K30> THA	8-98007-713-0	01	1	0610-					●
3	02.897 SCREW; COMB SW 03.483 M5X14 W/LK&PL WASHER	9-03920-514-0	02	1	0404-0606	●	●	●	●	●
3	02.897 SCREW; COMB SW M5X14 W/LK&PL WASHER THA	0-36230-514-0	02	1	0607-	●	●	●	●	●
12	08.852 RELAY; POWER WINDOW 02.575 12V OMRON THA	8-98005-407-0	01	1	0509-0612	●	●	●	●	●
12	08.852 RELAY; POWER WINDOW GRADE LT<RBD> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> 02.575 12V OMRON THA	8-98005-407-0	01	1	0701-0709	●		●	●	●
12	08.852 RELAY; POWER WINDOW GRADE LT<RBD> EXC. REMOTE CONT DOOR LOCK<AP5>, REMOTECONT DOOR LOCK W/ANTI THEFT<7KY> 02.575 12V OMRON THA	8-98005-407-0	01	1	0701-0709	●		●
12	08.852 RELAY; POWER WINDOW GRADE BASE<RBA> 02.575 12V OMRON THA	8-98005-407-0	01	1	0701-0709		●
12	08.852 RELAY; POWER WINDOW 02.575 12V OMRON THA	8-98005-407-0	01	1	0710-	●	●	●	●	●
12	08.852 RELAY; POWER WINDOW POWER WINDOW<A31> 09.778 12V YAZAKI THA	8-97309-293-0	01	1	0404-0508	●		●
12	08.852 RELAY; POWER WINDOW 09.778 12V YAZAKI THA	8-97309-293-0	01	1	0404-0508				●	●
12	08.852 RELAY; POWER WINDOW 09.778 12V YAZAKI THA	8-97309-293-0	01	1	0509-0609	●	●	●	●	●
140	09.778 RELAY; RR DEFOGGER GRADE BASE<RBA>,GRADE LT<RBD> 02.575 12V OMRON THA	8-98005-407-0	01	1	0509-0609	●		●
140	09.778 RELAY; RR DEFOGGER 02.575 12V OMRON THA	8-98005-407-0	01	1	0509-0609				●	●
140	09.778 RELAY; RR DEFOGGER 02.575 12V OMRON THA	8-98005-407-0	01	1	0610-0612	●	●	●	●	●
140	09.778 RELAY; RR DEFOGGER GRADE LT<RBD> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> 02.575 12V OMRON THA	8-98005-407-0	01	1	0701-0709	●		●	●	●
140	09.778 RELAY; RR DEFOGGER GRADE LT<RBD> EXC. REMOTE CONT DOOR LOCK<AP5>, REMOTECONT DOOR LOCK W/ANTI THEFT<7KY> 02.575 12V OMRON THA	8-98005-407-0	01	1	0701-0709	●		●
140	09.778 RELAY; RR DEFOGGER GRADE BASE<RBA> 02.575 12V OMRON THA	8-98005-407-0	01	1	0701-0709		●
140	09.778 RELAY; RR DEFOGGER 02.575 12V OMRON THA	8-98005-407-0	01	1	0710-	●	●	●	●	●
140	09.778 RELAY; RR DEFOGGER GRADE LT<RBD> 12V YAZAKI THA	8-97309-293-0	01	1	0404-0508	●		●
140	09.778 RELAY; RR DEFOGGER 12V YAZAKI THA	8-97309-293-0	01	1	0404-0508				●	●
140	09.778 RELAY; RR DEFOGGER GRADE BASE<RBA>,GRADE LT<RBD> 12V YAZAKI THA	8-97309-293-0	01	1	0509-0609	●		●
140	09.778 RELAY; RR DEFOGGER 12V YAZAKI THA	8-97309-293-0	01	1	0509-0609				●	●
249	02.485 SWITCH; HAZARD DARK GRAY	8-97396-700-0	01	1	0404-0609	●	●	●	●	●
249	02.485 SWITCH; HAZARD THA	8-98046-194-0	01	1	0610-	●	●	●	●	●
307	08.991 BULB ASM; SW (A) 14V 0.91W	8-97327-526-0	01	1	0404-0609	●	●	●	●	●
307	08.991 BULB ASM; SW AUTO CRUISE CONT<K30> (C) 14V 0.84W	8-97327-317-0	01	1	0610-					●
307	08.991 BULB ASM; SW (A) THA	8-98057-959-0	01	1	0610-	●	●	●	●	●
307	08.991 BULB ASM; SW AUTO CRUISE CONT<K30> (B) 14V 0.91W	8-97355-451-0	01	1	0610-					●
573	09.755 SWITCH; 4WD DARK GRAY	8-97396-693-0	01	1	0404-0609				●	●
573	09.755 SWITCH; 4WD GRAY	8-97407-363-0	01	1	0610-				●	●
600	02.895 COIL ASM; SIR AIR BAG DRIVER & PASSENGER<AK5> VARIABLE INTERMITTENT WIPER<CD4> THA	8-97373-506-0	01	1	0404-0609	●		●
600	02.895 COIL ASM; SIR THA	8-97373-506-0	01	1	0404-0609				●	●
600	02.895 COIL ASM; SIR AIR BAG DRIVER & PASSENGER<AK5> VARIABLE INTERMITTENT WIPER<CD4> THA	8-98014-766-0	01	1	0610-0801	●		●
600	02.895 COIL ASM; SIR THA	8-98014-766-0	01	1	0610-0801				●	●
600	02.895 COIL ASM; SIR AIR BAG DRIVER & PASSENGER<AK5> INTERMITTENT WIPER<C13> EXC. FOG LAMP<T96> THA	8-98014-766-0	01	1	0802-	●		●
600	02.895 COIL ASM; SIR AIR BAG DRIVER & PASSENGER<AK5> VARIABLE INTERMITTENT WIPER<CD4> THA	8-98014-766-0	01	1	0802-	●		●
600	02.895 COIL ASM; SIR THA	8-98014-766-0	01	1	0802-				●	●
620	02.895 SCREW; COIL,COMB SW AIR BAG DRIVER & PASSENGER<AK5> VARIABLE INTERMITTENT WIPER<CD4> THA	8-97166-506-0	06	1	0404-0801	●		●
620	02.895 SCREW; COIL,COMB SW THA	8-97166-506-0	06	1	0404-0801				●	●
620	02.895 SCREW; COIL,COMB SW AIR BAG DRIVER & PASSENGER<AK5> INTERMITTENT WIPER<C13> EXC. FOG LAMP<T96> THA	8-97166-506-0	06	1	0802-	●		●
620	02.895 SCREW; COIL,COMB SW AIR BAG DRIVER & PASSENGER<AK5> VARIABLE INTERMITTENT WIPER<CD4> THA	8-97166-506-0	06	1	0802-	●		●
620	02.895 SCREW; COIL,COMB SW THA	8-97166-506-0	06	1	0802-				●	●

99 45 208 85 164 490

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
45	02.252 RELAY; HORN 09.778 12V YAZAKI THA	8-97309-293-0	01	1	0404-0609	●	●	●	●	●
45	02.252 RELAY; HORN 02.575 12V OMRON THA	8-98005-407-0	01	1	0509-	●	●	●	●	●
45	02.252 RELAY; HORN 09.778 12V YAZAKI THA	8-97309-293-0	01	1	0710-	●	●	●	●	●
85	02.485 RELAY; HEADLAMP 12V YAZAKI THA	8-97309-294-0	01	1	0404-0609	●	●	●	●	●
85	02.485 RELAY; HEADLAMP 02.510 12V OMRON	8-97125-441-0	01	1	0509-0609	●	●	●	●	●
85	02.485 RELAY; HEADLAMP 02.575 12V OMRON THA	8-98005-407-0	01	1	0610-	●	●	●	●	●
85	02.485 RELAY; HEADLAMP 09.778 12V YAZAKI THA	8-97309-293-0	01	1	0710-	●	●	●	●	●
99	02.485 RELAY; FOG LAMP 09.778 12V YAZAKI THA	8-97309-293-0	01	1	0404-0609	●	●	●	●	●
99	02.485 RELAY; FOG LAMP 02.575 12V OMRON THA	8-98005-407-0	01	1	0509-	●	●	●	●	●
99	02.485 RELAY; FOG LAMP 09.778 12V YAZAKI THA	8-97309-293-0	01	1	0710-	●	●	●	●	●
164	02.510 RELAY; A/C COMPRESSOR 02.575 12V OMRON THA	8-98005-407-0	01	1	0509-	●	●	●	●	●
164	02.510 RELAY; A/C COMPRESSOR 09.778 12V YAZAKI THA	8-97309-293-0	01	1	0710-	●	●	●	●	●
164	02.510 RELAY; A/C COMPRESSOR 4JH1-T ENG<L23> A/T 4 SPEED-JATCO<RMK> 4 WHEEL ANTI LOCK BRAKE<JE5> 09.778 12V YAZAKI THA	8-97309-293-0	01	1	0404-0409	●		●
164	02.510 RELAY; A/C COMPRESSOR A/T 4 SPEED-JATCO<RMK> 09.778 12V YAZAKI THA	8-97309-293-0	01	1	0404-0409				●	●
164	02.510 RELAY; A/C COMPRESSOR 4JJ1-TCS ENG<LFB> 09.778 12V YAZAKI THA	8-97309-293-0	01	1	0410-0501	●		●	●	●
164	02.510 RELAY; A/C COMPRESSOR 09.778 12V YAZAKI THA	8-97309-293-0	01	1	0502-0609	●	●	●	●	●
208	02.485 RELAY; DIMMER & PASSING 12V YAZAKI THA	8-97309-292-0	01	1	0404-	●	●	●	●	●
490	09.277 RELAY; THERMO 09.778 12V YAZAKI THA	8-97309-293-0	01	1	0404-0609	●	●	●	●	●
490	09.277 RELAY; THERMO 02.575 12V OMRON THA	8-98005-407-0	01	1	0509-	●	●	●	●	●
490	09.277 RELAY; THERMO 09.778 12V YAZAKI THA	8-97309-293-0	01	1	0710-	●	●	●	●	●

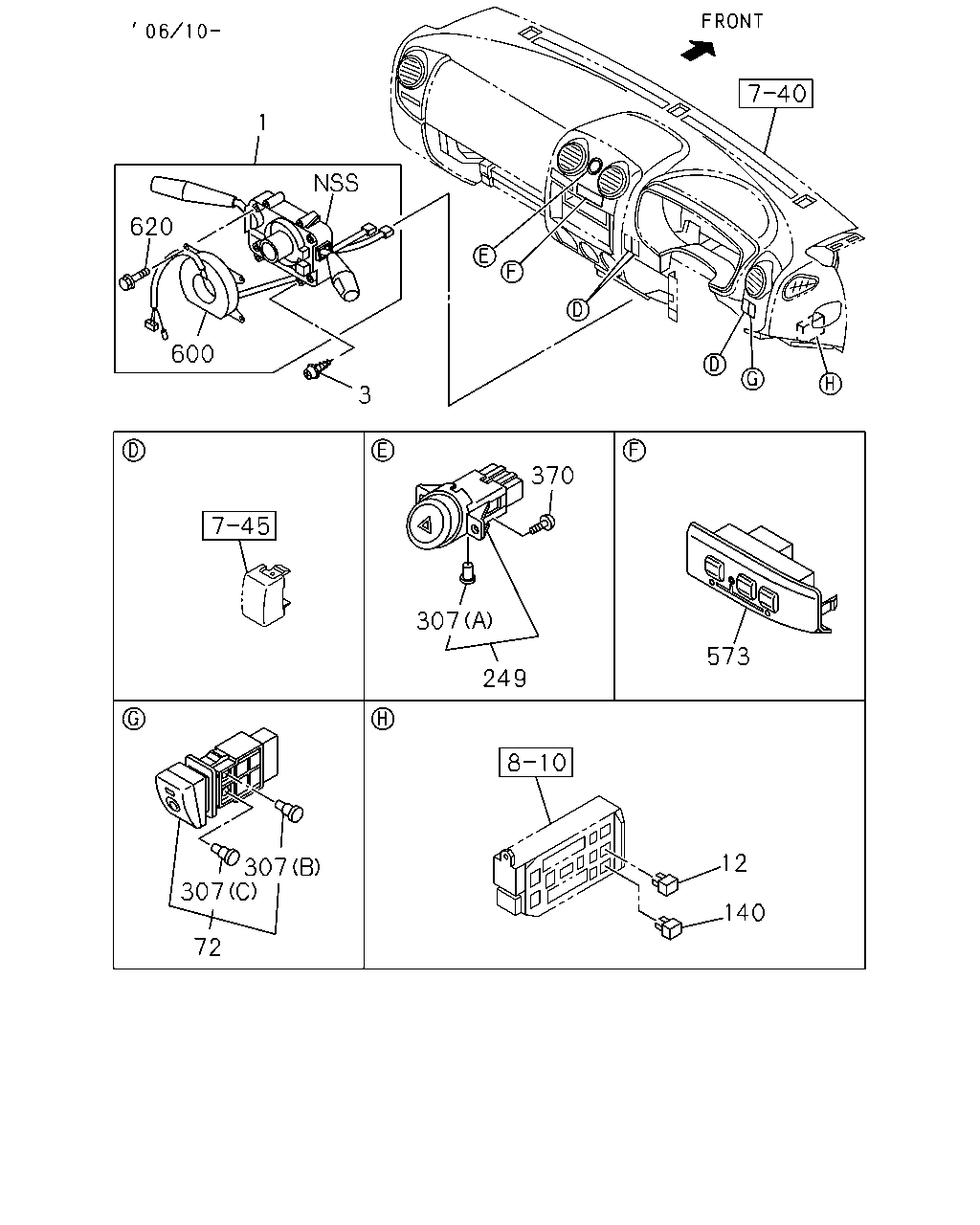

1 620 600 3 370 307 573 249 12 307 307 140 72

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	02.895 SWITCH; COMB AIR BAG DRIVER & PASSENGER<AK5> INTERMITTENT WIPER<C13> EXC. FOG LAMP<T96> THA	8-98007-706-0	01	1	0802-	●		●
1	02.895 SWITCH; COMB AIR BAG DRIVER & PASSENGER DELETE<AK6> VARIABLE INTERMITTENT WIPER<CD4> THA	8-97363-412-0	01	1	0404-0409	●
1	02.895 SWITCH; COMB AIR BAG DRIVER & PASSENGER DELETE<AK6> VARIABLE INTERMITTENT WIPER<CD4> EXC. FOG LAMP<T96> THA	8-97363-412-0	01	1	0404-0409			●
1	02.895 SWITCH; COMB AIR BAG DRIVER & PASSENGER DELETE<AK6> VARIABLE INTERMITTENT WIPER<CD4> EXC. FOG LAMP<T96> THA	8-97363-412-0	01	1	0410-	●		●
1	02.895 SWITCH; COMB AIR BAG DRIVER & PASSENGER<AK5> VARIABLE INTERMITTENT WIPER<CD4> THA	8-97363-413-0	01	1	0404-0409	●
1	02.895 SWITCH; COMB AIR BAG DRIVER & PASSENGER<AK5> VARIABLE INTERMITTENT WIPER<CD4> EXC. FOG LAMP<T96> THA	8-97363-413-0	01	1	0404-0409			●
1	02.895 SWITCH; COMB THA	8-97363-413-0	01	1	0404-0409				●
1	02.895 SWITCH; COMB AIR BAG DRIVER & PASSENGER<AK5> VARIABLE INTERMITTENT WIPER<CD4> EXC. FOG LAMP<T96> THA	8-97363-413-0	01	1	0410-0609	●		●
1	02.895 SWITCH; COMB AIR BAG DRIVER & PASSENGER<AK5> VARIABLE INTERMITTENT WIPER<CD4> EXC. FOG LAMP<T96> THA	8-98007-707-0	01	1	0610-	●		●
1	02.895 SWITCH; COMB INTERMITTENT WIPER<C13> THA	8-97363-411-0	01	1	0404-0609	●		●
1	02.895 SWITCH; COMB THA	8-97363-411-0	01	1	0404-0609		●
1	02.895 SWITCH; COMB AIR BAG DRIVER & PASSENGER DELETE<AK6> INTERMITTENT WIPER<C13> EXC. FOG LAMP<T96> THA	8-97363-411-0	01	1	0610-	●		●
1	02.895 SWITCH; COMB EXC. FOG LAMP<T96> THA	8-97363-411-0	01	1	0610-		●
1	02.895 SWITCH; COMB AIR BAG DRIVER & PASSENGER DELETE<AK6> VARIABLE INTERMITTENT WIPER<CD4> FOG LAMP<T96> THA	8-97363-414-0	01	1	0404-0409			●
1	02.895 SWITCH; COMB AIR BAG DRIVER & PASSENGER DELETE<AK6> VARIABLE INTERMITTENT WIPER<CD4> FOG LAMP<T96> THA	8-97363-414-0	01	1	0410-	●		●
1	02.895 SWITCH; COMB AIR BAG DRIVER & PASSENGER<AK5> VARIABLE INTERMITTENT WIPER<CD4> FOG LAMP<T96> THA	8-97363-415-0	01	1	0404-0409			●
1	02.895 SWITCH; COMB THA	8-97363-415-0	01	1	0404-0409					●
1	02.895 SWITCH; COMB AIR BAG DRIVER & PASSENGER<AK5> VARIABLE INTERMITTENT WIPER<CD4> FOG LAMP<T96> THA	8-97363-415-0	01	1	0410-0609	●		●
1	02.895 SWITCH; COMB THA	8-97363-415-0	01	1	0410-0609				●	●
1	02.895 SWITCH; COMB AIR BAG DRIVER & PASSENGER<AK5> VARIABLE INTERMITTENT WIPER<CD4> FOG LAMP<T96> THA	8-98007-711-0	01	1	0610-	●		●
1	02.895 SWITCH; COMB THA	8-98007-711-0	01	1	0610-				●
1	02.895 SWITCH; COMB EXC. AUTO CRUISE CONT<K30> THA	8-98007-711-0	01	1	0610-					●
1	02.895 SWITCH; COMB AUTO CRUISE CONT<K30> THA	8-98007-713-0	01	1	0610-					●
3	02.897 SCREW; COMB SW 03.483 M5X14 W/LK&PL WASHER	9-03920-514-0	02	1	0404-0606	●	●	●	●	●
3	02.897 SCREW; COMB SW M5X14 W/LK&PL WASHER THA	0-36230-514-0	02	1	0607-	●	●	●	●	●
12	08.852 RELAY; POWER WINDOW 02.575 12V OMRON THA	8-98005-407-0	01	1	0509-0612	●	●	●	●	●
12	08.852 RELAY; POWER WINDOW GRADE LT<RBD> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> 02.575 12V OMRON THA	8-98005-407-0	01	1	0701-0709	●		●	●	●
12	08.852 RELAY; POWER WINDOW GRADE LT<RBD> EXC. REMOTE CONT DOOR LOCK<AP5>, REMOTECONT DOOR LOCK W/ANTI THEFT<7KY> 02.575 12V OMRON THA	8-98005-407-0	01	1	0701-0709	●		●
12	08.852 RELAY; POWER WINDOW GRADE BASE<RBA> 02.575 12V OMRON THA	8-98005-407-0	01	1	0701-0709		●
12	08.852 RELAY; POWER WINDOW 02.575 12V OMRON THA	8-98005-407-0	01	1	0710-	●	●	●	●	●
12	08.852 RELAY; POWER WINDOW POWER WINDOW<A31> 09.778 12V YAZAKI THA	8-97309-293-0	01	1	0404-0508	●		●
12	08.852 RELAY; POWER WINDOW 09.778 12V YAZAKI THA	8-97309-293-0	01	1	0404-0508				●	●
12	08.852 RELAY; POWER WINDOW 09.778 12V YAZAKI THA	8-97309-293-0	01	1	0509-0609	●	●	●	●	●
72	02.485 SWITCH; CRUISE CONT AUTO CRUISE CONT<K30> DARK GRAY	8-97403-884-0	01	1	0610-					●
140	09.778 RELAY; RR DEFOGGER GRADE BASE<RBA>,GRADE LT<RBD> 02.575 12V OMRON THA	8-98005-407-0	01	1	0509-0609	●		●
140	09.778 RELAY; RR DEFOGGER 02.575 12V OMRON THA	8-98005-407-0	01	1	0509-0609				●	●
140	09.778 RELAY; RR DEFOGGER 02.575 12V OMRON THA	8-98005-407-0	01	1	0610-0612	●	●	●	●	●
140	09.778 RELAY; RR DEFOGGER GRADE LT<RBD> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> 02.575 12V OMRON THA	8-98005-407-0	01	1	0701-0709	●		●	●	●
140	09.778 RELAY; RR DEFOGGER GRADE LT<RBD> EXC. REMOTE CONT DOOR LOCK<AP5>, REMOTECONT DOOR LOCK W/ANTI THEFT<7KY> 02.575 12V OMRON THA	8-98005-407-0	01	1	0701-0709	●		●
140	09.778 RELAY; RR DEFOGGER GRADE BASE<RBA> 02.575 12V OMRON THA	8-98005-407-0	01	1	0701-0709		●
140	09.778 RELAY; RR DEFOGGER 02.575 12V OMRON THA	8-98005-407-0	01	1	0710-	●	●	●	●	●
140	09.778 RELAY; RR DEFOGGER GRADE LT<RBD> 12V YAZAKI THA	8-97309-293-0	01	1	0404-0508	●		●
140	09.778 RELAY; RR DEFOGGER 12V YAZAKI THA	8-97309-293-0	01	1	0404-0508				●	●
140	09.778 RELAY; RR DEFOGGER GRADE BASE<RBA>,GRADE LT<RBD> 12V YAZAKI THA	8-97309-293-0	01	1	0509-0609	●		●
140	09.778 RELAY; RR DEFOGGER 12V YAZAKI THA	8-97309-293-0	01	1	0509-0609				●	●
249	02.485 SWITCH; HAZARD DARK GRAY	8-97396-700-0	01	1	0404-0609	●	●	●	●	●
249	02.485 SWITCH; HAZARD THA	8-98046-194-0	01	1	0610-	●	●	●	●	●
307	08.991 BULB ASM; SW (A) 14V 0.91W	8-97327-526-0	01	1	0404-0609	●	●	●	●	●
307	08.991 BULB ASM; SW AUTO CRUISE CONT<K30> (C) 14V 0.84W	8-97327-317-0	01	1	0610-					●
307	08.991 BULB ASM; SW (A) THA	8-98057-959-0	01	1	0610-	●	●	●	●	●
307	08.991 BULB ASM; SW AUTO CRUISE CONT<K30> (B) 14V 0.91W	8-97355-451-0	01	1	0610-					●
370	16.495 BOLT; SW 16.085 M5X16 TAPPING	9-09829-323-1	02	1	0610-0612	●	●	●	●	●
370	16.495 BOLT; SW 08.083 M5X16 TAPPING	8-98061-685-0	02	1	0701-1004	●	●	●	●	●
370	16.495 BOLT; SW 08.083 M5X16 TAPPING THA	8-98167-449-0	02	1	1005-	●	●	●	●	●
573	09.755 SWITCH; 4WD DARK GRAY	8-97396-693-0	01	1	0404-0609				●	●
573	09.755 SWITCH; 4WD GRAY	8-97407-363-0	01	1	0610-				●	●
600	02.895 COIL ASM; SIR AIR BAG DRIVER & PASSENGER<AK5> VARIABLE INTERMITTENT WIPER<CD4> THA	8-97373-506-0	01	1	0404-0609	●		●
600	02.895 COIL ASM; SIR THA	8-97373-506-0	01	1	0404-0609				●	●
600	02.895 COIL ASM; SIR AIR BAG DRIVER & PASSENGER<AK5> VARIABLE INTERMITTENT WIPER<CD4> THA	8-98014-766-0	01	1	0610-0801	●		●
600	02.895 COIL ASM; SIR THA	8-98014-766-0	01	1	0610-0801				●	●
600	02.895 COIL ASM; SIR AIR BAG DRIVER & PASSENGER<AK5> INTERMITTENT WIPER<C13> EXC. FOG LAMP<T96> THA	8-98014-766-0	01	1	0802-	●		●
600	02.895 COIL ASM; SIR AIR BAG DRIVER & PASSENGER<AK5> VARIABLE INTERMITTENT WIPER<CD4> THA	8-98014-766-0	01	1	0802-	●		●
600	02.895 COIL ASM; SIR THA	8-98014-766-0	01	1	0802-				●	●
620	02.895 SCREW; COIL,COMB SW AIR BAG DRIVER & PASSENGER<AK5> VARIABLE INTERMITTENT WIPER<CD4> THA	8-97166-506-0	06	1	0404-0801	●		●
620	02.895 SCREW; COIL,COMB SW THA	8-97166-506-0	06	1	0404-0801				●	●
620	02.895 SCREW; COIL,COMB SW AIR BAG DRIVER & PASSENGER<AK5> INTERMITTENT WIPER<C13> EXC. FOG LAMP<T96> THA	8-97166-506-0	06	1	0802-	●		●
620	02.895 SCREW; COIL,COMB SW AIR BAG DRIVER & PASSENGER<AK5> VARIABLE INTERMITTENT WIPER<CD4> THA	8-97166-506-0	06	1	0802-	●		●
620	02.895 SCREW; COIL,COMB SW THA	8-97166-506-0	06	1	0802-				●	●

8 11 8 11 8 11 19 19 11 11 8 8 29 30 308 281

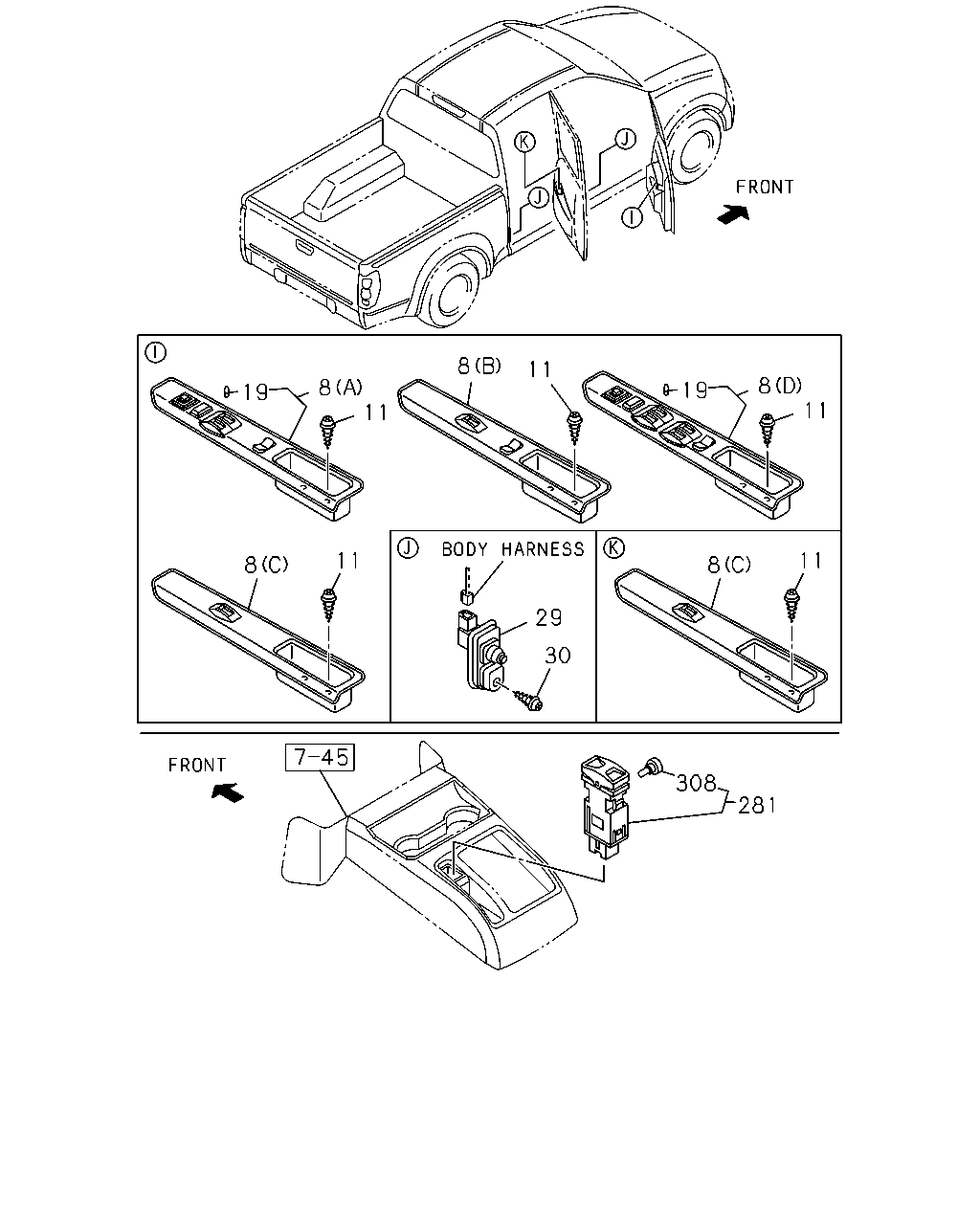

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
8	16.263 SWITCH; POWER WINDOW POWER WINDOW<A31> EXC. INTERIOR SILVER BEZEL<BY9>,DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL <DF9>,DOOR MIR ELEC DUAL FOLDING CHROME TURN SIGNAL<8JH> (A) FRONT DARK GRAY THA	8-97403-617-0	01	1	0810-	●
8	16.263 SWITCH; POWER WINDOW GRADE LT<RBD> POWER WINDOW<A31> DOOR MIRROR ELECTRIC DUAL FOLDING COLO R<DE6>,DOOR MIRROR ELECTRIC CONT BRIGHT<7HX> (A) FRONT DARK GRAY THA	8-97397-331-0	01	1	0404-0408	●
8	16.263 SWITCH; POWER WINDOW (A) FRONT DARK GRAY THA	8-97397-331-0	01	1	0404-0408				●
8	16.263 SWITCH; POWER WINDOW POWER WINDOW<A31> INTERIOR SILVER BEZEL<BY9> DOOR MIRROR ELECTRIC DUAL FOLDING COLO R<DE6>,DOOR MIRROR ELECTRIC CONT BRIGHT<7HX> (A) FRONT DARK GRAY THA	8-97397-331-0	01	1	0409-0409	●
8	16.263 SWITCH; POWER WINDOW (A) FRONT DARK GRAY THA	8-97397-331-0	01	1	0409-0409				●
8	16.263 SWITCH; POWER WINDOW POWER WINDOW<A31> INTERIOR SILVER BEZEL<BY9> DOOR MIRROR ELECTRIC DUAL FOLDING COLO R<DE6>,DOOR MIRROR ELECTRIC CONT BRIGHT<7HX> (A) FRONT DARK GRAY THA	8-97399-708-0	01	1	0410-0508	●
8	16.263 SWITCH; POWER WINDOW (A) FRONT DARK GRAY THA	8-97399-708-0	01	1	0410-0508				●
8	16.263 SWITCH; POWER WINDOW POWER WINDOW<A31> INTERIOR SILVER BEZEL<BY9> DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9>,DOOR MIR ELEC DUAL FOLDINGCHROME TURN SIGNAL<8JH> (A) FRONT DARK GRAY THA	8-97399-708-0	01	1	0509-0510	●
8	16.263 SWITCH; POWER WINDOW (A) FRONT DARK GRAY THA	8-97399-708-0	01	1	0509-0510				●
8	16.263 SWITCH; POWER WINDOW POWER WINDOW<A31> INTERIOR SILVER BEZEL<BY9> DOOR MIRROR REMOTE CONT ELECTRIC,TURN SIGNAL<DDD>,DOOR MIR ELEC DUAL FOLDINGCOLOR TURN SIGNAL<DF9>,DOOR MIR ELEC DUAL FOLDING CHROME TURN SIGNAL<8JH> (A) FRONT DARK GRAY THA	8-97399-708-0	01	1	0511-0609	●
8	16.263 SWITCH; POWER WINDOW DOOR MIRROR REMOTE CONT ELECTRIC,TURN SIGNAL<DDD>,DOOR MIR ELEC DUAL FOLDINGCHROME TURN SIGNAL<8JH> (A) FRONT DARK GRAY THA	8-97399-708-0	01	1	0511-0609				●
8	16.263 SWITCH; POWER WINDOW POWER WINDOW<A31> INTERIOR SILVER BEZEL<BY9> DOOR MIRROR REMOTE CONT ELECTRIC,TURN SIGNAL<DDD>,DOOR MIR ELEC DUAL FOLDINGCOLOR TURN SIGNAL<DF9>,DOOR MIR ELEC DUAL FOLDING CHROME TURN SIGNAL<8JH> (A) FRONT GRAY THA	8-97405-214-0	01	1	0610-0709	●
8	16.263 SWITCH; POWER WINDOW DOOR MIRROR REMOTE CONT ELECTRIC,TURN SIGNAL<DDD>,DOOR MIR ELEC DUAL FOLDINGCOLOR TURN SIGNAL<DF9>,DOOR MIR ELEC DUAL FOLDING CHROME TURN SIGNAL<8JH> (A) FRONT GRAY THA	8-97405-214-0	01	1	0610-0709				●
8	16.263 SWITCH; POWER WINDOW POWER WINDOW<A31> INTERIOR SILVER BEZEL<BY9> DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9>,DOOR MIR ELEC DUAL FOLDINGCHROME TURN SIGNAL<8JH> (A) FRONT GRAY THA	8-97405-214-0	01	1	0710-	●
8	16.263 SWITCH; POWER WINDOW (A) FRONT GRAY THA	8-97405-214-0	01	1	0710-				●
8	16.263 SWITCH; POWER WINDOW GRADE BASE<RBA>,GRADE LS<RBB> POWER WINDOW<A31> (B) FRONT DARK GRAY THA	8-97400-582-0	01	1	0406-0408	●		●
8	16.263 SWITCH; POWER WINDOW POWER WINDOW<A31> EXC. INTERIOR SILVER BEZEL<BY9> (B) FRONT DARK GRAY THA	8-97400-582-0	01	1	0409-0508	●		●
8	16.263 SWITCH; POWER WINDOW POWER WINDOW<A31> EXC. INTERIOR SILVER BEZEL<BY9> (B) FRONT DARK GRAY THA	8-97400-752-0	01	1	0509-	●		●
8	16.263 SWITCH; POWER WINDOW GRADE LT<RBD> POWER WINDOW<A31> (B) FRONT DARK GRAY THA	8-97397-333-0	01	1	0404-0408	●		●
8	16.263 SWITCH; POWER WINDOW (B) FRONT DARK GRAY THA	8-97397-333-0	01	1	0404-0408				●	●
8	16.263 SWITCH; POWER WINDOW POWER WINDOW<A31> INTERIOR SILVER BEZEL<BY9> (B) FRONT DARK GRAY THA	8-97397-333-0	01	1	0409-0508	●		●
8	16.263 SWITCH; POWER WINDOW (B) FRONT DARK GRAY THA	8-97397-333-0	01	1	0409-0508				●	●
8	16.263 SWITCH; POWER WINDOW POWER WINDOW<A31> INTERIOR SILVER BEZEL<BY9> (C) FRONT DARK GRAY THA	8-97400-386-0	01	1	0509-0609	●		●
8	16.263 SWITCH; POWER WINDOW (C) FRONT DARK GRAY THA	8-97400-386-0	01	1	0509-0609				●	●
8	16.263 SWITCH; POWER WINDOW POWER WINDOW<A31> INTERIOR SILVER BEZEL<BY9> (C) FRONT GRAY THA	8-97405-216-0	01	1	0610-	●		●
8	16.263 SWITCH; POWER WINDOW (C) FRONT GRAY THA	8-97405-216-0	01	1	0610-				●	●
8	16.263 SWITCH; POWER WINDOW GRADE BASE<RBA>,GRADE LS<RBB> POWER WINDOW<A31> (C) REAR DARK GRAY THA	8-97400-583-0	01	1	0406-0408			●
8	16.263 SWITCH; POWER WINDOW POWER WINDOW<A31> EXC. INTERIOR SILVER BEZEL<BY9> (C) REAR DARK GRAY THA	8-97400-583-0	01	1	0409-0502			●
8	16.263 SWITCH; POWER WINDOW POWER WINDOW<A31> EXC. INTERIOR SILVER BEZEL<BY9> (C) REAR DARK GRAY THA	8-97400-753-0	01	1	0503-			●
8	16.263 SWITCH; POWER WINDOW GRADE BASE<RBA>,GRADE LS<RBB> POWER WINDOW<A31> (C) REAR DARK GRAY THA	8-97400-584-0	01	1	0406-0408			●
8	16.263 SWITCH; POWER WINDOW POWER WINDOW<A31> EXC. INTERIOR SILVER BEZEL<BY9> (C) REAR DARK GRAY THA	8-97400-584-0	01	1	0409-0502			●
8	16.263 SWITCH; POWER WINDOW POWER WINDOW<A31> EXC. INTERIOR SILVER BEZEL<BY9> (C) REAR DARK GRAY THA	8-97400-754-0	01	1	0503-			●
8	16.263 SWITCH; POWER WINDOW GRADE LS<RBB> POWER WINDOW<A31> EXC. DOOR MIRROR ELECTRIC CONT BRIGHT<7HX> (D) FRONT DARK GRAY THA	8-97398-502-0	01	1	0404-0408			●
8	16.263 SWITCH; POWER WINDOW POWER WINDOW<A31> EXC. INTERIOR SILVER BEZEL<BY9>,DOOR MIRROR ELECTRIC CONT BRIGHT<7HX> (D) FRONT DARK GRAY THA	8-97398-502-0	01	1	0409-0508			●
8	16.263 SWITCH; POWER WINDOW POWER WINDOW<A31> EXC. INTERIOR SILVER BEZEL<BY9>,DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL <DF9>,DOOR MIR ELEC DUAL FOLDING CHROME TURN SIGNAL<8JH> (D) FRONT DARK GRAY THA	8-97398-502-0	01	1	0509-0510			●
8	16.263 SWITCH; POWER WINDOW POWER WINDOW<A31> EXC. INTERIOR SILVER BEZEL<BY9>,DOOR MIRROR REMOTE CONT ELECTRIC,TURN SIGNAL <DDD>,DOOR MIR ELEC DUAL FOLDING COLORTURN SIGNAL<DF9>,DOOR MIR ELEC DUAL F OLDING CHROME TURN SIGNAL<8JH> (D) FRONT DARK GRAY THA	8-97398-502-0	01	1	0511-0709			●
8	16.263 SWITCH; POWER WINDOW POWER WINDOW<A31> EXC. INTERIOR SILVER BEZEL<BY9>,DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL <DF9>,DOOR MIR ELEC DUAL FOLDING CHROME TURN SIGNAL<8JH> (D) FRONT DARK GRAY THA	8-97398-502-0	01	1	0710-			●
8	16.263 SWITCH; POWER WINDOW GRADE LT<RBD> POWER WINDOW<A31> (C) REAR DARK GRAY THA	8-97397-334-0	01	1	0404-0408			●
8	16.263 SWITCH; POWER WINDOW (C) REAR DARK GRAY THA	8-97397-334-0	01	1	0404-0408					●
8	16.263 SWITCH; POWER WINDOW POWER WINDOW<A31> INTERIOR SILVER BEZEL<BY9> (C) REAR DARK GRAY THA	8-97397-334-0	01	1	0409-0506			●
8	16.263 SWITCH; POWER WINDOW (C) REAR DARK GRAY THA	8-97397-334-0	01	1	0409-0506					●
8	16.263 SWITCH; POWER WINDOW POWER WINDOW<A31> INTERIOR SILVER BEZEL<BY9> (C) REAR DARK GRAY THA	8-97400-393-0	01	1	0507-0609			●
8	16.263 SWITCH; POWER WINDOW (C) REAR DARK GRAY THA	8-97400-393-0	01	1	0507-0609					●
8	16.263 SWITCH; POWER WINDOW POWER WINDOW<A31> INTERIOR SILVER BEZEL<BY9> (C) REAR GRAY THA	8-97405-217-0	01	1	0610-			●
8	16.263 SWITCH; POWER WINDOW (C) REAR GRAY THA	8-97405-217-0	01	1	0610-					●
8	16.263 SWITCH; POWER WINDOW GRADE LT<RBD> POWER WINDOW<A31> (C) REAR DARK GRAY THA	8-97397-335-0	01	1	0404-0408			●
8	16.263 SWITCH; POWER WINDOW (C) REAR DARK GRAY THA	8-97397-335-0	01	1	0404-0408					●
8	16.263 SWITCH; POWER WINDOW POWER WINDOW<A31> INTERIOR SILVER BEZEL<BY9> (C) REAR DARK GRAY THA	8-97397-335-0	01	1	0409-0503			●
8	16.263 SWITCH; POWER WINDOW (C) REAR DARK GRAY THA	8-97397-335-0	01	1	0409-0503					●
8	16.263 SWITCH; POWER WINDOW POWER WINDOW<A31> INTERIOR SILVER BEZEL<BY9> (C) REAR DARK GRAY THA	8-97400-395-0	01	1	0504-0609			●
8	16.263 SWITCH; POWER WINDOW (C) REAR DARK GRAY THA	8-97400-395-0	01	1	0504-0609					●
8	16.263 SWITCH; POWER WINDOW POWER WINDOW<A31> INTERIOR SILVER BEZEL<BY9> (C) REAR GRAY THA	8-97405-218-0	01	1	0610-			●
8	16.263 SWITCH; POWER WINDOW (C) REAR GRAY THA	8-97405-218-0	01	1	0610-					●
8	16.263 SWITCH; POWER WINDOW GRADE LT<RBD> POWER WINDOW<A31> DOOR MIRROR ELECTRIC DUAL FOLDING COLO R<DE6>,DOOR MIRROR ELECTRIC CONT BRIGHT<7HX> (D) FRONT DARK GRAY THA	8-97397-332-0	01	1	0404-0408			●
8	16.263 SWITCH; POWER WINDOW (D) FRONT DARK GRAY THA	8-97397-332-0	01	1	0404-0408					●
8	16.263 SWITCH; POWER WINDOW POWER WINDOW<A31> INTERIOR SILVER BEZEL<BY9> DOOR MIRROR ELECTRIC DUAL FOLDING COLO R<DE6>,DOOR MIRROR ELECTRIC CONT BRIGHT<7HX> (D) FRONT DARK GRAY THA	8-97397-332-0	01	1	0409-0409			●
8	16.263 SWITCH; POWER WINDOW (D) FRONT DARK GRAY THA	8-97397-332-0	01	1	0409-0409					●
8	16.263 SWITCH; POWER WINDOW POWER WINDOW<A31> INTERIOR SILVER BEZEL<BY9> DOOR MIRROR ELECTRIC DUAL FOLDING COLO R<DE6>,DOOR MIRROR ELECTRIC CONT BRIGHT<7HX> (D) FRONT DARK GRAY THA	8-97399-710-0	01	1	0410-0508			●
8	16.263 SWITCH; POWER WINDOW (D) FRONT DARK GRAY THA	8-97399-710-0	01	1	0410-0508					●
8	16.263 SWITCH; POWER WINDOW POWER WINDOW<A31> INTERIOR SILVER BEZEL<BY9> DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9>,DOOR MIR ELEC DUAL FOLDINGCHROME TURN SIGNAL<8JH> (D) FRONT DARK GRAY THA	8-97399-710-0	01	1	0509-0510			●
8	16.263 SWITCH; POWER WINDOW (D) FRONT DARK GRAY THA	8-97399-710-0	01	1	0509-0510					●
8	16.263 SWITCH; POWER WINDOW POWER WINDOW<A31> INTERIOR SILVER BEZEL<BY9> DOOR MIRROR REMOTE CONT ELECTRIC,TURN SIGNAL<DDD>,DOOR MIR ELEC DUAL FOLDINGCOLOR TURN SIGNAL<DF9>,DOOR MIR ELEC DUAL FOLDING CHROME TURN SIGNAL<8JH> (D) FRONT DARK GRAY THA	8-97399-710-0	01	1	0511-0609			●
8	16.263 SWITCH; POWER WINDOW DOOR MIRROR REMOTE CONT ELECTRIC,TURN SIGNAL<DDD>,DOOR MIR ELEC DUAL FOLDINGCHROME TURN SIGNAL<8JH> (D) FRONT DARK GRAY THA	8-97399-710-0	01	1	0511-0609					●
8	16.263 SWITCH; POWER WINDOW POWER WINDOW<A31> INTERIOR SILVER BEZEL<BY9> DOOR MIRROR REMOTE CONT ELECTRIC,TURN SIGNAL<DDD>,DOOR MIR ELEC DUAL FOLDINGCOLOR TURN SIGNAL<DF9>,DOOR MIR ELEC DUAL FOLDING CHROME TURN SIGNAL<8JH> (D) FRONT GRAY THA	8-97405-215-0	01	1	0610-0709			●
8	16.263 SWITCH; POWER WINDOW DOOR MIRROR REMOTE CONT ELECTRIC,TURN SIGNAL<DDD>,DOOR MIR ELEC DUAL FOLDINGCOLOR TURN SIGNAL<DF9>,DOOR MIR ELEC DUAL FOLDING CHROME TURN SIGNAL<8JH> (D) FRONT GRAY THA	8-97405-215-0	01	1	0610-0709					●
8	16.263 SWITCH; POWER WINDOW POWER WINDOW<A31> INTERIOR SILVER BEZEL<BY9> DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9>,DOOR MIR ELEC DUAL FOLDINGCHROME TURN SIGNAL<8JH> (D) FRONT GRAY THA	8-97405-215-0	01	1	0710-			●
8	16.263 SWITCH; POWER WINDOW (D) FRONT GRAY THA	8-97405-215-0	01	1	0710-					●
11	03.885 BOLT; POWER WINDOW POWER WINDOW<A31> 12.182 M5X14	8-94152-495-0	04	1	0404-	●		●
11	03.885 BOLT; POWER WINDOW POWER WINDOW<A31> 12.182 M5X14	8-94152-495-0	04	1	0404-			●
11	03.885 BOLT; POWER WINDOW 12.182 M5X14	8-94152-495-0	04	1	0404-				●	●
11	03.885 BOLT; POWER WINDOW 12.182 M5X14	8-94152-495-0	04	1	0404-					●
19	08.991 BULB; POWER WINDOW SW GRADE LT<RBD> POWER WINDOW<A31> DOOR MIRROR ELECTRIC DUAL FOLDING COLO R<DE6>,DOOR MIRROR ELECTRIC CONT BRIGHT<7HX>	8-97327-881-0	02	1	0404-0408	●		●
19	08.991 BULB; POWER WINDOW SW	8-97327-881-0	02	1	0404-0408				●	●
19	08.991 BULB; POWER WINDOW SW POWER WINDOW<A31> INTERIOR SILVER BEZEL<BY9> DOOR MIRROR ELECTRIC DUAL FOLDING COLO R<DE6>,DOOR MIRROR ELECTRIC CONT BRIGHT<7HX>	8-97327-881-0	02	1	0409-0409	●		●
19	08.991 BULB; POWER WINDOW SW	8-97327-881-0	02	1	0409-0409				●	●
19	08.991 BULB; POWER WINDOW SW POWER WINDOW<A31> INTERIOR SILVER BEZEL<BY9> DOOR MIRROR ELECTRIC DUAL FOLDING COLO R<DE6>,DOOR MIRROR ELECTRIC CONT BRIGHT<7HX>	8-97327-881-0	01	1	0410-0508	●		●
19	08.991 BULB; POWER WINDOW SW POWER WINDOW<A31> EXC. INTERIOR SILVER BEZEL<BY9>,DOOR MIRROR ELECTRIC CONT BRIGHT<7HX>	8-97327-881-0	01	1	0410-0508			●
19	08.991 BULB; POWER WINDOW SW	8-97327-881-0	01	1	0410-0508				●	●
19	08.991 BULB; POWER WINDOW SW POWER WINDOW<A31> INTERIOR SILVER BEZEL<BY9> DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9>,DOOR MIR ELEC DUAL FOLDINGCHROME TURN SIGNAL<8JH>	8-97327-881-0	01	1	0509-0510	●		●
19	08.991 BULB; POWER WINDOW SW POWER WINDOW<A31> EXC. INTERIOR SILVER BEZEL<BY9>,DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL <DF9>,DOOR MIR ELEC DUAL FOLDING CHROME TURN SIGNAL<8JH>	8-97327-881-0	01	1	0509-0510			●
19	08.991 BULB; POWER WINDOW SW	8-97327-881-0	01	1	0509-0510				●	●
19	08.991 BULB; POWER WINDOW SW POWER WINDOW<A31> INTERIOR SILVER BEZEL<BY9> DOOR MIRROR REMOTE CONT ELECTRIC,TURN SIGNAL<DDD>,DOOR MIR ELEC DUAL FOLDINGCOLOR TURN SIGNAL<DF9>,DOOR MIR ELEC DUAL FOLDING CHROME TURN SIGNAL<8JH>	8-97327-881-0	01	1	0511-0609	●		●
19	08.991 BULB; POWER WINDOW SW POWER WINDOW<A31> EXC. INTERIOR SILVER BEZEL<BY9>,DOOR MIRROR REMOTE CONT ELECTRIC,TURN SIGNAL <DDD>,DOOR MIR ELEC DUAL FOLDING COLORTURN SIGNAL<DF9>,DOOR MIR ELEC DUAL F OLDING CHROME TURN SIGNAL<8JH>	8-97327-881-0	01	1	0511-0609			●
19	08.991 BULB; POWER WINDOW SW DOOR MIRROR REMOTE CONT ELECTRIC,TURN SIGNAL<DDD>,DOOR MIR ELEC DUAL FOLDINGCHROME TURN SIGNAL<8JH>	8-97327-881-0	01	1	0511-0609				●	●
19	08.991 BULB; POWER WINDOW SW POWER WINDOW<A31> INTERIOR SILVER BEZEL<BY9> DOOR MIRROR REMOTE CONT ELECTRIC,TURN SIGNAL<DDD>,DOOR MIR ELEC DUAL FOLDINGCOLOR TURN SIGNAL<DF9>,DOOR MIR ELEC DUAL FOLDING CHROME TURN SIGNAL<8JH>	8-97327-881-0	01	1	0610-0709	●		●
19	08.991 BULB; POWER WINDOW SW POWER WINDOW<A31> EXC. INTERIOR SILVER BEZEL<BY9>,DOOR MIRROR REMOTE CONT ELECTRIC,TURN SIGNAL <DDD>,DOOR MIR ELEC DUAL FOLDING COLORTURN SIGNAL<DF9>,DOOR MIR ELEC DUAL F OLDING CHROME TURN SIGNAL<8JH>	8-97327-881-0	01	1	0610-0709			●
19	08.991 BULB; POWER WINDOW SW DOOR MIRROR REMOTE CONT ELECTRIC,TURN SIGNAL<DDD>,DOOR MIR ELEC DUAL FOLDINGCOLOR TURN SIGNAL<DF9>,DOOR MIR ELEC DUAL FOLDING CHROME TURN SIGNAL<8JH>	8-97327-881-0	01	1	0610-0709				●	●
19	08.991 BULB; POWER WINDOW SW POWER WINDOW<A31> INTERIOR SILVER BEZEL<BY9> DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9>,DOOR MIR ELEC DUAL FOLDINGCHROME TURN SIGNAL<8JH>	8-97327-881-0	01	1	0710-0809	●		●
19	08.991 BULB; POWER WINDOW SW POWER WINDOW<A31> EXC. INTERIOR SILVER BEZEL<BY9>,DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL <DF9>,DOOR MIR ELEC DUAL FOLDING CHROME TURN SIGNAL<8JH>	8-97327-881-0	01	1	0710-0809			●
19	08.991 BULB; POWER WINDOW SW	8-97327-881-0	01	1	0710-0809				●	●
19	08.991 BULB; POWER WINDOW SW POWER WINDOW<A31> INTERIOR SILVER BEZEL<BY9> DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9>,DOOR MIR ELEC DUAL FOLDINGCHROME TURN SIGNAL<8JH>	8-97327-881-0	01	1	0810-	●		●
19	08.991 BULB; POWER WINDOW SW POWER WINDOW<A31> EXC. INTERIOR SILVER BEZEL<BY9>,DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL <DF9>,DOOR MIR ELEC DUAL FOLDING CHROME TURN SIGNAL<8JH>	8-97327-881-0	01	1	0810-	●		●
19	08.991 BULB; POWER WINDOW SW	8-97327-881-0	01	1	0810-				●	●
19	08.991 BULB; POWER WINDOW SW GRADE LS<RBB> POWER WINDOW<A31> EXC. DOOR MIRROR ELECTRIC CONT BRIGHT<7HX>	8-97327-881-0	01	1	0404-0408			●
19	08.991 BULB; POWER WINDOW SW POWER WINDOW<A31> EXC. INTERIOR SILVER BEZEL<BY9>,DOOR MIRROR ELECTRIC CONT BRIGHT<7HX>	8-97327-881-0	01	1	0409-0409			●
29	16.263 SWITCH; DOOR THA	8-97313-208-0	02	1	0404-	●	●	●	●	●
29	16.263 SWITCH; DOOR THA	8-97313-208-0	02	1	0404-			●		●
30	16.263 SCREW; DOOR SW 10.240 M5X14	8-94120-095-0	02	1	0404-	●	●	●	●	●
30	16.263 SCREW; DOOR SW 10.240 M5X14	8-94120-095-0	02	1	0404-			●		●
281	04.057 SWITCH; SELECT,TRANS CONT A/T 4 SPEED-JATCO<RMK> DARK GRAY	8-97396-692-0	01	1	0404-0609	●		●	●	●
281	04.057 SWITCH; SELECT,TRANS CONT A/T AISIN<RMD>,A/T 4 SPEED-JATCO<RMK> DARK GRAY	8-97396-692-0	01	1	0610-	●		●	●	●
308	08.991 BULB; SELECT SW A/T 4 SPEED-JATCO<RMK> 14V 0.84W	8-97329-092-0	01	1	0404-0609	●		●	●	●
308	08.991 BULB; SELECT SW A/T AISIN<RMD>,A/T 4 SPEED-JATCO<RMK> 14V 0.84W	8-97329-092-0	01	1	0610-	●		●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
