Sayfa 8-21 - Isuzu EPC

8-21 — METER ASM (#73695) — 197 parça

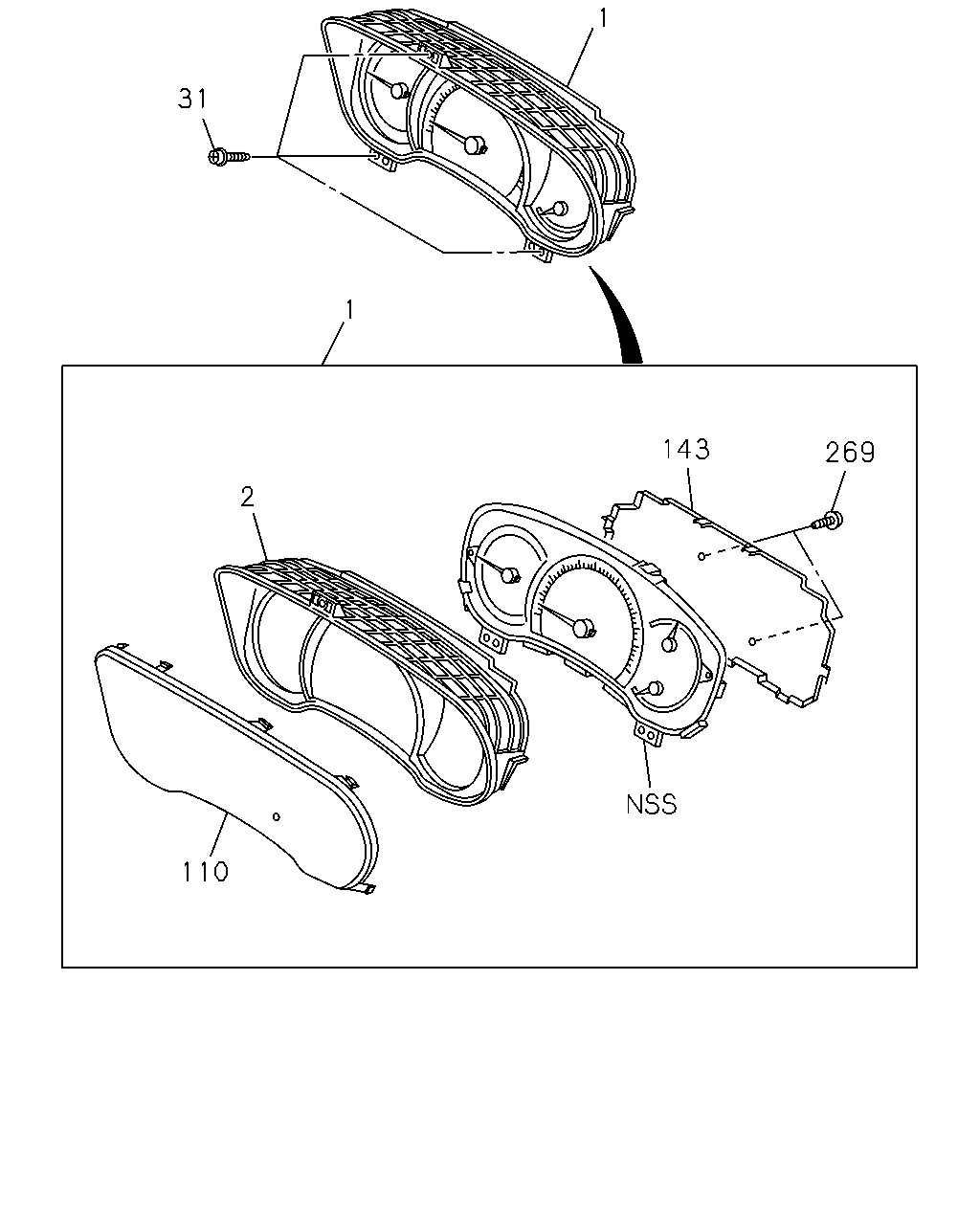

1 31 1 143 269 2 110

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	09.735 METER COMPL; CLUSTER 4JA1-T ENG<LP0> TACHOMETER<U16> THA	8-97363-241-0	01	1	0404-0409	●	●	●
1	09.735 METER COMPL; CLUSTER 4JJ1-TCS ENG<LFB> A/T 4 SPEED-JATCO<RMK> TACHOMETER<U16>	8-97377-548-0	01	1	0410-0508	●		●
1	09.735 METER COMPL; CLUSTER 4JJ1-TCS ENG<LFB> A/T 4 SPEED-JATCO<RMK>	8-97377-548-0	01	1	0410-0508				●	●
1	09.735 METER COMPL; CLUSTER 4JJ1-TCS ENG<LFB> A/T 4 SPEED-JATCO<RMK> TACHOMETER<U16> THA	8-97386-710-0	01	1	0509-0609	●		●
1	09.735 METER COMPL; CLUSTER 4JJ1-TCS ENG<LFB> A/T 4 SPEED-JATCO<RMK> THA	8-97386-710-0	01	1	0509-0609				●	●
1	09.735 METER COMPL; CLUSTER 4JJ1-TCS ENG<LFB>,4JJ1-TCX ENG<LS0> M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> TACHOMETER<U16> EXC. ELECTRO LUMINESCENT INSTRUMENTATI ON CLUSTER<UCA> THA	8-98046-270-0	01	1	0610-	●		●	●	●
1	09.735 METER COMPL; CLUSTER 4JH1-T ENG<L23> M/T MUA 5 SPEED 5G<RSP> TACHOMETER<U16> THA	8-97363-242-0	01	1	0404-0409	●	●	●
1	09.735 METER COMPL; CLUSTER M/T MUA 5 SPEED 5G<RSP> THA	8-97363-242-0	01	1	0404-0409				●	●
1	09.735 METER COMPL; CLUSTER 4JA1-T ENG<LP0> TACHOMETER<U16>	8-97377-570-0	01	1	0410-0501	●		●
1	09.735 METER COMPL; CLUSTER 4JA1-T ENG<LP0>	8-97377-570-0	01	1	0410-0501		●
1	09.735 METER COMPL; CLUSTER 4JK1-TCS ENG<LKZ> M/T MUA 5 SPEED 5H<MWQ>,M/T MUA 5 SPEED 5G<RSP> TACHOMETER<U16> THA	8-97377-549-0	01	1	0502-0508	●		●
1	09.735 METER COMPL; CLUSTER 4JK1-TCS ENG<LKZ> THA	8-97377-549-0	01	1	0502-0508		●
1	09.735 METER COMPL; CLUSTER 4JK1-TCS ENG<LKZ> M/T MUA 5 SPEED 5H<MWQ>,M/T MUA 5 SPEED 5G<RSP> TACHOMETER<U16> THA	8-97386-711-0	01	1	0509-0609	●		●
1	09.735 METER COMPL; CLUSTER 4JK1-TCS ENG<LKZ> M/T MUA 5 SPEED 5H<MWQ> THA	8-97386-711-0	01	1	0509-0609		●
1	09.735 METER COMPL; CLUSTER 4JJ1-TCS ENG<LFB>,4JJ1-TCX ENG<LS0> A/T AISIN<RMD>,A/T 4 SPEED-JATCO<RMK> ELECTRO LUMINESCENT INSTRUMENTATION CL USTER<UCA> TACHOMETER<U16> THA	8-98046-262-0	01	1	0610-	●		●	●	●
1	09.735 METER COMPL; CLUSTER 4JH1-T ENG<L23> A/T 4 SPEED-JATCO<RMK> TACHOMETER<U16> THA	8-97363-243-0	01	1	0404-0409	●		●
1	09.735 METER COMPL; CLUSTER A/T 4 SPEED-JATCO<RMK> THA	8-97363-243-0	01	1	0404-0409				●	●
1	09.735 METER COMPL; CLUSTER 4JJ1-TCS ENG<LFB> M/T MUA 5 SPEED 5G<RSP> TACHOMETER<U16>	8-97377-547-0	01	1	0410-0501	●		●
1	09.735 METER COMPL; CLUSTER 4JJ1-TCS ENG<LFB> M/T MUA 5 SPEED 5G<RSP>	8-97377-547-0	01	1	0410-0501				●	●
1	09.735 METER COMPL; CLUSTER 4JJ1-TCS ENG<LFB> M/T MUA 5 SPEED 5H<MWQ>,M/T MUA 5 SPEED 5G<RSP> TACHOMETER<U16>	8-97377-547-0	01	1	0502-0508	●		●
1	09.735 METER COMPL; CLUSTER 4JJ1-TCS ENG<LFB> M/T MUA 5 SPEED 5G<RSP>	8-97377-547-0	01	1	0502-0508				●	●
1	09.735 METER COMPL; CLUSTER 4JJ1-TCS ENG<LFB> M/T MUA 5 SPEED 5H<MWQ>,M/T MUA 5 SPEED 5G<RSP> TACHOMETER<U16> THA	8-97386-709-0	01	1	0509-0609	●		●
1	09.735 METER COMPL; CLUSTER 4JJ1-TCS ENG<LFB> M/T MUA 5 SPEED 5G<RSP> THA	8-97386-709-0	01	1	0509-0609				●	●
1	09.735 METER COMPL; CLUSTER 4JJ1-TCS ENG<LFB>,4JJ1-TCX ENG<LS0> M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> ELECTRO LUMINESCENT INSTRUMENTATION CL USTER<UCA> TACHOMETER<U16> THA	8-98046-256-0	01	1	0610-	●		●	●	●
1	09.735 METER COMPL; CLUSTER 4JJ1-TCS ENG<LFB> A/T 4 SPEED-JATCO<RMK> TACHOMETER<U16> EXC. ELECTRO LUMINESCENT INSTRUMENTATI ON CLUSTER<UCA> THA	8-98046-279-0	01	1	0610-0709	●		●
1	09.735 METER COMPL; CLUSTER 4JK1-TCS ENG<LKZ> M/T MUA 5 SPEED 5H<MWQ> ELECTRO LUMINESCENT INSTRUMENTATION CL USTER<UCA> TACHOMETER<U16> THA	8-98046-284-0	01	1	0610-	●		●	●
1	09.735 METER COMPL; CLUSTER 4JK1-TCS ENG<LKZ> M/T MUA 5 SPEED 5H<MWQ> TACHOMETER<U16> EXC. ELECTRO LUMINESCENT INSTRUMENTATI ON CLUSTER<UCA> THA	8-98046-289-0	01	1	0610-	●		●	●
1	09.735 METER COMPL; CLUSTER 4JK1-TCS ENG<LKZ> M/T MUA 5 SPEED 5H<MWQ> THA	8-98046-289-0	01	1	0610-		●
1	09.735 METER COMPL; CLUSTER 4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ>, 4JJ1-TCX ENG<LS0> M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> EXC. ELECTRO LUMINESCENT INSTRUMENTATI ON CLUSTER<UCA>,TACHOMETER<U16> THA	8-98046-271-0	01	1	0610-	●		●	●	●
1	09.735 METER COMPL; CLUSTER 4JJ1-TCS ENG<LFB> A/T 4 SPEED-JATCO<RMK> TACHOMETER<U16> EXC. ELECTRO LUMINESCENT INSTRUMENTATI ON CLUSTER<UCA> THA	8-98046-278-0	01	1	0610-1007				●
1	09.735 METER COMPL; CLUSTER 4JJ1-TCS ENG<LFB>,4JJ1-TCX ENG<LS0> A/T AISIN<RMD>,A/T 4 SPEED-JATCO<RMK> TACHOMETER<U16> EXC. ELECTRO LUMINESCENT INSTRUMENTATI ON CLUSTER<UCA> THA	8-98046-278-0	01	1	0610-1007					●
1	09.735 METER COMPL; CLUSTER 4JJ1-TCS ENG<LFB> A/T 4 SPEED-JATCO<RMK> TACHOMETER<U16> EXC. ELECTRO LUMINESCENT INSTRUMENTATI ON CLUSTER<UCA> THA	8-98154-496-0	01	1	1008-				●
1	09.735 METER COMPL; CLUSTER 4JJ1-TCS ENG<LFB>,4JJ1-TCX ENG<LS0> A/T AISIN<RMD>,A/T 4 SPEED-JATCO<RMK> TACHOMETER<U16> EXC. ELECTRO LUMINESCENT INSTRUMENTATI ON CLUSTER<UCA> THA	8-98154-496-0	01	1	1008-					●
2	09.735 PANEL; CLUSTER TACHOMETER<U16> THA	8-97305-575-0	01	1	0404-0409	●	●	●
2	09.735 PANEL; CLUSTER THA	8-97305-575-0	01	1	0404-0409				●	●
2	09.735 PANEL; CLUSTER TACHOMETER<U16> THA	8-97305-575-0	01	1	0410-0609	●		●
2	09.735 PANEL; CLUSTER THA	8-97305-575-0	01	1	0410-0609		●		●	●
2	09.735 PANEL; CLUSTER ELECTRO LUMINESCENT INSTRUMENTATION CL USTER<UCA> THA	8-98047-112-0	01	1	0610-	●		●	●	●
2	09.735 PANEL; CLUSTER EXC. ELECTRO LUMINESCENT INSTRUMENTATI ON CLUSTER<UCA> THA	8-98047-113-0	01	1	0610-	●		●	●	●
2	09.735 PANEL; CLUSTER THA	8-98047-113-0	01	1	0610-		●
31	09.761 SCREW; METER,INST PANEL 16.085 M5X16 TAPPING	9-09829-323-1	03	1	0404-0702	●	●	●	●	●
31	09.761 SCREW; METER,INST PANEL 08.083 M5X16 TAPPING	8-98061-685-0	03	1	0703-1003	●	●	●	●	●
31	09.761 SCREW; METER,INST PANEL 08.083 M5X16 TAPPING THA	8-98167-449-0	03	1	1004-	●	●	●	●	●
110	09.748 GLASS; CLUSTER METER TACHOMETER<U16> THA	8-97305-572-0	01	1	0404-0409	●	●	●
110	09.748 GLASS; CLUSTER METER THA	8-97305-572-0	01	1	0404-0409				●	●
110	09.748 GLASS; CLUSTER METER TACHOMETER<U16> THA	8-97305-572-0	01	1	0410-0609	●		●
110	09.748 GLASS; CLUSTER METER THA	8-97305-572-0	01	1	0410-0609		●		●	●
110	09.748 GLASS; CLUSTER METER ELECTRO LUMINESCENT INSTRUMENTATION CL USTER<UCA> THA	8-98047-110-0	01	1	0610-	●		●	●	●
110	09.748 GLASS; CLUSTER METER EXC. ELECTRO LUMINESCENT INSTRUMENTATI ON CLUSTER<UCA> THA	8-98047-111-0	01	1	0610-	●		●	●	●
110	09.748 GLASS; CLUSTER METER THA	8-98047-111-0	01	1	0610-		●
143	09.715 COVER; CLUSTER METER TACHOMETER<U16> THA	8-97305-577-0	01	1	0404-0409	●	●	●
143	09.715 COVER; CLUSTER METER THA	8-97305-577-0	01	1	0404-0409				●	●
143	09.715 COVER; CLUSTER METER TACHOMETER<U16> THA	8-97305-577-0	01	1	0410-0609	●		●
143	09.715 COVER; CLUSTER METER THA	8-97305-577-0	01	1	0410-0609		●		●	●
143	09.715 COVER; CLUSTER METER TACHOMETER<U16> THA	8-98047-114-0	01	1	0610-	●		●	●	●
143	09.715 COVER; CLUSTER METER THA	8-98047-114-0	01	1	0610-		●
143	09.715 COVER; CLUSTER METER 4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ>, 4JJ1-TCX ENG<LS0> M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> EXC. ELECTRO LUMINESCENT INSTRUMENTATI ON CLUSTER<UCA>,TACHOMETER<U16> THA	8-98047-115-0	01	1	0610-	●		●	●	●
269	09.743 SCREW; METER CLUSTER THA	8-98047-116-0	03	1	0610-	●	●	●	●	●

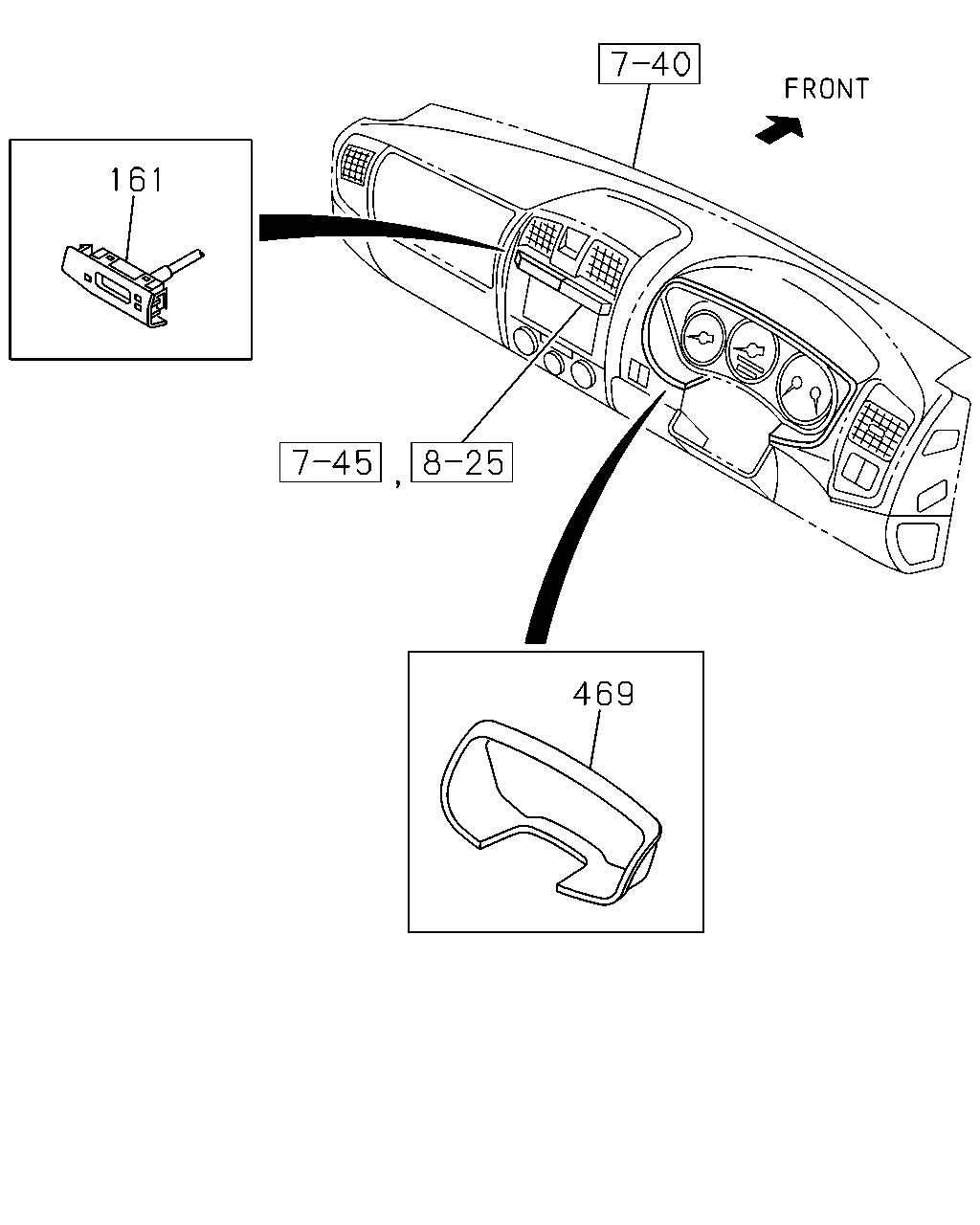

161 469

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
161	09.772 CLOCK; CLUSTER METER GRADE BASE<RBA>,GRADE LS<RBB> DIGITAL CLOCK<UE8> DARK GRAY THA	8-97396-702-0	01	1	0404-0408	●	●	●
161	09.772 CLOCK; CLUSTER METER DIGITAL CLOCK<UE8> EXC. INTERIOR SILVER BEZEL<BY9> DARK GRAY THA	8-97396-702-0	01	1	0409-0409	●		●
161	09.772 CLOCK; CLUSTER METER DIGITAL CLOCK<UE8> DARK GRAY THA	8-97396-702-0	01	1	0409-0409		●
161	09.772 CLOCK; CLUSTER METER DIGITAL CLOCK<UE8> EXC. INTERIOR SILVER BEZEL<BY9> DARK GRAY THA	8-97396-702-0	01	1	0410-0609	●		●
161	09.772 CLOCK; CLUSTER METER DARK GRAY THA	8-97396-702-0	01	1	0410-0609		●
161	09.772 CLOCK; CLUSTER METER EXC. INTERIOR SILVER BEZEL<BY9> DARK GRAY THA	8-97407-359-0	01	1	0610-0709	●
161	09.772 CLOCK; CLUSTER METER DARK GRAY THA	8-97407-359-0	01	1	0610-0709		●
161	09.772 CLOCK; CLUSTER METER DIGITAL CLOCK<UE8> EXC. INTERIOR SILVER BEZEL<BY9> DARK GRAY THA	8-97407-359-0	01	1	0610-0709			●
161	09.772 CLOCK; CLUSTER METER EXC. INTERIOR SILVER BEZEL<BY9> DARK GRAY THA	8-97407-359-0	01	1	0710-0809	●		●
161	09.772 CLOCK; CLUSTER METER DARK GRAY THA	8-97407-359-0	01	1	0710-0809		●
161	09.772 CLOCK; CLUSTER METER DIGITAL CLOCK<UE8> EXC. INTERIOR SILVER BEZEL<BY9> DARK GRAY THA	8-97407-359-0	01	1	0810-0910	●		●
161	09.772 CLOCK; CLUSTER METER DARK GRAY THA	8-97407-359-0	01	1	0810-0910		●
161	09.772 CLOCK; CLUSTER METER EXC. INTERIOR SILVER BEZEL<BY9> DARK GRAY THA	8-97407-359-0	01	1	0911-	●		●
161	09.772 CLOCK; CLUSTER METER DARK GRAY THA	8-97407-359-0	01	1	0911-		●
161	09.772 CLOCK; CLUSTER METER GRADE LT<RBD> DIGITAL CLOCK<UE8> LIGHT GRAY THA	8-97396-393-0	01	1	0404-0408	●		●
161	09.772 CLOCK; CLUSTER METER LIGHT GRAY THA	8-97396-393-0	01	1	0404-0408				●	●
161	09.772 CLOCK; CLUSTER METER INTERIOR SILVER BEZEL<BY9> DIGITAL CLOCK<UE8> LIGHT GRAY THA	8-97396-393-0	01	1	0409-0609	●		●
161	09.772 CLOCK; CLUSTER METER LIGHT GRAY THA	8-97396-393-0	01	1	0409-0609				●	●
161	09.772 CLOCK; CLUSTER METER INTERIOR SILVER BEZEL<BY9> GRAY THA	8-97407-361-0	01	1	0610-0709	●
161	09.772 CLOCK; CLUSTER METER INTERIOR SILVER BEZEL<BY9> DIGITAL CLOCK<UE8> GRAY THA	8-97407-361-0	01	1	0610-0709			●
161	09.772 CLOCK; CLUSTER METER GRAY THA	8-97407-361-0	01	1	0610-0709				●	●
161	09.772 CLOCK; CLUSTER METER INTERIOR SILVER BEZEL<BY9> GRAY THA	8-97407-361-0	01	1	0710-0809	●		●
161	09.772 CLOCK; CLUSTER METER GRAY THA	8-97407-361-0	01	1	0710-0809				●	●
161	09.772 CLOCK; CLUSTER METER INTERIOR SILVER BEZEL<BY9> DIGITAL CLOCK<UE8> GRAY THA	8-97407-361-0	01	1	0810-0910	●		●
161	09.772 CLOCK; CLUSTER METER GRAY THA	8-97407-361-0	01	1	0810-0910				●	●
161	09.772 CLOCK; CLUSTER METER INTERIOR SILVER BEZEL<BY9> GRAY THA	8-97407-361-0	01	1	0911-	●		●
161	09.772 CLOCK; CLUSTER METER GRAY THA	8-97407-361-0	01	1	0911-				●	●
469	16.080 PLATE; INSTRUMENT PANEL EXC. TILT STEERING<N33> DARK GRAY THA	8-97421-861-0	01	1	1005-	●		●
469	16.080 PLATE; INSTRUMENT PANEL DARK GRAY THA	8-97421-861-0	01	1	1005-		●
469	16.080 PLATE; INSTRUMENT PANEL DARK GRAY THA	8-97396-600-0	01	1	0404-0508	●	●	●	●	●
469	16.080 PLATE; INSTRUMENT PANEL DARK GRAY THA	8-97404-875-0	01	1	0509-0612	●	●	●	●	●
469	16.080 PLATE; INSTRUMENT PANEL DARK GRAY THA	8-97409-178-0	01	1	0701-1004	●	●	●	●	●
469	16.080 PLATE; INSTRUMENT PANEL TILT STEERING<N33> DARK GRAY THA	8-97409-178-0	01	1	1005-	●		●
469	16.080 PLATE; INSTRUMENT PANEL DARK GRAY THA	8-97409-178-0	01	1	1005-				●	●

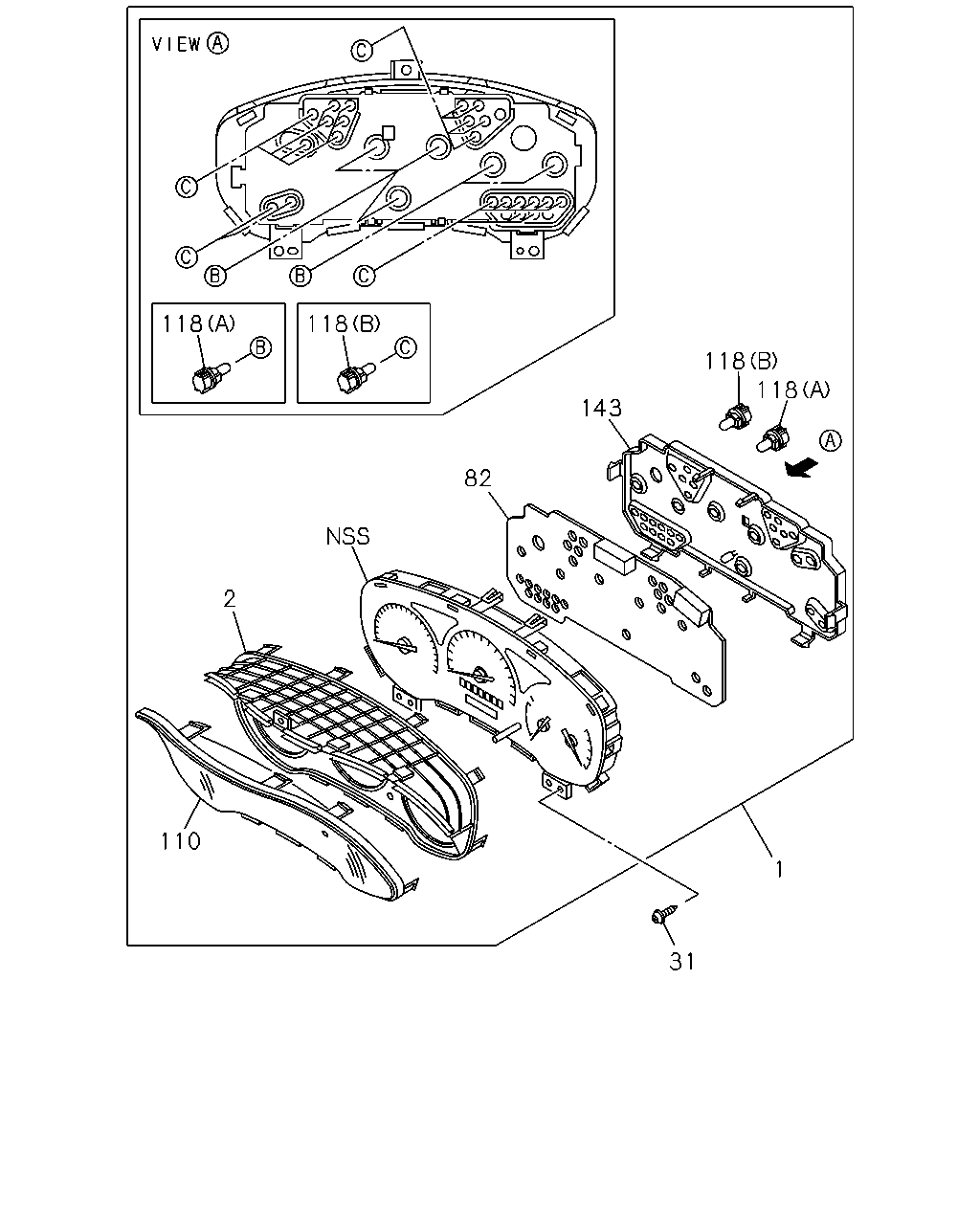

118 118 118 118 143 82 2 110 1 31

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	09.735 METER COMPL; CLUSTER 4JA1-T ENG<LP0> TACHOMETER<U16> THA	8-97363-241-0	01	1	0404-0409	●	●	●
1	09.735 METER COMPL; CLUSTER 4JJ1-TCS ENG<LFB> A/T 4 SPEED-JATCO<RMK> TACHOMETER<U16>	8-97377-548-0	01	1	0410-0508	●		●
1	09.735 METER COMPL; CLUSTER 4JJ1-TCS ENG<LFB> A/T 4 SPEED-JATCO<RMK>	8-97377-548-0	01	1	0410-0508				●	●
1	09.735 METER COMPL; CLUSTER 4JJ1-TCS ENG<LFB> A/T 4 SPEED-JATCO<RMK> TACHOMETER<U16> THA	8-97386-710-0	01	1	0509-0609	●		●
1	09.735 METER COMPL; CLUSTER 4JJ1-TCS ENG<LFB> A/T 4 SPEED-JATCO<RMK> THA	8-97386-710-0	01	1	0509-0609				●	●
1	09.735 METER COMPL; CLUSTER 4JJ1-TCS ENG<LFB>,4JJ1-TCX ENG<LS0> M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> TACHOMETER<U16> EXC. ELECTRO LUMINESCENT INSTRUMENTATI ON CLUSTER<UCA> THA	8-98046-270-0	01	1	0610-	●		●	●	●
1	09.735 METER COMPL; CLUSTER 4JH1-T ENG<L23> M/T MUA 5 SPEED 5G<RSP> TACHOMETER<U16> THA	8-97363-242-0	01	1	0404-0409	●	●	●
1	09.735 METER COMPL; CLUSTER M/T MUA 5 SPEED 5G<RSP> THA	8-97363-242-0	01	1	0404-0409				●	●
1	09.735 METER COMPL; CLUSTER 4JA1-T ENG<LP0> TACHOMETER<U16>	8-97377-570-0	01	1	0410-0501	●		●
1	09.735 METER COMPL; CLUSTER 4JA1-T ENG<LP0>	8-97377-570-0	01	1	0410-0501		●
1	09.735 METER COMPL; CLUSTER 4JK1-TCS ENG<LKZ> M/T MUA 5 SPEED 5H<MWQ>,M/T MUA 5 SPEED 5G<RSP> TACHOMETER<U16> THA	8-97377-549-0	01	1	0502-0508	●		●
1	09.735 METER COMPL; CLUSTER 4JK1-TCS ENG<LKZ> THA	8-97377-549-0	01	1	0502-0508		●
1	09.735 METER COMPL; CLUSTER 4JK1-TCS ENG<LKZ> M/T MUA 5 SPEED 5H<MWQ>,M/T MUA 5 SPEED 5G<RSP> TACHOMETER<U16> THA	8-97386-711-0	01	1	0509-0609	●		●
1	09.735 METER COMPL; CLUSTER 4JK1-TCS ENG<LKZ> M/T MUA 5 SPEED 5H<MWQ> THA	8-97386-711-0	01	1	0509-0609		●
1	09.735 METER COMPL; CLUSTER 4JJ1-TCS ENG<LFB>,4JJ1-TCX ENG<LS0> A/T AISIN<RMD>,A/T 4 SPEED-JATCO<RMK> ELECTRO LUMINESCENT INSTRUMENTATION CL USTER<UCA> TACHOMETER<U16> THA	8-98046-262-0	01	1	0610-	●		●	●	●
1	09.735 METER COMPL; CLUSTER 4JH1-T ENG<L23> A/T 4 SPEED-JATCO<RMK> TACHOMETER<U16> THA	8-97363-243-0	01	1	0404-0409	●		●
1	09.735 METER COMPL; CLUSTER A/T 4 SPEED-JATCO<RMK> THA	8-97363-243-0	01	1	0404-0409				●	●
1	09.735 METER COMPL; CLUSTER 4JJ1-TCS ENG<LFB> M/T MUA 5 SPEED 5G<RSP> TACHOMETER<U16>	8-97377-547-0	01	1	0410-0501	●		●
1	09.735 METER COMPL; CLUSTER 4JJ1-TCS ENG<LFB> M/T MUA 5 SPEED 5G<RSP>	8-97377-547-0	01	1	0410-0501				●	●
1	09.735 METER COMPL; CLUSTER 4JJ1-TCS ENG<LFB> M/T MUA 5 SPEED 5H<MWQ>,M/T MUA 5 SPEED 5G<RSP> TACHOMETER<U16>	8-97377-547-0	01	1	0502-0508	●		●
1	09.735 METER COMPL; CLUSTER 4JJ1-TCS ENG<LFB> M/T MUA 5 SPEED 5G<RSP>	8-97377-547-0	01	1	0502-0508				●	●
1	09.735 METER COMPL; CLUSTER 4JJ1-TCS ENG<LFB> M/T MUA 5 SPEED 5H<MWQ>,M/T MUA 5 SPEED 5G<RSP> TACHOMETER<U16> THA	8-97386-709-0	01	1	0509-0609	●		●
1	09.735 METER COMPL; CLUSTER 4JJ1-TCS ENG<LFB> M/T MUA 5 SPEED 5G<RSP> THA	8-97386-709-0	01	1	0509-0609				●	●
1	09.735 METER COMPL; CLUSTER 4JJ1-TCS ENG<LFB>,4JJ1-TCX ENG<LS0> M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> ELECTRO LUMINESCENT INSTRUMENTATION CL USTER<UCA> TACHOMETER<U16> THA	8-98046-256-0	01	1	0610-	●		●	●	●
1	09.735 METER COMPL; CLUSTER 4JJ1-TCS ENG<LFB> A/T 4 SPEED-JATCO<RMK> TACHOMETER<U16> EXC. ELECTRO LUMINESCENT INSTRUMENTATI ON CLUSTER<UCA> THA	8-98046-279-0	01	1	0610-0709	●		●
1	09.735 METER COMPL; CLUSTER 4JK1-TCS ENG<LKZ> M/T MUA 5 SPEED 5H<MWQ> ELECTRO LUMINESCENT INSTRUMENTATION CL USTER<UCA> TACHOMETER<U16> THA	8-98046-284-0	01	1	0610-	●		●	●
1	09.735 METER COMPL; CLUSTER 4JK1-TCS ENG<LKZ> M/T MUA 5 SPEED 5H<MWQ> TACHOMETER<U16> EXC. ELECTRO LUMINESCENT INSTRUMENTATI ON CLUSTER<UCA> THA	8-98046-289-0	01	1	0610-	●		●	●
1	09.735 METER COMPL; CLUSTER 4JK1-TCS ENG<LKZ> M/T MUA 5 SPEED 5H<MWQ> THA	8-98046-289-0	01	1	0610-		●
1	09.735 METER COMPL; CLUSTER 4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ>, 4JJ1-TCX ENG<LS0> M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> EXC. ELECTRO LUMINESCENT INSTRUMENTATI ON CLUSTER<UCA>,TACHOMETER<U16> THA	8-98046-271-0	01	1	0610-	●		●	●	●
1	09.735 METER COMPL; CLUSTER 4JJ1-TCS ENG<LFB> A/T 4 SPEED-JATCO<RMK> TACHOMETER<U16> EXC. ELECTRO LUMINESCENT INSTRUMENTATI ON CLUSTER<UCA> THA	8-98046-278-0	01	1	0610-1007				●
1	09.735 METER COMPL; CLUSTER 4JJ1-TCS ENG<LFB>,4JJ1-TCX ENG<LS0> A/T AISIN<RMD>,A/T 4 SPEED-JATCO<RMK> TACHOMETER<U16> EXC. ELECTRO LUMINESCENT INSTRUMENTATI ON CLUSTER<UCA> THA	8-98046-278-0	01	1	0610-1007					●
1	09.735 METER COMPL; CLUSTER 4JJ1-TCS ENG<LFB> A/T 4 SPEED-JATCO<RMK> TACHOMETER<U16> EXC. ELECTRO LUMINESCENT INSTRUMENTATI ON CLUSTER<UCA> THA	8-98154-496-0	01	1	1008-				●
1	09.735 METER COMPL; CLUSTER 4JJ1-TCS ENG<LFB>,4JJ1-TCX ENG<LS0> A/T AISIN<RMD>,A/T 4 SPEED-JATCO<RMK> TACHOMETER<U16> EXC. ELECTRO LUMINESCENT INSTRUMENTATI ON CLUSTER<UCA> THA	8-98154-496-0	01	1	1008-					●
2	09.735 PANEL; CLUSTER TACHOMETER<U16> THA	8-97305-575-0	01	1	0404-0409	●	●	●
2	09.735 PANEL; CLUSTER THA	8-97305-575-0	01	1	0404-0409				●	●
2	09.735 PANEL; CLUSTER TACHOMETER<U16> THA	8-97305-575-0	01	1	0410-0609	●		●
2	09.735 PANEL; CLUSTER THA	8-97305-575-0	01	1	0410-0609		●		●	●
2	09.735 PANEL; CLUSTER ELECTRO LUMINESCENT INSTRUMENTATION CL USTER<UCA> THA	8-98047-112-0	01	1	0610-	●		●	●	●
2	09.735 PANEL; CLUSTER EXC. ELECTRO LUMINESCENT INSTRUMENTATI ON CLUSTER<UCA> THA	8-98047-113-0	01	1	0610-	●		●	●	●
2	09.735 PANEL; CLUSTER THA	8-98047-113-0	01	1	0610-		●
31	09.761 SCREW; METER,INST PANEL 16.085 M5X16 TAPPING	9-09829-323-1	03	1	0404-0702	●	●	●	●	●
31	09.761 SCREW; METER,INST PANEL 08.083 M5X16 TAPPING	8-98061-685-0	03	1	0703-1003	●	●	●	●	●
31	09.761 SCREW; METER,INST PANEL 08.083 M5X16 TAPPING THA	8-98167-449-0	03	1	1004-	●	●	●	●	●
82	09.743 CASE ASM; CLUSTER METER 4JA1-T ENG<LP0> TACHOMETER<U16> THA	8-97375-732-0	01	1	0404-0409	●	●	●
82	09.743 CASE ASM; CLUSTER METER 4JJ1-TCS ENG<LFB> A/T 4 SPEED-JATCO<RMK> TACHOMETER<U16>	8-97376-404-0	01	1	0410-0508	●		●
82	09.743 CASE ASM; CLUSTER METER 4JJ1-TCS ENG<LFB> A/T 4 SPEED-JATCO<RMK>	8-97376-404-0	01	1	0410-0508				●	●
82	09.743 CASE ASM; CLUSTER METER 4JJ1-TCS ENG<LFB> A/T 4 SPEED-JATCO<RMK> TACHOMETER<U16> THA	8-97389-951-0	01	1	0509-0609	●		●
82	09.743 CASE ASM; CLUSTER METER 4JJ1-TCS ENG<LFB> A/T 4 SPEED-JATCO<RMK> THA	8-97389-951-0	01	1	0509-0609				●	●
82	09.743 CASE ASM; CLUSTER METER 4JH1-T ENG<L23> M/T MUA 5 SPEED 5G<RSP> TACHOMETER<U16> THA	8-97375-733-0	01	1	0404-0409	●	●	●
82	09.743 CASE ASM; CLUSTER METER M/T MUA 5 SPEED 5G<RSP> THA	8-97375-733-0	01	1	0404-0409				●	●
82	09.743 CASE ASM; CLUSTER METER 4JA1-T ENG<LP0> TACHOMETER<U16>	8-97379-820-0	01	1	0410-0501	●		●
82	09.743 CASE ASM; CLUSTER METER 4JA1-T ENG<LP0>	8-97379-820-0	01	1	0410-0501		●
82	09.743 CASE ASM; CLUSTER METER 4JK1-TCS ENG<LKZ> M/T MUA 5 SPEED 5H<MWQ>,M/T MUA 5 SPEED 5G<RSP> TACHOMETER<U16> THA	8-97379-822-0	01	1	0502-0508	●		●
82	09.743 CASE ASM; CLUSTER METER 4JK1-TCS ENG<LKZ> THA	8-97379-822-0	01	1	0502-0508		●
82	09.743 CASE ASM; CLUSTER METER 4JK1-TCS ENG<LKZ> M/T MUA 5 SPEED 5H<MWQ>,M/T MUA 5 SPEED 5G<RSP> TACHOMETER<U16> THA	8-97389-952-0	01	1	0509-0609	●		●
82	09.743 CASE ASM; CLUSTER METER 4JK1-TCS ENG<LKZ> M/T MUA 5 SPEED 5H<MWQ> THA	8-97389-952-0	01	1	0509-0609		●
82	09.743 CASE ASM; CLUSTER METER 4JH1-T ENG<L23> A/T 4 SPEED-JATCO<RMK> TACHOMETER<U16> THA	8-97375-734-0	01	1	0404-0409	●		●
82	09.743 CASE ASM; CLUSTER METER A/T 4 SPEED-JATCO<RMK> THA	8-97375-734-0	01	1	0404-0409				●	●
82	09.743 CASE ASM; CLUSTER METER 4JJ1-TCS ENG<LFB> M/T MUA 5 SPEED 5G<RSP> TACHOMETER<U16>	8-97376-403-0	01	1	0410-0501	●		●
82	09.743 CASE ASM; CLUSTER METER 4JJ1-TCS ENG<LFB> M/T MUA 5 SPEED 5G<RSP>	8-97376-403-0	01	1	0410-0501				●	●
82	09.743 CASE ASM; CLUSTER METER 4JJ1-TCS ENG<LFB> M/T MUA 5 SPEED 5H<MWQ>,M/T MUA 5 SPEED 5G<RSP> TACHOMETER<U16>	8-97376-403-0	01	1	0502-0508	●		●
82	09.743 CASE ASM; CLUSTER METER 4JJ1-TCS ENG<LFB> M/T MUA 5 SPEED 5G<RSP>	8-97376-403-0	01	1	0502-0508				●	●
82	09.743 CASE ASM; CLUSTER METER 4JJ1-TCS ENG<LFB> M/T MUA 5 SPEED 5H<MWQ>,M/T MUA 5 SPEED 5G<RSP> TACHOMETER<U16> THA	8-97389-950-0	01	1	0509-0609	●		●
82	09.743 CASE ASM; CLUSTER METER 4JJ1-TCS ENG<LFB> M/T MUA 5 SPEED 5G<RSP> THA	8-97389-950-0	01	1	0509-0609				●	●
110	09.748 GLASS; CLUSTER METER TACHOMETER<U16> THA	8-97305-572-0	01	1	0404-0409	●	●	●
110	09.748 GLASS; CLUSTER METER THA	8-97305-572-0	01	1	0404-0409				●	●
110	09.748 GLASS; CLUSTER METER TACHOMETER<U16> THA	8-97305-572-0	01	1	0410-0609	●		●
110	09.748 GLASS; CLUSTER METER THA	8-97305-572-0	01	1	0410-0609		●		●	●
110	09.748 GLASS; CLUSTER METER ELECTRO LUMINESCENT INSTRUMENTATION CL USTER<UCA> THA	8-98047-110-0	01	1	0610-	●		●	●	●
110	09.748 GLASS; CLUSTER METER EXC. ELECTRO LUMINESCENT INSTRUMENTATI ON CLUSTER<UCA> THA	8-98047-111-0	01	1	0610-	●		●	●	●
110	09.748 GLASS; CLUSTER METER THA	8-98047-111-0	01	1	0610-		●
118	08.991 BULB; CLUSTER METER TACHOMETER<U16> (A) 14V 2W THA	8-97305-590-0	07	1	0404-0409	●	●	●
118	08.991 BULB; CLUSTER METER (A) 14V 2W THA	8-97305-590-0	07	1	0404-0409				●	●
118	08.991 BULB; CLUSTER METER TACHOMETER<U16> (A) 14V 2W THA	8-97305-590-0	07	1	0410-0508	●		●
118	08.991 BULB; CLUSTER METER (A) 14V 2W THA	8-97305-590-0	07	1	0410-0508		●		●	●
118	08.991 BULB; CLUSTER METER TACHOMETER<U16> (A) 14V 2W THA	8-98003-831-0	07	1	0509-0609	●		●
118	08.991 BULB; CLUSTER METER (A) 14V 2W THA	8-98003-831-0	07	1	0509-0609		●		●	●
118	08.991 BULB; CLUSTER METER 4JA1-T ENG<LP0> TACHOMETER<U16> (B) 14V 1.12W THA	8-97305-600-0	11	1	0404-0409	●	●	●
118	08.991 BULB; CLUSTER METER 4JJ1-TCS ENG<LFB> A/T 4 SPEED-JATCO<RMK> TACHOMETER<U16> (B) 14V 1.12W THA	8-97305-600-0	20	1	0410-0508	●		●
118	08.991 BULB; CLUSTER METER 4JJ1-TCS ENG<LFB> A/T 4 SPEED-JATCO<RMK> (B) 14V 1.12W THA	8-97305-600-0	20	1	0410-0508				●	●
118	08.991 BULB; CLUSTER METER 4JJ1-TCS ENG<LFB> A/T 4 SPEED-JATCO<RMK> TACHOMETER<U16> (B) 14V 1.12W THA	8-98003-832-0	20	1	0509-0609	●		●
118	08.991 BULB; CLUSTER METER 4JJ1-TCS ENG<LFB> A/T 4 SPEED-JATCO<RMK> (B) 14V 1.12W THA	8-98003-832-0	20	1	0509-0609				●	●
118	08.991 BULB; CLUSTER METER 4JH1-T ENG<L23> M/T MUA 5 SPEED 5G<RSP> TACHOMETER<U16> (B) 14V 1.12W THA	8-97305-600-0	16	1	0404-0409	●	●	●
118	08.991 BULB; CLUSTER METER M/T MUA 5 SPEED 5G<RSP> (B) 14V 1.12W THA	8-97305-600-0	16	1	0404-0409				●	●
118	08.991 BULB; CLUSTER METER 4JA1-T ENG<LP0> TACHOMETER<U16> (B) 14V 1.12W THA	8-97305-600-0	11	1	0410-0501	●		●
118	08.991 BULB; CLUSTER METER 4JA1-T ENG<LP0> (B) 14V 1.12W THA	8-97305-600-0	11	1	0410-0501		●
118	08.991 BULB; CLUSTER METER 4JK1-TCS ENG<LKZ> M/T MUA 5 SPEED 5H<MWQ>,M/T MUA 5 SPEED 5G<RSP> TACHOMETER<U16> (B) 14V 1.12W THA	8-97305-600-0	13	1	0502-0508	●		●
118	08.991 BULB; CLUSTER METER 4JK1-TCS ENG<LKZ> (B) 14V 1.12W THA	8-97305-600-0	13	1	0502-0508		●
118	08.991 BULB; CLUSTER METER 4JK1-TCS ENG<LKZ> M/T MUA 5 SPEED 5H<MWQ>,M/T MUA 5 SPEED 5G<RSP> TACHOMETER<U16> (B) 14V 1.12W THA	8-98003-832-0	13	1	0509-0609	●		●
118	08.991 BULB; CLUSTER METER 4JK1-TCS ENG<LKZ> M/T MUA 5 SPEED 5H<MWQ> (B) 14V 1.12W THA	8-98003-832-0	13	1	0509-0609		●
118	08.991 BULB; CLUSTER METER 4JH1-T ENG<L23> A/T 4 SPEED-JATCO<RMK> TACHOMETER<U16> (B) 14V 1.12W THA	8-97305-600-0	20	1	0404-0409	●		●
118	08.991 BULB; CLUSTER METER A/T 4 SPEED-JATCO<RMK> (B) 14V 1.12W THA	8-97305-600-0	20	1	0404-0409				●	●
118	08.991 BULB; CLUSTER METER 4JJ1-TCS ENG<LFB> M/T MUA 5 SPEED 5G<RSP> TACHOMETER<U16> (B) 14V 1.12W THA	8-97305-600-0	16	1	0410-0501	●		●
118	08.991 BULB; CLUSTER METER 4JJ1-TCS ENG<LFB> M/T MUA 5 SPEED 5G<RSP> (B) 14V 1.12W THA	8-97305-600-0	16	1	0410-0501				●	●
118	08.991 BULB; CLUSTER METER 4JJ1-TCS ENG<LFB> M/T MUA 5 SPEED 5H<MWQ>,M/T MUA 5 SPEED 5G<RSP> TACHOMETER<U16> (B) 14V 1.12W THA	8-97305-600-0	16	1	0502-0508	●		●
118	08.991 BULB; CLUSTER METER 4JJ1-TCS ENG<LFB> M/T MUA 5 SPEED 5G<RSP> (B) 14V 1.12W THA	8-97305-600-0	16	1	0502-0508				●	●
118	08.991 BULB; CLUSTER METER 4JJ1-TCS ENG<LFB> M/T MUA 5 SPEED 5H<MWQ>,M/T MUA 5 SPEED 5G<RSP> TACHOMETER<U16> (B) 14V 1.12W THA	8-98003-832-0	16	1	0509-0609	●		●
118	08.991 BULB; CLUSTER METER 4JJ1-TCS ENG<LFB> M/T MUA 5 SPEED 5G<RSP> (B) 14V 1.12W THA	8-98003-832-0	16	1	0509-0609				●	●
143	09.715 COVER; CLUSTER METER TACHOMETER<U16> THA	8-97305-577-0	01	1	0404-0409	●	●	●
143	09.715 COVER; CLUSTER METER THA	8-97305-577-0	01	1	0404-0409				●	●
143	09.715 COVER; CLUSTER METER TACHOMETER<U16> THA	8-97305-577-0	01	1	0410-0609	●		●
143	09.715 COVER; CLUSTER METER THA	8-97305-577-0	01	1	0410-0609		●		●	●
143	09.715 COVER; CLUSTER METER TACHOMETER<U16> THA	8-98047-114-0	01	1	0610-	●		●	●	●
143	09.715 COVER; CLUSTER METER THA	8-98047-114-0	01	1	0610-		●
143	09.715 COVER; CLUSTER METER 4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ>, 4JJ1-TCX ENG<LS0> M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> EXC. ELECTRO LUMINESCENT INSTRUMENTATI ON CLUSTER<UCA>,TACHOMETER<U16> THA	8-98047-115-0	01	1	0610-	●		●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
