Sayfa 8-15 - Isuzu EPC

8-15 — FIXING PARTS; WIRING HARNESS (#73693) — 499 parça

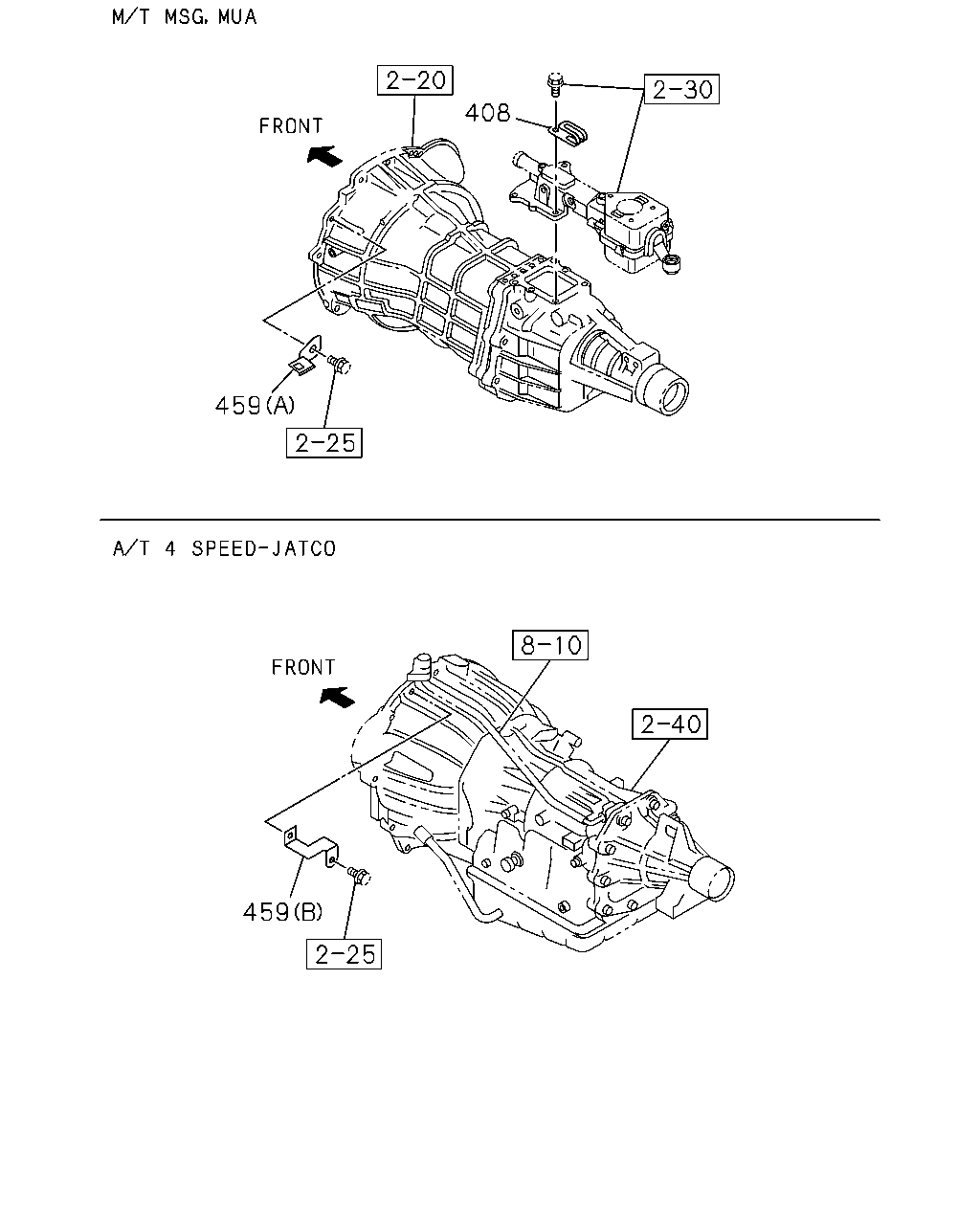

408 459 459

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
408	02.559 CLIP; TRANS HARNESS M/T MUA 5 SPEED 5G<RSP> 00.446 ID=12 B=14 ID=8.5 THA	5-09700-350-0	04	1	0404-0409	●	●	●	●	●
408	02.559 CLIP; TRANS HARNESS 4JJ1-TCS ENG<LFB> 00.446 ID=12 B=14 ID=8.5 THA	5-09700-350-0	04	1	0410-0501	●		●	●	●
408	02.559 CLIP; TRANS HARNESS 4JJ1-TCS ENG<LFB> 00.446 ID=12 B=14 ID=8.5 THA	5-09700-350-0	04	1	0410-0501	●		●
408	02.559 CLIP; TRANS HARNESS M/T MUA 5 SPEED 5H<MWQ>,M/T MUA 5 SPEED 5G<RSP> 00.446 ID=12 B=14 ID=8.5 THA	5-09700-350-0	04	1	0502-0604	●	●	●	●	●
408	02.559 CLIP; TRANS HARNESS M/T MUA 5 SPEED 5H<MWQ>,M/T MUA 5 SPEED 5G<RSP> 03.671 ID=12 VINYL CHLORIDE	8-97367-984-0	04	1	0605-0609	●	●	●	●	●
408	02.559 CLIP; TRANS HARNESS M/T MUA 5 SPEED 5H<MWQ> 03.671 ID=12 VINYL CHLORIDE	8-97367-984-1	04	1	0610-	●	●	●	●	●
459	02.483 BRACKET; SUPPORT,HARNESS 4JA1-T ENG<LP0>,4JH1-T ENG<L23> M/T MSG 5 SPEED<M75>,M/T MUA 5 SPEED 5G<RSP> (A) THA	8-94315-284-0	01	1	0404-0409	●	●	●
459	02.483 BRACKET; SUPPORT,HARNESS M/T MUA 5 SPEED 5G<RSP> (A) THA	8-94315-284-0	01	1	0404-0409				●	●
459	02.483 BRACKET; SUPPORT,HARNESS 4JJ1-TCS ENG<LFB>,4JA1-T ENG<LP0> M/T MSG 5 SPEED<M75>,M/T MUA 5 SPEED 5G<RSP> (A) THA	8-94315-284-0	01	1	0410-0501	●	●	●	●	●
459	02.483 BRACKET; SUPPORT,HARNESS 4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ> M/T MUA 5 SPEED 5H<MWQ>,M/T MUA 5 SPEED 5G<RSP> (A) THA	8-94315-284-0	01	1	0502-0608	●	●	●	●	●
459	02.483 BRACKET; SUPPORT,HARNESS 4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ> M/T MUA 5 SPEED 5H<MWQ>,M/T MUA 5 SPEED 5G<RSP> (A) THA	8-98050-882-0	01	1	0609-0609	●	●	●	●	●
459	02.483 BRACKET; SUPPORT,HARNESS 4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ> M/T MUA 5 SPEED 5H<MWQ> (A) THA	8-98050-882-0	01	1	0610-	●	●	●	●	●

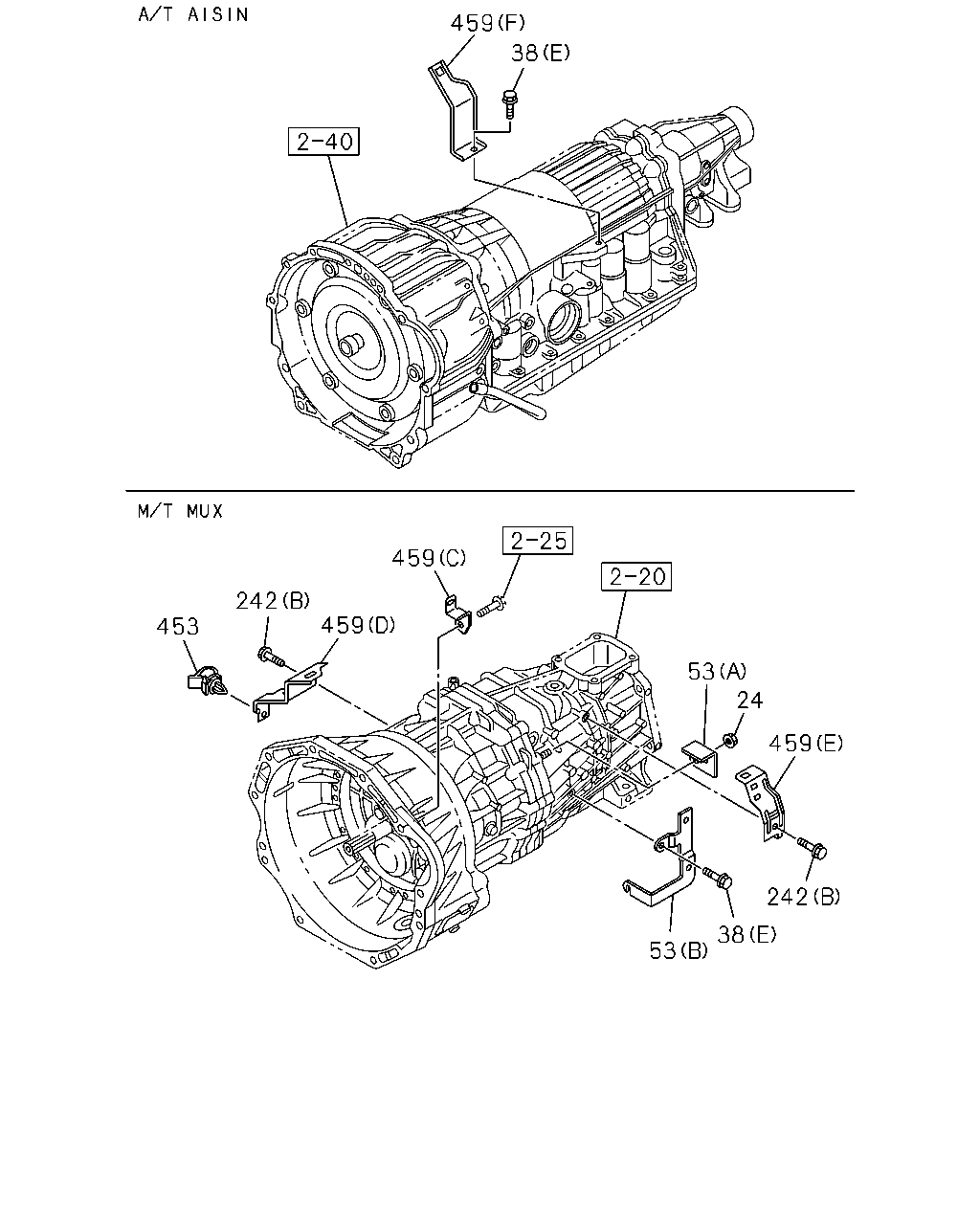

459	02.483 BRACKET; SUPPORT,HARNESS A/T 4 SPEED-JATCO<RMK> (B) THA	8-97307-524-1	01	1	0404-0409	●		●	●	●
459	02.483 BRACKET; SUPPORT,HARNESS 4JJ1-TCS ENG<LFB> A/T 4 SPEED-JATCO<RMK> (B) THA	8-97307-524-1	01	1	0410-	●		●	●	●
459	02.483 BRACKET; SUPPORT,HARNESS 4JJ1-TCX ENG<LS0> A/T AISIN<RMD> (F) THA	8-98050-720-0	01	1	0610-					●
459	02.483 BRACKET; SUPPORT,HARNESS 4JJ1-TCX ENG<LS0> M/T MUX 5 SPEED 5S<MZJ> (C) THA	8-97382-804-0	01	1	0610-					●
459	02.483 BRACKET; SUPPORT,HARNESS 4JJ1-TCX ENG<LS0> M/T MUX 5 SPEED 5S<MZJ> (D) THA	8-98035-740-0	01	1	0610-					●
459	02.483 BRACKET; SUPPORT,HARNESS 4JJ1-TCX ENG<LS0> M/T MUX 5 SPEED 5S<MZJ> (E) THA	8-98035-741-0	01	1	0610-					●

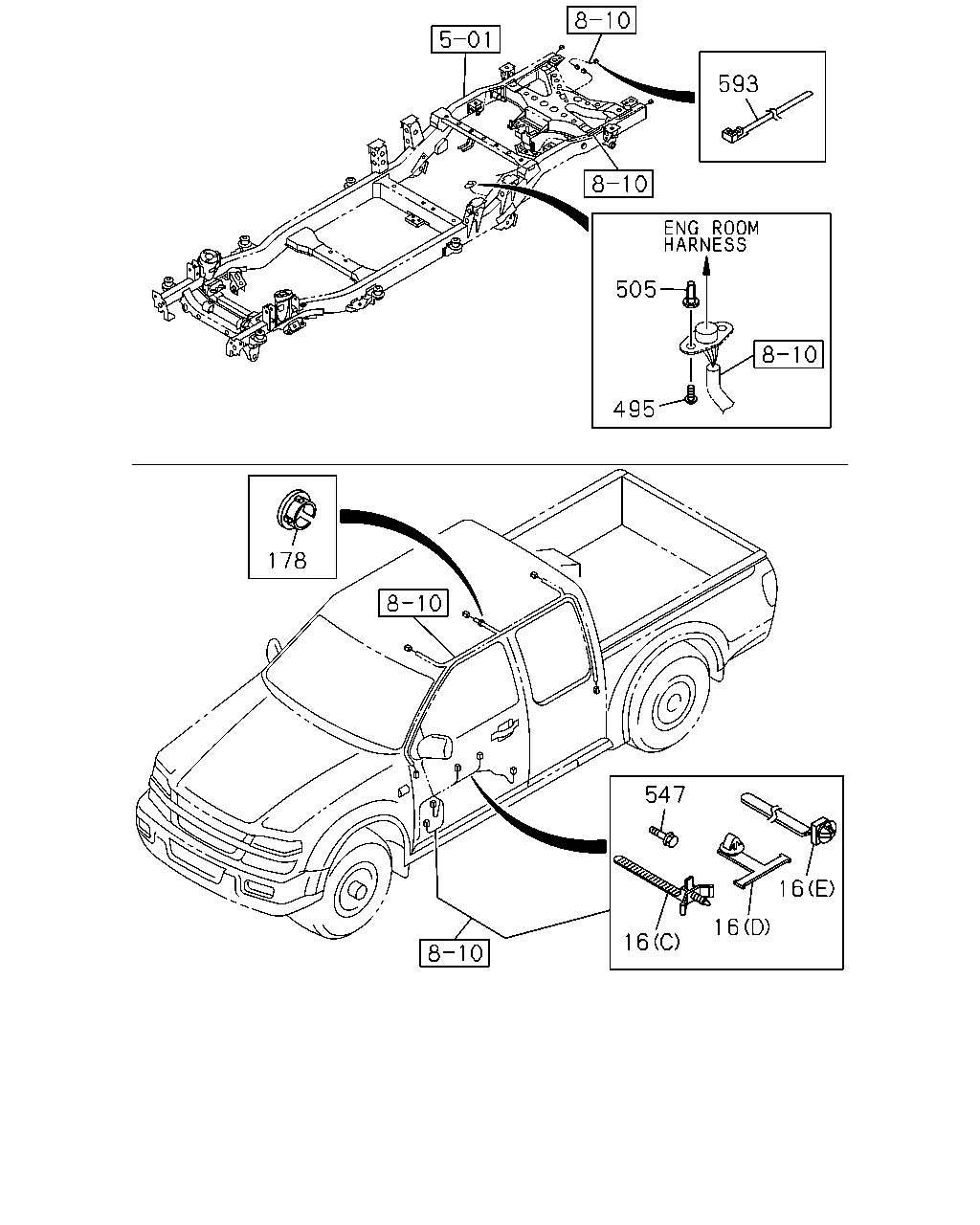

593 505 495 178 547 16 16 16

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
16	02.559 CLIP; HARNESS POWER WINDOW<A31> (C) L=135	8-94473-399-0	01	1	0404-0508	●	●	●
16	02.559 CLIP; HARNESS POWER WINDOW<A31> (C) L=135	8-94473-399-0	01	1	0404-0508	●	●	●
16	02.559 CLIP; HARNESS (C) L=135	8-94473-399-0	01	1	0404-0508				●	●
16	02.559 CLIP; HARNESS (C) L=135	8-94473-399-0	01	1	0404-0508				●	●
16	02.559 CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW<A31> (C) L=135	8-94473-399-0	01	1	0509-0709	●		●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW<A31> EXC. REMOTE CONT DOOR LOCK W/ANTI THEF T<7KY> (C) L=135	8-94473-399-0	01	1	0509-0709	●		●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW<A31> EXC. REMOTE CONT DOOR LOCK W/ANTI THEF T<7KY> (C) L=135	8-94473-399-0	01	1	0509-0709	●		●
16	02.559 CLIP; HARNESS (C) L=135	8-94473-399-0	01	1	0509-0709		●
16	02.559 CLIP; HARNESS POWER WINDOW<A31> DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9>,DOOR MIR ELEC DUAL FOLDINGCHROME TURN SIGNAL<8JH> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> (C) L=135	8-94473-399-0	02	1	0710-	●		●
16	02.559 CLIP; HARNESS (C) L=135	8-94473-399-0	02	1	0710-				●	●
16	02.559 CLIP; HARNESS POWER WINDOW<A31> (D) L=60 H=10.9 THA	8-97128-114-0	01	1	0404-0508	●	●	●
16	02.559 CLIP; HARNESS POWER WINDOW<A31> (D) L=60 H=10.9 THA	8-97128-114-0	01	1	0404-0508	●	●	●
16	02.559 CLIP; HARNESS (D) L=60 H=10.9 THA	8-97128-114-0	01	1	0404-0508				●	●
16	02.559 CLIP; HARNESS (D) L=60 H=10.9 THA	8-97128-114-0	01	1	0404-0508				●	●
16	02.559 CLIP; HARNESS POWER WINDOW<A31> DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9>,DOOR MIR ELEC DUAL FOLDINGCHROME TURN SIGNAL<8JH> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> (D) L=60 H=10.9 THA	8-97128-114-0	02	1	0509-0510	●		●
16	02.559 CLIP; HARNESS EXC. POWER WINDOW<A31> (D) L=60 H=10.9 THA	8-97128-114-0	02	1	0509-0510	●		●
16	02.559 CLIP; HARNESS (D) L=60 H=10.9 THA	8-97128-114-0	02	1	0509-0510		●		●	●
16	02.559 CLIP; HARNESS POWER WINDOW<A31> DOOR MIRROR REMOTE CONT ELECTRIC,TURN SIGNAL<DDD>,DOOR MIR ELEC DUAL FOLDINGCOLOR TURN SIGNAL<DF9>,DOOR MIR ELEC DUAL FOLDING CHROME TURN SIGNAL<8JH> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> (D) L=60 H=10.9 THA	8-97128-114-0	02	1	0511-0609	●		●
16	02.559 CLIP; HARNESS EXC. POWER WINDOW<A31> (D) L=60 H=10.9 THA	8-97128-114-0	02	1	0511-0609	●		●
16	02.559 CLIP; HARNESS (D) L=60 H=10.9 THA	8-97128-114-0	02	1	0511-0609		●
16	02.559 CLIP; HARNESS DOOR MIRROR REMOTE CONT ELECTRIC,TURN SIGNAL<DDD>,DOOR MIR ELEC DUAL FOLDINGCHROME TURN SIGNAL<8JH> (D) L=60 H=10.9 THA	8-97128-114-0	02	1	0511-0609				●	●
16	02.559 CLIP; HARNESS POWER WINDOW<A31> DOOR MIRROR REMOTE CONT ELECTRIC,TURN SIGNAL<DDD>,DOOR MIR ELEC DUAL FOLDINGCOLOR TURN SIGNAL<DF9>,DOOR MIR ELEC DUAL FOLDING CHROME TURN SIGNAL<8JH> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> (D) L=60 H=10.9 THA	8-97128-114-0	02	1	0610-0709	●		●
16	02.559 CLIP; HARNESS DOOR MIRROR REMOTE CONT ELECTRIC,TURN SIGNAL<DDD>,DOOR MIR ELEC DUAL FOLDINGCOLOR TURN SIGNAL<DF9>,DOOR MIR ELEC DUAL FOLDING CHROME TURN SIGNAL<8JH> (D) L=60 H=10.9 THA	8-97128-114-0	02	1	0610-0709				●	●
16	02.559 CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW<A31> (D) L=60 H=10.9 THA	8-97128-114-0	01	1	0710-	●		●
16	02.559 CLIP; HARNESS POWER WINDOW<A31> DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9>,DOOR MIR ELEC DUAL FOLDINGCHROME TURN SIGNAL<8JH> EXC. REMOTE CONT DOOR LOCK W/ANTI THEF T<7KY> (D) L=60 H=10.9 THA	8-97128-114-0	01	1	0710-	●		●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW<A31> EXC. DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9>,REMOTE CONT DOOR LOCKW/ANTI THEFT<7KY>,DOOR MIR ELEC DUAL FOLDING CHROME TURN SIGNAL<8JH> (D) L=60 H=10.9 THA	8-97128-114-0	01	1	0710-	●		●
16	02.559 CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW<A31> (D) L=60 H=10.9 THA	8-97128-114-0	01	1	0710-	●		●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW<A31> EXC. REMOTE CONT DOOR LOCK W/ANTI THEF T<7KY> (D) L=60 H=10.9 THA	8-97128-114-0	01	1	0710-	●		●
16	02.559 CLIP; HARNESS (D) L=60 H=10.9 THA	8-97128-114-0	01	1	0710-		●
16	02.559 CLIP; HARNESS (D) L=60 H=10.9 THA	8-97128-114-0	01	1	0710-		●
16	02.559 CLIP; HARNESS POWER WINDOW<A31> (E) L=155 THA	8-97173-307-0	03	1	0404-0508	●	●	●
16	02.559 CLIP; HARNESS POWER WINDOW<A31> (E) L=155 THA	8-97173-307-0	03	1	0404-0508	●	●	●
16	02.559 CLIP; HARNESS (E) L=155 THA	8-97173-307-0	03	1	0404-0508				●	●
16	02.559 CLIP; HARNESS (E) L=155 THA	8-97173-307-0	03	1	0404-0508				●	●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW<A31> EXC. REMOTE CONT DOOR LOCK W/ANTI THEF T<7KY> (E) L=155 THA	8-97173-307-0	03	1	0509-0609	●		●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW<A31> EXC. REMOTE CONT DOOR LOCK W/ANTI THEF T<7KY> (E) L=155 THA	8-97173-307-0	03	1	0509-0609	●		●
16	02.559 CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW<A31> (E) L=155 THA	8-97173-307-0	03	1	0610-0709	●		●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW<A31> EXC. REMOTE CONT DOOR LOCK W/ANTI THEF T<7KY> (E) L=155 THA	8-97173-307-0	03	1	0610-0709	●		●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW<A31> EXC. REMOTE CONT DOOR LOCK W/ANTI THEF T<7KY> (E) L=155 THA	8-97173-307-0	03	1	0610-0709	●		●
16	02.559 CLIP; HARNESS (E) L=155 THA	8-97173-307-0	03	1	0610-0709		●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW<A31> DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9>,DOOR MIR ELEC DUAL FOLDINGCHROME TURN SIGNAL<8JH> EXC. REMOTE CONT DOOR LOCK W/ANTI THEF T<7KY> (E) L=155 THA	8-97173-307-0	04	1	0710-	●		●
16	02.559 CLIP; HARNESS POWER WINDOW<A31> DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9>,DOOR MIR ELEC DUAL FOLDINGCHROME TURN SIGNAL<8JH> EXC. REMOTE CONT DOOR LOCK W/ANTI THEF T<7KY> (E) L=155 THA	8-97173-307-0	04	1	0710-	●		●
16	02.559 CLIP; HARNESS 4JA1-T ENG<LP0> M/T MSG 5 SPEED<M75> (G) ID=12 B=13 ID=6.5	5-09700-348-0	01	1	0404-0409	●	●	●
16	02.559 CLIP; HARNESS 4JA1-T ENG<LP0> M/T MSG 5 SPEED<M75> EURO2 SPECIFICATION<NT2> (G) ID=12 B=13 ID=6.5	5-09700-348-0	01	1	0410-0501	●		●
16	02.559 CLIP; HARNESS 4JA1-T ENG<LP0> (G) ID=12 B=13 ID=6.5	5-09700-348-0	01	1	0410-0501		●
16	02.559 CLIP; HARNESS 4JA1-T ENG<LP0> M/T MSG 5 SPEED<M75> 03.162 (B) L=140 THA	5-09707-031-1	02	1	0404-0409	●	●	●
16	02.559 CLIP; HARNESS 4JA1-T ENG<LP0> M/T MSG 5 SPEED<M75> EURO2 SPECIFICATION<NT2> 03.162 (B) L=140 THA	5-09707-031-1	02	1	0410-0411	●		●
16	02.559 CLIP; HARNESS 4JA1-T ENG<LP0> 03.162 (B) L=140 THA	5-09707-031-1	02	1	0410-0411		●
16	02.559 CLIP; HARNESS 4JA1-T ENG<LP0> M/T MSG 5 SPEED<M75> EURO2 SPECIFICATION<NT2> 02.363 (B) L=140 THA	8-97920-656-0	02	1	0412-0501	●		●
16	02.559 CLIP; HARNESS 4JA1-T ENG<LP0> 02.363 (B) L=140 THA	8-97920-656-0	02	1	0412-0501		●
16	02.559 CLIP; HARNESS 4JA1-T ENG<LP0> M/T MSG 5 SPEED<M75> (A) ID=8.5 THA	8-97912-612-0	02	1	0404-0409	●	●	●
16	02.559 CLIP; HARNESS 4JA1-T ENG<LP0> M/T MSG 5 SPEED<M75> EURO2 SPECIFICATION<NT2> (A) ID=8.5 THA	8-97912-612-0	02	1	0410-0501	●		●
16	02.559 CLIP; HARNESS 4JA1-T ENG<LP0> (A) ID=8.5 THA	8-97912-612-0	02	1	0410-0501		●
16	02.559 CLIP; HARNESS 4JH1-T ENG<L23> 08.846 (F) ID=24 L=32	1-09700-766-1	02	1	0404-0409	●	●	●
16	02.559 CLIP; HARNESS 08.846 (F) ID=24 L=32	1-09700-766-1	02	1	0404-0409				●	●
16	02.559 CLIP; HARNESS 4JJ1-TCS ENG<LFB> POWER STEERING<N40> 04.342 (H) L=197	1-83574-032-0	01	1	0410-0501	●		●	●	●
16	02.559 CLIP; HARNESS 4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ> 04.342 (H) L=197	1-83574-032-0	01	1	0502-0508	●	●	●	●	●
16	02.559 CLIP; HARNESS POWER WINDOW<A31> DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9>,DOOR MIR ELEC DUAL FOLDINGCHROME TURN SIGNAL<8JH> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> (E) L=155 THA	8-97173-307-0	06	1	0509-0510	●		●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> EXC. POWER WINDOW<A31> (E) L=155 THA	8-97173-307-0	06	1	0509-0510	●		●
16	02.559 CLIP; HARNESS (E) L=155 THA	8-97173-307-0	06	1	0509-0510				●	●
16	02.559 CLIP; HARNESS POWER WINDOW<A31> DOOR MIRROR REMOTE CONT ELECTRIC,TURN SIGNAL<DDD>,DOOR MIR ELEC DUAL FOLDINGCOLOR TURN SIGNAL<DF9>,DOOR MIR ELEC DUAL FOLDING CHROME TURN SIGNAL<8JH> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> (E) L=155 THA	8-97173-307-0	06	1	0511-0609	●		●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> EXC. POWER WINDOW<A31> (E) L=155 THA	8-97173-307-0	06	1	0511-0609	●		●
16	02.559 CLIP; HARNESS DOOR MIRROR REMOTE CONT ELECTRIC,TURN SIGNAL<DDD>,DOOR MIR ELEC DUAL FOLDINGCHROME TURN SIGNAL<8JH> (E) L=155 THA	8-97173-307-0	06	1	0511-0609				●	●
16	02.559 CLIP; HARNESS POWER WINDOW<A31> DOOR MIRROR REMOTE CONT ELECTRIC,TURN SIGNAL<DDD>,DOOR MIR ELEC DUAL FOLDINGCOLOR TURN SIGNAL<DF9>,DOOR MIR ELEC DUAL FOLDING CHROME TURN SIGNAL<8JH> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> (E) L=155 THA	8-97173-307-0	06	1	0610-0709	●		●
16	02.559 CLIP; HARNESS DOOR MIRROR REMOTE CONT ELECTRIC,TURN SIGNAL<DDD>,DOOR MIR ELEC DUAL FOLDINGCOLOR TURN SIGNAL<DF9>,DOOR MIR ELEC DUAL FOLDING CHROME TURN SIGNAL<8JH> (E) L=155 THA	8-97173-307-0	06	1	0610-0709				●	●
16	02.559 CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW<A31> (E) L=155 THA	8-97173-307-0	03	1	0710-	●		●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW<A31> EXC. DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9>,REMOTE CONT DOOR LOCKW/ANTI THEFT<7KY>,DOOR MIR ELEC DUAL FOLDING CHROME TURN SIGNAL<8JH> (E) L=155 THA	8-97173-307-0	03	1	0710-	●		●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW<A31> EXC. DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9>,REMOTE CONT DOOR LOCKW/ANTI THEFT<7KY>,DOOR MIR ELEC DUAL FOLDING CHROME TURN SIGNAL<8JH> (E) L=155 THA	8-97173-307-0	03	1	0710-	●		●
16	02.559 CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW<A31> (E) L=155 THA	8-97173-307-0	03	1	0710-	●		●
16	02.559 CLIP; HARNESS (E) L=155 THA	8-97173-307-0	03	1	0710-		●
16	02.559 CLIP; HARNESS (E) L=155 THA	8-97173-307-0	03	1	0710-		●
16	02.559 CLIP; HARNESS 4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ> 04.342 (H) L=197	1-83574-032-0	01	1	0509-0609	●	●	●	●	●
16	02.559 CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW<A31> (C) L=135	8-94473-399-0	02	1	0404-0508	●		●
16	02.559 CLIP; HARNESS (C) L=135	8-94473-399-0	02	1	0404-0508		●
16	02.559 CLIP; HARNESS POWER WINDOW<A31> DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9>,DOOR MIR ELEC DUAL FOLDINGCHROME TURN SIGNAL<8JH> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> (C) L=135	8-94473-399-0	02	1	0509-0510	●		●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> EXC. POWER WINDOW<A31> (C) L=135	8-94473-399-0	02	1	0509-0510	●		●
16	02.559 CLIP; HARNESS (C) L=135	8-94473-399-0	02	1	0509-0510				●	●
16	02.559 CLIP; HARNESS POWER WINDOW<A31> DOOR MIRROR REMOTE CONT ELECTRIC,TURN SIGNAL<DDD>,DOOR MIR ELEC DUAL FOLDINGCOLOR TURN SIGNAL<DF9>,DOOR MIR ELEC DUAL FOLDING CHROME TURN SIGNAL<8JH> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> (C) L=135	8-94473-399-0	02	1	0511-0609	●		●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> EXC. POWER WINDOW<A31> (C) L=135	8-94473-399-0	02	1	0511-0609	●		●
16	02.559 CLIP; HARNESS DOOR MIRROR REMOTE CONT ELECTRIC,TURN SIGNAL<DDD>,DOOR MIR ELEC DUAL FOLDINGCHROME TURN SIGNAL<8JH> (C) L=135	8-94473-399-0	02	1	0511-0609				●	●
16	02.559 CLIP; HARNESS POWER WINDOW<A31> DOOR MIRROR REMOTE CONT ELECTRIC,TURN SIGNAL<DDD>,DOOR MIR ELEC DUAL FOLDINGCOLOR TURN SIGNAL<DF9>,DOOR MIR ELEC DUAL FOLDING CHROME TURN SIGNAL<8JH> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> (C) L=135	8-94473-399-0	02	1	0610-0709	●		●
16	02.559 CLIP; HARNESS DOOR MIRROR REMOTE CONT ELECTRIC,TURN SIGNAL<DDD>,DOOR MIR ELEC DUAL FOLDINGCOLOR TURN SIGNAL<DF9>,DOOR MIR ELEC DUAL FOLDING CHROME TURN SIGNAL<8JH> (C) L=135	8-94473-399-0	02	1	0610-0709				●	●
16	02.559 CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW<A31> (C) L=135	8-94473-399-0	01	1	0710-	●		●
16	02.559 CLIP; HARNESS POWER WINDOW<A31> DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9>,DOOR MIR ELEC DUAL FOLDINGCHROME TURN SIGNAL<8JH> EXC. REMOTE CONT DOOR LOCK W/ANTI THEF T<7KY> (C) L=135	8-94473-399-0	01	1	0710-	●		●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW<A31> EXC. DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9>,REMOTE CONT DOOR LOCKW/ANTI THEFT<7KY>,DOOR MIR ELEC DUAL FOLDING CHROME TURN SIGNAL<8JH> (C) L=135	8-94473-399-0	01	1	0710-	●		●
16	02.559 CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW<A31> (C) L=135	8-94473-399-0	01	1	0710-	●		●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW<A31> EXC. REMOTE CONT DOOR LOCK W/ANTI THEF T<7KY> (C) L=135	8-94473-399-0	01	1	0710-	●		●
16	02.559 CLIP; HARNESS (C) L=135	8-94473-399-0	01	1	0710-		●
16	02.559 CLIP; HARNESS (C) L=135	8-94473-399-0	01	1	0710-		●
16	02.559 CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW<A31> (D) L=60 H=10.9 THA	8-97128-114-0	02	1	0404-0508	●		●
16	02.559 CLIP; HARNESS (D) L=60 H=10.9 THA	8-97128-114-0	02	1	0404-0508		●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW<A31> EXC. REMOTE CONT DOOR LOCK W/ANTI THEF T<7KY> (D) L=60 H=10.9 THA	8-97128-114-0	01	1	0509-0609	●		●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW<A31> EXC. REMOTE CONT DOOR LOCK W/ANTI THEF T<7KY> (D) L=60 H=10.9 THA	8-97128-114-0	01	1	0509-0609	●		●
16	02.559 CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW<A31> (D) L=60 H=10.9 THA	8-97128-114-0	01	1	0610-0709	●		●
16	02.559 CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW<A31> (D) L=60 H=10.9 THA	8-97128-114-0	01	1	0610-0709	●		●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW<A31> EXC. REMOTE CONT DOOR LOCK W/ANTI THEF T<7KY> (D) L=60 H=10.9 THA	8-97128-114-0	01	1	0610-0709	●		●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW<A31> EXC. REMOTE CONT DOOR LOCK W/ANTI THEF T<7KY> (D) L=60 H=10.9 THA	8-97128-114-0	01	1	0610-0709	●		●
16	02.559 CLIP; HARNESS (D) L=60 H=10.9 THA	8-97128-114-0	01	1	0610-0709		●
16	02.559 CLIP; HARNESS (D) L=60 H=10.9 THA	8-97128-114-0	01	1	0610-0709		●
16	02.559 CLIP; HARNESS POWER WINDOW<A31> DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9>,DOOR MIR ELEC DUAL FOLDINGCHROME TURN SIGNAL<8JH> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> (D) L=60 H=10.9 THA	8-97128-114-0	02	1	0710-	●		●
16	02.559 CLIP; HARNESS (D) L=60 H=10.9 THA	8-97128-114-0	02	1	0710-				●	●
16	02.559 CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW<A31> (E) L=155 THA	8-97173-307-0	06	1	0404-0508	●		●
16	02.559 CLIP; HARNESS (E) L=155 THA	8-97173-307-0	06	1	0404-0508		●
16	02.559 CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW<A31> (E) L=155 THA	8-97173-307-0	05	1	0509-0609	●		●
16	02.559 CLIP; HARNESS (E) L=155 THA	8-97173-307-0	05	1	0509-0609		●
16	02.559 CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW<A31> (E) L=155 THA	8-97173-307-0	02	1	0610-0709	●		●
16	02.559 CLIP; HARNESS (E) L=155 THA	8-97173-307-0	02	1	0610-0709		●
16	02.559 CLIP; HARNESS POWER WINDOW<A31> DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9>,DOOR MIR ELEC DUAL FOLDINGCHROME TURN SIGNAL<8JH> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> (E) L=155 THA	8-97173-307-0	08	1	0710-	●		●
16	02.559 CLIP; HARNESS (E) L=155 THA	8-97173-307-0	08	1	0710-				●	●
178	02.559 GROMMET; HARNESS 09.647 THA	8-97027-381-0	01	1	0404-	●		●	●	●
495	00.685 BOLT; CABLE TO BODY 10.240 M5X14	8-94120-095-0	02	1	0404-	●	●	●	●	●
505	02.559 RETAINER; HARNESS 02.679 D=7.9X7.9 L=20 M5	8-94441-539-0	02	1	0404-	●	●	●	●	●
547	02.559 BOLT AIR BAG DRIVER & PASSENGER<AK5> M6X14 W/LK&PL WASHER	8-97086-822-0	01	1	0404-	●		●
547	02.559 BOLT M6X14 W/LK&PL WASHER	8-97086-822-0	01	1	0404-				●	●
593	02.559 CLIP REAR BODY DELETE<8HH> L=250 THA	5-09707-030-1	01	1	0611-		●

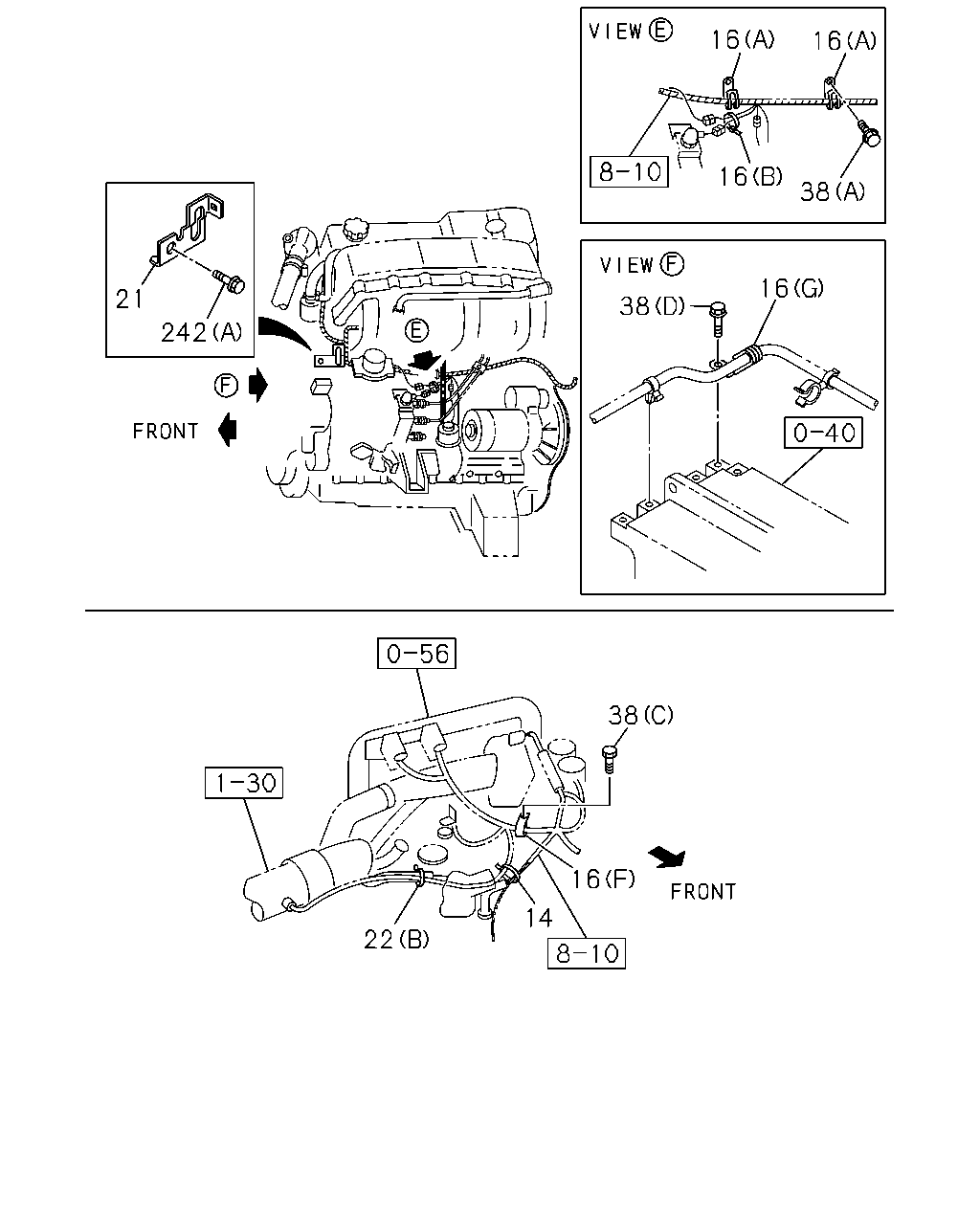

16 16 16 38 16 21 38 242 38 16 14 22

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
14	02.559 CLIP; BAND,HARNESS 4JH1-T ENG<L23> 02.363 L=140 THA	8-97920-656-0	01	1	0404-0409	●	●	●
14	02.559 CLIP; BAND,HARNESS 02.363 L=140 THA	8-97920-656-0	01	1	0404-0409				●	●
16	02.559 CLIP; HARNESS POWER WINDOW<A31> (C) L=135	8-94473-399-0	01	1	0404-0508	●	●	●
16	02.559 CLIP; HARNESS POWER WINDOW<A31> (C) L=135	8-94473-399-0	01	1	0404-0508	●	●	●
16	02.559 CLIP; HARNESS (C) L=135	8-94473-399-0	01	1	0404-0508				●	●
16	02.559 CLIP; HARNESS (C) L=135	8-94473-399-0	01	1	0404-0508				●	●
16	02.559 CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW<A31> (C) L=135	8-94473-399-0	01	1	0509-0709	●		●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW<A31> EXC. REMOTE CONT DOOR LOCK W/ANTI THEF T<7KY> (C) L=135	8-94473-399-0	01	1	0509-0709	●		●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW<A31> EXC. REMOTE CONT DOOR LOCK W/ANTI THEF T<7KY> (C) L=135	8-94473-399-0	01	1	0509-0709	●		●
16	02.559 CLIP; HARNESS (C) L=135	8-94473-399-0	01	1	0509-0709		●
16	02.559 CLIP; HARNESS POWER WINDOW<A31> DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9>,DOOR MIR ELEC DUAL FOLDINGCHROME TURN SIGNAL<8JH> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> (C) L=135	8-94473-399-0	02	1	0710-	●		●
16	02.559 CLIP; HARNESS (C) L=135	8-94473-399-0	02	1	0710-				●	●
16	02.559 CLIP; HARNESS POWER WINDOW<A31> (D) L=60 H=10.9 THA	8-97128-114-0	01	1	0404-0508	●	●	●
16	02.559 CLIP; HARNESS POWER WINDOW<A31> (D) L=60 H=10.9 THA	8-97128-114-0	01	1	0404-0508	●	●	●
16	02.559 CLIP; HARNESS (D) L=60 H=10.9 THA	8-97128-114-0	01	1	0404-0508				●	●
16	02.559 CLIP; HARNESS (D) L=60 H=10.9 THA	8-97128-114-0	01	1	0404-0508				●	●
16	02.559 CLIP; HARNESS POWER WINDOW<A31> DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9>,DOOR MIR ELEC DUAL FOLDINGCHROME TURN SIGNAL<8JH> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> (D) L=60 H=10.9 THA	8-97128-114-0	02	1	0509-0510	●		●
16	02.559 CLIP; HARNESS EXC. POWER WINDOW<A31> (D) L=60 H=10.9 THA	8-97128-114-0	02	1	0509-0510	●		●
16	02.559 CLIP; HARNESS (D) L=60 H=10.9 THA	8-97128-114-0	02	1	0509-0510		●		●	●
16	02.559 CLIP; HARNESS POWER WINDOW<A31> DOOR MIRROR REMOTE CONT ELECTRIC,TURN SIGNAL<DDD>,DOOR MIR ELEC DUAL FOLDINGCOLOR TURN SIGNAL<DF9>,DOOR MIR ELEC DUAL FOLDING CHROME TURN SIGNAL<8JH> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> (D) L=60 H=10.9 THA	8-97128-114-0	02	1	0511-0609	●		●
16	02.559 CLIP; HARNESS EXC. POWER WINDOW<A31> (D) L=60 H=10.9 THA	8-97128-114-0	02	1	0511-0609	●		●
16	02.559 CLIP; HARNESS (D) L=60 H=10.9 THA	8-97128-114-0	02	1	0511-0609		●
16	02.559 CLIP; HARNESS DOOR MIRROR REMOTE CONT ELECTRIC,TURN SIGNAL<DDD>,DOOR MIR ELEC DUAL FOLDINGCHROME TURN SIGNAL<8JH> (D) L=60 H=10.9 THA	8-97128-114-0	02	1	0511-0609				●	●
16	02.559 CLIP; HARNESS POWER WINDOW<A31> DOOR MIRROR REMOTE CONT ELECTRIC,TURN SIGNAL<DDD>,DOOR MIR ELEC DUAL FOLDINGCOLOR TURN SIGNAL<DF9>,DOOR MIR ELEC DUAL FOLDING CHROME TURN SIGNAL<8JH> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> (D) L=60 H=10.9 THA	8-97128-114-0	02	1	0610-0709	●		●
16	02.559 CLIP; HARNESS DOOR MIRROR REMOTE CONT ELECTRIC,TURN SIGNAL<DDD>,DOOR MIR ELEC DUAL FOLDINGCOLOR TURN SIGNAL<DF9>,DOOR MIR ELEC DUAL FOLDING CHROME TURN SIGNAL<8JH> (D) L=60 H=10.9 THA	8-97128-114-0	02	1	0610-0709				●	●
16	02.559 CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW<A31> (D) L=60 H=10.9 THA	8-97128-114-0	01	1	0710-	●		●
16	02.559 CLIP; HARNESS POWER WINDOW<A31> DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9>,DOOR MIR ELEC DUAL FOLDINGCHROME TURN SIGNAL<8JH> EXC. REMOTE CONT DOOR LOCK W/ANTI THEF T<7KY> (D) L=60 H=10.9 THA	8-97128-114-0	01	1	0710-	●		●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW<A31> EXC. DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9>,REMOTE CONT DOOR LOCKW/ANTI THEFT<7KY>,DOOR MIR ELEC DUAL FOLDING CHROME TURN SIGNAL<8JH> (D) L=60 H=10.9 THA	8-97128-114-0	01	1	0710-	●		●
16	02.559 CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW<A31> (D) L=60 H=10.9 THA	8-97128-114-0	01	1	0710-	●		●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW<A31> EXC. REMOTE CONT DOOR LOCK W/ANTI THEF T<7KY> (D) L=60 H=10.9 THA	8-97128-114-0	01	1	0710-	●		●
16	02.559 CLIP; HARNESS (D) L=60 H=10.9 THA	8-97128-114-0	01	1	0710-		●
16	02.559 CLIP; HARNESS (D) L=60 H=10.9 THA	8-97128-114-0	01	1	0710-		●
16	02.559 CLIP; HARNESS POWER WINDOW<A31> (E) L=155 THA	8-97173-307-0	03	1	0404-0508	●	●	●
16	02.559 CLIP; HARNESS POWER WINDOW<A31> (E) L=155 THA	8-97173-307-0	03	1	0404-0508	●	●	●
16	02.559 CLIP; HARNESS (E) L=155 THA	8-97173-307-0	03	1	0404-0508				●	●
16	02.559 CLIP; HARNESS (E) L=155 THA	8-97173-307-0	03	1	0404-0508				●	●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW<A31> EXC. REMOTE CONT DOOR LOCK W/ANTI THEF T<7KY> (E) L=155 THA	8-97173-307-0	03	1	0509-0609	●		●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW<A31> EXC. REMOTE CONT DOOR LOCK W/ANTI THEF T<7KY> (E) L=155 THA	8-97173-307-0	03	1	0509-0609	●		●
16	02.559 CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW<A31> (E) L=155 THA	8-97173-307-0	03	1	0610-0709	●		●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW<A31> EXC. REMOTE CONT DOOR LOCK W/ANTI THEF T<7KY> (E) L=155 THA	8-97173-307-0	03	1	0610-0709	●		●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW<A31> EXC. REMOTE CONT DOOR LOCK W/ANTI THEF T<7KY> (E) L=155 THA	8-97173-307-0	03	1	0610-0709	●		●
16	02.559 CLIP; HARNESS (E) L=155 THA	8-97173-307-0	03	1	0610-0709		●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW<A31> DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9>,DOOR MIR ELEC DUAL FOLDINGCHROME TURN SIGNAL<8JH> EXC. REMOTE CONT DOOR LOCK W/ANTI THEF T<7KY> (E) L=155 THA	8-97173-307-0	04	1	0710-	●		●
16	02.559 CLIP; HARNESS POWER WINDOW<A31> DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9>,DOOR MIR ELEC DUAL FOLDINGCHROME TURN SIGNAL<8JH> EXC. REMOTE CONT DOOR LOCK W/ANTI THEF T<7KY> (E) L=155 THA	8-97173-307-0	04	1	0710-	●		●
16	02.559 CLIP; HARNESS 4JA1-T ENG<LP0> M/T MSG 5 SPEED<M75> (G) ID=12 B=13 ID=6.5	5-09700-348-0	01	1	0404-0409	●	●	●
16	02.559 CLIP; HARNESS 4JA1-T ENG<LP0> M/T MSG 5 SPEED<M75> EURO2 SPECIFICATION<NT2> (G) ID=12 B=13 ID=6.5	5-09700-348-0	01	1	0410-0501	●		●
16	02.559 CLIP; HARNESS 4JA1-T ENG<LP0> (G) ID=12 B=13 ID=6.5	5-09700-348-0	01	1	0410-0501		●
16	02.559 CLIP; HARNESS 4JA1-T ENG<LP0> M/T MSG 5 SPEED<M75> 03.162 (B) L=140 THA	5-09707-031-1	02	1	0404-0409	●	●	●
16	02.559 CLIP; HARNESS 4JA1-T ENG<LP0> M/T MSG 5 SPEED<M75> EURO2 SPECIFICATION<NT2> 03.162 (B) L=140 THA	5-09707-031-1	02	1	0410-0411	●		●
16	02.559 CLIP; HARNESS 4JA1-T ENG<LP0> 03.162 (B) L=140 THA	5-09707-031-1	02	1	0410-0411		●
16	02.559 CLIP; HARNESS 4JA1-T ENG<LP0> M/T MSG 5 SPEED<M75> EURO2 SPECIFICATION<NT2> 02.363 (B) L=140 THA	8-97920-656-0	02	1	0412-0501	●		●
16	02.559 CLIP; HARNESS 4JA1-T ENG<LP0> 02.363 (B) L=140 THA	8-97920-656-0	02	1	0412-0501		●
16	02.559 CLIP; HARNESS 4JA1-T ENG<LP0> M/T MSG 5 SPEED<M75> (A) ID=8.5 THA	8-97912-612-0	02	1	0404-0409	●	●	●
16	02.559 CLIP; HARNESS 4JA1-T ENG<LP0> M/T MSG 5 SPEED<M75> EURO2 SPECIFICATION<NT2> (A) ID=8.5 THA	8-97912-612-0	02	1	0410-0501	●		●
16	02.559 CLIP; HARNESS 4JA1-T ENG<LP0> (A) ID=8.5 THA	8-97912-612-0	02	1	0410-0501		●
16	02.559 CLIP; HARNESS 4JH1-T ENG<L23> 08.846 (F) ID=24 L=32	1-09700-766-1	02	1	0404-0409	●	●	●
16	02.559 CLIP; HARNESS 08.846 (F) ID=24 L=32	1-09700-766-1	02	1	0404-0409				●	●
16	02.559 CLIP; HARNESS 4JJ1-TCS ENG<LFB> POWER STEERING<N40> 04.342 (H) L=197	1-83574-032-0	01	1	0410-0501	●		●	●	●
16	02.559 CLIP; HARNESS 4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ> 04.342 (H) L=197	1-83574-032-0	01	1	0502-0508	●	●	●	●	●
16	02.559 CLIP; HARNESS POWER WINDOW<A31> DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9>,DOOR MIR ELEC DUAL FOLDINGCHROME TURN SIGNAL<8JH> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> (E) L=155 THA	8-97173-307-0	06	1	0509-0510	●		●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> EXC. POWER WINDOW<A31> (E) L=155 THA	8-97173-307-0	06	1	0509-0510	●		●
16	02.559 CLIP; HARNESS (E) L=155 THA	8-97173-307-0	06	1	0509-0510				●	●
16	02.559 CLIP; HARNESS POWER WINDOW<A31> DOOR MIRROR REMOTE CONT ELECTRIC,TURN SIGNAL<DDD>,DOOR MIR ELEC DUAL FOLDINGCOLOR TURN SIGNAL<DF9>,DOOR MIR ELEC DUAL FOLDING CHROME TURN SIGNAL<8JH> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> (E) L=155 THA	8-97173-307-0	06	1	0511-0609	●		●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> EXC. POWER WINDOW<A31> (E) L=155 THA	8-97173-307-0	06	1	0511-0609	●		●
16	02.559 CLIP; HARNESS DOOR MIRROR REMOTE CONT ELECTRIC,TURN SIGNAL<DDD>,DOOR MIR ELEC DUAL FOLDINGCHROME TURN SIGNAL<8JH> (E) L=155 THA	8-97173-307-0	06	1	0511-0609				●	●
16	02.559 CLIP; HARNESS POWER WINDOW<A31> DOOR MIRROR REMOTE CONT ELECTRIC,TURN SIGNAL<DDD>,DOOR MIR ELEC DUAL FOLDINGCOLOR TURN SIGNAL<DF9>,DOOR MIR ELEC DUAL FOLDING CHROME TURN SIGNAL<8JH> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> (E) L=155 THA	8-97173-307-0	06	1	0610-0709	●		●
16	02.559 CLIP; HARNESS DOOR MIRROR REMOTE CONT ELECTRIC,TURN SIGNAL<DDD>,DOOR MIR ELEC DUAL FOLDINGCOLOR TURN SIGNAL<DF9>,DOOR MIR ELEC DUAL FOLDING CHROME TURN SIGNAL<8JH> (E) L=155 THA	8-97173-307-0	06	1	0610-0709				●	●
16	02.559 CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW<A31> (E) L=155 THA	8-97173-307-0	03	1	0710-	●		●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW<A31> EXC. DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9>,REMOTE CONT DOOR LOCKW/ANTI THEFT<7KY>,DOOR MIR ELEC DUAL FOLDING CHROME TURN SIGNAL<8JH> (E) L=155 THA	8-97173-307-0	03	1	0710-	●		●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW<A31> EXC. DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9>,REMOTE CONT DOOR LOCKW/ANTI THEFT<7KY>,DOOR MIR ELEC DUAL FOLDING CHROME TURN SIGNAL<8JH> (E) L=155 THA	8-97173-307-0	03	1	0710-	●		●
16	02.559 CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW<A31> (E) L=155 THA	8-97173-307-0	03	1	0710-	●		●
16	02.559 CLIP; HARNESS (E) L=155 THA	8-97173-307-0	03	1	0710-		●
16	02.559 CLIP; HARNESS (E) L=155 THA	8-97173-307-0	03	1	0710-		●
16	02.559 CLIP; HARNESS 4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ> 04.342 (H) L=197	1-83574-032-0	01	1	0509-0609	●	●	●	●	●
16	02.559 CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW<A31> (C) L=135	8-94473-399-0	02	1	0404-0508	●		●
16	02.559 CLIP; HARNESS (C) L=135	8-94473-399-0	02	1	0404-0508		●
16	02.559 CLIP; HARNESS POWER WINDOW<A31> DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9>,DOOR MIR ELEC DUAL FOLDINGCHROME TURN SIGNAL<8JH> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> (C) L=135	8-94473-399-0	02	1	0509-0510	●		●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> EXC. POWER WINDOW<A31> (C) L=135	8-94473-399-0	02	1	0509-0510	●		●
16	02.559 CLIP; HARNESS (C) L=135	8-94473-399-0	02	1	0509-0510				●	●
16	02.559 CLIP; HARNESS POWER WINDOW<A31> DOOR MIRROR REMOTE CONT ELECTRIC,TURN SIGNAL<DDD>,DOOR MIR ELEC DUAL FOLDINGCOLOR TURN SIGNAL<DF9>,DOOR MIR ELEC DUAL FOLDING CHROME TURN SIGNAL<8JH> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> (C) L=135	8-94473-399-0	02	1	0511-0609	●		●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> EXC. POWER WINDOW<A31> (C) L=135	8-94473-399-0	02	1	0511-0609	●		●
16	02.559 CLIP; HARNESS DOOR MIRROR REMOTE CONT ELECTRIC,TURN SIGNAL<DDD>,DOOR MIR ELEC DUAL FOLDINGCHROME TURN SIGNAL<8JH> (C) L=135	8-94473-399-0	02	1	0511-0609				●	●
16	02.559 CLIP; HARNESS POWER WINDOW<A31> DOOR MIRROR REMOTE CONT ELECTRIC,TURN SIGNAL<DDD>,DOOR MIR ELEC DUAL FOLDINGCOLOR TURN SIGNAL<DF9>,DOOR MIR ELEC DUAL FOLDING CHROME TURN SIGNAL<8JH> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> (C) L=135	8-94473-399-0	02	1	0610-0709	●		●
16	02.559 CLIP; HARNESS DOOR MIRROR REMOTE CONT ELECTRIC,TURN SIGNAL<DDD>,DOOR MIR ELEC DUAL FOLDINGCOLOR TURN SIGNAL<DF9>,DOOR MIR ELEC DUAL FOLDING CHROME TURN SIGNAL<8JH> (C) L=135	8-94473-399-0	02	1	0610-0709				●	●
16	02.559 CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW<A31> (C) L=135	8-94473-399-0	01	1	0710-	●		●
16	02.559 CLIP; HARNESS POWER WINDOW<A31> DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9>,DOOR MIR ELEC DUAL FOLDINGCHROME TURN SIGNAL<8JH> EXC. REMOTE CONT DOOR LOCK W/ANTI THEF T<7KY> (C) L=135	8-94473-399-0	01	1	0710-	●		●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW<A31> EXC. DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9>,REMOTE CONT DOOR LOCKW/ANTI THEFT<7KY>,DOOR MIR ELEC DUAL FOLDING CHROME TURN SIGNAL<8JH> (C) L=135	8-94473-399-0	01	1	0710-	●		●
16	02.559 CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW<A31> (C) L=135	8-94473-399-0	01	1	0710-	●		●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW<A31> EXC. REMOTE CONT DOOR LOCK W/ANTI THEF T<7KY> (C) L=135	8-94473-399-0	01	1	0710-	●		●
16	02.559 CLIP; HARNESS (C) L=135	8-94473-399-0	01	1	0710-		●
16	02.559 CLIP; HARNESS (C) L=135	8-94473-399-0	01	1	0710-		●
16	02.559 CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW<A31> (D) L=60 H=10.9 THA	8-97128-114-0	02	1	0404-0508	●		●
16	02.559 CLIP; HARNESS (D) L=60 H=10.9 THA	8-97128-114-0	02	1	0404-0508		●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW<A31> EXC. REMOTE CONT DOOR LOCK W/ANTI THEF T<7KY> (D) L=60 H=10.9 THA	8-97128-114-0	01	1	0509-0609	●		●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW<A31> EXC. REMOTE CONT DOOR LOCK W/ANTI THEF T<7KY> (D) L=60 H=10.9 THA	8-97128-114-0	01	1	0509-0609	●		●
16	02.559 CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW<A31> (D) L=60 H=10.9 THA	8-97128-114-0	01	1	0610-0709	●		●
16	02.559 CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW<A31> (D) L=60 H=10.9 THA	8-97128-114-0	01	1	0610-0709	●		●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW<A31> EXC. REMOTE CONT DOOR LOCK W/ANTI THEF T<7KY> (D) L=60 H=10.9 THA	8-97128-114-0	01	1	0610-0709	●		●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW<A31> EXC. REMOTE CONT DOOR LOCK W/ANTI THEF T<7KY> (D) L=60 H=10.9 THA	8-97128-114-0	01	1	0610-0709	●		●
16	02.559 CLIP; HARNESS (D) L=60 H=10.9 THA	8-97128-114-0	01	1	0610-0709		●
16	02.559 CLIP; HARNESS (D) L=60 H=10.9 THA	8-97128-114-0	01	1	0610-0709		●
16	02.559 CLIP; HARNESS POWER WINDOW<A31> DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9>,DOOR MIR ELEC DUAL FOLDINGCHROME TURN SIGNAL<8JH> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> (D) L=60 H=10.9 THA	8-97128-114-0	02	1	0710-	●		●
16	02.559 CLIP; HARNESS (D) L=60 H=10.9 THA	8-97128-114-0	02	1	0710-				●	●
16	02.559 CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW<A31> (E) L=155 THA	8-97173-307-0	06	1	0404-0508	●		●
16	02.559 CLIP; HARNESS (E) L=155 THA	8-97173-307-0	06	1	0404-0508		●
16	02.559 CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW<A31> (E) L=155 THA	8-97173-307-0	05	1	0509-0609	●		●
16	02.559 CLIP; HARNESS (E) L=155 THA	8-97173-307-0	05	1	0509-0609		●
16	02.559 CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW<A31> (E) L=155 THA	8-97173-307-0	02	1	0610-0709	●		●
16	02.559 CLIP; HARNESS (E) L=155 THA	8-97173-307-0	02	1	0610-0709		●
16	02.559 CLIP; HARNESS POWER WINDOW<A31> DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9>,DOOR MIR ELEC DUAL FOLDINGCHROME TURN SIGNAL<8JH> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> (E) L=155 THA	8-97173-307-0	08	1	0710-	●		●
16	02.559 CLIP; HARNESS (E) L=155 THA	8-97173-307-0	08	1	0710-				●	●
21	02.483 BRACKET; ENG HARNESS 4JA1-T ENG<LP0> M/T MSG 5 SPEED<M75> THA	8-97249-918-1	01	1	0404-0409	●	●	●
21	02.483 BRACKET; ENG HARNESS 4JA1-T ENG<LP0> M/T MSG 5 SPEED<M75> EURO2 SPECIFICATION<NT2> THA	8-97249-918-1	01	1	0410-0501	●		●
21	02.483 BRACKET; ENG HARNESS 4JA1-T ENG<LP0> THA	8-97249-918-1	01	1	0410-0501		●
22	02.559 CLIP; ENG HARNESS 4JA1-T ENG<LP0>,4JH1-T ENG<L23> 02.363 (B) L=140 THA	8-97920-656-0	01	1	0404-0409	●	●	●
22	02.559 CLIP; ENG HARNESS 02.363 (B) L=140 THA	8-97920-656-0	01	1	0404-0409				●	●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCS ENG<LFB>,4JA1-T ENG<LP0> 02.363 (B) L=140 THA	8-97920-656-0	01	1	0410-0501	●	●	●	●	●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ> 02.363 (B) L=140 THA	8-97920-656-0	01	1	0502-0609	●	●	●	●	●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ>, 4JJ1-TCX ENG<LS0> 02.363 (B) L=140 THA	8-97920-656-0	01	1	0610-	●	●	●	●	●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCS ENG<LFB> 03.890 (A) ID=20 & 16.5 THA	8-94486-835-0	01	1	0410-0501	●		●	●	●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ> 03.890 (A) ID=20 & 16.5 THA	8-94486-835-0	01	1	0502-0609	●	●	●	●	●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ>, 4JJ1-TCX ENG<LS0> (D) ID=10 & 11 THA	8-94438-996-0	01	1	0610-	●	●	●	●	●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCS ENG<LFB> (E) L=158.7 THA	8-97922-209-0	01	1	0410-0501	●		●	●	●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ> (E) L=158.7 THA	8-97922-209-0	01	1	0502-0609	●	●	●	●	●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCS ENG<LFB> POWER STEERING<N40> 09.663 (C) ID=15	1-09709-003-0	01	1	0410-0501	●		●	●	●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ> 09.663 (C) ID=15	1-09709-003-0	01	1	0502-	●	●	●	●	●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCS ENG<LFB> POWER STEERING<N40> 03.425 (D) ID=6 & 8.3	8-94167-742-0	01	1	0410-0501	●		●	●	●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ> 03.425 (D) ID=6 & 8.3	8-94167-742-0	01	1	0502-0508	●	●	●	●	●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ> 03.483 (D) ID=6 & 10	8-94154-844-0	01	1	0509-0609	●	●	●	●	●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ>, 4JJ1-TCX ENG<LS0> 03.483 (D) ID=6 & 10	8-94154-844-0	01	1	0610-	●	●	●	●	●
38	02.559 BOLT; CLIP,HARNESS 4JA1-T ENG<LP0> M/T MSG 5 SPEED<M75> 03.671 (D) M6X10 FLANGE THA	0-28050-610-0	01	1	0404-0409	●	●	●
38	02.559 BOLT; CLIP,HARNESS 4JA1-T ENG<LP0> M/T MSG 5 SPEED<M75> EURO2 SPECIFICATION<NT2> 03.671 (D) M6X10 FLANGE THA	0-28050-610-0	01	1	0410-0501	●		●
38	02.559 BOLT; CLIP,HARNESS 4JA1-T ENG<LP0> 03.671 (D) M6X10 FLANGE THA	0-28050-610-0	01	1	0410-0501		●
38	02.559 BOLT; CLIP,HARNESS 4JA1-T ENG<LP0> M/T MSG 5 SPEED<M75> 08.900 (A) M8X12 FLANGE	0-28080-812-0	04	1	0404-0409	●	●	●
38	02.559 BOLT; CLIP,HARNESS 4JA1-T ENG<LP0> M/T MSG 5 SPEED<M75> EURO2 SPECIFICATION<NT2> 08.900 (A) M8X12 FLANGE	0-28080-812-0	04	1	0410-0411	●		●
38	02.559 BOLT; CLIP,HARNESS 4JA1-T ENG<LP0> 08.900 (A) M8X12 FLANGE	0-28080-812-0	04	1	0410-0411		●
38	02.559 BOLT; CLIP,HARNESS 4JA1-T ENG<LP0> M/T MSG 5 SPEED<M75> EURO2 SPECIFICATION<NT2> 02.343 (A) M8X12 FLANGE THA	0-28050-812-0	04	1	0412-0501	●		●
38	02.559 BOLT; CLIP,HARNESS 4JA1-T ENG<LP0> 02.343 (A) M8X12 FLANGE THA	0-28050-812-0	04	1	0412-0501		●
38	02.559 BOLT; CLIP,HARNESS 4JH1-T ENG<L23> 02.343 (C) M8X16 FLANGE THA	0-28050-816-0	01	1	0404-0409	●	●	●
38	02.559 BOLT; CLIP,HARNESS 02.343 (C) M8X16 FLANGE THA	0-28050-816-0	01	1	0404-0409				●	●
38	02.559 BOLT; CLIP,HARNESS 4JJ1-TCS ENG<LFB> POWER STEERING<N40> 02.343 (F) M8X12 FLANGE THA	0-28050-812-0	01	1	0410-0501	●		●	●	●
38	02.559 BOLT; CLIP,HARNESS 4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ> 02.343 (F) M8X12 FLANGE THA	0-28050-812-0	01	1	0502-0609	●	●	●	●	●
38	02.559 BOLT; CLIP,HARNESS 4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ>, 4JJ1-TCX ENG<LS0> 02.343 (F) M8X12 FLANGE THA	0-28050-812-0	01	1	0610-	●	●	●	●	●
38	02.559 BOLT; CLIP,HARNESS 02.343 (B) M6X16 FLANGE THA	0-28650-616-0	05	1	0404-	●	●	●	●	●
38	02.559 BOLT; CLIP,HARNESS 4JJ1-TCS ENG<LFB> POWER STEERING<N40> 01.531 (E) M8X20 FLANGE THA	0-28650-820-0	01	1	0410-0501	●		●	●	●
38	02.559 BOLT; CLIP,HARNESS 4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ> 01.531 (E) M8X20 FLANGE THA	0-28650-820-0	01	1	0502-0609	●	●	●	●	●
38	02.559 BOLT; CLIP,HARNESS 4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ>, 4JJ1-TCX ENG<LS0> 02.343 (E) M8X16 FLANGE THA	0-28050-816-0	02	1	0610-	●	●	●	●	●
242	02.483 BOLT; BRKT,HARNESS 4JA1-T ENG<LP0> M/T MSG 5 SPEED<M75> 08.900 (A) M8X12 FLANGE	0-28080-812-0	02	1	0404-0409	●	●	●
242	02.483 BOLT; BRKT,HARNESS 4JA1-T ENG<LP0> M/T MSG 5 SPEED<M75> EURO2 SPECIFICATION<NT2> 08.900 (A) M8X12 FLANGE	0-28080-812-0	02	1	0410-0411	●		●
242	02.483 BOLT; BRKT,HARNESS 4JA1-T ENG<LP0> 08.900 (A) M8X12 FLANGE	0-28080-812-0	02	1	0410-0411		●
242	02.483 BOLT; BRKT,HARNESS 4JA1-T ENG<LP0> M/T MSG 5 SPEED<M75> EURO2 SPECIFICATION<NT2> 02.343 (A) M8X12 FLANGE THA	0-28050-812-0	02	1	0412-0501	●		●
242	02.483 BOLT; BRKT,HARNESS 4JA1-T ENG<LP0> 02.343 (A) M8X12 FLANGE THA	0-28050-812-0	02	1	0412-0501		●
242	02.483 BOLT; BRKT,HARNESS 4JJ1-TCX ENG<LS0> M/T MUX 5 SPEED 5S<MZJ> 02.343 (B) M8X16 FLANGE THA	0-28050-816-0	02	1	0610-					●

38 38 38 38 239 239 239

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
38	02.559 BOLT; CLIP,HARNESS 4JA1-T ENG<LP0> M/T MSG 5 SPEED<M75> 03.671 (D) M6X10 FLANGE THA	0-28050-610-0	01	1	0404-0409	●	●	●
38	02.559 BOLT; CLIP,HARNESS 4JA1-T ENG<LP0> M/T MSG 5 SPEED<M75> EURO2 SPECIFICATION<NT2> 03.671 (D) M6X10 FLANGE THA	0-28050-610-0	01	1	0410-0501	●		●
38	02.559 BOLT; CLIP,HARNESS 4JA1-T ENG<LP0> 03.671 (D) M6X10 FLANGE THA	0-28050-610-0	01	1	0410-0501		●
38	02.559 BOLT; CLIP,HARNESS 4JA1-T ENG<LP0> M/T MSG 5 SPEED<M75> 08.900 (A) M8X12 FLANGE	0-28080-812-0	04	1	0404-0409	●	●	●
38	02.559 BOLT; CLIP,HARNESS 4JA1-T ENG<LP0> M/T MSG 5 SPEED<M75> EURO2 SPECIFICATION<NT2> 08.900 (A) M8X12 FLANGE	0-28080-812-0	04	1	0410-0411	●		●
38	02.559 BOLT; CLIP,HARNESS 4JA1-T ENG<LP0> 08.900 (A) M8X12 FLANGE	0-28080-812-0	04	1	0410-0411		●
38	02.559 BOLT; CLIP,HARNESS 4JA1-T ENG<LP0> M/T MSG 5 SPEED<M75> EURO2 SPECIFICATION<NT2> 02.343 (A) M8X12 FLANGE THA	0-28050-812-0	04	1	0412-0501	●		●
38	02.559 BOLT; CLIP,HARNESS 4JA1-T ENG<LP0> 02.343 (A) M8X12 FLANGE THA	0-28050-812-0	04	1	0412-0501		●
38	02.559 BOLT; CLIP,HARNESS 4JH1-T ENG<L23> 02.343 (C) M8X16 FLANGE THA	0-28050-816-0	01	1	0404-0409	●	●	●
38	02.559 BOLT; CLIP,HARNESS 02.343 (C) M8X16 FLANGE THA	0-28050-816-0	01	1	0404-0409				●	●
38	02.559 BOLT; CLIP,HARNESS 4JJ1-TCS ENG<LFB> POWER STEERING<N40> 02.343 (F) M8X12 FLANGE THA	0-28050-812-0	01	1	0410-0501	●		●	●	●
38	02.559 BOLT; CLIP,HARNESS 4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ> 02.343 (F) M8X12 FLANGE THA	0-28050-812-0	01	1	0502-0609	●	●	●	●	●
38	02.559 BOLT; CLIP,HARNESS 4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ>, 4JJ1-TCX ENG<LS0> 02.343 (F) M8X12 FLANGE THA	0-28050-812-0	01	1	0610-	●	●	●	●	●
38	02.559 BOLT; CLIP,HARNESS 02.343 (B) M6X16 FLANGE THA	0-28650-616-0	05	1	0404-	●	●	●	●	●
38	02.559 BOLT; CLIP,HARNESS 4JJ1-TCS ENG<LFB> POWER STEERING<N40> 01.531 (E) M8X20 FLANGE THA	0-28650-820-0	01	1	0410-0501	●		●	●	●
38	02.559 BOLT; CLIP,HARNESS 4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ> 01.531 (E) M8X20 FLANGE THA	0-28650-820-0	01	1	0502-0609	●	●	●	●	●
38	02.559 BOLT; CLIP,HARNESS 4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ>, 4JJ1-TCX ENG<LS0> 02.343 (E) M8X16 FLANGE THA	0-28050-816-0	02	1	0610-	●	●	●	●	●

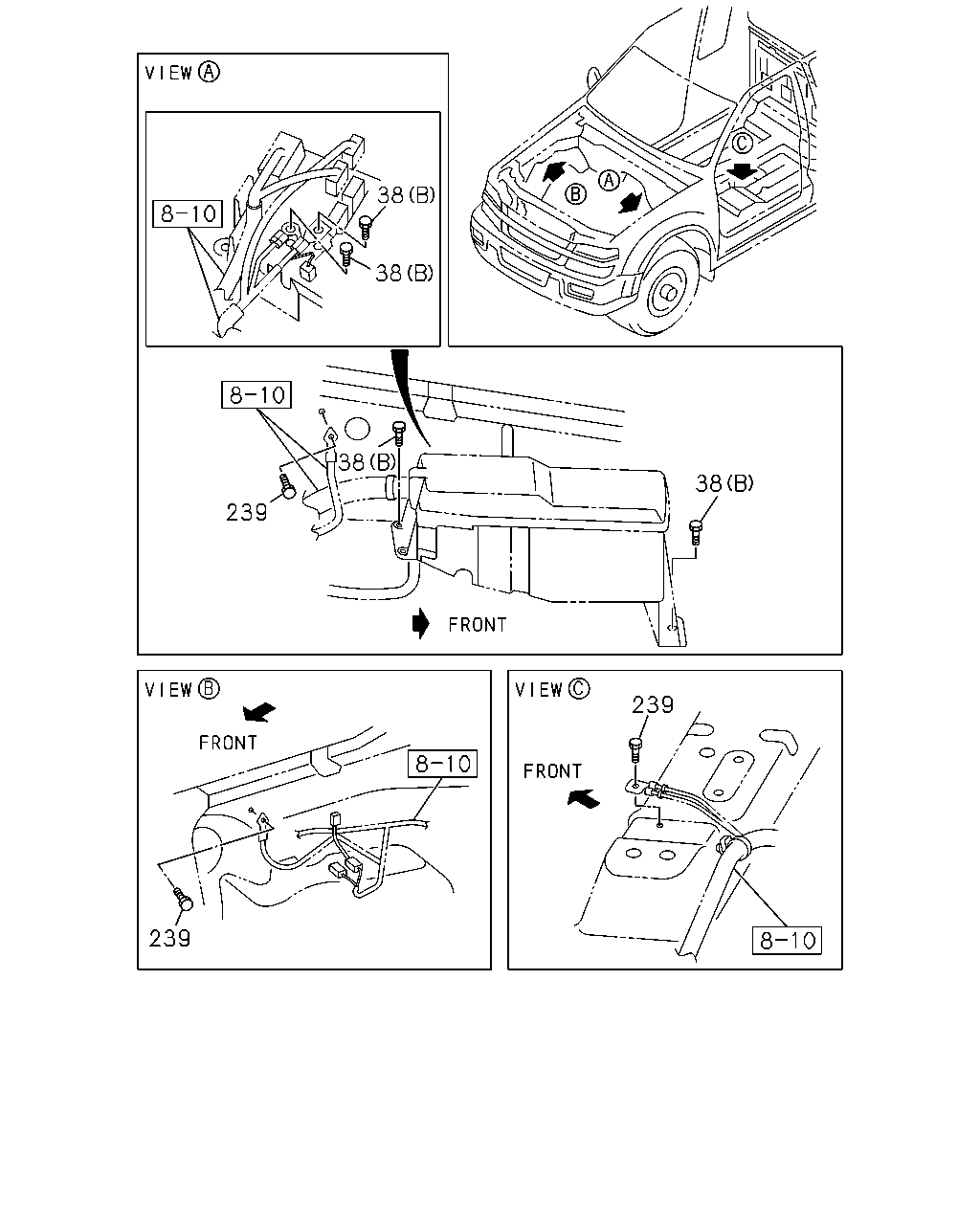

239	02.559 BOLT; GRAND M6X14 W/LK&PL WASHER	8-97086-822-0	03	1	0404-	●	●	●	●	●

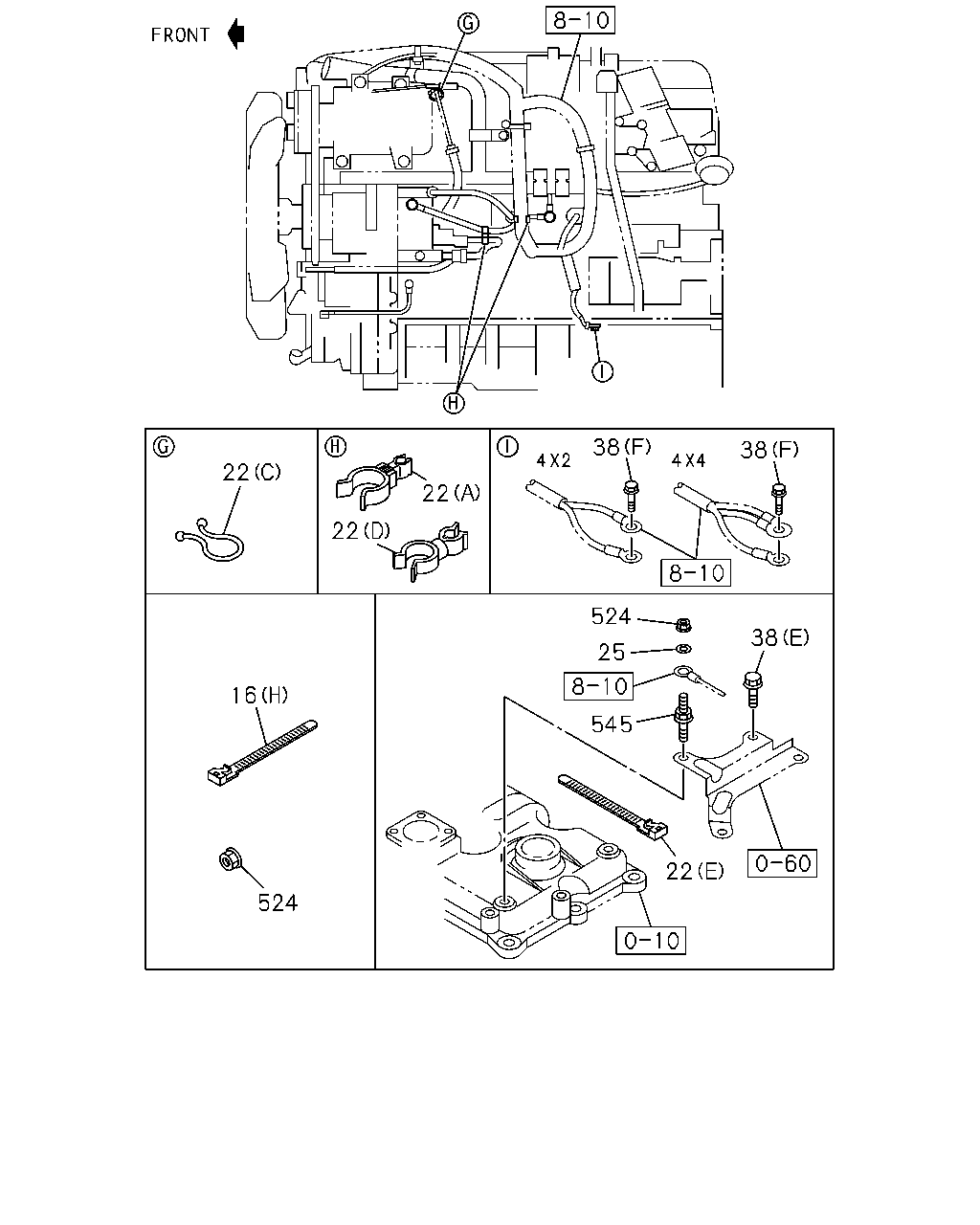

38 38 22 22 22 524 38 25 16 545 22 524

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
16	02.559 CLIP; HARNESS POWER WINDOW<A31> (C) L=135	8-94473-399-0	01	1	0404-0508	●	●	●
16	02.559 CLIP; HARNESS POWER WINDOW<A31> (C) L=135	8-94473-399-0	01	1	0404-0508	●	●	●
16	02.559 CLIP; HARNESS (C) L=135	8-94473-399-0	01	1	0404-0508				●	●
16	02.559 CLIP; HARNESS (C) L=135	8-94473-399-0	01	1	0404-0508				●	●
16	02.559 CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW<A31> (C) L=135	8-94473-399-0	01	1	0509-0709	●		●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW<A31> EXC. REMOTE CONT DOOR LOCK W/ANTI THEF T<7KY> (C) L=135	8-94473-399-0	01	1	0509-0709	●		●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW<A31> EXC. REMOTE CONT DOOR LOCK W/ANTI THEF T<7KY> (C) L=135	8-94473-399-0	01	1	0509-0709	●		●
16	02.559 CLIP; HARNESS (C) L=135	8-94473-399-0	01	1	0509-0709		●
16	02.559 CLIP; HARNESS POWER WINDOW<A31> DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9>,DOOR MIR ELEC DUAL FOLDINGCHROME TURN SIGNAL<8JH> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> (C) L=135	8-94473-399-0	02	1	0710-	●		●
16	02.559 CLIP; HARNESS (C) L=135	8-94473-399-0	02	1	0710-				●	●
16	02.559 CLIP; HARNESS POWER WINDOW<A31> (D) L=60 H=10.9 THA	8-97128-114-0	01	1	0404-0508	●	●	●
16	02.559 CLIP; HARNESS POWER WINDOW<A31> (D) L=60 H=10.9 THA	8-97128-114-0	01	1	0404-0508	●	●	●
16	02.559 CLIP; HARNESS (D) L=60 H=10.9 THA	8-97128-114-0	01	1	0404-0508				●	●
16	02.559 CLIP; HARNESS (D) L=60 H=10.9 THA	8-97128-114-0	01	1	0404-0508				●	●
16	02.559 CLIP; HARNESS POWER WINDOW<A31> DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9>,DOOR MIR ELEC DUAL FOLDINGCHROME TURN SIGNAL<8JH> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> (D) L=60 H=10.9 THA	8-97128-114-0	02	1	0509-0510	●		●
16	02.559 CLIP; HARNESS EXC. POWER WINDOW<A31> (D) L=60 H=10.9 THA	8-97128-114-0	02	1	0509-0510	●		●
16	02.559 CLIP; HARNESS (D) L=60 H=10.9 THA	8-97128-114-0	02	1	0509-0510		●		●	●
16	02.559 CLIP; HARNESS POWER WINDOW<A31> DOOR MIRROR REMOTE CONT ELECTRIC,TURN SIGNAL<DDD>,DOOR MIR ELEC DUAL FOLDINGCOLOR TURN SIGNAL<DF9>,DOOR MIR ELEC DUAL FOLDING CHROME TURN SIGNAL<8JH> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> (D) L=60 H=10.9 THA	8-97128-114-0	02	1	0511-0609	●		●
16	02.559 CLIP; HARNESS EXC. POWER WINDOW<A31> (D) L=60 H=10.9 THA	8-97128-114-0	02	1	0511-0609	●		●
16	02.559 CLIP; HARNESS (D) L=60 H=10.9 THA	8-97128-114-0	02	1	0511-0609		●
16	02.559 CLIP; HARNESS DOOR MIRROR REMOTE CONT ELECTRIC,TURN SIGNAL<DDD>,DOOR MIR ELEC DUAL FOLDINGCHROME TURN SIGNAL<8JH> (D) L=60 H=10.9 THA	8-97128-114-0	02	1	0511-0609				●	●
16	02.559 CLIP; HARNESS POWER WINDOW<A31> DOOR MIRROR REMOTE CONT ELECTRIC,TURN SIGNAL<DDD>,DOOR MIR ELEC DUAL FOLDINGCOLOR TURN SIGNAL<DF9>,DOOR MIR ELEC DUAL FOLDING CHROME TURN SIGNAL<8JH> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> (D) L=60 H=10.9 THA	8-97128-114-0	02	1	0610-0709	●		●
16	02.559 CLIP; HARNESS DOOR MIRROR REMOTE CONT ELECTRIC,TURN SIGNAL<DDD>,DOOR MIR ELEC DUAL FOLDINGCOLOR TURN SIGNAL<DF9>,DOOR MIR ELEC DUAL FOLDING CHROME TURN SIGNAL<8JH> (D) L=60 H=10.9 THA	8-97128-114-0	02	1	0610-0709				●	●
16	02.559 CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW<A31> (D) L=60 H=10.9 THA	8-97128-114-0	01	1	0710-	●		●
16	02.559 CLIP; HARNESS POWER WINDOW<A31> DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9>,DOOR MIR ELEC DUAL FOLDINGCHROME TURN SIGNAL<8JH> EXC. REMOTE CONT DOOR LOCK W/ANTI THEF T<7KY> (D) L=60 H=10.9 THA	8-97128-114-0	01	1	0710-	●		●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW<A31> EXC. DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9>,REMOTE CONT DOOR LOCKW/ANTI THEFT<7KY>,DOOR MIR ELEC DUAL FOLDING CHROME TURN SIGNAL<8JH> (D) L=60 H=10.9 THA	8-97128-114-0	01	1	0710-	●		●
16	02.559 CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW<A31> (D) L=60 H=10.9 THA	8-97128-114-0	01	1	0710-	●		●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW<A31> EXC. REMOTE CONT DOOR LOCK W/ANTI THEF T<7KY> (D) L=60 H=10.9 THA	8-97128-114-0	01	1	0710-	●		●
16	02.559 CLIP; HARNESS (D) L=60 H=10.9 THA	8-97128-114-0	01	1	0710-		●
16	02.559 CLIP; HARNESS (D) L=60 H=10.9 THA	8-97128-114-0	01	1	0710-		●
16	02.559 CLIP; HARNESS POWER WINDOW<A31> (E) L=155 THA	8-97173-307-0	03	1	0404-0508	●	●	●
16	02.559 CLIP; HARNESS POWER WINDOW<A31> (E) L=155 THA	8-97173-307-0	03	1	0404-0508	●	●	●
16	02.559 CLIP; HARNESS (E) L=155 THA	8-97173-307-0	03	1	0404-0508				●	●
16	02.559 CLIP; HARNESS (E) L=155 THA	8-97173-307-0	03	1	0404-0508				●	●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW<A31> EXC. REMOTE CONT DOOR LOCK W/ANTI THEF T<7KY> (E) L=155 THA	8-97173-307-0	03	1	0509-0609	●		●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW<A31> EXC. REMOTE CONT DOOR LOCK W/ANTI THEF T<7KY> (E) L=155 THA	8-97173-307-0	03	1	0509-0609	●		●
16	02.559 CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW<A31> (E) L=155 THA	8-97173-307-0	03	1	0610-0709	●		●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW<A31> EXC. REMOTE CONT DOOR LOCK W/ANTI THEF T<7KY> (E) L=155 THA	8-97173-307-0	03	1	0610-0709	●		●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW<A31> EXC. REMOTE CONT DOOR LOCK W/ANTI THEF T<7KY> (E) L=155 THA	8-97173-307-0	03	1	0610-0709	●		●
16	02.559 CLIP; HARNESS (E) L=155 THA	8-97173-307-0	03	1	0610-0709		●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW<A31> DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9>,DOOR MIR ELEC DUAL FOLDINGCHROME TURN SIGNAL<8JH> EXC. REMOTE CONT DOOR LOCK W/ANTI THEF T<7KY> (E) L=155 THA	8-97173-307-0	04	1	0710-	●		●
16	02.559 CLIP; HARNESS POWER WINDOW<A31> DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9>,DOOR MIR ELEC DUAL FOLDINGCHROME TURN SIGNAL<8JH> EXC. REMOTE CONT DOOR LOCK W/ANTI THEF T<7KY> (E) L=155 THA	8-97173-307-0	04	1	0710-	●		●
16	02.559 CLIP; HARNESS 4JA1-T ENG<LP0> M/T MSG 5 SPEED<M75> (G) ID=12 B=13 ID=6.5	5-09700-348-0	01	1	0404-0409	●	●	●
16	02.559 CLIP; HARNESS 4JA1-T ENG<LP0> M/T MSG 5 SPEED<M75> EURO2 SPECIFICATION<NT2> (G) ID=12 B=13 ID=6.5	5-09700-348-0	01	1	0410-0501	●		●
16	02.559 CLIP; HARNESS 4JA1-T ENG<LP0> (G) ID=12 B=13 ID=6.5	5-09700-348-0	01	1	0410-0501		●
16	02.559 CLIP; HARNESS 4JA1-T ENG<LP0> M/T MSG 5 SPEED<M75> 03.162 (B) L=140 THA	5-09707-031-1	02	1	0404-0409	●	●	●
16	02.559 CLIP; HARNESS 4JA1-T ENG<LP0> M/T MSG 5 SPEED<M75> EURO2 SPECIFICATION<NT2> 03.162 (B) L=140 THA	5-09707-031-1	02	1	0410-0411	●		●
16	02.559 CLIP; HARNESS 4JA1-T ENG<LP0> 03.162 (B) L=140 THA	5-09707-031-1	02	1	0410-0411		●
16	02.559 CLIP; HARNESS 4JA1-T ENG<LP0> M/T MSG 5 SPEED<M75> EURO2 SPECIFICATION<NT2> 02.363 (B) L=140 THA	8-97920-656-0	02	1	0412-0501	●		●
16	02.559 CLIP; HARNESS 4JA1-T ENG<LP0> 02.363 (B) L=140 THA	8-97920-656-0	02	1	0412-0501		●
16	02.559 CLIP; HARNESS 4JA1-T ENG<LP0> M/T MSG 5 SPEED<M75> (A) ID=8.5 THA	8-97912-612-0	02	1	0404-0409	●	●	●
16	02.559 CLIP; HARNESS 4JA1-T ENG<LP0> M/T MSG 5 SPEED<M75> EURO2 SPECIFICATION<NT2> (A) ID=8.5 THA	8-97912-612-0	02	1	0410-0501	●		●
16	02.559 CLIP; HARNESS 4JA1-T ENG<LP0> (A) ID=8.5 THA	8-97912-612-0	02	1	0410-0501		●
16	02.559 CLIP; HARNESS 4JH1-T ENG<L23> 08.846 (F) ID=24 L=32	1-09700-766-1	02	1	0404-0409	●	●	●
16	02.559 CLIP; HARNESS 08.846 (F) ID=24 L=32	1-09700-766-1	02	1	0404-0409				●	●
16	02.559 CLIP; HARNESS 4JJ1-TCS ENG<LFB> POWER STEERING<N40> 04.342 (H) L=197	1-83574-032-0	01	1	0410-0501	●		●	●	●
16	02.559 CLIP; HARNESS 4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ> 04.342 (H) L=197	1-83574-032-0	01	1	0502-0508	●	●	●	●	●
16	02.559 CLIP; HARNESS POWER WINDOW<A31> DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9>,DOOR MIR ELEC DUAL FOLDINGCHROME TURN SIGNAL<8JH> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> (E) L=155 THA	8-97173-307-0	06	1	0509-0510	●		●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> EXC. POWER WINDOW<A31> (E) L=155 THA	8-97173-307-0	06	1	0509-0510	●		●
16	02.559 CLIP; HARNESS (E) L=155 THA	8-97173-307-0	06	1	0509-0510				●	●
16	02.559 CLIP; HARNESS POWER WINDOW<A31> DOOR MIRROR REMOTE CONT ELECTRIC,TURN SIGNAL<DDD>,DOOR MIR ELEC DUAL FOLDINGCOLOR TURN SIGNAL<DF9>,DOOR MIR ELEC DUAL FOLDING CHROME TURN SIGNAL<8JH> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> (E) L=155 THA	8-97173-307-0	06	1	0511-0609	●		●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> EXC. POWER WINDOW<A31> (E) L=155 THA	8-97173-307-0	06	1	0511-0609	●		●
16	02.559 CLIP; HARNESS DOOR MIRROR REMOTE CONT ELECTRIC,TURN SIGNAL<DDD>,DOOR MIR ELEC DUAL FOLDINGCHROME TURN SIGNAL<8JH> (E) L=155 THA	8-97173-307-0	06	1	0511-0609				●	●
16	02.559 CLIP; HARNESS POWER WINDOW<A31> DOOR MIRROR REMOTE CONT ELECTRIC,TURN SIGNAL<DDD>,DOOR MIR ELEC DUAL FOLDINGCOLOR TURN SIGNAL<DF9>,DOOR MIR ELEC DUAL FOLDING CHROME TURN SIGNAL<8JH> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> (E) L=155 THA	8-97173-307-0	06	1	0610-0709	●		●
16	02.559 CLIP; HARNESS DOOR MIRROR REMOTE CONT ELECTRIC,TURN SIGNAL<DDD>,DOOR MIR ELEC DUAL FOLDINGCOLOR TURN SIGNAL<DF9>,DOOR MIR ELEC DUAL FOLDING CHROME TURN SIGNAL<8JH> (E) L=155 THA	8-97173-307-0	06	1	0610-0709				●	●
16	02.559 CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW<A31> (E) L=155 THA	8-97173-307-0	03	1	0710-	●		●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW<A31> EXC. DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9>,REMOTE CONT DOOR LOCKW/ANTI THEFT<7KY>,DOOR MIR ELEC DUAL FOLDING CHROME TURN SIGNAL<8JH> (E) L=155 THA	8-97173-307-0	03	1	0710-	●		●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW<A31> EXC. DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9>,REMOTE CONT DOOR LOCKW/ANTI THEFT<7KY>,DOOR MIR ELEC DUAL FOLDING CHROME TURN SIGNAL<8JH> (E) L=155 THA	8-97173-307-0	03	1	0710-	●		●
16	02.559 CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW<A31> (E) L=155 THA	8-97173-307-0	03	1	0710-	●		●
16	02.559 CLIP; HARNESS (E) L=155 THA	8-97173-307-0	03	1	0710-		●
16	02.559 CLIP; HARNESS (E) L=155 THA	8-97173-307-0	03	1	0710-		●
16	02.559 CLIP; HARNESS 4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ> 04.342 (H) L=197	1-83574-032-0	01	1	0509-0609	●	●	●	●	●
16	02.559 CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW<A31> (C) L=135	8-94473-399-0	02	1	0404-0508	●		●
16	02.559 CLIP; HARNESS (C) L=135	8-94473-399-0	02	1	0404-0508		●
16	02.559 CLIP; HARNESS POWER WINDOW<A31> DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9>,DOOR MIR ELEC DUAL FOLDINGCHROME TURN SIGNAL<8JH> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> (C) L=135	8-94473-399-0	02	1	0509-0510	●		●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> EXC. POWER WINDOW<A31> (C) L=135	8-94473-399-0	02	1	0509-0510	●		●
16	02.559 CLIP; HARNESS (C) L=135	8-94473-399-0	02	1	0509-0510				●	●
16	02.559 CLIP; HARNESS POWER WINDOW<A31> DOOR MIRROR REMOTE CONT ELECTRIC,TURN SIGNAL<DDD>,DOOR MIR ELEC DUAL FOLDINGCOLOR TURN SIGNAL<DF9>,DOOR MIR ELEC DUAL FOLDING CHROME TURN SIGNAL<8JH> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> (C) L=135	8-94473-399-0	02	1	0511-0609	●		●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> EXC. POWER WINDOW<A31> (C) L=135	8-94473-399-0	02	1	0511-0609	●		●
16	02.559 CLIP; HARNESS DOOR MIRROR REMOTE CONT ELECTRIC,TURN SIGNAL<DDD>,DOOR MIR ELEC DUAL FOLDINGCHROME TURN SIGNAL<8JH> (C) L=135	8-94473-399-0	02	1	0511-0609				●	●
16	02.559 CLIP; HARNESS POWER WINDOW<A31> DOOR MIRROR REMOTE CONT ELECTRIC,TURN SIGNAL<DDD>,DOOR MIR ELEC DUAL FOLDINGCOLOR TURN SIGNAL<DF9>,DOOR MIR ELEC DUAL FOLDING CHROME TURN SIGNAL<8JH> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> (C) L=135	8-94473-399-0	02	1	0610-0709	●		●
16	02.559 CLIP; HARNESS DOOR MIRROR REMOTE CONT ELECTRIC,TURN SIGNAL<DDD>,DOOR MIR ELEC DUAL FOLDINGCOLOR TURN SIGNAL<DF9>,DOOR MIR ELEC DUAL FOLDING CHROME TURN SIGNAL<8JH> (C) L=135	8-94473-399-0	02	1	0610-0709				●	●
16	02.559 CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW<A31> (C) L=135	8-94473-399-0	01	1	0710-	●		●
16	02.559 CLIP; HARNESS POWER WINDOW<A31> DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9>,DOOR MIR ELEC DUAL FOLDINGCHROME TURN SIGNAL<8JH> EXC. REMOTE CONT DOOR LOCK W/ANTI THEF T<7KY> (C) L=135	8-94473-399-0	01	1	0710-	●		●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW<A31> EXC. DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9>,REMOTE CONT DOOR LOCKW/ANTI THEFT<7KY>,DOOR MIR ELEC DUAL FOLDING CHROME TURN SIGNAL<8JH> (C) L=135	8-94473-399-0	01	1	0710-	●		●
16	02.559 CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW<A31> (C) L=135	8-94473-399-0	01	1	0710-	●		●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW<A31> EXC. REMOTE CONT DOOR LOCK W/ANTI THEF T<7KY> (C) L=135	8-94473-399-0	01	1	0710-	●		●
16	02.559 CLIP; HARNESS (C) L=135	8-94473-399-0	01	1	0710-		●
16	02.559 CLIP; HARNESS (C) L=135	8-94473-399-0	01	1	0710-		●
16	02.559 CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW<A31> (D) L=60 H=10.9 THA	8-97128-114-0	02	1	0404-0508	●		●
16	02.559 CLIP; HARNESS (D) L=60 H=10.9 THA	8-97128-114-0	02	1	0404-0508		●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW<A31> EXC. REMOTE CONT DOOR LOCK W/ANTI THEF T<7KY> (D) L=60 H=10.9 THA	8-97128-114-0	01	1	0509-0609	●		●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW<A31> EXC. REMOTE CONT DOOR LOCK W/ANTI THEF T<7KY> (D) L=60 H=10.9 THA	8-97128-114-0	01	1	0509-0609	●		●
16	02.559 CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW<A31> (D) L=60 H=10.9 THA	8-97128-114-0	01	1	0610-0709	●		●
16	02.559 CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW<A31> (D) L=60 H=10.9 THA	8-97128-114-0	01	1	0610-0709	●		●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW<A31> EXC. REMOTE CONT DOOR LOCK W/ANTI THEF T<7KY> (D) L=60 H=10.9 THA	8-97128-114-0	01	1	0610-0709	●		●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW<A31> EXC. REMOTE CONT DOOR LOCK W/ANTI THEF T<7KY> (D) L=60 H=10.9 THA	8-97128-114-0	01	1	0610-0709	●		●
16	02.559 CLIP; HARNESS (D) L=60 H=10.9 THA	8-97128-114-0	01	1	0610-0709		●
16	02.559 CLIP; HARNESS (D) L=60 H=10.9 THA	8-97128-114-0	01	1	0610-0709		●
16	02.559 CLIP; HARNESS POWER WINDOW<A31> DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9>,DOOR MIR ELEC DUAL FOLDINGCHROME TURN SIGNAL<8JH> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> (D) L=60 H=10.9 THA	8-97128-114-0	02	1	0710-	●		●
16	02.559 CLIP; HARNESS (D) L=60 H=10.9 THA	8-97128-114-0	02	1	0710-				●	●
16	02.559 CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW<A31> (E) L=155 THA	8-97173-307-0	06	1	0404-0508	●		●
16	02.559 CLIP; HARNESS (E) L=155 THA	8-97173-307-0	06	1	0404-0508		●
16	02.559 CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW<A31> (E) L=155 THA	8-97173-307-0	05	1	0509-0609	●		●
16	02.559 CLIP; HARNESS (E) L=155 THA	8-97173-307-0	05	1	0509-0609		●
16	02.559 CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW<A31> (E) L=155 THA	8-97173-307-0	02	1	0610-0709	●		●
16	02.559 CLIP; HARNESS (E) L=155 THA	8-97173-307-0	02	1	0610-0709		●
16	02.559 CLIP; HARNESS POWER WINDOW<A31> DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9>,DOOR MIR ELEC DUAL FOLDINGCHROME TURN SIGNAL<8JH> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> (E) L=155 THA	8-97173-307-0	08	1	0710-	●		●
16	02.559 CLIP; HARNESS (E) L=155 THA	8-97173-307-0	08	1	0710-				●	●
22	02.559 CLIP; ENG HARNESS 4JA1-T ENG<LP0>,4JH1-T ENG<L23> 02.363 (B) L=140 THA	8-97920-656-0	01	1	0404-0409	●	●	●
22	02.559 CLIP; ENG HARNESS 02.363 (B) L=140 THA	8-97920-656-0	01	1	0404-0409				●	●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCS ENG<LFB>,4JA1-T ENG<LP0> 02.363 (B) L=140 THA	8-97920-656-0	01	1	0410-0501	●	●	●	●	●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ> 02.363 (B) L=140 THA	8-97920-656-0	01	1	0502-0609	●	●	●	●	●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ>, 4JJ1-TCX ENG<LS0> 02.363 (B) L=140 THA	8-97920-656-0	01	1	0610-	●	●	●	●	●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCS ENG<LFB> 03.890 (A) ID=20 & 16.5 THA	8-94486-835-0	01	1	0410-0501	●		●	●	●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ> 03.890 (A) ID=20 & 16.5 THA	8-94486-835-0	01	1	0502-0609	●	●	●	●	●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ>, 4JJ1-TCX ENG<LS0> (D) ID=10 & 11 THA	8-94438-996-0	01	1	0610-	●	●	●	●	●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCS ENG<LFB> (E) L=158.7 THA	8-97922-209-0	01	1	0410-0501	●		●	●	●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ> (E) L=158.7 THA	8-97922-209-0	01	1	0502-0609	●	●	●	●	●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCS ENG<LFB> POWER STEERING<N40> 09.663 (C) ID=15	1-09709-003-0	01	1	0410-0501	●		●	●	●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ> 09.663 (C) ID=15	1-09709-003-0	01	1	0502-	●	●	●	●	●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCS ENG<LFB> POWER STEERING<N40> 03.425 (D) ID=6 & 8.3	8-94167-742-0	01	1	0410-0501	●		●	●	●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ> 03.425 (D) ID=6 & 8.3	8-94167-742-0	01	1	0502-0508	●	●	●	●	●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ> 03.483 (D) ID=6 & 10	8-94154-844-0	01	1	0509-0609	●	●	●	●	●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ>, 4JJ1-TCX ENG<LS0> 03.483 (D) ID=6 & 10	8-94154-844-0	01	1	0610-	●	●	●	●	●
25	02.559 WASHER; PL,ENG HARNESS 4JJ1-TCS ENG<LFB> POWER STEERING<N40> 00.206 ID=8.4	9-09164-508-0	01	1	0410-0501	●		●	●	●
25	02.559 WASHER; PL,ENG HARNESS 4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ> 00.206 ID=8.4	9-09164-508-0	01	1	0502-0606	●	●	●	●	●
25	02.559 WASHER; PL,ENG HARNESS 4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ> 06.056 ID=8.4 OD=16	0-91614-508-0	01	1	0607-0609	●	●	●	●	●
38	02.559 BOLT; CLIP,HARNESS 4JA1-T ENG<LP0> M/T MSG 5 SPEED<M75> 03.671 (D) M6X10 FLANGE THA	0-28050-610-0	01	1	0404-0409	●	●	●
38	02.559 BOLT; CLIP,HARNESS 4JA1-T ENG<LP0> M/T MSG 5 SPEED<M75> EURO2 SPECIFICATION<NT2> 03.671 (D) M6X10 FLANGE THA	0-28050-610-0	01	1	0410-0501	●		●
38	02.559 BOLT; CLIP,HARNESS 4JA1-T ENG<LP0> 03.671 (D) M6X10 FLANGE THA	0-28050-610-0	01	1	0410-0501		●
38	02.559 BOLT; CLIP,HARNESS 4JA1-T ENG<LP0> M/T MSG 5 SPEED<M75> 08.900 (A) M8X12 FLANGE	0-28080-812-0	04	1	0404-0409	●	●	●
38	02.559 BOLT; CLIP,HARNESS 4JA1-T ENG<LP0> M/T MSG 5 SPEED<M75> EURO2 SPECIFICATION<NT2> 08.900 (A) M8X12 FLANGE	0-28080-812-0	04	1	0410-0411	●		●
38	02.559 BOLT; CLIP,HARNESS 4JA1-T ENG<LP0> 08.900 (A) M8X12 FLANGE	0-28080-812-0	04	1	0410-0411		●
38	02.559 BOLT; CLIP,HARNESS 4JA1-T ENG<LP0> M/T MSG 5 SPEED<M75> EURO2 SPECIFICATION<NT2> 02.343 (A) M8X12 FLANGE THA	0-28050-812-0	04	1	0412-0501	●		●
38	02.559 BOLT; CLIP,HARNESS 4JA1-T ENG<LP0> 02.343 (A) M8X12 FLANGE THA	0-28050-812-0	04	1	0412-0501		●
38	02.559 BOLT; CLIP,HARNESS 4JH1-T ENG<L23> 02.343 (C) M8X16 FLANGE THA	0-28050-816-0	01	1	0404-0409	●	●	●
38	02.559 BOLT; CLIP,HARNESS 02.343 (C) M8X16 FLANGE THA	0-28050-816-0	01	1	0404-0409				●	●
38	02.559 BOLT; CLIP,HARNESS 4JJ1-TCS ENG<LFB> POWER STEERING<N40> 02.343 (F) M8X12 FLANGE THA	0-28050-812-0	01	1	0410-0501	●		●	●	●
38	02.559 BOLT; CLIP,HARNESS 4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ> 02.343 (F) M8X12 FLANGE THA	0-28050-812-0	01	1	0502-0609	●	●	●	●	●
38	02.559 BOLT; CLIP,HARNESS 4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ>, 4JJ1-TCX ENG<LS0> 02.343 (F) M8X12 FLANGE THA	0-28050-812-0	01	1	0610-	●	●	●	●	●
38	02.559 BOLT; CLIP,HARNESS 02.343 (B) M6X16 FLANGE THA	0-28650-616-0	05	1	0404-	●	●	●	●	●
38	02.559 BOLT; CLIP,HARNESS 4JJ1-TCS ENG<LFB> POWER STEERING<N40> 01.531 (E) M8X20 FLANGE THA	0-28650-820-0	01	1	0410-0501	●		●	●	●
38	02.559 BOLT; CLIP,HARNESS 4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ> 01.531 (E) M8X20 FLANGE THA	0-28650-820-0	01	1	0502-0609	●	●	●	●	●
38	02.559 BOLT; CLIP,HARNESS 4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ>, 4JJ1-TCX ENG<LS0> 02.343 (E) M8X16 FLANGE THA	0-28050-816-0	02	1	0610-	●	●	●	●	●
524	02.559 NUT; HARNESS 4JJ1-TCS ENG<LFB> POWER STEERING<N40> 01.062 M8 FLANGE THA	0-91180-108-0	02	1	0410-0501	●		●	●	●
524	02.559 NUT; HARNESS 4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ> 01.062 M8 FLANGE THA	0-91180-108-0	02	1	0502-0609	●	●	●	●	●
524	02.559 NUT; HARNESS 4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ>, 4JJ1-TCX ENG<LS0> 01.062 M8 FLANGE THA	0-91180-108-0	01	1	0610-	●	●	●	●	●
545	02.559 STUD; HARNESS 4JJ1-TCS ENG<LFB> POWER STEERING<N40> 00.413 M8X15 M8X17 L=40	8-97366-633-0	01	1	0410-0501	●		●	●	●
545	02.559 STUD; HARNESS 4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ> 00.413 M8X15 M8X17 L=40	8-97366-633-0	01	1	0502-0508	●	●	●	●	●
545	02.559 STUD; HARNESS 4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ> 00.413 M8X15 M8X17 L=40 THA	8-97945-023-0	01	1	0509-0609	●	●	●	●	●

459 38 459 242 459 453 53 24 459 242 38 53

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
24	02.559 NUT; HARNESS M/T MUX 5 SPEED 5S<MZJ> 01.540 M6 FLANGE THA	0-91180-206-0	01	1	0610-					●
38	02.559 BOLT; CLIP,HARNESS 4JA1-T ENG<LP0> M/T MSG 5 SPEED<M75> 03.671 (D) M6X10 FLANGE THA	0-28050-610-0	01	1	0404-0409	●	●	●
38	02.559 BOLT; CLIP,HARNESS 4JA1-T ENG<LP0> M/T MSG 5 SPEED<M75> EURO2 SPECIFICATION<NT2> 03.671 (D) M6X10 FLANGE THA	0-28050-610-0	01	1	0410-0501	●		●
38	02.559 BOLT; CLIP,HARNESS 4JA1-T ENG<LP0> 03.671 (D) M6X10 FLANGE THA	0-28050-610-0	01	1	0410-0501		●
38	02.559 BOLT; CLIP,HARNESS 4JA1-T ENG<LP0> M/T MSG 5 SPEED<M75> 08.900 (A) M8X12 FLANGE	0-28080-812-0	04	1	0404-0409	●	●	●
38	02.559 BOLT; CLIP,HARNESS 4JA1-T ENG<LP0> M/T MSG 5 SPEED<M75> EURO2 SPECIFICATION<NT2> 08.900 (A) M8X12 FLANGE	0-28080-812-0	04	1	0410-0411	●		●
38	02.559 BOLT; CLIP,HARNESS 4JA1-T ENG<LP0> 08.900 (A) M8X12 FLANGE	0-28080-812-0	04	1	0410-0411		●
38	02.559 BOLT; CLIP,HARNESS 4JA1-T ENG<LP0> M/T MSG 5 SPEED<M75> EURO2 SPECIFICATION<NT2> 02.343 (A) M8X12 FLANGE THA	0-28050-812-0	04	1	0412-0501	●		●
38	02.559 BOLT; CLIP,HARNESS 4JA1-T ENG<LP0> 02.343 (A) M8X12 FLANGE THA	0-28050-812-0	04	1	0412-0501		●
38	02.559 BOLT; CLIP,HARNESS 4JH1-T ENG<L23> 02.343 (C) M8X16 FLANGE THA	0-28050-816-0	01	1	0404-0409	●	●	●
38	02.559 BOLT; CLIP,HARNESS 02.343 (C) M8X16 FLANGE THA	0-28050-816-0	01	1	0404-0409				●	●
38	02.559 BOLT; CLIP,HARNESS 4JJ1-TCS ENG<LFB> POWER STEERING<N40> 02.343 (F) M8X12 FLANGE THA	0-28050-812-0	01	1	0410-0501	●		●	●	●
38	02.559 BOLT; CLIP,HARNESS 4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ> 02.343 (F) M8X12 FLANGE THA	0-28050-812-0	01	1	0502-0609	●	●	●	●	●
38	02.559 BOLT; CLIP,HARNESS 4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ>, 4JJ1-TCX ENG<LS0> 02.343 (F) M8X12 FLANGE THA	0-28050-812-0	01	1	0610-	●	●	●	●	●
38	02.559 BOLT; CLIP,HARNESS 02.343 (B) M6X16 FLANGE THA	0-28650-616-0	05	1	0404-	●	●	●	●	●
38	02.559 BOLT; CLIP,HARNESS 4JJ1-TCS ENG<LFB> POWER STEERING<N40> 01.531 (E) M8X20 FLANGE THA	0-28650-820-0	01	1	0410-0501	●		●	●	●
38	02.559 BOLT; CLIP,HARNESS 4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ> 01.531 (E) M8X20 FLANGE THA	0-28650-820-0	01	1	0502-0609	●	●	●	●	●
38	02.559 BOLT; CLIP,HARNESS 4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ>, 4JJ1-TCX ENG<LS0> 02.343 (E) M8X16 FLANGE THA	0-28050-816-0	02	1	0610-	●	●	●	●	●
53	02.483 BRACKET; HARNESS M/T MUX 5 SPEED 5S<MZJ> (A) THA	8-97944-510-1	01	1	0610-					●
53	02.483 BRACKET; HARNESS M/T MUX 5 SPEED 5S<MZJ> (B) THA	8-97944-511-1	01	1	0610-					●
242	02.483 BOLT; BRKT,HARNESS 4JA1-T ENG<LP0> M/T MSG 5 SPEED<M75> 08.900 (A) M8X12 FLANGE	0-28080-812-0	02	1	0404-0409	●	●	●
242	02.483 BOLT; BRKT,HARNESS 4JA1-T ENG<LP0> M/T MSG 5 SPEED<M75> EURO2 SPECIFICATION<NT2> 08.900 (A) M8X12 FLANGE	0-28080-812-0	02	1	0410-0411	●		●
242	02.483 BOLT; BRKT,HARNESS 4JA1-T ENG<LP0> 08.900 (A) M8X12 FLANGE	0-28080-812-0	02	1	0410-0411		●
242	02.483 BOLT; BRKT,HARNESS 4JA1-T ENG<LP0> M/T MSG 5 SPEED<M75> EURO2 SPECIFICATION<NT2> 02.343 (A) M8X12 FLANGE THA	0-28050-812-0	02	1	0412-0501	●		●
242	02.483 BOLT; BRKT,HARNESS 4JA1-T ENG<LP0> 02.343 (A) M8X12 FLANGE THA	0-28050-812-0	02	1	0412-0501		●
242	02.483 BOLT; BRKT,HARNESS 4JJ1-TCX ENG<LS0> M/T MUX 5 SPEED 5S<MZJ> 02.343 (B) M8X16 FLANGE THA	0-28050-816-0	02	1	0610-					●
453	02.559 CLIP; CABLE HARNESS 4JJ1-TCX ENG<LS0> M/T MUX 5 SPEED 5S<MZJ> 04.342 ID=6.5	5-09709-117-0	01	1	0610-					●
459	02.483 BRACKET; SUPPORT,HARNESS 4JA1-T ENG<LP0>,4JH1-T ENG<L23> M/T MSG 5 SPEED<M75>,M/T MUA 5 SPEED 5G<RSP> (A) THA	8-94315-284-0	01	1	0404-0409	●	●	●
459	02.483 BRACKET; SUPPORT,HARNESS M/T MUA 5 SPEED 5G<RSP> (A) THA	8-94315-284-0	01	1	0404-0409				●	●
459	02.483 BRACKET; SUPPORT,HARNESS 4JJ1-TCS ENG<LFB>,4JA1-T ENG<LP0> M/T MSG 5 SPEED<M75>,M/T MUA 5 SPEED 5G<RSP> (A) THA	8-94315-284-0	01	1	0410-0501	●	●	●	●	●
459	02.483 BRACKET; SUPPORT,HARNESS 4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ> M/T MUA 5 SPEED 5H<MWQ>,M/T MUA 5 SPEED 5G<RSP> (A) THA	8-94315-284-0	01	1	0502-0608	●	●	●	●	●
459	02.483 BRACKET; SUPPORT,HARNESS 4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ> M/T MUA 5 SPEED 5H<MWQ>,M/T MUA 5 SPEED 5G<RSP> (A) THA	8-98050-882-0	01	1	0609-0609	●	●	●	●	●
459	02.483 BRACKET; SUPPORT,HARNESS 4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ> M/T MUA 5 SPEED 5H<MWQ> (A) THA	8-98050-882-0	01	1	0610-	●	●	●	●	●
459	02.483 BRACKET; SUPPORT,HARNESS A/T 4 SPEED-JATCO<RMK> (B) THA	8-97307-524-1	01	1	0404-0409	●		●	●	●
459	02.483 BRACKET; SUPPORT,HARNESS 4JJ1-TCS ENG<LFB> A/T 4 SPEED-JATCO<RMK> (B) THA	8-97307-524-1	01	1	0410-	●		●	●	●
459	02.483 BRACKET; SUPPORT,HARNESS 4JJ1-TCX ENG<LS0> A/T AISIN<RMD> (F) THA	8-98050-720-0	01	1	0610-					●
459	02.483 BRACKET; SUPPORT,HARNESS 4JJ1-TCX ENG<LS0> M/T MUX 5 SPEED 5S<MZJ> (C) THA	8-97382-804-0	01	1	0610-					●
459	02.483 BRACKET; SUPPORT,HARNESS 4JJ1-TCX ENG<LS0> M/T MUX 5 SPEED 5S<MZJ> (D) THA	8-98035-740-0	01	1	0610-					●
459	02.483 BRACKET; SUPPORT,HARNESS 4JJ1-TCX ENG<LS0> M/T MUX 5 SPEED 5S<MZJ> (E) THA	8-98035-741-0	01	1	0610-					●

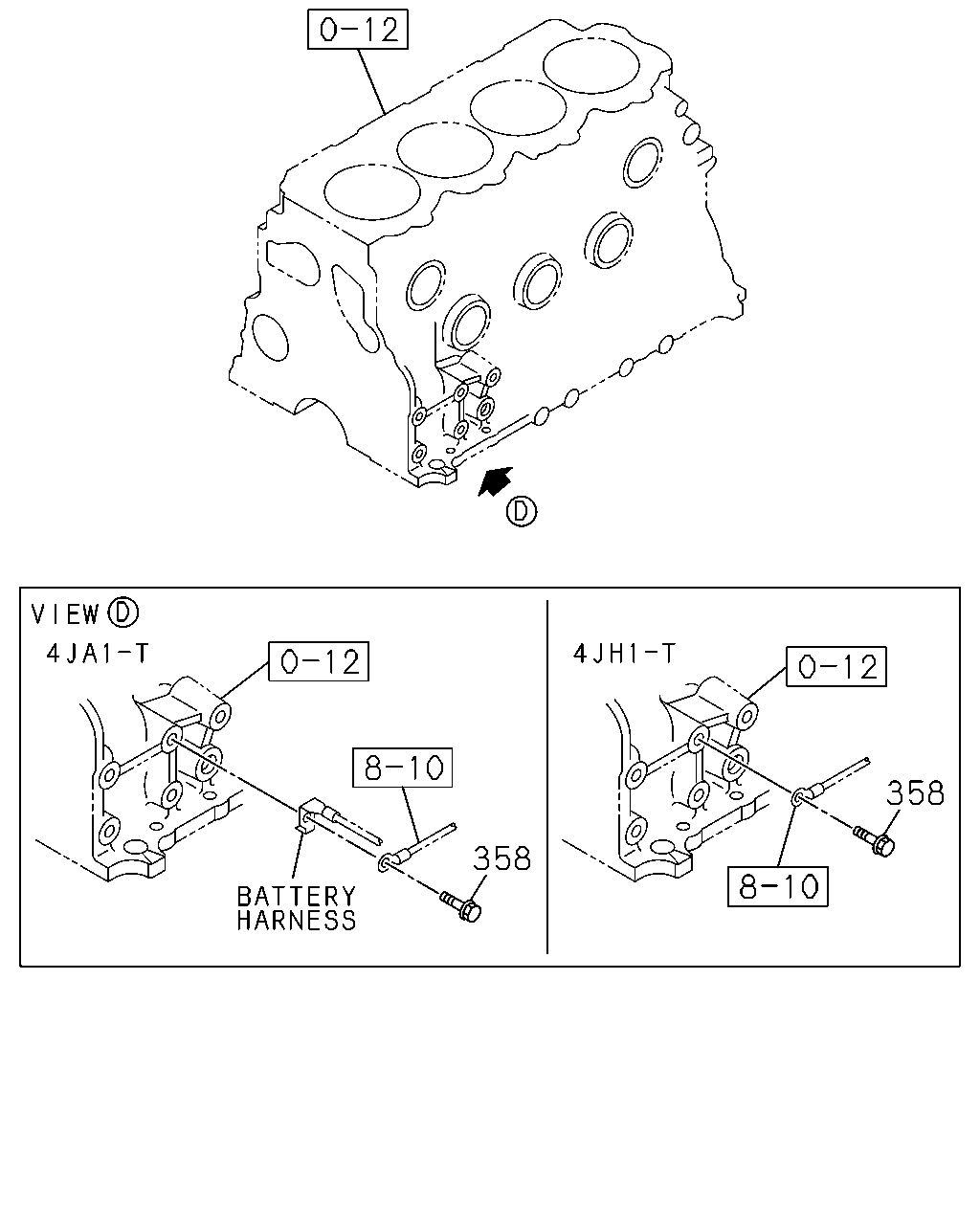

358 358

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
358	02.480 BOLT; EARTH 4JA1-T ENG<LP0> M/T MSG 5 SPEED<M75> 02.559 M10X16 FLANGE	0-28081-016-0	01	1	0404-0409	●	●	●
358	02.480 BOLT; EARTH 4JA1-T ENG<LP0> M/T MSG 5 SPEED<M75> EURO2 SPECIFICATION<NT2> 02.559 M10X16 FLANGE	0-28081-016-0	01	1	0410-0501	●		●
358	02.480 BOLT; EARTH 4JA1-T ENG<LP0> 02.559 M10X16 FLANGE	0-28081-016-0	01	1	0410-0501		●
358	02.480 BOLT; EARTH 4JH1-T ENG<L23> 02.343 M10X20 FLANGE THA	0-28651-020-0	01	1	0404-0409	●	●	●
358	02.480 BOLT; EARTH 02.343 M10X20 FLANGE THA	0-28651-020-0	01	1	0404-0409				●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
