◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 50982 - TFR/S(CHEVROLET)THAI ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-05 - INTERIOR LAMP ▶
8-05 — INTERIOR LAMP (#73691) — 43 parça

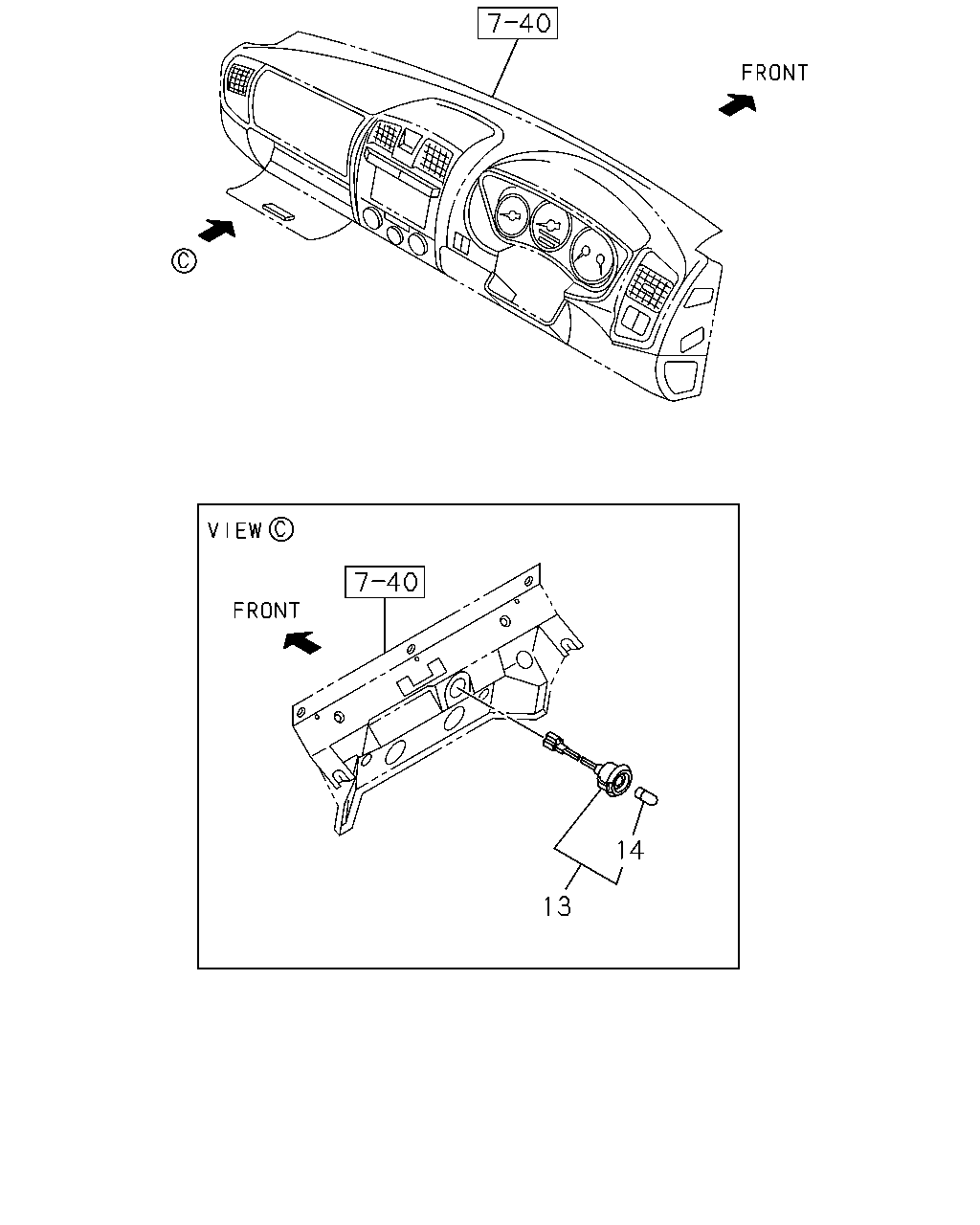

çizim 117883
14 13
BalonParca AdiParca NoAdetTipApplied Date A B C D E
13 02.575 LAMP ASM; GLOVE BOX
LAMP GLOVE COMPARTMENT<U27> THA 		8-97363-727-0 01 1 0404-0409 ● ● ●
13 02.575 LAMP ASM; GLOVE BOX
THA 		8-97363-727-0 01 1 0404-0409 ● ●
13 02.575 LAMP ASM; GLOVE BOX
LAMP GLOVE COMPARTMENT<U27> THA 		8-97363-727-0 01 1 0410-0609 ● ●
13 02.575 LAMP ASM; GLOVE BOX
THA 		8-97363-727-0 01 1 0410-0609 ● ●
13 02.575 LAMP ASM; GLOVE BOX
THA 		8-97363-727-0 01 1 0610-0709 ● ● ●
13 02.575 LAMP ASM; GLOVE BOX
LAMP GLOVE COMPARTMENT<U27> THA 		8-97363-727-0 01 1 0610-0709 ●
13 02.575 LAMP ASM; GLOVE BOX
THA 		8-97363-727-0 01 1 0710-0809 ● ● ● ●
13 02.575 LAMP ASM; GLOVE BOX
LAMP GLOVE COMPARTMENT<U27> THA 		8-97363-727-0 01 1 0810-0910 ● ●
13 02.575 LAMP ASM; GLOVE BOX
THA 		8-97363-727-0 01 1 0810-0910 ● ●
13 02.575 LAMP ASM; GLOVE BOX
THA 		8-97363-727-0 01 1 0911- ● ● ● ●
14 08.991 BULB; GLOVE BOX LAMP
LAMP GLOVE COMPARTMENT<U27> 12V 1.2W THA 		8-97352-272-0 01 1 0404-0409 ● ● ●
14 08.991 BULB; GLOVE BOX LAMP
12V 1.2W THA 		8-97352-272-0 01 1 0404-0409 ● ●
14 08.991 BULB; GLOVE BOX LAMP
LAMP GLOVE COMPARTMENT<U27> 12V 1.2W THA 		8-97352-272-0 01 1 0410-0609 ● ●
14 08.991 BULB; GLOVE BOX LAMP
12V 1.2W THA 		8-97352-272-0 01 1 0410-0609 ● ●
14 08.991 BULB; GLOVE BOX LAMP
12V 1.2W THA 		8-97352-272-0 01 1 0610-0709 ● ● ●
14 08.991 BULB; GLOVE BOX LAMP
LAMP GLOVE COMPARTMENT<U27> 12V 1.2W THA 		8-97352-272-0 01 1 0610-0709 ●
14 08.991 BULB; GLOVE BOX LAMP
12V 1.2W THA 		8-97352-272-0 01 1 0710-0809 ● ● ● ●
14 08.991 BULB; GLOVE BOX LAMP
LAMP GLOVE COMPARTMENT<U27> 12V 1.2W THA 		8-97352-272-0 01 1 0810-0910 ● ●
14 08.991 BULB; GLOVE BOX LAMP
12V 1.2W THA 		8-97352-272-0 01 1 0810-0910 ● ●
14 08.991 BULB; GLOVE BOX LAMP
12V 1.2W THA 		8-97352-272-0 01 1 0911- ● ● ● ●

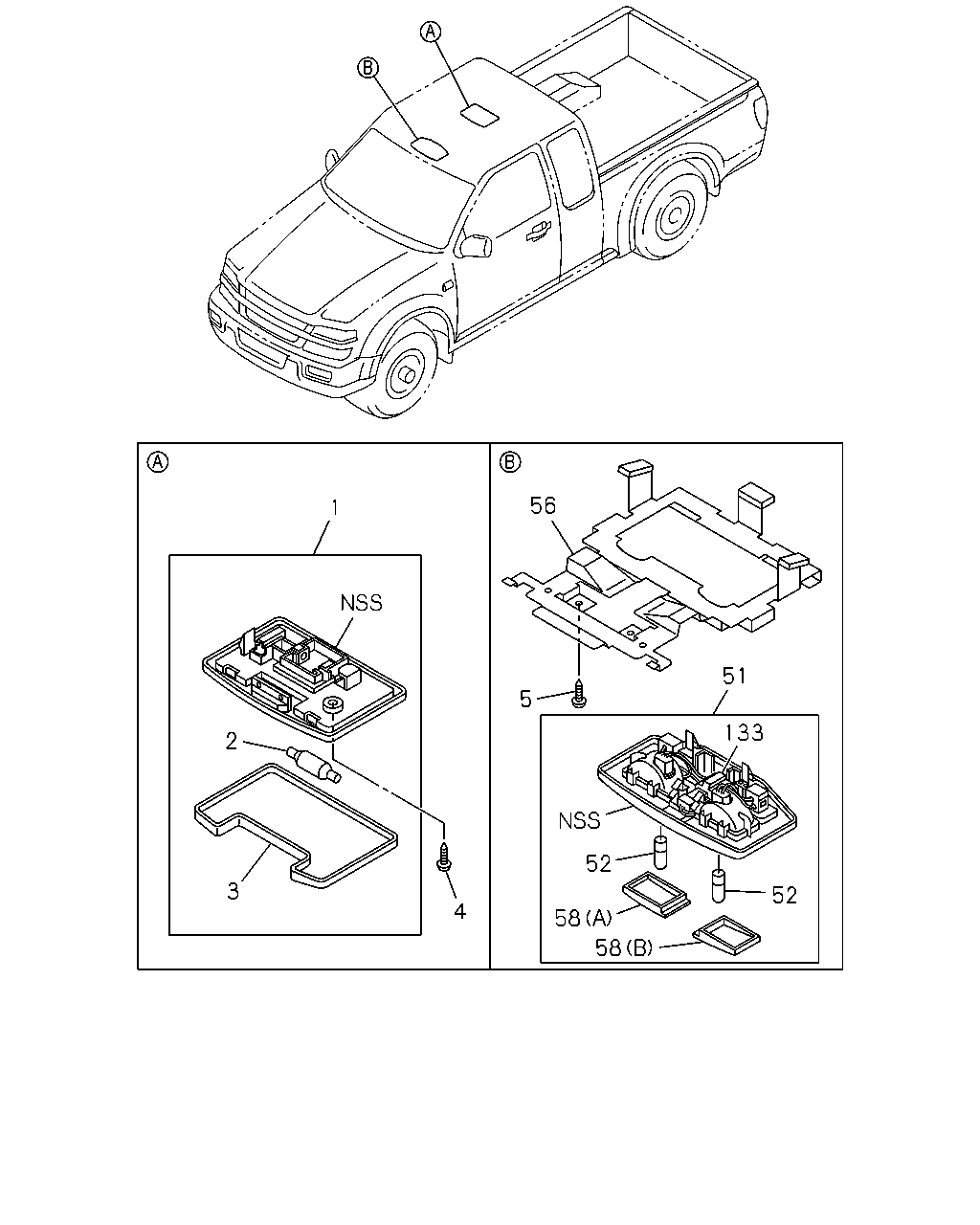

çizim 117890
56 1 51 5 133 2 52 3 52 4 58 58
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 16.494 LAMP ASM; ROOM
LIGHT GRAY THA 		8-97294-070-2 01 1 0404-0609 ● ● ● ● ●
1 16.494 LAMP ASM; ROOM
GRAY THA 		8-97403-892-2 01 1 0610-0612 ● ● ● ● ●
1 16.494 LAMP ASM; ROOM
GRAY THA 		8-97411-440-0 01 1 0701- ● ● ● ● ●
2 08.991 BULB; ROOM LAMP
12V 10W THA 		8-97128-771-0 01 1 0404- ● ● ● ● ●
3 16.495 LENS; ROOM LAMP
THA 		8-97333-429-0 01 1 0404- ● ● ● ● ●
4 16.495 SCREW; ROOM LAMP
08.010 M5X12 TAPPING 		9-07066-512-0 02 1 0404-0604 ● ● ● ● ●
4 16.495 SCREW; ROOM LAMP
M5X12 TAPPING 		0-71040-512-0 02 1 0605- ● ● ● ● ●
5 16.545 SCREW; SPOT LAMP
MAP LAMP<C74> 08.913 M5X12 		8-94120-094-0 02 1 0404-0508 ● ●
5 16.545 SCREW; SPOT LAMP
08.913 M5X12 		8-94120-094-0 02 1 0404-0508 ● ●
51 16.494 LAMP ASM; SPOT
MAP LAMP<C74> LIGHT GRAY THA 		8-97396-084-0 01 1 0404-0508 ● ●
51 16.494 LAMP ASM; SPOT
LIGHT GRAY THA 		8-97396-084-0 01 1 0404-0508 ● ●
52 08.991 BULB; SPOT LAMP
MAP LAMP<C74> 12V 5W THA 		8-94124-595-0 02 1 0404-0508 ● ●
52 08.991 BULB; SPOT LAMP
12V 5W THA 		8-94124-595-0 02 1 0404-0508 ● ●
56 16.494 BRACKET; LAMP
MAP LAMP<C74> THA 		8-97236-839-5 01 1 0404-0412 ● ●
56 16.494 BRACKET; LAMP
THA 		8-97236-839-5 01 1 0404-0412 ● ●
56 16.494 BRACKET; LAMP
MAP LAMP<C74> THA 		8-97385-493-0 01 1 0501-0508 ● ●
56 16.494 BRACKET; LAMP
THA 		8-97385-493-0 01 1 0501-0508 ● ●
58 16.494 LENS; SPOT LAMP
MAP LAMP<C74> (A) THA 		8-97333-440-0 01 1 0404-0508 ● ●
58 16.494 LENS; SPOT LAMP
(A) THA 		8-97333-440-0 01 1 0404-0508 ● ●
58 16.494 LENS; SPOT LAMP
MAP LAMP<C74> (B) THA 		8-97333-441-0 01 1 0404-0508 ● ●
58 16.494 LENS; SPOT LAMP
(B) THA 		8-97333-441-0 01 1 0404-0508 ● ●
133 16.494 SOCKET ASM; SPOT LAMP
MAP LAMP<C74> THA 		8-97176-526-0 01 1 0404-0508 ● ●
133 16.494 SOCKET ASM; SPOT LAMP
THA 		8-97176-526-0 01 1 0404-0508 ● ●
