◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 50982 - TFR/S(CHEVROLET)THAI ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-03 - LAMP; REAR AND REAR SIDE ▶
8-03 — LAMP; REAR AND REAR SIDE (#73690) — 218 parça

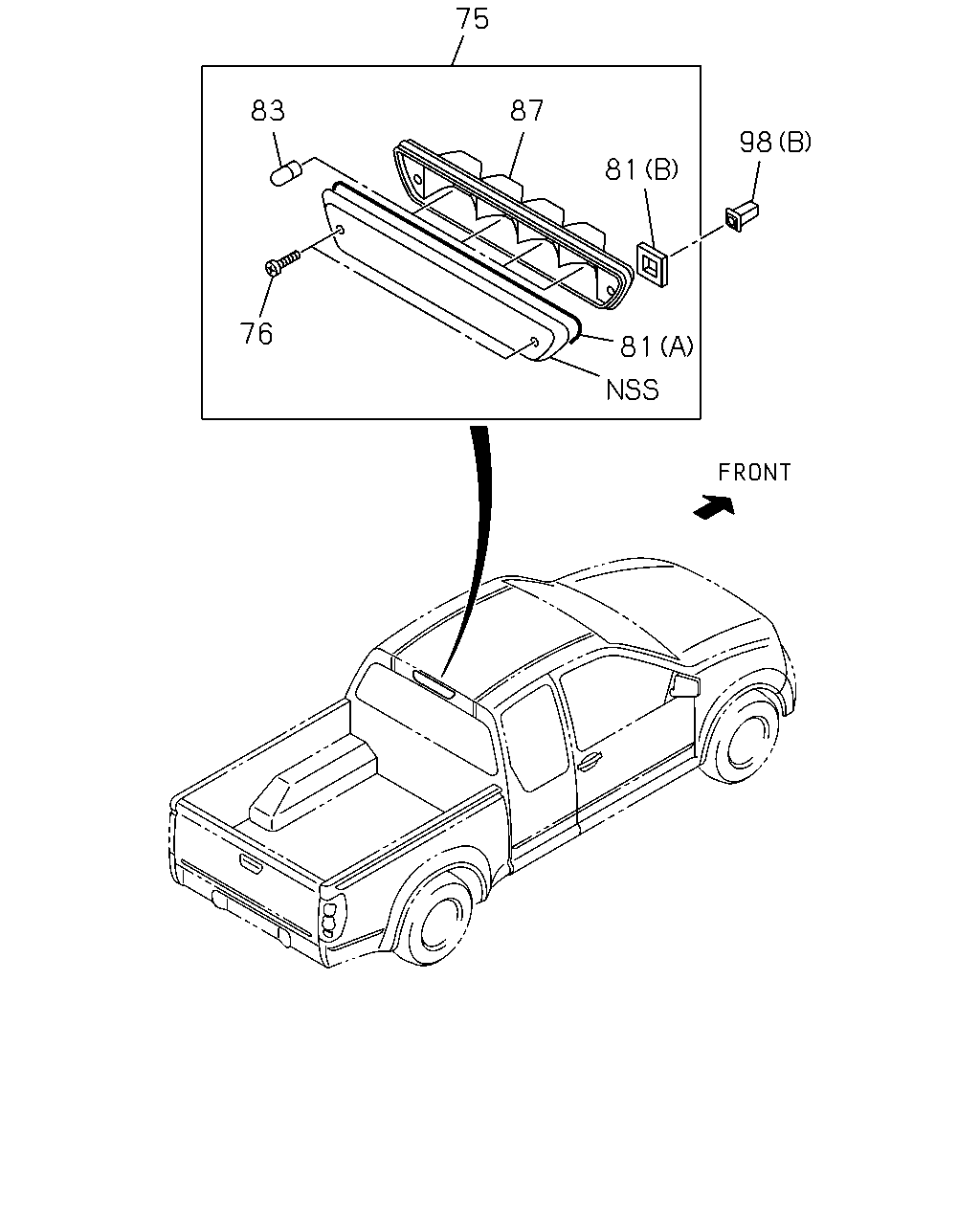

çizim 117882
75 83 87 98 81 76 81
BalonParca AdiParca NoAdetTipApplied Date A B C D E
75 02.679 LAMP ASM; STOP,HIGHMOUNTED
THA 		8-97305-674-1 01 1 0404-0405 ● ● ● ●
75 02.679 LAMP ASM; STOP,HIGHMOUNTED
HIGH MOUNT STOP LAMP<TS6> THA 		8-97305-674-1 01 1 0404-0405 ●
75 02.679 LAMP ASM; STOP,HIGHMOUNTED
THA 		8-97381-629-0 01 1 0406-0409 ● ● ● ●
75 02.679 LAMP ASM; STOP,HIGHMOUNTED
HIGH MOUNT STOP LAMP<TS6> THA 		8-97381-629-0 01 1 0406-0409 ●
75 02.679 LAMP ASM; STOP,HIGHMOUNTED
THA 		8-97381-629-0 01 1 0410- ● ● ● ●
76 02.688 SCREW; STOP LAMP,HIGHMOUNTED
THA 		8-97333-426-0 02 1 0404-0409 ● ● ● ●
76 02.688 SCREW; STOP LAMP,HIGHMOUNTED
HIGH MOUNT STOP LAMP<TS6> THA 		8-97333-426-0 02 1 0404-0409 ●
76 02.688 SCREW; STOP LAMP,HIGHMOUNTED
THA 		8-97333-426-0 02 1 0410- ● ● ● ●
81 02.694 GASKET; STOP LAMP
(A) THA 		8-97333-427-0 01 1 0404-0409 ● ● ● ●
81 02.694 GASKET; STOP LAMP
HIGH MOUNT STOP LAMP<TS6> (A) THA 		8-97333-427-0 01 1 0404-0409 ●
81 02.694 GASKET; STOP LAMP
(A) THA 		8-97333-427-0 01 1 0410- ● ● ● ●
81 02.694 GASKET; STOP LAMP
(B) THA 		8-97333-428-0 01 1 0404-0409 ● ● ● ●
81 02.694 GASKET; STOP LAMP
HIGH MOUNT STOP LAMP<TS6> (B) THA 		8-97333-428-0 01 1 0404-0409 ●
81 02.694 GASKET; STOP LAMP
(B) THA 		8-97333-428-0 01 1 0410- ● ● ● ●
83 08.991 BULB; STOP LAMP,HIGHMOUNTED
12V 5W THA 		8-97333-424-0 04 1 0404-0409 ● ● ● ●
83 08.991 BULB; STOP LAMP,HIGHMOUNTED
HIGH MOUNT STOP LAMP<TS6> 12V 5W THA 		8-97333-424-0 04 1 0404-0409 ●
83 08.991 BULB; STOP LAMP,HIGHMOUNTED
12V 5W THA 		8-97333-424-0 04 1 0410- ● ● ● ●
87 02.694 SOCKET; STOP LAMP
THA 		8-97333-425-0 01 1 0404-0409 ● ● ● ●
87 02.694 SOCKET; STOP LAMP
HIGH MOUNT STOP LAMP<TS6> THA 		8-97333-425-0 01 1 0404-0409 ●
87 02.694 SOCKET; STOP LAMP
THA 		8-97333-425-0 01 1 0410- ● ● ● ●
98 02.708 WASHER
08.054 (A) D=16 THA 		8-94427-941-0 04 1 0404-0610 ● ● ● ● ●
98 02.708 WASHER
08.054 (A) D=16 THA 		8-94427-941-0 04 1 0611- ● ● ● ●
98 02.708 WASHER
REAR BODY DBL WALL CTR PULL<E63> 08.054 (A) D=16 THA 		8-94427-941-0 04 1 0611- ●
98 02.708 WASHER
16.588 (B) THA 		8-94279-039-0 02 1 0404-0409 ● ● ● ●
98 02.708 WASHER
HIGH MOUNT STOP LAMP<TS6> 16.588 (B) THA 		8-94279-039-0 02 1 0404-0409 ●
98 02.708 WASHER
16.588 (B) THA 		8-94279-039-0 02 1 0410- ● ● ● ●

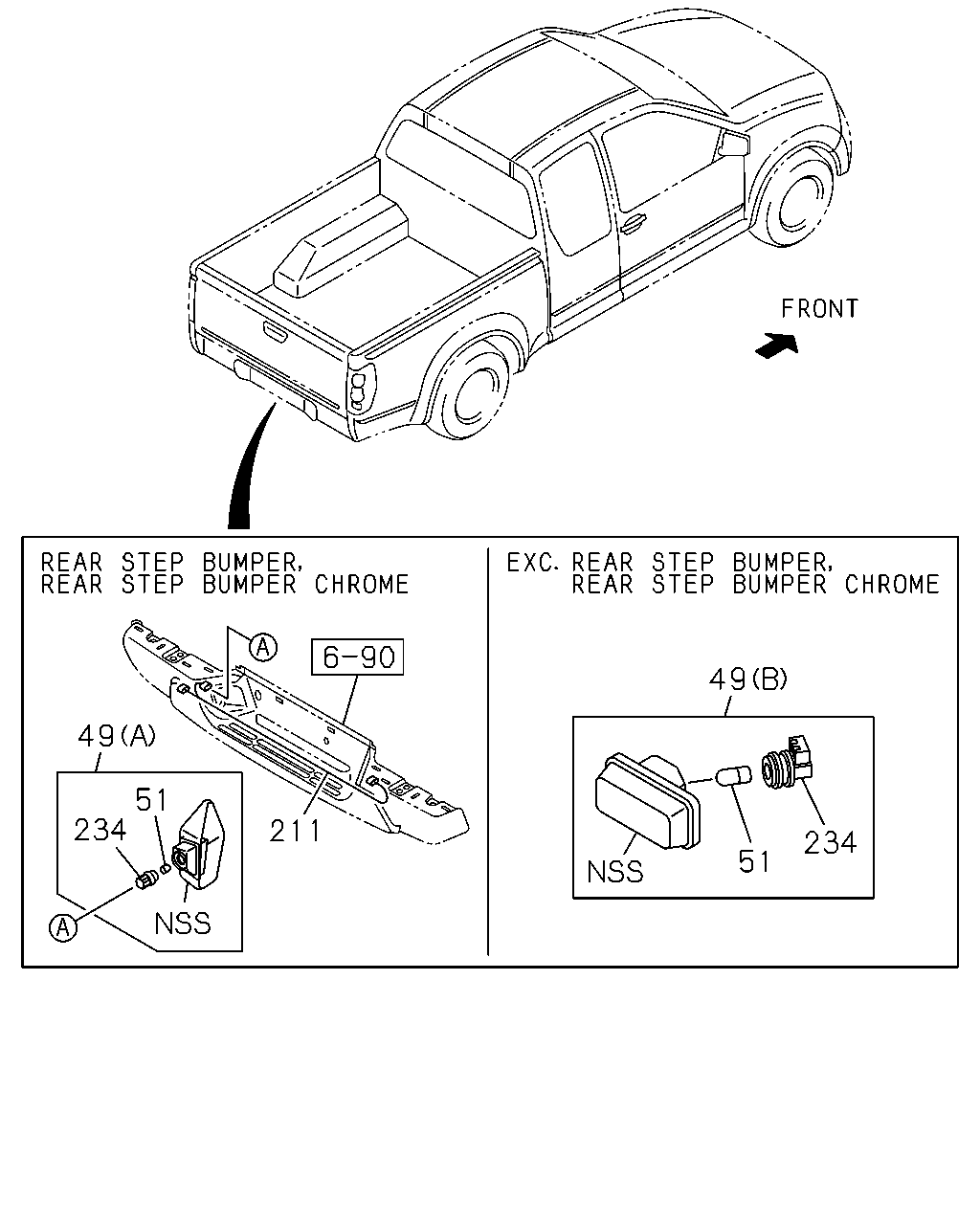

çizim 117888
49 49 51 234 211 234 51
BalonParca AdiParca NoAdetTipApplied Date A B C D E
49 02.700 LAMP; LICENSE PLATE
REAR STEP BUMPER<VF6>,REAR STEP BUMPERCHROME<V42> (A) THA 		8-97357-808-0 01 1 0404-0510 ● ●
49 02.700 LAMP; LICENSE PLATE
(A) THA 		8-97357-808-0 01 1 0404-0510 ● ●
49 02.700 LAMP; LICENSE PLATE
REAR STEP BUMPER<VF6>,REAR STEP BUMPERCHROME<V42> (A) THA 		8-97357-808-0 01 1 0511-0609 ● ● ● ●
49 02.700 LAMP; LICENSE PLATE
REAR STEP BUMPER<VF6>,REAR STEP BUMPERCHROME<V42> (A) THA 		8-97357-807-0 01 1 0404-0510 ● ●
49 02.700 LAMP; LICENSE PLATE
(A) THA 		8-97357-807-0 01 1 0404-0510 ● ●
49 02.700 LAMP; LICENSE PLATE
REAR STEP BUMPER<VF6>,REAR STEP BUMPERCHROME<V42> (A) THA 		8-97357-807-0 01 1 0511-0609 ● ● ● ●
49 02.700 LAMP; LICENSE PLATE
REAR STEP BUMPER<VF6>,REAR STEP BUMPERCHROME<V42> (A) THA 		8-97357-808-0 01 1 0610-0612 ● ●
49 02.700 LAMP; LICENSE PLATE
(A) THA 		8-97357-808-0 01 1 0610-0612 ● ●
49 02.700 LAMP; LICENSE PLATE
REAR STEP BUMPER<VF6>,REAR STEP BUMPERCHROME<V42> (A) THA 		8-98070-867-0 01 1 0701- ● ●
49 02.700 LAMP; LICENSE PLATE
(A) THA 		8-98070-867-0 01 1 0701- ● ●
49 02.700 LAMP; LICENSE PLATE
REAR STEP BUMPER<VF6>,REAR STEP BUMPERCHROME<V42> (A) THA 		8-97357-807-0 01 1 0610-0612 ● ●
49 02.700 LAMP; LICENSE PLATE
(A) THA 		8-97357-807-0 01 1 0610-0612 ● ●
49 02.700 LAMP; LICENSE PLATE
REAR STEP BUMPER<VF6>,REAR STEP BUMPERCHROME<V42> (A) THA 		8-98070-866-0 01 1 0701- ● ●
49 02.700 LAMP; LICENSE PLATE
(A) THA 		8-98070-866-0 01 1 0701- ● ●
49 02.700 LAMP; LICENSE PLATE
EXC. REAR STEP BUMPER<VF6>,REAR STEP BUMPER CHROME<V42> (B) THA 		8-97236-690-1 01 1 0404-0510 ● ●
49 02.700 LAMP; LICENSE PLATE
(B) THA 		8-97236-690-1 01 1 0404-0510 ●
49 02.700 LAMP; LICENSE PLATE
EXC. REAR STEP BUMPER<VF6>,REAR STEP BUMPER CHROME<V42> (B) THA 		8-97236-690-1 01 1 0511-0609 ● ● ● ●
49 02.700 LAMP; LICENSE PLATE
(B) THA 		8-97236-690-1 01 1 0511-0609 ●
49 02.700 LAMP; LICENSE PLATE
EXC. REAR STEP BUMPER<VF6>,REAR STEP BUMPER CHROME<V42> (B) THA 		8-97236-690-1 01 1 0610-1306 ● ●
49 02.700 LAMP; LICENSE PLATE
(B) THA 		8-97236-690-1 01 1 0610-1306 ●
49 02.700 LAMP; LICENSE PLATE
EXC. REAR STEP BUMPER<VF6>,REAR STEP BUMPER CHROME<V42> (B) THA 		8-98224-482-0 01 1 1307- ● ●
49 02.700 LAMP; LICENSE PLATE
(B) THA 		8-98224-482-0 01 1 1307- ●
51 08.991 BULB; LICENSE PLATE LAMP
REAR STEP BUMPER<VF6>,REAR STEP BUMPERCHROME<V42> 12V 5W THA 		8-94124-595-0 02 1 0404-0510 ● ●
51 08.991 BULB; LICENSE PLATE LAMP
12V 5W THA 		8-94124-595-0 02 1 0404-0510 ● ●
51 08.991 BULB; LICENSE PLATE LAMP
REAR STEP BUMPER<VF6>,REAR STEP BUMPERCHROME<V42> 12V 5W THA 		8-94124-595-0 02 1 0511-0609 ● ● ● ●
51 08.991 BULB; LICENSE PLATE LAMP
EXC. REAR STEP BUMPER<VF6>,REAR STEP BUMPER CHROME<V42> 12V 5W THA 		8-94124-595-0 01 1 0404-0510 ● ●
51 08.991 BULB; LICENSE PLATE LAMP
12V 5W THA 		8-94124-595-0 01 1 0404-0510 ●
51 08.991 BULB; LICENSE PLATE LAMP
EXC. REAR STEP BUMPER<VF6>,REAR STEP BUMPER CHROME<V42> 12V 5W THA 		8-94124-595-0 01 1 0511-0609 ● ● ● ●
51 08.991 BULB; LICENSE PLATE LAMP
12V 5W THA 		8-94124-595-0 01 1 0511-0609 ●
51 08.991 BULB; LICENSE PLATE LAMP
EXC. REAR STEP BUMPER<VF6>,REAR STEP BUMPER CHROME<V42> 12V 5W THA 		8-94124-595-0 01 1 0610- ● ●
51 08.991 BULB; LICENSE PLATE LAMP
12V 5W THA 		8-94124-595-0 01 1 0610- ●
51 08.991 BULB; LICENSE PLATE LAMP
REAR STEP BUMPER<VF6>,REAR STEP BUMPERCHROME<V42> 12V 5W THA 		8-94124-595-0 02 1 0610- ● ●
51 08.991 BULB; LICENSE PLATE LAMP
12V 5W THA 		8-94124-595-0 02 1 0610- ● ●
211 02.708 HARNESS; EXT
REAR STEP BUMPER<VF6>,REAR STEP BUMPERCHROME<V42> THA 		8-97253-465-2 01 1 0404-0510 ● ●
211 02.708 HARNESS; EXT
THA 		8-97253-465-2 01 1 0404-0510 ● ●
211 02.708 HARNESS; EXT
REAR STEP BUMPER<VF6>,REAR STEP BUMPERCHROME<V42> THA 		8-97253-465-2 01 1 0511-0609 ● ● ● ●
211 02.708 HARNESS; EXT
REAR STEP BUMPER<VF6>,REAR STEP BUMPERCHROME<V42> THA 		8-98025-099-0 01 1 0610- ● ●
211 02.708 HARNESS; EXT
THA 		8-98025-099-0 01 1 0610- ● ●
234 02.596 SOCKET ASM; LICENSE PLATE LAMP
REAR STEP BUMPER<VF6>,REAR STEP BUMPERCHROME<V42> 		8-97184-970-0 02 1 0404-0510 ● ●
234 02.596 SOCKET ASM; LICENSE PLATE LAMP 8-97184-970-0 02 1 0404-0510 ● ●
234 02.596 SOCKET ASM; LICENSE PLATE LAMP
REAR STEP BUMPER<VF6>,REAR STEP BUMPERCHROME<V42> 		8-97184-970-0 02 1 0511-0609 ● ● ● ●
234 02.596 SOCKET ASM; LICENSE PLATE LAMP
REAR STEP BUMPER<VF6>,REAR STEP BUMPERCHROME<V42> 		8-97184-970-0 02 1 0610- ● ●
234 02.596 SOCKET ASM; LICENSE PLATE LAMP 8-97184-970-0 02 1 0610- ● ●
234 02.596 SOCKET ASM; LICENSE PLATE LAMP
EXC. REAR STEP BUMPER<VF6>,REAR STEP BUMPER CHROME<V42> THA 		1-82119-148-0 01 1 0404-0510 ● ●
234 02.596 SOCKET ASM; LICENSE PLATE LAMP
THA 		1-82119-148-0 01 1 0404-0510 ●
234 02.596 SOCKET ASM; LICENSE PLATE LAMP
EXC. REAR STEP BUMPER<VF6>,REAR STEP BUMPER CHROME<V42> THA 		1-82119-148-0 01 1 0511-0609 ● ● ● ●
234 02.596 SOCKET ASM; LICENSE PLATE LAMP
THA 		1-82119-148-0 01 1 0511-0609 ●
234 02.596 SOCKET ASM; LICENSE PLATE LAMP
EXC. REAR STEP BUMPER<VF6>,REAR STEP BUMPER CHROME<V42> THA 		1-82119-148-0 01 1 0610- ● ●
234 02.596 SOCKET ASM; LICENSE PLATE LAMP
THA 		1-82119-148-0 01 1 0610- ●

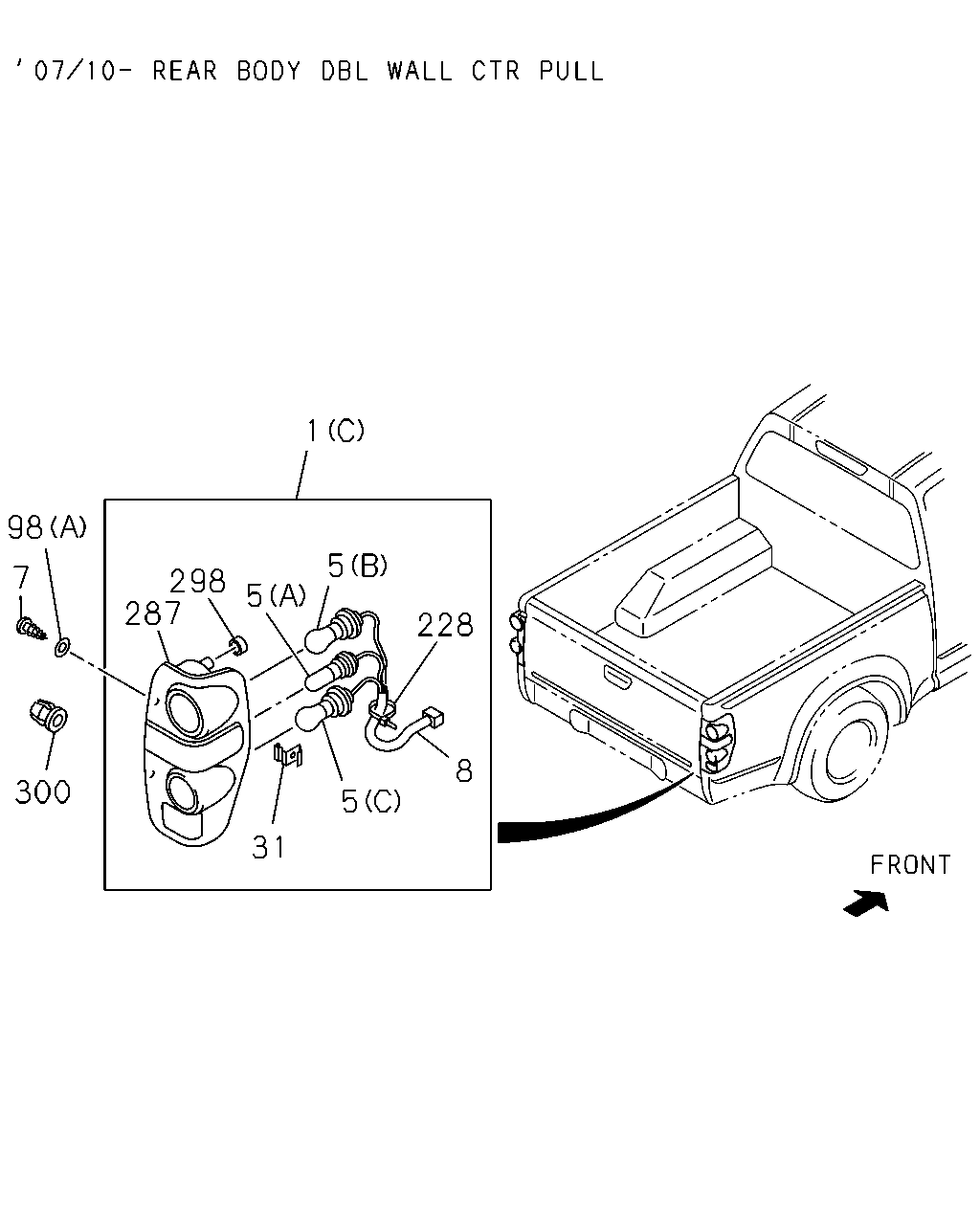

çizim 117893
1 98 5 7 298 287 5 228 8 300 5 31
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 02.679 LAMP ASM; RR COMB
(A) THA 		8-97378-701-0 01 1 0404-0509 ● ● ● ● ●
1 02.679 LAMP ASM; RR COMB
(A) THA 		8-98009-412-0 01 1 0510-0610 ● ● ● ● ●
1 02.679 LAMP ASM; RR COMB
(A) THA 		8-98009-412-0 01 1 0611-0709 ● ● ● ●
1 02.679 LAMP ASM; RR COMB
REAR BODY DBL WALL CTR PULL<E63> (A) THA 		8-98009-412-0 01 1 0611-0709 ●
1 02.679 LAMP ASM; RR COMB
(C) THA 		8-98019-885-1 01 1 0710- ● ● ● ●
1 02.679 LAMP ASM; RR COMB
REAR BODY DBL WALL CTR PULL<E63> (C) THA 		8-98019-885-1 01 1 0710- ●
1 02.679 LAMP ASM; RR COMB
(A) THA 		8-97378-700-0 01 1 0404-0509 ● ● ● ● ●
1 02.679 LAMP ASM; RR COMB
(A) THA 		8-98009-411-0 01 1 0510-0610 ● ● ● ● ●
1 02.679 LAMP ASM; RR COMB
(A) THA 		8-98009-411-0 01 1 0611-0709 ● ● ● ●
1 02.679 LAMP ASM; RR COMB
REAR BODY DBL WALL CTR PULL<E63> (A) THA 		8-98009-411-0 01 1 0611-0709 ●
1 02.679 LAMP ASM; RR COMB
(C) THA 		8-98019-884-1 01 1 0710- ● ● ● ●
1 02.679 LAMP ASM; RR COMB
REAR BODY DBL WALL CTR PULL<E63> (C) THA 		8-98019-884-1 01 1 0710- ●
1 02.679 LAMP ASM; RR COMB
REAR BODY DELETE<8HH> (B) 		8-97137-732-0 01 1 0611- ●
1 02.679 LAMP ASM; RR COMB
REAR BODY DELETE<8HH> (B) 		8-97137-731-0 01 1 0611- ●
5 08.991 BULB; RR COMB LAMP
(B) 12V 21/5W THA 		8-94125-959-0 02 1 0404- ● ● ● ● ●
5 08.991 BULB; RR COMB LAMP
(A) 12V 18W THA 		8-94372-897-0 02 1 0404-0610 ● ● ● ● ●
5 08.991 BULB; RR COMB LAMP
(A) 12V 18W THA 		8-94372-897-0 02 1 0611- ● ● ● ●
5 08.991 BULB; RR COMB LAMP
REAR BODY DBL WALL CTR PULL<E63> (A) 12V 18W THA 		8-94372-897-0 02 1 0611- ●
5 08.991 BULB; RR COMB LAMP
(C) 12V 21W THA 		8-97179-967-0 02 1 0404-0610 ● ● ● ● ●
5 08.991 BULB; RR COMB LAMP
(C) 12V 21W THA 		8-97179-967-0 02 1 0611-0709 ● ● ● ●
5 08.991 BULB; RR COMB LAMP
REAR BODY DBL WALL CTR PULL<E63> (C) 12V 21W THA 		8-97179-967-0 02 1 0611-0709 ●
5 08.991 BULB; RR COMB LAMP
(C) 12V 21W THA 		8-98100-011-0 02 1 0710- ● ● ● ●
5 08.991 BULB; RR COMB LAMP
REAR BODY DBL WALL CTR PULL<E63> (C) 12V 21W THA 		8-98100-011-0 02 1 0710- ●
5 08.991 BULB; RR COMB LAMP
REAR BODY DELETE<8HH> (D) 12V 21W THA 		8-94124-074-0 04 1 0611- ●
7 02.664 SCREW; RR COMB LAMP
08.845 M5X14 TAPPING W/PL WASHER 		0-74110-514-0 04 1 0404-0606 ● ● ● ● ●
7 02.664 SCREW; RR COMB LAMP
16.800 M5X14 TAPPING W/PL WASHER THA 		0-74160-514-0 04 1 0607-0610 ● ● ● ● ●
7 02.664 SCREW; RR COMB LAMP
16.800 M5X14 TAPPING W/PL WASHER THA 		0-74160-514-0 04 1 0611- ● ● ● ●
7 02.664 SCREW; RR COMB LAMP
REAR BODY DBL WALL CTR PULL<E63> 16.800 M5X14 TAPPING W/PL WASHER THA 		0-74160-514-0 04 1 0611- ●
8 02.664 HARNESS; RR COMB LAMP
THA 		8-97376-765-0 02 1 0404-0610 ● ● ● ● ●
8 02.664 HARNESS; RR COMB LAMP
THA 		8-97376-765-0 02 1 0611-0709 ● ● ● ●
8 02.664 HARNESS; RR COMB LAMP
REAR BODY DBL WALL CTR PULL<E63> THA 		8-97376-765-0 02 1 0611-0709 ●
8 02.664 HARNESS; RR COMB LAMP
THA 		8-98046-511-0 02 1 0710- ● ● ● ●
8 02.664 HARNESS; RR COMB LAMP
REAR BODY DBL WALL CTR PULL<E63> THA 		8-98046-511-0 02 1 0710- ●
31 02.664 BRACKET; RR COMB LAMP
THA 		8-97378-479-0 01 1 0404-0610 ● ● ● ● ●
31 02.664 BRACKET; RR COMB LAMP
THA 		8-97378-479-0 01 1 0611-0709 ● ● ● ●
31 02.664 BRACKET; RR COMB LAMP
REAR BODY DBL WALL CTR PULL<E63> THA 		8-97378-479-0 01 1 0611-0709 ●
31 02.664 BRACKET; RR COMB LAMP
THA 		8-98046-509-0 01 1 0710- ● ● ● ●
31 02.664 BRACKET; RR COMB LAMP
REAR BODY DBL WALL CTR PULL<E63> THA 		8-98046-509-0 01 1 0710- ●
31 02.664 BRACKET; RR COMB LAMP
THA 		8-97378-478-0 01 1 0404-0610 ● ● ● ● ●
31 02.664 BRACKET; RR COMB LAMP
THA 		8-97378-478-0 01 1 0611-0709 ● ● ● ●
31 02.664 BRACKET; RR COMB LAMP
REAR BODY DBL WALL CTR PULL<E63> THA 		8-97378-478-0 01 1 0611-0709 ●
31 02.664 BRACKET; RR COMB LAMP
THA 		8-98046-508-0 01 1 0710- ● ● ● ●
31 02.664 BRACKET; RR COMB LAMP
REAR BODY DBL WALL CTR PULL<E63> THA 		8-98046-508-0 01 1 0710- ●
98 02.708 WASHER
08.054 (A) D=16 THA 		8-94427-941-0 04 1 0404-0610 ● ● ● ● ●
98 02.708 WASHER
08.054 (A) D=16 THA 		8-94427-941-0 04 1 0611- ● ● ● ●
98 02.708 WASHER
REAR BODY DBL WALL CTR PULL<E63> 08.054 (A) D=16 THA 		8-94427-941-0 04 1 0611- ●
98 02.708 WASHER
16.588 (B) THA 		8-94279-039-0 02 1 0404-0409 ● ● ● ●
98 02.708 WASHER
HIGH MOUNT STOP LAMP<TS6> 16.588 (B) THA 		8-94279-039-0 02 1 0404-0409 ●
98 02.708 WASHER
16.588 (B) THA 		8-94279-039-0 02 1 0410- ● ● ● ●
228 02.689 CLIP; COVER,RR COMB LAMP
THA 		8-97376-769-0 02 1 0404-0610 ● ● ● ● ●
228 02.689 CLIP; COVER,RR COMB LAMP
THA 		8-97376-769-0 02 1 0611- ● ● ● ●
228 02.689 CLIP; COVER,RR COMB LAMP
REAR BODY DBL WALL CTR PULL<E63> THA 		8-97376-769-0 02 1 0611- ●
287 02.679 LAMP UNIT; RR COMB
02.689 THA 		8-97376-763-0 01 1 0404-0610 ● ● ● ● ●
287 02.679 LAMP UNIT; RR COMB
02.689 THA 		8-97376-763-0 01 1 0611-0709 ● ● ● ●
287 02.679 LAMP UNIT; RR COMB
REAR BODY DBL WALL CTR PULL<E63> 02.689 THA 		8-97376-763-0 01 1 0611-0709 ●
287 02.679 LAMP UNIT; RR COMB
THA 		8-98046-496-0 01 1 0710- ● ● ● ●
287 02.679 LAMP UNIT; RR COMB
REAR BODY DBL WALL CTR PULL<E63> THA 		8-98046-496-0 01 1 0710- ●
287 02.679 LAMP UNIT; RR COMB
02.689 THA 		8-97376-762-0 01 1 0404-0610 ● ● ● ● ●
287 02.679 LAMP UNIT; RR COMB
02.689 THA 		8-97376-762-0 01 1 0611-0709 ● ● ● ●
287 02.679 LAMP UNIT; RR COMB
REAR BODY DBL WALL CTR PULL<E63> 02.689 THA 		8-97376-762-0 01 1 0611-0709 ●
287 02.679 LAMP UNIT; RR COMB
THA 		8-98046-495-0 01 1 0710- ● ● ● ●
287 02.679 LAMP UNIT; RR COMB
REAR BODY DBL WALL CTR PULL<E63> THA 		8-98046-495-0 01 1 0710- ●
298 02.727 CAP; BREATHER,RR COMB LAMP
THA 		8-97289-148-0 02 1 0404-0610 ● ● ● ● ●
298 02.727 CAP; BREATHER,RR COMB LAMP
THA 		8-97289-148-0 02 1 0611- ● ● ● ●
298 02.727 CAP; BREATHER,RR COMB LAMP
REAR BODY DBL WALL CTR PULL<E63> THA 		8-97289-148-0 02 1 0611- ●
300 16.494 HOLDER; LAMP
THA 		8-97372-854-0 04 1 0404-0610 ● ● ● ● ●
300 16.494 HOLDER; LAMP
THA 		8-97372-854-0 04 1 0611- ● ● ● ●
300 16.494 HOLDER; LAMP
REAR BODY DBL WALL CTR PULL<E63> THA 		8-97372-854-0 04 1 0611- ●

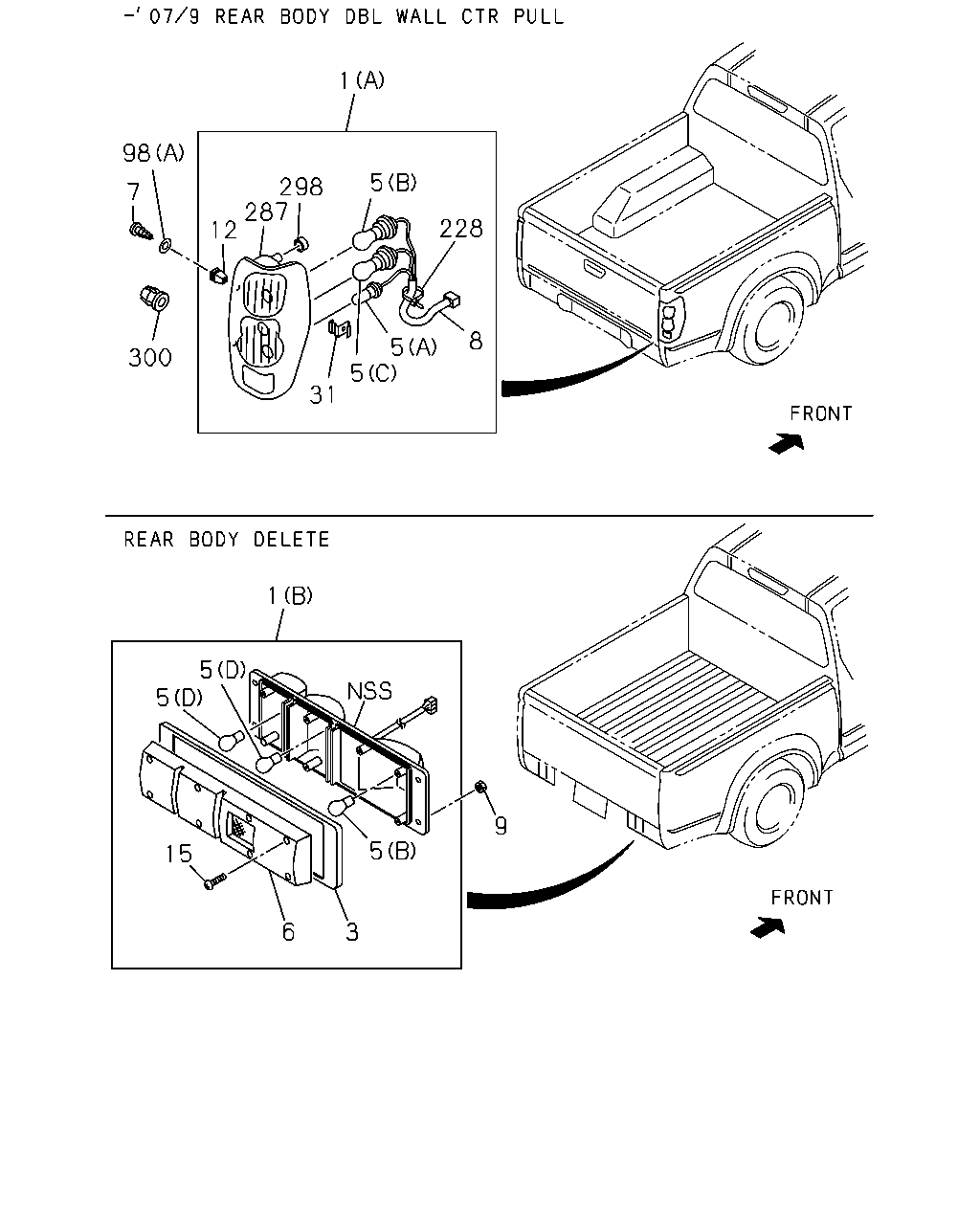

çizim 118156
1 98 5 298 287 12 7 228 8 5 5 300 31 1 5 5 9 5 15 6 3
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 02.679 LAMP ASM; RR COMB
(A) THA 		8-97378-701-0 01 1 0404-0509 ● ● ● ● ●
1 02.679 LAMP ASM; RR COMB
(A) THA 		8-98009-412-0 01 1 0510-0610 ● ● ● ● ●
1 02.679 LAMP ASM; RR COMB
(A) THA 		8-98009-412-0 01 1 0611-0709 ● ● ● ●
1 02.679 LAMP ASM; RR COMB
REAR BODY DBL WALL CTR PULL<E63> (A) THA 		8-98009-412-0 01 1 0611-0709 ●
1 02.679 LAMP ASM; RR COMB
(C) THA 		8-98019-885-1 01 1 0710- ● ● ● ●
1 02.679 LAMP ASM; RR COMB
REAR BODY DBL WALL CTR PULL<E63> (C) THA 		8-98019-885-1 01 1 0710- ●
1 02.679 LAMP ASM; RR COMB
(A) THA 		8-97378-700-0 01 1 0404-0509 ● ● ● ● ●
1 02.679 LAMP ASM; RR COMB
(A) THA 		8-98009-411-0 01 1 0510-0610 ● ● ● ● ●
1 02.679 LAMP ASM; RR COMB
(A) THA 		8-98009-411-0 01 1 0611-0709 ● ● ● ●
1 02.679 LAMP ASM; RR COMB
REAR BODY DBL WALL CTR PULL<E63> (A) THA 		8-98009-411-0 01 1 0611-0709 ●
1 02.679 LAMP ASM; RR COMB
(C) THA 		8-98019-884-1 01 1 0710- ● ● ● ●
1 02.679 LAMP ASM; RR COMB
REAR BODY DBL WALL CTR PULL<E63> (C) THA 		8-98019-884-1 01 1 0710- ●
1 02.679 LAMP ASM; RR COMB
REAR BODY DELETE<8HH> (B) 		8-97137-732-0 01 1 0611- ●
1 02.679 LAMP ASM; RR COMB
REAR BODY DELETE<8HH> (B) 		8-97137-731-0 01 1 0611- ●
3 02.684 GASKET; RR COMB LAMP
REAR BODY DELETE<8HH> 02.689 		5-82236-002-0 01 1 0611- ●
3 02.684 GASKET; RR COMB LAMP
REAR BODY DELETE<8HH> 02.689 		5-82236-001-0 01 1 0611- ●
5 08.991 BULB; RR COMB LAMP
(B) 12V 21/5W THA 		8-94125-959-0 02 1 0404- ● ● ● ● ●
5 08.991 BULB; RR COMB LAMP
(A) 12V 18W THA 		8-94372-897-0 02 1 0404-0610 ● ● ● ● ●
5 08.991 BULB; RR COMB LAMP
(A) 12V 18W THA 		8-94372-897-0 02 1 0611- ● ● ● ●
5 08.991 BULB; RR COMB LAMP
REAR BODY DBL WALL CTR PULL<E63> (A) 12V 18W THA 		8-94372-897-0 02 1 0611- ●
5 08.991 BULB; RR COMB LAMP
(C) 12V 21W THA 		8-97179-967-0 02 1 0404-0610 ● ● ● ● ●
5 08.991 BULB; RR COMB LAMP
(C) 12V 21W THA 		8-97179-967-0 02 1 0611-0709 ● ● ● ●
5 08.991 BULB; RR COMB LAMP
REAR BODY DBL WALL CTR PULL<E63> (C) 12V 21W THA 		8-97179-967-0 02 1 0611-0709 ●
5 08.991 BULB; RR COMB LAMP
(C) 12V 21W THA 		8-98100-011-0 02 1 0710- ● ● ● ●
5 08.991 BULB; RR COMB LAMP
REAR BODY DBL WALL CTR PULL<E63> (C) 12V 21W THA 		8-98100-011-0 02 1 0710- ●
5 08.991 BULB; RR COMB LAMP
REAR BODY DELETE<8HH> (D) 12V 21W THA 		8-94124-074-0 04 1 0611- ●
6 02.682 LENS; RR COMB LAMP
REAR BODY DELETE<8HH> 		5-82235-002-0 01 1 0611- ●
6 02.682 LENS; RR COMB LAMP
REAR BODY DELETE<8HH> 		5-82235-001-0 01 1 0611- ●
7 02.664 SCREW; RR COMB LAMP
08.845 M5X14 TAPPING W/PL WASHER 		0-74110-514-0 04 1 0404-0606 ● ● ● ● ●
7 02.664 SCREW; RR COMB LAMP
16.800 M5X14 TAPPING W/PL WASHER THA 		0-74160-514-0 04 1 0607-0610 ● ● ● ● ●
7 02.664 SCREW; RR COMB LAMP
16.800 M5X14 TAPPING W/PL WASHER THA 		0-74160-514-0 04 1 0611- ● ● ● ●
7 02.664 SCREW; RR COMB LAMP
REAR BODY DBL WALL CTR PULL<E63> 16.800 M5X14 TAPPING W/PL WASHER THA 		0-74160-514-0 04 1 0611- ●
8 02.664 HARNESS; RR COMB LAMP
THA 		8-97376-765-0 02 1 0404-0610 ● ● ● ● ●
8 02.664 HARNESS; RR COMB LAMP
THA 		8-97376-765-0 02 1 0611-0709 ● ● ● ●
8 02.664 HARNESS; RR COMB LAMP
REAR BODY DBL WALL CTR PULL<E63> THA 		8-97376-765-0 02 1 0611-0709 ●
8 02.664 HARNESS; RR COMB LAMP
THA 		8-98046-511-0 02 1 0710- ● ● ● ●
8 02.664 HARNESS; RR COMB LAMP
REAR BODY DBL WALL CTR PULL<E63> THA 		8-98046-511-0 02 1 0710- ●
9 02.689 NUT; LAMP,RR COMB
REAR BODY DELETE<8HH> M5 FLANGE THA 		8-98049-363-0 08 1 0611- ●
12 02.664 GROMMET; RR COMB LAMP
THA 		8-97349-413-0 04 1 0404-0508 ● ● ● ● ●
15 02.664 SCREW; RR COMB LAMP
REAR BODY DELETE<8HH> 02.587 M4X20 TAPPING STAINLESS 		0-71090-420-0 16 1 0611- ●
31 02.664 BRACKET; RR COMB LAMP
THA 		8-97378-479-0 01 1 0404-0610 ● ● ● ● ●
31 02.664 BRACKET; RR COMB LAMP
THA 		8-97378-479-0 01 1 0611-0709 ● ● ● ●
31 02.664 BRACKET; RR COMB LAMP
REAR BODY DBL WALL CTR PULL<E63> THA 		8-97378-479-0 01 1 0611-0709 ●
31 02.664 BRACKET; RR COMB LAMP
THA 		8-98046-509-0 01 1 0710- ● ● ● ●
31 02.664 BRACKET; RR COMB LAMP
REAR BODY DBL WALL CTR PULL<E63> THA 		8-98046-509-0 01 1 0710- ●
31 02.664 BRACKET; RR COMB LAMP
THA 		8-97378-478-0 01 1 0404-0610 ● ● ● ● ●
31 02.664 BRACKET; RR COMB LAMP
THA 		8-97378-478-0 01 1 0611-0709 ● ● ● ●
31 02.664 BRACKET; RR COMB LAMP
REAR BODY DBL WALL CTR PULL<E63> THA 		8-97378-478-0 01 1 0611-0709 ●
31 02.664 BRACKET; RR COMB LAMP
THA 		8-98046-508-0 01 1 0710- ● ● ● ●
31 02.664 BRACKET; RR COMB LAMP
REAR BODY DBL WALL CTR PULL<E63> THA 		8-98046-508-0 01 1 0710- ●
98 02.708 WASHER
08.054 (A) D=16 THA 		8-94427-941-0 04 1 0404-0610 ● ● ● ● ●
98 02.708 WASHER
08.054 (A) D=16 THA 		8-94427-941-0 04 1 0611- ● ● ● ●
98 02.708 WASHER
REAR BODY DBL WALL CTR PULL<E63> 08.054 (A) D=16 THA 		8-94427-941-0 04 1 0611- ●
98 02.708 WASHER
16.588 (B) THA 		8-94279-039-0 02 1 0404-0409 ● ● ● ●
98 02.708 WASHER
HIGH MOUNT STOP LAMP<TS6> 16.588 (B) THA 		8-94279-039-0 02 1 0404-0409 ●
98 02.708 WASHER
16.588 (B) THA 		8-94279-039-0 02 1 0410- ● ● ● ●
228 02.689 CLIP; COVER,RR COMB LAMP
THA 		8-97376-769-0 02 1 0404-0610 ● ● ● ● ●
228 02.689 CLIP; COVER,RR COMB LAMP
THA 		8-97376-769-0 02 1 0611- ● ● ● ●
228 02.689 CLIP; COVER,RR COMB LAMP
REAR BODY DBL WALL CTR PULL<E63> THA 		8-97376-769-0 02 1 0611- ●
287 02.679 LAMP UNIT; RR COMB
02.689 THA 		8-97376-763-0 01 1 0404-0610 ● ● ● ● ●
287 02.679 LAMP UNIT; RR COMB
02.689 THA 		8-97376-763-0 01 1 0611-0709 ● ● ● ●
287 02.679 LAMP UNIT; RR COMB
REAR BODY DBL WALL CTR PULL<E63> 02.689 THA 		8-97376-763-0 01 1 0611-0709 ●
287 02.679 LAMP UNIT; RR COMB
THA 		8-98046-496-0 01 1 0710- ● ● ● ●
287 02.679 LAMP UNIT; RR COMB
REAR BODY DBL WALL CTR PULL<E63> THA 		8-98046-496-0 01 1 0710- ●
287 02.679 LAMP UNIT; RR COMB
02.689 THA 		8-97376-762-0 01 1 0404-0610 ● ● ● ● ●
287 02.679 LAMP UNIT; RR COMB
02.689 THA 		8-97376-762-0 01 1 0611-0709 ● ● ● ●
287 02.679 LAMP UNIT; RR COMB
REAR BODY DBL WALL CTR PULL<E63> 02.689 THA 		8-97376-762-0 01 1 0611-0709 ●
287 02.679 LAMP UNIT; RR COMB
THA 		8-98046-495-0 01 1 0710- ● ● ● ●
287 02.679 LAMP UNIT; RR COMB
REAR BODY DBL WALL CTR PULL<E63> THA 		8-98046-495-0 01 1 0710- ●
298 02.727 CAP; BREATHER,RR COMB LAMP
THA 		8-97289-148-0 02 1 0404-0610 ● ● ● ● ●
298 02.727 CAP; BREATHER,RR COMB LAMP
THA 		8-97289-148-0 02 1 0611- ● ● ● ●
298 02.727 CAP; BREATHER,RR COMB LAMP
REAR BODY DBL WALL CTR PULL<E63> THA 		8-97289-148-0 02 1 0611- ●
300 16.494 HOLDER; LAMP
THA 		8-97372-854-0 04 1 0404-0610 ● ● ● ● ●
300 16.494 HOLDER; LAMP
THA 		8-97372-854-0 04 1 0611- ● ● ● ●
300 16.494 HOLDER; LAMP
REAR BODY DBL WALL CTR PULL<E63> THA 		8-97372-854-0 04 1 0611- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
