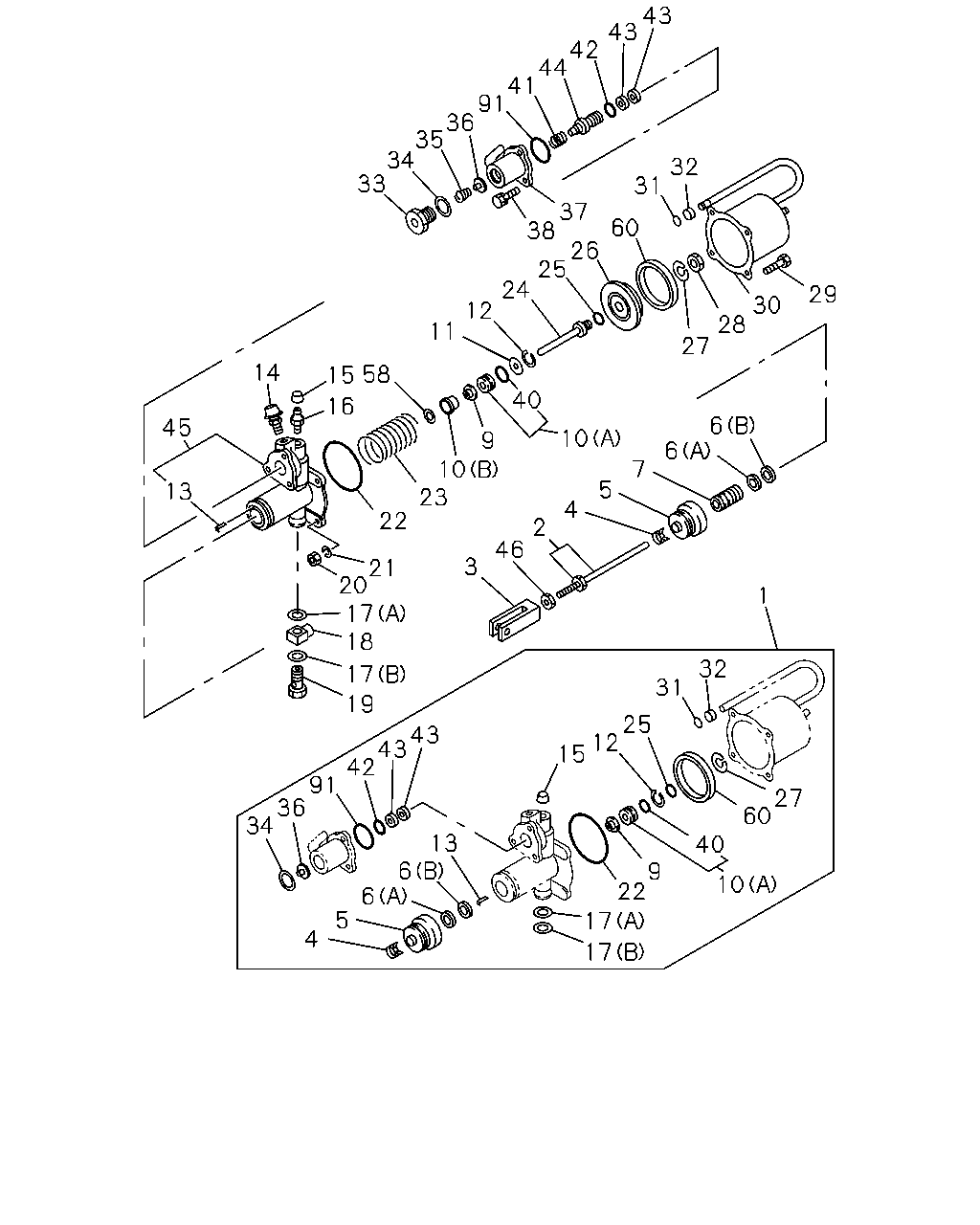

2-07C — CLUTCH BOOSTER; MINIPACK (#7369) — 169 parça

43 43 42 44 41 91 36 35 34 33 32 31 37 38 60 26 25 24 12 29 30 28 27 11 14 40 16 6 45 10 9 10 23 6 7 5 13 4 22 2 46 3 21 20 17 18 1 32 17 31 19 25 12 15 43 43 42 27 60 91 36 34 13 6 40 9 22 17 10 6 5 4 17 15 58

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	REPAIR KIT; CLU BOOSTER CLUTCH-15.5" TWIN PLATE SPICER(TEY)	1-31829-330-0	01	1	9905-9906	●	●
1	REPAIR KIT; CLU BOOSTER	1-31829-330-0	01	1	9907-0002		●
1	REPAIR KIT; CLU BOOSTER	1-31829-330-0	01	1	0003-	●	●
2	ROD; PUSH,CLU BOOSTER CLUTCH-15.5" TWIN PLATE SPICER(TEY)	1-31824-172-0	01	1	9905-9906	●	●
2	ROD; PUSH,CLU BOOSTER	1-31824-172-0	01	1	9907-0002		●
2	ROD; PUSH,CLU BOOSTER	1-31824-172-0	01	1	0003-	●	●
3	CLEVIS; PUSH ROD,CLU BOOSTER CLUTCH-15.5" TWIN PLATE SPICER(TEY)	1-31829-187-0	01	1	9905-9906	●	●
3	CLEVIS; PUSH ROD,CLU BOOSTER	1-31829-187-0	01	1	9907-0002		●
3	CLEVIS; PUSH ROD,CLU BOOSTER	1-31829-187-0	01	1	0003-	●	●
4	CLAMP; BOOSTER CLUTCH-15.5" TWIN PLATE SPICER(TEY)	1-31829-168-0	01	1	9905-9906	●	●
4	CLAMP; BOOSTER	1-31829-168-0	01	1	9907-0002		●
4	CLAMP; BOOSTER	1-31829-168-0	01	1	0003-	●	●
5	GUARD; PISTON,CLU BOOSTER CLUTCH-15.5" TWIN PLATE SPICER(TEY)	1-31829-174-0	01	1	9905-9906	●	●
5	GUARD; PISTON,CLU BOOSTER	1-31829-174-0	01	1	9907-0002		●
5	GUARD; PISTON,CLU BOOSTER	1-31829-174-0	01	1	0003-	●	●
6	GASKET; PISTON CUP,CLU BOOSTER CLUTCH-15.5" TWIN PLATE SPICER(TEY) (A)	1-31829-055-0	01	1	9905-9906	●	●
6	GASKET; PISTON CUP,CLU BOOSTER (A)	1-31829-055-0	01	1	9907-0002		●
6	GASKET; PISTON CUP,CLU BOOSTER (A)	1-31829-055-0	01	1	0003-	●	●
6	GASKET; PISTON CUP,CLU BOOSTER CLUTCH-15.5" TWIN PLATE SPICER(TEY) (B)	1-31829-056-0	01	1	9905-9906	●	●
6	GASKET; PISTON CUP,CLU BOOSTER (B)	1-31829-056-0	01	1	9907-0002		●
6	GASKET; PISTON CUP,CLU BOOSTER (B)	1-31829-056-0	01	1	0003-	●	●
7	PISTON; CLU BOOSTER CLUTCH-15.5" TWIN PLATE SPICER(TEY)	1-31821-013-0	01	1	9905-9906	●	●
7	PISTON; CLU BOOSTER	1-31821-013-0	01	1	9907-0002		●
7	PISTON; CLU BOOSTER	1-31821-013-0	01	1	0003-	●	●
9	GASKET; PISTON CUP,CLU BOOSTER	1-31829-251-0	01	1	9905-9906	●	●
9	GASKET; PISTON CUP,CLU BOOSTER 6WG1 TC-N(71L) CLUTCH-15.5" TWIN PLATE SPICER(TEY)	1-31829-251-0	01	1	9907-9912		●
9	GASKET; PISTON CUP,CLU BOOSTER	1-31829-251-0	01	1	0001-0002		●
9	GASKET; PISTON CUP,CLU BOOSTER	1-31829-251-0	01	1	0003-	●	●
10	RETAINER; PISTON,CLU BOOSTER (A)	1-31829-285-0	01	1	9905-9906	●	●
10	RETAINER; PISTON,CLU BOOSTER 6WG1 TC-N(71L) CLUTCH-15.5" TWIN PLATE SPICER(TEY) (A)	1-31829-285-0	01	1	9907-9912		●
10	RETAINER; PISTON,CLU BOOSTER (A)	1-31829-285-0	01	1	0001-0002		●
10	RETAINER; PISTON,CLU BOOSTER (A)	1-31829-285-0	01	1	0003-	●	●
10	RETAINER; PISTON,CLU BOOSTER (B)	1-31829-293-0	01	1	9905-9906	●	●
10	RETAINER; PISTON,CLU BOOSTER 6WG1 TC-N(71L) CLUTCH-15.5" TWIN PLATE SPICER(TEY) (B)	1-31829-293-0	01	1	9907-9912		●
10	RETAINER; PISTON,CLU BOOSTER (B)	1-31829-293-0	01	1	0001-0002		●
10	RETAINER; PISTON,CLU BOOSTER (B)	1-31829-293-0	01	1	0003-	●	●
11	WASHER; PISTON,CLU BOOSTER	1-31829-105-0	01	1	9905-9906	●	●
11	WASHER; PISTON,CLU BOOSTER 6WG1 TC-N(71L) CLUTCH-15.5" TWIN PLATE SPICER(TEY)	1-31829-105-0	01	1	9907-9912		●
11	WASHER; PISTON,CLU BOOSTER	1-31829-105-0	01	1	0001-0002		●
11	WASHER; PISTON,CLU BOOSTER	1-31829-105-0	01	1	0003-	●	●
12	RING; RET,CLU BOOSTER	1-31829-142-0	01	1	9905-9906	●	●
12	RING; RET,CLU BOOSTER 6WG1 TC-N(71L) CLUTCH-15.5" TWIN PLATE SPICER(TEY)	1-31829-142-0	01	1	9907-9912		●
12	RING; RET,CLU BOOSTER	1-31829-142-0	01	1	0001-0002		●
12	RING; RET,CLU BOOSTER	1-31829-142-0	01	1	0003-	●	●
13	PIN; SPR	1-31829-109-0	01	1	9905-9906	●	●
13	PIN; SPR 6WG1 TC-N(71L) CLUTCH-15.5" TWIN PLATE SPICER(TEY)	1-31829-109-0	01	1	9907-9912		●
13	PIN; SPR	1-31829-109-0	01	1	0001-0002		●
13	PIN; SPR	1-31829-109-0	01	1	0003-	●	●
14	COVER; EXH,CLU BOOSTER CLUTCH-15.5" TWIN PLATE SPICER(TEY)	1-31829-415-0	01	1	9905-9906	●	●
14	COVER; EXH,CLU BOOSTER	1-31829-415-0	01	1	9907-0002		●
14	COVER; EXH,CLU BOOSTER	1-31829-415-0	01	1	0003-	●	●
15	PROTECTOR; END PLATE,CLU BOOSTER	9-83335-044-0	01	1	9905-9906	●	●
15	PROTECTOR; END PLATE,CLU BOOSTER 6WG1 TC-N(71L) CLUTCH-15.5" TWIN PLATE SPICER(TEY)	9-83335-044-0	01	1	9907-9912		●
15	PROTECTOR; END PLATE,CLU BOOSTER	9-83335-044-0	01	1	0001-0002		●
15	PROTECTOR; END PLATE,CLU BOOSTER	9-83335-044-0	01	1	0003-	●	●
16	PLUG; END PLATE,CLU BOOSTER CLUTCH-15.5" TWIN PLATE SPICER(TEY)	9-83331-704-0	01	1	9905-9906	●	●
16	PLUG; END PLATE,CLU BOOSTER	9-83331-704-0	01	1	9907-0002		●
16	PLUG; END PLATE,CLU BOOSTER	9-83331-704-0	01	1	0003-	●	●
17	GASKET; CONN,CLU BOOSTER (A)	9-09920-267-0	01	1	9905-9906	●	●
17	GASKET; CONN,CLU BOOSTER 6WG1 TC-N(71L) CLUTCH-15.5" TWIN PLATE SPICER(TEY) (A)	9-09920-267-0	01	1	9907-9912		●
17	GASKET; CONN,CLU BOOSTER (A)	9-09920-267-0	01	1	0001-0002		●
17	GASKET; CONN,CLU BOOSTER (A)	9-09920-267-0	01	1	0003-	●	●
17	GASKET; CONN,CLU BOOSTER (B)	9-09920-268-0	01	1	9905-9906	●	●
17	GASKET; CONN,CLU BOOSTER 6WG1 TC-N(71L) CLUTCH-15.5" TWIN PLATE SPICER(TEY) (B)	9-09920-268-0	01	1	9907-9912		●
17	GASKET; CONN,CLU BOOSTER (B)	9-09920-268-0	01	1	0001-0002		●
17	GASKET; CONN,CLU BOOSTER (B)	9-09920-268-0	01	1	0003-	●	●
18	CONNECTOR; END PLATE,CLU BOOSTER	1-31829-248-0	01	1	9905-9906	●	●
18	CONNECTOR; END PLATE,CLU BOOSTER 6WG1 TC-N(71L) CLUTCH-15.5" TWIN PLATE SPICER(TEY)	1-31829-248-0	01	1	9907-9912		●
18	CONNECTOR; END PLATE,CLU BOOSTER	1-31829-248-0	01	1	0001-0002		●
18	CONNECTOR; END PLATE,CLU BOOSTER	1-31829-248-0	01	1	0003-	●	●
19	BOLT; EYE,END PLATE,CLU BOOSTER	9-83315-047-0	01	1	9905-9906	●	●
19	BOLT; EYE,END PLATE,CLU BOOSTER 6WG1 TC-N(71L) CLUTCH-15.5" TWIN PLATE SPICER(TEY)	9-83315-047-0	01	1	9907-9912		●
19	BOLT; EYE,END PLATE,CLU BOOSTER	9-83315-047-0	01	1	0001-0002		●
19	BOLT; EYE,END PLATE,CLU BOOSTER	9-83315-047-0	01	1	0003-	●	●
20	NUT; END PLATE TO SHELL,CLU BOOSTER CLUTCH-15.5" TWIN PLATE SPICER(TEY)	9-83315-085-0	04	1	9905-9906	●	●
20	NUT; END PLATE TO SHELL,CLU BOOSTER	9-83315-085-0	04	1	9907-0002		●
20	NUT; END PLATE TO SHELL,CLU BOOSTER	9-83315-085-0	04	1	0003-	●	●
21	WASHER; END PLATE TO SHELL,CLU BOOSTER CLUTCH-15.5" TWIN PLATE SPICER(TEY) ID=8.2	9-09150-508-0	04	1	9905-9906	●	●
21	WASHER; END PLATE TO SHELL,CLU BOOSTER ID=8.2	9-09150-508-0	04	1	9907-0002		●
21	WASHER; END PLATE TO SHELL,CLU BOOSTER ID=8.2	9-09150-508-0	04	1	0003-	●	●
22	GASKET; END PLATE TO SHELL,CLU BOOSTER CLUTCH-15.5" TWIN PLATE SPICER(TEY)	1-09623-327-0	01	1	9905-9906	●	●
22	GASKET; END PLATE TO SHELL,CLU BOOSTER	1-09623-327-0	01	1	9907-0002		●
22	GASKET; END PLATE TO SHELL,CLU BOOSTER	1-09623-327-0	01	1	0003-	●	●
23	SPRING; SHELL,CLU BOOSTER CLUTCH-15.5" TWIN PLATE SPICER(TEY)	1-31829-358-0	01	1	9905-9906	●	●
23	SPRING; SHELL,CLU BOOSTER	1-31829-358-0	01	1	9907-0002		●
23	SPRING; SHELL,CLU BOOSTER	1-31829-358-0	01	1	0003-	●	●
24	ROD; PUSH,CLU BOOSTER CLUTCH-15.5" TWIN PLATE SPICER(TEY)	1-31829-340-0	01	1	9905-9906	●	●
24	ROD; PUSH,CLU BOOSTER	1-31829-340-0	01	1	9907-0002		●
24	ROD; PUSH,CLU BOOSTER	1-31829-340-0	01	1	0003-	●	●
25	GASKET; PUSH ROD,CLU BOOSTER CLUTCH-15.5" TWIN PLATE SPICER(TEY)	1-09623-321-0	01	1	9905-9906	●	●
25	GASKET; PUSH ROD,CLU BOOSTER	1-09623-321-0	01	1	9907-0002		●
25	GASKET; PUSH ROD,CLU BOOSTER	1-09623-321-0	01	1	0003-	●	●
26	PISTON; SHELL,CLU BOOSTER CLUTCH-15.5" TWIN PLATE SPICER(TEY)	1-31821-057-0	01	1	9905-9906	●	●
26	PISTON; SHELL,CLU BOOSTER	1-31821-057-0	01	1	9907-0002		●
26	PISTON; SHELL,CLU BOOSTER	1-31821-057-0	01	1	0003-	●	●
27	SPRING; CLU BOOSTER CLUTCH-15.5" TWIN PLATE SPICER(TEY)	1-31829-111-0	01	1	9905-9906	●	●
27	SPRING; CLU BOOSTER	1-31829-111-0	01	1	9907-0002		●
27	SPRING; CLU BOOSTER	1-31829-111-0	01	1	0003-	●	●
28	NUT; PUSH ROD,CLU BOOSTER CLUTCH-15.5" TWIN PLATE SPICER(TEY)	9-88510-365-0	01	1	9905-9906	●	●
28	NUT; PUSH ROD,CLU BOOSTER	9-88510-365-0	01	1	9907-0002		●
28	NUT; PUSH ROD,CLU BOOSTER	9-88510-365-0	01	1	0003-	●	●
29	BOLT; END PLATE TO SHELL,CLU BOOSTER CLUTCH-15.5" TWIN PLATE SPICER(TEY)	1-31829-015-0	04	1	9905-9906	●	●
29	BOLT; END PLATE TO SHELL,CLU BOOSTER	1-31829-015-0	04	1	9907-0002		●
29	BOLT; END PLATE TO SHELL,CLU BOOSTER	1-31829-015-0	04	1	0003-	●	●
30	SHELL; CYL,CLU BOOSTER CLUTCH-15.5" TWIN PLATE SPICER(TEY)	1-31811-026-0	01	1	9905-9906	●	●
30	SHELL; CYL,CLU BOOSTER	1-31811-026-0	01	1	9907-0002		●
30	SHELL; CYL,CLU BOOSTER	1-31811-026-0	01	1	0003-	●	●
31	GASKET; SHELL,CLU BOOSTER CLUTCH-15.5" TWIN PLATE SPICER(TEY)	1-31829-113-0	01	1	9905-9906	●	●
31	GASKET; SHELL,CLU BOOSTER	1-31829-113-0	01	1	9907-0002		●
31	GASKET; SHELL,CLU BOOSTER	1-31829-113-0	01	1	0003-	●	●
32	BUSHING; SHELL,CLU BOOSTER CLUTCH-15.5" TWIN PLATE SPICER(TEY)	1-31829-114-0	01	1	9905-9906	●	●
32	BUSHING; SHELL,CLU BOOSTER	1-31829-114-0	01	1	9907-0002		●
32	BUSHING; SHELL,CLU BOOSTER	1-31829-114-0	01	1	0003-	●	●
33	CONNECTOR; UPR,VLV,CLU BOOSTER	1-31829-214-0	01	1	9905-9906	●	●
33	CONNECTOR; UPR,VLV,CLU BOOSTER 6WG1 TC-N(71L) CLUTCH-15.5" TWIN PLATE SPICER(TEY)	1-31829-214-0	01	1	9907-9912		●
33	CONNECTOR; UPR,VLV,CLU BOOSTER	1-31829-214-0	01	1	0001-0002		●
33	CONNECTOR; UPR,VLV,CLU BOOSTER	1-31829-214-0	01	1	0003-	●	●
34	GASKET; CONN,CLU BOOSTER	1-31829-053-0	01	1	9905-9906	●	●
34	GASKET; CONN,CLU BOOSTER 6WG1 TC-N(71L) CLUTCH-15.5" TWIN PLATE SPICER(TEY)	1-31829-053-0	01	1	9907-9912		●
34	GASKET; CONN,CLU BOOSTER	1-31829-053-0	01	1	0001-0002		●
34	GASKET; CONN,CLU BOOSTER	1-31829-053-0	01	1	0003-	●	●
35	SPRING; POPPET VLV,CLU BOOSTER	1-31829-077-0	01	1	9905-9906	●	●
35	SPRING; POPPET VLV,CLU BOOSTER 6WG1 TC-N(71L) CLUTCH-15.5" TWIN PLATE SPICER(TEY)	1-31829-077-0	01	1	9907-9912		●
35	SPRING; POPPET VLV,CLU BOOSTER	1-31829-077-0	01	1	0001-0002		●
35	SPRING; POPPET VLV,CLU BOOSTER	1-31829-077-0	01	1	0003-	●	●
36	VALVE; POPPET,CLU BOOSTER	1-31829-016-0	01	1	9905-9906	●	●
36	VALVE; POPPET,CLU BOOSTER 6WG1 TC-N(71L) CLUTCH-15.5" TWIN PLATE SPICER(TEY)	1-31829-016-0	01	1	9907-9912		●
36	VALVE; POPPET,CLU BOOSTER	1-31829-016-0	01	1	0001-0002		●
36	VALVE; POPPET,CLU BOOSTER	1-31829-016-0	01	1	0003-	●	●
37	BODY; UPR,VLV,CLU BOOSTER CLUTCH-15.5" TWIN PLATE SPICER(TEY)	1-31811-014-0	01	1	9905-9906	●	●
37	BODY; UPR,VLV,CLU BOOSTER	1-31811-014-0	01	1	9907-0002		●
37	BODY; UPR,VLV,CLU BOOSTER	1-31811-014-0	01	1	0003-	●	●
38	SCREW; UPR VLV TO END PLATE,CLU BOOSTE	9-83315-113-0	03	1	9905-9906	●	●
38	SCREW; UPR VLV TO END PLATE,CLU BOOSTE 6WG1 TC-N(71L) CLUTCH-15.5" TWIN PLATE SPICER(TEY)	9-83315-113-0	03	1	9907-9912		●
38	SCREW; UPR VLV TO END PLATE,CLU BOOSTE	9-83315-113-0	03	1	0001-0002		●
38	SCREW; UPR VLV TO END PLATE,CLU BOOSTE	9-83315-113-0	03	1	0003-	●	●
40	GASKET; PISTON,CLU BOOSTER	1-31829-037-0	01	1	9905-9906	●	●
40	GASKET; PISTON,CLU BOOSTER 6WG1 TC-N(71L) CLUTCH-15.5" TWIN PLATE SPICER(TEY)	1-31829-037-0	01	1	9907-9912		●
40	GASKET; PISTON,CLU BOOSTER	1-31829-037-0	01	1	0001-0002		●
40	GASKET; PISTON,CLU BOOSTER	1-31829-037-0	01	1	0003-	●	●
41	SPRING; DIAPH,CLU BOOSTER CLUTCH-15.5" TWIN PLATE SPICER(TEY)	1-31829-104-0	01	1	9905-9906	●	●
41	SPRING; DIAPH,CLU BOOSTER	1-31829-104-0	01	1	9907-0002		●
41	SPRING; DIAPH,CLU BOOSTER	1-31829-104-0	01	1	0003-	●	●
42	GASKET; FITTING,CLU BOOSTER CLUTCH-15.5" TWIN PLATE SPICER(TEY)	1-31829-123-0	01	1	9905-9906	●	●
42	GASKET; FITTING,CLU BOOSTER	1-31829-123-0	01	1	9907-0002		●
42	GASKET; FITTING,CLU BOOSTER	1-31829-123-0	01	1	0003-	●	●
43	GASKET; UPR VLV,CLU BOOSTER CLUTCH-15.5" TWIN PLATE SPICER(TEY)	1-31829-083-0	02	1	9905-9906	●	●
43	GASKET; UPR VLV,CLU BOOSTER	1-31829-083-0	02	1	9907-0002		●
43	GASKET; UPR VLV,CLU BOOSTER	1-31829-083-0	02	1	0003-	●	●
44	PISTON; UPR VLV,CLU BOOSTER CLUTCH-15.5" TWIN PLATE SPICER(TEY)	1-31821-030-0	01	1	9905-9906	●	●
44	PISTON; UPR VLV,CLU BOOSTER	1-31821-030-0	01	1	9907-0002		●
44	PISTON; UPR VLV,CLU BOOSTER	1-31821-030-0	01	1	0003-	●	●
45	PLATE; END,CLU BOOSTER CLUTCH-15.5" TWIN PLATE SPICER(TEY)	1-31811-064-0	01	1	9905-9906	●	●
45	PLATE; END,CLU BOOSTER	1-31811-064-0	01	1	9907-0002		●
45	PLATE; END,CLU BOOSTER	1-31811-064-0	01	1	0003-	●	●
46	NUT; PUSH ROD,CLU BOOSTER M10	9-09111-410-0	01	1	9905-9906	●	●
46	NUT; PUSH ROD,CLU BOOSTER 6WG1 TC-N(71L) CLUTCH-15.5" TWIN PLATE SPICER(TEY) M10	9-09111-410-0	01	1	9907-9912		●
46	NUT; PUSH ROD,CLU BOOSTER M10	9-09111-410-0	01	1	0001-0002		●
46	NUT; PUSH ROD,CLU BOOSTER M10	9-09111-410-0	01	1	0003-	●	●
58	WASHER; PISTON,CLU BOOSTER CLUTCH-15.5" TWIN PLATE SPICER(TEY)	1-31829-301-0	01	1	9905-9906	●	●
58	WASHER; PISTON,CLU BOOSTER	1-31829-301-0	01	1	9907-0002		●
58	WASHER; PISTON,CLU BOOSTER	1-31829-301-0	01	1	0003-	●	●
60	GASKET; SHELL,CLU BOOSTER CLUTCH-15.5" TWIN PLATE SPICER(TEY)	1-31829-066-0	01	1	9905-9906	●	●
60	GASKET; SHELL,CLU BOOSTER	1-31829-066-0	01	1	9907-0002		●
60	GASKET; SHELL,CLU BOOSTER	1-31829-066-0	01	1	0003-	●	●
91	GASKET; CLU BOOSTER	1-31829-103-0	01	1	9905-9906	●	●
91	GASKET; CLU BOOSTER 6WG1 TC-N(71L) CLUTCH-15.5" TWIN PLATE SPICER(TEY)	1-31829-103-0	01	1	9907-9912		●
91	GASKET; CLU BOOSTER	1-31829-103-0	01	1	0001-0002		●
91	GASKET; CLU BOOSTER	1-31829-103-0	01	1	0003-	●	●
