8-01 — LAMP; FRONT AND FRONT SIDE (#73689) — 279 parça

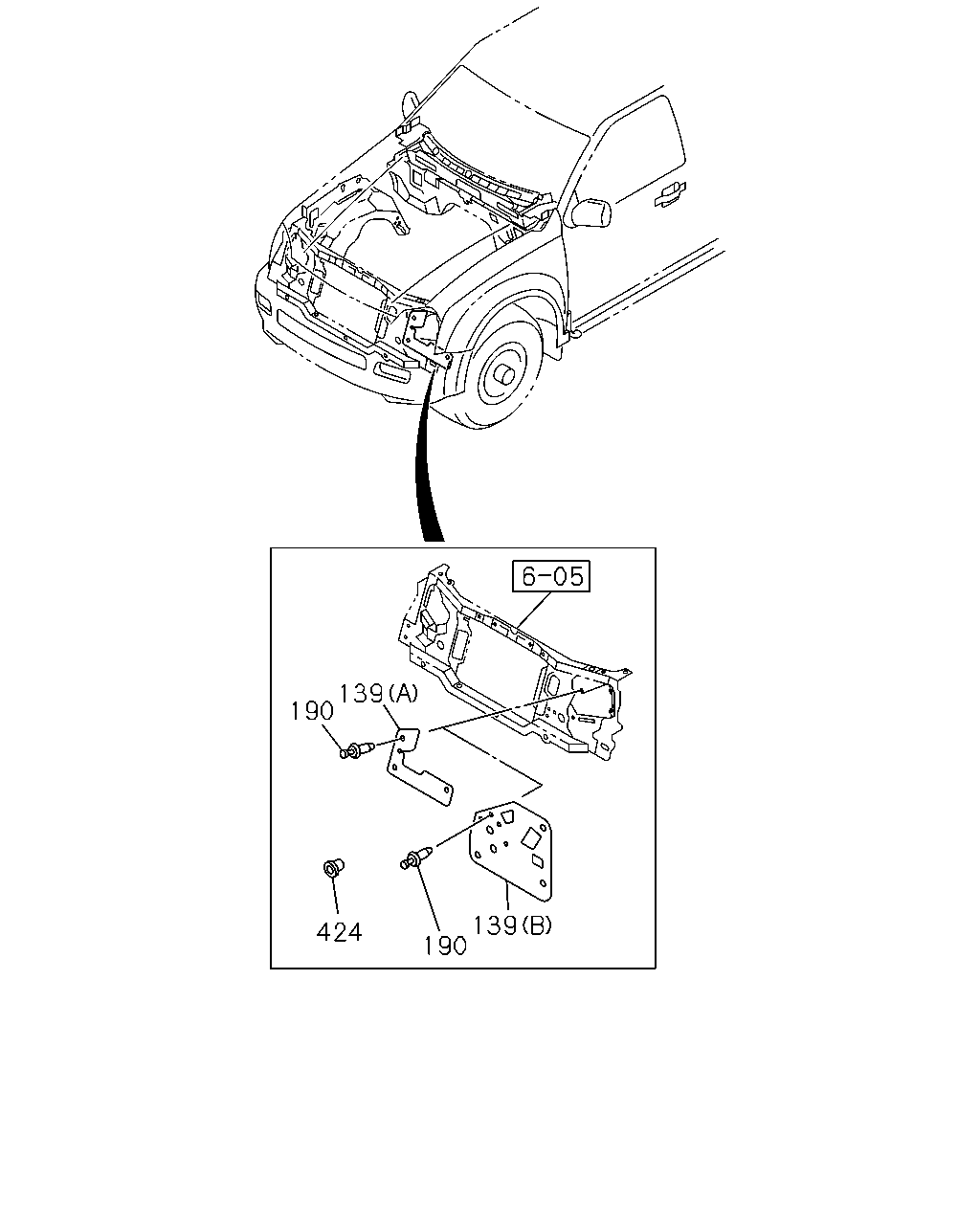

çizim 117872
139 190 139 190 424
BalonParca AdiParca NoAdetTipApplied Date A B C D E
139 02.726 COVER; HEADLAMP
4JJ1-TCS ENG<LFB> (A) THA 		8-97333-394-0 01 1 0410-0501 ● ● ● ●
139 02.726 COVER; HEADLAMP
4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ> (A) THA 		8-97333-394-0 01 1 0502-0609 ● ● ● ● ●
139 02.726 COVER; HEADLAMP
(A) THA 		8-97333-394-0 01 1 0610-0709 ● ● ● ● ●
139 02.726 COVER; HEADLAMP
(B) THA 		8-98079-195-1 02 1 0710- ● ● ● ● ●
190 02.727 RETAINER; HEADLAMP
4JJ1-TCS ENG<LFB> 16.150 THA 		8-94279-954-0 03 1 0410-0501 ● ● ● ●
190 02.727 RETAINER; HEADLAMP
4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ> 16.150 THA 		8-94279-954-0 03 1 0502-0609 ● ● ● ● ●
190 02.727 RETAINER; HEADLAMP
16.150 THA 		8-94279-954-0 03 1 0610-0709 ● ● ● ● ●
190 02.727 RETAINER; HEADLAMP
16.150 THA 		8-94279-954-0 08 1 0710- ● ● ● ● ●
424 02.727 RETAINER; FOG LAMP
FOG LAMP<T96> 16.494 THA 		8-97372-854-0 02 1 0808- ● ● ●
424 02.727 RETAINER; FOG LAMP
16.494 THA 		8-97372-854-0 02 1 0808- ● ●

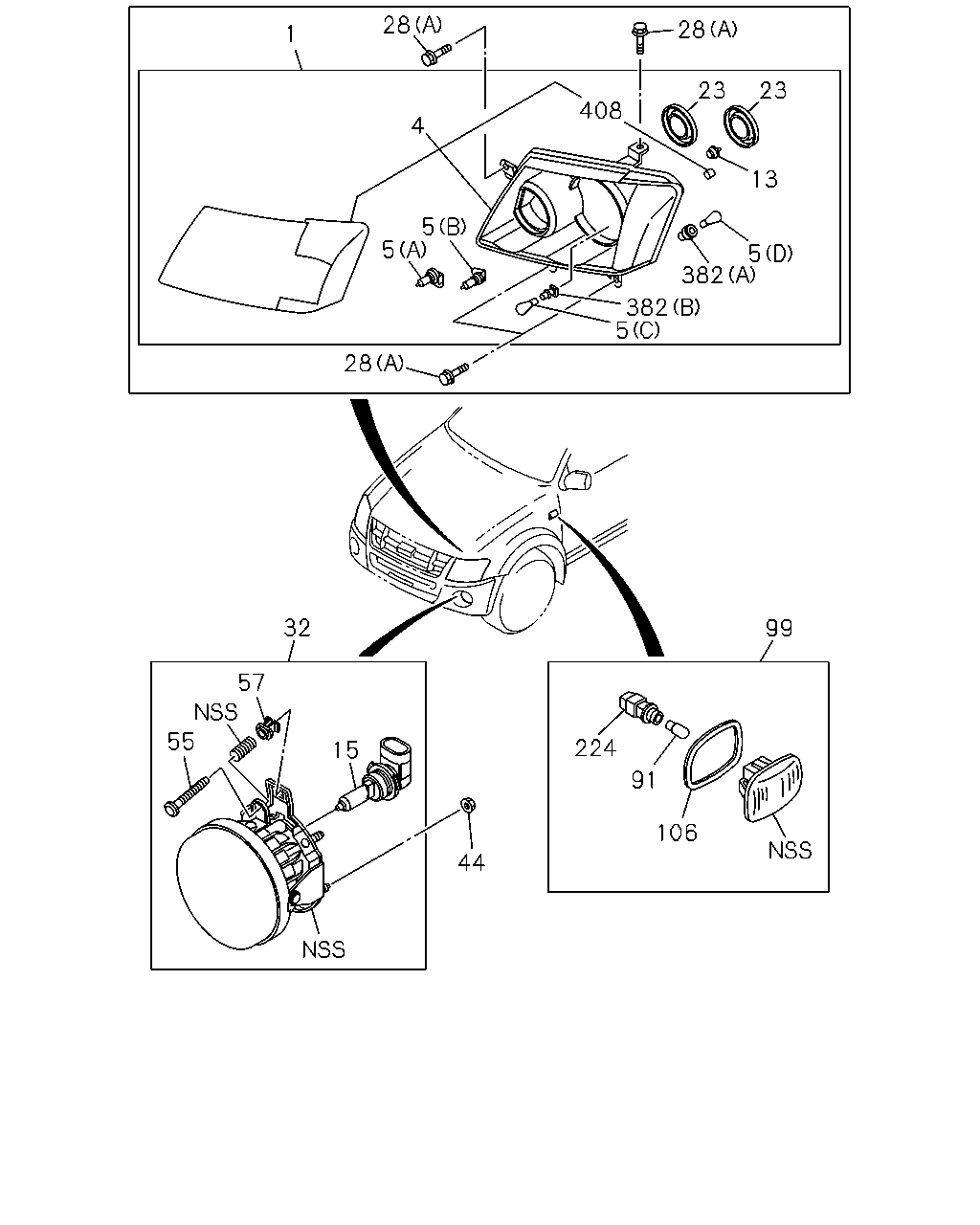

çizim 117894
28 28 1 23 23 408 4 13 5 5 5 382 382 5 28 32 99 57 55 224 15 91 106 44
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 02.725 LAMP ASM; HEAD
THA 		8-97378-698-0 01 1 0404-0509 ● ● ● ● ●
1 02.725 LAMP ASM; HEAD
THA 		8-98009-452-0 01 1 0510-0609 ● ● ● ● ●
1 02.725 LAMP ASM; HEAD
THA 		8-98024-672-0 01 1 0610-0709 ● ● ● ● ●
1 02.725 LAMP ASM; HEAD
THA 		8-98019-882-2 01 1 0710-1003 ● ● ● ● ●
1 02.725 LAMP ASM; HEAD 8-98150-939-0 01 1 1004- ● ● ● ● ●
1 02.725 LAMP ASM; HEAD
THA 		8-97378-697-0 01 1 0404-0509 ● ● ● ● ●
1 02.725 LAMP ASM; HEAD
THA 		8-98009-451-0 01 1 0510-0609 ● ● ● ● ●
1 02.725 LAMP ASM; HEAD
THA 		8-98024-671-0 01 1 0610-0709 ● ● ● ● ●
1 02.725 LAMP ASM; HEAD
THA 		8-98019-881-2 01 1 0710-1003 ● ● ● ● ●
1 02.725 LAMP ASM; HEAD 8-98150-938-0 01 1 1004- ● ● ● ● ●
4 02.727 HEADLAMP UNIT
THA 		8-97377-913-0 01 1 0404-0609 ● ● ● ● ●
4 02.727 HEADLAMP UNIT
THA 		8-98031-109-0 01 1 0610-0709 ● ● ● ● ●
4 02.727 HEADLAMP UNIT
THA 		8-98092-675-0 01 1 0710-1003 ● ● ● ● ●
4 02.727 HEADLAMP UNIT 8-98160-906-0 01 1 1004- ● ● ● ● ●
4 02.727 HEADLAMP UNIT
THA 		8-97377-912-0 01 1 0404-0609 ● ● ● ● ●
4 02.727 HEADLAMP UNIT
THA 		8-98031-108-0 01 1 0610-0709 ● ● ● ● ●
4 02.727 HEADLAMP UNIT
THA 		8-98092-674-0 01 1 0710-1003 ● ● ● ● ●
4 02.727 HEADLAMP UNIT 8-98160-905-0 01 1 1004- ● ● ● ● ●
5 02.727 BULB; HEADLAMP
(D) 12V 21W THA 		8-98160-206-0 02 1 1008- ● ● ● ● ●
5 02.727 BULB; HEADLAMP
(B) 12V 51W THA 		8-97286-998-0 02 1 0404- ● ● ● ● ●
5 02.727 BULB; HEADLAMP
(A) 12V 60W THA 		8-97289-997-0 02 1 0404- ● ● ● ● ●
5 02.727 BULB; HEADLAMP
08.991 (C) 12V 5W THA 		8-94124-595-0 02 1 0710- ● ● ● ● ●
5 02.727 BULB; HEADLAMP
(D) 12V 21W THA 		8-98046-499-0 02 1 0710-1003 ● ● ● ● ●
5 02.727 BULB; HEADLAMP
(D) 12V 21W THA 		8-98160-206-0 02 1 1004- ● ● ● ● ●
13 02.736 CLIP; HEADLAMP
THA 		8-97378-145-0 02 1 0404- ● ● ● ● ●
15 08.991 BULB; FOG LAMP
FOG LAMP<T96> 12V 55W THA 		8-98024-386-0 02 1 0509-0609 ● ●
15 08.991 BULB; FOG LAMP
12V 55W THA 		8-98024-386-0 02 1 0509-0609 ● ●
15 08.991 BULB; FOG LAMP
FOG LAMP<T96> 12V 55W THA 		8-98024-386-0 02 1 0610-0709 ● ● ●
15 08.991 BULB; FOG LAMP
12V 55W THA 		8-98024-386-0 02 1 0610-0709 ● ●
15 08.991 BULB; FOG LAMP
FOG LAMP<T96> 02.727 12V 51W THA 		8-97286-998-0 02 1 0710- ● ● ●
15 08.991 BULB; FOG LAMP
02.727 12V 51W THA 		8-97286-998-0 02 1 0710- ● ●
15 08.991 BULB; FOG LAMP
FOG LAMP<T96> 12V 55W THA 		8-97333-416-0 02 1 0404-0409 ●
15 08.991 BULB; FOG LAMP
12V 55W THA 		8-97333-416-0 02 1 0404-0409 ●
15 08.991 BULB; FOG LAMP
FOG LAMP<T96> 12V 55W THA 		8-97333-416-0 02 1 0410-0508 ● ●
15 08.991 BULB; FOG LAMP
12V 55W THA 		8-97333-416-0 02 1 0410-0508 ● ●
23 02.727 COVER; BULB,HEADLAMP
THA 		8-97675-961-0 04 1 0404- ● ● ● ● ●
28 02.762 BOLT; HEADLAMP
02.726 (A) M6X18 TAPPING W/LK&PL WASHER THA 		8-94372-359-0 08 1 0404-0611 ● ● ● ● ●
28 02.762 BOLT; HEADLAMP
(A) M6X18 TAPPING W/LK&PL WASHER THA 		8-98062-140-0 08 1 0612- ● ● ● ● ●
28 02.762 BOLT; HEADLAMP
08.900 (B) SCREW M5X16 		8-94380-268-0 02 1 0404-0703 ● ● ● ● ●
28 02.762 BOLT; HEADLAMP
01.269 (B) SCREW M5X16 		8-98073-081-0 02 1 0704-0709 ● ● ● ● ●
32 02.725 LAMP ASM; FOG
FOG LAMP<T96> THA 		8-97363-012-0 01 1 0404-0409 ●
32 02.725 LAMP ASM; FOG
THA 		8-97363-012-0 01 1 0404-0409 ●
32 02.725 LAMP ASM; FOG
FOG LAMP<T96> THA 		8-97363-012-0 01 1 0410-0509 ● ●
32 02.725 LAMP ASM; FOG
THA 		8-97363-012-0 01 1 0410-0509 ● ●
32 02.725 LAMP ASM; FOG
FOG LAMP<T96> THA 		8-98030-125-0 01 1 0510-0609 ● ●
32 02.725 LAMP ASM; FOG
THA 		8-98030-125-0 01 1 0510-0609 ● ●
32 02.725 LAMP ASM; FOG
FOG LAMP<T96> THA 		8-98030-125-0 01 1 0610-0709 ● ● ●
32 02.725 LAMP ASM; FOG
THA 		8-98030-125-0 01 1 0610-0709 ● ●
32 02.725 LAMP ASM; FOG
FOG LAMP<T96> THA 		8-97363-011-0 01 1 0404-0409 ●
32 02.725 LAMP ASM; FOG
THA 		8-97363-011-0 01 1 0404-0409 ●
32 02.725 LAMP ASM; FOG
FOG LAMP<T96> THA 		8-97363-011-0 01 1 0410-0509 ● ●
32 02.725 LAMP ASM; FOG
THA 		8-97363-011-0 01 1 0410-0509 ● ●
32 02.725 LAMP ASM; FOG
FOG LAMP<T96> THA 		8-98030-124-0 01 1 0510-0609 ● ●
32 02.725 LAMP ASM; FOG
THA 		8-98030-124-0 01 1 0510-0609 ● ●
32 02.725 LAMP ASM; FOG
FOG LAMP<T96> THA 		8-98030-124-0 01 1 0610-0709 ● ● ●
32 02.725 LAMP ASM; FOG
THA 		8-98030-124-0 01 1 0610-0709 ● ●
32 02.725 LAMP ASM; FOG
FOG LAMP<T96> THA 		8-97374-661-1 02 1 0710-0904 ● ● ●
32 02.725 LAMP ASM; FOG
THA 		8-97374-661-1 02 1 0710-0904 ● ●
32 02.725 LAMP ASM; FOG
FOG LAMP<T96> THA 		8-98144-229-0 02 1 0905-1101 ● ● ●
32 02.725 LAMP ASM; FOG
THA 		8-98144-229-0 02 1 0905-1101 ● ●
32 02.725 LAMP ASM; FOG
FOG LAMP<T96> THA 		8-98169-680-0 02 1 1102- ● ● ●
32 02.725 LAMP ASM; FOG
THA 		8-98169-680-0 02 1 1102- ● ●
44 02.737 NUT; FOG LAMP
FOG LAMP<T96> 01.062 M6 FLANGE THA 		0-91180-106-0 04 1 0404-0409 ●
44 02.737 NUT; FOG LAMP
01.062 M6 FLANGE THA 		0-91180-106-0 04 1 0404-0409 ●
44 02.737 NUT; FOG LAMP
FOG LAMP<T96> 01.062 M6 FLANGE THA 		0-91180-106-0 04 1 0410-0609 ● ●
44 02.737 NUT; FOG LAMP
01.062 M6 FLANGE THA 		0-91180-106-0 04 1 0410-0609 ● ●
44 02.737 NUT; FOG LAMP
FOG LAMP<T96> 08.915 M6 FLANGE 		8-98055-704-0 04 1 0610- ● ● ●
44 02.737 NUT; FOG LAMP
08.915 M6 FLANGE 		8-98055-704-0 04 1 0610- ● ●
55 02.737 SCREW; ADJ,FOG LAMP
FOG LAMP<T96> THA 		8-98017-834-0 02 1 0710- ● ● ●
55 02.737 SCREW; ADJ,FOG LAMP
THA 		8-98017-834-0 02 1 0710- ● ●
57 02.726 NUT; UNIT TO SCREW,FOG LAMP
FOG LAMP<T96> THA 		8-98017-835-0 02 1 0710- ● ● ●
57 02.726 NUT; UNIT TO SCREW,FOG LAMP
THA 		8-98017-835-0 02 1 0710- ● ●
91 08.991 BULB; SIDE TURN SIGNAL
12V 5W THA 		8-97310-952-0 02 1 0404-0508 ● ● ● ● ●
91 08.991 BULB; SIDE TURN SIGNAL
EXC. DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9>,DOOR MIR ELEC DUAL FOLDING CHROME TURN SIGNAL<8JH> 12V 5W THA 		8-97310-952-0 02 1 0509-0510 ● ●
91 08.991 BULB; SIDE TURN SIGNAL
12V 5W THA 		8-97310-952-0 02 1 0509-0510 ●
91 08.991 BULB; SIDE TURN SIGNAL
EXC. DOOR MIRROR REMOTE CONT ELECTRIC, TURN SIGNAL<DDD>,DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9>,DOOR MIR ELEC DUAL FOLDING CHROME TURN SIGNAL<8JH> 12V 5W THA 		8-97310-952-0 02 1 0511-0609 ● ●
91 08.991 BULB; SIDE TURN SIGNAL
12V 5W THA 		8-97310-952-0 02 1 0511-0609 ●
91 08.991 BULB; SIDE TURN SIGNAL
EXC. DOOR MIRROR REMOTE CONT ELECTRIC, TURN SIGNAL<DDD>,DOOR MIR ELEC DUAL FOLDING CHROME TURN SIGNAL<8JH> 12V 5W THA 		8-97310-952-0 02 1 0511-0609 ● ●
91 08.991 BULB; SIDE TURN SIGNAL
EXC. DOOR MIRROR REMOTE CONT ELECTRIC, TURN SIGNAL<DDD>,DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9>,DOOR MIR ELEC DUAL FOLDING CHROME TURN SIGNAL<8JH> 12V 5W THA 		8-97310-952-0 02 1 0610-0709 ● ● ● ●
91 08.991 BULB; SIDE TURN SIGNAL
12V 5W THA 		8-97310-952-0 02 1 0610-0709 ●
91 08.991 BULB; SIDE TURN SIGNAL
EXC. DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9>,DOOR MIR ELEC DUAL FOLDING CHROME TURN SIGNAL<8JH> 12V 5W THA 		8-97310-952-0 02 1 0710- ● ●
91 08.991 BULB; SIDE TURN SIGNAL
12V 5W THA 		8-97310-952-0 02 1 0710- ●
99 02.585 LAMP; SIDE FLASHER
THA 		8-97237-378-1 02 1 0404-0508 ● ● ● ● ●
99 02.585 LAMP; SIDE FLASHER
EXC. DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9>,DOOR MIR ELEC DUAL FOLDING CHROME TURN SIGNAL<8JH> THA 		8-97237-378-1 02 1 0509-0510 ● ●
99 02.585 LAMP; SIDE FLASHER
THA 		8-97237-378-1 02 1 0509-0510 ●
99 02.585 LAMP; SIDE FLASHER
EXC. DOOR MIRROR REMOTE CONT ELECTRIC, TURN SIGNAL<DDD>,DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9>,DOOR MIR ELEC DUAL FOLDING CHROME TURN SIGNAL<8JH> THA 		8-97237-378-1 02 1 0511-0609 ● ●
99 02.585 LAMP; SIDE FLASHER
THA 		8-97237-378-1 02 1 0511-0609 ●
99 02.585 LAMP; SIDE FLASHER
EXC. DOOR MIRROR REMOTE CONT ELECTRIC, TURN SIGNAL<DDD>,DOOR MIR ELEC DUAL FOLDING CHROME TURN SIGNAL<8JH> THA 		8-97237-378-1 02 1 0511-0609 ● ●
99 02.585 LAMP; SIDE FLASHER
EXC. DOOR MIRROR REMOTE CONT ELECTRIC, TURN SIGNAL<DDD>,DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9>,DOOR MIR ELEC DUAL FOLDING CHROME TURN SIGNAL<8JH> THA 		8-97237-378-1 02 1 0610-0709 ● ● ● ●
99 02.585 LAMP; SIDE FLASHER
THA 		8-97237-378-1 02 1 0610-0709 ●
99 02.585 LAMP; SIDE FLASHER
EXC. DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9>,DOOR MIR ELEC DUAL FOLDING CHROME TURN SIGNAL<8JH> THA 		8-97237-378-1 02 1 0710- ● ●
99 02.585 LAMP; SIDE FLASHER
THA 		8-97237-378-1 02 1 0710- ●
106 02.590 GASKET; SIDE TURN SIGNAL
THA 		8-97333-420-0 02 1 0404-0508 ● ● ● ● ●
106 02.590 GASKET; SIDE TURN SIGNAL
EXC. DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9>,DOOR MIR ELEC DUAL FOLDING CHROME TURN SIGNAL<8JH> THA 		8-97333-420-0 02 1 0509-0510 ● ●
106 02.590 GASKET; SIDE TURN SIGNAL
THA 		8-97333-420-0 02 1 0509-0510 ●
106 02.590 GASKET; SIDE TURN SIGNAL
EXC. DOOR MIRROR REMOTE CONT ELECTRIC, TURN SIGNAL<DDD>,DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9>,DOOR MIR ELEC DUAL FOLDING CHROME TURN SIGNAL<8JH> THA 		8-97333-420-0 02 1 0511-0609 ● ●
106 02.590 GASKET; SIDE TURN SIGNAL
THA 		8-97333-420-0 02 1 0511-0609 ●
106 02.590 GASKET; SIDE TURN SIGNAL
EXC. DOOR MIRROR REMOTE CONT ELECTRIC, TURN SIGNAL<DDD>,DOOR MIR ELEC DUAL FOLDING CHROME TURN SIGNAL<8JH> THA 		8-97333-420-0 02 1 0511-0609 ● ●
106 02.590 GASKET; SIDE TURN SIGNAL
EXC. DOOR MIRROR REMOTE CONT ELECTRIC, TURN SIGNAL<DDD>,DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9>,DOOR MIR ELEC DUAL FOLDING CHROME TURN SIGNAL<8JH> THA 		8-97333-420-0 02 1 0610-0709 ● ● ● ●
106 02.590 GASKET; SIDE TURN SIGNAL
THA 		8-97333-420-0 02 1 0610-0709 ●
106 02.590 GASKET; SIDE TURN SIGNAL
EXC. DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9>,DOOR MIR ELEC DUAL FOLDING CHROME TURN SIGNAL<8JH> THA 		8-97333-420-0 02 1 0710- ● ●
106 02.590 GASKET; SIDE TURN SIGNAL
THA 		8-97333-420-0 02 1 0710- ●
224 02.575 SOCKET; SIDE FLASHER LAMP
THA 		8-97310-953-0 02 1 0404-0508 ● ● ● ● ●
224 02.575 SOCKET; SIDE FLASHER LAMP
EXC. DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9>,DOOR MIR ELEC DUAL FOLDING CHROME TURN SIGNAL<8JH> THA 		8-97310-953-0 02 1 0509-0510 ● ●
224 02.575 SOCKET; SIDE FLASHER LAMP
THA 		8-97310-953-0 02 1 0509-0510 ●
224 02.575 SOCKET; SIDE FLASHER LAMP
EXC. DOOR MIRROR REMOTE CONT ELECTRIC, TURN SIGNAL<DDD>,DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9>,DOOR MIR ELEC DUAL FOLDING CHROME TURN SIGNAL<8JH> THA 		8-97310-953-0 02 1 0511-0609 ● ●
224 02.575 SOCKET; SIDE FLASHER LAMP
THA 		8-97310-953-0 02 1 0511-0609 ●
224 02.575 SOCKET; SIDE FLASHER LAMP
EXC. DOOR MIRROR REMOTE CONT ELECTRIC, TURN SIGNAL<DDD>,DOOR MIR ELEC DUAL FOLDING CHROME TURN SIGNAL<8JH> THA 		8-97310-953-0 02 1 0511-0609 ● ●
224 02.575 SOCKET; SIDE FLASHER LAMP
EXC. DOOR MIRROR REMOTE CONT ELECTRIC, TURN SIGNAL<DDD>,DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9>,DOOR MIR ELEC DUAL FOLDING CHROME TURN SIGNAL<8JH> THA 		8-97310-953-0 02 1 0610-0709 ● ● ● ●
224 02.575 SOCKET; SIDE FLASHER LAMP
THA 		8-97310-953-0 02 1 0610-0709 ●
224 02.575 SOCKET; SIDE FLASHER LAMP
EXC. DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9>,DOOR MIR ELEC DUAL FOLDING CHROME TURN SIGNAL<8JH> THA 		8-97310-953-0 02 1 0710- ● ●
224 02.575 SOCKET; SIDE FLASHER LAMP
THA 		8-97310-953-0 02 1 0710- ●
382 02.575 PLUG; SOCKET,HEADLAMP
(A) THA 		8-98012-761-0 02 1 0710-1003 ● ● ● ● ●
382 02.575 PLUG; SOCKET,HEADLAMP
(A) THA 		8-98160-270-0 02 1 1004- ● ● ● ● ●
382 02.575 PLUG; SOCKET,HEADLAMP
(B) THA 		8-98012-788-0 02 1 0710- ● ● ● ● ●
408 02.727 CAP; BREATHER,HEADLAMP
THA 		8-97289-148-0 04 1 0404-0709 ● ● ● ● ●
408 02.727 CAP; BREATHER,HEADLAMP
THA 		8-97378-874-0 04 1 0710- ● ● ● ● ●

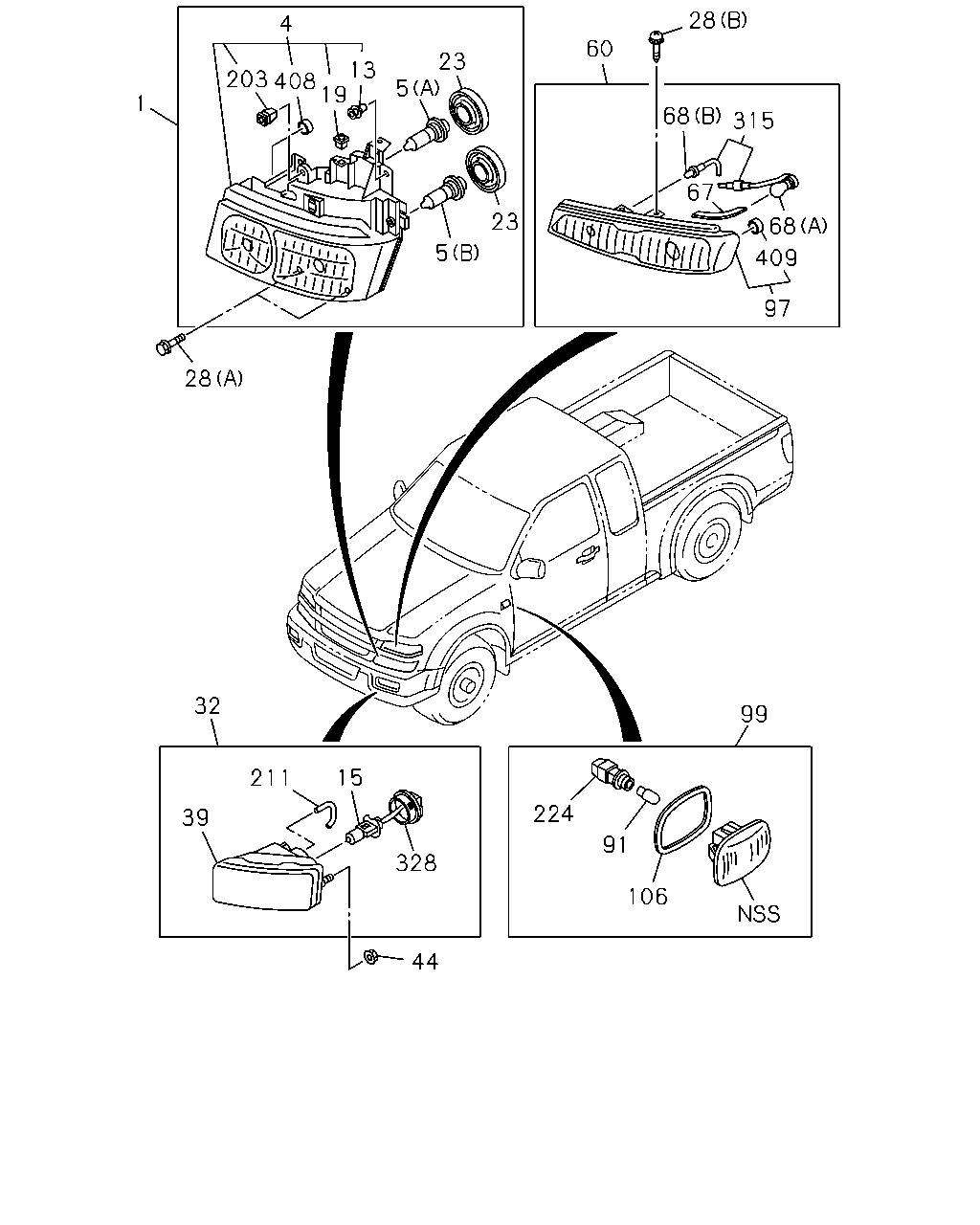

çizim 118152
28 4 60 23 13 203 408 19 5 1 68 315 67 23 68 5 409 97 28 32 99 15 211 224 39 91 328 106 44
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 02.725 LAMP ASM; HEAD
THA 		8-97378-698-0 01 1 0404-0509 ● ● ● ● ●
1 02.725 LAMP ASM; HEAD
THA 		8-98009-452-0 01 1 0510-0609 ● ● ● ● ●
1 02.725 LAMP ASM; HEAD
THA 		8-98024-672-0 01 1 0610-0709 ● ● ● ● ●
1 02.725 LAMP ASM; HEAD
THA 		8-98019-882-2 01 1 0710-1003 ● ● ● ● ●
1 02.725 LAMP ASM; HEAD 8-98150-939-0 01 1 1004- ● ● ● ● ●
1 02.725 LAMP ASM; HEAD
THA 		8-97378-697-0 01 1 0404-0509 ● ● ● ● ●
1 02.725 LAMP ASM; HEAD
THA 		8-98009-451-0 01 1 0510-0609 ● ● ● ● ●
1 02.725 LAMP ASM; HEAD
THA 		8-98024-671-0 01 1 0610-0709 ● ● ● ● ●
1 02.725 LAMP ASM; HEAD
THA 		8-98019-881-2 01 1 0710-1003 ● ● ● ● ●
1 02.725 LAMP ASM; HEAD 8-98150-938-0 01 1 1004- ● ● ● ● ●
4 02.727 HEADLAMP UNIT
THA 		8-97377-913-0 01 1 0404-0609 ● ● ● ● ●
4 02.727 HEADLAMP UNIT
THA 		8-98031-109-0 01 1 0610-0709 ● ● ● ● ●
4 02.727 HEADLAMP UNIT
THA 		8-98092-675-0 01 1 0710-1003 ● ● ● ● ●
4 02.727 HEADLAMP UNIT 8-98160-906-0 01 1 1004- ● ● ● ● ●
4 02.727 HEADLAMP UNIT
THA 		8-97377-912-0 01 1 0404-0609 ● ● ● ● ●
4 02.727 HEADLAMP UNIT
THA 		8-98031-108-0 01 1 0610-0709 ● ● ● ● ●
4 02.727 HEADLAMP UNIT
THA 		8-98092-674-0 01 1 0710-1003 ● ● ● ● ●
4 02.727 HEADLAMP UNIT 8-98160-905-0 01 1 1004- ● ● ● ● ●
5 02.727 BULB; HEADLAMP
(D) 12V 21W THA 		8-98160-206-0 02 1 1008- ● ● ● ● ●
5 02.727 BULB; HEADLAMP
(B) 12V 51W THA 		8-97286-998-0 02 1 0404- ● ● ● ● ●
5 02.727 BULB; HEADLAMP
(A) 12V 60W THA 		8-97289-997-0 02 1 0404- ● ● ● ● ●
5 02.727 BULB; HEADLAMP
08.991 (C) 12V 5W THA 		8-94124-595-0 02 1 0710- ● ● ● ● ●
5 02.727 BULB; HEADLAMP
(D) 12V 21W THA 		8-98046-499-0 02 1 0710-1003 ● ● ● ● ●
5 02.727 BULB; HEADLAMP
(D) 12V 21W THA 		8-98160-206-0 02 1 1004- ● ● ● ● ●
13 02.736 CLIP; HEADLAMP
THA 		8-97378-145-0 02 1 0404- ● ● ● ● ●
15 08.991 BULB; FOG LAMP
FOG LAMP<T96> 12V 55W THA 		8-98024-386-0 02 1 0509-0609 ● ●
15 08.991 BULB; FOG LAMP
12V 55W THA 		8-98024-386-0 02 1 0509-0609 ● ●
15 08.991 BULB; FOG LAMP
FOG LAMP<T96> 12V 55W THA 		8-98024-386-0 02 1 0610-0709 ● ● ●
15 08.991 BULB; FOG LAMP
12V 55W THA 		8-98024-386-0 02 1 0610-0709 ● ●
15 08.991 BULB; FOG LAMP
FOG LAMP<T96> 02.727 12V 51W THA 		8-97286-998-0 02 1 0710- ● ● ●
15 08.991 BULB; FOG LAMP
02.727 12V 51W THA 		8-97286-998-0 02 1 0710- ● ●
15 08.991 BULB; FOG LAMP
FOG LAMP<T96> 12V 55W THA 		8-97333-416-0 02 1 0404-0409 ●
15 08.991 BULB; FOG LAMP
12V 55W THA 		8-97333-416-0 02 1 0404-0409 ●
15 08.991 BULB; FOG LAMP
FOG LAMP<T96> 12V 55W THA 		8-97333-416-0 02 1 0410-0508 ● ●
15 08.991 BULB; FOG LAMP
12V 55W THA 		8-97333-416-0 02 1 0410-0508 ● ●
19 02.726 NUT; HEADLAMP
THA 		8-97375-960-0 02 1 0404-0709 ● ● ● ● ●
23 02.727 COVER; BULB,HEADLAMP
THA 		8-97675-961-0 04 1 0404- ● ● ● ● ●
28 02.762 BOLT; HEADLAMP
02.726 (A) M6X18 TAPPING W/LK&PL WASHER THA 		8-94372-359-0 08 1 0404-0611 ● ● ● ● ●
28 02.762 BOLT; HEADLAMP
(A) M6X18 TAPPING W/LK&PL WASHER THA 		8-98062-140-0 08 1 0612- ● ● ● ● ●
28 02.762 BOLT; HEADLAMP
08.900 (B) SCREW M5X16 		8-94380-268-0 02 1 0404-0703 ● ● ● ● ●
28 02.762 BOLT; HEADLAMP
01.269 (B) SCREW M5X16 		8-98073-081-0 02 1 0704-0709 ● ● ● ● ●
32 02.725 LAMP ASM; FOG
FOG LAMP<T96> THA 		8-97363-012-0 01 1 0404-0409 ●
32 02.725 LAMP ASM; FOG
THA 		8-97363-012-0 01 1 0404-0409 ●
32 02.725 LAMP ASM; FOG
FOG LAMP<T96> THA 		8-97363-012-0 01 1 0410-0509 ● ●
32 02.725 LAMP ASM; FOG
THA 		8-97363-012-0 01 1 0410-0509 ● ●
32 02.725 LAMP ASM; FOG
FOG LAMP<T96> THA 		8-98030-125-0 01 1 0510-0609 ● ●
32 02.725 LAMP ASM; FOG
THA 		8-98030-125-0 01 1 0510-0609 ● ●
32 02.725 LAMP ASM; FOG
FOG LAMP<T96> THA 		8-98030-125-0 01 1 0610-0709 ● ● ●
32 02.725 LAMP ASM; FOG
THA 		8-98030-125-0 01 1 0610-0709 ● ●
32 02.725 LAMP ASM; FOG
FOG LAMP<T96> THA 		8-97363-011-0 01 1 0404-0409 ●
32 02.725 LAMP ASM; FOG
THA 		8-97363-011-0 01 1 0404-0409 ●
32 02.725 LAMP ASM; FOG
FOG LAMP<T96> THA 		8-97363-011-0 01 1 0410-0509 ● ●
32 02.725 LAMP ASM; FOG
THA 		8-97363-011-0 01 1 0410-0509 ● ●
32 02.725 LAMP ASM; FOG
FOG LAMP<T96> THA 		8-98030-124-0 01 1 0510-0609 ● ●
32 02.725 LAMP ASM; FOG
THA 		8-98030-124-0 01 1 0510-0609 ● ●
32 02.725 LAMP ASM; FOG
FOG LAMP<T96> THA 		8-98030-124-0 01 1 0610-0709 ● ● ●
32 02.725 LAMP ASM; FOG
THA 		8-98030-124-0 01 1 0610-0709 ● ●
32 02.725 LAMP ASM; FOG
FOG LAMP<T96> THA 		8-97374-661-1 02 1 0710-0904 ● ● ●
32 02.725 LAMP ASM; FOG
THA 		8-97374-661-1 02 1 0710-0904 ● ●
32 02.725 LAMP ASM; FOG
FOG LAMP<T96> THA 		8-98144-229-0 02 1 0905-1101 ● ● ●
32 02.725 LAMP ASM; FOG
THA 		8-98144-229-0 02 1 0905-1101 ● ●
32 02.725 LAMP ASM; FOG
FOG LAMP<T96> THA 		8-98169-680-0 02 1 1102- ● ● ●
32 02.725 LAMP ASM; FOG
THA 		8-98169-680-0 02 1 1102- ● ●
39 02.727 UNIT; FOG LAMP
FOG LAMP<T96> THA 		8-97333-415-0 01 1 0404-0409 ●
39 02.727 UNIT; FOG LAMP
THA 		8-97333-415-0 01 1 0404-0409 ●
39 02.727 UNIT; FOG LAMP
FOG LAMP<T96> THA 		8-97333-415-0 01 1 0410-0609 ● ●
39 02.727 UNIT; FOG LAMP
THA 		8-97333-415-0 01 1 0410-0609 ● ●
39 02.727 UNIT; FOG LAMP
FOG LAMP<T96> THA 		8-97333-415-0 01 1 0610-0709 ● ● ●
39 02.727 UNIT; FOG LAMP
THA 		8-97333-415-0 01 1 0610-0709 ● ●
39 02.727 UNIT; FOG LAMP
FOG LAMP<T96> THA 		8-97333-414-0 01 1 0404-0409 ●
39 02.727 UNIT; FOG LAMP
THA 		8-97333-414-0 01 1 0404-0409 ●
39 02.727 UNIT; FOG LAMP
FOG LAMP<T96> THA 		8-97333-414-0 01 1 0410-0609 ● ●
39 02.727 UNIT; FOG LAMP
THA 		8-97333-414-0 01 1 0410-0609 ● ●
39 02.727 UNIT; FOG LAMP
FOG LAMP<T96> THA 		8-97333-414-0 01 1 0610-0709 ● ● ●
39 02.727 UNIT; FOG LAMP
THA 		8-97333-414-0 01 1 0610-0709 ● ●
44 02.737 NUT; FOG LAMP
FOG LAMP<T96> 01.062 M6 FLANGE THA 		0-91180-106-0 04 1 0404-0409 ●
44 02.737 NUT; FOG LAMP
01.062 M6 FLANGE THA 		0-91180-106-0 04 1 0404-0409 ●
44 02.737 NUT; FOG LAMP
FOG LAMP<T96> 01.062 M6 FLANGE THA 		0-91180-106-0 04 1 0410-0609 ● ●
44 02.737 NUT; FOG LAMP
01.062 M6 FLANGE THA 		0-91180-106-0 04 1 0410-0609 ● ●
44 02.737 NUT; FOG LAMP
FOG LAMP<T96> 08.915 M6 FLANGE 		8-98055-704-0 04 1 0610- ● ● ●
44 02.737 NUT; FOG LAMP
08.915 M6 FLANGE 		8-98055-704-0 04 1 0610- ● ●
60 02.585 LAMP ASM; FRT COMB
THA 		8-97378-704-0 01 1 0404-0509 ● ● ● ● ●
60 02.585 LAMP ASM; FRT COMB
THA 		8-98009-410-0 01 1 0510-0609 ● ● ● ● ●
60 02.585 LAMP ASM; FRT COMB
THA 		8-98024-675-0 01 1 0610-0709 ● ● ● ● ●
60 02.585 LAMP ASM; FRT COMB
THA 		8-97378-703-0 01 1 0404-0509 ● ● ● ● ●
60 02.585 LAMP ASM; FRT COMB
THA 		8-98009-409-0 01 1 0510-0609 ● ● ● ● ●
60 02.585 LAMP ASM; FRT COMB
THA 		8-98024-674-0 01 1 0610-0709 ● ● ● ● ●
67 02.590 GASKET; FRT COMB LAMP
THA 		8-97378-481-0 01 1 0404-0709 ● ● ● ● ●
67 02.590 GASKET; FRT COMB LAMP
THA 		8-97378-480-0 01 1 0404-0709 ● ● ● ● ●
68 08.991 BULB; FRT COMB LAMP
(B) 12V 5W 		5-82194-006-0 02 1 0404-0709 ● ● ● ● ●
68 08.991 BULB; FRT COMB LAMP
(A) 12V 21W THA 		8-97179-967-0 02 1 0404-0709 ● ● ● ● ●
91 08.991 BULB; SIDE TURN SIGNAL
12V 5W THA 		8-97310-952-0 02 1 0404-0508 ● ● ● ● ●
91 08.991 BULB; SIDE TURN SIGNAL
EXC. DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9>,DOOR MIR ELEC DUAL FOLDING CHROME TURN SIGNAL<8JH> 12V 5W THA 		8-97310-952-0 02 1 0509-0510 ● ●
91 08.991 BULB; SIDE TURN SIGNAL
12V 5W THA 		8-97310-952-0 02 1 0509-0510 ●
91 08.991 BULB; SIDE TURN SIGNAL
EXC. DOOR MIRROR REMOTE CONT ELECTRIC, TURN SIGNAL<DDD>,DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9>,DOOR MIR ELEC DUAL FOLDING CHROME TURN SIGNAL<8JH> 12V 5W THA 		8-97310-952-0 02 1 0511-0609 ● ●
91 08.991 BULB; SIDE TURN SIGNAL
12V 5W THA 		8-97310-952-0 02 1 0511-0609 ●
91 08.991 BULB; SIDE TURN SIGNAL
EXC. DOOR MIRROR REMOTE CONT ELECTRIC, TURN SIGNAL<DDD>,DOOR MIR ELEC DUAL FOLDING CHROME TURN SIGNAL<8JH> 12V 5W THA 		8-97310-952-0 02 1 0511-0609 ● ●
91 08.991 BULB; SIDE TURN SIGNAL
EXC. DOOR MIRROR REMOTE CONT ELECTRIC, TURN SIGNAL<DDD>,DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9>,DOOR MIR ELEC DUAL FOLDING CHROME TURN SIGNAL<8JH> 12V 5W THA 		8-97310-952-0 02 1 0610-0709 ● ● ● ●
91 08.991 BULB; SIDE TURN SIGNAL
12V 5W THA 		8-97310-952-0 02 1 0610-0709 ●
91 08.991 BULB; SIDE TURN SIGNAL
EXC. DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9>,DOOR MIR ELEC DUAL FOLDING CHROME TURN SIGNAL<8JH> 12V 5W THA 		8-97310-952-0 02 1 0710- ● ●
91 08.991 BULB; SIDE TURN SIGNAL
12V 5W THA 		8-97310-952-0 02 1 0710- ●
97 02.895 LAMP UNIT; COMB
THA 		8-97376-761-0 01 1 0404-0609 ● ● ● ● ●
97 02.895 LAMP UNIT; COMB
THA 		8-98048-092-0 01 1 0610-0709 ● ● ● ● ●
97 02.895 LAMP UNIT; COMB
THA 		8-97376-760-0 01 1 0404-0609 ● ● ● ● ●
97 02.895 LAMP UNIT; COMB
THA 		8-98048-091-0 01 1 0610-0709 ● ● ● ● ●
99 02.585 LAMP; SIDE FLASHER
THA 		8-97237-378-1 02 1 0404-0508 ● ● ● ● ●
99 02.585 LAMP; SIDE FLASHER
EXC. DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9>,DOOR MIR ELEC DUAL FOLDING CHROME TURN SIGNAL<8JH> THA 		8-97237-378-1 02 1 0509-0510 ● ●
99 02.585 LAMP; SIDE FLASHER
THA 		8-97237-378-1 02 1 0509-0510 ●
99 02.585 LAMP; SIDE FLASHER
EXC. DOOR MIRROR REMOTE CONT ELECTRIC, TURN SIGNAL<DDD>,DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9>,DOOR MIR ELEC DUAL FOLDING CHROME TURN SIGNAL<8JH> THA 		8-97237-378-1 02 1 0511-0609 ● ●
99 02.585 LAMP; SIDE FLASHER
THA 		8-97237-378-1 02 1 0511-0609 ●
99 02.585 LAMP; SIDE FLASHER
EXC. DOOR MIRROR REMOTE CONT ELECTRIC, TURN SIGNAL<DDD>,DOOR MIR ELEC DUAL FOLDING CHROME TURN SIGNAL<8JH> THA 		8-97237-378-1 02 1 0511-0609 ● ●
99 02.585 LAMP; SIDE FLASHER
EXC. DOOR MIRROR REMOTE CONT ELECTRIC, TURN SIGNAL<DDD>,DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9>,DOOR MIR ELEC DUAL FOLDING CHROME TURN SIGNAL<8JH> THA 		8-97237-378-1 02 1 0610-0709 ● ● ● ●
99 02.585 LAMP; SIDE FLASHER
THA 		8-97237-378-1 02 1 0610-0709 ●
99 02.585 LAMP; SIDE FLASHER
EXC. DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9>,DOOR MIR ELEC DUAL FOLDING CHROME TURN SIGNAL<8JH> THA 		8-97237-378-1 02 1 0710- ● ●
99 02.585 LAMP; SIDE FLASHER
THA 		8-97237-378-1 02 1 0710- ●
106 02.590 GASKET; SIDE TURN SIGNAL
THA 		8-97333-420-0 02 1 0404-0508 ● ● ● ● ●
106 02.590 GASKET; SIDE TURN SIGNAL
EXC. DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9>,DOOR MIR ELEC DUAL FOLDING CHROME TURN SIGNAL<8JH> THA 		8-97333-420-0 02 1 0509-0510 ● ●
106 02.590 GASKET; SIDE TURN SIGNAL
THA 		8-97333-420-0 02 1 0509-0510 ●
106 02.590 GASKET; SIDE TURN SIGNAL
EXC. DOOR MIRROR REMOTE CONT ELECTRIC, TURN SIGNAL<DDD>,DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9>,DOOR MIR ELEC DUAL FOLDING CHROME TURN SIGNAL<8JH> THA 		8-97333-420-0 02 1 0511-0609 ● ●
106 02.590 GASKET; SIDE TURN SIGNAL
THA 		8-97333-420-0 02 1 0511-0609 ●
106 02.590 GASKET; SIDE TURN SIGNAL
EXC. DOOR MIRROR REMOTE CONT ELECTRIC, TURN SIGNAL<DDD>,DOOR MIR ELEC DUAL FOLDING CHROME TURN SIGNAL<8JH> THA 		8-97333-420-0 02 1 0511-0609 ● ●
106 02.590 GASKET; SIDE TURN SIGNAL
EXC. DOOR MIRROR REMOTE CONT ELECTRIC, TURN SIGNAL<DDD>,DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9>,DOOR MIR ELEC DUAL FOLDING CHROME TURN SIGNAL<8JH> THA 		8-97333-420-0 02 1 0610-0709 ● ● ● ●
106 02.590 GASKET; SIDE TURN SIGNAL
THA 		8-97333-420-0 02 1 0610-0709 ●
106 02.590 GASKET; SIDE TURN SIGNAL
EXC. DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9>,DOOR MIR ELEC DUAL FOLDING CHROME TURN SIGNAL<8JH> THA 		8-97333-420-0 02 1 0710- ● ●
106 02.590 GASKET; SIDE TURN SIGNAL
THA 		8-97333-420-0 02 1 0710- ●
203 02.726 FASTENER; HEADLAMP
THA 		8-94382-231-0 04 1 0404-0709 ● ● ● ● ●
211 02.728 TUBE; HEADLAMP
FOG LAMP<T96> 02.722 THA 		8-94451-175-0 02 1 0404-0409 ●
211 02.728 TUBE; HEADLAMP
02.722 THA 		8-94451-175-0 02 1 0404-0409 ●
211 02.728 TUBE; HEADLAMP
FOG LAMP<T96> 02.722 THA 		8-94451-175-0 02 1 0410-0609 ● ●
211 02.728 TUBE; HEADLAMP
02.722 THA 		8-94451-175-0 02 1 0410-0609 ● ●
211 02.728 TUBE; HEADLAMP
FOG LAMP<T96> 02.722 THA 		8-94451-175-0 02 1 0610-0709 ● ● ●
211 02.728 TUBE; HEADLAMP
02.722 THA 		8-94451-175-0 02 1 0610-0709 ● ●
224 02.575 SOCKET; SIDE FLASHER LAMP
THA 		8-97310-953-0 02 1 0404-0508 ● ● ● ● ●
224 02.575 SOCKET; SIDE FLASHER LAMP
EXC. DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9>,DOOR MIR ELEC DUAL FOLDING CHROME TURN SIGNAL<8JH> THA 		8-97310-953-0 02 1 0509-0510 ● ●
224 02.575 SOCKET; SIDE FLASHER LAMP
THA 		8-97310-953-0 02 1 0509-0510 ●
224 02.575 SOCKET; SIDE FLASHER LAMP
EXC. DOOR MIRROR REMOTE CONT ELECTRIC, TURN SIGNAL<DDD>,DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9>,DOOR MIR ELEC DUAL FOLDING CHROME TURN SIGNAL<8JH> THA 		8-97310-953-0 02 1 0511-0609 ● ●
224 02.575 SOCKET; SIDE FLASHER LAMP
THA 		8-97310-953-0 02 1 0511-0609 ●
224 02.575 SOCKET; SIDE FLASHER LAMP
EXC. DOOR MIRROR REMOTE CONT ELECTRIC, TURN SIGNAL<DDD>,DOOR MIR ELEC DUAL FOLDING CHROME TURN SIGNAL<8JH> THA 		8-97310-953-0 02 1 0511-0609 ● ●
224 02.575 SOCKET; SIDE FLASHER LAMP
EXC. DOOR MIRROR REMOTE CONT ELECTRIC, TURN SIGNAL<DDD>,DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9>,DOOR MIR ELEC DUAL FOLDING CHROME TURN SIGNAL<8JH> THA 		8-97310-953-0 02 1 0610-0709 ● ● ● ●
224 02.575 SOCKET; SIDE FLASHER LAMP
THA 		8-97310-953-0 02 1 0610-0709 ●
224 02.575 SOCKET; SIDE FLASHER LAMP
EXC. DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9>,DOOR MIR ELEC DUAL FOLDING CHROME TURN SIGNAL<8JH> THA 		8-97310-953-0 02 1 0710- ● ●
224 02.575 SOCKET; SIDE FLASHER LAMP
THA 		8-97310-953-0 02 1 0710- ●
315 02.596 HARNESS; FRT COMB LAMP
THA 		8-97376-764-0 02 1 0404-0709 ● ● ● ● ●
328 02.725 COVER; LAMP
FOG LAMP<T96> THA 		8-97333-417-0 02 1 0404-0409 ●
328 02.725 COVER; LAMP
THA 		8-97333-417-0 02 1 0404-0409 ●
328 02.725 COVER; LAMP
FOG LAMP<T96> THA 		8-97333-417-0 02 1 0410-0609 ● ●
328 02.725 COVER; LAMP
THA 		8-97333-417-0 02 1 0410-0609 ● ●
328 02.725 COVER; LAMP
FOG LAMP<T96> THA 		8-97333-417-0 02 1 0610-0709 ● ● ●
328 02.725 COVER; LAMP
THA 		8-97333-417-0 02 1 0610-0709 ● ●
408 02.727 CAP; BREATHER,HEADLAMP
THA 		8-97289-148-0 04 1 0404-0709 ● ● ● ● ●
408 02.727 CAP; BREATHER,HEADLAMP
THA 		8-97378-874-0 04 1 0710- ● ● ● ● ●
409 02.727 CAP; BREATHER,SIDE COMB LAMP
THA 		8-97289-148-0 02 1 0404-0709 ● ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
