◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 50982 - TFR/S(CHEVROLET)THAI ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-60 - SEAT BELT ▶

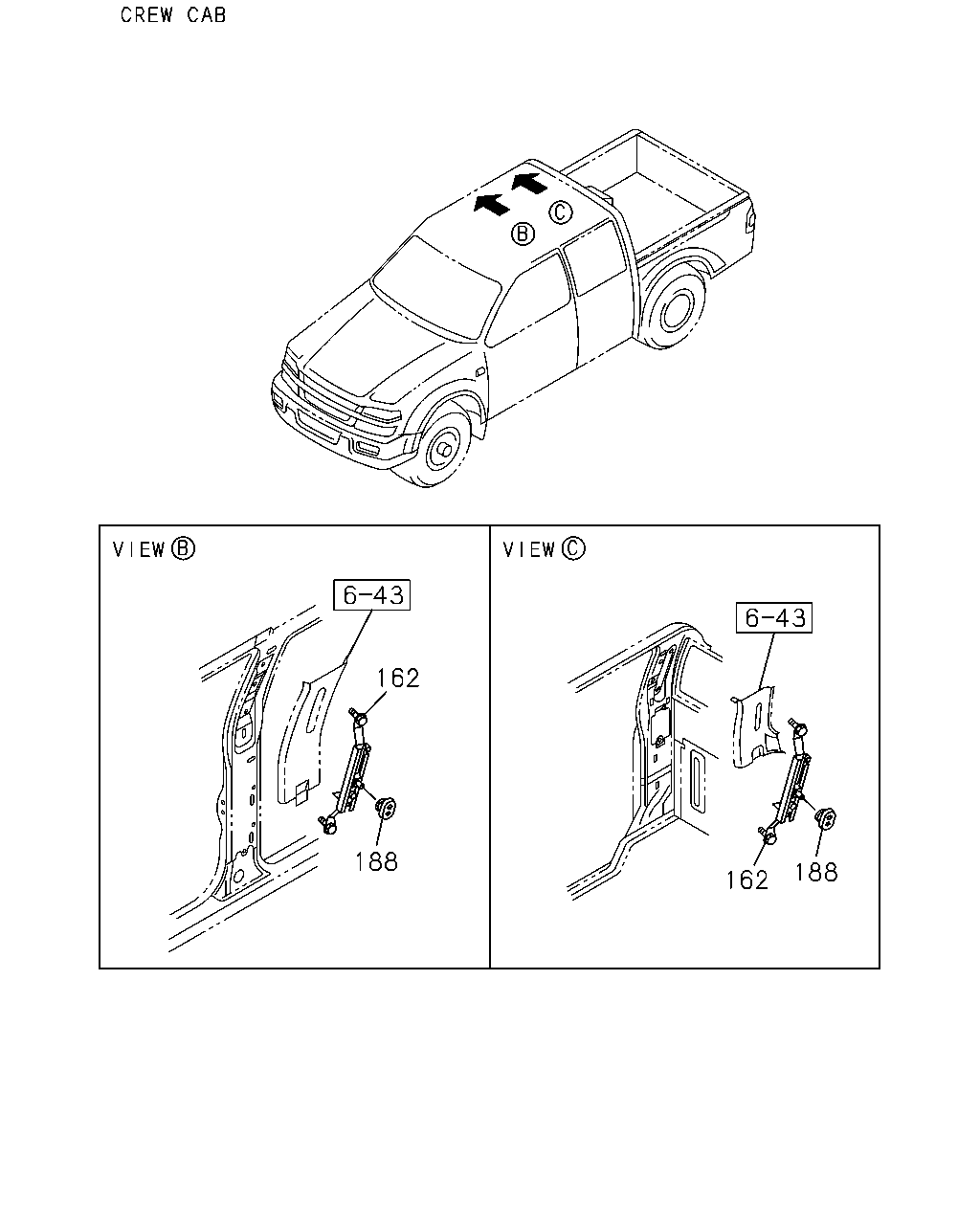

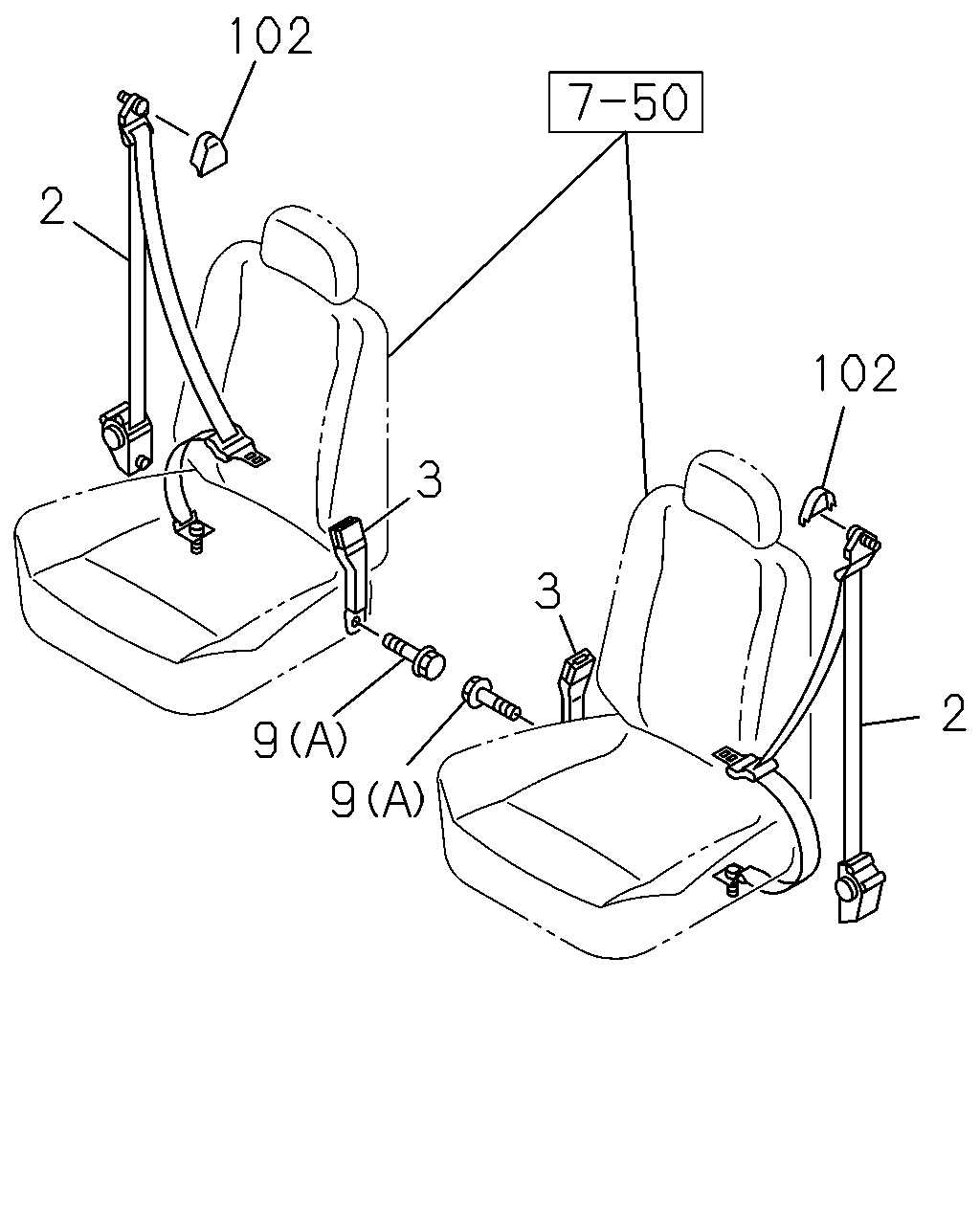

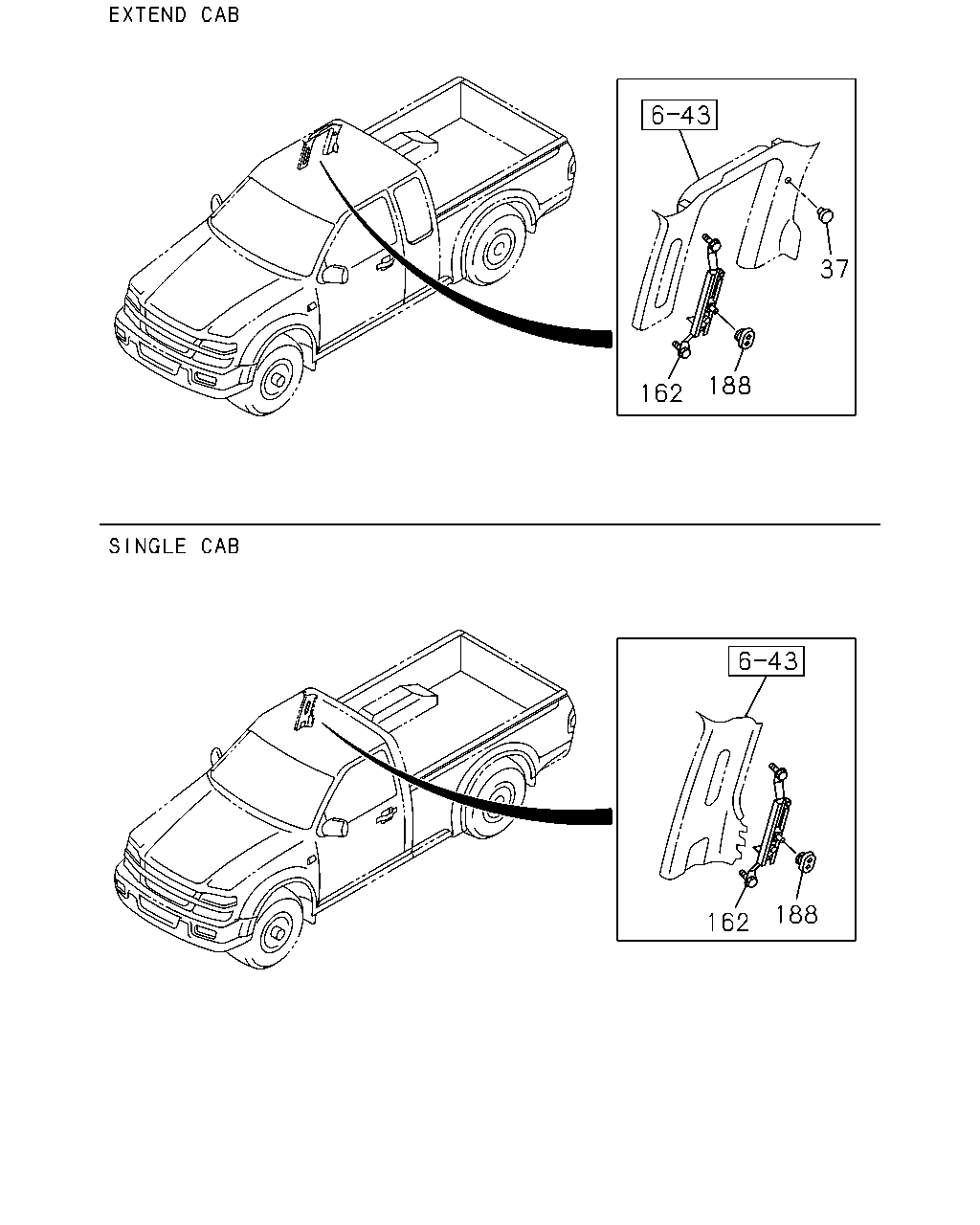

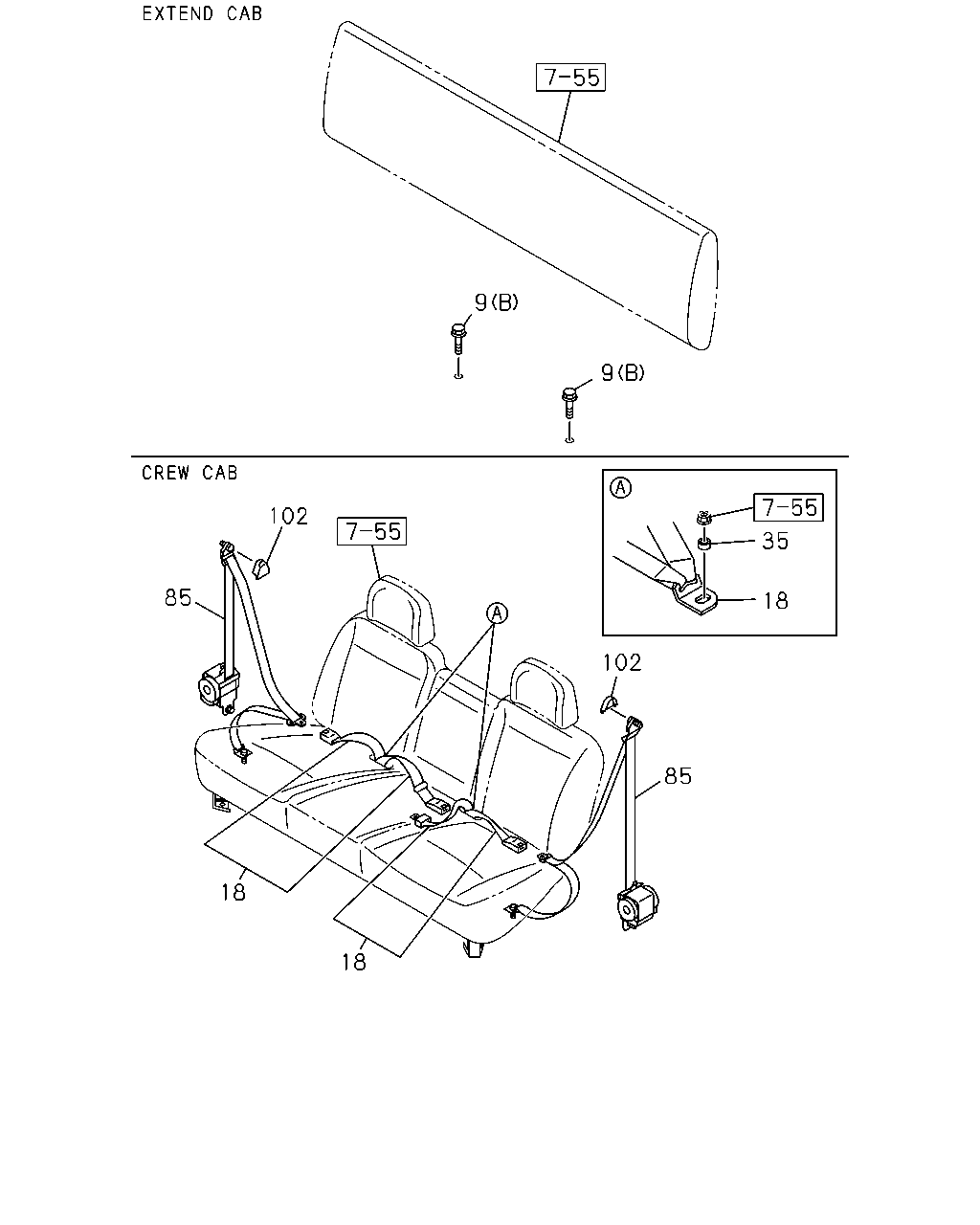

7-60 — SEAT BELT (#73688) — 124 parça

9 9 102 35 85 18 102 85 18 18

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
9	16.714 BOLT; SEAT BELT ANCHOR FRONT SEAT BUCKET TYPE<A50> CLOTH SEAT MOQUETTE<8EP> (A) THA	8-97332-665-0	01	1	0404-0404	●	●
9	16.714 BOLT; SEAT BELT ANCHOR FRONT SEAT BUCKET TYPE<A50> CLOTH SEAT MOQUETTE<8EP> (A) THA	8-97332-665-0	01	1	0404-0404	●	●
9	16.714 BOLT; SEAT BELT ANCHOR (A) THA	8-97332-665-0	01	1	0404-0404			●	●
9	16.714 BOLT; SEAT BELT ANCHOR (A) THA	8-97332-665-0	01	1	0404-0404			●	●
9	16.714 BOLT; SEAT BELT ANCHOR FRONT SEAT BUCKET TYPE<A50> CLOTH SEAT MOQUETTE<8EP> (A) THA	8-97332-665-0	01	1	0405-0409	●	●
9	16.714 BOLT; SEAT BELT ANCHOR FRONT SEAT BUCKET TYPE<A50> CLOTH SEAT MOQUETTE<8EP> (A) THA	8-97332-665-0	01	1	0405-0409	●	●
9	16.714 BOLT; SEAT BELT ANCHOR FRONT SEAT BUCKET TYPE<A50> SEAT CLOTH<7FL> (A) THA	8-97332-665-0	01	1	0405-0409					●
9	16.714 BOLT; SEAT BELT ANCHOR FRONT SEAT BUCKET TYPE<A50> SEAT CLOTH<7FL> (A) THA	8-97332-665-0	01	1	0405-0409					●
9	16.714 BOLT; SEAT BELT ANCHOR (A) THA	8-97332-665-0	01	1	0405-0409			●	●
9	16.714 BOLT; SEAT BELT ANCHOR (A) THA	8-97332-665-0	01	1	0405-0409			●	●
9	16.714 BOLT; SEAT BELT ANCHOR FRONT SEAT BUCKET TYPE<A50> SEAT CLOTH<7FL> (A) THA	8-97332-665-0	01	1	0410-0508	●	●
9	16.714 BOLT; SEAT BELT ANCHOR FRONT SEAT BUCKET TYPE<A50> SEAT CLOTH<7FL> (A) THA	8-97332-665-0	01	1	0410-0508	●	●
9	16.714 BOLT; SEAT BELT ANCHOR FRONT SEAT BACK POCKET<E91> SEAT CLOTH<7FL> (A) THA	8-97332-665-0	01	1	0509-0609	●	●
9	16.714 BOLT; SEAT BELT ANCHOR FRONT SEAT BACK POCKET<E91> SEAT CLOTH<7FL> (A) THA	8-97332-665-0	01	1	0509-0609	●	●
9	16.714 BOLT; SEAT BELT ANCHOR CLOTH TRIM STANDARD, VAR 2<8LL> FRONT SEAT BACK POCKET<E91> (A) THA	8-97332-665-0	01	1	0610-	●	●
9	16.714 BOLT; SEAT BELT ANCHOR CLOTH TRIM STANDARD, VAR 2<8LL> FRONT SEAT BACK POCKET<E91> (A) THA	8-97332-665-0	01	1	0610-	●	●
9	16.714 BOLT; SEAT BELT ANCHOR FRONT SEAT BUCKET TYPE<A50> FRONT SEAT BACK POCKET<E91> CLOTH SEAT MOQUETTE<8EP> (A) THA	8-98003-878-0	02	1	0410-0609	●	●	●	●
9	16.714 BOLT; SEAT BELT ANCHOR (B) THA	8-97248-987-0	02	1	0404-0609	●		●
9	16.714 BOLT; SEAT BELT ANCHOR 16.682 (B) M12X27.5 W/PL WASHER THA	8-98050-319-0	02	1	0610-	●		●
9	16.714 BOLT; SEAT BELT ANCHOR FRONT SEAT BUCKET TYPE<A50> VINYL SEAT W/RECLINING<A83>,SEAT CLOTH<7FL> (A) THA	8-97332-665-0	02	1	0404-0404					●
9	16.714 BOLT; SEAT BELT ANCHOR FRONT SEAT BUCKET TYPE<A50> VINYL SEAT W/RECLINING<A83> EXC. FRONT SEAT BACK POCKET<E91> (A) THA	8-97332-665-0	02	1	0405-0409					●
9	16.714 BOLT; SEAT BELT ANCHOR (A) THA	8-97332-665-0	02	1	0410-					●
9	16.714 BOLT; SEAT BELT ANCHOR CLOTH TRIM STANDARD, VAR 2<8LL>,CLOTH TRIM SUPER DELUXE, VAR 2<8LN> FRONT SEAT BACK POCKET<E91> (A) THA	8-98003-878-0	02	1	0610-	●		●
9	16.714 BOLT; SEAT BELT ANCHOR (A) THA	8-98003-878-0	02	1	0610-		●		●
9	16.714 BOLT; SEAT BELT ANCHOR (B) THA	8-97248-987-0	01	1	0404-0609		●		●
9	16.714 BOLT; SEAT BELT ANCHOR 16.682 (B) M12X27.5 W/PL WASHER THA	8-98050-319-0	01	1	0610-		●		●
18	16.714 BELT; SEAT,RR CLOTH SEAT MOQUETTE<8EP> DARK GRAY THA	8-97398-473-0	01	1	0404-0409		●
18	16.714 BELT; SEAT,RR DARK GRAY THA	8-97398-473-0	01	1	0404-0409				●
18	16.714 BELT; SEAT,RR SEAT CLOTH<7FL>,CLOTH SEAT MOQUETTE<8EP> DARK GRAY THA	8-97398-473-0	01	1	0410-0508		●
18	16.714 BELT; SEAT,RR DARK GRAY THA	8-97398-473-0	01	1	0410-0508				●
18	16.714 BELT; SEAT,RR SEAT CLOTH<7FL> DARK GRAY THA	8-97398-473-0	01	1	0509-0609		●
18	16.714 BELT; SEAT,RR CLOTH SEAT MOQUETTE<8EP> DARK GRAY THA	8-97399-706-0	01	1	0404-0409		●
18	16.714 BELT; SEAT,RR DARK GRAY THA	8-97399-706-0	01	1	0404-0409				●
18	16.714 BELT; SEAT,RR SEAT CLOTH<7FL>,CLOTH SEAT MOQUETTE<8EP> DARK GRAY THA	8-97399-706-0	01	1	0410-0609		●
18	16.714 BELT; SEAT,RR DARK GRAY THA	8-97399-706-0	01	1	0410-0609				●
18	16.714 BELT; SEAT,RR CLOTH SEAT MOQUETTE<8EP> DARK GRAY THA	8-97398-483-0	01	1	0509-0609		●
18	16.714 BELT; SEAT,RR DARK GRAY THA	8-97398-483-0	01	1	0509-0609				●
18	16.714 BELT; SEAT,RR CLOTH TRIM STANDARD, VAR 2<8LL>,CLOTH TRIM SUPER DELUXE, VAR 2<8LN> DARK GRAY THA	8-97398-483-0	01	1	0610-		●
18	16.714 BELT; SEAT,RR DARK GRAY THA	8-97398-483-0	01	1	0610-				●
18	16.714 BELT; SEAT,RR CLOTH TRIM STANDARD, VAR 2<8LL>,CLOTH TRIM SUPER DELUXE, VAR 2<8LN> DARK GRAY THA	8-97399-706-0	01	1	0610-		●
18	16.714 BELT; SEAT,RR DARK GRAY THA	8-97399-706-0	01	1	0610-				●
35	16.714 GROMMET; SEAT BELT ANCHOR CLOTH SEAT MOQUETTE<8EP> THA	8-98024-150-0	01	1	0509-0609		●
35	16.714 GROMMET; SEAT BELT ANCHOR THA	8-98024-150-0	01	1	0509-0609				●
35	16.714 GROMMET; SEAT BELT ANCHOR CLOTH SEAT MOQUETTE<8EP> THA	8-98024-151-0	01	1	0509-0609		●
35	16.714 GROMMET; SEAT BELT ANCHOR THA	8-98024-151-0	01	1	0509-0609				●
85	16.714 BELT; SEAT,RR OUTER DARK GRAY THA	8-97399-429-1	02	1	0404-0809		●		●
85	16.714 BELT; SEAT,RR OUTER DARK GRAY THA	8-97413-188-0	02	1	0810-0811		●		●
85	16.714 BELT; SEAT,RR OUTER DARK GRAY THA	8-97417-029-0	02	1	0812-1303		●		●
85	16.714 BELT; SEAT,RR OUTER DARK GRAY	8-97424-016-0	02	1	1304-		●		●
102	16.714 COVER; SHOULDER ANCHOR DARK GRAY THA	8-97399-430-0	02	1	0404-1010	●	●	●	●	●
102	16.714 COVER; SHOULDER ANCHOR DARK GRAY THA	8-97399-430-0	02	1	0404-1010		●		●
102	16.714 COVER; SHOULDER ANCHOR BLACK THA	8-97418-427-0	02	1	1011-	●	●	●	●	●
102	16.714 COVER; SHOULDER ANCHOR BLACK THA	8-97418-427-0	02	1	1011-		●		●

162 188 188 162

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
162	16.714 ADJUSTER; SEAT BELT THA	8-97232-956-0	02	1	0404-	●	●	●	●	●
162	16.714 ADJUSTER; SEAT BELT THA	8-97232-956-0	02	1	0404-		●		●
188	16.714 KNOB; LEVER DARK GRAY THA	8-97396-607-0	02	1	0404-0609	●	●	●	●	●
188	16.714 KNOB; LEVER DARK GRAY THA	8-97396-607-0	02	1	0404-0609		●		●
188	16.714 KNOB; LEVER GRAY THA	8-97403-339-0	02	1	0610-	●	●	●	●	●
188	16.714 KNOB; LEVER GRAY THA	8-97403-339-0	02	1	0610-		●		●

37 188 162 188 162

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
37	16.714 PLUG; SEAT BELT ANCHOR GRAY THA	8-97399-695-0	02	1	0404-0609	●		●
37	16.714 PLUG; SEAT BELT ANCHOR GRAY THA	8-97403-354-0	02	1	0610-	●		●
162	16.714 ADJUSTER; SEAT BELT THA	8-97232-956-0	02	1	0404-	●	●	●	●	●
162	16.714 ADJUSTER; SEAT BELT THA	8-97232-956-0	02	1	0404-		●		●
188	16.714 KNOB; LEVER DARK GRAY THA	8-97396-607-0	02	1	0404-0609	●	●	●	●	●
188	16.714 KNOB; LEVER DARK GRAY THA	8-97396-607-0	02	1	0404-0609		●		●
188	16.714 KNOB; LEVER GRAY THA	8-97403-339-0	02	1	0610-	●	●	●	●	●
188	16.714 KNOB; LEVER GRAY THA	8-97403-339-0	02	1	0610-		●		●

102 2 102 3 3 2 9 9

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
2	16.714 BELT; SEAT,TONGUE SIDE DARK GRAY THA	8-97399-428-1	01	1	0404-0609	●	●	●	●	●
2	16.714 BELT; SEAT,TONGUE SIDE DARK GRAY THA	8-97399-428-1	01	1	0404-0609	●	●	●	●	●
2	16.714 BELT; SEAT,TONGUE SIDE PASSENGER SIDE DARK GRAY THA	8-97399-428-1	01	1	0610-0809	●	●	●	●	●
2	16.714 BELT; SEAT,TONGUE SIDE PASSENGER SIDE DARK GRAY THA	8-97413-192-0	01	1	0810-0811	●	●	●	●	●
2	16.714 BELT; SEAT,TONGUE SIDE PASSENGER SIDE DARK GRAY THA	8-97417-019-0	01	1	0812-1303	●	●	●	●	●
2	16.714 BELT; SEAT,TONGUE SIDE PASSENGER SIDE DARK GRAY	8-97424-017-0	01	1	1304-	●	●	●	●	●
2	16.714 BELT; SEAT,TONGUE SIDE DRIVER SIDE DARK GRAY THA	8-97407-880-0	01	1	0610-0802	●	●	●	●	●
2	16.714 BELT; SEAT,TONGUE SIDE DRIVER SIDE DARK GRAY THA	8-97415-656-0	01	1	0803-0809	●	●	●	●	●
2	16.714 BELT; SEAT,TONGUE SIDE DRIVER SIDE DARK GRAY THA	8-97413-174-0	01	1	0810-0811	●	●	●	●	●
2	16.714 BELT; SEAT,TONGUE SIDE DRIVER SIDE DARK GRAY THA	8-97417-015-0	01	1	0812-1303	●	●	●	●	●
2	16.714 BELT; SEAT,TONGUE SIDE DRIVER SIDE DARK GRAY	8-97424-018-0	01	1	1304-	●	●	●	●	●
3	16.714 BELT; SEAT,BUCKLE SIDE FRONT SEAT BUCKET TYPE<A50> DARK GRAY THA	8-97398-477-0	01	1	0404-0409	●	●			●
3	16.714 BELT; SEAT,BUCKLE SIDE DARK GRAY THA	8-97398-477-0	01	1	0404-0409			●	●
3	16.714 BELT; SEAT,BUCKLE SIDE FRONT SEAT BUCKET TYPE<A50> FRONT SEAT BACK POCKET<E91> SEAT CLOTH<7FL>,CLOTH SEAT MOQUETTE<8EP> DARK GRAY THA	8-97398-477-0	01	1	0410-0508	●	●
3	16.714 BELT; SEAT,BUCKLE SIDE DARK GRAY THA	8-97398-477-0	01	1	0410-0508			●	●	●
3	16.714 BELT; SEAT,BUCKLE SIDE FRONT SEAT BACK POCKET<E91> SEAT CLOTH<7FL>,CLOTH SEAT MOQUETTE<8EP> DARK GRAY THA	8-97398-477-0	01	1	0509-0609	●	●
3	16.714 BELT; SEAT,BUCKLE SIDE DARK GRAY THA	8-97398-477-0	01	1	0509-0609			●	●	●
3	16.714 BELT; SEAT,BUCKLE SIDE FRONT SEAT BUCKET TYPE<A50> DARK GRAY THA	8-97398-481-1	01	1	0404-0409	●	●			●
3	16.714 BELT; SEAT,BUCKLE SIDE DARK GRAY THA	8-97398-481-1	01	1	0404-0409			●	●
3	16.714 BELT; SEAT,BUCKLE SIDE FRONT SEAT BUCKET TYPE<A50> FRONT SEAT BACK POCKET<E91> SEAT CLOTH<7FL>,CLOTH SEAT MOQUETTE<8EP> DARK GRAY THA	8-97398-481-1	01	1	0410-0508	●	●
3	16.714 BELT; SEAT,BUCKLE SIDE DARK GRAY THA	8-97398-481-1	01	1	0410-0508			●	●	●
3	16.714 BELT; SEAT,BUCKLE SIDE FRONT SEAT BACK POCKET<E91> SEAT CLOTH<7FL>,CLOTH SEAT MOQUETTE<8EP> DARK GRAY THA	8-97398-481-1	01	1	0509-0609	●	●
3	16.714 BELT; SEAT,BUCKLE SIDE DARK GRAY THA	8-97398-481-1	01	1	0509-0609			●	●	●
3	16.714 BELT; SEAT,BUCKLE SIDE CLOTH TRIM STANDARD, VAR 2<8LL>,CLOTH TRIM SUPER DELUXE, VAR 2<8LN> FRONT SEAT BACK POCKET<E91> DARK GRAY THA	8-97398-477-0	01	1	0610-	●	●
3	16.714 BELT; SEAT,BUCKLE SIDE DARK GRAY THA	8-97398-477-0	01	1	0610-			●	●	●
3	16.714 BELT; SEAT,BUCKLE SIDE CLOTH TRIM STANDARD, VAR 2<8LL>,CLOTH TRIM SUPER DELUXE, VAR 2<8LN> FRONT SEAT BACK POCKET<E91> DARK GRAY THA	8-97398-481-1	01	1	0610-	●	●
3	16.714 BELT; SEAT,BUCKLE SIDE DARK GRAY THA	8-97398-481-1	01	1	0610-			●	●	●
9	16.714 BOLT; SEAT BELT ANCHOR FRONT SEAT BUCKET TYPE<A50> CLOTH SEAT MOQUETTE<8EP> (A) THA	8-97332-665-0	01	1	0404-0404	●	●
9	16.714 BOLT; SEAT BELT ANCHOR FRONT SEAT BUCKET TYPE<A50> CLOTH SEAT MOQUETTE<8EP> (A) THA	8-97332-665-0	01	1	0404-0404	●	●
9	16.714 BOLT; SEAT BELT ANCHOR (A) THA	8-97332-665-0	01	1	0404-0404			●	●
9	16.714 BOLT; SEAT BELT ANCHOR (A) THA	8-97332-665-0	01	1	0404-0404			●	●
9	16.714 BOLT; SEAT BELT ANCHOR FRONT SEAT BUCKET TYPE<A50> CLOTH SEAT MOQUETTE<8EP> (A) THA	8-97332-665-0	01	1	0405-0409	●	●
9	16.714 BOLT; SEAT BELT ANCHOR FRONT SEAT BUCKET TYPE<A50> CLOTH SEAT MOQUETTE<8EP> (A) THA	8-97332-665-0	01	1	0405-0409	●	●
9	16.714 BOLT; SEAT BELT ANCHOR FRONT SEAT BUCKET TYPE<A50> SEAT CLOTH<7FL> (A) THA	8-97332-665-0	01	1	0405-0409					●
9	16.714 BOLT; SEAT BELT ANCHOR FRONT SEAT BUCKET TYPE<A50> SEAT CLOTH<7FL> (A) THA	8-97332-665-0	01	1	0405-0409					●
9	16.714 BOLT; SEAT BELT ANCHOR (A) THA	8-97332-665-0	01	1	0405-0409			●	●
9	16.714 BOLT; SEAT BELT ANCHOR (A) THA	8-97332-665-0	01	1	0405-0409			●	●
9	16.714 BOLT; SEAT BELT ANCHOR FRONT SEAT BUCKET TYPE<A50> SEAT CLOTH<7FL> (A) THA	8-97332-665-0	01	1	0410-0508	●	●
9	16.714 BOLT; SEAT BELT ANCHOR FRONT SEAT BUCKET TYPE<A50> SEAT CLOTH<7FL> (A) THA	8-97332-665-0	01	1	0410-0508	●	●
9	16.714 BOLT; SEAT BELT ANCHOR FRONT SEAT BACK POCKET<E91> SEAT CLOTH<7FL> (A) THA	8-97332-665-0	01	1	0509-0609	●	●
9	16.714 BOLT; SEAT BELT ANCHOR FRONT SEAT BACK POCKET<E91> SEAT CLOTH<7FL> (A) THA	8-97332-665-0	01	1	0509-0609	●	●
9	16.714 BOLT; SEAT BELT ANCHOR CLOTH TRIM STANDARD, VAR 2<8LL> FRONT SEAT BACK POCKET<E91> (A) THA	8-97332-665-0	01	1	0610-	●	●
9	16.714 BOLT; SEAT BELT ANCHOR CLOTH TRIM STANDARD, VAR 2<8LL> FRONT SEAT BACK POCKET<E91> (A) THA	8-97332-665-0	01	1	0610-	●	●
9	16.714 BOLT; SEAT BELT ANCHOR FRONT SEAT BUCKET TYPE<A50> FRONT SEAT BACK POCKET<E91> CLOTH SEAT MOQUETTE<8EP> (A) THA	8-98003-878-0	02	1	0410-0609	●	●	●	●
9	16.714 BOLT; SEAT BELT ANCHOR (B) THA	8-97248-987-0	02	1	0404-0609	●		●
9	16.714 BOLT; SEAT BELT ANCHOR 16.682 (B) M12X27.5 W/PL WASHER THA	8-98050-319-0	02	1	0610-	●		●
9	16.714 BOLT; SEAT BELT ANCHOR FRONT SEAT BUCKET TYPE<A50> VINYL SEAT W/RECLINING<A83>,SEAT CLOTH<7FL> (A) THA	8-97332-665-0	02	1	0404-0404					●
9	16.714 BOLT; SEAT BELT ANCHOR FRONT SEAT BUCKET TYPE<A50> VINYL SEAT W/RECLINING<A83> EXC. FRONT SEAT BACK POCKET<E91> (A) THA	8-97332-665-0	02	1	0405-0409					●
9	16.714 BOLT; SEAT BELT ANCHOR (A) THA	8-97332-665-0	02	1	0410-					●
9	16.714 BOLT; SEAT BELT ANCHOR CLOTH TRIM STANDARD, VAR 2<8LL>,CLOTH TRIM SUPER DELUXE, VAR 2<8LN> FRONT SEAT BACK POCKET<E91> (A) THA	8-98003-878-0	02	1	0610-	●		●
9	16.714 BOLT; SEAT BELT ANCHOR (A) THA	8-98003-878-0	02	1	0610-		●		●
9	16.714 BOLT; SEAT BELT ANCHOR (B) THA	8-97248-987-0	01	1	0404-0609		●		●
9	16.714 BOLT; SEAT BELT ANCHOR 16.682 (B) M12X27.5 W/PL WASHER THA	8-98050-319-0	01	1	0610-		●		●
102	16.714 COVER; SHOULDER ANCHOR DARK GRAY THA	8-97399-430-0	02	1	0404-1010	●	●	●	●	●
102	16.714 COVER; SHOULDER ANCHOR DARK GRAY THA	8-97399-430-0	02	1	0404-1010		●		●
102	16.714 COVER; SHOULDER ANCHOR BLACK THA	8-97418-427-0	02	1	1011-	●	●	●	●	●
102	16.714 COVER; SHOULDER ANCHOR BLACK THA	8-97418-427-0	02	1	1011-		●		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
