◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 50982 - TFR/S(CHEVROLET)THAI ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-55 - REAR SEAT ▶
7-55 — REAR SEAT (#73687) — 178 parça
çizim 117880
16 3 52 52 52 6 6
BalonParca AdiParca NoAdetTipApplied Date A B C D
3 16.714 COVER; TRIM,RR SEAT BACK
CLOTH SEAT MOQUETTE<8EP> THA 		8-97370-054-0 01 1 0404-0409 ●
3 16.714 COVER; TRIM,RR SEAT BACK
THA 		8-97370-054-0 01 1 0404-0409 ●
3 16.714 COVER; TRIM,RR SEAT BACK
SEAT CLOTH<7FL> GRAY 		8-97400-201-0 01 1 0410-0609 ●
3 16.714 COVER; TRIM,RR SEAT BACK
CLOTH SEAT MOQUETTE<8EP> GRAY THA 		8-97398-471-0 01 1 0404-0508 ●
3 16.714 COVER; TRIM,RR SEAT BACK
GRAY THA 		8-97398-471-0 01 1 0404-0508 ●
3 16.714 COVER; TRIM,RR SEAT BACK
CLOTH SEAT MOQUETTE<8EP> GRAY THA 		8-97404-998-0 01 1 0509-0609 ●
3 16.714 COVER; TRIM,RR SEAT BACK
GRAY THA 		8-97404-998-0 01 1 0509-0609 ●
3 16.714 COVER; TRIM,RR SEAT BACK
CLOTH TRIM STANDARD, VAR 2<8LL> LIGHT BEIGE THA 		8-97407-568-0 01 1 0610-0810 ●
3 16.714 COVER; TRIM,RR SEAT BACK
CLOTH TRIM STANDARD, VAR 2<8LL> LIGHT BEIGE THA 		8-97416-848-0 01 1 0811- ●
3 16.714 COVER; TRIM,RR SEAT BACK
CLOTH TRIM SUPER DELUXE, VAR 2<8LN> LIGHT BEIGE THA 		8-97407-567-0 01 1 0610-0810 ●
3 16.714 COVER; TRIM,RR SEAT BACK
LIGHT BEIGE THA 		8-97407-567-0 01 1 0610-0810 ●
3 16.714 COVER; TRIM,RR SEAT BACK
CLOTH TRIM SUPER DELUXE, VAR 2<8LN> LIGHT BEIGE THA 		8-97416-847-0 01 1 0811- ●
3 16.714 COVER; TRIM,RR SEAT BACK
LIGHT BEIGE THA 		8-97416-847-0 01 1 0811- ●
6 16.679 BOLT; RR SEAT
16.714 THA 		8-97248-987-0 04 1 0404-0609 ● ●
16 16.720 PAD & FRAME ASM; RR BACK SIDE
CLOTH SEAT MOQUETTE<8EP> THA 		8-97332-775-0 01 1 0404-0409 ●
16 16.720 PAD & FRAME ASM; RR BACK SIDE
THA 		8-97332-775-0 01 1 0404-0409 ●
52 16.716 BOLT; RR SEAT
16.545 (A) M6X20 W/PL WASHER 		8-97808-622-0 08 1 0404-1201 ● ●
52 16.716 BOLT; RR SEAT
(A) M6X20 W/PL WASHER THA 		8-98167-540-0 08 1 1202- ● ●
52 16.716 BOLT; RR SEAT
16.682 (B) M12X27.5 W/PL WASHER THA 		8-98050-319-0 04 1 0703- ● ●

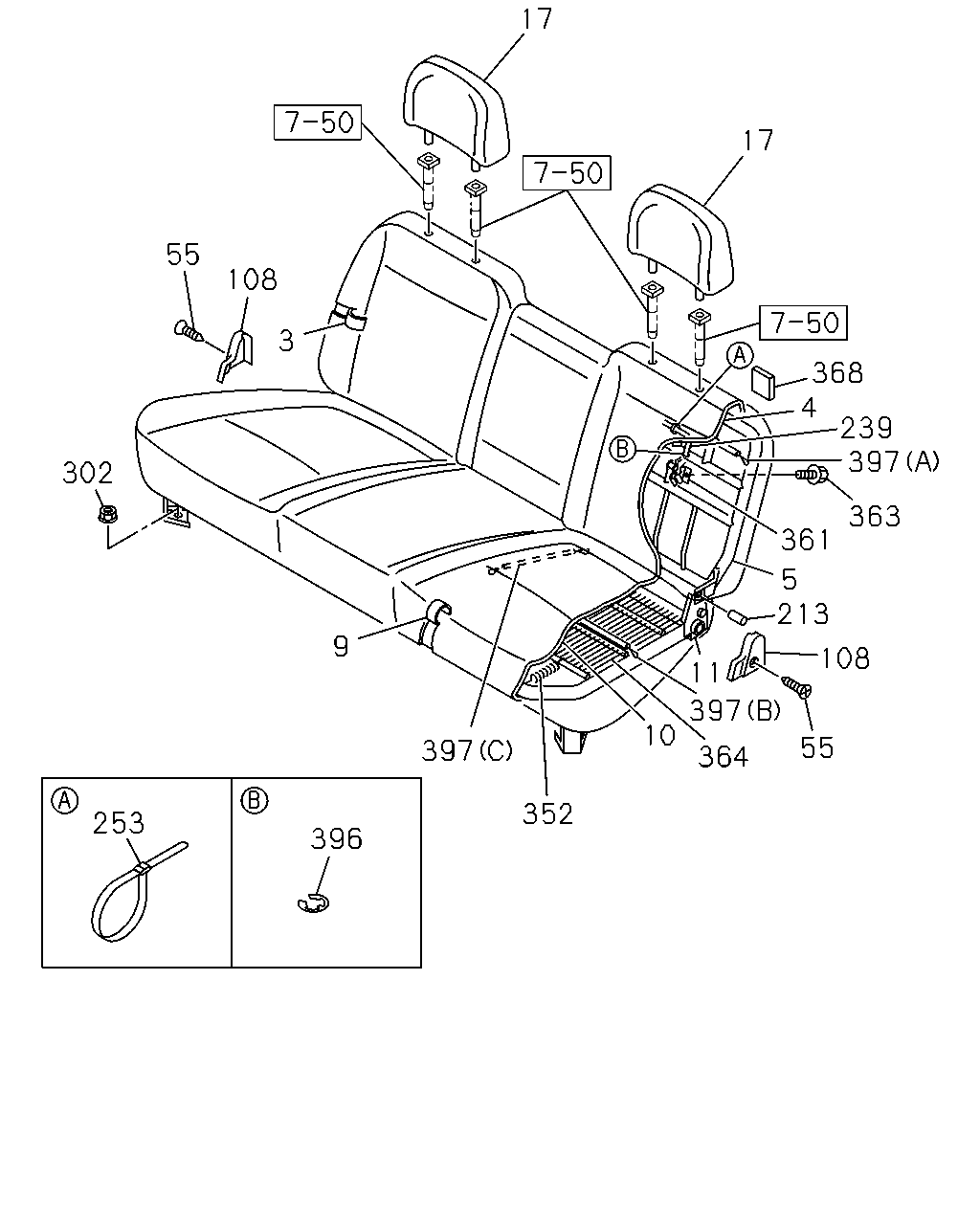

çizim 117889
17 17 55 108 3 368 4 239 397 302 363 361 5 213 9 108 11 397 10 55 397 364 352 253 396
BalonParca AdiParca NoAdetTipApplied Date A B C D
3 16.714 COVER; TRIM,RR SEAT BACK
CLOTH SEAT MOQUETTE<8EP> THA 		8-97370-054-0 01 1 0404-0409 ●
3 16.714 COVER; TRIM,RR SEAT BACK
THA 		8-97370-054-0 01 1 0404-0409 ●
3 16.714 COVER; TRIM,RR SEAT BACK
SEAT CLOTH<7FL> GRAY 		8-97400-201-0 01 1 0410-0609 ●
3 16.714 COVER; TRIM,RR SEAT BACK
CLOTH SEAT MOQUETTE<8EP> GRAY THA 		8-97398-471-0 01 1 0404-0508 ●
3 16.714 COVER; TRIM,RR SEAT BACK
GRAY THA 		8-97398-471-0 01 1 0404-0508 ●
3 16.714 COVER; TRIM,RR SEAT BACK
CLOTH SEAT MOQUETTE<8EP> GRAY THA 		8-97404-998-0 01 1 0509-0609 ●
3 16.714 COVER; TRIM,RR SEAT BACK
GRAY THA 		8-97404-998-0 01 1 0509-0609 ●
3 16.714 COVER; TRIM,RR SEAT BACK
CLOTH TRIM STANDARD, VAR 2<8LL> LIGHT BEIGE THA 		8-97407-568-0 01 1 0610-0810 ●
3 16.714 COVER; TRIM,RR SEAT BACK
CLOTH TRIM STANDARD, VAR 2<8LL> LIGHT BEIGE THA 		8-97416-848-0 01 1 0811- ●
3 16.714 COVER; TRIM,RR SEAT BACK
CLOTH TRIM SUPER DELUXE, VAR 2<8LN> LIGHT BEIGE THA 		8-97407-567-0 01 1 0610-0810 ●
3 16.714 COVER; TRIM,RR SEAT BACK
LIGHT BEIGE THA 		8-97407-567-0 01 1 0610-0810 ●
3 16.714 COVER; TRIM,RR SEAT BACK
CLOTH TRIM SUPER DELUXE, VAR 2<8LN> LIGHT BEIGE THA 		8-97416-847-0 01 1 0811- ●
3 16.714 COVER; TRIM,RR SEAT BACK
LIGHT BEIGE THA 		8-97416-847-0 01 1 0811- ●
4 16.720 PAD; RR,SEAT BACK
CLOTH SEAT MOQUETTE<8EP> THA 		8-97332-784-0 01 1 0404-0409 ●
4 16.720 PAD; RR,SEAT BACK
THA 		8-97332-784-0 01 1 0404-0409 ●
4 16.720 PAD; RR,SEAT BACK
SEAT CLOTH<7FL>,CLOTH SEAT MOQUETTE<8EP> THA 		8-97332-784-0 01 1 0410-0508 ●
4 16.720 PAD; RR,SEAT BACK
THA 		8-97332-784-0 01 1 0410-0508 ●
4 16.720 PAD; RR,SEAT BACK
SEAT CLOTH<7FL> THA 		8-97332-784-0 01 1 0509-0609 ●
4 16.720 PAD; RR,SEAT BACK
CLOTH SEAT MOQUETTE<8EP> THA 		8-97388-602-0 01 1 0509-0609 ●
4 16.720 PAD; RR,SEAT BACK
THA 		8-97388-602-0 01 1 0509-0609 ●
4 16.720 PAD; RR,SEAT BACK
CLOTH TRIM STANDARD, VAR 2<8LL>,CLOTH TRIM SUPER DELUXE, VAR 2<8LN> THA 		8-98028-774-0 01 1 0610- ●
4 16.720 PAD; RR,SEAT BACK
THA 		8-98028-774-0 01 1 0610- ●
5 16.720 FRAME ASM; RR SEAT BACK
CLOTH SEAT MOQUETTE<8EP> THA 		8-97332-834-1 01 1 0404-0409 ●
5 16.720 FRAME ASM; RR SEAT BACK
THA 		8-97332-834-1 01 1 0404-0409 ●
5 16.720 FRAME ASM; RR SEAT BACK
SEAT CLOTH<7FL>,CLOTH SEAT MOQUETTE<8EP> THA 		8-97332-834-1 01 1 0410-0508 ●
5 16.720 FRAME ASM; RR SEAT BACK
THA 		8-97332-834-1 01 1 0410-0508 ●
5 16.720 FRAME ASM; RR SEAT BACK
SEAT CLOTH<7FL> THA 		8-97332-834-1 01 1 0509-0609 ●
5 16.720 FRAME ASM; RR SEAT BACK
CLOTH SEAT MOQUETTE<8EP> THA 		8-97388-601-0 01 1 0509-0609 ●
5 16.720 FRAME ASM; RR SEAT BACK
THA 		8-97388-601-0 01 1 0509-0609 ●
5 16.720 FRAME ASM; RR SEAT BACK
CLOTH TRIM STANDARD, VAR 2<8LL>,CLOTH TRIM SUPER DELUXE, VAR 2<8LN> THA 		8-98028-772-0 01 1 0610- ●
5 16.720 FRAME ASM; RR SEAT BACK
THA 		8-98028-772-0 01 1 0610- ●
9 16.717 COVER ASM; TRIM,RR,CUSHION
CLOTH SEAT MOQUETTE<8EP> GRAY THA 		8-97398-474-0 01 1 0404-0508 ●
9 16.717 COVER ASM; TRIM,RR,CUSHION
GRAY THA 		8-97398-474-0 01 1 0404-0508 ●
9 16.717 COVER ASM; TRIM,RR,CUSHION
CLOTH SEAT MOQUETTE<8EP> GRAY THA 		8-97404-994-0 01 1 0509-0609 ●
9 16.717 COVER ASM; TRIM,RR,CUSHION
GRAY THA 		8-97404-994-0 01 1 0509-0609 ●
9 16.717 COVER ASM; TRIM,RR,CUSHION
CLOTH TRIM STANDARD, VAR 2<8LL> LIGHT BEIGE THA 		8-97407-557-0 01 1 0610- ●
9 16.717 COVER ASM; TRIM,RR,CUSHION
CLOTH TRIM SUPER DELUXE, VAR 2<8LN> LIGHT BEIGE THA 		8-97407-556-0 01 1 0610- ●
9 16.717 COVER ASM; TRIM,RR,CUSHION
LIGHT BEIGE THA 		8-97407-556-0 01 1 0610- ●
9 16.717 COVER ASM; TRIM,RR,CUSHION
SEAT CLOTH<7FL> GRAY 		8-97400-202-0 01 1 0410-0609 ●
10 16.716 PAD; CUSHION,RR SEAT
CLOTH SEAT MOQUETTE<8EP> THA 		8-97332-862-0 01 1 0404-0409 ●
10 16.716 PAD; CUSHION,RR SEAT
THA 		8-97332-862-0 01 1 0404-0409 ●
10 16.716 PAD; CUSHION,RR SEAT
SEAT CLOTH<7FL>,CLOTH SEAT MOQUETTE<8EP> THA 		8-97332-862-0 01 1 0410-0508 ●
10 16.716 PAD; CUSHION,RR SEAT
THA 		8-97332-862-0 01 1 0410-0508 ●
10 16.716 PAD; CUSHION,RR SEAT
SEAT CLOTH<7FL> THA 		8-97332-862-0 01 1 0509-0609 ●
10 16.716 PAD; CUSHION,RR SEAT
CLOTH SEAT MOQUETTE<8EP> THA 		8-98022-690-0 01 1 0509-0609 ●
10 16.716 PAD; CUSHION,RR SEAT
THA 		8-98022-690-0 01 1 0509-0609 ●
10 16.716 PAD; CUSHION,RR SEAT
CLOTH TRIM STANDARD, VAR 2<8LL>,CLOTH TRIM SUPER DELUXE, VAR 2<8LN> THA 		8-98028-694-0 01 1 0610- ●
10 16.716 PAD; CUSHION,RR SEAT
THA 		8-98028-694-0 01 1 0610- ●
11 16.716 FRAME ASM; CUSHION,RR SEAT
CLOTH SEAT MOQUETTE<8EP> THA 		8-97332-856-0 01 1 0404-0409 ●
11 16.716 FRAME ASM; CUSHION,RR SEAT
THA 		8-97332-856-0 01 1 0404-0409 ●
11 16.716 FRAME ASM; CUSHION,RR SEAT
SEAT CLOTH<7FL>,CLOTH SEAT MOQUETTE<8EP> THA 		8-97332-856-0 01 1 0410-0508 ●
11 16.716 FRAME ASM; CUSHION,RR SEAT
THA 		8-97332-856-0 01 1 0410-0508 ●
11 16.716 FRAME ASM; CUSHION,RR SEAT
SEAT CLOTH<7FL> THA 		8-97332-856-0 01 1 0509-0609 ●
11 16.716 FRAME ASM; CUSHION,RR SEAT
CLOTH SEAT MOQUETTE<8EP> THA 		8-97388-622-0 01 1 0509-0609 ●
11 16.716 FRAME ASM; CUSHION,RR SEAT
THA 		8-97388-622-0 01 1 0509-0609 ●
11 16.716 FRAME ASM; CUSHION,RR SEAT
CLOTH TRIM STANDARD, VAR 2<8LL>,CLOTH TRIM SUPER DELUXE, VAR 2<8LN> THA 		8-98028-686-0 01 1 0610- ●
11 16.716 FRAME ASM; CUSHION,RR SEAT
THA 		8-98028-686-0 01 1 0610- ●
17 16.718 REST; HD,RR SEAT
CLOTH SEAT MOQUETTE<8EP> GRAY THA 		8-97398-472-0 02 1 0404-0409 ●
17 16.718 REST; HD,RR SEAT
GRAY THA 		8-97398-472-0 02 1 0404-0409 ●
17 16.718 REST; HD,RR SEAT
SEAT CLOTH<7FL>,CLOTH SEAT MOQUETTE<8EP> GRAY THA 		8-97398-472-0 02 1 0410-0508 ●
17 16.718 REST; HD,RR SEAT
GRAY THA 		8-97398-472-0 02 1 0410-0508 ●
17 16.718 REST; HD,RR SEAT
SEAT CLOTH<7FL> GRAY THA 		8-97398-472-0 02 1 0509-0609 ●
17 16.718 REST; HD,RR SEAT
CLOTH SEAT MOQUETTE<8EP> GRAY THA 		8-97404-999-0 02 1 0509-0510 ●
17 16.718 REST; HD,RR SEAT
GRAY THA 		8-97404-999-0 02 1 0509-0510 ●
17 16.718 REST; HD,RR SEAT
CLOTH SEAT MOQUETTE<8EP> GRAY THA 		8-97405-666-0 02 1 0511-0609 ●
17 16.718 REST; HD,RR SEAT
GRAY THA 		8-97405-666-0 02 1 0511-0609 ●
17 16.718 REST; HD,RR SEAT
CLOTH TRIM STANDARD, VAR 2<8LL> LIGHT BEIGE THA 		8-97407-574-0 02 1 0610- ●
17 16.718 REST; HD,RR SEAT
CLOTH TRIM SUPER DELUXE, VAR 2<8LN> LIGHT BEIGE THA 		8-97407-572-0 02 1 0610- ●
17 16.718 REST; HD,RR SEAT
LIGHT BEIGE THA 		8-97407-572-0 02 1 0610- ●
55 16.716 BOLT; HINGE,RR SEAT
CLOTH SEAT MOQUETTE<8EP> THA 		8-97332-881-0 02 1 0404-0409 ●
55 16.716 BOLT; HINGE,RR SEAT
THA 		8-97332-881-0 02 1 0404-0409 ●
55 16.716 BOLT; HINGE,RR SEAT
SEAT CLOTH<7FL>,CLOTH SEAT MOQUETTE<8EP> THA 		8-97332-881-0 02 1 0410-0508 ●
55 16.716 BOLT; HINGE,RR SEAT
THA 		8-97332-881-0 02 1 0410-0508 ●
55 16.716 BOLT; HINGE,RR SEAT
SEAT CLOTH<7FL> THA 		8-97332-881-0 02 1 0509-0609 ●
55 16.716 BOLT; HINGE,RR SEAT
CLOTH SEAT MOQUETTE<8EP> THA 		8-97388-627-0 02 1 0509-0609 ●
55 16.716 BOLT; HINGE,RR SEAT
THA 		8-97388-627-0 02 1 0509-0609 ●
55 16.716 BOLT; HINGE,RR SEAT
CLOTH TRIM STANDARD, VAR 2<8LL>,CLOTH TRIM SUPER DELUXE, VAR 2<8LN> 16.682 THA 		8-97332-815-0 02 1 0610- ●
55 16.716 BOLT; HINGE,RR SEAT
16.682 THA 		8-97332-815-0 02 1 0610- ●
108 16.714 COVER; HINGE BRKT
CLOTH SEAT MOQUETTE<8EP> GRAY THA 		8-97398-485-0 01 1 0404-0409 ●
108 16.714 COVER; HINGE BRKT
GRAY THA 		8-97398-485-0 01 1 0404-0409 ●
108 16.714 COVER; HINGE BRKT
SEAT CLOTH<7FL>,CLOTH SEAT MOQUETTE<8EP> GRAY THA 		8-97398-485-0 01 1 0410-0508 ●
108 16.714 COVER; HINGE BRKT
GRAY THA 		8-97398-485-0 01 1 0410-0508 ●
108 16.714 COVER; HINGE BRKT
SEAT CLOTH<7FL> GRAY THA 		8-97398-485-0 01 1 0509-0609 ●
108 16.714 COVER; HINGE BRKT
CLOTH SEAT MOQUETTE<8EP> GRAY THA 		8-97398-484-0 01 1 0404-0409 ●
108 16.714 COVER; HINGE BRKT
GRAY THA 		8-97398-484-0 01 1 0404-0409 ●
108 16.714 COVER; HINGE BRKT
SEAT CLOTH<7FL>,CLOTH SEAT MOQUETTE<8EP> GRAY THA 		8-97398-484-0 01 1 0410-0508 ●
108 16.714 COVER; HINGE BRKT
GRAY THA 		8-97398-484-0 01 1 0410-0508 ●
108 16.714 COVER; HINGE BRKT
SEAT CLOTH<7FL> GRAY THA 		8-97398-484-0 01 1 0509-0609 ●
108 16.714 COVER; HINGE BRKT
CLOTH SEAT MOQUETTE<8EP> GRAY THA 		8-97404-996-0 01 1 0509-0609 ●
108 16.714 COVER; HINGE BRKT
GRAY THA 		8-97404-996-0 01 1 0509-0609 ●
108 16.714 COVER; HINGE BRKT
CLOTH SEAT MOQUETTE<8EP> GRAY THA 		8-97404-995-0 01 1 0509-0609 ●
108 16.714 COVER; HINGE BRKT
GRAY THA 		8-97404-995-0 01 1 0509-0609 ●
108 16.714 COVER; HINGE BRKT
CLOTH TRIM STANDARD, VAR 2<8LL>,CLOTH TRIM SUPER DELUXE, VAR 2<8LN> BEIGE THA 		8-97407-555-0 01 1 0610- ●
108 16.714 COVER; HINGE BRKT
BEIGE THA 		8-97407-555-0 01 1 0610- ●
108 16.714 COVER; HINGE BRKT
CLOTH TRIM STANDARD, VAR 2<8LL>,CLOTH TRIM SUPER DELUXE, VAR 2<8LN> BEIGE THA 		8-97407-554-0 01 1 0610- ●
108 16.714 COVER; HINGE BRKT
BEIGE THA 		8-97407-554-0 01 1 0610- ●
213 16.716 BUSHING; RR SEAT HINGE
CLOTH SEAT MOQUETTE<8EP> THA 		8-97354-675-0 02 1 0404-0409 ●
213 16.716 BUSHING; RR SEAT HINGE
THA 		8-97354-675-0 02 1 0404-0409 ●
213 16.716 BUSHING; RR SEAT HINGE
SEAT CLOTH<7FL>,CLOTH SEAT MOQUETTE<8EP> THA 		8-97354-675-0 02 1 0410-0508 ●
213 16.716 BUSHING; RR SEAT HINGE
THA 		8-97354-675-0 02 1 0410-0508 ●
213 16.716 BUSHING; RR SEAT HINGE
SEAT CLOTH<7FL> THA 		8-97354-675-0 02 1 0509-0609 ●
213 16.716 BUSHING; RR SEAT HINGE
CLOTH SEAT MOQUETTE<8EP> THA 		8-98023-152-0 02 1 0509-0609 ●
213 16.716 BUSHING; RR SEAT HINGE
THA 		8-98023-152-0 02 1 0509-0609 ●
213 16.716 BUSHING; RR SEAT HINGE
CLOTH TRIM STANDARD, VAR 2<8LL>,CLOTH TRIM SUPER DELUXE, VAR 2<8LN> THA 		8-97354-675-0 02 1 0610- ●
213 16.716 BUSHING; RR SEAT HINGE
THA 		8-97354-675-0 02 1 0610- ●
239 16.682 CABLE; CONT,LEVER
CLOTH SEAT MOQUETTE<8EP> THA 		8-97332-828-0 01 1 0404-0409 ●
239 16.682 CABLE; CONT,LEVER
THA 		8-97332-828-0 01 1 0404-0409 ●
239 16.682 CABLE; CONT,LEVER
SEAT CLOTH<7FL>,CLOTH SEAT MOQUETTE<8EP> THA 		8-97332-828-0 01 1 0410-0508 ●
239 16.682 CABLE; CONT,LEVER
THA 		8-97332-828-0 01 1 0410-0508 ●
239 16.682 CABLE; CONT,LEVER
SEAT CLOTH<7FL> THA 		8-97332-828-0 01 1 0509-0609 ●
239 16.682 CABLE; CONT,LEVER
CLOTH SEAT MOQUETTE<8EP> THA 		8-98023-151-0 01 1 0509-0609 ●
239 16.682 CABLE; CONT,LEVER
THA 		8-98023-151-0 01 1 0509-0609 ●
239 16.682 CABLE; CONT,LEVER
CLOTH TRIM STANDARD, VAR 2<8LL>,CLOTH TRIM SUPER DELUXE, VAR 2<8LN> THA 		8-97332-828-0 01 1 0610- ●
239 16.682 CABLE; CONT,LEVER
THA 		8-97332-828-0 01 1 0610- ●
253 16.724 CLIP; CABLE
CLOTH SEAT MOQUETTE<8EP> THA 		8-98024-098-0 02 1 0509-0609 ●
253 16.724 CLIP; CABLE
THA 		8-98024-098-0 02 1 0509-0609 ●
302 16.715 NUT; RR SEAT
07.243 M12 FLANGE 		0-91150-212-0 04 1 0404-0603 ● ●
302 16.715 NUT; RR SEAT
05.816 M12 FLANGE THA 		0-91180-212-0 04 1 0604- ● ●
352 16.717 SPRING; RR CUSHION
CLOTH SEAT MOQUETTE<8EP> THA 		8-97332-877-0 11 1 0404-0409 ●
352 16.717 SPRING; RR CUSHION
THA 		8-97332-877-0 11 1 0404-0409 ●
352 16.717 SPRING; RR CUSHION
SEAT CLOTH<7FL>,CLOTH SEAT MOQUETTE<8EP> THA 		8-97332-877-0 11 1 0410-0508 ●
352 16.717 SPRING; RR CUSHION
THA 		8-97332-877-0 11 1 0410-0508 ●
352 16.717 SPRING; RR CUSHION
SEAT CLOTH<7FL> THA 		8-97332-877-0 11 1 0509-0609 ●
361 16.682 LATCH; REAR SEAT
CLOTH SEAT MOQUETTE<8EP> THA 		8-97332-811-0 02 1 0404-0409 ●
361 16.682 LATCH; REAR SEAT
THA 		8-97332-811-0 02 1 0404-0409 ●
361 16.682 LATCH; REAR SEAT
SEAT CLOTH<7FL>,CLOTH SEAT MOQUETTE<8EP> THA 		8-97332-811-0 02 1 0410-0508 ●
361 16.682 LATCH; REAR SEAT
THA 		8-97332-811-0 02 1 0410-0508 ●
361 16.682 LATCH; REAR SEAT
SEAT CLOTH<7FL> THA 		8-97332-811-0 02 1 0509-0509 ●
361 16.682 LATCH; REAR SEAT
SEAT CLOTH<7FL> THA 		8-98004-027-0 02 1 0509-0609 ●
361 16.682 LATCH; REAR SEAT
CLOTH SEAT MOQUETTE<8EP> THA 		8-97388-620-1 01 1 0509-0609 ●
361 16.682 LATCH; REAR SEAT
THA 		8-97388-620-1 01 1 0509-0609 ●
361 16.682 LATCH; REAR SEAT
CLOTH SEAT MOQUETTE<8EP> THA 		8-97388-621-1 01 1 0509-0609 ●
361 16.682 LATCH; REAR SEAT
THA 		8-97388-621-1 01 1 0509-0609 ●
361 16.682 LATCH; REAR SEAT
CLOTH TRIM STANDARD, VAR 2<8LL>,CLOTH TRIM SUPER DELUXE, VAR 2<8LN> THA 		8-98004-027-0 02 1 0610- ●
361 16.682 LATCH; REAR SEAT
THA 		8-98004-027-0 02 1 0610- ●
363 16.682 BOLT; REAR SEAT LATCH
CLOTH SEAT MOQUETTE<8EP> THA 		8-97332-815-0 04 1 0404-0409 ●
363 16.682 BOLT; REAR SEAT LATCH
THA 		8-97332-815-0 04 1 0404-0409 ●
363 16.682 BOLT; REAR SEAT LATCH
SEAT CLOTH<7FL>,CLOTH SEAT MOQUETTE<8EP> THA 		8-97332-815-0 04 1 0410-0508 ●
363 16.682 BOLT; REAR SEAT LATCH
THA 		8-97332-815-0 04 1 0410-0508 ●
363 16.682 BOLT; REAR SEAT LATCH
SEAT CLOTH<7FL> THA 		8-97332-815-0 04 1 0509-0609 ●
363 16.682 BOLT; REAR SEAT LATCH
CLOTH SEAT MOQUETTE<8EP> THA 		8-98023-150-0 04 1 0509-0609 ●
363 16.682 BOLT; REAR SEAT LATCH
THA 		8-98023-150-0 04 1 0509-0609 ●
363 16.682 BOLT; REAR SEAT LATCH
CLOTH TRIM STANDARD, VAR 2<8LL>,CLOTH TRIM SUPER DELUXE, VAR 2<8LN> THA 		8-97332-815-0 08 1 0610- ●
363 16.682 BOLT; REAR SEAT LATCH
THA 		8-97332-815-0 08 1 0610- ●
364 16.682 MAT; SUSPENSION,REAR SEAT
CLOTH SEAT MOQUETTE<8EP> THA 		8-97332-874-0 01 1 0404-0409 ●
364 16.682 MAT; SUSPENSION,REAR SEAT
THA 		8-97332-874-0 01 1 0404-0409 ●
364 16.682 MAT; SUSPENSION,REAR SEAT
SEAT CLOTH<7FL>,CLOTH SEAT MOQUETTE<8EP> THA 		8-97332-874-0 01 1 0410-0508 ●
364 16.682 MAT; SUSPENSION,REAR SEAT
THA 		8-97332-874-0 01 1 0410-0508 ●
364 16.682 MAT; SUSPENSION,REAR SEAT
SEAT CLOTH<7FL> THA 		8-97332-874-0 01 1 0509-0609 ●
368 16.720 PAD; BACK FORM
CLOTH TRIM STANDARD, VAR 2<8LL>,CLOTH TRIM SUPER DELUXE, VAR 2<8LN> THA 		8-98028-776-0 01 1 0610- ●
368 16.720 PAD; BACK FORM
THA 		8-98028-776-0 01 1 0610- ●
396 16.682 E-RING; CABLE
CLOTH SEAT MOQUETTE<8EP> THA 		8-98023-156-0 02 1 0509-0609 ●
396 16.682 E-RING; CABLE
THA 		8-98023-156-0 02 1 0509-0609 ●
397 16.686 CABLE; SEAT
CLOTH TRIM STANDARD, VAR 2<8LL>,CLOTH TRIM SUPER DELUXE, VAR 2<8LN> (C) THA 		8-98028-780-0 04 1 0610- ●
397 16.686 CABLE; SEAT
(C) THA 		8-98028-780-0 04 1 0610- ●
397 16.686 CABLE; SEAT
CLOTH TRIM STANDARD, VAR 2<8LL>,CLOTH TRIM SUPER DELUXE, VAR 2<8LN> (B) THA 		8-98028-781-0 02 1 0610- ●
397 16.686 CABLE; SEAT
(B) THA 		8-98028-781-0 02 1 0610- ●
397 16.686 CABLE; SEAT
CLOTH TRIM STANDARD, VAR 2<8LL>,CLOTH TRIM SUPER DELUXE, VAR 2<8LN> (A) THA 		8-98028-782-0 02 1 0610- ●
397 16.686 CABLE; SEAT
(A) THA 		8-98028-782-0 02 1 0610- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
