◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 50982 - TFR/S(CHEVROLET)THAI ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-45 - CONSOLE BOX ▶

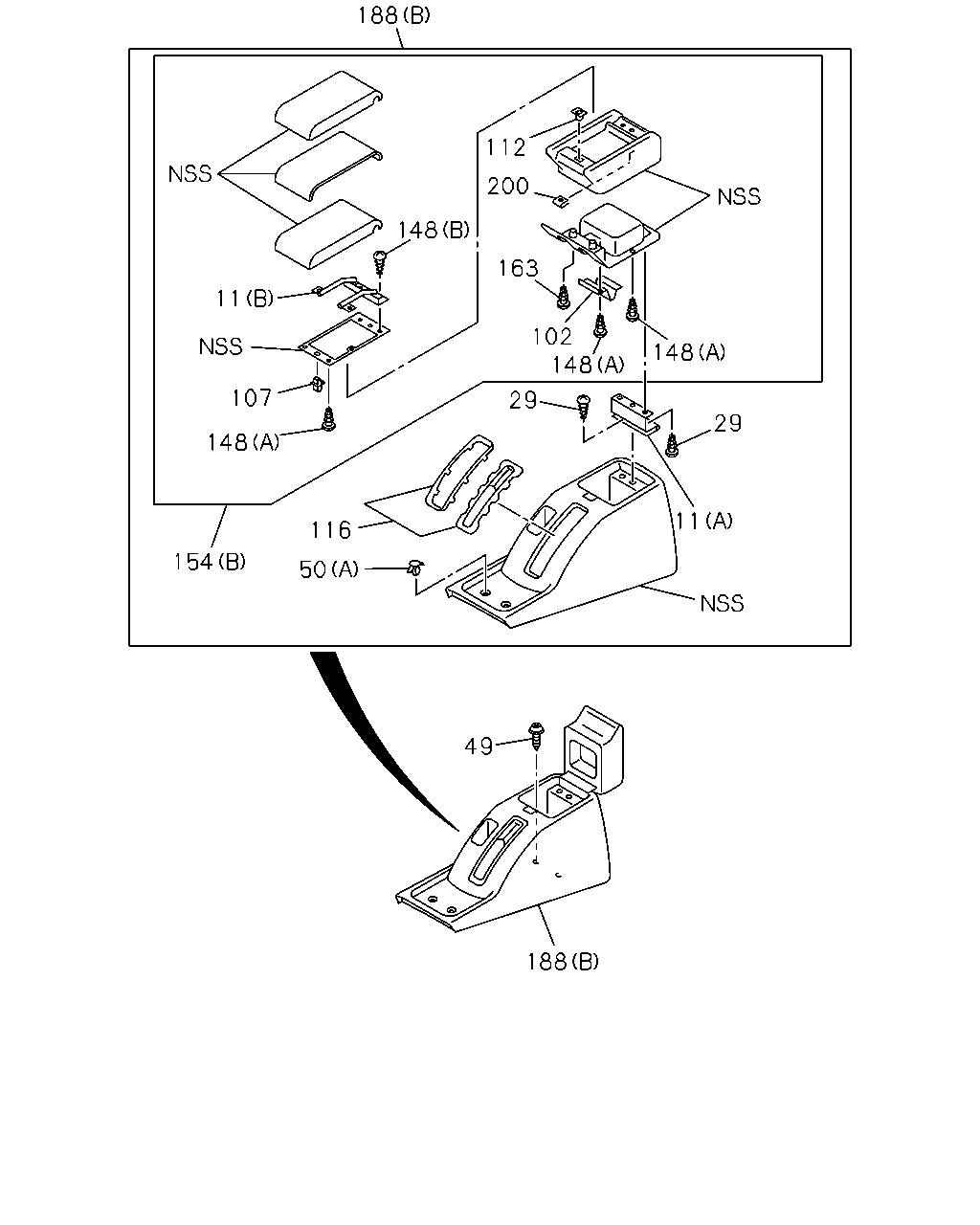

7-45 — CONSOLE BOX (#73685) — 734 parça
çizim 117855
188 154 200 163 107 112 148 29 29 11 116 50 49 188
BalonParca AdiParca NoAdetTipApplied Date A B C D E
11 16.650 HINGE; CONSOLE LID
FRONT CONSOLE<D55> PARKING BRAKE FLOOR<7XW> (A) THA 		8-97349-645-0 01 1 0404-0409 ● ● ●
11 16.650 HINGE; CONSOLE LID
(A) THA 		8-97349-645-0 01 1 0404-0409 ● ●
11 16.650 HINGE; CONSOLE LID
FRONT CONSOLE<D55> PARKING BRAKE FLOOR<7XW> (A) THA 		8-97349-645-0 01 1 0410-0508 ● ●
11 16.650 HINGE; CONSOLE LID
(A) THA 		8-97349-645-0 01 1 0410-0508 ● ● ●
11 16.650 HINGE; CONSOLE LID
GRADE BASE<RBA>,GRADE LS<RBB> FRONT CONSOLE<D55> (A) THA 		8-97349-645-0 01 1 0509-0609 ● ●
11 16.650 HINGE; CONSOLE LID
GRADE LT<RBD> FRONT CONSOLE<D55> CLOTH SEAT MOQUETTE<8EP> (A) THA 		8-97349-645-0 01 1 0509-0609 ● ●
11 16.650 HINGE; CONSOLE LID
(A) THA 		8-97349-645-0 01 1 0509-0609 ● ● ●
11 16.650 HINGE; CONSOLE LID
GRADE LS<RBB>,GRADE LT<RBD> (A) THA 		8-97349-645-0 01 1 0610-0709 ●
11 16.650 HINGE; CONSOLE LID
GRADE BASE<RBA> (A) THA 		8-97349-645-0 01 1 0610-0709 ●
11 16.650 HINGE; CONSOLE LID
GRADE LS<RBB>,GRADE LT<RBD> FRONT CONSOLE<D55> (A) THA 		8-97349-645-0 01 1 0610-0709 ●
11 16.650 HINGE; CONSOLE LID
GRADE LT<RBD> (A) THA 		8-97349-645-0 01 1 0610-0709 ● ●
11 16.650 HINGE; CONSOLE LID
(A) THA 		8-97349-645-0 01 1 0710-0809 ● ● ● ● ●
11 16.650 HINGE; CONSOLE LID
FRONT CONSOLE<D55> (A) THA 		8-97349-645-0 01 1 0810-0910 ● ●
11 16.650 HINGE; CONSOLE LID
(A) THA 		8-97349-645-0 01 1 0810-0910 ● ● ●
11 16.650 HINGE; CONSOLE LID
(A) THA 		8-97349-645-0 01 1 0911- ● ● ● ● ●
11 16.650 HINGE; CONSOLE LID
GRADE LT<RBD> FRONT CONSOLE<D55> PARKING BRAKE FLOOR<7XW> CLOTH SEAT MOQUETTE<8EP> (B) THA 		8-97349-646-0 01 1 0404-0508 ● ●
11 16.650 HINGE; CONSOLE LID
(B) THA 		8-97349-646-0 01 1 0404-0508 ● ●
11 16.650 HINGE; CONSOLE LID
GRADE LT<RBD> FRONT CONSOLE<D55> CLOTH SEAT MOQUETTE<8EP> (B) THA 		8-97349-646-0 01 1 0509-0609 ● ●
11 16.650 HINGE; CONSOLE LID
GRADE LT<RBD> (B) THA 		8-97349-646-0 01 1 0509-0609 ● ●
11 16.650 HINGE; CONSOLE LID
GRADE LT<RBD> (B) THA 		8-97349-646-0 01 1 0610-0709 ● ● ●
11 16.650 HINGE; CONSOLE LID
GRADE LT<RBD> FRONT CONSOLE<D55> (B) THA 		8-97349-646-0 01 1 0610-0709 ●
11 16.650 HINGE; CONSOLE LID
GRADE LT<RBD> (B) THA 		8-97349-646-0 01 1 0710-0809 ● ● ● ●
11 16.650 HINGE; CONSOLE LID
GRADE LT<RBD> FRONT CONSOLE<D55> (B) THA 		8-97349-646-0 01 1 0810-0910 ● ●
11 16.650 HINGE; CONSOLE LID
(B) THA 		8-97349-646-0 01 1 0810-0910 ● ●
11 16.650 HINGE; CONSOLE LID
GRADE LT<RBD> (B) THA 		8-97349-646-0 01 1 0911- ● ●
11 16.650 HINGE; CONSOLE LID
(B) THA 		8-97349-646-0 01 1 0911- ● ●
29 16.650 SCREW; HINGE
FRONT CONSOLE<D55> PARKING BRAKE FLOOR<7XW> 16.115 M5X16 THA 		8-94279-312-0 06 1 0404-0409 ● ● ●
29 16.650 SCREW; HINGE
16.115 M5X16 THA 		8-94279-312-0 06 1 0404-0409 ● ●
29 16.650 SCREW; HINGE
FRONT CONSOLE<D55> PARKING BRAKE FLOOR<7XW> 16.115 M5X16 THA 		8-94279-312-0 06 1 0410-0411 ● ●
29 16.650 SCREW; HINGE
16.115 M5X16 THA 		8-94279-312-0 06 1 0410-0411 ● ● ●
29 16.650 SCREW; HINGE
GRADE BASE<RBA>,GRADE LS<RBB> FRONT CONSOLE<D55> PARKING BRAKE FLOOR<7XW> 16.115 M5X16 THA 		8-94279-312-0 05 1 0412-0508 ●
29 16.650 SCREW; HINGE
16.115 M5X16 THA 		8-94279-312-0 05 1 0412-0508 ●
29 16.650 SCREW; HINGE
GRADE LS<RBB> FRONT CONSOLE<D55> PARKING BRAKE FLOOR<7XW> 16.115 M5X16 THA 		8-94279-312-0 05 1 0412-0508 ●
29 16.650 SCREW; HINGE
GRADE BASE<RBA>,GRADE LS<RBB> FRONT CONSOLE<D55> 16.115 M5X16 THA 		8-94279-312-0 05 1 0509-0609 ●
29 16.650 SCREW; HINGE
GRADE BASE<RBA> 16.115 M5X16 THA 		8-94279-312-0 05 1 0509-0609 ●
29 16.650 SCREW; HINGE
GRADE LS<RBB> FRONT CONSOLE<D55> 16.115 M5X16 THA 		8-94279-312-0 05 1 0509-0609 ●
29 16.650 SCREW; HINGE
GRADE LS<RBB> 16.115 M5X16 THA 		8-94279-312-0 05 1 0610-0612 ●
29 16.650 SCREW; HINGE
GRADE BASE<RBA> 16.115 M5X16 THA 		8-94279-312-0 05 1 0610-0612 ●
29 16.650 SCREW; HINGE
GRADE LS<RBB> FRONT CONSOLE<D55> 16.115 M5X16 THA 		8-94279-312-0 05 1 0610-0612 ●
29 16.650 SCREW; HINGE
GRADE LS<RBB> 09.744 M5X16 TAPPING 		8-98061-683-0 05 1 0701-0709 ●
29 16.650 SCREW; HINGE
GRADE BASE<RBA> 09.744 M5X16 TAPPING 		8-98061-683-0 05 1 0701-0709 ●
29 16.650 SCREW; HINGE
GRADE LS<RBB> FRONT CONSOLE<D55> 09.744 M5X16 TAPPING 		8-98061-683-0 05 1 0701-0709 ●
29 16.650 SCREW; HINGE
GRADE LS<RBB> 09.744 M5X16 TAPPING 		8-98061-683-0 05 1 0710-0809 ● ●
29 16.650 SCREW; HINGE
GRADE BASE<RBA> 09.744 M5X16 TAPPING 		8-98061-683-0 05 1 0710-0809 ●
29 16.650 SCREW; HINGE
GRADE BASE<RBA>,GRADE LS<RBB> FRONT CONSOLE<D55> 09.744 M5X16 TAPPING 		8-98061-683-0 05 1 0810-0910 ● ●
29 16.650 SCREW; HINGE
09.744 M5X16 TAPPING 		8-98061-683-0 05 1 0810-0910 ●
29 16.650 SCREW; HINGE
GRADE LS<RBB> 09.744 M5X16 TAPPING 		8-98061-683-0 05 1 0911- ● ●
29 16.650 SCREW; HINGE
09.744 M5X16 TAPPING 		8-98061-683-0 05 1 0911- ●
29 16.650 SCREW; HINGE
GRADE LT<RBD> FRONT CONSOLE<D55> PARKING BRAKE FLOOR<7XW> CLOTH SEAT MOQUETTE<8EP> 16.115 M5X16 THA 		8-94279-312-0 06 1 0412-0508 ● ●
29 16.650 SCREW; HINGE
16.115 M5X16 THA 		8-94279-312-0 06 1 0412-0508 ● ●
29 16.650 SCREW; HINGE
GRADE LT<RBD> FRONT CONSOLE<D55> CLOTH SEAT MOQUETTE<8EP> 16.115 M5X16 THA 		8-94279-312-0 06 1 0509-0609 ● ●
29 16.650 SCREW; HINGE
GRADE LT<RBD> 16.115 M5X16 THA 		8-94279-312-0 06 1 0509-0609 ● ●
29 16.650 SCREW; HINGE
GRADE LT<RBD> 16.115 M5X16 THA 		8-94279-312-0 06 1 0610-0612 ● ● ●
29 16.650 SCREW; HINGE
GRADE LT<RBD> FRONT CONSOLE<D55> 16.115 M5X16 THA 		8-94279-312-0 06 1 0610-0612 ●
29 16.650 SCREW; HINGE
GRADE LT<RBD> 09.744 M5X16 TAPPING 		8-98061-683-0 06 1 0701-0709 ● ● ●
29 16.650 SCREW; HINGE
GRADE LT<RBD> FRONT CONSOLE<D55> 09.744 M5X16 TAPPING 		8-98061-683-0 06 1 0701-0709 ●
29 16.650 SCREW; HINGE
GRADE LT<RBD> 09.744 M5X16 TAPPING 		8-98061-683-0 06 1 0710-0809 ● ● ● ●
29 16.650 SCREW; HINGE
GRADE LT<RBD> FRONT CONSOLE<D55> 09.744 M5X16 TAPPING 		8-98061-683-0 06 1 0810-0910 ● ●
29 16.650 SCREW; HINGE
09.744 M5X16 TAPPING 		8-98061-683-0 06 1 0810-0910 ● ●
29 16.650 SCREW; HINGE
GRADE LT<RBD> 09.744 M5X16 TAPPING 		8-98061-683-0 06 1 0911- ● ●
29 16.650 SCREW; HINGE
09.744 M5X16 TAPPING 		8-98061-683-0 06 1 0911- ● ●
49 04.017 SCREW; CONSOLE
PARKING BRAKE FLOOR<7XW> 01.269 M5X16 		8-94358-694-0 02 1 0404-0409 ● ● ●
49 04.017 SCREW; CONSOLE
01.269 M5X16 		8-94358-694-0 02 1 0404-0409 ● ●
49 04.017 SCREW; CONSOLE
PARKING BRAKE FLOOR<7XW> 01.269 M5X16 		8-94358-694-0 02 1 0410-0508 ● ●
49 04.017 SCREW; CONSOLE
01.269 M5X16 		8-94358-694-0 02 1 0410-0508 ● ● ●
49 04.017 SCREW; CONSOLE
01.269 M5X16 		8-94358-694-0 02 1 0509-0612 ● ● ● ● ●
49 04.017 SCREW; CONSOLE
16.650 M5X16 		8-98061-684-0 02 1 0701-1003 ● ● ● ● ●
49 04.017 SCREW; CONSOLE
16.650 M5X16 THA 		8-98167-220-0 02 1 1004- ● ● ● ● ●
50 04.010 CLIP; CONSOLE
FRONT CONSOLE<D55> PARKING BRAKE FLOOR<7XW> (A) THA 		8-97355-734-0 02 1 0404-0409 ● ● ●
50 04.010 CLIP; CONSOLE
(A) THA 		8-97355-734-0 02 1 0404-0409 ● ●
50 04.010 CLIP; CONSOLE
FRONT CONSOLE<D55> PARKING BRAKE FLOOR<7XW> (A) THA 		8-97355-734-0 02 1 0410-0508 ● ●
50 04.010 CLIP; CONSOLE
(A) THA 		8-97355-734-0 02 1 0410-0508 ● ● ●
50 04.010 CLIP; CONSOLE
GRADE BASE<RBA>,GRADE LS<RBB> FRONT CONSOLE<D55> (A) THA 		8-97355-734-0 02 1 0509-0609 ● ●
50 04.010 CLIP; CONSOLE
GRADE LT<RBD> FRONT CONSOLE<D55> CLOTH SEAT MOQUETTE<8EP> (A) THA 		8-97355-734-0 02 1 0509-0609 ● ●
50 04.010 CLIP; CONSOLE
(A) THA 		8-97355-734-0 02 1 0509-0609 ● ● ●
50 04.010 CLIP; CONSOLE
GRADE LS<RBB>,GRADE LT<RBD> (A) THA 		8-97355-734-0 02 1 0610-0709 ●
50 04.010 CLIP; CONSOLE
GRADE BASE<RBA> (A) THA 		8-97355-734-0 02 1 0610-0709 ●
50 04.010 CLIP; CONSOLE
GRADE LS<RBB>,GRADE LT<RBD> FRONT CONSOLE<D55> (A) THA 		8-97355-734-0 02 1 0610-0709 ●
50 04.010 CLIP; CONSOLE
GRADE LT<RBD> (A) THA 		8-97355-734-0 02 1 0610-0709 ● ●
50 04.010 CLIP; CONSOLE
(A) THA 		8-97355-734-0 02 1 0710-0809 ● ● ● ● ●
50 04.010 CLIP; CONSOLE
FRONT CONSOLE<D55> (A) THA 		8-97355-734-0 02 1 0810-0910 ● ●
50 04.010 CLIP; CONSOLE
(A) THA 		8-97355-734-0 02 1 0810-0910 ● ● ●
50 04.010 CLIP; CONSOLE
(A) THA 		8-97355-734-0 02 1 0911- ● ● ● ● ●
50 04.010 CLIP; CONSOLE
HEADER CONSOLE<DK6> (C) THA 		8-97388-958-0 02 1 0509- ● ●
50 04.010 CLIP; CONSOLE
(C) THA 		8-97388-958-0 02 1 0509- ● ●
50 04.010 CLIP; CONSOLE
HEADER CONSOLE<DK6> (B) LIGHT GRAY THA 		8-97401-114-0 02 1 0509-0609 ● ●
50 04.010 CLIP; CONSOLE
(B) LIGHT GRAY THA 		8-97401-114-0 02 1 0509-0609 ● ●
50 04.010 CLIP; CONSOLE
HEADER CONSOLE<DK6> (B) GRAY 		8-97403-528-0 02 1 0610- ● ●
50 04.010 CLIP; CONSOLE
(B) GRAY 		8-97403-528-0 02 1 0610- ● ●
107 16.650 LOCK; LID,RR CONSOLE
FRONT CONSOLE<D55> PARKING BRAKE FLOOR<7XW> THA 		8-97349-644-0 01 1 0404-0409 ● ● ●
107 16.650 LOCK; LID,RR CONSOLE
THA 		8-97349-644-0 01 1 0404-0409 ● ●
107 16.650 LOCK; LID,RR CONSOLE
FRONT CONSOLE<D55> PARKING BRAKE FLOOR<7XW> THA 		8-97349-644-0 01 1 0410-0508 ● ●
107 16.650 LOCK; LID,RR CONSOLE
THA 		8-97349-644-0 01 1 0410-0508 ● ● ●
107 16.650 LOCK; LID,RR CONSOLE
GRADE BASE<RBA>,GRADE LS<RBB> FRONT CONSOLE<D55> THA 		8-97349-644-0 01 1 0509-0609 ● ●
107 16.650 LOCK; LID,RR CONSOLE
GRADE LT<RBD> FRONT CONSOLE<D55> CLOTH SEAT MOQUETTE<8EP> THA 		8-97349-644-0 01 1 0509-0609 ● ●
107 16.650 LOCK; LID,RR CONSOLE
THA 		8-97349-644-0 01 1 0509-0609 ● ● ●
107 16.650 LOCK; LID,RR CONSOLE
GRADE LS<RBB>,GRADE LT<RBD> THA 		8-97349-644-0 01 1 0610-0709 ●
107 16.650 LOCK; LID,RR CONSOLE
GRADE BASE<RBA> THA 		8-97349-644-0 01 1 0610-0709 ●
107 16.650 LOCK; LID,RR CONSOLE
GRADE LS<RBB>,GRADE LT<RBD> FRONT CONSOLE<D55> THA 		8-97349-644-0 01 1 0610-0709 ●
107 16.650 LOCK; LID,RR CONSOLE
GRADE LT<RBD> THA 		8-97349-644-0 01 1 0610-0709 ● ●
107 16.650 LOCK; LID,RR CONSOLE
THA 		8-97349-644-0 01 1 0710-0809 ● ● ● ● ●
107 16.650 LOCK; LID,RR CONSOLE
FRONT CONSOLE<D55> THA 		8-97349-644-0 01 1 0810-0910 ● ●
107 16.650 LOCK; LID,RR CONSOLE
THA 		8-97349-644-0 01 1 0810-0910 ● ● ●
107 16.650 LOCK; LID,RR CONSOLE
THA 		8-97349-644-0 01 1 0911- ● ● ● ● ●
112 16.650 LOCK; HOLE,RR CONSOLE
FRONT CONSOLE<D55> PARKING BRAKE FLOOR<7XW> THA 		8-97349-643-0 01 1 0404-0409 ● ● ●
112 16.650 LOCK; HOLE,RR CONSOLE
THA 		8-97349-643-0 01 1 0404-0409 ● ●
112 16.650 LOCK; HOLE,RR CONSOLE
FRONT CONSOLE<D55> PARKING BRAKE FLOOR<7XW> THA 		8-97349-643-0 01 1 0410-0508 ● ●
112 16.650 LOCK; HOLE,RR CONSOLE
THA 		8-97349-643-0 01 1 0410-0508 ● ● ●
112 16.650 LOCK; HOLE,RR CONSOLE
GRADE BASE<RBA>,GRADE LS<RBB> FRONT CONSOLE<D55> THA 		8-97349-643-0 01 1 0509-0609 ● ●
112 16.650 LOCK; HOLE,RR CONSOLE
GRADE LT<RBD> FRONT CONSOLE<D55> CLOTH SEAT MOQUETTE<8EP> THA 		8-97349-643-0 01 1 0509-0609 ● ●
112 16.650 LOCK; HOLE,RR CONSOLE
THA 		8-97349-643-0 01 1 0509-0609 ● ● ●
112 16.650 LOCK; HOLE,RR CONSOLE
GRADE LS<RBB>,GRADE LT<RBD> THA 		8-97349-643-0 01 1 0610-0709 ●
112 16.650 LOCK; HOLE,RR CONSOLE
GRADE BASE<RBA> THA 		8-97349-643-0 01 1 0610-0709 ●
112 16.650 LOCK; HOLE,RR CONSOLE
GRADE LS<RBB>,GRADE LT<RBD> FRONT CONSOLE<D55> THA 		8-97349-643-0 01 1 0610-0709 ●
112 16.650 LOCK; HOLE,RR CONSOLE
GRADE LT<RBD> THA 		8-97349-643-0 01 1 0610-0709 ● ●
112 16.650 LOCK; HOLE,RR CONSOLE
THA 		8-97349-643-0 01 1 0710-0809 ● ● ● ● ●
112 16.650 LOCK; HOLE,RR CONSOLE
FRONT CONSOLE<D55> THA 		8-97349-643-0 01 1 0810-0910 ● ●
112 16.650 LOCK; HOLE,RR CONSOLE
THA 		8-97349-643-0 01 1 0810-0910 ● ● ●
112 16.650 LOCK; HOLE,RR CONSOLE
THA 		8-97349-643-0 01 1 0911- ● ● ● ● ●
116 16.650 COVER; HOLE,CONSOLE,RR
FRONT CONSOLE<D55> PARKING BRAKE FLOOR<7XW> GRAY THA 		8-97396-817-0 01 1 0404-0409 ● ● ●
116 16.650 COVER; HOLE,CONSOLE,RR
GRAY THA 		8-97396-817-0 01 1 0404-0409 ● ●
116 16.650 COVER; HOLE,CONSOLE,RR
FRONT CONSOLE<D55> PARKING BRAKE FLOOR<7XW> GRAY THA 		8-97396-817-0 01 1 0410-0508 ● ●
116 16.650 COVER; HOLE,CONSOLE,RR
GRAY THA 		8-97396-817-0 01 1 0410-0508 ● ● ●
116 16.650 COVER; HOLE,CONSOLE,RR
GRADE BASE<RBA>,GRADE LS<RBB> FRONT CONSOLE<D55> GRAY THA 		8-97396-817-0 01 1 0509-0609 ● ●
116 16.650 COVER; HOLE,CONSOLE,RR
GRADE LT<RBD> FRONT CONSOLE<D55> CLOTH SEAT MOQUETTE<8EP> GRAY THA 		8-97396-817-0 01 1 0509-0609 ● ●
116 16.650 COVER; HOLE,CONSOLE,RR
GRAY THA 		8-97396-817-0 01 1 0509-0609 ● ● ●
116 16.650 COVER; HOLE,CONSOLE,RR
GRADE LS<RBB>,GRADE LT<RBD> BEIGE THA 		8-97404-006-0 01 1 0610-0709 ●
116 16.650 COVER; HOLE,CONSOLE,RR
GRADE BASE<RBA> BEIGE THA 		8-97404-006-0 01 1 0610-0709 ●
116 16.650 COVER; HOLE,CONSOLE,RR
GRADE LS<RBB>,GRADE LT<RBD> FRONT CONSOLE<D55> BEIGE THA 		8-97404-006-0 01 1 0610-0709 ●
116 16.650 COVER; HOLE,CONSOLE,RR
GRADE LT<RBD> BEIGE THA 		8-97404-006-0 01 1 0610-0709 ● ●
116 16.650 COVER; HOLE,CONSOLE,RR
BEIGE THA 		8-97404-006-0 01 1 0710-0809 ● ● ● ● ●
116 16.650 COVER; HOLE,CONSOLE,RR
FRONT CONSOLE<D55> BEIGE THA 		8-97404-006-0 01 1 0810-0910 ● ●
116 16.650 COVER; HOLE,CONSOLE,RR
BEIGE THA 		8-97404-006-0 01 1 0810-0910 ● ● ●
116 16.650 COVER; HOLE,CONSOLE,RR
BEIGE THA 		8-97404-006-0 01 1 0911-1104 ● ● ● ● ●
116 16.650 COVER; HOLE,CONSOLE,RR
BEIGE THA 		8-97422-800-0 01 1 1105- ● ● ● ● ●
148 16.650 SCREW; LID,CONSOLE
GRADE BASE<RBA>,GRADE LS<RBB> FRONT CONSOLE<D55> PARKING BRAKE FLOOR<7XW> (A) M4X14 THA 		8-97349-647-0 08 1 0404-0404 ● ● ●
148 16.650 SCREW; LID,CONSOLE
GRADE BASE<RBA>,GRADE LS<RBB> FRONT CONSOLE<D55> PARKING BRAKE FLOOR<7XW> (A) M4X14 THA 		8-97349-647-0 08 1 0405-0409 ● ●
148 16.650 SCREW; LID,CONSOLE
GRADE LS<RBB> FRONT CONSOLE<D55> PARKING BRAKE FLOOR<7XW> (A) M4X14 THA 		8-97349-647-0 08 1 0405-0409 ●
148 16.650 SCREW; LID,CONSOLE
GRADE BASE<RBA>,GRADE LS<RBB> FRONT CONSOLE<D55> PARKING BRAKE FLOOR<7XW> (A) M4X14 THA 		8-97349-647-0 08 1 0410-0508 ●
148 16.650 SCREW; LID,CONSOLE
(A) M4X14 THA 		8-97349-647-0 08 1 0410-0508 ●
148 16.650 SCREW; LID,CONSOLE
GRADE LS<RBB> FRONT CONSOLE<D55> PARKING BRAKE FLOOR<7XW> (A) M4X14 THA 		8-97349-647-0 08 1 0410-0508 ●
148 16.650 SCREW; LID,CONSOLE
GRADE BASE<RBA>,GRADE LS<RBB> FRONT CONSOLE<D55> (A) M4X14 THA 		8-97349-647-0 08 1 0509-0609 ●
148 16.650 SCREW; LID,CONSOLE
GRADE BASE<RBA> (A) M4X14 THA 		8-97349-647-0 08 1 0509-0609 ●
148 16.650 SCREW; LID,CONSOLE
GRADE LS<RBB> FRONT CONSOLE<D55> (A) M4X14 THA 		8-97349-647-0 08 1 0509-0609 ●
148 16.650 SCREW; LID,CONSOLE
GRADE LS<RBB> (A) M4X14 THA 		8-97349-647-0 08 1 0610-0709 ●
148 16.650 SCREW; LID,CONSOLE
GRADE BASE<RBA> (A) M4X14 THA 		8-97349-647-0 08 1 0610-0709 ●
148 16.650 SCREW; LID,CONSOLE
GRADE LS<RBB> FRONT CONSOLE<D55> (A) M4X14 THA 		8-97349-647-0 08 1 0610-0709 ●
148 16.650 SCREW; LID,CONSOLE
GRADE LS<RBB> (A) M4X14 THA 		8-97349-647-0 08 1 0710-0809 ● ●
148 16.650 SCREW; LID,CONSOLE
GRADE BASE<RBA> (A) M4X14 THA 		8-97349-647-0 08 1 0710-0809 ●
148 16.650 SCREW; LID,CONSOLE
GRADE BASE<RBA>,GRADE LS<RBB> FRONT CONSOLE<D55> (A) M4X14 THA 		8-97349-647-0 08 1 0810-0910 ● ●
148 16.650 SCREW; LID,CONSOLE
(A) M4X14 THA 		8-97349-647-0 08 1 0810-0910 ●
148 16.650 SCREW; LID,CONSOLE
GRADE LS<RBB> (A) M4X14 THA 		8-97349-647-0 08 1 0911- ● ●
148 16.650 SCREW; LID,CONSOLE
(A) M4X14 THA 		8-97349-647-0 08 1 0911- ●
148 16.650 SCREW; LID,CONSOLE
GRADE LT<RBD> FRONT CONSOLE<D55> PARKING BRAKE FLOOR<7XW> CLOTH SEAT MOQUETTE<8EP> (A) M4X14 THA 		8-97349-647-0 13 1 0404-0508 ● ●
148 16.650 SCREW; LID,CONSOLE
(A) M4X14 THA 		8-97349-647-0 13 1 0404-0508 ● ●
148 16.650 SCREW; LID,CONSOLE
GRADE LT<RBD> FRONT CONSOLE<D55> CLOTH SEAT MOQUETTE<8EP> (A) M4X14 THA 		8-97349-647-0 13 1 0509-0609 ● ●
148 16.650 SCREW; LID,CONSOLE
GRADE LT<RBD> (A) M4X14 THA 		8-97349-647-0 13 1 0509-0609 ● ●
148 16.650 SCREW; LID,CONSOLE
GRADE LT<RBD> (A) M4X14 THA 		8-97349-647-0 13 1 0610-0709 ● ● ●
148 16.650 SCREW; LID,CONSOLE
GRADE LT<RBD> FRONT CONSOLE<D55> (A) M4X14 THA 		8-97349-647-0 13 1 0610-0709 ●
148 16.650 SCREW; LID,CONSOLE
GRADE LT<RBD> (A) M4X14 THA 		8-97349-647-0 13 1 0710-0809 ● ● ● ●
148 16.650 SCREW; LID,CONSOLE
GRADE LT<RBD> FRONT CONSOLE<D55> (A) M4X14 THA 		8-97349-647-0 13 1 0810-0910 ● ●
148 16.650 SCREW; LID,CONSOLE
(A) M4X14 THA 		8-97349-647-0 13 1 0810-0910 ● ●
148 16.650 SCREW; LID,CONSOLE
GRADE LT<RBD> (A) M4X14 THA 		8-97349-647-0 13 1 0911- ● ●
148 16.650 SCREW; LID,CONSOLE
(A) M4X14 THA 		8-97349-647-0 13 1 0911- ● ●
148 16.650 SCREW; LID,CONSOLE
GRADE LT<RBD> FRONT CONSOLE<D55> PARKING BRAKE FLOOR<7XW> CLOTH SEAT MOQUETTE<8EP> (B) M5X14 THA 		8-97349-872-0 03 1 0404-0508 ● ●
148 16.650 SCREW; LID,CONSOLE
(B) M5X14 THA 		8-97349-872-0 03 1 0404-0508 ● ●
148 16.650 SCREW; LID,CONSOLE
GRADE LT<RBD> FRONT CONSOLE<D55> CLOTH SEAT MOQUETTE<8EP> (B) M5X14 THA 		8-97349-872-0 03 1 0509-0609 ● ●
148 16.650 SCREW; LID,CONSOLE
GRADE LT<RBD> (B) M5X14 THA 		8-97349-872-0 03 1 0509-0609 ● ●
148 16.650 SCREW; LID,CONSOLE
GRADE LT<RBD> (B) M5X14 THA 		8-97349-872-0 03 1 0610-0709 ● ● ●
148 16.650 SCREW; LID,CONSOLE
GRADE LT<RBD> FRONT CONSOLE<D55> (B) M5X14 THA 		8-97349-872-0 03 1 0610-0709 ●
148 16.650 SCREW; LID,CONSOLE
GRADE LT<RBD> (B) M5X14 THA 		8-97349-872-0 03 1 0710-0809 ● ● ● ●
148 16.650 SCREW; LID,CONSOLE
GRADE LT<RBD> FRONT CONSOLE<D55> (B) M5X14 THA 		8-97349-872-0 03 1 0810-0910 ● ●
148 16.650 SCREW; LID,CONSOLE
(B) M5X14 THA 		8-97349-872-0 03 1 0810-0910 ● ●
148 16.650 SCREW; LID,CONSOLE
GRADE LT<RBD> (B) M5X14 THA 		8-97349-872-0 03 1 0911- ● ●
148 16.650 SCREW; LID,CONSOLE
(B) M5X14 THA 		8-97349-872-0 03 1 0911- ● ●
154 16.650 LID ASM; RR CONSOLE
GRADE BASE<RBA>,GRADE LS<RBB> FRONT CONSOLE<D55> PARKING BRAKE FLOOR<7XW> (A) GRAY THA 		8-97396-818-0 01 1 0404-0404 ● ● ●
154 16.650 LID ASM; RR CONSOLE
GRADE BASE<RBA>,GRADE LS<RBB> FRONT CONSOLE<D55> PARKING BRAKE FLOOR<7XW> (A) GRAY THA 		8-97396-818-0 01 1 0405-0409 ● ●
154 16.650 LID ASM; RR CONSOLE
GRADE LS<RBB> FRONT CONSOLE<D55> PARKING BRAKE FLOOR<7XW> (A) GRAY THA 		8-97396-818-0 01 1 0405-0409 ●
154 16.650 LID ASM; RR CONSOLE
GRADE BASE<RBA>,GRADE LS<RBB> FRONT CONSOLE<D55> PARKING BRAKE FLOOR<7XW> (A) GRAY THA 		8-97396-818-0 01 1 0410-0508 ●
154 16.650 LID ASM; RR CONSOLE
(A) GRAY THA 		8-97396-818-0 01 1 0410-0508 ●
154 16.650 LID ASM; RR CONSOLE
GRADE LS<RBB> FRONT CONSOLE<D55> PARKING BRAKE FLOOR<7XW> (A) GRAY THA 		8-97396-818-0 01 1 0410-0508 ●
154 16.650 LID ASM; RR CONSOLE
GRADE BASE<RBA>,GRADE LS<RBB> FRONT CONSOLE<D55> (A) GRAY THA 		8-97396-818-0 01 1 0509-0609 ●
154 16.650 LID ASM; RR CONSOLE
GRADE BASE<RBA> (A) GRAY THA 		8-97396-818-0 01 1 0509-0609 ●
154 16.650 LID ASM; RR CONSOLE
GRADE LS<RBB> FRONT CONSOLE<D55> (A) GRAY THA 		8-97396-818-0 01 1 0509-0609 ●
154 16.650 LID ASM; RR CONSOLE
GRADE LS<RBB> (A) BEIGE THA 		8-97403-969-0 01 1 0610-0709 ●
154 16.650 LID ASM; RR CONSOLE
GRADE BASE<RBA> (A) BEIGE THA 		8-97403-969-0 01 1 0610-0709 ●
154 16.650 LID ASM; RR CONSOLE
GRADE LS<RBB> FRONT CONSOLE<D55> (A) BEIGE THA 		8-97403-969-0 01 1 0610-0709 ●
154 16.650 LID ASM; RR CONSOLE
GRADE LS<RBB> (A) BEIGE THA 		8-97403-969-0 01 1 0710-0809 ● ●
154 16.650 LID ASM; RR CONSOLE
GRADE BASE<RBA> (A) BEIGE THA 		8-97403-969-0 01 1 0710-0809 ●
154 16.650 LID ASM; RR CONSOLE
GRADE BASE<RBA>,GRADE LS<RBB> FRONT CONSOLE<D55> (A) BEIGE THA 		8-97403-969-0 01 1 0810-0910 ● ●
154 16.650 LID ASM; RR CONSOLE
(A) BEIGE THA 		8-97403-969-0 01 1 0810-0910 ●
154 16.650 LID ASM; RR CONSOLE
GRADE LS<RBB> (A) BEIGE THA 		8-97403-969-0 01 1 0911-1104 ● ●
154 16.650 LID ASM; RR CONSOLE
(A) BEIGE THA 		8-97403-969-0 01 1 0911-1104 ●
154 16.650 LID ASM; RR CONSOLE
GRADE LS<RBB> (A) BEIGE THA 		8-97422-811-0 01 1 1105- ● ●
154 16.650 LID ASM; RR CONSOLE
(A) BEIGE THA 		8-97422-811-0 01 1 1105- ●
154 16.650 LID ASM; RR CONSOLE
GRADE LT<RBD> FRONT CONSOLE<D55> PARKING BRAKE FLOOR<7XW> CLOTH SEAT MOQUETTE<8EP> (B) GRAY THA 		8-97397-363-0 01 1 0404-0508 ● ●
154 16.650 LID ASM; RR CONSOLE
(B) GRAY THA 		8-97397-363-0 01 1 0404-0508 ● ●
154 16.650 LID ASM; RR CONSOLE
GRADE LT<RBD> FRONT CONSOLE<D55> CLOTH SEAT MOQUETTE<8EP> (B) GRAY THA 		8-97397-363-0 01 1 0509-0609 ● ●
154 16.650 LID ASM; RR CONSOLE
GRADE LT<RBD> (B) GRAY THA 		8-97397-363-0 01 1 0509-0609 ● ●
154 16.650 LID ASM; RR CONSOLE
GRADE LT<RBD> (B) LIGHT BEIGE THA 		8-97407-610-0 01 1 0610-0709 ● ● ●
154 16.650 LID ASM; RR CONSOLE
GRADE LT<RBD> FRONT CONSOLE<D55> (B) LIGHT BEIGE THA 		8-97407-610-0 01 1 0610-0709 ●
154 16.650 LID ASM; RR CONSOLE
GRADE LT<RBD> (B) LIGHT BEIGE THA 		8-97407-610-0 01 1 0710-0809 ● ● ● ●
154 16.650 LID ASM; RR CONSOLE
GRADE LT<RBD> FRONT CONSOLE<D55> (B) LIGHT BEIGE THA 		8-97407-610-0 01 1 0810-0910 ● ●
154 16.650 LID ASM; RR CONSOLE
(B) LIGHT BEIGE THA 		8-97407-610-0 01 1 0810-0910 ● ●
154 16.650 LID ASM; RR CONSOLE
GRADE LT<RBD> (B) LIGHT BEIGE THA 		8-97407-610-1 01 1 0911- ● ●
154 16.650 LID ASM; RR CONSOLE
(B) LIGHT BEIGE THA 		8-97407-610-1 01 1 0911- ● ●
163 16.650 RUBBER; CUSHION,PARCEL BOX LID
FRONT CONSOLE<D55> PARKING BRAKE FLOOR<7XW> THA 		8-97349-682-0 02 1 0404-0409 ● ● ●
163 16.650 RUBBER; CUSHION,PARCEL BOX LID
THA 		8-97349-682-0 02 1 0404-0409 ● ●
163 16.650 RUBBER; CUSHION,PARCEL BOX LID
FRONT CONSOLE<D55> PARKING BRAKE FLOOR<7XW> THA 		8-97349-682-0 02 1 0410-0508 ● ●
163 16.650 RUBBER; CUSHION,PARCEL BOX LID
THA 		8-97349-682-0 02 1 0410-0508 ● ● ●
163 16.650 RUBBER; CUSHION,PARCEL BOX LID
GRADE BASE<RBA>,GRADE LS<RBB> FRONT CONSOLE<D55> THA 		8-97349-682-0 02 1 0509-0609 ● ●
163 16.650 RUBBER; CUSHION,PARCEL BOX LID
GRADE LT<RBD> FRONT CONSOLE<D55> CLOTH SEAT MOQUETTE<8EP> THA 		8-97349-682-0 02 1 0509-0609 ● ●
163 16.650 RUBBER; CUSHION,PARCEL BOX LID
THA 		8-97349-682-0 02 1 0509-0609 ● ● ●
163 16.650 RUBBER; CUSHION,PARCEL BOX LID
GRADE LS<RBB>,GRADE LT<RBD> THA 		8-97349-682-0 02 1 0610-0709 ●
163 16.650 RUBBER; CUSHION,PARCEL BOX LID
GRADE BASE<RBA> THA 		8-97349-682-0 02 1 0610-0709 ●
163 16.650 RUBBER; CUSHION,PARCEL BOX LID
GRADE LS<RBB>,GRADE LT<RBD> FRONT CONSOLE<D55> THA 		8-97349-682-0 02 1 0610-0709 ●
163 16.650 RUBBER; CUSHION,PARCEL BOX LID
GRADE LT<RBD> THA 		8-97349-682-0 02 1 0610-0709 ● ●
163 16.650 RUBBER; CUSHION,PARCEL BOX LID
THA 		8-97349-682-0 02 1 0710-0809 ● ● ● ● ●
163 16.650 RUBBER; CUSHION,PARCEL BOX LID
FRONT CONSOLE<D55> THA 		8-97349-682-0 02 1 0810-0910 ● ●
163 16.650 RUBBER; CUSHION,PARCEL BOX LID
THA 		8-97349-682-0 02 1 0810-0910 ● ● ●
163 16.650 RUBBER; CUSHION,PARCEL BOX LID
THA 		8-97349-682-0 02 1 0911- ● ● ● ● ●
188 16.650 CONSOLE; RR
GRADE BASE<RBA>,GRADE LS<RBB> FRONT CONSOLE<D55> PARKING BRAKE FLOOR<7XW> (A) GRAY THA 		8-97396-614-0 01 1 0404-0404 ● ● ●
188 16.650 CONSOLE; RR
GRADE BASE<RBA>,GRADE LS<RBB> FRONT CONSOLE<D55> PARKING BRAKE FLOOR<7XW> (A) GRAY THA 		8-97396-614-0 01 1 0405-0409 ● ●
188 16.650 CONSOLE; RR
GRADE LS<RBB> FRONT CONSOLE<D55> PARKING BRAKE FLOOR<7XW> (A) GRAY THA 		8-97396-614-0 01 1 0405-0409 ●
188 16.650 CONSOLE; RR
GRADE BASE<RBA>,GRADE LS<RBB> FRONT CONSOLE<D55> PARKING BRAKE FLOOR<7XW> (A) GRAY THA 		8-97396-614-0 01 1 0410-0508 ●
188 16.650 CONSOLE; RR
(A) GRAY THA 		8-97396-614-0 01 1 0410-0508 ●
188 16.650 CONSOLE; RR
GRADE LS<RBB> FRONT CONSOLE<D55> PARKING BRAKE FLOOR<7XW> (A) GRAY THA 		8-97396-614-0 01 1 0410-0508 ●
188 16.650 CONSOLE; RR
GRADE BASE<RBA>,GRADE LS<RBB> FRONT CONSOLE<D55> (A) GRAY THA 		8-97396-614-0 01 1 0509-0609 ●
188 16.650 CONSOLE; RR
GRADE BASE<RBA> (A) GRAY THA 		8-97396-614-0 01 1 0509-0609 ●
188 16.650 CONSOLE; RR
GRADE LS<RBB> FRONT CONSOLE<D55> (A) GRAY THA 		8-97396-614-0 01 1 0509-0609 ●
188 16.650 CONSOLE; RR
GRADE LS<RBB> (A) BEIGE THA 		8-97403-363-0 01 1 0610-0612 ●
188 16.650 CONSOLE; RR
GRADE BASE<RBA> (A) BEIGE THA 		8-97403-363-0 01 1 0610-0612 ●
188 16.650 CONSOLE; RR
GRADE LS<RBB> FRONT CONSOLE<D55> (A) BEIGE THA 		8-97403-363-0 01 1 0610-0612 ●
188 16.650 CONSOLE; RR
GRADE LS<RBB> (A) BEIGE THA 		8-97409-185-0 01 1 0701-0709 ●
188 16.650 CONSOLE; RR
GRADE BASE<RBA> (A) BEIGE THA 		8-97409-185-0 01 1 0701-0709 ●
188 16.650 CONSOLE; RR
GRADE LS<RBB> FRONT CONSOLE<D55> (A) BEIGE THA 		8-97409-185-0 01 1 0701-0709 ●
188 16.650 CONSOLE; RR
GRADE LS<RBB> (A) BEIGE THA 		8-97409-185-0 01 1 0710-0809 ● ●
188 16.650 CONSOLE; RR
GRADE BASE<RBA> (A) BEIGE THA 		8-97409-185-0 01 1 0710-0809 ●
188 16.650 CONSOLE; RR
GRADE BASE<RBA>,GRADE LS<RBB> FRONT CONSOLE<D55> (A) BEIGE THA 		8-97409-185-0 01 1 0810-0910 ● ●
188 16.650 CONSOLE; RR
(A) BEIGE THA 		8-97409-185-0 01 1 0810-0910 ●
188 16.650 CONSOLE; RR
GRADE LS<RBB> (A) BEIGE THA 		8-97409-185-1 01 1 0911- ● ●
188 16.650 CONSOLE; RR
(A) BEIGE THA 		8-97409-185-1 01 1 0911- ●
188 16.650 CONSOLE; RR
GRADE LT<RBD> FRONT CONSOLE<D55> PARKING BRAKE FLOOR<7XW> CLOTH SEAT MOQUETTE<8EP> (B) GRAY THA 		8-97396-615-0 01 1 0404-0508 ● ●
188 16.650 CONSOLE; RR
(B) GRAY THA 		8-97396-615-0 01 1 0404-0508 ● ●
188 16.650 CONSOLE; RR
GRADE LT<RBD> FRONT CONSOLE<D55> CLOTH SEAT MOQUETTE<8EP> (B) GRAY THA 		8-97396-615-0 01 1 0509-0609 ● ●
188 16.650 CONSOLE; RR
GRADE LT<RBD> (B) GRAY THA 		8-97396-615-0 01 1 0509-0609 ● ●
188 16.650 CONSOLE; RR
GRADE LT<RBD> (B) LIGHT BEIGE THA 		8-97407-055-0 01 1 0610-0612 ● ● ●
188 16.650 CONSOLE; RR
GRADE LT<RBD> FRONT CONSOLE<D55> (B) LIGHT BEIGE THA 		8-97407-055-0 01 1 0610-0612 ●
188 16.650 CONSOLE; RR
GRADE LT<RBD> (B) LIGHT BEIGE THA 		8-97409-187-0 01 1 0701-0709 ● ● ●
188 16.650 CONSOLE; RR
GRADE LT<RBD> FRONT CONSOLE<D55> (B) LIGHT BEIGE THA 		8-97409-187-0 01 1 0701-0709 ●
188 16.650 CONSOLE; RR
GRADE LT<RBD> (B) LIGHT BEIGE THA 		8-97409-187-0 01 1 0710-0809 ● ● ● ●
188 16.650 CONSOLE; RR
GRADE LT<RBD> FRONT CONSOLE<D55> (B) LIGHT BEIGE THA 		8-97409-187-0 01 1 0810-0910 ● ●
188 16.650 CONSOLE; RR
(B) LIGHT BEIGE THA 		8-97409-187-0 01 1 0810-0910 ● ●
188 16.650 CONSOLE; RR
GRADE LT<RBD> (B) LIGHT BEIGE THA 		8-97409-187-1 01 1 0911- ● ●
188 16.650 CONSOLE; RR
(B) LIGHT BEIGE THA 		8-97409-187-1 01 1 0911- ● ●
200 16.650 NUT; SPIRE,SPR LID
GRADE BASE<RBA>,GRADE LS<RBB> FRONT CONSOLE<D55> PARKING BRAKE FLOOR<7XW> THA 		8-97349-642-0 06 1 0404-0404 ● ● ●
200 16.650 NUT; SPIRE,SPR LID
GRADE BASE<RBA>,GRADE LS<RBB> FRONT CONSOLE<D55> PARKING BRAKE FLOOR<7XW> THA 		8-97349-642-0 06 1 0405-0409 ● ●
200 16.650 NUT; SPIRE,SPR LID
GRADE LS<RBB> FRONT CONSOLE<D55> PARKING BRAKE FLOOR<7XW> THA 		8-97349-642-0 06 1 0405-0409 ●
200 16.650 NUT; SPIRE,SPR LID
GRADE BASE<RBA>,GRADE LS<RBB> FRONT CONSOLE<D55> PARKING BRAKE FLOOR<7XW> THA 		8-97349-642-0 06 1 0410-0508 ●
200 16.650 NUT; SPIRE,SPR LID
THA 		8-97349-642-0 06 1 0410-0508 ●
200 16.650 NUT; SPIRE,SPR LID
GRADE LS<RBB> FRONT CONSOLE<D55> PARKING BRAKE FLOOR<7XW> THA 		8-97349-642-0 06 1 0410-0508 ●
200 16.650 NUT; SPIRE,SPR LID
GRADE BASE<RBA>,GRADE LS<RBB> FRONT CONSOLE<D55> THA 		8-97349-642-0 06 1 0509-0609 ●
200 16.650 NUT; SPIRE,SPR LID
GRADE BASE<RBA> THA 		8-97349-642-0 06 1 0509-0609 ●
200 16.650 NUT; SPIRE,SPR LID
GRADE LS<RBB> FRONT CONSOLE<D55> THA 		8-97349-642-0 06 1 0509-0609 ●
200 16.650 NUT; SPIRE,SPR LID
GRADE LS<RBB> THA 		8-97349-642-0 06 1 0610-0709 ●
200 16.650 NUT; SPIRE,SPR LID
GRADE BASE<RBA> THA 		8-97349-642-0 06 1 0610-0709 ●
200 16.650 NUT; SPIRE,SPR LID
GRADE LS<RBB> FRONT CONSOLE<D55> THA 		8-97349-642-0 06 1 0610-0709 ●
200 16.650 NUT; SPIRE,SPR LID
GRADE LS<RBB> THA 		8-97349-642-0 06 1 0710-0809 ● ●
200 16.650 NUT; SPIRE,SPR LID
GRADE BASE<RBA> THA 		8-97349-642-0 06 1 0710-0809 ●
200 16.650 NUT; SPIRE,SPR LID
GRADE BASE<RBA>,GRADE LS<RBB> FRONT CONSOLE<D55> THA 		8-97349-642-0 06 1 0810-0910 ● ●
200 16.650 NUT; SPIRE,SPR LID
THA 		8-97349-642-0 06 1 0810-0910 ●
200 16.650 NUT; SPIRE,SPR LID
GRADE LS<RBB> THA 		8-97349-642-0 06 1 0911- ● ●
200 16.650 NUT; SPIRE,SPR LID
THA 		8-97349-642-0 06 1 0911- ●
200 16.650 NUT; SPIRE,SPR LID
GRADE LT<RBD> FRONT CONSOLE<D55> PARKING BRAKE FLOOR<7XW> CLOTH SEAT MOQUETTE<8EP> THA 		8-97349-642-0 03 1 0404-0508 ● ●
200 16.650 NUT; SPIRE,SPR LID
THA 		8-97349-642-0 03 1 0404-0508 ● ●
200 16.650 NUT; SPIRE,SPR LID
GRADE LT<RBD> FRONT CONSOLE<D55> CLOTH SEAT MOQUETTE<8EP> THA 		8-97349-642-0 03 1 0509-0609 ● ●
200 16.650 NUT; SPIRE,SPR LID
GRADE LT<RBD> THA 		8-97349-642-0 03 1 0509-0609 ● ●
200 16.650 NUT; SPIRE,SPR LID
GRADE LT<RBD> THA 		8-97349-642-0 03 1 0610-0709 ● ● ●
200 16.650 NUT; SPIRE,SPR LID
GRADE LT<RBD> FRONT CONSOLE<D55> THA 		8-97349-642-0 03 1 0610-0709 ●
200 16.650 NUT; SPIRE,SPR LID
GRADE LT<RBD> THA 		8-97349-642-0 03 1 0710-0809 ● ● ● ●
200 16.650 NUT; SPIRE,SPR LID
GRADE LT<RBD> FRONT CONSOLE<D55> THA 		8-97349-642-0 03 1 0810-0910 ● ●
200 16.650 NUT; SPIRE,SPR LID
THA 		8-97349-642-0 03 1 0810-0910 ● ●
200 16.650 NUT; SPIRE,SPR LID
GRADE LT<RBD> THA 		8-97349-642-0 03 1 0911- ● ●
200 16.650 NUT; SPIRE,SPR LID
THA 		8-97349-642-0 03 1 0911- ● ●

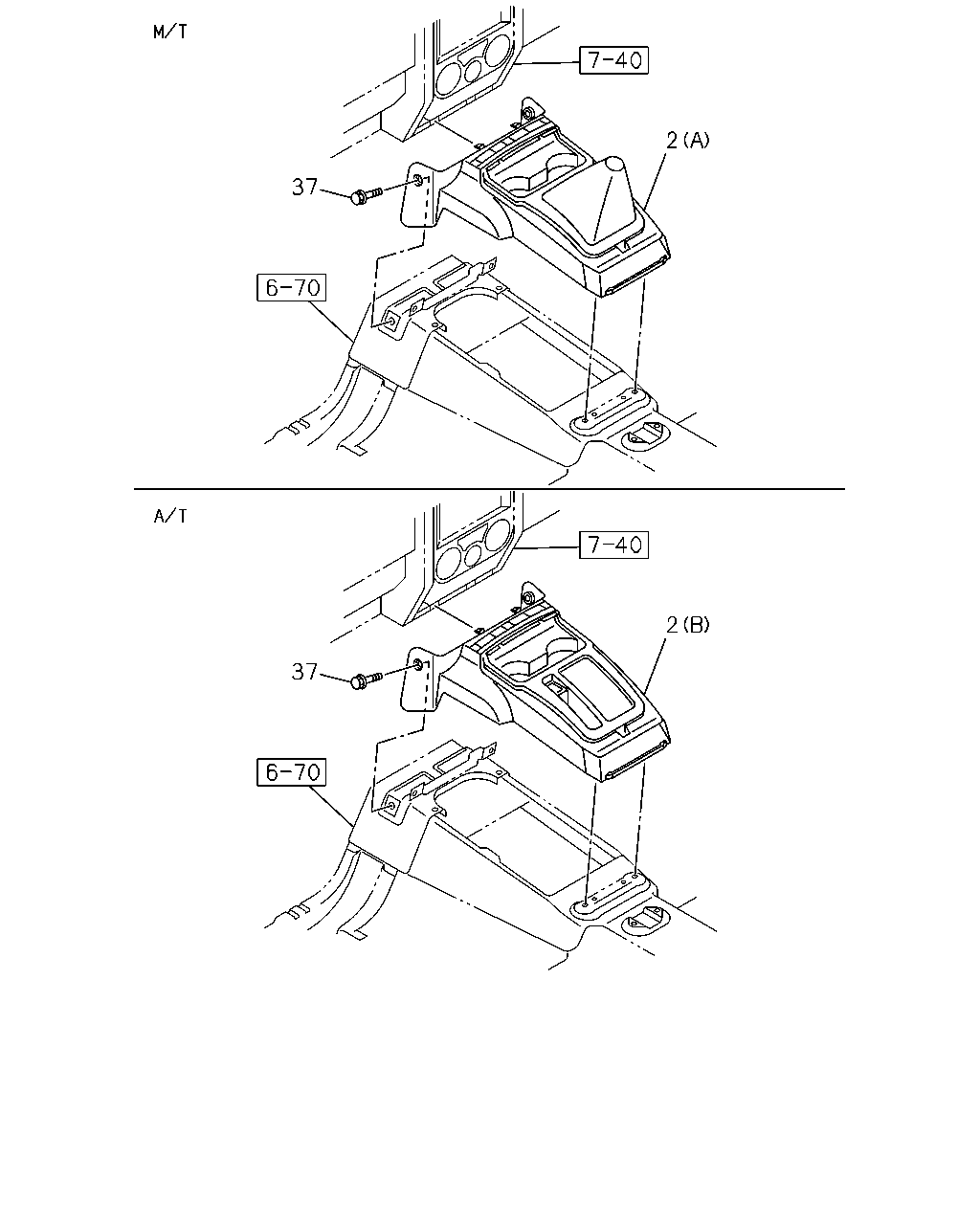

çizim 117861
2 37 2 37
BalonParca AdiParca NoAdetTipApplied Date A B C D E
2 16.081 CONSOLE; CENTER
M/T MSG 5 SPEED<M75>,M/T MUA 5 SPEED 5G<RSP> FRONT CONSOLE<D55> (A) GRAY THA 		8-97396-613-1 01 1 0404-0409 ● ● ●
2 16.081 CONSOLE; CENTER
M/T MUA 5 SPEED 5G<RSP> (A) GRAY THA 		8-97396-613-1 01 1 0404-0409 ● ●
2 16.081 CONSOLE; CENTER
M/T MSG 5 SPEED<M75>,M/T MUA 5 SPEED 5G<RSP> FRONT CONSOLE<D55> (A) GRAY THA 		8-97400-587-0 01 1 0410-0501 ● ●
2 16.081 CONSOLE; CENTER
(A) GRAY THA 		8-97400-587-0 01 1 0410-0501 ●
2 16.081 CONSOLE; CENTER
M/T MUA 5 SPEED 5G<RSP> (A) GRAY THA 		8-97400-587-0 01 1 0410-0501 ● ●
2 16.081 CONSOLE; CENTER
M/T MUA 5 SPEED 5H<MWQ>,M/T MUA 5 SPEED 5G<RSP> FRONT CONSOLE<D55> (A) GRAY THA 		8-97400-587-0 01 1 0502-0508 ● ●
2 16.081 CONSOLE; CENTER
(A) GRAY THA 		8-97400-587-0 01 1 0502-0508 ●
2 16.081 CONSOLE; CENTER
M/T MUA 5 SPEED 5G<RSP> (A) GRAY THA 		8-97400-587-0 01 1 0502-0508 ● ●
2 16.081 CONSOLE; CENTER
M/T MUA 5 SPEED 5H<MWQ>,M/T MUA 5 SPEED 5G<RSP> FRONT CONSOLE<D55> (A) GRAY THA 		8-97400-587-0 01 1 0509-0609 ● ●
2 16.081 CONSOLE; CENTER
M/T MUA 5 SPEED 5H<MWQ> (A) GRAY THA 		8-97400-587-0 01 1 0509-0609 ●
2 16.081 CONSOLE; CENTER
M/T MUA 5 SPEED 5G<RSP> (A) GRAY THA 		8-97400-587-0 01 1 0509-0609 ● ●
2 16.081 CONSOLE; CENTER
M/T MUA 5 SPEED 5H<MWQ> (A) BEIGE THA 		8-97403-344-0 01 1 0610-0709 ● ● ● ●
2 16.081 CONSOLE; CENTER
M/T MUA 5 SPEED 5H<MWQ> FRONT CONSOLE<D55> (A) BEIGE THA 		8-97403-344-0 01 1 0610-0709 ●
2 16.081 CONSOLE; CENTER
M/T MUA 5 SPEED 5H<MWQ> (A) BEIGE THA 		8-97403-344-0 01 1 0710-0803 ● ● ● ● ●
2 16.081 CONSOLE; CENTER
A/T 4 SPEED-JATCO<RMK> FRONT CONSOLE<D55> (B) GRAY THA 		8-97396-612-1 01 1 0404-0609 ● ●
2 16.081 CONSOLE; CENTER
A/T 4 SPEED-JATCO<RMK> (B) GRAY THA 		8-97396-612-1 01 1 0404-0609 ● ●
2 16.081 CONSOLE; CENTER
A/T 4 SPEED-JATCO<RMK> (B) BEIGE THA 		8-97403-358-1 01 1 0610-0709 ● ●
2 16.081 CONSOLE; CENTER
A/T 4 SPEED-JATCO<RMK> FRONT CONSOLE<D55> (B) BEIGE THA 		8-97403-358-1 01 1 0610-0709 ●
2 16.081 CONSOLE; CENTER
A/T AISIN<RMD>,A/T 4 SPEED-JATCO<RMK> (B) BEIGE THA 		8-97403-358-1 01 1 0610-0709 ●
2 16.081 CONSOLE; CENTER
A/T 4 SPEED-JATCO<RMK> (B) BEIGE THA 		8-97403-358-1 01 1 0710-0809 ● ● ●
2 16.081 CONSOLE; CENTER
A/T AISIN<RMD>,A/T 4 SPEED-JATCO<RMK> (B) BEIGE THA 		8-97403-358-1 01 1 0710-0809 ●
2 16.081 CONSOLE; CENTER
A/T 4 SPEED-JATCO<RMK> FRONT CONSOLE<D55> (B) BEIGE THA 		8-97403-358-1 01 1 0810-0910 ● ●
2 16.081 CONSOLE; CENTER
A/T 4 SPEED-JATCO<RMK> (B) BEIGE THA 		8-97403-358-1 01 1 0810-0910 ●
2 16.081 CONSOLE; CENTER
A/T AISIN<RMD>,A/T 4 SPEED-JATCO<RMK> (B) BEIGE THA 		8-97403-358-1 01 1 0810-0910 ●
2 16.081 CONSOLE; CENTER
A/T 4 SPEED-JATCO<RMK> (B) BEIGE THA 		8-97403-358-1 01 1 0911-1104 ● ● ●
2 16.081 CONSOLE; CENTER
A/T AISIN<RMD>,A/T 4 SPEED-JATCO<RMK> (B) BEIGE THA 		8-97403-358-1 01 1 0911-1104 ●
2 16.081 CONSOLE; CENTER
A/T 4 SPEED-JATCO<RMK> (B) BEIGE THA 		8-97422-763-0 01 1 1105- ● ● ●
2 16.081 CONSOLE; CENTER
A/T AISIN<RMD>,A/T 4 SPEED-JATCO<RMK> (B) BEIGE THA 		8-97422-763-0 01 1 1105- ●
2 16.081 CONSOLE; CENTER
M/T MUX 5 SPEED 5S<MZJ> (A) BEIGE THA 		8-97407-085-0 01 1 0610-0803 ●
2 16.081 CONSOLE; CENTER
M/T MUA 5 SPEED 5H<MWQ> (A) BEIGE THA 		8-97407-085-0 01 1 0804-0809 ● ● ● ●
2 16.081 CONSOLE; CENTER
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> (A) BEIGE THA 		8-97407-085-0 01 1 0804-0809 ●
2 16.081 CONSOLE; CENTER
M/T MUA 5 SPEED 5H<MWQ> FRONT CONSOLE<D55> (A) BEIGE THA 		8-97407-085-0 01 1 0810-0910 ● ●
2 16.081 CONSOLE; CENTER
M/T MUA 5 SPEED 5H<MWQ> (A) BEIGE THA 		8-97407-085-0 01 1 0810-0910 ● ●
2 16.081 CONSOLE; CENTER
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> (A) BEIGE THA 		8-97407-085-0 01 1 0810-0910 ●
2 16.081 CONSOLE; CENTER
M/T MUA 5 SPEED 5H<MWQ> (A) BEIGE THA 		8-97407-085-1 01 1 0911- ● ● ● ●
2 16.081 CONSOLE; CENTER
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> (A) BEIGE THA 		8-97407-085-1 01 1 0911- ●
37 16.650 SCREW; CONSOLE
FRONT CONSOLE<D55> 01.269 M5X16 		8-94358-694-0 02 1 0404-0409 ● ● ●
37 16.650 SCREW; CONSOLE
01.269 M5X16 		8-94358-694-0 02 1 0404-0409 ● ●
37 16.650 SCREW; CONSOLE
FRONT CONSOLE<D55> 01.269 M5X16 		8-94358-694-0 02 1 0410-0609 ● ●
37 16.650 SCREW; CONSOLE
01.269 M5X16 		8-94358-694-0 02 1 0410-0609 ● ● ●
37 16.650 SCREW; CONSOLE
01.269 M5X16 		8-94358-694-0 02 1 0610-0612 ● ● ● ●
37 16.650 SCREW; CONSOLE
FRONT CONSOLE<D55> 01.269 M5X16 		8-94358-694-0 02 1 0610-0612 ●
37 16.650 SCREW; CONSOLE
M5X16 		8-98061-684-0 02 1 0701-0709 ● ● ● ●
37 16.650 SCREW; CONSOLE
FRONT CONSOLE<D55> M5X16 		8-98061-684-0 02 1 0701-0709 ●
37 16.650 SCREW; CONSOLE
M5X16 		8-98061-684-0 02 1 0710-0809 ● ● ● ● ●
37 16.650 SCREW; CONSOLE
FRONT CONSOLE<D55> M5X16 		8-98061-684-0 02 1 0810-0910 ● ●
37 16.650 SCREW; CONSOLE
M5X16 		8-98061-684-0 02 1 0810-0910 ● ● ●
37 16.650 SCREW; CONSOLE
M5X16 		8-98061-684-0 02 1 0911-1003 ● ● ● ● ●
37 16.650 SCREW; CONSOLE
M5X16 THA 		8-98167-220-0 02 1 1004- ● ● ● ● ●

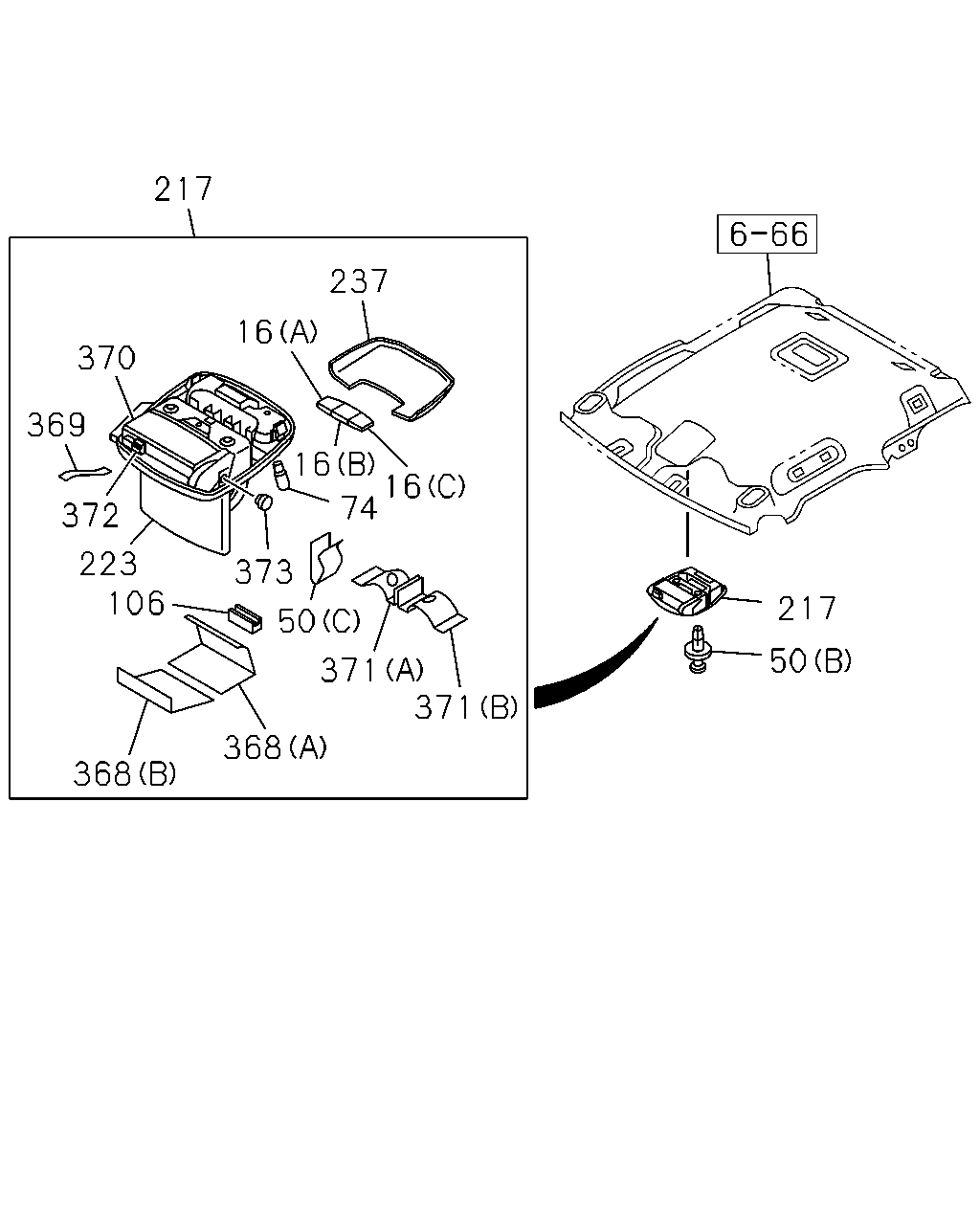

çizim 117866
217 237 16 370 369 16 16 74 372 223 106 373 217 50 50 371 371 368 368
BalonParca AdiParca NoAdetTipApplied Date A B C D E
16 16.650 KNOB ASM
HEADER CONSOLE<DK6> (A) LIGHT GRAY THA 		8-97401-422-1 01 1 0509-0609 ● ●
16 16.650 KNOB ASM
(A) LIGHT GRAY THA 		8-97401-422-1 01 1 0509-0609 ● ●
16 16.650 KNOB ASM
HEADER CONSOLE<DK6> (A) GRAY THA 		8-97403-994-1 01 1 0610- ● ●
16 16.650 KNOB ASM
(A) GRAY THA 		8-97403-994-1 01 1 0610- ● ●
16 16.650 KNOB ASM
HEADER CONSOLE<DK6> (B) LIGHT GRAY THA 		8-97401-426-1 01 1 0509-0609 ● ●
16 16.650 KNOB ASM
(B) LIGHT GRAY THA 		8-97401-426-1 01 1 0509-0609 ● ●
16 16.650 KNOB ASM
HEADER CONSOLE<DK6> (B) GRAY THA 		8-97403-996-1 01 1 0610- ● ●
16 16.650 KNOB ASM
(B) GRAY THA 		8-97403-996-1 01 1 0610- ● ●
16 16.650 KNOB ASM
HEADER CONSOLE<DK6> (C) LIGHT GRAY THA 		8-97401-429-1 01 1 0509-0609 ● ●
16 16.650 KNOB ASM
(C) LIGHT GRAY THA 		8-97401-429-1 01 1 0509-0609 ● ●
16 16.650 KNOB ASM
HEADER CONSOLE<DK6> (C) GRAY THA 		8-97403-998-1 01 1 0610- ● ●
16 16.650 KNOB ASM
(C) GRAY THA 		8-97403-998-1 01 1 0610- ● ●
50 04.010 CLIP; CONSOLE
FRONT CONSOLE<D55> PARKING BRAKE FLOOR<7XW> (A) THA 		8-97355-734-0 02 1 0404-0409 ● ● ●
50 04.010 CLIP; CONSOLE
(A) THA 		8-97355-734-0 02 1 0404-0409 ● ●
50 04.010 CLIP; CONSOLE
FRONT CONSOLE<D55> PARKING BRAKE FLOOR<7XW> (A) THA 		8-97355-734-0 02 1 0410-0508 ● ●
50 04.010 CLIP; CONSOLE
(A) THA 		8-97355-734-0 02 1 0410-0508 ● ● ●
50 04.010 CLIP; CONSOLE
GRADE BASE<RBA>,GRADE LS<RBB> FRONT CONSOLE<D55> (A) THA 		8-97355-734-0 02 1 0509-0609 ● ●
50 04.010 CLIP; CONSOLE
GRADE LT<RBD> FRONT CONSOLE<D55> CLOTH SEAT MOQUETTE<8EP> (A) THA 		8-97355-734-0 02 1 0509-0609 ● ●
50 04.010 CLIP; CONSOLE
(A) THA 		8-97355-734-0 02 1 0509-0609 ● ● ●
50 04.010 CLIP; CONSOLE
GRADE LS<RBB>,GRADE LT<RBD> (A) THA 		8-97355-734-0 02 1 0610-0709 ●
50 04.010 CLIP; CONSOLE
GRADE BASE<RBA> (A) THA 		8-97355-734-0 02 1 0610-0709 ●
50 04.010 CLIP; CONSOLE
GRADE LS<RBB>,GRADE LT<RBD> FRONT CONSOLE<D55> (A) THA 		8-97355-734-0 02 1 0610-0709 ●
50 04.010 CLIP; CONSOLE
GRADE LT<RBD> (A) THA 		8-97355-734-0 02 1 0610-0709 ● ●
50 04.010 CLIP; CONSOLE
(A) THA 		8-97355-734-0 02 1 0710-0809 ● ● ● ● ●
50 04.010 CLIP; CONSOLE
FRONT CONSOLE<D55> (A) THA 		8-97355-734-0 02 1 0810-0910 ● ●
50 04.010 CLIP; CONSOLE
(A) THA 		8-97355-734-0 02 1 0810-0910 ● ● ●
50 04.010 CLIP; CONSOLE
(A) THA 		8-97355-734-0 02 1 0911- ● ● ● ● ●
50 04.010 CLIP; CONSOLE
HEADER CONSOLE<DK6> (C) THA 		8-97388-958-0 02 1 0509- ● ●
50 04.010 CLIP; CONSOLE
(C) THA 		8-97388-958-0 02 1 0509- ● ●
50 04.010 CLIP; CONSOLE
HEADER CONSOLE<DK6> (B) LIGHT GRAY THA 		8-97401-114-0 02 1 0509-0609 ● ●
50 04.010 CLIP; CONSOLE
(B) LIGHT GRAY THA 		8-97401-114-0 02 1 0509-0609 ● ●
50 04.010 CLIP; CONSOLE
HEADER CONSOLE<DK6> (B) GRAY 		8-97403-528-0 02 1 0610- ● ●
50 04.010 CLIP; CONSOLE
(B) GRAY 		8-97403-528-0 02 1 0610- ● ●
74 08.991 BULB; CONSOLE
HEADER CONSOLE<DK6> THA 		8-97388-953-0 02 1 0509- ● ●
74 08.991 BULB; CONSOLE
THA 		8-97388-953-0 02 1 0509- ● ●
106 16.650 LOCK; CONSOLE LID
HEADER CONSOLE<DK6> THA 		8-97388-944-0 01 1 0509- ● ●
106 16.650 LOCK; CONSOLE LID
THA 		8-97388-944-0 01 1 0509- ● ●
217 16.745 CONSOLE; HEADER
HEADER CONSOLE<DK6> LIGHT GRAY THA 		8-97401-113-3 01 1 0509-0609 ● ●
217 16.745 CONSOLE; HEADER
LIGHT GRAY THA 		8-97401-113-3 01 1 0509-0609 ● ●
217 16.745 CONSOLE; HEADER
HEADER CONSOLE<DK6> GRAY THA 		8-97403-526-3 01 1 0610- ● ●
217 16.745 CONSOLE; HEADER
GRAY THA 		8-97403-526-3 01 1 0610- ● ●
223 16.650 LID; HEADER CONSOLE
HEADER CONSOLE<DK6> LIGHT GRAY THA 		8-97401-418-0 01 1 0509-0609 ● ●
223 16.650 LID; HEADER CONSOLE
LIGHT GRAY THA 		8-97401-418-0 01 1 0509-0609 ● ●
223 16.650 LID; HEADER CONSOLE
HEADER CONSOLE<DK6> GRAY THA 		8-97403-992-0 01 1 0610- ● ●
223 16.650 LID; HEADER CONSOLE
GRAY THA 		8-97403-992-0 01 1 0610- ● ●
237 16.650 LENS; HEADER CONSOLE
HEADER CONSOLE<DK6> THA 		8-97371-299-0 01 1 0509- ● ●
237 16.650 LENS; HEADER CONSOLE
THA 		8-97371-299-0 01 1 0509- ● ●
368 16.650 SHEET; CASE,HEADER CONSOLE
HEADER CONSOLE<DK6> (A) THA 		8-97388-945-0 01 1 0509- ● ●
368 16.650 SHEET; CASE,HEADER CONSOLE
(A) THA 		8-97388-945-0 01 1 0509- ● ●
368 16.650 SHEET; CASE,HEADER CONSOLE
HEADER CONSOLE<DK6> (B) THA 		8-97388-948-0 01 1 0509- ● ●
368 16.650 SHEET; CASE,HEADER CONSOLE
(B) THA 		8-97388-948-0 01 1 0509- ● ●
369 16.650 SPRING; LID,HEADER CONSOLE
HEADER CONSOLE<DK6> THA 		8-97388-946-0 01 1 0509- ● ●
369 16.650 SPRING; LID,HEADER CONSOLE
THA 		8-97388-946-0 01 1 0509- ● ●
370 16.650 CASE; HEADER CONSOLE
HEADER CONSOLE<DK6> THA 		8-97388-947-0 01 1 0509- ● ●
370 16.650 CASE; HEADER CONSOLE
THA 		8-97388-947-0 01 1 0509- ● ●
371 16.650 REFLECTOR; LAMP,HEADER CONSOLE
HEADER CONSOLE<DK6> (A) THA 		8-97388-949-0 01 1 0509- ● ●
371 16.650 REFLECTOR; LAMP,HEADER CONSOLE
(A) THA 		8-97388-949-0 01 1 0509- ● ●
371 16.650 REFLECTOR; LAMP,HEADER CONSOLE
HEADER CONSOLE<DK6> (B) THA 		8-97388-950-0 01 1 0509- ● ●
371 16.650 REFLECTOR; LAMP,HEADER CONSOLE
(B) THA 		8-97388-950-0 01 1 0509- ● ●
372 16.674 HARNESS ASM; SWITCH,HEADER CONSO
HEADER CONSOLE<DK6> THA 		8-97388-951-0 01 1 0509- ● ●
372 16.674 HARNESS ASM; SWITCH,HEADER CONSO
THA 		8-97388-951-0 01 1 0509- ● ●
373 16.674 DAMPER; LID,HEADER CONSOLE
HEADER CONSOLE<DK6> THA 		8-97388-954-0 01 1 0509- ● ●
373 16.674 DAMPER; LID,HEADER CONSOLE
THA 		8-97388-954-0 01 1 0509- ● ●

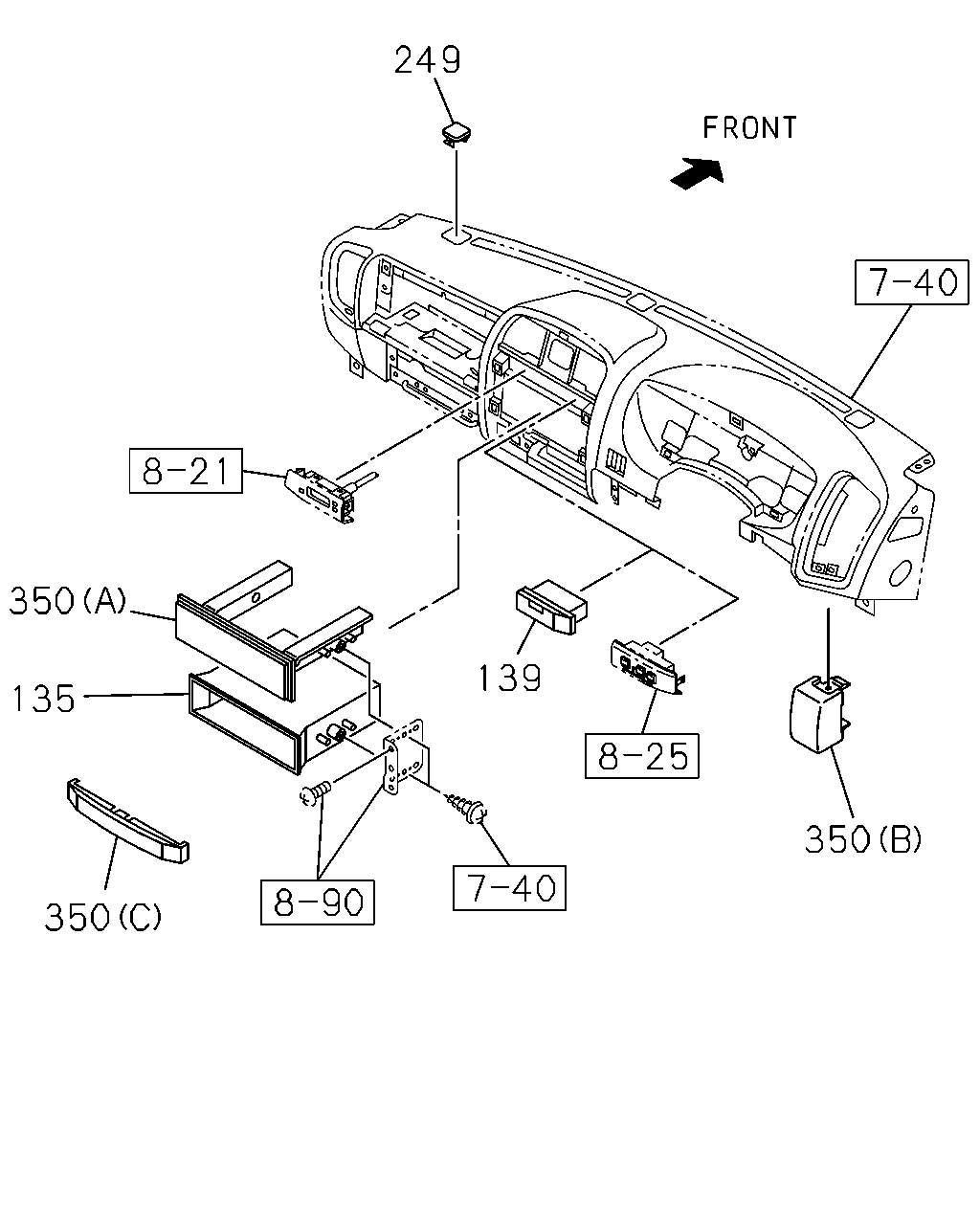

çizim 117870
249 350 139 135 350 350
BalonParca AdiParca NoAdetTipApplied Date A B C D E
135 16.650 BOX; CONSOLE,LWR
RADIO DELETE<UL5>,AM/FM W/CASSETTE 4 SPEAKERS<UM6>,AM/FM ASIA/OCEANIA BAND W/CASSETTE FULL LOGIC<UX5>,AM/FM ASIA/O CEANIA BAND W/CASSETTE SEMI LOGIC<7AU> EXC. MULTI CD PLAYER<U1S> DARK GRAY THA 		8-97396-595-0 01 1 0404-0409 ● ● ●
135 16.650 BOX; CONSOLE,LWR
EXC. MULTI CD PLAYER<U1S> DARK GRAY THA 		8-97396-595-0 01 1 0404-0409 ● ●
135 16.650 BOX; CONSOLE,LWR
RADIO DELETE<UL5>,AM/FM W/CASSETTE AUTO LOUDNESS 4 SPEAKERS<UU1> EXC. MULTI CD PLAYER<U1S> DARK GRAY THA 		8-97396-595-0 01 1 0410-0508 ● ●
135 16.650 BOX; CONSOLE,LWR
RADIO DELETE<UL5>,AM/FM W/CASSETTE AUTO LOUDNESS 4 SPEAKERS<UU1> DARK GRAY THA 		8-97396-595-0 01 1 0410-0508 ●
135 16.650 BOX; CONSOLE,LWR
EXC. MULTI CD PLAYER<U1S> DARK GRAY THA 		8-97396-595-0 01 1 0410-0508 ● ●
135 16.650 BOX; CONSOLE,LWR
DARK GRAY THA 		8-97396-595-0 01 1 0509-0609 ●
135 16.650 BOX; CONSOLE,LWR
RADIO DELETE<UL5>,AM/FM W/CASSETTE AUTO LOUDNESS 4 SPEAKERS<UU1> DARK GRAY THA 		8-97396-595-0 01 1 0509-0609 ● ● ● ●
135 16.650 BOX; CONSOLE,LWR
RADIO DELETE<UL5>,AM/FM W/CASSETTE 2 SPEAKERS<UN6>,RADIO AM/FM STEREO, SEEK/SCAN,CD<UT3> DARK GRAY THA 		8-97396-595-0 01 1 0610-0908 ● ● ● ●
135 16.650 BOX; CONSOLE,LWR
RADIO DELETE<UL5>,RADIO AM/FM STEREO, SEEK/SCAN,CD<UT3> DARK GRAY THA 		8-97396-595-0 01 1 0610-0908 ●
135 16.650 BOX; CONSOLE,LWR
RADIO DELETE<UL5>,RADIO AM/FM STEREO, SEEK/SCAN,CD<UT3> DARK GRAY THA 		8-97396-595-0 01 1 0909- ● ● ● ● ●
139 16.650 BOX; CONSOLE,UPR
GRADE BASE<RBA>,GRADE LS<RBB> DIGITAL CLOCK<UE8> DARK GRAY THA 		8-97398-207-0 01 1 0404-0408 ● ● ●
139 16.650 BOX; CONSOLE,UPR
DIGITAL CLOCK<UE8> EXC. INTERIOR SILVER BEZEL<BY9> DARK GRAY THA 		8-97398-207-0 01 1 0409-0409 ● ●
139 16.650 BOX; CONSOLE,UPR
DIGITAL CLOCK<UE8> DARK GRAY THA 		8-97398-207-0 01 1 0409-0409 ●
139 16.650 BOX; CONSOLE,UPR
DIGITAL CLOCK<UE8> EXC. INTERIOR SILVER BEZEL<BY9> DARK GRAY THA 		8-97398-207-0 01 1 0410-0609 ● ●
139 16.650 BOX; CONSOLE,UPR
DARK GRAY THA 		8-97398-207-0 01 1 0410-0609 ●
139 16.650 BOX; CONSOLE,UPR
EXC. INTERIOR SILVER BEZEL<BY9> DARK GRAY THA 		8-97403-312-2 01 1 0610-0709 ●
139 16.650 BOX; CONSOLE,UPR
DARK GRAY THA 		8-97403-312-2 01 1 0610-0709 ●
139 16.650 BOX; CONSOLE,UPR
DIGITAL CLOCK<UE8> EXC. INTERIOR SILVER BEZEL<BY9> DARK GRAY THA 		8-97403-312-2 01 1 0610-0709 ●
139 16.650 BOX; CONSOLE,UPR
EXC. INTERIOR SILVER BEZEL<BY9> DARK GRAY THA 		8-97403-312-2 01 1 0710-0809 ● ●
139 16.650 BOX; CONSOLE,UPR
DARK GRAY THA 		8-97403-312-2 01 1 0710-0809 ●
139 16.650 BOX; CONSOLE,UPR
DIGITAL CLOCK<UE8> EXC. INTERIOR SILVER BEZEL<BY9> DARK GRAY THA 		8-97403-312-2 01 1 0810-0910 ● ●
139 16.650 BOX; CONSOLE,UPR
DARK GRAY THA 		8-97403-312-2 01 1 0810-0910 ●
139 16.650 BOX; CONSOLE,UPR
EXC. INTERIOR SILVER BEZEL<BY9> DARK GRAY THA 		8-97403-312-2 01 1 0911- ● ●
139 16.650 BOX; CONSOLE,UPR
DARK GRAY THA 		8-97403-312-2 01 1 0911- ●
139 16.650 BOX; CONSOLE,UPR
GRADE LT<RBD> DIGITAL CLOCK<UE8> LIGHT GRAY THA 		8-97298-418-0 01 1 0404-0408 ● ●
139 16.650 BOX; CONSOLE,UPR
INTERIOR SILVER BEZEL<BY9> DIGITAL CLOCK<UE8> LIGHT GRAY THA 		8-97298-418-0 01 1 0409-0609 ● ●
139 16.650 BOX; CONSOLE,UPR
INTERIOR SILVER BEZEL<BY9> GRAY THA 		8-97405-221-2 01 1 0610-0709 ●
139 16.650 BOX; CONSOLE,UPR
INTERIOR SILVER BEZEL<BY9> DIGITAL CLOCK<UE8> GRAY THA 		8-97405-221-2 01 1 0610-0709 ●
139 16.650 BOX; CONSOLE,UPR
INTERIOR SILVER BEZEL<BY9> GRAY THA 		8-97405-221-2 01 1 0710-0809 ● ●
139 16.650 BOX; CONSOLE,UPR
INTERIOR SILVER BEZEL<BY9> DIGITAL CLOCK<UE8> GRAY THA 		8-97405-221-2 01 1 0810-0910 ● ●
139 16.650 BOX; CONSOLE,UPR
INTERIOR SILVER BEZEL<BY9> GRAY THA 		8-97405-221-2 01 1 0911- ● ●
249 16.674 COVER
GRAY THA 		8-97396-593-0 03 1 0404-0609 ● ● ● ● ●
249 16.674 COVER
BEIGE THA 		8-97403-310-0 03 1 0610-1104 ● ● ● ● ●
249 16.674 COVER
BEIGE THA 		8-97422-674-0 03 1 1105- ● ● ● ● ●
350 16.650 COVER; CONSOLE
EXC. DIGITAL CLOCK<UE8> (C) DARK GRAY THA 		8-97403-320-0 01 1 0810-0910 ● ●
350 16.650 COVER; CONSOLE
RADIO DELETE<UL5> (A) DARK GRAY THA 		8-97396-597-0 01 1 0404-0508 ● ● ●
350 16.650 COVER; CONSOLE
RADIO DELETE<UL5> (A) DARK GRAY THA 		8-97396-597-0 01 1 0509-0609 ● ● ● ●
350 16.650 COVER; CONSOLE
RADIO DELETE<UL5> (A) DARK GRAY THA 		8-97396-597-0 01 1 0610- ● ● ● ● ●
350 16.650 COVER; CONSOLE
(B) DARK GRAY THA 		8-97396-598-0 01 1 0612- ● ● ● ●
350 16.650 COVER; CONSOLE
EXC. AUTO CRUISE CONT<K30> (B) DARK GRAY THA 		8-97396-598-0 01 1 0612- ●
350 16.650 COVER; CONSOLE
(B) DARK GRAY THA 		8-97396-598-0 04 1 0404-0609 ● ● ● ● ●
350 16.650 COVER; CONSOLE
(B) DARK GRAY THA 		8-97396-598-0 03 1 0610- ● ● ● ● ●
350 16.650 COVER; CONSOLE
EXC. DIGITAL CLOCK<UE8> (C) DARK GRAY THA 		8-97403-320-0 01 1 0610-0709 ●
çizim 118158
188 112 200 148 163 11 102 148 148 107 29 29 148 11 116 154 50 49 188
BalonParca AdiParca NoAdetTipApplied Date A B C D E
11 16.650 HINGE; CONSOLE LID
FRONT CONSOLE<D55> PARKING BRAKE FLOOR<7XW> (A) THA 		8-97349-645-0 01 1 0404-0409 ● ● ●
11 16.650 HINGE; CONSOLE LID
(A) THA 		8-97349-645-0 01 1 0404-0409 ● ●
11 16.650 HINGE; CONSOLE LID
FRONT CONSOLE<D55> PARKING BRAKE FLOOR<7XW> (A) THA 		8-97349-645-0 01 1 0410-0508 ● ●
11 16.650 HINGE; CONSOLE LID
(A) THA 		8-97349-645-0 01 1 0410-0508 ● ● ●
11 16.650 HINGE; CONSOLE LID
GRADE BASE<RBA>,GRADE LS<RBB> FRONT CONSOLE<D55> (A) THA 		8-97349-645-0 01 1 0509-0609 ● ●
11 16.650 HINGE; CONSOLE LID
GRADE LT<RBD> FRONT CONSOLE<D55> CLOTH SEAT MOQUETTE<8EP> (A) THA 		8-97349-645-0 01 1 0509-0609 ● ●
11 16.650 HINGE; CONSOLE LID
(A) THA 		8-97349-645-0 01 1 0509-0609 ● ● ●
11 16.650 HINGE; CONSOLE LID
GRADE LS<RBB>,GRADE LT<RBD> (A) THA 		8-97349-645-0 01 1 0610-0709 ●
11 16.650 HINGE; CONSOLE LID
GRADE BASE<RBA> (A) THA 		8-97349-645-0 01 1 0610-0709 ●
11 16.650 HINGE; CONSOLE LID
GRADE LS<RBB>,GRADE LT<RBD> FRONT CONSOLE<D55> (A) THA 		8-97349-645-0 01 1 0610-0709 ●
11 16.650 HINGE; CONSOLE LID
GRADE LT<RBD> (A) THA 		8-97349-645-0 01 1 0610-0709 ● ●
11 16.650 HINGE; CONSOLE LID
(A) THA 		8-97349-645-0 01 1 0710-0809 ● ● ● ● ●
11 16.650 HINGE; CONSOLE LID
FRONT CONSOLE<D55> (A) THA 		8-97349-645-0 01 1 0810-0910 ● ●
11 16.650 HINGE; CONSOLE LID
(A) THA 		8-97349-645-0 01 1 0810-0910 ● ● ●
11 16.650 HINGE; CONSOLE LID
(A) THA 		8-97349-645-0 01 1 0911- ● ● ● ● ●
11 16.650 HINGE; CONSOLE LID
GRADE LT<RBD> FRONT CONSOLE<D55> PARKING BRAKE FLOOR<7XW> CLOTH SEAT MOQUETTE<8EP> (B) THA 		8-97349-646-0 01 1 0404-0508 ● ●
11 16.650 HINGE; CONSOLE LID
(B) THA 		8-97349-646-0 01 1 0404-0508 ● ●
11 16.650 HINGE; CONSOLE LID
GRADE LT<RBD> FRONT CONSOLE<D55> CLOTH SEAT MOQUETTE<8EP> (B) THA 		8-97349-646-0 01 1 0509-0609 ● ●
11 16.650 HINGE; CONSOLE LID
GRADE LT<RBD> (B) THA 		8-97349-646-0 01 1 0509-0609 ● ●
11 16.650 HINGE; CONSOLE LID
GRADE LT<RBD> (B) THA 		8-97349-646-0 01 1 0610-0709 ● ● ●
11 16.650 HINGE; CONSOLE LID
GRADE LT<RBD> FRONT CONSOLE<D55> (B) THA 		8-97349-646-0 01 1 0610-0709 ●
11 16.650 HINGE; CONSOLE LID
GRADE LT<RBD> (B) THA 		8-97349-646-0 01 1 0710-0809 ● ● ● ●
11 16.650 HINGE; CONSOLE LID
GRADE LT<RBD> FRONT CONSOLE<D55> (B) THA 		8-97349-646-0 01 1 0810-0910 ● ●
11 16.650 HINGE; CONSOLE LID
(B) THA 		8-97349-646-0 01 1 0810-0910 ● ●
11 16.650 HINGE; CONSOLE LID
GRADE LT<RBD> (B) THA 		8-97349-646-0 01 1 0911- ● ●
11 16.650 HINGE; CONSOLE LID
(B) THA 		8-97349-646-0 01 1 0911- ● ●
29 16.650 SCREW; HINGE
FRONT CONSOLE<D55> PARKING BRAKE FLOOR<7XW> 16.115 M5X16 THA 		8-94279-312-0 06 1 0404-0409 ● ● ●
29 16.650 SCREW; HINGE
16.115 M5X16 THA 		8-94279-312-0 06 1 0404-0409 ● ●
29 16.650 SCREW; HINGE
FRONT CONSOLE<D55> PARKING BRAKE FLOOR<7XW> 16.115 M5X16 THA 		8-94279-312-0 06 1 0410-0411 ● ●
29 16.650 SCREW; HINGE
16.115 M5X16 THA 		8-94279-312-0 06 1 0410-0411 ● ● ●
29 16.650 SCREW; HINGE
GRADE BASE<RBA>,GRADE LS<RBB> FRONT CONSOLE<D55> PARKING BRAKE FLOOR<7XW> 16.115 M5X16 THA 		8-94279-312-0 05 1 0412-0508 ●
29 16.650 SCREW; HINGE
16.115 M5X16 THA 		8-94279-312-0 05 1 0412-0508 ●
29 16.650 SCREW; HINGE
GRADE LS<RBB> FRONT CONSOLE<D55> PARKING BRAKE FLOOR<7XW> 16.115 M5X16 THA 		8-94279-312-0 05 1 0412-0508 ●
29 16.650 SCREW; HINGE
GRADE BASE<RBA>,GRADE LS<RBB> FRONT CONSOLE<D55> 16.115 M5X16 THA 		8-94279-312-0 05 1 0509-0609 ●
29 16.650 SCREW; HINGE
GRADE BASE<RBA> 16.115 M5X16 THA 		8-94279-312-0 05 1 0509-0609 ●
29 16.650 SCREW; HINGE
GRADE LS<RBB> FRONT CONSOLE<D55> 16.115 M5X16 THA 		8-94279-312-0 05 1 0509-0609 ●
29 16.650 SCREW; HINGE
GRADE LS<RBB> 16.115 M5X16 THA 		8-94279-312-0 05 1 0610-0612 ●
29 16.650 SCREW; HINGE
GRADE BASE<RBA> 16.115 M5X16 THA 		8-94279-312-0 05 1 0610-0612 ●
29 16.650 SCREW; HINGE
GRADE LS<RBB> FRONT CONSOLE<D55> 16.115 M5X16 THA 		8-94279-312-0 05 1 0610-0612 ●
29 16.650 SCREW; HINGE
GRADE LS<RBB> 09.744 M5X16 TAPPING 		8-98061-683-0 05 1 0701-0709 ●
29 16.650 SCREW; HINGE
GRADE BASE<RBA> 09.744 M5X16 TAPPING 		8-98061-683-0 05 1 0701-0709 ●
29 16.650 SCREW; HINGE
GRADE LS<RBB> FRONT CONSOLE<D55> 09.744 M5X16 TAPPING 		8-98061-683-0 05 1 0701-0709 ●
29 16.650 SCREW; HINGE
GRADE LS<RBB> 09.744 M5X16 TAPPING 		8-98061-683-0 05 1 0710-0809 ● ●
29 16.650 SCREW; HINGE
GRADE BASE<RBA> 09.744 M5X16 TAPPING 		8-98061-683-0 05 1 0710-0809 ●
29 16.650 SCREW; HINGE
GRADE BASE<RBA>,GRADE LS<RBB> FRONT CONSOLE<D55> 09.744 M5X16 TAPPING 		8-98061-683-0 05 1 0810-0910 ● ●
29 16.650 SCREW; HINGE
09.744 M5X16 TAPPING 		8-98061-683-0 05 1 0810-0910 ●
29 16.650 SCREW; HINGE
GRADE LS<RBB> 09.744 M5X16 TAPPING 		8-98061-683-0 05 1 0911- ● ●
29 16.650 SCREW; HINGE
09.744 M5X16 TAPPING 		8-98061-683-0 05 1 0911- ●
29 16.650 SCREW; HINGE
GRADE LT<RBD> FRONT CONSOLE<D55> PARKING BRAKE FLOOR<7XW> CLOTH SEAT MOQUETTE<8EP> 16.115 M5X16 THA 		8-94279-312-0 06 1 0412-0508 ● ●
29 16.650 SCREW; HINGE
16.115 M5X16 THA 		8-94279-312-0 06 1 0412-0508 ● ●
29 16.650 SCREW; HINGE
GRADE LT<RBD> FRONT CONSOLE<D55> CLOTH SEAT MOQUETTE<8EP> 16.115 M5X16 THA 		8-94279-312-0 06 1 0509-0609 ● ●
29 16.650 SCREW; HINGE
GRADE LT<RBD> 16.115 M5X16 THA 		8-94279-312-0 06 1 0509-0609 ● ●
29 16.650 SCREW; HINGE
GRADE LT<RBD> 16.115 M5X16 THA 		8-94279-312-0 06 1 0610-0612 ● ● ●
29 16.650 SCREW; HINGE
GRADE LT<RBD> FRONT CONSOLE<D55> 16.115 M5X16 THA 		8-94279-312-0 06 1 0610-0612 ●
29 16.650 SCREW; HINGE
GRADE LT<RBD> 09.744 M5X16 TAPPING 		8-98061-683-0 06 1 0701-0709 ● ● ●
29 16.650 SCREW; HINGE
GRADE LT<RBD> FRONT CONSOLE<D55> 09.744 M5X16 TAPPING 		8-98061-683-0 06 1 0701-0709 ●
29 16.650 SCREW; HINGE
GRADE LT<RBD> 09.744 M5X16 TAPPING 		8-98061-683-0 06 1 0710-0809 ● ● ● ●
29 16.650 SCREW; HINGE
GRADE LT<RBD> FRONT CONSOLE<D55> 09.744 M5X16 TAPPING 		8-98061-683-0 06 1 0810-0910 ● ●
29 16.650 SCREW; HINGE
09.744 M5X16 TAPPING 		8-98061-683-0 06 1 0810-0910 ● ●
29 16.650 SCREW; HINGE
GRADE LT<RBD> 09.744 M5X16 TAPPING 		8-98061-683-0 06 1 0911- ● ●
29 16.650 SCREW; HINGE
09.744 M5X16 TAPPING 		8-98061-683-0 06 1 0911- ● ●
49 04.017 SCREW; CONSOLE
PARKING BRAKE FLOOR<7XW> 01.269 M5X16 		8-94358-694-0 02 1 0404-0409 ● ● ●
49 04.017 SCREW; CONSOLE
01.269 M5X16 		8-94358-694-0 02 1 0404-0409 ● ●
49 04.017 SCREW; CONSOLE
PARKING BRAKE FLOOR<7XW> 01.269 M5X16 		8-94358-694-0 02 1 0410-0508 ● ●
49 04.017 SCREW; CONSOLE
01.269 M5X16 		8-94358-694-0 02 1 0410-0508 ● ● ●
49 04.017 SCREW; CONSOLE
01.269 M5X16 		8-94358-694-0 02 1 0509-0612 ● ● ● ● ●
49 04.017 SCREW; CONSOLE
16.650 M5X16 		8-98061-684-0 02 1 0701-1003 ● ● ● ● ●
49 04.017 SCREW; CONSOLE
16.650 M5X16 THA 		8-98167-220-0 02 1 1004- ● ● ● ● ●
50 04.010 CLIP; CONSOLE
FRONT CONSOLE<D55> PARKING BRAKE FLOOR<7XW> (A) THA 		8-97355-734-0 02 1 0404-0409 ● ● ●
50 04.010 CLIP; CONSOLE
(A) THA 		8-97355-734-0 02 1 0404-0409 ● ●
50 04.010 CLIP; CONSOLE
FRONT CONSOLE<D55> PARKING BRAKE FLOOR<7XW> (A) THA 		8-97355-734-0 02 1 0410-0508 ● ●
50 04.010 CLIP; CONSOLE
(A) THA 		8-97355-734-0 02 1 0410-0508 ● ● ●
50 04.010 CLIP; CONSOLE
GRADE BASE<RBA>,GRADE LS<RBB> FRONT CONSOLE<D55> (A) THA 		8-97355-734-0 02 1 0509-0609 ● ●
50 04.010 CLIP; CONSOLE
GRADE LT<RBD> FRONT CONSOLE<D55> CLOTH SEAT MOQUETTE<8EP> (A) THA 		8-97355-734-0 02 1 0509-0609 ● ●
50 04.010 CLIP; CONSOLE
(A) THA 		8-97355-734-0 02 1 0509-0609 ● ● ●
50 04.010 CLIP; CONSOLE
GRADE LS<RBB>,GRADE LT<RBD> (A) THA 		8-97355-734-0 02 1 0610-0709 ●
50 04.010 CLIP; CONSOLE
GRADE BASE<RBA> (A) THA 		8-97355-734-0 02 1 0610-0709 ●
50 04.010 CLIP; CONSOLE
GRADE LS<RBB>,GRADE LT<RBD> FRONT CONSOLE<D55> (A) THA 		8-97355-734-0 02 1 0610-0709 ●
50 04.010 CLIP; CONSOLE
GRADE LT<RBD> (A) THA 		8-97355-734-0 02 1 0610-0709 ● ●
50 04.010 CLIP; CONSOLE
(A) THA 		8-97355-734-0 02 1 0710-0809 ● ● ● ● ●
50 04.010 CLIP; CONSOLE
FRONT CONSOLE<D55> (A) THA 		8-97355-734-0 02 1 0810-0910 ● ●
50 04.010 CLIP; CONSOLE
(A) THA 		8-97355-734-0 02 1 0810-0910 ● ● ●
50 04.010 CLIP; CONSOLE
(A) THA 		8-97355-734-0 02 1 0911- ● ● ● ● ●
50 04.010 CLIP; CONSOLE
HEADER CONSOLE<DK6> (C) THA 		8-97388-958-0 02 1 0509- ● ●
50 04.010 CLIP; CONSOLE
(C) THA 		8-97388-958-0 02 1 0509- ● ●
50 04.010 CLIP; CONSOLE
HEADER CONSOLE<DK6> (B) LIGHT GRAY THA 		8-97401-114-0 02 1 0509-0609 ● ●
50 04.010 CLIP; CONSOLE
(B) LIGHT GRAY THA 		8-97401-114-0 02 1 0509-0609 ● ●
50 04.010 CLIP; CONSOLE
HEADER CONSOLE<DK6> (B) GRAY 		8-97403-528-0 02 1 0610- ● ●
50 04.010 CLIP; CONSOLE
(B) GRAY 		8-97403-528-0 02 1 0610- ● ●
102 16.650 LOCK ASM; RR CONSOLE
GRADE LT<RBD> FRONT CONSOLE<D55> PARKING BRAKE FLOOR<7XW> CLOTH SEAT MOQUETTE<8EP> THA 		8-97349-650-0 01 1 0404-0508 ● ●
102 16.650 LOCK ASM; RR CONSOLE
THA 		8-97349-650-0 01 1 0404-0508 ● ●
102 16.650 LOCK ASM; RR CONSOLE
GRADE LT<RBD> FRONT CONSOLE<D55> CLOTH SEAT MOQUETTE<8EP> THA 		8-97349-650-0 01 1 0509-0609 ● ●
102 16.650 LOCK ASM; RR CONSOLE
GRADE LT<RBD> THA 		8-97349-650-0 01 1 0509-0609 ● ●
102 16.650 LOCK ASM; RR CONSOLE
GRADE LT<RBD> THA 		8-97349-650-0 01 1 0610-0709 ● ● ●
102 16.650 LOCK ASM; RR CONSOLE
GRADE LT<RBD> FRONT CONSOLE<D55> THA 		8-97349-650-0 01 1 0610-0709 ●
102 16.650 LOCK ASM; RR CONSOLE
GRADE LT<RBD> THA 		8-97349-650-0 01 1 0710-0809 ● ● ● ●
102 16.650 LOCK ASM; RR CONSOLE
GRADE LT<RBD> FRONT CONSOLE<D55> THA 		8-97349-650-0 01 1 0810-0910 ● ●
102 16.650 LOCK ASM; RR CONSOLE
THA 		8-97349-650-0 01 1 0810-0910 ● ●
102 16.650 LOCK ASM; RR CONSOLE
GRADE LT<RBD> THA 		8-97349-650-0 01 1 0911- ● ●
102 16.650 LOCK ASM; RR CONSOLE
THA 		8-97349-650-0 01 1 0911- ● ●
107 16.650 LOCK; LID,RR CONSOLE
FRONT CONSOLE<D55> PARKING BRAKE FLOOR<7XW> THA 		8-97349-644-0 01 1 0404-0409 ● ● ●
107 16.650 LOCK; LID,RR CONSOLE
THA 		8-97349-644-0 01 1 0404-0409 ● ●
107 16.650 LOCK; LID,RR CONSOLE
FRONT CONSOLE<D55> PARKING BRAKE FLOOR<7XW> THA 		8-97349-644-0 01 1 0410-0508 ● ●
107 16.650 LOCK; LID,RR CONSOLE
THA 		8-97349-644-0 01 1 0410-0508 ● ● ●
107 16.650 LOCK; LID,RR CONSOLE
GRADE BASE<RBA>,GRADE LS<RBB> FRONT CONSOLE<D55> THA 		8-97349-644-0 01 1 0509-0609 ● ●
107 16.650 LOCK; LID,RR CONSOLE
GRADE LT<RBD> FRONT CONSOLE<D55> CLOTH SEAT MOQUETTE<8EP> THA 		8-97349-644-0 01 1 0509-0609 ● ●
107 16.650 LOCK; LID,RR CONSOLE
THA 		8-97349-644-0 01 1 0509-0609 ● ● ●
107 16.650 LOCK; LID,RR CONSOLE
GRADE LS<RBB>,GRADE LT<RBD> THA 		8-97349-644-0 01 1 0610-0709 ●
107 16.650 LOCK; LID,RR CONSOLE
GRADE BASE<RBA> THA 		8-97349-644-0 01 1 0610-0709 ●
107 16.650 LOCK; LID,RR CONSOLE
GRADE LS<RBB>,GRADE LT<RBD> FRONT CONSOLE<D55> THA 		8-97349-644-0 01 1 0610-0709 ●
107 16.650 LOCK; LID,RR CONSOLE
GRADE LT<RBD> THA 		8-97349-644-0 01 1 0610-0709 ● ●
107 16.650 LOCK; LID,RR CONSOLE
THA 		8-97349-644-0 01 1 0710-0809 ● ● ● ● ●
107 16.650 LOCK; LID,RR CONSOLE
FRONT CONSOLE<D55> THA 		8-97349-644-0 01 1 0810-0910 ● ●
107 16.650 LOCK; LID,RR CONSOLE
THA 		8-97349-644-0 01 1 0810-0910 ● ● ●
107 16.650 LOCK; LID,RR CONSOLE
THA 		8-97349-644-0 01 1 0911- ● ● ● ● ●
112 16.650 LOCK; HOLE,RR CONSOLE
FRONT CONSOLE<D55> PARKING BRAKE FLOOR<7XW> THA 		8-97349-643-0 01 1 0404-0409 ● ● ●
112 16.650 LOCK; HOLE,RR CONSOLE
THA 		8-97349-643-0 01 1 0404-0409 ● ●
112 16.650 LOCK; HOLE,RR CONSOLE
FRONT CONSOLE<D55> PARKING BRAKE FLOOR<7XW> THA 		8-97349-643-0 01 1 0410-0508 ● ●
112 16.650 LOCK; HOLE,RR CONSOLE
THA 		8-97349-643-0 01 1 0410-0508 ● ● ●
112 16.650 LOCK; HOLE,RR CONSOLE
GRADE BASE<RBA>,GRADE LS<RBB> FRONT CONSOLE<D55> THA 		8-97349-643-0 01 1 0509-0609 ● ●
112 16.650 LOCK; HOLE,RR CONSOLE
GRADE LT<RBD> FRONT CONSOLE<D55> CLOTH SEAT MOQUETTE<8EP> THA 		8-97349-643-0 01 1 0509-0609 ● ●
112 16.650 LOCK; HOLE,RR CONSOLE
THA 		8-97349-643-0 01 1 0509-0609 ● ● ●
112 16.650 LOCK; HOLE,RR CONSOLE
GRADE LS<RBB>,GRADE LT<RBD> THA 		8-97349-643-0 01 1 0610-0709 ●
112 16.650 LOCK; HOLE,RR CONSOLE
GRADE BASE<RBA> THA 		8-97349-643-0 01 1 0610-0709 ●
112 16.650 LOCK; HOLE,RR CONSOLE
GRADE LS<RBB>,GRADE LT<RBD> FRONT CONSOLE<D55> THA 		8-97349-643-0 01 1 0610-0709 ●
112 16.650 LOCK; HOLE,RR CONSOLE
GRADE LT<RBD> THA 		8-97349-643-0 01 1 0610-0709 ● ●
112 16.650 LOCK; HOLE,RR CONSOLE
THA 		8-97349-643-0 01 1 0710-0809 ● ● ● ● ●
112 16.650 LOCK; HOLE,RR CONSOLE
FRONT CONSOLE<D55> THA 		8-97349-643-0 01 1 0810-0910 ● ●
112 16.650 LOCK; HOLE,RR CONSOLE
THA 		8-97349-643-0 01 1 0810-0910 ● ● ●
112 16.650 LOCK; HOLE,RR CONSOLE
THA 		8-97349-643-0 01 1 0911- ● ● ● ● ●
116 16.650 COVER; HOLE,CONSOLE,RR
FRONT CONSOLE<D55> PARKING BRAKE FLOOR<7XW> GRAY THA 		8-97396-817-0 01 1 0404-0409 ● ● ●
116 16.650 COVER; HOLE,CONSOLE,RR
GRAY THA 		8-97396-817-0 01 1 0404-0409 ● ●
116 16.650 COVER; HOLE,CONSOLE,RR
FRONT CONSOLE<D55> PARKING BRAKE FLOOR<7XW> GRAY THA 		8-97396-817-0 01 1 0410-0508 ● ●
116 16.650 COVER; HOLE,CONSOLE,RR
GRAY THA 		8-97396-817-0 01 1 0410-0508 ● ● ●
116 16.650 COVER; HOLE,CONSOLE,RR
GRADE BASE<RBA>,GRADE LS<RBB> FRONT CONSOLE<D55> GRAY THA 		8-97396-817-0 01 1 0509-0609 ● ●
116 16.650 COVER; HOLE,CONSOLE,RR
GRADE LT<RBD> FRONT CONSOLE<D55> CLOTH SEAT MOQUETTE<8EP> GRAY THA 		8-97396-817-0 01 1 0509-0609 ● ●
116 16.650 COVER; HOLE,CONSOLE,RR
GRAY THA 		8-97396-817-0 01 1 0509-0609 ● ● ●
116 16.650 COVER; HOLE,CONSOLE,RR
GRADE LS<RBB>,GRADE LT<RBD> BEIGE THA 		8-97404-006-0 01 1 0610-0709 ●
116 16.650 COVER; HOLE,CONSOLE,RR
GRADE BASE<RBA> BEIGE THA 		8-97404-006-0 01 1 0610-0709 ●
116 16.650 COVER; HOLE,CONSOLE,RR
GRADE LS<RBB>,GRADE LT<RBD> FRONT CONSOLE<D55> BEIGE THA 		8-97404-006-0 01 1 0610-0709 ●
116 16.650 COVER; HOLE,CONSOLE,RR
GRADE LT<RBD> BEIGE THA 		8-97404-006-0 01 1 0610-0709 ● ●
116 16.650 COVER; HOLE,CONSOLE,RR
BEIGE THA 		8-97404-006-0 01 1 0710-0809 ● ● ● ● ●
116 16.650 COVER; HOLE,CONSOLE,RR
FRONT CONSOLE<D55> BEIGE THA 		8-97404-006-0 01 1 0810-0910 ● ●
116 16.650 COVER; HOLE,CONSOLE,RR
BEIGE THA 		8-97404-006-0 01 1 0810-0910 ● ● ●
116 16.650 COVER; HOLE,CONSOLE,RR
BEIGE THA 		8-97404-006-0 01 1 0911-1104 ● ● ● ● ●
116 16.650 COVER; HOLE,CONSOLE,RR
BEIGE THA 		8-97422-800-0 01 1 1105- ● ● ● ● ●
148 16.650 SCREW; LID,CONSOLE
GRADE BASE<RBA>,GRADE LS<RBB> FRONT CONSOLE<D55> PARKING BRAKE FLOOR<7XW> (A) M4X14 THA 		8-97349-647-0 08 1 0404-0404 ● ● ●
148 16.650 SCREW; LID,CONSOLE
GRADE BASE<RBA>,GRADE LS<RBB> FRONT CONSOLE<D55> PARKING BRAKE FLOOR<7XW> (A) M4X14 THA 		8-97349-647-0 08 1 0405-0409 ● ●
148 16.650 SCREW; LID,CONSOLE
GRADE LS<RBB> FRONT CONSOLE<D55> PARKING BRAKE FLOOR<7XW> (A) M4X14 THA 		8-97349-647-0 08 1 0405-0409 ●
148 16.650 SCREW; LID,CONSOLE
GRADE BASE<RBA>,GRADE LS<RBB> FRONT CONSOLE<D55> PARKING BRAKE FLOOR<7XW> (A) M4X14 THA 		8-97349-647-0 08 1 0410-0508 ●
148 16.650 SCREW; LID,CONSOLE
(A) M4X14 THA 		8-97349-647-0 08 1 0410-0508 ●
148 16.650 SCREW; LID,CONSOLE
GRADE LS<RBB> FRONT CONSOLE<D55> PARKING BRAKE FLOOR<7XW> (A) M4X14 THA 		8-97349-647-0 08 1 0410-0508 ●
148 16.650 SCREW; LID,CONSOLE
GRADE BASE<RBA>,GRADE LS<RBB> FRONT CONSOLE<D55> (A) M4X14 THA 		8-97349-647-0 08 1 0509-0609 ●
148 16.650 SCREW; LID,CONSOLE
GRADE BASE<RBA> (A) M4X14 THA 		8-97349-647-0 08 1 0509-0609 ●
148 16.650 SCREW; LID,CONSOLE
GRADE LS<RBB> FRONT CONSOLE<D55> (A) M4X14 THA 		8-97349-647-0 08 1 0509-0609 ●
148 16.650 SCREW; LID,CONSOLE
GRADE LS<RBB> (A) M4X14 THA 		8-97349-647-0 08 1 0610-0709 ●
148 16.650 SCREW; LID,CONSOLE
GRADE BASE<RBA> (A) M4X14 THA 		8-97349-647-0 08 1 0610-0709 ●
148 16.650 SCREW; LID,CONSOLE
GRADE LS<RBB> FRONT CONSOLE<D55> (A) M4X14 THA 		8-97349-647-0 08 1 0610-0709 ●
148 16.650 SCREW; LID,CONSOLE
GRADE LS<RBB> (A) M4X14 THA 		8-97349-647-0 08 1 0710-0809 ● ●
148 16.650 SCREW; LID,CONSOLE
GRADE BASE<RBA> (A) M4X14 THA 		8-97349-647-0 08 1 0710-0809 ●
148 16.650 SCREW; LID,CONSOLE
GRADE BASE<RBA>,GRADE LS<RBB> FRONT CONSOLE<D55> (A) M4X14 THA 		8-97349-647-0 08 1 0810-0910 ● ●
148 16.650 SCREW; LID,CONSOLE
(A) M4X14 THA 		8-97349-647-0 08 1 0810-0910 ●
148 16.650 SCREW; LID,CONSOLE
GRADE LS<RBB> (A) M4X14 THA 		8-97349-647-0 08 1 0911- ● ●
148 16.650 SCREW; LID,CONSOLE
(A) M4X14 THA 		8-97349-647-0 08 1 0911- ●
148 16.650 SCREW; LID,CONSOLE
GRADE LT<RBD> FRONT CONSOLE<D55> PARKING BRAKE FLOOR<7XW> CLOTH SEAT MOQUETTE<8EP> (A) M4X14 THA 		8-97349-647-0 13 1 0404-0508 ● ●
148 16.650 SCREW; LID,CONSOLE
(A) M4X14 THA 		8-97349-647-0 13 1 0404-0508 ● ●
148 16.650 SCREW; LID,CONSOLE
GRADE LT<RBD> FRONT CONSOLE<D55> CLOTH SEAT MOQUETTE<8EP> (A) M4X14 THA 		8-97349-647-0 13 1 0509-0609 ● ●
148 16.650 SCREW; LID,CONSOLE
GRADE LT<RBD> (A) M4X14 THA 		8-97349-647-0 13 1 0509-0609 ● ●
148 16.650 SCREW; LID,CONSOLE
GRADE LT<RBD> (A) M4X14 THA 		8-97349-647-0 13 1 0610-0709 ● ● ●
148 16.650 SCREW; LID,CONSOLE
GRADE LT<RBD> FRONT CONSOLE<D55> (A) M4X14 THA 		8-97349-647-0 13 1 0610-0709 ●
148 16.650 SCREW; LID,CONSOLE
GRADE LT<RBD> (A) M4X14 THA 		8-97349-647-0 13 1 0710-0809 ● ● ● ●
148 16.650 SCREW; LID,CONSOLE
GRADE LT<RBD> FRONT CONSOLE<D55> (A) M4X14 THA 		8-97349-647-0 13 1 0810-0910 ● ●
148 16.650 SCREW; LID,CONSOLE
(A) M4X14 THA 		8-97349-647-0 13 1 0810-0910 ● ●
148 16.650 SCREW; LID,CONSOLE
GRADE LT<RBD> (A) M4X14 THA 		8-97349-647-0 13 1 0911- ● ●
148 16.650 SCREW; LID,CONSOLE
(A) M4X14 THA 		8-97349-647-0 13 1 0911- ● ●
148 16.650 SCREW; LID,CONSOLE
GRADE LT<RBD> FRONT CONSOLE<D55> PARKING BRAKE FLOOR<7XW> CLOTH SEAT MOQUETTE<8EP> (B) M5X14 THA 		8-97349-872-0 03 1 0404-0508 ● ●
148 16.650 SCREW; LID,CONSOLE
(B) M5X14 THA 		8-97349-872-0 03 1 0404-0508 ● ●
148 16.650 SCREW; LID,CONSOLE
GRADE LT<RBD> FRONT CONSOLE<D55> CLOTH SEAT MOQUETTE<8EP> (B) M5X14 THA 		8-97349-872-0 03 1 0509-0609 ● ●
148 16.650 SCREW; LID,CONSOLE
GRADE LT<RBD> (B) M5X14 THA 		8-97349-872-0 03 1 0509-0609 ● ●
148 16.650 SCREW; LID,CONSOLE
GRADE LT<RBD> (B) M5X14 THA 		8-97349-872-0 03 1 0610-0709 ● ● ●
148 16.650 SCREW; LID,CONSOLE
GRADE LT<RBD> FRONT CONSOLE<D55> (B) M5X14 THA 		8-97349-872-0 03 1 0610-0709 ●
148 16.650 SCREW; LID,CONSOLE
GRADE LT<RBD> (B) M5X14 THA 		8-97349-872-0 03 1 0710-0809 ● ● ● ●
148 16.650 SCREW; LID,CONSOLE
GRADE LT<RBD> FRONT CONSOLE<D55> (B) M5X14 THA 		8-97349-872-0 03 1 0810-0910 ● ●
148 16.650 SCREW; LID,CONSOLE
(B) M5X14 THA 		8-97349-872-0 03 1 0810-0910 ● ●
148 16.650 SCREW; LID,CONSOLE
GRADE LT<RBD> (B) M5X14 THA 		8-97349-872-0 03 1 0911- ● ●
148 16.650 SCREW; LID,CONSOLE
(B) M5X14 THA 		8-97349-872-0 03 1 0911- ● ●
154 16.650 LID ASM; RR CONSOLE
GRADE BASE<RBA>,GRADE LS<RBB> FRONT CONSOLE<D55> PARKING BRAKE FLOOR<7XW> (A) GRAY THA 		8-97396-818-0 01 1 0404-0404 ● ● ●
154 16.650 LID ASM; RR CONSOLE
GRADE BASE<RBA>,GRADE LS<RBB> FRONT CONSOLE<D55> PARKING BRAKE FLOOR<7XW> (A) GRAY THA 		8-97396-818-0 01 1 0405-0409 ● ●
154 16.650 LID ASM; RR CONSOLE
GRADE LS<RBB> FRONT CONSOLE<D55> PARKING BRAKE FLOOR<7XW> (A) GRAY THA 		8-97396-818-0 01 1 0405-0409 ●
154 16.650 LID ASM; RR CONSOLE
GRADE BASE<RBA>,GRADE LS<RBB> FRONT CONSOLE<D55> PARKING BRAKE FLOOR<7XW> (A) GRAY THA 		8-97396-818-0 01 1 0410-0508 ●
154 16.650 LID ASM; RR CONSOLE
(A) GRAY THA 		8-97396-818-0 01 1 0410-0508 ●
154 16.650 LID ASM; RR CONSOLE
GRADE LS<RBB> FRONT CONSOLE<D55> PARKING BRAKE FLOOR<7XW> (A) GRAY THA 		8-97396-818-0 01 1 0410-0508 ●
154 16.650 LID ASM; RR CONSOLE
GRADE BASE<RBA>,GRADE LS<RBB> FRONT CONSOLE<D55> (A) GRAY THA 		8-97396-818-0 01 1 0509-0609 ●
154 16.650 LID ASM; RR CONSOLE
GRADE BASE<RBA> (A) GRAY THA 		8-97396-818-0 01 1 0509-0609 ●
154 16.650 LID ASM; RR CONSOLE
GRADE LS<RBB> FRONT CONSOLE<D55> (A) GRAY THA 		8-97396-818-0 01 1 0509-0609 ●
154 16.650 LID ASM; RR CONSOLE
GRADE LS<RBB> (A) BEIGE THA 		8-97403-969-0 01 1 0610-0709 ●
154 16.650 LID ASM; RR CONSOLE
GRADE BASE<RBA> (A) BEIGE THA 		8-97403-969-0 01 1 0610-0709 ●
154 16.650 LID ASM; RR CONSOLE
GRADE LS<RBB> FRONT CONSOLE<D55> (A) BEIGE THA 		8-97403-969-0 01 1 0610-0709 ●
154 16.650 LID ASM; RR CONSOLE
GRADE LS<RBB> (A) BEIGE THA 		8-97403-969-0 01 1 0710-0809 ● ●
154 16.650 LID ASM; RR CONSOLE
GRADE BASE<RBA> (A) BEIGE THA 		8-97403-969-0 01 1 0710-0809 ●
154 16.650 LID ASM; RR CONSOLE
GRADE BASE<RBA>,GRADE LS<RBB> FRONT CONSOLE<D55> (A) BEIGE THA 		8-97403-969-0 01 1 0810-0910 ● ●
154 16.650 LID ASM; RR CONSOLE
(A) BEIGE THA 		8-97403-969-0 01 1 0810-0910 ●
154 16.650 LID ASM; RR CONSOLE
GRADE LS<RBB> (A) BEIGE THA 		8-97403-969-0 01 1 0911-1104 ● ●
154 16.650 LID ASM; RR CONSOLE
(A) BEIGE THA 		8-97403-969-0 01 1 0911-1104 ●
154 16.650 LID ASM; RR CONSOLE
GRADE LS<RBB> (A) BEIGE THA 		8-97422-811-0 01 1 1105- ● ●
154 16.650 LID ASM; RR CONSOLE
(A) BEIGE THA 		8-97422-811-0 01 1 1105- ●
154 16.650 LID ASM; RR CONSOLE
GRADE LT<RBD> FRONT CONSOLE<D55> PARKING BRAKE FLOOR<7XW> CLOTH SEAT MOQUETTE<8EP> (B) GRAY THA 		8-97397-363-0 01 1 0404-0508 ● ●
154 16.650 LID ASM; RR CONSOLE
(B) GRAY THA 		8-97397-363-0 01 1 0404-0508 ● ●
154 16.650 LID ASM; RR CONSOLE
GRADE LT<RBD> FRONT CONSOLE<D55> CLOTH SEAT MOQUETTE<8EP> (B) GRAY THA 		8-97397-363-0 01 1 0509-0609 ● ●
154 16.650 LID ASM; RR CONSOLE
GRADE LT<RBD> (B) GRAY THA 		8-97397-363-0 01 1 0509-0609 ● ●
154 16.650 LID ASM; RR CONSOLE
GRADE LT<RBD> (B) LIGHT BEIGE THA 		8-97407-610-0 01 1 0610-0709 ● ● ●
154 16.650 LID ASM; RR CONSOLE
GRADE LT<RBD> FRONT CONSOLE<D55> (B) LIGHT BEIGE THA 		8-97407-610-0 01 1 0610-0709 ●
154 16.650 LID ASM; RR CONSOLE
GRADE LT<RBD> (B) LIGHT BEIGE THA 		8-97407-610-0 01 1 0710-0809 ● ● ● ●
154 16.650 LID ASM; RR CONSOLE
GRADE LT<RBD> FRONT CONSOLE<D55> (B) LIGHT BEIGE THA 		8-97407-610-0 01 1 0810-0910 ● ●
154 16.650 LID ASM; RR CONSOLE
(B) LIGHT BEIGE THA 		8-97407-610-0 01 1 0810-0910 ● ●
154 16.650 LID ASM; RR CONSOLE
GRADE LT<RBD> (B) LIGHT BEIGE THA 		8-97407-610-1 01 1 0911- ● ●
154 16.650 LID ASM; RR CONSOLE
(B) LIGHT BEIGE THA 		8-97407-610-1 01 1 0911- ● ●
163 16.650 RUBBER; CUSHION,PARCEL BOX LID
FRONT CONSOLE<D55> PARKING BRAKE FLOOR<7XW> THA 		8-97349-682-0 02 1 0404-0409 ● ● ●
163 16.650 RUBBER; CUSHION,PARCEL BOX LID
THA 		8-97349-682-0 02 1 0404-0409 ● ●
163 16.650 RUBBER; CUSHION,PARCEL BOX LID
FRONT CONSOLE<D55> PARKING BRAKE FLOOR<7XW> THA 		8-97349-682-0 02 1 0410-0508 ● ●
163 16.650 RUBBER; CUSHION,PARCEL BOX LID
THA 		8-97349-682-0 02 1 0410-0508 ● ● ●
163 16.650 RUBBER; CUSHION,PARCEL BOX LID
GRADE BASE<RBA>,GRADE LS<RBB> FRONT CONSOLE<D55> THA 		8-97349-682-0 02 1 0509-0609 ● ●
163 16.650 RUBBER; CUSHION,PARCEL BOX LID
GRADE LT<RBD> FRONT CONSOLE<D55> CLOTH SEAT MOQUETTE<8EP> THA 		8-97349-682-0 02 1 0509-0609 ● ●
163 16.650 RUBBER; CUSHION,PARCEL BOX LID
THA 		8-97349-682-0 02 1 0509-0609 ● ● ●
163 16.650 RUBBER; CUSHION,PARCEL BOX LID
GRADE LS<RBB>,GRADE LT<RBD> THA 		8-97349-682-0 02 1 0610-0709 ●
163 16.650 RUBBER; CUSHION,PARCEL BOX LID
GRADE BASE<RBA> THA 		8-97349-682-0 02 1 0610-0709 ●
163 16.650 RUBBER; CUSHION,PARCEL BOX LID
GRADE LS<RBB>,GRADE LT<RBD> FRONT CONSOLE<D55> THA 		8-97349-682-0 02 1 0610-0709 ●
163 16.650 RUBBER; CUSHION,PARCEL BOX LID
GRADE LT<RBD> THA 		8-97349-682-0 02 1 0610-0709 ● ●
163 16.650 RUBBER; CUSHION,PARCEL BOX LID
THA 		8-97349-682-0 02 1 0710-0809 ● ● ● ● ●
163 16.650 RUBBER; CUSHION,PARCEL BOX LID
FRONT CONSOLE<D55> THA 		8-97349-682-0 02 1 0810-0910 ● ●
163 16.650 RUBBER; CUSHION,PARCEL BOX LID
THA 		8-97349-682-0 02 1 0810-0910 ● ● ●
163 16.650 RUBBER; CUSHION,PARCEL BOX LID
THA 		8-97349-682-0 02 1 0911- ● ● ● ● ●
188 16.650 CONSOLE; RR
GRADE BASE<RBA>,GRADE LS<RBB> FRONT CONSOLE<D55> PARKING BRAKE FLOOR<7XW> (A) GRAY THA 		8-97396-614-0 01 1 0404-0404 ● ● ●
188 16.650 CONSOLE; RR
GRADE BASE<RBA>,GRADE LS<RBB> FRONT CONSOLE<D55> PARKING BRAKE FLOOR<7XW> (A) GRAY THA 		8-97396-614-0 01 1 0405-0409 ● ●
188 16.650 CONSOLE; RR
GRADE LS<RBB> FRONT CONSOLE<D55> PARKING BRAKE FLOOR<7XW> (A) GRAY THA 		8-97396-614-0 01 1 0405-0409 ●
188 16.650 CONSOLE; RR
GRADE BASE<RBA>,GRADE LS<RBB> FRONT CONSOLE<D55> PARKING BRAKE FLOOR<7XW> (A) GRAY THA 		8-97396-614-0 01 1 0410-0508 ●
188 16.650 CONSOLE; RR
(A) GRAY THA 		8-97396-614-0 01 1 0410-0508 ●
188 16.650 CONSOLE; RR
GRADE LS<RBB> FRONT CONSOLE<D55> PARKING BRAKE FLOOR<7XW> (A) GRAY THA 		8-97396-614-0 01 1 0410-0508 ●
188 16.650 CONSOLE; RR
GRADE BASE<RBA>,GRADE LS<RBB> FRONT CONSOLE<D55> (A) GRAY THA 		8-97396-614-0 01 1 0509-0609 ●
188 16.650 CONSOLE; RR
GRADE BASE<RBA> (A) GRAY THA 		8-97396-614-0 01 1 0509-0609 ●
188 16.650 CONSOLE; RR
GRADE LS<RBB> FRONT CONSOLE<D55> (A) GRAY THA 		8-97396-614-0 01 1 0509-0609 ●
188 16.650 CONSOLE; RR
GRADE LS<RBB> (A) BEIGE THA 		8-97403-363-0 01 1 0610-0612 ●
188 16.650 CONSOLE; RR
GRADE BASE<RBA> (A) BEIGE THA 		8-97403-363-0 01 1 0610-0612 ●
188 16.650 CONSOLE; RR
GRADE LS<RBB> FRONT CONSOLE<D55> (A) BEIGE THA 		8-97403-363-0 01 1 0610-0612 ●
188 16.650 CONSOLE; RR
GRADE LS<RBB> (A) BEIGE THA 		8-97409-185-0 01 1 0701-0709 ●
188 16.650 CONSOLE; RR
GRADE BASE<RBA> (A) BEIGE THA 		8-97409-185-0 01 1 0701-0709 ●
188 16.650 CONSOLE; RR
GRADE LS<RBB> FRONT CONSOLE<D55> (A) BEIGE THA 		8-97409-185-0 01 1 0701-0709 ●
188 16.650 CONSOLE; RR
GRADE LS<RBB> (A) BEIGE THA 		8-97409-185-0 01 1 0710-0809 ● ●
188 16.650 CONSOLE; RR
GRADE BASE<RBA> (A) BEIGE THA 		8-97409-185-0 01 1 0710-0809 ●
188 16.650 CONSOLE; RR
GRADE BASE<RBA>,GRADE LS<RBB> FRONT CONSOLE<D55> (A) BEIGE THA 		8-97409-185-0 01 1 0810-0910 ● ●
188 16.650 CONSOLE; RR
(A) BEIGE THA 		8-97409-185-0 01 1 0810-0910 ●
188 16.650 CONSOLE; RR
GRADE LS<RBB> (A) BEIGE THA 		8-97409-185-1 01 1 0911- ● ●
188 16.650 CONSOLE; RR
(A) BEIGE THA 		8-97409-185-1 01 1 0911- ●
188 16.650 CONSOLE; RR
GRADE LT<RBD> FRONT CONSOLE<D55> PARKING BRAKE FLOOR<7XW> CLOTH SEAT MOQUETTE<8EP> (B) GRAY THA 		8-97396-615-0 01 1 0404-0508 ● ●
188 16.650 CONSOLE; RR
(B) GRAY THA 		8-97396-615-0 01 1 0404-0508 ● ●
188 16.650 CONSOLE; RR
GRADE LT<RBD> FRONT CONSOLE<D55> CLOTH SEAT MOQUETTE<8EP> (B) GRAY THA 		8-97396-615-0 01 1 0509-0609 ● ●
188 16.650 CONSOLE; RR
GRADE LT<RBD> (B) GRAY THA 		8-97396-615-0 01 1 0509-0609 ● ●
188 16.650 CONSOLE; RR
GRADE LT<RBD> (B) LIGHT BEIGE THA 		8-97407-055-0 01 1 0610-0612 ● ● ●
188 16.650 CONSOLE; RR
GRADE LT<RBD> FRONT CONSOLE<D55> (B) LIGHT BEIGE THA 		8-97407-055-0 01 1 0610-0612 ●
188 16.650 CONSOLE; RR
GRADE LT<RBD> (B) LIGHT BEIGE THA 		8-97409-187-0 01 1 0701-0709 ● ● ●
188 16.650 CONSOLE; RR
GRADE LT<RBD> FRONT CONSOLE<D55> (B) LIGHT BEIGE THA 		8-97409-187-0 01 1 0701-0709 ●
188 16.650 CONSOLE; RR
GRADE LT<RBD> (B) LIGHT BEIGE THA 		8-97409-187-0 01 1 0710-0809 ● ● ● ●
188 16.650 CONSOLE; RR
GRADE LT<RBD> FRONT CONSOLE<D55> (B) LIGHT BEIGE THA 		8-97409-187-0 01 1 0810-0910 ● ●
188 16.650 CONSOLE; RR
(B) LIGHT BEIGE THA 		8-97409-187-0 01 1 0810-0910 ● ●
188 16.650 CONSOLE; RR
GRADE LT<RBD> (B) LIGHT BEIGE THA 		8-97409-187-1 01 1 0911- ● ●
188 16.650 CONSOLE; RR
(B) LIGHT BEIGE THA 		8-97409-187-1 01 1 0911- ● ●
200 16.650 NUT; SPIRE,SPR LID
GRADE BASE<RBA>,GRADE LS<RBB> FRONT CONSOLE<D55> PARKING BRAKE FLOOR<7XW> THA 		8-97349-642-0 06 1 0404-0404 ● ● ●
200 16.650 NUT; SPIRE,SPR LID
GRADE BASE<RBA>,GRADE LS<RBB> FRONT CONSOLE<D55> PARKING BRAKE FLOOR<7XW> THA 		8-97349-642-0 06 1 0405-0409 ● ●
200 16.650 NUT; SPIRE,SPR LID
GRADE LS<RBB> FRONT CONSOLE<D55> PARKING BRAKE FLOOR<7XW> THA 		8-97349-642-0 06 1 0405-0409 ●
200 16.650 NUT; SPIRE,SPR LID
GRADE BASE<RBA>,GRADE LS<RBB> FRONT CONSOLE<D55> PARKING BRAKE FLOOR<7XW> THA 		8-97349-642-0 06 1 0410-0508 ●
200 16.650 NUT; SPIRE,SPR LID
THA 		8-97349-642-0 06 1 0410-0508 ●
200 16.650 NUT; SPIRE,SPR LID
GRADE LS<RBB> FRONT CONSOLE<D55> PARKING BRAKE FLOOR<7XW> THA 		8-97349-642-0 06 1 0410-0508 ●
200 16.650 NUT; SPIRE,SPR LID
GRADE BASE<RBA>,GRADE LS<RBB> FRONT CONSOLE<D55> THA 		8-97349-642-0 06 1 0509-0609 ●
200 16.650 NUT; SPIRE,SPR LID
GRADE BASE<RBA> THA 		8-97349-642-0 06 1 0509-0609 ●
200 16.650 NUT; SPIRE,SPR LID
GRADE LS<RBB> FRONT CONSOLE<D55> THA 		8-97349-642-0 06 1 0509-0609 ●
200 16.650 NUT; SPIRE,SPR LID
GRADE LS<RBB> THA 		8-97349-642-0 06 1 0610-0709 ●
200 16.650 NUT; SPIRE,SPR LID
GRADE BASE<RBA> THA 		8-97349-642-0 06 1 0610-0709 ●
200 16.650 NUT; SPIRE,SPR LID
GRADE LS<RBB> FRONT CONSOLE<D55> THA 		8-97349-642-0 06 1 0610-0709 ●
200 16.650 NUT; SPIRE,SPR LID
GRADE LS<RBB> THA 		8-97349-642-0 06 1 0710-0809 ● ●
200 16.650 NUT; SPIRE,SPR LID
GRADE BASE<RBA> THA 		8-97349-642-0 06 1 0710-0809 ●
200 16.650 NUT; SPIRE,SPR LID
GRADE BASE<RBA>,GRADE LS<RBB> FRONT CONSOLE<D55> THA 		8-97349-642-0 06 1 0810-0910 ● ●
200 16.650 NUT; SPIRE,SPR LID
THA 		8-97349-642-0 06 1 0810-0910 ●
200 16.650 NUT; SPIRE,SPR LID
GRADE LS<RBB> THA 		8-97349-642-0 06 1 0911- ● ●
200 16.650 NUT; SPIRE,SPR LID
THA 		8-97349-642-0 06 1 0911- ●
200 16.650 NUT; SPIRE,SPR LID
GRADE LT<RBD> FRONT CONSOLE<D55> PARKING BRAKE FLOOR<7XW> CLOTH SEAT MOQUETTE<8EP> THA 		8-97349-642-0 03 1 0404-0508 ● ●
200 16.650 NUT; SPIRE,SPR LID
THA 		8-97349-642-0 03 1 0404-0508 ● ●
200 16.650 NUT; SPIRE,SPR LID
GRADE LT<RBD> FRONT CONSOLE<D55> CLOTH SEAT MOQUETTE<8EP> THA 		8-97349-642-0 03 1 0509-0609 ● ●
200 16.650 NUT; SPIRE,SPR LID
GRADE LT<RBD> THA 		8-97349-642-0 03 1 0509-0609 ● ●
200 16.650 NUT; SPIRE,SPR LID
GRADE LT<RBD> THA 		8-97349-642-0 03 1 0610-0709 ● ● ●
200 16.650 NUT; SPIRE,SPR LID
GRADE LT<RBD> FRONT CONSOLE<D55> THA 		8-97349-642-0 03 1 0610-0709 ●
200 16.650 NUT; SPIRE,SPR LID
GRADE LT<RBD> THA 		8-97349-642-0 03 1 0710-0809 ● ● ● ●
200 16.650 NUT; SPIRE,SPR LID
GRADE LT<RBD> FRONT CONSOLE<D55> THA 		8-97349-642-0 03 1 0810-0910 ● ●
200 16.650 NUT; SPIRE,SPR LID
THA 		8-97349-642-0 03 1 0810-0910 ● ●
200 16.650 NUT; SPIRE,SPR LID
GRADE LT<RBD> THA 		8-97349-642-0 03 1 0911- ● ●
200 16.650 NUT; SPIRE,SPR LID
THA 		8-97349-642-0 03 1 0911- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
