◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 50982 - TFR/S(CHEVROLET)THAI ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-43 - SUN VISOR AND ASSIST GRIP ▶
7-43 — SUN VISOR AND ASSIST GRIP (#73684) — 49 parça

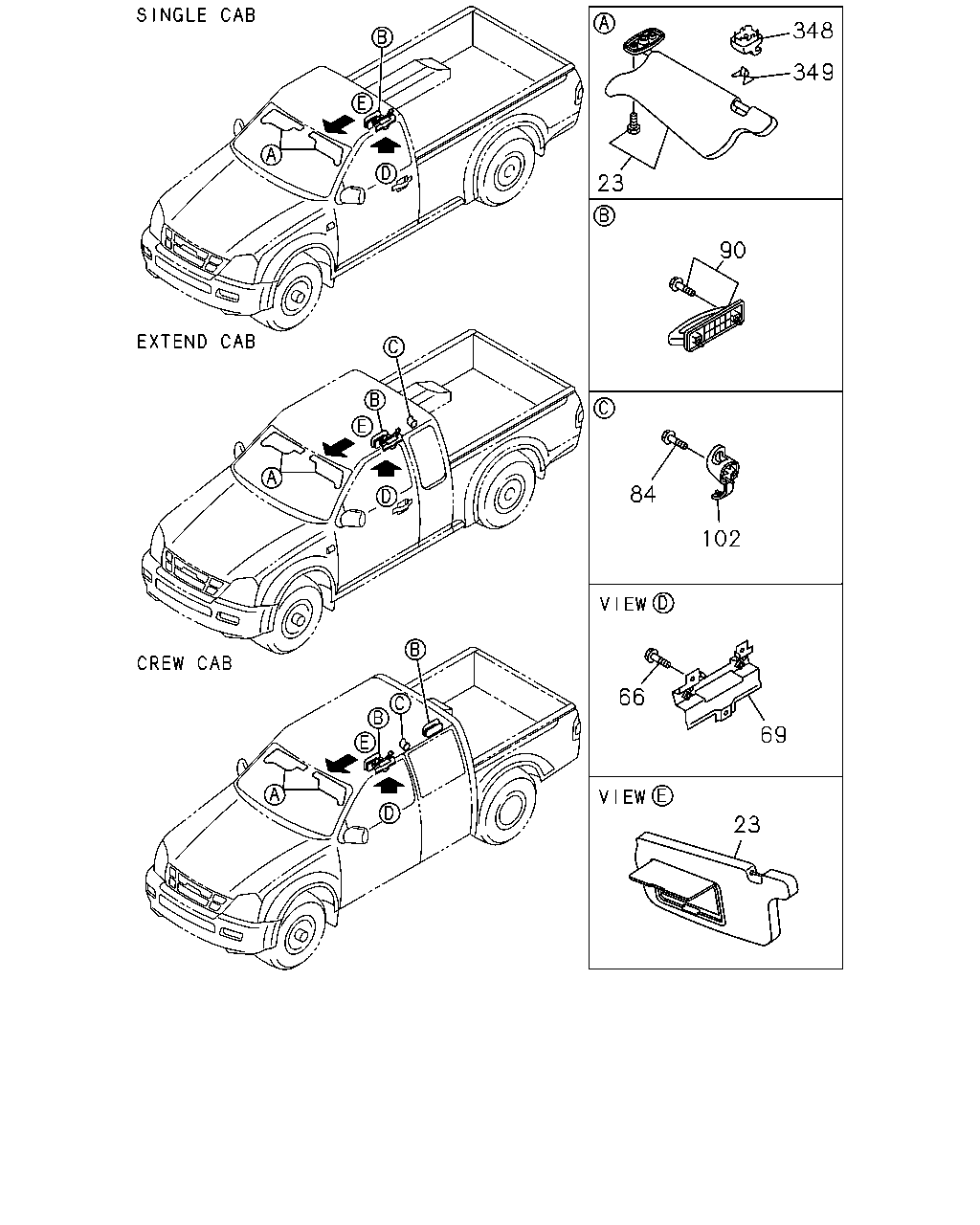

çizim 117884
348 349 23 90 84 102 66 69 23
BalonParca AdiParca NoAdetTipApplied Date A B C D E
23 16.070 SUN VISOR
AIR BAG DRIVER & PASSENGER DELETE<AK6> SUNVISOR PASSENGER SIDE W/VANITY MIRRO R<D34> LIGHT GRAY THA 		8-97298-432-3 01 1 0404-0609 ● ●
23 16.070 SUN VISOR
AIR BAG DRIVER & PASSENGER DELETE<AK6> SUNVISOR PASSENGER SIDE W/VANITY MIRRO R<D34> GRAY THA 		8-97403-483-3 01 1 0610-0807 ● ●
23 16.070 SUN VISOR
AIR BAG DRIVER & PASSENGER DELETE<AK6> SUNVISOR PASSENGER SIDE W/VANITY MIRRO R<D34> GRAY 		8-97415-953-0 01 1 0808- ● ●
23 16.070 SUN VISOR
AIR BAG DRIVER & PASSENGER DELETE<AK6> SUNVISOR PASSENGER SIDE W/VANITY MIRRO R<D34> LIGHT GRAY THA 		8-97298-430-1 01 1 0404-0609 ● ●
23 16.070 SUN VISOR
AIR BAG DRIVER & PASSENGER DELETE<AK6> SUNVISOR PASSENGER SIDE W/VANITY MIRRO R<D34> GRAY THA 		8-97403-479-1 01 1 0610- ● ●
23 16.070 SUN VISOR
AIR BAG DRIVER & PASSENGER DELETE<AK6> EXC. SUNVISOR PASSENGER SIDE W/VANITY MIRROR<D34> LIGHT GRAY THA 		8-97298-428-1 01 1 0404-0609 ● ●
23 16.070 SUN VISOR
LIGHT GRAY THA 		8-97298-428-1 01 1 0404-0609 ●
23 16.070 SUN VISOR
AIR BAG DRIVER & PASSENGER DELETE<AK6> EXC. SUNVISOR PASSENGER SIDE W/VANITY MIRROR<D34> GRAY THA 		8-97403-476-1 01 1 0610- ● ●
23 16.070 SUN VISOR
GRAY THA 		8-97403-476-1 01 1 0610- ●
23 16.070 SUN VISOR
AIR BAG DRIVER & PASSENGER DELETE<AK6> EXC. SUNVISOR PASSENGER SIDE W/VANITY MIRROR<D34> LIGHT GRAY THA 		8-97298-429-1 01 1 0404-0609 ● ●
23 16.070 SUN VISOR
LIGHT GRAY THA 		8-97298-429-1 01 1 0404-0609 ●
23 16.070 SUN VISOR
AIR BAG DRIVER & PASSENGER DELETE<AK6> EXC. SUNVISOR PASSENGER SIDE W/VANITY MIRROR<D34> GRAY THA 		8-97403-477-1 01 1 0610- ● ●
23 16.070 SUN VISOR
GRAY THA 		8-97403-477-1 01 1 0610- ●
23 16.070 SUN VISOR
AIR BAG DRIVER & PASSENGER<AK5> SUNVISOR PASSENGER SIDE W/VANITY MIRRO R<D34> LIGHT GRAY THA 		8-97298-433-4 01 1 0404-0609 ● ●
23 16.070 SUN VISOR
LIGHT GRAY THA 		8-97298-433-4 01 1 0404-0609 ● ●
23 16.070 SUN VISOR
AIR BAG DRIVER & PASSENGER<AK5> SUNVISOR PASSENGER SIDE W/VANITY MIRRO R<D34> GRAY THA 		8-97403-485-4 01 1 0610-0807 ● ●
23 16.070 SUN VISOR
GRAY THA 		8-97403-485-4 01 1 0610-0807 ● ●
23 16.070 SUN VISOR
AIR BAG DRIVER & PASSENGER<AK5> SUNVISOR PASSENGER SIDE W/VANITY MIRRO R<D34> GRAY 		8-97415-955-0 01 1 0808- ● ●
23 16.070 SUN VISOR
GRAY 		8-97415-955-0 01 1 0808- ● ●
23 16.070 SUN VISOR
AIR BAG DRIVER & PASSENGER<AK5> SUNVISOR PASSENGER SIDE W/VANITY MIRRO R<D34> LIGHT GRAY THA 		8-97298-431-2 01 1 0404-0609 ● ●
23 16.070 SUN VISOR
AIR BAG DRIVER & PASSENGER<AK5> SUNVISOR PASSENGER SIDE W/VANITY MIRRO R<D34> GRAY THA 		8-97403-481-2 01 1 0610- ● ●
23 16.070 SUN VISOR
LIGHT GRAY THA 		8-97298-436-3 01 1 0404-0609 ● ●
23 16.070 SUN VISOR
GRAY THA 		8-97403-491-3 01 1 0610- ● ●
66 16.450 BOLT; ASSIST GRIP BRKT
01.276 M6X16 FLANGE THA 		8-97010-123-0 06 1 0404-0408 ● ● ● ● ●
66 16.450 BOLT; ASSIST GRIP BRKT
01.276 M6X16 FLANGE THA 		8-97010-123-0 03 1 0409-0609 ● ● ● ● ●
66 16.450 BOLT; ASSIST GRIP BRKT
01.276 M6X16 FLANGE THA 		8-97010-123-0 03 1 0409-0609 ● ● ● ● ●
66 16.450 BOLT; ASSIST GRIP BRKT
M6X16 FLANGE THA 		8-98050-320-0 03 1 0610- ● ● ● ● ●
66 16.450 BOLT; ASSIST GRIP BRKT
M6X16 FLANGE THA 		8-98050-320-0 03 1 0610- ● ● ● ● ●
69 16.450 BRACKET; ASSIST GRIP
THA 		8-97360-907-0 02 1 0404-0408 ● ● ● ● ●
69 16.450 BRACKET; ASSIST GRIP
THA 		8-97360-907-0 01 1 0409- ● ● ● ● ●
69 16.450 BRACKET; ASSIST GRIP
THA 		8-97360-907-0 01 1 0409- ● ● ● ● ●
84 16.450 SCREW; ASSIST GRIP
M6X34 W/LK&PL WASHER 		8-94279-411-0 02 1 0404-0609 ● ● ● ●
84 16.450 SCREW; ASSIST GRIP
M6X25 THA 		0-36230-625-0 02 1 0610- ● ● ● ●
90 16.450 GRIP; ASSIST,ROOF
ASSIST HANDLE<E28> LIGHT GRAY THA 		8-97396-452-0 01 1 0404-0504 ● ●
90 16.450 GRIP; ASSIST,ROOF
LIGHT GRAY THA 		8-97396-452-0 01 1 0404-0504 ● ● ●
90 16.450 GRIP; ASSIST,ROOF
ASSIST HANDLE<E28> LIGHT GRAY THA 		8-97404-316-0 01 1 0505-0609 ● ●
90 16.450 GRIP; ASSIST,ROOF
LIGHT GRAY THA 		8-97404-316-0 01 1 0505-0609 ● ● ●
90 16.450 GRIP; ASSIST,ROOF
ASSIST HANDLE<E28> GRAY THA 		8-97408-306-0 01 1 0610- ● ●
90 16.450 GRIP; ASSIST,ROOF
GRAY THA 		8-97408-306-0 01 1 0610- ● ● ●
90 16.450 GRIP; ASSIST,ROOF
LIGHT GRAY THA 		8-97396-452-0 02 1 0404-0504 ● ●
90 16.450 GRIP; ASSIST,ROOF
LIGHT GRAY THA 		8-97404-316-0 02 1 0505-0609 ● ●
90 16.450 GRIP; ASSIST,ROOF
GRAY THA 		8-97408-306-0 02 1 0610- ● ●
102 16.450 HOOK; COAT HANGER
LIGHT GRAY THA 		8-97298-443-0 02 1 0404-0609 ● ● ● ●
102 16.450 HOOK; COAT HANGER
GRAY THA 		8-97403-539-0 02 1 0610- ● ● ● ●
348 16.070 RETAINER; SUNSHADE
LIGHT GRAY THA 		8-97392-648-0 02 1 0404-0609 ● ● ● ● ●
348 16.070 RETAINER; SUNSHADE
GRAY THA 		8-97403-990-0 02 1 0610-0809 ● ● ● ● ●
348 16.070 RETAINER; SUNSHADE
GRAY THA 		8-97403-990-0 02 1 0810- ● ● ● ● ●
349 16.070 CLIP; RETAINER SUNSHADE
THA 		8-97307-749-0 02 1 0404-0603 ● ● ● ● ●
349 16.070 CLIP; RETAINER SUNSHADE
THA 		8-98039-903-0 02 1 0604- ● ● ● ● ●
