◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 50982 - TFR/S(CHEVROLET)THAI ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-42 - ASH TRAY ▶

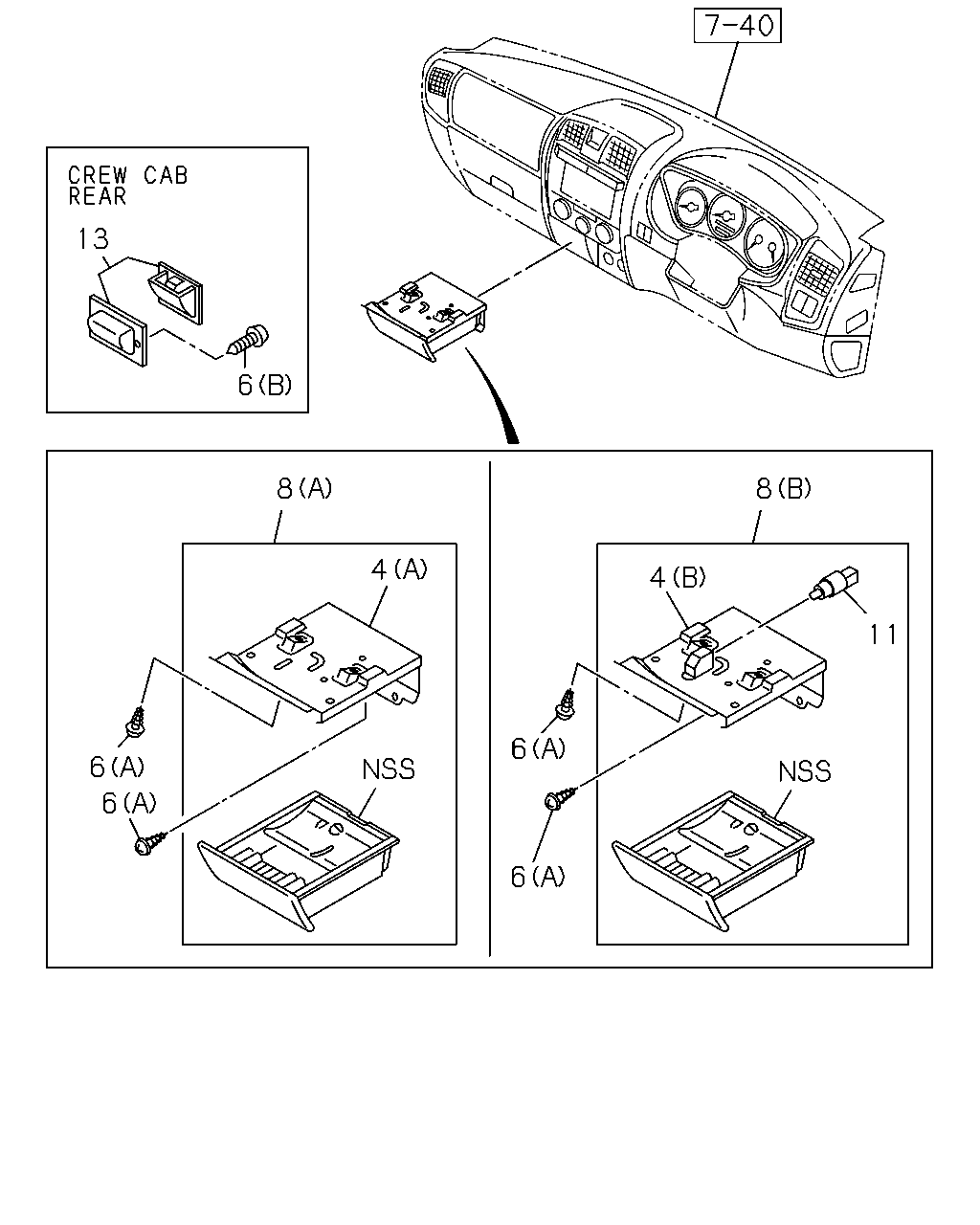

7-42 — ASH TRAY (#73683) — 130 parça

13 6 8 8 4 4 11 6 6 6 6

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
4	16.120 CASE ASM; ASH TRAY OUTER GRADE BASE<RBA> (A) THA	8-97308-648-0	01	1	0404-0609	●	●	●
4	16.120 CASE ASM; ASH TRAY OUTER GRADE LS<RBB>,GRADE LT<RBD> (B) THA	8-97308-647-0	01	1	0404-0409	●	●	●
4	16.120 CASE ASM; ASH TRAY OUTER (B) THA	8-97308-647-0	01	1	0404-0409				●	●
4	16.120 CASE ASM; ASH TRAY OUTER GRADE LS<RBB>,GRADE LT<RBD> (B) THA	8-97308-647-0	01	1	0410-0609	●		●
4	16.120 CASE ASM; ASH TRAY OUTER (B) THA	8-97308-647-0	01	1	0410-0609				●	●
4	16.120 CASE ASM; ASH TRAY OUTER (C) THA	8-98044-027-0	01	1	0610-	●	●	●	●	●
6	16.120 SCREW; ASH TRAY 16.085 (A) M5X16 TAPPING	9-09829-323-1	03	1	0404-0609	●	●	●	●	●
6	16.120 SCREW; ASH TRAY 16.085 (A) M5X16 TAPPING	9-09829-323-1	02	1	0610-0612	●	●	●	●	●
6	16.120 SCREW; ASH TRAY 08.083 (A) M5X16 TAPPING	8-98061-685-0	02	1	0701-1003	●	●	●	●	●
6	16.120 SCREW; ASH TRAY 08.083 (A) M5X16 TAPPING THA	8-98167-449-0	02	1	1004-	●	●	●	●	●
6	16.120 SCREW; ASH TRAY CLOTH SEAT MOQUETTE<8EP> 16.850 (B) M4X16 TAPPING OVAL-HEAD	9-07037-416-0	04	1	0405-0409			●
6	16.120 SCREW; ASH TRAY 16.850 (B) M4X16 TAPPING OVAL-HEAD	9-07037-416-0	04	1	0405-0409					●
6	16.120 SCREW; ASH TRAY POWER WINDOW<A31> SEAT CLOTH<7FL> 16.850 (B) M4X16 TAPPING OVAL-HEAD	9-07037-416-0	04	1	0410-0501			●
6	16.120 SCREW; ASH TRAY CLOTH SEAT MOQUETTE<8EP> 16.850 (B) M4X16 TAPPING OVAL-HEAD	9-07037-416-0	04	1	0410-0501			●
6	16.120 SCREW; ASH TRAY 16.850 (B) M4X16 TAPPING OVAL-HEAD	9-07037-416-0	04	1	0410-0501					●
6	16.120 SCREW; ASH TRAY SEAT CLOTH<7FL>,CLOTH SEAT MOQUETTE<8EP> 16.850 (B) M4X16 TAPPING OVAL-HEAD	9-07037-416-0	04	1	0502-0609			●
6	16.120 SCREW; ASH TRAY 16.850 (B) M4X16 TAPPING OVAL-HEAD	9-07037-416-0	04	1	0502-0609					●
6	16.120 SCREW; ASH TRAY CLOTH TRIM SUPER DELUXE, VAR 2<8LN> POWER WINDOW<A31> 16.742 (B) M4X16 TAPPING OVAL-HEAD THA	0-70540-416-0	04	1	0610-			●
6	16.120 SCREW; ASH TRAY CLOTH TRIM STANDARD, VAR 2<8LL> 16.742 (B) M4X16 TAPPING OVAL-HEAD THA	0-70540-416-0	04	1	0610-			●
6	16.120 SCREW; ASH TRAY 16.742 (B) M4X16 TAPPING OVAL-HEAD THA	0-70540-416-0	04	1	0610-					●
8	16.120 TRAY ASM; ASH GRADE BASE<RBA> (A) DARK GRAY THA	8-97396-589-0	01	1	0404-0609	●	●	●
8	16.120 TRAY ASM; ASH GRADE BASE<RBA> (D) DARK GRAY THA	8-97403-296-0	01	1	0610-0709		●
8	16.120 TRAY ASM; ASH GRADE BASE<RBA> EXC. INTERIOR SILVER BEZEL<BY9> (D) DARK GRAY THA	8-97403-296-0	01	1	0610-0709			●
8	16.120 TRAY ASM; ASH (D) DARK GRAY THA	8-97403-296-0	01	1	0710-0809		●
8	16.120 TRAY ASM; ASH GRADE BASE<RBA> EXC. INTERIOR SILVER BEZEL<BY9> (D) DARK GRAY THA	8-97403-296-0	01	1	0810-0910	●		●
8	16.120 TRAY ASM; ASH (D) DARK GRAY THA	8-97403-296-0	01	1	0810-0910		●
8	16.120 TRAY ASM; ASH (D) DARK GRAY THA	8-97403-296-0	01	1	0911-		●
8	16.120 TRAY ASM; ASH GRADE LS<RBB> (B) DARK GRAY THA	8-97396-590-0	01	1	0404-0408	●	●	●
8	16.120 TRAY ASM; ASH GRADE LS<RBB>,GRADE LT<RBD> EXC. INTERIOR SILVER BEZEL<BY9> (B) DARK GRAY THA	8-97396-590-0	01	1	0409-0409	●		●
8	16.120 TRAY ASM; ASH GRADE LS<RBB> (B) DARK GRAY THA	8-97396-590-0	01	1	0409-0409		●
8	16.120 TRAY ASM; ASH GRADE LS<RBB>,GRADE LT<RBD> EXC. INTERIOR SILVER BEZEL<BY9> (B) DARK GRAY THA	8-97396-590-0	01	1	0410-0609	●		●
8	16.120 TRAY ASM; ASH GRADE LS<RBB>,GRADE LT<RBD> EXC. INTERIOR SILVER BEZEL<BY9> (C) DARK GRAY THA	8-97403-297-0	01	1	0610-	●		●
8	16.120 TRAY ASM; ASH GRADE LT<RBD> (B) LIGHT GRAY THA	8-97392-979-0	01	1	0404-0408	●		●
8	16.120 TRAY ASM; ASH (B) LIGHT GRAY THA	8-97392-979-0	01	1	0404-0408				●	●
8	16.120 TRAY ASM; ASH GRADE LT<RBD> INTERIOR SILVER BEZEL<BY9> (B) LIGHT GRAY THA	8-97392-979-0	01	1	0409-0508	●		●
8	16.120 TRAY ASM; ASH (B) LIGHT GRAY THA	8-97392-979-0	01	1	0409-0508				●	●
8	16.120 TRAY ASM; ASH GRADE LT<RBD> INTERIOR SILVER BEZEL<BY9> (B) LIGHT GRAY THA	8-97392-979-0	01	1	0509-0609	●		●
8	16.120 TRAY ASM; ASH GRADE LT<RBD> (B) LIGHT GRAY THA	8-97392-979-0	01	1	0509-0609				●	●
8	16.120 TRAY ASM; ASH INTERIOR SILVER BEZEL<BY9> (C) GRAY THA	8-97405-211-0	01	1	0610-0809	●		●
8	16.120 TRAY ASM; ASH (C) GRAY THA	8-97405-211-0	01	1	0610-0809				●	●
8	16.120 TRAY ASM; ASH GRADE LS<RBB>,GRADE LT<RBD> INTERIOR SILVER BEZEL<BY9> (C) GRAY THA	8-97405-211-0	01	1	0810-	●		●
8	16.120 TRAY ASM; ASH (C) GRAY THA	8-97405-211-0	01	1	0810-				●	●
11	08.991 BULB; ASH TRAY GRADE LS<RBB>,GRADE LT<RBD> THA	8-97308-651-0	01	1	0404-0409	●	●	●
11	08.991 BULB; ASH TRAY THA	8-97308-651-0	01	1	0404-0409				●	●
11	08.991 BULB; ASH TRAY GRADE LS<RBB>,GRADE LT<RBD> THA	8-97308-651-0	01	1	0410-0609	●		●
11	08.991 BULB; ASH TRAY THA	8-97308-651-0	01	1	0410-0609				●	●
11	08.991 BULB; ASH TRAY GRADE LS<RBB>,GRADE LT<RBD> EXC. INTERIOR SILVER BEZEL<BY9> THA	8-97308-651-0	01	1	0610-0809	●		●
11	08.991 BULB; ASH TRAY GRADE LT<RBD> INTERIOR SILVER BEZEL<BY9> THA	8-97308-651-0	01	1	0610-0809	●		●
11	08.991 BULB; ASH TRAY GRADE LT<RBD> THA	8-97308-651-0	01	1	0610-0809				●	●
11	08.991 BULB; ASH TRAY GRADE LS<RBB>,GRADE LT<RBD> THA	8-97308-651-0	01	1	0810-	●		●
11	08.991 BULB; ASH TRAY THA	8-97308-651-0	01	1	0810-				●	●
13	16.120 TRAY ASM; ASH,RR CLOTH SEAT MOQUETTE<8EP> GRAY THA	8-97396-831-1	02	1	0405-0409			●
13	16.120 TRAY ASM; ASH,RR GRAY THA	8-97396-831-1	02	1	0405-0409					●
13	16.120 TRAY ASM; ASH,RR POWER WINDOW<A31> SEAT CLOTH<7FL> GRAY THA	8-97396-831-1	02	1	0410-0501			●
13	16.120 TRAY ASM; ASH,RR CLOTH SEAT MOQUETTE<8EP> GRAY THA	8-97396-831-1	02	1	0410-0501			●
13	16.120 TRAY ASM; ASH,RR GRAY THA	8-97396-831-1	02	1	0410-0501					●
13	16.120 TRAY ASM; ASH,RR SEAT CLOTH<7FL>,CLOTH SEAT MOQUETTE<8EP> GRAY THA	8-97396-831-1	02	1	0502-0609			●
13	16.120 TRAY ASM; ASH,RR GRAY THA	8-97396-831-1	02	1	0502-0609					●
13	16.120 TRAY ASM; ASH,RR CLOTH TRIM SUPER DELUXE, VAR 2<8LN> POWER WINDOW<A31> BEIGE THA	8-97409-356-0	02	1	0610-			●
13	16.120 TRAY ASM; ASH,RR CLOTH TRIM STANDARD, VAR 2<8LL> BEIGE THA	8-97409-356-0	02	1	0610-			●
13	16.120 TRAY ASM; ASH,RR BEIGE THA	8-97409-356-0	02	1	0610-					●

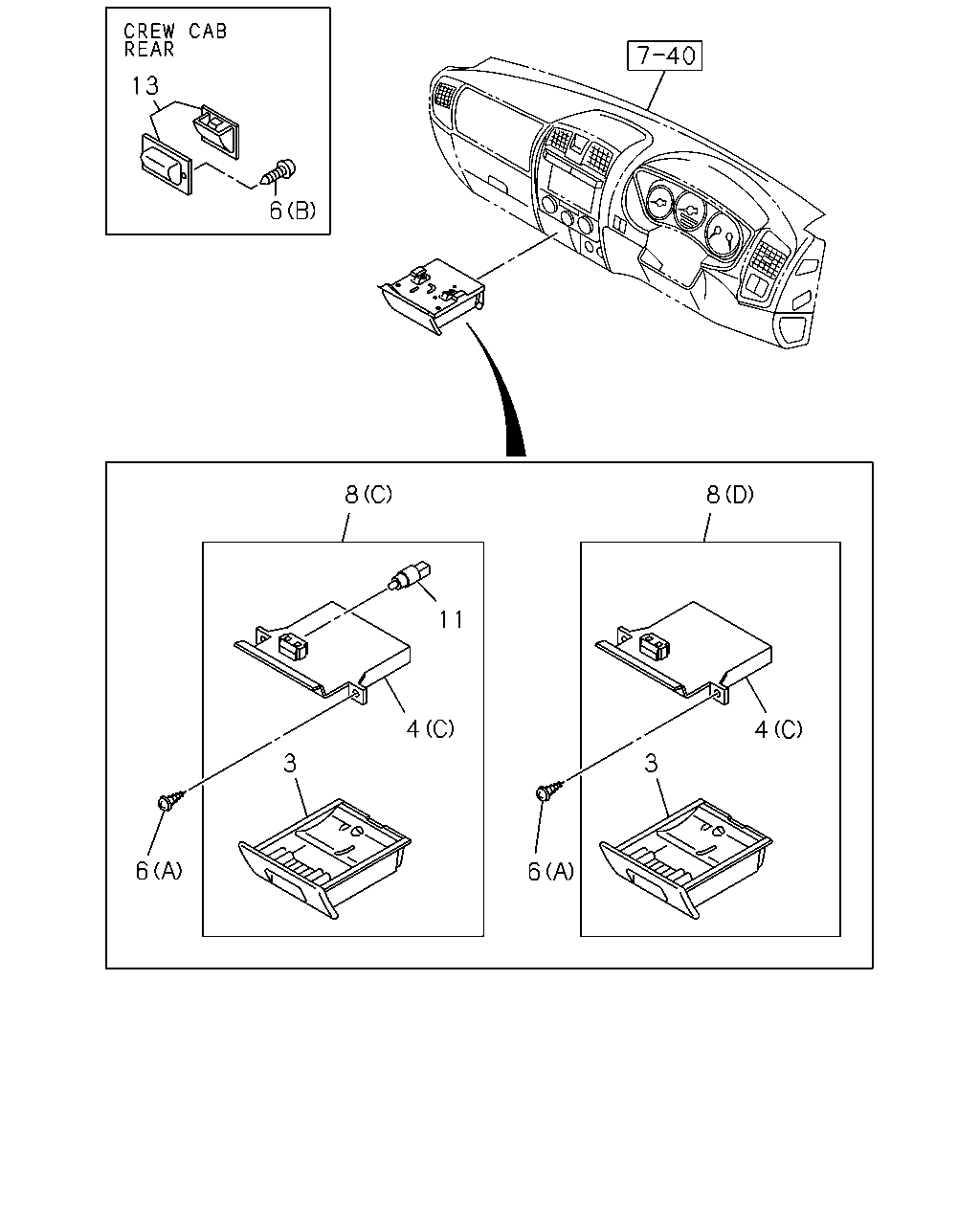

13 6 8 8 11 4 4 3 3 6 6

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
3	16.120 CASE ASM; ASH TRAY INNER INTERIOR SILVER BEZEL<BY9> GRAY THA	8-97407-839-0	01	1	0610-0809	●		●
3	16.120 CASE ASM; ASH TRAY INNER GRAY THA	8-97407-839-0	01	1	0610-0809				●	●
3	16.120 CASE ASM; ASH TRAY INNER GRADE LS<RBB>,GRADE LT<RBD> INTERIOR SILVER BEZEL<BY9> GRAY THA	8-97407-839-0	01	1	0810-	●		●
3	16.120 CASE ASM; ASH TRAY INNER GRAY THA	8-97407-839-0	01	1	0810-				●	●
3	16.120 CASE ASM; ASH TRAY INNER EXC. INTERIOR SILVER BEZEL<BY9> DARK GRAY THA	8-97407-836-0	01	1	0610-0910	●		●
3	16.120 CASE ASM; ASH TRAY INNER DARK GRAY THA	8-97407-836-0	01	1	0610-0910		●
3	16.120 CASE ASM; ASH TRAY INNER GRADE LS<RBB>,GRADE LT<RBD> EXC. INTERIOR SILVER BEZEL<BY9> DARK GRAY THA	8-97407-836-0	01	1	0911-	●		●
3	16.120 CASE ASM; ASH TRAY INNER DARK GRAY THA	8-97407-836-0	01	1	0911-		●
4	16.120 CASE ASM; ASH TRAY OUTER GRADE BASE<RBA> (A) THA	8-97308-648-0	01	1	0404-0609	●	●	●
4	16.120 CASE ASM; ASH TRAY OUTER GRADE LS<RBB>,GRADE LT<RBD> (B) THA	8-97308-647-0	01	1	0404-0409	●	●	●
4	16.120 CASE ASM; ASH TRAY OUTER (B) THA	8-97308-647-0	01	1	0404-0409				●	●
4	16.120 CASE ASM; ASH TRAY OUTER GRADE LS<RBB>,GRADE LT<RBD> (B) THA	8-97308-647-0	01	1	0410-0609	●		●
4	16.120 CASE ASM; ASH TRAY OUTER (B) THA	8-97308-647-0	01	1	0410-0609				●	●
4	16.120 CASE ASM; ASH TRAY OUTER (C) THA	8-98044-027-0	01	1	0610-	●	●	●	●	●
6	16.120 SCREW; ASH TRAY 16.085 (A) M5X16 TAPPING	9-09829-323-1	03	1	0404-0609	●	●	●	●	●
6	16.120 SCREW; ASH TRAY 16.085 (A) M5X16 TAPPING	9-09829-323-1	02	1	0610-0612	●	●	●	●	●
6	16.120 SCREW; ASH TRAY 08.083 (A) M5X16 TAPPING	8-98061-685-0	02	1	0701-1003	●	●	●	●	●
6	16.120 SCREW; ASH TRAY 08.083 (A) M5X16 TAPPING THA	8-98167-449-0	02	1	1004-	●	●	●	●	●
6	16.120 SCREW; ASH TRAY CLOTH SEAT MOQUETTE<8EP> 16.850 (B) M4X16 TAPPING OVAL-HEAD	9-07037-416-0	04	1	0405-0409			●
6	16.120 SCREW; ASH TRAY 16.850 (B) M4X16 TAPPING OVAL-HEAD	9-07037-416-0	04	1	0405-0409					●
6	16.120 SCREW; ASH TRAY POWER WINDOW<A31> SEAT CLOTH<7FL> 16.850 (B) M4X16 TAPPING OVAL-HEAD	9-07037-416-0	04	1	0410-0501			●
6	16.120 SCREW; ASH TRAY CLOTH SEAT MOQUETTE<8EP> 16.850 (B) M4X16 TAPPING OVAL-HEAD	9-07037-416-0	04	1	0410-0501			●
6	16.120 SCREW; ASH TRAY 16.850 (B) M4X16 TAPPING OVAL-HEAD	9-07037-416-0	04	1	0410-0501					●
6	16.120 SCREW; ASH TRAY SEAT CLOTH<7FL>,CLOTH SEAT MOQUETTE<8EP> 16.850 (B) M4X16 TAPPING OVAL-HEAD	9-07037-416-0	04	1	0502-0609			●
6	16.120 SCREW; ASH TRAY 16.850 (B) M4X16 TAPPING OVAL-HEAD	9-07037-416-0	04	1	0502-0609					●
6	16.120 SCREW; ASH TRAY CLOTH TRIM SUPER DELUXE, VAR 2<8LN> POWER WINDOW<A31> 16.742 (B) M4X16 TAPPING OVAL-HEAD THA	0-70540-416-0	04	1	0610-			●
6	16.120 SCREW; ASH TRAY CLOTH TRIM STANDARD, VAR 2<8LL> 16.742 (B) M4X16 TAPPING OVAL-HEAD THA	0-70540-416-0	04	1	0610-			●
6	16.120 SCREW; ASH TRAY 16.742 (B) M4X16 TAPPING OVAL-HEAD THA	0-70540-416-0	04	1	0610-					●
8	16.120 TRAY ASM; ASH GRADE BASE<RBA> (A) DARK GRAY THA	8-97396-589-0	01	1	0404-0609	●	●	●
8	16.120 TRAY ASM; ASH GRADE BASE<RBA> (D) DARK GRAY THA	8-97403-296-0	01	1	0610-0709		●
8	16.120 TRAY ASM; ASH GRADE BASE<RBA> EXC. INTERIOR SILVER BEZEL<BY9> (D) DARK GRAY THA	8-97403-296-0	01	1	0610-0709			●
8	16.120 TRAY ASM; ASH (D) DARK GRAY THA	8-97403-296-0	01	1	0710-0809		●
8	16.120 TRAY ASM; ASH GRADE BASE<RBA> EXC. INTERIOR SILVER BEZEL<BY9> (D) DARK GRAY THA	8-97403-296-0	01	1	0810-0910	●		●
8	16.120 TRAY ASM; ASH (D) DARK GRAY THA	8-97403-296-0	01	1	0810-0910		●
8	16.120 TRAY ASM; ASH (D) DARK GRAY THA	8-97403-296-0	01	1	0911-		●
8	16.120 TRAY ASM; ASH GRADE LS<RBB> (B) DARK GRAY THA	8-97396-590-0	01	1	0404-0408	●	●	●
8	16.120 TRAY ASM; ASH GRADE LS<RBB>,GRADE LT<RBD> EXC. INTERIOR SILVER BEZEL<BY9> (B) DARK GRAY THA	8-97396-590-0	01	1	0409-0409	●		●
8	16.120 TRAY ASM; ASH GRADE LS<RBB> (B) DARK GRAY THA	8-97396-590-0	01	1	0409-0409		●
8	16.120 TRAY ASM; ASH GRADE LS<RBB>,GRADE LT<RBD> EXC. INTERIOR SILVER BEZEL<BY9> (B) DARK GRAY THA	8-97396-590-0	01	1	0410-0609	●		●
8	16.120 TRAY ASM; ASH GRADE LS<RBB>,GRADE LT<RBD> EXC. INTERIOR SILVER BEZEL<BY9> (C) DARK GRAY THA	8-97403-297-0	01	1	0610-	●		●
8	16.120 TRAY ASM; ASH GRADE LT<RBD> (B) LIGHT GRAY THA	8-97392-979-0	01	1	0404-0408	●		●
8	16.120 TRAY ASM; ASH (B) LIGHT GRAY THA	8-97392-979-0	01	1	0404-0408				●	●
8	16.120 TRAY ASM; ASH GRADE LT<RBD> INTERIOR SILVER BEZEL<BY9> (B) LIGHT GRAY THA	8-97392-979-0	01	1	0409-0508	●		●
8	16.120 TRAY ASM; ASH (B) LIGHT GRAY THA	8-97392-979-0	01	1	0409-0508				●	●
8	16.120 TRAY ASM; ASH GRADE LT<RBD> INTERIOR SILVER BEZEL<BY9> (B) LIGHT GRAY THA	8-97392-979-0	01	1	0509-0609	●		●
8	16.120 TRAY ASM; ASH GRADE LT<RBD> (B) LIGHT GRAY THA	8-97392-979-0	01	1	0509-0609				●	●
8	16.120 TRAY ASM; ASH INTERIOR SILVER BEZEL<BY9> (C) GRAY THA	8-97405-211-0	01	1	0610-0809	●		●
8	16.120 TRAY ASM; ASH (C) GRAY THA	8-97405-211-0	01	1	0610-0809				●	●
8	16.120 TRAY ASM; ASH GRADE LS<RBB>,GRADE LT<RBD> INTERIOR SILVER BEZEL<BY9> (C) GRAY THA	8-97405-211-0	01	1	0810-	●		●
8	16.120 TRAY ASM; ASH (C) GRAY THA	8-97405-211-0	01	1	0810-				●	●
11	08.991 BULB; ASH TRAY GRADE LS<RBB>,GRADE LT<RBD> THA	8-97308-651-0	01	1	0404-0409	●	●	●
11	08.991 BULB; ASH TRAY THA	8-97308-651-0	01	1	0404-0409				●	●
11	08.991 BULB; ASH TRAY GRADE LS<RBB>,GRADE LT<RBD> THA	8-97308-651-0	01	1	0410-0609	●		●
11	08.991 BULB; ASH TRAY THA	8-97308-651-0	01	1	0410-0609				●	●
11	08.991 BULB; ASH TRAY GRADE LS<RBB>,GRADE LT<RBD> EXC. INTERIOR SILVER BEZEL<BY9> THA	8-97308-651-0	01	1	0610-0809	●		●
11	08.991 BULB; ASH TRAY GRADE LT<RBD> INTERIOR SILVER BEZEL<BY9> THA	8-97308-651-0	01	1	0610-0809	●		●
11	08.991 BULB; ASH TRAY GRADE LT<RBD> THA	8-97308-651-0	01	1	0610-0809				●	●
11	08.991 BULB; ASH TRAY GRADE LS<RBB>,GRADE LT<RBD> THA	8-97308-651-0	01	1	0810-	●		●
11	08.991 BULB; ASH TRAY THA	8-97308-651-0	01	1	0810-				●	●
13	16.120 TRAY ASM; ASH,RR CLOTH SEAT MOQUETTE<8EP> GRAY THA	8-97396-831-1	02	1	0405-0409			●
13	16.120 TRAY ASM; ASH,RR GRAY THA	8-97396-831-1	02	1	0405-0409					●
13	16.120 TRAY ASM; ASH,RR POWER WINDOW<A31> SEAT CLOTH<7FL> GRAY THA	8-97396-831-1	02	1	0410-0501			●
13	16.120 TRAY ASM; ASH,RR CLOTH SEAT MOQUETTE<8EP> GRAY THA	8-97396-831-1	02	1	0410-0501			●
13	16.120 TRAY ASM; ASH,RR GRAY THA	8-97396-831-1	02	1	0410-0501					●
13	16.120 TRAY ASM; ASH,RR SEAT CLOTH<7FL>,CLOTH SEAT MOQUETTE<8EP> GRAY THA	8-97396-831-1	02	1	0502-0609			●
13	16.120 TRAY ASM; ASH,RR GRAY THA	8-97396-831-1	02	1	0502-0609					●
13	16.120 TRAY ASM; ASH,RR CLOTH TRIM SUPER DELUXE, VAR 2<8LN> POWER WINDOW<A31> BEIGE THA	8-97409-356-0	02	1	0610-			●
13	16.120 TRAY ASM; ASH,RR CLOTH TRIM STANDARD, VAR 2<8LL> BEIGE THA	8-97409-356-0	02	1	0610-			●
13	16.120 TRAY ASM; ASH,RR BEIGE THA	8-97409-356-0	02	1	0610-					●
