Sayfa 6-86 - Isuzu EPC

◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 50982 - TFR/S(CHEVROLET)THAI ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-86 - TRUNK OPENER AND FUEL LID ▶

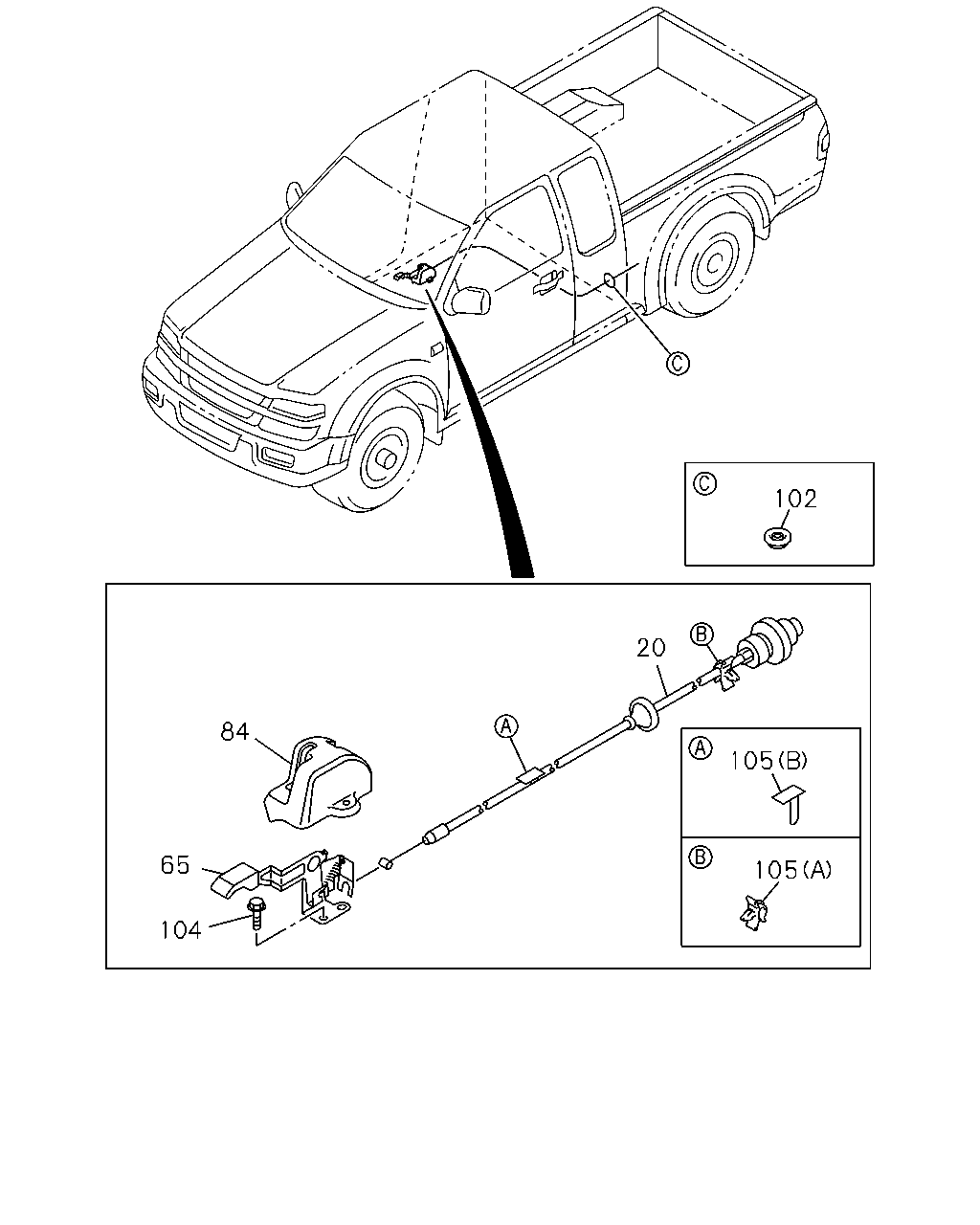

6-86 — TRUNK OPENER AND FUEL LID (#73676) — 29 parça

102 20 84 105 65 105 104

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
20	17.505 CABLE; TRUNK LID & FUEL FILLER THA	8-97235-478-2	01	1	0404-0612	●	●
20	17.505 CABLE; TRUNK LID & FUEL FILLER THA	8-98072-757-0	01	1	0701-	●	●
20	17.505 CABLE; TRUNK LID & FUEL FILLER THA	8-97368-368-0	01	1	0404-0610			●
20	17.505 CABLE; TRUNK LID & FUEL FILLER FUEL LID OPENER<N08> THA	8-97368-368-0	01	1	0611-0612			●
20	17.505 CABLE; TRUNK LID & FUEL FILLER FUEL LID OPENER<N08> THA	8-98072-755-0	01	1	0701-			●
20	17.505 CABLE; TRUNK LID & FUEL FILLER THA	8-97235-477-4	01	1	0404-0612				●	●
20	17.505 CABLE; TRUNK LID & FUEL FILLER THA	8-98072-759-0	01	1	0701-				●	●
65	17.505 KNOB; FUEL FILLER DOOR DARK GRAY THA	8-97396-695-0	01	1	0404-0510	●	●	●	●	●
65	17.505 KNOB; FUEL FILLER DOOR DARK GRAY THA	8-97405-951-0	01	1	0511-0609	●	●	●	●	●
65	17.505 KNOB; FUEL FILLER DOOR DARK GRAY THA	8-97405-953-0	01	1	0610-0610	●	●	●	●	●
65	17.505 KNOB; FUEL FILLER DOOR DARK GRAY THA	8-97405-953-0	01	1	0611-	●	●		●	●
65	17.505 KNOB; FUEL FILLER DOOR FUEL LID OPENER<N08> DARK GRAY THA	8-97405-953-0	01	1	0611-			●
84	17.185 COVER; BRKT GRAY THA	8-97396-694-2	01	1	0404-0609	●	●	●	●	●
84	17.185 COVER; BRKT BEIGE THA	8-97403-682-2	01	1	0610-0610	●	●	●	●	●
84	17.185 COVER; BRKT BEIGE THA	8-97403-682-2	01	1	0611-	●	●		●	●
84	17.185 COVER; BRKT FUEL LID OPENER<N08> BEIGE THA	8-97403-682-2	01	1	0611-			●
102	17.505 GROMMET EXC. FUEL LID OPENER<N08> THA	8-97321-645-1	01	1	0611-			●
104	17.505 BOLT; KNOB 02.343 M6X16 FLANGE THA	0-28650-616-0	02	1	0404-0610	●	●	●	●	●
104	17.505 BOLT; KNOB 02.343 M6X16 FLANGE THA	0-28650-616-0	02	1	0611-	●	●		●	●
104	17.505 BOLT; KNOB FUEL LID OPENER<N08> 02.343 M6X16 FLANGE THA	0-28650-616-0	02	1	0611-			●
105	17.505 CLIP; CABLE,FUEL LID OPENER 16.065 (B) ID=7	1-09987-055-0	05	1	0404-1110	●	●
105	17.505 CLIP; CABLE,FUEL LID OPENER (B) ID=7 THA	8-98158-303-0	05	1	1111-	●	●
105	17.505 CLIP; CABLE,FUEL LID OPENER 02.559 (A) D=5.8 THA	5-09709-081-0	02	1	0404-0610			●
105	17.505 CLIP; CABLE,FUEL LID OPENER FUEL LID OPENER<N08> 02.559 (A) D=5.8 THA	5-09709-081-0	02	1	0611-			●
105	17.505 CLIP; CABLE,FUEL LID OPENER 16.065 (B) ID=7	1-09987-055-0	04	1	0404-0610			●	●	●
105	17.505 CLIP; CABLE,FUEL LID OPENER FUEL LID OPENER<N08> 16.065 (B) ID=7	1-09987-055-0	04	1	0611-1110			●
105	17.505 CLIP; CABLE,FUEL LID OPENER 16.065 (B) ID=7	1-09987-055-0	04	1	0611-1110				●	●
105	17.505 CLIP; CABLE,FUEL LID OPENER FUEL LID OPENER<N08> (B) ID=7 THA	8-98158-303-0	04	1	1111-			●
105	17.505 CLIP; CABLE,FUEL LID OPENER (B) ID=7 THA	8-98158-303-0	04	1	1111-				●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
