◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 50982 - TFR/S(CHEVROLET)THAI ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-76 - FLOOR EQUIPMENT AND SEALING ▶
6-76 — FLOOR EQUIPMENT AND SEALING (#73671) — 12 parça

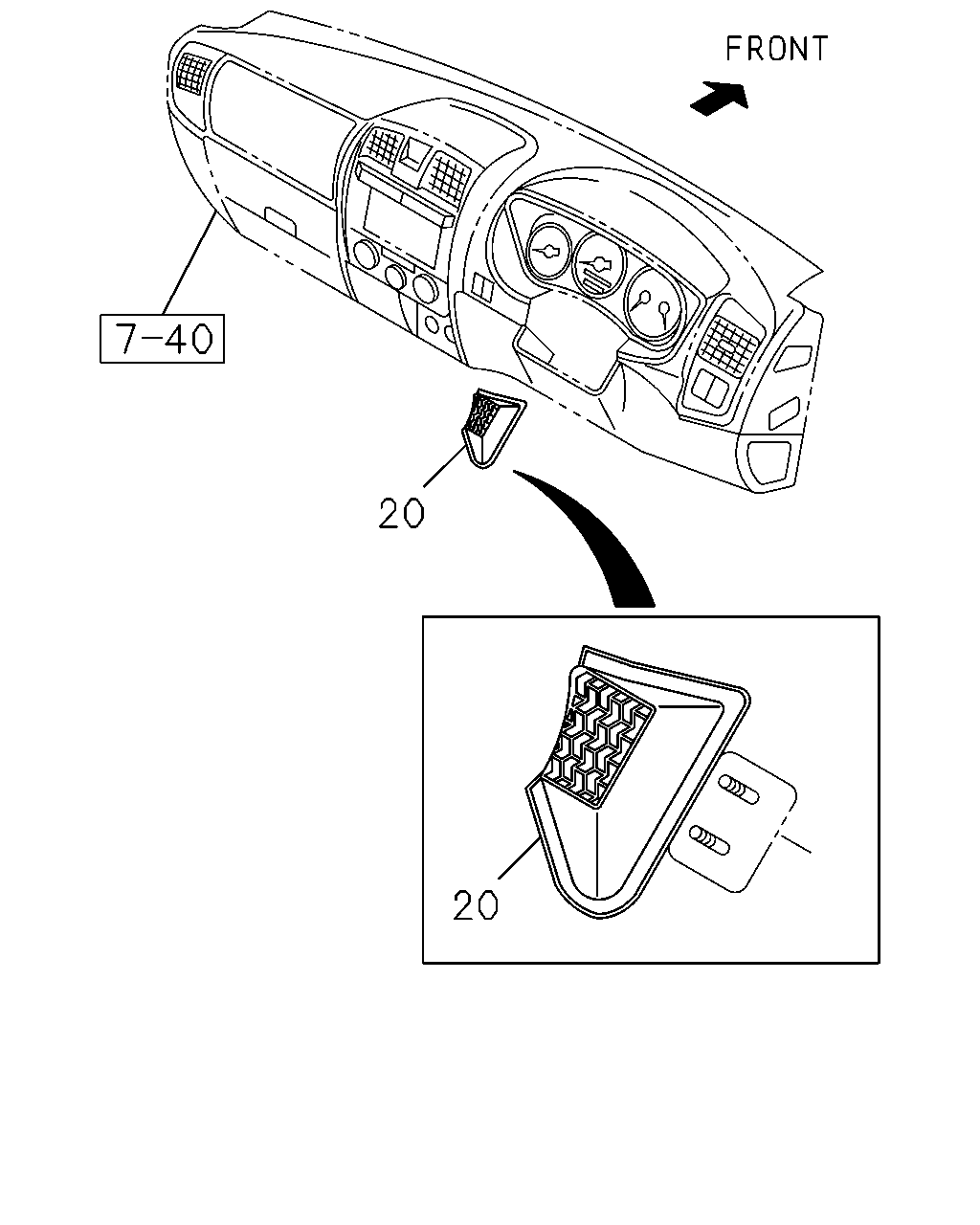

çizim 117857
20 20
BalonParca AdiParca NoAdetTipApplied Date A B C D E
20 16.547 REST; FOOT
DRIVER SIDE FOOT REST<7NU> PARKING BRAKE FLOOR<7XW> THA 		8-97236-450-1 01 1 0404-0409 ● ● ●
20 16.547 REST; FOOT
THA 		8-97236-450-1 01 1 0404-0409 ● ●
20 16.547 REST; FOOT
DRIVER SIDE FOOT REST<7NU> PARKING BRAKE FLOOR<7XW> THA 		8-97236-450-1 01 1 0410-0508 ● ●
20 16.547 REST; FOOT
THA 		8-97236-450-1 01 1 0410-0508 ● ● ●
20 16.547 REST; FOOT
4JJ1-TCS ENG<LFB>,4JK1-TCS ENG<LKZ> DRIVER SIDE FOOT REST<7NU> THA 		8-97236-450-1 01 1 0509-0609 ● ●
20 16.547 REST; FOOT
4JK1-TCS ENG<LKZ> THA 		8-97236-450-1 01 1 0509-0609 ●
20 16.547 REST; FOOT
4JJ1-TCS ENG<LFB> THA 		8-97236-450-1 01 1 0509-0609 ● ●
20 16.547 REST; FOOT
THA 		8-97236-450-1 01 1 0610-0709 ● ● ● ●
20 16.547 REST; FOOT
DRIVER SIDE FOOT REST<7NU> THA 		8-97236-450-1 01 1 0610-0709 ●
20 16.547 REST; FOOT
THA 		8-97236-450-1 01 1 0710- ● ● ● ● ●
20 16.547 REST; FOOT
DRIVER SIDE FOOT REST<7NU> EXC. PARKING BRAKE FLOOR<7XW> THA 		8-97365-724-0 01 1 0404-0409 ● ● ●
20 16.547 REST; FOOT
DRIVER SIDE FOOT REST<7NU> EXC. PARKING BRAKE FLOOR<7XW> THA 		8-97365-724-0 01 1 0410-0508 ● ●
