◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 50982 - TFR/S(CHEVROLET)THAI ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-75 - MAT AND CARPET ▶
6-75 — MAT AND CARPET (#73670) — 111 parça

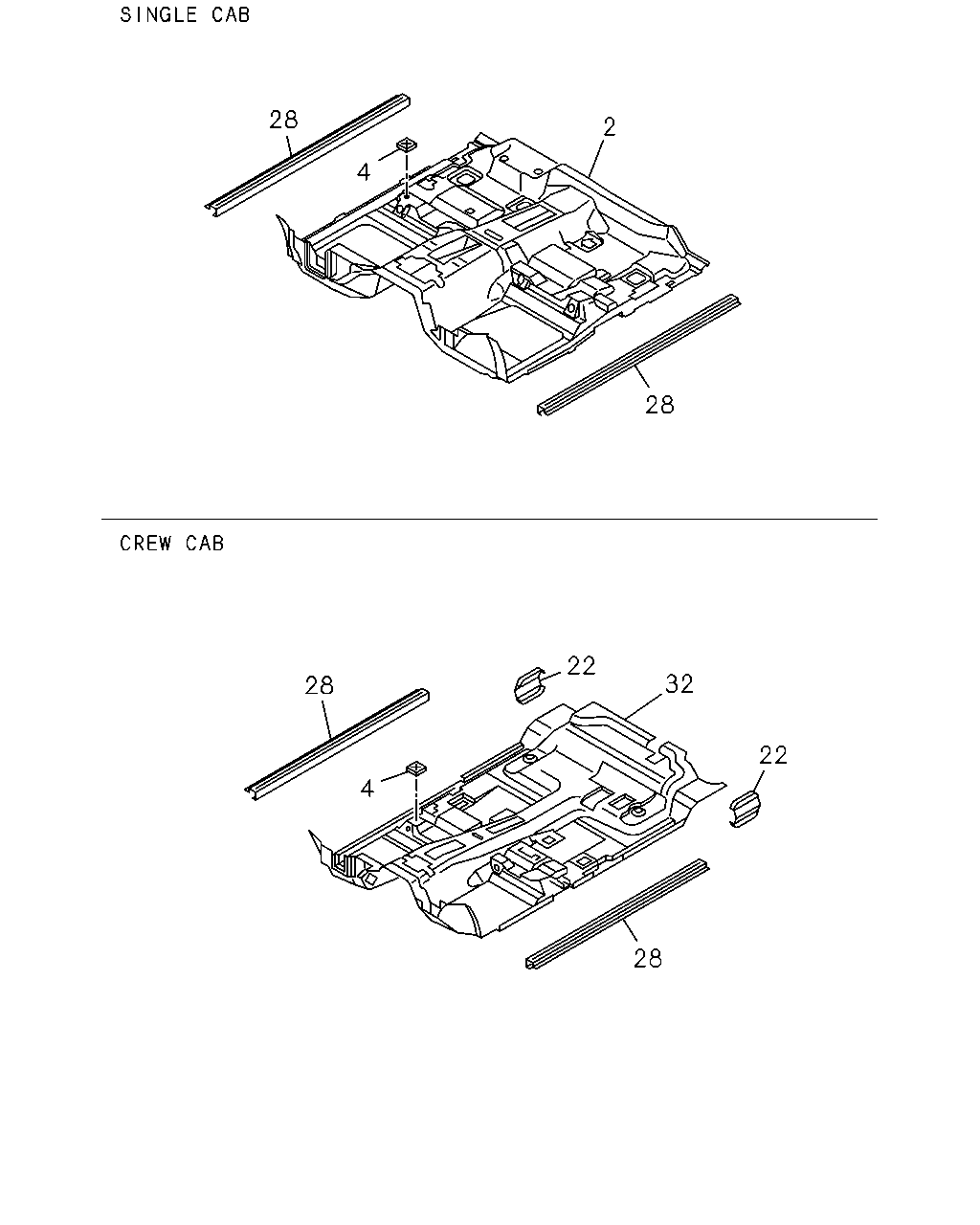

çizim 117836
28 2 4 28 22 32 28 22 4 28
BalonParca AdiParca NoAdetTipApplied Date A B C D E
2 16.800 MAT; FLOOR
EXC. FUEL LID OPENER<N08> BEIGE THA 		8-97414-956-0 01 1 0711-1007 ●
2 16.800 MAT; FLOOR
EXC. FUEL LID OPENER<N08> BEIGE 		8-97419-853-0 01 1 1008- ●
2 16.800 MAT; FLOOR
EXC. FLOOR CARPET<B30> BEIGE THA 		8-97403-413-6 01 1 0610-0709 ●
2 16.800 MAT; FLOOR
FUEL LID OPENER<N08> BEIGE THA 		8-97413-396-0 01 1 0710-1007 ●
2 16.800 MAT; FLOOR
FUEL LID OPENER<N08> BEIGE 		8-97419-851-0 01 1 1008- ●
2 16.800 MAT; FLOOR
FRONT CONSOLE<D55> DRIVER SIDE FOOT REST<7NU> PARKING BRAKE FLOOR<7XW> EXC. FLOOR CARPET<B30> GRAY THA 		8-97397-889-0 01 1 0404-0405 ●
2 16.800 MAT; FLOOR
FRONT CONSOLE<D55> DRIVER SIDE FOOT REST<7NU> PARKING BRAKE FLOOR<7XW> GRAY THA 		8-97397-889-0 01 1 0406-0409 ●
2 16.800 MAT; FLOOR
GRAY THA 		8-97397-889-0 01 1 0410-0607 ●
2 16.800 MAT; FLOOR
GRAY THA 		8-97405-813-0 01 1 0608-0609 ●
2 16.800 MAT; FLOOR
BEIGE THA 		8-97405-815-0 01 1 0610-0709 ●
4 16.547 INSULATOR; FRT
FRONT SEAT BUCKET TYPE<A50> THA 		8-97352-085-0 04 1 0404-0409 ● ● ●
4 16.547 INSULATOR; FRT
THA 		8-97352-085-0 04 1 0404-0409 ● ●
4 16.547 INSULATOR; FRT
FRONT SEAT BUCKET TYPE<A50> THA 		8-97352-085-0 04 1 0410-0508 ● ●
4 16.547 INSULATOR; FRT
THA 		8-97352-085-0 04 1 0410-0508 ● ● ●
4 16.547 INSULATOR; FRT
THA 		8-97352-085-0 04 1 0509- ● ● ● ● ●
22 16.870 PLATE; SILL,RR
GRAY THA 		8-97396-621-1 02 1 0404-0609 ● ●
22 16.870 PLATE; SILL,RR
BEIGE THA 		8-97403-458-1 02 1 0610- ● ●
28 16.870 PLATE; SILL,FRT
GRAY THA 		8-97396-620-1 02 1 0404-0609 ● ● ● ● ●
28 16.870 PLATE; SILL,FRT
BEIGE THA 		8-97403-456-1 02 1 0610- ● ● ● ● ●
32 16.800 CARPET; FLOOR
FLOOR CARPET<B30> FRONT CONSOLE<D55> DRIVER SIDE FOOT REST<7NU> PARKING BRAKE FLOOR<7XW> GRAY THA 		8-97396-616-7 01 1 0404-0409 ●
32 16.800 CARPET; FLOOR
GRAY THA 		8-97396-616-7 01 1 0404-0409 ●
32 16.800 CARPET; FLOOR
GRADE LS<RBB> FLOOR CARPET<B30> FRONT CONSOLE<D55> DRIVER SIDE FOOT REST<7NU> PARKING BRAKE FLOOR<7XW> GRAY THA 		8-97396-616-7 01 1 0410-0508 ●
32 16.800 CARPET; FLOOR
GRADE LS<RBB> FLOOR CARPET<B30> FRONT CONSOLE<D55> DRIVER SIDE FOOT REST<7NU> GRAY THA 		8-97396-616-7 01 1 0509-0609 ●
32 16.800 CARPET; FLOOR
GRADE LS<RBB> FLOOR CARPET<B30> BEIGE THA 		8-97403-366-7 01 1 0610-0809 ●
32 16.800 CARPET; FLOOR
GRADE LS<RBB> FLOOR CARPET<B30> FRONT CONSOLE<D55> DRIVER SIDE FOOT REST<7NU> BEIGE THA 		8-97403-366-7 01 1 0810-0910 ●
32 16.800 CARPET; FLOOR
GRADE LS<RBB> FLOOR CARPET<B30> BEIGE THA 		8-97403-366-7 01 1 0911- ●
32 16.800 CARPET; FLOOR
GRADE LT<RBD> FLOOR CARPET<B30> BEIGE THA 		8-97403-398-0 01 1 0610-0809 ●
32 16.800 CARPET; FLOOR
GRADE LT<RBD> BEIGE THA 		8-97403-398-0 01 1 0610-0809 ●
32 16.800 CARPET; FLOOR
GRADE LT<RBD> FLOOR CARPET<B30> FRONT CONSOLE<D55> DRIVER SIDE FOOT REST<7NU> BEIGE THA 		8-97403-398-0 01 1 0810-0910 ●
32 16.800 CARPET; FLOOR
BEIGE THA 		8-97403-398-0 01 1 0810-0910 ●
32 16.800 CARPET; FLOOR
GRADE LT<RBD> FLOOR CARPET<B30> BEIGE THA 		8-97403-398-0 01 1 0911- ●
32 16.800 CARPET; FLOOR
BEIGE THA 		8-97403-398-0 01 1 0911- ●
32 16.800 CARPET; FLOOR
GRADE LT<RBD> FLOOR CARPET<B30> FRONT CONSOLE<D55> DRIVER SIDE FOOT REST<7NU> PARKING BRAKE FLOOR<7XW> GRAY 		8-97400-933-0 01 1 0410-0508 ●
32 16.800 CARPET; FLOOR
GRAY 		8-97400-933-0 01 1 0410-0508 ●
32 16.800 CARPET; FLOOR
GRADE LT<RBD> FLOOR CARPET<B30> FRONT CONSOLE<D55> DRIVER SIDE FOOT REST<7NU> GRAY 		8-97400-933-0 01 1 0509-0609 ●
32 16.800 CARPET; FLOOR
GRADE LT<RBD> GRAY 		8-97400-933-0 01 1 0509-0609 ●
32 16.800 CARPET; FLOOR
FLOOR CARPET<B30> FRONT CONSOLE<D55> DRIVER SIDE FOOT REST<7NU> PARKING BRAKE FLOOR<7XW> GRAY THA 		8-97396-617-6 01 1 0404-0409 ●
32 16.800 CARPET; FLOOR
GRAY THA 		8-97396-617-6 01 1 0404-0409 ●
32 16.800 CARPET; FLOOR
GRADE LS<RBB> FLOOR CARPET<B30> FRONT CONSOLE<D55> DRIVER SIDE FOOT REST<7NU> PARKING BRAKE FLOOR<7XW> GRAY THA 		8-97396-617-6 01 1 0410-0508 ●
32 16.800 CARPET; FLOOR
GRADE LS<RBB> FLOOR CARPET<B30> FRONT CONSOLE<D55> DRIVER SIDE FOOT REST<7NU> GRAY THA 		8-97396-617-6 01 1 0509-0607 ●
32 16.800 CARPET; FLOOR
GRADE LS<RBB> FLOOR CARPET<B30> FRONT CONSOLE<D55> DRIVER SIDE FOOT REST<7NU> GRAY THA 		8-97405-696-0 01 1 0608-0609 ●
32 16.800 CARPET; FLOOR
GRADE LS<RBB> FLOOR CARPET<B30> FRONT CONSOLE<D55> DRIVER SIDE FOOT REST<7NU> BEIGE THA 		8-97405-698-0 01 1 0610-0709 ●
32 16.800 CARPET; FLOOR
GRADE LS<RBB> FLOOR CARPET<B30> BEIGE THA 		8-97413-370-0 01 1 0710-0809 ●
32 16.800 CARPET; FLOOR
GRADE LS<RBB> FLOOR CARPET<B30> FRONT CONSOLE<D55> DRIVER SIDE FOOT REST<7NU> BEIGE THA 		8-97413-370-0 01 1 0810-0910 ●
32 16.800 CARPET; FLOOR
GRADE LS<RBB> FLOOR CARPET<B30> BEIGE THA 		8-97413-370-0 01 1 0911-1007 ●
32 16.800 CARPET; FLOOR
GRADE LS<RBB> FLOOR CARPET<B30> BEIGE 		8-97419-842-0 01 1 1008- ●
32 16.800 CARPET; FLOOR
GRADE LT<RBD> FLOOR CARPET<B30> FRONT CONSOLE<D55> DRIVER SIDE FOOT REST<7NU> PARKING BRAKE FLOOR<7XW> GRAY 		8-97400-934-0 01 1 0410-0508 ●
32 16.800 CARPET; FLOOR
GRAY 		8-97400-934-0 01 1 0410-0508 ●
32 16.800 CARPET; FLOOR
GRADE LT<RBD> FLOOR CARPET<B30> FRONT CONSOLE<D55> DRIVER SIDE FOOT REST<7NU> GRAY 		8-97400-934-0 01 1 0509-0609 ●
32 16.800 CARPET; FLOOR
GRADE LT<RBD> GRAY 		8-97400-934-0 01 1 0509-0609 ●
32 16.800 CARPET; FLOOR
GRADE LT<RBD> FLOOR CARPET<B30> FRONT CONSOLE<D55> DRIVER SIDE FOOT REST<7NU> BEIGE THA 		8-97403-399-0 01 1 0610-0709 ●
32 16.800 CARPET; FLOOR
GRADE LT<RBD> BEIGE THA 		8-97403-399-0 01 1 0610-0709 ●
32 16.800 CARPET; FLOOR
GRADE LT<RBD> FLOOR CARPET<B30> BEIGE THA 		8-97403-399-0 01 1 0710-0809 ●
32 16.800 CARPET; FLOOR
GRADE LT<RBD> BEIGE THA 		8-97403-399-0 01 1 0710-0809 ●
32 16.800 CARPET; FLOOR
GRADE LT<RBD> FLOOR CARPET<B30> FRONT CONSOLE<D55> DRIVER SIDE FOOT REST<7NU> BEIGE THA 		8-97403-399-0 01 1 0810-0910 ●
32 16.800 CARPET; FLOOR
BEIGE THA 		8-97403-399-0 01 1 0810-0910 ●
32 16.800 CARPET; FLOOR
GRADE LT<RBD> FLOOR CARPET<B30> BEIGE THA 		8-97403-399-0 01 1 0911-1007 ●
32 16.800 CARPET; FLOOR
BEIGE THA 		8-97403-399-0 01 1 0911-1007 ●
32 16.800 CARPET; FLOOR
GRADE LT<RBD> FLOOR CARPET<B30> BEIGE 		8-97419-772-0 01 1 1008- ●
32 16.800 CARPET; FLOOR
BEIGE 		8-97419-772-0 01 1 1008- ●

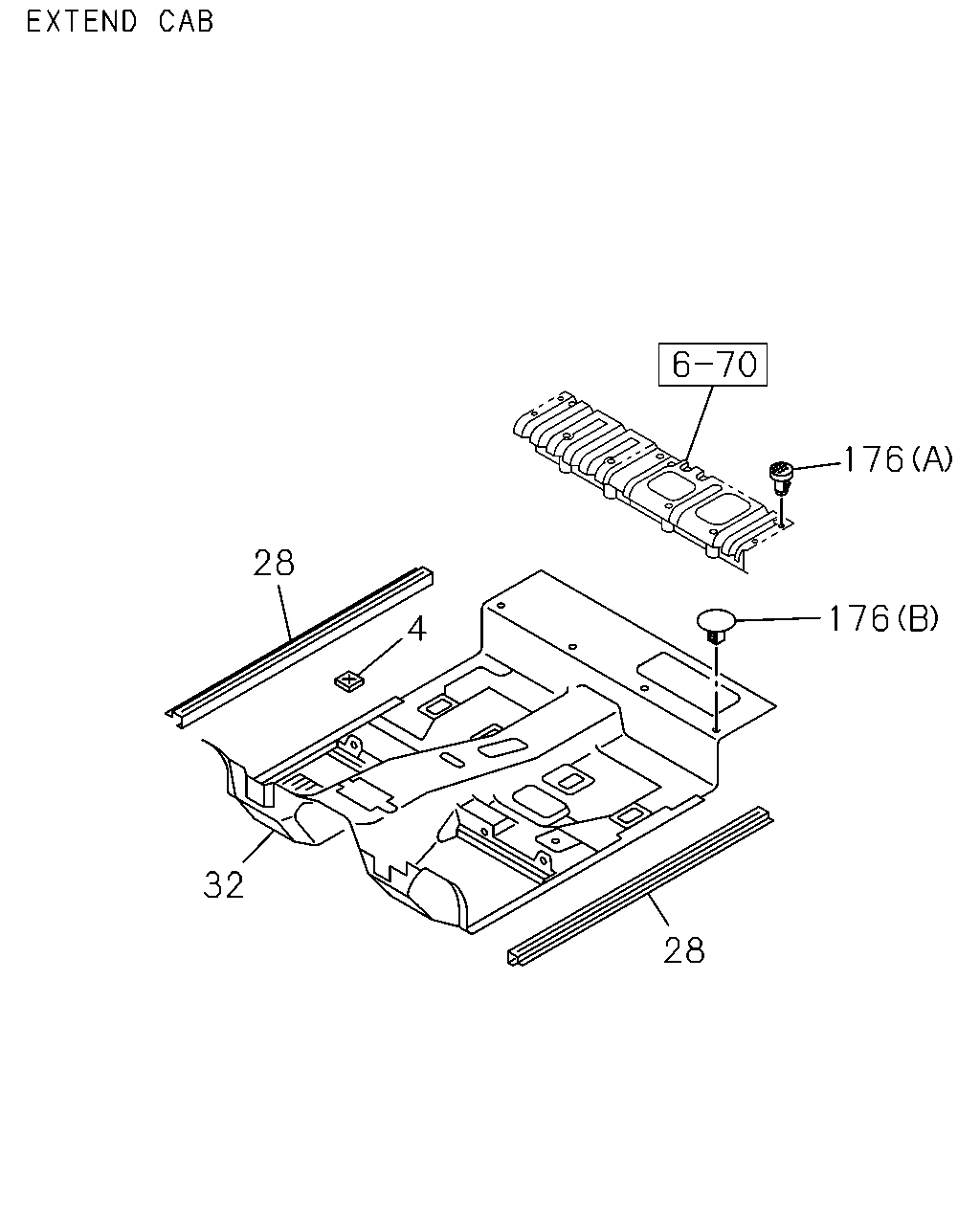

çizim 117837
176 28 176 4 32 28
BalonParca AdiParca NoAdetTipApplied Date A B C D E
4 16.547 INSULATOR; FRT
FRONT SEAT BUCKET TYPE<A50> THA 		8-97352-085-0 04 1 0404-0409 ● ● ●
4 16.547 INSULATOR; FRT
THA 		8-97352-085-0 04 1 0404-0409 ● ●
4 16.547 INSULATOR; FRT
FRONT SEAT BUCKET TYPE<A50> THA 		8-97352-085-0 04 1 0410-0508 ● ●
4 16.547 INSULATOR; FRT
THA 		8-97352-085-0 04 1 0410-0508 ● ● ●
4 16.547 INSULATOR; FRT
THA 		8-97352-085-0 04 1 0509- ● ● ● ● ●
28 16.870 PLATE; SILL,FRT
GRAY THA 		8-97396-620-1 02 1 0404-0609 ● ● ● ● ●
28 16.870 PLATE; SILL,FRT
BEIGE THA 		8-97403-456-1 02 1 0610- ● ● ● ● ●
32 16.800 CARPET; FLOOR
FLOOR CARPET<B30> FRONT CONSOLE<D55> DRIVER SIDE FOOT REST<7NU> PARKING BRAKE FLOOR<7XW> GRAY THA 		8-97396-616-7 01 1 0404-0409 ●
32 16.800 CARPET; FLOOR
GRAY THA 		8-97396-616-7 01 1 0404-0409 ●
32 16.800 CARPET; FLOOR
GRADE LS<RBB> FLOOR CARPET<B30> FRONT CONSOLE<D55> DRIVER SIDE FOOT REST<7NU> PARKING BRAKE FLOOR<7XW> GRAY THA 		8-97396-616-7 01 1 0410-0508 ●
32 16.800 CARPET; FLOOR
GRADE LS<RBB> FLOOR CARPET<B30> FRONT CONSOLE<D55> DRIVER SIDE FOOT REST<7NU> GRAY THA 		8-97396-616-7 01 1 0509-0609 ●
32 16.800 CARPET; FLOOR
GRADE LS<RBB> FLOOR CARPET<B30> BEIGE THA 		8-97403-366-7 01 1 0610-0809 ●
32 16.800 CARPET; FLOOR
GRADE LS<RBB> FLOOR CARPET<B30> FRONT CONSOLE<D55> DRIVER SIDE FOOT REST<7NU> BEIGE THA 		8-97403-366-7 01 1 0810-0910 ●
32 16.800 CARPET; FLOOR
GRADE LS<RBB> FLOOR CARPET<B30> BEIGE THA 		8-97403-366-7 01 1 0911- ●
32 16.800 CARPET; FLOOR
GRADE LT<RBD> FLOOR CARPET<B30> BEIGE THA 		8-97403-398-0 01 1 0610-0809 ●
32 16.800 CARPET; FLOOR
GRADE LT<RBD> BEIGE THA 		8-97403-398-0 01 1 0610-0809 ●
32 16.800 CARPET; FLOOR
GRADE LT<RBD> FLOOR CARPET<B30> FRONT CONSOLE<D55> DRIVER SIDE FOOT REST<7NU> BEIGE THA 		8-97403-398-0 01 1 0810-0910 ●
32 16.800 CARPET; FLOOR
BEIGE THA 		8-97403-398-0 01 1 0810-0910 ●
32 16.800 CARPET; FLOOR
GRADE LT<RBD> FLOOR CARPET<B30> BEIGE THA 		8-97403-398-0 01 1 0911- ●
32 16.800 CARPET; FLOOR
BEIGE THA 		8-97403-398-0 01 1 0911- ●
32 16.800 CARPET; FLOOR
GRADE LT<RBD> FLOOR CARPET<B30> FRONT CONSOLE<D55> DRIVER SIDE FOOT REST<7NU> PARKING BRAKE FLOOR<7XW> GRAY 		8-97400-933-0 01 1 0410-0508 ●
32 16.800 CARPET; FLOOR
GRAY 		8-97400-933-0 01 1 0410-0508 ●
32 16.800 CARPET; FLOOR
GRADE LT<RBD> FLOOR CARPET<B30> FRONT CONSOLE<D55> DRIVER SIDE FOOT REST<7NU> GRAY 		8-97400-933-0 01 1 0509-0609 ●
32 16.800 CARPET; FLOOR
GRADE LT<RBD> GRAY 		8-97400-933-0 01 1 0509-0609 ●
32 16.800 CARPET; FLOOR
FLOOR CARPET<B30> FRONT CONSOLE<D55> DRIVER SIDE FOOT REST<7NU> PARKING BRAKE FLOOR<7XW> GRAY THA 		8-97396-617-6 01 1 0404-0409 ●
32 16.800 CARPET; FLOOR
GRAY THA 		8-97396-617-6 01 1 0404-0409 ●
32 16.800 CARPET; FLOOR
GRADE LS<RBB> FLOOR CARPET<B30> FRONT CONSOLE<D55> DRIVER SIDE FOOT REST<7NU> PARKING BRAKE FLOOR<7XW> GRAY THA 		8-97396-617-6 01 1 0410-0508 ●
32 16.800 CARPET; FLOOR
GRADE LS<RBB> FLOOR CARPET<B30> FRONT CONSOLE<D55> DRIVER SIDE FOOT REST<7NU> GRAY THA 		8-97396-617-6 01 1 0509-0607 ●
32 16.800 CARPET; FLOOR
GRADE LS<RBB> FLOOR CARPET<B30> FRONT CONSOLE<D55> DRIVER SIDE FOOT REST<7NU> GRAY THA 		8-97405-696-0 01 1 0608-0609 ●
32 16.800 CARPET; FLOOR
GRADE LS<RBB> FLOOR CARPET<B30> FRONT CONSOLE<D55> DRIVER SIDE FOOT REST<7NU> BEIGE THA 		8-97405-698-0 01 1 0610-0709 ●
32 16.800 CARPET; FLOOR
GRADE LS<RBB> FLOOR CARPET<B30> BEIGE THA 		8-97413-370-0 01 1 0710-0809 ●
32 16.800 CARPET; FLOOR
GRADE LS<RBB> FLOOR CARPET<B30> FRONT CONSOLE<D55> DRIVER SIDE FOOT REST<7NU> BEIGE THA 		8-97413-370-0 01 1 0810-0910 ●
32 16.800 CARPET; FLOOR
GRADE LS<RBB> FLOOR CARPET<B30> BEIGE THA 		8-97413-370-0 01 1 0911-1007 ●
32 16.800 CARPET; FLOOR
GRADE LS<RBB> FLOOR CARPET<B30> BEIGE 		8-97419-842-0 01 1 1008- ●
32 16.800 CARPET; FLOOR
GRADE LT<RBD> FLOOR CARPET<B30> FRONT CONSOLE<D55> DRIVER SIDE FOOT REST<7NU> PARKING BRAKE FLOOR<7XW> GRAY 		8-97400-934-0 01 1 0410-0508 ●
32 16.800 CARPET; FLOOR
GRAY 		8-97400-934-0 01 1 0410-0508 ●
32 16.800 CARPET; FLOOR
GRADE LT<RBD> FLOOR CARPET<B30> FRONT CONSOLE<D55> DRIVER SIDE FOOT REST<7NU> GRAY 		8-97400-934-0 01 1 0509-0609 ●
32 16.800 CARPET; FLOOR
GRADE LT<RBD> GRAY 		8-97400-934-0 01 1 0509-0609 ●
32 16.800 CARPET; FLOOR
GRADE LT<RBD> FLOOR CARPET<B30> FRONT CONSOLE<D55> DRIVER SIDE FOOT REST<7NU> BEIGE THA 		8-97403-399-0 01 1 0610-0709 ●
32 16.800 CARPET; FLOOR
GRADE LT<RBD> BEIGE THA 		8-97403-399-0 01 1 0610-0709 ●
32 16.800 CARPET; FLOOR
GRADE LT<RBD> FLOOR CARPET<B30> BEIGE THA 		8-97403-399-0 01 1 0710-0809 ●
32 16.800 CARPET; FLOOR
GRADE LT<RBD> BEIGE THA 		8-97403-399-0 01 1 0710-0809 ●
32 16.800 CARPET; FLOOR
GRADE LT<RBD> FLOOR CARPET<B30> FRONT CONSOLE<D55> DRIVER SIDE FOOT REST<7NU> BEIGE THA 		8-97403-399-0 01 1 0810-0910 ●
32 16.800 CARPET; FLOOR
BEIGE THA 		8-97403-399-0 01 1 0810-0910 ●
32 16.800 CARPET; FLOOR
GRADE LT<RBD> FLOOR CARPET<B30> BEIGE THA 		8-97403-399-0 01 1 0911-1007 ●
32 16.800 CARPET; FLOOR
BEIGE THA 		8-97403-399-0 01 1 0911-1007 ●
32 16.800 CARPET; FLOOR
GRADE LT<RBD> FLOOR CARPET<B30> BEIGE 		8-97419-772-0 01 1 1008- ●
32 16.800 CARPET; FLOOR
BEIGE 		8-97419-772-0 01 1 1008- ●
176 16.870 RETAINER; CARPET
(A) THA 		8-97328-231-0 03 1 0404- ● ●
176 16.870 RETAINER; CARPET
(B) GRAY THA 		8-97396-618-0 04 1 0404-0609 ● ●
176 16.870 RETAINER; CARPET
(B) BEIGE THA 		8-97403-412-0 04 1 0610- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
