Isuzu WW
▶
TRUCKS
▶
EXZ
▶
10796 - EXZ LHD FUEL TANK 400L
▶
2 - Clutch, Transmission, Trans Axle
▶
2-07A - CLUTCH BOOSTER; MINIPACK
▶
2-07A — CLUTCH BOOSTER; MINIPACK
(#7367) — 16 parça
Tümü
A - TRANSMISSION-ZF 16S221 OD
B - TRANSMISSION-ZF 16S151 OD
C - TRANSMISSION-ZF 8S151 OD
◀

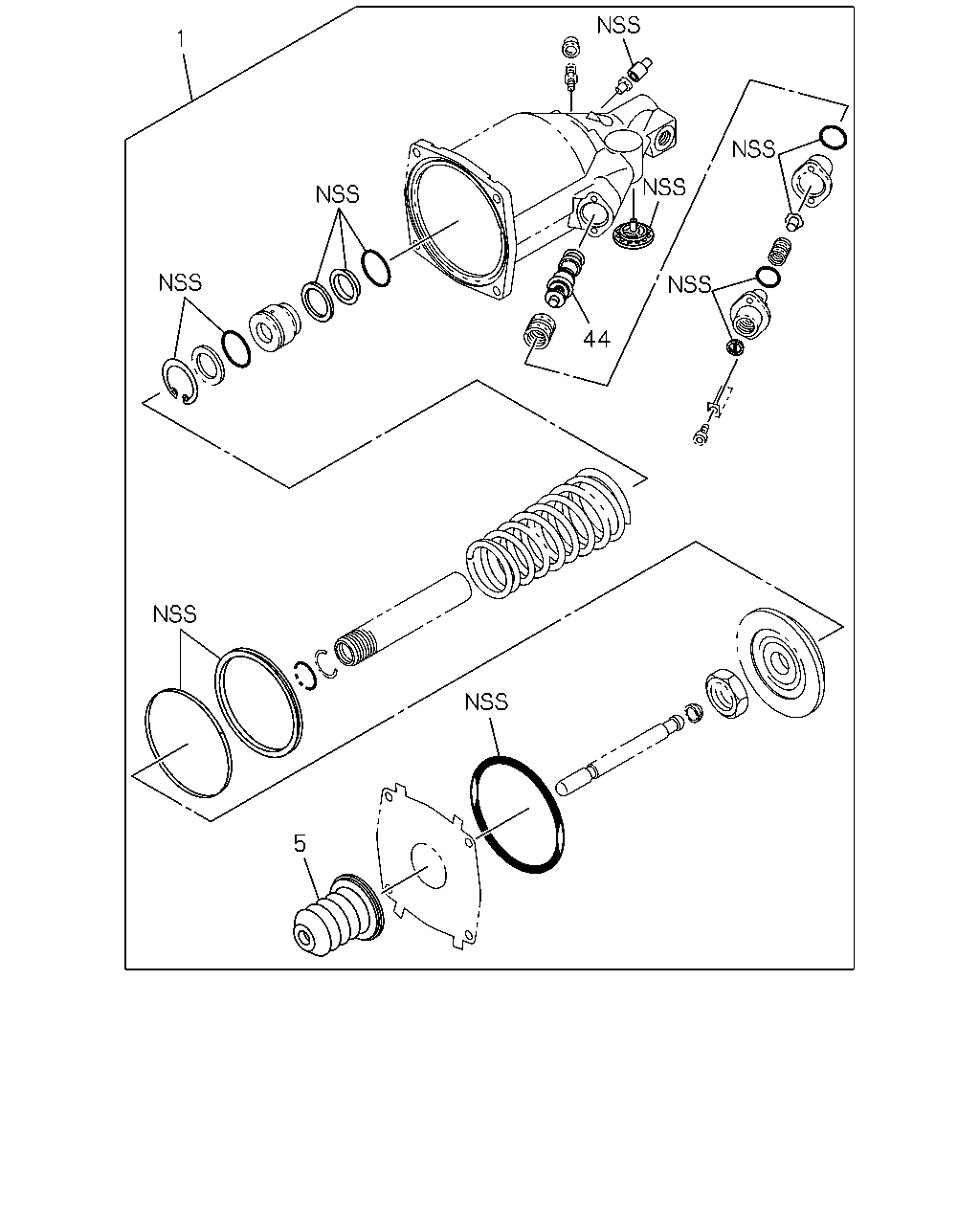

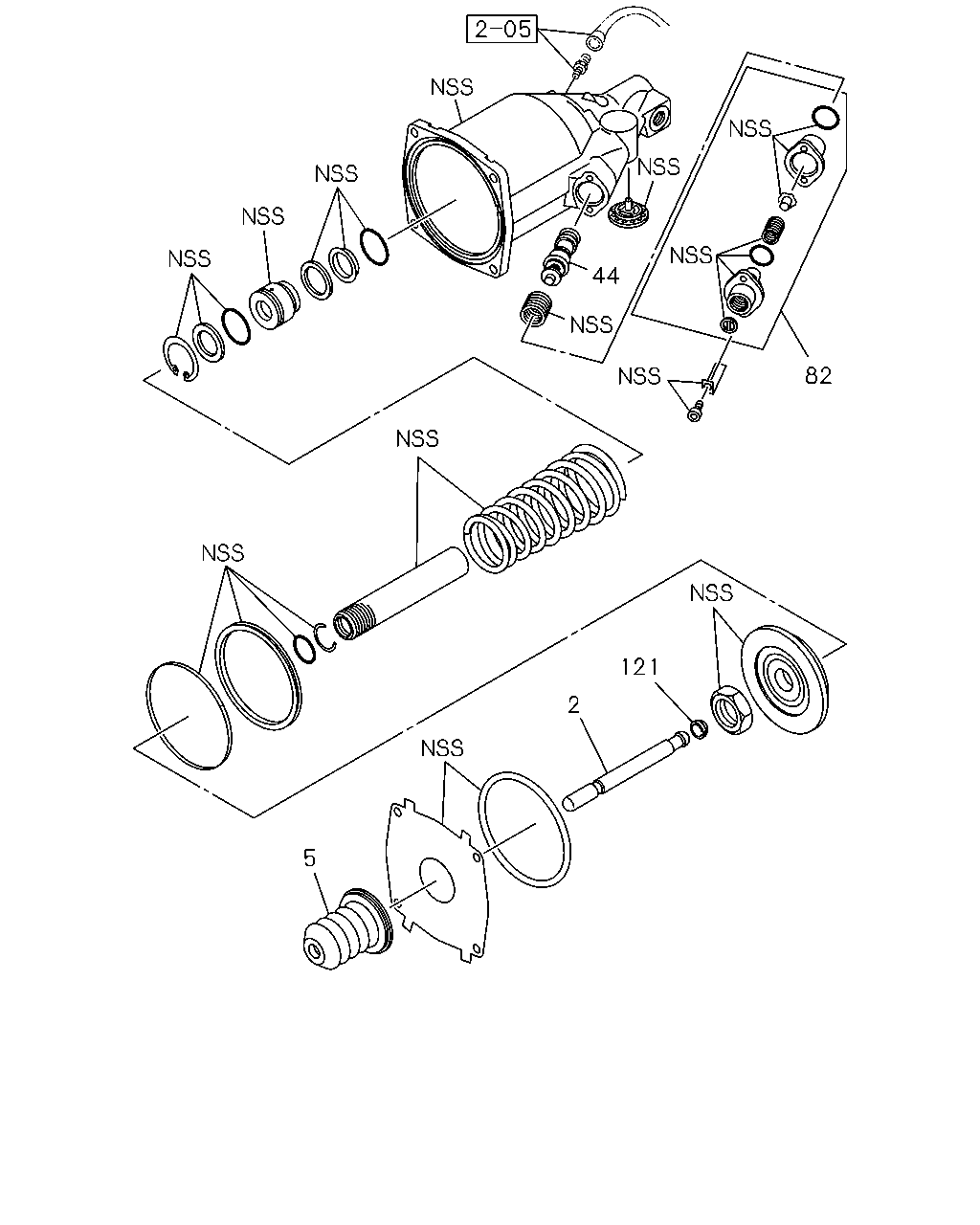

[207A] ASM OF PARTS (10 parça)
[207A] REPAIR KIT (6 parça)
▶
44
82
121
2
5
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
2
ROD; PUSH,CLU BOOSTER
1-31829-370-0
01
1
9812-9901
●
2
ROD; PUSH,CLU BOOSTER
1-31829-370-0
01
1
9902-
●
●
●
5
GUARD; PISTON,CLU BOOSTER
1-31829-371-0
01
1
9812-9901
●
5
GUARD; PISTON,CLU BOOSTER
1-31829-371-0
01
1
9902-
●
●
●
44
PISTON; UPR VLV,CLU BOOSTER
1-31829-413-0
01
1
9812-9901
●
44
PISTON; UPR VLV,CLU BOOSTER
1-31829-413-0
01
1
9902-
●
●
●
82
VALVE ASM; POPPET,BOOSTER
1-31829-412-0
01
1
9812-9901
●
82
VALVE ASM; POPPET,BOOSTER
1-31829-412-0
01
1
9902-
●
●
●
121
GUIDE; ROD
1-31829-374-0
01
1
9812-9901
●
121
GUIDE; ROD
1-31829-374-0
01
1
9902-
●
●
●
1
44
5
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
1
REPAIR KIT; CLU BOOSTER
1-31829-414-0
01
1
9812-9901
●
1
REPAIR KIT; CLU BOOSTER
1-31829-414-0
01
1
9902-
●
●
●
5
GUARD; PISTON,CLU BOOSTER
1-31829-371-0
01
1
9812-9901
●
5
GUARD; PISTON,CLU BOOSTER
1-31829-371-0
01
1
9902-
●
●
●
44
PISTON; UPR VLV,CLU BOOSTER
1-31829-413-0
01
1
9812-9901
●
44
PISTON; UPR VLV,CLU BOOSTER
1-31829-413-0
01
1
9902-
●
●
●
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
