6-70 — FLOOR PANEL (#73669) — 117 parça

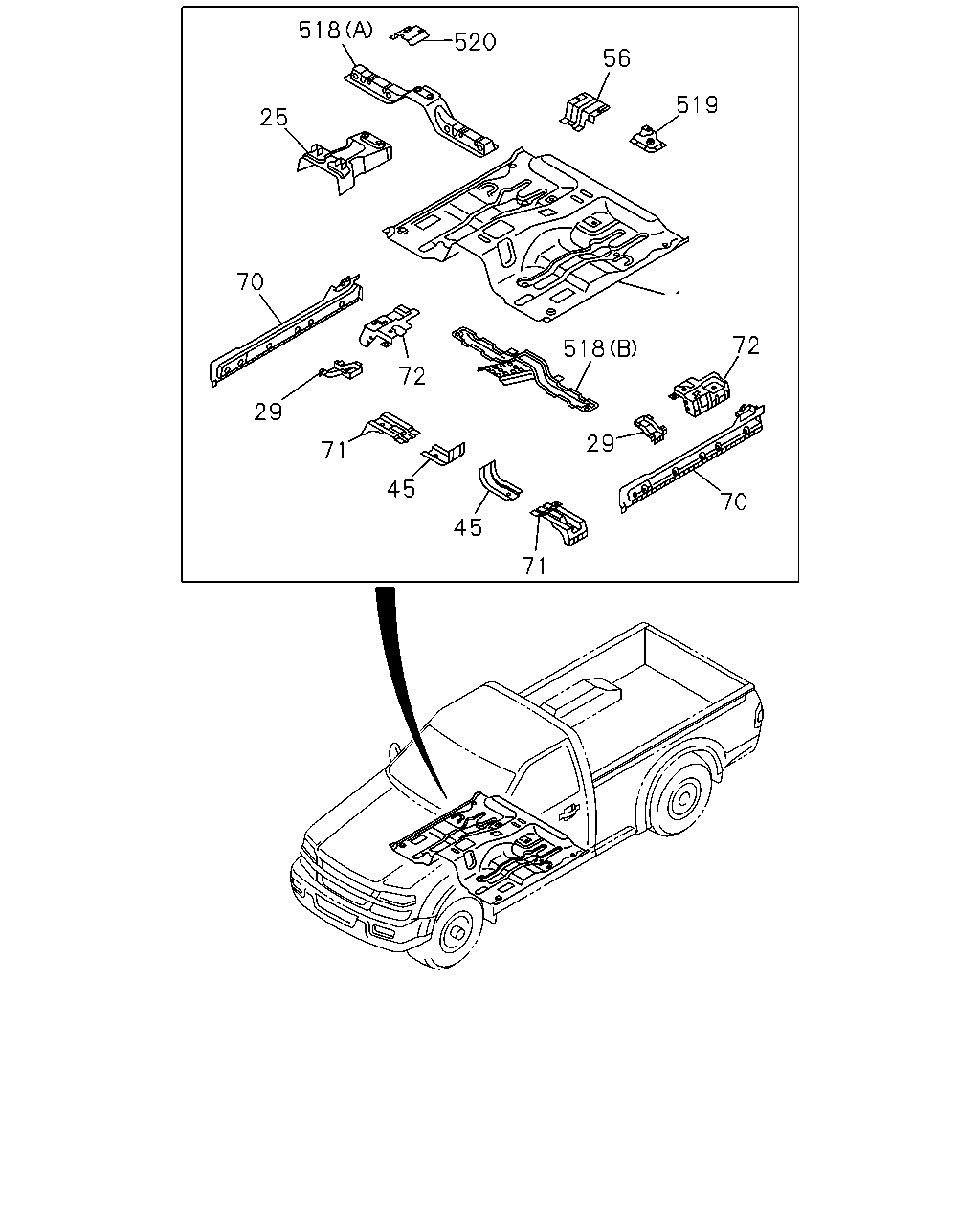

518 520 56 519 25 70 1 72 518 72 29 29 71 45 70 45 71

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	16.545 PANEL; FLOOR THA	8-97357-508-0	01	1	0404-	●	●
1	16.545 PANEL; FLOOR THA	8-97357-507-0	01	1	0404-			●
1	16.545 PANEL; FLOOR THA	8-97357-509-0	01	1	0404-				●	●
25	16.545 REINFORCEMENT; FRAME FLOOR,FRT FRONT CONSOLE<D55> THA	8-97235-751-4	01	1	0404-0404	●		●	●
25	16.545 REINFORCEMENT; FRAME FLOOR,FRT THA	8-97235-751-4	01	1	0404-0404		●			●
25	16.545 REINFORCEMENT; FRAME FLOOR,FRT FRONT CONSOLE<D55> THA	8-97380-608-0	01	1	0405-0409	●		●	●
25	16.545 REINFORCEMENT; FRAME FLOOR,FRT THA	8-97380-608-0	01	1	0405-0409		●			●
25	16.545 REINFORCEMENT; FRAME FLOOR,FRT FRONT CONSOLE<D55> THA	8-97380-608-0	01	1	0410-0609	●			●
25	16.545 REINFORCEMENT; FRAME FLOOR,FRT THA	8-97380-608-0	01	1	0410-0609		●	●		●
25	16.545 REINFORCEMENT; FRAME FLOOR,FRT THA	8-97380-608-0	01	1	0610-	●	●	●	●	●
25	16.545 REINFORCEMENT; FRAME FLOOR,FRT EXC. FRONT CONSOLE<D55> THA	8-97235-752-5	01	1	0404-0404	●		●	●
25	16.545 REINFORCEMENT; FRAME FLOOR,FRT EXC. FRONT CONSOLE<D55> THA	8-97380-609-0	01	1	0405-0409	●		●	●
25	16.545 REINFORCEMENT; FRAME FLOOR,FRT EXC. FRONT CONSOLE<D55> THA	8-97380-609-0	01	1	0410-0609	●			●
29	16.545 GUSSET THA	8-97349-433-0	02	1	0404-	●	●	●	●	●
45	16.545 REINFORCEMENT; TUNNEL,FRT THA	8-97235-811-1	01	1	0404-	●	●	●	●	●
45	16.545 REINFORCEMENT; TUNNEL,FRT THA	8-97235-810-1	01	1	0404-	●	●	●	●	●
56	08.820 BRACKET; JACK THA	8-97236-363-2	01	1	0404-			●
70	16.545 PANEL; ROCKER INNER THA	8-97262-347-4	01	1	0404-	●	●
70	16.545 PANEL; ROCKER INNER THA	8-97262-346-4	01	1	0404-	●	●
70	16.545 PANEL; ROCKER INNER THA	8-97235-546-4	01	1	0404-			●
70	16.545 PANEL; ROCKER INNER THA	8-97235-542-4	01	1	0404-			●
70	16.545 PANEL; ROCKER INNER THA	8-93333-636-3	01	1	0404-				●	●
70	16.545 PANEL; ROCKER INNER THA	8-93333-637-3	01	1	0404-				●	●
71	16.545 BRACKET; CAB MTG,CENTER THA	8-97235-861-3	01	1	0404-	●	●	●	●	●
71	16.545 BRACKET; CAB MTG,CENTER THA	8-97235-857-4	01	1	0404-	●	●	●	●	●
72	16.545 BRACKET; CAB MTG,RR THA	8-97235-883-3	01	1	0404-	●	●
72	16.545 BRACKET; CAB MTG,RR THA	8-97235-859-3	01	1	0404-	●	●
72	16.545 BRACKET; CAB MTG,RR THA	8-97248-001-4	01	1	0404-			●
72	16.545 BRACKET; CAB MTG,RR THA	8-97235-871-4	01	1	0404-			●	●	●
72	16.545 BRACKET; CAB MTG,RR THA	8-97235-858-4	01	1	0404-				●	●
518	16.576 SILL; FLOOR (A) THA	8-97235-794-3	01	1	0404-0609	●	●	●	●	●
518	16.576 SILL; FLOOR (A) THA	8-98048-087-0	01	1	0610-	●	●	●	●	●
518	16.576 SILL; FLOOR (B) THA	8-97235-819-5	01	1	0404-	●	●	●	●	●
518	16.576 SILL; FLOOR (C) THA	8-97236-099-4	01	1	0404-	●	●
519	16.545 BRACKET; CONTROLLER 4WD THA	8-97246-499-2	01	1	0404-0609	●	●	●	●	●
520	16.545 BRACKET; FUEL LID OPENER THA	8-97236-152-2	01	1	0404-	●	●	●	●	●

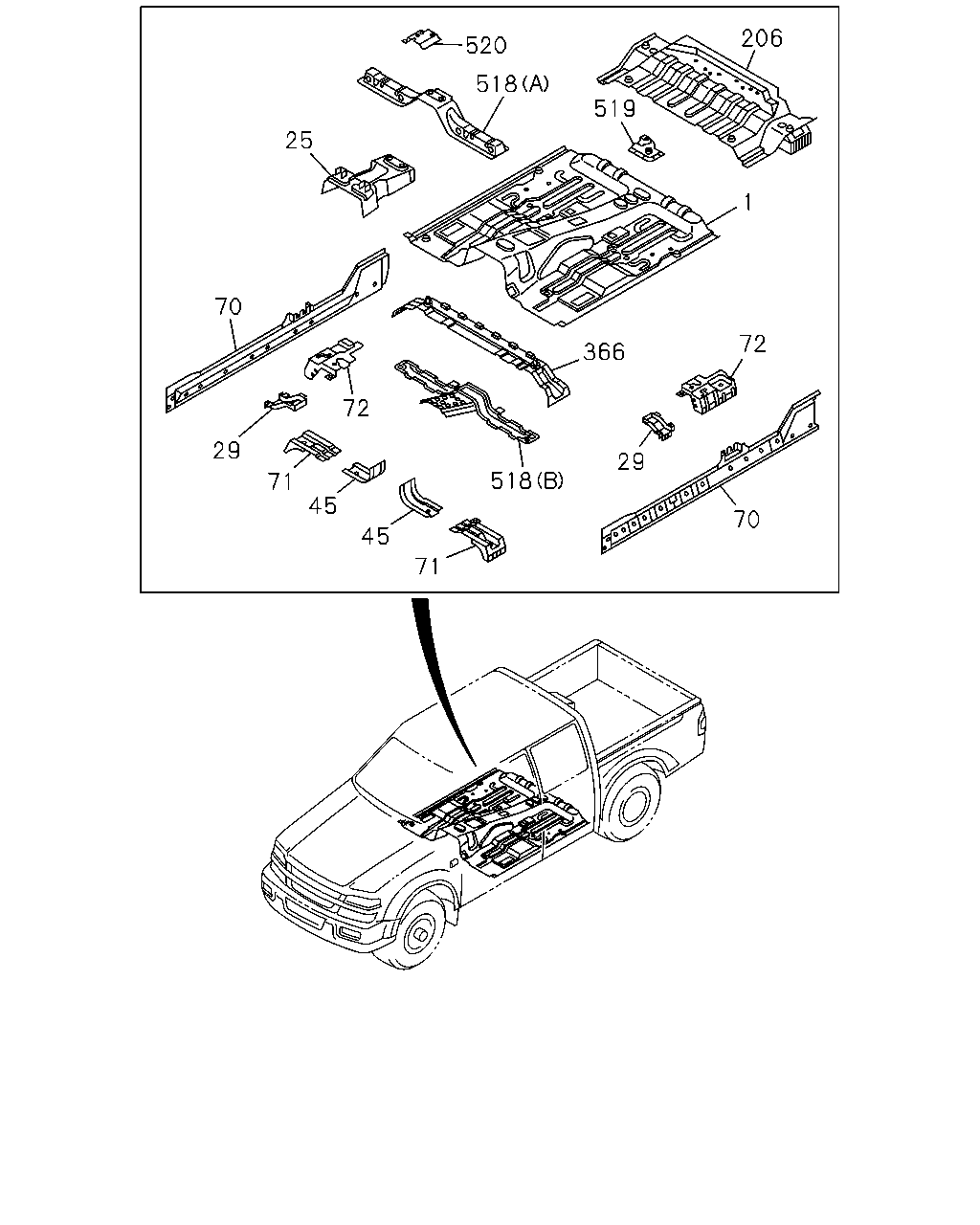

206 520 518 519 25 1 70 72 366 72 29 29 518 71 45 70 45 71

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	16.545 PANEL; FLOOR THA	8-97357-508-0	01	1	0404-	●	●
1	16.545 PANEL; FLOOR THA	8-97357-507-0	01	1	0404-			●
1	16.545 PANEL; FLOOR THA	8-97357-509-0	01	1	0404-				●	●
25	16.545 REINFORCEMENT; FRAME FLOOR,FRT FRONT CONSOLE<D55> THA	8-97235-751-4	01	1	0404-0404	●		●	●
25	16.545 REINFORCEMENT; FRAME FLOOR,FRT THA	8-97235-751-4	01	1	0404-0404		●			●
25	16.545 REINFORCEMENT; FRAME FLOOR,FRT FRONT CONSOLE<D55> THA	8-97380-608-0	01	1	0405-0409	●		●	●
25	16.545 REINFORCEMENT; FRAME FLOOR,FRT THA	8-97380-608-0	01	1	0405-0409		●			●
25	16.545 REINFORCEMENT; FRAME FLOOR,FRT FRONT CONSOLE<D55> THA	8-97380-608-0	01	1	0410-0609	●			●
25	16.545 REINFORCEMENT; FRAME FLOOR,FRT THA	8-97380-608-0	01	1	0410-0609		●	●		●
25	16.545 REINFORCEMENT; FRAME FLOOR,FRT THA	8-97380-608-0	01	1	0610-	●	●	●	●	●
25	16.545 REINFORCEMENT; FRAME FLOOR,FRT EXC. FRONT CONSOLE<D55> THA	8-97235-752-5	01	1	0404-0404	●		●	●
25	16.545 REINFORCEMENT; FRAME FLOOR,FRT EXC. FRONT CONSOLE<D55> THA	8-97380-609-0	01	1	0405-0409	●		●	●
25	16.545 REINFORCEMENT; FRAME FLOOR,FRT EXC. FRONT CONSOLE<D55> THA	8-97380-609-0	01	1	0410-0609	●			●
29	16.545 GUSSET THA	8-97349-433-0	02	1	0404-	●	●	●	●	●
45	16.545 REINFORCEMENT; TUNNEL,FRT THA	8-97235-811-1	01	1	0404-	●	●	●	●	●
45	16.545 REINFORCEMENT; TUNNEL,FRT THA	8-97235-810-1	01	1	0404-	●	●	●	●	●
70	16.545 PANEL; ROCKER INNER THA	8-97262-347-4	01	1	0404-	●	●
70	16.545 PANEL; ROCKER INNER THA	8-97262-346-4	01	1	0404-	●	●
70	16.545 PANEL; ROCKER INNER THA	8-97235-546-4	01	1	0404-			●
70	16.545 PANEL; ROCKER INNER THA	8-97235-542-4	01	1	0404-			●
70	16.545 PANEL; ROCKER INNER THA	8-93333-636-3	01	1	0404-				●	●
70	16.545 PANEL; ROCKER INNER THA	8-93333-637-3	01	1	0404-				●	●
71	16.545 BRACKET; CAB MTG,CENTER THA	8-97235-861-3	01	1	0404-	●	●	●	●	●
71	16.545 BRACKET; CAB MTG,CENTER THA	8-97235-857-4	01	1	0404-	●	●	●	●	●
72	16.545 BRACKET; CAB MTG,RR THA	8-97235-883-3	01	1	0404-	●	●
72	16.545 BRACKET; CAB MTG,RR THA	8-97235-859-3	01	1	0404-	●	●
72	16.545 BRACKET; CAB MTG,RR THA	8-97248-001-4	01	1	0404-			●
72	16.545 BRACKET; CAB MTG,RR THA	8-97235-871-4	01	1	0404-			●	●	●
72	16.545 BRACKET; CAB MTG,RR THA	8-97235-858-4	01	1	0404-				●	●
206	16.545 PANEL; FLOOR BOARD RR	8-93299-457-7	01	1	0404-0709				●	●
206	16.545 PANEL; FLOOR BOARD RR THA	8-98004-450-0	01	1	0710-				●	●
366	16.674 BAR ASM; FRT SEAT MTG THA	8-93333-631-3	01	1	0404-0501				●	●
366	16.674 BAR ASM; FRT SEAT MTG THA	8-93333-631-3	01	1	0502-				●	●
518	16.576 SILL; FLOOR (A) THA	8-97235-794-3	01	1	0404-0609	●	●	●	●	●
518	16.576 SILL; FLOOR (A) THA	8-98048-087-0	01	1	0610-	●	●	●	●	●
518	16.576 SILL; FLOOR (B) THA	8-97235-819-5	01	1	0404-	●	●	●	●	●
518	16.576 SILL; FLOOR (C) THA	8-97236-099-4	01	1	0404-	●	●
519	16.545 BRACKET; CONTROLLER 4WD THA	8-97246-499-2	01	1	0404-0609	●	●	●	●	●
520	16.545 BRACKET; FUEL LID OPENER THA	8-97236-152-2	01	1	0404-	●	●	●	●	●

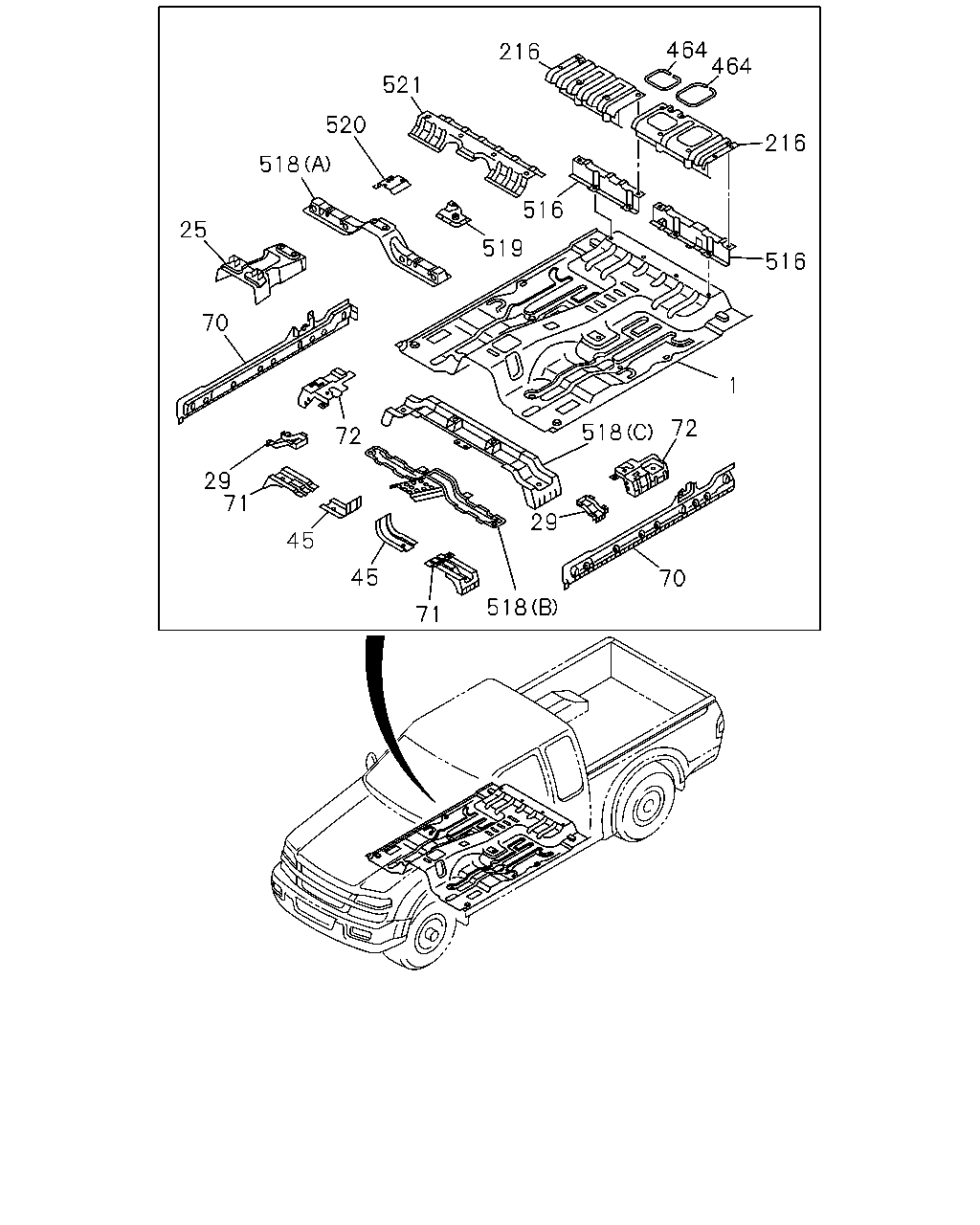

464 464 216 521 520 216 518 516 25 519 516 70 1 72 518 72 29 71 29 45 45 70 518 71

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	16.545 PANEL; FLOOR THA	8-97357-508-0	01	1	0404-	●	●
1	16.545 PANEL; FLOOR THA	8-97357-507-0	01	1	0404-			●
1	16.545 PANEL; FLOOR THA	8-97357-509-0	01	1	0404-				●	●
25	16.545 REINFORCEMENT; FRAME FLOOR,FRT FRONT CONSOLE<D55> THA	8-97235-751-4	01	1	0404-0404	●		●	●
25	16.545 REINFORCEMENT; FRAME FLOOR,FRT THA	8-97235-751-4	01	1	0404-0404		●			●
25	16.545 REINFORCEMENT; FRAME FLOOR,FRT FRONT CONSOLE<D55> THA	8-97380-608-0	01	1	0405-0409	●		●	●
25	16.545 REINFORCEMENT; FRAME FLOOR,FRT THA	8-97380-608-0	01	1	0405-0409		●			●
25	16.545 REINFORCEMENT; FRAME FLOOR,FRT FRONT CONSOLE<D55> THA	8-97380-608-0	01	1	0410-0609	●			●
25	16.545 REINFORCEMENT; FRAME FLOOR,FRT THA	8-97380-608-0	01	1	0410-0609		●	●		●
25	16.545 REINFORCEMENT; FRAME FLOOR,FRT THA	8-97380-608-0	01	1	0610-	●	●	●	●	●
25	16.545 REINFORCEMENT; FRAME FLOOR,FRT EXC. FRONT CONSOLE<D55> THA	8-97235-752-5	01	1	0404-0404	●		●	●
25	16.545 REINFORCEMENT; FRAME FLOOR,FRT EXC. FRONT CONSOLE<D55> THA	8-97380-609-0	01	1	0405-0409	●		●	●
25	16.545 REINFORCEMENT; FRAME FLOOR,FRT EXC. FRONT CONSOLE<D55> THA	8-97380-609-0	01	1	0410-0609	●			●
29	16.545 GUSSET THA	8-97349-433-0	02	1	0404-	●	●	●	●	●
45	16.545 REINFORCEMENT; TUNNEL,FRT THA	8-97235-811-1	01	1	0404-	●	●	●	●	●
45	16.545 REINFORCEMENT; TUNNEL,FRT THA	8-97235-810-1	01	1	0404-	●	●	●	●	●
70	16.545 PANEL; ROCKER INNER THA	8-97262-347-4	01	1	0404-	●	●
70	16.545 PANEL; ROCKER INNER THA	8-97262-346-4	01	1	0404-	●	●
70	16.545 PANEL; ROCKER INNER THA	8-97235-546-4	01	1	0404-			●
70	16.545 PANEL; ROCKER INNER THA	8-97235-542-4	01	1	0404-			●
70	16.545 PANEL; ROCKER INNER THA	8-93333-636-3	01	1	0404-				●	●
70	16.545 PANEL; ROCKER INNER THA	8-93333-637-3	01	1	0404-				●	●
71	16.545 BRACKET; CAB MTG,CENTER THA	8-97235-861-3	01	1	0404-	●	●	●	●	●
71	16.545 BRACKET; CAB MTG,CENTER THA	8-97235-857-4	01	1	0404-	●	●	●	●	●
72	16.545 BRACKET; CAB MTG,RR THA	8-97235-883-3	01	1	0404-	●	●
72	16.545 BRACKET; CAB MTG,RR THA	8-97235-859-3	01	1	0404-	●	●
72	16.545 BRACKET; CAB MTG,RR THA	8-97248-001-4	01	1	0404-			●
72	16.545 BRACKET; CAB MTG,RR THA	8-97235-871-4	01	1	0404-			●	●	●
72	16.545 BRACKET; CAB MTG,RR THA	8-97235-858-4	01	1	0404-				●	●
216	16.670 PANEL; SEAT RISER THA	8-97310-357-1	01	1	0404-	●	●
216	16.670 PANEL; SEAT RISER THA	8-97310-356-1	01	1	0404-	●	●
464	16.520 FINISHER; FLOOR PANEL THA	8-97329-366-0	02	1	0404-0411	●	●
464	16.520 FINISHER; FLOOR PANEL THA	8-97371-042-0	02	1	0412-	●	●
516	16.545 BRACKET; SEAT RISER THA	8-97310-367-2	01	1	0404-	●	●
516	16.545 BRACKET; SEAT RISER THA	8-97310-366-0	01	1	0404-	●	●
518	16.576 SILL; FLOOR (A) THA	8-97235-794-3	01	1	0404-0609	●	●	●	●	●
518	16.576 SILL; FLOOR (A) THA	8-98048-087-0	01	1	0610-	●	●	●	●	●
518	16.576 SILL; FLOOR (B) THA	8-97235-819-5	01	1	0404-	●	●	●	●	●
518	16.576 SILL; FLOOR (C) THA	8-97236-099-4	01	1	0404-	●	●
519	16.545 BRACKET; CONTROLLER 4WD THA	8-97246-499-2	01	1	0404-0609	●	●	●	●	●
520	16.545 BRACKET; FUEL LID OPENER THA	8-97236-152-2	01	1	0404-	●	●	●	●	●
521	16.545 BRACKET; RR STORAGE THA	8-97259-225-3	01	1	0404-	●	●
