Sayfa 6-66 - Isuzu EPC

6-66 — HEAD LINING AND TRIM (#73668) — 89 parça

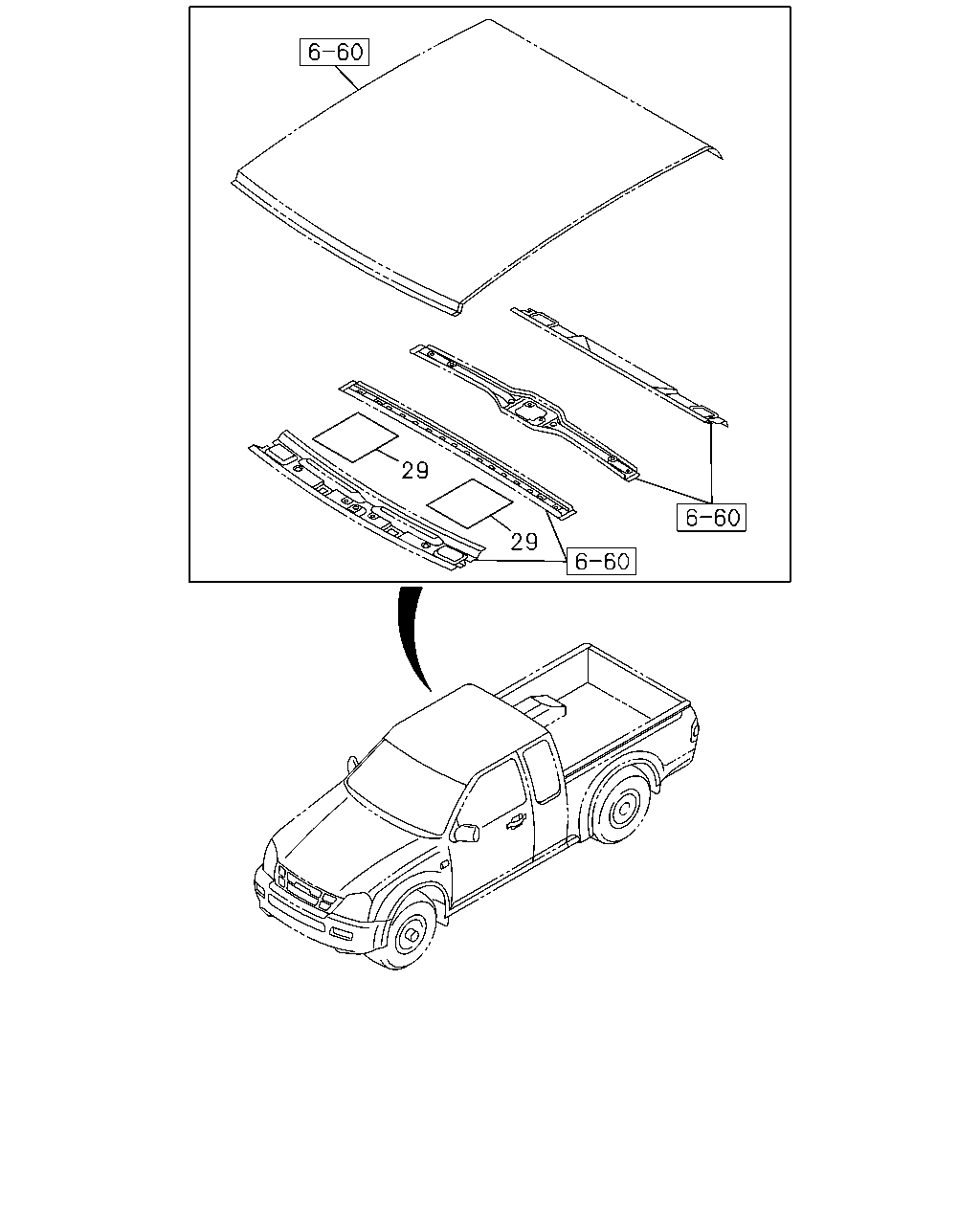

29 29

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
29	16.742 DEADENER; ROOF PANEL 4JJ1-TCS ENG<LFB> THA	8-97369-873-1	02	1	0410-0609	●	●	●	●
29	16.742 DEADENER; ROOF PANEL 4JJ1-TCS ENG<LFB> THA	8-97369-873-1	02	1	0610-	●	●	●
29	16.742 DEADENER; ROOF PANEL 4JJ1-TCS ENG<LFB>,4JJ1-TCX ENG<LS0> THA	8-97369-873-1	02	1	0610-				●

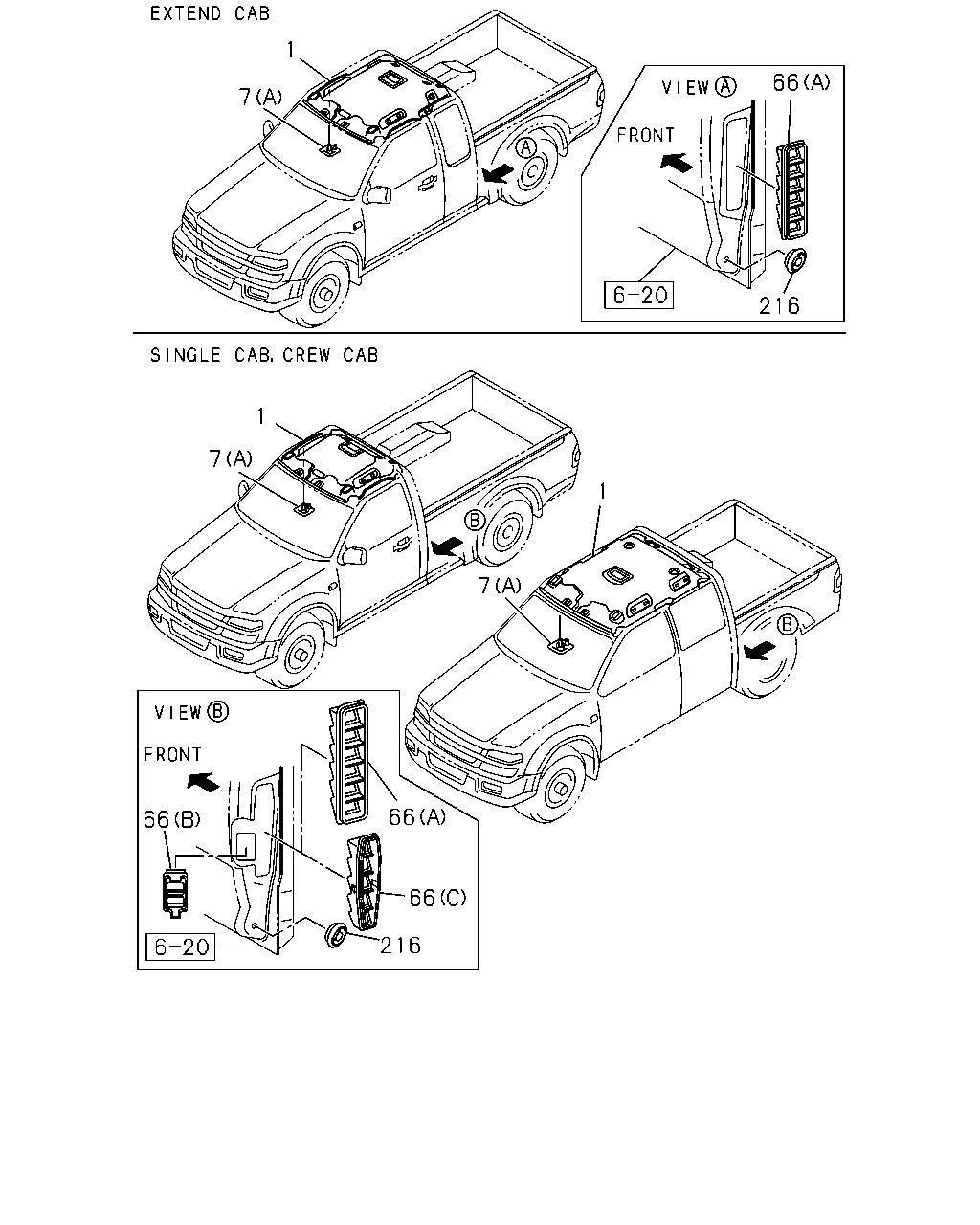

1 7 1 7 1 7

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	16.742 LINING; HD MAP LAMP<C74> LIGHT GRAY THA	8-97298-438-3	01	1	0404-0501	●
1	16.742 LINING; HD LIGHT GRAY THA	8-97298-438-3	01	1	0404-0501			●
1	16.742 LINING; HD MAP LAMP<C74> LIGHT GRAY THA	8-97401-116-0	01	1	0502-0508	●
1	16.742 LINING; HD LIGHT GRAY THA	8-97401-116-0	01	1	0502-0508			●
1	16.742 LINING; HD HEADER CONSOLE<DK6> LIGHT GRAY THA	8-97401-121-0	01	1	0509-0603	●
1	16.742 LINING; HD LIGHT GRAY THA	8-97401-121-0	01	1	0509-0603			●
1	16.742 LINING; HD HEADER CONSOLE<DK6> LIGHT GRAY THA	8-97405-876-0	01	1	0604-0609	●
1	16.742 LINING; HD LIGHT GRAY THA	8-97405-876-0	01	1	0604-0609			●
1	16.742 LINING; HD HEADER CONSOLE<DK6> GRAY THA	8-97405-878-0	01	1	0610-	●
1	16.742 LINING; HD GRAY THA	8-97405-878-0	01	1	0610-			●
1	16.742 LINING; HD EXC. MAP LAMP<C74> LIGHT GRAY THA	8-97298-437-3	01	1	0404-0501	●
1	16.742 LINING; HD EXC. MAP LAMP<C74> LIGHT GRAY THA	8-97401-115-0	01	1	0502-0508	●
1	16.742 LINING; HD EXC. HEADER CONSOLE<DK6> LIGHT GRAY THA	8-97401-115-0	01	1	0509-0603	●
1	16.742 LINING; HD EXC. HEADER CONSOLE<DK6> LIGHT GRAY THA	8-97405-879-0	01	1	0604-0609	●
1	16.742 LINING; HD EXC. HEADER CONSOLE<DK6> GRAY THA	8-97405-881-0	01	1	0610-	●
1	16.742 LINING; HD LIGHT GRAY THA	8-97298-439-3	01	1	0404-0501					●
1	16.742 LINING; HD LIGHT GRAY THA	8-97401-117-0	01	1	0502-0603					●
1	16.742 LINING; HD LIGHT GRAY THA	8-97405-891-0	01	1	0604-0609					●
1	16.742 LINING; HD GRAY THA	8-97405-893-0	01	1	0610-					●
1	16.742 LINING; HD MAP LAMP<C74> LIGHT GRAY THA	8-97298-441-5	01	1	0404-0502		●
1	16.742 LINING; HD LIGHT GRAY THA	8-97298-441-5	01	1	0404-0502				●
1	16.742 LINING; HD MAP LAMP<C74> LIGHT GRAY THA	8-97401-120-0	01	1	0503-0508		●
1	16.742 LINING; HD LIGHT GRAY THA	8-97401-120-0	01	1	0503-0508				●
1	16.742 LINING; HD HEADER CONSOLE<DK6> LIGHT GRAY THA	8-97401-123-0	01	1	0509-0603		●
1	16.742 LINING; HD LIGHT GRAY THA	8-97401-123-0	01	1	0509-0603				●
1	16.742 LINING; HD HEADER CONSOLE<DK6> LIGHT GRAY THA	8-97405-898-0	01	1	0604-0609		●
1	16.742 LINING; HD LIGHT GRAY THA	8-97405-898-0	01	1	0604-0609				●
1	16.742 LINING; HD HEADER CONSOLE<DK6> GRAY THA	8-97405-900-0	01	1	0610-		●
1	16.742 LINING; HD GRAY THA	8-97405-900-0	01	1	0610-				●
1	16.742 LINING; HD EXC. MAP LAMP<C74> LIGHT GRAY THA	8-97298-440-5	01	1	0404-0502		●
1	16.742 LINING; HD EXC. MAP LAMP<C74> LIGHT GRAY THA	8-97401-119-0	01	1	0503-0508		●
1	16.742 LINING; HD EXC. HEADER CONSOLE<DK6> LIGHT GRAY THA	8-97401-119-0	01	1	0509-0603		●
1	16.742 LINING; HD EXC. HEADER CONSOLE<DK6> LIGHT GRAY THA	8-97405-901-0	01	1	0604-0609		●
1	16.742 LINING; HD EXC. HEADER CONSOLE<DK6> GRAY THA	8-97405-903-0	01	1	0610-		●
7	16.742 RETAINER; HEADLINING RAIL (A) LIGHT GRAY THA	8-97298-442-0	02	1	0404-0609	●	●	●	●	●
7	16.742 RETAINER; HEADLINING RAIL (A) GRAY THA	8-97403-534-0	02	1	0610-0809	●	●	●	●	●
7	16.742 RETAINER; HEADLINING RAIL EXC. ASSIST HANDLE<E28> (A) GRAY THA	8-97403-534-0	02	1	0610-0809	●	●
7	16.742 RETAINER; HEADLINING RAIL (A) GRAY THA	8-97403-534-0	02	1	0810-	●	●	●	●	●
7	16.742 RETAINER; HEADLINING RAIL (B) THA	8-97301-381-1	02	1	0404-0609	●	●	●	●	●
7	16.742 RETAINER; HEADLINING RAIL (B) THA	8-97301-381-1	02	1	0610-	●	●	●	●	●

1 66 7 216 1 7 1 7 66 66 66 216

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	16.742 LINING; HD MAP LAMP<C74> LIGHT GRAY THA	8-97298-438-3	01	1	0404-0501	●
1	16.742 LINING; HD LIGHT GRAY THA	8-97298-438-3	01	1	0404-0501			●
1	16.742 LINING; HD MAP LAMP<C74> LIGHT GRAY THA	8-97401-116-0	01	1	0502-0508	●
1	16.742 LINING; HD LIGHT GRAY THA	8-97401-116-0	01	1	0502-0508			●
1	16.742 LINING; HD HEADER CONSOLE<DK6> LIGHT GRAY THA	8-97401-121-0	01	1	0509-0603	●
1	16.742 LINING; HD LIGHT GRAY THA	8-97401-121-0	01	1	0509-0603			●
1	16.742 LINING; HD HEADER CONSOLE<DK6> LIGHT GRAY THA	8-97405-876-0	01	1	0604-0609	●
1	16.742 LINING; HD LIGHT GRAY THA	8-97405-876-0	01	1	0604-0609			●
1	16.742 LINING; HD HEADER CONSOLE<DK6> GRAY THA	8-97405-878-0	01	1	0610-	●
1	16.742 LINING; HD GRAY THA	8-97405-878-0	01	1	0610-			●
1	16.742 LINING; HD EXC. MAP LAMP<C74> LIGHT GRAY THA	8-97298-437-3	01	1	0404-0501	●
1	16.742 LINING; HD EXC. MAP LAMP<C74> LIGHT GRAY THA	8-97401-115-0	01	1	0502-0508	●
1	16.742 LINING; HD EXC. HEADER CONSOLE<DK6> LIGHT GRAY THA	8-97401-115-0	01	1	0509-0603	●
1	16.742 LINING; HD EXC. HEADER CONSOLE<DK6> LIGHT GRAY THA	8-97405-879-0	01	1	0604-0609	●
1	16.742 LINING; HD EXC. HEADER CONSOLE<DK6> GRAY THA	8-97405-881-0	01	1	0610-	●
1	16.742 LINING; HD LIGHT GRAY THA	8-97298-439-3	01	1	0404-0501					●
1	16.742 LINING; HD LIGHT GRAY THA	8-97401-117-0	01	1	0502-0603					●
1	16.742 LINING; HD LIGHT GRAY THA	8-97405-891-0	01	1	0604-0609					●
1	16.742 LINING; HD GRAY THA	8-97405-893-0	01	1	0610-					●
1	16.742 LINING; HD MAP LAMP<C74> LIGHT GRAY THA	8-97298-441-5	01	1	0404-0502		●
1	16.742 LINING; HD LIGHT GRAY THA	8-97298-441-5	01	1	0404-0502				●
1	16.742 LINING; HD MAP LAMP<C74> LIGHT GRAY THA	8-97401-120-0	01	1	0503-0508		●
1	16.742 LINING; HD LIGHT GRAY THA	8-97401-120-0	01	1	0503-0508				●
1	16.742 LINING; HD HEADER CONSOLE<DK6> LIGHT GRAY THA	8-97401-123-0	01	1	0509-0603		●
1	16.742 LINING; HD LIGHT GRAY THA	8-97401-123-0	01	1	0509-0603				●
1	16.742 LINING; HD HEADER CONSOLE<DK6> LIGHT GRAY THA	8-97405-898-0	01	1	0604-0609		●
1	16.742 LINING; HD LIGHT GRAY THA	8-97405-898-0	01	1	0604-0609				●
1	16.742 LINING; HD HEADER CONSOLE<DK6> GRAY THA	8-97405-900-0	01	1	0610-		●
1	16.742 LINING; HD GRAY THA	8-97405-900-0	01	1	0610-				●
1	16.742 LINING; HD EXC. MAP LAMP<C74> LIGHT GRAY THA	8-97298-440-5	01	1	0404-0502		●
1	16.742 LINING; HD EXC. MAP LAMP<C74> LIGHT GRAY THA	8-97401-119-0	01	1	0503-0508		●
1	16.742 LINING; HD EXC. HEADER CONSOLE<DK6> LIGHT GRAY THA	8-97401-119-0	01	1	0509-0603		●
1	16.742 LINING; HD EXC. HEADER CONSOLE<DK6> LIGHT GRAY THA	8-97405-901-0	01	1	0604-0609		●
1	16.742 LINING; HD EXC. HEADER CONSOLE<DK6> GRAY THA	8-97405-903-0	01	1	0610-		●
7	16.742 RETAINER; HEADLINING RAIL (A) LIGHT GRAY THA	8-97298-442-0	02	1	0404-0609	●	●	●	●	●
7	16.742 RETAINER; HEADLINING RAIL (A) GRAY THA	8-97403-534-0	02	1	0610-0809	●	●	●	●	●
7	16.742 RETAINER; HEADLINING RAIL EXC. ASSIST HANDLE<E28> (A) GRAY THA	8-97403-534-0	02	1	0610-0809	●	●
7	16.742 RETAINER; HEADLINING RAIL (A) GRAY THA	8-97403-534-0	02	1	0810-	●	●	●	●	●
7	16.742 RETAINER; HEADLINING RAIL (B) THA	8-97301-381-1	02	1	0404-0609	●	●	●	●	●
7	16.742 RETAINER; HEADLINING RAIL (B) THA	8-97301-381-1	02	1	0610-	●	●	●	●	●
66	16.576 GRILLE; AIR OUTLET (A) THA	8-97361-476-0	02	1	0404-	●		●
66	16.576 GRILLE; AIR OUTLET (B) THA	8-97251-682-1	02	1	0404-					●
66	16.576 GRILLE; AIR OUTLET (C) THA	8-97311-440-2	02	1	0404-					●
66	16.576 GRILLE; AIR OUTLET (A) THA	8-97361-477-0	02	1	0404-		●		●
66	16.576 GRILLE; AIR OUTLET (B) THA	8-97365-208-0	02	1	0404-		●		●
216	16.576 GROMMET; HOLE 16.575 OD=19 THA	8-97365-823-0	02	1	0404-	●	●	●	●	●
