◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 50982 - TFR/S(CHEVROLET)THAI ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-55 - REAR DOOR TRIM ▶
6-55 — REAR DOOR TRIM (#73666) — 118 parça

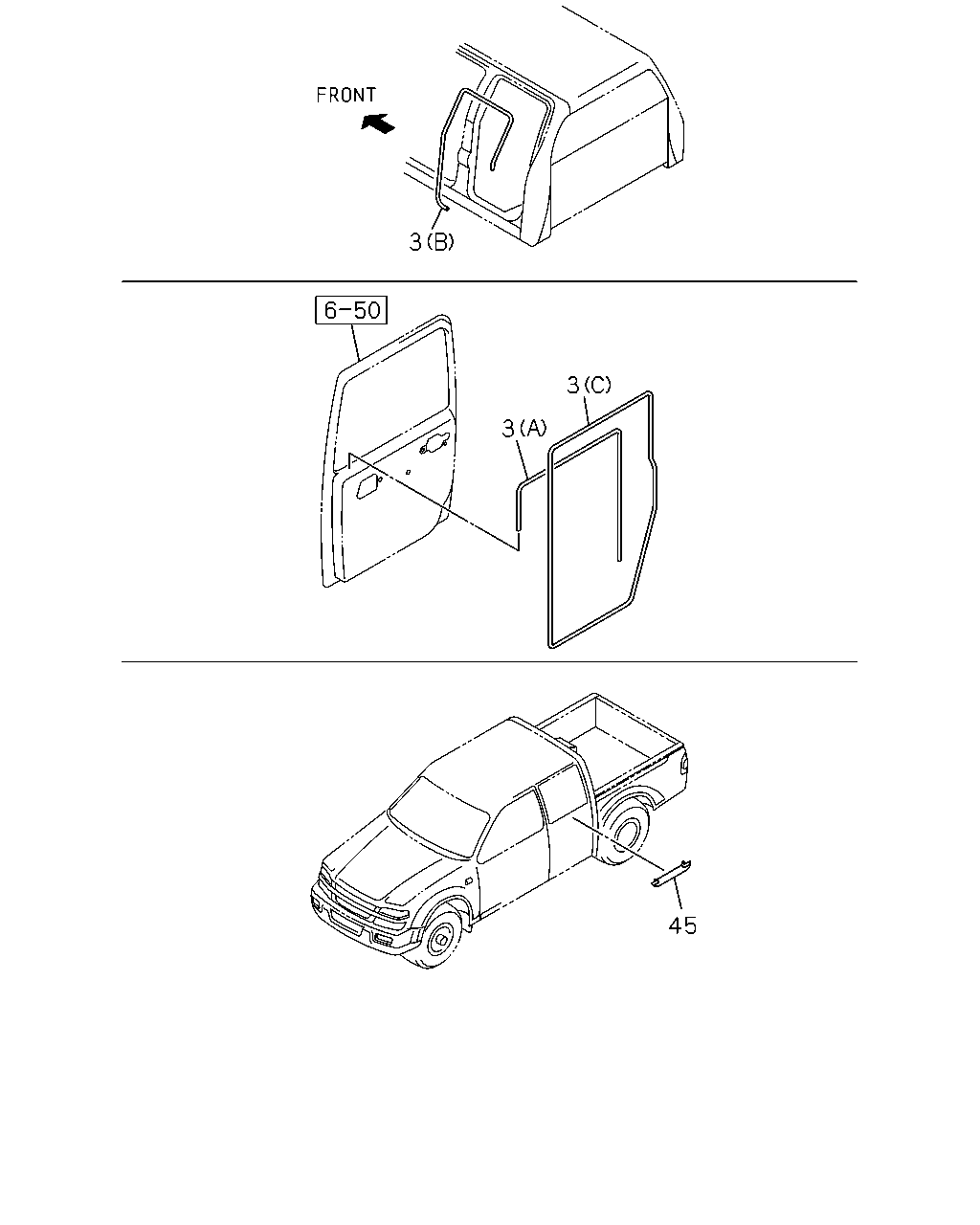

çizim 117834
3 3 3 45
BalonParca AdiParca NoAdetTipApplied Date A B
3 16.225 WEATHERSTRIP; RR DOOR
CLOTH SEAT MOQUETTE<8EP> (D) THA 		8-97364-725-0 01 1 0405-0409 ●
3 16.225 WEATHERSTRIP; RR DOOR
(D) THA 		8-97364-725-0 01 1 0405-0409 ●
3 16.225 WEATHERSTRIP; RR DOOR
POWER WINDOW<A31> SEAT CLOTH<7FL> (D) THA 		8-97364-725-0 01 1 0410-0501 ●
3 16.225 WEATHERSTRIP; RR DOOR
CLOTH SEAT MOQUETTE<8EP> (D) THA 		8-97364-725-0 01 1 0410-0501 ●
3 16.225 WEATHERSTRIP; RR DOOR
(D) THA 		8-97364-725-0 01 1 0410-0501 ●
3 16.225 WEATHERSTRIP; RR DOOR
SEAT CLOTH<7FL>,CLOTH SEAT MOQUETTE<8EP> (D) THA 		8-97364-725-0 01 1 0502-0609 ●
3 16.225 WEATHERSTRIP; RR DOOR
(D) THA 		8-97364-725-0 01 1 0502-0609 ●
3 16.225 WEATHERSTRIP; RR DOOR
CLOTH SEAT MOQUETTE<8EP> (D) THA 		8-97364-724-0 01 1 0405-0409 ●
3 16.225 WEATHERSTRIP; RR DOOR
(D) THA 		8-97364-724-0 01 1 0405-0409 ●
3 16.225 WEATHERSTRIP; RR DOOR
POWER WINDOW<A31> SEAT CLOTH<7FL> (D) THA 		8-97364-724-0 01 1 0410-0501 ●
3 16.225 WEATHERSTRIP; RR DOOR
CLOTH SEAT MOQUETTE<8EP> (D) THA 		8-97364-724-0 01 1 0410-0501 ●
3 16.225 WEATHERSTRIP; RR DOOR
(D) THA 		8-97364-724-0 01 1 0410-0501 ●
3 16.225 WEATHERSTRIP; RR DOOR
SEAT CLOTH<7FL>,CLOTH SEAT MOQUETTE<8EP> (D) THA 		8-97364-724-0 01 1 0502-0609 ●
3 16.225 WEATHERSTRIP; RR DOOR
(D) THA 		8-97364-724-0 01 1 0502-0609 ●
3 16.225 WEATHERSTRIP; RR DOOR
CLOTH TRIM SUPER DELUXE, VAR 2<8LN> POWER WINDOW<A31> (D) THA 		8-97364-725-0 01 1 0610- ●
3 16.225 WEATHERSTRIP; RR DOOR
CLOTH TRIM STANDARD, VAR 2<8LL> (D) THA 		8-97364-725-0 01 1 0610- ●
3 16.225 WEATHERSTRIP; RR DOOR
(D) THA 		8-97364-725-0 01 1 0610- ●
3 16.225 WEATHERSTRIP; RR DOOR
CLOTH TRIM SUPER DELUXE, VAR 2<8LN> POWER WINDOW<A31> (D) THA 		8-97364-724-0 01 1 0610- ●
3 16.225 WEATHERSTRIP; RR DOOR
CLOTH TRIM STANDARD, VAR 2<8LL> (D) THA 		8-97364-724-0 01 1 0610- ●
3 16.225 WEATHERSTRIP; RR DOOR
(D) THA 		8-97364-724-0 01 1 0610- ●
3 16.225 WEATHERSTRIP; RR DOOR
(C) THA 		8-93291-078-2 01 1 0404-0412 ● ●
3 16.225 WEATHERSTRIP; RR DOOR
(C) THA 		8-98004-227-0 01 1 0501- ● ●
3 16.225 WEATHERSTRIP; RR DOOR
(A) THA 		8-93291-091-2 01 1 0404-0412 ● ●
3 16.225 WEATHERSTRIP; RR DOOR
(A) THA 		8-98004-233-0 01 1 0501- ● ●
3 16.225 WEATHERSTRIP; RR DOOR
(D) THA 		8-97364-725-0 01 1 0404-0404 ● ●
3 16.225 WEATHERSTRIP; RR DOOR
(B) GRAY THA 		8-97396-647-2 01 1 0404-0412 ● ●
3 16.225 WEATHERSTRIP; RR DOOR
(B) GRAY THA 		8-97402-849-0 01 1 0501-0609 ● ●
3 16.225 WEATHERSTRIP; RR DOOR
(B) DARK GRAY THA 		8-97403-594-0 01 1 0610- ● ●
3 16.225 WEATHERSTRIP; RR DOOR
(C) THA 		8-93291-079-2 01 1 0404-0412 ● ●
3 16.225 WEATHERSTRIP; RR DOOR
(C) THA 		8-98004-228-0 01 1 0501- ● ●
3 16.225 WEATHERSTRIP; RR DOOR
(A) THA 		8-93291-092-2 01 1 0404-0412 ● ●
3 16.225 WEATHERSTRIP; RR DOOR
(A) THA 		8-98004-234-0 01 1 0501- ● ●
3 16.225 WEATHERSTRIP; RR DOOR
(D) THA 		8-97364-724-0 01 1 0404-0404 ● ●
3 16.225 WEATHERSTRIP; RR DOOR
(B) GRAY THA 		8-97396-648-2 01 1 0404-0412 ● ●
3 16.225 WEATHERSTRIP; RR DOOR
(B) GRAY THA 		8-97402-851-0 01 1 0501-0609 ● ●
3 16.225 WEATHERSTRIP; RR DOOR
(B) DARK GRAY THA 		8-97403-596-0 01 1 0610- ● ●
45 16.183 FINISHER; RR DOOR
THA 		8-97364-722-0 01 1 0404-0410 ● ●
45 16.183 FINISHER; RR DOOR
THA 		8-98003-178-0 01 1 0411-0412 ● ●
45 16.183 FINISHER; RR DOOR
THA 		8-98004-224-0 01 1 0501- ● ●
45 16.183 FINISHER; RR DOOR
THA 		8-97364-721-0 01 1 0404-0410 ● ●
45 16.183 FINISHER; RR DOOR
THA 		8-98003-177-0 01 1 0411-0412 ● ●
45 16.183 FINISHER; RR DOOR
THA 		8-98004-223-0 01 1 0501- ● ●

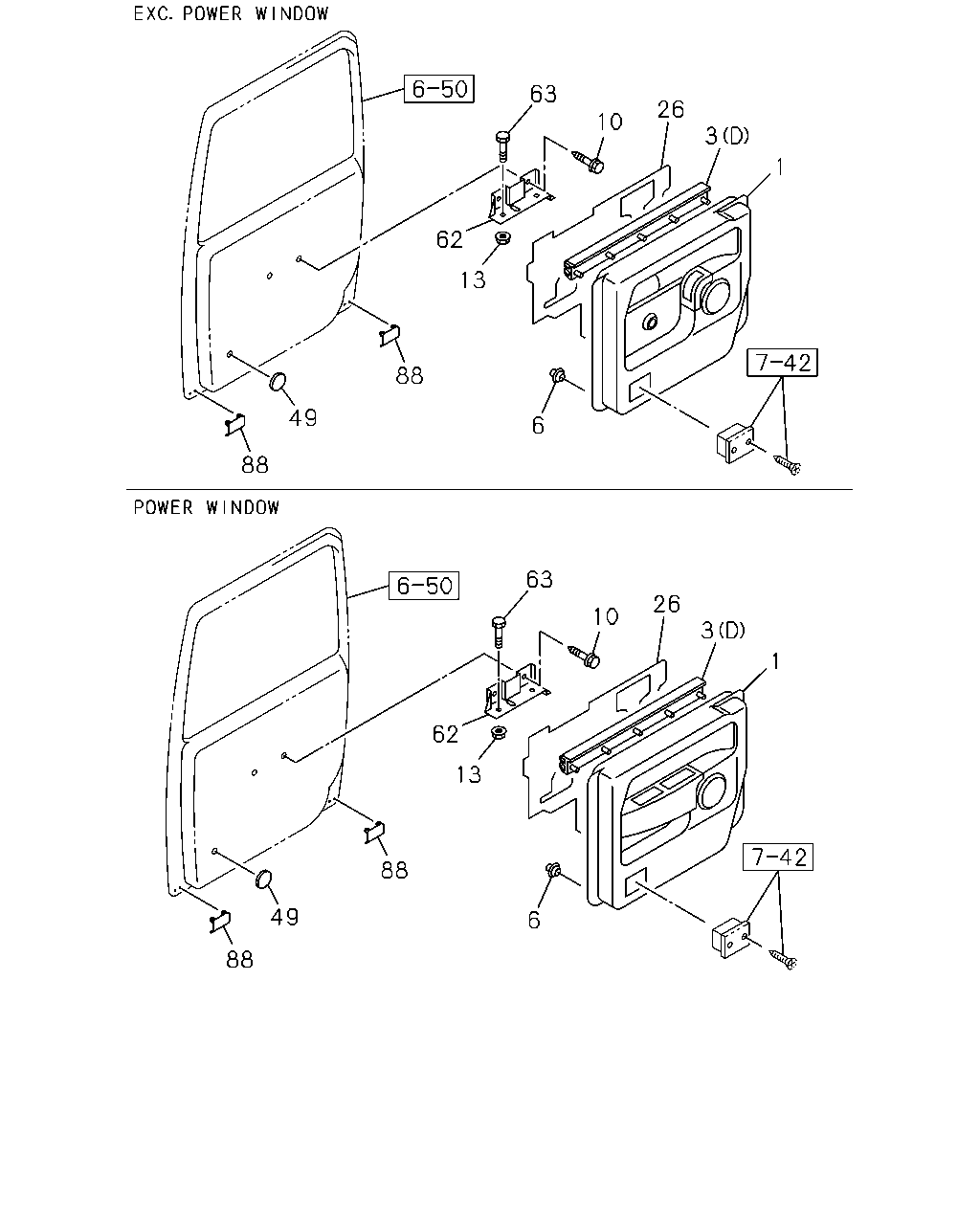

çizim 117849
63 26 10 3 1 62 13 88 49 6 88 63 26 10 3 1 62 13 88 49 6 88
BalonParca AdiParca NoAdetTipApplied Date A B
1 16.165 PAD; TRIM,RR DOOR
CLOTH SEAT MOQUETTE<8EP> EXC. POWER WINDOW<A31> GRAY THA 		8-97400-155-0 01 1 0405-0501 ●
1 16.165 PAD; TRIM,RR DOOR
SEAT CLOTH<7FL>,CLOTH SEAT MOQUETTE<8EP> EXC. POWER WINDOW<A31> GRAY THA 		8-97400-155-0 01 1 0502-0609 ●
1 16.165 PAD; TRIM,RR DOOR
CLOTH SEAT MOQUETTE<8EP> EXC. POWER WINDOW<A31> GRAY THA 		8-97400-156-0 01 1 0405-0501 ●
1 16.165 PAD; TRIM,RR DOOR
SEAT CLOTH<7FL>,CLOTH SEAT MOQUETTE<8EP> EXC. POWER WINDOW<A31> GRAY THA 		8-97400-156-0 01 1 0502-0609 ●
1 16.165 PAD; TRIM,RR DOOR
CLOTH TRIM STANDARD, VAR 2<8LL> POWER WINDOW<A31> LIGHT BEIGE THA 		8-97403-928-0 01 1 0610- ●
1 16.165 PAD; TRIM,RR DOOR
CLOTH TRIM STANDARD, VAR 2<8LL> POWER WINDOW<A31> LIGHT BEIGE THA 		8-97403-929-0 01 1 0610- ●
1 16.165 PAD; TRIM,RR DOOR
CLOTH TRIM STANDARD, VAR 2<8LL> EXC. POWER WINDOW<A31> LIGHT BEIGE THA 		8-97403-925-0 01 1 0610- ●
1 16.165 PAD; TRIM,RR DOOR
CLOTH TRIM STANDARD, VAR 2<8LL> EXC. POWER WINDOW<A31> LIGHT BEIGE THA 		8-97403-927-0 01 1 0610- ●
1 16.165 PAD; TRIM,RR DOOR
CLOTH TRIM SUPER DELUXE, VAR 2<8LN> POWER WINDOW<A31> LIGHT BEIGE THA 		8-97404-934-0 01 1 0610- ●
1 16.165 PAD; TRIM,RR DOOR
LIGHT BEIGE THA 		8-97404-934-0 01 1 0610- ●
1 16.165 PAD; TRIM,RR DOOR
CLOTH TRIM SUPER DELUXE, VAR 2<8LN> POWER WINDOW<A31> LIGHT BEIGE THA 		8-97404-935-0 01 1 0610- ●
1 16.165 PAD; TRIM,RR DOOR
LIGHT BEIGE THA 		8-97404-935-0 01 1 0610- ●
1 16.165 PAD; TRIM,RR DOOR
POWER WINDOW<A31> CLOTH SEAT MOQUETTE<8EP> GRAY THA 		8-97400-157-0 01 1 0405-0609 ●
1 16.165 PAD; TRIM,RR DOOR
GRAY THA 		8-97400-157-0 01 1 0405-0609 ●
1 16.165 PAD; TRIM,RR DOOR
POWER WINDOW<A31> CLOTH SEAT MOQUETTE<8EP> GRAY THA 		8-97400-158-0 01 1 0405-0609 ●
1 16.165 PAD; TRIM,RR DOOR
GRAY THA 		8-97400-158-0 01 1 0405-0609 ●
1 16.165 PAD; TRIM,RR DOOR
POWER WINDOW<A31> SEAT CLOTH<7FL> GRAY 		8-97400-173-0 01 1 0410-0609 ●
1 16.165 PAD; TRIM,RR DOOR
POWER WINDOW<A31> SEAT CLOTH<7FL> GRAY 		8-97400-174-0 01 1 0410-0609 ●
1 16.165 PAD; TRIM,RR DOOR
SEAT CLOTH<7FL> EXC. POWER WINDOW<A31> GRAY THA 		8-97404-013-0 01 1 0502-0508 ●
1 16.165 PAD; TRIM,RR DOOR
SEAT CLOTH<7FL> EXC. POWER WINDOW<A31> GRAY THA 		8-97404-014-0 01 1 0502-0508 ●
3 16.225 WEATHERSTRIP; RR DOOR
CLOTH SEAT MOQUETTE<8EP> (D) THA 		8-97364-725-0 01 1 0405-0409 ●
3 16.225 WEATHERSTRIP; RR DOOR
(D) THA 		8-97364-725-0 01 1 0405-0409 ●
3 16.225 WEATHERSTRIP; RR DOOR
POWER WINDOW<A31> SEAT CLOTH<7FL> (D) THA 		8-97364-725-0 01 1 0410-0501 ●
3 16.225 WEATHERSTRIP; RR DOOR
CLOTH SEAT MOQUETTE<8EP> (D) THA 		8-97364-725-0 01 1 0410-0501 ●
3 16.225 WEATHERSTRIP; RR DOOR
(D) THA 		8-97364-725-0 01 1 0410-0501 ●
3 16.225 WEATHERSTRIP; RR DOOR
SEAT CLOTH<7FL>,CLOTH SEAT MOQUETTE<8EP> (D) THA 		8-97364-725-0 01 1 0502-0609 ●
3 16.225 WEATHERSTRIP; RR DOOR
(D) THA 		8-97364-725-0 01 1 0502-0609 ●
3 16.225 WEATHERSTRIP; RR DOOR
CLOTH SEAT MOQUETTE<8EP> (D) THA 		8-97364-724-0 01 1 0405-0409 ●
3 16.225 WEATHERSTRIP; RR DOOR
(D) THA 		8-97364-724-0 01 1 0405-0409 ●
3 16.225 WEATHERSTRIP; RR DOOR
POWER WINDOW<A31> SEAT CLOTH<7FL> (D) THA 		8-97364-724-0 01 1 0410-0501 ●
3 16.225 WEATHERSTRIP; RR DOOR
CLOTH SEAT MOQUETTE<8EP> (D) THA 		8-97364-724-0 01 1 0410-0501 ●
3 16.225 WEATHERSTRIP; RR DOOR
(D) THA 		8-97364-724-0 01 1 0410-0501 ●
3 16.225 WEATHERSTRIP; RR DOOR
SEAT CLOTH<7FL>,CLOTH SEAT MOQUETTE<8EP> (D) THA 		8-97364-724-0 01 1 0502-0609 ●
3 16.225 WEATHERSTRIP; RR DOOR
(D) THA 		8-97364-724-0 01 1 0502-0609 ●
3 16.225 WEATHERSTRIP; RR DOOR
CLOTH TRIM SUPER DELUXE, VAR 2<8LN> POWER WINDOW<A31> (D) THA 		8-97364-725-0 01 1 0610- ●
3 16.225 WEATHERSTRIP; RR DOOR
CLOTH TRIM STANDARD, VAR 2<8LL> (D) THA 		8-97364-725-0 01 1 0610- ●
3 16.225 WEATHERSTRIP; RR DOOR
(D) THA 		8-97364-725-0 01 1 0610- ●
3 16.225 WEATHERSTRIP; RR DOOR
CLOTH TRIM SUPER DELUXE, VAR 2<8LN> POWER WINDOW<A31> (D) THA 		8-97364-724-0 01 1 0610- ●
3 16.225 WEATHERSTRIP; RR DOOR
CLOTH TRIM STANDARD, VAR 2<8LL> (D) THA 		8-97364-724-0 01 1 0610- ●
3 16.225 WEATHERSTRIP; RR DOOR
(D) THA 		8-97364-724-0 01 1 0610- ●
3 16.225 WEATHERSTRIP; RR DOOR
(C) THA 		8-93291-078-2 01 1 0404-0412 ● ●
3 16.225 WEATHERSTRIP; RR DOOR
(C) THA 		8-98004-227-0 01 1 0501- ● ●
3 16.225 WEATHERSTRIP; RR DOOR
(A) THA 		8-93291-091-2 01 1 0404-0412 ● ●
3 16.225 WEATHERSTRIP; RR DOOR
(A) THA 		8-98004-233-0 01 1 0501- ● ●
3 16.225 WEATHERSTRIP; RR DOOR
(D) THA 		8-97364-725-0 01 1 0404-0404 ● ●
3 16.225 WEATHERSTRIP; RR DOOR
(B) GRAY THA 		8-97396-647-2 01 1 0404-0412 ● ●
3 16.225 WEATHERSTRIP; RR DOOR
(B) GRAY THA 		8-97402-849-0 01 1 0501-0609 ● ●
3 16.225 WEATHERSTRIP; RR DOOR
(B) DARK GRAY THA 		8-97403-594-0 01 1 0610- ● ●
3 16.225 WEATHERSTRIP; RR DOOR
(C) THA 		8-93291-079-2 01 1 0404-0412 ● ●
3 16.225 WEATHERSTRIP; RR DOOR
(C) THA 		8-98004-228-0 01 1 0501- ● ●
3 16.225 WEATHERSTRIP; RR DOOR
(A) THA 		8-93291-092-2 01 1 0404-0412 ● ●
3 16.225 WEATHERSTRIP; RR DOOR
(A) THA 		8-98004-234-0 01 1 0501- ● ●
3 16.225 WEATHERSTRIP; RR DOOR
(D) THA 		8-97364-724-0 01 1 0404-0404 ● ●
3 16.225 WEATHERSTRIP; RR DOOR
(B) GRAY THA 		8-97396-648-2 01 1 0404-0412 ● ●
3 16.225 WEATHERSTRIP; RR DOOR
(B) GRAY THA 		8-97402-851-0 01 1 0501-0609 ● ●
3 16.225 WEATHERSTRIP; RR DOOR
(B) DARK GRAY THA 		8-97403-596-0 01 1 0610- ● ●
6 16.165 CLIP; DOOR PAD
CLOTH SEAT MOQUETTE<8EP> H=16.7 THA 		8-97022-017-0 14 1 0405-0409 ●
6 16.165 CLIP; DOOR PAD
H=16.7 THA 		8-97022-017-0 14 1 0405-0409 ●
6 16.165 CLIP; DOOR PAD
POWER WINDOW<A31> SEAT CLOTH<7FL> H=16.7 THA 		8-97022-017-0 14 1 0410-0501 ●
6 16.165 CLIP; DOOR PAD
CLOTH SEAT MOQUETTE<8EP> H=16.7 THA 		8-97022-017-0 14 1 0410-0501 ●
6 16.165 CLIP; DOOR PAD
H=16.7 THA 		8-97022-017-0 14 1 0410-0501 ●
6 16.165 CLIP; DOOR PAD
SEAT CLOTH<7FL>,CLOTH SEAT MOQUETTE<8EP> H=16.7 THA 		8-97022-017-0 14 1 0502-0609 ●
6 16.165 CLIP; DOOR PAD
H=16.7 THA 		8-97022-017-0 14 1 0502-0609 ●
6 16.165 CLIP; DOOR PAD
CLOTH TRIM SUPER DELUXE, VAR 2<8LN> POWER WINDOW<A31> H=16.7 THA 		8-97022-017-0 14 1 0610- ●
6 16.165 CLIP; DOOR PAD
CLOTH TRIM STANDARD, VAR 2<8LL> H=16.7 THA 		8-97022-017-0 14 1 0610- ●
6 16.165 CLIP; DOOR PAD
H=16.7 THA 		8-97022-017-0 14 1 0610- ●
10 16.155 SCREW; ARM REST
12.182 M5X14 		8-94152-495-0 04 1 0404- ● ●
13 16.165 GROMMET; SCREW,ARM REST
10.565 THA 		8-94152-494-0 04 1 0404- ● ●
26 16.165 SEAL; WAIST,RR DOOR INNER
THA 		8-97360-890-0 01 1 0404- ● ●
26 16.165 SEAL; WAIST,RR DOOR INNER
THA 		8-97360-889-0 01 1 0404- ● ●
49 16.165 SEAL; DOOR
EXC. AUTO DOOR LOCK<AU4> OD=25 BLACK THA 		1-76798-019-0 02 1 0404- ●
62 16.165 BRACKET
THA 		8-93358-284-2 01 1 0404- ● ●
62 16.165 BRACKET
THA 		8-93358-285-2 01 1 0404- ● ●
63 16.165 BOLT
12.182 M5X14 		8-94152-495-0 04 1 0404-0504 ● ●
63 16.165 BOLT
EXC. POWER WINDOW<A31> 12.182 M5X14 		8-94152-495-0 04 1 0505- ●
88 16.270 PLUG; DOOR
16.155 THA 		8-98009-500-0 04 1 0508- ● ●
