6-47 — MUD GUARD AND INSULATOR (#73662) — 335 parça

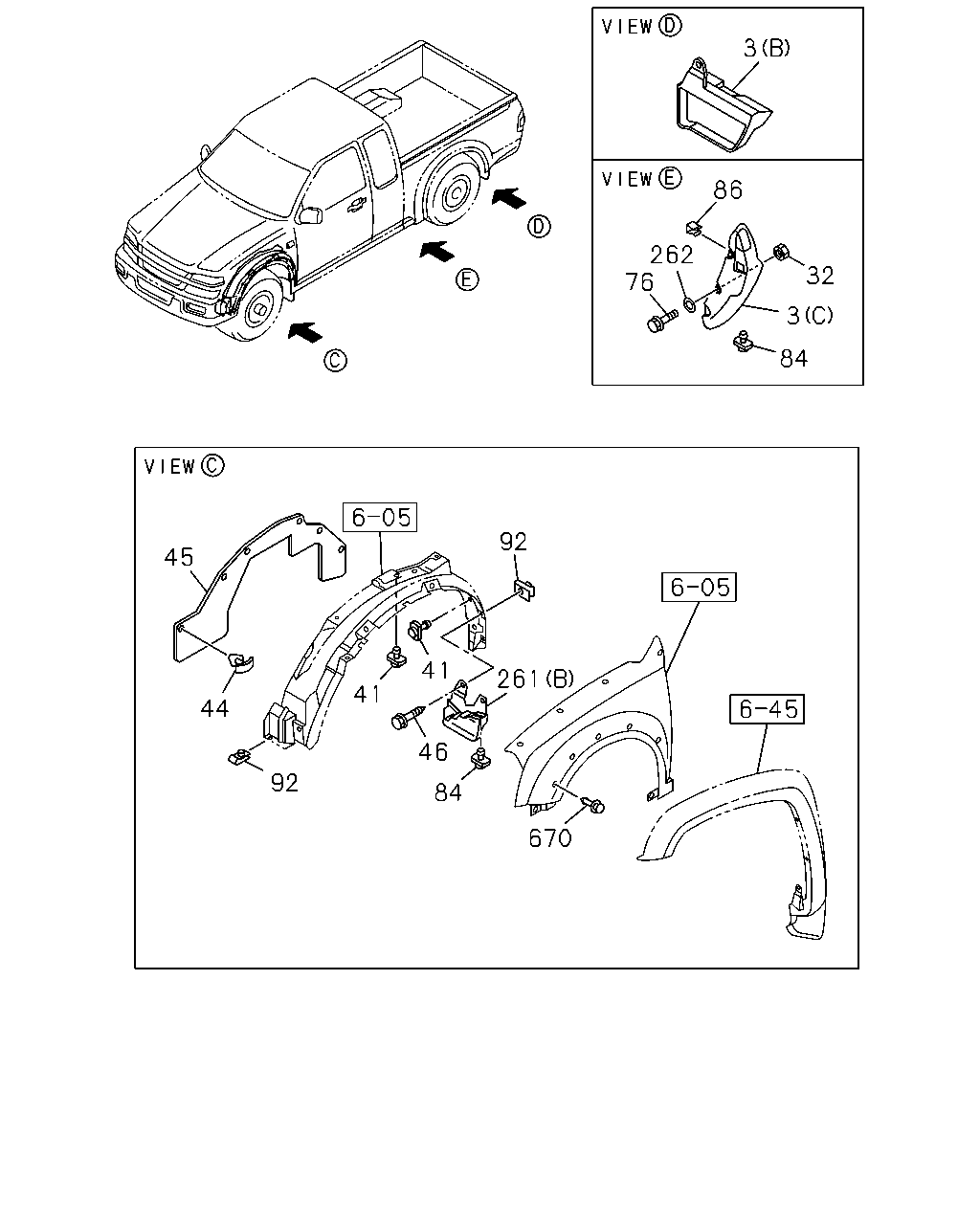

çizim 117829
3 86 262 76 32 3 84 92 45 41 261 41 44 46 92 84 670
BalonParca AdiParca NoAdetTipApplied Date A B C D E
3 08.153 GUARD; MUD,RR
(A) THA 		8-97363-474-0 01 1 0404-0409 ● ● ●
3 08.153 GUARD; MUD,RR
FORMED MUD FLAP<6WL> (A) THA 		8-97363-474-0 01 1 0410-0606 ● ●
3 08.153 GUARD; MUD,RR
(A) THA 		8-97363-474-0 01 1 0410-0606 ●
3 08.153 GUARD; MUD,RR
FORMED MUD FLAP<6WL> (A) THA 		8-98023-039-0 01 1 0607-0610 ● ●
3 08.153 GUARD; MUD,RR
(A) THA 		8-98023-039-0 01 1 0607-0610 ●
3 08.153 GUARD; MUD,RR
FORMED MUD FLAP<6WL> (A) THA 		8-98023-039-0 01 1 0611- ● ●
3 08.153 GUARD; MUD,RR
REAR BODY DBL WALL CTR PULL<E63> (A) THA 		8-98023-039-0 01 1 0611- ●
3 08.153 GUARD; MUD,RR
(A) THA 		8-97363-473-0 01 1 0404-0409 ● ● ●
3 08.153 GUARD; MUD,RR
FORMED MUD FLAP<6WL> (A) THA 		8-97363-473-0 01 1 0410-0606 ● ●
3 08.153 GUARD; MUD,RR
(A) THA 		8-97363-473-0 01 1 0410-0606 ●
3 08.153 GUARD; MUD,RR
FORMED MUD FLAP<6WL> (A) THA 		8-98023-038-0 01 1 0607-0610 ● ●
3 08.153 GUARD; MUD,RR
(A) THA 		8-98023-038-0 01 1 0607-0610 ●
3 08.153 GUARD; MUD,RR
FORMED MUD FLAP<6WL> (A) THA 		8-98023-038-0 01 1 0611- ● ●
3 08.153 GUARD; MUD,RR
REAR BODY DBL WALL CTR PULL<E63> (A) THA 		8-98023-038-0 01 1 0611- ●
3 08.153 GUARD; MUD,RR
OVER FENDER<B74> COLOR KEYED BUMPER<VT4> (B) THA 		8-98002-242-0 01 1 0410-0511 ● ●
3 08.153 GUARD; MUD,RR
(B) THA 		8-98002-242-0 01 1 0410-0511 ● ●
3 08.153 GUARD; MUD,RR
OVER FENDER<B74> COLOR KEYED BUMPER<VT4> (B) THA 		8-98002-241-0 01 1 0410-0511 ● ●
3 08.153 GUARD; MUD,RR
(B) THA 		8-98002-241-0 01 1 0410-0511 ● ●
3 08.153 GUARD; MUD,RR
OVER FENDER<B74> COLOR KEYED BUMPER<VT4> (B) THA 		8-98002-242-0 01 1 0512-0609 ● ●
3 08.153 GUARD; MUD,RR
(B) THA 		8-98002-242-0 01 1 0512-0609 ● ●
3 08.153 GUARD; MUD,RR
OVER FENDER<B74> COLOR KEYED BUMPER<VT4> (B) THA 		8-98002-241-0 01 1 0512-0609 ● ●
3 08.153 GUARD; MUD,RR
(B) THA 		8-98002-241-0 01 1 0512-0609 ● ●
3 08.153 GUARD; MUD,RR
OVER FENDER<B74> COLOR KEYED BUMPER<VT4> (B) THA 		8-98002-242-0 01 1 0610- ● ●
3 08.153 GUARD; MUD,RR
(B) THA 		8-98002-242-0 01 1 0610- ● ●
3 08.153 GUARD; MUD,RR
OVER FENDER<B74> COLOR KEYED BUMPER<VT4> (B) THA 		8-98002-241-0 01 1 0610- ● ●
3 08.153 GUARD; MUD,RR
(B) THA 		8-98002-241-0 01 1 0610- ● ●
3 08.153 GUARD; MUD,RR
OVER FENDER<B74> COLOR KEYED BUMPER<VT4> (C) THA 		8-97364-442-0 01 1 0410- ●
3 08.153 GUARD; MUD,RR
(C) THA 		8-97364-442-0 01 1 0410- ●
3 08.153 GUARD; MUD,RR
OVER FENDER<B74> COLOR KEYED BUMPER<VT4> (C) THA 		8-97364-441-0 01 1 0410- ●
3 08.153 GUARD; MUD,RR
(C) THA 		8-97364-441-0 01 1 0410- ●
3 08.153 GUARD; MUD,RR
(B) THA 		8-98002-242-0 01 1 0404-0409 ● ●
3 08.153 GUARD; MUD,RR
(B) THA 		8-98002-241-0 01 1 0404-0409 ● ●
3 08.153 GUARD; MUD,RR
(C) THA 		8-97364-442-0 01 1 0404-0409 ●
3 08.153 GUARD; MUD,RR
(C) THA 		8-97364-441-0 01 1 0404-0409 ●
32 08.155 NUT; MUD GUARD
OVER FENDER<B74> COLOR KEYED BUMPER<VT4> THA 		8-98002-251-0 02 1 0410- ●
32 08.155 NUT; MUD GUARD
THA 		8-98002-251-0 02 1 0410- ●
32 08.155 NUT; MUD GUARD
THA 		8-98002-251-0 02 1 0404-0409 ●
41 08.155 RIVET; INNER LINER
08.154 THA 		8-94221-150-0 16 1 0404-0409 ● ● ●
41 08.155 RIVET; INNER LINER
FORMED MUD FLAP<6WL> EXC. OVER FENDER<B74> 08.154 THA 		8-94221-150-0 16 1 0410-0708 ● ●
41 08.155 RIVET; INNER LINER
08.154 THA 		8-94221-150-0 16 1 0410-0708 ●
41 08.155 RIVET; INNER LINER
FORMED MUD FLAP<6WL> EXC. OVER FENDER<B74> 08.154 THA 		8-94221-150-0 14 1 0709- ● ●
41 08.155 RIVET; INNER LINER
08.154 THA 		8-94221-150-0 14 1 0709- ●
41 08.155 RIVET; INNER LINER
EXC. OVER FENDER<B74>,FORMED MUD FLAP<6WL> 08.154 THA 		8-94221-150-0 22 1 0410-0708 ● ●
41 08.155 RIVET; INNER LINER
EXC. OVER FENDER<B74>,FORMED MUD FLAP<6WL> 08.154 THA 		8-94221-150-0 20 1 0709- ● ●
41 08.155 RIVET; INNER LINER
08.154 THA 		8-94221-150-0 14 1 0404-0409 ● ●
41 08.155 RIVET; INNER LINER
OVER FENDER<B74> 08.154 THA 		8-94221-150-0 14 1 0410-0708 ● ●
41 08.155 RIVET; INNER LINER
08.154 THA 		8-94221-150-0 14 1 0410-0708 ● ●
41 08.155 RIVET; INNER LINER
OVER FENDER<B74> 08.154 THA 		8-94221-150-0 12 1 0709- ● ●
41 08.155 RIVET; INNER LINER
08.154 THA 		8-94221-150-0 12 1 0709- ● ●
44 08.154 CLIP; ANCHOR
OD=22 L=10.7 THA 		8-94215-211-0 12 1 0404- ● ● ● ● ●
45 08.153 COVER; MUD,FENDER SKIRT
THA 		8-97235-457-2 01 1 0404-0409 ● ● ●
45 08.153 COVER; MUD,FENDER SKIRT
EXC. HIGH RIDE SUSPENSION<7YC> THA 		8-97235-457-2 01 1 0410- ● ●
45 08.153 COVER; MUD,FENDER SKIRT
THA 		8-97235-457-2 01 1 0410- ●
45 08.153 COVER; MUD,FENDER SKIRT
THA 		8-97235-458-1 01 1 0404-0409 ● ● ●
45 08.153 COVER; MUD,FENDER SKIRT
EXC. HIGH RIDE SUSPENSION<7YC> THA 		8-97235-458-1 01 1 0410- ● ●
45 08.153 COVER; MUD,FENDER SKIRT
THA 		8-97235-458-1 01 1 0410- ●
45 08.153 COVER; MUD,FENDER SKIRT
THA 		8-97235-462-0 01 1 0404-0409 ● ●
45 08.153 COVER; MUD,FENDER SKIRT
HIGH RIDE SUSPENSION<7YC> THA 		8-97235-462-0 01 1 0410- ● ●
45 08.153 COVER; MUD,FENDER SKIRT
THA 		8-97235-462-0 01 1 0410- ● ●
45 08.153 COVER; MUD,FENDER SKIRT
THA 		8-97235-460-1 01 1 0404-0409 ● ●
45 08.153 COVER; MUD,FENDER SKIRT
HIGH RIDE SUSPENSION<7YC> THA 		8-97235-460-1 01 1 0410- ● ●
45 08.153 COVER; MUD,FENDER SKIRT
THA 		8-97235-460-1 01 1 0410- ● ●
46 08.155 SCREW; INNER LINER
M6X20 W/PL WASHER TAPPING 		8-94321-767-1 10 1 0404-0409 ● ● ●
46 08.155 SCREW; INNER LINER
FORMED MUD FLAP<6WL> EXC. OVER FENDER<B74> M6X20 W/PL WASHER TAPPING 		8-94321-767-1 10 1 0410-0612 ● ●
46 08.155 SCREW; INNER LINER
M6X20 W/PL WASHER TAPPING 		8-94321-767-1 10 1 0410-0612 ●
46 08.155 SCREW; INNER LINER
FORMED MUD FLAP<6WL> EXC. OVER FENDER<B74> 07.833 M6X20 TAPPING 		8-98052-950-0 10 1 0701-0708 ● ●
46 08.155 SCREW; INNER LINER
07.833 M6X20 TAPPING 		8-98052-950-0 10 1 0701-0708 ●
46 08.155 SCREW; INNER LINER
FORMED MUD FLAP<6WL> EXC. OVER FENDER<B74> 07.833 M6X20 TAPPING 		8-98052-950-0 12 1 0709-1003 ● ●
46 08.155 SCREW; INNER LINER
07.833 M6X20 TAPPING 		8-98052-950-0 12 1 0709-1003 ●
46 08.155 SCREW; INNER LINER
FORMED MUD FLAP<6WL> EXC. OVER FENDER<B74> 07.874 M6X20 TAPPING W/PL WASHER THA 		8-98167-444-0 12 1 1004- ● ●
46 08.155 SCREW; INNER LINER
07.874 M6X20 TAPPING W/PL WASHER THA 		8-98167-444-0 12 1 1004- ●
46 08.155 SCREW; INNER LINER
EXC. OVER FENDER<B74>,FORMED MUD FLAP<6WL> M6X20 W/PL WASHER TAPPING 		8-94321-767-1 04 1 0410-0612 ● ●
46 08.155 SCREW; INNER LINER
EXC. OVER FENDER<B74>,FORMED MUD FLAP<6WL> 07.833 M6X20 TAPPING 		8-98052-950-0 04 1 0701-0708 ● ●
46 08.155 SCREW; INNER LINER
EXC. OVER FENDER<B74>,FORMED MUD FLAP<6WL> 07.833 M6X20 TAPPING 		8-98052-950-0 06 1 0709-1003 ● ●
46 08.155 SCREW; INNER LINER
EXC. OVER FENDER<B74>,FORMED MUD FLAP<6WL> 07.874 M6X20 TAPPING W/PL WASHER THA 		8-98167-444-0 06 1 1004- ● ●
46 08.155 SCREW; INNER LINER
M6X20 W/PL WASHER TAPPING 		8-94321-767-1 12 1 0404-0409 ● ●
46 08.155 SCREW; INNER LINER
OVER FENDER<B74> M6X20 W/PL WASHER TAPPING 		8-94321-767-1 12 1 0410-0612 ● ●
46 08.155 SCREW; INNER LINER
M6X20 W/PL WASHER TAPPING 		8-94321-767-1 12 1 0410-0612 ● ●
46 08.155 SCREW; INNER LINER
OVER FENDER<B74> 07.833 M6X20 TAPPING 		8-98052-950-0 12 1 0701-0708 ● ●
46 08.155 SCREW; INNER LINER
07.833 M6X20 TAPPING 		8-98052-950-0 12 1 0701-0708 ● ●
46 08.155 SCREW; INNER LINER
OVER FENDER<B74> 07.833 M6X20 TAPPING 		8-98052-950-0 14 1 0709-1003 ● ●
46 08.155 SCREW; INNER LINER
07.833 M6X20 TAPPING 		8-98052-950-0 14 1 0709-1003 ● ●
46 08.155 SCREW; INNER LINER
OVER FENDER<B74> 07.874 M6X20 TAPPING W/PL WASHER THA 		8-98167-444-0 14 1 1004- ● ●
46 08.155 SCREW; INNER LINER
07.874 M6X20 TAPPING W/PL WASHER THA 		8-98167-444-0 14 1 1004- ● ●
76 08.155 BOLT; MUD GUARD
OVER FENDER<B74> COLOR KEYED BUMPER<VT4> 05.155 THA 		8-98002-252-0 02 1 0410- ●
76 08.155 BOLT; MUD GUARD
05.155 THA 		8-98002-252-0 02 1 0410- ●
76 08.155 BOLT; MUD GUARD
05.155 THA 		8-98002-252-0 02 1 0404-0409 ●
84 08.155 RIVET; MUD GUARD
BODY COLOR IMPUL BLUE MET.<509>,BODY COLOR ALPINE WHITE<877> OVER FENDER<B74> COLOR KEYED BUMPER<VT4> FRONT NATURAL THA 		8-97384-015-0 03 1 0911-1003 ● ●
84 08.155 RIVET; MUD GUARD
BODY COLOR IMPUL BLUE MET.<509>,BODY COLOR ALPINE WHITE<877> FRONT NATURAL THA 		8-97384-015-0 03 1 0911-1003 ● ●
84 08.155 RIVET; MUD GUARD
BODY COLOR IMPUL BLUE MET.<509>,BODY COLOR MISTY ONYX MICA<518>,BODY COLOR ALPINE WHITE<877> OVER FENDER<B74> COLOR KEYED BUMPER<VT4> FRONT NATURAL THA 		8-97384-015-0 03 1 1004-1007 ● ●
84 08.155 RIVET; MUD GUARD
BODY COLOR IMPUL BLUE MET.<509>,BODY COLOR MISTY ONYX MICA<518>,BODY COLOR ALPINE WHITE<877> FRONT NATURAL THA 		8-97384-015-0 03 1 1004-1007 ● ●
84 08.155 RIVET; MUD GUARD
BODY COLOR ALPINE WHITE<877> OVER FENDER<B74> COLOR KEYED BUMPER<VT4> EXC. LOW COST VARIANT PARTS PACKAGE<WNF> FRONT NATURAL THA 		8-97384-015-0 03 1 0810-0910 ● ●
84 08.155 RIVET; MUD GUARD
BODY COLOR ALPINE WHITE<877> FRONT NATURAL THA 		8-97384-015-0 03 1 0810-0910 ● ●
84 08.155 RIVET; MUD GUARD
BODY COLOR TORNADE RED MICA<504>,BODY COLOR ROYAL GRAY MET.<505> OVER FENDER<B74> COLOR KEYED BUMPER<VT4> EXC. LOW COST VARIANT PARTS PACKAGE<WNF> FRONT NATURAL THA 		8-97384-015-0 06 1 0710-0801 ● ●
84 08.155 RIVET; MUD GUARD
BODY COLOR TORNADE RED MICA<504>,BODY COLOR ROYAL GRAY MET.<505> FRONT NATURAL THA 		8-97384-015-0 06 1 0710-0801 ● ●
84 08.155 RIVET; MUD GUARD
BODY COLOR BLACK SAPPHIRE MICA<685>, BODY COLOR IMPERIAL BLOND MET<688>,BODY COLOR STERLING SILVER MET<936> OVER FENDER<B74> COLOR KEYED BUMPER<VT4> EXC. LOW COST VARIANT PARTS PACKAGE<WNF> FRONT NATURAL THA 		8-97384-015-0 06 1 0802-0809 ● ●
84 08.155 RIVET; MUD GUARD
BODY COLOR TORNADE RED MICA<504>,BODY COLOR ROYAL GRAY MET.<505>,BODY COLOR IMPUL BLUE MET.<509>,BODY COLOR BLACK SAPPHIRE MICA<685>,BODY COLOR IMPERIALBLOND MET<688>,BODY COLOR ALPINE WHIT E<877>,BODY COLOR STERLING SILVER MET<936> OVER FENDER<B74> COLOR KEYED BUMPER<VT4> FRONT NATURAL THA 		8-97384-015-0 06 1 0802-0809 ●
84 08.155 RIVET; MUD GUARD
BODY COLOR BLACK SAPPHIRE MICA<685>, BODY COLOR IMPERIAL BLOND MET<688>,BODY COLOR ALPINE WHITE<877>,BODY COLOR STERLING SILVER MET<936> FRONT NATURAL THA 		8-97384-015-0 06 1 0802-0809 ●
84 08.155 RIVET; MUD GUARD
BODY COLOR TORNADE RED MICA<504>,BODY COLOR ROYAL GRAY MET.<505>,BODY COLOR IMPUL BLUE MET.<509>,BODY COLOR BLACK SAPPHIRE MICA<685>,BODY COLOR IMPERIALBLOND MET<688>,BODY COLOR STERLING SI LVER MET<936> FRONT NATURAL THA 		8-97384-015-0 06 1 0802-0809 ●
84 08.155 RIVET; MUD GUARD
BODY COLOR BLACK SAPPHIRE MICA<685>, BODY COLOR IMPERIAL BLOND MET<688>,BODY COLOR STERLING SILVER MET<936> FRONT NATURAL THA 		8-97384-015-0 06 1 0802-0809 ●
84 08.155 RIVET; MUD GUARD
BODY COLOR TORNADE RED MICA<504>,BODY COLOR ROYAL GRAY MET.<505>,BODY COLOR BLACK SAPPHIRE MICA<685>,BODY COLOR IMPERIAL BLOND MET<688>,BODY COLOR STERL ING SILVER MET<936> OVER FENDER<B74> COLOR KEYED BUMPER<VT4> EXC. LOW COST VARIANT PARTS PACKAGE<WNF> FRONT NATURAL THA 		8-97384-015-0 06 1 0810-0910 ● ●
84 08.155 RIVET; MUD GUARD
BODY COLOR TORNADE RED MICA<504>,BODY COLOR ROYAL GRAY MET.<505>,BODY COLOR IMPUL BLUE MET.<509>,BODY COLOR BLACK SAPPHIRE MICA<685>,BODY COLOR IMPERIALBLOND MET<688>,BODY COLOR ALPINE WHIT E<877>,BODY COLOR STERLING SILVER MET<936> OVER FENDER<B74> COLOR KEYED BUMPER<VT4> FRONT NATURAL THA 		8-97384-015-0 06 1 0810-0910 ●
84 08.155 RIVET; MUD GUARD
BODY COLOR TORNADE RED MICA<504>,BODY COLOR BLACK SAPPHIRE MICA<685>,BODY COLOR IMPERIAL BLOND MET<688>,BODY COLOR STERLING SILVER MET<936> FRONT NATURAL THA 		8-97384-015-0 06 1 0810-0910 ●
84 08.155 RIVET; MUD GUARD
BODY COLOR ROYAL GRAY MET.<505>,BODY COLOR BLACK SAPPHIRE MICA<685>,BODY COLOR IMPERIAL BLOND MET<688>,BODY COLOR ALPINE WHITE<877> FRONT NATURAL THA 		8-97384-015-0 06 1 0810-0910 ●
84 08.155 RIVET; MUD GUARD
BODY COLOR TORNADE RED MICA<504>,BODY COLOR ROYAL GRAY MET.<505>,BODY COLOR IMPUL BLUE MET.<509>,BODY COLOR STERLING SILVER MET<936> FRONT NATURAL THA 		8-97384-015-0 06 1 0810-0910 ●
84 08.155 RIVET; MUD GUARD
BODY COLOR TORNADE RED MICA<504>,BODY COLOR ROYAL GRAY MET.<505>,BODY COLOR BLACK SAPPHIRE MICA<685>,BODY COLOR IMPERIAL BLOND MET<688>,BODY COLOR STERL ING SILVER MET<936> FRONT NATURAL THA 		8-97384-015-0 06 1 0810-0910 ●
84 08.155 RIVET; MUD GUARD
BODY COLOR ROYAL GRAY MET.<505>,BODY COLOR BLACK SAPPHIRE MICA<685>,BODY COLOR IMPERIAL BLOND MET<688>,BODY COLOR STERLING SILVER MET<936> OVER FENDER<B74> COLOR KEYED BUMPER<VT4> FRONT NATURAL THA 		8-97384-015-0 06 1 0911-1003 ●
84 08.155 RIVET; MUD GUARD
BODY COLOR TORNADE RED MICA<504>,BODY COLOR BLACK SAPPHIRE MICA<685>,BODY COLOR IMPERIAL BLOND MET<688>,BODY COLOR ALPINE WHITE<877> OVER FENDER<B74> COLOR KEYED BUMPER<VT4> FRONT NATURAL THA 		8-97384-015-0 06 1 0911-1003 ●
84 08.155 RIVET; MUD GUARD
BODY COLOR TORNADE RED MICA<504>,BODY COLOR ROYAL GRAY MET.<505>,BODY COLOR IMPUL BLUE MET.<509>,BODY COLOR STERLING SILVER MET<936> OVER FENDER<B74> COLOR KEYED BUMPER<VT4> FRONT NATURAL THA 		8-97384-015-0 06 1 0911-1003 ●
84 08.155 RIVET; MUD GUARD
BODY COLOR TORNADE RED MICA<504>,BODY COLOR ROYAL GRAY MET.<505>,BODY COLOR BLACK SAPPHIRE MICA<685>,BODY COLOR IMPERIAL BLOND MET<688>,BODY COLOR STERL ING SILVER MET<936> OVER FENDER<B74> COLOR KEYED BUMPER<VT4> FRONT NATURAL THA 		8-97384-015-0 06 1 0911-1003 ●
84 08.155 RIVET; MUD GUARD
BODY COLOR ROYAL GRAY MET.<505>,BODY COLOR BLACK SAPPHIRE MICA<685>,BODY COLOR IMPERIAL BLOND MET<688>,BODY COLOR STERLING SILVER MET<936> FRONT NATURAL THA 		8-97384-015-0 06 1 0911-1003 ●
84 08.155 RIVET; MUD GUARD
BODY COLOR TORNADE RED MICA<504>,BODY COLOR BLACK SAPPHIRE MICA<685>,BODY COLOR IMPERIAL BLOND MET<688>,BODY COLOR ALPINE WHITE<877> FRONT NATURAL THA 		8-97384-015-0 06 1 0911-1003 ●
84 08.155 RIVET; MUD GUARD
BODY COLOR TORNADE RED MICA<504>,BODY COLOR ROYAL GRAY MET.<505>,BODY COLOR IMPUL BLUE MET.<509>,BODY COLOR STERLING SILVER MET<936> FRONT NATURAL THA 		8-97384-015-0 06 1 0911-1003 ●
84 08.155 RIVET; MUD GUARD
BODY COLOR TORNADE RED MICA<504>,BODY COLOR ROYAL GRAY MET.<505>,BODY COLOR BLACK SAPPHIRE MICA<685>,BODY COLOR IMPERIAL BLOND MET<688>,BODY COLOR STERL ING SILVER MET<936> FRONT NATURAL THA 		8-97384-015-0 06 1 0911-1003 ●
84 08.155 RIVET; MUD GUARD
BODY COLOR MISTY ONYX MICA<518>,BODY COLOR BLACK SAPPHIRE MICA<685>,BODY COLOR STERLING SILVER MET<936> OVER FENDER<B74> COLOR KEYED BUMPER<VT4> FRONT NATURAL THA 		8-97384-015-0 06 1 1004-1007 ●
84 08.155 RIVET; MUD GUARD
BODY COLOR TORNADE RED MICA<504>,BODY COLOR ROYAL GRAY MET.<505>,BODY COLOR BLACK SAPPHIRE MICA<685>,BODY COLOR ALPINE WHITE<877> OVER FENDER<B74> COLOR KEYED BUMPER<VT4> FRONT NATURAL THA 		8-97384-015-0 06 1 1004-1007 ●
84 08.155 RIVET; MUD GUARD
BODY COLOR TORNADE RED MICA<504>,BODY COLOR ROYAL GRAY MET.<505>,BODY COLOR IMPUL BLUE MET.<509>,BODY COLOR STERLING SILVER MET<936> OVER FENDER<B74> COLOR KEYED BUMPER<VT4> FRONT NATURAL THA 		8-97384-015-0 06 1 1004-1007 ●
84 08.155 RIVET; MUD GUARD
BODY COLOR TORNADE RED MICA<504>,BODY COLOR ROYAL GRAY MET.<505>,BODY COLOR BLACK SAPPHIRE MICA<685>,BODY COLOR STERLING SILVER MET<936> OVER FENDER<B74> COLOR KEYED BUMPER<VT4> FRONT NATURAL THA 		8-97384-015-0 06 1 1004-1007 ●
84 08.155 RIVET; MUD GUARD
BODY COLOR MISTY ONYX MICA<518>,BODY COLOR BLACK SAPPHIRE MICA<685>,BODY COLOR STERLING SILVER MET<936> FRONT NATURAL THA 		8-97384-015-0 06 1 1004-1007 ●
84 08.155 RIVET; MUD GUARD
BODY COLOR TORNADE RED MICA<504>,BODY COLOR ROYAL GRAY MET.<505>,BODY COLOR BLACK SAPPHIRE MICA<685>,BODY COLOR ALPINE WHITE<877> FRONT NATURAL THA 		8-97384-015-0 06 1 1004-1007 ●
84 08.155 RIVET; MUD GUARD
BODY COLOR TORNADE RED MICA<504>,BODY COLOR ROYAL GRAY MET.<505>,BODY COLOR IMPUL BLUE MET.<509>,BODY COLOR STERLING SILVER MET<936> FRONT NATURAL THA 		8-97384-015-0 06 1 1004-1007 ●
84 08.155 RIVET; MUD GUARD
BODY COLOR TORNADE RED MICA<504>,BODY COLOR ROYAL GRAY MET.<505>,BODY COLOR BLACK SAPPHIRE MICA<685>,BODY COLOR STERLING SILVER MET<936> FRONT NATURAL THA 		8-97384-015-0 06 1 1004-1007 ●
84 08.155 RIVET; MUD GUARD
BODY COLOR TORNADE RED MICA<504>,BODY COLOR ROYAL GRAY MET.<505>,BODY COLOR IMPUL BLUE MET.<509>,BODY COLOR MISTY ONYX MICA<518>,BODY COLOR BLACK SAPPHIRE MICA<685>,BODY COLOR ALPINE WHITE<877>,BODY COLOR STERLING SILVER MET<936> OVER FENDER<B74> COLOR KEYED BUMPER<VT4> FRONT NATURAL THA 		8-97384-015-0 06 1 1008- ● ●
84 08.155 RIVET; MUD GUARD
BODY COLOR TORNADE RED MICA<504>,BODY COLOR ROYAL GRAY MET.<505>,BODY COLOR IMPUL BLUE MET.<509>,BODY COLOR MISTY ONYX MICA<518>,BODY COLOR BLACK SAPPHIRE MICA<685>,BODY COLOR ALPINE WHITE<877>,BODY COLOR STERLING SILVER MET<936> OVER FENDER<B74> COLOR KEYED BUMPER<VT4> FRONT NATURAL THA 		8-97384-015-0 06 1 1008- ●
84 08.155 RIVET; MUD GUARD
BODY COLOR TORNADE RED MICA<504>,BODY COLOR ROYAL GRAY MET.<505>,BODY COLOR IMPUL BLUE MET.<509>,BODY COLOR MISTY ONYX MICA<518>,BODY COLOR BLACK SAPPHIRE MICA<685>,BODY COLOR ALPINE WHITE<877>,BODY COLOR STERLING SILVER MET<936> FRONT NATURAL THA 		8-97384-015-0 06 1 1008- ● ●
84 08.155 RIVET; MUD GUARD
BODY COLOR TORNADE RED MICA<504>,BODY COLOR ROYAL GRAY MET.<505>,BODY COLOR IMPUL BLUE MET.<509>,BODY COLOR MISTY ONYX MICA<518>,BODY COLOR BLACK SAPPHIRE MICA<685>,BODY COLOR ALPINE WHITE<877>,BODY COLOR STERLING SILVER MET<936> FRONT NATURAL THA 		8-97384-015-0 06 1 1008- ●
84 08.155 RIVET; MUD GUARD
OVER FENDER<B74> COLOR KEYED BUMPER<VT4> REAR NATURAL THA 		8-97384-015-0 06 1 0410-0511 ●
84 08.155 RIVET; MUD GUARD
REAR NATURAL THA 		8-97384-015-0 06 1 0410-0511 ●
84 08.155 RIVET; MUD GUARD
OVER FENDER<B74> COLOR KEYED BUMPER<VT4> FRONT NATURAL THA 		8-97384-015-0 06 1 0410-0511 ● ●
84 08.155 RIVET; MUD GUARD
FRONT NATURAL THA 		8-97384-015-0 06 1 0410-0511 ● ●
84 08.155 RIVET; MUD GUARD
OVER FENDER<B74> COLOR KEYED BUMPER<VT4> FRONT NATURAL THA 		8-97384-015-0 06 1 0512-0609 ● ●
84 08.155 RIVET; MUD GUARD
OVER FENDER<B74> COLOR KEYED BUMPER<VT4> FRONT NATURAL THA 		8-97384-015-0 06 1 0512-0609 ●
84 08.155 RIVET; MUD GUARD
FRONT NATURAL THA 		8-97384-015-0 06 1 0512-0609 ● ●
84 08.155 RIVET; MUD GUARD
FRONT NATURAL THA 		8-97384-015-0 06 1 0512-0609 ●
84 08.155 RIVET; MUD GUARD
OVER FENDER<B74> COLOR KEYED BUMPER<VT4> FRONT NATURAL THA 		8-97384-015-0 06 1 0610-0709 ● ●
84 08.155 RIVET; MUD GUARD
OVER FENDER<B74> COLOR KEYED BUMPER<VT4> FRONT NATURAL THA 		8-97384-015-0 06 1 0610-0709 ●
84 08.155 RIVET; MUD GUARD
FRONT NATURAL THA 		8-97384-015-0 06 1 0610-0709 ● ●
84 08.155 RIVET; MUD GUARD
FRONT NATURAL THA 		8-97384-015-0 06 1 0610-0709 ●
84 08.155 RIVET; MUD GUARD
OVER FENDER<B74> COLOR KEYED BUMPER<VT4> REAR NATURAL THA 		8-97384-015-0 14 1 0710- ●
84 08.155 RIVET; MUD GUARD
REAR NATURAL THA 		8-97384-015-0 14 1 0710- ●
84 08.155 RIVET; MUD GUARD
OVER FENDER<B74> COLOR KEYED BUMPER<VT4> REAR NATURAL THA 		8-97384-015-0 14 1 0410-0511 ●
84 08.155 RIVET; MUD GUARD
REAR NATURAL THA 		8-97384-015-0 14 1 0410-0511 ●
84 08.155 RIVET; MUD GUARD
OVER FENDER<B74> COLOR KEYED BUMPER<VT4> REAR NATURAL THA 		8-97384-015-0 14 1 0512-0709 ●
84 08.155 RIVET; MUD GUARD
REAR NATURAL THA 		8-97384-015-0 14 1 0512-0709 ●
84 08.155 RIVET; MUD GUARD
BODY COLOR BLACK SAPPHIRE MICA<685>, BODY COLOR IMPERIAL BLOND MET<688>,BODY COLOR ALPINE WHITE<877>,BODY COLOR STERLING SILVER MET<936> OVER FENDER<B74> COLOR KEYED BUMPER<VT4> EXC. LOW COST VARIANT PARTS PACKAGE<WNF> FRONT NATURAL THA 		8-97384-015-0 06 1 0710-0801 ● ●
84 08.155 RIVET; MUD GUARD
BODY COLOR TORNADE RED MICA<504>,BODY COLOR ROYAL GRAY MET.<505>,BODY COLOR IMPUL BLUE MET.<509>,BODY COLOR BLACK SAPPHIRE MICA<685>,BODY COLOR IMPERIALBLOND MET<688>,BODY COLOR ALPINE WHIT E<877>,BODY COLOR STERLING SILVER MET<936> OVER FENDER<B74> COLOR KEYED BUMPER<VT4> FRONT NATURAL THA 		8-97384-015-0 06 1 0710-0801 ●
84 08.155 RIVET; MUD GUARD
BODY COLOR BLACK SAPPHIRE MICA<685>, BODY COLOR IMPERIAL BLOND MET<688>,BODY COLOR ALPINE WHITE<877>,BODY COLOR STERLING SILVER MET<936> FRONT NATURAL THA 		8-97384-015-0 06 1 0710-0801 ● ●
84 08.155 RIVET; MUD GUARD
BODY COLOR TORNADE RED MICA<504>,BODY COLOR ROYAL GRAY MET.<505>,BODY COLOR IMPUL BLUE MET.<509>,BODY COLOR BLACK SAPPHIRE MICA<685>,BODY COLOR IMPERIALBLOND MET<688>,BODY COLOR ALPINE WHIT E<877>,BODY COLOR STERLING SILVER MET<936> FRONT NATURAL THA 		8-97384-015-0 06 1 0710-0801 ●
84 08.155 RIVET; MUD GUARD
BODY COLOR TORNADE RED MICA<504>,BODY COLOR ROYAL GRAY MET.<505>,BODY COLOR ALPINE WHITE<877> OVER FENDER<B74> COLOR KEYED BUMPER<VT4> EXC. LOW COST VARIANT PARTS PACKAGE<WNF> FRONT NATURAL THA 		8-97384-015-0 06 1 0802-0809 ● ●
84 08.155 RIVET; MUD GUARD
BODY COLOR TORNADE RED MICA<504>,BODY COLOR ROYAL GRAY MET.<505>,BODY COLOR ALPINE WHITE<877> FRONT NATURAL THA 		8-97384-015-0 06 1 0802-0809 ● ●
84 08.155 RIVET; MUD GUARD
REAR NATURAL THA 		8-97384-015-0 06 1 0404-0409 ●
84 08.155 RIVET; MUD GUARD
FRONT NATURAL THA 		8-97384-015-0 06 1 0404-0409 ● ●
84 08.155 RIVET; MUD GUARD
REAR NATURAL THA 		8-97384-015-0 14 1 0404-0409 ●
86 08.154 CLIP; MUD GUARD
OVER FENDER<B74> COLOR KEYED BUMPER<VT4> THA 		8-97352-535-0 04 1 0610- ●
86 08.154 CLIP; MUD GUARD
THA 		8-97352-535-0 04 1 0610- ●
86 08.154 CLIP; MUD GUARD
THA 		8-97352-535-0 01 1 0404-0409 ●
86 08.154 CLIP; MUD GUARD
OVER FENDER<B74> COLOR KEYED BUMPER<VT4> THA 		8-97352-535-0 01 1 0410- ●
86 08.154 CLIP; MUD GUARD
THA 		8-97352-535-0 01 1 0410- ●
92 08.155 NUT; MUD COVER
THA 		8-97125-519-0 12 1 0404-0409 ● ● ●
92 08.155 NUT; MUD COVER
FORMED MUD FLAP<6WL> EXC. OVER FENDER<B74> THA 		8-97125-519-0 12 1 0410-0708 ● ●
92 08.155 NUT; MUD COVER
THA 		8-97125-519-0 12 1 0410-0708 ●
92 08.155 NUT; MUD COVER
FORMED MUD FLAP<6WL> EXC. OVER FENDER<B74> THA 		8-97125-519-0 14 1 0709- ● ●
92 08.155 NUT; MUD COVER
THA 		8-97125-519-0 14 1 0709- ●
92 08.155 NUT; MUD COVER
EXC. OVER FENDER<B74>,FORMED MUD FLAP<6WL> THA 		8-97125-519-0 06 1 0410-0708 ● ●
92 08.155 NUT; MUD COVER
EXC. OVER FENDER<B74>,FORMED MUD FLAP<6WL> THA 		8-97125-519-0 08 1 0709- ● ●
92 08.155 NUT; MUD COVER
THA 		8-97125-519-0 14 1 0404-0409 ● ●
92 08.155 NUT; MUD COVER
OVER FENDER<B74> THA 		8-97125-519-0 14 1 0410-0708 ● ●
92 08.155 NUT; MUD COVER
THA 		8-97125-519-0 14 1 0410-0708 ● ●
92 08.155 NUT; MUD COVER
OVER FENDER<B74> THA 		8-97125-519-0 16 1 0709- ● ●
92 08.155 NUT; MUD COVER
THA 		8-97125-519-0 16 1 0709- ● ●
261 08.155 RUBBER; FRT,MUD GUARD
(A) THA 		8-97363-471-0 01 1 0404-0409 ● ● ●
261 08.155 RUBBER; FRT,MUD GUARD
FORMED MUD FLAP<6WL> (A) THA 		8-97363-471-0 01 1 0410-0606 ● ●
261 08.155 RUBBER; FRT,MUD GUARD
(A) THA 		8-97363-471-0 01 1 0410-0606 ●
261 08.155 RUBBER; FRT,MUD GUARD
FORMED MUD FLAP<6WL> (A) THA 		8-98023-034-0 01 1 0607- ● ●
261 08.155 RUBBER; FRT,MUD GUARD
(A) THA 		8-98023-034-0 01 1 0607- ●
261 08.155 RUBBER; FRT,MUD GUARD
(A) THA 		8-97363-470-0 01 1 0404-0409 ● ● ●
261 08.155 RUBBER; FRT,MUD GUARD
FORMED MUD FLAP<6WL> (A) THA 		8-97363-470-0 01 1 0410-0606 ● ●
261 08.155 RUBBER; FRT,MUD GUARD
(A) THA 		8-97363-470-0 01 1 0410-0606 ●
261 08.155 RUBBER; FRT,MUD GUARD
FORMED MUD FLAP<6WL> (A) THA 		8-98022-973-0 01 1 0607- ● ●
261 08.155 RUBBER; FRT,MUD GUARD
(A) THA 		8-98022-973-0 01 1 0607- ●
261 08.155 RUBBER; FRT,MUD GUARD
OVER FENDER<B74> COLOR KEYED BUMPER<VT4> (B) THA 		8-98002-239-0 01 1 0410- ● ●
261 08.155 RUBBER; FRT,MUD GUARD
(B) THA 		8-98002-239-0 01 1 0410- ● ●
261 08.155 RUBBER; FRT,MUD GUARD
OVER FENDER<B74> COLOR KEYED BUMPER<VT4> (B) THA 		8-98002-237-0 01 1 0410- ● ●
261 08.155 RUBBER; FRT,MUD GUARD
(B) THA 		8-98002-237-0 01 1 0410- ● ●
262 08.155 WASHER; MUD GUARD
OVER FENDER<B74> COLOR KEYED BUMPER<VT4> 05.155 THA 		8-98002-253-0 02 1 0410- ●
262 08.155 WASHER; MUD GUARD
05.155 THA 		8-98002-253-0 02 1 0410- ●
262 08.155 WASHER; MUD GUARD
05.155 THA 		8-98002-253-0 02 1 0404-0409 ●
670 08.155 FASTENER
BODY COLOR IMPUL BLUE MET.<509>,BODY COLOR ALPINE WHITE<877> OVER FENDER<B74> COLOR KEYED BUMPER<VT4> 07.829 		8-97117-942-0 06 1 0911-1003 ● ●
670 08.155 FASTENER
BODY COLOR IMPUL BLUE MET.<509>,BODY COLOR ALPINE WHITE<877> 07.829 		8-97117-942-0 06 1 0911-1003 ● ●
670 08.155 FASTENER
BODY COLOR IMPUL BLUE MET.<509>,BODY COLOR MISTY ONYX MICA<518>,BODY COLOR ALPINE WHITE<877> OVER FENDER<B74> COLOR KEYED BUMPER<VT4> 07.829 		8-97117-942-0 06 1 1004-1007 ● ●
670 08.155 FASTENER
BODY COLOR IMPUL BLUE MET.<509>,BODY COLOR MISTY ONYX MICA<518>,BODY COLOR ALPINE WHITE<877> 07.829 		8-97117-942-0 06 1 1004-1007 ● ●
670 08.155 FASTENER
BODY COLOR ALPINE WHITE<877> OVER FENDER<B74> COLOR KEYED BUMPER<VT4> EXC. LOW COST VARIANT PARTS PACKAGE<WNF> 07.829 		8-97117-942-0 06 1 0810-0910 ● ●
670 08.155 FASTENER
BODY COLOR ALPINE WHITE<877> 07.829 		8-97117-942-0 06 1 0810-0910 ● ●
670 08.155 FASTENER
BODY COLOR TORNADE RED MICA<504>,BODY COLOR ROYAL GRAY MET.<505> OVER FENDER<B74> COLOR KEYED BUMPER<VT4> EXC. LOW COST VARIANT PARTS PACKAGE<WNF> 07.829 		8-97117-942-0 06 1 0710-0801 ● ●
670 08.155 FASTENER
BODY COLOR TORNADE RED MICA<504>,BODY COLOR ROYAL GRAY MET.<505> 07.829 		8-97117-942-0 06 1 0710-0801 ● ●
670 08.155 FASTENER
BODY COLOR TORNADE RED MICA<504>,BODY COLOR ROYAL GRAY MET.<505>,BODY COLOR ALPINE WHITE<877> OVER FENDER<B74> COLOR KEYED BUMPER<VT4> EXC. LOW COST VARIANT PARTS PACKAGE<WNF> 07.829 		8-97117-942-0 06 1 0802-0809 ● ●
670 08.155 FASTENER
BODY COLOR TORNADE RED MICA<504>,BODY COLOR ROYAL GRAY MET.<505>,BODY COLOR ALPINE WHITE<877> 07.829 		8-97117-942-0 06 1 0802-0809 ● ●
670 08.155 FASTENER
OVER FENDER<B74> COLOR KEYED BUMPER<VT4> 07.829 		8-97117-942-0 12 1 0512-0609 ● ●
670 08.155 FASTENER
07.829 		8-97117-942-0 12 1 0512-0609 ● ●
670 08.155 FASTENER
OVER FENDER<B74> COLOR KEYED BUMPER<VT4> 07.829 		8-97117-942-0 13 1 0512-0609 ●
670 08.155 FASTENER
07.829 		8-97117-942-0 13 1 0512-0609 ●
670 08.155 FASTENER
OVER FENDER<B74> COLOR KEYED BUMPER<VT4> 07.829 		8-97117-942-0 14 1 0512-0609 ●
670 08.155 FASTENER
07.829 		8-97117-942-0 14 1 0512-0609 ●
670 08.155 FASTENER
OVER FENDER<B74> COLOR KEYED BUMPER<VT4> 07.829 		8-97117-942-0 12 1 0610-0709 ● ●
670 08.155 FASTENER
07.829 		8-97117-942-0 12 1 0610-0709 ● ●
670 08.155 FASTENER
BODY COLOR BLACK SAPPHIRE MICA<685>, BODY COLOR IMPERIAL BLOND MET<688>,BODY COLOR ALPINE WHITE<877>,BODY COLOR STERLING SILVER MET<936> OVER FENDER<B74> COLOR KEYED BUMPER<VT4> EXC. LOW COST VARIANT PARTS PACKAGE<WNF> 07.829 		8-97117-942-0 12 1 0710-0801 ● ●
670 08.155 FASTENER
BODY COLOR BLACK SAPPHIRE MICA<685>, BODY COLOR IMPERIAL BLOND MET<688>,BODY COLOR ALPINE WHITE<877>,BODY COLOR STERLING SILVER MET<936> 07.829 		8-97117-942-0 12 1 0710-0801 ● ●
670 08.155 FASTENER
BODY COLOR BLACK SAPPHIRE MICA<685>, BODY COLOR IMPERIAL BLOND MET<688>,BODY COLOR STERLING SILVER MET<936> OVER FENDER<B74> COLOR KEYED BUMPER<VT4> EXC. LOW COST VARIANT PARTS PACKAGE<WNF> 07.829 		8-97117-942-0 12 1 0802-0809 ● ●
670 08.155 FASTENER
BODY COLOR BLACK SAPPHIRE MICA<685>, BODY COLOR IMPERIAL BLOND MET<688>,BODY COLOR STERLING SILVER MET<936> 07.829 		8-97117-942-0 12 1 0802-0809 ● ●
670 08.155 FASTENER
BODY COLOR TORNADE RED MICA<504>,BODY COLOR ROYAL GRAY MET.<505>,BODY COLOR BLACK SAPPHIRE MICA<685>,BODY COLOR IMPERIAL BLOND MET<688>,BODY COLOR STERL ING SILVER MET<936> OVER FENDER<B74> COLOR KEYED BUMPER<VT4> EXC. LOW COST VARIANT PARTS PACKAGE<WNF> 07.829 		8-97117-942-0 12 1 0810-0910 ● ●
670 08.155 FASTENER
BODY COLOR TORNADE RED MICA<504>,BODY COLOR ROYAL GRAY MET.<505>,BODY COLOR BLACK SAPPHIRE MICA<685>,BODY COLOR IMPERIAL BLOND MET<688>,BODY COLOR STERL ING SILVER MET<936> 07.829 		8-97117-942-0 12 1 0810-0910 ● ●
670 08.155 FASTENER
BODY COLOR TORNADE RED MICA<504>,BODY COLOR ROYAL GRAY MET.<505>,BODY COLOR BLACK SAPPHIRE MICA<685>,BODY COLOR IMPERIAL BLOND MET<688>,BODY COLOR STERL ING SILVER MET<936> OVER FENDER<B74> COLOR KEYED BUMPER<VT4> 07.829 		8-97117-942-0 12 1 0911-1003 ● ●
670 08.155 FASTENER
BODY COLOR TORNADE RED MICA<504>,BODY COLOR ROYAL GRAY MET.<505>,BODY COLOR BLACK SAPPHIRE MICA<685>,BODY COLOR IMPERIAL BLOND MET<688>,BODY COLOR STERL ING SILVER MET<936> 07.829 		8-97117-942-0 12 1 0911-1003 ● ●
670 08.155 FASTENER
BODY COLOR TORNADE RED MICA<504>,BODY COLOR ROYAL GRAY MET.<505>,BODY COLOR BLACK SAPPHIRE MICA<685>,BODY COLOR STERLING SILVER MET<936> OVER FENDER<B74> COLOR KEYED BUMPER<VT4> 07.829 		8-97117-942-0 12 1 1004-1007 ● ●
670 08.155 FASTENER
BODY COLOR TORNADE RED MICA<504>,BODY COLOR ROYAL GRAY MET.<505>,BODY COLOR BLACK SAPPHIRE MICA<685>,BODY COLOR STERLING SILVER MET<936> 07.829 		8-97117-942-0 12 1 1004-1007 ● ●
670 08.155 FASTENER
OVER FENDER<B74> COLOR KEYED BUMPER<VT4> 07.829 		8-97117-942-0 12 1 1008- ● ●
670 08.155 FASTENER
07.829 		8-97117-942-0 12 1 1008- ● ●
670 08.155 FASTENER
OVER FENDER<B74> COLOR KEYED BUMPER<VT4> 07.829 		8-97117-942-0 13 1 0610-0709 ● ●
670 08.155 FASTENER
07.829 		8-97117-942-0 13 1 0610-0709 ● ●
670 08.155 FASTENER
OVER FENDER<B74> COLOR KEYED BUMPER<VT4> 07.829 		8-97117-942-0 13 1 0710- ●
670 08.155 FASTENER
07.829 		8-97117-942-0 13 1 0710- ●
670 08.155 FASTENER
OVER FENDER<B74> COLOR KEYED BUMPER<VT4> 07.829 		8-97117-942-0 14 1 0610- ●
670 08.155 FASTENER
07.829 		8-97117-942-0 14 1 0610- ●
670 08.155 FASTENER
07.829 THA 		8-97359-942-0 12 1 0404-0409 ● ●
670 08.155 FASTENER
OVER FENDER<B74> 07.829 THA 		8-97359-942-0 12 1 0410-0609 ● ●
670 08.155 FASTENER
07.829 THA 		8-97359-942-0 12 1 0410-0609 ● ●
670 08.155 FASTENER
OVER FENDER<B74> 07.829 THA 		8-97359-942-0 06 1 0610- ● ●
670 08.155 FASTENER
07.829 THA 		8-97359-942-0 06 1 0610- ● ●

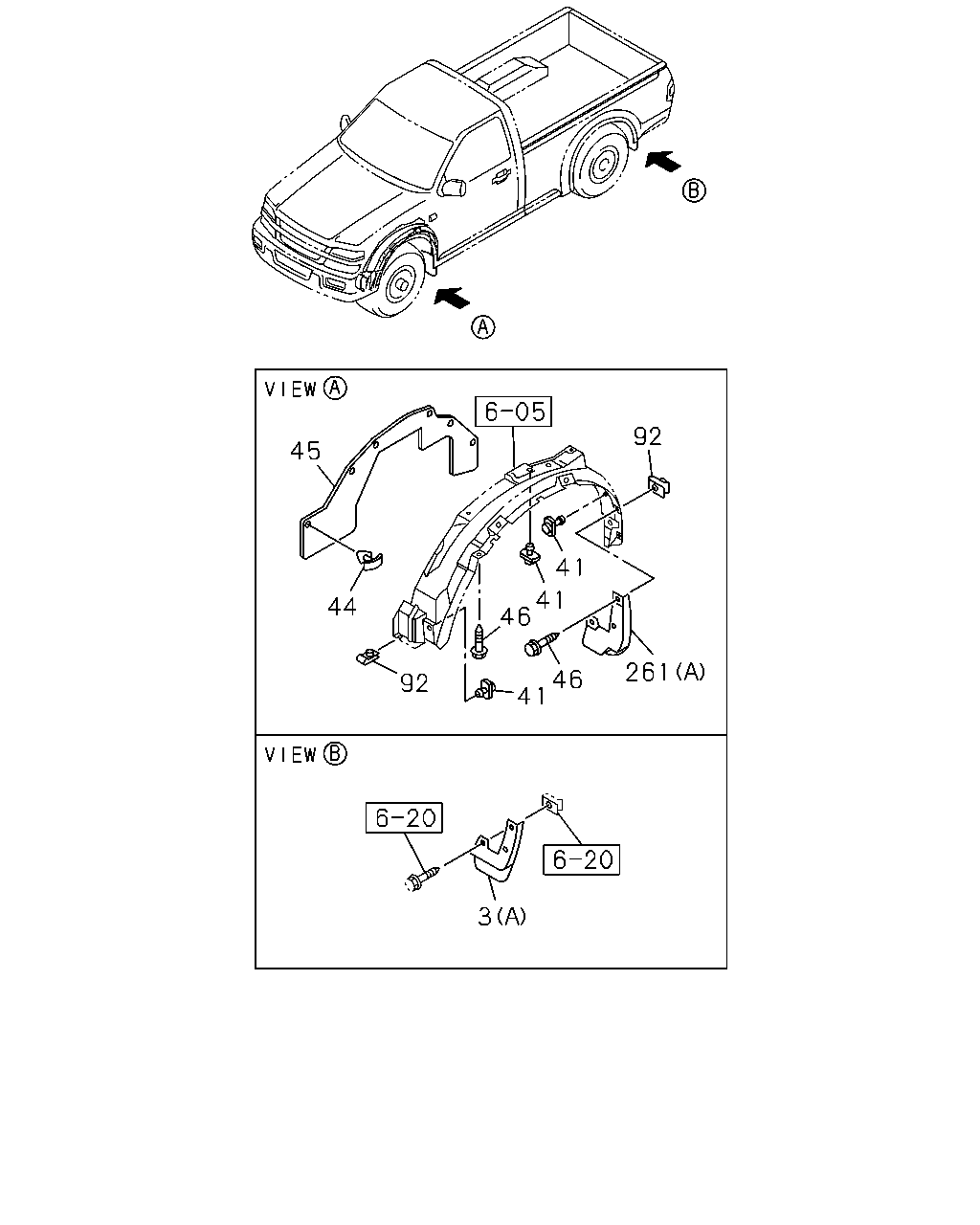

çizim 117838
92 45 41 41 46 44 261 46 41 92 3
BalonParca AdiParca NoAdetTipApplied Date A B C D E
3 08.153 GUARD; MUD,RR
(A) THA 		8-97363-474-0 01 1 0404-0409 ● ● ●
3 08.153 GUARD; MUD,RR
FORMED MUD FLAP<6WL> (A) THA 		8-97363-474-0 01 1 0410-0606 ● ●
3 08.153 GUARD; MUD,RR
(A) THA 		8-97363-474-0 01 1 0410-0606 ●
3 08.153 GUARD; MUD,RR
FORMED MUD FLAP<6WL> (A) THA 		8-98023-039-0 01 1 0607-0610 ● ●
3 08.153 GUARD; MUD,RR
(A) THA 		8-98023-039-0 01 1 0607-0610 ●
3 08.153 GUARD; MUD,RR
FORMED MUD FLAP<6WL> (A) THA 		8-98023-039-0 01 1 0611- ● ●
3 08.153 GUARD; MUD,RR
REAR BODY DBL WALL CTR PULL<E63> (A) THA 		8-98023-039-0 01 1 0611- ●
3 08.153 GUARD; MUD,RR
(A) THA 		8-97363-473-0 01 1 0404-0409 ● ● ●
3 08.153 GUARD; MUD,RR
FORMED MUD FLAP<6WL> (A) THA 		8-97363-473-0 01 1 0410-0606 ● ●
3 08.153 GUARD; MUD,RR
(A) THA 		8-97363-473-0 01 1 0410-0606 ●
3 08.153 GUARD; MUD,RR
FORMED MUD FLAP<6WL> (A) THA 		8-98023-038-0 01 1 0607-0610 ● ●
3 08.153 GUARD; MUD,RR
(A) THA 		8-98023-038-0 01 1 0607-0610 ●
3 08.153 GUARD; MUD,RR
FORMED MUD FLAP<6WL> (A) THA 		8-98023-038-0 01 1 0611- ● ●
3 08.153 GUARD; MUD,RR
REAR BODY DBL WALL CTR PULL<E63> (A) THA 		8-98023-038-0 01 1 0611- ●
3 08.153 GUARD; MUD,RR
OVER FENDER<B74> COLOR KEYED BUMPER<VT4> (B) THA 		8-98002-242-0 01 1 0410-0511 ● ●
3 08.153 GUARD; MUD,RR
(B) THA 		8-98002-242-0 01 1 0410-0511 ● ●
3 08.153 GUARD; MUD,RR
OVER FENDER<B74> COLOR KEYED BUMPER<VT4> (B) THA 		8-98002-241-0 01 1 0410-0511 ● ●
3 08.153 GUARD; MUD,RR
(B) THA 		8-98002-241-0 01 1 0410-0511 ● ●
3 08.153 GUARD; MUD,RR
OVER FENDER<B74> COLOR KEYED BUMPER<VT4> (B) THA 		8-98002-242-0 01 1 0512-0609 ● ●
3 08.153 GUARD; MUD,RR
(B) THA 		8-98002-242-0 01 1 0512-0609 ● ●
3 08.153 GUARD; MUD,RR
OVER FENDER<B74> COLOR KEYED BUMPER<VT4> (B) THA 		8-98002-241-0 01 1 0512-0609 ● ●
3 08.153 GUARD; MUD,RR
(B) THA 		8-98002-241-0 01 1 0512-0609 ● ●
3 08.153 GUARD; MUD,RR
OVER FENDER<B74> COLOR KEYED BUMPER<VT4> (B) THA 		8-98002-242-0 01 1 0610- ● ●
3 08.153 GUARD; MUD,RR
(B) THA 		8-98002-242-0 01 1 0610- ● ●
3 08.153 GUARD; MUD,RR
OVER FENDER<B74> COLOR KEYED BUMPER<VT4> (B) THA 		8-98002-241-0 01 1 0610- ● ●
3 08.153 GUARD; MUD,RR
(B) THA 		8-98002-241-0 01 1 0610- ● ●
3 08.153 GUARD; MUD,RR
OVER FENDER<B74> COLOR KEYED BUMPER<VT4> (C) THA 		8-97364-442-0 01 1 0410- ●
3 08.153 GUARD; MUD,RR
(C) THA 		8-97364-442-0 01 1 0410- ●
3 08.153 GUARD; MUD,RR
OVER FENDER<B74> COLOR KEYED BUMPER<VT4> (C) THA 		8-97364-441-0 01 1 0410- ●
3 08.153 GUARD; MUD,RR
(C) THA 		8-97364-441-0 01 1 0410- ●
3 08.153 GUARD; MUD,RR
(B) THA 		8-98002-242-0 01 1 0404-0409 ● ●
3 08.153 GUARD; MUD,RR
(B) THA 		8-98002-241-0 01 1 0404-0409 ● ●
3 08.153 GUARD; MUD,RR
(C) THA 		8-97364-442-0 01 1 0404-0409 ●
3 08.153 GUARD; MUD,RR
(C) THA 		8-97364-441-0 01 1 0404-0409 ●
41 08.155 RIVET; INNER LINER
08.154 THA 		8-94221-150-0 16 1 0404-0409 ● ● ●
41 08.155 RIVET; INNER LINER
FORMED MUD FLAP<6WL> EXC. OVER FENDER<B74> 08.154 THA 		8-94221-150-0 16 1 0410-0708 ● ●
41 08.155 RIVET; INNER LINER
08.154 THA 		8-94221-150-0 16 1 0410-0708 ●
41 08.155 RIVET; INNER LINER
FORMED MUD FLAP<6WL> EXC. OVER FENDER<B74> 08.154 THA 		8-94221-150-0 14 1 0709- ● ●
41 08.155 RIVET; INNER LINER
08.154 THA 		8-94221-150-0 14 1 0709- ●
41 08.155 RIVET; INNER LINER
EXC. OVER FENDER<B74>,FORMED MUD FLAP<6WL> 08.154 THA 		8-94221-150-0 22 1 0410-0708 ● ●
41 08.155 RIVET; INNER LINER
EXC. OVER FENDER<B74>,FORMED MUD FLAP<6WL> 08.154 THA 		8-94221-150-0 20 1 0709- ● ●
41 08.155 RIVET; INNER LINER
08.154 THA 		8-94221-150-0 14 1 0404-0409 ● ●
41 08.155 RIVET; INNER LINER
OVER FENDER<B74> 08.154 THA 		8-94221-150-0 14 1 0410-0708 ● ●
41 08.155 RIVET; INNER LINER
08.154 THA 		8-94221-150-0 14 1 0410-0708 ● ●
41 08.155 RIVET; INNER LINER
OVER FENDER<B74> 08.154 THA 		8-94221-150-0 12 1 0709- ● ●
41 08.155 RIVET; INNER LINER
08.154 THA 		8-94221-150-0 12 1 0709- ● ●
44 08.154 CLIP; ANCHOR
OD=22 L=10.7 THA 		8-94215-211-0 12 1 0404- ● ● ● ● ●
45 08.153 COVER; MUD,FENDER SKIRT
THA 		8-97235-457-2 01 1 0404-0409 ● ● ●
45 08.153 COVER; MUD,FENDER SKIRT
EXC. HIGH RIDE SUSPENSION<7YC> THA 		8-97235-457-2 01 1 0410- ● ●
45 08.153 COVER; MUD,FENDER SKIRT
THA 		8-97235-457-2 01 1 0410- ●
45 08.153 COVER; MUD,FENDER SKIRT
THA 		8-97235-458-1 01 1 0404-0409 ● ● ●
45 08.153 COVER; MUD,FENDER SKIRT
EXC. HIGH RIDE SUSPENSION<7YC> THA 		8-97235-458-1 01 1 0410- ● ●
45 08.153 COVER; MUD,FENDER SKIRT
THA 		8-97235-458-1 01 1 0410- ●
45 08.153 COVER; MUD,FENDER SKIRT
THA 		8-97235-462-0 01 1 0404-0409 ● ●
45 08.153 COVER; MUD,FENDER SKIRT
HIGH RIDE SUSPENSION<7YC> THA 		8-97235-462-0 01 1 0410- ● ●
45 08.153 COVER; MUD,FENDER SKIRT
THA 		8-97235-462-0 01 1 0410- ● ●
45 08.153 COVER; MUD,FENDER SKIRT
THA 		8-97235-460-1 01 1 0404-0409 ● ●
45 08.153 COVER; MUD,FENDER SKIRT
HIGH RIDE SUSPENSION<7YC> THA 		8-97235-460-1 01 1 0410- ● ●
45 08.153 COVER; MUD,FENDER SKIRT
THA 		8-97235-460-1 01 1 0410- ● ●
46 08.155 SCREW; INNER LINER
M6X20 W/PL WASHER TAPPING 		8-94321-767-1 10 1 0404-0409 ● ● ●
46 08.155 SCREW; INNER LINER
FORMED MUD FLAP<6WL> EXC. OVER FENDER<B74> M6X20 W/PL WASHER TAPPING 		8-94321-767-1 10 1 0410-0612 ● ●
46 08.155 SCREW; INNER LINER
M6X20 W/PL WASHER TAPPING 		8-94321-767-1 10 1 0410-0612 ●
46 08.155 SCREW; INNER LINER
FORMED MUD FLAP<6WL> EXC. OVER FENDER<B74> 07.833 M6X20 TAPPING 		8-98052-950-0 10 1 0701-0708 ● ●
46 08.155 SCREW; INNER LINER
07.833 M6X20 TAPPING 		8-98052-950-0 10 1 0701-0708 ●
46 08.155 SCREW; INNER LINER
FORMED MUD FLAP<6WL> EXC. OVER FENDER<B74> 07.833 M6X20 TAPPING 		8-98052-950-0 12 1 0709-1003 ● ●
46 08.155 SCREW; INNER LINER
07.833 M6X20 TAPPING 		8-98052-950-0 12 1 0709-1003 ●
46 08.155 SCREW; INNER LINER
FORMED MUD FLAP<6WL> EXC. OVER FENDER<B74> 07.874 M6X20 TAPPING W/PL WASHER THA 		8-98167-444-0 12 1 1004- ● ●
46 08.155 SCREW; INNER LINER
07.874 M6X20 TAPPING W/PL WASHER THA 		8-98167-444-0 12 1 1004- ●
46 08.155 SCREW; INNER LINER
EXC. OVER FENDER<B74>,FORMED MUD FLAP<6WL> M6X20 W/PL WASHER TAPPING 		8-94321-767-1 04 1 0410-0612 ● ●
46 08.155 SCREW; INNER LINER
EXC. OVER FENDER<B74>,FORMED MUD FLAP<6WL> 07.833 M6X20 TAPPING 		8-98052-950-0 04 1 0701-0708 ● ●
46 08.155 SCREW; INNER LINER
EXC. OVER FENDER<B74>,FORMED MUD FLAP<6WL> 07.833 M6X20 TAPPING 		8-98052-950-0 06 1 0709-1003 ● ●
46 08.155 SCREW; INNER LINER
EXC. OVER FENDER<B74>,FORMED MUD FLAP<6WL> 07.874 M6X20 TAPPING W/PL WASHER THA 		8-98167-444-0 06 1 1004- ● ●
46 08.155 SCREW; INNER LINER
M6X20 W/PL WASHER TAPPING 		8-94321-767-1 12 1 0404-0409 ● ●
46 08.155 SCREW; INNER LINER
OVER FENDER<B74> M6X20 W/PL WASHER TAPPING 		8-94321-767-1 12 1 0410-0612 ● ●
46 08.155 SCREW; INNER LINER
M6X20 W/PL WASHER TAPPING 		8-94321-767-1 12 1 0410-0612 ● ●
46 08.155 SCREW; INNER LINER
OVER FENDER<B74> 07.833 M6X20 TAPPING 		8-98052-950-0 12 1 0701-0708 ● ●
46 08.155 SCREW; INNER LINER
07.833 M6X20 TAPPING 		8-98052-950-0 12 1 0701-0708 ● ●
46 08.155 SCREW; INNER LINER
OVER FENDER<B74> 07.833 M6X20 TAPPING 		8-98052-950-0 14 1 0709-1003 ● ●
46 08.155 SCREW; INNER LINER
07.833 M6X20 TAPPING 		8-98052-950-0 14 1 0709-1003 ● ●
46 08.155 SCREW; INNER LINER
OVER FENDER<B74> 07.874 M6X20 TAPPING W/PL WASHER THA 		8-98167-444-0 14 1 1004- ● ●
46 08.155 SCREW; INNER LINER
07.874 M6X20 TAPPING W/PL WASHER THA 		8-98167-444-0 14 1 1004- ● ●
92 08.155 NUT; MUD COVER
THA 		8-97125-519-0 12 1 0404-0409 ● ● ●
92 08.155 NUT; MUD COVER
FORMED MUD FLAP<6WL> EXC. OVER FENDER<B74> THA 		8-97125-519-0 12 1 0410-0708 ● ●
92 08.155 NUT; MUD COVER
THA 		8-97125-519-0 12 1 0410-0708 ●
92 08.155 NUT; MUD COVER
FORMED MUD FLAP<6WL> EXC. OVER FENDER<B74> THA 		8-97125-519-0 14 1 0709- ● ●
92 08.155 NUT; MUD COVER
THA 		8-97125-519-0 14 1 0709- ●
92 08.155 NUT; MUD COVER
EXC. OVER FENDER<B74>,FORMED MUD FLAP<6WL> THA 		8-97125-519-0 06 1 0410-0708 ● ●
92 08.155 NUT; MUD COVER
EXC. OVER FENDER<B74>,FORMED MUD FLAP<6WL> THA 		8-97125-519-0 08 1 0709- ● ●
92 08.155 NUT; MUD COVER
THA 		8-97125-519-0 14 1 0404-0409 ● ●
92 08.155 NUT; MUD COVER
OVER FENDER<B74> THA 		8-97125-519-0 14 1 0410-0708 ● ●
92 08.155 NUT; MUD COVER
THA 		8-97125-519-0 14 1 0410-0708 ● ●
92 08.155 NUT; MUD COVER
OVER FENDER<B74> THA 		8-97125-519-0 16 1 0709- ● ●
92 08.155 NUT; MUD COVER
THA 		8-97125-519-0 16 1 0709- ● ●
261 08.155 RUBBER; FRT,MUD GUARD
(A) THA 		8-97363-471-0 01 1 0404-0409 ● ● ●
261 08.155 RUBBER; FRT,MUD GUARD
FORMED MUD FLAP<6WL> (A) THA 		8-97363-471-0 01 1 0410-0606 ● ●
261 08.155 RUBBER; FRT,MUD GUARD
(A) THA 		8-97363-471-0 01 1 0410-0606 ●
261 08.155 RUBBER; FRT,MUD GUARD
FORMED MUD FLAP<6WL> (A) THA 		8-98023-034-0 01 1 0607- ● ●
261 08.155 RUBBER; FRT,MUD GUARD
(A) THA 		8-98023-034-0 01 1 0607- ●
261 08.155 RUBBER; FRT,MUD GUARD
(A) THA 		8-97363-470-0 01 1 0404-0409 ● ● ●
261 08.155 RUBBER; FRT,MUD GUARD
FORMED MUD FLAP<6WL> (A) THA 		8-97363-470-0 01 1 0410-0606 ● ●
261 08.155 RUBBER; FRT,MUD GUARD
(A) THA 		8-97363-470-0 01 1 0410-0606 ●
261 08.155 RUBBER; FRT,MUD GUARD
FORMED MUD FLAP<6WL> (A) THA 		8-98022-973-0 01 1 0607- ● ●
261 08.155 RUBBER; FRT,MUD GUARD
(A) THA 		8-98022-973-0 01 1 0607- ●
261 08.155 RUBBER; FRT,MUD GUARD
OVER FENDER<B74> COLOR KEYED BUMPER<VT4> (B) THA 		8-98002-239-0 01 1 0410- ● ●
261 08.155 RUBBER; FRT,MUD GUARD
(B) THA 		8-98002-239-0 01 1 0410- ● ●
261 08.155 RUBBER; FRT,MUD GUARD
OVER FENDER<B74> COLOR KEYED BUMPER<VT4> (B) THA 		8-98002-237-0 01 1 0410- ● ●
261 08.155 RUBBER; FRT,MUD GUARD
(B) THA 		8-98002-237-0 01 1 0410- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
