6-43 — SIDE TRIM (#73660) — 158 parça

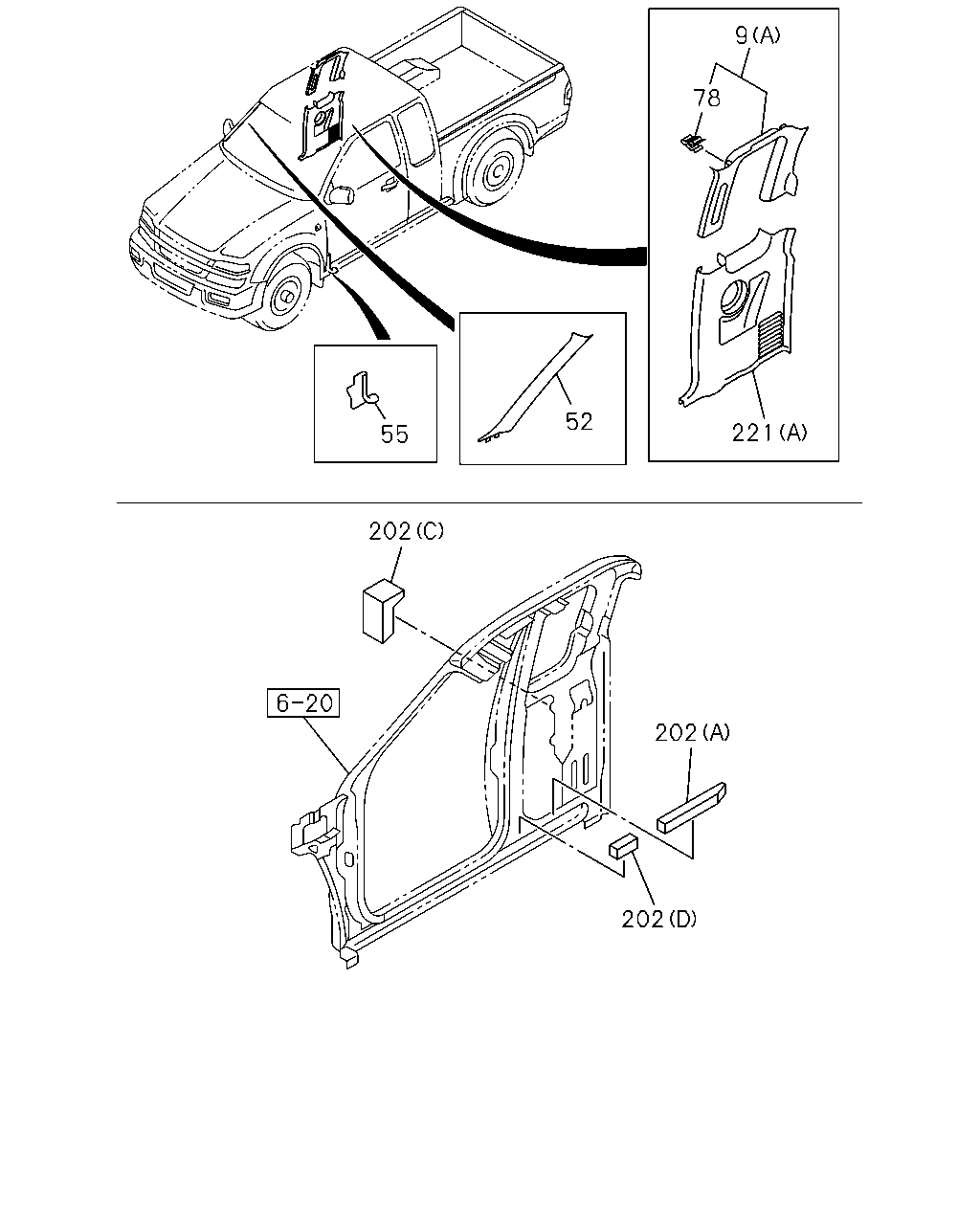

çizim 117823
9 78 52 221 55 202 202 202
BalonParca AdiParca NoAdetTipApplied Date A B C D E
9 16.575 TRIM; SIDE PANEL,UPR
(A) GRAY THA 		8-97396-638-5 01 1 0404-0609 ● ●
9 16.575 TRIM; SIDE PANEL,UPR
(A) GRAY THA 		8-97408-891-0 01 1 0610- ● ●
9 16.575 TRIM; SIDE PANEL,UPR
(A) GRAY THA 		8-97396-639-5 01 1 0404-0609 ● ●
9 16.575 TRIM; SIDE PANEL,UPR
(A) GRAY THA 		8-97408-893-0 01 1 0610- ● ●
9 16.575 TRIM; SIDE PANEL,UPR
(B) GRAY THA 		8-97396-640-5 01 1 0404-0609 ●
9 16.575 TRIM; SIDE PANEL,UPR
(B) GRAY THA 		8-97408-895-0 01 1 0610- ●
9 16.575 TRIM; SIDE PANEL,UPR
(B) GRAY THA 		8-97396-641-5 01 1 0404-0609 ●
9 16.575 TRIM; SIDE PANEL,UPR
(B) GRAY THA 		8-97408-897-0 01 1 0610- ●
9 16.575 TRIM; SIDE PANEL,UPR
(C) GRAY THA 		8-97396-636-2 01 1 0404-0609 ● ●
9 16.575 TRIM; SIDE PANEL,UPR
(C) GRAY THA 		8-97408-887-0 01 1 0610- ● ●
9 16.575 TRIM; SIDE PANEL,UPR
(C) GRAY THA 		8-97396-637-2 01 1 0404-0609 ● ●
9 16.575 TRIM; SIDE PANEL,UPR
(C) GRAY THA 		8-97408-889-0 01 1 0610- ● ●
52 16.165 COVER; TRIM,FRT PILLAR
LIGHT GRAY THA 		8-97298-426-5 01 1 0404-0609 ● ● ● ● ●
52 16.165 COVER; TRIM,FRT PILLAR
GRAY THA 		8-97408-870-0 01 1 0610- ● ● ● ● ●
52 16.165 COVER; TRIM,FRT PILLAR
LIGHT GRAY THA 		8-97298-427-5 01 1 0404-0609 ● ● ● ● ●
52 16.165 COVER; TRIM,FRT PILLAR
GRAY THA 		8-97408-872-0 01 1 0610- ● ● ● ● ●
55 16.166 PAD; TRIM,DASH SIDE
16.550 GRAY THA 		8-97396-622-0 01 1 0404-0609 ● ● ● ● ●
55 16.166 PAD; TRIM,DASH SIDE
BEIGE THA 		8-97403-460-0 01 1 0610- ● ● ● ● ●
55 16.166 PAD; TRIM,DASH SIDE
16.550 GRAY THA 		8-97396-623-0 01 1 0404-0609 ● ● ● ● ●
55 16.166 PAD; TRIM,DASH SIDE
BEIGE THA 		8-97403-462-0 01 1 0610- ● ● ● ● ●
78 16.165 CLIP; TRIM PAD,SIDE PANEL
THA 		8-97319-704-0 14 1 0404-0609 ● ●
78 16.165 CLIP; TRIM PAD,SIDE PANEL
THA 		8-98057-469-0 14 1 0610- ● ●
78 16.165 CLIP; TRIM PAD,SIDE PANEL
THA 		8-97319-704-0 06 1 0404-0609 ●
78 16.165 CLIP; TRIM PAD,SIDE PANEL
THA 		8-98057-469-0 06 1 0610- ●
78 16.165 CLIP; TRIM PAD,SIDE PANEL
THA 		8-97319-704-0 12 1 0404-0609 ● ●
78 16.165 CLIP; TRIM PAD,SIDE PANEL
THA 		8-98057-469-0 12 1 0610- ● ●
202 16.575 SEAL; CENTER PILLAR
(D) THA 		8-97362-561-0 02 1 0404- ● ● ● ● ●
202 16.575 SEAL; CENTER PILLAR
(A) THA 		8-97362-560-0 02 1 0404- ● ●
202 16.575 SEAL; CENTER PILLAR
(C) THA 		8-97362-562-0 02 1 0404- ● ●
202 16.575 SEAL; CENTER PILLAR
(B) THA 		8-97362-563-0 04 1 0404- ● ●
221 16.592 TRIM; SIDE PANEL,LOWER
(A) GRAY THA 		8-97396-630-2 01 1 0404-0609 ● ●
221 16.592 TRIM; SIDE PANEL,LOWER
(A) BEIGE THA 		8-97403-553-2 01 1 0610- ● ●
221 16.592 TRIM; SIDE PANEL,LOWER
(A) GRAY THA 		8-97396-631-2 01 1 0404-0609 ● ●
221 16.592 TRIM; SIDE PANEL,LOWER
(A) BEIGE THA 		8-97403-555-2 01 1 0610- ● ●
221 16.592 TRIM; SIDE PANEL,LOWER
GRADE BASE<RBA> (B) GRAY THA 		8-97396-634-1 01 1 0404-0409 ●
221 16.592 TRIM; SIDE PANEL,LOWER
(B) GRAY THA 		8-97396-634-1 01 1 0410-0508 ●
221 16.592 TRIM; SIDE PANEL,LOWER
GRADE BASE<RBA> (B) GRAY THA 		8-97396-634-1 01 1 0509-0609 ●
221 16.592 TRIM; SIDE PANEL,LOWER
GRADE BASE<RBA> (B) BEIGE THA 		8-97408-883-0 01 1 0610-0809 ●
221 16.592 TRIM; SIDE PANEL,LOWER
(B) BEIGE THA 		8-97408-883-0 01 1 0810- ●
221 16.592 TRIM; SIDE PANEL,LOWER
GRADE BASE<RBA> (B) GRAY THA 		8-97396-635-1 01 1 0404-0409 ●
221 16.592 TRIM; SIDE PANEL,LOWER
(B) GRAY THA 		8-97396-635-1 01 1 0410-0508 ●
221 16.592 TRIM; SIDE PANEL,LOWER
GRADE BASE<RBA> (B) GRAY THA 		8-97396-635-1 01 1 0509-0609 ●
221 16.592 TRIM; SIDE PANEL,LOWER
GRADE BASE<RBA> (B) BEIGE THA 		8-97408-885-0 01 1 0610-0809 ●
221 16.592 TRIM; SIDE PANEL,LOWER
(B) BEIGE THA 		8-97408-885-0 01 1 0810- ●
221 16.592 TRIM; SIDE PANEL,LOWER
GRADE LS<RBB> (D) GRAY THA 		8-97396-632-1 01 1 0404-0409 ●
221 16.592 TRIM; SIDE PANEL,LOWER
GRADE LS<RBB> (D) GRAY THA 		8-97396-629-1 01 1 0404-0409 ●
221 16.592 TRIM; SIDE PANEL,LOWER
(C) GRAY THA 		8-97396-628-1 01 1 0404-0609 ● ●
221 16.592 TRIM; SIDE PANEL,LOWER
(C) BEIGE THA 		8-97403-549-1 01 1 0610- ● ●
221 16.592 TRIM; SIDE PANEL,LOWER
(C) GRAY THA 		8-97396-633-1 01 1 0404-0609 ● ●
221 16.592 TRIM; SIDE PANEL,LOWER
(C) BEIGE THA 		8-97403-551-1 01 1 0610- ● ●

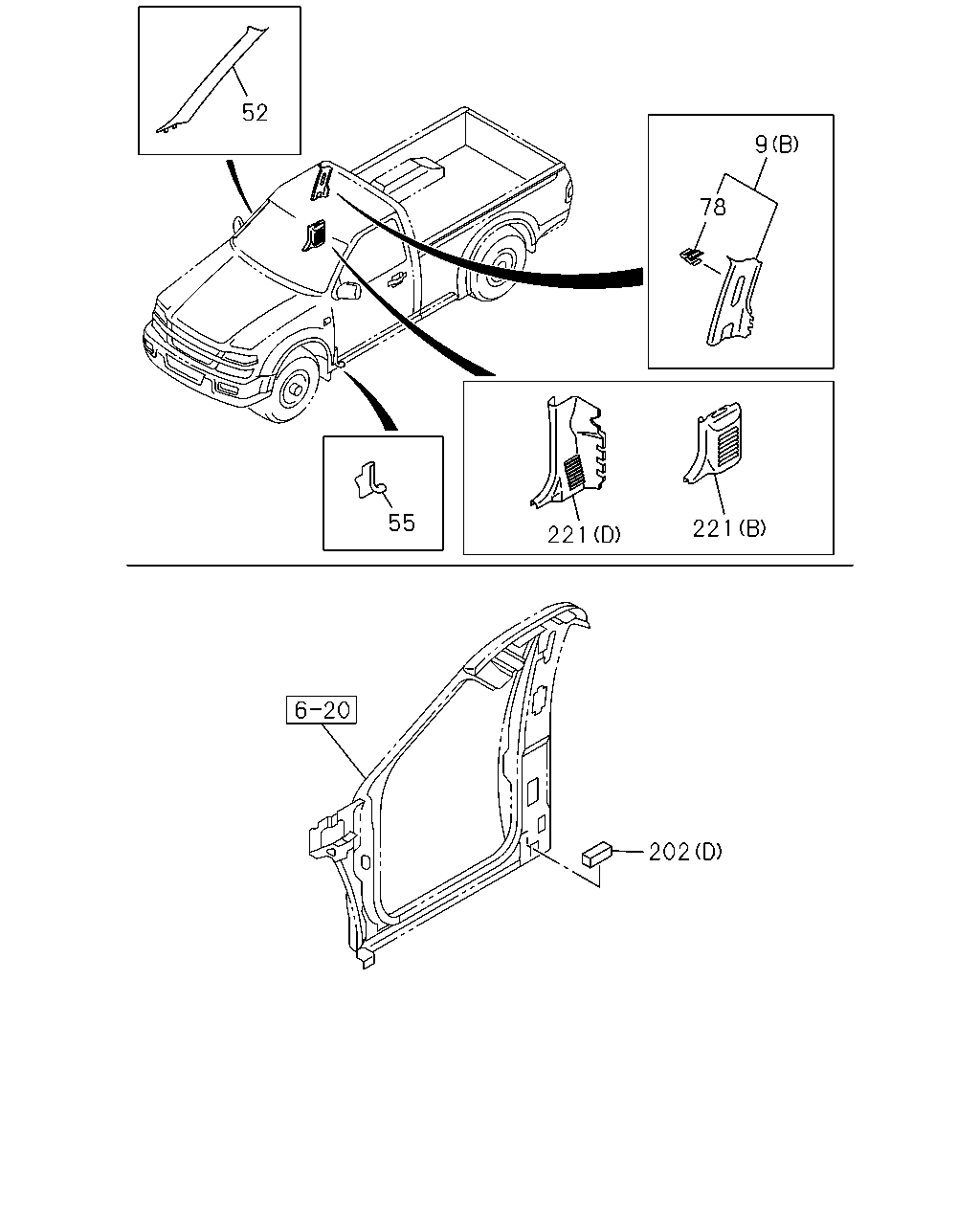

çizim 117831
52 9 78 55 221 221 202
BalonParca AdiParca NoAdetTipApplied Date A B C D E
9 16.575 TRIM; SIDE PANEL,UPR
(A) GRAY THA 		8-97396-638-5 01 1 0404-0609 ● ●
9 16.575 TRIM; SIDE PANEL,UPR
(A) GRAY THA 		8-97408-891-0 01 1 0610- ● ●
9 16.575 TRIM; SIDE PANEL,UPR
(A) GRAY THA 		8-97396-639-5 01 1 0404-0609 ● ●
9 16.575 TRIM; SIDE PANEL,UPR
(A) GRAY THA 		8-97408-893-0 01 1 0610- ● ●
9 16.575 TRIM; SIDE PANEL,UPR
(B) GRAY THA 		8-97396-640-5 01 1 0404-0609 ●
9 16.575 TRIM; SIDE PANEL,UPR
(B) GRAY THA 		8-97408-895-0 01 1 0610- ●
9 16.575 TRIM; SIDE PANEL,UPR
(B) GRAY THA 		8-97396-641-5 01 1 0404-0609 ●
9 16.575 TRIM; SIDE PANEL,UPR
(B) GRAY THA 		8-97408-897-0 01 1 0610- ●
9 16.575 TRIM; SIDE PANEL,UPR
(C) GRAY THA 		8-97396-636-2 01 1 0404-0609 ● ●
9 16.575 TRIM; SIDE PANEL,UPR
(C) GRAY THA 		8-97408-887-0 01 1 0610- ● ●
9 16.575 TRIM; SIDE PANEL,UPR
(C) GRAY THA 		8-97396-637-2 01 1 0404-0609 ● ●
9 16.575 TRIM; SIDE PANEL,UPR
(C) GRAY THA 		8-97408-889-0 01 1 0610- ● ●
52 16.165 COVER; TRIM,FRT PILLAR
LIGHT GRAY THA 		8-97298-426-5 01 1 0404-0609 ● ● ● ● ●
52 16.165 COVER; TRIM,FRT PILLAR
GRAY THA 		8-97408-870-0 01 1 0610- ● ● ● ● ●
52 16.165 COVER; TRIM,FRT PILLAR
LIGHT GRAY THA 		8-97298-427-5 01 1 0404-0609 ● ● ● ● ●
52 16.165 COVER; TRIM,FRT PILLAR
GRAY THA 		8-97408-872-0 01 1 0610- ● ● ● ● ●
55 16.166 PAD; TRIM,DASH SIDE
16.550 GRAY THA 		8-97396-622-0 01 1 0404-0609 ● ● ● ● ●
55 16.166 PAD; TRIM,DASH SIDE
BEIGE THA 		8-97403-460-0 01 1 0610- ● ● ● ● ●
55 16.166 PAD; TRIM,DASH SIDE
16.550 GRAY THA 		8-97396-623-0 01 1 0404-0609 ● ● ● ● ●
55 16.166 PAD; TRIM,DASH SIDE
BEIGE THA 		8-97403-462-0 01 1 0610- ● ● ● ● ●
78 16.165 CLIP; TRIM PAD,SIDE PANEL
THA 		8-97319-704-0 14 1 0404-0609 ● ●
78 16.165 CLIP; TRIM PAD,SIDE PANEL
THA 		8-98057-469-0 14 1 0610- ● ●
78 16.165 CLIP; TRIM PAD,SIDE PANEL
THA 		8-97319-704-0 06 1 0404-0609 ●
78 16.165 CLIP; TRIM PAD,SIDE PANEL
THA 		8-98057-469-0 06 1 0610- ●
78 16.165 CLIP; TRIM PAD,SIDE PANEL
THA 		8-97319-704-0 12 1 0404-0609 ● ●
78 16.165 CLIP; TRIM PAD,SIDE PANEL
THA 		8-98057-469-0 12 1 0610- ● ●
202 16.575 SEAL; CENTER PILLAR
(D) THA 		8-97362-561-0 02 1 0404- ● ● ● ● ●
202 16.575 SEAL; CENTER PILLAR
(A) THA 		8-97362-560-0 02 1 0404- ● ●
202 16.575 SEAL; CENTER PILLAR
(C) THA 		8-97362-562-0 02 1 0404- ● ●
202 16.575 SEAL; CENTER PILLAR
(B) THA 		8-97362-563-0 04 1 0404- ● ●
221 16.592 TRIM; SIDE PANEL,LOWER
(A) GRAY THA 		8-97396-630-2 01 1 0404-0609 ● ●
221 16.592 TRIM; SIDE PANEL,LOWER
(A) BEIGE THA 		8-97403-553-2 01 1 0610- ● ●
221 16.592 TRIM; SIDE PANEL,LOWER
(A) GRAY THA 		8-97396-631-2 01 1 0404-0609 ● ●
221 16.592 TRIM; SIDE PANEL,LOWER
(A) BEIGE THA 		8-97403-555-2 01 1 0610- ● ●
221 16.592 TRIM; SIDE PANEL,LOWER
GRADE BASE<RBA> (B) GRAY THA 		8-97396-634-1 01 1 0404-0409 ●
221 16.592 TRIM; SIDE PANEL,LOWER
(B) GRAY THA 		8-97396-634-1 01 1 0410-0508 ●
221 16.592 TRIM; SIDE PANEL,LOWER
GRADE BASE<RBA> (B) GRAY THA 		8-97396-634-1 01 1 0509-0609 ●
221 16.592 TRIM; SIDE PANEL,LOWER
GRADE BASE<RBA> (B) BEIGE THA 		8-97408-883-0 01 1 0610-0809 ●
221 16.592 TRIM; SIDE PANEL,LOWER
(B) BEIGE THA 		8-97408-883-0 01 1 0810- ●
221 16.592 TRIM; SIDE PANEL,LOWER
GRADE BASE<RBA> (B) GRAY THA 		8-97396-635-1 01 1 0404-0409 ●
221 16.592 TRIM; SIDE PANEL,LOWER
(B) GRAY THA 		8-97396-635-1 01 1 0410-0508 ●
221 16.592 TRIM; SIDE PANEL,LOWER
GRADE BASE<RBA> (B) GRAY THA 		8-97396-635-1 01 1 0509-0609 ●
221 16.592 TRIM; SIDE PANEL,LOWER
GRADE BASE<RBA> (B) BEIGE THA 		8-97408-885-0 01 1 0610-0809 ●
221 16.592 TRIM; SIDE PANEL,LOWER
(B) BEIGE THA 		8-97408-885-0 01 1 0810- ●
221 16.592 TRIM; SIDE PANEL,LOWER
GRADE LS<RBB> (D) GRAY THA 		8-97396-632-1 01 1 0404-0409 ●
221 16.592 TRIM; SIDE PANEL,LOWER
GRADE LS<RBB> (D) GRAY THA 		8-97396-629-1 01 1 0404-0409 ●
221 16.592 TRIM; SIDE PANEL,LOWER
(C) GRAY THA 		8-97396-628-1 01 1 0404-0609 ● ●
221 16.592 TRIM; SIDE PANEL,LOWER
(C) BEIGE THA 		8-97403-549-1 01 1 0610- ● ●
221 16.592 TRIM; SIDE PANEL,LOWER
(C) GRAY THA 		8-97396-633-1 01 1 0404-0609 ● ●
221 16.592 TRIM; SIDE PANEL,LOWER
(C) BEIGE THA 		8-97403-551-1 01 1 0610- ● ●

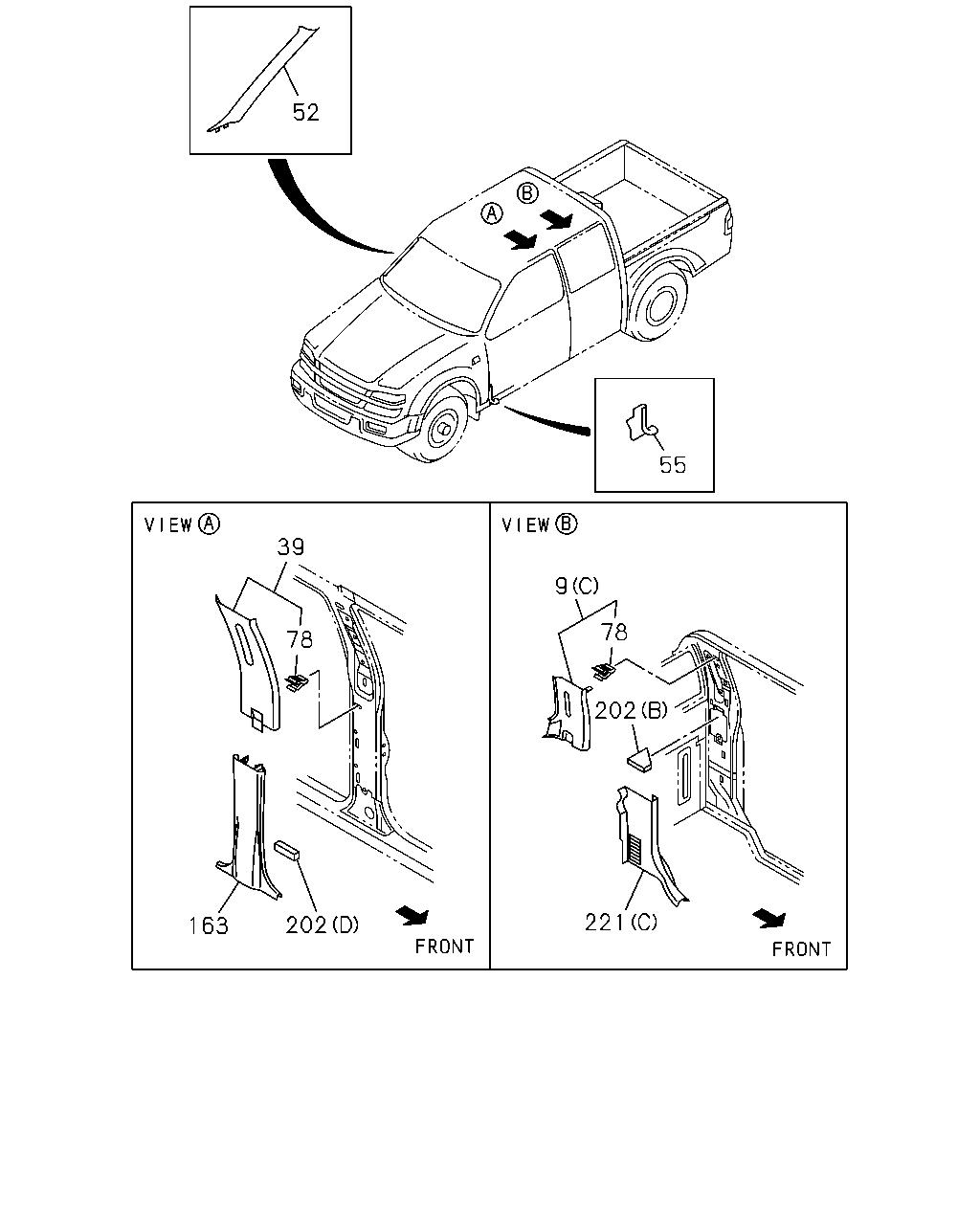

çizim 117840
52 55 39 9 78 78 202 221 202 163
BalonParca AdiParca NoAdetTipApplied Date A B C D E
9 16.575 TRIM; SIDE PANEL,UPR
(A) GRAY THA 		8-97396-638-5 01 1 0404-0609 ● ●
9 16.575 TRIM; SIDE PANEL,UPR
(A) GRAY THA 		8-97408-891-0 01 1 0610- ● ●
9 16.575 TRIM; SIDE PANEL,UPR
(A) GRAY THA 		8-97396-639-5 01 1 0404-0609 ● ●
9 16.575 TRIM; SIDE PANEL,UPR
(A) GRAY THA 		8-97408-893-0 01 1 0610- ● ●
9 16.575 TRIM; SIDE PANEL,UPR
(B) GRAY THA 		8-97396-640-5 01 1 0404-0609 ●
9 16.575 TRIM; SIDE PANEL,UPR
(B) GRAY THA 		8-97408-895-0 01 1 0610- ●
9 16.575 TRIM; SIDE PANEL,UPR
(B) GRAY THA 		8-97396-641-5 01 1 0404-0609 ●
9 16.575 TRIM; SIDE PANEL,UPR
(B) GRAY THA 		8-97408-897-0 01 1 0610- ●
9 16.575 TRIM; SIDE PANEL,UPR
(C) GRAY THA 		8-97396-636-2 01 1 0404-0609 ● ●
9 16.575 TRIM; SIDE PANEL,UPR
(C) GRAY THA 		8-97408-887-0 01 1 0610- ● ●
9 16.575 TRIM; SIDE PANEL,UPR
(C) GRAY THA 		8-97396-637-2 01 1 0404-0609 ● ●
9 16.575 TRIM; SIDE PANEL,UPR
(C) GRAY THA 		8-97408-889-0 01 1 0610- ● ●
39 16.575 COVER; TRIM,CENTER PILLAR
GRAY THA 		8-97396-624-1 01 1 0404-0609 ● ●
39 16.575 COVER; TRIM,CENTER PILLAR
GRAY THA 		8-97408-879-0 01 1 0610- ● ●
39 16.575 COVER; TRIM,CENTER PILLAR
GRAY THA 		8-97396-625-1 01 1 0404-0609 ● ●
39 16.575 COVER; TRIM,CENTER PILLAR
GRAY THA 		8-97408-881-0 01 1 0610- ● ●
52 16.165 COVER; TRIM,FRT PILLAR
LIGHT GRAY THA 		8-97298-426-5 01 1 0404-0609 ● ● ● ● ●
52 16.165 COVER; TRIM,FRT PILLAR
GRAY THA 		8-97408-870-0 01 1 0610- ● ● ● ● ●
52 16.165 COVER; TRIM,FRT PILLAR
LIGHT GRAY THA 		8-97298-427-5 01 1 0404-0609 ● ● ● ● ●
52 16.165 COVER; TRIM,FRT PILLAR
GRAY THA 		8-97408-872-0 01 1 0610- ● ● ● ● ●
55 16.166 PAD; TRIM,DASH SIDE
16.550 GRAY THA 		8-97396-622-0 01 1 0404-0609 ● ● ● ● ●
55 16.166 PAD; TRIM,DASH SIDE
BEIGE THA 		8-97403-460-0 01 1 0610- ● ● ● ● ●
55 16.166 PAD; TRIM,DASH SIDE
16.550 GRAY THA 		8-97396-623-0 01 1 0404-0609 ● ● ● ● ●
55 16.166 PAD; TRIM,DASH SIDE
BEIGE THA 		8-97403-462-0 01 1 0610- ● ● ● ● ●
78 16.165 CLIP; TRIM PAD,SIDE PANEL
THA 		8-97319-704-0 14 1 0404-0609 ● ●
78 16.165 CLIP; TRIM PAD,SIDE PANEL
THA 		8-98057-469-0 14 1 0610- ● ●
78 16.165 CLIP; TRIM PAD,SIDE PANEL
THA 		8-97319-704-0 06 1 0404-0609 ●
78 16.165 CLIP; TRIM PAD,SIDE PANEL
THA 		8-98057-469-0 06 1 0610- ●
78 16.165 CLIP; TRIM PAD,SIDE PANEL
THA 		8-97319-704-0 12 1 0404-0609 ● ●
78 16.165 CLIP; TRIM PAD,SIDE PANEL
THA 		8-98057-469-0 12 1 0610- ● ●
163 16.575 COVER; TRIM,CENTER PILLAR,LWR
GRAY THA 		8-97396-626-3 01 1 0404-0609 ● ●
163 16.575 COVER; TRIM,CENTER PILLAR,LWR
BEIGE THA 		8-97403-545-3 01 1 0610- ● ●
163 16.575 COVER; TRIM,CENTER PILLAR,LWR
GRAY THA 		8-97396-627-3 01 1 0404-0609 ● ●
163 16.575 COVER; TRIM,CENTER PILLAR,LWR
BEIGE THA 		8-97403-547-3 01 1 0610- ● ●
202 16.575 SEAL; CENTER PILLAR
(D) THA 		8-97362-561-0 02 1 0404- ● ● ● ● ●
202 16.575 SEAL; CENTER PILLAR
(A) THA 		8-97362-560-0 02 1 0404- ● ●
202 16.575 SEAL; CENTER PILLAR
(C) THA 		8-97362-562-0 02 1 0404- ● ●
202 16.575 SEAL; CENTER PILLAR
(B) THA 		8-97362-563-0 04 1 0404- ● ●
221 16.592 TRIM; SIDE PANEL,LOWER
(A) GRAY THA 		8-97396-630-2 01 1 0404-0609 ● ●
221 16.592 TRIM; SIDE PANEL,LOWER
(A) BEIGE THA 		8-97403-553-2 01 1 0610- ● ●
221 16.592 TRIM; SIDE PANEL,LOWER
(A) GRAY THA 		8-97396-631-2 01 1 0404-0609 ● ●
221 16.592 TRIM; SIDE PANEL,LOWER
(A) BEIGE THA 		8-97403-555-2 01 1 0610- ● ●
221 16.592 TRIM; SIDE PANEL,LOWER
GRADE BASE<RBA> (B) GRAY THA 		8-97396-634-1 01 1 0404-0409 ●
221 16.592 TRIM; SIDE PANEL,LOWER
(B) GRAY THA 		8-97396-634-1 01 1 0410-0508 ●
221 16.592 TRIM; SIDE PANEL,LOWER
GRADE BASE<RBA> (B) GRAY THA 		8-97396-634-1 01 1 0509-0609 ●
221 16.592 TRIM; SIDE PANEL,LOWER
GRADE BASE<RBA> (B) BEIGE THA 		8-97408-883-0 01 1 0610-0809 ●
221 16.592 TRIM; SIDE PANEL,LOWER
(B) BEIGE THA 		8-97408-883-0 01 1 0810- ●
221 16.592 TRIM; SIDE PANEL,LOWER
GRADE BASE<RBA> (B) GRAY THA 		8-97396-635-1 01 1 0404-0409 ●
221 16.592 TRIM; SIDE PANEL,LOWER
(B) GRAY THA 		8-97396-635-1 01 1 0410-0508 ●
221 16.592 TRIM; SIDE PANEL,LOWER
GRADE BASE<RBA> (B) GRAY THA 		8-97396-635-1 01 1 0509-0609 ●
221 16.592 TRIM; SIDE PANEL,LOWER
GRADE BASE<RBA> (B) BEIGE THA 		8-97408-885-0 01 1 0610-0809 ●
221 16.592 TRIM; SIDE PANEL,LOWER
(B) BEIGE THA 		8-97408-885-0 01 1 0810- ●
221 16.592 TRIM; SIDE PANEL,LOWER
GRADE LS<RBB> (D) GRAY THA 		8-97396-632-1 01 1 0404-0409 ●
221 16.592 TRIM; SIDE PANEL,LOWER
GRADE LS<RBB> (D) GRAY THA 		8-97396-629-1 01 1 0404-0409 ●
221 16.592 TRIM; SIDE PANEL,LOWER
(C) GRAY THA 		8-97396-628-1 01 1 0404-0609 ● ●
221 16.592 TRIM; SIDE PANEL,LOWER
(C) BEIGE THA 		8-97403-549-1 01 1 0610- ● ●
221 16.592 TRIM; SIDE PANEL,LOWER
(C) GRAY THA 		8-97396-633-1 01 1 0404-0609 ● ●
221 16.592 TRIM; SIDE PANEL,LOWER
(C) BEIGE THA 		8-97403-551-1 01 1 0610- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
