2-05C — CLUTCH PIPING (#7366) — 138 parça

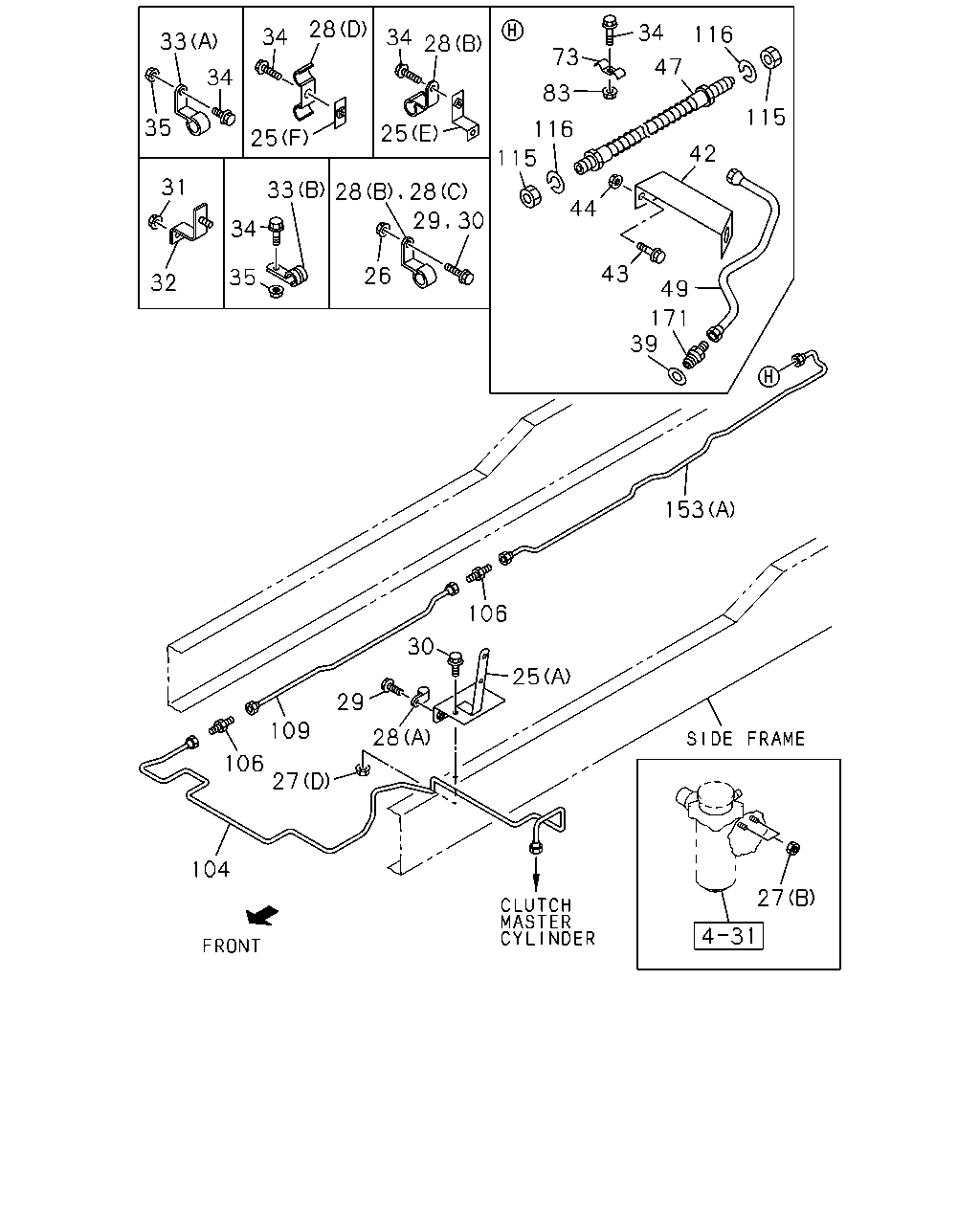

çizim 6730
28 34 116 34 34 33 28 73 47 34 83 115 35 116 25 25 42 115 31 33 44 34 43 26 35 32 49 171 39 153 106 30 25 29 109 28 106 27 104 27 28 28 29 30
BalonParca AdiParca NoAdetTipApplied Date A B
25 BRACKET; OIL PIPE
(F) L=50 		1-47475-299-2 01 1 9812-9901 ● ●
25 BRACKET; OIL PIPE
(E) 		1-47475-881-0 01 1 9812- ● ●
25 BRACKET; OIL PIPE
(A) 		1-47478-281-0 01 1 9812-9904 ● ●
25 BRACKET; OIL PIPE
EXC. CAB UP +110MM<TGG> (A) 		1-47478-281-1 01 1 9905- ●
25 BRACKET; OIL PIPE
(B) 		1-71907-377-3 01 1 9812- ● ●
25 BRACKET; OIL PIPE
(F) L=50 		1-47475-299-2 01 1 9904- ● ●
25 BRACKET; OIL PIPE
CAB UP +110MM<TGG> (A) 		1-47478-582-1 01 1 9905- ●
25 BRACKET; OIL PIPE
(F) L=50 		1-47475-299-2 02 1 9905- ● ●
26 NUT; CLIP,OIL PIPE
M8 FLANGE 		0-91150-108-0 02 1 9812-9903 ● ●
26 NUT; CLIP,OIL PIPE
M8 FLANGE 		0-91150-108-0 01 1 9904-0002 ● ●
26 NUT; CLIP,OIL PIPE
M8 FLANGE 		0-91150-108-0 02 1 0003- ● ●
27 NUT; BRKT
(D) M8 FLANGE 		0-91150-108-0 01 1 9812- ● ●
27 NUT; BRKT
(D) M8 FLANGE 		0-91150-108-0 02 1 9812- ● ●
27 NUT; BRKT
(B) M10 FLANGE 		0-91150-210-0 02 1 9812- ● ●
27 NUT; BRKT
(A) M6 FLANGE W/RUBBER 		1-09984-180-0 01 1 9812- ● ●
27 NUT; BRKT
(C) M8 CUTTING NUT W/FLANGE 		1-09985-340-0 04 1 9812- ● ●
28 CLIP; OIL PIPE
(C) ID=16 & 9 L=18 & 17 		1-09700-669-0 01 1 9812- ● ●
28 CLIP; OIL PIPE
(D) ID=16 & 9 L=21 & 18 		1-09700-676-0 01 1 9812-9901 ● ●
28 CLIP; OIL PIPE
(B) ID=8 H=20 L=20 		1-09700-604-0 01 1 9902-0002 ● ●
28 CLIP; OIL PIPE
(D) ID=16 & 9 L=21 & 18 		1-09700-676-0 01 1 0003- ● ●
28 CLIP; OIL PIPE
(A) ID=9 L=20 		9-09524-835-0 01 1 9812-9903 ● ●
28 CLIP; OIL PIPE
(D) ID=16 & 9 L=21 & 18 		1-09700-676-0 02 1 9905- ● ●
29 BOLT; CLIP,OIL PIPE
M8X20 FLANGE 		0-28680-820-0 02 1 9812-0002 ● ●
29 BOLT; CLIP,OIL PIPE
M8X20 FLANGE 		0-28680-820-0 02 1 0003- ● ●
29 BOLT; CLIP,OIL PIPE
M8X25 FLANGE 		0-28680-825-0 01 1 9812-9903 ● ●
30 BOLT; BRKT
M8X30 FLANGE 		0-28680-830-0 01 1 9812- ● ●
30 BOLT; BRKT
M8X35 FLANGE 		0-28680-835-0 02 1 9812- ● ●
30 BOLT; BRKT
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 02 1 9812- ● ●
31 NUT; BRKT
M8 FLANGE 		0-91150-108-0 01 1 9905- ● ●
32 BRACKET; CLIP OIL PIPE 1-47477-235-0 01 1 9905- ● ●
33 CLIP; OIL PIPE
(A) ID=8 H=20 L=20 		1-09700-604-0 02 1 9812-9901 ● ●
33 CLIP; OIL PIPE
(A) ID=8 H=20 L=20 		1-09700-604-0 02 1 9905- ● ●
33 CLIP; OIL PIPE
(B) ID=9 L=20 		9-09524-835-0 01 1 9905- ● ●
33 CLIP; OIL PIPE
(A) ID=8 H=20 L=20 		1-09700-604-0 03 1 9906-0002 ● ●
33 CLIP; OIL PIPE
(A) ID=8 H=20 L=20 		1-09700-604-0 04 1 0003-0101 ● ●
33 CLIP; OIL PIPE
(A) ID=8 H=20 L=20 		1-09700-604-0 03 1 0102- ● ●
34 BOLT; PIPE CLIP
M8X30 FLANGE 		0-28680-830-0 02 1 9812-9901 ● ●
34 BOLT; PIPE CLIP
M8X30 FLANGE 		0-28680-830-0 01 1 9902-9904 ● ●
34 BOLT; PIPE CLIP
M8X30 FLANGE 		0-28680-830-0 01 1 9902-9904 ● ●
34 BOLT; PIPE CLIP
M8X30 FLANGE 		0-28680-830-0 01 1 9905-9905 ● ●
34 BOLT; PIPE CLIP
M8X30 FLANGE 		0-28680-830-0 03 1 9906-0002 ● ●
34 BOLT; PIPE CLIP
M8X30 FLANGE 		0-28680-830-0 04 1 0003-0101 ● ●
34 BOLT; PIPE CLIP
M8X30 FLANGE 		0-28680-830-0 01 1 9812-9901 ● ●
34 BOLT; PIPE CLIP
M8X30 FLANGE 		0-28680-830-0 02 1 9905- ● ●
34 BOLT; PIPE CLIP
M8X20 FLANGE 		0-28080-820-0 01 1 9905- ● ●
34 BOLT; PIPE CLIP
M8X30 FLANGE 		0-28680-830-0 03 1 0102- ● ●
35 NUT; PIPE CLIP
M8 FLANGE 		0-91150-108-0 02 1 9812-9901 ● ●
35 NUT; PIPE CLIP
M8 FLANGE 		0-91150-108-0 01 1 9902-9904 ● ●
35 NUT; PIPE CLIP
M8 FLANGE 		0-91150-108-0 01 1 9902-9904 ● ●
35 NUT; PIPE CLIP
M8 FLANGE 		0-91150-108-0 01 1 9905-9905 ● ●
35 NUT; PIPE CLIP
M8 FLANGE 		0-91150-108-0 01 1 9812-9901 ● ●
35 NUT; PIPE CLIP
M8 FLANGE 		0-91150-108-0 03 1 9905-9905 ● ●
35 NUT; PIPE CLIP
M8 FLANGE 		0-91150-108-0 03 1 9906-0002 ● ●
35 NUT; PIPE CLIP
M8 FLANGE 		0-91150-108-0 03 1 9906-0002 ● ●
35 NUT; PIPE CLIP
M8 FLANGE 		0-91150-108-0 03 1 0003-0101 ● ●
35 NUT; PIPE CLIP
M8 FLANGE 		0-91150-108-0 04 1 0003-0101 ● ●
35 NUT; PIPE CLIP
M8 FLANGE 		0-91150-108-0 03 1 0102- ● ●
35 NUT; PIPE CLIP
M8 FLANGE 		0-91150-108-0 03 1 0102- ● ●
39 GASKET; CONNECTOR
ID=10.2 OD=16.0 		9-09571-410-0 01 1 9905- ● ●
42 BRACKET; FLEX HOSE,CLU CONT 1-47477-724-0 01 1 9905-9912 ● ●
42 BRACKET; FLEX HOSE,CLU CONT 1-47478-796-0 01 1 0001- ● ●
43 BOLT; BRKT,FLEX HOSE,CLU BOOSTER
M8X30 FLANGE 		0-28680-830-0 02 1 9905-9905 ● ●
43 BOLT; BRKT,FLEX HOSE,CLU BOOSTER
M8X30 FLANGE 		0-28680-830-0 02 1 9906- ● ●
44 NUT; BRKT,FLEX HOSE,CLU BOOSTER
M8 FLANGE 		0-91150-108-0 02 1 9905-9905 ● ●
44 NUT; BRKT,FLEX HOSE,CLU BOOSTER
M8 FLANGE 		0-91150-108-0 02 1 9906-9912 ● ●
47 HOSE; FLEX,CLU CONT
L=420 		1-09364-615-0 01 1 9905-9912 ● ●
47 HOSE; FLEX,CLU CONT
L=445 		1-09364-478-0 01 1 0001- ● ●
49 PIPE; AIR,FLEX HOSE TO CLU BOOSTER 1-49161-120-0 01 1 9905- ● ●
73 CLIP; OIL PIPE
ID=16 & 9 L=21 & 18 		1-09700-676-0 01 1 9905- ● ●
83 NUT; PIPE CLIP
M8 		9-09110-408-0 01 1 9905- ● ●
104 PIPE; OIL,FLEX HOSE TO CONNECTOR
L=2213 		1-47429-325-0 01 1 9812-9903 ● ●
104 PIPE; OIL,FLEX HOSE TO CONNECTOR
L=2284 SERVICED BY L=2400 		1-47426-395-0 01 1 9904- ● ●
106 UNION; OIL PIPE
M14 STRAIGHT 		9-09223-008-1 01 1 9905- ● ●
106 UNION; OIL PIPE
M14 STRAIGHT 		9-09223-008-1 01 1 9905- ● ●
109 PIPE; AIR,UNION TO UNION
L=1015 SERVICED BY L=1100 		1-47426-387-0 01 1 9905- ● ●
115 NUT; FLEX HOSE,CLU CONT
M14 		9-99111-414-0 02 1 9905- ● ●
116 WASHER; FLEX HOSE,CLU CONT
ID=14.2 		9-09150-514-0 02 1 9905- ● ●
153 PIPE ASM; CLU,UNION TO FLEX
(B) L=490 		1-47428-363-0 01 1 9812- ● ●
153 PIPE ASM; CLU,UNION TO FLEX
(A) L=1523 SERVICED BY L=1550 		1-47426-390-0 01 1 9905-9912 ● ●
153 PIPE ASM; CLU,UNION TO FLEX
(A) L=1544 SERVICED BY L=1550 		1-47426-390-0 01 1 0001- ● ●
171 CONNECTOR; CLU BOOSTER 1-09650-256-1 01 1 9905- ● ●

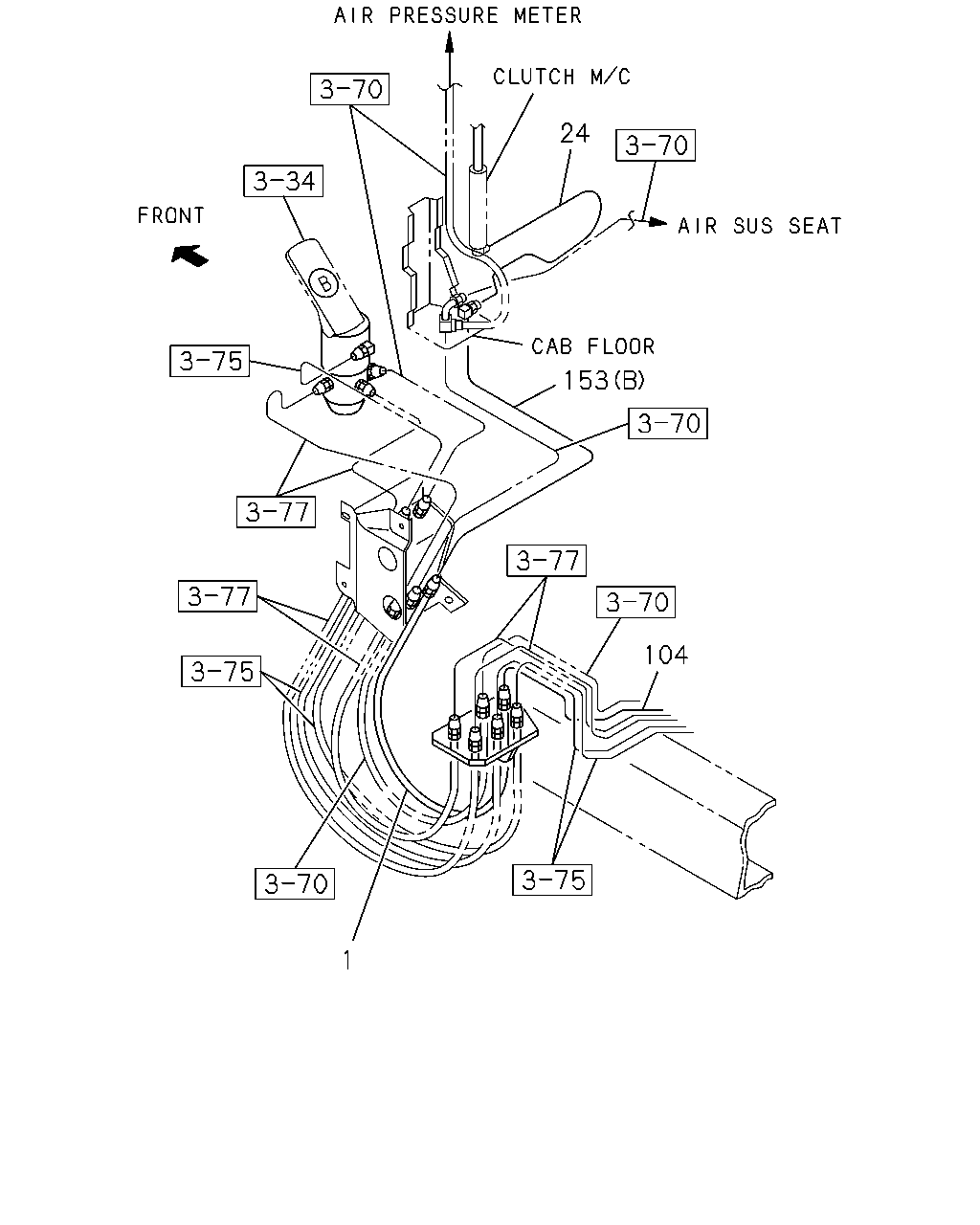

çizim 9009
24 153 104 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 HOSE; FLEX,CLU CONT
L=520 		1-09364-948-1 01 1 9812- ● ●
24 PIPE ASM; CLU,M/CYL TO UNION
L=621 		1-47428-362-1 01 1 9905- ● ●
104 PIPE; OIL,FLEX HOSE TO CONNECTOR
L=2213 		1-47429-325-0 01 1 9812-9903 ● ●
104 PIPE; OIL,FLEX HOSE TO CONNECTOR
L=2284 SERVICED BY L=2400 		1-47426-395-0 01 1 9904- ● ●
153 PIPE ASM; CLU,UNION TO FLEX
(B) L=490 		1-47428-363-0 01 1 9812- ● ●
153 PIPE ASM; CLU,UNION TO FLEX
(A) L=1523 SERVICED BY L=1550 		1-47426-390-0 01 1 9905-9912 ● ●
153 PIPE ASM; CLU,UNION TO FLEX
(A) L=1544 SERVICED BY L=1550 		1-47426-390-0 01 1 0001- ● ●

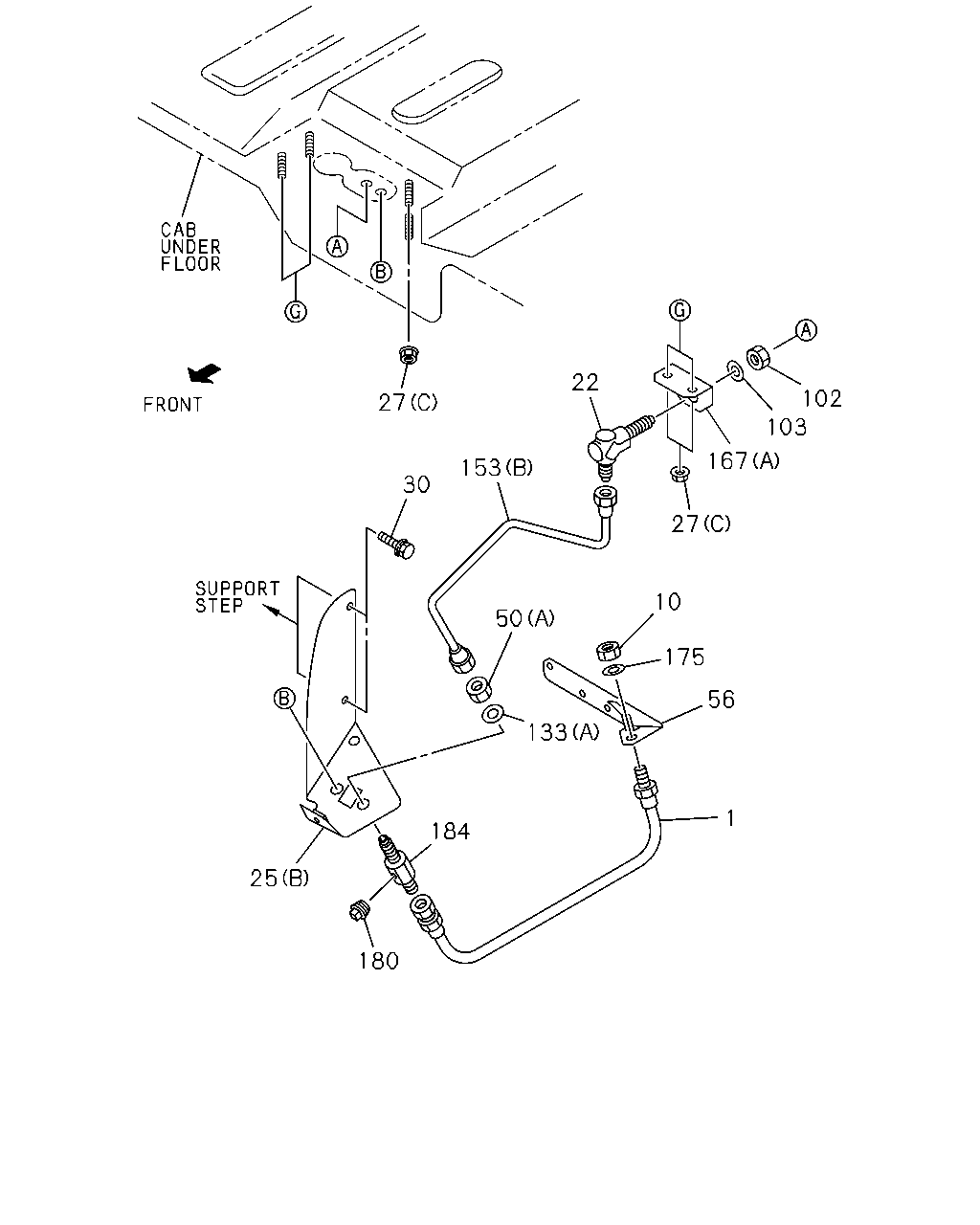

çizim 44064
22 102 103 27 167 153 30 27 10 50 175 56 133 1 184 25 180
BalonParca AdiParca NoAdetTipApplied Date A B
1 HOSE; FLEX,CLU CONT
L=520 		1-09364-948-1 01 1 9812- ● ●
10 NUT; FLEX HOSE,CLU CONT
M14 		9-99111-414-0 01 1 9812- ● ●
22 UNION; CLU PIPE
M14 		9-09225-208-1 01 1 9812- ● ●
25 BRACKET; OIL PIPE
(F) L=50 		1-47475-299-2 01 1 9812-9901 ● ●
25 BRACKET; OIL PIPE
(E) 		1-47475-881-0 01 1 9812- ● ●
25 BRACKET; OIL PIPE
(A) 		1-47478-281-0 01 1 9812-9904 ● ●
25 BRACKET; OIL PIPE
EXC. CAB UP +110MM<TGG> (A) 		1-47478-281-1 01 1 9905- ●
25 BRACKET; OIL PIPE
(B) 		1-71907-377-3 01 1 9812- ● ●
25 BRACKET; OIL PIPE
(F) L=50 		1-47475-299-2 01 1 9904- ● ●
25 BRACKET; OIL PIPE
CAB UP +110MM<TGG> (A) 		1-47478-582-1 01 1 9905- ●
25 BRACKET; OIL PIPE
(F) L=50 		1-47475-299-2 02 1 9905- ● ●
27 NUT; BRKT
(D) M8 FLANGE 		0-91150-108-0 01 1 9812- ● ●
27 NUT; BRKT
(D) M8 FLANGE 		0-91150-108-0 02 1 9812- ● ●
27 NUT; BRKT
(B) M10 FLANGE 		0-91150-210-0 02 1 9812- ● ●
27 NUT; BRKT
(A) M6 FLANGE W/RUBBER 		1-09984-180-0 01 1 9812- ● ●
27 NUT; BRKT
(C) M8 CUTTING NUT W/FLANGE 		1-09985-340-0 04 1 9812- ● ●
30 BOLT; BRKT
M8X30 FLANGE 		0-28680-830-0 01 1 9812- ● ●
30 BOLT; BRKT
M8X35 FLANGE 		0-28680-835-0 02 1 9812- ● ●
30 BOLT; BRKT
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 02 1 9812- ● ●
50 NUT; UNION
(A) M14 		9-99111-414-0 01 1 9812- ● ●
56 BRACKET; FLEX HOSE 1-47477-603-1 01 1 9812- ● ●
102 NUT; FLEX HOSE,CLU CONT
M14 		9-99111-414-0 01 1 9812- ● ●
103 WASHER; LK,FLEX HOSE,CLU CONT
ID=14.2 		9-09150-514-0 01 1 9812- ● ●
133 WASHER; LK,UNION
(A) ID=14.2 		9-09150-514-0 01 1 9812- ● ●
153 PIPE ASM; CLU,UNION TO FLEX
(B) L=490 		1-47428-363-0 01 1 9812- ● ●
153 PIPE ASM; CLU,UNION TO FLEX
(A) L=1523 SERVICED BY L=1550 		1-47426-390-0 01 1 9905-9912 ● ●
153 PIPE ASM; CLU,UNION TO FLEX
(A) L=1544 SERVICED BY L=1550 		1-47426-390-0 01 1 0001- ● ●
167 BRACKET; UNION
(B) 		1-71117-207-1 01 1 9812- ● ●
167 BRACKET; UNION
(A) 		1-71907-376-1 01 1 9812- ● ●
175 WASER; LK,FLEX HOSE,CLU CONT
ID=14.2 		9-09150-514-0 01 1 9812- ● ●
180 PLUG; PIPE 9-09204-510-0 01 1 9812- ● ●
184 UNION; FLEX HOSE
3WAY 		1-09656-679-0 01 1 9812- ● ●

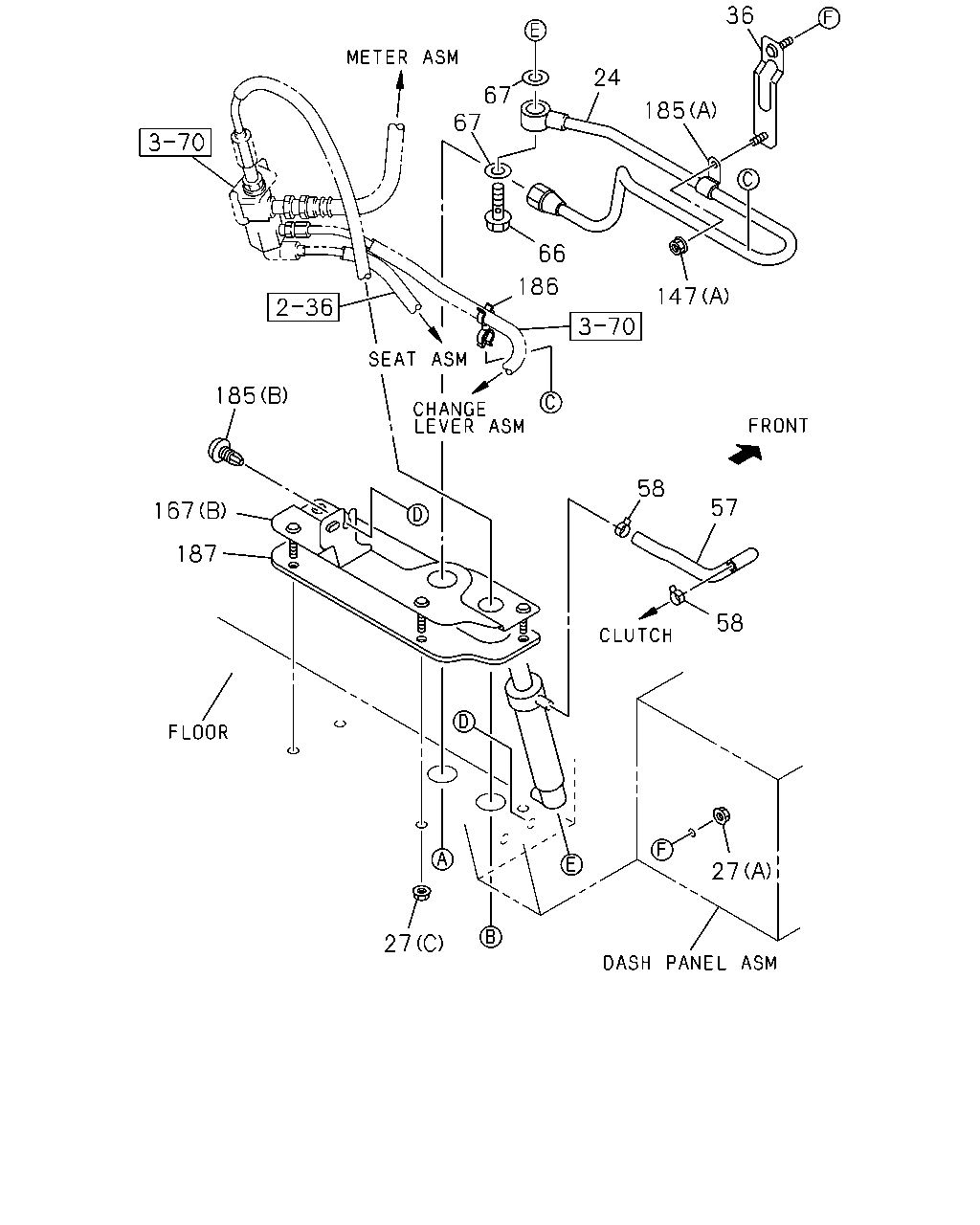

çizim 44651
36 24 67 67 185 66 186 147 185 58 57 167 187 58 27 27
BalonParca AdiParca NoAdetTipApplied Date A B
24 PIPE ASM; CLU,M/CYL TO UNION
L=621 		1-47428-362-1 01 1 9905- ● ●
27 NUT; BRKT
(D) M8 FLANGE 		0-91150-108-0 01 1 9812- ● ●
27 NUT; BRKT
(D) M8 FLANGE 		0-91150-108-0 02 1 9812- ● ●
27 NUT; BRKT
(B) M10 FLANGE 		0-91150-210-0 02 1 9812- ● ●
27 NUT; BRKT
(A) M6 FLANGE W/RUBBER 		1-09984-180-0 01 1 9812- ● ●
27 NUT; BRKT
(C) M8 CUTTING NUT W/FLANGE 		1-09985-340-0 04 1 9812- ● ●
36 BRACKET; CLIP 1-71117-191-1 01 1 9812- ● ●
57 HOSE; CLU M/CYL TO OIL TANK 1-47427-312-0 01 1 9812- ● ●
58 CLIP; RUBBER HOSE TO M/CYL
ID=14 		8-94238-572-0 02 1 9812- ● ●
66 BOLT; EYE JOINT,CLU M/CYL
M14X30 EYE-BOLT 		1-09675-146-0 01 1 9812- ● ●
67 GASKET; EYE JOINT,CLU M/CYL
ID=14.2 OD=19.2 		1-09630-085-0 02 1 9812- ● ●
147 NUT; CLIP FIX
(A) M8 CUTTING NUT W/FLANGE 		1-09985-340-0 01 1 9812- ● ●
167 BRACKET; UNION
(B) 		1-71117-207-1 01 1 9812- ● ●
167 BRACKET; UNION
(A) 		1-71907-376-1 01 1 9812- ● ●
185 CLIP; BRKT
(B) D8X13.5 		1-09987-248-1 01 1 9812- ● ●
185 CLIP; BRKT
(A) ID=9 L=20 		9-09545-108-0 01 1 9812- ● ●
186 HOLDER; CLIP
ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) ID=8.3 & 8.3 		8-94426-175-0 01 1 9812- ● ●
187 SEAL; BRKT 1-71117-209-2 01 1 9812- ● ●
