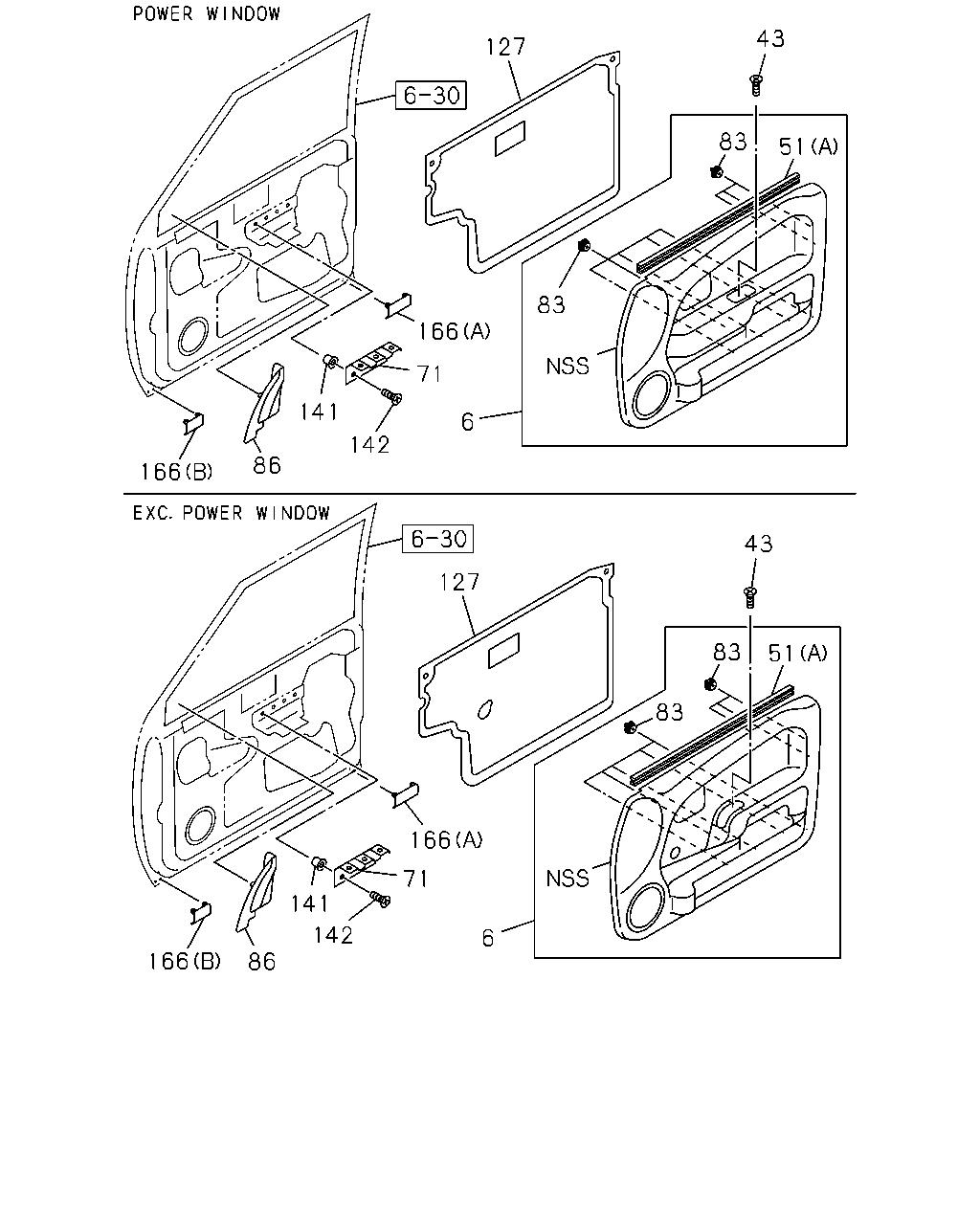

6-35 — FRONT DOOR TRIM (#73658) — 79 parça

43 127 83 51 83 166 71 141 6 142 86 166 43 127 83 51 83 166 71 141 142 6 166 86

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
6	16.165 TRIM; DOOR,UPR CLOTH SEAT MOQUETTE<8EP> EXC. POWER WINDOW<A31> GRAY THA	8-97396-667-0	01	1	0404-0409	●	●	●
6	16.165 TRIM; DOOR,UPR CLOTH SEAT MOQUETTE<8EP> EXC. POWER WINDOW<A31> GRAY THA	8-97396-667-0	01	1	0410-0609	●		●
6	16.165 TRIM; DOOR,UPR CLOTH TRIM SUPER DELUXE, VAR 2<8LN> EXC. POWER WINDOW<A31> LIGHT BEIGE THA	8-97403-707-0	01	1	0610-0709	●		●
6	16.165 TRIM; DOOR,UPR CLOTH SEAT MOQUETTE<8EP> EXC. POWER WINDOW<A31> GRAY THA	8-97396-666-0	01	1	0404-0409	●	●	●
6	16.165 TRIM; DOOR,UPR CLOTH SEAT MOQUETTE<8EP> EXC. POWER WINDOW<A31> GRAY THA	8-97396-666-0	01	1	0410-0609	●		●
6	16.165 TRIM; DOOR,UPR CLOTH TRIM SUPER DELUXE, VAR 2<8LN> EXC. POWER WINDOW<A31> LIGHT BEIGE THA	8-97403-706-0	01	1	0610-0709	●		●
6	16.165 TRIM; DOOR,UPR VINYL SEAT W/RECLINING<A83>,SEAT CLOTH<7FL> EXC. POWER WINDOW<A31> GRAY THA	8-97396-665-0	01	1	0404-0409	●	●	●
6	16.165 TRIM; DOOR,UPR VINYL SEAT W/RECLINING<A83> EXC. POWER WINDOW<A31> GRAY THA	8-97396-665-0	01	1	0410-0609	●		●
6	16.165 TRIM; DOOR,UPR GRAY THA	8-97396-665-0	01	1	0410-0609		●
6	16.165 TRIM; DOOR,UPR VINYL TRIM<8LJ> EXC. POWER WINDOW<A31> BEIGE THA	8-97403-699-0	01	1	0610-	●		●
6	16.165 TRIM; DOOR,UPR BEIGE THA	8-97403-699-0	01	1	0610-		●
6	16.165 TRIM; DOOR,UPR VINYL SEAT W/RECLINING<A83>,SEAT CLOTH<7FL> EXC. POWER WINDOW<A31> GRAY THA	8-97396-664-0	01	1	0404-0409	●	●	●
6	16.165 TRIM; DOOR,UPR VINYL SEAT W/RECLINING<A83> EXC. POWER WINDOW<A31> GRAY THA	8-97396-664-0	01	1	0410-0609	●		●
6	16.165 TRIM; DOOR,UPR GRAY THA	8-97396-664-0	01	1	0410-0609		●
6	16.165 TRIM; DOOR,UPR VINYL TRIM<8LJ> EXC. POWER WINDOW<A31> BEIGE THA	8-97403-697-0	01	1	0610-	●		●
6	16.165 TRIM; DOOR,UPR BEIGE THA	8-97403-697-0	01	1	0610-		●
6	16.165 TRIM; DOOR,UPR POWER WINDOW<A31> CLOTH SEAT MOQUETTE<8EP> GRAY THA	8-97396-669-0	01	1	0404-0609	●		●
6	16.165 TRIM; DOOR,UPR GRAY THA	8-97396-669-0	01	1	0404-0609				●	●
6	16.165 TRIM; DOOR,UPR CLOTH TRIM STANDARD, VAR 2<8LL> EXC. POWER WINDOW<A31> LIGHT BEIGE THA	8-97403-701-0	01	1	0610-	●		●
6	16.165 TRIM; DOOR,UPR POWER WINDOW<A31> CLOTH SEAT MOQUETTE<8EP> GRAY THA	8-97396-668-0	01	1	0404-0609	●		●
6	16.165 TRIM; DOOR,UPR GRAY THA	8-97396-668-0	01	1	0404-0609				●	●
6	16.165 TRIM; DOOR,UPR CLOTH TRIM STANDARD, VAR 2<8LL> EXC. POWER WINDOW<A31> LIGHT BEIGE THA	8-97403-700-0	01	1	0610-	●		●
6	16.165 TRIM; DOOR,UPR POWER WINDOW<A31> SEAT CLOTH<7FL> GRAY THA	8-97400-165-0	01	1	0410-0609	●		●
6	16.165 TRIM; DOOR,UPR CLOTH TRIM STANDARD, VAR 2<8LL> POWER WINDOW<A31> LIGHT BEIGE THA	8-97403-703-0	01	1	0610-	●		●
6	16.165 TRIM; DOOR,UPR POWER WINDOW<A31> SEAT CLOTH<7FL> GRAY THA	8-97400-164-0	01	1	0410-0609	●		●
6	16.165 TRIM; DOOR,UPR CLOTH TRIM STANDARD, VAR 2<8LL> POWER WINDOW<A31> LIGHT BEIGE THA	8-97403-702-0	01	1	0610-	●		●
6	16.165 TRIM; DOOR,UPR SEAT CLOTH<7FL> EXC. POWER WINDOW<A31> GRAY THA	8-97400-163-0	01	1	0410-0609	●		●
6	16.165 TRIM; DOOR,UPR CLOTH TRIM SUPER DELUXE, VAR 2<8LN> POWER WINDOW<A31> LIGHT BEIGE THA	8-97403-709-0	01	1	0610-	●		●
6	16.165 TRIM; DOOR,UPR LIGHT BEIGE THA	8-97403-709-0	01	1	0610-				●	●
6	16.165 TRIM; DOOR,UPR SEAT CLOTH<7FL> EXC. POWER WINDOW<A31> GRAY THA	8-97400-162-0	01	1	0410-0609	●		●
6	16.165 TRIM; DOOR,UPR CLOTH TRIM SUPER DELUXE, VAR 2<8LN> POWER WINDOW<A31> LIGHT BEIGE THA	8-97403-708-0	01	1	0610-	●		●
6	16.165 TRIM; DOOR,UPR LIGHT BEIGE THA	8-97403-708-0	01	1	0610-				●	●
43	16.165 SCREW; DOOR POCKET 12.182 M5X14	8-94152-495-0	04	1	0404-0504	●	●	●	●	●
43	16.165 SCREW; DOOR POCKET EXC. POWER WINDOW<A31> 12.182 M5X14	8-94152-495-0	04	1	0505-	●		●
43	16.165 SCREW; DOOR POCKET 12.182 M5X14	8-94152-495-0	04	1	0505-		●

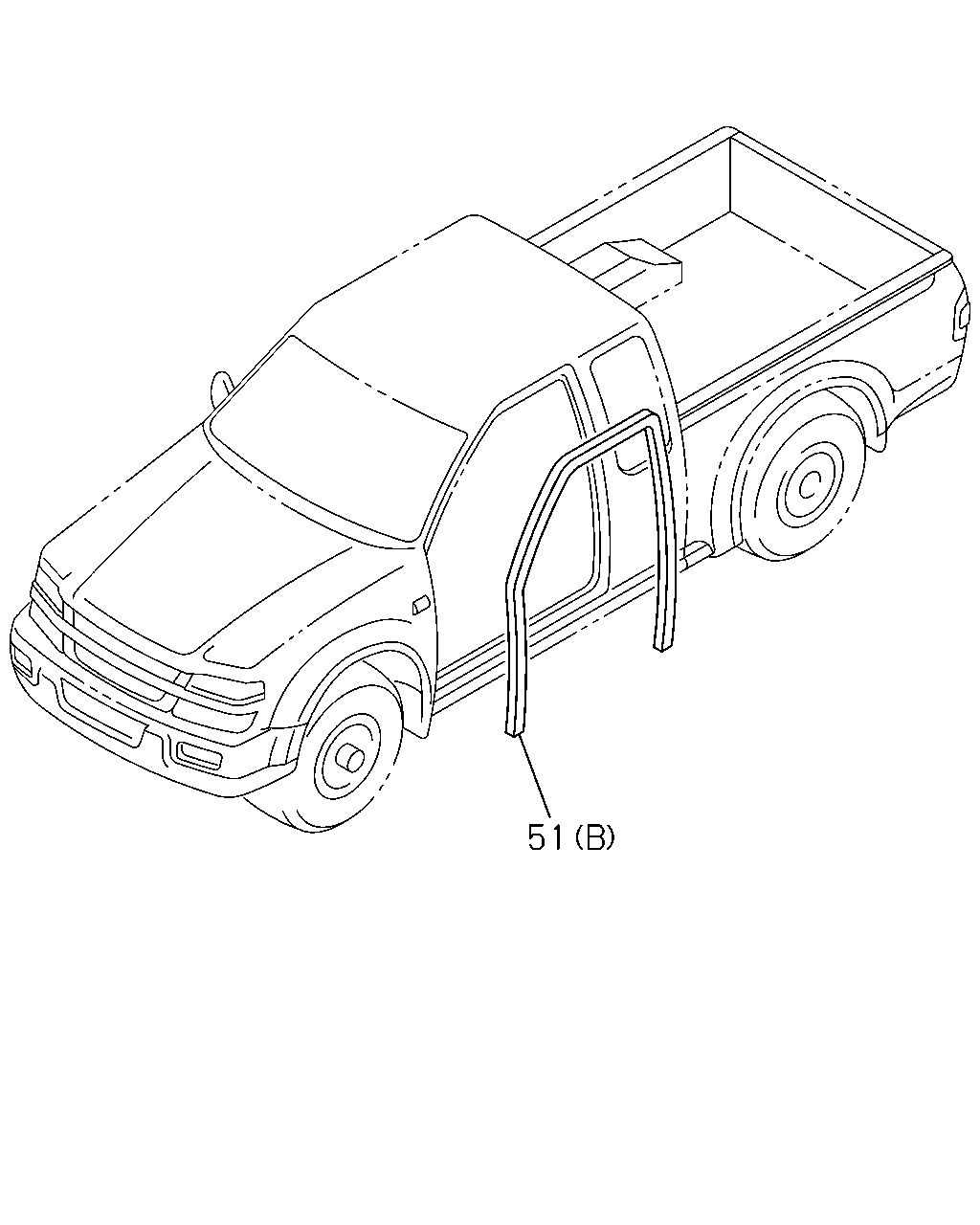

51	16.225 WEATHERSTRIP; FRONT DOOR (A) THA	8-97364-719-0	01	1	0404-	●	●	●	●	●
51	16.225 WEATHERSTRIP; FRONT DOOR (A) THA	8-97364-718-0	01	1	0404-	●	●	●	●	●
51	16.225 WEATHERSTRIP; FRONT DOOR (B) GRAY THA	8-97396-645-1	02	1	0404-0409	●		●	●	●
51	16.225 WEATHERSTRIP; FRONT DOOR GRADE LS<RBB> (B) GRAY THA	8-97396-645-1	02	1	0404-0409		●
51	16.225 WEATHERSTRIP; FRONT DOOR (B) GRAY THA	8-97396-645-1	02	1	0410-0412	●		●	●	●
51	16.225 WEATHERSTRIP; FRONT DOOR (B) GRAY THA	8-97402-844-0	02	1	0501-0609	●		●	●	●
51	16.225 WEATHERSTRIP; FRONT DOOR (B) DARK GRAY THA	8-97403-590-0	02	1	0610-	●		●	●	●
51	16.225 WEATHERSTRIP; FRONT DOOR GRADE BASE<RBA> (B) GRAY THA	8-97396-646-1	02	1	0404-0409		●
51	16.225 WEATHERSTRIP; FRONT DOOR (B) GRAY THA	8-97396-646-1	02	1	0410-0412		●
51	16.225 WEATHERSTRIP; FRONT DOOR (B) GRAY THA	8-97402-847-0	02	1	0501-0508		●
51	16.225 WEATHERSTRIP; FRONT DOOR GRADE BASE<RBA> (B) GRAY THA	8-97402-847-0	02	1	0509-0609		●
51	16.225 WEATHERSTRIP; FRONT DOOR GRADE BASE<RBA> (B) DARK GRAY THA	8-97403-592-0	02	1	0610-0809		●
51	16.225 WEATHERSTRIP; FRONT DOOR (B) DARK GRAY THA	8-97403-592-0	02	1	0810-		●
71	14.690 BRACKET; ARM REST 16.165 THA	8-97238-106-2	02	1	0404-	●	●	●	●	●
83	16.165 CLIP; DOOR TRIM VINYL SEAT W/RECLINING<A83>,SEAT CLOTH<7FL> EXC. POWER WINDOW<A31> H=16.7 THA	8-97022-017-0	16	1	0404-0404	●		●
83	16.165 CLIP; DOOR TRIM VINYL SEAT W/RECLINING<A83>,SEAT CLOTH<7FL> H=16.7 THA	8-97022-017-0	16	1	0404-0404		●
83	16.165 CLIP; DOOR TRIM H=16.7 THA	8-97022-017-0	16	1	0405-	●	●	●	●	●
86	16.155 COVER ASM; DOOR POCKET BLACK THA	8-97298-456-2	01	1	0404-	●	●	●	●	●
86	16.155 COVER ASM; DOOR POCKET BLACK THA	8-97298-455-2	01	1	0404-	●	●	●	●	●
127	16.183 SEAL; DOOR INNER POWER WINDOW<A31> THA	8-97360-885-0	01	1	0404-	●		●
127	16.183 SEAL; DOOR INNER THA	8-97360-885-0	01	1	0404-				●	●
127	16.183 SEAL; DOOR INNER POWER WINDOW<A31> THA	8-97360-884-0	01	1	0404-	●		●
127	16.183 SEAL; DOOR INNER THA	8-97360-884-0	01	1	0404-				●	●
127	16.183 SEAL; DOOR INNER EXC. POWER WINDOW<A31> THA	8-97360-883-0	01	1	0404-	●		●
127	16.183 SEAL; DOOR INNER THA	8-97360-883-0	01	1	0404-		●
127	16.183 SEAL; DOOR INNER EXC. POWER WINDOW<A31> THA	8-97360-882-0	01	1	0404-	●		●
127	16.183 SEAL; DOOR INNER THA	8-97360-882-0	01	1	0404-		●
141	16.165 GROMMET; SCREW,LWR COVER 10.565 THA	8-94152-494-0	04	1	0404-	●	●	●	●	●
142	16.165 SCREW; LWR COVER,DOOR TRIM 12.182 M5X14	8-94152-495-0	04	1	0404-	●	●	●	●	●
166	16.155 PLUG; HOLE (A) THA	8-98009-499-0	02	1	0508-	●		●	●	●
166	16.155 PLUG; HOLE (B) THA	8-98009-500-0	02	1	0508-	●		●	●	●

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
51	16.225 WEATHERSTRIP; FRONT DOOR (A) THA	8-97364-719-0	01	1	0404-	●	●	●	●	●
51	16.225 WEATHERSTRIP; FRONT DOOR (A) THA	8-97364-718-0	01	1	0404-	●	●	●	●	●
51	16.225 WEATHERSTRIP; FRONT DOOR (B) GRAY THA	8-97396-645-1	02	1	0404-0409	●		●	●	●
51	16.225 WEATHERSTRIP; FRONT DOOR GRADE LS<RBB> (B) GRAY THA	8-97396-645-1	02	1	0404-0409		●
51	16.225 WEATHERSTRIP; FRONT DOOR (B) GRAY THA	8-97396-645-1	02	1	0410-0412	●		●	●	●
51	16.225 WEATHERSTRIP; FRONT DOOR (B) GRAY THA	8-97402-844-0	02	1	0501-0609	●		●	●	●
51	16.225 WEATHERSTRIP; FRONT DOOR (B) DARK GRAY THA	8-97403-590-0	02	1	0610-	●		●	●	●
51	16.225 WEATHERSTRIP; FRONT DOOR GRADE BASE<RBA> (B) GRAY THA	8-97396-646-1	02	1	0404-0409		●
51	16.225 WEATHERSTRIP; FRONT DOOR (B) GRAY THA	8-97396-646-1	02	1	0410-0412		●
51	16.225 WEATHERSTRIP; FRONT DOOR (B) GRAY THA	8-97402-847-0	02	1	0501-0508		●
51	16.225 WEATHERSTRIP; FRONT DOOR GRADE BASE<RBA> (B) GRAY THA	8-97402-847-0	02	1	0509-0609		●
51	16.225 WEATHERSTRIP; FRONT DOOR GRADE BASE<RBA> (B) DARK GRAY THA	8-97403-592-0	02	1	0610-0809		●
51	16.225 WEATHERSTRIP; FRONT DOOR (B) DARK GRAY THA	8-97403-592-0	02	1	0810-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
