6-32 — FRONT DOOR LOCK AND HANDLE (#73657) — 314 parça

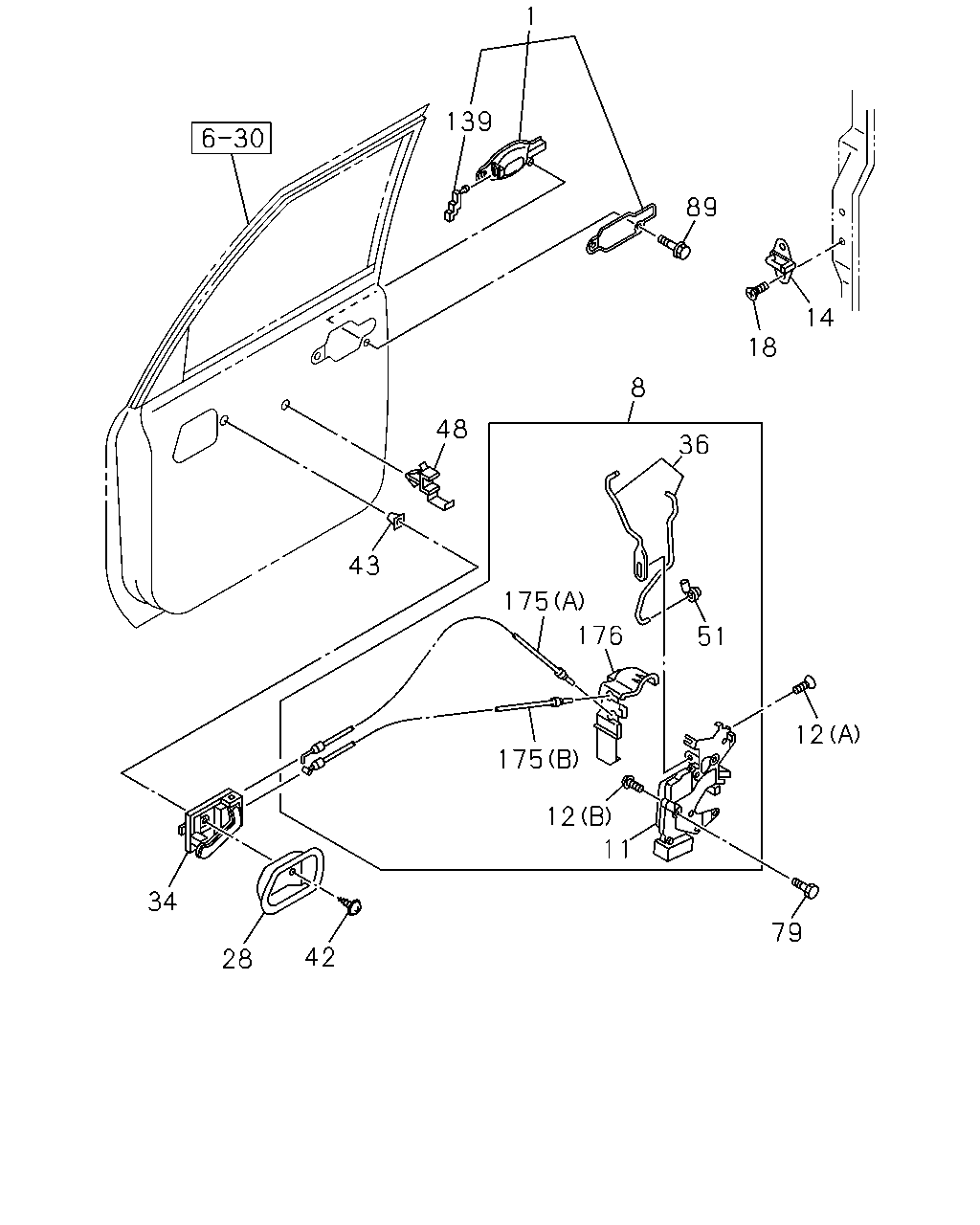

çizim 117824
1 139 89 14 18 8 48 36 43 175 176 51 12 175 12 11 34 79 42 28
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 16.350 HANDLE; OUTSIDE,FRT DOOR
BODY COLOR ALPINE WHITE<877> HANDLE O/S DOOR BODY COLOR<D75> WHITE THA 		8-97293-678-2 01 1 0404-0609 ● ●
1 16.350 HANDLE; OUTSIDE,FRT DOOR
BODY COLOR ALPINE WHITE<877> HANDLE O/S DOOR BODY COLOR<D75> WHITE THA 		8-97408-080-0 01 1 0610- ● ●
1 16.350 HANDLE; OUTSIDE,FRT DOOR
BODY COLOR ALPINE WHITE<877> HANDLE O/S DOOR BODY COLOR<D75> WHITE THA 		8-97293-675-2 01 1 0404-0609 ● ●
1 16.350 HANDLE; OUTSIDE,FRT DOOR
BODY COLOR ALPINE WHITE<877> HANDLE O/S DOOR BODY COLOR<D75> WHITE THA 		8-97408-067-0 01 1 0610- ● ●
1 16.350 HANDLE; OUTSIDE,FRT DOOR
BODY COLOR ALPINE WHITE<877> OUTSIDE HANDLE CHROME<E20> WHITE THA 		8-97293-684-1 01 1 0404-0406 ● ●
1 16.350 HANDLE; OUTSIDE,FRT DOOR
BODY COLOR ALPINE WHITE<877> OUTSIDE HANDLE CHROME<E20> WHITE THA 		8-97293-684-1 01 1 0407-0508 ● ●
1 16.350 HANDLE; OUTSIDE,FRT DOOR
BODY COLOR ALPINE WHITE<877> WHITE THA 		8-97293-684-1 01 1 0407-0508 ● ●
1 16.350 HANDLE; OUTSIDE,FRT DOOR
BODY COLOR ALPINE WHITE<877> OUTSIDE HANDLE CHROME<E20> WHITE THA 		8-97399-994-0 01 1 0509-0510 ● ●
1 16.350 HANDLE; OUTSIDE,FRT DOOR
BODY COLOR ALPINE WHITE<877> WHITE THA 		8-97399-994-0 01 1 0509-0510 ● ●
1 16.350 HANDLE; OUTSIDE,FRT DOOR
BODY COLOR ALPINE WHITE<877> OUTSIDE HANDLE CHROME<E20> WHITE THA 		8-97399-994-0 01 1 0511-0609 ● ● ● ●
1 16.350 HANDLE; OUTSIDE,FRT DOOR
BODY COLOR ALPINE WHITE<877> OUTSIDE HANDLE CHROME<E20> WHITE THA 		8-97408-114-0 01 1 0610- ● ● ● ●
1 16.350 HANDLE; OUTSIDE,FRT DOOR
BODY COLOR ALPINE WHITE<877> OUTSIDE HANDLE CHROME<E20> WHITE THA 		8-97293-681-1 01 1 0404-0406 ● ●
1 16.350 HANDLE; OUTSIDE,FRT DOOR
BODY COLOR ALPINE WHITE<877> OUTSIDE HANDLE CHROME<E20> WHITE THA 		8-97293-681-1 01 1 0407-0508 ● ●
1 16.350 HANDLE; OUTSIDE,FRT DOOR
BODY COLOR ALPINE WHITE<877> WHITE THA 		8-97293-681-1 01 1 0407-0508 ● ●
1 16.350 HANDLE; OUTSIDE,FRT DOOR
BODY COLOR ALPINE WHITE<877> OUTSIDE HANDLE CHROME<E20> WHITE THA 		8-97399-975-0 01 1 0509-0510 ● ●
1 16.350 HANDLE; OUTSIDE,FRT DOOR
BODY COLOR ALPINE WHITE<877> WHITE THA 		8-97399-975-0 01 1 0509-0510 ● ●
1 16.350 HANDLE; OUTSIDE,FRT DOOR
BODY COLOR ALPINE WHITE<877> OUTSIDE HANDLE CHROME<E20> WHITE THA 		8-97399-975-0 01 1 0511-0609 ● ● ● ●
1 16.350 HANDLE; OUTSIDE,FRT DOOR
BODY COLOR ALPINE WHITE<877> OUTSIDE HANDLE CHROME<E20> WHITE THA 		8-97408-099-0 01 1 0610- ● ● ● ●
1 16.350 HANDLE; OUTSIDE,FRT DOOR
BODY COLOR BLACK SAPPHIRE MICA<685> HANDLE O/S DOOR BODY COLOR<D75> DARK GRAY THA 		8-97396-751-2 01 1 0404-0609 ● ●
1 16.350 HANDLE; OUTSIDE,FRT DOOR
BODY COLOR BLACK SAPPHIRE MICA<685> HANDLE O/S DOOR BODY COLOR<D75> BLACK THA 		8-97408-084-0 01 1 0610- ● ●
1 16.350 HANDLE; OUTSIDE,FRT DOOR
BODY COLOR BLACK SAPPHIRE MICA<685> HANDLE O/S DOOR BODY COLOR<D75> DARK GRAY THA 		8-97396-748-2 01 1 0404-0609 ● ●
1 16.350 HANDLE; OUTSIDE,FRT DOOR
BODY COLOR BLACK SAPPHIRE MICA<685> HANDLE O/S DOOR BODY COLOR<D75> BLACK THA 		8-97408-071-0 01 1 0610- ● ●
1 16.350 HANDLE; OUTSIDE,FRT DOOR
BODY COLOR BLACK SAPPHIRE MICA<685> OUTSIDE HANDLE CHROME<E20> DARK GRAY THA 		8-97396-745-1 01 1 0404-0508 ● ●
1 16.350 HANDLE; OUTSIDE,FRT DOOR
BODY COLOR BLACK SAPPHIRE MICA<685> DARK GRAY THA 		8-97396-745-1 01 1 0404-0508 ● ●
1 16.350 HANDLE; OUTSIDE,FRT DOOR
BODY COLOR BLACK SAPPHIRE MICA<685> OUTSIDE HANDLE CHROME<E20> BLACK THA 		8-97399-985-0 01 1 0509-0510 ● ●
1 16.350 HANDLE; OUTSIDE,FRT DOOR
BODY COLOR BLACK SAPPHIRE MICA<685> BLACK THA 		8-97399-985-0 01 1 0509-0510 ● ●
1 16.350 HANDLE; OUTSIDE,FRT DOOR
BODY COLOR BLACK SAPPHIRE MICA<685> OUTSIDE HANDLE CHROME<E20> BLACK THA 		8-97399-985-0 01 1 0511-0609 ● ● ● ●
1 16.350 HANDLE; OUTSIDE,FRT DOOR
BODY COLOR BLACK SAPPHIRE MICA<685> OUTSIDE HANDLE CHROME<E20> BLACK THA 		8-97408-112-0 01 1 0610- ● ● ● ●
1 16.350 HANDLE; OUTSIDE,FRT DOOR
BODY COLOR BLACK SAPPHIRE MICA<685> OUTSIDE HANDLE CHROME<E20> DARK GRAY THA 		8-97396-743-1 01 1 0404-0508 ● ●
1 16.350 HANDLE; OUTSIDE,FRT DOOR
BODY COLOR BLACK SAPPHIRE MICA<685> DARK GRAY THA 		8-97396-743-1 01 1 0404-0508 ● ●
1 16.350 HANDLE; OUTSIDE,FRT DOOR
BODY COLOR BLACK SAPPHIRE MICA<685> OUTSIDE HANDLE CHROME<E20> BLACK THA 		8-97399-966-0 01 1 0509-0510 ● ●
1 16.350 HANDLE; OUTSIDE,FRT DOOR
BODY COLOR BLACK SAPPHIRE MICA<685> BLACK THA 		8-97399-966-0 01 1 0509-0510 ● ●
1 16.350 HANDLE; OUTSIDE,FRT DOOR
BODY COLOR BLACK SAPPHIRE MICA<685> OUTSIDE HANDLE CHROME<E20> BLACK THA 		8-97399-966-0 01 1 0511-0609 ● ● ● ●
1 16.350 HANDLE; OUTSIDE,FRT DOOR
BODY COLOR BLACK SAPPHIRE MICA<685> OUTSIDE HANDLE CHROME<E20> BLACK THA 		8-97408-097-0 01 1 0610- ● ● ● ●
1 16.350 HANDLE; OUTSIDE,FRT DOOR
BODY COLOR CAPE BLUE MET<612> HANDLE O/S DOOR BODY COLOR<D75> BLUE THA 		8-97396-749-2 01 1 0404-0508 ● ●
1 16.350 HANDLE; OUTSIDE,FRT DOOR
ZENITH BLUE MICA<646> HANDLE O/S DOOR BODY COLOR<D75> BLUE THA 		8-97298-562-2 01 1 0509-0609 ● ●
1 16.350 HANDLE; OUTSIDE,FRT DOOR
ZENITH BLUE MICA<646> HANDLE O/S DOOR BODY COLOR<D75> BLUE THA 		8-97408-081-0 01 1 0610-0709 ● ●
1 16.350 HANDLE; OUTSIDE,FRT DOOR
BODY COLOR IMPUL BLUE MET.<509> HANDLE O/S DOOR BODY COLOR<D75> BLUE THA 		8-97408-413-0 01 1 0710- ● ●
1 16.350 HANDLE; OUTSIDE,FRT DOOR
BODY COLOR CAPE BLUE MET<612> HANDLE O/S DOOR BODY COLOR<D75> BLUE THA 		8-97396-746-2 01 1 0404-0508 ● ●
1 16.350 HANDLE; OUTSIDE,FRT DOOR
ZENITH BLUE MICA<646> HANDLE O/S DOOR BODY COLOR<D75> BLUE THA 		8-97298-555-2 01 1 0509-0609 ● ●
1 16.350 HANDLE; OUTSIDE,FRT DOOR
ZENITH BLUE MICA<646> HANDLE O/S DOOR BODY COLOR<D75> BLUE THA 		8-97408-068-0 01 1 0610-0709 ● ●
1 16.350 HANDLE; OUTSIDE,FRT DOOR
BODY COLOR IMPUL BLUE MET.<509> HANDLE O/S DOOR BODY COLOR<D75> BLUE THA 		8-97408-410-0 01 1 0710- ● ●
1 16.350 HANDLE; OUTSIDE,FRT DOOR
BODY COLOR CAPE BLUE MET<612> OUTSIDE HANDLE CHROME<E20> BLUE THA 		8-97392-528-1 01 1 0404-0508 ● ●
1 16.350 HANDLE; OUTSIDE,FRT DOOR
BODY COLOR CAPE BLUE MET<612> BLUE THA 		8-97392-528-1 01 1 0404-0508 ● ●
1 16.350 HANDLE; OUTSIDE,FRT DOOR
ZENITH BLUE MICA<646> OUTSIDE HANDLE CHROME<E20> BLUE THA 		8-97399-977-0 01 1 0509-0510 ● ●
1 16.350 HANDLE; OUTSIDE,FRT DOOR
ZENITH BLUE MICA<646> BLUE THA 		8-97399-977-0 01 1 0509-0510 ● ●
1 16.350 HANDLE; OUTSIDE,FRT DOOR
ZENITH BLUE MICA<646> OUTSIDE HANDLE CHROME<E20> BLUE THA 		8-97399-977-0 01 1 0511-0609 ● ● ● ●
1 16.350 HANDLE; OUTSIDE,FRT DOOR
ZENITH BLUE MICA<646> OUTSIDE HANDLE CHROME<E20> BLUE THA 		8-97408-108-0 01 1 0610-0709 ● ● ● ●
1 16.350 HANDLE; OUTSIDE,FRT DOOR
BODY COLOR IMPUL BLUE MET.<509> OUTSIDE HANDLE CHROME<E20> BLUE THA 		8-97408-421-0 01 1 0710- ● ● ● ●
1 16.350 HANDLE; OUTSIDE,FRT DOOR
BODY COLOR CAPE BLUE MET<612> OUTSIDE HANDLE CHROME<E20> BLUE THA 		8-97392-526-1 01 1 0404-0508 ● ●
1 16.350 HANDLE; OUTSIDE,FRT DOOR
BODY COLOR CAPE BLUE MET<612> BLUE THA 		8-97392-526-1 01 1 0404-0508 ● ●
1 16.350 HANDLE; OUTSIDE,FRT DOOR
ZENITH BLUE MICA<646> OUTSIDE HANDLE CHROME<E20> BLUE THA 		8-97399-958-0 01 1 0509-0510 ● ●
1 16.350 HANDLE; OUTSIDE,FRT DOOR
ZENITH BLUE MICA<646> BLUE THA 		8-97399-958-0 01 1 0509-0510 ● ●
1 16.350 HANDLE; OUTSIDE,FRT DOOR
ZENITH BLUE MICA<646> OUTSIDE HANDLE CHROME<E20> BLUE THA 		8-97399-958-0 01 1 0511-0609 ● ● ● ●
1 16.350 HANDLE; OUTSIDE,FRT DOOR
ZENITH BLUE MICA<646> OUTSIDE HANDLE CHROME<E20> BLUE THA 		8-97408-093-0 01 1 0610-0709 ● ● ● ●
1 16.350 HANDLE; OUTSIDE,FRT DOOR
BODY COLOR IMPUL BLUE MET.<509> OUTSIDE HANDLE CHROME<E20> BLUE THA 		8-97408-417-0 01 1 0710- ● ● ● ●
1 16.350 HANDLE; OUTSIDE,FRT DOOR
BODY COLOR FOXFIRE RED MICA<658> HANDLE O/S DOOR BODY COLOR<D75> RED THA 		8-97298-564-2 01 1 0404-0609 ● ●
1 16.350 HANDLE; OUTSIDE,FRT DOOR
BODY COLOR TORNADE RED MICA<504> HANDLE O/S DOOR BODY COLOR<D75> RED THA 		8-97408-092-0 01 1 0610- ● ●
1 16.350 HANDLE; OUTSIDE,FRT DOOR
BODY COLOR FOXFIRE RED MICA<658> HANDLE O/S DOOR BODY COLOR<D75> RED THA 		8-97298-557-2 01 1 0404-0609 ● ●
1 16.350 HANDLE; OUTSIDE,FRT DOOR
BODY COLOR TORNADE RED MICA<504> HANDLE O/S DOOR BODY COLOR<D75> RED THA 		8-97408-079-0 01 1 0610- ● ●
1 16.350 HANDLE; OUTSIDE,FRT DOOR
BODY COLOR FOXFIRE RED MICA<658> OUTSIDE HANDLE CHROME<E20> RED THA 		8-97298-550-1 01 1 0404-0508 ● ●
1 16.350 HANDLE; OUTSIDE,FRT DOOR
BODY COLOR FOXFIRE RED MICA<658> RED THA 		8-97298-550-1 01 1 0404-0508 ● ●
1 16.350 HANDLE; OUTSIDE,FRT DOOR
BODY COLOR FOXFIRE RED MICA<658> OUTSIDE HANDLE CHROME<E20> RED THA 		8-97399-988-0 01 1 0509-0510 ● ●
1 16.350 HANDLE; OUTSIDE,FRT DOOR
BODY COLOR FOXFIRE RED MICA<658> RED THA 		8-97399-988-0 01 1 0509-0510 ● ●
1 16.350 HANDLE; OUTSIDE,FRT DOOR
BODY COLOR FOXFIRE RED MICA<658> OUTSIDE HANDLE CHROME<E20> RED THA 		8-97399-988-0 01 1 0511-0609 ● ● ● ●
1 16.350 HANDLE; OUTSIDE,FRT DOOR
BODY COLOR TORNADE RED MICA<504> OUTSIDE HANDLE CHROME<E20> RED THA 		8-97408-122-0 01 1 0610- ● ● ● ●
1 16.350 HANDLE; OUTSIDE,FRT DOOR
BODY COLOR FOXFIRE RED MICA<658> OUTSIDE HANDLE CHROME<E20> RED THA 		8-97298-542-1 01 1 0404-0508 ● ●
1 16.350 HANDLE; OUTSIDE,FRT DOOR
BODY COLOR FOXFIRE RED MICA<658> RED THA 		8-97298-542-1 01 1 0404-0508 ● ●
1 16.350 HANDLE; OUTSIDE,FRT DOOR
BODY COLOR FOXFIRE RED MICA<658> OUTSIDE HANDLE CHROME<E20> RED THA 		8-97399-969-0 01 1 0509-0510 ● ●
1 16.350 HANDLE; OUTSIDE,FRT DOOR
BODY COLOR FOXFIRE RED MICA<658> RED THA 		8-97399-969-0 01 1 0509-0510 ● ●
1 16.350 HANDLE; OUTSIDE,FRT DOOR
BODY COLOR FOXFIRE RED MICA<658> OUTSIDE HANDLE CHROME<E20> RED THA 		8-97399-969-0 01 1 0511-0609 ● ● ● ●
1 16.350 HANDLE; OUTSIDE,FRT DOOR
BODY COLOR TORNADE RED MICA<504> OUTSIDE HANDLE CHROME<E20> RED THA 		8-97408-107-0 01 1 0610- ● ● ● ●
1 16.350 HANDLE; OUTSIDE,FRT DOOR
BODY COLOR LIGHT PEWTER MET<684> HANDLE O/S DOOR BODY COLOR<D75> GRAY THA 		8-97396-750-2 01 1 0404-0609 ● ●
1 16.350 HANDLE; OUTSIDE,FRT DOOR
BODY COLOR ROYAL GRAY MET.<505> HANDLE O/S DOOR BODY COLOR<D75> DARK GRAY THA 		8-97408-089-0 01 1 0610- ● ●
1 16.350 HANDLE; OUTSIDE,FRT DOOR
BODY COLOR LIGHT PEWTER MET<684> HANDLE O/S DOOR BODY COLOR<D75> GRAY THA 		8-97396-747-2 01 1 0404-0609 ● ●
1 16.350 HANDLE; OUTSIDE,FRT DOOR
BODY COLOR ROYAL GRAY MET.<505> HANDLE O/S DOOR BODY COLOR<D75> DARK GRAY THA 		8-97408-076-0 01 1 0610- ● ●
1 16.350 HANDLE; OUTSIDE,FRT DOOR
BODY COLOR LIGHT PEWTER MET<684> OUTSIDE HANDLE CHROME<E20> GRAY THA 		8-97396-744-1 01 1 0404-0508 ● ●
1 16.350 HANDLE; OUTSIDE,FRT DOOR
BODY COLOR LIGHT PEWTER MET<684> GRAY THA 		8-97396-744-1 01 1 0404-0508 ● ●
1 16.350 HANDLE; OUTSIDE,FRT DOOR
BODY COLOR LIGHT PEWTER MET<684> OUTSIDE HANDLE CHROME<E20> GRAY THA 		8-97399-986-0 01 1 0509-0510 ● ●
1 16.350 HANDLE; OUTSIDE,FRT DOOR
BODY COLOR LIGHT PEWTER MET<684> GRAY THA 		8-97399-986-0 01 1 0509-0510 ● ●
1 16.350 HANDLE; OUTSIDE,FRT DOOR
BODY COLOR LIGHT PEWTER MET<684> OUTSIDE HANDLE CHROME<E20> GRAY THA 		8-97399-986-0 01 1 0511-0609 ● ● ● ●
1 16.350 HANDLE; OUTSIDE,FRT DOOR
BODY COLOR ROYAL GRAY MET.<505> OUTSIDE HANDLE CHROME<E20> DARK GRAY THA 		8-97408-121-0 01 1 0610- ● ● ● ●
1 16.350 HANDLE; OUTSIDE,FRT DOOR
BODY COLOR LIGHT PEWTER MET<684> OUTSIDE HANDLE CHROME<E20> GRAY THA 		8-97396-742-1 01 1 0404-0508 ● ●
1 16.350 HANDLE; OUTSIDE,FRT DOOR
BODY COLOR LIGHT PEWTER MET<684> GRAY THA 		8-97396-742-1 01 1 0404-0508 ● ●
1 16.350 HANDLE; OUTSIDE,FRT DOOR
BODY COLOR LIGHT PEWTER MET<684> OUTSIDE HANDLE CHROME<E20> GRAY THA 		8-97399-967-0 01 1 0509-0510 ● ●
1 16.350 HANDLE; OUTSIDE,FRT DOOR
BODY COLOR LIGHT PEWTER MET<684> GRAY THA 		8-97399-967-0 01 1 0509-0510 ● ●
1 16.350 HANDLE; OUTSIDE,FRT DOOR
BODY COLOR LIGHT PEWTER MET<684> OUTSIDE HANDLE CHROME<E20> GRAY THA 		8-97399-967-0 01 1 0511-0609 ● ● ● ●
1 16.350 HANDLE; OUTSIDE,FRT DOOR
BODY COLOR ROYAL GRAY MET.<505> OUTSIDE HANDLE CHROME<E20> DARK GRAY THA 		8-97408-106-0 01 1 0610- ● ● ● ●
1 16.350 HANDLE; OUTSIDE,FRT DOOR
BODY COLOR QUARTS GRAY MET<642> HANDLE O/S DOOR BODY COLOR<D75> LIGHT GRAY THA 		8-97298-558-2 01 1 0404-0508 ● ●
1 16.350 HANDLE; OUTSIDE,FRT DOOR
BODY COLOR IMPERIAL BLOND MET<688> HANDLE O/S DOOR BODY COLOR<D75> GOLD THA 		8-97398-618-2 01 1 0509-0609 ● ●
1 16.350 HANDLE; OUTSIDE,FRT DOOR
BODY COLOR IMPERIAL BLOND MET<688> HANDLE O/S DOOR BODY COLOR<D75> GOLD THA 		8-97408-085-0 01 1 0610-1003 ● ●
1 16.350 HANDLE; OUTSIDE,FRT DOOR
BODY COLOR MISTY ONYX MICA<518> HANDLE O/S DOOR BODY COLOR<D75> SILVER THA 		8-97408-197-0 01 1 1004- ● ●
1 16.350 HANDLE; OUTSIDE,FRT DOOR
BODY COLOR QUARTS GRAY MET<642> HANDLE O/S DOOR BODY COLOR<D75> LIGHT GRAY THA 		8-97298-551-2 01 1 0404-0508 ● ●
1 16.350 HANDLE; OUTSIDE,FRT DOOR
BODY COLOR IMPERIAL BLOND MET<688> HANDLE O/S DOOR BODY COLOR<D75> GOLD THA 		8-97398-616-2 01 1 0509-0609 ● ●
1 16.350 HANDLE; OUTSIDE,FRT DOOR
BODY COLOR IMPERIAL BLOND MET<688> HANDLE O/S DOOR BODY COLOR<D75> GOLD THA 		8-97408-072-0 01 1 0610-1003 ● ●
1 16.350 HANDLE; OUTSIDE,FRT DOOR
BODY COLOR MISTY ONYX MICA<518> HANDLE O/S DOOR BODY COLOR<D75> SILVER THA 		8-97408-196-0 01 1 1004- ● ●
1 16.350 HANDLE; OUTSIDE,FRT DOOR
BODY COLOR QUARTS GRAY MET<642> OUTSIDE HANDLE CHROME<E20> LIGHT GRAY THA 		8-97298-544-1 01 1 0404-0508 ● ●
1 16.350 HANDLE; OUTSIDE,FRT DOOR
BODY COLOR QUARTS GRAY MET<642> LIGHT GRAY THA 		8-97298-544-1 01 1 0404-0508 ● ●
1 16.350 HANDLE; OUTSIDE,FRT DOOR
BODY COLOR IMPERIAL BLOND MET<688> OUTSIDE HANDLE CHROME<E20> GOLD THA 		8-97399-992-0 01 1 0509-0510 ● ●
1 16.350 HANDLE; OUTSIDE,FRT DOOR
BODY COLOR IMPERIAL BLOND MET<688> GOLD THA 		8-97399-992-0 01 1 0509-0510 ● ●
1 16.350 HANDLE; OUTSIDE,FRT DOOR
BODY COLOR IMPERIAL BLOND MET<688> OUTSIDE HANDLE CHROME<E20> GOLD THA 		8-97399-992-0 01 1 0511-0609 ● ● ● ●
1 16.350 HANDLE; OUTSIDE,FRT DOOR
BODY COLOR IMPERIAL BLOND MET<688> OUTSIDE HANDLE CHROME<E20> GOLD THA 		8-97408-113-0 01 1 0610-1003 ● ● ● ●
1 16.350 HANDLE; OUTSIDE,FRT DOOR
BODY COLOR MISTY ONYX MICA<518> OUTSIDE HANDLE CHROME<E20> SILVER THA 		8-97408-199-0 01 1 1004- ● ● ● ●
1 16.350 HANDLE; OUTSIDE,FRT DOOR
BODY COLOR QUARTS GRAY MET<642> OUTSIDE HANDLE CHROME<E20> LIGHT GRAY THA 		8-97298-536-1 01 1 0404-0508 ● ●
1 16.350 HANDLE; OUTSIDE,FRT DOOR
BODY COLOR QUARTS GRAY MET<642> LIGHT GRAY THA 		8-97298-536-1 01 1 0404-0508 ● ●
1 16.350 HANDLE; OUTSIDE,FRT DOOR
BODY COLOR IMPERIAL BLOND MET<688> OUTSIDE HANDLE CHROME<E20> GOLD THA 		8-97399-973-0 01 1 0509-0510 ● ●
1 16.350 HANDLE; OUTSIDE,FRT DOOR
BODY COLOR IMPERIAL BLOND MET<688> GOLD THA 		8-97399-973-0 01 1 0509-0510 ● ●
1 16.350 HANDLE; OUTSIDE,FRT DOOR
BODY COLOR IMPERIAL BLOND MET<688> OUTSIDE HANDLE CHROME<E20> GOLD THA 		8-97399-973-0 01 1 0511-0609 ● ● ● ●
1 16.350 HANDLE; OUTSIDE,FRT DOOR
BODY COLOR IMPERIAL BLOND MET<688> OUTSIDE HANDLE CHROME<E20> GOLD THA 		8-97408-098-0 01 1 0610-1003 ● ● ● ●
1 16.350 HANDLE; OUTSIDE,FRT DOOR
BODY COLOR MISTY ONYX MICA<518> OUTSIDE HANDLE CHROME<E20> SILVER THA 		8-97408-198-0 01 1 1004- ● ● ● ●
1 16.350 HANDLE; OUTSIDE,FRT DOOR
BODY COLOR SANDAL WOOD MET<643> HANDLE O/S DOOR BODY COLOR<D75> WHITE THA 		8-97298-559-2 01 1 0404-0508 ● ●
1 16.350 HANDLE; OUTSIDE,FRT DOOR
BODY COLOR STERLING SILVER MET<936> HANDLE O/S DOOR BODY COLOR<D75> SILVER THA 		8-97401-013-2 01 1 0509-0609 ● ●
1 16.350 HANDLE; OUTSIDE,FRT DOOR
BODY COLOR STERLING SILVER MET<936> HANDLE O/S DOOR BODY COLOR<D75> SILVER THA 		8-97408-087-0 01 1 0610- ● ●
1 16.350 HANDLE; OUTSIDE,FRT DOOR
BODY COLOR SANDAL WOOD MET<643> HANDLE O/S DOOR BODY COLOR<D75> WHITE THA 		8-97298-552-2 01 1 0404-0508 ● ●
1 16.350 HANDLE; OUTSIDE,FRT DOOR
BODY COLOR STERLING SILVER MET<936> HANDLE O/S DOOR BODY COLOR<D75> SILVER THA 		8-97401-010-2 01 1 0509-0609 ● ●
1 16.350 HANDLE; OUTSIDE,FRT DOOR
BODY COLOR STERLING SILVER MET<936> HANDLE O/S DOOR BODY COLOR<D75> SILVER THA 		8-97408-074-0 01 1 0610- ● ●
1 16.350 HANDLE; OUTSIDE,FRT DOOR
BODY COLOR SANDAL WOOD MET<643> OUTSIDE HANDLE CHROME<E20> WHITE THA 		8-97298-545-1 01 1 0404-0508 ● ●
1 16.350 HANDLE; OUTSIDE,FRT DOOR
BODY COLOR SANDAL WOOD MET<643> WHITE THA 		8-97298-545-1 01 1 0404-0508 ● ●
1 16.350 HANDLE; OUTSIDE,FRT DOOR
BODY COLOR STERLING SILVER MET<936> OUTSIDE HANDLE CHROME<E20> SILVER THA 		8-97401-019-0 01 1 0509-0510 ● ●
1 16.350 HANDLE; OUTSIDE,FRT DOOR
BODY COLOR STERLING SILVER MET<936> SILVER THA 		8-97401-019-0 01 1 0509-0510 ● ●
1 16.350 HANDLE; OUTSIDE,FRT DOOR
BODY COLOR STERLING SILVER MET<936> OUTSIDE HANDLE CHROME<E20> SILVER THA 		8-97401-019-0 01 1 0511-0609 ● ● ● ●
1 16.350 HANDLE; OUTSIDE,FRT DOOR
BODY COLOR STERLING SILVER MET<936> OUTSIDE HANDLE CHROME<E20> SILVER THA 		8-97408-116-0 01 1 0610- ● ● ● ●
1 16.350 HANDLE; OUTSIDE,FRT DOOR
BODY COLOR SANDAL WOOD MET<643> OUTSIDE HANDLE CHROME<E20> WHITE THA 		8-97298-537-1 01 1 0404-0508 ● ●
1 16.350 HANDLE; OUTSIDE,FRT DOOR
BODY COLOR SANDAL WOOD MET<643> WHITE THA 		8-97298-537-1 01 1 0404-0508 ● ●
1 16.350 HANDLE; OUTSIDE,FRT DOOR
BODY COLOR STERLING SILVER MET<936> OUTSIDE HANDLE CHROME<E20> SILVER THA 		8-97401-016-0 01 1 0509-0510 ● ●
1 16.350 HANDLE; OUTSIDE,FRT DOOR
BODY COLOR STERLING SILVER MET<936> SILVER THA 		8-97401-016-0 01 1 0509-0510 ● ●
1 16.350 HANDLE; OUTSIDE,FRT DOOR
BODY COLOR STERLING SILVER MET<936> OUTSIDE HANDLE CHROME<E20> SILVER THA 		8-97401-016-0 01 1 0511-0609 ● ● ● ●
1 16.350 HANDLE; OUTSIDE,FRT DOOR
BODY COLOR STERLING SILVER MET<936> OUTSIDE HANDLE CHROME<E20> SILVER THA 		8-97408-101-0 01 1 0610- ● ● ● ●
1 16.350 HANDLE; OUTSIDE,FRT DOOR
EXC. HANDLE O/S DOOR BODY COLOR<D75>, OUTSIDE HANDLE CHROME<E20> BLACK THA 		8-97235-975-1 01 1 0404-0510 ● ●
1 16.350 HANDLE; OUTSIDE,FRT DOOR
BLACK THA 		8-97235-975-1 01 1 0404-0510 ●
1 16.350 HANDLE; OUTSIDE,FRT DOOR
EXC. HANDLE O/S DOOR BODY COLOR<D75>, OUTSIDE HANDLE CHROME<E20> BLACK THA 		8-97235-975-1 01 1 0511-0609 ● ●
1 16.350 HANDLE; OUTSIDE,FRT DOOR
BLACK THA 		8-97235-975-1 01 1 0511-0609 ●
1 16.350 HANDLE; OUTSIDE,FRT DOOR
EXC. OUTSIDE HANDLE CHROME<E20> BLACK THA 		8-97235-975-1 01 1 0511-0609 ● ●
1 16.350 HANDLE; OUTSIDE,FRT DOOR
EXC. HANDLE O/S DOOR BODY COLOR<D75>, OUTSIDE HANDLE CHROME<E20> BLACK THA 		8-98050-606-0 01 1 0610- ● ●
1 16.350 HANDLE; OUTSIDE,FRT DOOR
BLACK THA 		8-98050-606-0 01 1 0610- ●
1 16.350 HANDLE; OUTSIDE,FRT DOOR
EXC. OUTSIDE HANDLE CHROME<E20> BLACK THA 		8-98050-606-0 01 1 0610- ● ●
1 16.350 HANDLE; OUTSIDE,FRT DOOR
EXC. HANDLE O/S DOOR BODY COLOR<D75>, OUTSIDE HANDLE CHROME<E20> BLACK THA 		8-97235-959-1 01 1 0404-0510 ● ●
1 16.350 HANDLE; OUTSIDE,FRT DOOR
BLACK THA 		8-97235-959-1 01 1 0404-0510 ●
1 16.350 HANDLE; OUTSIDE,FRT DOOR
EXC. HANDLE O/S DOOR BODY COLOR<D75>, OUTSIDE HANDLE CHROME<E20> BLACK THA 		8-97235-959-1 01 1 0511-0609 ● ●
1 16.350 HANDLE; OUTSIDE,FRT DOOR
BLACK THA 		8-97235-959-1 01 1 0511-0609 ●
1 16.350 HANDLE; OUTSIDE,FRT DOOR
EXC. OUTSIDE HANDLE CHROME<E20> BLACK THA 		8-97235-959-1 01 1 0511-0609 ● ●
1 16.350 HANDLE; OUTSIDE,FRT DOOR
EXC. HANDLE O/S DOOR BODY COLOR<D75>, OUTSIDE HANDLE CHROME<E20> BLACK THA 		8-98050-605-0 01 1 0610- ● ●
1 16.350 HANDLE; OUTSIDE,FRT DOOR
BLACK THA 		8-98050-605-0 01 1 0610- ●
1 16.350 HANDLE; OUTSIDE,FRT DOOR
EXC. OUTSIDE HANDLE CHROME<E20> BLACK THA 		8-98050-605-0 01 1 0610- ● ●
8 16.330 LOCK; DOOR,FRT DOOR
AUTO DOOR LOCK<AU4> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> THA 		8-97301-791-0 01 1 0404-0504 ● ●
8 16.330 LOCK; DOOR,FRT DOOR
THA 		8-97301-791-0 01 1 0404-0504 ● ●
8 16.330 LOCK; DOOR,FRT DOOR
AUTO DOOR LOCK<AU4> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> THA 		8-98003-248-0 01 1 0505-0609 ● ●
8 16.330 LOCK; DOOR,FRT DOOR
THA 		8-98003-248-0 01 1 0505-0609 ● ●
8 16.330 LOCK; DOOR,FRT DOOR
AUTO DOOR LOCK<AU4> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> THA 		8-98012-191-0 01 1 0610-0709 ● ●
8 16.330 LOCK; DOOR,FRT DOOR
THA 		8-98012-191-0 01 1 0610-0709 ● ●
8 16.330 LOCK; DOOR,FRT DOOR
GRADE LT<RBD> AUTO DOOR LOCK<AU4> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> THA 		8-98012-191-0 01 1 0710-0809 ● ●
8 16.330 LOCK; DOOR,FRT DOOR
GRADE LT<RBD> THA 		8-98012-191-0 01 1 0710-0809 ● ●
8 16.330 LOCK; DOOR,FRT DOOR
GRADE LT<RBD> AUTO DOOR LOCK<AU4> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> THA 		8-98012-191-0 01 1 0810-1004 ● ●
8 16.330 LOCK; DOOR,FRT DOOR
THA 		8-98012-191-0 01 1 0810-1004 ● ●
8 16.330 LOCK; DOOR,FRT DOOR
GRADE LT<RBD> AUTO DOOR LOCK<AU4> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> THA 		8-98169-049-0 01 1 1005- ● ●
8 16.330 LOCK; DOOR,FRT DOOR
THA 		8-98169-049-0 01 1 1005- ● ●
8 16.330 LOCK; DOOR,FRT DOOR
AUTO DOOR LOCK<AU4> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> THA 		8-97301-792-1 01 1 0404-0504 ● ●
8 16.330 LOCK; DOOR,FRT DOOR
THA 		8-97301-792-1 01 1 0404-0504 ● ●
8 16.330 LOCK; DOOR,FRT DOOR
AUTO DOOR LOCK<AU4> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> THA 		8-98003-249-0 01 1 0505-0609 ● ●
8 16.330 LOCK; DOOR,FRT DOOR
THA 		8-98003-249-0 01 1 0505-0609 ● ●
8 16.330 LOCK; DOOR,FRT DOOR
AUTO DOOR LOCK<AU4> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> THA 		8-98012-192-0 01 1 0610-0709 ● ●
8 16.330 LOCK; DOOR,FRT DOOR
THA 		8-98012-192-0 01 1 0610-0709 ● ●
8 16.330 LOCK; DOOR,FRT DOOR
GRADE LT<RBD> AUTO DOOR LOCK<AU4> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> THA 		8-98012-192-0 01 1 0710-0809 ● ●
8 16.330 LOCK; DOOR,FRT DOOR
GRADE LT<RBD> THA 		8-98012-192-0 01 1 0710-0809 ● ●
8 16.330 LOCK; DOOR,FRT DOOR
GRADE LT<RBD> AUTO DOOR LOCK<AU4> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> THA 		8-98012-192-0 01 1 0810-1004 ● ●
8 16.330 LOCK; DOOR,FRT DOOR
THA 		8-98012-192-0 01 1 0810-1004 ● ●
8 16.330 LOCK; DOOR,FRT DOOR
GRADE LT<RBD> AUTO DOOR LOCK<AU4> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> THA 		8-98169-048-0 01 1 1005- ● ●
8 16.330 LOCK; DOOR,FRT DOOR
THA 		8-98169-048-0 01 1 1005- ● ●
8 16.330 LOCK; DOOR,FRT DOOR
AUTO DOOR LOCK<AU4> EXC. REMOTE CONT DOOR LOCK W/ANTI THEF T<7KY> THA 		8-97236-074-1 01 1 0404-0504 ● ●
8 16.330 LOCK; DOOR,FRT DOOR
AUTO DOOR LOCK<AU4> EXC. REMOTE CONT DOOR LOCK W/ANTI THEF T<7KY> THA 		8-98003-244-0 01 1 0505-0609 ● ●
8 16.330 LOCK; DOOR,FRT DOOR
AUTO DOOR LOCK<AU4> EXC. REMOTE CONT DOOR LOCK W/ANTI THEF T<7KY> THA 		8-98012-187-0 01 1 0610-0709 ● ●
8 16.330 LOCK; DOOR,FRT DOOR
GRADE LS<RBB>,GRADE LT<RBD> AUTO DOOR LOCK<AU4> EXC. REMOTE CONT DOOR LOCK W/ANTI THEF T<7KY> THA 		8-98012-187-0 01 1 0710-0809 ● ●
8 16.330 LOCK; DOOR,FRT DOOR
AUTO DOOR LOCK<AU4> EXC. REMOTE CONT DOOR LOCK W/ANTI THEF T<7KY> THA 		8-98012-187-0 01 1 0810-0910 ● ●
8 16.330 LOCK; DOOR,FRT DOOR
GRADE LS<RBB>,GRADE LT<RBD> AUTO DOOR LOCK<AU4> EXC. REMOTE CONT DOOR LOCK W/ANTI THEF T<7KY> THA 		8-98012-187-0 01 1 0911- ● ●
8 16.330 LOCK; DOOR,FRT DOOR
AUTO DOOR LOCK<AU4> EXC. REMOTE CONT DOOR LOCK W/ANTI THEF T<7KY> THA 		8-97301-790-1 01 1 0404-0504 ● ●
8 16.330 LOCK; DOOR,FRT DOOR
AUTO DOOR LOCK<AU4> EXC. REMOTE CONT DOOR LOCK W/ANTI THEF T<7KY> THA 		8-98003-247-0 01 1 0505-0609 ● ●
8 16.330 LOCK; DOOR,FRT DOOR
AUTO DOOR LOCK<AU4> EXC. REMOTE CONT DOOR LOCK W/ANTI THEF T<7KY> THA 		8-98012-190-0 01 1 0610-0709 ● ●
8 16.330 LOCK; DOOR,FRT DOOR
GRADE LS<RBB>,GRADE LT<RBD> AUTO DOOR LOCK<AU4> EXC. REMOTE CONT DOOR LOCK W/ANTI THEF T<7KY> THA 		8-98012-190-0 01 1 0710-0809 ● ●
8 16.330 LOCK; DOOR,FRT DOOR
AUTO DOOR LOCK<AU4> EXC. REMOTE CONT DOOR LOCK W/ANTI THEF T<7KY> THA 		8-98012-190-0 01 1 0810-0910 ● ●
8 16.330 LOCK; DOOR,FRT DOOR
GRADE LS<RBB>,GRADE LT<RBD> AUTO DOOR LOCK<AU4> EXC. REMOTE CONT DOOR LOCK W/ANTI THEF T<7KY> THA 		8-98012-190-0 01 1 0911-1004 ● ●
8 16.330 LOCK; DOOR,FRT DOOR
GRADE LS<RBB>,GRADE LT<RBD> AUTO DOOR LOCK<AU4> EXC. REMOTE CONT DOOR LOCK W/ANTI THEF T<7KY> THA 		8-98169-046-0 01 1 1005- ● ●
8 16.330 LOCK; DOOR,FRT DOOR
EXC. AUTO DOOR LOCK<AU4> THA 		8-97236-072-1 01 1 0404-0504 ● ●
8 16.330 LOCK; DOOR,FRT DOOR
THA 		8-97236-072-1 01 1 0404-0504 ●
8 16.330 LOCK; DOOR,FRT DOOR
EXC. AUTO DOOR LOCK<AU4> THA 		8-98003-242-0 01 1 0505-0609 ● ●
8 16.330 LOCK; DOOR,FRT DOOR
THA 		8-98003-242-0 01 1 0505-0609 ●
8 16.330 LOCK; DOOR,FRT DOOR
EXC. AUTO DOOR LOCK<AU4> THA 		8-98012-185-0 01 1 0610-0910 ● ●
8 16.330 LOCK; DOOR,FRT DOOR
THA 		8-98012-185-0 01 1 0610-0910 ●
8 16.330 LOCK; DOOR,FRT DOOR
GRADE LS<RBB> EXC. AUTO DOOR LOCK<AU4> THA 		8-98012-185-0 01 1 0911- ● ●
8 16.330 LOCK; DOOR,FRT DOOR
THA 		8-98012-185-0 01 1 0911- ●
8 16.330 LOCK; DOOR,FRT DOOR
EXC. AUTO DOOR LOCK<AU4> THA 		8-97236-071-1 01 1 0404-0504 ● ●
8 16.330 LOCK; DOOR,FRT DOOR
THA 		8-97236-071-1 01 1 0404-0504 ●
8 16.330 LOCK; DOOR,FRT DOOR
EXC. AUTO DOOR LOCK<AU4> THA 		8-98003-243-0 01 1 0505-0609 ● ●
8 16.330 LOCK; DOOR,FRT DOOR
THA 		8-98003-243-0 01 1 0505-0609 ●
8 16.330 LOCK; DOOR,FRT DOOR
EXC. AUTO DOOR LOCK<AU4> THA 		8-98012-186-0 01 1 0610-0910 ● ●
8 16.330 LOCK; DOOR,FRT DOOR
THA 		8-98012-186-0 01 1 0610-0910 ●
8 16.330 LOCK; DOOR,FRT DOOR
GRADE LS<RBB> EXC. AUTO DOOR LOCK<AU4> THA 		8-98012-186-0 01 1 0911- ● ●
8 16.330 LOCK; DOOR,FRT DOOR
THA 		8-98012-186-0 01 1 0911- ●
11 16.263 ACTUATOR; DOOR LK,FRT
AUTO DOOR LOCK<AU4> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> THA 		8-97351-088-0 01 1 0404-0709 ● ●
11 16.263 ACTUATOR; DOOR LK,FRT
THA 		8-97351-088-0 01 1 0404-0709 ● ●
11 16.263 ACTUATOR; DOOR LK,FRT
GRADE LT<RBD> AUTO DOOR LOCK<AU4> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> THA 		8-97351-088-0 01 1 0710-0809 ● ●
11 16.263 ACTUATOR; DOOR LK,FRT
GRADE LT<RBD> THA 		8-97351-088-0 01 1 0710-0809 ● ●
11 16.263 ACTUATOR; DOOR LK,FRT
GRADE LT<RBD> AUTO DOOR LOCK<AU4> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> THA 		8-97351-088-0 01 1 0810- ● ●
11 16.263 ACTUATOR; DOOR LK,FRT
THA 		8-97351-088-0 01 1 0810- ● ●
11 16.263 ACTUATOR; DOOR LK,FRT
AUTO DOOR LOCK<AU4> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> THA 		8-97349-996-0 01 1 0404-0709 ● ●
11 16.263 ACTUATOR; DOOR LK,FRT
THA 		8-97349-996-0 01 1 0404-0709 ● ●
11 16.263 ACTUATOR; DOOR LK,FRT
GRADE LT<RBD> AUTO DOOR LOCK<AU4> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> THA 		8-97349-996-0 01 1 0710-0809 ● ●
11 16.263 ACTUATOR; DOOR LK,FRT
GRADE LT<RBD> THA 		8-97349-996-0 01 1 0710-0809 ● ●
11 16.263 ACTUATOR; DOOR LK,FRT
GRADE LT<RBD> AUTO DOOR LOCK<AU4> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> THA 		8-97349-996-0 01 1 0810- ● ●
11 16.263 ACTUATOR; DOOR LK,FRT
THA 		8-97349-996-0 01 1 0810- ● ●
11 16.263 ACTUATOR; DOOR LK,FRT
AUTO DOOR LOCK<AU4> EXC. REMOTE CONT DOOR LOCK W/ANTI THEF T<7KY> THA 		8-97349-993-0 01 1 0404-0709 ● ●
11 16.263 ACTUATOR; DOOR LK,FRT
GRADE LS<RBB>,GRADE LT<RBD> AUTO DOOR LOCK<AU4> EXC. REMOTE CONT DOOR LOCK W/ANTI THEF T<7KY> THA 		8-97349-993-0 01 1 0710-0809 ● ●
11 16.263 ACTUATOR; DOOR LK,FRT
AUTO DOOR LOCK<AU4> EXC. REMOTE CONT DOOR LOCK W/ANTI THEF T<7KY> THA 		8-97349-993-0 01 1 0810-0910 ● ●
11 16.263 ACTUATOR; DOOR LK,FRT
GRADE LS<RBB>,GRADE LT<RBD> AUTO DOOR LOCK<AU4> EXC. REMOTE CONT DOOR LOCK W/ANTI THEF T<7KY> THA 		8-97349-993-0 01 1 0911- ● ●
11 16.263 ACTUATOR; DOOR LK,FRT
AUTO DOOR LOCK<AU4> EXC. REMOTE CONT DOOR LOCK W/ANTI THEF T<7KY> THA 		8-97349-995-0 01 1 0404-0709 ● ●
11 16.263 ACTUATOR; DOOR LK,FRT
GRADE LS<RBB>,GRADE LT<RBD> AUTO DOOR LOCK<AU4> EXC. REMOTE CONT DOOR LOCK W/ANTI THEF T<7KY> THA 		8-97349-995-0 01 1 0710-0809 ● ●
11 16.263 ACTUATOR; DOOR LK,FRT
AUTO DOOR LOCK<AU4> EXC. REMOTE CONT DOOR LOCK W/ANTI THEF T<7KY> THA 		8-97349-995-0 01 1 0810-0910 ● ●
11 16.263 ACTUATOR; DOOR LK,FRT
GRADE LS<RBB>,GRADE LT<RBD> AUTO DOOR LOCK<AU4> EXC. REMOTE CONT DOOR LOCK W/ANTI THEF T<7KY> THA 		8-97349-995-0 01 1 0911- ● ●
12 16.330 SCREW; DOOR LK
16.069 (A) M6X20 THA 		1-09981-494-0 06 1 0404-0611 ● ● ● ● ●
12 16.330 SCREW; DOOR LK
(A) M6X20 THA 		8-98049-000-0 06 1 0612- ● ● ● ● ●
12 16.330 SCREW; DOOR LK
AUTO DOOR LOCK<AU4> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> (B) THA 		8-97349-997-0 04 1 0404-0709 ● ●
12 16.330 SCREW; DOOR LK
(B) THA 		8-97349-997-0 04 1 0404-0709 ● ●
12 16.330 SCREW; DOOR LK
GRADE LS<RBB>,GRADE LT<RBD> AUTO DOOR LOCK<AU4> EXC. REMOTE CONT DOOR LOCK W/ANTI THEF T<7KY> (B) THA 		8-97349-997-0 02 1 0710-0809 ● ●
12 16.330 SCREW; DOOR LK
GRADE LS<RBB>,GRADE LT<RBD> AUTO DOOR LOCK<AU4> EXC. REMOTE CONT DOOR LOCK W/ANTI THEF T<7KY> (B) THA 		8-97349-997-0 02 1 0710-0809 ● ●
12 16.330 SCREW; DOOR LK
AUTO DOOR LOCK<AU4> EXC. REMOTE CONT DOOR LOCK W/ANTI THEF T<7KY> (B) THA 		8-97349-997-0 02 1 0810-0910 ● ●
12 16.330 SCREW; DOOR LK
AUTO DOOR LOCK<AU4> EXC. REMOTE CONT DOOR LOCK W/ANTI THEF T<7KY> (B) THA 		8-97349-997-0 02 1 0810-0910 ● ●
12 16.330 SCREW; DOOR LK
GRADE LS<RBB>,GRADE LT<RBD> AUTO DOOR LOCK<AU4> EXC. REMOTE CONT DOOR LOCK W/ANTI THEF T<7KY> (B) THA 		8-97349-997-0 02 1 0911- ● ●
12 16.330 SCREW; DOOR LK
GRADE LS<RBB>,GRADE LT<RBD> AUTO DOOR LOCK<AU4> EXC. REMOTE CONT DOOR LOCK W/ANTI THEF T<7KY> (B) THA 		8-97349-997-0 02 1 0911- ● ●
12 16.330 SCREW; DOOR LK
AUTO DOOR LOCK<AU4> EXC. REMOTE CONT DOOR LOCK W/ANTI THEF T<7KY> (B) THA 		8-97349-997-0 02 1 0404-0709 ● ●
12 16.330 SCREW; DOOR LK
AUTO DOOR LOCK<AU4> EXC. REMOTE CONT DOOR LOCK W/ANTI THEF T<7KY> (B) THA 		8-97349-997-0 02 1 0404-0709 ● ●
12 16.330 SCREW; DOOR LK
GRADE LT<RBD> AUTO DOOR LOCK<AU4> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> (B) THA 		8-97349-997-0 04 1 0710-0809 ● ●
12 16.330 SCREW; DOOR LK
GRADE LT<RBD> (B) THA 		8-97349-997-0 04 1 0710-0809 ● ●
12 16.330 SCREW; DOOR LK
GRADE LT<RBD> AUTO DOOR LOCK<AU4> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> (B) THA 		8-97349-997-0 04 1 0810- ● ●
12 16.330 SCREW; DOOR LK
(B) THA 		8-97349-997-0 04 1 0810- ● ●
14 16.335 STRIKER; FRT DOOR
THA 		8-97235-985-1 02 1 0404-0609 ● ● ● ● ●
14 16.335 STRIKER; FRT DOOR
THA 		8-98012-203-0 02 1 0610- ● ● ● ● ●
18 16.335 SCREW; DOOR STRIKER
M8X35 THA 		8-97324-511-0 04 1 0404-0610 ● ● ● ● ●
18 16.335 SCREW; DOOR STRIKER
M8X35 THA 		8-98049-360-0 04 1 0611- ● ● ● ● ●
28 16.345 BEZEL; INSIDE LEVER,FRT DOOR
DARK GRAY THA 		8-97396-657-1 01 1 0404- ● ● ● ● ●
28 16.345 BEZEL; INSIDE LEVER,FRT DOOR
DARK GRAY THA 		8-97396-656-1 01 1 0404- ● ● ● ● ●
34 16.345 HANDLE; INSIDE,FRT DOOR
DARK GRAY THA 		8-97396-826-1 01 1 0404-0609 ● ● ● ● ●
34 16.345 HANDLE; INSIDE,FRT DOOR
DARK GRAY THA 		8-97404-944-0 01 1 0610-0709 ● ● ● ● ●
34 16.345 HANDLE; INSIDE,FRT DOOR
GRADE LS<RBB> DARK GRAY THA 		8-97404-944-0 01 1 0710-0809 ● ●
34 16.345 HANDLE; INSIDE,FRT DOOR
DARK GRAY THA 		8-97404-944-0 01 1 0710-0809 ●
34 16.345 HANDLE; INSIDE,FRT DOOR
GRADE BASE<RBA>,GRADE LS<RBB> DARK GRAY THA 		8-97404-944-0 01 1 0810-0910 ● ●
34 16.345 HANDLE; INSIDE,FRT DOOR
DARK GRAY THA 		8-97404-944-0 01 1 0810-0910 ●
34 16.345 HANDLE; INSIDE,FRT DOOR
GRADE LS<RBB> DARK GRAY THA 		8-97404-944-0 01 1 0911- ● ●
34 16.345 HANDLE; INSIDE,FRT DOOR
DARK GRAY THA 		8-97404-944-0 01 1 0911- ●
34 16.345 HANDLE; INSIDE,FRT DOOR
DARK GRAY THA 		8-97396-827-1 01 1 0404-0609 ● ● ● ● ●
34 16.345 HANDLE; INSIDE,FRT DOOR
DARK GRAY THA 		8-97404-960-0 01 1 0610-0709 ● ● ● ● ●
34 16.345 HANDLE; INSIDE,FRT DOOR
GRADE LS<RBB> DARK GRAY THA 		8-97404-960-0 01 1 0710-0809 ● ●
34 16.345 HANDLE; INSIDE,FRT DOOR
DARK GRAY THA 		8-97404-960-0 01 1 0710-0809 ●
34 16.345 HANDLE; INSIDE,FRT DOOR
GRADE BASE<RBA>,GRADE LS<RBB> DARK GRAY THA 		8-97404-960-0 01 1 0810-0910 ● ●
34 16.345 HANDLE; INSIDE,FRT DOOR
DARK GRAY THA 		8-97404-960-0 01 1 0810-0910 ●
34 16.345 HANDLE; INSIDE,FRT DOOR
GRADE LS<RBB> DARK GRAY THA 		8-97404-960-0 01 1 0911- ● ●
34 16.345 HANDLE; INSIDE,FRT DOOR
DARK GRAY THA 		8-97404-960-0 01 1 0911- ●
34 16.345 HANDLE; INSIDE,FRT DOOR
GRADE LT<RBD> AUTO DOOR LOCK<AU4> DARK GRAY THA 		8-97408-668-1 01 1 0710-0809 ● ●
34 16.345 HANDLE; INSIDE,FRT DOOR
GRADE LT<RBD> DARK GRAY THA 		8-97408-668-1 01 1 0710-0809 ● ●
34 16.345 HANDLE; INSIDE,FRT DOOR
GRADE LT<RBD> AUTO DOOR LOCK<AU4> DARK GRAY THA 		8-97408-668-1 01 1 0810- ● ●
34 16.345 HANDLE; INSIDE,FRT DOOR
DARK GRAY THA 		8-97408-668-1 01 1 0810- ● ●
34 16.345 HANDLE; INSIDE,FRT DOOR
GRADE LT<RBD> AUTO DOOR LOCK<AU4> DARK GRAY THA 		8-97408-669-1 01 1 0710-0809 ● ●
34 16.345 HANDLE; INSIDE,FRT DOOR
GRADE LT<RBD> DARK GRAY THA 		8-97408-669-1 01 1 0710-0809 ● ●
34 16.345 HANDLE; INSIDE,FRT DOOR
GRADE LT<RBD> AUTO DOOR LOCK<AU4> DARK GRAY THA 		8-97408-669-1 01 1 0810- ● ●
34 16.345 HANDLE; INSIDE,FRT DOOR
DARK GRAY THA 		8-97408-669-1 01 1 0810- ● ●
36 16.332 LINK; DOOR LOCK,OUTSIDE
THA 		8-97349-983-0 01 1 0404- ● ● ● ● ●
36 16.332 LINK; DOOR LOCK,OUTSIDE
THA 		8-97349-984-0 01 1 0404- ● ● ● ● ●
42 16.345 SCREW; TAPPING,INSIDE LEVER
12.182 M5X14 		8-94152-495-0 02 1 0404- ● ● ● ● ●
43 16.345 GROMMET; SCREW,INSIDE LEVER,DOOR
10.565 THA 		8-94152-494-0 02 1 0404- ● ● ● ● ●
48 16.345 ANTIRATTLER; DOOR LINK
THA 		8-97251-932-0 02 1 0404- ● ● ● ● ●
51 16.335 SNAP; FRT DOOR LOCK CONT ROD
THA 		8-97349-985-0 01 1 0404- ● ● ● ● ●
51 16.335 SNAP; FRT DOOR LOCK CONT ROD
THA 		8-97349-986-0 01 1 0404- ● ● ● ● ●
79 16.263 BOLT; DOOR LK ACTUATOR
AUTO DOOR LOCK<AU4> 10.701 M6X8 THA 		8-94155-893-0 02 1 0404-0609 ● ●
79 16.263 BOLT; DOOR LK ACTUATOR
10.701 M6X8 THA 		8-94155-893-0 02 1 0404-0609 ● ●
79 16.263 BOLT; DOOR LK ACTUATOR
AUTO DOOR LOCK<AU4> 10.765 M6X8 FLANGE THA 		8-98048-996-0 02 1 0610- ● ●
79 16.263 BOLT; DOOR LK ACTUATOR
10.765 M6X8 FLANGE THA 		8-98048-996-0 02 1 0610- ● ●
89 16.350 BOLT; DOOR OUTSIDE HANDLE
10.701 M6X8 THA 		8-94155-893-0 04 1 0404-0609 ● ● ● ● ●
89 16.350 BOLT; DOOR OUTSIDE HANDLE
10.765 M6X8 FLANGE THA 		8-98048-996-0 04 1 0610- ● ● ● ● ●
139 16.350 HOLDER; ROD,DOOR HANDLE
16.330 YELLOW THA 		8-97333-304-0 01 1 0404- ● ● ● ● ●
139 16.350 HOLDER; ROD,DOOR HANDLE
16.330 WHITE 		8-97333-303-0 01 1 0404- ● ● ● ● ●
175 16.341 CABLE ASM; LOCK CONTROL
(A) THA 		8-97349-987-0 01 1 0404- ● ● ● ● ●
175 16.341 CABLE ASM; LOCK CONTROL
(A) THA 		8-97349-988-0 01 1 0404- ● ● ● ● ●
175 16.341 CABLE ASM; LOCK CONTROL
AUTO DOOR LOCK<AU4> EXC. REMOTE CONT DOOR LOCK W/ANTI THEF T<7KY> (B) THA 		8-97349-989-0 01 1 0404-0504 ● ●
175 16.341 CABLE ASM; LOCK CONTROL
AUTO DOOR LOCK<AU4> EXC. REMOTE CONT DOOR LOCK W/ANTI THEF T<7KY> (B) THA 		8-97349-989-0 01 1 0404-0504 ● ●
175 16.341 CABLE ASM; LOCK CONTROL
EXC. AUTO DOOR LOCK<AU4> (B) THA 		8-97349-989-0 01 1 0505-0508 ● ●
175 16.341 CABLE ASM; LOCK CONTROL
AUTO DOOR LOCK<AU4> EXC. REMOTE CONT DOOR LOCK W/ANTI THEF T<7KY> (B) THA 		8-97349-989-0 01 1 0505-0508 ● ●
175 16.341 CABLE ASM; LOCK CONTROL
AUTO DOOR LOCK<AU4> EXC. REMOTE CONT DOOR LOCK W/ANTI THEF T<7KY> (B) THA 		8-97349-989-0 01 1 0505-0508 ● ●
175 16.341 CABLE ASM; LOCK CONTROL
(B) THA 		8-97349-989-0 01 1 0505-0508 ●
175 16.341 CABLE ASM; LOCK CONTROL
AUTO DOOR LOCK<AU4> EXC. REMOTE CONT DOOR LOCK W/ANTI THEF T<7KY> (B) THA 		8-97349-989-0 01 1 0509-0709 ● ●
175 16.341 CABLE ASM; LOCK CONTROL
AUTO DOOR LOCK<AU4> EXC. REMOTE CONT DOOR LOCK W/ANTI THEF T<7KY> (B) THA 		8-97349-989-0 01 1 0509-0709 ● ●
175 16.341 CABLE ASM; LOCK CONTROL
GRADE LS<RBB>,GRADE LT<RBD> AUTO DOOR LOCK<AU4> EXC. REMOTE CONT DOOR LOCK W/ANTI THEF T<7KY> (B) THA 		8-97349-989-0 01 1 0710-0809 ● ●
175 16.341 CABLE ASM; LOCK CONTROL
GRADE LS<RBB>,GRADE LT<RBD> AUTO DOOR LOCK<AU4> EXC. REMOTE CONT DOOR LOCK W/ANTI THEF T<7KY> (B) THA 		8-97349-989-0 01 1 0710-0809 ● ●
175 16.341 CABLE ASM; LOCK CONTROL
AUTO DOOR LOCK<AU4> EXC. REMOTE CONT DOOR LOCK W/ANTI THEF T<7KY> (B) THA 		8-97349-989-0 01 1 0810-0910 ● ●
175 16.341 CABLE ASM; LOCK CONTROL
AUTO DOOR LOCK<AU4> EXC. REMOTE CONT DOOR LOCK W/ANTI THEF T<7KY> (B) THA 		8-97349-989-0 01 1 0810-0910 ● ●
175 16.341 CABLE ASM; LOCK CONTROL
GRADE LS<RBB> EXC. AUTO DOOR LOCK<AU4> (B) THA 		8-97349-989-0 02 1 0911- ● ●
175 16.341 CABLE ASM; LOCK CONTROL
GRADE LT<RBD> AUTO DOOR LOCK<AU4> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> (B) THA 		8-97349-989-0 02 1 0911- ● ●
175 16.341 CABLE ASM; LOCK CONTROL
(B) THA 		8-97349-989-0 02 1 0911- ● ● ●
175 16.341 CABLE ASM; LOCK CONTROL
EXC. AUTO DOOR LOCK<AU4> (B) THA 		8-97349-989-0 02 1 0404-0504 ● ●
175 16.341 CABLE ASM; LOCK CONTROL
AUTO DOOR LOCK<AU4> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> (B) THA 		8-97349-989-0 02 1 0404-0504 ● ●
175 16.341 CABLE ASM; LOCK CONTROL
(B) THA 		8-97349-989-0 02 1 0404-0504 ● ● ●
175 16.341 CABLE ASM; LOCK CONTROL
AUTO DOOR LOCK<AU4> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> (B) THA 		8-97349-989-0 02 1 0505-0508 ● ●
175 16.341 CABLE ASM; LOCK CONTROL
(B) THA 		8-97349-989-0 02 1 0505-0508 ● ●
175 16.341 CABLE ASM; LOCK CONTROL
EXC. AUTO DOOR LOCK<AU4> (B) THA 		8-97349-989-0 02 1 0509-0709 ● ●
175 16.341 CABLE ASM; LOCK CONTROL
AUTO DOOR LOCK<AU4> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> (B) THA 		8-97349-989-0 02 1 0509-0709 ● ●
175 16.341 CABLE ASM; LOCK CONTROL
(B) THA 		8-97349-989-0 02 1 0509-0709 ● ● ●
175 16.341 CABLE ASM; LOCK CONTROL
AUTO DOOR LOCK<AU4> EXC. REMOTE CONT DOOR LOCK W/ANTI THEF T<7KY> (B) THA 		8-97349-989-0 02 1 0710-0809 ● ●
175 16.341 CABLE ASM; LOCK CONTROL
AUTO DOOR LOCK<AU4> EXC. REMOTE CONT DOOR LOCK W/ANTI THEF T<7KY> (B) THA 		8-97349-989-0 02 1 0710-0809 ● ●
175 16.341 CABLE ASM; LOCK CONTROL
GRADE BASE<RBA>,GRADE LS<RBB> EXC. AUTO DOOR LOCK<AU4> (B) THA 		8-97349-989-0 02 1 0810-0910 ● ●
175 16.341 CABLE ASM; LOCK CONTROL
GRADE LT<RBD> AUTO DOOR LOCK<AU4> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> (B) THA 		8-97349-989-0 02 1 0810-0910 ● ●
175 16.341 CABLE ASM; LOCK CONTROL
(B) THA 		8-97349-989-0 02 1 0810-0910 ● ● ●
175 16.341 CABLE ASM; LOCK CONTROL
GRADE LS<RBB>,GRADE LT<RBD> AUTO DOOR LOCK<AU4> EXC. REMOTE CONT DOOR LOCK W/ANTI THEF T<7KY> (B) THA 		8-97349-989-0 01 1 0911- ● ●
175 16.341 CABLE ASM; LOCK CONTROL
GRADE LS<RBB>,GRADE LT<RBD> AUTO DOOR LOCK<AU4> EXC. REMOTE CONT DOOR LOCK W/ANTI THEF T<7KY> (B) THA 		8-97349-989-0 01 1 0911- ● ●
175 16.341 CABLE ASM; LOCK CONTROL
EXC. AUTO DOOR LOCK<AU4> (B) THA 		8-97349-990-0 01 1 0505-0508 ● ●
175 16.341 CABLE ASM; LOCK CONTROL
(B) THA 		8-97349-990-0 01 1 0505-0508 ●
176 16.270 COVER; DOOR LOCK
THA 		8-97349-991-0 01 1 0404- ● ● ● ● ●
176 16.270 COVER; DOOR LOCK
THA 		8-97349-992-0 01 1 0404- ● ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
