◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 50982 - TFR/S(CHEVROLET)THAI ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-31 - FRONT DOOR GLASS AND REGULATOR ▶
6-31 — FRONT DOOR GLASS AND REGULATOR (#73656) — 96 parça

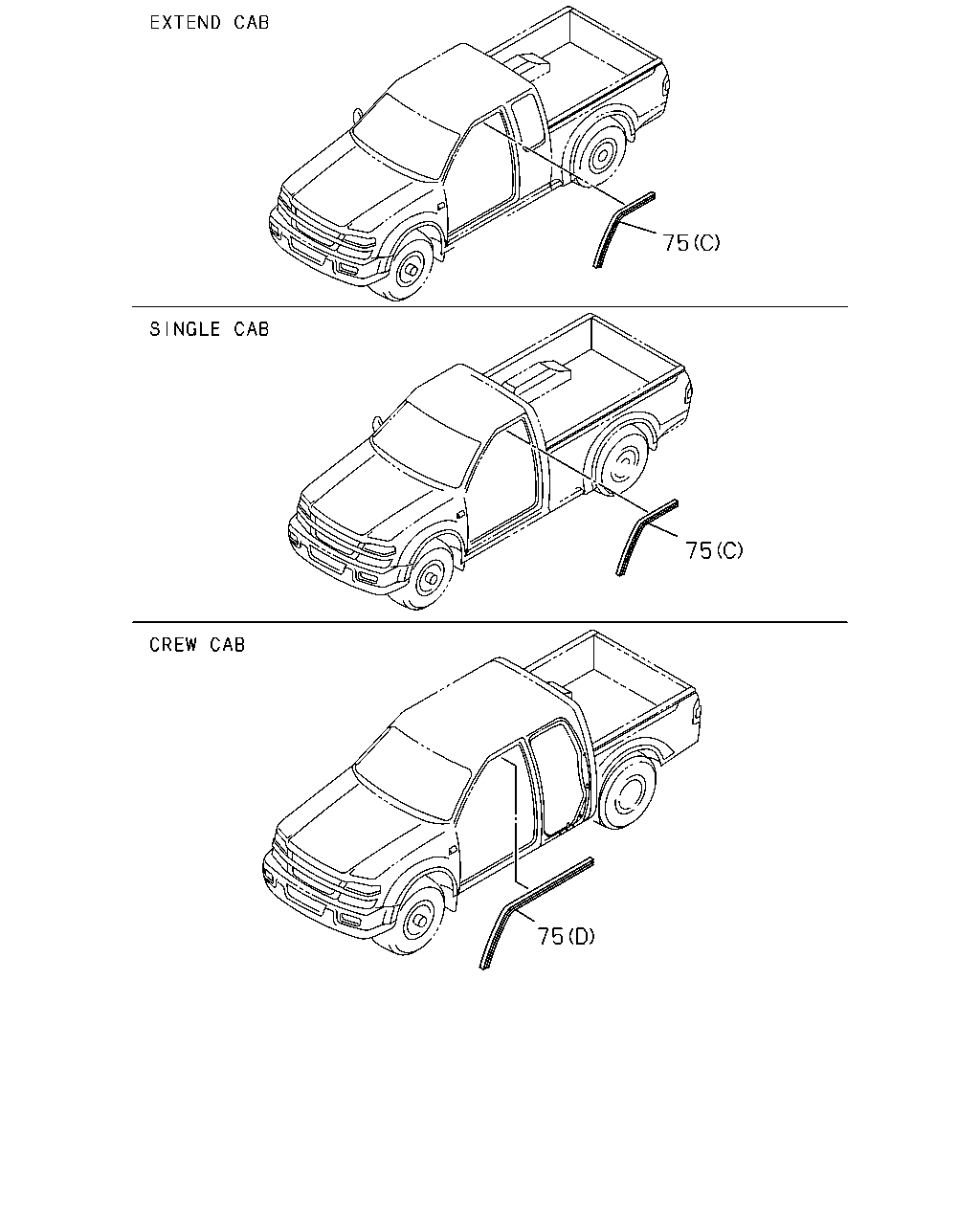

çizim 117828
75 75 75
BalonParca AdiParca NoAdetTipApplied Date A B C D E
75 16.183 WEATHERSTRIP; FRT DOOR
(A) THA 		8-97236-117-1 01 1 0404- ● ● ● ● ●
75 16.183 WEATHERSTRIP; FRT DOOR
(B) THA 		8-97236-154-2 01 1 0404-0412 ● ● ● ● ●
75 16.183 WEATHERSTRIP; FRT DOOR
(B) THA 		8-98004-226-0 01 1 0501- ● ● ● ● ●
75 16.183 WEATHERSTRIP; FRT DOOR
(A) THA 		8-97236-116-1 01 1 0404- ● ● ● ● ●
75 16.183 WEATHERSTRIP; FRT DOOR
(B) THA 		8-97236-153-2 01 1 0404-0412 ● ● ● ● ●
75 16.183 WEATHERSTRIP; FRT DOOR
(B) THA 		8-98004-225-0 01 1 0501- ● ● ● ● ●
75 16.183 WEATHERSTRIP; FRT DOOR
(C) THA 		8-97236-112-2 01 1 0404-0412 ● ● ●
75 16.183 WEATHERSTRIP; FRT DOOR
(C) THA 		8-98004-220-0 01 1 0501- ● ● ●
75 16.183 WEATHERSTRIP; FRT DOOR
(C) THA 		8-97236-110-2 01 1 0404-0412 ● ● ●
75 16.183 WEATHERSTRIP; FRT DOOR
(C) THA 		8-98004-219-0 01 1 0501- ● ● ●
75 16.183 WEATHERSTRIP; FRT DOOR
(D) THA 		8-93291-058-3 01 1 0404-0412 ● ●
75 16.183 WEATHERSTRIP; FRT DOOR
(D) THA 		8-98004-217-0 01 1 0501- ● ●
75 16.183 WEATHERSTRIP; FRT DOOR
(D) THA 		8-93296-881-3 01 1 0404-0412 ● ●
75 16.183 WEATHERSTRIP; FRT DOOR
(D) THA 		8-98004-218-0 01 1 0501- ● ●

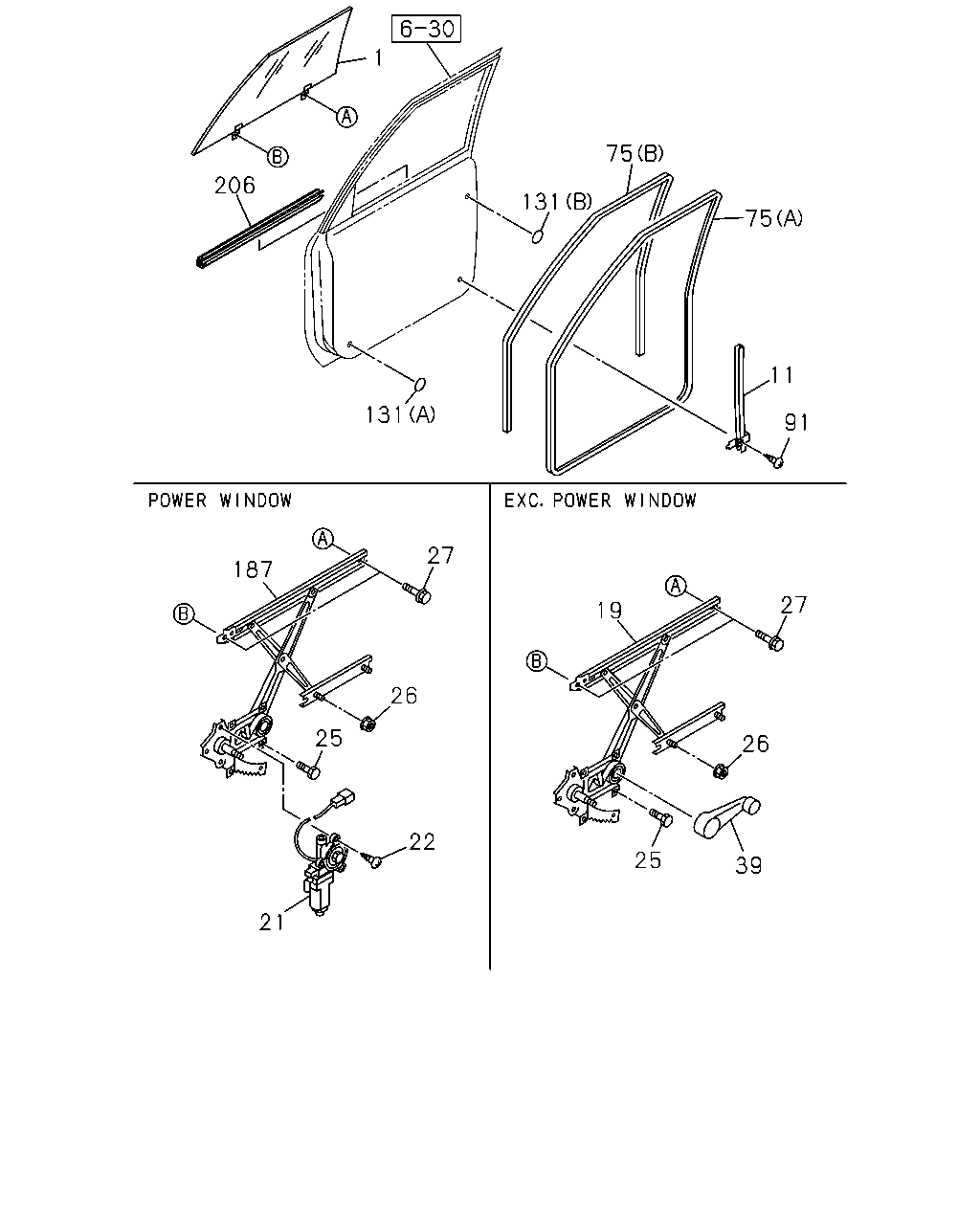

çizim 117830
1 75 206 131 75 11 131 91 27 187 27 19 26 25 26 22 25 39 21
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 16.180 GLASS; FRT DOOR
THA 		8-97236-032-2 01 1 0404-0808 ● ● ● ● ●
1 16.180 GLASS; FRT DOOR
THA 		8-98130-013-0 01 1 0809- ● ● ● ● ●
1 16.180 GLASS; FRT DOOR
THA 		8-97236-028-2 01 1 0404-0808 ● ● ● ● ●
1 16.180 GLASS; FRT DOOR
THA 		8-98130-012-0 01 1 0809- ● ● ● ● ●
11 16.183 RAIL; RR GUIDE,FRT DOOR
THA 		8-97241-127-1 01 1 0404- ● ● ● ● ●
11 16.183 RAIL; RR GUIDE,FRT DOOR
THA 		8-97241-126-1 01 1 0404- ● ● ● ● ●
19 16.260 REGULATOR; WINDOW,FRT DOOR
EXC. POWER WINDOW<A31> THA 		8-97235-875-2 01 1 0404-0609 ● ●
19 16.260 REGULATOR; WINDOW,FRT DOOR
THA 		8-97235-875-2 01 1 0404-0609 ●
19 16.260 REGULATOR; WINDOW,FRT DOOR
EXC. POWER WINDOW<A31> THA 		8-98005-165-2 01 1 0610-0803 ● ●
19 16.260 REGULATOR; WINDOW,FRT DOOR
THA 		8-98005-165-2 01 1 0610-0803 ●
19 16.260 REGULATOR; WINDOW,FRT DOOR
EXC. POWER WINDOW<A31> THA 		8-98111-489-1 01 1 0804- ● ●
19 16.260 REGULATOR; WINDOW,FRT DOOR
THA 		8-98111-489-1 01 1 0804- ●
19 16.260 REGULATOR; WINDOW,FRT DOOR
EXC. POWER WINDOW<A31> THA 		8-97235-873-2 01 1 0404-0609 ● ●
19 16.260 REGULATOR; WINDOW,FRT DOOR
THA 		8-97235-873-2 01 1 0404-0609 ●
19 16.260 REGULATOR; WINDOW,FRT DOOR
EXC. POWER WINDOW<A31> THA 		8-98005-164-2 01 1 0610-0803 ● ●
19 16.260 REGULATOR; WINDOW,FRT DOOR
THA 		8-98005-164-2 01 1 0610-0803 ●
19 16.260 REGULATOR; WINDOW,FRT DOOR
EXC. POWER WINDOW<A31> THA 		8-98111-488-1 01 1 0804- ● ●
19 16.260 REGULATOR; WINDOW,FRT DOOR
THA 		8-98111-488-1 01 1 0804- ●
21 16.263 MOTOR; POWER WINDOW REG,FRT DOOR
POWER WINDOW<A31> THA 		8-97358-233-0 01 1 0404-0609 ● ●
21 16.263 MOTOR; POWER WINDOW REG,FRT DOOR
THA 		8-97358-233-0 01 1 0404-0609 ● ●
21 16.263 MOTOR; POWER WINDOW REG,FRT DOOR
POWER WINDOW<A31> THA 		8-97358-232-0 01 1 0404-0609 ● ●
21 16.263 MOTOR; POWER WINDOW REG,FRT DOOR
THA 		8-97358-232-0 01 1 0404-0609 ● ●
21 16.263 MOTOR; POWER WINDOW REG,FRT DOOR
POWER WINDOW<A31> THA 		8-98009-802-0 01 1 0610-0908 ● ●
21 16.263 MOTOR; POWER WINDOW REG,FRT DOOR
THA 		8-98009-802-0 01 1 0610-0908 ● ●
21 16.263 MOTOR; POWER WINDOW REG,FRT DOOR
POWER WINDOW<A31> THA 		8-98152-287-0 01 1 0909-1107 ● ●
21 16.263 MOTOR; POWER WINDOW REG,FRT DOOR
THA 		8-98152-287-0 01 1 0909-1107 ● ●
21 16.263 MOTOR; POWER WINDOW REG,FRT DOOR
POWER WINDOW<A31> THA 		8-98196-060-0 01 1 1108- ● ●
21 16.263 MOTOR; POWER WINDOW REG,FRT DOOR
THA 		8-98196-060-0 01 1 1108- ● ●
21 16.263 MOTOR; POWER WINDOW REG,FRT DOOR
POWER WINDOW<A31> THA 		8-98009-801-0 01 1 0610-0908 ● ●
21 16.263 MOTOR; POWER WINDOW REG,FRT DOOR
THA 		8-98009-801-0 01 1 0610-0908 ● ●
21 16.263 MOTOR; POWER WINDOW REG,FRT DOOR
POWER WINDOW<A31> THA 		8-98152-286-0 01 1 0909-1107 ● ●
21 16.263 MOTOR; POWER WINDOW REG,FRT DOOR
THA 		8-98152-286-0 01 1 0909-1107 ● ●
21 16.263 MOTOR; POWER WINDOW REG,FRT DOOR
POWER WINDOW<A31> THA 		8-98196-059-0 01 1 1108- ● ●
21 16.263 MOTOR; POWER WINDOW REG,FRT DOOR
THA 		8-98196-059-0 01 1 1108- ● ●
22 16.270 SCREW; POWER WINDOW MOTOR
POWER WINDOW<A31> THA 		8-97351-770-0 06 1 0404-0609 ● ●
22 16.270 SCREW; POWER WINDOW MOTOR
THA 		8-97351-770-0 06 1 0404-0609 ● ●
22 16.270 SCREW; POWER WINDOW MOTOR
POWER WINDOW<A31> THA 		8-98009-809-0 06 1 0610- ● ●
22 16.270 SCREW; POWER WINDOW MOTOR
THA 		8-98009-809-0 06 1 0610- ● ●
25 16.270 BOLT; WINDOW REG
10.701 M6X8 THA 		8-94155-893-0 06 1 0404-0609 ● ● ● ● ●
25 16.270 BOLT; WINDOW REG
10.765 M6X8 FLANGE THA 		8-98048-996-0 06 1 0610-1105 ● ● ● ● ●
25 16.270 BOLT; WINDOW REG
M6X10 FLANGE THA 		8-98188-381-0 06 1 1106- ● ● ● ● ●
26 16.270 NUT; FLANGE,WINDOW REG
16.320 M6 FLANGE THA 		8-97943-101-0 04 1 0404-0610 ● ● ● ● ●
26 16.270 NUT; FLANGE,WINDOW REG
16.320 M6 FLANGE THA 		8-98049-362-0 04 1 0611- ● ● ● ● ●
27 16.270 BOLT; GLASS FIX
10.701 M6X8 THA 		8-94155-893-0 04 1 0404-0609 ● ● ● ● ●
27 16.270 BOLT; GLASS FIX
10.765 M6X8 FLANGE THA 		8-98048-996-0 04 1 0610-1105 ● ● ● ● ●
27 16.270 BOLT; GLASS FIX
M6X10 FLANGE THA 		8-98188-381-0 04 1 1106- ● ● ● ● ●
39 16.270 HANDLE; WINDOW REG,FRT DOOR
EXC. POWER WINDOW<A31> GRAY THA 		8-97396-655-3 02 1 0404-0609 ● ●
39 16.270 HANDLE; WINDOW REG,FRT DOOR
GRAY THA 		8-97396-655-3 02 1 0404-0609 ●
39 16.270 HANDLE; WINDOW REG,FRT DOOR
EXC. POWER WINDOW<A31> DARK GRAY THA 		8-97408-066-0 02 1 0610- ● ●
39 16.270 HANDLE; WINDOW REG,FRT DOOR
DARK GRAY THA 		8-97408-066-0 02 1 0610- ●
75 16.183 WEATHERSTRIP; FRT DOOR
(A) THA 		8-97236-117-1 01 1 0404- ● ● ● ● ●
75 16.183 WEATHERSTRIP; FRT DOOR
(B) THA 		8-97236-154-2 01 1 0404-0412 ● ● ● ● ●
75 16.183 WEATHERSTRIP; FRT DOOR
(B) THA 		8-98004-226-0 01 1 0501- ● ● ● ● ●
75 16.183 WEATHERSTRIP; FRT DOOR
(A) THA 		8-97236-116-1 01 1 0404- ● ● ● ● ●
75 16.183 WEATHERSTRIP; FRT DOOR
(B) THA 		8-97236-153-2 01 1 0404-0412 ● ● ● ● ●
75 16.183 WEATHERSTRIP; FRT DOOR
(B) THA 		8-98004-225-0 01 1 0501- ● ● ● ● ●
75 16.183 WEATHERSTRIP; FRT DOOR
(C) THA 		8-97236-112-2 01 1 0404-0412 ● ● ●
75 16.183 WEATHERSTRIP; FRT DOOR
(C) THA 		8-98004-220-0 01 1 0501- ● ● ●
75 16.183 WEATHERSTRIP; FRT DOOR
(C) THA 		8-97236-110-2 01 1 0404-0412 ● ● ●
75 16.183 WEATHERSTRIP; FRT DOOR
(C) THA 		8-98004-219-0 01 1 0501- ● ● ●
75 16.183 WEATHERSTRIP; FRT DOOR
(D) THA 		8-93291-058-3 01 1 0404-0412 ● ●
75 16.183 WEATHERSTRIP; FRT DOOR
(D) THA 		8-98004-217-0 01 1 0501- ● ●
75 16.183 WEATHERSTRIP; FRT DOOR
(D) THA 		8-93296-881-3 01 1 0404-0412 ● ●
75 16.183 WEATHERSTRIP; FRT DOOR
(D) THA 		8-98004-218-0 01 1 0501- ● ●
91 16.183 BOLT; GUIDE RAIL TO DOOR
10.701 M6X8 THA 		8-94155-893-0 02 1 0404-0609 ● ● ● ● ●
91 16.183 BOLT; GUIDE RAIL TO DOOR
10.765 M6X8 FLANGE THA 		8-98048-996-0 02 1 0610- ● ● ● ● ●
131 16.183 SEAL; FRT DOOR
16.165 (A) OD=25 BLACK THA 		1-76798-019-0 04 1 0404- ● ● ● ● ●
131 16.183 SEAL; FRT DOOR
02.580 (B) OD=36 T=0.05 BLACK 		5-76777-035-0 02 1 0404- ● ● ● ● ●
187 16.260 REGULATOR ASM; DOOR
POWER WINDOW<A31> THA 		8-97350-002-0 01 1 0404-0609 ● ●
187 16.260 REGULATOR ASM; DOOR
THA 		8-97350-002-0 01 1 0404-0609 ● ●
187 16.260 REGULATOR ASM; DOOR
POWER WINDOW<A31> THA 		8-97350-004-0 01 1 0404-0609 ● ●
187 16.260 REGULATOR ASM; DOOR
THA 		8-97350-004-0 01 1 0404-0609 ● ●
187 16.260 REGULATOR ASM; DOOR
POWER WINDOW<A31> THA 		8-98009-811-3 01 1 0610- ● ●
187 16.260 REGULATOR ASM; DOOR
THA 		8-98009-811-3 01 1 0610- ● ●
187 16.260 REGULATOR ASM; DOOR
POWER WINDOW<A31> THA 		8-98009-810-3 01 1 0610- ● ●
187 16.260 REGULATOR ASM; DOOR
THA 		8-98009-810-3 01 1 0610- ● ●
206 16.183 WEATHERSTRIP; FRT DOOR GLASS
THA 		8-97364-716-0 01 1 0404-0410 ● ● ● ● ●
206 16.183 WEATHERSTRIP; FRT DOOR GLASS
THA 		8-98003-176-0 01 1 0411-0412 ● ● ● ● ●
206 16.183 WEATHERSTRIP; FRT DOOR GLASS
THA 		8-98004-222-0 01 1 0501- ● ● ● ● ●
206 16.183 WEATHERSTRIP; FRT DOOR GLASS
THA 		8-97364-715-0 01 1 0404-0410 ● ● ● ● ●
206 16.183 WEATHERSTRIP; FRT DOOR GLASS
THA 		8-98003-175-0 01 1 0411-0412 ● ● ● ● ●
206 16.183 WEATHERSTRIP; FRT DOOR GLASS
THA 		8-98004-221-0 01 1 0501- ● ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
