6-30 — FRONT DOOR AND HINGE (#73655) — 34 parça

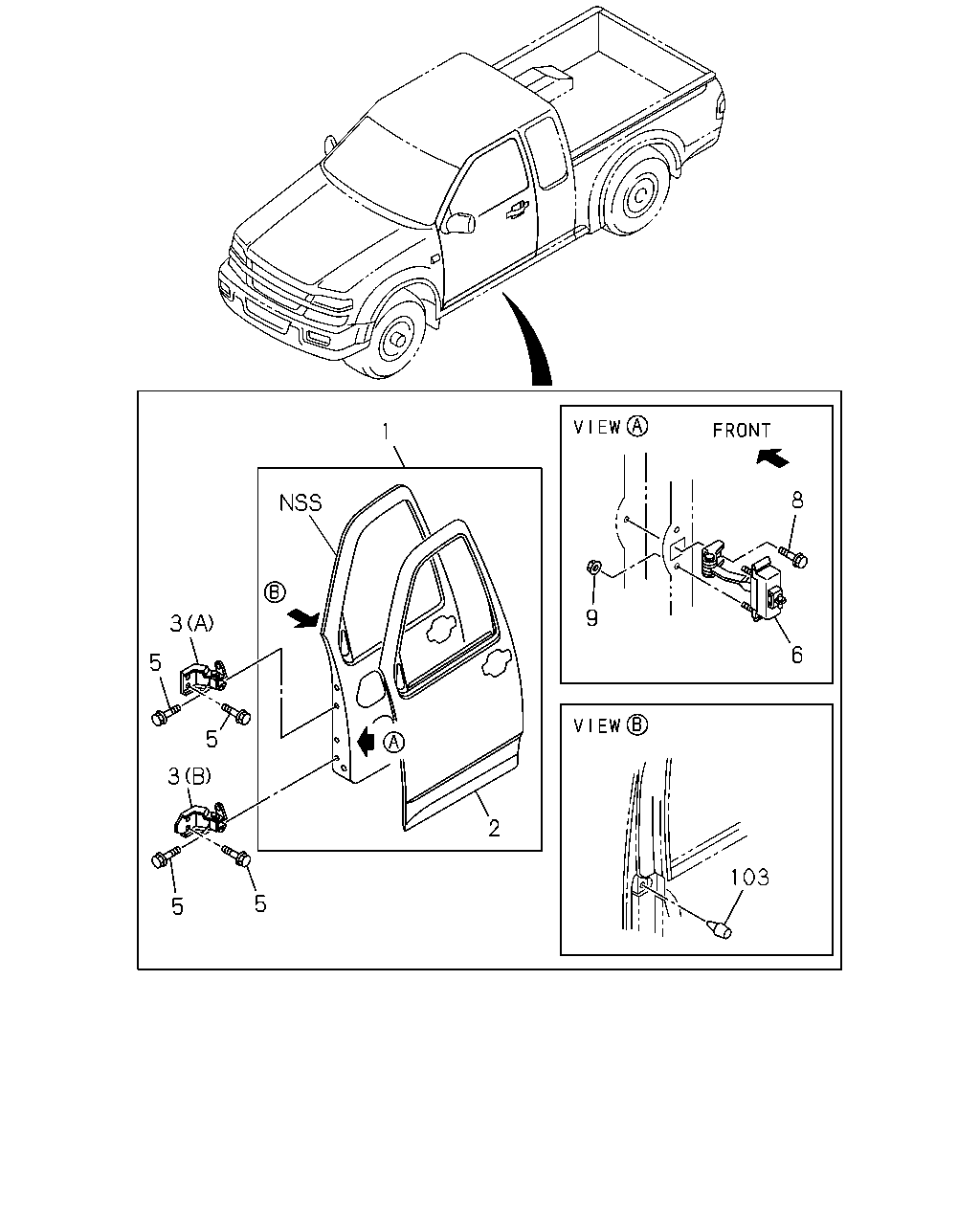

çizim 117825
1 8 9 3 6 5 5 3 2 103 5 5
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 16.150 DOOR ASM; FRT,WO/TRIM
THA 		8-97365-974-0 01 1 0404-0604 ● ● ●
1 16.150 DOOR ASM; FRT,WO/TRIM
THA 		8-98043-238-0 01 1 0605- ● ● ●
1 16.150 DOOR ASM; FRT,WO/TRIM
THA 		8-97365-973-0 01 1 0404-0604 ● ● ●
1 16.150 DOOR ASM; FRT,WO/TRIM
THA 		8-98043-237-0 01 1 0605- ● ● ●
1 16.150 DOOR ASM; FRT,WO/TRIM
THA 		8-97366-524-0 01 1 0404-0604 ● ●
1 16.150 DOOR ASM; FRT,WO/TRIM
THA 		8-98043-240-0 01 1 0605- ● ●
1 16.150 DOOR ASM; FRT,WO/TRIM
THA 		8-97366-523-0 01 1 0404-0604 ● ●
1 16.150 DOOR ASM; FRT,WO/TRIM
THA 		8-98043-239-0 01 1 0605- ● ●
2 16.152 PANEL; FRT DOOR OUTER
THA 		8-97365-985-0 01 1 0404- ● ● ●
2 16.152 PANEL; FRT DOOR OUTER
THA 		8-97365-984-0 01 1 0404- ● ● ●
2 16.152 PANEL; FRT DOOR OUTER
THA 		8-97365-987-0 01 1 0404- ● ●
2 16.152 PANEL; FRT DOOR OUTER
THA 		8-97365-986-0 01 1 0404- ● ●
3 16.320 HINGE; DOOR FRT
(A) UPPER THA 		8-97235-961-1 01 1 0404-0609 ● ● ● ● ●
3 16.320 HINGE; DOOR FRT
(A) UPPER THA 		8-98057-546-0 01 1 0610- ● ● ● ● ●
3 16.320 HINGE; DOOR FRT
(B) LOWER THA 		8-97235-984-1 01 1 0404-0609 ● ● ● ● ●
3 16.320 HINGE; DOOR FRT
(B) LOWER THA 		8-98057-549-0 01 1 0610- ● ● ● ● ●
3 16.320 HINGE; DOOR FRT
(A) UPPER THA 		8-97235-960-1 01 1 0404-0609 ● ● ● ● ●
3 16.320 HINGE; DOOR FRT
(A) UPPER THA 		8-98057-547-0 01 1 0610- ● ● ● ● ●
3 16.320 HINGE; DOOR FRT
(B) LOWER THA 		8-97235-982-1 01 1 0404-0609 ● ● ● ● ●
3 16.320 HINGE; DOOR FRT
(B) LOWER THA 		8-98057-548-0 01 1 0610- ● ● ● ● ●
5 16.320 BOLT; HINGE
10.463 M8X23 FLANGE THA 		8-94174-559-2 16 1 0404-0508 ● ● ● ● ●
5 16.320 BOLT; HINGE
10.463 M8X23 FLANGE THA 		8-94174-559-2 16 1 0404-0508 ● ● ● ● ●
5 16.320 BOLT; HINGE
10.463 M8X23 FLANGE THA 		8-94174-559-2 16 1 0509-0606 ● ● ● ● ●
5 16.320 BOLT; HINGE
09.171 M8X23 FLANGE THA 		8-98005-842-0 16 1 0607-1007 ● ● ● ● ●
5 16.320 BOLT; HINGE
09.171 M8X23 FLANGE THA 		8-98005-842-0 16 1 1008- ● ● ● ● ●
5 16.320 BOLT; HINGE
09.171 M8X23 FLANGE THA 		8-98005-842-0 16 1 1008- ● ● ● ● ●
6 16.320 ARM; CHECK,FRT DOOR
THA 		8-97369-016-0 02 1 0404- ● ● ● ● ●
8 16.320 BOLT; CHECK ARM
16.323 M8X23 		8-97310-216-1 02 1 0404-0612 ● ● ● ● ●
8 16.320 BOLT; CHECK ARM
M8X23 		8-98062-206-0 02 1 0701-1110 ● ● ● ● ●
8 16.320 BOLT; CHECK ARM
M8X23 THA 		8-98166-694-0 02 1 1111- ● ● ● ● ●
9 16.320 NUT; CHECK ARM
M6 FLANGE THA 		8-97943-101-0 04 1 0404-0610 ● ● ● ● ●
9 16.320 NUT; CHECK ARM
M6 FLANGE THA 		8-98049-362-0 04 1 0611- ● ● ● ● ●
103 16.165 PROTECTOR; FRT DOOR
THA 		8-97301-795-1 02 1 0404- ● ● ● ● ●

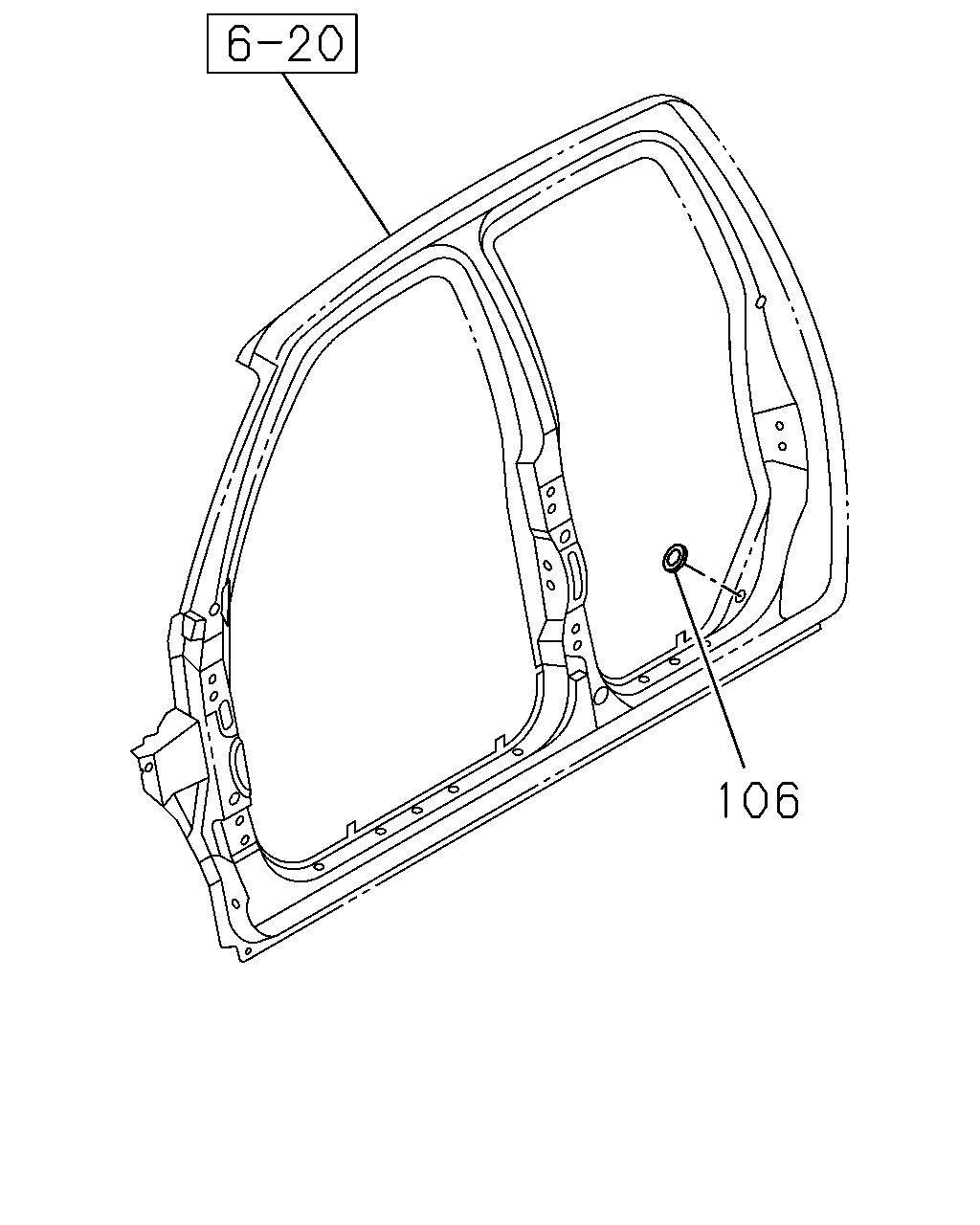

çizim 117835
106
BalonParca AdiParca NoAdetTipApplied Date A B C D E
106 16.165 GROMMET; PROTECTOR
16.570 THA 		8-94279-724-0 02 1 0404- ● ●
