◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 50982 - TFR/S(CHEVROLET)THAI ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-20 - SIDE PANEL AND STEP ▶
6-20 — SIDE PANEL AND STEP (#73654) — 173 parça

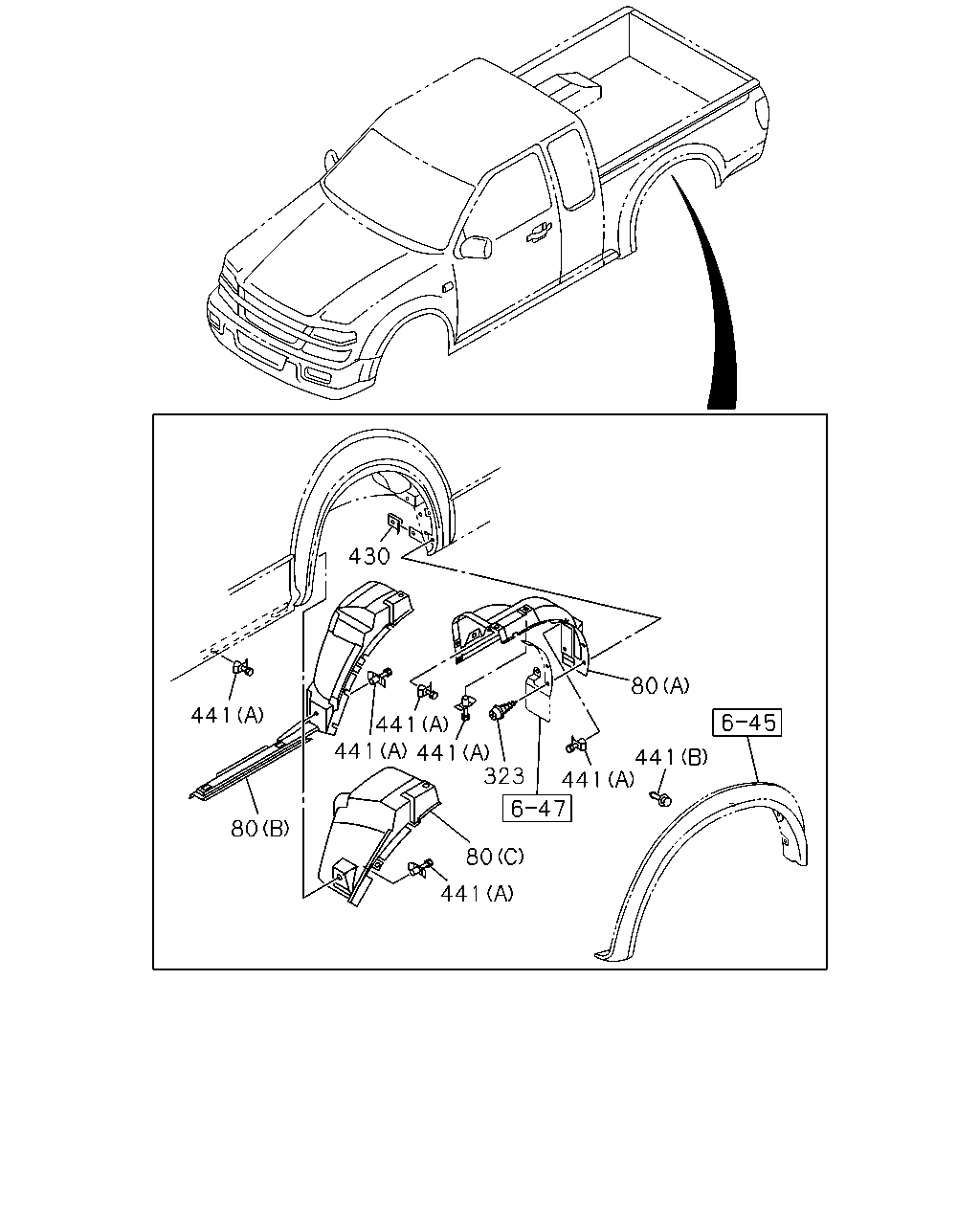

çizim 117814
430 80 441 441 323 441 441 80 80 441 441 441
BalonParca AdiParca NoAdetTipApplied Date A B C D E
80 08.153 PANEL; WHEEL HOUSE,INNER
(A) THA 		8-97363-455-2 01 1 0404-0610 ● ● ● ● ●
80 08.153 PANEL; WHEEL HOUSE,INNER
(A) THA 		8-97363-455-2 01 1 0611- ● ● ● ●
80 08.153 PANEL; WHEEL HOUSE,INNER
REAR BODY DBL WALL CTR PULL<E63> (A) THA 		8-97363-455-2 01 1 0611- ●
80 08.153 PANEL; WHEEL HOUSE,INNER
(A) THA 		8-97363-454-2 01 1 0404-0610 ● ● ● ● ●
80 08.153 PANEL; WHEEL HOUSE,INNER
(A) THA 		8-97363-454-2 01 1 0611- ● ● ● ●
80 08.153 PANEL; WHEEL HOUSE,INNER
REAR BODY DBL WALL CTR PULL<E63> (A) THA 		8-97363-454-2 01 1 0611- ●
80 08.153 PANEL; WHEEL HOUSE,INNER
(B) THA 		8-97363-459-0 01 1 0404- ● ●
80 08.153 PANEL; WHEEL HOUSE,INNER
(B) THA 		8-97363-458-0 01 1 0404- ● ●
80 08.153 PANEL; WHEEL HOUSE,INNER
(B) THA 		8-97363-457-0 01 1 0404-0610 ●
80 08.153 PANEL; WHEEL HOUSE,INNER
REAR BODY DBL WALL CTR PULL<E63> (B) THA 		8-97363-457-0 01 1 0611- ●
80 08.153 PANEL; WHEEL HOUSE,INNER
(B) THA 		8-97363-456-0 01 1 0404-0610 ●
80 08.153 PANEL; WHEEL HOUSE,INNER
REAR BODY DBL WALL CTR PULL<E63> (B) THA 		8-97363-456-0 01 1 0611- ●
80 08.153 PANEL; WHEEL HOUSE,INNER
(C) THA 		8-97363-462-0 01 1 0404- ● ●
80 08.153 PANEL; WHEEL HOUSE,INNER
(C) THA 		8-97363-461-0 01 1 0404- ● ●
323 08.155 SCREW; SET
M6X20 W/PL WASHER TAPPING 		8-94321-767-1 06 1 0404-0409 ● ● ●
323 08.155 SCREW; SET
FORMED MUD FLAP<6WL> EXC. OVER FENDER<B74> M6X20 W/PL WASHER TAPPING 		8-94321-767-1 06 1 0410-0610 ● ●
323 08.155 SCREW; SET
M6X20 W/PL WASHER TAPPING 		8-94321-767-1 06 1 0410-0610 ●
323 08.155 SCREW; SET
FORMED MUD FLAP<6WL> EXC. OVER FENDER<B74> M6X20 W/PL WASHER TAPPING 		8-94321-767-1 06 1 0611-0612 ● ●
323 08.155 SCREW; SET
REAR BODY DBL WALL CTR PULL<E63> M6X20 W/PL WASHER TAPPING 		8-94321-767-1 06 1 0611-0612 ●
323 08.155 SCREW; SET
FORMED MUD FLAP<6WL> EXC. OVER FENDER<B74> 07.833 M6X20 TAPPING 		8-98052-950-0 06 1 0701-1003 ● ●
323 08.155 SCREW; SET
REAR BODY DBL WALL CTR PULL<E63> 07.833 M6X20 TAPPING 		8-98052-950-0 06 1 0701-1003 ●
323 08.155 SCREW; SET
FORMED MUD FLAP<6WL> EXC. OVER FENDER<B74> 07.874 M6X20 TAPPING W/PL WASHER THA 		8-98167-444-0 06 1 1004- ● ●
323 08.155 SCREW; SET
REAR BODY DBL WALL CTR PULL<E63> 07.874 M6X20 TAPPING W/PL WASHER THA 		8-98167-444-0 06 1 1004- ●
323 08.155 SCREW; SET
M6X20 W/PL WASHER TAPPING 		8-94321-767-1 08 1 0404-0409 ● ●
323 08.155 SCREW; SET
OVER FENDER<B74> M6X20 W/PL WASHER TAPPING 		8-94321-767-1 08 1 0410-0612 ● ●
323 08.155 SCREW; SET
M6X20 W/PL WASHER TAPPING 		8-94321-767-1 08 1 0410-0612 ● ●
323 08.155 SCREW; SET
OVER FENDER<B74> 07.833 M6X20 TAPPING 		8-98052-950-0 08 1 0701-1003 ● ●
323 08.155 SCREW; SET
07.833 M6X20 TAPPING 		8-98052-950-0 08 1 0701-1003 ● ●
323 08.155 SCREW; SET
OVER FENDER<B74> 07.874 M6X20 TAPPING W/PL WASHER THA 		8-98167-444-0 08 1 1004- ● ●
323 08.155 SCREW; SET
07.874 M6X20 TAPPING W/PL WASHER THA 		8-98167-444-0 08 1 1004- ● ●
430 16.570 NUT; PANEL
08.155 THA 		8-97125-519-0 06 1 0404-0409 ● ● ●
430 16.570 NUT; PANEL
FORMED MUD FLAP<6WL> EXC. OVER FENDER<B74> 08.155 THA 		8-97125-519-0 06 1 0410-0610 ● ●
430 16.570 NUT; PANEL
08.155 THA 		8-97125-519-0 06 1 0410-0610 ●
430 16.570 NUT; PANEL
FORMED MUD FLAP<6WL> EXC. OVER FENDER<B74> 08.155 THA 		8-97125-519-0 06 1 0611- ● ●
430 16.570 NUT; PANEL
REAR BODY DBL WALL CTR PULL<E63> 08.155 THA 		8-97125-519-0 06 1 0611- ●
430 16.570 NUT; PANEL
08.155 THA 		8-97125-519-0 08 1 0404-0409 ● ●
430 16.570 NUT; PANEL
OVER FENDER<B74> 08.155 THA 		8-97125-519-0 08 1 0410- ● ●
430 16.570 NUT; PANEL
08.155 THA 		8-97125-519-0 08 1 0410- ● ●
441 07.829 CLIP
08.154 (A) THA 		8-94221-150-0 08 1 0404-0409 ● ● ●
441 07.829 CLIP
FORMED MUD FLAP<6WL> EXC. OVER FENDER<B74> 08.154 (A) THA 		8-94221-150-0 08 1 0410-0610 ● ●
441 07.829 CLIP
08.154 (A) THA 		8-94221-150-0 08 1 0410-0610 ●
441 07.829 CLIP
FORMED MUD FLAP<6WL> EXC. OVER FENDER<B74> 08.154 (A) THA 		8-94221-150-0 08 1 0611- ● ●
441 07.829 CLIP
REAR BODY DBL WALL CTR PULL<E63> 08.154 (A) THA 		8-94221-150-0 08 1 0611- ●
441 07.829 CLIP
EXC. OVER FENDER<B74>,FORMED MUD FLAP<6WL> 08.154 (A) THA 		8-94221-150-0 14 1 0410- ● ●
441 07.829 CLIP
08.154 (A) THA 		8-94221-150-0 06 1 0404-0409 ● ●
441 07.829 CLIP
OVER FENDER<B74> 08.154 (A) THA 		8-94221-150-0 06 1 0410- ● ●
441 07.829 CLIP
08.154 (A) THA 		8-94221-150-0 06 1 0410- ● ●
441 07.829 CLIP
(B) THA 		8-97359-942-0 07 1 0406-0409 ● ●
441 07.829 CLIP
OVER FENDER<B74> (B) THA 		8-97359-942-0 07 1 0410- ● ●
441 07.829 CLIP
(B) THA 		8-97359-942-0 07 1 0410- ● ●

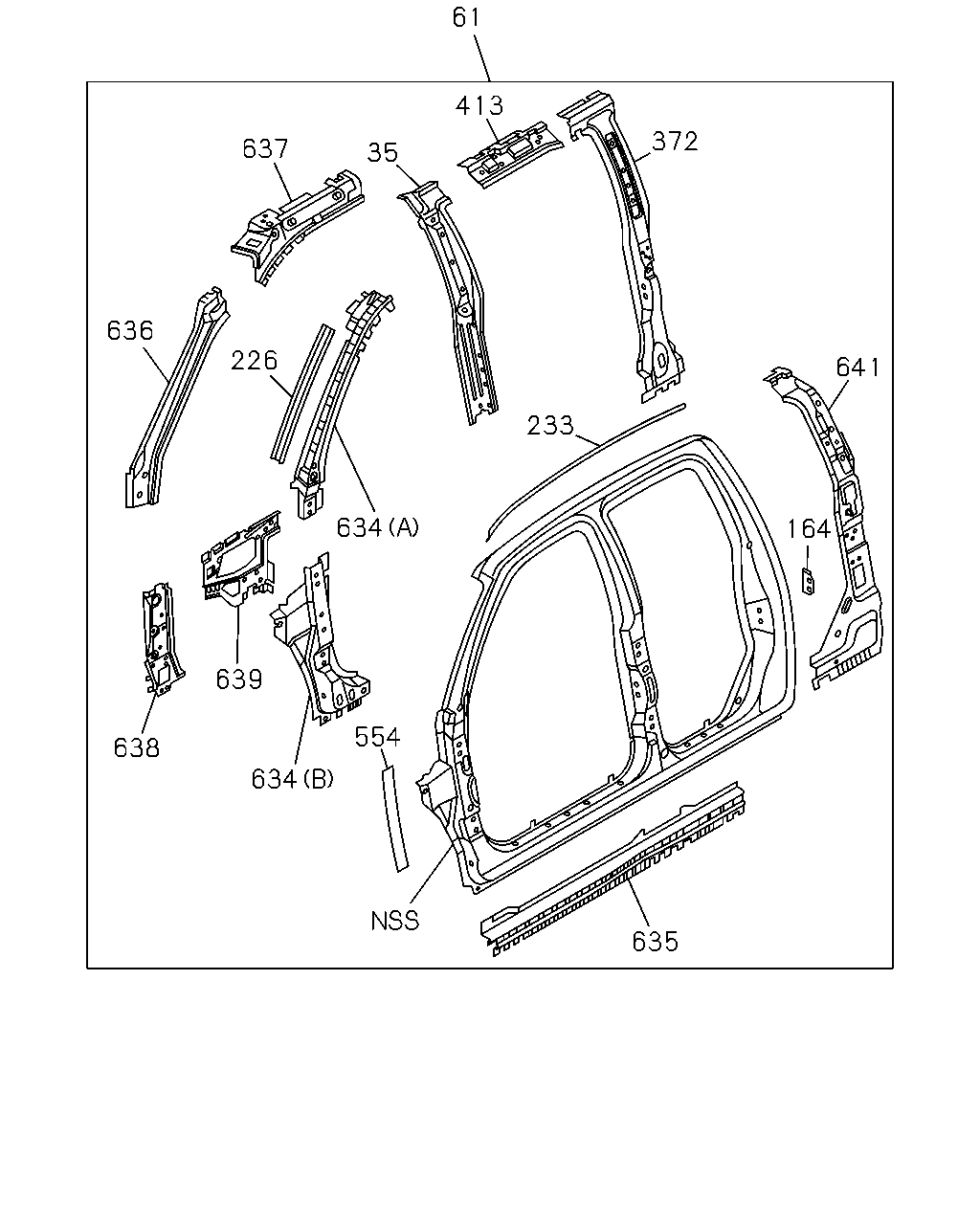

çizim 117819
61 413 372 637 35 636 226 641 233 634 164 639 554 638 634 635
BalonParca AdiParca NoAdetTipApplied Date A B C D E
35 16.570 PANEL; CENTER PILLAR,INNER
THA 		8-93291-049-3 01 1 0404- ● ●
35 16.570 PANEL; CENTER PILLAR,INNER
THA 		8-93291-050-3 01 1 0404- ● ●
61 16.570 PANEL; SIDE OUTER
THA 		8-97234-938-2 01 1 0404- ● ●
61 16.570 PANEL; SIDE OUTER
THA 		8-97234-937-2 01 1 0404-0709 ● ●
61 16.570 PANEL; SIDE OUTER
THA 		8-97235-287-2 01 1 0404- ●
61 16.570 PANEL; SIDE OUTER
THA 		8-97235-286-2 01 1 0404- ●
61 16.570 PANEL; SIDE OUTER
THA 		8-93295-497-4 01 1 0404- ● ●
61 16.570 PANEL; SIDE OUTER
THA 		8-93295-498-4 01 1 0404-0709 ● ●
61 16.570 PANEL; SIDE OUTER
EXC. ROOF RADIO ANTENNA<U71> THA 		8-97234-937-2 01 1 0710- ● ●
61 16.570 PANEL; SIDE OUTER
ROOF RADIO ANTENNA<U71> THA 		8-98052-871-0 01 1 0710- ● ●
61 16.570 PANEL; SIDE OUTER
EXC. ROOF RADIO ANTENNA<U71> THA 		8-93295-498-4 01 1 0710- ● ●
61 16.570 PANEL; SIDE OUTER
ROOF RADIO ANTENNA<U71> THA 		8-98052-875-0 01 1 0710- ● ●
164 16.570 PLATE; SIDE PNL OUTER
THA 		8-93297-532-1 02 1 0401- ● ●
226 16.585 RAIL; DRIP,FRT PILLAR
THA 		8-97235-067-2 01 1 0404- ● ● ● ● ●
226 16.585 RAIL; DRIP,FRT PILLAR
THA 		8-97235-066-2 01 1 0404- ● ● ● ● ●
233 16.585 RAIL; RR ROOF
THA 		8-97235-069-1 01 1 0404- ● ● ●
233 16.585 RAIL; RR ROOF
THA 		8-97235-068-1 01 1 0404- ● ● ●
233 16.585 RAIL; RR ROOF
THA 		8-93291-057-3 01 1 0404- ● ●
233 16.585 RAIL; RR ROOF
THA 		8-93367-929-3 01 1 0404- ● ●
372 16.575 REINFORCEMENT; CENTER PILLAR
THA 		8-97235-022-3 01 1 0404- ● ●
372 16.575 REINFORCEMENT; CENTER PILLAR
THA 		8-97235-021-3 01 1 0404- ● ●
372 16.575 REINFORCEMENT; CENTER PILLAR
THA 		8-93333-501-5 01 1 0404- ● ●
372 16.575 REINFORCEMENT; CENTER PILLAR
THA 		8-93333-502-5 01 1 0404- ● ●
413 16.570 PANEL; RR SIDE
THA 		8-93297-655-2 01 1 0404- ● ●
413 16.570 PANEL; RR SIDE
THA 		8-93297-656-2 01 1 0404- ● ●
554 16.570 SEAL; INNER BODY
THA 		8-94199-115-0 02 1 0404- ● ● ● ● ●
634 16.570 REINFORCEMENT; BODY SIDE INNER
(B) THA 		8-97234-979-1 01 1 0404- ● ● ● ● ●
634 16.570 REINFORCEMENT; BODY SIDE INNER
(A) THA 		8-97236-794-1 01 1 0404- ● ● ● ● ●
634 16.570 REINFORCEMENT; BODY SIDE INNER
(B) THA 		8-97234-978-1 01 1 0404- ● ● ● ● ●
634 16.570 REINFORCEMENT; BODY SIDE INNER
(A) THA 		8-97236-793-1 01 1 0404- ● ● ● ● ●
635 16.570 REINFORCEMENT; ROCKER
THA 		8-97235-054-1 01 1 0404- ● ● ● ●
635 16.570 REINFORCEMENT; ROCKER
THA 		8-97235-045-1 01 1 0404- ● ● ● ●
635 16.570 REINFORCEMENT; ROCKER
THA 		8-97235-311-0 01 1 0404- ●
635 16.570 REINFORCEMENT; ROCKER
THA 		8-97235-310-0 01 1 0404- ●
636 16.570 PANEL; FRONT PILLAR INNER
THA 		8-97235-072-4 01 1 0404- ● ● ● ● ●
636 16.570 PANEL; FRONT PILLAR INNER
THA 		8-97235-070-4 01 1 0404- ● ● ● ● ●
637 16.570 PANEL; ROOF SIDE INNER
THA 		8-97235-079-3 01 1 0404- ● ● ● ● ●
637 16.570 PANEL; ROOF SIDE INNER
THA 		8-97235-078-3 01 1 0404- ● ● ● ● ●
638 16.570 PANEL; DASH SIDE INNER
THA 		8-97235-085-1 01 1 0404- ● ● ● ● ●
638 16.570 PANEL; DASH SIDE INNER
THA 		8-97235-084-1 01 1 0404- ● ● ● ● ●
639 16.570 REINFORCEMENT; COWL SIDE
THA 		8-97235-058-2 01 1 0404- ● ● ● ● ●
639 16.570 REINFORCEMENT; COWL SIDE
THA 		8-97235-057-2 01 1 0404- ● ● ● ● ●
641 16.570 PANEL; BACK BODY PILLER
THA 		8-97357-961-1 01 1 0404- ● ●
641 16.570 PANEL; BACK BODY PILLER
THA 		8-97357-962-1 01 1 0404- ● ●

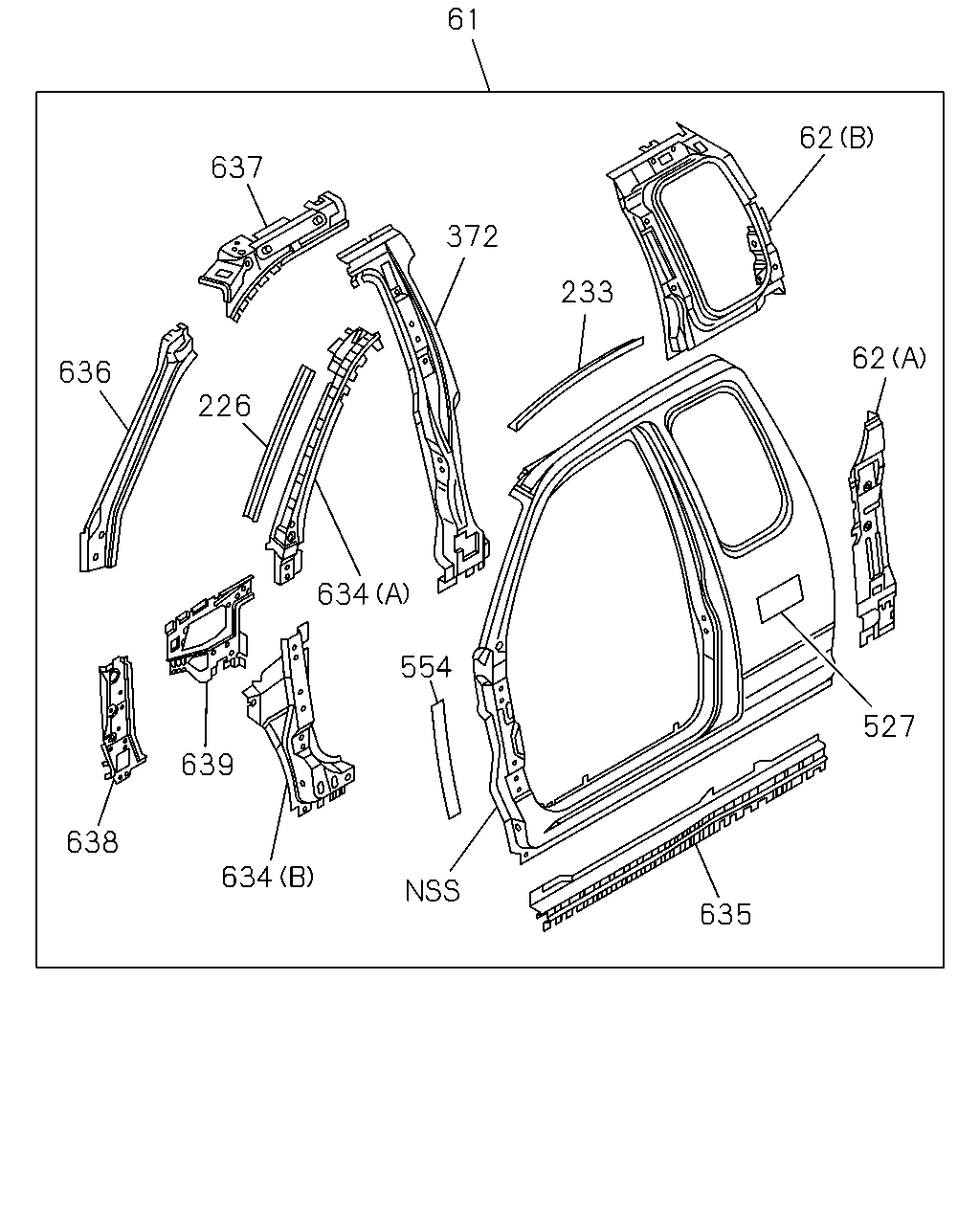

çizim 117821
61 62 637 372 233 62 636 226 634 554 527 639 638 634 635
BalonParca AdiParca NoAdetTipApplied Date A B C D E
61 16.570 PANEL; SIDE OUTER
THA 		8-97234-938-2 01 1 0404- ● ●
61 16.570 PANEL; SIDE OUTER
THA 		8-97234-937-2 01 1 0404-0709 ● ●
61 16.570 PANEL; SIDE OUTER
THA 		8-97235-287-2 01 1 0404- ●
61 16.570 PANEL; SIDE OUTER
THA 		8-97235-286-2 01 1 0404- ●
61 16.570 PANEL; SIDE OUTER
THA 		8-93295-497-4 01 1 0404- ● ●
61 16.570 PANEL; SIDE OUTER
THA 		8-93295-498-4 01 1 0404-0709 ● ●
61 16.570 PANEL; SIDE OUTER
EXC. ROOF RADIO ANTENNA<U71> THA 		8-97234-937-2 01 1 0710- ● ●
61 16.570 PANEL; SIDE OUTER
ROOF RADIO ANTENNA<U71> THA 		8-98052-871-0 01 1 0710- ● ●
61 16.570 PANEL; SIDE OUTER
EXC. ROOF RADIO ANTENNA<U71> THA 		8-93295-498-4 01 1 0710- ● ●
61 16.570 PANEL; SIDE OUTER
ROOF RADIO ANTENNA<U71> THA 		8-98052-875-0 01 1 0710- ● ●
62 16.570 PANEL; BODY SIDE INNER
16.550 (A) THA 		8-97233-439-5 01 1 0404- ● ●
62 16.570 PANEL; BODY SIDE INNER
(B) THA 		8-97357-935-0 01 1 0404- ● ●
62 16.570 PANEL; BODY SIDE INNER
(A) THA 		8-97233-438-5 01 1 0404- ● ●
62 16.570 PANEL; BODY SIDE INNER
(B) THA 		8-97357-934-0 01 1 0404- ● ●
226 16.585 RAIL; DRIP,FRT PILLAR
THA 		8-97235-067-2 01 1 0404- ● ● ● ● ●
226 16.585 RAIL; DRIP,FRT PILLAR
THA 		8-97235-066-2 01 1 0404- ● ● ● ● ●
233 16.585 RAIL; RR ROOF
THA 		8-97235-069-1 01 1 0404- ● ● ●
233 16.585 RAIL; RR ROOF
THA 		8-97235-068-1 01 1 0404- ● ● ●
233 16.585 RAIL; RR ROOF
THA 		8-93291-057-3 01 1 0404- ● ●
233 16.585 RAIL; RR ROOF
THA 		8-93367-929-3 01 1 0404- ● ●
372 16.575 REINFORCEMENT; CENTER PILLAR
THA 		8-97235-022-3 01 1 0404- ● ●
372 16.575 REINFORCEMENT; CENTER PILLAR
THA 		8-97235-021-3 01 1 0404- ● ●
372 16.575 REINFORCEMENT; CENTER PILLAR
THA 		8-93333-501-5 01 1 0404- ● ●
372 16.575 REINFORCEMENT; CENTER PILLAR
THA 		8-93333-502-5 01 1 0404- ● ●
527 16.570 STIFFENER; QTR OUTER
THA 		8-97248-768-0 02 1 0404- ● ●
554 16.570 SEAL; INNER BODY
THA 		8-94199-115-0 02 1 0404- ● ● ● ● ●
634 16.570 REINFORCEMENT; BODY SIDE INNER
(B) THA 		8-97234-979-1 01 1 0404- ● ● ● ● ●
634 16.570 REINFORCEMENT; BODY SIDE INNER
(A) THA 		8-97236-794-1 01 1 0404- ● ● ● ● ●
634 16.570 REINFORCEMENT; BODY SIDE INNER
(B) THA 		8-97234-978-1 01 1 0404- ● ● ● ● ●
634 16.570 REINFORCEMENT; BODY SIDE INNER
(A) THA 		8-97236-793-1 01 1 0404- ● ● ● ● ●
635 16.570 REINFORCEMENT; ROCKER
THA 		8-97235-054-1 01 1 0404- ● ● ● ●
635 16.570 REINFORCEMENT; ROCKER
THA 		8-97235-045-1 01 1 0404- ● ● ● ●
635 16.570 REINFORCEMENT; ROCKER
THA 		8-97235-311-0 01 1 0404- ●
635 16.570 REINFORCEMENT; ROCKER
THA 		8-97235-310-0 01 1 0404- ●
636 16.570 PANEL; FRONT PILLAR INNER
THA 		8-97235-072-4 01 1 0404- ● ● ● ● ●
636 16.570 PANEL; FRONT PILLAR INNER
THA 		8-97235-070-4 01 1 0404- ● ● ● ● ●
637 16.570 PANEL; ROOF SIDE INNER
THA 		8-97235-079-3 01 1 0404- ● ● ● ● ●
637 16.570 PANEL; ROOF SIDE INNER
THA 		8-97235-078-3 01 1 0404- ● ● ● ● ●
638 16.570 PANEL; DASH SIDE INNER
THA 		8-97235-085-1 01 1 0404- ● ● ● ● ●
638 16.570 PANEL; DASH SIDE INNER
THA 		8-97235-084-1 01 1 0404- ● ● ● ● ●
639 16.570 REINFORCEMENT; COWL SIDE
THA 		8-97235-058-2 01 1 0404- ● ● ● ● ●
639 16.570 REINFORCEMENT; COWL SIDE
THA 		8-97235-057-2 01 1 0404- ● ● ● ● ●

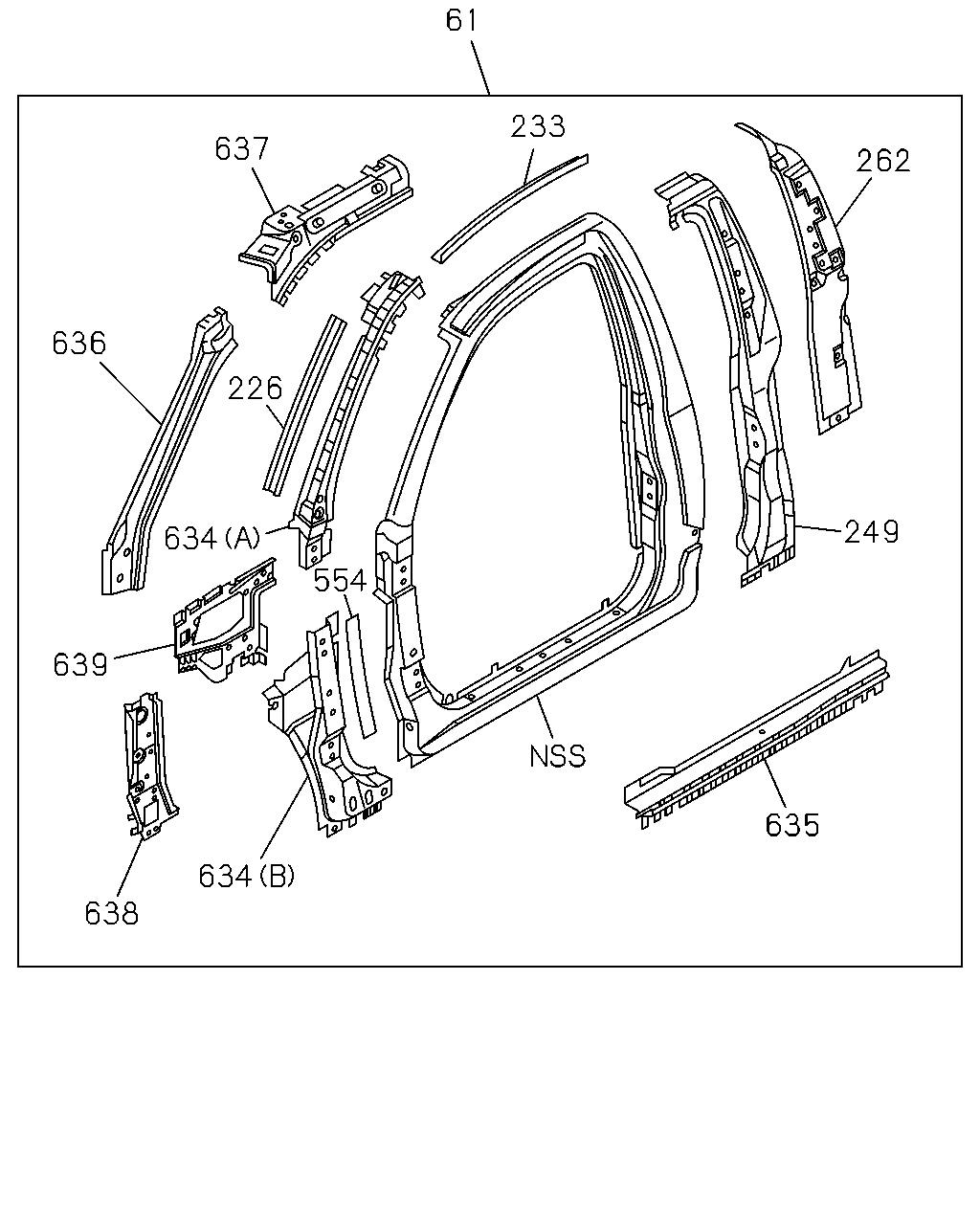

çizim 117852
61 233 637 262 636 226 249 634 554 639 635 634 638
BalonParca AdiParca NoAdetTipApplied Date A B C D E
61 16.570 PANEL; SIDE OUTER
THA 		8-97234-938-2 01 1 0404- ● ●
61 16.570 PANEL; SIDE OUTER
THA 		8-97234-937-2 01 1 0404-0709 ● ●
61 16.570 PANEL; SIDE OUTER
THA 		8-97235-287-2 01 1 0404- ●
61 16.570 PANEL; SIDE OUTER
THA 		8-97235-286-2 01 1 0404- ●
61 16.570 PANEL; SIDE OUTER
THA 		8-93295-497-4 01 1 0404- ● ●
61 16.570 PANEL; SIDE OUTER
THA 		8-93295-498-4 01 1 0404-0709 ● ●
61 16.570 PANEL; SIDE OUTER
EXC. ROOF RADIO ANTENNA<U71> THA 		8-97234-937-2 01 1 0710- ● ●
61 16.570 PANEL; SIDE OUTER
ROOF RADIO ANTENNA<U71> THA 		8-98052-871-0 01 1 0710- ● ●
61 16.570 PANEL; SIDE OUTER
EXC. ROOF RADIO ANTENNA<U71> THA 		8-93295-498-4 01 1 0710- ● ●
61 16.570 PANEL; SIDE OUTER
ROOF RADIO ANTENNA<U71> THA 		8-98052-875-0 01 1 0710- ● ●
226 16.585 RAIL; DRIP,FRT PILLAR
THA 		8-97235-067-2 01 1 0404- ● ● ● ● ●
226 16.585 RAIL; DRIP,FRT PILLAR
THA 		8-97235-066-2 01 1 0404- ● ● ● ● ●
233 16.585 RAIL; RR ROOF
THA 		8-97235-069-1 01 1 0404- ● ● ●
233 16.585 RAIL; RR ROOF
THA 		8-97235-068-1 01 1 0404- ● ● ●
233 16.585 RAIL; RR ROOF
THA 		8-93291-057-3 01 1 0404- ● ●
233 16.585 RAIL; RR ROOF
THA 		8-93367-929-3 01 1 0404- ● ●
249 16.674 REINFORCEMENT; RR PILLAR
THA 		8-97235-849-3 01 1 0404- ●
249 16.674 REINFORCEMENT; RR PILLAR
THA 		8-97235-848-3 01 1 0404- ●
262 16.575 PANEL; PILLAR
THA 		8-97235-309-6 01 1 0404- ●
262 16.575 PANEL; PILLAR
THA 		8-97235-308-6 01 1 0404- ●
554 16.570 SEAL; INNER BODY
THA 		8-94199-115-0 02 1 0404- ● ● ● ● ●
634 16.570 REINFORCEMENT; BODY SIDE INNER
(B) THA 		8-97234-979-1 01 1 0404- ● ● ● ● ●
634 16.570 REINFORCEMENT; BODY SIDE INNER
(A) THA 		8-97236-794-1 01 1 0404- ● ● ● ● ●
634 16.570 REINFORCEMENT; BODY SIDE INNER
(B) THA 		8-97234-978-1 01 1 0404- ● ● ● ● ●
634 16.570 REINFORCEMENT; BODY SIDE INNER
(A) THA 		8-97236-793-1 01 1 0404- ● ● ● ● ●
635 16.570 REINFORCEMENT; ROCKER
THA 		8-97235-054-1 01 1 0404- ● ● ● ●
635 16.570 REINFORCEMENT; ROCKER
THA 		8-97235-045-1 01 1 0404- ● ● ● ●
635 16.570 REINFORCEMENT; ROCKER
THA 		8-97235-311-0 01 1 0404- ●
635 16.570 REINFORCEMENT; ROCKER
THA 		8-97235-310-0 01 1 0404- ●
636 16.570 PANEL; FRONT PILLAR INNER
THA 		8-97235-072-4 01 1 0404- ● ● ● ● ●
636 16.570 PANEL; FRONT PILLAR INNER
THA 		8-97235-070-4 01 1 0404- ● ● ● ● ●
637 16.570 PANEL; ROOF SIDE INNER
THA 		8-97235-079-3 01 1 0404- ● ● ● ● ●
637 16.570 PANEL; ROOF SIDE INNER
THA 		8-97235-078-3 01 1 0404- ● ● ● ● ●
638 16.570 PANEL; DASH SIDE INNER
THA 		8-97235-085-1 01 1 0404- ● ● ● ● ●
638 16.570 PANEL; DASH SIDE INNER
THA 		8-97235-084-1 01 1 0404- ● ● ● ● ●
639 16.570 REINFORCEMENT; COWL SIDE
THA 		8-97235-058-2 01 1 0404- ● ● ● ● ●
639 16.570 REINFORCEMENT; COWL SIDE
THA 		8-97235-057-2 01 1 0404- ● ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
