◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 50982 - TFR/S(CHEVROLET)THAI ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-14 - DASH PANEL AND FENDER SKIRT ▶
6-14 — DASH PANEL AND FENDER SKIRT (#73653) — 25 parça

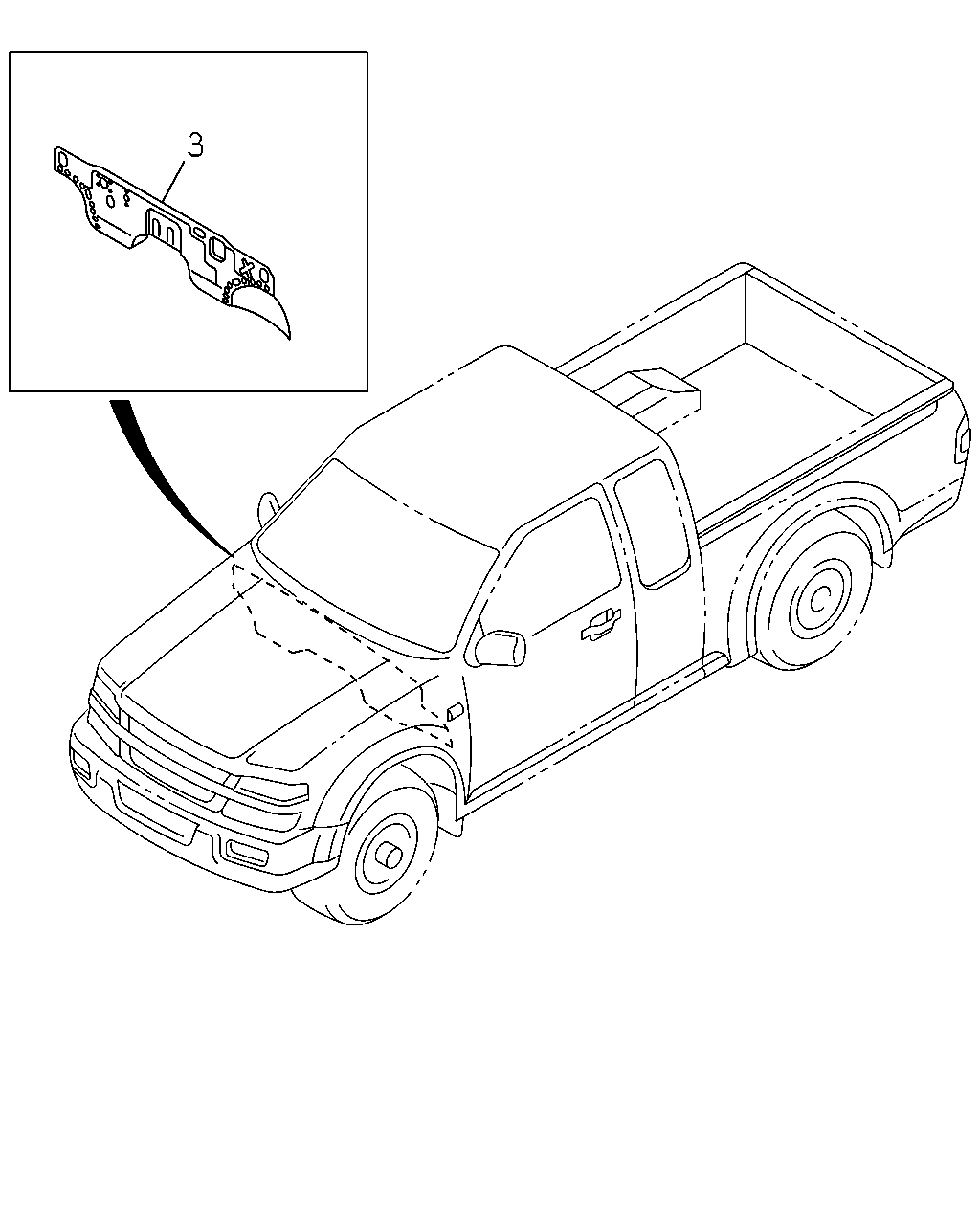

çizim 117818
3
BalonParca AdiParca NoAdetTipApplied Date A B C D E
3 16.550 PANEL; SUB,DASH LWR
DRIVER SIDE FOOT REST<7NU> THA 		8-97365-436-1 01 1 0404-0404 ● ● ●
3 16.550 PANEL; SUB,DASH LWR
THA 		8-97365-436-1 01 1 0404-0404 ● ●
3 16.550 PANEL; SUB,DASH LWR
DRIVER SIDE FOOT REST<7NU> THA 		8-97381-187-0 01 1 0404-0409 ● ● ●
3 16.550 PANEL; SUB,DASH LWR
THA 		8-97381-187-0 01 1 0404-0409 ● ●
3 16.550 PANEL; SUB,DASH LWR
DRIVER SIDE FOOT REST<7NU> THA 		8-97381-187-0 01 1 0410-0503 ● ●
3 16.550 PANEL; SUB,DASH LWR
THA 		8-97381-187-0 01 1 0410-0503 ● ● ●
3 16.550 PANEL; SUB,DASH LWR
DRIVER SIDE FOOT REST<7NU> THA 		8-98009-007-0 01 1 0504-0509 ● ●
3 16.550 PANEL; SUB,DASH LWR
THA 		8-98009-007-0 01 1 0504-0509 ● ● ●
3 16.550 PANEL; SUB,DASH LWR
DRIVER SIDE FOOT REST<7NU> THA 		8-98029-283-0 01 1 0510-0609 ● ●
3 16.550 PANEL; SUB,DASH LWR
THA 		8-98029-283-0 01 1 0510-0609 ● ● ●
3 16.550 PANEL; SUB,DASH LWR
THA 		8-98029-283-0 01 1 0610-0701 ● ● ● ●
3 16.550 PANEL; SUB,DASH LWR
DRIVER SIDE FOOT REST<7NU> THA 		8-98029-283-0 01 1 0610-0701 ●
3 16.550 PANEL; SUB,DASH LWR
THA 		8-98073-279-0 01 1 0702-0709 ● ● ● ●
3 16.550 PANEL; SUB,DASH LWR
DRIVER SIDE FOOT REST<7NU> THA 		8-98073-279-0 01 1 0702-0709 ●
3 16.550 PANEL; SUB,DASH LWR
THA 		8-98073-279-0 01 1 0710-0809 ● ● ● ● ●
3 16.550 PANEL; SUB,DASH LWR
DRIVER SIDE FOOT REST<7NU> THA 		8-98073-279-0 01 1 0810-0910 ● ●
3 16.550 PANEL; SUB,DASH LWR
THA 		8-98073-279-0 01 1 0810-0910 ● ● ●
3 16.550 PANEL; SUB,DASH LWR
THA 		8-98073-279-0 01 1 0911- ● ● ● ● ●
3 16.550 PANEL; SUB,DASH LWR
EXC. DRIVER SIDE FOOT REST<7NU> THA 		8-97365-437-1 01 1 0404-0404 ● ● ●
3 16.550 PANEL; SUB,DASH LWR
EXC. DRIVER SIDE FOOT REST<7NU> THA 		8-97381-188-0 01 1 0404-0409 ● ● ●
3 16.550 PANEL; SUB,DASH LWR
EXC. DRIVER SIDE FOOT REST<7NU> THA 		8-97381-188-0 01 1 0410-0503 ● ●
3 16.550 PANEL; SUB,DASH LWR
EXC. DRIVER SIDE FOOT REST<7NU> THA 		8-98009-006-0 01 1 0504-0509 ● ●
3 16.550 PANEL; SUB,DASH LWR
EXC. DRIVER SIDE FOOT REST<7NU> THA 		8-98029-282-0 01 1 0510-0609 ● ●
3 16.550 PANEL; SUB,DASH LWR
EXC. DRIVER SIDE FOOT REST<7NU> THA 		8-98029-282-0 01 1 0610-0701 ●
3 16.550 PANEL; SUB,DASH LWR
EXC. DRIVER SIDE FOOT REST<7NU> THA 		8-98073-278-0 01 1 0702-0709 ●
